A basic introduction to building the presentation layer in CrowdFusion.

1. CrowdFusion
The Front-end Edition, Part I
Red Tettemer Interactive, 3/19/10
Linus Graybill | lgraybill@redtettemer.com | @graybill

2. Today’s Edumacation
Use what you already know to create themes for
CrowdFusion
Theme folder structure
Using CSS, JavaScript, images, and Flash
Demystifying the CrowdFusion template language

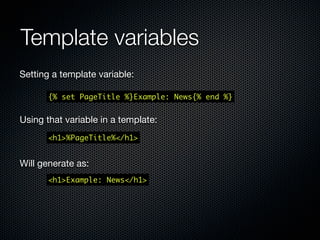

Setting and getting a template variable

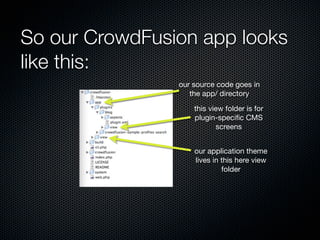

3. So our CrowdFusion app looks
like this:
our source code goes in
the app/ directory
this view folder is for
plugin-specific CMS
screens
our application theme
lives in this here view
folder

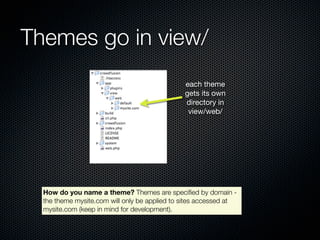

4. Themes go in view/
each theme
gets its own
directory in
view/web/
How do you name a theme? Themes are specified by domain -
the theme mysite.com will only be applied to sites accessed at
mysite.com (keep in mind for development).
Note: Subdomains are supported, so you can have two themes,
dev.mysite.com (for development) and mysite.com (for production)

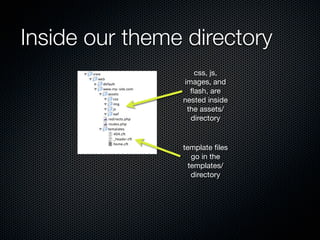

5. Inside our theme directory
css, js,
images, and
flash, are
nested inside
the assets/
directory
template files
go in the
templates/
directory

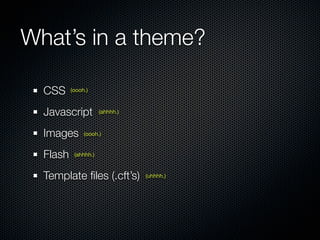

6. What’s in a theme?
CSS (oooh.)
Javascript (ahhhh.)
Images (oooh.)
Flash (ahhhh.)
Template files (.cft’s) (uhhhh.)

7. Basic theme concepts
A default theme needs to exists because it’s your
fallback.
For example: If you don’t specify a 404.cft template in
your theme, default/404.cft will be called in its place.
Themes are assigned based on domain name
Why? CrowdFusion is optimized for multiple sites running
from the same CMS.

8. Basic theme concepts
All code to be processed by CrowdFusion is
wrapped in {% ... %}
{% if Data:#continued-contents %}
<p><a href="%RecordLink%">Read more</a></p>
{% endif %}
We reference a CrowdFusion
A CrowdFusion “if” block is written as:
variable by wrapping the
{% if ... %} ... {% endif %}
variable in %...%

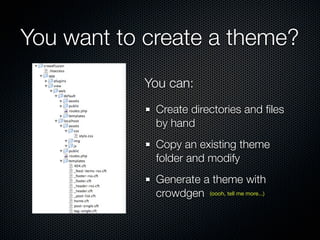

9. You want to create a theme?
You can:
Create directories and files
by hand
Copy an existing theme
folder and modify
Generate a theme with
crowdgen (oooh, tell me more...)

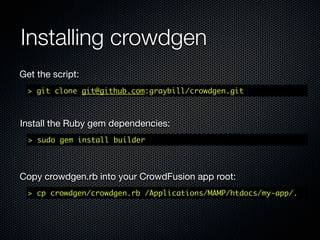

10. Installing crowdgen
Get the script:
> git clone git@github.com:graybill/crowdgen.git
Install the Ruby gem dependencies:
> sudo gem install builder
Copy crowdgen.rb into your CrowdFusion app root:
> cp crowdgen/crowdgen.rb /Applications/MAMP/htdocs/my-app/.

11. Using crowdgen
Generating a theme with crowdgen
> ruby ./crowdgen.rb theme www.my-site.com
Will create:
theme folder for www.my-site.com
assets folders for our css, js,
images, and flash
our basic home and 404
(page not found) templates

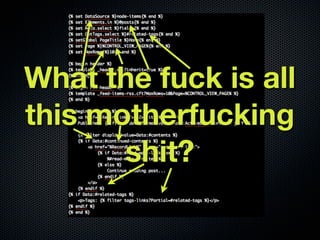

12. Okay, so let’s look at one of
these template files.

13. What the fuck is all
this motherfucking
shit?

14. The CrowdFusion templating language
.cft is the file extenstion
The .cft extension lets the compiler know to do stuff with
anything inside a {% ... %} tag. Otherwise it’s HTML all the
way.
content blocks are the foundation for displaying
content from the CMS
Anything you want to output as HTML to the page needs to
be inside a content block.

15. Content blocks
Five types of content blocks:
HTML to generate before looping through
header the main content.
Loops through ever item in our
contents data call and outputs that HTML.
Is called between every line of data
contents-inline generated in contents
HTML to generate after the contents blocks
footer have been completed
noresults Shows when no data is found
From the docs: All template blocks are optional, but there should be at
least one in order to render output; in the absence of any defined template
block, the system assumes that the entire template is enclosed in a contents
block.

16. How do you use a content block?
“{%” marks the
beginning of a “begin” initiates our content block
CrowdFusion block and “header” specifies the type of
content block we want
{% begin header %}
<h1>My Awesome Site</h1>
{% asset css?=css/screen.css %}
{% end %}
We tell CrowdFusion to close the
content block with {% end %}

17. Header content block
Contents content block
Footer content block

18. Well ain’t that inefficient.

19. Using partial templates
We can include our header code in a partial (_header.cft):
And then include that partial like this:

20. Oh, I know, you want
your pretty.

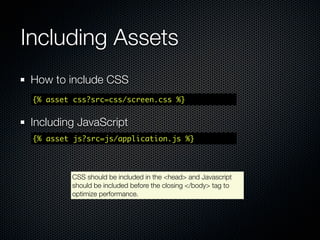

21. Including CSS & JS
Including stylesheets
{% asset css?src=css/screen.css %}
Including javascript
{% asset js?src=js/app.js %}

22. Including Images & Flash
Including images inline
<img src="{% asset img?src=img/logo.jpg %}" />
Including Flash inline
<embed src="{% asset version?src=swf/video.flv %}" />
Note: Since we’re using regular HTML tags, we can use all the tag attributes
we’re used to:
<img src="{% asset img?src=img/logo.jpg %}" class="myimage"
alt= "my image, yo" />

23. {% end %}
Hopefully you now have an idea how to create a basic
CrowdFusion theme
Next time we’ll look at pulling in data from the CMS

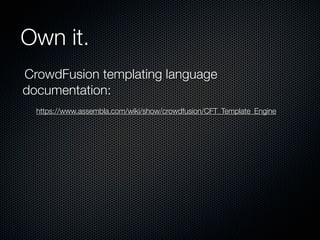

24. Own it.
Browse this, you’ll find stuff you care about:
https://www.assembla.com/wiki/show/crowdfusion/CFT_Template_Engine
Oh, and the crowdgen homepage
http://github.com/graybill/crowdgen
