The document provides step-by-step instructions for creating an Oracle label security policy. It describes creating a new policy called "test_policy" with a label column called "Test_column". It also outlines adding levels, compartments, groups to the policy, then adding a user called "HR" and assigning them privileges and enabling auditing for the new policy.

1. Dr.GIRIJA NARASIMHAN 1
Create Label Security

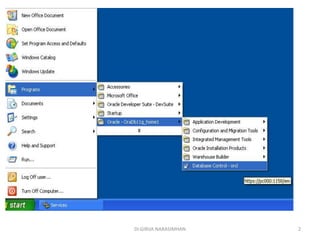

2. Dr.GIRIJA NARASIMHAN 2

3. Dr.GIRIJA NARASIMHAN 3

4. Dr.GIRIJA NARASIMHAN 4

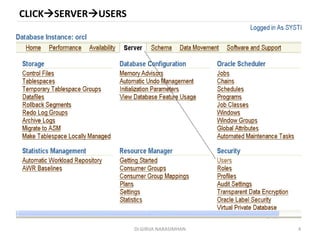

CLICKSERVERUSERS

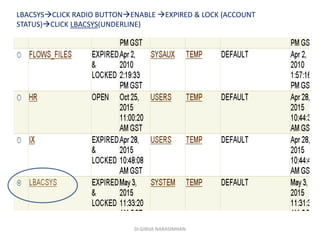

5. Dr.GIRIJA NARASIMHAN
LBACSYSCLICK RADIO BUTTONENABLE EXPIRED & LOCK (ACCOUNT
STATUS)CLICK LBACSYS(UNDERLINE)

6. Dr.GIRIJA NARASIMHAN 6

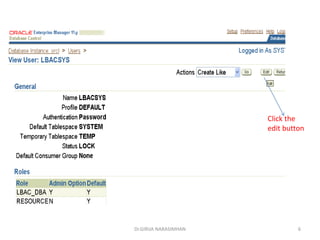

Click the
edit button

7. Dr.GIRIJA NARASIMHAN 7
Select “unlock” radio button
Click system privileges

8. Dr.GIRIJA NARASIMHAN 8

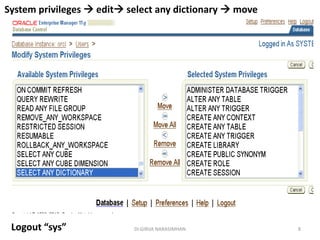

System privileges  edit select any dictionary  move
Logout “sys”

9. Dr.GIRIJA NARASIMHAN 9

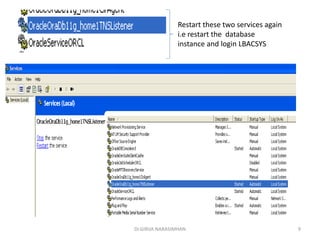

Restart these two services again
i.e restart the database
instance and login LBACSYS

10. Dr.GIRIJA NARASIMHAN 10
Again restart service 

11. Dr.GIRIJA NARASIMHAN 11

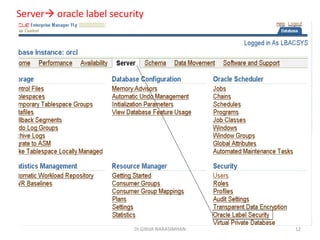

12. Dr.GIRIJA NARASIMHAN 12
Server oracle label security

13. Dr.GIRIJA NARASIMHAN
13
Click “create”
button for
creating new
policy

14. Dr.GIRIJA NARASIMHAN 14

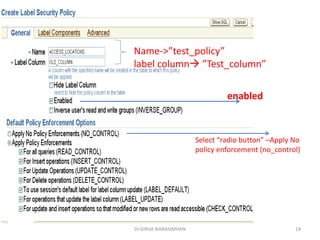

enabled
Select “radio button” –Apply No
policy enforcement (no_control)
Name->”test_policy”
label column ”Test_column”

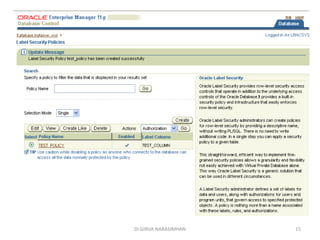

15. Dr.GIRIJA NARASIMHAN 15

16. Dr.GIRIJA NARASIMHAN 16

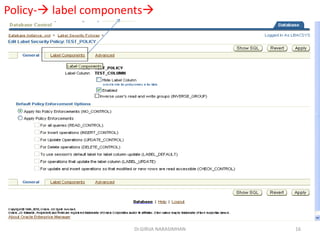

Policy- label components

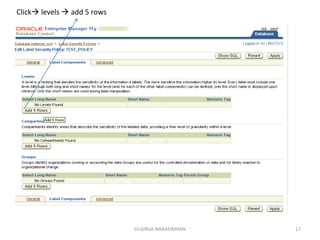

17. Dr.GIRIJA NARASIMHAN 17
Click levels  add 5 rows

18. Dr.GIRIJA NARASIMHAN 18

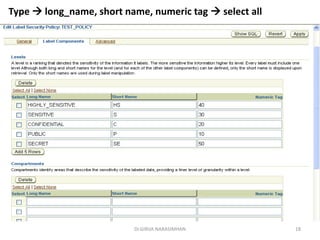

Type  long_name, short name, numeric tag  select all

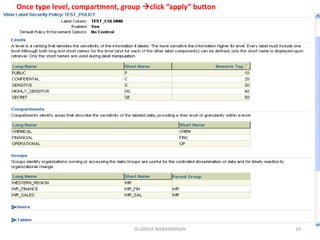

19. Dr.GIRIJA NARASIMHAN 19
Once type level, compartment, group click “apply” button

20. Dr.GIRIJA NARASIMHAN 20
Action Click “Data Label” and click “Go” button

21. Dr.GIRIJA NARASIMHAN 21

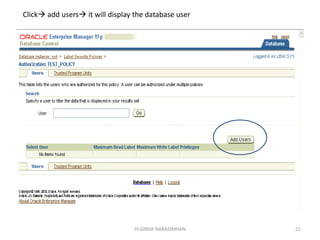

Click add users it will display the database user

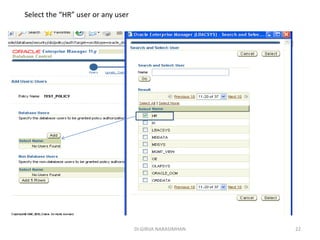

22. Dr.GIRIJA NARASIMHAN 22
Select the “HR” user or any user

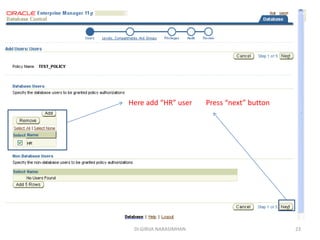

23. Dr.GIRIJA NARASIMHAN 23
Here add “HR” user Press “next” button

24. Dr.GIRIJA NARASIMHAN 24

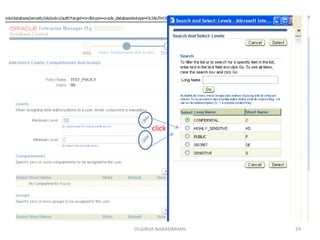

click

25. Dr.GIRIJA NARASIMHAN 25

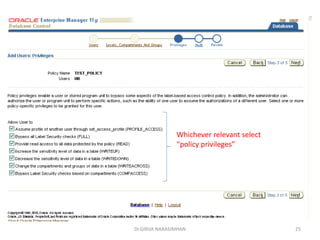

Whichever relevant select
“policy privileges”

26. Dr.GIRIJA NARASIMHAN 26

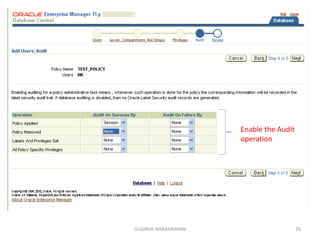

Enable the Audit
operation

27. Dr.GIRIJA NARASIMHAN 27

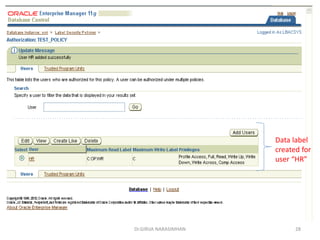

28. Dr.GIRIJA NARASIMHAN 28
Data label
created for
user “HR”
