1. Unit 2 Slowly Changing Dimension – SCD type 1 (Insert)
Dr. Girija Narasimhan 1
https://www.oercommons.org/authoring/28693-etl-using-pentaho-spoon-lecture-notes-ppt-exercise/2/view
https://www.oercommons.org/authoring/28550-etl-using-pentaho-spoon

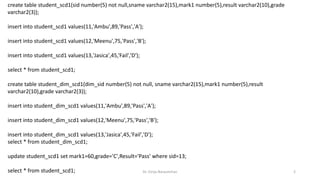

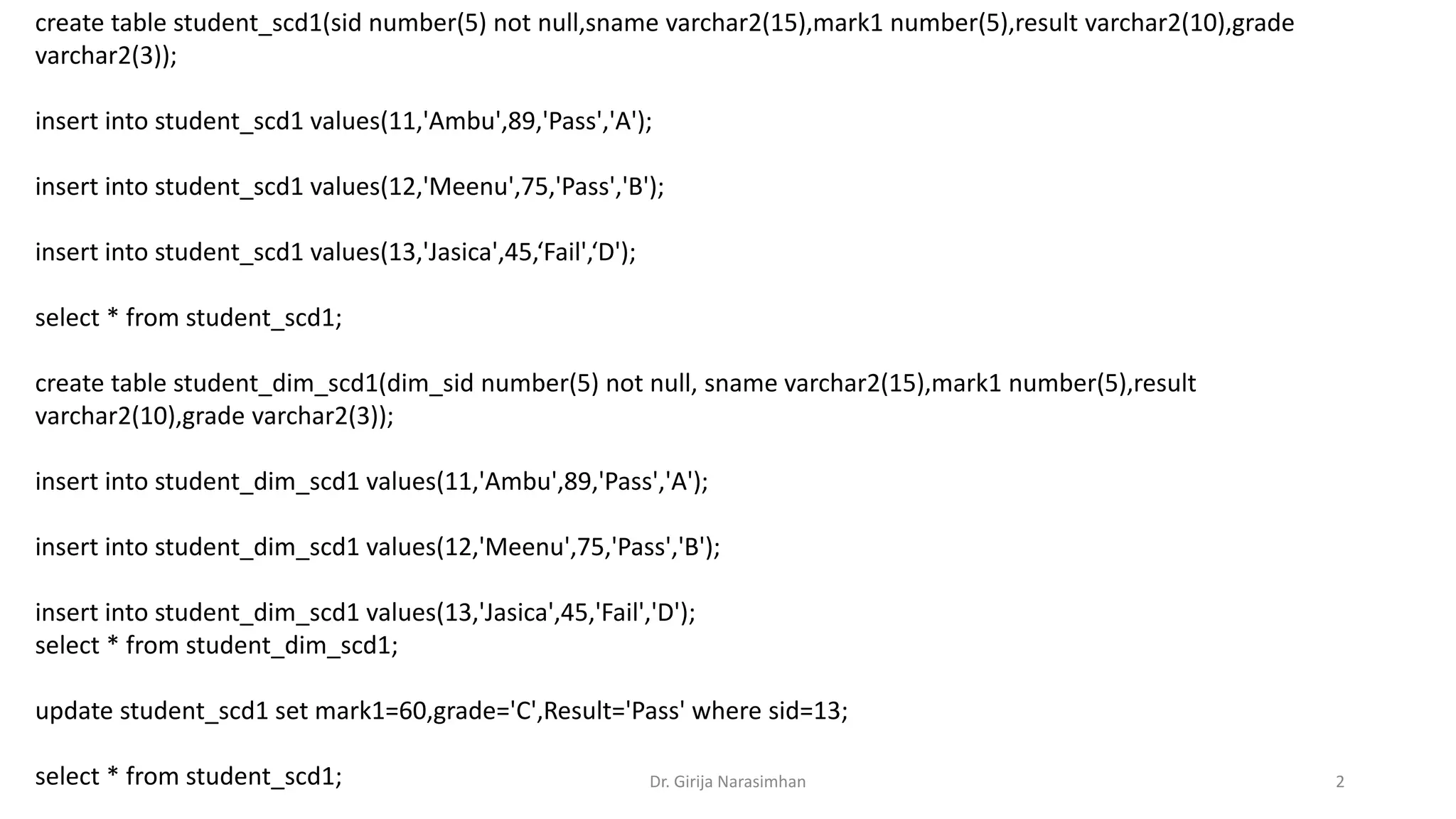

2. create table student_scd1(sid number(5) not null,sname varchar2(15),mark1 number(5),result varchar2(10),grade
varchar2(3));
insert into student_scd1 values(11,'Ambu',89,'Pass','A');
insert into student_scd1 values(12,'Meenu',75,'Pass','B');
insert into student_scd1 values(13,'Jasica',45,‘Fail',‘D');
select * from student_scd1;
create table student_dim_scd1(dim_sid number(5) not null, sname varchar2(15),mark1 number(5),result
varchar2(10),grade varchar2(3));
insert into student_dim_scd1 values(11,'Ambu',89,'Pass','A');
insert into student_dim_scd1 values(12,'Meenu',75,'Pass','B');
insert into student_dim_scd1 values(13,'Jasica',45,'Fail','D');
select * from student_dim_scd1;
update student_scd1 set mark1=60,grade='C',Result='Pass' where sid=13;
select * from student_scd1; Dr. Girija Narasimhan 2

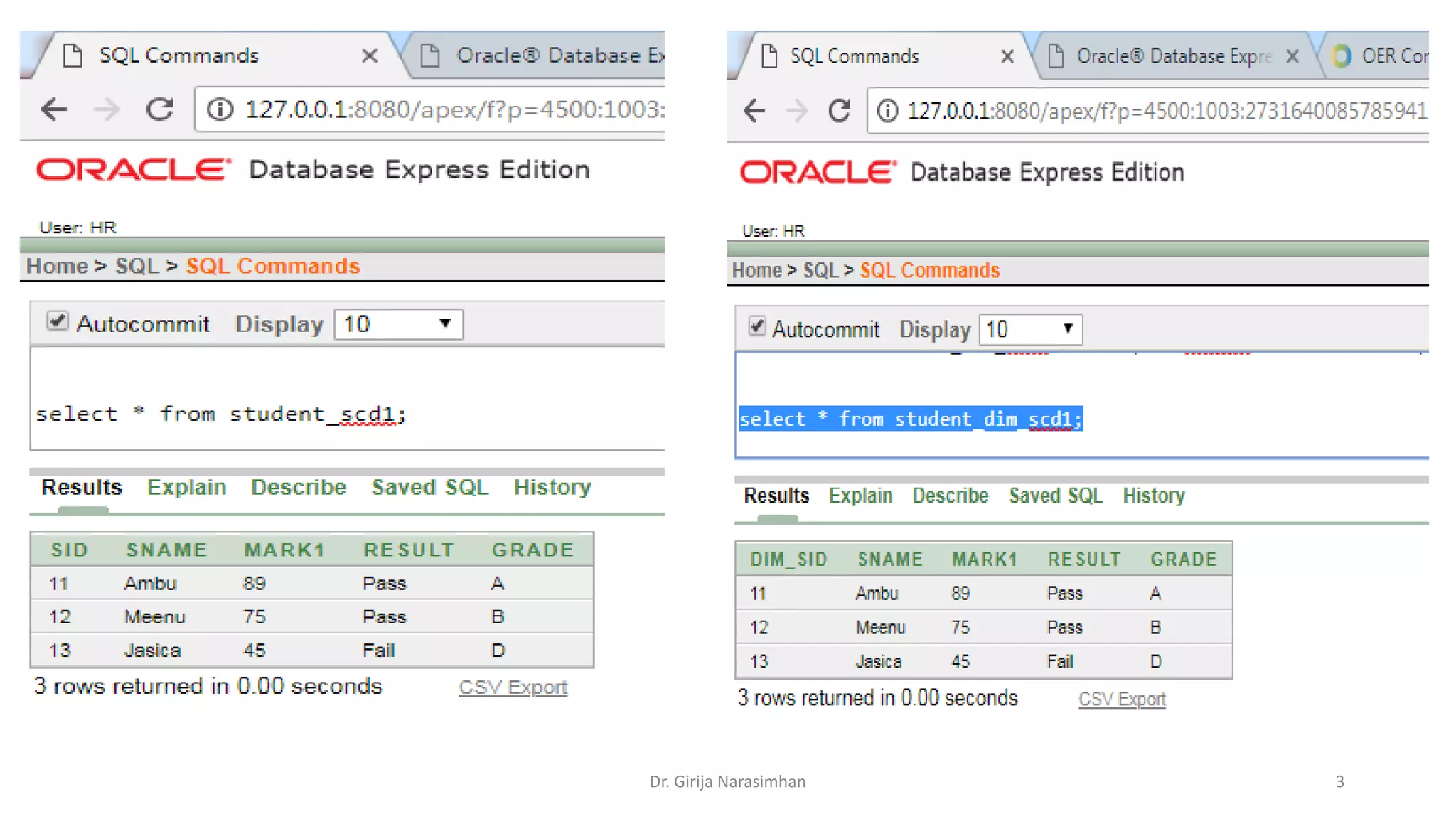

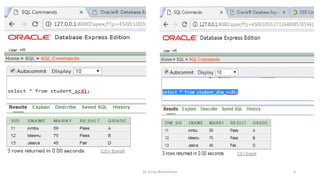

3. Dr. Girija Narasimhan 3

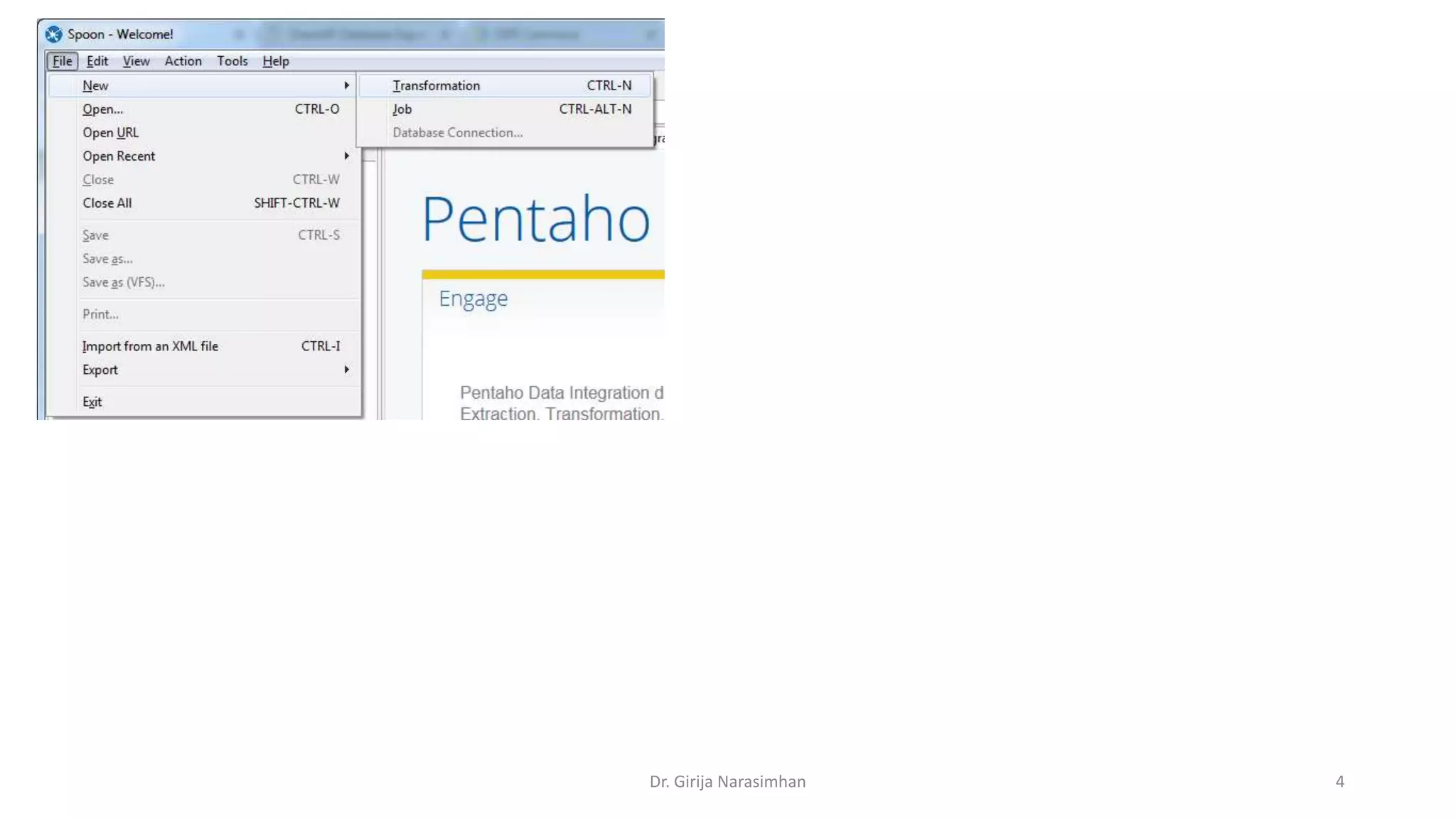

4. Dr. Girija Narasimhan 4

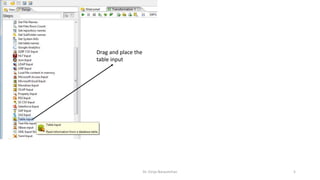

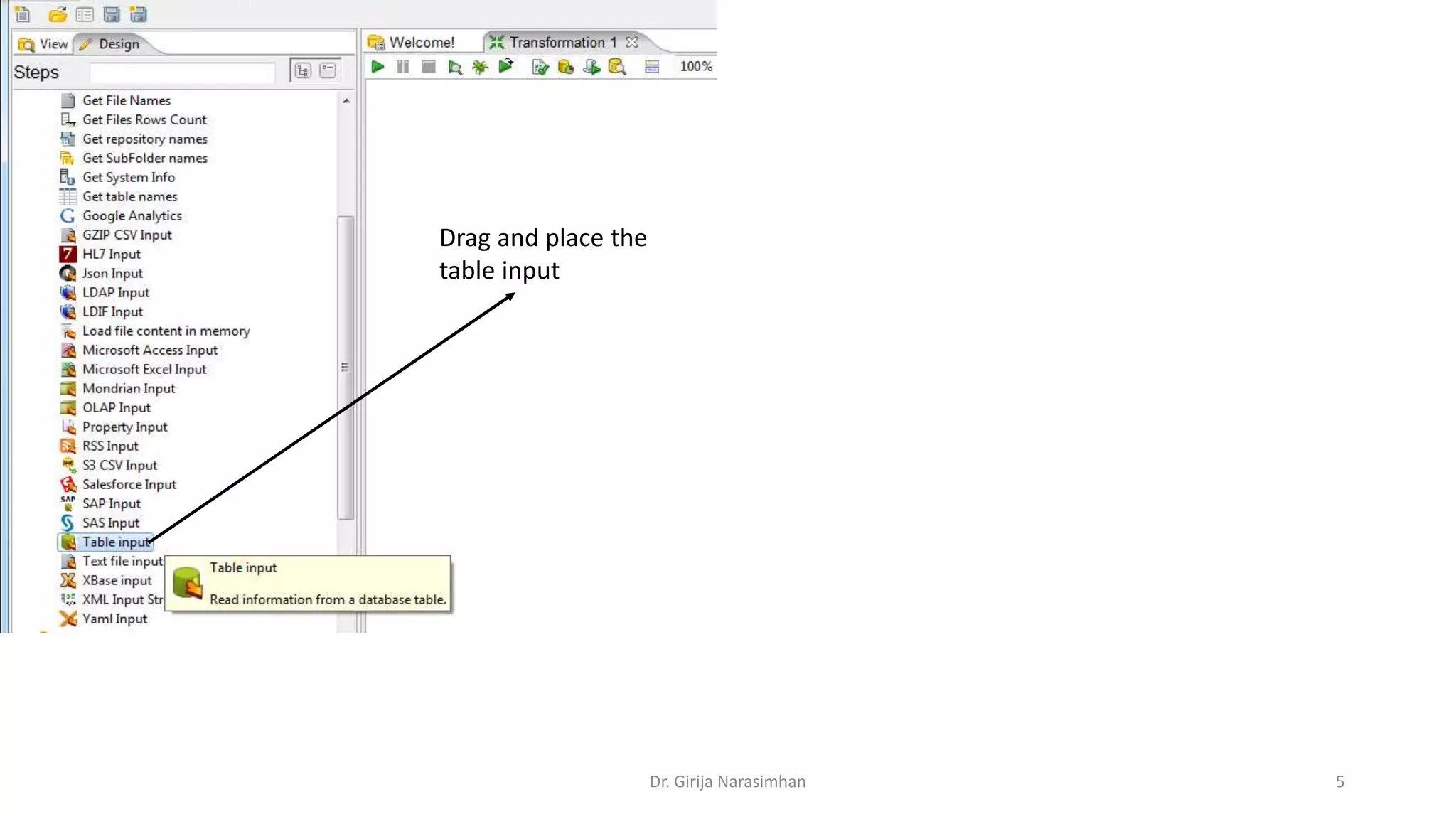

5. Drag and place the
table input
Dr. Girija Narasimhan 5

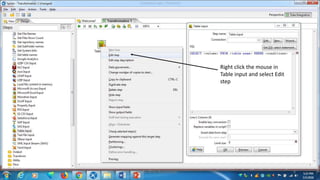

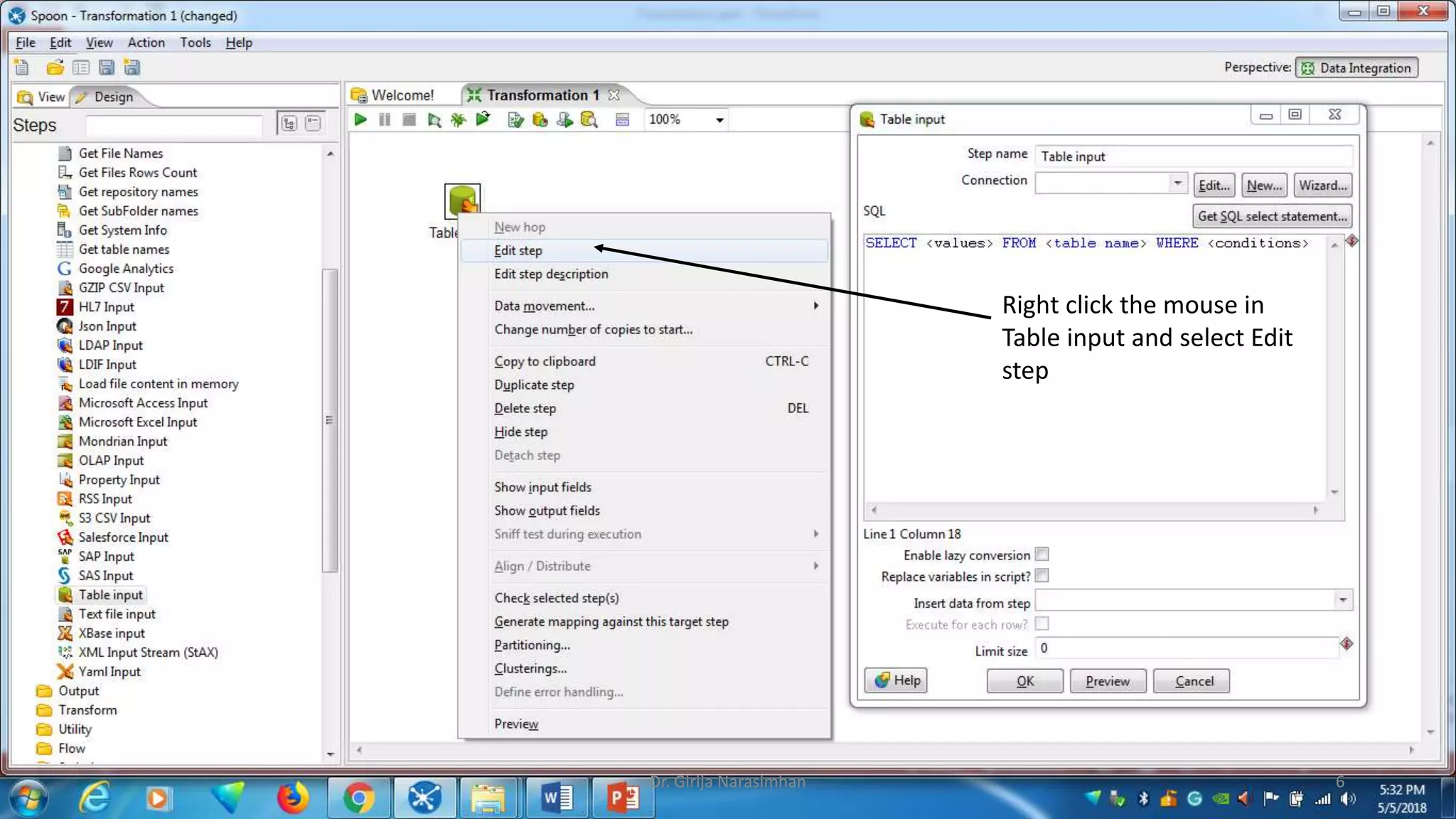

6. Right click the mouse in
Table input and select Edit
step
Dr. Girija Narasimhan 6

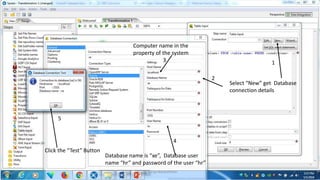

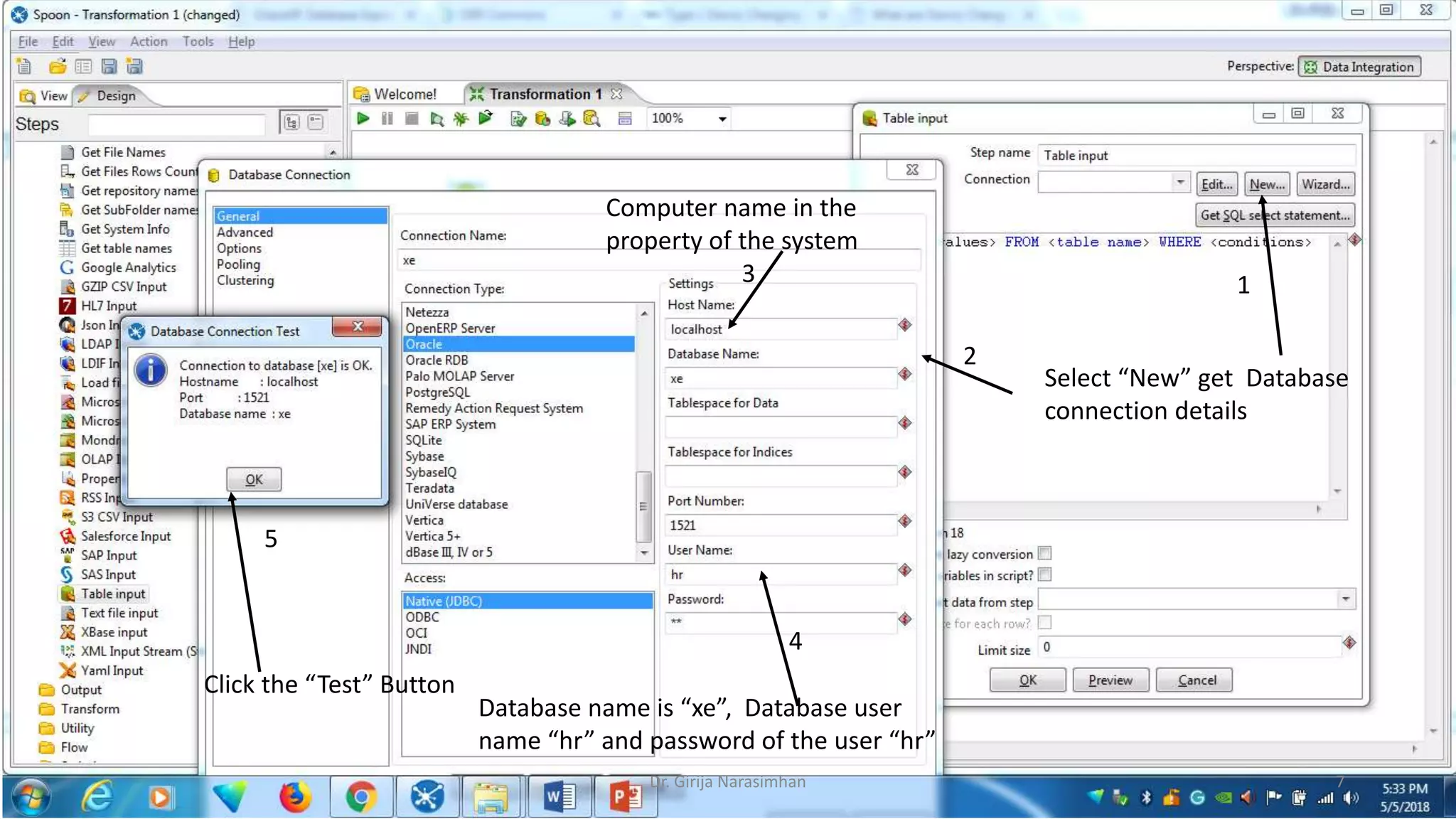

7. Select “New” get Database
connection details
Computer name in the
property of the system
Click the “Test” Button
Database name is “xe”, Database user
name “hr” and password of the user “hr”
13
4
2
5
Dr. Girija Narasimhan 7

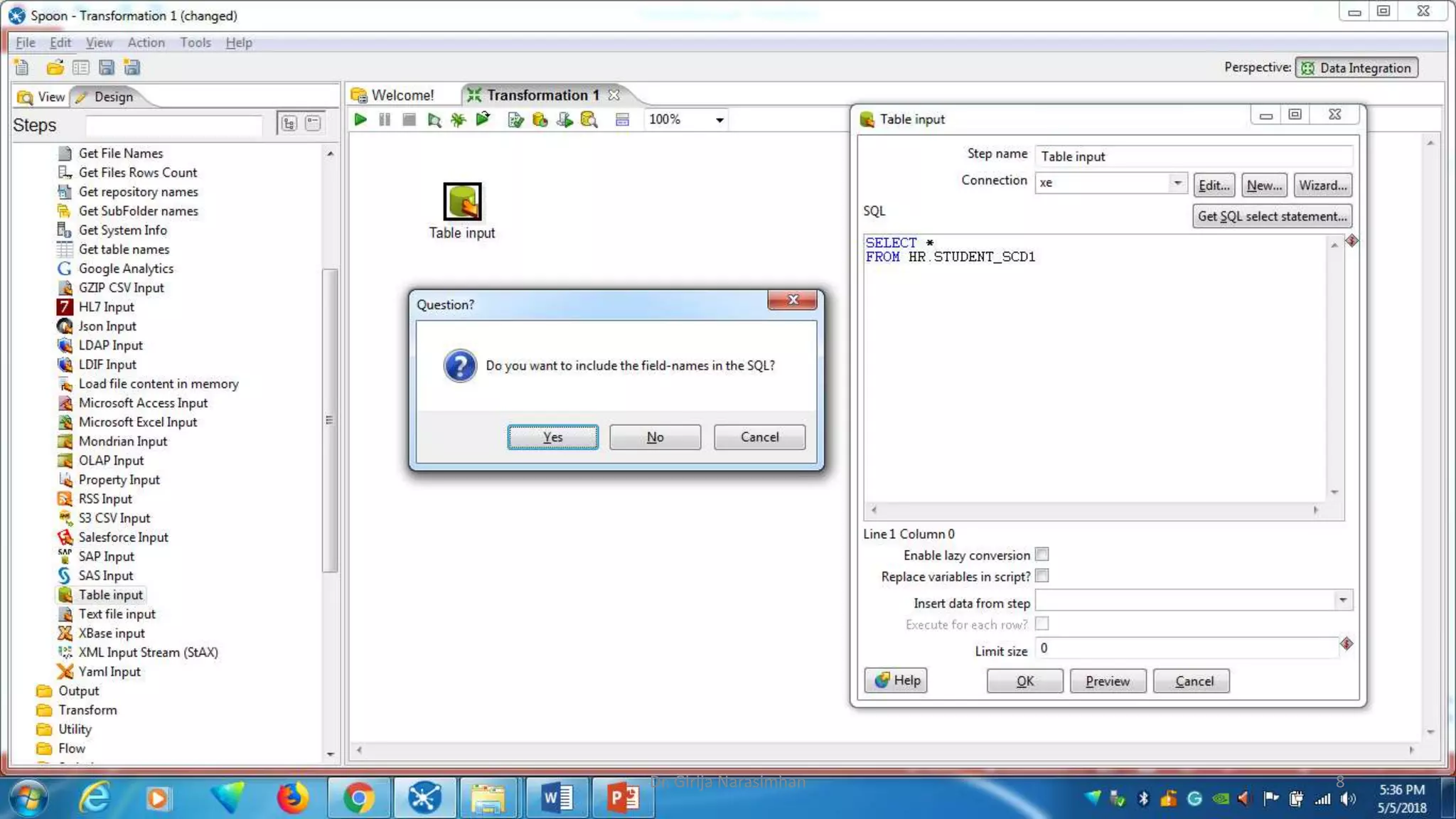

8. Dr. Girija Narasimhan 8

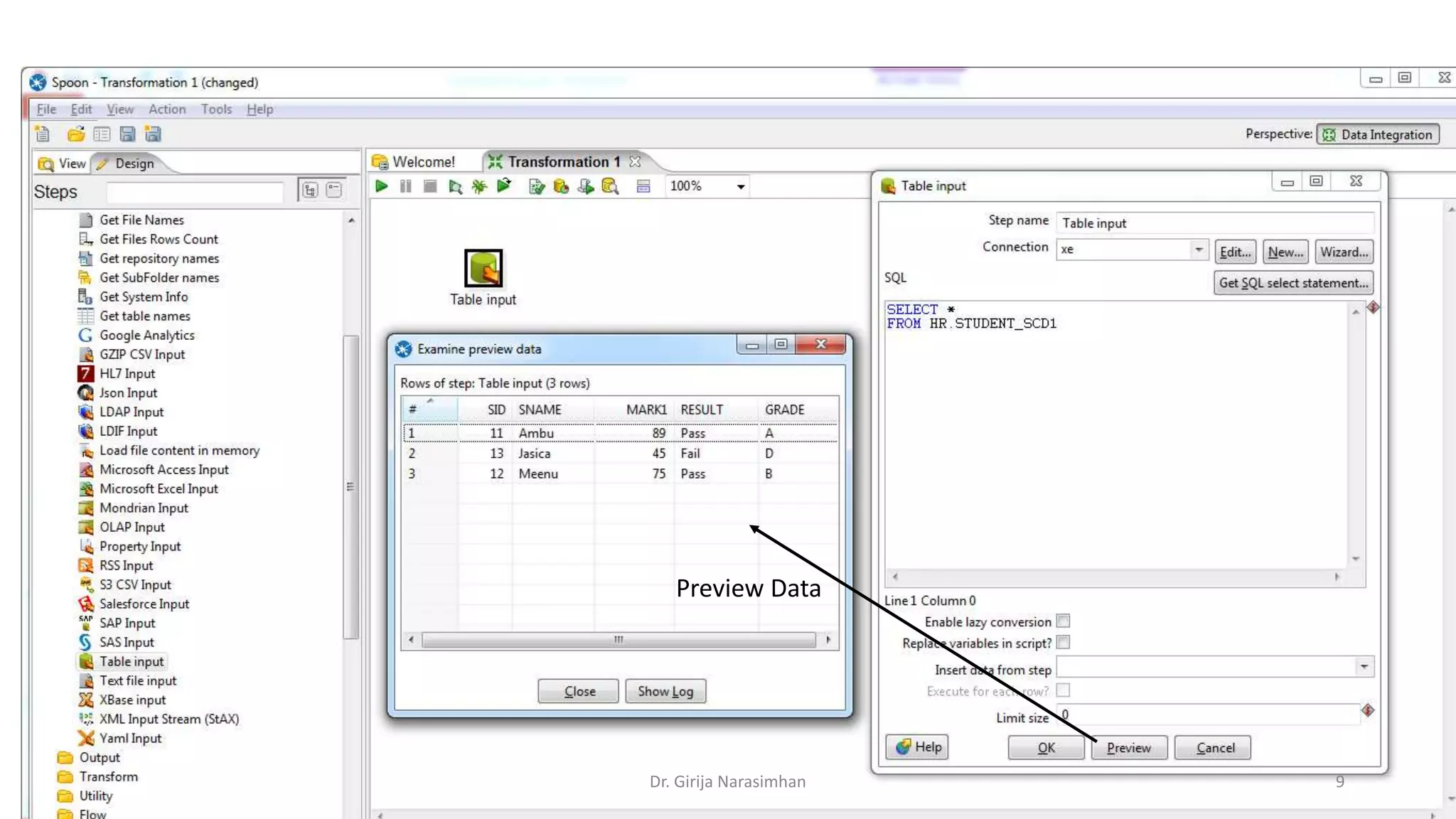

9. Preview Data
Dr. Girija Narasimhan 9

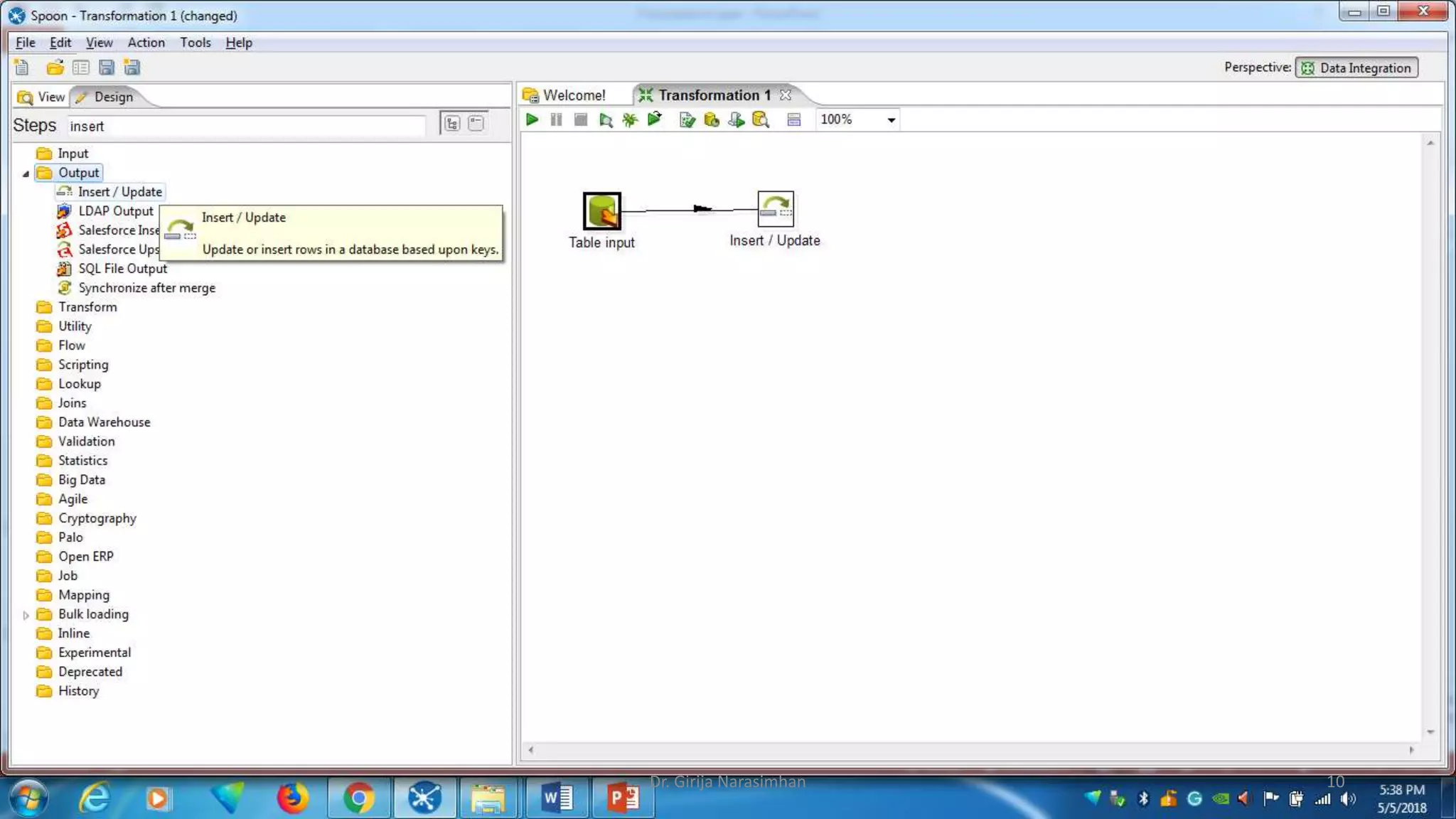

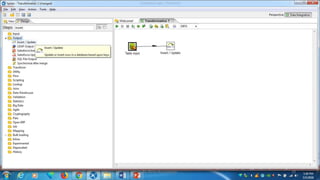

10. Dr. Girija Narasimhan 10

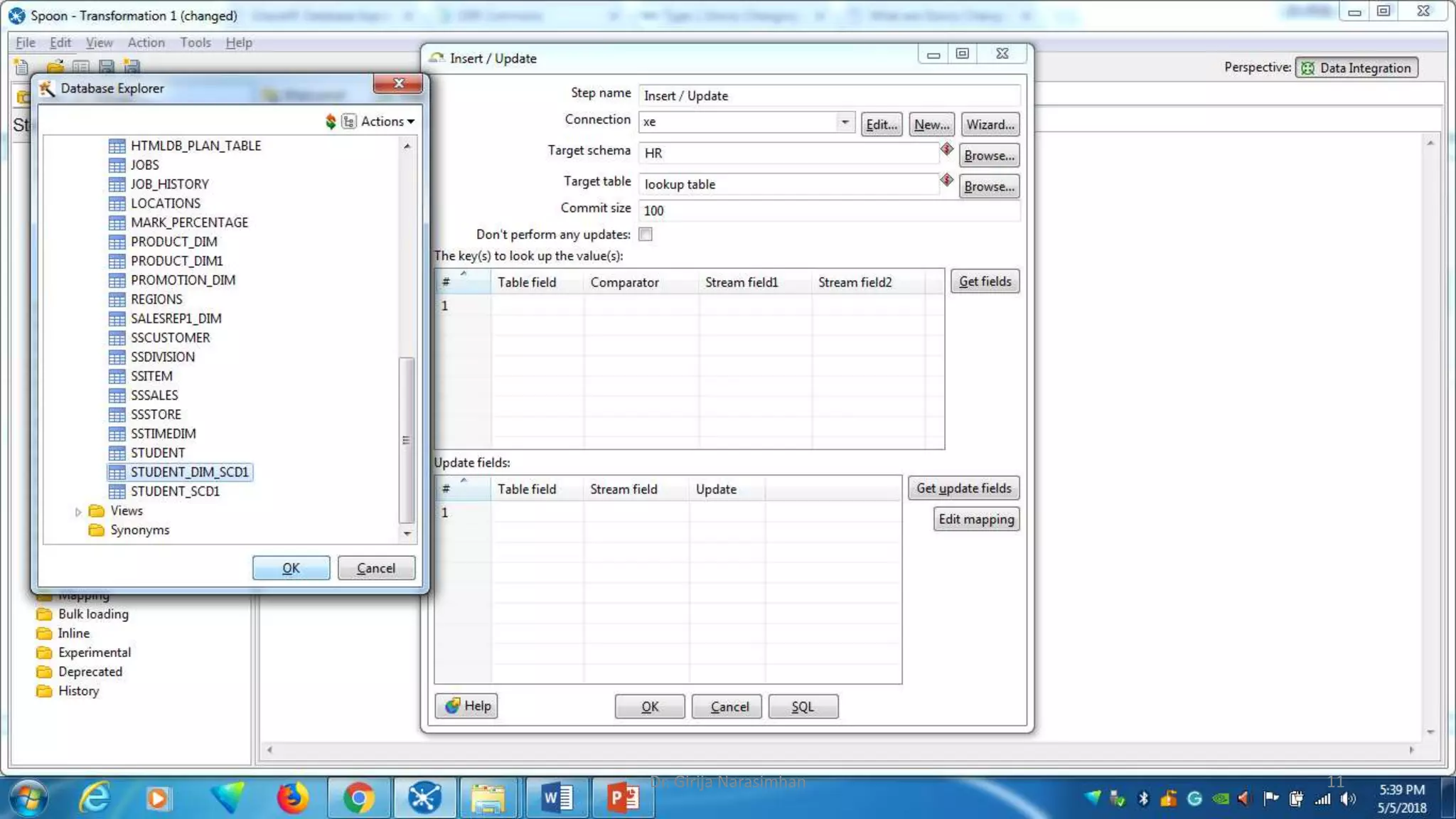

11. Dr. Girija Narasimhan 11

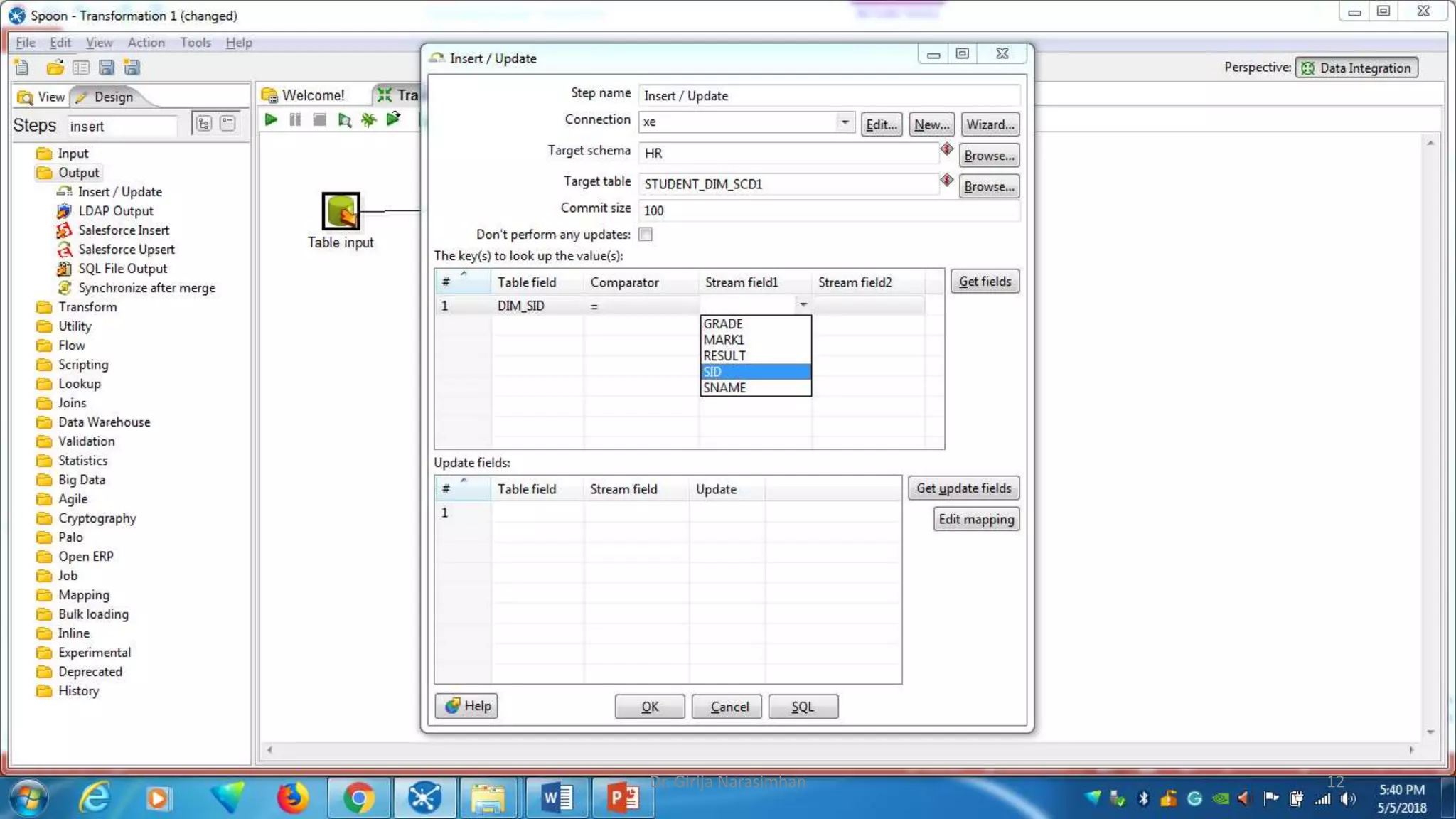

12. Dr. Girija Narasimhan 12

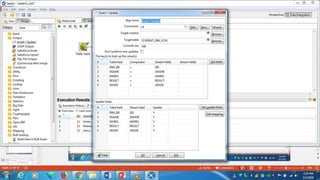

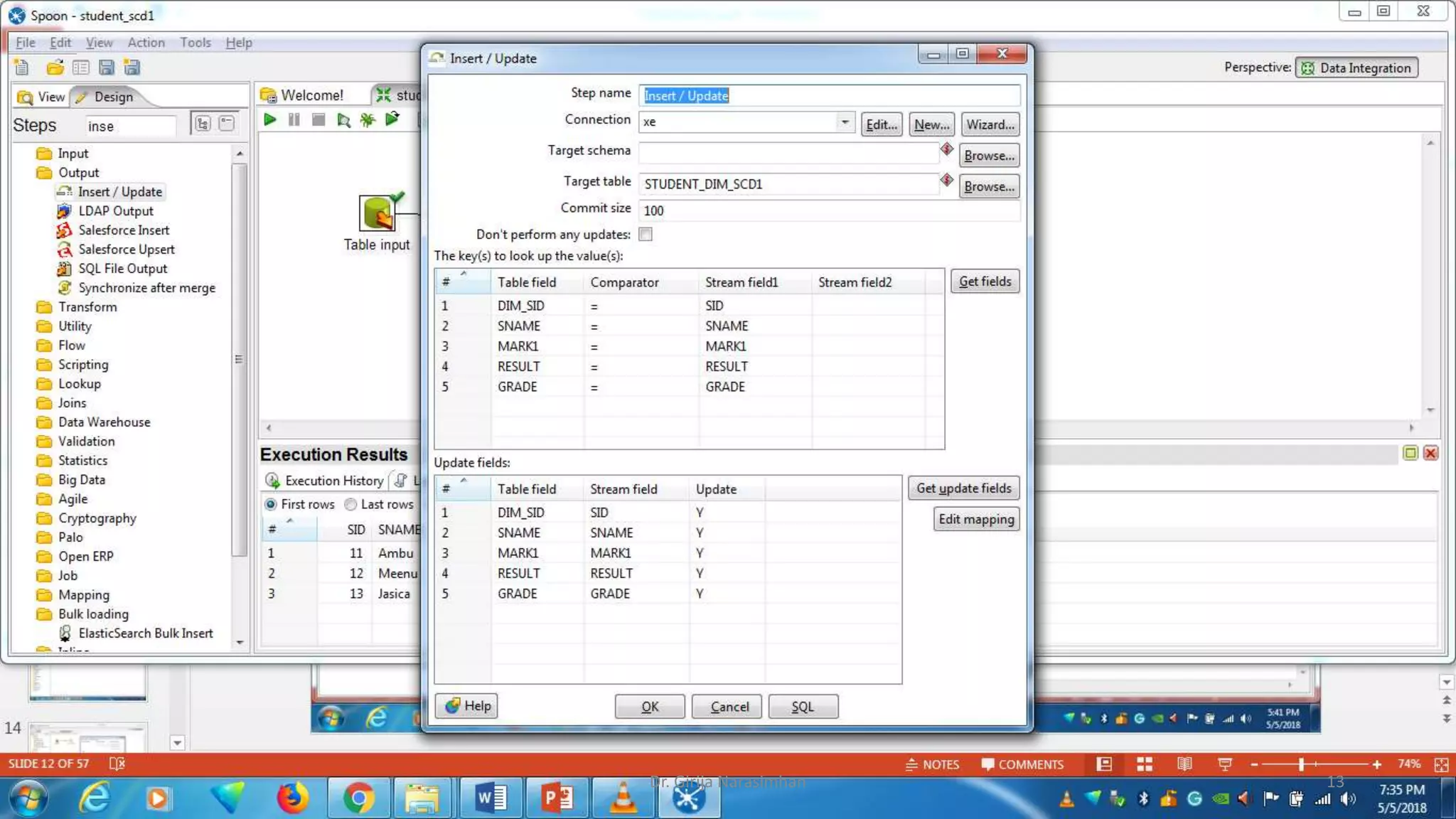

13. Dr. Girija Narasimhan 13

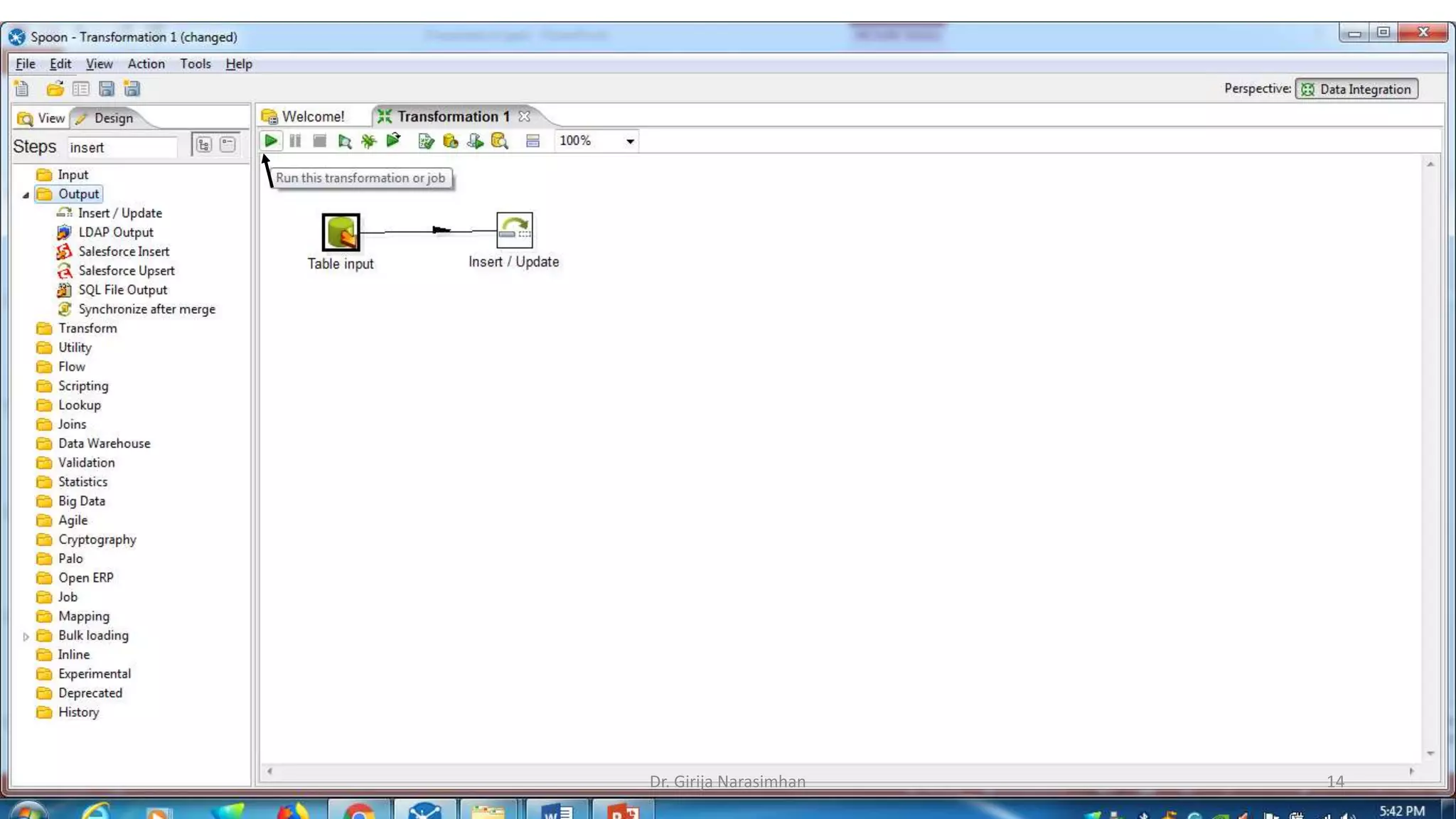

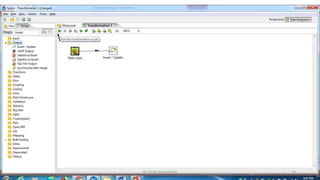

14. Dr. Girija Narasimhan 14

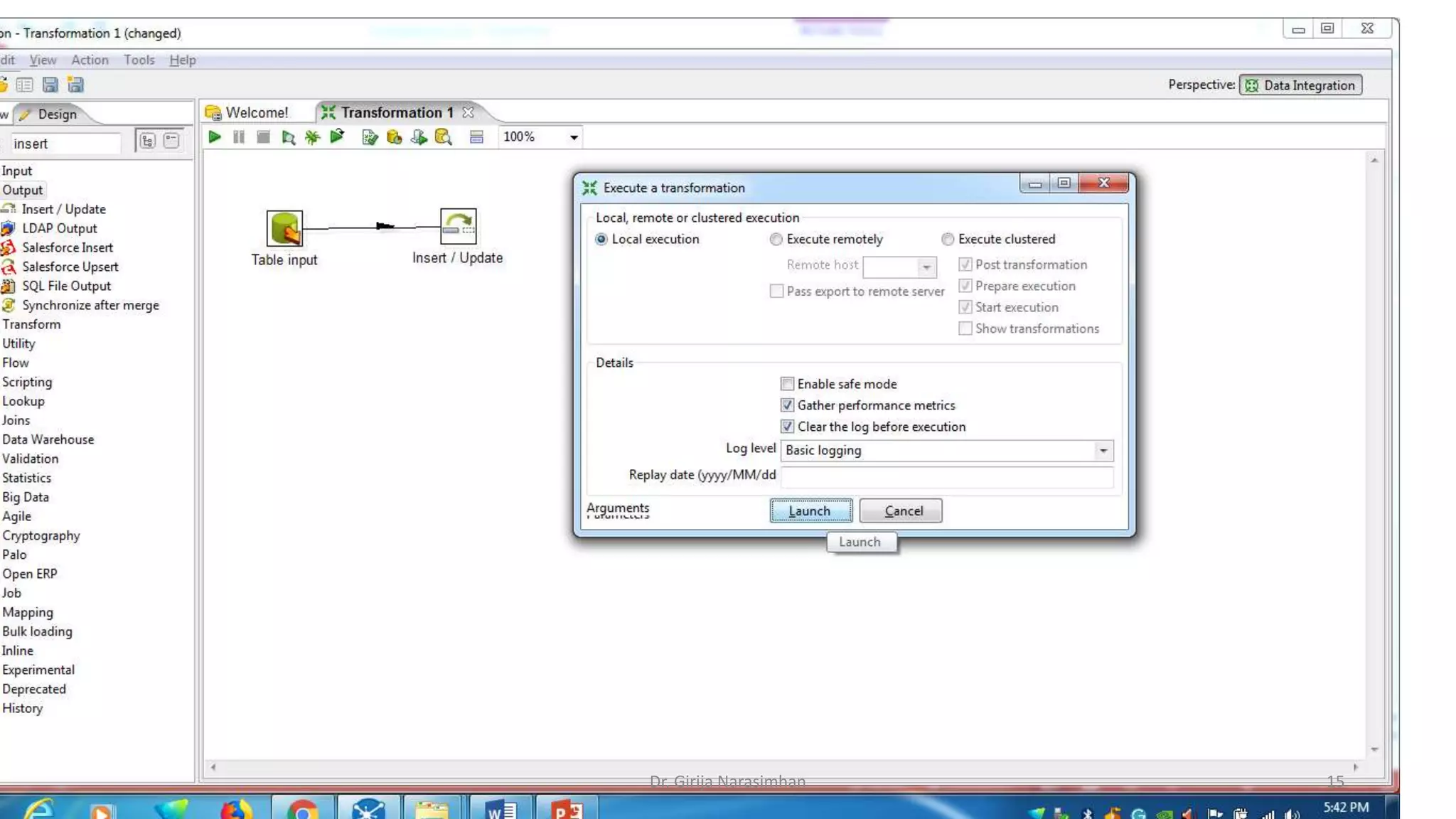

15. Dr. Girija Narasimhan 15

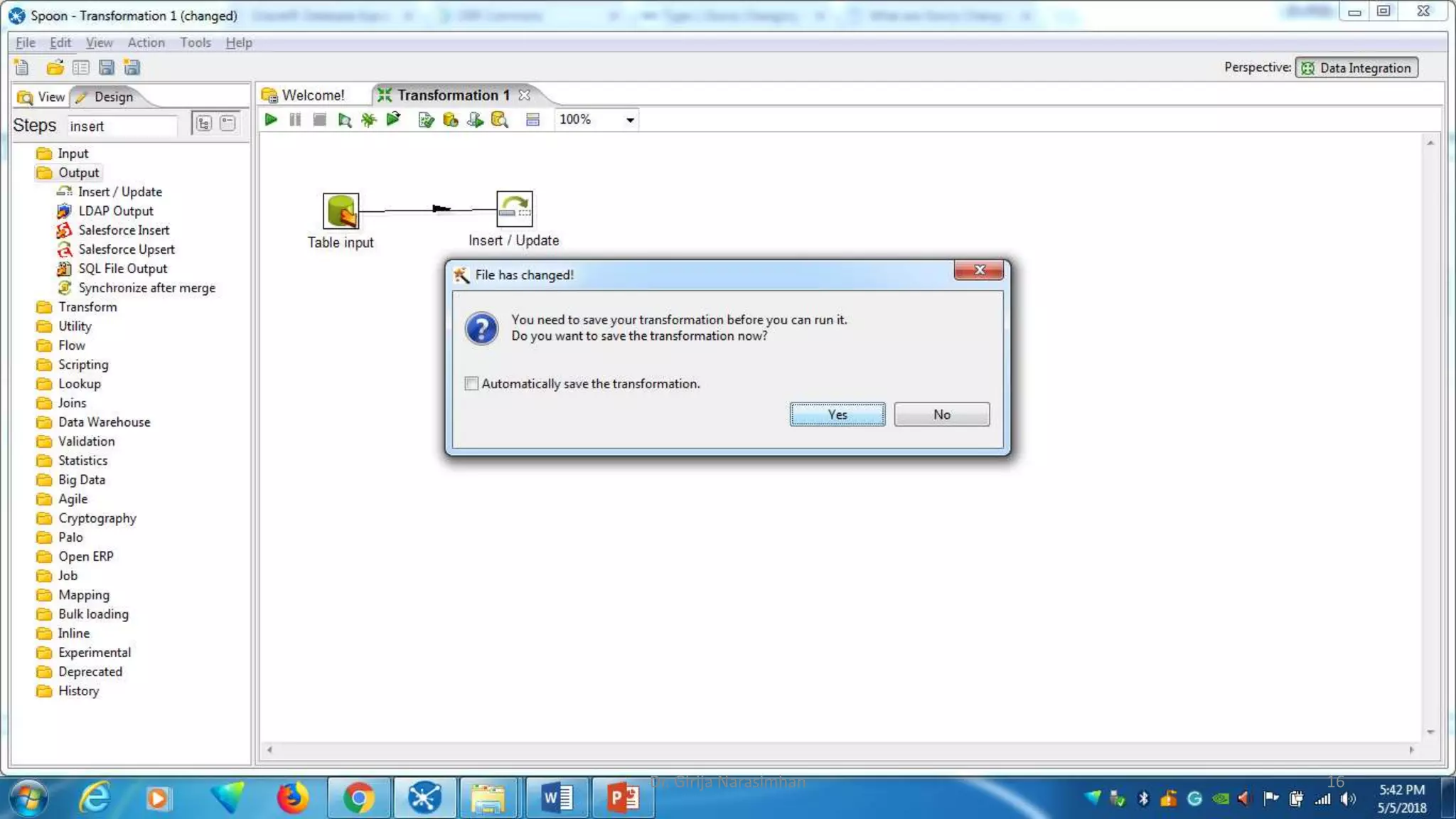

16. Dr. Girija Narasimhan 16

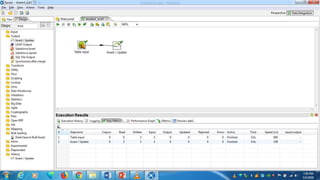

17. Dr. Girija Narasimhan 17

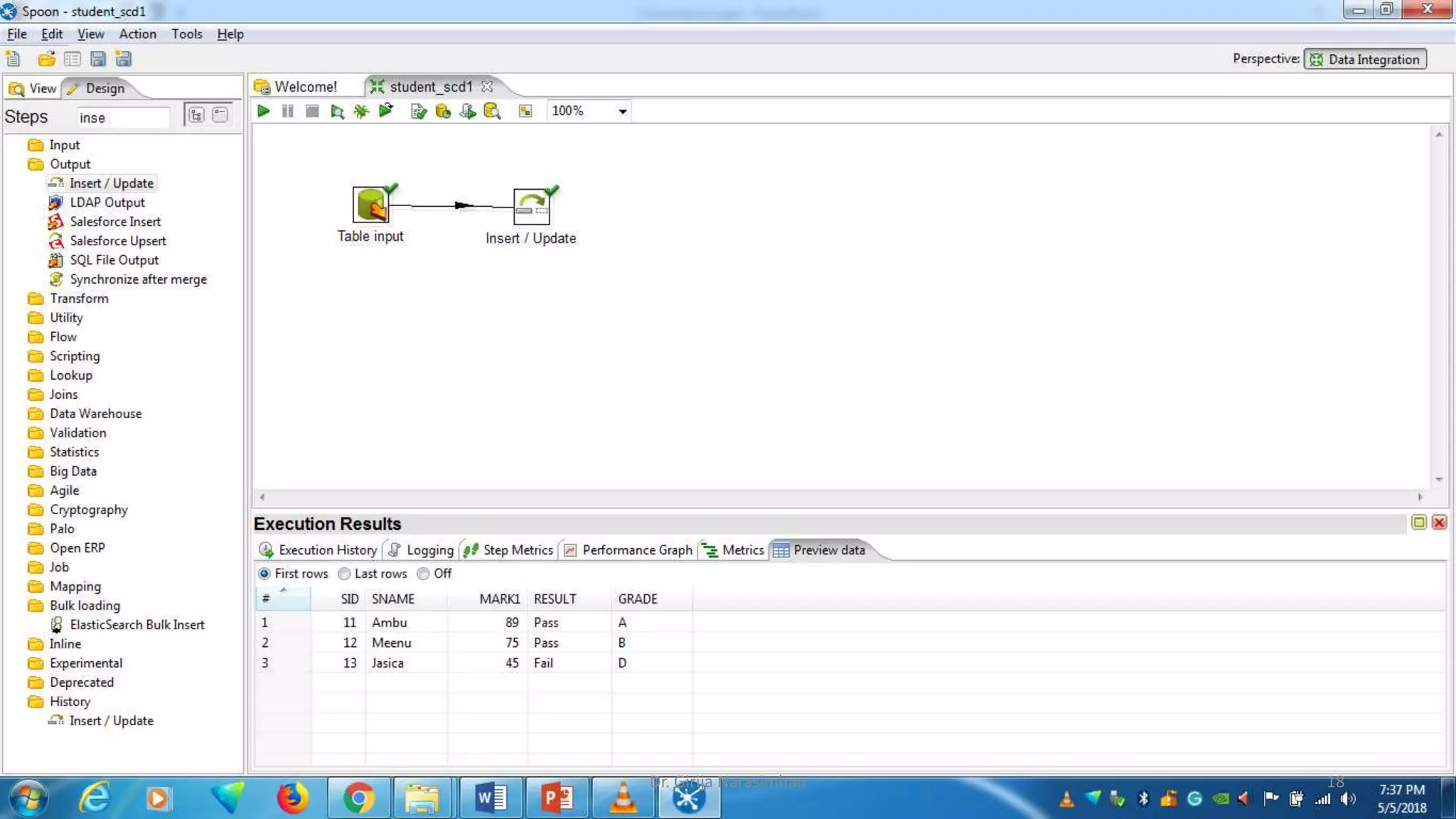

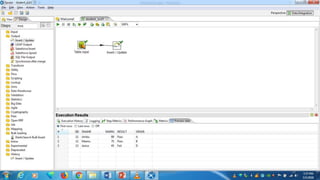

18. Dr. Girija Narasimhan 18

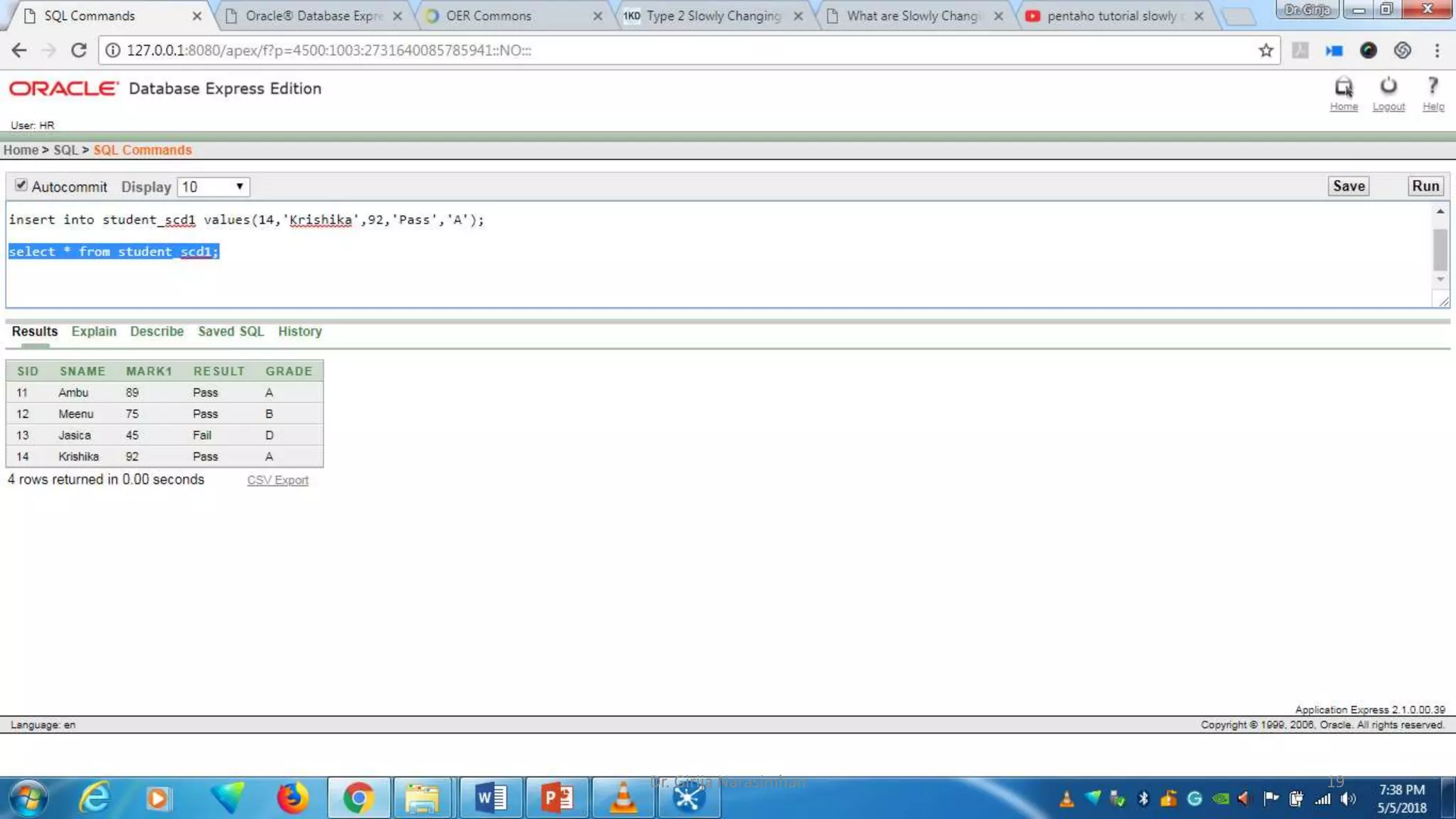

19. Dr. Girija Narasimhan 19

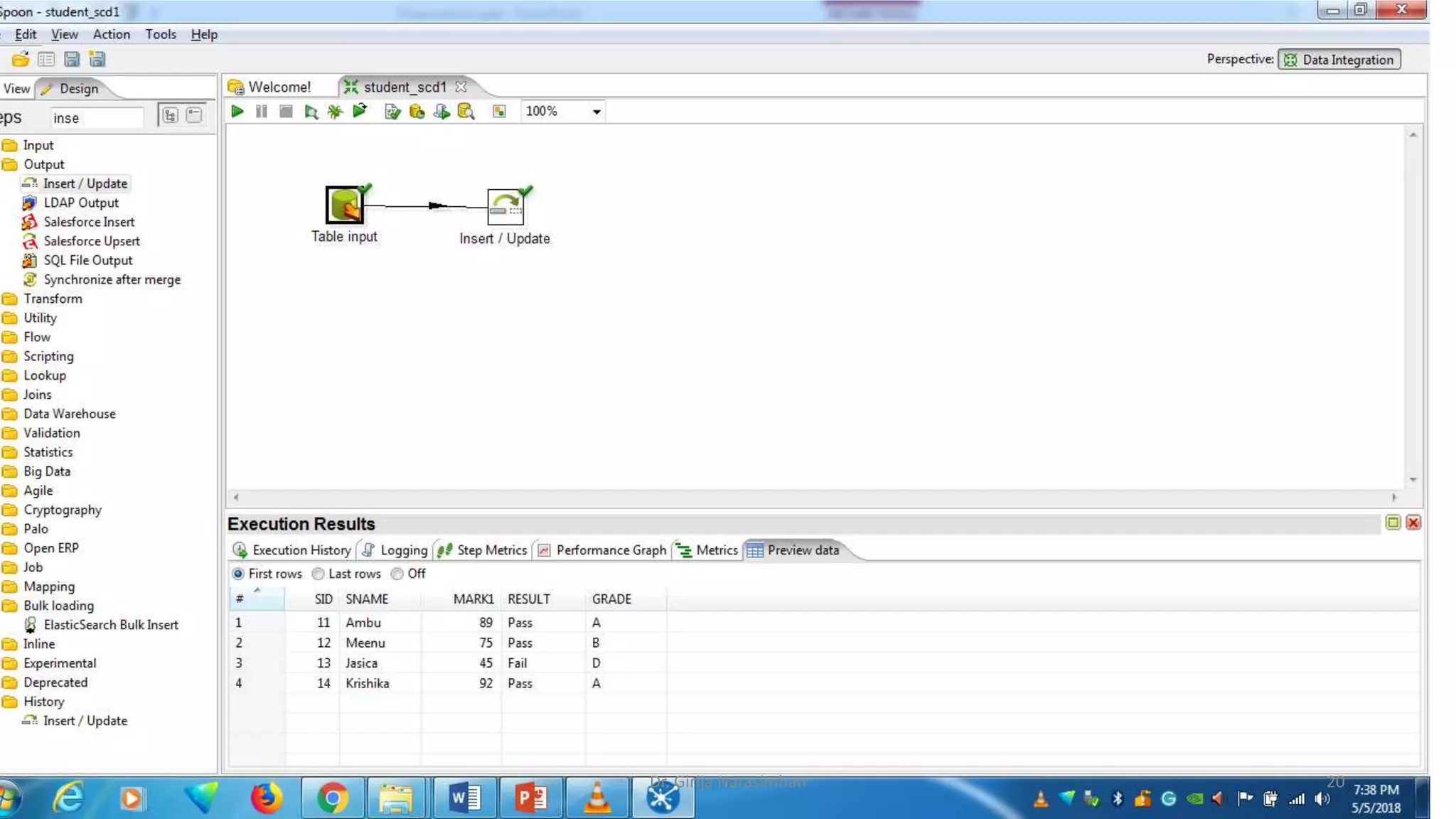

20. Dr. Girija Narasimhan 20

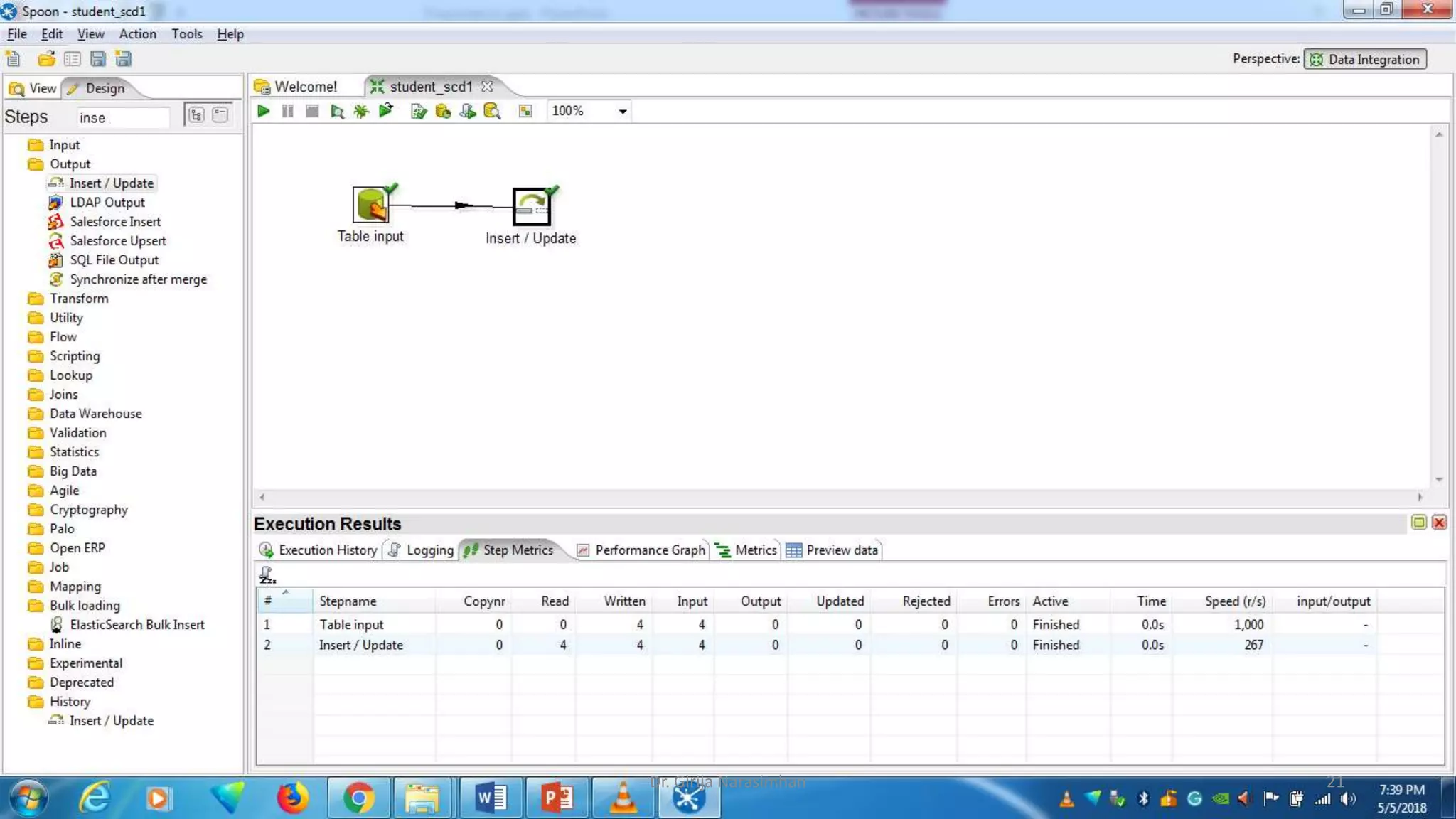

21. Dr. Girija Narasimhan 21

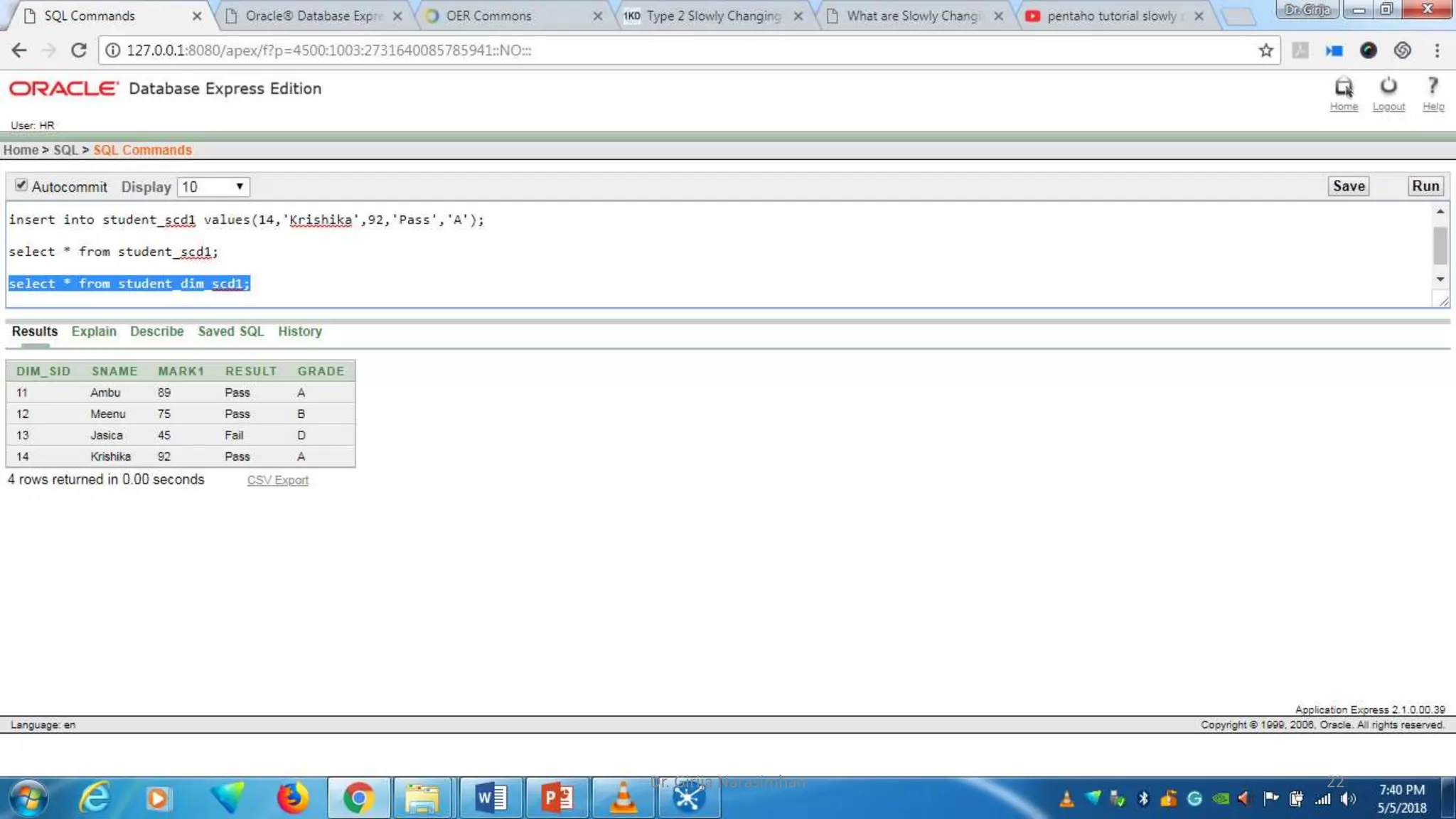

22. Dr. Girija Narasimhan 22

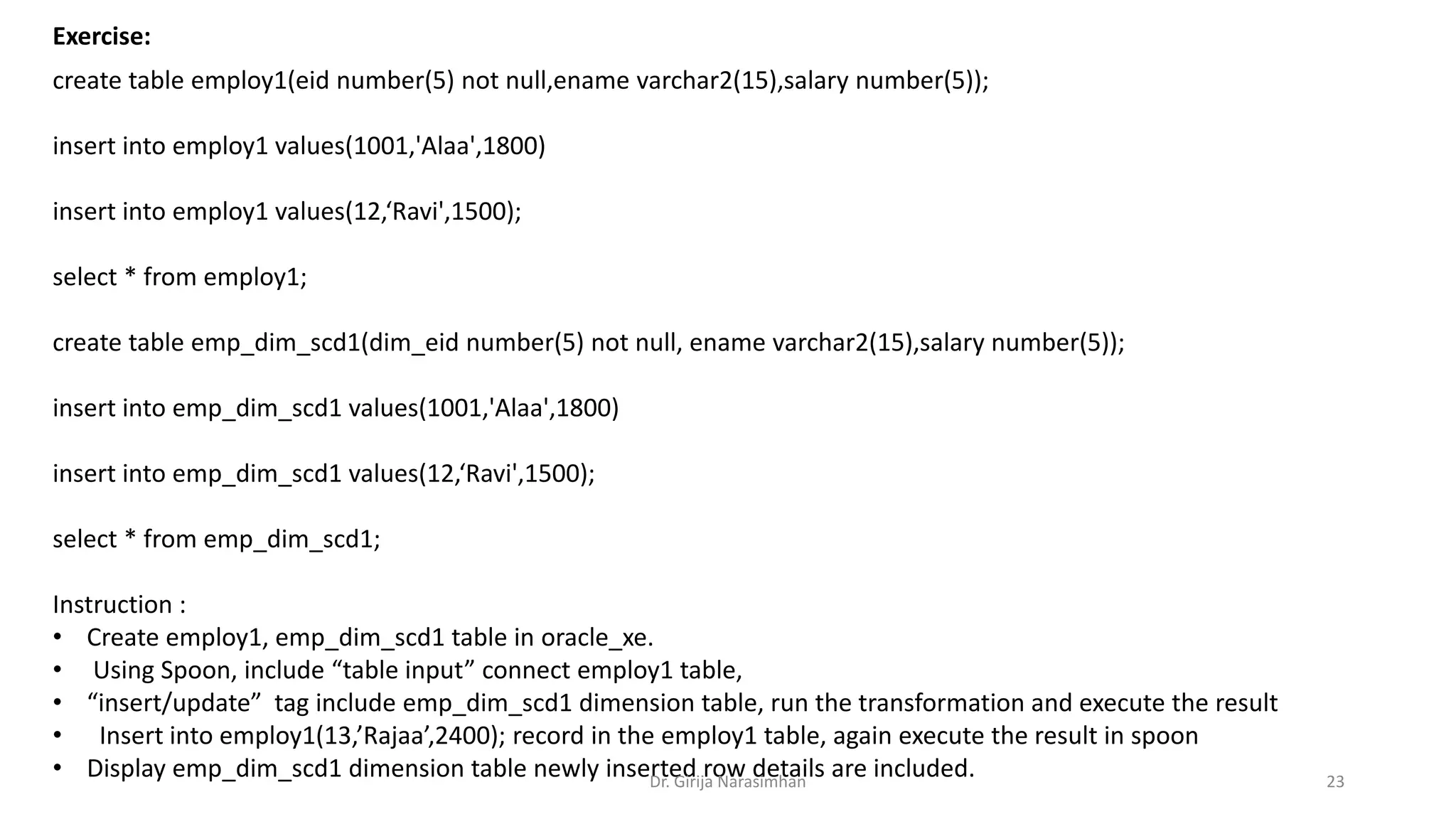

23. Exercise:
create table employ1(eid number(5) not null,ename varchar2(15),salary number(5));
insert into employ1 values(1001,'Alaa',1800)
insert into employ1 values(12,‘Ravi',1500);
select * from employ1;
create table emp_dim_scd1(dim_eid number(5) not null, ename varchar2(15),salary number(5));
insert into emp_dim_scd1 values(1001,'Alaa',1800)
insert into emp_dim_scd1 values(12,‘Ravi',1500);
select * from emp_dim_scd1;
Instruction :
• Create employ1, emp_dim_scd1 table in oracle_xe.
• Using Spoon, include “table input” connect employ1 table,
• “insert/update” tag include emp_dim_scd1 dimension table, run the transformation and execute the result
• Insert into employ1(13,’Rajaa’,2400); record in the employ1 table, again execute the result in spoon
• Display emp_dim_scd1 dimension table newly inserted row details are included.Dr. Girija Narasimhan 23
