CQRS (Command Query Responsibility Segregation) is an architectural pattern that separates read and write operations into different models. This improves read performance by allowing queries to be routed to optimized data stores like fast in-memory or denormalized databases. Commands produce events that are asynchronously published to multiple recipients. Event handlers subscribe to events and perform actions like persisting state changes or updating aggregates. The read side may be eventually consistent with the write side to improve write performance without distributed transactions. Messaging systems like RabbitMQ can reliably deliver commands and events. Frameworks like NCQRS help implement the CQRS pattern for .NET applications.

1. CQRS
Command Query Responsibility Segregation
Piotr Pelczar
me@athlan.pl

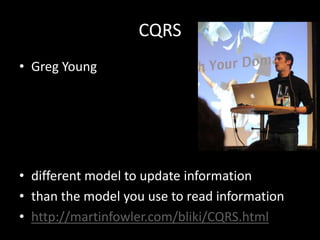

2. CQRS
• Greg Young
• different model to update information
• than the model you use to read information
• http://martinfowler.com/bliki/CQRS.html

3. CQRS is…

4. CQRS is…
NOT the design pattern

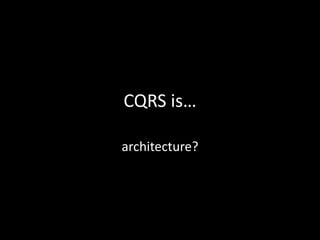

5. CQRS is…
architecture?

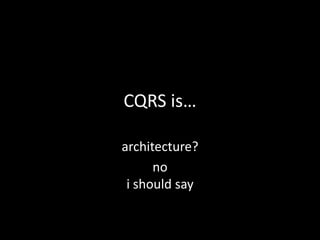

6. CQRS is…
architecture?
no
i should say

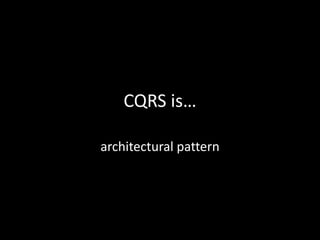

7. CQRS is…
architectural pattern

8. CQS
• Command–query separation
• every method should either be a command
that performs an action
• or a query that returns data to the caller
• but not both = no side effects
• Asking a question should not change the
answer.

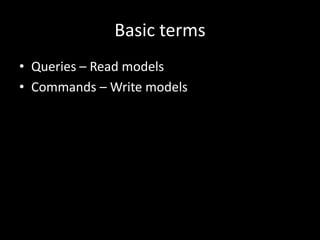

9. Basic terms
• Queries – Read models
• Commands – Write models

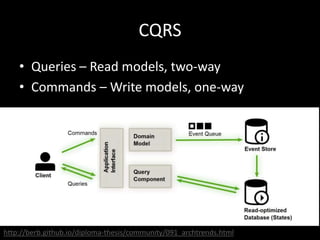

10. CQRS
• Queries – Read models, two-way
• Commands – Write models, one-way
http://berb.github.io/diploma-thesis/community/091_archtrends.html

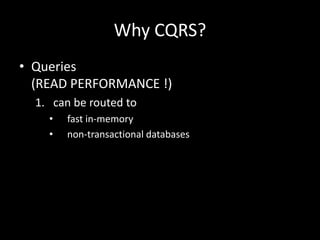

11. Why CQRS?
• Queries
(READ PERFORMANCE !)
1. can be routed to
•
•
fast in-memory
non-transactional databases

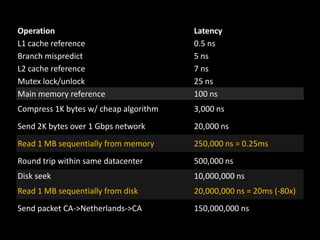

12. Operation
L1 cache reference
Branch mispredict
L2 cache reference
Mutex lock/unlock
Main memory reference
Latency
0.5 ns
5 ns
7 ns
25 ns
100 ns
Compress 1K bytes w/ cheap algorithm
3,000 ns
Send 2K bytes over 1 Gbps network
20,000 ns
Read 1 MB sequentially from memory
250,000 ns = 0.25ms
Round trip within same datacenter
500,000 ns
Disk seek
10,000,000 ns
Read 1 MB sequentially from disk
20,000,000 ns = 20ms (-80x)
Send packet CA->Netherlands->CA
150,000,000 ns

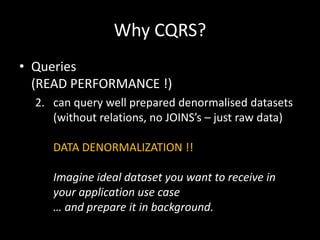

13. Why CQRS?
• Queries
(READ PERFORMANCE !)
2. can query well prepared denormalised datasets
(without relations, no JOINS’s – just raw data)
DATA DENORMALIZATION !!
Imagine ideal dataset you want to receive in
your application use case
… and prepare it in background.

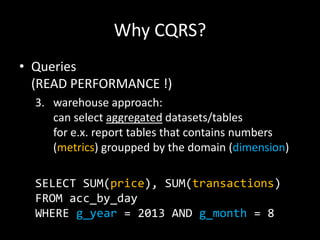

14. Why CQRS?
• Queries
(READ PERFORMANCE !)
3. warehouse approach:
can select aggregated datasets/tables
for e.x. report tables that contains numbers
(metrics) groupped by the domain (dimension)
SELECT SUM(price), SUM(transactions)
FROM acc_by_day
WHERE g_year = 2013 AND g_month = 8

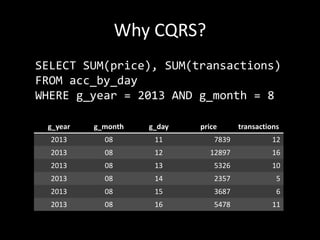

15. Why CQRS?
SELECT SUM(price), SUM(transactions)
FROM acc_by_day
WHERE g_year = 2013 AND g_month = 8
g_year
g_month
g_day
price
transactions
2013
08
11
7839
12
2013
08
12
12897
16
2013
08
13
5326
10
2013
08
14
2357
5
2013
08
15
3687
6
2013
08
16
5478
11

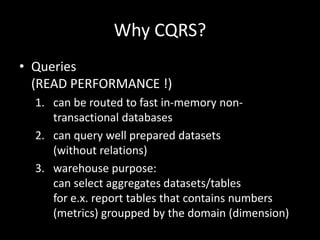

16. Why CQRS?
• Queries
(READ PERFORMANCE !)
1. can be routed to fast in-memory nontransactional databases
2. can query well prepared datasets
(without relations)
3. warehouse purpose:
can select aggregates datasets/tables
for e.x. report tables that contains numbers
(metrics) groupped by the domain (dimension)

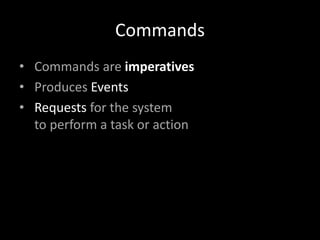

17. Commands
• Commands are imperatives
• Produces Events
• Requests for the system
to perform a task or action

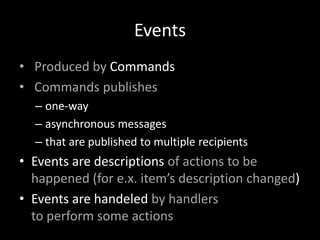

18. Events
• Produced by Commands
• Commands publishes
– one-way
– asynchronous messages
– that are published to multiple recipients
• Events are descriptions of actions to be
happened (for e.x. item’s description changed)
• Events are handeled by handlers
to perform some actions

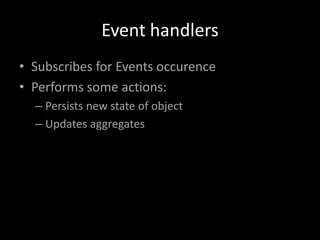

19. Event handlers
• Subscribes for Events occurence
• Performs some actions:
– Persists new state of object
– Updates aggregates

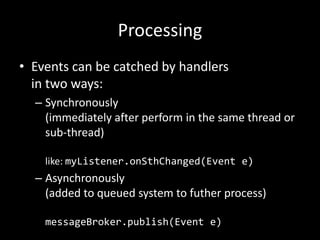

20. Processing
• Events can be catched by handlers
in two ways:
– Synchronously
(immediately after perform in the same thread or
sub-thread)
like: myListener.onSthChanged(Event e)
– Asynchronously
(added to queued system to futher process)
messageBroker.publish(Event e)

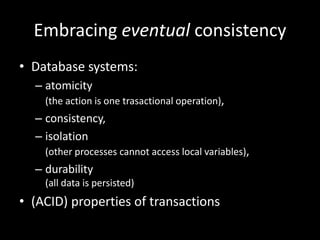

21. Embracing eventual consistency
• Database systems:
– atomicity
(the action is one trasactional operation),
– consistency,
– isolation
(other processes cannot access local variables),
– durability
(all data is persisted)
• (ACID) properties of transactions

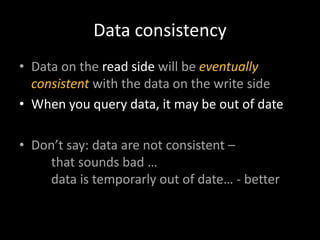

22. Data consistency
• Data on the read side will be eventually
consistent with the data on the write side
• When you query data, it may be out of date
• Don’t say: data are not consistent –
that sounds bad …
data is temporarly out of date… - better

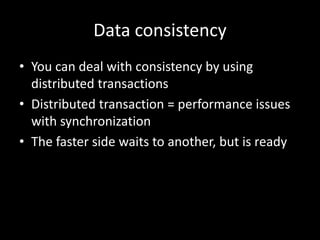

23. Data consistency
• You can deal with consistency by using
distributed transactions
• Distributed transaction = performance issues
with synchronization
• The faster side waits to another, but is ready

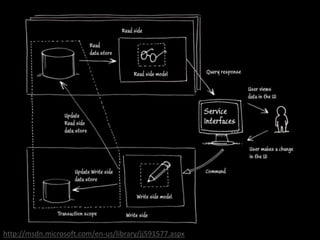

24. http://msdn.microsoft.com/en-us/library/jj591577.aspx

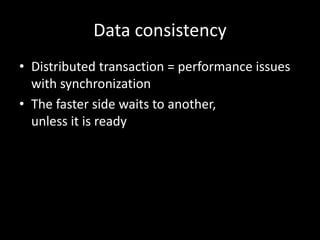

25. Data consistency
• Distributed transaction = performance issues
with synchronization
• The faster side waits to another,
unless it is ready

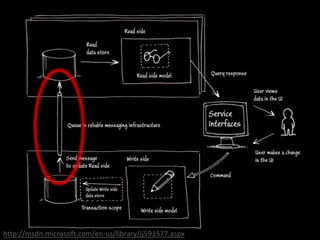

26. http://msdn.microsoft.com/en-us/library/jj591577.aspx

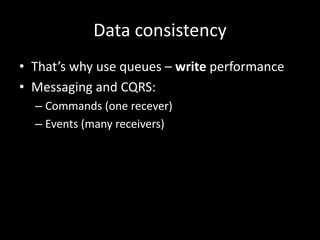

27. Data consistency
• That’s why use queues – write performance
• Messaging and CQRS:
– Commands (one recever)
– Events (many receivers)

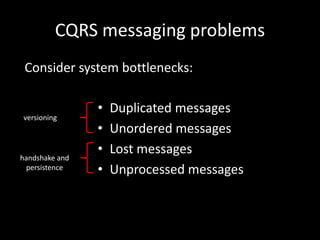

28. CQRS messaging problems
Consider system bottlenecks:
versioning
handshake and
persistence
•
•
•
•
Duplicated messages
Unordered messages
Lost messages
Unprocessed messages

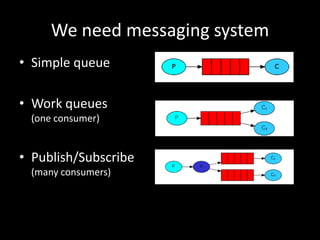

29. We need messaging system
• Simple queue
• Work queues
(one consumer)
• Publish/Subscribe
(many consumers)

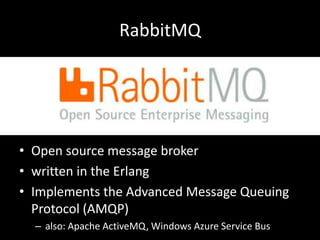

30. RabbitMQ
• Open source message broker
• written in the Erlang
• Implements the Advanced Message Queuing
Protocol (AMQP)
– also: Apache ActiveMQ, Windows Azure Service Bus

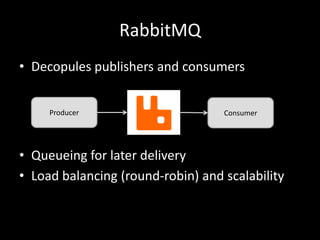

31. RabbitMQ
• Decopules publishers and consumers
Producer
Consumer
• Queueing for later delivery
• Load balancing (round-robin) and scalability

32. RabbitMQ reliability
• Round-robin dispatching
• Message acknowledgment (after processing)
– message had been received, processed and that
RabbitMQ is free to delete it
– no message timeouts - RabbitMQ will redeliver
the message only when the worker connection
dies

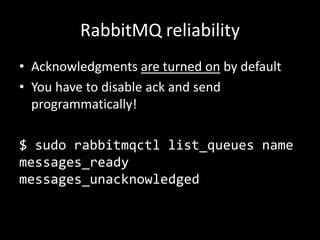

33. RabbitMQ reliability
• Acknowledgments are turned on by default
• You have to disable ack and send
programmatically!
$ sudo rabbitmqctl list_queues name
messages_ready
messages_unacknowledged

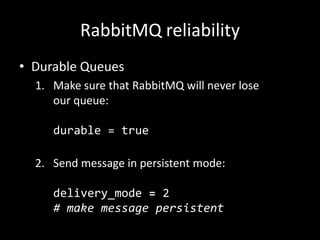

34. RabbitMQ reliability
• Durable Queues
1. Make sure that RabbitMQ will never lose
our queue:
durable = true
2. Send message in persistent mode:
delivery_mode = 2
# make message persistent

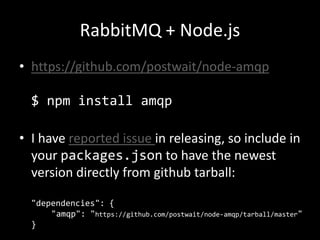

35. RabbitMQ + Node.js
• https://github.com/postwait/node-amqp
$ npm install amqp
• I have reported issue in releasing, so include in
your packages.json to have the newest
version directly from github tarball:
"dependencies": {
"amqp": "https://github.com/postwait/node-amqp/tarball/master"
}

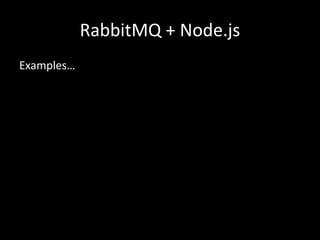

36. RabbitMQ + Node.js
Examples…

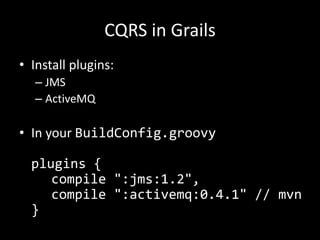

37. CQRS in Grails
• Install plugins:
– JMS
– ActiveMQ
• In your BuildConfig.groovy
plugins {
compile ":jms:1.2",
compile ":activemq:0.4.1" // mvn
}

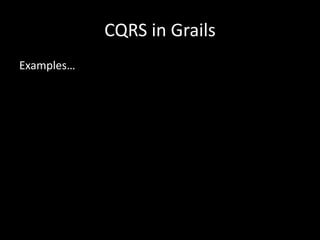

38. CQRS in Grails
Examples…

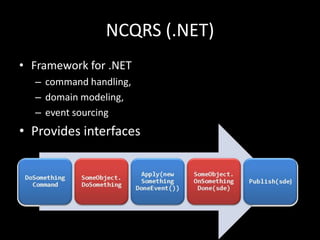

39. NCQRS (.NET)
• Framework for .NET
– command handling,
– domain modeling,
– event sourcing
• Provides interfaces

40. NCQRS (.NET)
Examples…

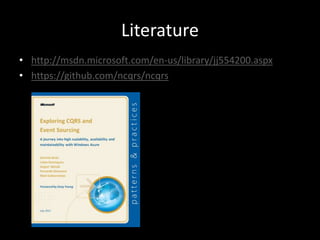

41. Literature
• http://msdn.microsoft.com/en-us/library/jj554200.aspx
• https://github.com/ncqrs/ncqrs

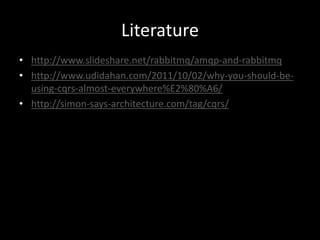

42. Literature
• http://www.slideshare.net/rabbitmq/amqp-and-rabbitmq
• http://www.udidahan.com/2011/10/02/why-you-should-beusing-cqrs-almost-everywhere%E2%80%A6/
• http://simon-says-architecture.com/tag/cqrs/

43. CQRS
Q&A?
http://slideshare.net/piotrpelczar/cqrs
Piotr Pelczar
me@athlan.pl
