The document describes the Weiber Convection Bench Oven (model no. ACM-21350R-BO), which features a recorder for tracking temperature measurements and is designed for efficient heat circulation and drying of high moisture samples. It can record up to 16,383 temperature data points, offers energy efficiency, and includes advanced features such as a microprocessor-based PID controller and stainless steel construction. The oven is suitable for various applications including sterilization and stability testing, with dimensions of 45.7 x 50.3 x 35.6 cm and a maximum temperature of 450°F.

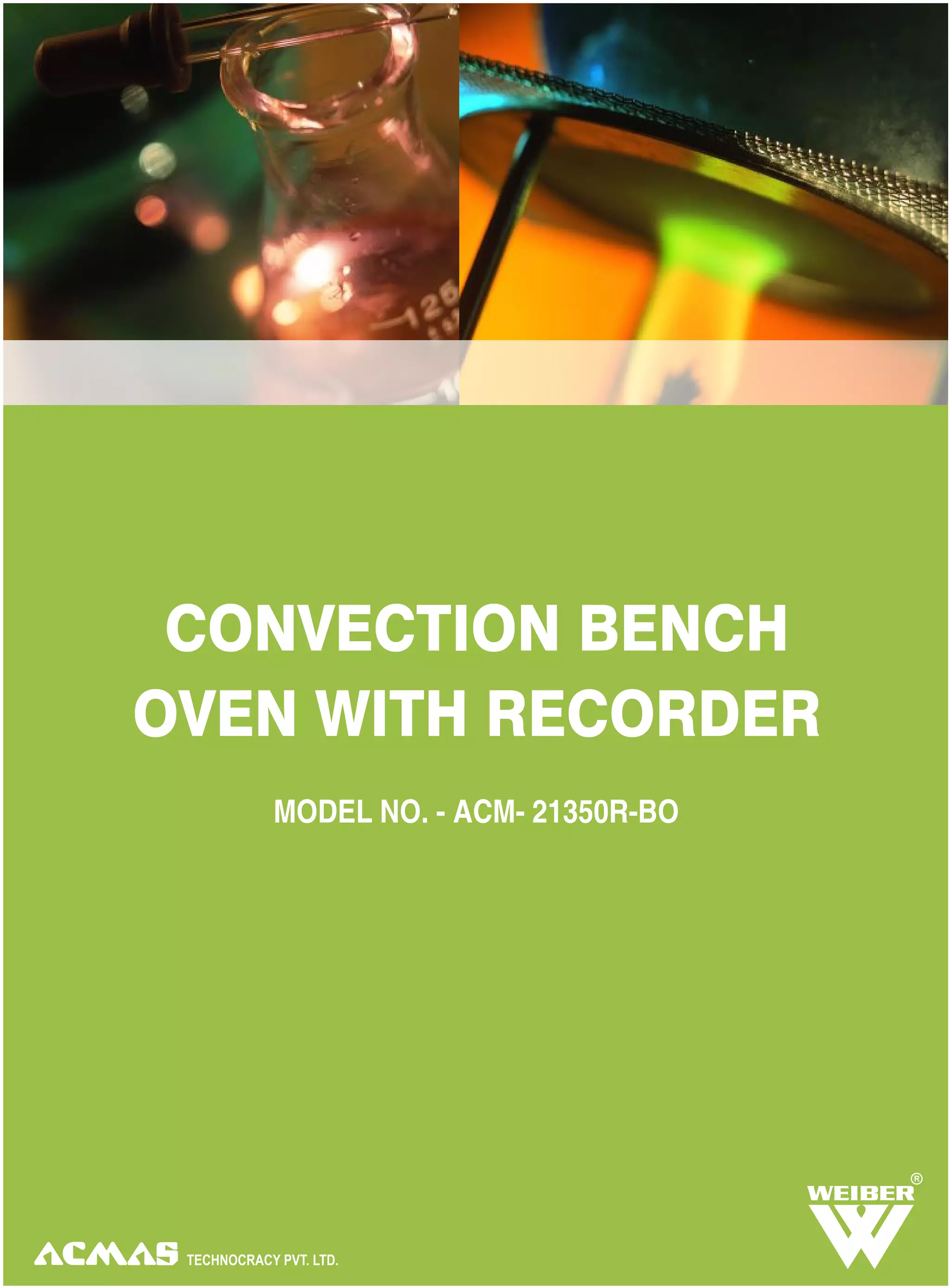

1. CONVECTION BENCH
OVEN WITH RECORDER
R
MODEL NO. - ACM- 21350R-BO

2. R

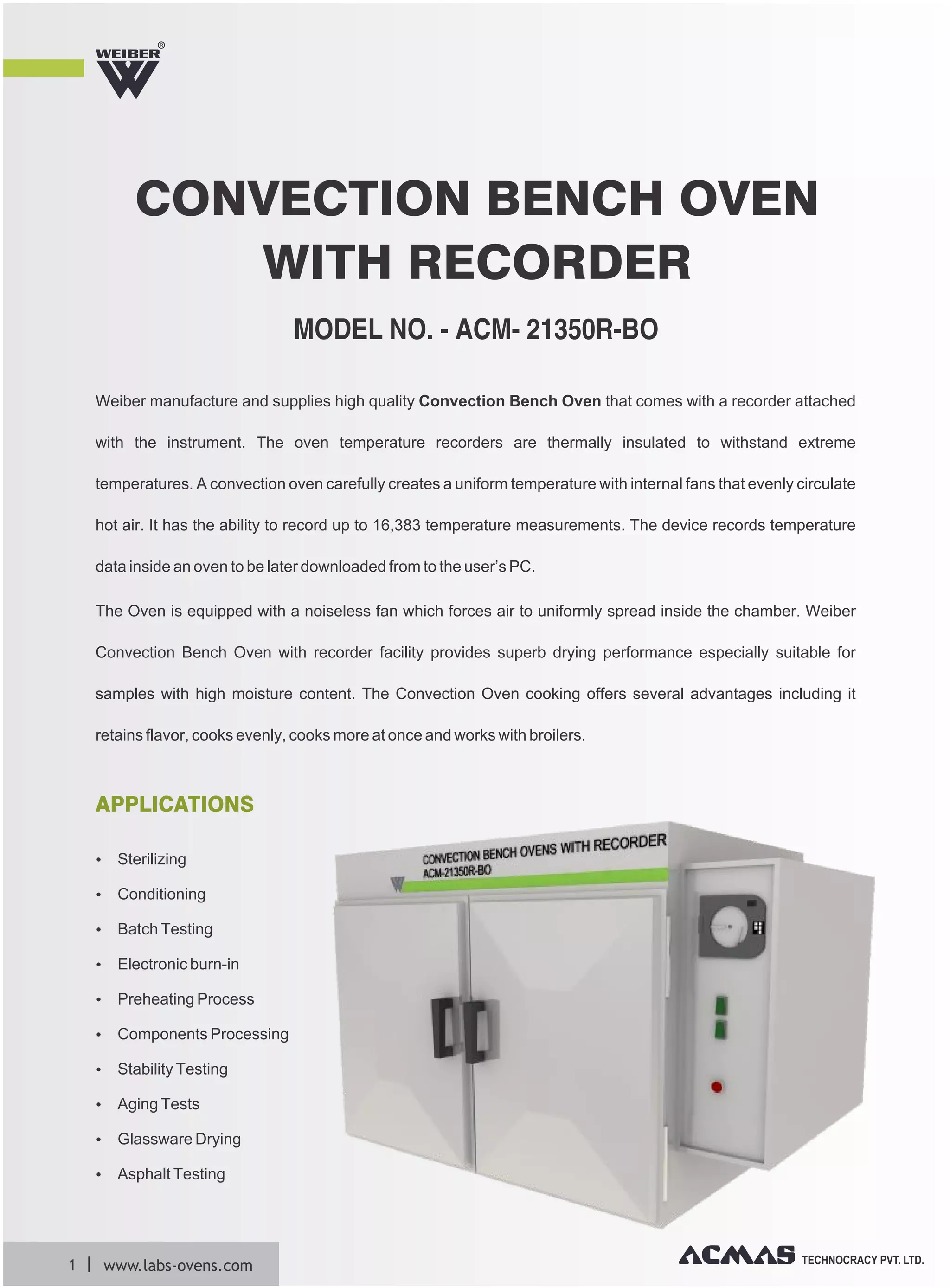

Weiber manufacture and supplies high quality Convection Bench Oven that comes with a recorder attached
with the instrument. The oven temperature recorders are thermally insulated to withstand extreme
temperatures. A convection oven carefully creates a uniform temperature with internal fans that evenly circulate
hot air. It has the ability to record up to 16,383 temperature measurements. The device records temperature
data inside an oven to be later downloaded from to the user’s PC.
The Oven is equipped with a noiseless fan which forces air to uniformly spread inside the chamber. Weiber
Convection Bench Oven with recorder facility provides superb drying performance especially suitable for
samples with high moisture content. The Convection Oven cooking offers several advantages including it
retains flavor, cooks evenly, cooks more at once and works with broilers.
CONVECTION BENCH OVEN
WITH RECORDER
1 www.labs-ovens.com TECHNOCRACY PVT. LTD.
MODEL NO. - ACM- 21350R-BO
Ÿ Sterilizing
Ÿ Conditioning
Ÿ Batch Testing
Ÿ Electronic burn-in
Ÿ Preheating Process
Ÿ Components Processing
Ÿ Stability Testing
Ÿ Aging Tests
Ÿ Glassware Drying
Ÿ Asphalt Testing
APPLICATIONS

3. R
TECHNOCRACY PVT. LTD. 2 www.labs-ovens.com

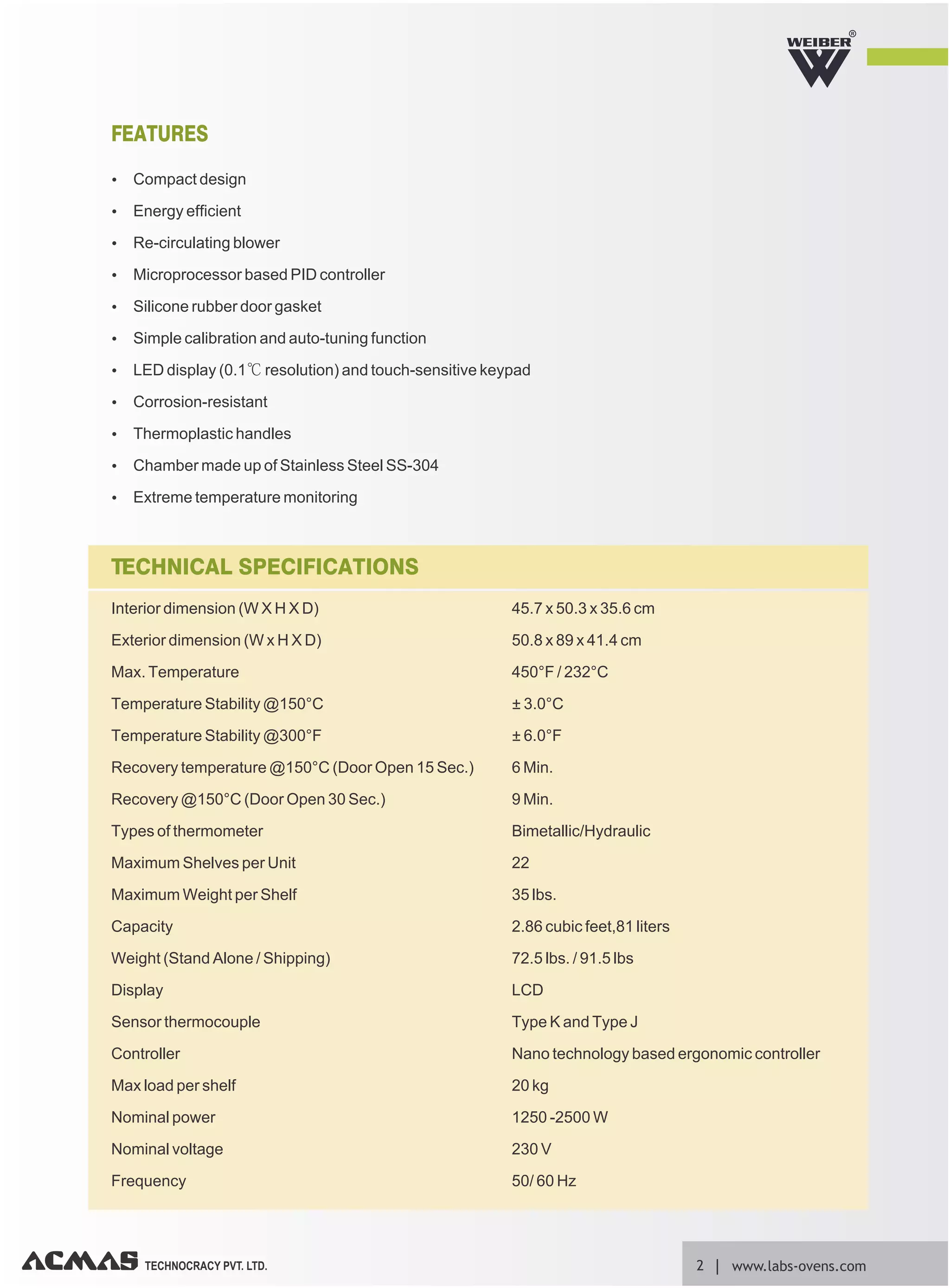

Ÿ Compact design
Ÿ Energy efficient
Ÿ Re-circulating blower
Ÿ Microprocessor based PID controller
Ÿ Silicone rubber door gasket
Ÿ Simple calibration and auto-tuning function
Ÿ LED display (0.1℃ resolution) and touch-sensitive keypad
Ÿ Corrosion-resistant
Ÿ Thermoplastic handles
Ÿ Chamber made up of Stainless Steel SS-304
Ÿ Extreme temperature monitoring
FEATURES
Interior dimension (W X H X D) 45.7 x 50.3 x 35.6 cm
Exterior dimension (W x H X D) 50.8 x 89 x 41.4 cm
Max. Temperature 450°F / 232°C
Temperature Stability @150°C ± 3.0°C
Temperature Stability @300°F ± 6.0°F
Recovery temperature @150°C (Door Open 15 Sec.) 6 Min.
Recovery @150°C (Door Open 30 Sec.) 9 Min.
Types of thermometer Bimetallic/Hydraulic
Maximum Shelves per Unit 22
Maximum Weight per Shelf 35 lbs.
Capacity 2.86 cubic feet,81 liters
Weight (Stand Alone / Shipping) 72.5 lbs. / 91.5 lbs
Display LCD
Sensor thermocouple Type K and Type J
Controller Nano technology based ergonomic controller
Max load per shelf 20 kg
Nominal power 1250 -2500 W
Nominal voltage 230 V
Frequency 50/ 60 Hz
TECHNICAL SPECIFICATIONS

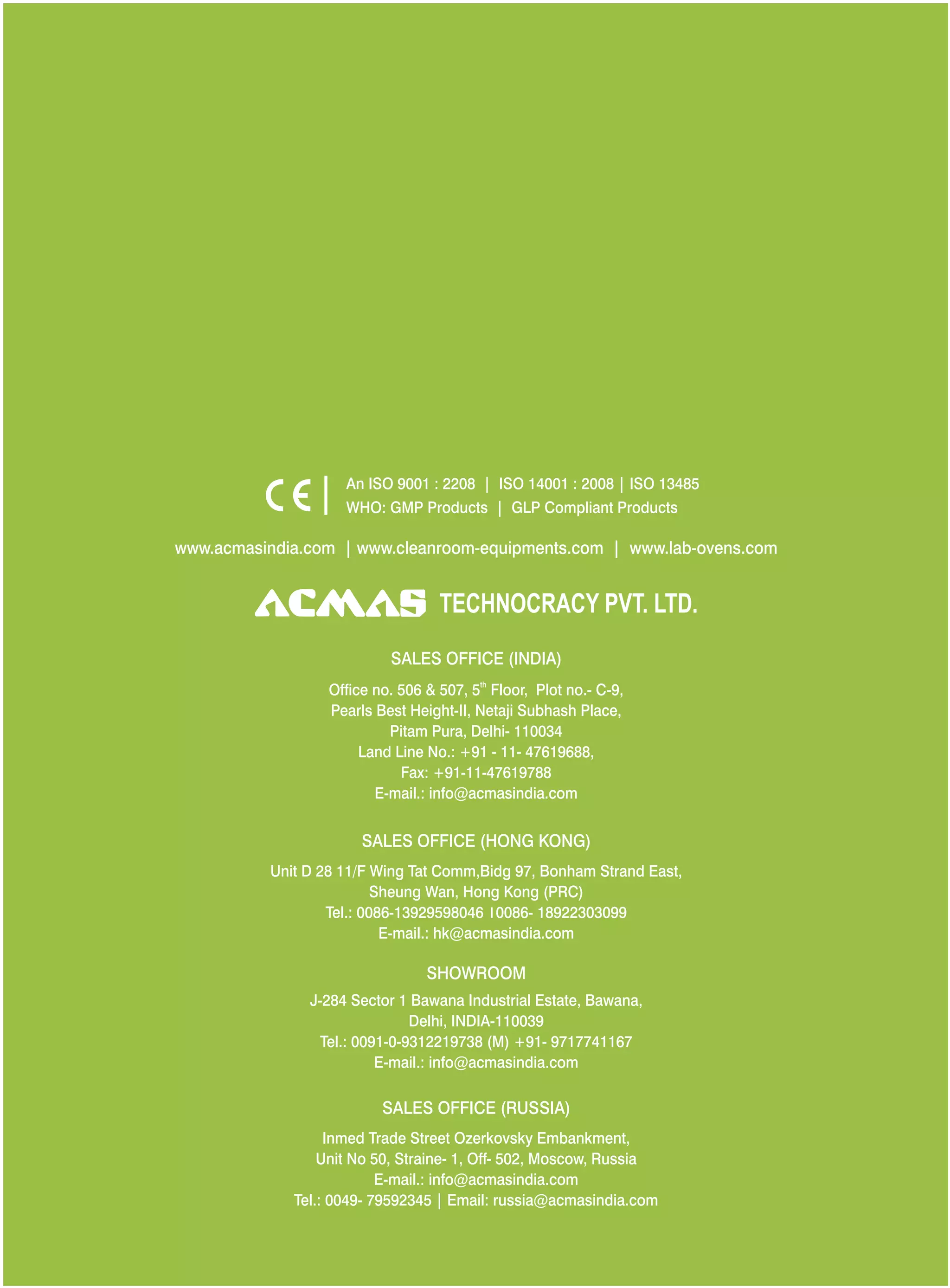

4. SALES OFFICE (HONG KONG)
