1. CONTINUOUS INTEGRATION USING JENKINS
- Vinay Gopalkrishna

2. AGENDA
 Continuous Integration
 What is CI?
 Why we need CI?
 Best Practices
 Workflow
 Build Ingredients
 CI Server – Jenkins
 What is Jenkins?
 How Jenkins work?
 Plugins
 What Jenkins can do?
 Conclusion
 References

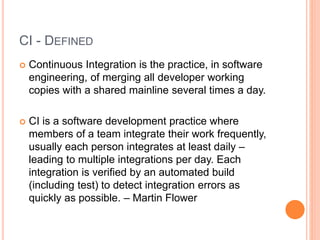

3. CI - DEFINED
 Continuous Integration is the practice, in software
engineering, of merging all developer working
copies with a shared mainline several times a day.
 CI is a software development practice where
members of a team integrate their work frequently,
usually each person integrates at least daily –
leading to multiple integrations per day. Each
integration is verified by an automated build
(including test) to detect integration errors as
quickly as possible. – Martin Flower

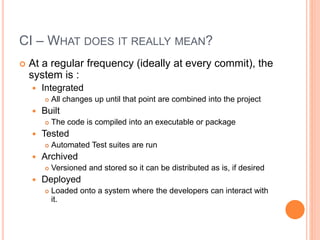

4. CI – WHAT DOES IT REALLY MEAN?
 At a regular frequency (ideally at every commit), the
system is :
 Integrated
 All changes up until that point are combined into the project
 Built
 The code is compiled into an executable or package
 Tested
 Automated Test suites are run
 Archived
 Versioned and stored so it can be distributed as is, if desired
 Deployed
 Loaded onto a system where the developers can interact with
it.

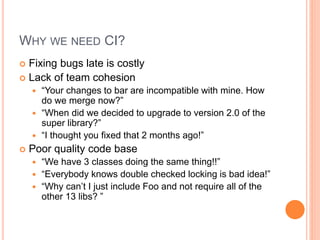

5. WHY WE NEED CI?
 Fixing bugs late is costly
 Lack of team cohesion
 “Your changes to bar are incompatible with mine. How
do we merge now?”
 “When did we decided to upgrade to version 2.0 of the
super library?”
 “I thought you fixed that 2 months ago!”
 Poor quality code base
 “We have 3 classes doing the same thing!!”
 “Everybody knows double checked locking is bad idea!”
 “Why can’t I just include Foo and not require all of the
other 13 libs? ”

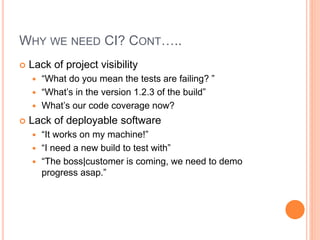

6. WHY WE NEED CI? CONT…..
 Lack of project visibility
 “What do you mean the tests are failing? ”
 “What’s in the version 1.2.3 of the build”
 What’s our code coverage now?
 Lack of deployable software
 “It works on my machine!”
 “I need a new build to test with”
 “The boss|customer is coming, we need to demo
progress asap.”

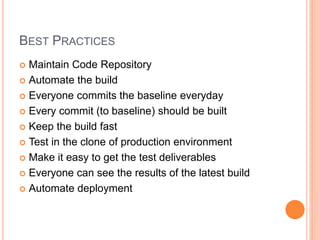

7. BEST PRACTICES
 Maintain Code Repository
 Automate the build
 Everyone commits the baseline everyday
 Every commit (to baseline) should be built
 Keep the build fast
 Test in the clone of production environment
 Make it easy to get the test deliverables
 Everyone can see the results of the latest build
 Automate deployment

8. CI WORKFLOW

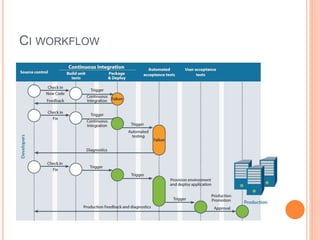

9. CI WORKFLOW

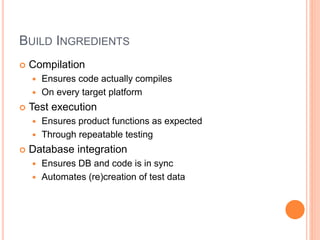

10. BUILD INGREDIENTS
 Compilation
 Ensures code actually compiles
 On every target platform
 Test execution
 Ensures product functions as expected
 Through repeatable testing
 Database integration
 Ensures DB and code is in sync
 Automates (re)creation of test data

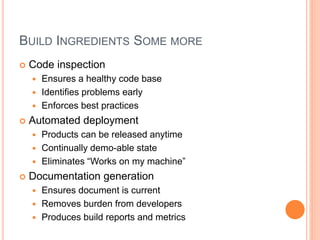

11. BUILD INGREDIENTS SOME MORE
 Code inspection
 Ensures a healthy code base
 Identifies problems early
 Enforces best practices
 Automated deployment
 Products can be released anytime
 Continually demo-able state
 Eliminates “Works on my machine”
 Documentation generation
 Ensures document is current
 Removes burden from developers
 Produces build reports and metrics

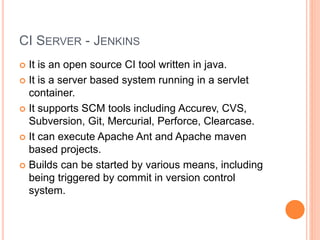

12. CI SERVER - JENKINS
 It is an open source CI tool written in java.
 It is a server based system running in a servlet
container.
 It supports SCM tools including Accurev, CVS,
Subversion, Git, Mercurial, Perforce, Clearcase.
 It can execute Apache Ant and Apache maven
based projects.
 Builds can be started by various means, including
being triggered by commit in version control
system.

13. HOW JENKINS WORK - SETUP
 When setting up a project in Jenkins, out of the box
you have the general options
 Associating with a version control server
 Triggering builds
 Execution of shell scripts, bash scripts, Ant targets and
maven targets.
 Artifact archival
 Publish jUnit test results and javadocs
 Email Notifications

14. PLUGINS
 Jenkins plugin system can enable a wide range of
features including(but not certainly not limited to)
 SCM
 Testing
 Notifications
 Reporting
 Artifact saving
 Triggers
 External integration
 And most importantly – The CI game
 A points based game where developers compete against each
other to develop the most stable, well tested code

15. WHAT JENKINS CAN DO?
 Generate Test Reports
 Integrate with many different version control
systems
 Push to various artifact repositories
 Deploys directly to production or test environments
 Notify stakeholders of build status

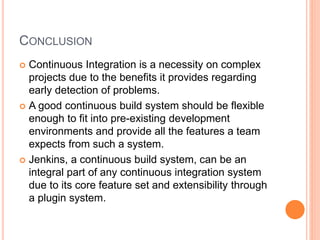

16. CONCLUSION
 Continuous Integration is a necessity on complex
projects due to the benefits it provides regarding
early detection of problems.
 A good continuous build system should be flexible
enough to fit into pre-existing development
environments and provide all the features a team
expects from such a system.
 Jenkins, a continuous build system, can be an
integral part of any continuous integration system
due to its core feature set and extensibility through
a plugin system.

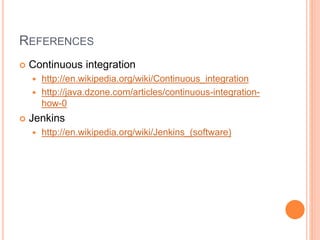

17. REFERENCES
 Continuous integration
 http://en.wikipedia.org/wiki/Continuous_integration
 http://java.dzone.com/articles/continuous-integration-
how-0
 Jenkins
 http://en.wikipedia.org/wiki/Jenkins_(software)

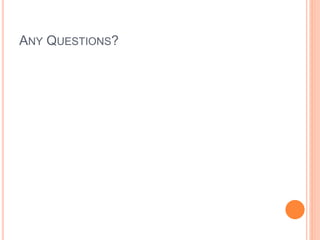

18. ANY QUESTIONS?
