CONTACT AND CONTOUR

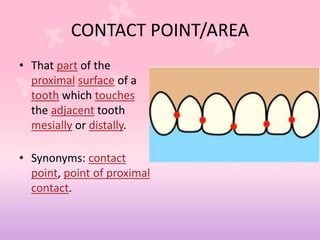

CONTACT POINT/AREA
• That part of the
proximal surface of a
tooth which touches
the adjacent tooth
mesially or distally.
• Synonyms: contact
point, point of proximal
contact.

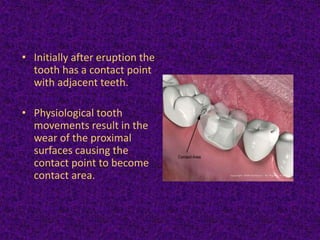

• Initially after eruption the
tooth has a contact point
with adjacent teeth.
• Physiological tooth
movements result in the
wear of the proximal
surfaces causing the
contact point to become
contact area.

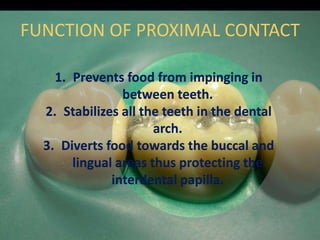

FUNCTION OF PROXIMAL CONTACT
1. Prevents food from impinging in
between teeth.
2. Stabilizes all the teeth in the dental
arch.
3. Diverts food towards the buccal and
lingual areas thus protecting the
interdental papilla.

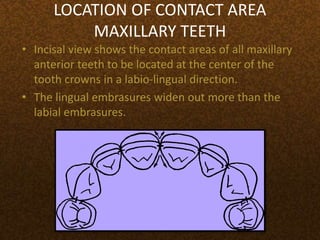

LOCATION OF CONTACT AREA
MAXILLARY TEETH
• Incisal view shows the contact areas of all maxillary
anterior teeth to be located at the center of the
tooth crowns in a labio-lingual direction.
• The lingual embrasures widen out more than the
labial embrasures.

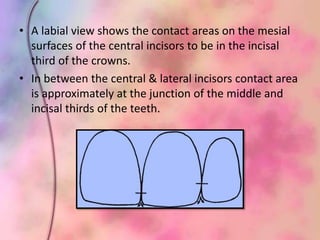

• A labial view shows the contact areas on the mesial
surfaces of the central incisors to be in the incisal
third of the crowns.
• In between the central & lateral incisors contact area
is approximately at the junction of the middle and
incisal thirds of the teeth.

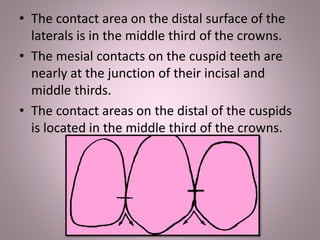

• The contact area on the distal surface of the
laterals is in the middle third of the crowns.
• The mesial contacts on the cuspid teeth are
nearly at the junction of their incisal and
middle thirds.
• The contact areas on the distal of the cuspids
is located in the middle third of the crowns.

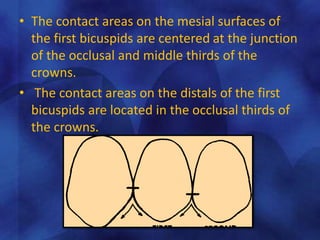

• The contact areas on the mesial surfaces of
the first bicuspids are centered at the junction
of the occlusal and middle thirds of the
crowns.
• The contact areas on the distals of the first
bicuspids are located in the occlusal thirds of
the crowns.

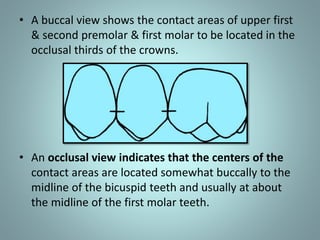

• A buccal view shows the contact areas of upper first
& second premolar & first molar to be located in the
occlusal thirds of the crowns.
• An occlusal view indicates that the centers of the
contact areas are located somewhat buccally to the
midline of the bicuspid teeth and usually at about
the midline of the first molar teeth.

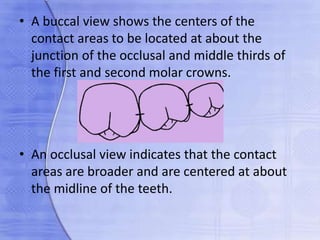

• A buccal view shows the centers of the
contact areas to be located at about the
junction of the occlusal and middle thirds of
the first and second molar crowns.
• An occlusal view indicates that the contact
areas are broader and are centered at about
the midline of the teeth.

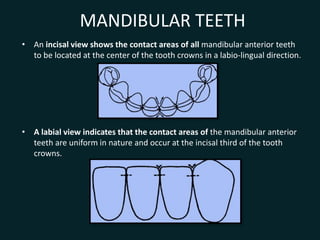

MANDIBULAR TEETH
• An incisal view shows the contact areas of all mandibular anterior teeth
to be located at the center of the tooth crowns in a labio-lingual direction.
• A labial view indicates that the contact areas of the mandibular anterior
teeth are uniform in nature and occur at the incisal third of the tooth
crowns.

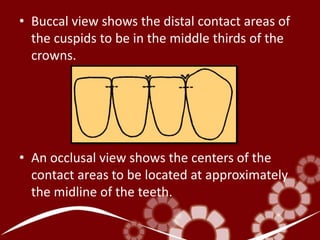

• Buccal view shows the distal contact areas of
the cuspids to be in the middle thirds of the
crowns.
• An occlusal view shows the centers of the
contact areas to be located at approximately
the midline of the teeth.

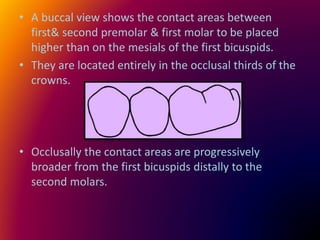

• A buccal view shows the contact areas between
first& second premolar & first molar to be placed
higher than on the mesials of the first bicuspids.
• They are located entirely in the occlusal thirds of the
crowns.
• Occlusally the contact areas are progressively
broader from the first bicuspids distally to the
second molars.
• The contact areas between the First, Second and
Third Molar Teeth are located near the junction of
the middle and occlusal thirds of the tooth crowns.
• Occlusally the contact areas are located near the
midline of the crowns with only a slight tendency to
be located toward the buccal.

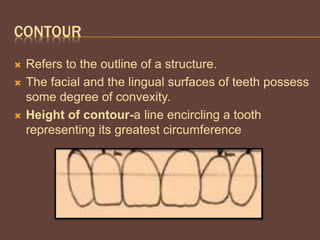

CONTOUR
 Refers to the outline of a structure.
 The facial and the lingual surfaces of teeth possess
some degree of convexity.
 Height of contour-a line encircling a tooth
representing its greatest circumference

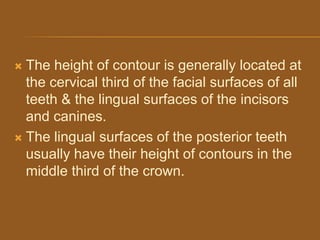

 The height of contour is generally located at
the cervical third of the facial surfaces of all
teeth & the lingual surfaces of the incisors
and canines.
 The lingual surfaces of the posterior teeth
usually have their height of contours in the
middle third of the crown.

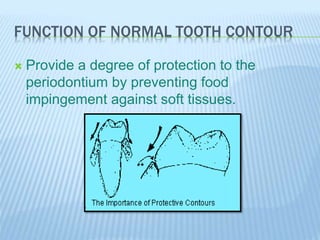

FUNCTION OF NORMAL TOOTH CONTOUR
 Provide a degree of protection to the
periodontium by preventing food
impingement against soft tissues.

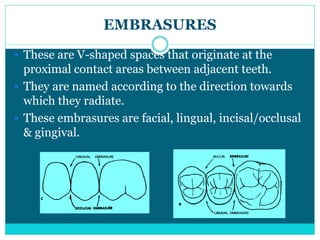

EMBRASURES
 These are V-shaped spaces that originate at the
proximal contact areas between adjacent teeth.
 They are named according to the direction towards
which they radiate.
 These embrasures are facial, lingual, incisal/occlusal
& gingival.

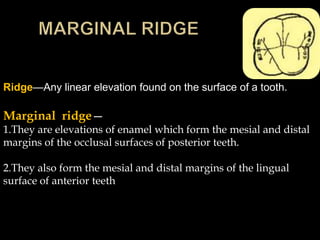

Ridge—Any linear elevation found on the surface of a tooth.
Marginal ridge—
1.They are elevations of enamel which form the mesial and distal
margins of the occlusal surfaces of posterior teeth.
2.They also form the mesial and distal margins of the lingual
surface of anterior teeth

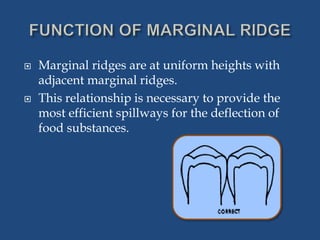

 Marginal ridges are at uniform heights with
adjacent marginal ridges.
 This relationship is necessary to provide the
most efficient spillways for the deflection of
food substances.
HAZARDS OF FAULTY REPRODUCTION OF
CONTACT & CONTOUR

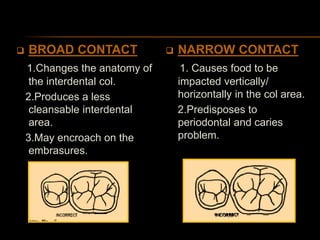

 BROAD CONTACT
1.Changes the anatomy of
the interdental col.
2.Produces a less
cleansable interdental
area.
3.May encroach on the
embrasures.
 NARROW CONTACT
1. Causes food to be
impacted vertically/
horizontally in the col area.
2.Predisposes to
periodontal and caries
problem.

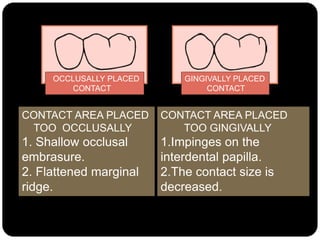

OCCLUSALLY PLACED
CONTACT
GINGIVALLY PLACED
CONTACT
CONTACT AREA PLACED
TOO GINGIVALLY
1.Impinges on the
interdental papilla.
2.The contact size is
decreased.
CONTACT AREA PLACED
TOO OCCLUSALLY
1. Shallow occlusal
embrasure.
2. Flattened marginal
ridge.

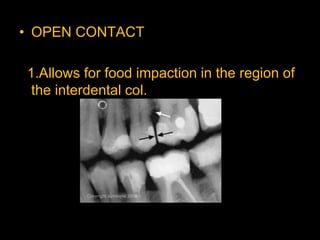

• OPEN CONTACT
1.Allows for food impaction in the region of
the interdental col.

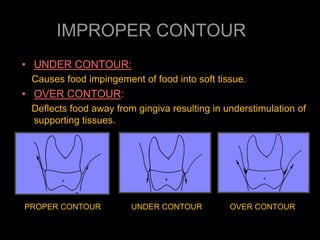

IMPROPER CONTOUR
• UNDER CONTOUR:
Causes food impingement of food into soft tissue.
• OVER CONTOUR:
Deflects food away from gingiva resulting in understimulation of
supporting tissues.
PROPER CONTOUR UNDER CONTOUR OVER CONTOUR

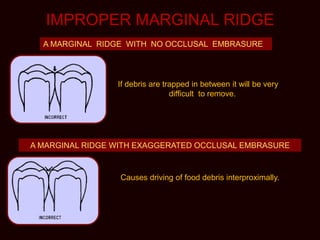

IMPROPER MARGINAL RIDGE
A MARGINAL RIDGE WITH NO OCCLUSAL EMBRASURE
A MARGINAL RIDGE WITH EXAGGERATED OCCLUSAL EMBRASURE
Causes driving of food debris interproximally.
If debris are trapped in between it will be very
difficult to remove.

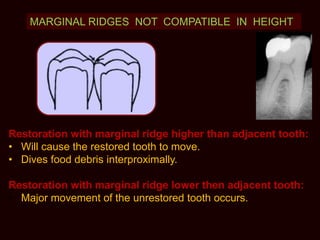

MARGINAL RIDGES NOT COMPATIBLE IN HEIGHT
Restoration with marginal ridge higher than adjacent tooth:
• Will cause the restored tooth to move.
• Dives food debris interproximally.
Restoration with marginal ridge lower then adjacent tooth:
• Major movement of the unrestored tooth occurs.

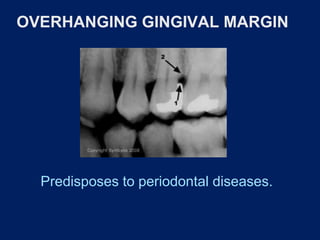

OVERHANGING GINGIVAL MARGIN
Predisposes to periodontal diseases.

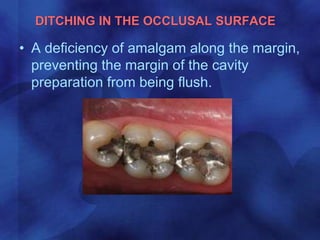

DITCHING IN THE OCCLUSAL SURFACE
• A deficiency of amalgam along the margin,
preventing the margin of the cavity
preparation from being flush.
PROCEDURES FOR CREATING PROPER
CONTACT & CONTOUR

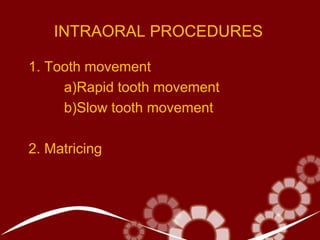

INTRAORAL PROCEDURES
1. Tooth movement
a)Rapid tooth movement
b)Slow tooth movement
2. Matricing
Rapid tooth movement
• Should not exceed the thickness of the
tooth’s PDL(0.2-0.5 mm).
• Types:-
a)Wedge method:-
1.Elliot Separator
2.Plastic/Wooden wedges
b)Traction method:-
1.Non-interfering true separator
2. Ferrier double-bow separator

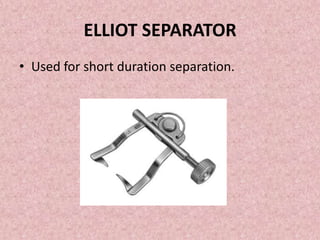

ELLIOT SEPARATOR
• Used for short duration separation.

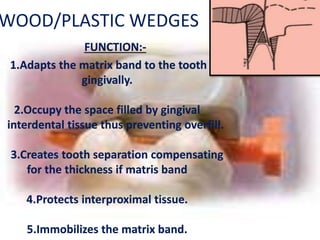

WOOD/PLASTIC WEDGES
FUNCTION:-
1.Adapts the matrix band to the tooth
gingivally.
2.Occupy the space filled by gingival
interdental tissue thus preventing overfill.
3.Creates tooth separation compensating
for the thickness if matris band
4.Protects interproximal tissue.
5.Immobilizes the matrix band.

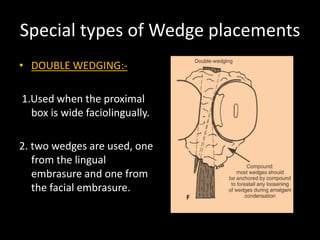

Special types of Wedge placements
• DOUBLE WEDGING:-
1.Used when the proximal
box is wide faciolingually.
2. two wedges are used, one
from the lingual
embrasure and one from
the facial embrasure.

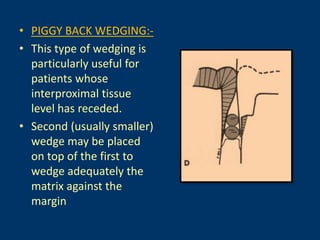

• PIGGY BACK WEDGING:-
• This type of wedging is
particularly useful for
patients whose
interproximal tissue
level has receded.
• Second (usually smaller)
wedge may be placed
on top of the first to
wedge adequately the
matrix against the
margin

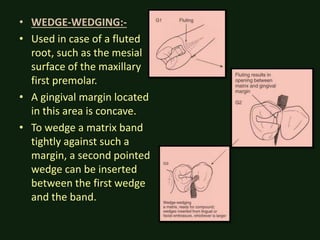

• WEDGE-WEDGING:-
• Used in case of a fluted
root, such as the mesial
surface of the maxillary
first premolar.
• A gingival margin located
in this area is concave.
• To wedge a matrix band
tightly against such a
margin, a second pointed
wedge can be inserted
between the first wedge
and the band.

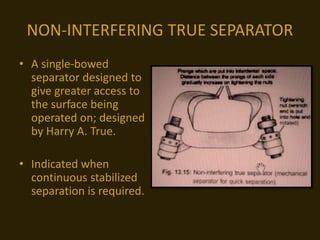

NON-INTERFERING TRUE SEPARATOR
• A single-bowed
separator designed to
give greater access to
the surface being
operated on; designed
by Harry A. True.
• Indicated when
continuous stabilized
separation is required.

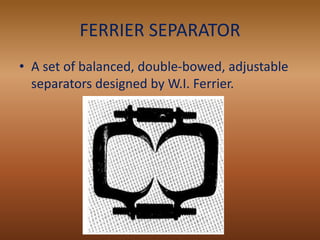

FERRIER SEPARATOR
• A set of balanced, double-bowed, adjustable
separators designed by W.I. Ferrier.

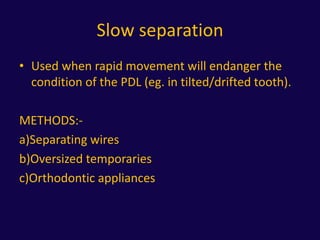

Slow separation
• Used when rapid movement will endanger the
condition of the PDL (eg. in tilted/drifted tooth).
METHODS:-
a)Separating wires
b)Oversized temporaries
c)Orthodontic appliances
MATRIX SYSTEMS

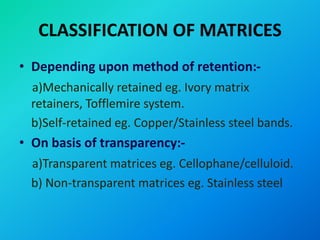

CLASSIFICATION OF MATRICES
• Depending upon method of retention:-
a)Mechanically retained eg. Ivory matrix
retainers, Tofflemire system.
b)Self-retained eg. Copper/Stainless steel bands.
• On basis of transparency:-
a)Transparent matrices eg. Cellophane/celluloid.
b) Non-transparent matrices eg. Stainless steel

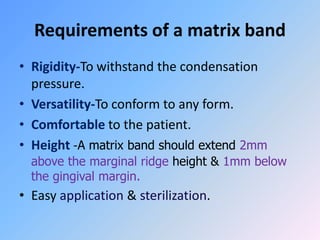

Requirements of a matrix band
• Rigidity-To withstand the condensation
pressure.
• Versatility-To conform to any form.
• Comfortable to the patient.
• Height -A matrix band should extend 2mm
above the marginal ridge height & 1mm below
the gingival margin.
• Easy application & sterilization.

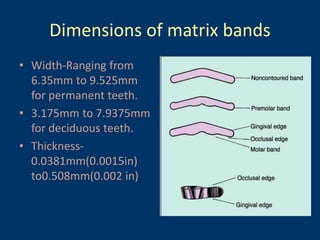

Dimensions of matrix bands
• Width-Ranging from
6.35mm to 9.525mm
for permanent teeth.
• 3.175mm to 7.9375mm
for deciduous teeth.
• Thickness-
0.0381mm(0.0015in)
to0.508mm(0.002 in).

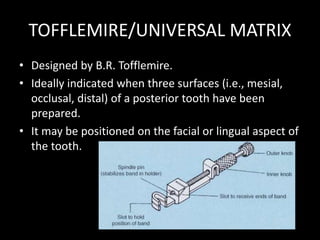

TOFFLEMIRE/UNIVERSAL MATRIX
• Designed by B.R. Tofflemire.
• Ideally indicated when three surfaces (i.e., mesial,
occlusal, distal) of a posterior tooth have been
prepared.
• It may be positioned on the facial or lingual aspect of
the tooth.
WINDOW MATRIX
• Used for Class V amalgam restoration.
• Formed from Tofflemire matrix/Copper band.
• A window is cut in the matrix band slightly
smaller than the original cavity dimension.

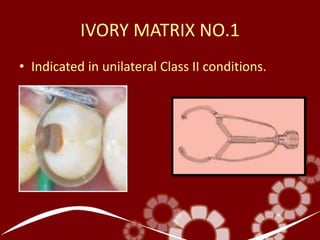

IVORY MATRIX NO.1
• Indicated in unilateral Class II conditions.

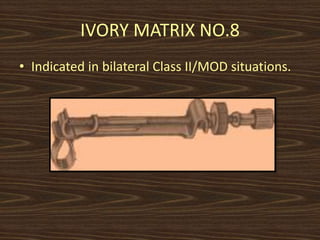

IVORY MATRIX NO.8
• Indicated in bilateral Class II/MOD situations.

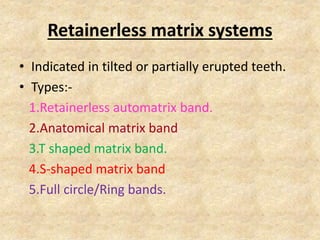

Retainerless matrix systems
• Indicated in tilted or partially erupted teeth.
• Types:-
1.Retainerless automatrix band.
2.Anatomical matrix band
3.T shaped matrix band.
4.S-shaped matrix band
5.Full circle/Ring bands.

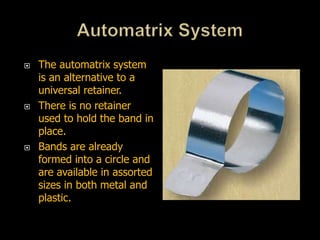

 The automatrix system
is an alternative to a
universal retainer.
 There is no retainer
used to hold the band in
place.
 Bands are already
formed into a circle and
are available in assorted
sizes in both metal and
plastic.

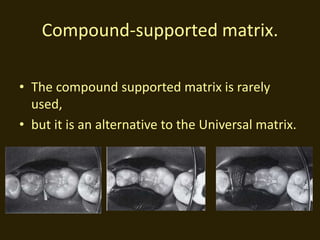

Compound-supported matrix.
• The compound supported matrix is rarely
used,
• but it is an alternative to the Universal matrix.

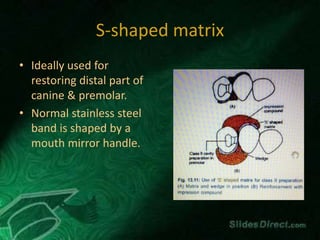

S-shaped matrix
• Ideally used for
restoring distal part of
canine & premolar.
• Normal stainless steel
band is shaped by a
mouth mirror handle.

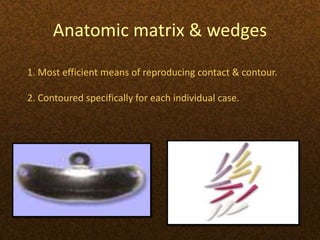

Anatomic matrix & wedges
1. Most efficient means of reproducing contact & contour.
2. Contoured specifically for each individual case.

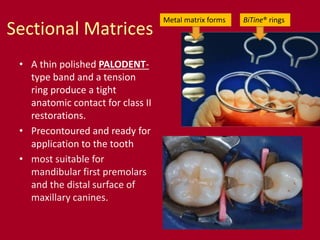

Sectional Matrices
• A thin polished PALODENT-
type band and a tension
ring produce a tight
anatomic contact for class II
restorations.
• Precontoured and ready for
application to the tooth
• most suitable for
mandibular first premolars
and the distal surface of
maxillary canines.
BiTine® ringsMetal matrix forms

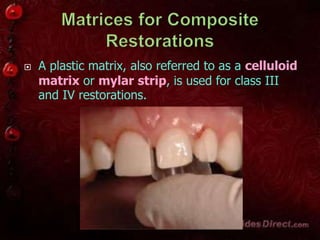

 A plastic matrix, also referred to as a celluloid
matrix or mylar strip, is used for class III
and IV restorations.
 CERVICAL
MATRICES -
 The thin edges allow
the excess composite
to flow out and offer a
closer rebuild of the
natural tooth.

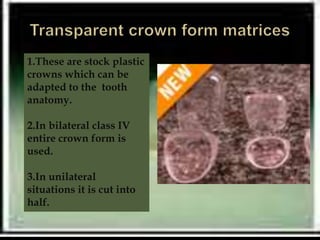

1.These are stock plastic
crowns which can be
adapted to the tooth
anatomy.
2.In bilateral class IV
entire crown form is
used.
3.In unilateral
situations it is cut into
half.

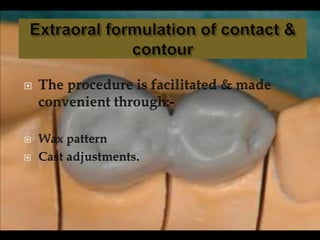

Contact & contour
Contact & contour

More Related Content

What's hot

Glass Ionomer Cement (GIC) - Science of Dental materials
Glass Ionomer Cement (GIC) - Science of Dental materialsGlass Ionomer Cement (GIC) - Science of Dental materials
Glass Ionomer Cement (GIC) - Science of Dental materials
drabbasnaseem

Glass ionomer cement
Glass ionomer cementGlass ionomer cement
Glass ionomer cement
Abhijeet Pallewar

Anatomy and clinical significance of denture bearing areas
Anatomy and clinical significance of denture bearing areasAnatomy and clinical significance of denture bearing areas
Anatomy and clinical significance of denture bearing areas
Ogundiran Temidayo

Spacer designs
Spacer designsSpacer designs
Spacer designs
Dr. Shannon Fernandes

Gingiva
GingivaGingiva
Compensating Curves.pptx
Compensating Curves.pptxCompensating Curves.pptx
Compensating Curves.pptx
chelseapaul1

clinical & laboratory step in complete denture
clinical & laboratory step in complete dentureclinical & laboratory step in complete denture
clinical & laboratory step in complete denture
Amirah Mohd Nor Rizan

The occlusal rims and record
The occlusal rims and recordThe occlusal rims and record
The occlusal rims and record
Muaiyed Mahmoud Buzayan

Permanent maxillary molars
Permanent maxillary molarsPermanent maxillary molars
Permanent maxillary molars
Basim Zwain

steps of cavity preparation for class 1
steps of cavity preparation for class 1 steps of cavity preparation for class 1
steps of cavity preparation for class 1
Parikshit Harnoor

Growth & development of maxilla and mandible
Growth & development of maxilla and mandibleGrowth & development of maxilla and mandible
Growth & development of maxilla and mandibleRajesh Bariker

Difference between primary and permanent teeth
Difference between primary and permanent teethDifference between primary and permanent teeth
Difference between primary and permanent teeth
princesoni3954

Enamel
EnamelEnamel
Steps Of Cavity Preparation
Steps Of Cavity PreparationSteps Of Cavity Preparation
Steps Of Cavity Preparation
Abhinav Mudaliar

maxillary anatomical landmarks
maxillary anatomical landmarksmaxillary anatomical landmarks
maxillary anatomical landmarks
Akansha Narela

Anatomical landmarks of mandibule
Anatomical landmarks of mandibuleAnatomical landmarks of mandibule
Anatomical landmarks of mandibule
Janmejay Bansode

Theories of tooth eruption
Theories of tooth eruptionTheories of tooth eruption
Theories of tooth eruption
Khushboo Vatsal


What's hot (20)

Glass Ionomer Cement (GIC) - Science of Dental materials
Glass Ionomer Cement (GIC) - Science of Dental materialsGlass Ionomer Cement (GIC) - Science of Dental materials
Glass Ionomer Cement (GIC) - Science of Dental materials

Classification of rpd
Classification of rpd Classification of rpd
Classification of rpd

Glass ionomer cement
Glass ionomer cementGlass ionomer cement
Glass ionomer cement

Anatomy and clinical significance of denture bearing areas
Anatomy and clinical significance of denture bearing areasAnatomy and clinical significance of denture bearing areas
Anatomy and clinical significance of denture bearing areas

Morphology of tooth
Morphology of tooth Morphology of tooth
Morphology of tooth

Spacer designs
Spacer designsSpacer designs
Spacer designs

Gingiva
GingivaGingiva
Gingiva

Compensating Curves.pptx
Compensating Curves.pptxCompensating Curves.pptx
Compensating Curves.pptx

Access opening of molar teeth
Access opening of molar teethAccess opening of molar teeth
Access opening of molar teeth

clinical & laboratory step in complete denture
clinical & laboratory step in complete dentureclinical & laboratory step in complete denture
clinical & laboratory step in complete denture

The occlusal rims and record
The occlusal rims and recordThe occlusal rims and record
The occlusal rims and record

Permanent maxillary molars
Permanent maxillary molarsPermanent maxillary molars
Permanent maxillary molars

steps of cavity preparation for class 1
steps of cavity preparation for class 1 steps of cavity preparation for class 1
steps of cavity preparation for class 1

Growth & development of maxilla and mandible
Growth & development of maxilla and mandibleGrowth & development of maxilla and mandible
Growth & development of maxilla and mandible

Difference between primary and permanent teeth
Difference between primary and permanent teethDifference between primary and permanent teeth
Difference between primary and permanent teeth

Enamel
EnamelEnamel
Enamel

Steps Of Cavity Preparation
Steps Of Cavity PreparationSteps Of Cavity Preparation
Steps Of Cavity Preparation

maxillary anatomical landmarks
maxillary anatomical landmarksmaxillary anatomical landmarks
maxillary anatomical landmarks

Anatomical landmarks of mandibule
Anatomical landmarks of mandibuleAnatomical landmarks of mandibule
Anatomical landmarks of mandibule

Theories of tooth eruption
Theories of tooth eruptionTheories of tooth eruption
Theories of tooth eruption


Similar to Contact & contour

contact and contours
contact and contourscontact and contours
contact and contours
Preethika Babz

CONTACTS AND CONTOURS 2.pptx
CONTACTS AND CONTOURS 2.pptxCONTACTS AND CONTOURS 2.pptx
CONTACTS AND CONTOURS 2.pptx
Snehal shelke

Contacts and Contours by Dr. Jagadeesh Kodithyala
Contacts and Contours by Dr. Jagadeesh KodithyalaContacts and Contours by Dr. Jagadeesh Kodithyala
Contacts and Contours by Dr. Jagadeesh Kodithyala
Jagadeesh Kodityala

PROXIMAL CONTACTS AND CONTOURS 1.ppt
PROXIMAL CONTACTS AND CONTOURS 1.pptPROXIMAL CONTACTS AND CONTOURS 1.ppt
PROXIMAL CONTACTS AND CONTOURS 1.ppt
consendosbpdch

PROXIMAL CONTACTS AND CONTOURS
PROXIMAL CONTACTS AND CONTOURS PROXIMAL CONTACTS AND CONTOURS
PROXIMAL CONTACTS AND CONTOURS
Syed Mubeen Mohiuddin Hussaini

Form and function of orofacial complex
Form and function of orofacial complexForm and function of orofacial complex
Form and function of orofacial complex
Dr Monika Negi

tooth form and occlusion
tooth form and occlusiontooth form and occlusion
tooth form and occlusion
IAU Dent

Contacts & contours/ practice dentistry
Contacts & contours/ practice dentistryContacts & contours/ practice dentistry
Contacts & contours/ practice dentistry
Indian dental academy

Contacts and Contours
Contacts and ContoursContacts and Contours
Contacts and Contours
Dr. Meenal Atharkar

contactsandcontours-INDICATION AND CONTRAINDICATION
contactsandcontours-INDICATION AND CONTRAINDICATIONcontactsandcontours-INDICATION AND CONTRAINDICATION
contactsandcontours-INDICATION AND CONTRAINDICATION
aishwaryakhare5

contacts and contours seminar.pptx endodontics
contacts and contours  seminar.pptx endodonticscontacts and contours  seminar.pptx endodontics
contacts and contours seminar.pptx endodontics
ritukhichar4

dental anatomy & physiology of permanent teeth
dental anatomy & physiology of permanent teethdental anatomy & physiology of permanent teeth
dental anatomy & physiology of permanent teeth
Priyanka Chowdhary

Contacts and contours
Contacts and contoursContacts and contours
Contacts and contoursParth Thakkar

Contacts and Contours By Dr.Ruchir Kapur
Contacts and Contours By Dr.Ruchir KapurContacts and Contours By Dr.Ruchir Kapur
Contacts and Contours By Dr.Ruchir Kapur
Dr.Ruchir kapur

Screenshot 2022-12-10 at 19.55.19.pdf
Screenshot 2022-12-10 at 19.55.19.pdfScreenshot 2022-12-10 at 19.55.19.pdf
Screenshot 2022-12-10 at 19.55.19.pdf
SayaleenAbukishik

direct factors and their significeance in protection of periodontium
direct factors and their significeance in protection of periodontiumdirect factors and their significeance in protection of periodontium
direct factors and their significeance in protection of periodontium
mahmod3mmar

Contact and contours
Contact and contoursContact and contours
Contact and contours
Nischala Chaulagain

Physiologic tooth part 1
Physiologic tooth part 1Physiologic tooth part 1
Physiologic tooth part 1
Menatalla Elhindawy

geometric outline
geometric outlinegeometric outline
geometric outline
mahmod3mmar

vinay contacts and contours-1.pptx
vinay contacts and contours-1.pptxvinay contacts and contours-1.pptx
vinay contacts and contours-1.pptx
SiddheshKokitkar


Similar to Contact & contour (20)

contact and contours
contact and contourscontact and contours
contact and contours

CONTACTS AND CONTOURS 2.pptx
CONTACTS AND CONTOURS 2.pptxCONTACTS AND CONTOURS 2.pptx
CONTACTS AND CONTOURS 2.pptx

Contacts and Contours by Dr. Jagadeesh Kodithyala
Contacts and Contours by Dr. Jagadeesh KodithyalaContacts and Contours by Dr. Jagadeesh Kodithyala
Contacts and Contours by Dr. Jagadeesh Kodithyala

PROXIMAL CONTACTS AND CONTOURS 1.ppt
PROXIMAL CONTACTS AND CONTOURS 1.pptPROXIMAL CONTACTS AND CONTOURS 1.ppt
PROXIMAL CONTACTS AND CONTOURS 1.ppt

PROXIMAL CONTACTS AND CONTOURS
PROXIMAL CONTACTS AND CONTOURS PROXIMAL CONTACTS AND CONTOURS
PROXIMAL CONTACTS AND CONTOURS

Form and function of orofacial complex
Form and function of orofacial complexForm and function of orofacial complex
Form and function of orofacial complex

tooth form and occlusion
tooth form and occlusiontooth form and occlusion
tooth form and occlusion

Contacts & contours/ practice dentistry
Contacts & contours/ practice dentistryContacts & contours/ practice dentistry
Contacts & contours/ practice dentistry

Contacts and Contours
Contacts and ContoursContacts and Contours
Contacts and Contours

contactsandcontours-INDICATION AND CONTRAINDICATION
contactsandcontours-INDICATION AND CONTRAINDICATIONcontactsandcontours-INDICATION AND CONTRAINDICATION
contactsandcontours-INDICATION AND CONTRAINDICATION

contacts and contours seminar.pptx endodontics
contacts and contours  seminar.pptx endodonticscontacts and contours  seminar.pptx endodontics
contacts and contours seminar.pptx endodontics

dental anatomy & physiology of permanent teeth
dental anatomy & physiology of permanent teethdental anatomy & physiology of permanent teeth
dental anatomy & physiology of permanent teeth

Contacts and contours
Contacts and contoursContacts and contours
Contacts and contours

Contacts and Contours By Dr.Ruchir Kapur
Contacts and Contours By Dr.Ruchir KapurContacts and Contours By Dr.Ruchir Kapur
Contacts and Contours By Dr.Ruchir Kapur

Screenshot 2022-12-10 at 19.55.19.pdf
Screenshot 2022-12-10 at 19.55.19.pdfScreenshot 2022-12-10 at 19.55.19.pdf
Screenshot 2022-12-10 at 19.55.19.pdf

direct factors and their significeance in protection of periodontium
direct factors and their significeance in protection of periodontiumdirect factors and their significeance in protection of periodontium
direct factors and their significeance in protection of periodontium

Contact and contours
Contact and contoursContact and contours
Contact and contours

Physiologic tooth part 1
Physiologic tooth part 1Physiologic tooth part 1
Physiologic tooth part 1

geometric outline
geometric outlinegeometric outline
geometric outline

vinay contacts and contours-1.pptx
vinay contacts and contours-1.pptxvinay contacts and contours-1.pptx
vinay contacts and contours-1.pptx


Recently uploaded

For Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #Girls
For Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #GirlsFor Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #Girls
For Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #Girls
Savita Shen $i11

BRACHYTHERAPY OVERVIEW AND APPLICATORS
BRACHYTHERAPY OVERVIEW  AND  APPLICATORSBRACHYTHERAPY OVERVIEW  AND  APPLICATORS
BRACHYTHERAPY OVERVIEW AND APPLICATORS
Krishan Murari

24 Upakrama.pptx class ppt useful in all
24 Upakrama.pptx class ppt useful in all24 Upakrama.pptx class ppt useful in all
24 Upakrama.pptx class ppt useful in all
DrSathishMS1

Novas diretrizes da OMS para os cuidados perinatais de mais qualidade
Novas diretrizes da OMS para os cuidados perinatais de mais qualidadeNovas diretrizes da OMS para os cuidados perinatais de mais qualidade
Novas diretrizes da OMS para os cuidados perinatais de mais qualidade
Prof. Marcus Renato de Carvalho

ANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptx
ANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptxANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptx
ANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptx
Swetaba Besh

Flu Vaccine Alert in Bangalore Karnataka
Flu Vaccine Alert in Bangalore KarnatakaFlu Vaccine Alert in Bangalore Karnataka
Flu Vaccine Alert in Bangalore Karnataka
addon Scans

Cervical & Brachial Plexus By Dr. RIG.pptx
Cervical & Brachial Plexus By Dr. RIG.pptxCervical & Brachial Plexus By Dr. RIG.pptx
Cervical & Brachial Plexus By Dr. RIG.pptx
Dr. Rabia Inam Gandapore

Prix Galien International 2024 Forum Program
Prix Galien International 2024 Forum ProgramPrix Galien International 2024 Forum Program
Prix Galien International 2024 Forum Program
Levi Shapiro

Ophthalmology Clinical Tests for OSCE exam
Ophthalmology Clinical Tests for OSCE examOphthalmology Clinical Tests for OSCE exam
Ophthalmology Clinical Tests for OSCE exam
KafrELShiekh University

The Normal Electrocardiogram - Part I of II
The Normal Electrocardiogram - Part I of IIThe Normal Electrocardiogram - Part I of II
The Normal Electrocardiogram - Part I of II
MedicoseAcademics

NVBDCP.pptx Nation vector borne disease control program
NVBDCP.pptx Nation vector borne disease control programNVBDCP.pptx Nation vector borne disease control program
NVBDCP.pptx Nation vector borne disease control program
Sapna Thakur

Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists
Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists  Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists
Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists
Saeid Safari

BENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdf
BENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdfBENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdf
BENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdf
DR SETH JOTHAM

Charaka Samhita Sutra sthana Chapter 15 Upakalpaniyaadhyaya
Charaka Samhita Sutra sthana Chapter 15 UpakalpaniyaadhyayaCharaka Samhita Sutra sthana Chapter 15 Upakalpaniyaadhyaya
Charaka Samhita Sutra sthana Chapter 15 Upakalpaniyaadhyaya
Dr KHALID B.M

Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journey
Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness JourneyTom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journey
Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journey
greendigital

263778731218 Abortion Clinic /Pills In Harare ,
263778731218 Abortion Clinic /Pills In Harare ,263778731218 Abortion Clinic /Pills In Harare ,
263778731218 Abortion Clinic /Pills In Harare ,
sisternakatoto

Physiology of Special Chemical Sensation of Taste
Physiology of Special Chemical Sensation of TastePhysiology of Special Chemical Sensation of Taste
Physiology of Special Chemical Sensation of Taste
MedicoseAcademics

TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...
TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...
TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...
kevinkariuki227

micro teaching on communication m.sc nursing.pdf
micro teaching on communication m.sc nursing.pdfmicro teaching on communication m.sc nursing.pdf
micro teaching on communication m.sc nursing.pdf
Anurag Sharma

POST OPERATIVE OLIGURIA and its management
POST OPERATIVE OLIGURIA and its managementPOST OPERATIVE OLIGURIA and its management
POST OPERATIVE OLIGURIA and its management
touseefaziz1


Recently uploaded (20)

For Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #Girls
For Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #GirlsFor Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #Girls
For Better Surat #ℂall #Girl Service ❤85270-49040❤ Surat #ℂall #Girls

BRACHYTHERAPY OVERVIEW AND APPLICATORS
BRACHYTHERAPY OVERVIEW  AND  APPLICATORSBRACHYTHERAPY OVERVIEW  AND  APPLICATORS
BRACHYTHERAPY OVERVIEW AND APPLICATORS

24 Upakrama.pptx class ppt useful in all
24 Upakrama.pptx class ppt useful in all24 Upakrama.pptx class ppt useful in all
24 Upakrama.pptx class ppt useful in all

Novas diretrizes da OMS para os cuidados perinatais de mais qualidade
Novas diretrizes da OMS para os cuidados perinatais de mais qualidadeNovas diretrizes da OMS para os cuidados perinatais de mais qualidade
Novas diretrizes da OMS para os cuidados perinatais de mais qualidade

ANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptx
ANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptxANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptx
ANATOMY AND PHYSIOLOGY OF URINARY SYSTEM.pptx

Flu Vaccine Alert in Bangalore Karnataka
Flu Vaccine Alert in Bangalore KarnatakaFlu Vaccine Alert in Bangalore Karnataka
Flu Vaccine Alert in Bangalore Karnataka

Cervical & Brachial Plexus By Dr. RIG.pptx
Cervical & Brachial Plexus By Dr. RIG.pptxCervical & Brachial Plexus By Dr. RIG.pptx
Cervical & Brachial Plexus By Dr. RIG.pptx

Prix Galien International 2024 Forum Program
Prix Galien International 2024 Forum ProgramPrix Galien International 2024 Forum Program
Prix Galien International 2024 Forum Program

Ophthalmology Clinical Tests for OSCE exam
Ophthalmology Clinical Tests for OSCE examOphthalmology Clinical Tests for OSCE exam
Ophthalmology Clinical Tests for OSCE exam

The Normal Electrocardiogram - Part I of II
The Normal Electrocardiogram - Part I of IIThe Normal Electrocardiogram - Part I of II
The Normal Electrocardiogram - Part I of II

NVBDCP.pptx Nation vector borne disease control program
NVBDCP.pptx Nation vector borne disease control programNVBDCP.pptx Nation vector borne disease control program
NVBDCP.pptx Nation vector borne disease control program

Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists
Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists  Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists
Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists

BENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdf
BENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdfBENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdf
BENIGN PROSTATIC HYPERPLASIA.BPH. BPHpdf

Charaka Samhita Sutra sthana Chapter 15 Upakalpaniyaadhyaya
Charaka Samhita Sutra sthana Chapter 15 UpakalpaniyaadhyayaCharaka Samhita Sutra sthana Chapter 15 Upakalpaniyaadhyaya
Charaka Samhita Sutra sthana Chapter 15 Upakalpaniyaadhyaya

Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journey
Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness JourneyTom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journey
Tom Selleck Health: A Comprehensive Look at the Iconic Actor’s Wellness Journey

263778731218 Abortion Clinic /Pills In Harare ,
263778731218 Abortion Clinic /Pills In Harare ,263778731218 Abortion Clinic /Pills In Harare ,
263778731218 Abortion Clinic /Pills In Harare ,

Physiology of Special Chemical Sensation of Taste
Physiology of Special Chemical Sensation of TastePhysiology of Special Chemical Sensation of Taste
Physiology of Special Chemical Sensation of Taste

TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...
TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...
TEST BANK for Operations Management, 14th Edition by William J. Stevenson, Ve...

micro teaching on communication m.sc nursing.pdf
micro teaching on communication m.sc nursing.pdfmicro teaching on communication m.sc nursing.pdf
micro teaching on communication m.sc nursing.pdf

POST OPERATIVE OLIGURIA and its management
POST OPERATIVE OLIGURIA and its managementPOST OPERATIVE OLIGURIA and its management
POST OPERATIVE OLIGURIA and its management


Contact & contour

  • 2. CONTACT POINT/AREA • That part of the proximal surface of a tooth which touches the adjacent tooth mesially or distally. • Synonyms: contact point, point of proximal contact.
  • 3. • Initially after eruption the tooth has a contact point with adjacent teeth. • Physiological tooth movements result in the wear of the proximal surfaces causing the contact point to become contact area.
  • 4. FUNCTION OF PROXIMAL CONTACT 1. Prevents food from impinging in between teeth. 2. Stabilizes all the teeth in the dental arch. 3. Diverts food towards the buccal and lingual areas thus protecting the interdental papilla.
  • 5. LOCATION OF CONTACT AREA MAXILLARY TEETH • Incisal view shows the contact areas of all maxillary anterior teeth to be located at the center of the tooth crowns in a labio-lingual direction. • The lingual embrasures widen out more than the labial embrasures.
  • 6. • A labial view shows the contact areas on the mesial surfaces of the central incisors to be in the incisal third of the crowns. • In between the central & lateral incisors contact area is approximately at the junction of the middle and incisal thirds of the teeth.
  • 7. • The contact area on the distal surface of the laterals is in the middle third of the crowns. • The mesial contacts on the cuspid teeth are nearly at the junction of their incisal and middle thirds. • The contact areas on the distal of the cuspids is located in the middle third of the crowns.
  • 8. • The contact areas on the mesial surfaces of the first bicuspids are centered at the junction of the occlusal and middle thirds of the crowns. • The contact areas on the distals of the first bicuspids are located in the occlusal thirds of the crowns.
  • 9. • A buccal view shows the contact areas of upper first & second premolar & first molar to be located in the occlusal thirds of the crowns. • An occlusal view indicates that the centers of the contact areas are located somewhat buccally to the midline of the bicuspid teeth and usually at about the midline of the first molar teeth.
  • 10. • A buccal view shows the centers of the contact areas to be located at about the junction of the occlusal and middle thirds of the first and second molar crowns. • An occlusal view indicates that the contact areas are broader and are centered at about the midline of the teeth.
  • 11. MANDIBULAR TEETH • An incisal view shows the contact areas of all mandibular anterior teeth to be located at the center of the tooth crowns in a labio-lingual direction. • A labial view indicates that the contact areas of the mandibular anterior teeth are uniform in nature and occur at the incisal third of the tooth crowns.
  • 12. • Buccal view shows the distal contact areas of the cuspids to be in the middle thirds of the crowns. • An occlusal view shows the centers of the contact areas to be located at approximately the midline of the teeth.
  • 13. • A buccal view shows the contact areas between first& second premolar & first molar to be placed higher than on the mesials of the first bicuspids. • They are located entirely in the occlusal thirds of the crowns. • Occlusally the contact areas are progressively broader from the first bicuspids distally to the second molars.
  • 14. • The contact areas between the First, Second and Third Molar Teeth are located near the junction of the middle and occlusal thirds of the tooth crowns. • Occlusally the contact areas are located near the midline of the crowns with only a slight tendency to be located toward the buccal.
  • 15. CONTOUR  Refers to the outline of a structure.  The facial and the lingual surfaces of teeth possess some degree of convexity.  Height of contour-a line encircling a tooth representing its greatest circumference
  • 16.  The height of contour is generally located at the cervical third of the facial surfaces of all teeth & the lingual surfaces of the incisors and canines.  The lingual surfaces of the posterior teeth usually have their height of contours in the middle third of the crown.
  • 17. FUNCTION OF NORMAL TOOTH CONTOUR  Provide a degree of protection to the periodontium by preventing food impingement against soft tissues.
  • 18. EMBRASURES  These are V-shaped spaces that originate at the proximal contact areas between adjacent teeth.  They are named according to the direction towards which they radiate.  These embrasures are facial, lingual, incisal/occlusal & gingival.
  • 19. Ridge—Any linear elevation found on the surface of a tooth. Marginal ridge— 1.They are elevations of enamel which form the mesial and distal margins of the occlusal surfaces of posterior teeth. 2.They also form the mesial and distal margins of the lingual surface of anterior teeth
  • 20.  Marginal ridges are at uniform heights with adjacent marginal ridges.  This relationship is necessary to provide the most efficient spillways for the deflection of food substances.
  • 21. HAZARDS OF FAULTY REPRODUCTION OF CONTACT & CONTOUR
  • 22.  BROAD CONTACT 1.Changes the anatomy of the interdental col. 2.Produces a less cleansable interdental area. 3.May encroach on the embrasures.  NARROW CONTACT 1. Causes food to be impacted vertically/ horizontally in the col area. 2.Predisposes to periodontal and caries problem.
  • 23. OCCLUSALLY PLACED CONTACT GINGIVALLY PLACED CONTACT CONTACT AREA PLACED TOO GINGIVALLY 1.Impinges on the interdental papilla. 2.The contact size is decreased. CONTACT AREA PLACED TOO OCCLUSALLY 1. Shallow occlusal embrasure. 2. Flattened marginal ridge.
  • 24. • OPEN CONTACT 1.Allows for food impaction in the region of the interdental col.
  • 25. IMPROPER CONTOUR • UNDER CONTOUR: Causes food impingement of food into soft tissue. • OVER CONTOUR: Deflects food away from gingiva resulting in understimulation of supporting tissues. PROPER CONTOUR UNDER CONTOUR OVER CONTOUR
  • 26. IMPROPER MARGINAL RIDGE A MARGINAL RIDGE WITH NO OCCLUSAL EMBRASURE A MARGINAL RIDGE WITH EXAGGERATED OCCLUSAL EMBRASURE Causes driving of food debris interproximally. If debris are trapped in between it will be very difficult to remove.
  • 27. MARGINAL RIDGES NOT COMPATIBLE IN HEIGHT Restoration with marginal ridge higher than adjacent tooth: • Will cause the restored tooth to move. • Dives food debris interproximally. Restoration with marginal ridge lower then adjacent tooth: • Major movement of the unrestored tooth occurs.
  • 28. OVERHANGING GINGIVAL MARGIN Predisposes to periodontal diseases.
  • 29. DITCHING IN THE OCCLUSAL SURFACE • A deficiency of amalgam along the margin, preventing the margin of the cavity preparation from being flush.
  • 30. PROCEDURES FOR CREATING PROPER CONTACT & CONTOUR
  • 31. INTRAORAL PROCEDURES 1. Tooth movement a)Rapid tooth movement b)Slow tooth movement 2. Matricing
  • 32. Rapid tooth movement • Should not exceed the thickness of the tooth’s PDL(0.2-0.5 mm). • Types:- a)Wedge method:- 1.Elliot Separator 2.Plastic/Wooden wedges b)Traction method:- 1.Non-interfering true separator 2. Ferrier double-bow separator
  • 33. ELLIOT SEPARATOR • Used for short duration separation.
  • 34. WOOD/PLASTIC WEDGES FUNCTION:- 1.Adapts the matrix band to the tooth gingivally. 2.Occupy the space filled by gingival interdental tissue thus preventing overfill. 3.Creates tooth separation compensating for the thickness if matris band 4.Protects interproximal tissue. 5.Immobilizes the matrix band.
  • 35. Special types of Wedge placements • DOUBLE WEDGING:- 1.Used when the proximal box is wide faciolingually. 2. two wedges are used, one from the lingual embrasure and one from the facial embrasure.
  • 36. • PIGGY BACK WEDGING:- • This type of wedging is particularly useful for patients whose interproximal tissue level has receded. • Second (usually smaller) wedge may be placed on top of the first to wedge adequately the matrix against the margin
  • 37. • WEDGE-WEDGING:- • Used in case of a fluted root, such as the mesial surface of the maxillary first premolar. • A gingival margin located in this area is concave. • To wedge a matrix band tightly against such a margin, a second pointed wedge can be inserted between the first wedge and the band.
  • 38. NON-INTERFERING TRUE SEPARATOR • A single-bowed separator designed to give greater access to the surface being operated on; designed by Harry A. True. • Indicated when continuous stabilized separation is required.
  • 39. FERRIER SEPARATOR • A set of balanced, double-bowed, adjustable separators designed by W.I. Ferrier.
  • 40. Slow separation • Used when rapid movement will endanger the condition of the PDL (eg. in tilted/drifted tooth). METHODS:- a)Separating wires b)Oversized temporaries c)Orthodontic appliances
  • 42. CLASSIFICATION OF MATRICES • Depending upon method of retention:- a)Mechanically retained eg. Ivory matrix retainers, Tofflemire system. b)Self-retained eg. Copper/Stainless steel bands. • On basis of transparency:- a)Transparent matrices eg. Cellophane/celluloid. b) Non-transparent matrices eg. Stainless steel
  • 43. Requirements of a matrix band • Rigidity-To withstand the condensation pressure. • Versatility-To conform to any form. • Comfortable to the patient. • Height -A matrix band should extend 2mm above the marginal ridge height & 1mm below the gingival margin. • Easy application & sterilization.
  • 44. Dimensions of matrix bands • Width-Ranging from 6.35mm to 9.525mm for permanent teeth. • 3.175mm to 7.9375mm for deciduous teeth. • Thickness- 0.0381mm(0.0015in) to0.508mm(0.002 in).
  • 45. TOFFLEMIRE/UNIVERSAL MATRIX • Designed by B.R. Tofflemire. • Ideally indicated when three surfaces (i.e., mesial, occlusal, distal) of a posterior tooth have been prepared. • It may be positioned on the facial or lingual aspect of the tooth.
  • 46. WINDOW MATRIX • Used for Class V amalgam restoration. • Formed from Tofflemire matrix/Copper band. • A window is cut in the matrix band slightly smaller than the original cavity dimension.
  • 47. IVORY MATRIX NO.1 • Indicated in unilateral Class II conditions.
  • 48. IVORY MATRIX NO.8 • Indicated in bilateral Class II/MOD situations.
  • 49. Retainerless matrix systems • Indicated in tilted or partially erupted teeth. • Types:- 1.Retainerless automatrix band. 2.Anatomical matrix band 3.T shaped matrix band. 4.S-shaped matrix band 5.Full circle/Ring bands.
  • 50.  The automatrix system is an alternative to a universal retainer.  There is no retainer used to hold the band in place.  Bands are already formed into a circle and are available in assorted sizes in both metal and plastic.
  • 51. Compound-supported matrix. • The compound supported matrix is rarely used, • but it is an alternative to the Universal matrix.
  • 52. S-shaped matrix • Ideally used for restoring distal part of canine & premolar. • Normal stainless steel band is shaped by a mouth mirror handle.
  • 53. Anatomic matrix & wedges 1. Most efficient means of reproducing contact & contour. 2. Contoured specifically for each individual case.
  • 54. Sectional Matrices • A thin polished PALODENT- type band and a tension ring produce a tight anatomic contact for class II restorations. • Precontoured and ready for application to the tooth • most suitable for mandibular first premolars and the distal surface of maxillary canines. BiTine® ringsMetal matrix forms
  • 55.  A plastic matrix, also referred to as a celluloid matrix or mylar strip, is used for class III and IV restorations.
  • 56.  CERVICAL MATRICES -  The thin edges allow the excess composite to flow out and offer a closer rebuild of the natural tooth.
  • 57. 1.These are stock plastic crowns which can be adapted to the tooth anatomy. 2.In bilateral class IV entire crown form is used. 3.In unilateral situations it is cut into half.
