Two light waves of wavelength 500nm interfere constructively. To determine the path difference at the point of constructive interference, use the formula: path difference = wavelength. For these light waves, the path difference is 5.0 x 10^-7 meters. When two coherent light waves with intensities of 10 W/m2 and 8 W/m2 interfere, producing a pattern on a screen, the maximum intensity is approximately 35.77 W/m2 and the minimum is approximately 0.2239 W/m2. The superposition principle, where the resulting disturbance from overlapping waves equals the sum of the individual disturbances, plays a crucial role in understanding various phenomena in fields like music, electrical circuits, optics,

1. APPLIED PHYSICS
T3 ASSIGNMENT
OJASWI
231FA14025
BIOINFORMATICS
SEC : 30
1

2. OVERVIEW
Two light waves of wavelength 500nm interfere constructively.
Determine the path difference between the waves at the point of
constructive interference.
Two coherent light waves are interfering , producing an interference
pattern on a screen. The intensities of the individual waves are I1 =10
W/m2 and I2 = 8 W/m2. Calculate the maximum and minimum intensities
of the interference pattern.
Provide real-life examples where the superposition principle plays a
crucial role in understanding wave phenomena and designing practical
applications ?
2

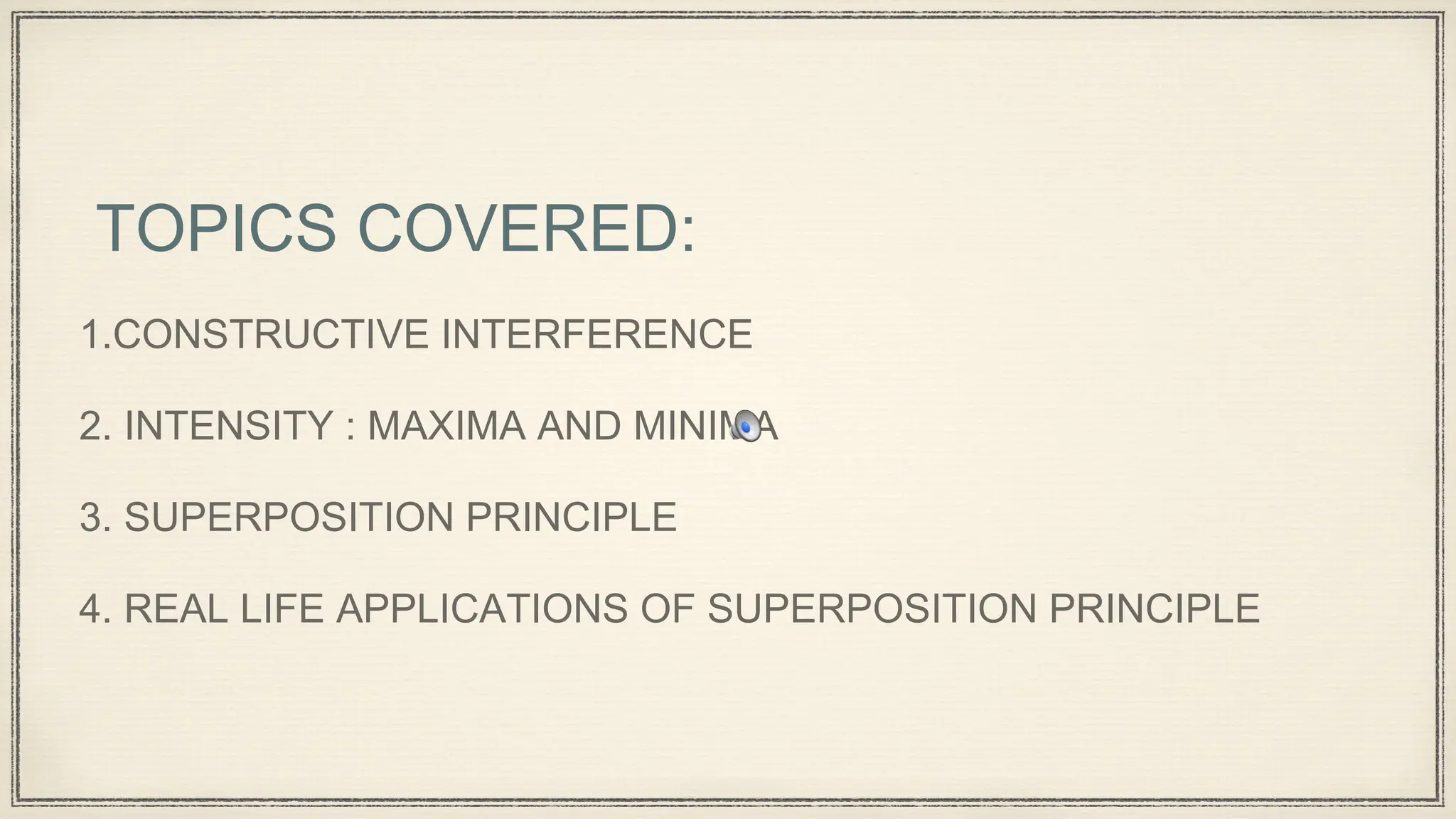

3. TOPICS COVERED:
1.CONSTRUCTIVE INTERFERENCE
2. INTENSITY : MAXIMA AND MINIMA
3. SUPERPOSITION PRINCIPLE
4. REAL LIFE APPLICATIONS OF SUPERPOSITION PRINCIPLE

4. CONSTRUCTIVE INTERFERENCE
Constructive interference is a phenomenon
that occurs when two or more waves meet at
a point in such a way that they reinforce
each other, resulting in an increase in the
overall amplitude (or intensity) of the
combined wave.
In other words, during constructive
interference, the individual waves are "in
phase," meaning their peaks and troughs
align, leading to a stronger or more
pronounced wave at the point of
interference.

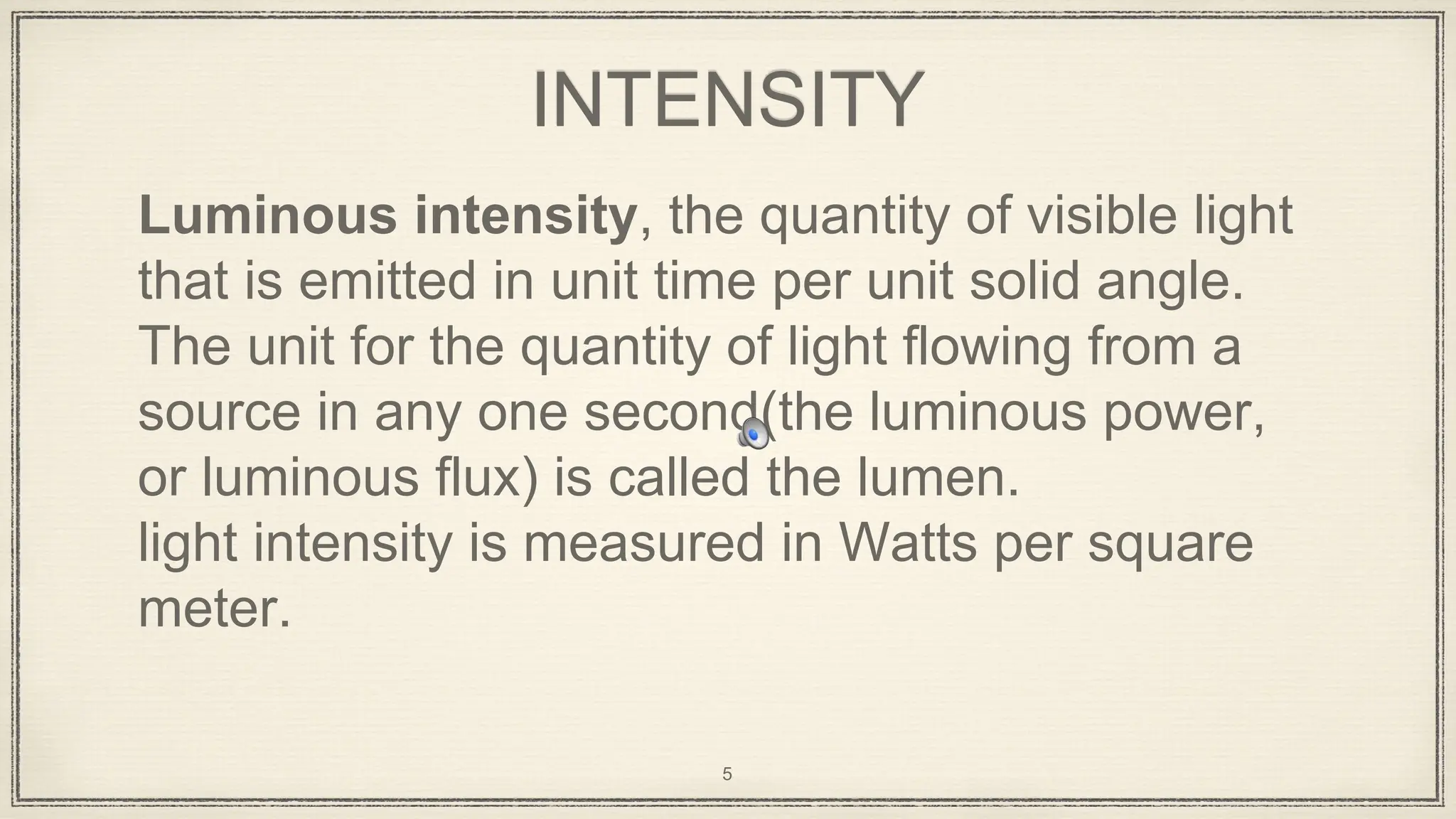

5. INTENSITY
Luminous intensity, the quantity of visible light
that is emitted in unit time per unit solid angle.
The unit for the quantity of light flowing from a
source in any one second(the luminous power,
or luminous flux) is called the lumen.
light intensity is measured in Watts per square
meter.
5

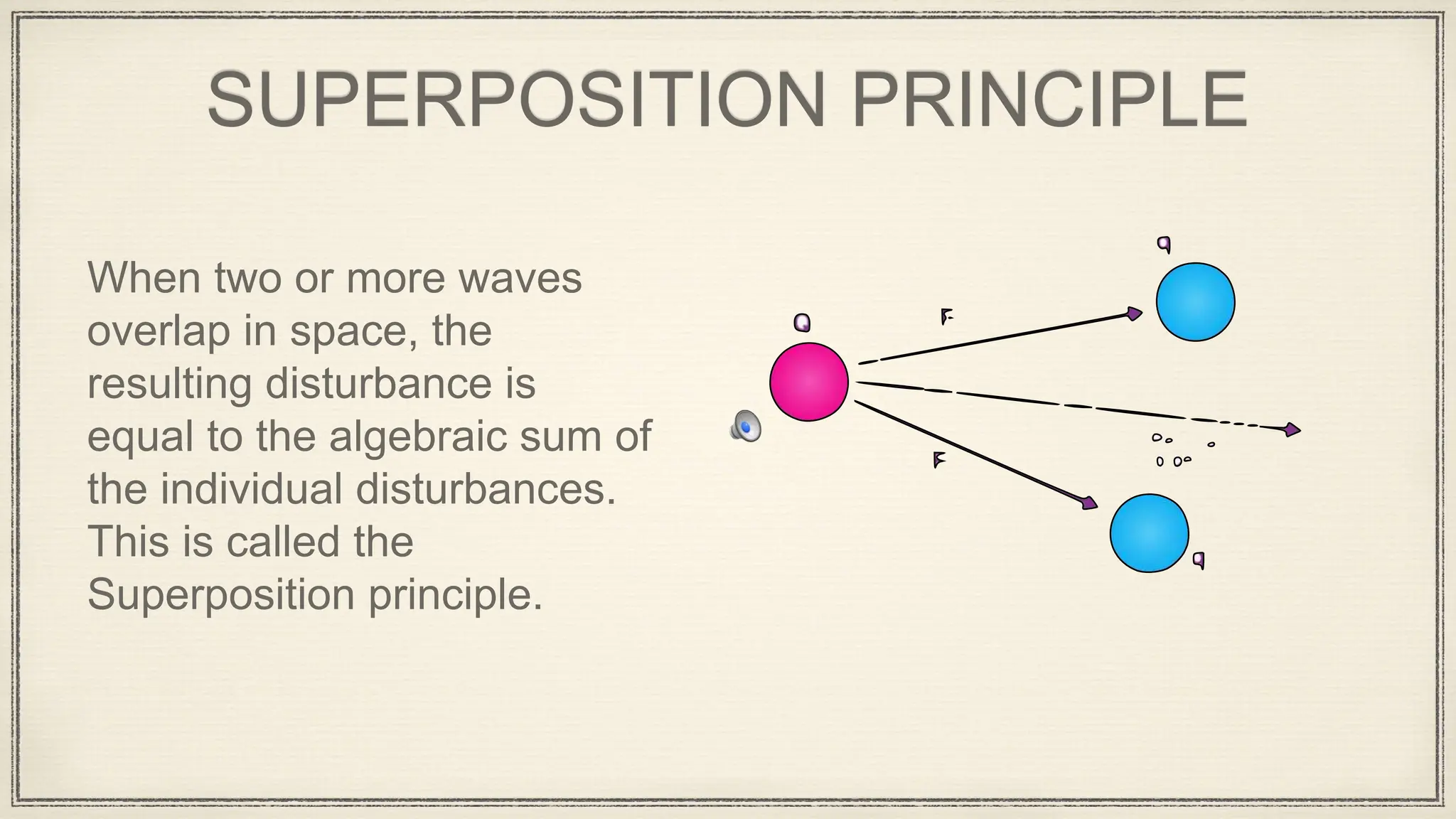

6. SUPERPOSITION PRINCIPLE
When two or more waves
overlap in space, the
resulting disturbance is
equal to the algebraic sum of
the individual disturbances.
This is called the
Superposition principle.

7. Two light waves of wavelength 500nm interfere constructively.Determine the
To determine the path difference between the waves at the point of constructive interference,
you can use the formula:
Path Difference (Δx) = m * λ
Where:
Δx is the path difference.
m is an integer (0, 1, 2, 3, ...) representing the order of the constructive interference.
λ is the wavelength of the light.
Let's assume you want to find the path difference for the first-order constructive interference (m =
1):
Δx = 1 * λ
Δx = 1 * 5.0 x 10^-7 meters
Δx = 5.0 x 10^-7 meters
7

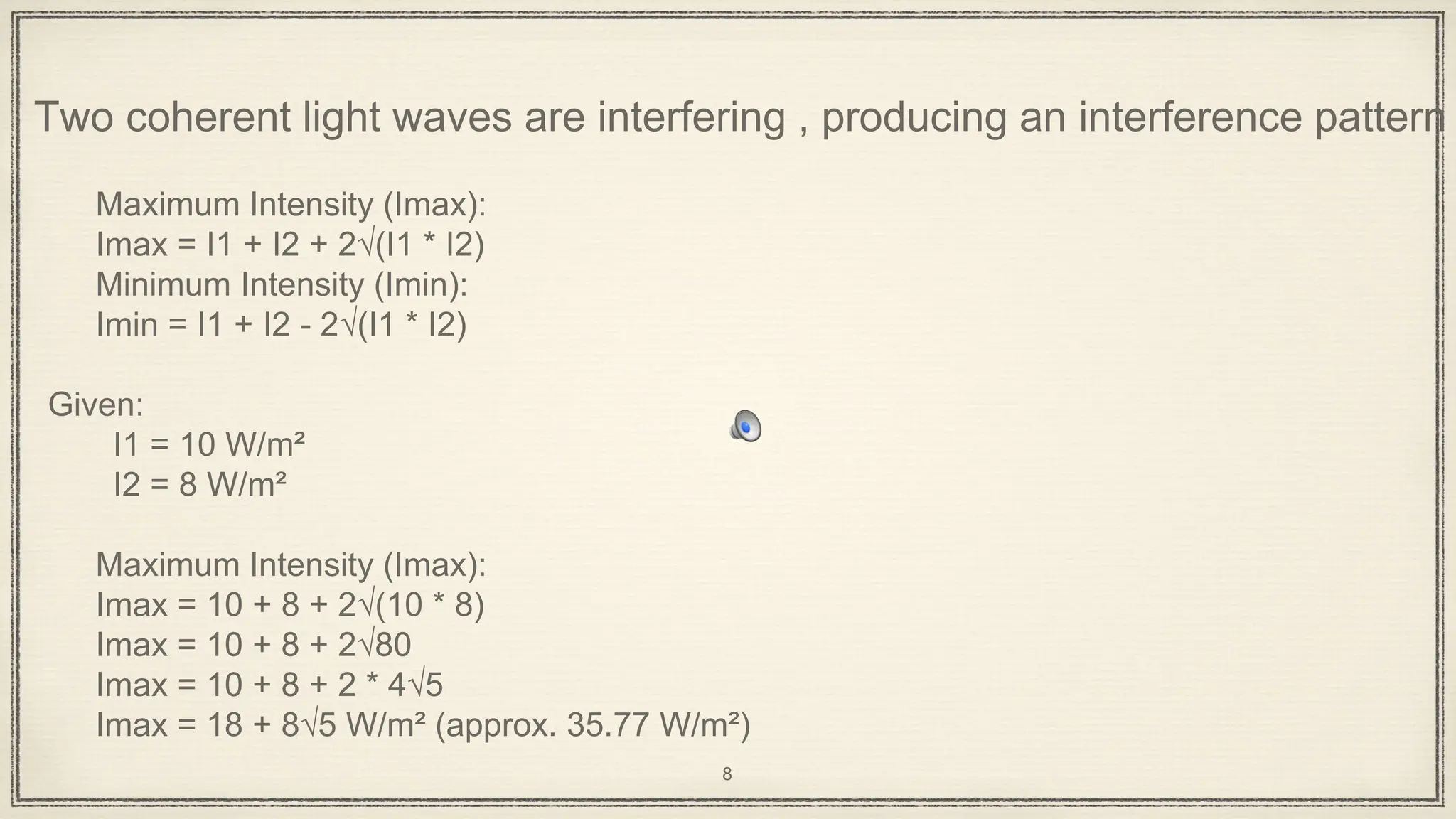

8. Two coherent light waves are interfering , producing an interference pattern
Maximum Intensity (Imax):
Imax = I1 + I2 + 2√(I1 * I2)
Minimum Intensity (Imin):
Imin = I1 + I2 - 2√(I1 * I2)
Given:
I1 = 10 W/m²
I2 = 8 W/m²
Maximum Intensity (Imax):
Imax = 10 + 8 + 2√(10 * 8)
Imax = 10 + 8 + 2√80
Imax = 10 + 8 + 2 * 4√5
Imax = 18 + 8√5 W/m² (approx. 35.77 W/m²)
8

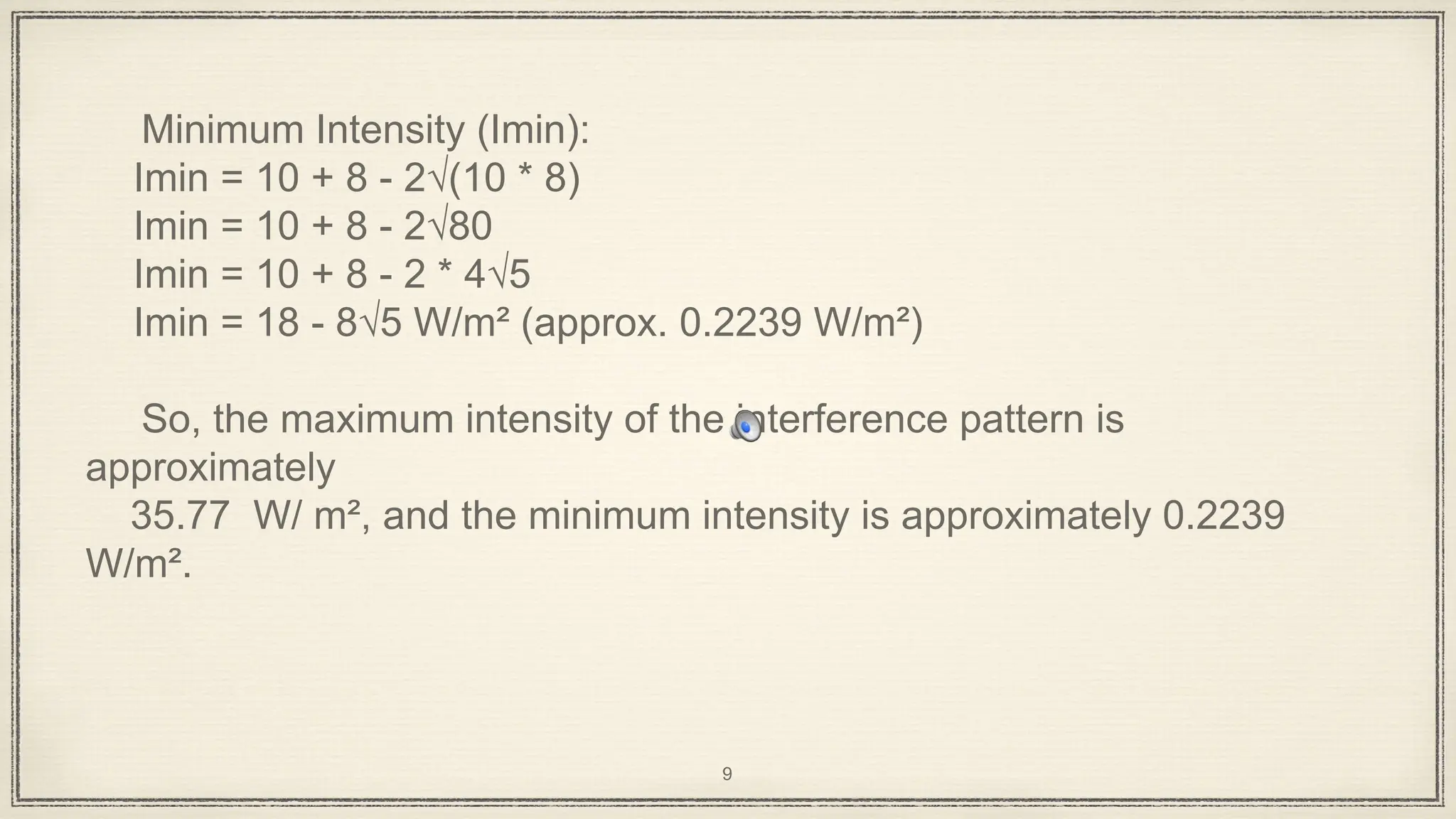

9. Minimum Intensity (Imin):
Imin = 10 + 8 - 2√(10 * 8)
Imin = 10 + 8 - 2√80
Imin = 10 + 8 - 2 * 4√5
Imin = 18 - 8√5 W/m² (approx. 0.2239 W/m²)
So, the maximum intensity of the interference pattern is
approximately
35.77 W/ m², and the minimum intensity is approximately 0.2239
W/m².
9

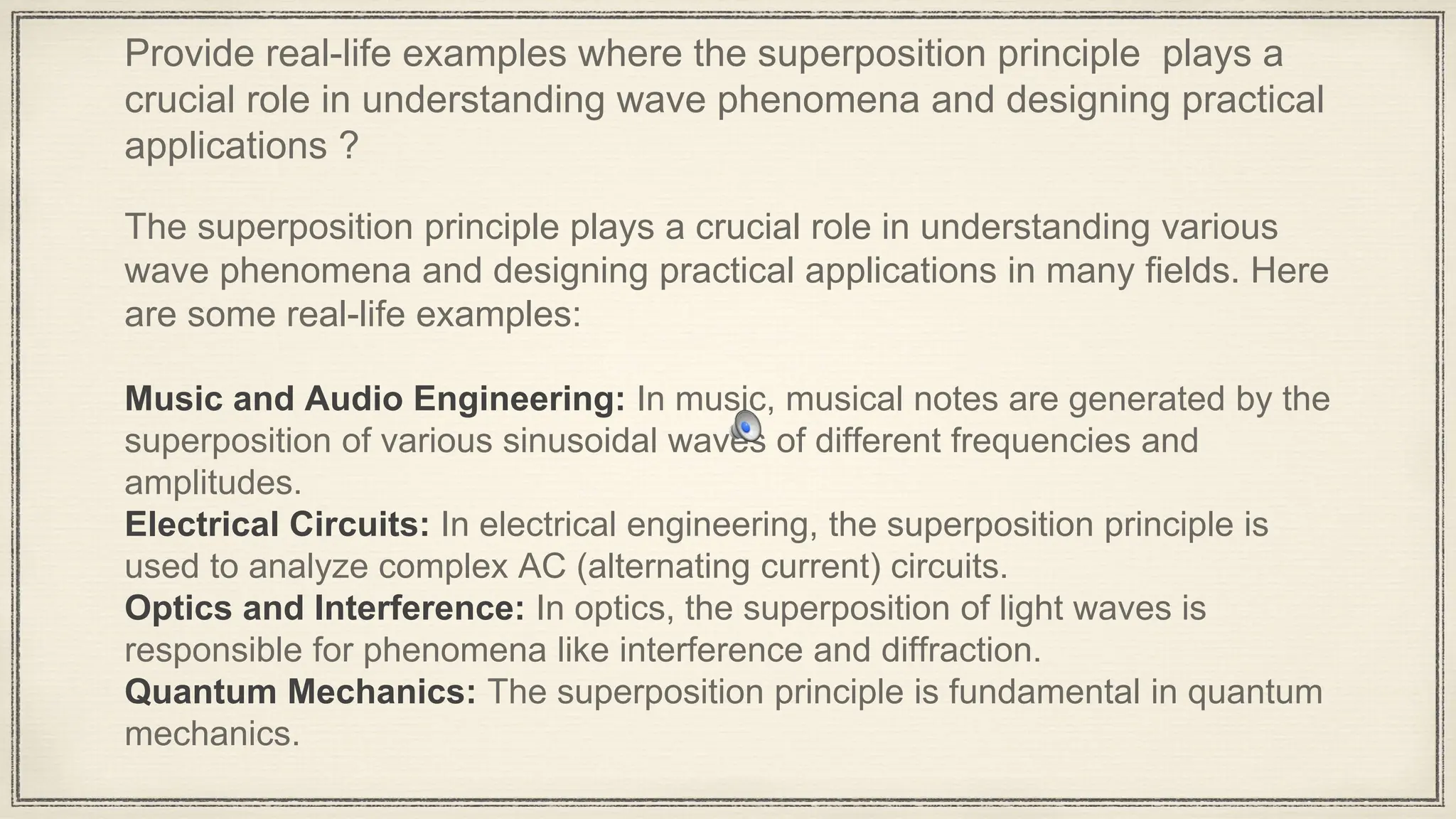

10. Provide real-life examples where the superposition principle plays a
crucial role in understanding wave phenomena and designing practical
applications ?
The superposition principle plays a crucial role in understanding various
wave phenomena and designing practical applications in many fields. Here
are some real-life examples:
Music and Audio Engineering: In music, musical notes are generated by the
superposition of various sinusoidal waves of different frequencies and
amplitudes.
Electrical Circuits: In electrical engineering, the superposition principle is
used to analyze complex AC (alternating current) circuits.
Optics and Interference: In optics, the superposition of light waves is
responsible for phenomena like interference and diffraction.
Quantum Mechanics: The superposition principle is fundamental in quantum
mechanics.

11. Seismology: In seismology, the superposition of seismic waves generated by
earthquakes helps scientists analyze and understand the Earth's interior.
Medical Imaging: In medical imaging, techniques like MRI (Magnetic
Resonance Imaging) and CT (Computed Tomography) rely on the superposition
principle.
Waveguides and Telecommunications: Waveguides, such as optical fibers in
telecommunications, use the superposition principle to transmit information as
light waves.
Oceanography: Understanding ocean waves involves the superposition of
various wave components due to wind, currents, and other factors.
The superposition principle allows scientists and engineers to break down
complex wave phenomena, make predictions, and design practical applications
that rely on the behavior of waves in various systems.
11
