Configuration of Smart Environments Made Simple
Combining Visual Modeling with Semantic Metadata and Reasoning

2. | 2
Simon Mayer
http://people.inf.ethz.ch/mayersi

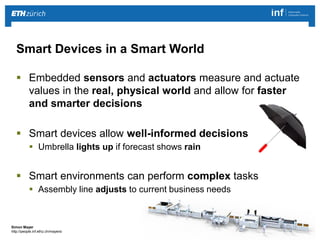

 Embedded sensors and actuators measure and actuate
values in the real, physical world and allow for faster
and smarter decisions
 Smart devices allow well-informed decisions
 Umbrella lights up if forecast shows rain
 Smart environments can perform complex tasks
 Assembly line adjusts to current business needs
Smart Devices in a Smart World

3. 3
|
Simon Mayerhttp://people.inf.ethz.ch/mayersi

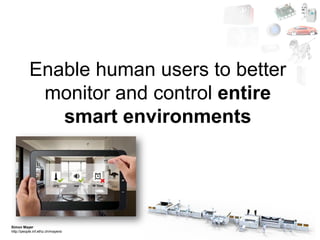

Enablehuman userstobettermonitorandcontrolentiresmart environments

4. 4
|
Simon Mayerhttp://people.inf.ethz.ch/mayersi

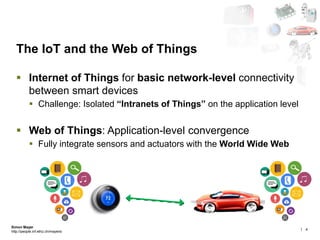

Internet ofThings forbasicnetwork-levelconnectivitybetweensmart devices
Challenge: Isolated“Intranets of Things”on theapplicationlevel
Web ofThings: Application-level convergence
FullyintegratesensorsandactuatorswiththeWorld Wide Web
The IoTandtheWeb ofThings

5. | 5
Simon Mayer
http://people.inf.ethz.ch/mayersi

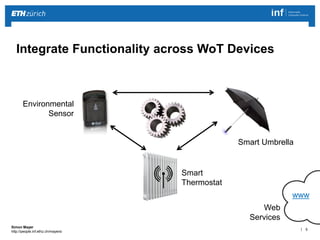

Integrate Functionality across WoT Devices
Smart
Thermostat
Environmental
Sensor
Smart Umbrella
www
Web
Services

6. | 6
Simon Mayer
http://people.inf.ethz.ch/mayersi
Integrate Functionality across WoT Devices
www
I know that!
Ask me!
Is it going to rain
today?
What’s the
temperature?
76% chance!

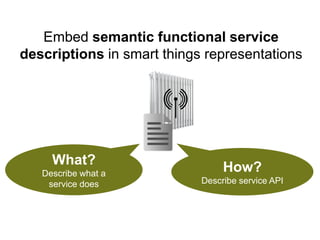

7. Embed semantic functional service descriptionsin smart things representations
How?
Describe service API
What?
Describe what a service does

8. | 8
Simon Mayer
http://people.inf.ethz.ch/mayersi
What?
Describe what a
service does

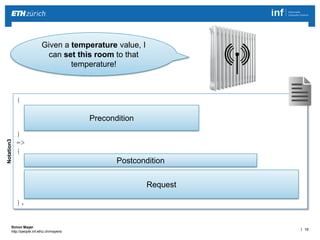

Given a temperature value, I
can set this room to that
temperature!
Temperature Value Modify Room State
How?
Describe service API
푃푟푒푐표푛푑푖푡푖표푛 → 푃표푠푡푐표푛푑푖푡푖표푛

9. | 9
Simon Mayer
http://people.inf.ethz.ch/mayersi

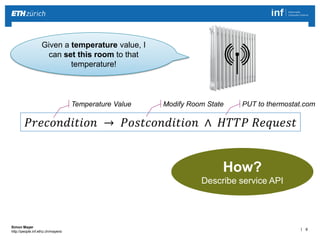

How?
Describe service API
Given a temperature value, I
can set this room to that
temperature!
Temperature Value Modify Room State PUT to thermostat.com
푃푟푒푐표푛푑푖푡푖표푛 → 푃표푠푡푐표푛푑푖푡푖표푛 ∧ 퐻푇푇푃 푅푒푞푢푒푠푡

10. | 10
Simon Mayer
http://people.inf.ethz.ch/mayersi
Given a temperature value, I
can set this room to that
temperature!
Notation3
{
?newTemp a dbpedia:Temperature;
ex:hasValue ?celsiusValue;
ex:hasUnit "Celsius".
}
=>
{
?state :Office44 ex:hasTemperature ?newTemp.
_:request http:methodName "PUT";
http:requestURI
(<http://thermostat.com?temp=>?celsiusValue).
}.
Precondition
Postcondition
Request

11. | 11
Simon Mayer
http://people.inf.ethz.ch/mayersi
Given a temperature value, I
can set this room to that
temperature!
Notation3
{
?newTemp a dbpedia:Temperature;
ex:hasValue ?celsiusValue;
ex:hasUnit "Celsius".
}
=>
{
?state :Office44 ex:hasTemperature ?newTemp.
_:request http:methodName "PUT";
http:requestURI
(<http://thermostat.com?temp=>?celsiusValue).
}.
Postcondition
Request

12. | 12
Simon Mayer
http://people.inf.ethz.ch/mayersi
Given a temperature value, I
can set this room to that
temperature!
Notation3
{
?newTemp a dbpedia:Temperature;
ex:hasValue ?celsiusValue;
ex:hasUnit "Celsius".
}
=>
{
?state :SomePlace ex:hasTemperature ?newTemp.
_:request http:methodName "PUT";
http:requestURI
(<http://thermostat.com?temp=>?celsiusValue).
}.
Request

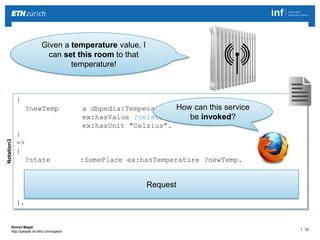

How can this service
be invoked?

13. | 13
Simon Mayer
http://people.inf.ethz.ch/mayersi

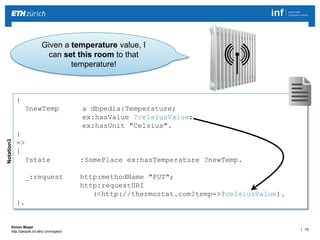

Given a temperature value, I
can set this room to that
temperature!
Notation3
{
?newTemp a dbpedia:Temperature;
ex:hasValue ?celsiusValue;
ex:hasUnit "Celsius".
}
=>
{
?state :SomePlace ex:hasTemperature ?newTemp.
_:request http:methodName "PUT";
http:requestURI
(<http://thermostat.com?temp=>?celsiusValue).
}.

14. | 14
Simon Mayer
http://people.inf.ethz.ch/mayersi

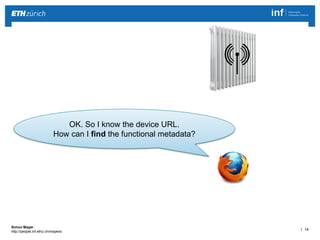

OK. So I know the device URL.
How can I find the functional metadata?

15. | 15
Simon Mayer
http://people.inf.ethz.ch/mayersi

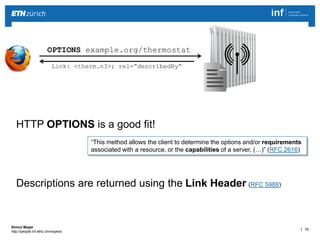

HTTP OPTIONS is a good fit!
“This method allows the client to determine the options and/or requirements
associated with a resource, or the capabilities of a server, (…)” (RFC 2616)
Descriptions are returned using the Link Header (RFC 5988)
OPTIONS example.org/thermostat
Link: <therm.n3>; rel=“describedBy“

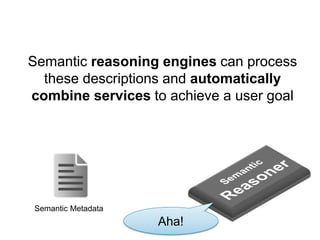

16. Semantic reasoning engines can process these descriptions and automatically combine services to achieve a user goal
SemanticMetadata
Aha!

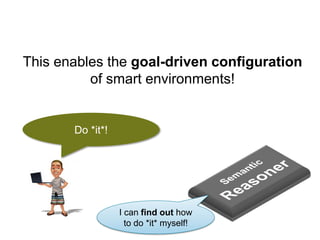

17. This enables the goal-driven configurationof smart environments!
Do *it*!
I canfind out howtodo *it* myself!

18. | 18
Simon Mayer
http://people.inf.ethz.ch/mayersi
I want my environment to
have a temperature of 23°C
You should send a PUT
request to thermostat.com
that contains the number
“23” as payload!

19. | 19
Simon Mayer
http://people.inf.ethz.ch/mayersi

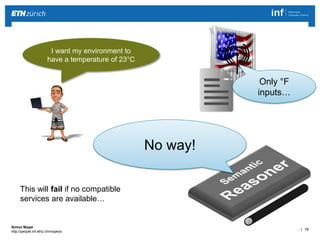

I want my environment to
have a temperature of 23°C
No way!
Only °F
inputs…
This will fail if no compatible
services are available…

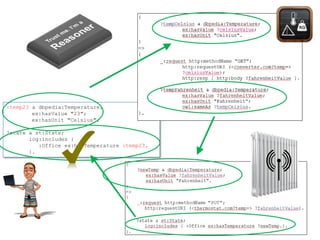

20. :temp23 a dbpedia:Temperature;
ex:hasValue"23";
ex:hasUnit"Celsius".
?state a st:State;
log:includes{
:Office ex:hasTemperature:temp23.
}.
"PUT";

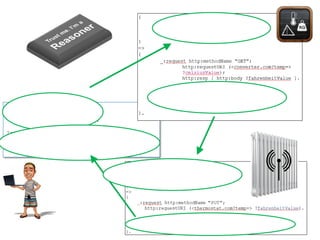

21. :temp23 a dbpedia:Temperature;
ex:hasValue"23";
ex:hasUnit"Celsius".
?state a st:State;
log:includes{
:Office44 ex:hasTemperature:temp23.
}.
"PUT";

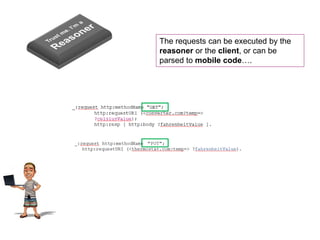

22. "PUT";
The requestscanbeexecutedbythereasonerortheclient, orcanbeparsedtomobile code….

23. A reasoning engine enables the dynamic creation of service chainsfrom the functional semantic metadata of individual services
SemanticMetadata

25. | 25
Simon Mayer
http://people.inf.ethz.ch/mayersi
Advantages

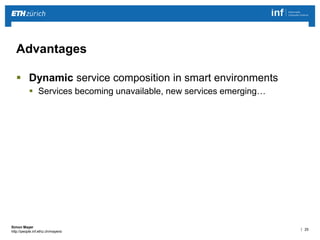

 Dynamic service composition in smart environments
 Services becoming unavailable, new services emerging…

26. | 26
Simon Mayer
http://people.inf.ethz.ch/mayersi
Advantages

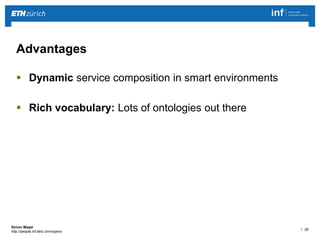

 Dynamic service composition in smart environments
 Rich vocabulary: Lots of ontologies out there

27. | 27
Simon Mayer
http://people.inf.ethz.ch/mayersi
Advantages
 Dynamic service composition in smart environments
 Rich vocabulary

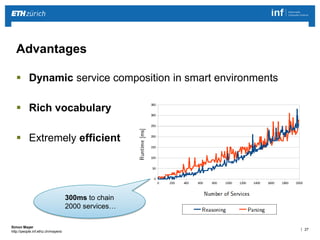

 Extremely efficient
300ms to chain
2000 services…

28. | 28
Simon Mayer
http://people.inf.ethz.ch/mayersi
Advantages
 Dynamic service composition in smart environments
 Rich vocabulary

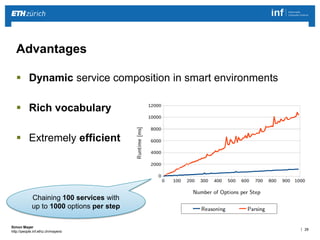

 Extremely efficient
Chaining 100 services with
up to 1000 options per step

29. | 29
Simon Mayer
http://people.inf.ethz.ch/mayersi

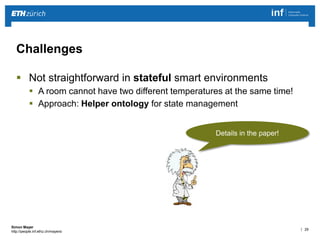

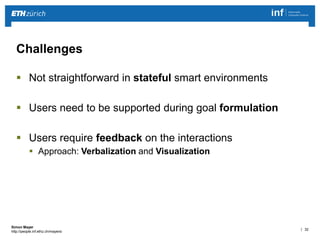

Challenges
 Not straightforward in stateful smart environments
 A room cannot have two different temperatures at the same time!
 Approach: Helper ontology for state management
Details in the paper!

30. | 30
Simon Mayer
http://people.inf.ethz.ch/mayersi

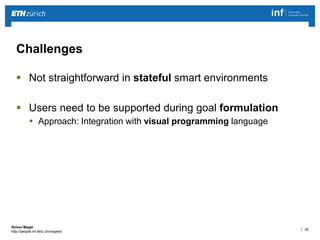

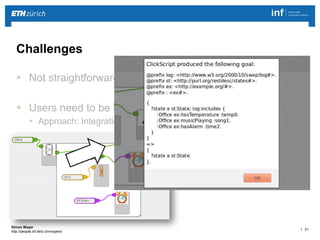

Challenges
 Not straightforward in stateful smart environments
 Users need to be supported during goal formulation
 Approach: Integration with visual programming language

31. | 31
Simon Mayer
http://people.inf.ethz.ch/mayersi
Challenges
 Not straightforward in stateful smart environments
 Users need to be supported during goal formulation
 Approach: Integration with visual programming language

32. | 32
Simon Mayer
http://people.inf.ethz.ch/mayersi
Challenges
 Not straightforward in stateful smart environments
 Users need to be supported during goal formulation
 Users require feedback on the interactions
 Approach: Verbalization and Visualization

33. | 33
Simon Mayer
http://people.inf.ethz.ch/mayersi

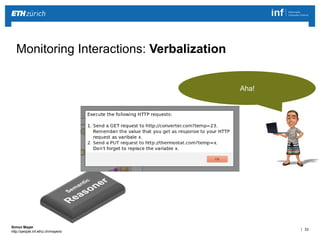

Monitoring Interactions: Verbalization
I want my environment to
have a temperature of 23°C
?A?h?a?!

34. | 34
Simon Mayer
http://people.inf.ethz.ch/mayersi

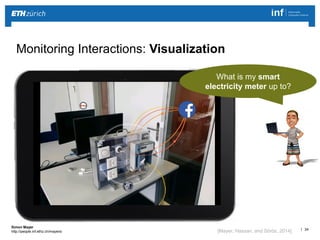

Monitoring Interactions: Visualization
What is my smart
electricity meter up to?
[Mayer, Hassan, and Sörös, 2014]

35. | 35
Simon Mayer
http://people.inf.ethz.ch/mayersi

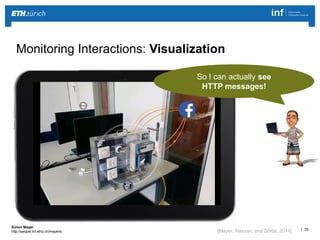

Monitoring Interactions: Visualization
So I can actually see
HTTP messages!
[Mayer, Hassan, and Sörös, 2014]

36. | 36
Simon Mayer
http://people.inf.ethz.ch/mayersi

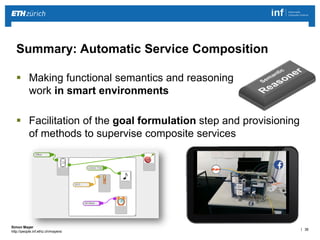

 Making functional semantics and reasoning
work in smart environments
 Facilitation of the goal formulation step and provisioning
of methods to supervise composite services
Summary: Automatic Service Composition

37. | 37
Simon Mayer
http://people.inf.ethz.ch/mayersi
 Scaling up to industrial automation scenarios
 Enabling users to control device interactions
Future Work
YOU shouldn’t be
interacting…

38. | 38
Simon Mayer
http://people.inf.ethz.ch/mayersi

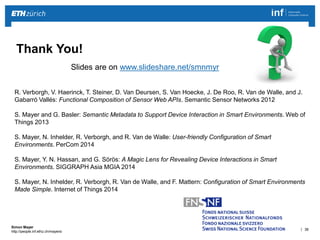

Thank You!
