This paper discusses control strategies for improving power quality in grid-connected variable speed wind energy conversion systems (WECS) utilizing doubly fed induction generators (DFIG). It highlights the challenges posed by harmonic distortion and power quality issues associated with renewable energy sources and presents solutions such as active harmonic filters and battery energy storage systems. The findings emphasize the importance of optimizing control techniques to enhance reliability and stability in renewable energy grid systems.

1. A Paper Presentation
on
Control Strategies for Improvement of Power Quality in Grid
Connected Variable Speed WECS with DFIG - An Overview
Paper ID-192
4th International Conference Intelligent Circuits &
Systems (ICICS-2022) 8-9th April 2022, LPU-Jalandhar
*Pradeep Singh,
**Dr. Krishan Arora,
***Dr. Umesh C. Rathore.
*Research Scholar, LPU-Jalandhar,
** Associate Professor, LPU-Jalandhar,
*** Professor, Govt. Hydro Engg.
College-Bandla, Bilaspur, HP
6/29/2024 1

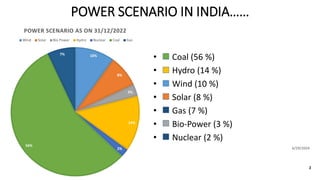

2. POWER SCENARIO IN INDIA……
10%
8%
3%
14%
2%
56%
7%
POWER SCENARIO AS ON 31/12/2022
Wind Solar Bio Power Hydro Nuclear Coal Gas
• Coal (56 %)
• Hydro (14 %)
• Wind (10 %)
• Solar (8 %)
• Gas (7 %)
• Bio-Power (3 %)
• Nuclear (2 %)
6/29/2024
2

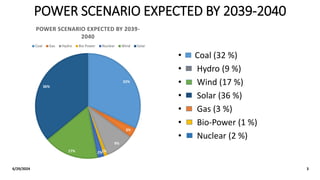

3. POWER SCENARIO EXPECTED BY 2039-2040
32%
3%
9%
1%
2%
17%
36%
POWER SCENARIO EXPECTED BY 2039-
2040
Coal Gas Hydro Bio Power Nuclear Wind Solar
• Coal (32 %)
• Hydro (9 %)
• Wind (17 %)
• Solar (36 %)
• Gas (3 %)
• Bio-Power (1 %)
• Nuclear (2 %)
6/29/2024 3

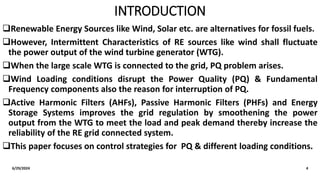

4. INTRODUCTION
Renewable Energy Sources like Wind, Solar etc. are alternatives for fossil fuels.
However, Intermittent Characteristics of RE sources like wind shall fluctuate
the power output of the wind turbine generator (WTG).
When the large scale WTG is connected to the grid, PQ problem arises.
Wind Loading conditions disrupt the Power Quality (PQ) & Fundamental
Frequency components also the reason for interruption of PQ.
Active Harmonic Filters (AHFs), Passive Harmonic Filters (PHFs) and Energy
Storage Systems improves the grid regulation by smoothening the power
output from the WTG to meet the load and peak demand thereby increase the
reliability of the RE grid connected system.
This paper focuses on control strategies for PQ & different loading conditions.
6/29/2024 4

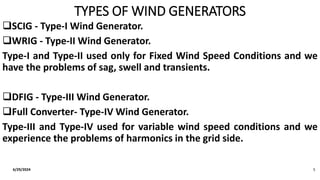

5. TYPES OF WIND GENERATORS
SCIG - Type-I Wind Generator.
WRIG - Type-II Wind Generator.
Type-I and Type-II used only for Fixed Wind Speed Conditions and we
have the problems of sag, swell and transients.
DFIG - Type-III Wind Generator.
Full Converter- Type-IV Wind Generator.
Type-III and Type-IV used for variable wind speed conditions and we
experience the problems of harmonics in the grid side.
6/29/2024 5

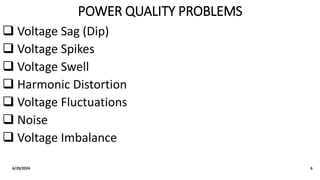

6. POWER QUALITY PROBLEMS
 Voltage Sag (Dip)
 Voltage Spikes
 Voltage Swell
 Harmonic Distortion
 Voltage Fluctuations
 Noise
 Voltage Imbalance
6/29/2024 6

7. POWER QUALITY SOLUTIONS
 Filters
 Isolation Transformers
 Voltage Regulators
 Dynamic Voltage Restorer (DVR)
 Uninterruptable Power Supply (UPS)
 Unified Power Quality Conditioner (UPQC)
 Static VAR Compensator (SVC)
 Thyristor Based Static Switch (TBSS)
6/29/2024
7

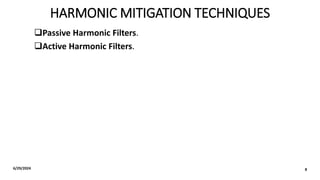

8. HARMONIC MITIGATION TECHNIQUES
Passive Harmonic Filters.
Active Harmonic Filters.
6/29/2024 8

9. 6/29/2024 9
Active Power
Filters
Lattice Structure
Standard Switched
Hybrid Filters
Shunt Active Filter +
Series Active Filter
Voltage Structure
UPQC
Series Active
Filters
Shunt Active
Filters
Shunt Active Filter +
Series Passive Filter
Series Active Filter +
Shunt Active Filter
Capacitor Inverted
Series Active Filter +
Shunt Passive Filter
Current Fed
Inverter
Voltage Fed
Inverter

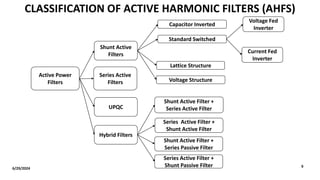

CLASSIFICATION OF ACTIVE HARMONIC FILTERS (AHFS)

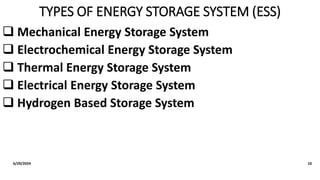

10. TYPES OF ENERGY STORAGE SYSTEM (ESS)
 Mechanical Energy Storage System
 Electrochemical Energy Storage System
 Thermal Energy Storage System
 Electrical Energy Storage System
 Hydrogen Based Storage System
6/29/2024 10

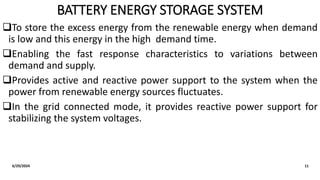

11. BATTERY ENERGY STORAGE SYSTEM
To store the excess energy from the renewable energy when demand
is low and this energy in the high demand time.
Enabling the fast response characteristics to variations between
demand and supply.
Provides active and reactive power support to the system when the
power from renewable energy sources fluctuates.
In the grid connected mode, it provides reactive power support for
stabilizing the system voltages.
6/29/2024 11

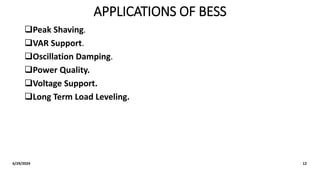

12. APPLICATIONS OF BESS
Peak Shaving.
VAR Support.
Oscillation Damping.
Power Quality.
Voltage Support.
Long Term Load Leveling.
6/29/2024 12

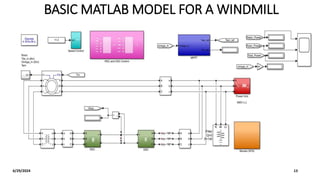

13. BASIC MATLAB MODEL FOR A WINDMILL
6/29/2024 13

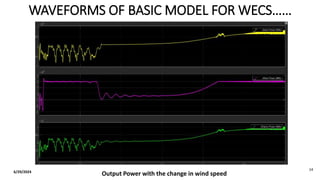

14. WAVEFORMS OF BASIC MODEL FOR WECS……
6/29/2024
14
Output Power with the change in wind speed

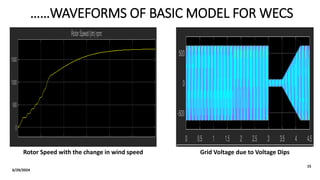

15. ……WAVEFORMS OF BASIC MODEL FOR WECS
6/29/2024
15
Rotor Speed with the change in wind speed Grid Voltage due to Voltage Dips

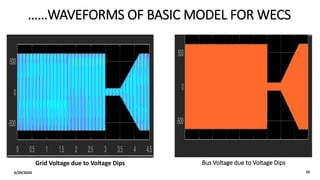

16. ……WAVEFORMS OF BASIC MODEL FOR WECS
6/29/2024 16
Grid Voltage due to Voltage Dips Bus Voltage due to Voltage Dips

17. ……WAVEFORMS OF BASIC MODEL FOR WECS
6/29/2024 17

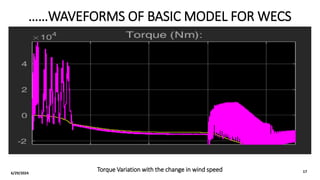

Torque Variation with the change in wind speed

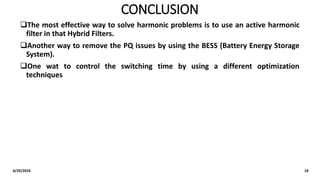

18. CONCLUSION
The most effective way to solve harmonic problems is to use an active harmonic
filter in that Hybrid Filters.
Another way to remove the PQ issues by using the BESS (Battery Energy Storage
System).
One wat to control the switching time by using a different optimization
techniques
6/29/2024 18

19. 6/29/2024 19

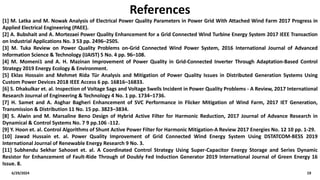

References
[1] M. Latka and M. Nowak Analysis of Electrical Power Quality Parameters in Power Grid With Attached Wind Farm 2017 Progress in
Applied Electrical Engineering (PAEE).
[2] A. Bubshait and A. Mortezaei Power Quality Enhancement for a Grid Connected Wind Turbine Energy System 2017 IEEE Transaction
on Industrial Applications No. 3 53 pp. 2496–2505.
[3] M. Tuka Review on Power Quality Problems on-Grid Connected Wind Power System, 2016 International Journal of Advanced
Information Science & Technology (IJAIST) 5 No. 4 pp. 96–108.
[4] M. Momeni1 and A. H. Mazinan Improvement of Power Quality in Grid-Connected Inverter Through Adaptation-Based Control
Strategy 2019 Energy Ecology & Environment.
[5] Eklas Hossain and Mehmet Rida Tür Analysis and Mitigation of Power Quality Issues in Distributed Generation Systems Using
Custom Power Devices 2018 IEEE Access 6 pp. 16816–16833.
[6] S. Dhakulkar et. al. Inspection of Voltage Sags and Voltage Swells Incident in Power Quality Problems - A Review, 2017 International
Research Journal of Engineering & Technology 4 No. 1 pp. 1734–1736.
[7] H. Samet and A. Asghar Bagheri Enhancement of SVC Performance in Flicker Mitigation of Wind Farm, 2017 IET Generation,
Transmission & Distribution 11 No. 15 pp. 3823–3834.
[8] S. Alwin and M. Marsaline Beno Design of Hybrid Active Filter for Harmonic Reduction, 2017 Journal of Advance Research in
Dynamical & Control Systems No. 7 9 pp.106 -112.
[9] Y. Hoon et. al. Control Algorithms of Shunt Active Power Filter for Harmonic Mitigation-A Review 2017 Energies No. 12 10 pp. 1-29.
[10] Jawad Hussain et. al. Power Quality Improvement of Grid Connected Wind Energy System Using DSTATCOM-BESS 2019
International Journal of Renewable Energy Research 9 No. 3.
[11] Subhendu Sekhar Sahooet et. al. A Coordinated Control Strategy Using Super-Capacitor Energy Storage and Series Dynamic
Resistor for Enhancement of Fault-Ride Through of Doubly Fed Induction Generator 2019 International Journal of Green Energy 16
Issue. 8.

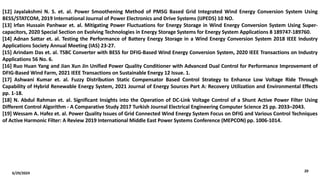

20. 6/29/2024
20
[12] Jayalakshmi N. S. et. al. Power Smoothening Method of PMSG Based Grid Integrated Wind Energy Conversion System Using
BESS/STATCOM, 2019 International Journal of Power Electronics and Drive Systems (IJPEDS) 10 NO.
[13] Irfan Hussain Panhwar et. al. Mitigating Power Fluctuations for Energy Storage in Wind Energy Conversion System Using Super-
capacitors, 2020 Special Section on Evolving Technologies in Energy Storage Systems for Energy System Applications 8 189747-189760.
[14] Adnan Sattar et. al. Testing the Performance of Battery Energy Storage in a Wind Energy Conversion System 2018 IEEE Industry
Applications Society Annual Meeting (IAS) 23-27.
[15] Arindam Das et. al. TSBC Converter with BESS for DFIG-Based Wind Energy Conversion System, 2020 IEEE Transactions on Industry
Applications 56 No. 6.
[16] Ruo Huan Yang and Jian Xun Jin Unified Power Quality Conditioner with Advanced Dual Control for Performance Improvement of
DFIG-Based Wind Farm, 2021 IEEE Transactions on Sustainable Energy 12 Issue. 1.
[17] Ashwani Kumar et. al. Fuzzy Distribution Static Compensator Based Control Strategy to Enhance Low Voltage Ride Through
Capability of Hybrid Renewable Energy System, 2021 Journal of Energy Sources Part A: Recovery Utilization and Environmental Effects
pp. 1-18.
[18] N. Abdul Rahman et. al. Significant Insights into the Operation of DC-Link Voltage Control of a Shunt Active Power Filter Using
Different Control Algorithm - A Comparative Study 2017 Turkish Journal Electrical Engineering Computer Science 25 pp. 2033–2043.
[19] Wessam A. Hafez et. al. Power Quality Issues of Grid Connected Wind Energy System Focus on DFIG and Various Control Techniques
of Active Harmonic Filter: A Review 2019 International Middle East Power Systems Conference (MEPCON) pp. 1006-1014.
