This document summarizes a report on the design of a 32-bit ALU for a MIPS processor. It includes the VHDL code for the ALU entity with ports for two 32-bit inputs, a 3-bit control signal to select the operation, a 32-bit output, and a zero flag output. It also includes a testbench that applies sample inputs and control signals to simulate and check the output.

1. Summary Report on
“Synthesizable ALU Design”
As a part of Teacher Assessment I of
Computer Organization (ENT308)
Submitted by
1) RajatShukla (73) , SEM VI ,Sec A
2) Kritika Jain (10) , SEM VI ,Sec A
Prof. S.R.Pandey
(Course Teacher)
Department of Electronics Engineering
Shri Ramdeobaba College of Engineering and Management, Nagpur-
440013
(An autonomous College of Rashtrasant Tukadoji Maharaj Nagpur University)
Session:2018-2019

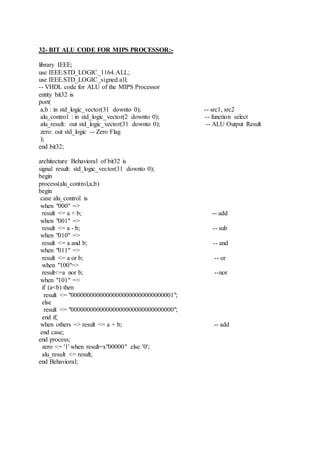

2. 32- BIT ALU CODE FOR MIPS PROCESSOR:-
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_signed.all;
-- VHDL code for ALU of the MIPS Processor
entity bit32 is
port(
a,b : in std_logic_vector(31 downto 0); -- src1, src2
alu_control : in std_logic_vector(2 downto 0); -- function select
alu_result: out std_logic_vector(31 downto 0); -- ALU Output Result
zero: out std_logic -- Zero Flag
);
end bit32;
architecture Behavioral of bit32 is
signal result: std_logic_vector(31 downto 0);
begin
process(alu_control,a,b)
begin
case alu_control is
when "000" =>
result <= a + b; -- add
when "001" =>
result <= a - b; -- sub
when "010" =>
result <= a and b; -- and
when "011" =>
result <= a or b; -- or
when "100"=>
result<=a nor b; --nor
when "101" =>
if (a<b) then
result <= "00000000000000000000000000000001";
else
result <= "00000000000000000000000000000000";
end if;
when others => result <= a + b; -- add
end case;
end process;
zero <= '1' when result=x"00000" else '0';
alu_result <= result;
end Behavioral;

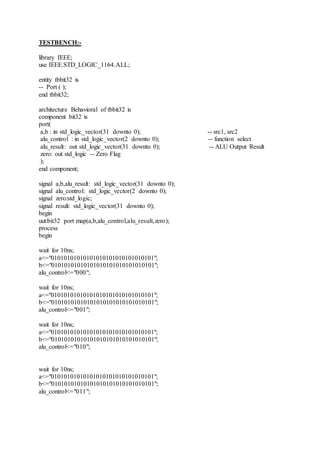

3. TESTBENCH:-
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity tbbit32 is
-- Port ( );
end tbbit32;
architecture Behavioral of tbbit32 is
component bit32 is
port(
a,b : in std_logic_vector(31 downto 0); -- src1, src2
alu_control : in std_logic_vector(2 downto 0); -- function select
alu_result: out std_logic_vector(31 downto 0); -- ALU Output Result
zero: out std_logic -- Zero Flag
);
end component;
signal a,b,alu_result: std_logic_vector(31 downto 0);
signal alu_control: std_logic_vector(2 downto 0);
signal zero:std_logic;
signal result: std_logic_vector(31 downto 0);
begin
uut:bit32 port map(a,b,alu_control,alu_result,zero);
process
begin
wait for 10ns;
a<="01010101010101010101010101010101";
b<="01010101010101010101010101010101";
alu_control<="000";
wait for 10ns;
a<="01010101010101010101010101010101";
b<="01010101010101010101010101010101";
alu_control<="001";
wait for 10ns;
a<="01010101010101010101010101010101";
b<="01010101010101010101010101010101";
alu_control<="010";
wait for 10ns;
a<="01010101010101010101010101010101";
b<="01010101010101010101010101010101";
alu_control<="011";

4. wait for 10ns;
a<="01010101010101010101010101010101";
b<="01010101010101010101010101010101";
alu_control<="100";
wait for 10ns;
a<="01010101010101010101010101010101";
b<="01010101010101010101010101010101";
alu_control<="101";
result<=alu_result;
end process;
end Behavioral;
OUTPUTS:-
COMBINED:

5. FOR 000:
FOR 001:

6. FOR 010:
FOR 011:

7. FOR 100:
FOR 101:

8. ZERO:
Timing Analysis: -
