This document summarizes the computational analysis of a single cylinder, air cooled diesel engine using diesel-RK software. The analysis provided the engine's specifications, geometric properties, and results including 1.43 kW of power at 1500 rpm, 9.1146 Nm of torque, and 85.52% mechanical efficiency. Charts of heat release rate, NOx and soot concentration were also generated for the standard diesel fuel and an alternate 90% CH4 + 10% H2 fuel.

1. COMPUTATIONAL ANALYSIS OF ENGINE
USING DIESEL-RK SOFTWARE
BY:- PRASHANT SHAH
ROLL NO.:- 2020PTE5338

3. ENGINE SPECIFICATION

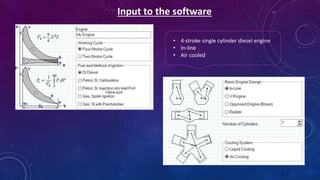

4. Input to the software
• 4-stroke single cylinder diesel engine
• In-line
• Air cooled

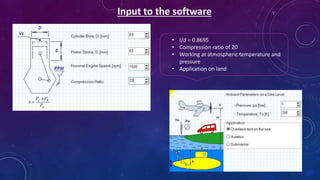

5. Input to the software
• l/d = 0.8695
• Compression ratio of 20
• Working at atmospheric temperature and
pressure
• Application on land

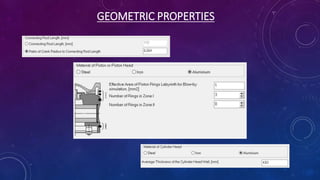

6. GEOMETRIC PROPERTIES

7. Injection profile

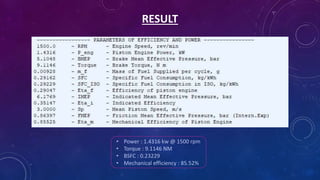

8. RESULT
• Power : 1.4316 kw @ 1500 rpm
• Torque : 9.1146 NM
• BSFC : 0.23229
• Mechanical efficiency : 85.52%

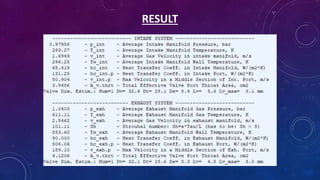

9. RESULT

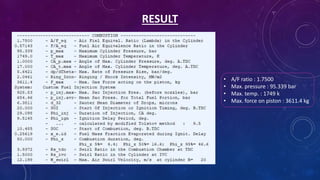

10. RESULT
• A/F ratio : 1.7500
• Max. pressure : 95.339 bar
• Max. temp. : 1749 k
• Max. force on piston : 3611.4 kg

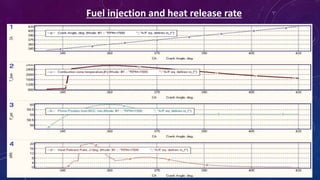

11. Fuel injection and heat release rate

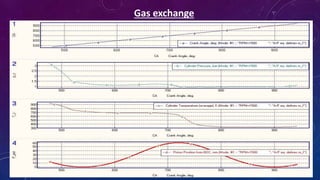

12. Gas exchange

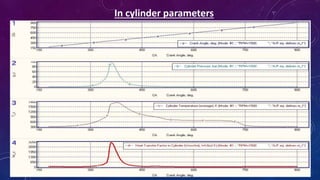

13. In cylinder parameters

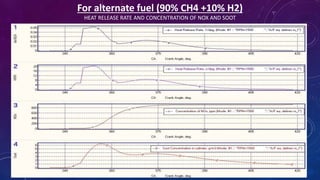

14. For alternate fuel (90% CH4 +10% H2)
HEAT RELEASE RATE AND CONCENTRATION OF NOX AND SOOT

15. THANK YOU
