Compare Array vs Host
vs Hypervisor vs
Network-Based
Replication
Array-based replication, host-based replication, hypervisor-based
replication, and network-based replication are key data replication
techniques. In this blog, we explore their features, use cases, advantages,
and disadvantages. By understanding these methods, you can make
informed decisions for safeguarding your valuable data assets.
What is Array-Based Replication?
Array-based replication is a data protection mechanism that operates at
the storage array level. It works by capturing writes made to the source
storage array and transmitting them to a target storage array for
replication. This replication process is done at the block level, where data is
divided into small units called blocks, and only the changed blocks are
transferred.
Products  Solutions  Company  Resources  Downloads  Blog Partners
Contact Us  Shop 
0 Items
StoneFly Technical Support 510-265-1616 My Account 


2. The array-based replication technology leverages sophisticated algorithms
to efficiently track and replicate data changes in real-time or near-real-
time.
By replicating data at the block level, it offers granular control over the
replication process, minimizing the impact on network bandwidth and
ensuring minimal data loss during replication.
Use-Cases of Array-Based Replication
Disaster Recovery: Array-based replication is widely used for disaster
recovery purposes. By replicating data from a primary storage array to a
secondary array at a remote location, organizations can ensure business
continuity in the event of a primary site failure. For example, a financial
institution may replicate critical customer data to a secondary array
located in a different geographical region to protect against natural
disasters or system failures.
Data Migration and Data Center Consolidation: Array-based replication
is employed during data migration or data center consolidation projects.
It enables seamless movement of data from one storage array to
another without disrupting applications or incurring significant downtime.
For instance, when a company merges with another, array-based
replication can facilitate the migration of data from multiple arrays to a
unified storage infrastructure.
Data Protection for Virtualized Environments: Array-based replication
plays a crucial role in protecting virtualized environments. It ensures high
availability and disaster recovery for virtual machines (VMs) by replicating
VM data between storage arrays. This enables quick recovery in the event
of a host or storage failure. For example, a cloud service provider might
use array-based replication to safeguard customer VMs and offer robust
data protection guarantees.
Continuous Data Protection (CDP): Some array-based replication
solutions provide continuous data protection capabilities. With CDP,
changes made to data on the primary array are instantly replicated to
the secondary array, ensuring minimal data loss in the event of a failure.
This is particularly useful for organizations that require near-zero recovery
point objectives (RPOs) and cannot afford any data loss. For instance, an
e-commerce platform might utilize array-based replication with CDP to
protect critical customer transaction data.
Test and Development Environments: Array-based replication can be
leveraged for creating test and development environments that are
consistent with production data. By replicating data from the production
array to a separate array, organizations can provision realistic and up-to-
date test environments. This enables developers to perform accurate
testing and validate applications without impacting the production
environment.
Advantages and Disadvantages of Array-Based
Replication

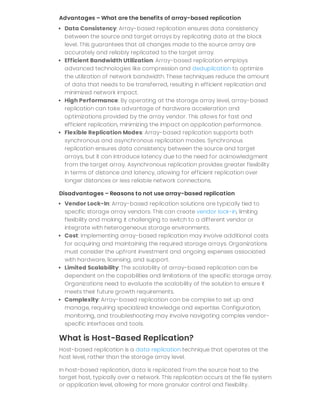

3. Advantages – What are the benefits of array-based replication
Data Consistency: Array-based replication ensures data consistency
between the source and target arrays by replicating data at the block
level. This guarantees that all changes made to the source array are
accurately and reliably replicated to the target array.
Efficient Bandwidth Utilization: Array-based replication employs
advanced technologies like compression and deduplication to optimize
the utilization of network bandwidth. These techniques reduce the amount
of data that needs to be transferred, resulting in efficient replication and
minimized network impact.
High Performance: By operating at the storage array level, array-based
replication can take advantage of hardware acceleration and
optimizations provided by the array vendor. This allows for fast and
efficient replication, minimizing the impact on application performance.
Flexible Replication Modes: Array-based replication supports both
synchronous and asynchronous replication modes. Synchronous
replication ensures data consistency between the source and target
arrays, but it can introduce latency due to the need for acknowledgment
from the target array. Asynchronous replication provides greater flexibility
in terms of distance and latency, allowing for efficient replication over
longer distances or less reliable network connections.
Disadvantages – Reasons to not use array-based replication
Vendor Lock-In: Array-based replication solutions are typically tied to
specific storage array vendors. This can create vendor lock-in, limiting
flexibility and making it challenging to switch to a different vendor or
integrate with heterogeneous storage environments.
Cost: Implementing array-based replication may involve additional costs
for acquiring and maintaining the required storage arrays. Organizations
must consider the upfront investment and ongoing expenses associated
with hardware, licensing, and support.
Limited Scalability: The scalability of array-based replication can be
dependent on the capabilities and limitations of the specific storage array.
Organizations need to evaluate the scalability of the solution to ensure it
meets their future growth requirements.
Complexity: Array-based replication can be complex to set up and
manage, requiring specialized knowledge and expertise. Configuration,
monitoring, and troubleshooting may involve navigating complex vendor-
specific interfaces and tools.
What is Host-Based Replication?
Host-based replication is a data replication technique that operates at the
host level, rather than the storage array level.
In host-based replication, data is replicated from the source host to the
target host, typically over a network. This replication occurs at the file system
or application level, allowing for more granular control and flexibility.

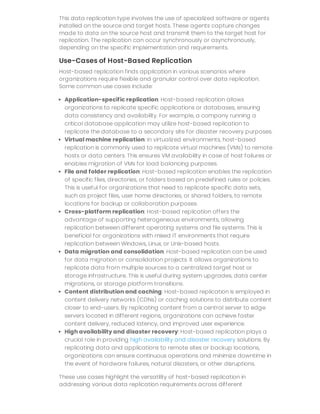

4. This data replication type involves the use of specialized software or agents
installed on the source and target hosts. These agents capture changes
made to data on the source host and transmit them to the target host for
replication. The replication can occur synchronously or asynchronously,
depending on the specific implementation and requirements.
Use-Cases of Host-Based Replication
Host-based replication finds application in various scenarios where
organizations require flexible and granular control over data replication.
Some common use cases include:
Application-specific replication: Host-based replication allows
organizations to replicate specific applications or databases, ensuring
data consistency and availability. For example, a company running a
critical database application may utilize host-based replication to
replicate the database to a secondary site for disaster recovery purposes.
Virtual machine replication: In virtualized environments, host-based
replication is commonly used to replicate virtual machines (VMs) to remote
hosts or data centers. This ensures VM availability in case of host failures or
enables migration of VMs for load balancing purposes.
File and folder replication: Host-based replication enables the replication
of specific files, directories, or folders based on predefined rules or policies.
This is useful for organizations that need to replicate specific data sets,
such as project files, user home directories, or shared folders, to remote
locations for backup or collaboration purposes.
Cross-platform replication: Host-based replication offers the
advantage of supporting heterogeneous environments, allowing
replication between different operating systems and file systems. This is
beneficial for organizations with mixed IT environments that require
replication between Windows, Linux, or Unix-based hosts.
Data migration and consolidation: Host-based replication can be used
for data migration or consolidation projects. It allows organizations to
replicate data from multiple sources to a centralized target host or
storage infrastructure. This is useful during system upgrades, data center
migrations, or storage platform transitions.
Content distribution and caching: Host-based replication is employed in
content delivery networks (CDNs) or caching solutions to distribute content
closer to end-users. By replicating content from a central server to edge
servers located in different regions, organizations can achieve faster
content delivery, reduced latency, and improved user experience.
High availability and disaster recovery: Host-based replication plays a
crucial role in providing high availability and disaster recovery solutions. By
replicating data and applications to remote sites or backup locations,
organizations can ensure continuous operations and minimize downtime in
the event of hardware failures, natural disasters, or other disruptions.
These use cases highlight the versatility of host-based replication in
addressing various data replication requirements across different

5. applications, environments, and business needs.
Advantages and Disadvantages of Host-Based Replication
Advantages – What are the benefits of host-based replication
Flexibility and granular control: Host-based replication provides more
flexibility and control over the replication process. It allows organizations to
choose specific data sets, applications, or virtual machines to replicate,
offering granular control based on their requirements.
Independent of storage infrastructure: Host-based replication operates
at the host level, decoupling the replication process from the underlying
storage infrastructure. This independence allows organizations to replicate
data between different storage arrays or platforms, regardless of vendor
or model.
Wide range of supported applications: Host-based replication is
application-agnostic, meaning it can replicate data from various
applications and databases without requiring application-specific
integration. This versatility makes it suitable for diverse IT environments with
multiple applications running on different platforms.
Platform independence: Host-based replication supports heterogeneous
environments, allowing replication between different operating systems
and hardware architectures. This flexibility enables organizations to
replicate data across Windows, Linux, Unix, or virtualized environments
seamlessly.
Enhanced data protection features: Host-based replication often
includes advanced data protection features, such as point-in-time
snapshots, continuous data protection (CDP), or encryption. These
additional capabilities provide improved data integrity, versioning, and
security during the replication process.
Disadvantages – Reasons not to use host-based replication
Increased resource utilization: Host-based replication can consume
additional computing resources, such as CPU, memory, and network
bandwidth, on the source and target hosts. Organizations need to ensure
that the replication process does not impact the performance of critical
applications or overload the host infrastructure.
Potential application compatibility issues: As host-based replication
operates at the host level, certain applications may require specific
configurations or integration to support replication. Compatibility issues
may arise if applications are not designed to work with host-based
replication or require additional configuration changes.
Complexity and management overhead: Host-based replication
typically involves more complex setup, configuration, and management
compared to other replication methods. Organizations need to invest time
and effort in properly configuring and monitoring the replication process
to ensure data consistency and reliability.
Dependency on host availability: Host-based replication relies on the
availability and proper functioning of the host systems. If the source or

6. target hosts experience failures or downtime, it can impact the replication
process and disrupt data availability until the hosts are restored.
Performance impact during replication: Replicating data at the host
level may introduce performance overhead on the source host, especially
if there are high write-intensive workloads or limited network bandwidth.
Organizations should consider the impact on application performance
and user experience during replication operations.
What is Hypervisor-Based Data Replication?
Hypervisor-based data replication is a technique that leverages the
capabilities of a hypervisor, a software layer that abstracts physical
hardware and manages virtual machines (VMs), to replicate data between
different hosts or storage systems. In this approach, the hypervisor plays a
central role in orchestrating the replication process.
When using hypervisor-based replication, the hypervisor captures and
replicates the entire VM, including its disk images, memory state, and
configuration. This enables the replication of VMs across different hosts or
storage arrays, providing data protection, disaster recovery, and workload
mobility.
Use-Cases of Hypervisor-Based Replication
Hypervisor-based replication offers various use cases that leverage the
capabilities of virtualization platforms to ensure data protection, disaster
recovery, and workload mobility. Here are some common use cases of
hypervisor-based replication:
Disaster Recovery (DR): Hypervisor-based replication is often used as a
key component of disaster recovery strategies. Organizations replicate
critical virtual machines (VMs) from their primary site to a secondary site,
enabling quick recovery in the event of a primary site failure. The replicated
VMs can be activated on the secondary site, minimizing downtime and
ensuring business continuity.
Data Center Migration: Hypervisor-based replication allows
organizations to seamlessly migrate VMs and associated data between
different data centers or infrastructure platforms. This facilitates data
center consolidation, technology upgrades, or moving workloads to cloud
environments. VMs can be replicated to the new target location, and once
the replication is complete, they can be activated on the new
infrastructure.
Workload Mobility: Hypervisor-based replication enables the mobility of
VMs across hosts and storage systems. This flexibility is beneficial for load
balancing, resource optimization, and maintenance operations. VMs can
be replicated to another host or storage system, allowing them to be
easily moved without interrupting user access or disrupting services.
Testing and Development: Hypervisor-based replication facilitates the
creation of test and development environments. By replicating production
VMs to a separate environment, organizations can conduct testing,
software updates, and application development without impacting the

7. production environment. It provides a safe and isolated space for
experimentation and validation.
Zero Downtime Maintenance: Hypervisor-based replication allows
organizations to perform maintenance activities on hosts or storage
systems without causing downtime for running VMs. By replicating VMs to
another host or storage system, organizations can seamlessly migrate the
VMs, perform maintenance tasks on the primary infrastructure, and then
failback the VMs once the maintenance is complete, all while ensuring
continuous availability.
Data Migration and Storage Tiering: Hypervisor-based replication
enables the movement of VMs and their associated data between
different storage tiers, such as from expensive high-performance storage
to more cost-effective storage options. By replicating the VMs to the
target storage tier, organizations can optimize storage costs while
maintaining VM availability.
High Availability: Hypervisor-based replication plays a crucial role in
achieving high availability for critical VMs. By replicating VMs in real-time or
near-real-time to another host or storage system, organizations can
ensure that VMs remain accessible and operational in the event of host or
storage failures. The replicated VMs can be automatically activated on
the secondary infrastructure, minimizing downtime and ensuring
continuous service availability.
Advantages and Disadvantages of Hypervisor-Based
Replication
Hypervisor-based replication offers several advantages and
disadvantages that organizations should consider when implementing a
data replication strategy. Here are the advantages and disadvantages of
hypervisor-based replication:
Advantages – What are the benefits of hypervisor-based replication
Simplicity and Ease of Management: Hypervisor-based replication
leverages the virtualization platform’s management interface, making it
straightforward to configure, monitor, and manage replication processes.
Administrators can use familiar tools and workflows, reducing the
complexity associated with separate replication solutions.
Cost-Effectiveness: Hypervisor-based replication eliminates the need for
additional hardware or software components dedicated to replication. It
leverages the existing virtualization infrastructure, minimizing additional
expenses and reducing the overall cost of data replication.
Efficient Resource Utilization: By utilizing the underlying hypervisor’s
replication capabilities, hypervisor-based replication minimizes resource
utilization. It optimizes network bandwidth, storage capacity, and CPU
cycles, ensuring efficient replication without impacting the performance of
other workloads.
Application and Hardware Agnostic: Hypervisor-based replication
operates at the VM level, making it independent of specific applications or

8. hardware. It supports a wide range of operating systems, applications,
and storage systems, providing flexibility in replication scenarios.
High Flexibility and Scalability: Hypervisor-based replication offers
flexibility in terms of replication topologies, allowing organizations to
implement one-to-one, one-to-many, or many-to-one replication
configurations. It also scales seamlessly with the virtual environment,
accommodating the growing needs of the organization.
Disadvantages – Reasons not to use hypervisor-based replication
Dependency on Hypervisor Vendor: Hypervisor-based replication
solutions are tightly integrated with specific virtualization platforms.
Organizations need to ensure compatibility with their chosen hypervisor
and may face limitations when transitioning to a different virtualization
platform.
Limited Granularity: Hypervisor-based replication typically operates at
the VM level, replicating entire VMs or virtual disks. This approach may not
provide granular control over specific files or data within a VM, which could
be a requirement in certain scenarios.
Performance Impact: While hypervisor-based replication is designed to
minimize performance impact, there can still be a slight overhead on the
virtualization infrastructure during the replication process. Organizations
need to evaluate the performance implications and ensure sufficient
resources are available to handle replication workloads.
Network Bandwidth Considerations: Replicating data over the network
consumes bandwidth. Organizations need to assess their network
infrastructure’s capacity to accommodate replication traffic, especially in
scenarios where large amounts of data are being replicated or when
bandwidth is limited.
Recovery Point Objective (RPO) Limitations: Hypervisor-based
replication may have limitations in achieving very low RPOs, as it relies on
periodic or continuous replication cycles. In environments where near-zero
data loss is crucial, other replication methods, such as storage-based
replication, may be more suitable.
What is Network-Based Data Replication?
Network-based replication is a data replication technique that operates at
the network layer. It involves replicating data between source and target
systems over a network infrastructure. Unlike array-based or host-based
replication, network-based replication is not tightly coupled to storage
arrays or hosts but focuses on replicating data at the network level.
In network-based replication, data is captured and replicated at the
application or file system level. It intercepts the input/output (I/O) operations
at the network layer, captures the changes made to data, and replicates
them to the target system. This replication method allows for the replication
of specific files, folders, or even individual application transactions.
Network-based replication can be synchronous or asynchronous. In
synchronous replication, the data changes are replicated to the target

9. system immediately after they occur on the source system, ensuring a
consistent copy of the data at all times. This method provides a higher level
of data integrity but may introduce some latency due to the delay in
acknowledging the write operation until the data is replicated.
Asynchronous replication, on the other hand, introduces a slight delay
between the data changes on the source and their replication to the target
system. This delay allows for increased distance between the source and
target systems, as well as a higher tolerance for network latency.
Asynchronous replication is suitable for scenarios where minimal data loss is
acceptable, and the focus is on optimizing performance and network
utilization.
Use-Cases of Network-Based Replication
Network-based replication offers several use cases where application-level
consistency, platform independence, and flexibility in data replication are
crucial. Some common use cases include:
Disaster Recovery: Network-based replication is widely used for disaster
recovery purposes. Organizations replicate critical data and applications
from their primary data center to a secondary or remote site. In the event
of a disaster or site failure, the replicated data can be quickly activated,
allowing for business continuity and minimal data loss.
Multi-site Deployments: Organizations with multiple geographically
dispersed locations often utilize network-based replication to keep data
synchronized across sites. This enables seamless collaboration, data
sharing, and consistent access to up-to-date information. It particularly
benefits distributed enterprises, branch offices, and global organizations.
Data Migration: When migrating data from one system or infrastructure
to another, network-based replication simplifies the process. It allows for
the smooth transfer of data, ensuring minimal downtime and disruption.
Organizations can replicate data from the source system to the target
system, validate its integrity, and seamlessly transition to the new
environment.
High Availability and Load Balancing: Network-based replication is
employed to achieve high availability and load balancing in environments
where continuous data access and minimal downtime are critical. By
replicating data across multiple systems, organizations can distribute the
workload, handle increased traffic, and maintain service availability even in
the event of hardware or system failures.
DevOps and Testing Environments: Network-based replication facilitates
the creation of reliable and consistent testing environments. Development
and testing teams can replicate production data to their test
environments, ensuring realistic testing scenarios without impacting the
production environment. This enables thorough testing, debugging, and
validation of applications and infrastructure changes.
Data Archiving and Compliance: Network-based replication supports
long-term data archiving and compliance requirements. Organizations
can replicate data to dedicated archival systems or cloud storage for

10. regulatory compliance, data retention policies, or legal obligations. It
ensures data integrity, security, and availability for archival purposes.
Cloud Data Replication: With the growing adoption of cloud services,
network-based replication plays a crucial role in replicating data from on-
premises environments to cloud-based infrastructure. Organizations can
replicate data to the cloud for backup, disaster recovery, or as part of
hybrid cloud strategies. It enables seamless data movement between on-
premises and cloud environments.
Advantages and Disadvantages of Network-Based
Replication
Network-based replication offers several advantages and disadvantages
that organizations need to consider when implementing a data replication
strategy.
Advantages – What are the benefits of network-based replication
Scalability: Network-based replication allows for flexible scalability,
enabling organizations to handle growing data volumes and increasing
replication demands. It can efficiently replicate data across multiple
systems, accommodating the needs of expanding infrastructures.
Real-time or Near Real-time Replication: Network-based replication
can achieve real-time or near real-time data replication, ensuring that
changes made to the source data are quickly propagated to the target
systems. This minimizes data loss and enables organizations to maintain
up-to-date copies of their data.
Application-Level Consistency: Network-based replication operates at
the application or database level, ensuring that the replicated data
maintains application-level consistency. It captures and replicates data
transactions in a consistent manner, allowing for reliable and accurate
data replication.
Platform Independence: Network-based replication is often platform-
independent, meaning it can replicate data across different types of
storage systems, databases, or cloud environments. This flexibility allows
organizations to replicate data between heterogeneous systems without
vendor lock-in.
Bandwidth Optimization: Many network-based replication solutions offer
bandwidth optimization techniques such as compression and
deduplication. These techniques reduce the amount of data transferred
over the network, minimizing bandwidth requirements and improving
replication efficiency.
Disadvantages – Reasons not to use network-based replication
Complexity: Implementing network-based replication can be complex,
especially when dealing with distributed environments, multiple data
sources, or heterogeneous systems. It requires careful planning,
configuration, and ongoing management to ensure proper replication
and data integrity.
Network Dependency: Network-based replication relies heavily on
network connectivity and bandwidth. Any network issues, bottlenecks, or

11. disruptions can impact replication performance and introduce potential
data synchronization challenges.
Cost: Network-based replication may involve additional costs, including
network infrastructure, hardware, and software licenses. The complexity
and scalability requirements of the replication solution can also contribute
to higher implementation and maintenance costs.
Data Consistency Challenges: Network-based replication relies on
capturing and replicating data changes. Ensuring data consistency
across replicas can be challenging in complex environments with
distributed databases, multi-master configurations, or highly concurrent
transactions.
Performance Impact: The replication process itself can introduce
performance overhead on the source system, especially in scenarios
where real-time replication is required. The additional resource utilization
for capturing and transmitting data changes may affect the
performance of the production environment.
Recovery Point Objective (RPO): Network-based replication operates
with a certain RPO, which represents the amount of data that could be lost
in case of a failure. Depending on the replication technology and network
conditions, achieving very low RPOs may not be feasible.
Security Considerations: Replicating data over the network introduces
security considerations, particularly when replicating sensitive or
confidential information. Proper encryption, access controls, and network
security measures need to be implemented to protect the replicated data
during transmission.
Key Differences: Array vs Host vs Hypervisor vs
Network-Based Replication
Table Legend:
RPO: Recovery Point Objective represents the acceptable amount of data
loss in case of failure.
RTO: Recovery Time Objective indicates the targeted time to recover the
system after a failure.
Scalability: The ability to handle growing data volumes and increasing
replication demands.
Complexity: The level of complexity involved in implementing and
managing the replication solution.

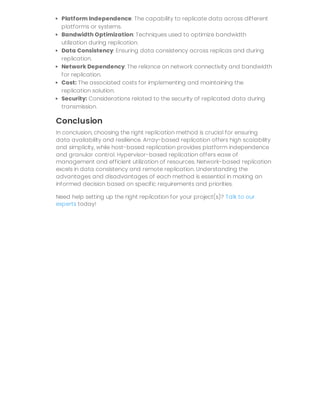

12. Platform Independence: The capability to replicate data across different
platforms or systems.
Bandwidth Optimization: Techniques used to optimize bandwidth
utilization during replication.
Data Consistency: Ensuring data consistency across replicas and during
replication.
Network Dependency: The reliance on network connectivity and bandwidth
for replication.
Cost: The associated costs for implementing and maintaining the
replication solution.
Security: Considerations related to the security of replicated data during
transmission.
Conclusion
In conclusion, choosing the right replication method is crucial for ensuring
data availability and resilience. Array-based replication offers high scalability
and simplicity, while host-based replication provides platform independence
and granular control. Hypervisor-based replication offers ease of
management and efficient utilization of resources. Network-based replication
excels in data consistency and remote replication. Understanding the
advantages and disadvantages of each method is essential in making an
informed decision based on specific requirements and priorities.
Need help setting up the right replication for your project(s)? Talk to our
experts today!

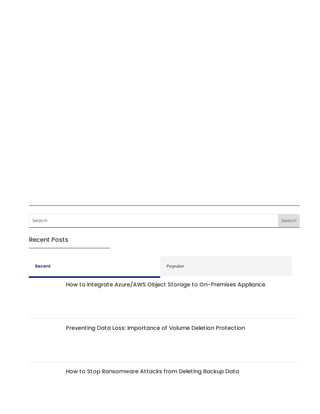

13. Search Search
Recent Posts
How to Integrate Azure/AWS Object Storage to On-Premises Appliance
Preventing Data Loss: Importance of Volume Deletion Protection
How to Stop Ransomware Attacks from Deleting Backup Data
Recent Popular

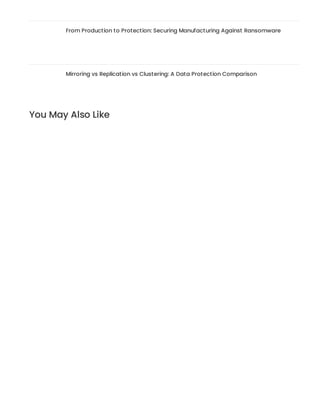

14. From Production to Protection: Securing Manufacturing Against Ransomware
Mirroring vs Replication vs Clustering: A Data Protection Comparison
You May Also Like

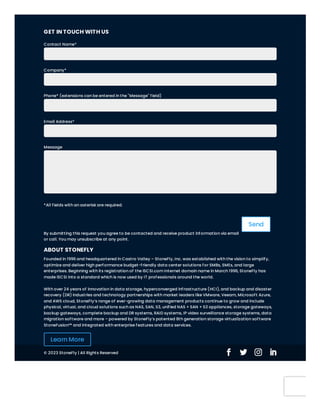

16. Send
GET IN TOUCH WITH US
Contact Name*
Company*
Phone* (extensions can be entered in the "Message" field)
Email Address*
Message
*All fields with an asterisk are required.
By submitting this request you agree to be contacted and receive product information via email
or call. You may unsubscribe at any point.
ABOUT STONEFLY
Founded in 1996 and headquartered in Castro Valley – StoneFly, Inc. was established with the vision to simplify,
optimize and deliver high performance budget-friendly data center solutions for SMBs, SMEs, and large
enterprises. Beginning with its registration of the iSCSI.com Internet domain name in March 1996, StoneFly has
made iSCSI into a standard which is now used by IT professionals around the world.
With over 24 years of innovation in data storage, hyperconverged infrastructure (HCI), and backup and disaster
recovery (DR) industries and technology partnerships with market leaders like VMware, Veeam, Microsoft Azure,
and AWS cloud, StoneFly’s range of ever-growing data management products continue to grow and include
physical, virtual, and cloud solutions such as NAS, SAN, S3, unified NAS + SAN + S3 appliances, storage gateways,
backup gateways, complete backup and DR systems, RAID systems, IP video surveillance storage systems, data
migration software and more – powered by StoneFly’s patented 8th generation storage virtualization software
StoneFusion™ and integrated with enterprise features and data services.
Learn More
© 2023 StoneFly | All Rights Reserved 
 
 
 

