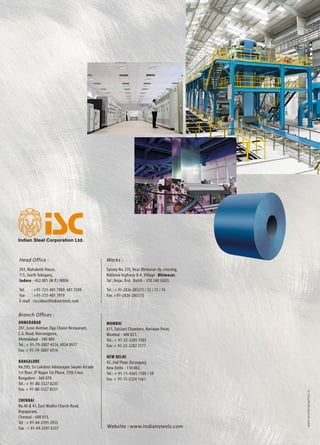

1. Branch Offices :
Ahmedabad
207, Iscon Avenue, Opp Choice Restaurant,
C.G. Road, Navrangpura,
Ahmedabad - 380 009.
Tel.: + 91-79-3007 4314, 4024 0917
Fax: + 91-79-3007 4314
Bangalore
No.595, Sri Lakshmi Adinarayan Swami Arcade
1st floor, JP Nagar 1st Phase, 15th Cross
Bangalore - 560 078.
Tel.: + 91-80-3327 8235
Fax: + 91-80-3327 8231
Chennai
No.40 & 41, East Madha Church Road,
Royapuram,
Chennai - 600 013.
Tel : + 91-44-2595 2953
Fax : + 91-44-2597 6337
www.acumengraphics.in
Mumbai
611, Tulsiani Chambers, Nariman Point,
Mumbai - 400 021.
Tel.: + 91-22-2285 1303
Fax: + 91-22-2282 3177
New Delhi
43, 2nd Floor, Daryaganj,
New Delhi - 110 002.
Tel.: + 91-11-4365 1100 / 59
Fax: + 91-11-2324 1561
Works :
Survey No. 370, Near Bhimasar rly. crossing,
National highway 8-A, Village : Bhimasar,
Tal : Anjar, Dist. Kutch - 370 240 (GUJ).
Tel.: + 91-2836-285371 / 72 / 73 / 74
Fax: +91-2836-285375
Website : www.indiansteels.com
Head Office :
503, Mahakosh House,
7/5, South Tukoganj,
Indore - 452 001 (M.P.) India
Tel. : +91-731-401 7909, 401 7509
Fax : +91-731-401 7919
E-mail : isccolour@indiansteels.com
Pre-painted Coloured
• Coils • Profiles
• Corrugated Sheets • Accessories

2. Top (Finish) Coating
Guard Film (Optional)
Primer Coating
Pre-treatment
Chromate Coating
Pre-treatment
Chromate Coating
Functional paint
(Epoxy, Ployester)
Zinc Coating
Zinc Coating
Base Metal
(Cold Rolled Steel Sheet)
ISC PRE-PAINTED PRODUCTS
ISC is constantly adding to the value of steel by continually adopting the
new ways and technologies for better quality of steel products. ISC Pre-
painted products serve the creation of new trend in different segments
like Home Appliances,General Engineering Applications and Construction
with various kinds of Colour and the pursuit of economical efficiency.
Pursuing to the JIS,ASTM,EN,IS Standards,we are committed to accomplish
the needs and expectations of our customers by consistently providing
excellent service,superior quality and innovative Pre-painted products.
ADVANCED PAINT TECHNOLOGY
ISC Pre-painted products are offered in a wide range
of paint systems like Regular Modified Polyester
(RMP), Silicon Modified Polyester (SMP), Poly Vinyl
Di Fluoride (PVDF). The substrate metal has primary
layer of primer coating on top and bottom surface for
best adhesion with the paint systems. The advanced
Coating Systems resist cracking and peeling, even in
heavy forming operations.
For more than 50 years,RUCHI GROUP has a strong presence in India,helping to introduce new,innovative products and services
that benefit society. Indian Steel Corporation Limited (ISC) has a Joint Venture with M/s Mitsui & Co. Japan. In a short span of
just 5 years, the company has averaged more than 25% annual sales growth. Our products have been highly appreciated by our
innumerable and esteemed end-customers, both in terms of quality and price, due to which we have established our leadership
in the major markets of the country.
At ISC, we believe that it is our responsibility to provide our customers with quality products that benefit every facet of the
changing society. This is why we are working even harder to manufacture reliable, efficient and environmentally conscious
products that will benefit our customers’lives and community in general.
Indian Steel has established a strong dealer and distribution network,spread across the length and breadth of India from Jammu
to Chennai which offers a substantial advantage to its customers across the country. Besides this, the company also exports its
products to more than 35 countries in Europe,America,Middle East and Africa.
Besides, ISC is all set to innovate and expand, adding newer dimensions to the horizons of its business, bringing products which
are not just designed according to customers’needs,but are also safer and more efficient.
- a d d in g Va lu e to Ste e l
ADVANTAGES
• Superior Technology
• Corrosion Resistance
• Resistance to Peeling & Flaking
• Aesthetic Appeal
• Design Flexibility
(Easy to install & maintenance free)
• Colour Choices
• Durability / Security / Safety
• Thermal Efficiency
• Weather Resistant
• Environment friendly
Property
TESTING METHOD
( ECCA )
TESTING METHOD
(ASTM)
POLYESTER SMP SDP PVDF PLASTISOL
TOP COAT THICKNESS (DFT )in micron ECCA-Y1 1995 ECCA-Y1 1995 15 OR 20 18 - 20 18 - 20 20 - 22 100 - 200
SPECULAR GLOSS AT 60 degree ECCA-Y2 1995 ASTM D-523 30-35 30 - 35 30 -35 30 - 35 20 - 50
PENCIL HARDNESS ECCA-Y4 1995 ASTM D-3363 2H 2H 2H 2H N/A
IMPACT TEST(Jules) ECCA-Y5 1995 ASTM D-2794 13 J 13 J 13 J 13 J N/A
SALT SPRAY TEST ECCA-Y8 1995 ASTM B-117 500-700 Hrs 500-700 750 1000 1000
ADHESION TEST(CROSS HATCH) NCCA-II -5 ASTM D-3359 100% 100% 100% 100% 100%
ERICHSEN CUPPING TEST (MM) ECCA T6 ECCA T6 6.5 - 7 mm 6.5 - 7 mm 6.5 - 7 mm 6.5 - 7 mm N/A
HUMIDITY TEST NCCA-III-5 ASTM D-2247 1000 Hrs 1000 Hrs 1000 Hrs 1000 Hrs 1000 Hrs
T-BEND TEST ECCA T7 ASTM D-4145 2T 2T 2T 1T 0T
MEK RUB TEST (DR) ECCA T-11 ASTM D-1308 100 100 100 100 100
CHEMICAL RESISTANCE ECCA T-18 ASTM D-1308 No blistering No blistering No blistering No blistering No blistering
TEMPERATURE RESISTANCE 120° 120° 120° 120° 120°
STATE-OF-THE-ART TECHNOLOGY
ISC Pre-painted products are manufactured using superior quality
of substrate material, produced with latest technology. Our highly
contemporary chemical treatment process augments paint addition and
corrosion resistance properties of the products. Epoxy / PU / Polyester
/ RMP/ SMP/ PVDF resins are applied by reverse coating technology and
baked in an advanced Premium Quality Oven.
Various characteristics like paint hardness, flexibility & gloss, resistance
to chalk, fade and peel etc. are administered to ensure its worthiness for
automotive,home appliance,construction and other segments.
QUALITY IN EVERYTHING WE DO
Backed by an expert team of highly skilled
technicians, our Pre-Painted products go through
rigorous quality control tests at every stage to offer
best performance under all ecological conditions.
We ensure that our Pre-Painted products meet
up to the international standards through our
standardized online checking and laboratory
quality procedure.
• More colours can be provided as per standard
RAL shades / customer’s requirements.
• Colours may vary from the shades shown above.
SKY BLUE (RAL 5012)
TOMATO RED (RAL 3013)
APPLIANCE WHITE
BEIGE (RAL 1001)
CAULIFIELD GREEN (RAL 6028)
LIGHT GREEN (RAL 6011)
LIGHT GRAY (RAL 7035)
BROWN (RAL 8014)
PATINA GREEN (RAL 6000)
LEAF GREEN (RAL 6002)
BRICK RED
OFF WHITE (RAL 9002)
SIGNAL RED (RAL 3001)
CAPRI BLUE (RAL 5019)
LIGHT IVORY (RAL 1015)
S T A N D A R D C O L O U R R A N G E

3. Pre-Painted
Coils
ISC’s UltraCoat Pre-Painted Coils are made from the finest quality
cold rolled steel coils, which are coated with protected metallic
coating and multiple layers of organic coatings. This augments
paint adhesion and corrosion resistance properties of the
product.
Most sophisticated coating liner with stringent quality control
ensures a painted finish that is uniform in colour, gloss, texture
and thickness and aesthetically appealing as well; which is the
need of today’s most demanding applications in a customer
driven market.
A wide range of Paint systems are offered with advanced coating
systems that resist cracking and peeling even in heavy forming
operations.
TM

4. E-mail : isccolour@indiansteels.com • Website : www.indiansteels.com
PACKAGING
Band Strap
Seal
GP/CR Steel/
Met Wrap Cover
Metal Corner Protector
Edge Protector
Shipping Mark
Water proof VCI
Laminated with
HDPE paper
PPGI Coils
UltraCoat & UltraCoat Plus
Base Metal Cold Rolled,Galvanised,Galvanised-Aluminium
Thickness 0.20 to 1.20 mm
Width 700 to 1400 mm
Coil Id 508 & 610 mm
Coil Od 1700 mm max
Coil Wt. 12 MT Max* *with ref.to width of coil
Substrate Hardness Soft,Medium,Hard
YS (Mpa) 240 - 700
Coating Mass Z 90-220 gsm,AZ 90-150 gsm.
Paint Systems Primers:Epoxy,PU
TOP Coat:Polyester(RMP),Silicon Modified Polyester (SMP)
Poly Vinyl Di Flouride(PVDF),
Back Coat:Epoxy,Polyester,PU
Colours As Per RAL shades / Customer requirements
Surface Finishes Glossy and Matte
Coating Thickness 20 - 40 Microns (Total coating thickness Top,Bottom,Primer)
Guard Film(Optional) 40 Microns
Cut to length 200 mm - 5000 mm
Slits 37 mm and above
Standards JIS G - 3312,ASTM A -755 ,EN -10169,IS -14246
For AL-ZN ASTM A 755M,WITH SUBSTRATE ASTM A792 M
Packing Standard Packing
We ensure packing of the products to
the customer’s best satisfaction while
handling,transport and delivery.
Packing as per your specification can
also be provided.
PRODUCT SPECIFICATIONS
TM

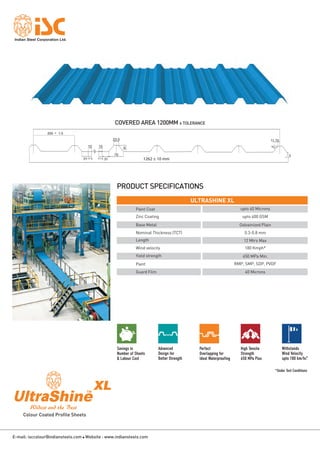

6. nE-mail: isccolour@indiansteels.com Website : www.indiansteels.com

7. Pre-Painted
CORRUGATED
SHEETS
ISC’s UltraTuf Pre-Painted Corrugated Sheets are
most admired and sworn by throughout the country
for its quality,ruggedness and durability.
The strength of superior steel base is further
bolstered with technological implementation of
weather resistant and anti-corrosive paint systems.
This not only offers a quality product that protects
against climatic harshness but also ensures
dependability for a long long period.

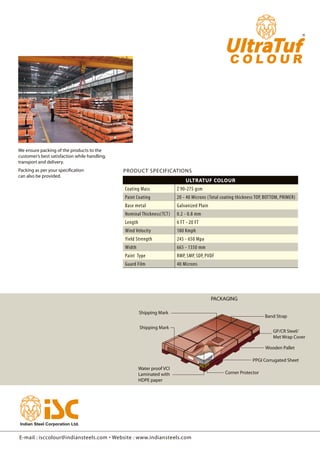

8. PACKAGING
Shipping Mark
Shipping Mark
Water proof VCI
Laminated with
HDPE paper
Band Strap
Wooden Pallet
PPGI Corrugated Sheet
Corner Protector
GP/CR Steel/
Met Wrap Cover
UltraTuf Colour
Coating Mass Z 90-275 gsm
Paint Coating 20 - 40 Microns (Total coating thickness TOP, BOTTOM, PRIMER)
Base metal Galvanized Plain
Nominal Thickness(TCT) 0.2 - 0.8 mm
Length 6 FT - 20 FT
Wind Velocity 180 Kmph
Yield Strength 245 - 650 Mpa
Width 665 - 1350 mm
Paint Type RMP, SMP, SDP, PVDF
Guard Film 40 Microns
E-mail : isccolour@indiansteels.com • Website : www.indiansteels.com
We ensure packing of the products to the
customer’s best satisfaction while handling,
transport and delivery.
Packing as per your specification
can also be provided.
PRODUCT SPECIFICATIONS

9. Pre-Painted
ACCESSORIES
Ridges
Apron Flashing
Barge Board (Gable End Flashing)
Corner Flashing
Gutter Flashing
Eves Flashing
Expansion Joint - In two pieces
S type Louvers
Side sheeting,glass,louvers
Gable End Flashing
Roofing Sheet
Gable End Sheet
Cladding Sheet
Corner
Flashing
Cladding Sheet
Gutter Flashing
Roofing Sheet
Rafter/Truss
Purline Runner
Eves
Flashing
Cladding
Sheet
Expansion Point
Roofing Sheet Roofing Sheet
Roof
Sheet
Roof
Sheet
Ridges
NLC
Louver

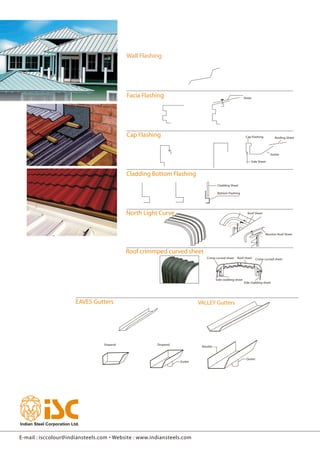

10. Wall Flashing
Facia Flashing
Cap Flashing
Cladding Bottom Flashing
North Light Curve
EAVES Gutters VALLEY Gutters
Sheet
Cap Flashing Roofing Sheet
Gutter
Side Sheet
Cladding Sheet
Bottom Flashing
Roof Sheet
Monitor Roof Sheet
Crimp curved sheet Roof sheet Crimp curved sheet
Side cladding sheet
Side cladding sheet
Stopend
DropendStopend
Outlet
Nozzles
Outlet
Roof crimmped curved sheet
Wall Flashing
Facia Flashing
Cap Flashing
Cladding Bottom Flashing
North Light Curve
EAVES Gutters VALLEY Gutters
Sheet
Cap Flashing Roofing Sheet
Gutter
Side Sheet
Cladding Sheet
Bottom Flashing
Roof Sheet
Monitor Roof Sheet
Crimp curved sheet Roof sheet Crimp curved sheet
Side cladding sheet
Side cladding sheet
Stopend
DropendStopend
Outlet
Nozzles
Outlet
Roof crimmped curved sheet
E-mail : isccolour@indiansteels.com • Website : www.indiansteels.com
Wall Flashing
Facia Flashing
Cap Flashing
Cladding Bottom Flashing
North Light Curve
EAVES Gutters VALLEY Gutters
Sheet
Cap Flashing Roofing Sheet
Gutter
Side Sheet
Cladding Sheet
Bottom Flashing
Roof Sheet
Monitor Roof Sheet
Crimp curved sheet Roof sheet Crimp curved sheet
Side cladding sheet
Side cladding sheet
Stopend
DropendStopend
Outlet
Nozzles
Outlet
Roof crimmped curved sheet

11. Top (Finish) Coating
Guard Film (Optional)
Primer Coating
Pre-treatment
Chromate Coating
Pre-treatment
Chromate Coating
Functional paint
(Epoxy, Ployester)
Zinc Coating
Zinc Coating
Base Metal
(Cold Rolled Steel Sheet)
ISC PRE-PAINTED PRODUCTS
ISC is constantly adding to the value of steel by continually adopting the
new ways and technologies for better quality of steel products. ISC Pre-
painted products serve the creation of new trend in different segments
like Home Appliances,General Engineering Applications and Construction
with various kinds of Colour and the pursuit of economical efficiency.
Pursuing to the JIS,ASTM,EN,IS Standards,we are committed to accomplish
the needs and expectations of our customers by consistently providing
excellent service,superior quality and innovative Pre-painted products.
ADVANCED PAINT TECHNOLOGY
ISC Pre-painted products are offered in a wide range
of paint systems like Regular Modified Polyester
(RMP), Silicon Modified Polyester (SMP), Poly Vinyl
Di Fluoride (PVDF). The substrate metal has primary
layer of primer coating on top and bottom surface for
best adhesion with the paint systems. The advanced
Coating Systems resist cracking and peeling, even in
heavy forming operations.
For more than 50 years,RUCHI GROUP has a strong presence in India,helping to introduce new,innovative products and services
that benefit society. Indian Steel Corporation Limited (ISC) has a Joint Venture with M/s Mitsui & Co. Japan. In a short span of
just 5 years, the company has averaged more than 25% annual sales growth. Our products have been highly appreciated by our
innumerable and esteemed end-customers, both in terms of quality and price, due to which we have established our leadership
in the major markets of the country.
At ISC, we believe that it is our responsibility to provide our customers with quality products that benefit every facet of the
changing society. This is why we are working even harder to manufacture reliable, efficient and environmentally conscious
products that will benefit our customers’lives and community in general.
Indian Steel has established a strong dealer and distribution network,spread across the length and breadth of India from Jammu
to Chennai which offers a substantial advantage to its customers across the country. Besides this, the company also exports its
products to more than 35 countries in Europe,America,Middle East and Africa.
Besides, ISC is all set to innovate and expand, adding newer dimensions to the horizons of its business, bringing products which
are not just designed according to customers’needs,but are also safer and more efficient.
- a d d in g Va lu e to Ste e l
ADVANTAGES
• Superior Technology
• Corrosion Resistance
• Resistance to Peeling & Flaking
• Aesthetic Appeal
• Design Flexibility
(Easy to install & maintenance free)
• Colour Choices
• Durability / Security / Safety
• Thermal Efficiency
• Weather Resistant
• Environment friendly
Property
TESTING METHOD
( ECCA )
TESTING METHOD
(ASTM)
POLYESTER SMP SDP PVDF PLASTISOL
TOP COAT THICKNESS (DFT )in micron ECCA-Y1 1995 ECCA-Y1 1995 15 OR 20 18 - 20 18 - 20 20 - 22 100 - 200
SPECULAR GLOSS AT 60 degree ECCA-Y2 1995 ASTM D-523 30-35 30 - 35 30 -35 30 - 35 20 - 50
PENCIL HARDNESS ECCA-Y4 1995 ASTM D-3363 2H 2H 2H 2H N/A
IMPACT TEST(Jules) ECCA-Y5 1995 ASTM D-2794 13 J 13 J 13 J 13 J N/A
SALT SPRAY TEST ECCA-Y8 1995 ASTM B-117 500-700 Hrs 500-700 750 1000 1000
ADHESION TEST(CROSS HATCH) NCCA-II -5 ASTM D-3359 100% 100% 100% 100% 100%
ERICHSEN CUPPING TEST (MM) ECCA T6 ECCA T6 6.5 - 7 mm 6.5 - 7 mm 6.5 - 7 mm 6.5 - 7 mm N/A
HUMIDITY TEST NCCA-III-5 ASTM D-2247 1000 Hrs 1000 Hrs 1000 Hrs 1000 Hrs 1000 Hrs
T-BEND TEST ECCA T7 ASTM D-4145 2T 2T 2T 1T 0T
MEK RUB TEST (DR) ECCA T-11 ASTM D-1308 100 100 100 100 100
CHEMICAL RESISTANCE ECCA T-18 ASTM D-1308 No blistering No blistering No blistering No blistering No blistering
TEMPERATURE RESISTANCE 120° 120° 120° 120° 120°
STATE-OF-THE-ART TECHNOLOGY
ISC Pre-painted products are manufactured using superior quality
of substrate material, produced with latest technology. Our highly
contemporary chemical treatment process augments paint addition and
corrosion resistance properties of the products. Epoxy / PU / Polyester
/ RMP/ SMP/ PVDF resins are applied by reverse coating technology and
baked in an advanced Premium Quality Oven.
Various characteristics like paint hardness, flexibility & gloss, resistance
to chalk, fade and peel etc. are administered to ensure its worthiness for
automotive,home appliance,construction and other segments.
QUALITY IN EVERYTHING WE DO
Backed by an expert team of highly skilled
technicians, our Pre-Painted products go through
rigorous quality control tests at every stage to offer
best performance under all ecological conditions.
We ensure that our Pre-Painted products meet
up to the international standards through our
standardized online checking and laboratory
quality procedure.
• More colours can be provided as per standard
RAL shades / customer’s requirements.
• Colours may vary from the shades shown above.
SKY BLUE (RAL 5012)
TOMATO RED (RAL 3013)
APPLIANCE WHITE
BEIGE (RAL 1001)
CAULIFIELD GREEN (RAL 6028)
LIGHT GREEN (RAL 6011)
LIGHT GRAY (RAL 7035)
BROWN (RAL 8014)
PATINA GREEN (RAL 6000)
LEAF GREEN (RAL 6002)
BRICK RED
OFF WHITE (RAL 9002)
SIGNAL RED (RAL 3001)
CAPRI BLUE (RAL 5019)
LIGHT IVORY (RAL 1015)
S T A N D A R D C O L O U R R A N G E

12. Branch Offices :
Ahmedabad
207, Iscon Avenue, Opp Choice Restaurant,
C.G. Road, Navrangpura,
Ahmedabad - 380 009.
Tel.: + 91-79-3007 4314, 4024 0917
Fax: + 91-79-3007 4314
Bangalore
No.595, Sri Lakshmi Adinarayan Swami Arcade
1st floor, JP Nagar 1st Phase, 15th Cross
Bangalore - 560 078.
Tel.: + 91-80-3327 8235
Fax: + 91-80-3327 8231
Chennai
No.40 & 41, East Madha Church Road,
Royapuram,
Chennai - 600 013.
Tel : + 91-44-2595 2953
Fax : + 91-44-2597 6337
www.acumengraphics.in
Mumbai
611, Tulsiani Chambers, Nariman Point,
Mumbai - 400 021.
Tel.: + 91-22-2285 1303
Fax: + 91-22-2282 3177
New Delhi
43, 2nd Floor, Daryaganj,
New Delhi - 110 002.
Tel.: + 91-11-4365 1100 / 59
Fax: + 91-11-2324 1561
Works :
Survey No. 370, Near Bhimasar rly. crossing,
National highway 8-A, Village : Bhimasar,
Tal : Anjar, Dist. Kutch - 370 240 (GUJ).
Tel.: + 91-2836-285371 / 72 / 73 / 74
Fax: +91-2836-285375
Website : www.indiansteels.com
Head Office :
503, Mahakosh House,
7/5, South Tukoganj,
Indore - 452 001 (M.P.) India
Tel. : +91-731-401 7909, 401 7509
Fax : +91-731-401 7919
E-mail : isccolour@indiansteels.com
Pre-painted Coloured
• Coils • Profiles
• Corrugated Sheets • Accessories
