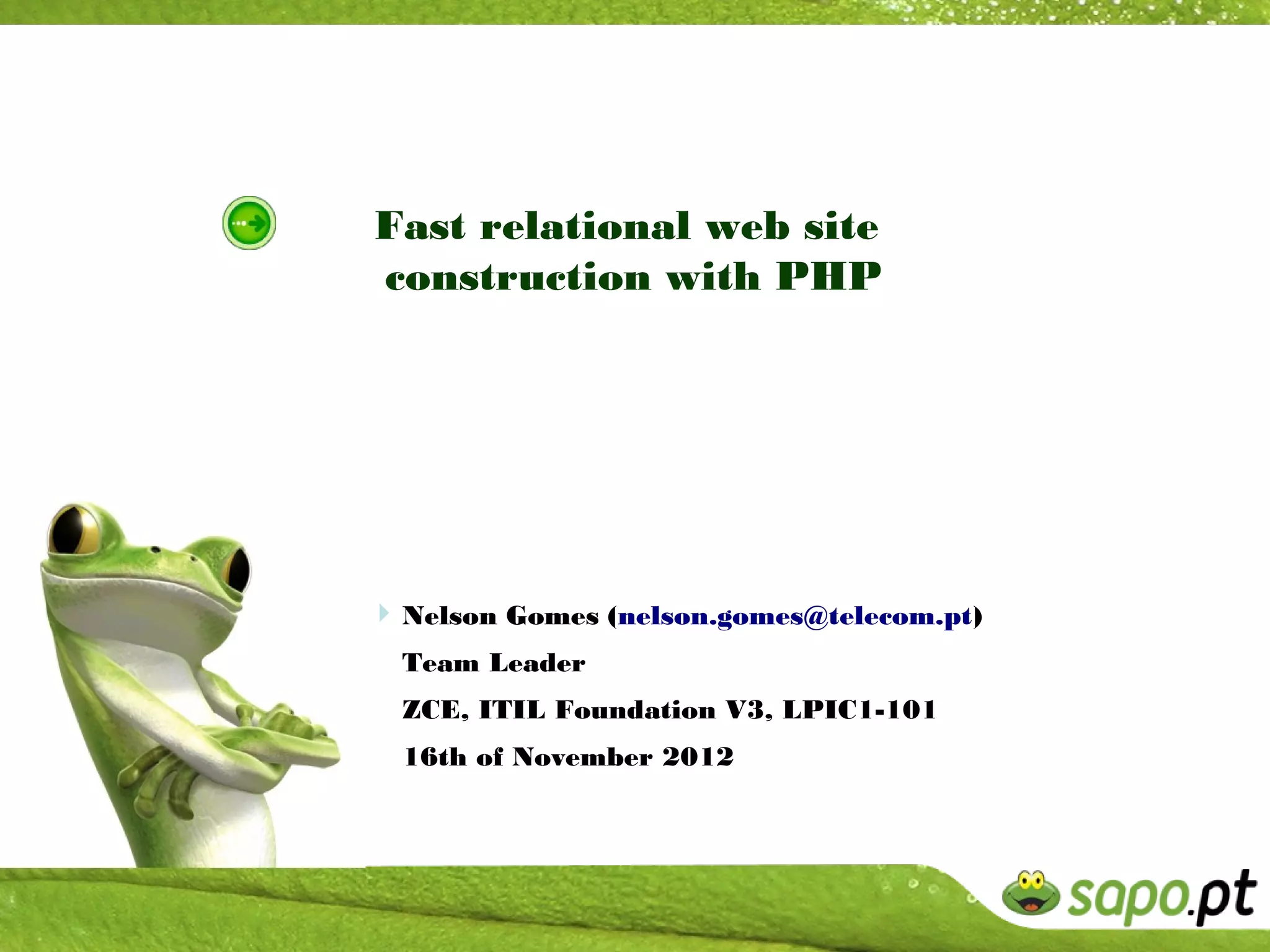

1. Fast relational web site
construction with PHP
 Nelson Gomes (nelson.gomes@telecom.pt)
Team Leader
ZCE, ITIL Foundation V3, LPIC1-101
16th of November 2012

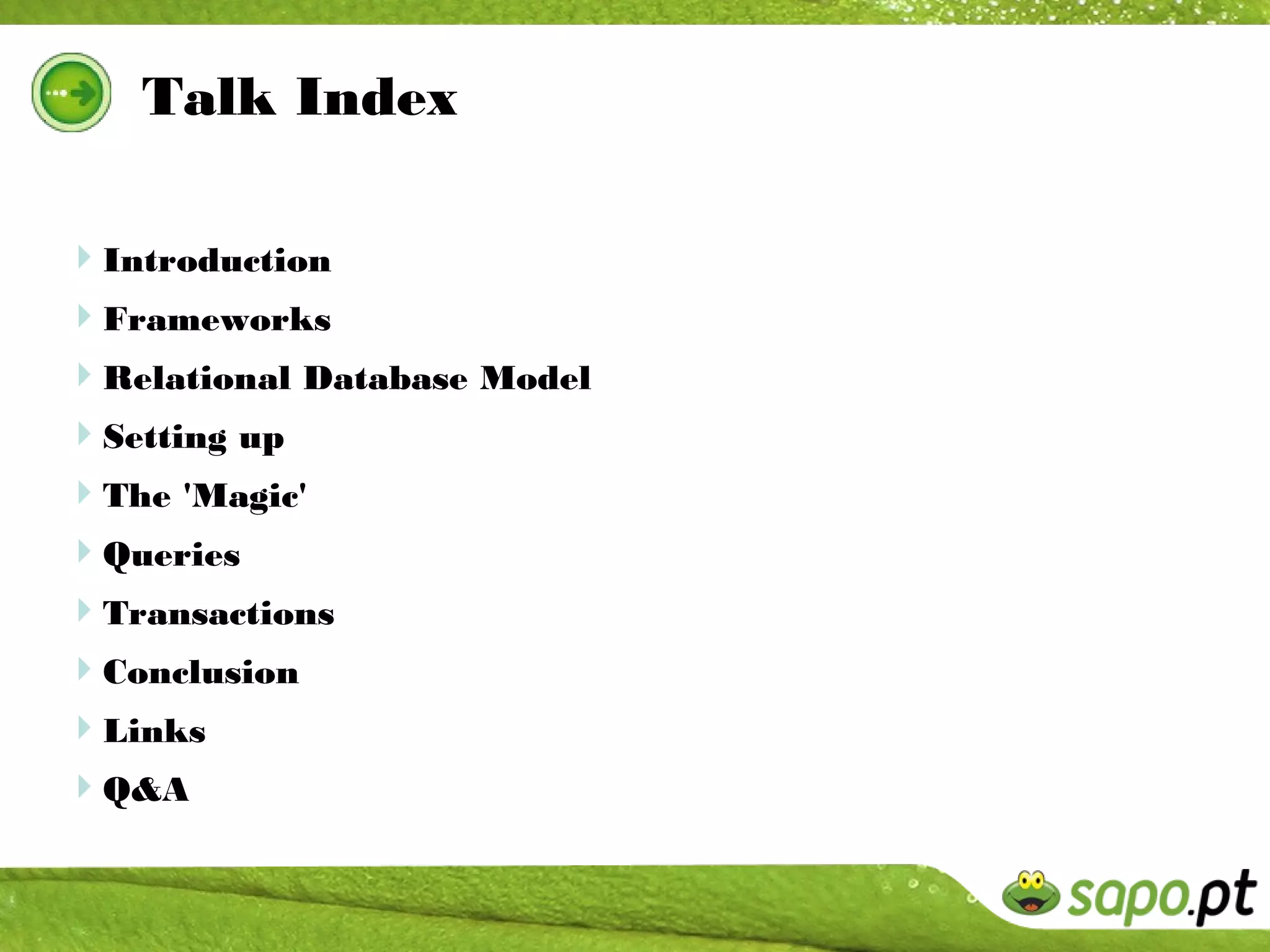

2. Talk Index
Introduction
Frameworks
Relational Database Model
Setting up
The 'Magic'
Queries
Transactions
Conclusion
Links
Q&A

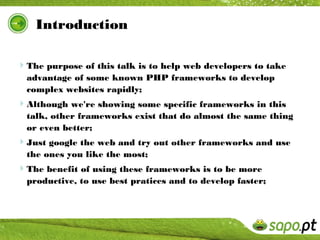

3. Introduction
The purpose of this talk is to help web developers to take
advantage of some known PHP frameworks to develop
complex websites rapidly;
Although we're showing some specific frameworks in this
talk, other frameworks exist that do almost the same thing
or even better;
Just google the web and try out other frameworks and use
the ones you like the most;
The benefit of using these frameworks is to be more
productive, to use best pratices and to develop faster;

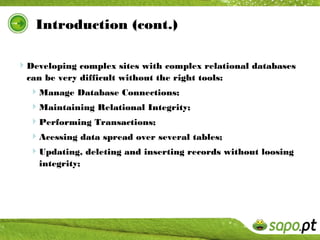

4. Introduction (cont.)
Developing complex sites with complex relational databases
can be very difficult without the right tools:
Manage Database Connections;
Maintaining Relational Integrity;
Performing Transactions;
Acessing data spread over several tables;
Updating, deleting and inserting records without loosing
integrity;

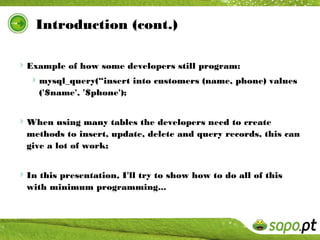

5. Introduction (cont.)
Example of how some developers still program:
mysql_query(“insert into customers (name, phone) values
('$name', '$phone');
When using many tables the developers need to create
methods to insert, update, delete and query records, this can
give a lot of work;
In this presentation, I'll try to show how to do all of this
with minimum programming...

6. Introduction (cont.)
Web site security depends greatly of the awareness
developers have for security issues;
Many PHP developers do bad code because don't know the
problems that can arise from bad programming:
SQL Injection;
Cross-Site Scripting;
Cross-Site Request Forgery;
(...)
Using these frameworks correctly reduce (some) security
vulnerabilities;

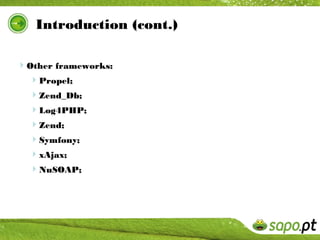

7. Introduction (cont.)
Other frameworks:
Propel;
Zend_Db;
Log4PHP;
Zend;
Symfony;
xAjax;
NuSOAP;

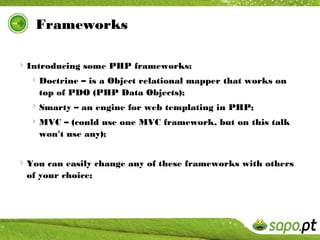

8. Frameworks
Introducing some PHP frameworks:
Doctrine – is a Object relational mapper that works on
top of PDO (PHP Data Objects);
Smarty – an engine for web templating in PHP;
MVC – (could use one MVC framework, but on this talk
won't use any);
You can easily change any of these frameworks with others
of your choice;

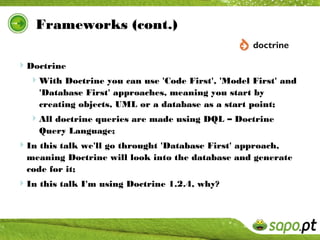

9. Frameworks (cont.)
Doctrine
With Doctrine you can use 'Code First', 'Model First' and
'Database First' approaches, meaning you start by
creating objects, UML or a database as a start point;
All doctrine queries are made using DQL – Doctrine
Query Language;
In this talk we'll go throught 'Database First' approach,
meaning Doctrine will look into the database and generate
code for it;
In this talk I'm using Doctrine 1.2.4, why?

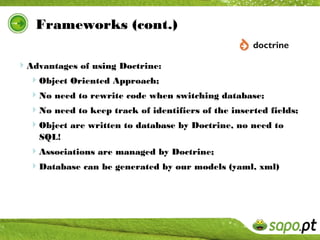

10. Frameworks (cont.)
Advantages of using Doctrine:
Object Oriented Approach;
No need to rewrite code when switching database;
No need to keep track of identifiers of the inserted fields;
Object are written to database by Doctrine, no need to
SQL!
Associations are managed by Doctrine;
Database can be generated by our models (yaml, xml)

11. Frameworks (cont.)
Smarty
Is a template engine for PHP;
Allows separating design from code;
Eases the maintainability of on large web sites;
Allows reuse of templates;
Makes your website go faster;
Improves security;
Easily extensible;

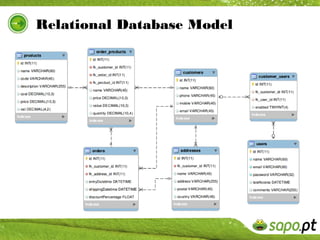

12. Relational Database Model

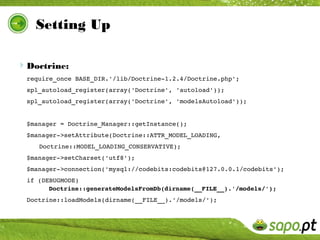

13. Setting Up
Doctrine:
require_once BASE_DIR.'/lib/Doctrine­1.2.4/Doctrine.php';
spl_autoload_register(array('Doctrine', 'autoload'));
spl_autoload_register(array('Doctrine', 'modelsAutoload'));
$manager = Doctrine_Manager::getInstance();
$manager­>setAttribute(Doctrine::ATTR_MODEL_LOADING,
Doctrine::MODEL_LOADING_CONSERVATIVE);
$manager­>setCharset('utf8');
$manager­>connection('mysql://codebits:codebits@127.0.0.1/codebits');
if (DEBUGMODE)
Doctrine::generateModelsFromDb(dirname(__FILE__).'/models/');
Doctrine::loadModels(dirname(__FILE__).'/models/');

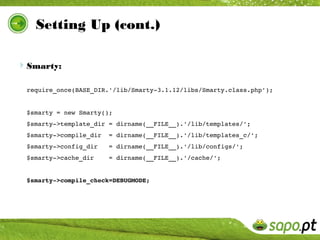

14. Setting Up (cont.)
Smarty:
require_once(BASE_DIR.'/lib/Smarty­3.1.12/libs/Smarty.class.php');
$smarty = new Smarty();
$smarty­>template_dir = dirname(__FILE__).'/lib/templates/';
$smarty­>compile_dir = dirname(__FILE__).'/lib/templates_c/';
$smarty­>config_dir = dirname(__FILE__).'/lib/configs/';
$smarty­>cache_dir = dirname(__FILE__).'/cache/';
$smarty­>compile_check=DEBUGMODE;

15. The 'Magic'
Folder models has been filled by Doctrine with code:
models/*.php (to fill with your business logic);
models/generated/*.php (object definitions);
Folder lib/templates_c/*.php has been filled by Smarty with
munged templates;
Now that the magic is working let's fill a web page with the
data we have in the tables!

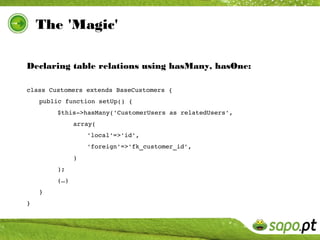

16. The 'Magic'
Declaring table relations using hasMany, hasOne:
class Customers extends BaseCustomers {
public function setUp() {
$this­>hasMany('CustomerUsers as relatedUsers',
array(
'local'=>'id',
'foreign'=>'fk_customer_id',
)
);
(…)
}
}

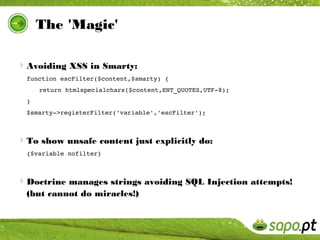

17. The 'Magic'
Avoiding XSS in Smarty:
function escFilter($content,$smarty) {
return htmlspecialchars($content,ENT_QUOTES,UTF­8);
}
$smarty­>registerFilter('variable','escFilter');
To show unsafe content just explicitly do:
{$variable nofilter}
Doctrine manages strings avoiding SQL Injection attempts!
(but cannot do miracles!)

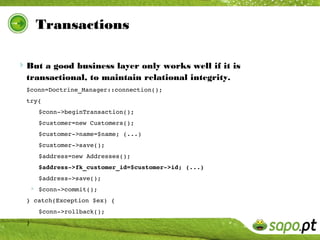

18. Transactions
But a good business layer only works well if it is
transactional, to maintain relational integrity.
$conn=Doctrine_Manager::connection();
try{
$conn­>beginTransaction();
$customer=new Customers();
$customer­>name=$name; (...)
$customer­>save();
$address=new Addresses();
$address­>fk_customer_id=$customer­>id; (...)
$address­>save();
 $conn­>commit();
} catch(Exception $ex) {
$conn­>rollback();
}

19. Queries
Any language or framework is secure depending on how
users use it:
static function updateCustomerName($name, $id) {
$conn=Doctrine_Manager::connection();
$conn­>execute(“update customers set name='$name' where id=$id”);
}
Bad pratice to concat any user input, use instead Doctrine
methods!
The above example can also be database dependant which
isn't a good practice.

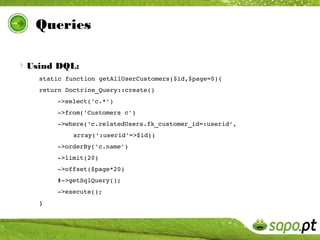

20. Queries
Usind DQL:
static function getAllUserCustomers($id,$page=0){
return Doctrine_Query::create()
­>select('c.*')
­>from('Customers c')
­>where('c.relatedUsers.fk_customer_id=:userid',
array(':userid'=>$id))
­>orderBy('c.name')
­>limit(20)
­>offset($page*20)
#­>getSqlQuery();
­>execute();
}

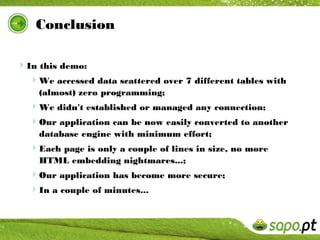

21. Conclusion
In this demo:
We accessed data scattered over 7 different tables with
(almost) zero programming;
We didn't established or managed any connection;
Our application can be now easily converted to another
database engine with minimum effort;
Each page is only a couple of lines in size, no more
HTML embedding nightmares...;
Our application has become more secure;
In a couple of minutes...

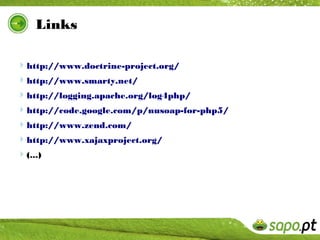

22. Links
http://www.doctrine-project.org/
http://www.smarty.net/
http://logging.apache.org/log4php/
http://code.google.com/p/nusoap-for-php5/
http://www.zend.com/
http://www.xajaxproject.org/
(...)

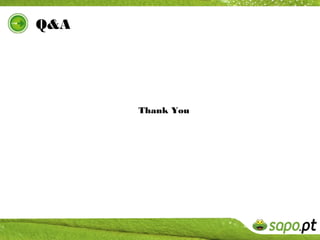

23. Q&A
Thank You
