Code metrics

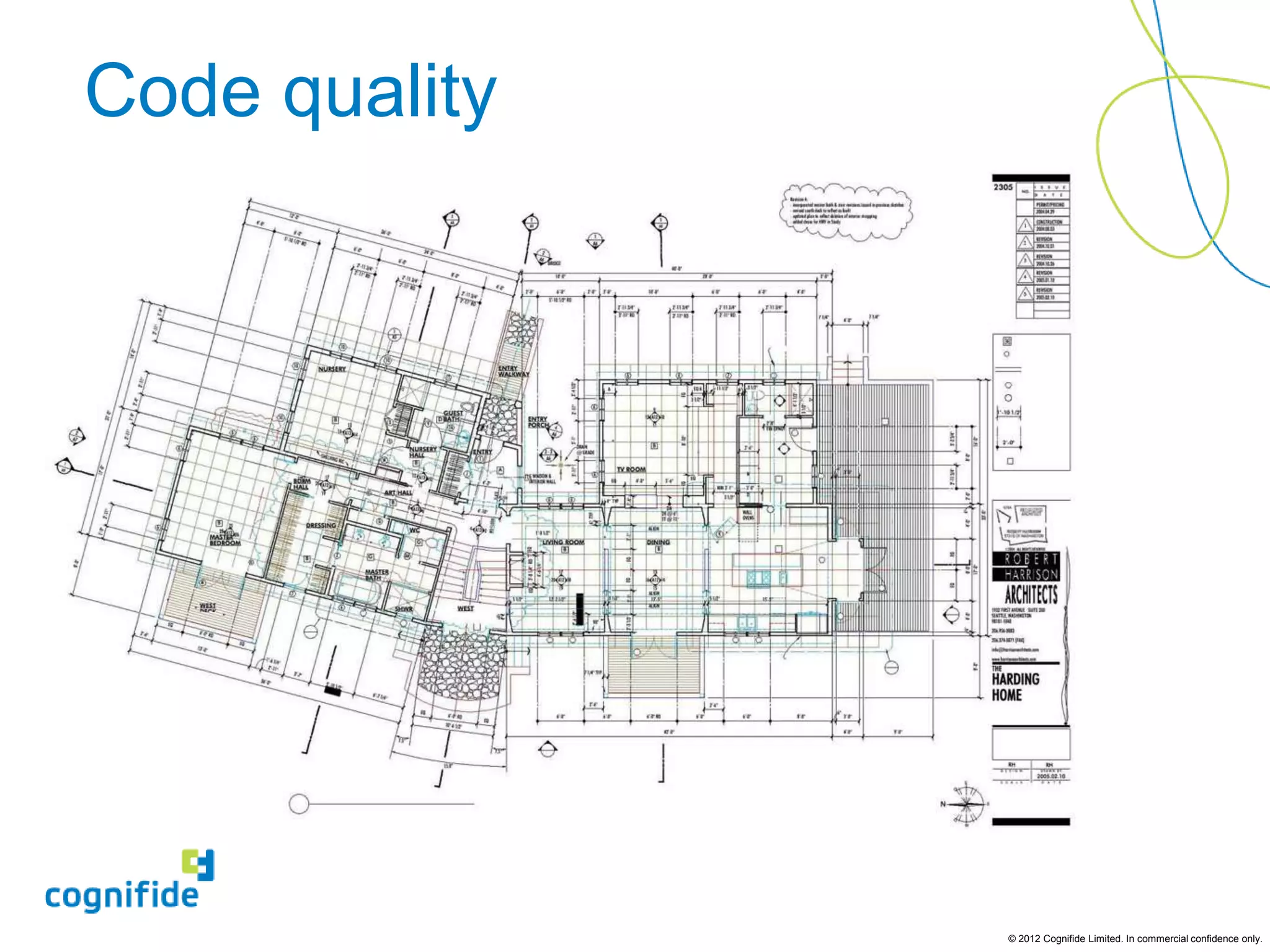

Code quality

© 2012 Cognifide Limited. In commercial confidence only.

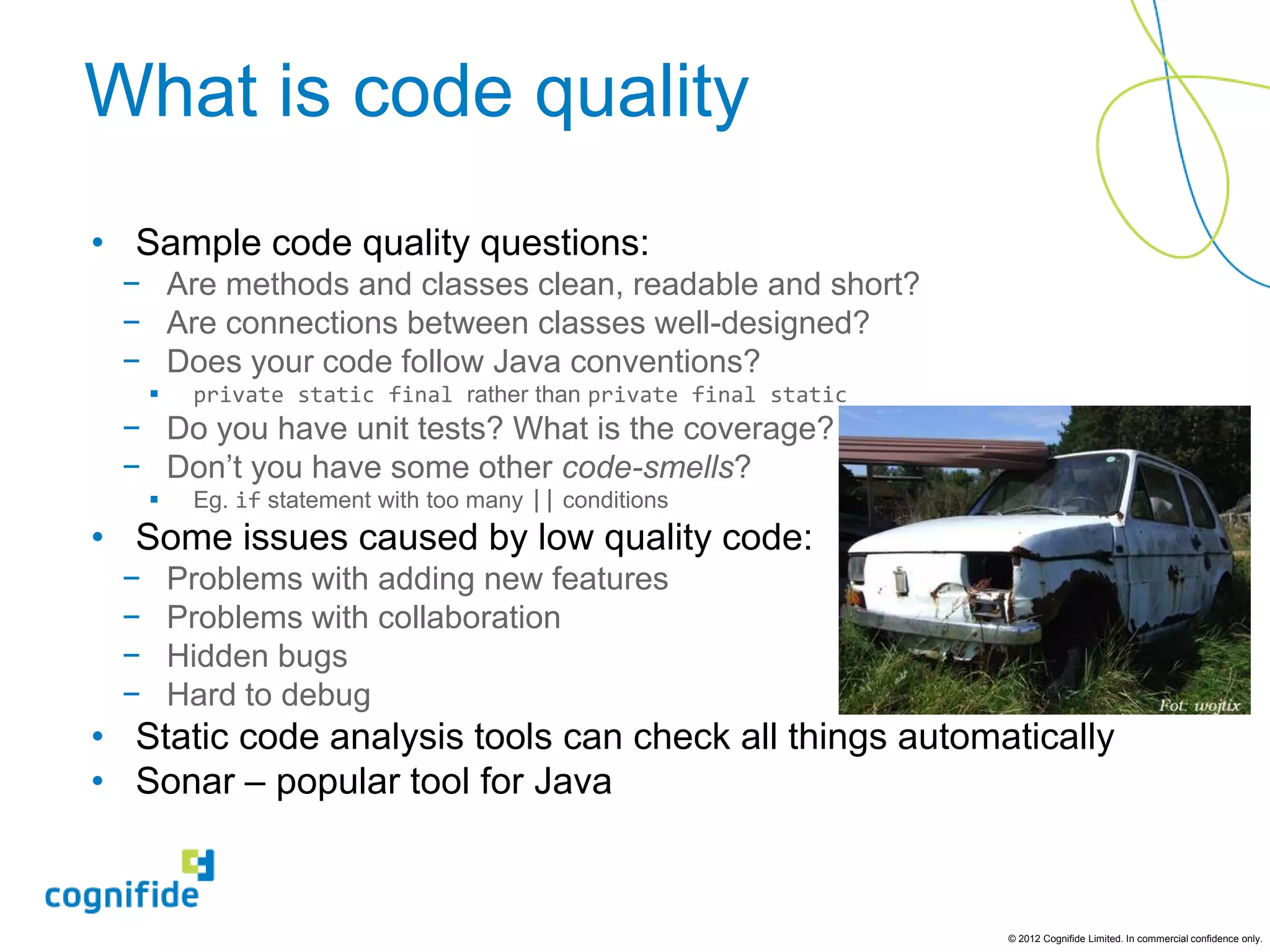

What is code quality
• Sample code quality questions:
− Are methods and classes clean, readable and short?
− Are connections between classes well-designed?
− Does your code follow Java conventions?


private static final rather than private final static

− Do you have unit tests? What is the coverage?
− Don’t you have some other code-smells?


Eg. if statement with too many || conditions

• Some issues caused by low quality code:
−
−
−
−

Problems with adding new features
Problems with collaboration
Hidden bugs
Hard to debug

• Static code analysis tools can check all things automatically
• Sonar – popular tool for Java


Coding standards


Coding standards – example
class FileUtils {
public final static String pngExtension = "png";
public static String getExtension(String filename) {
int DOTPos = filename.indexOf(".");
if (filename != null && DOTPos > -1) {
String extension = filename.substring(DOTPos+1);
return extension;
}
return null;
}
}


Cyclomatic complexity


Cyclomatic complexity
•
•
•
•
•

Basic code metric
Describes number of “branches” in method or class
Sequential code (no ifs, fors and whiles): complexity = 1
Each additional condition: +1
If method is too complex, we should split it into smaller ones


House of cards


Complexity for sequential code
byte[] buffer = new byte[1024];
InputStream stream = new FileInputStream("/my/file");
InputStream buffered = new BufferedInputStream(stream);
buffered.read(buffer);
buffered.close();

• Complexity: 1
• No conditions, simple flow


Complexity with one condition
byte[] buffer = new byte[1024];
File file = new File("/my/file");
if (!file.exists()) {
return;
}
InputStream stream = new FileInputStream(file);
InputStream buffered = new BufferedInputStream(stream);
buffered.read(buffer);
buffered.close();

• Complexity: 2


Complexity: formal definition
Formal definition: Edges – Nodes + 2 Components
for(int i=0;i<3;i++) {
System.out.println(i);
}

if(j == 42) {
System.out.println(”j is the answer”)
}
Edges: 9, Nodes: 8, Components: 1
E-N+2P=3


Class responsibilities


Single responsibility principle
• Each class should be responsible for only one thing
• Example: class Driver:
− 2 fields: car, brain,
− 5 methods: drive(), goTo(), stop(), getAngry(), drinkCoffee(),

• This class has 3 responsibilities:
− Driving car
− Getting angry
− Drinking coffe

• It should be split into 3 classes


LCOM4 & cohesion
• LCOM4 – Lack Of Cohesion Methods.
• How many responsibilities class?
• LCOM4 = 3 means that
− there are 3 not connected sets of methods/properties
− class can be split into three new classes.

• Class should be designed to have LCOM4 = 1
• Low LCOM4 = high cohesion
• Cohesion relates to coupling


Coupling


Tight coupling
• If a class (eg. Driver) invokes methods on some other class
(eg. Car) it’s tightly coupled with it
• In this case we can’t easily change Car implementation to
something other (eg. Tank)
• Real-life example: iPhone and its battery
public class Driver {
private final Car car;
public Driver(Car car) {
this.car = car;
}
public void driveCar() {
car.startEngine();
car.drive();
}

public class Car {
public void startEngine() {
…
}
public void drive() {
…
}
}

}

Loose coupling
• Class doesn’t need to know about other classes existence
• It only need to know about contracts (interfaces) provided by
other class
• Real-life example: screw and screwdriver
public class Driver {
private Vehicle vehicle;
public Driver(Vehicle vehicle) {
this.vehicle = vehicle;
}
vehicle.startEngine();
vehicle.drive();
}

public interface Vehicle {
void startEngine();
void drive();
}
public class Car implements Vehicle {
public void startEngine() {
…
}
…
}

}
}


Coupling & cohesion – summary
• Classes must be loosely coupled
and highly cohesive.
• Cohesion is the degree to which the
methods of a single class are tight
together.
− If class is not cohesive (eg. two methods
doesn’t share any property), it can be
split to two classes.

• Coupling is the degree to which each
class is tight to the others.
− Any change you make in one class has
impact to some other classes.
− Use interfaces & depdency injection

• Read more…
• Read even more…


Technical debt


Technical debt
• „Doing things the quick and dirty way sets us up with a
technical debt, which is similar to a financial debt.”
• Metric based on:
−
−
−
−
−

•
•
•
•

duplications,
violations,
(lack of) comments,
coverage,
complexity.

Absolute debt in mandays and cash
Debt ratio – dependent on the project size.
Useful for project manager
Read more...


Other metrics


Other code metrics
•
•
•
•
•

Lines of code
Unit test coverage
Responses for class
…
All these metrics can be checked via Sonar
− Free & very useful software
− Can be integrated with Eclipse

• Visual Studio provides integrated metrics as well
