This document discusses code contracts, which extend abstract data types with preconditions, postconditions, and invariants. Code contracts allow programmers to specify conditions that must be true before, after, and during execution. The document outlines key contract terms like preconditions, postconditions, and invariants. It also discusses how to add contracts to code using Code Contracts in .NET and demonstrates contract verification, inheritance of contracts, and handling contract failures at runtime. Code Contracts allow formal specification and static/dynamic checking of interface behaviors to help catch errors and improve code quality.

1. Code Contracts DmytroMindra RnD Tech Lead LohikaLabs Пятая встреча Microsoft .Net User Group Одесса, 2011

2. © Drake Emko & Jen Brodzik, 2001

3. © Drake Emko & Jen Brodzik, 2001

4. © Drake Emko & Jen Brodzik, 2001

5. Design by Contract Bertrand Meyer DbC author Published 11 books including “Object-Oriented Software Construction” First edition: 1988 Second edition: 1997

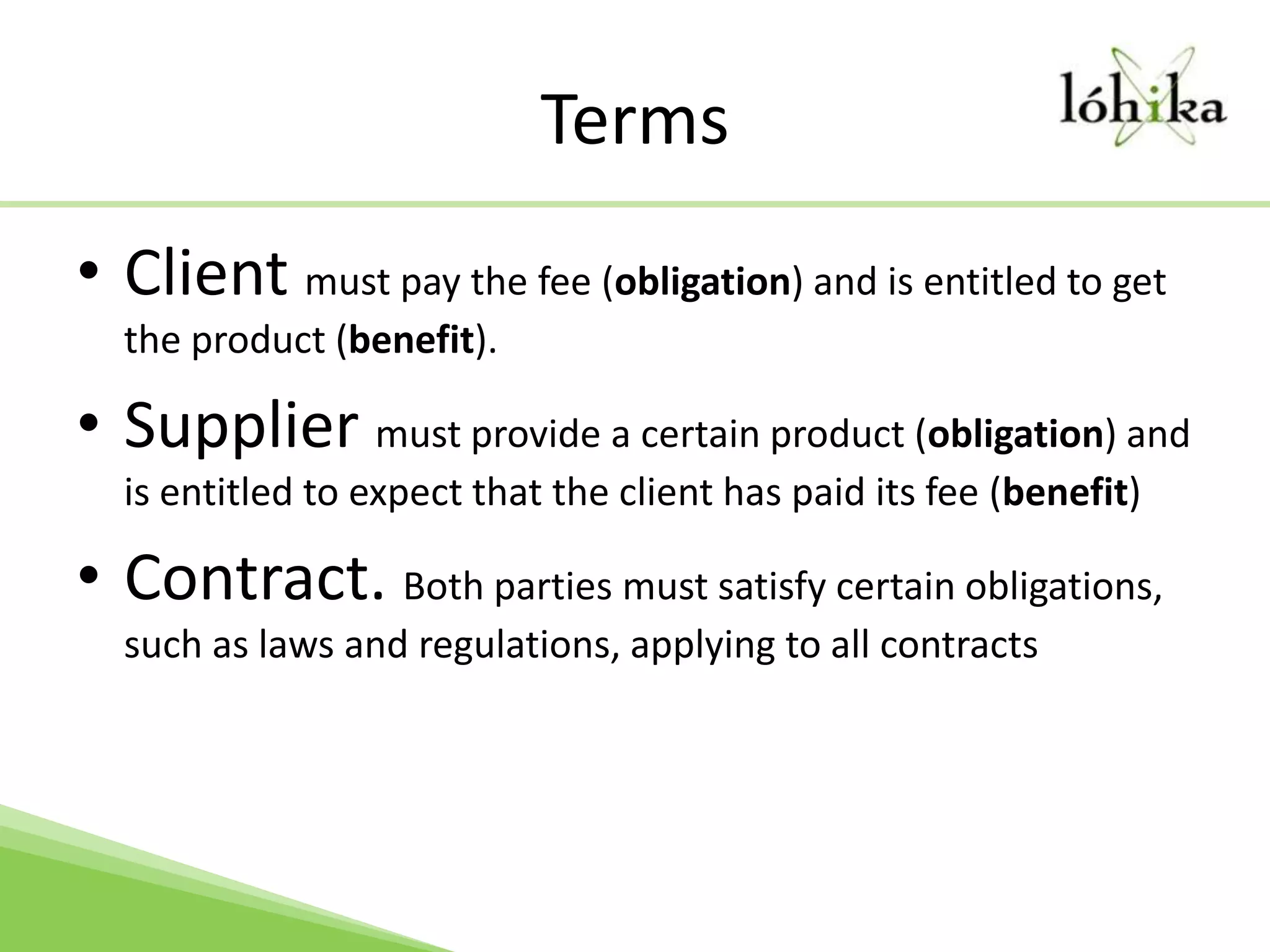

6. Terms Client must pay the fee (obligation) and is entitled to get the product (benefit). Supplier must provide a certain product (obligation) and is entitled to expect that the client has paid its fee (benefit) Contract. Both parties must satisfy certain obligations, such as laws and regulations, applying to all contracts

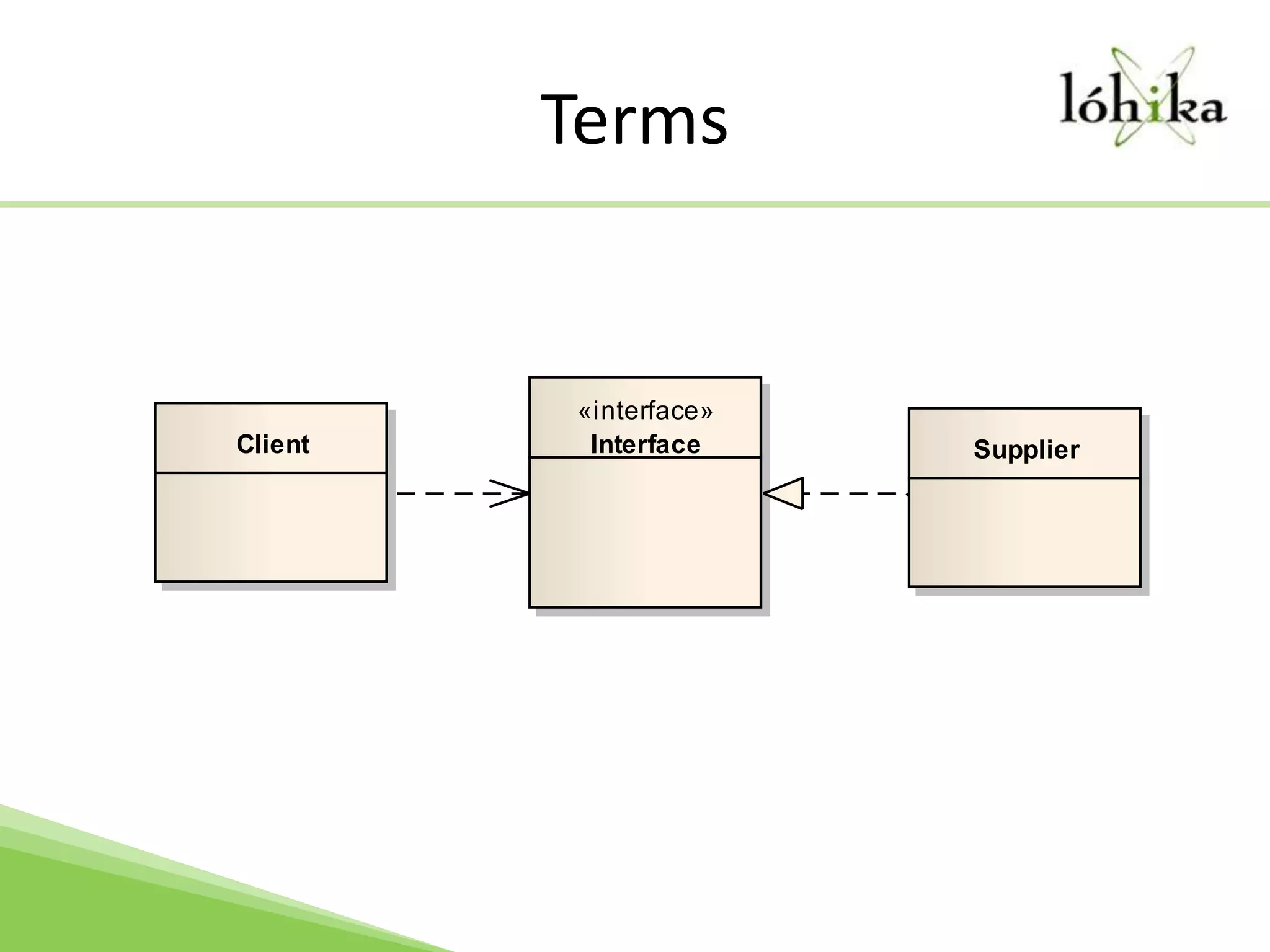

7. Terms

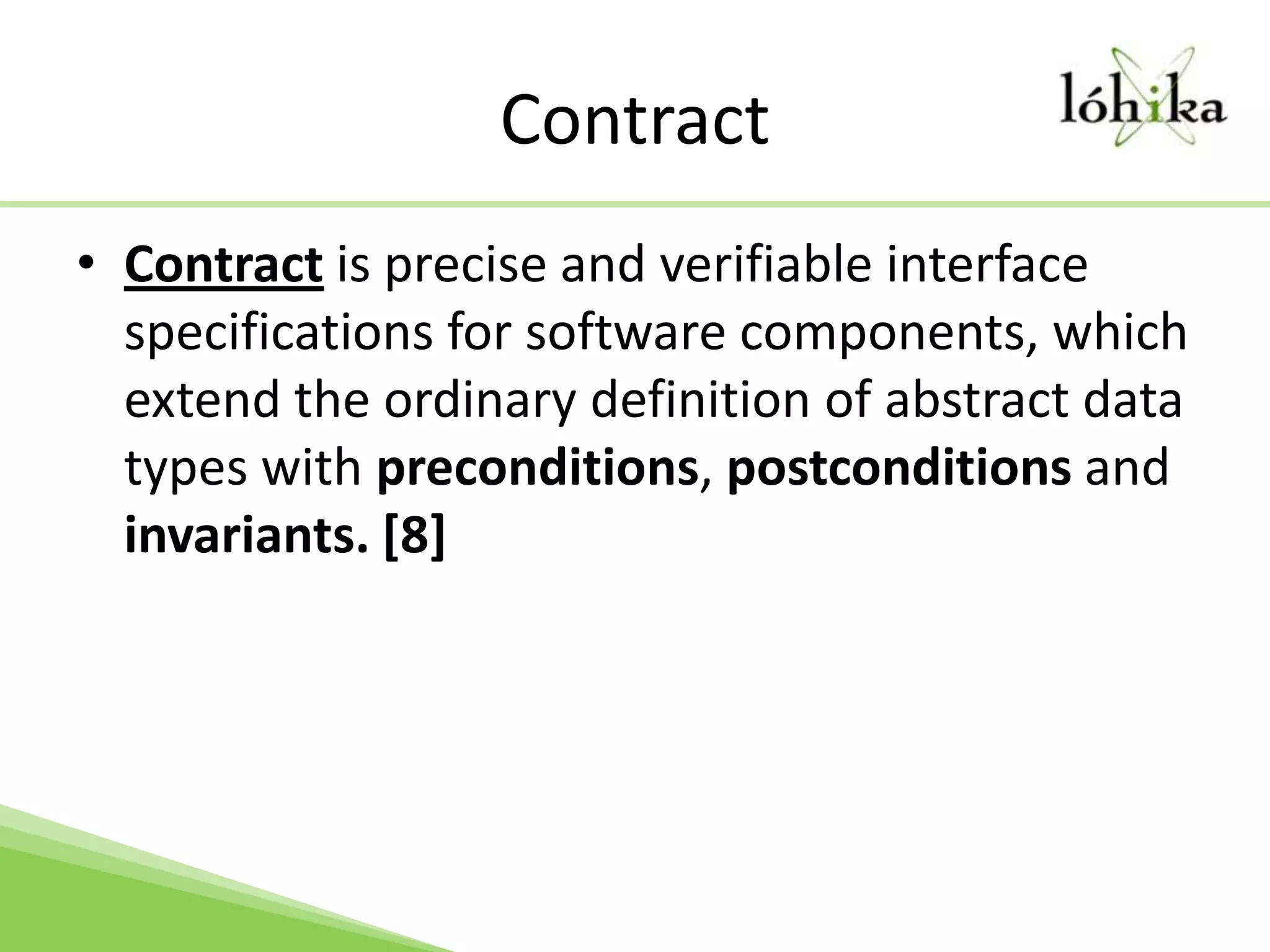

8. Contract Contract is precise and verifiable interface specifications for software components, which extend the ordinary definition of abstract data types with preconditions, postconditions and invariants. [8]

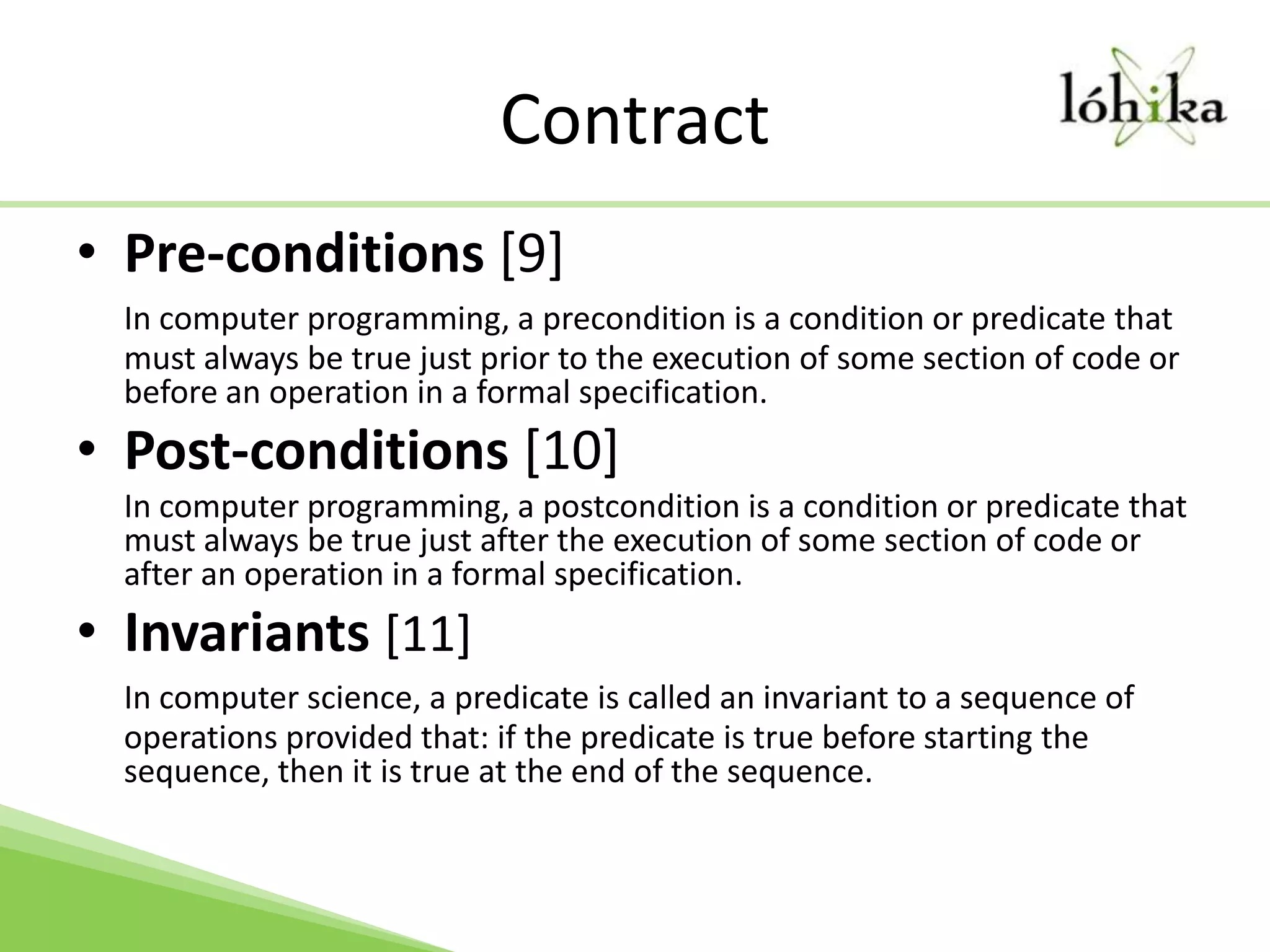

9. Contract Pre-conditions [9] In computer programming, a precondition is a condition or predicate that must always be true just prior to the execution of some section of code or before an operation in a formal specification. Post-conditions [10] In computer programming, a postcondition is a condition or predicate that must always be true just after the execution of some section of code or after an operation in a formal specification. Invariants[11] In computer science, a predicate is called an invariant to a sequence of operations provided that: if the predicate is true before starting the sequence, then it is true at the end of the sequence.

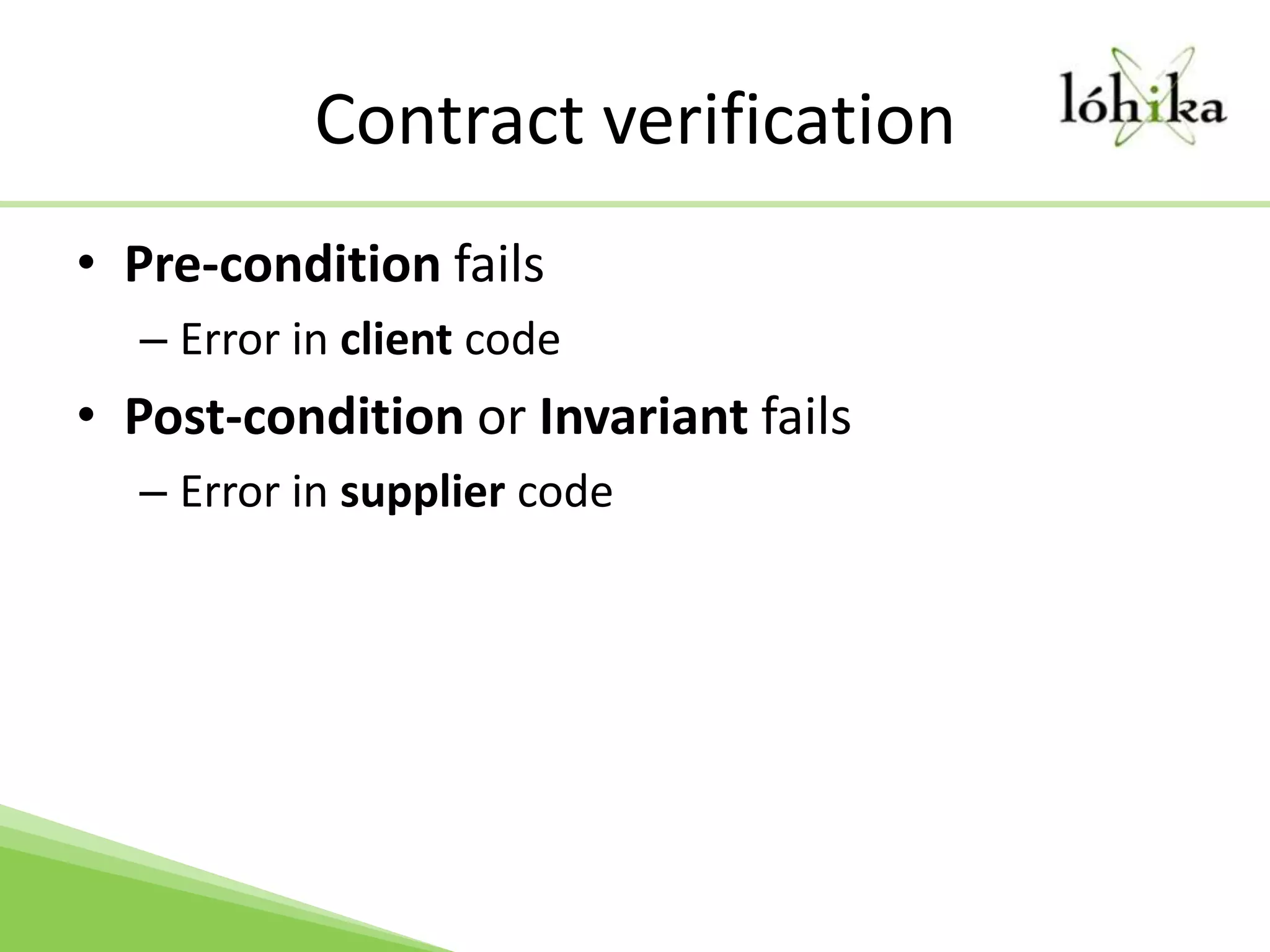

10. Contract verification Pre-condition fails Error in client code Post-condition or Invariant fails Error in supplier code

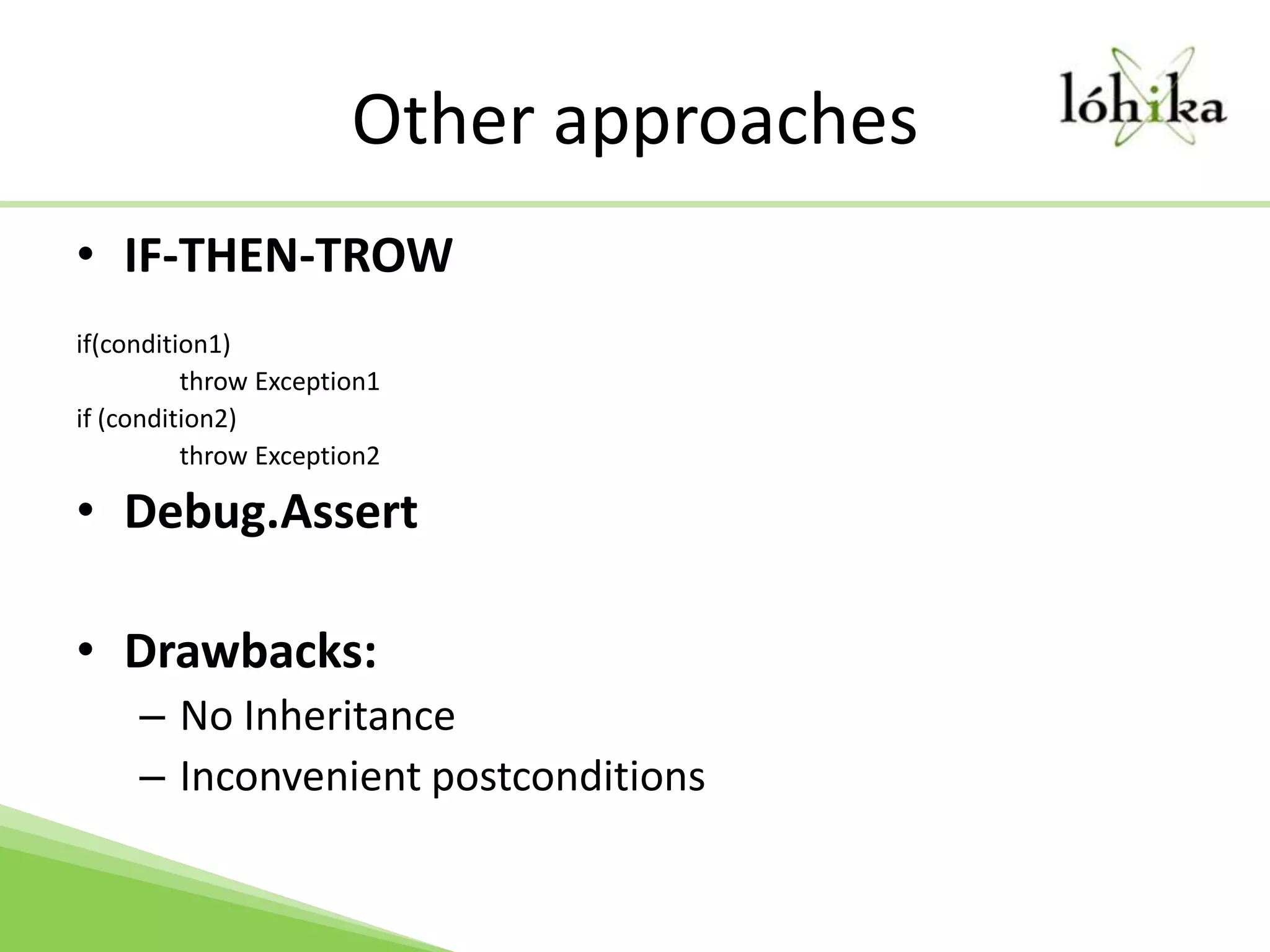

11. Other approaches IF-THEN-TROW if(condition1) throw Exception1 if (condition2) throw Exception2 Debug.Assert Drawbacks: No Inheritance Inconvenient postconditions

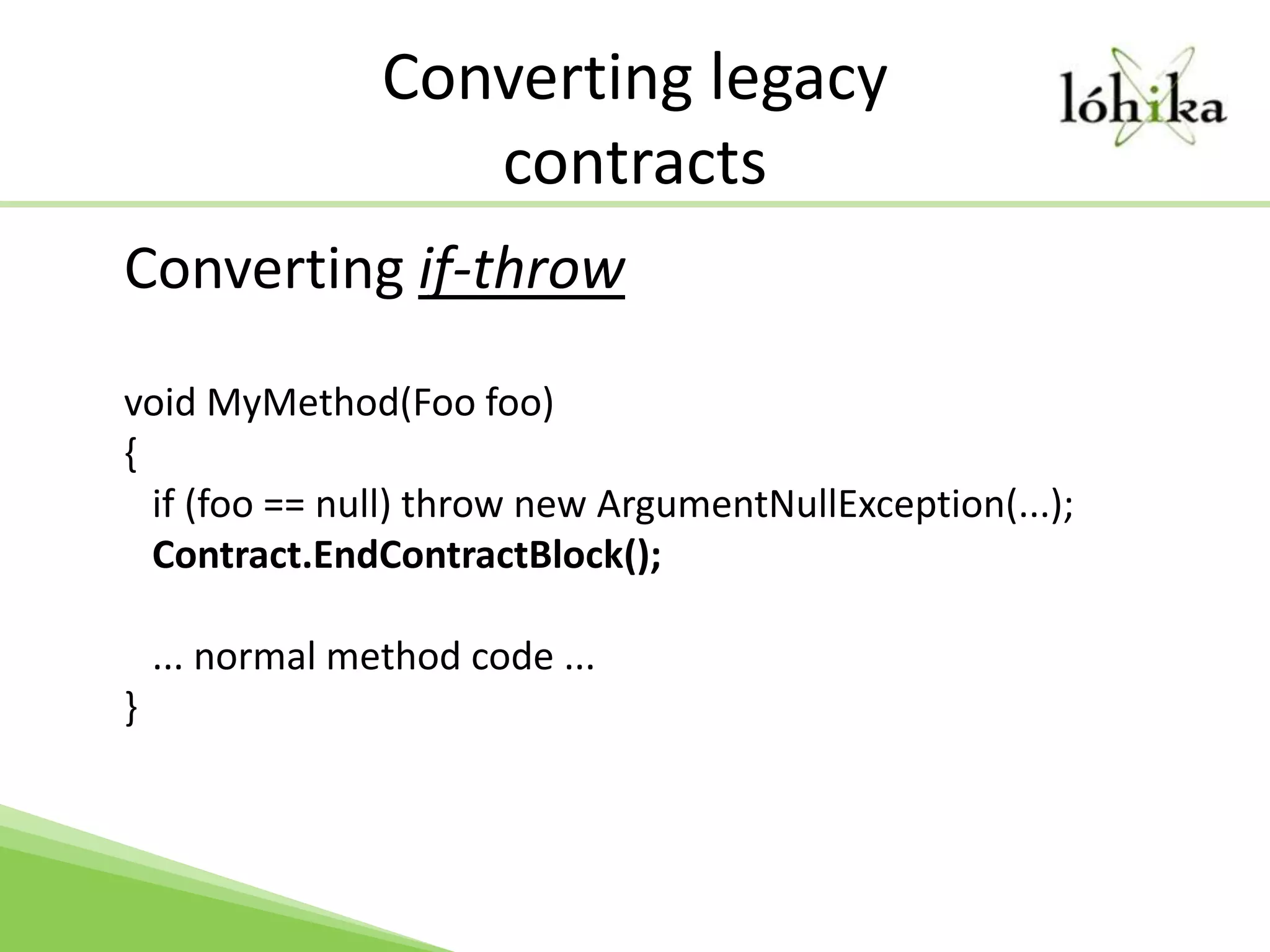

12. Converting legacycontracts Converting if-throw void MyMethod(Foofoo){ if (foo == null) throw new ArgumentNullException(...); Contract.EndContractBlock(); ... normal method code ...}

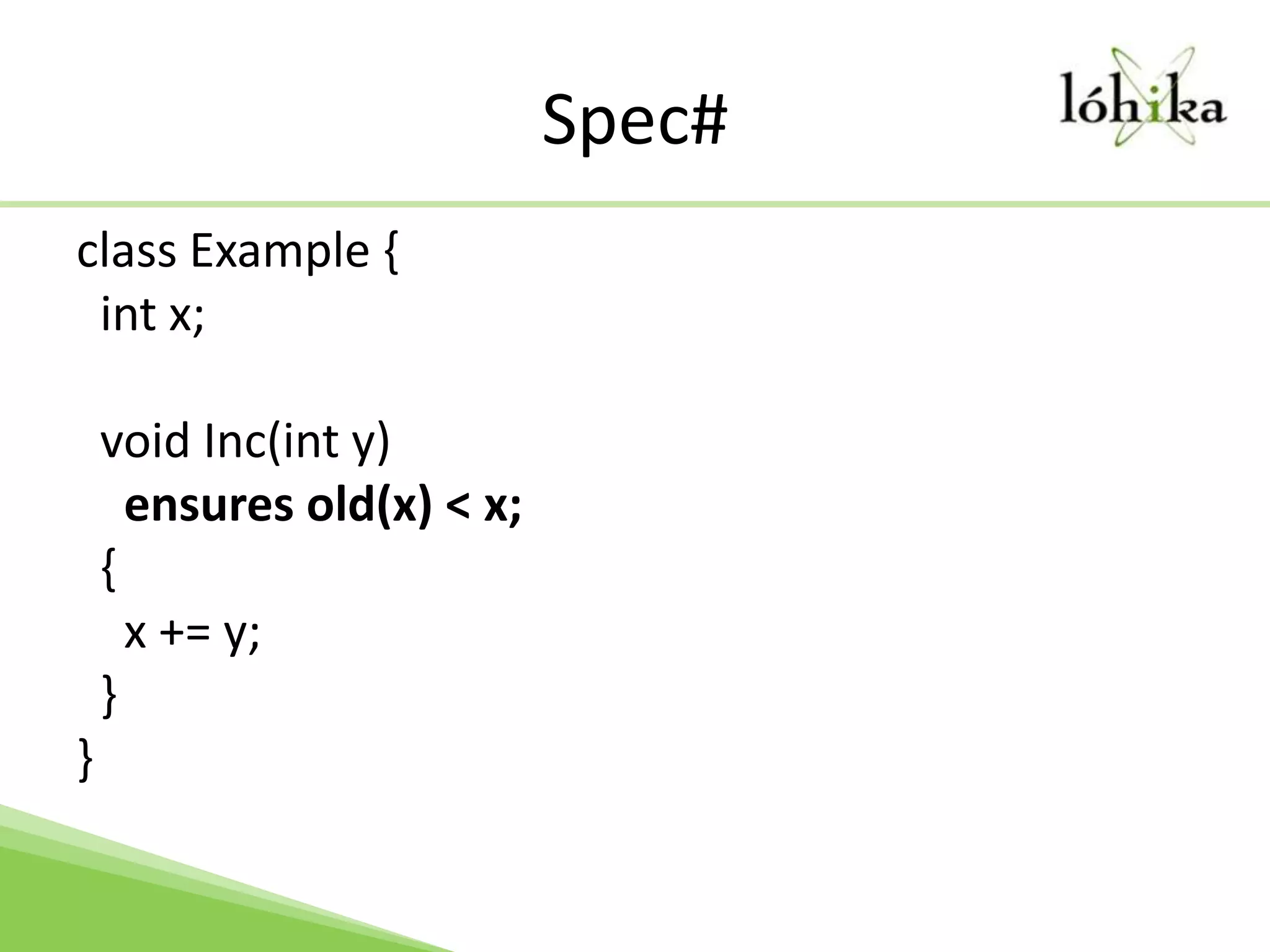

13. Spec# class Example { int x; void Inc(int y) ensures old(x) < x; { x += y; } }

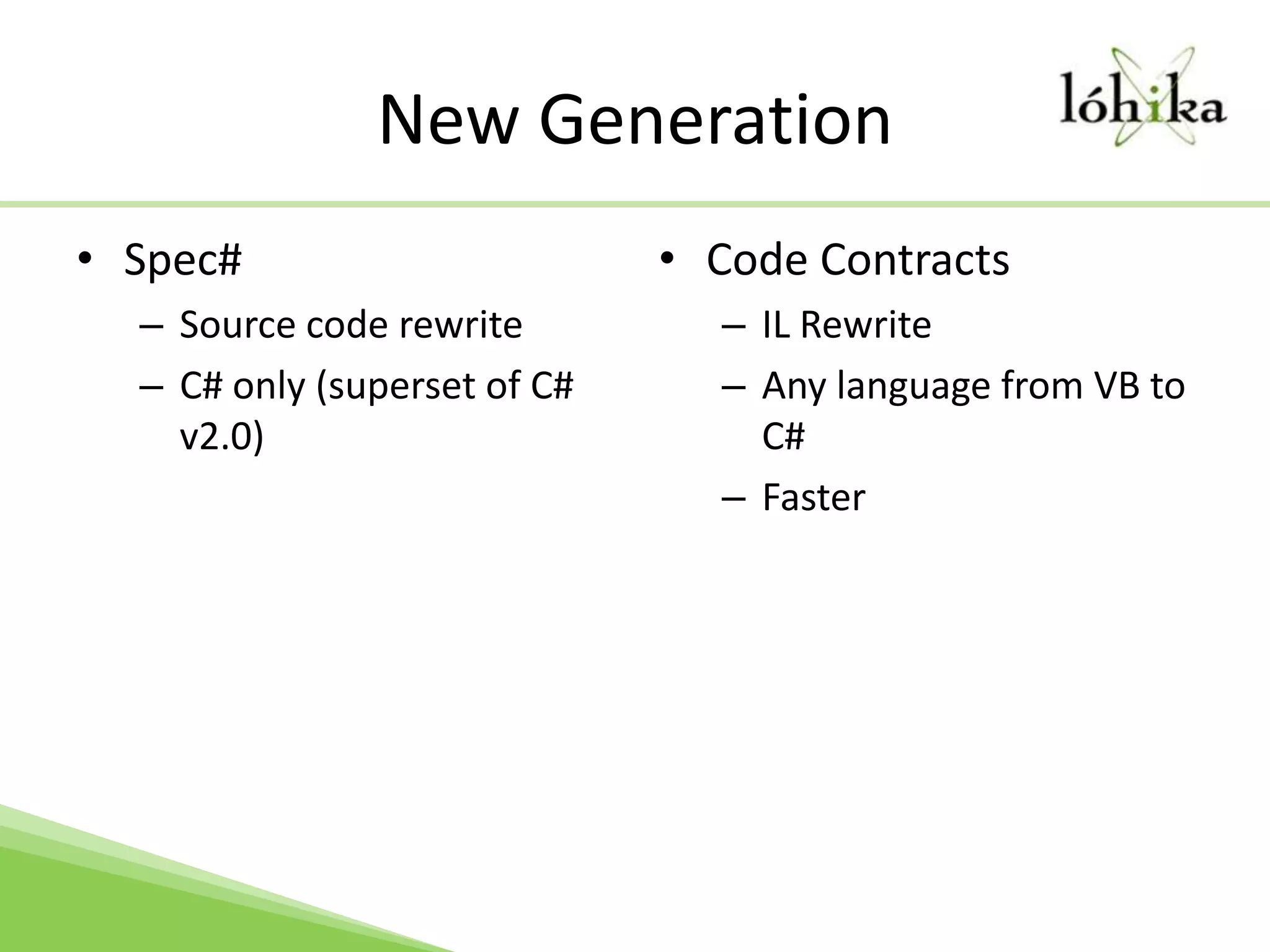

14. New Generation Spec# Source code rewrite C# only (superset of C# v2.0) Code Contracts IL Rewrite Any language from VB to C# Faster

15. Code Contracts How to start using Code Contracts ?

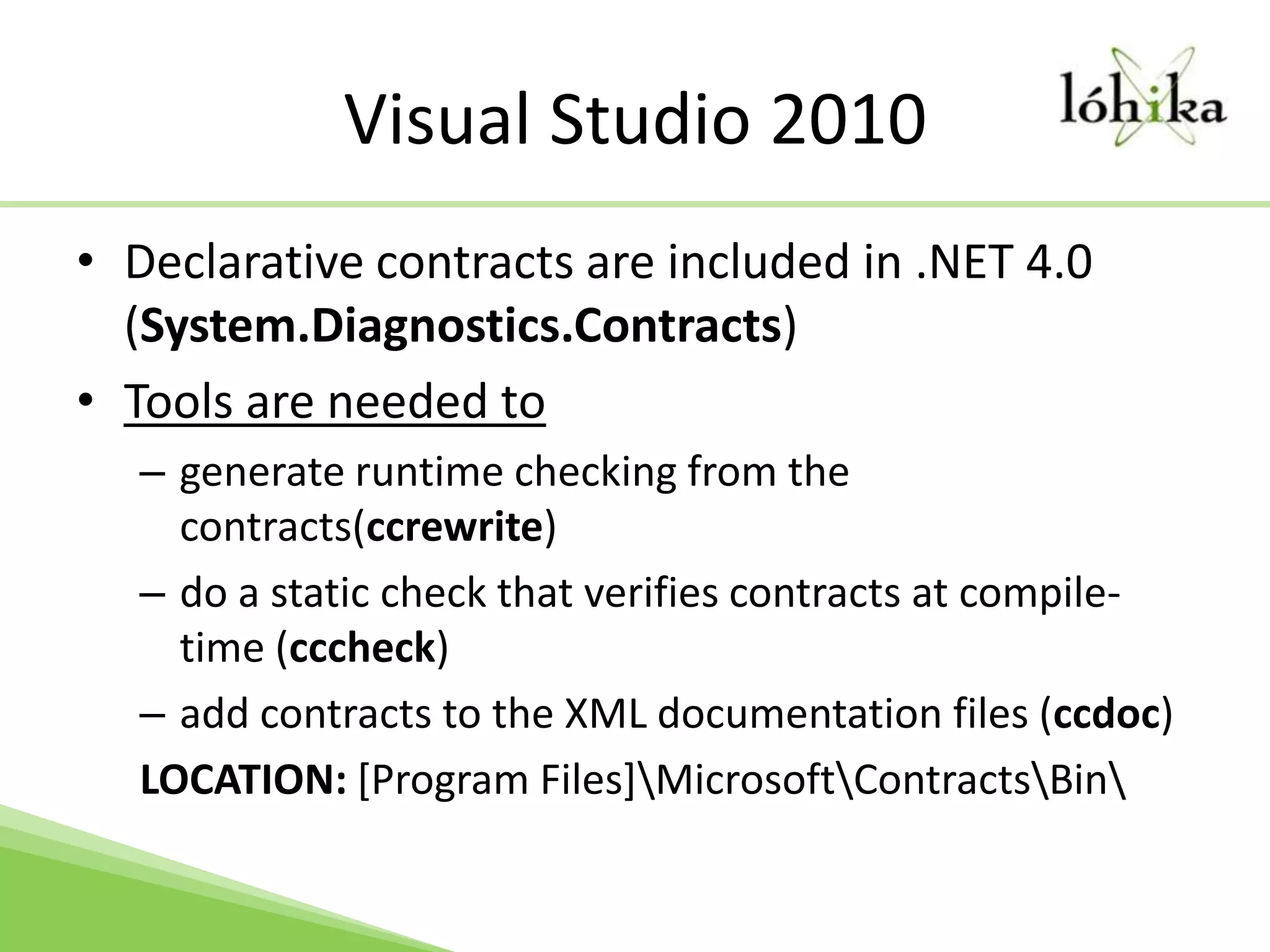

16. Visual Studio 2010 Declarative contracts are included in .NET 4.0 (System.Diagnostics.Contracts) Tools are needed to generate runtime checking from the contracts(ccrewrite) do a static check that verifies contracts at compile-time (cccheck) add contracts to the XML documentation files (ccdoc) LOCATION: [Program Files]icrosoftontractsinbr />

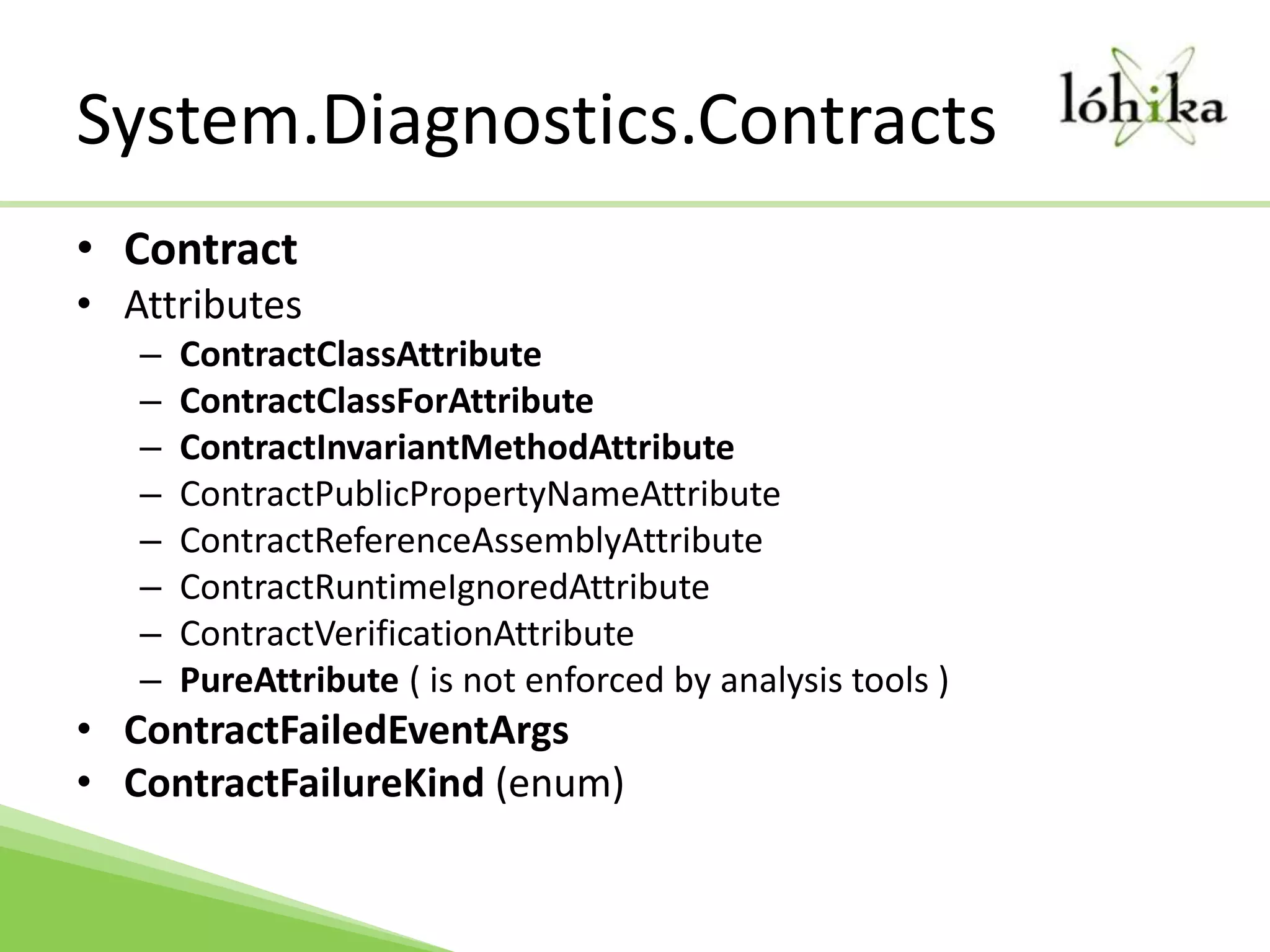

17. System.Diagnostics.Contracts Contract Attributes ContractClassAttribute ContractClassForAttribute ContractInvariantMethodAttribute ContractPublicPropertyNameAttribute ContractReferenceAssemblyAttribute ContractRuntimeIgnoredAttribute ContractVerificationAttribute PureAttribute ( is not enforced by analysis tools ) ContractFailedEventArgs ContractFailureKind (enum)

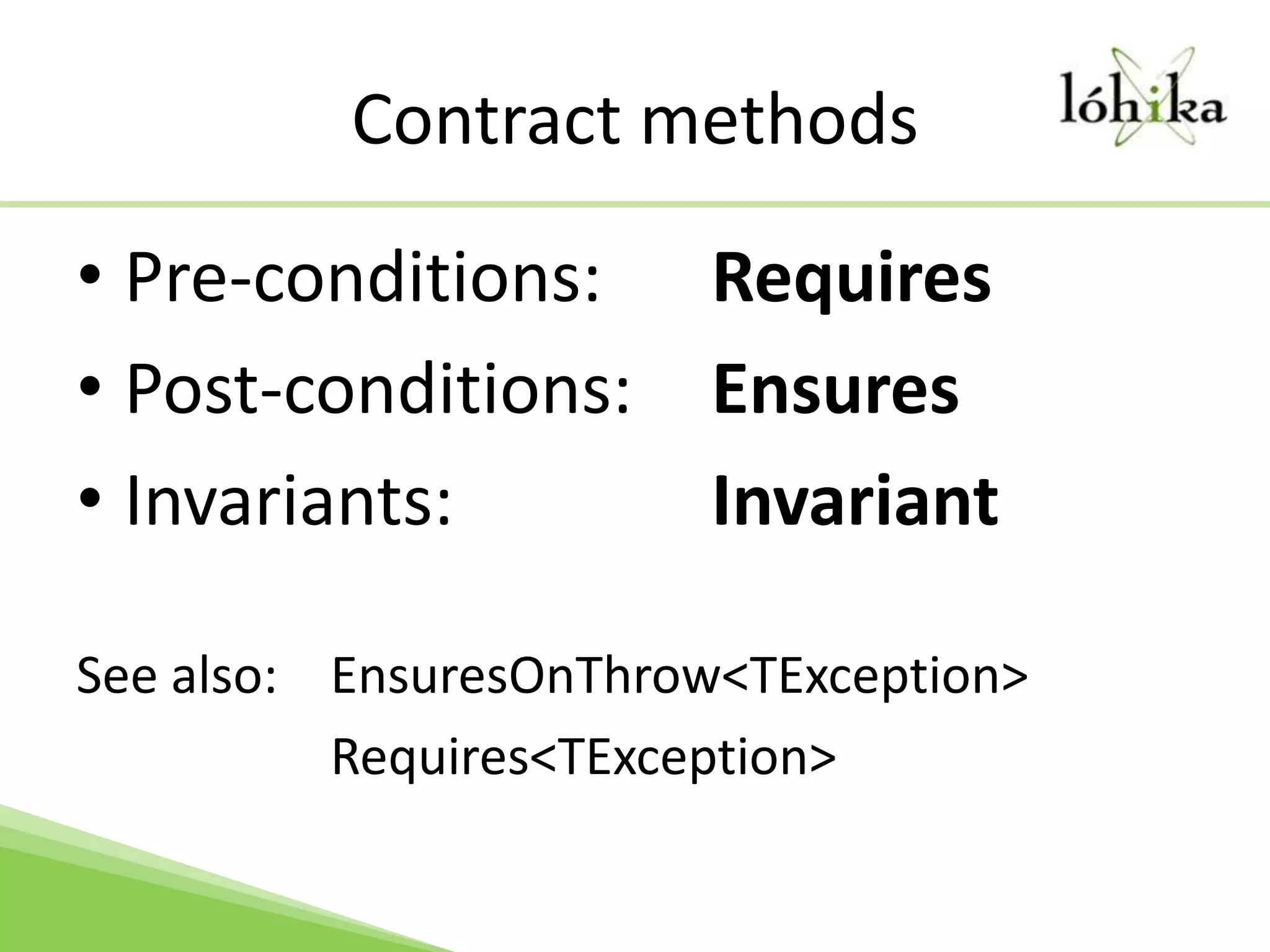

18. Contract methods Pre-conditions: Requires Post-conditions: Ensures Invariants: Invariant See also: EnsuresOnThrow<TException> Requires<TException>

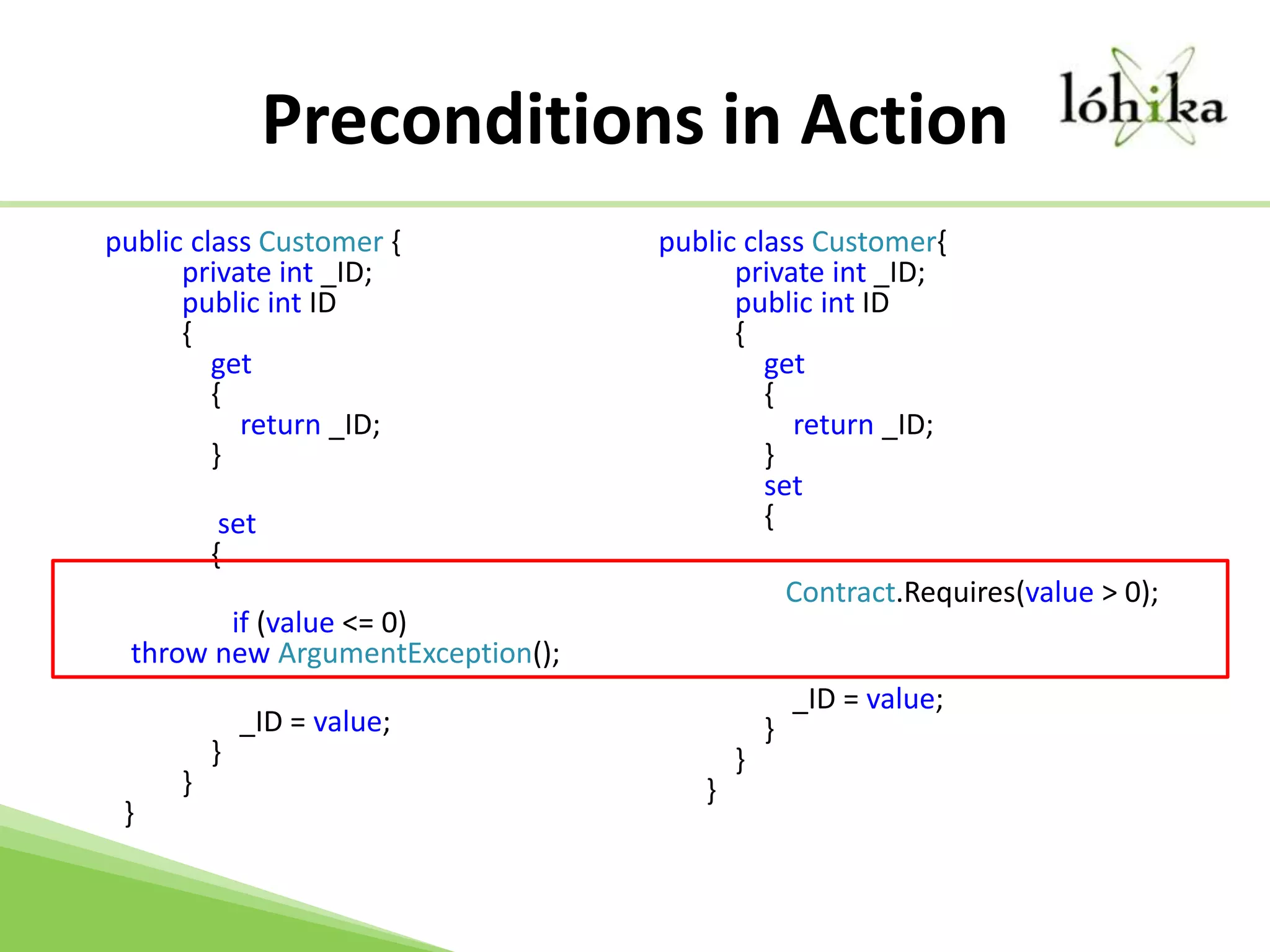

19. Preconditions in Action public class Customer { private int _ID; public int ID { get { return _ID; } set { if (value <= 0) throw new ArgumentException(); _ID = value; } }} public class Customer{ private int _ID; public int ID { get { return _ID; } set { Contract.Requires(value > 0); _ID = value; } }}

20. Demo: Basic + IL Spy

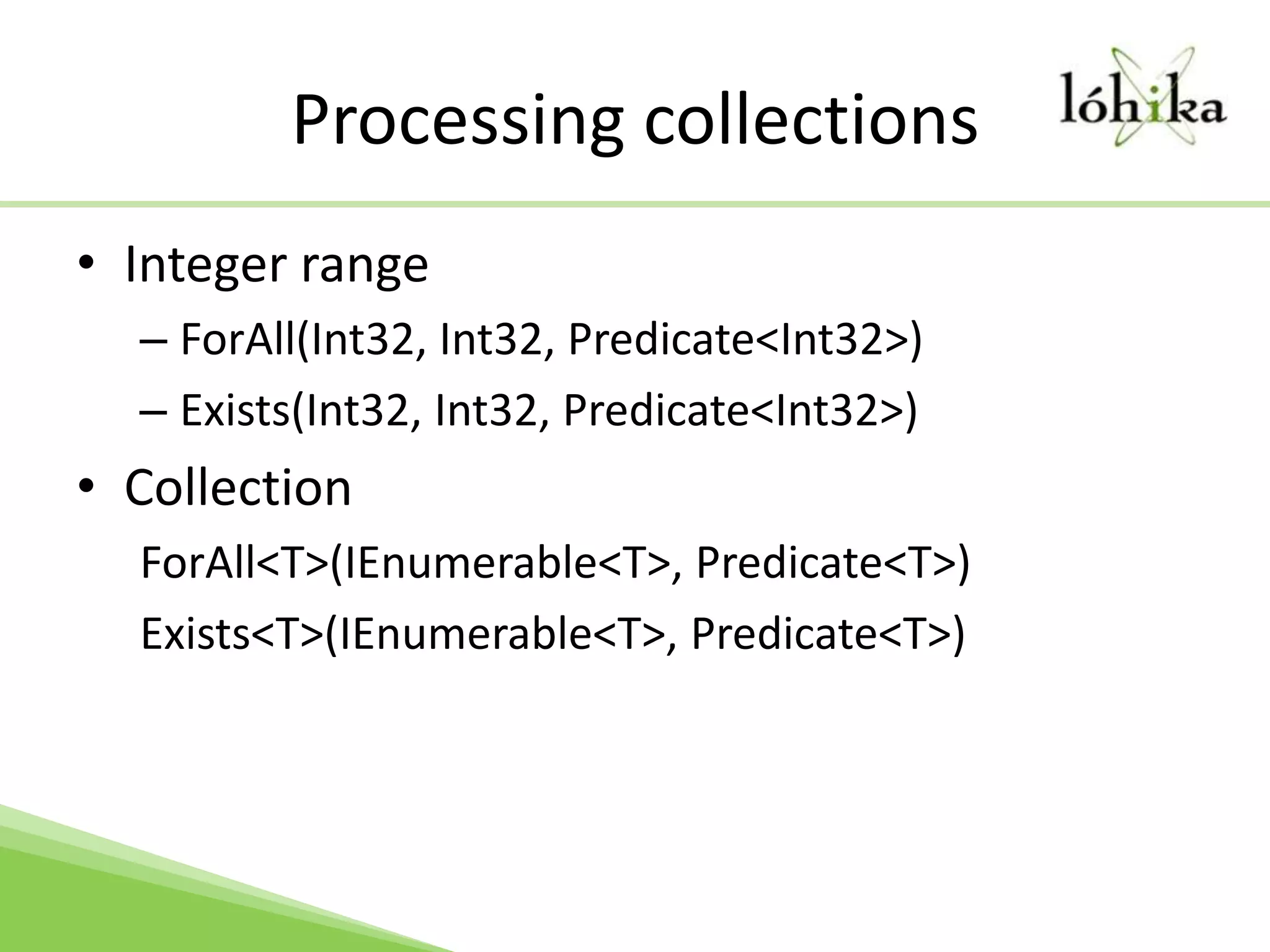

21. Processing collections Integer range ForAll(Int32, Int32, Predicate<Int32>) Exists(Int32, Int32, Predicate<Int32>) Collection ForAll<T>(IEnumerable<T>, Predicate<T>) Exists<T>(IEnumerable<T>, Predicate<T>)

22. Demo: Collections

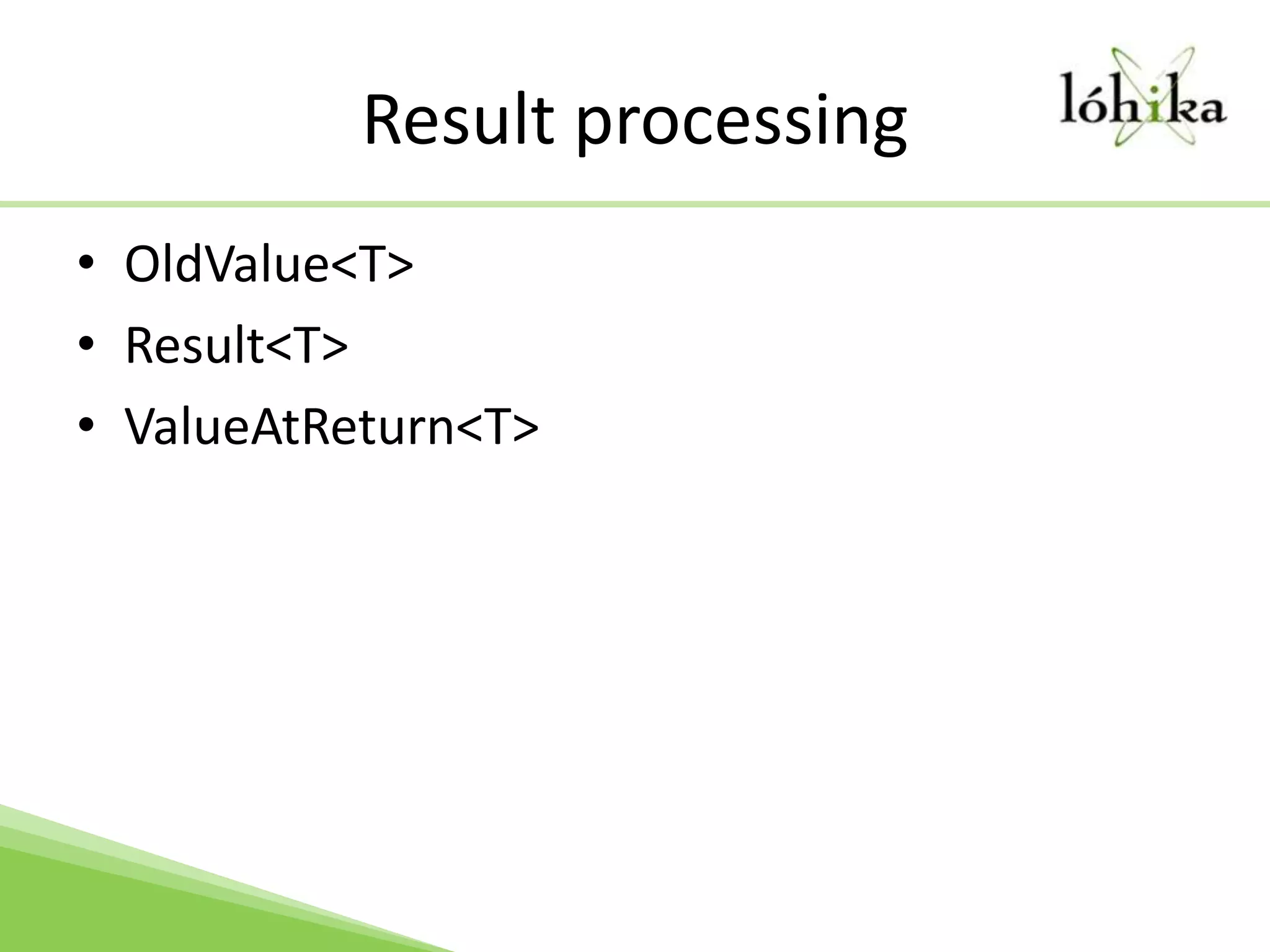

23. Result processing OldValue<T> Result<T> ValueAtReturn<T>

24. Demo: Results

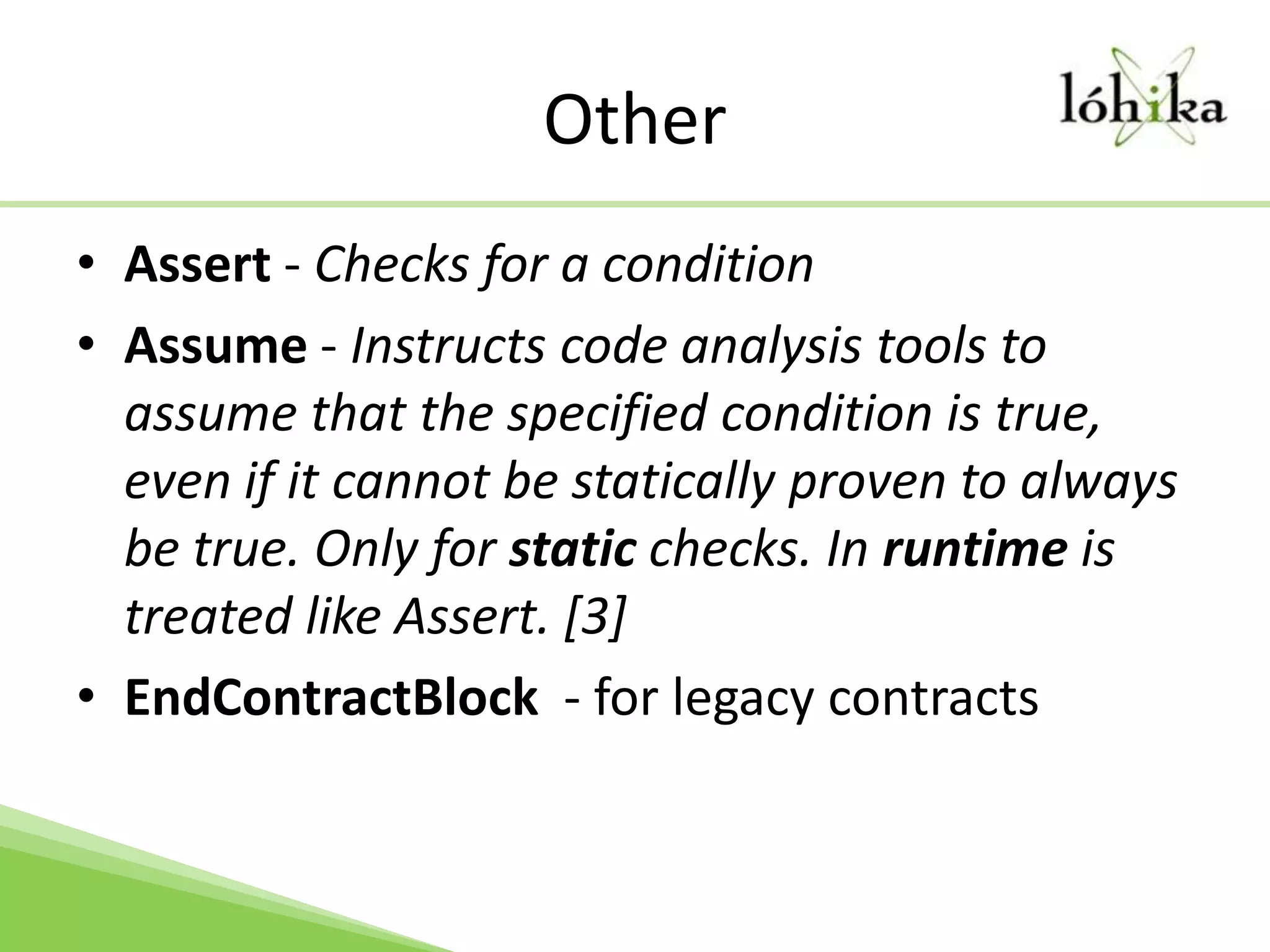

25. Other Assert - Checks for a condition Assume - Instructs code analysis tools to assume that the specified condition is true, even if it cannot be statically proven to always be true. Only for static checks. In runtime is treated like Assert. [3] EndContractBlock - for legacy contracts

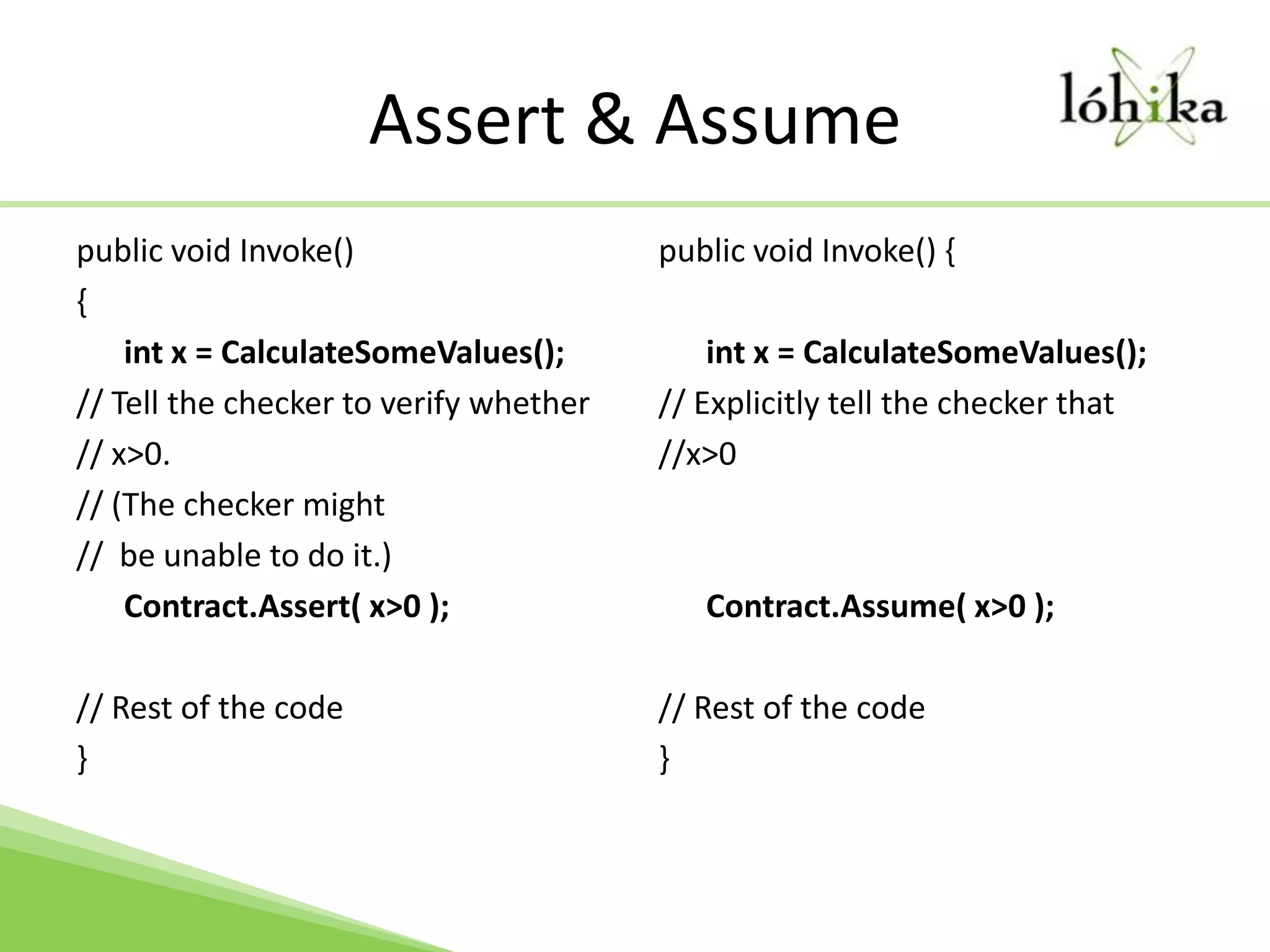

26. Assert & Assume public void Invoke() { int x = CalculateSomeValues(); // Tell the checker to verify whether // x>0. // (The checker might // be unable to do it.) Contract.Assert( x>0 ); // Rest of the code } public void Invoke() { int x = CalculateSomeValues(); // Explicitly tell the checker that //x>0 Contract.Assume( x>0 ); // Rest of the code }

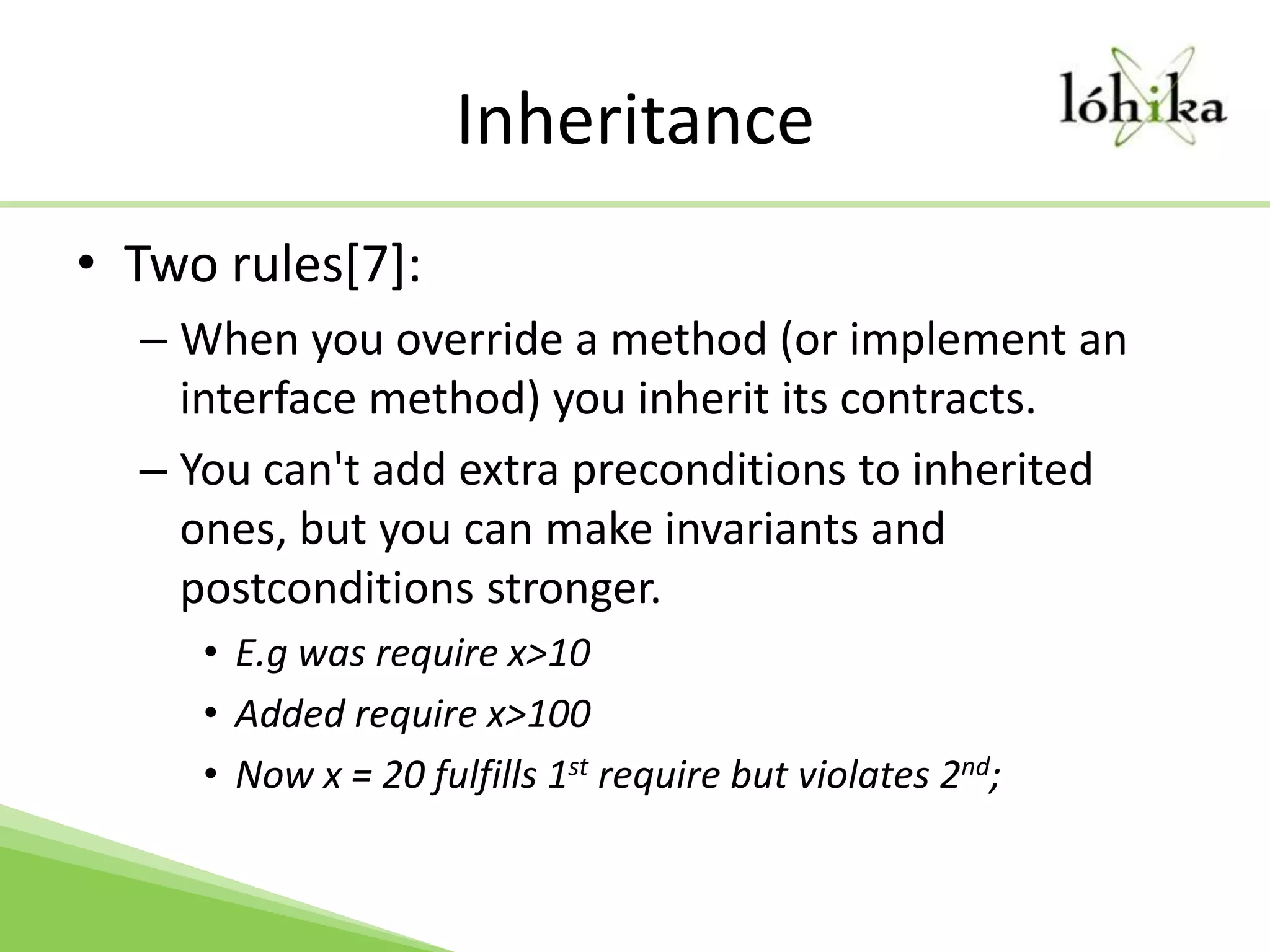

27. Inheritance Two rules[7]: When you override a method (or implement an interface method) you inherit its contracts. You can't add extra preconditions to inherited ones, but you can make invariants and postconditions stronger. E.g was require x>10 Added require x>100 Now x = 20 fulfills 1st require but violates 2nd;

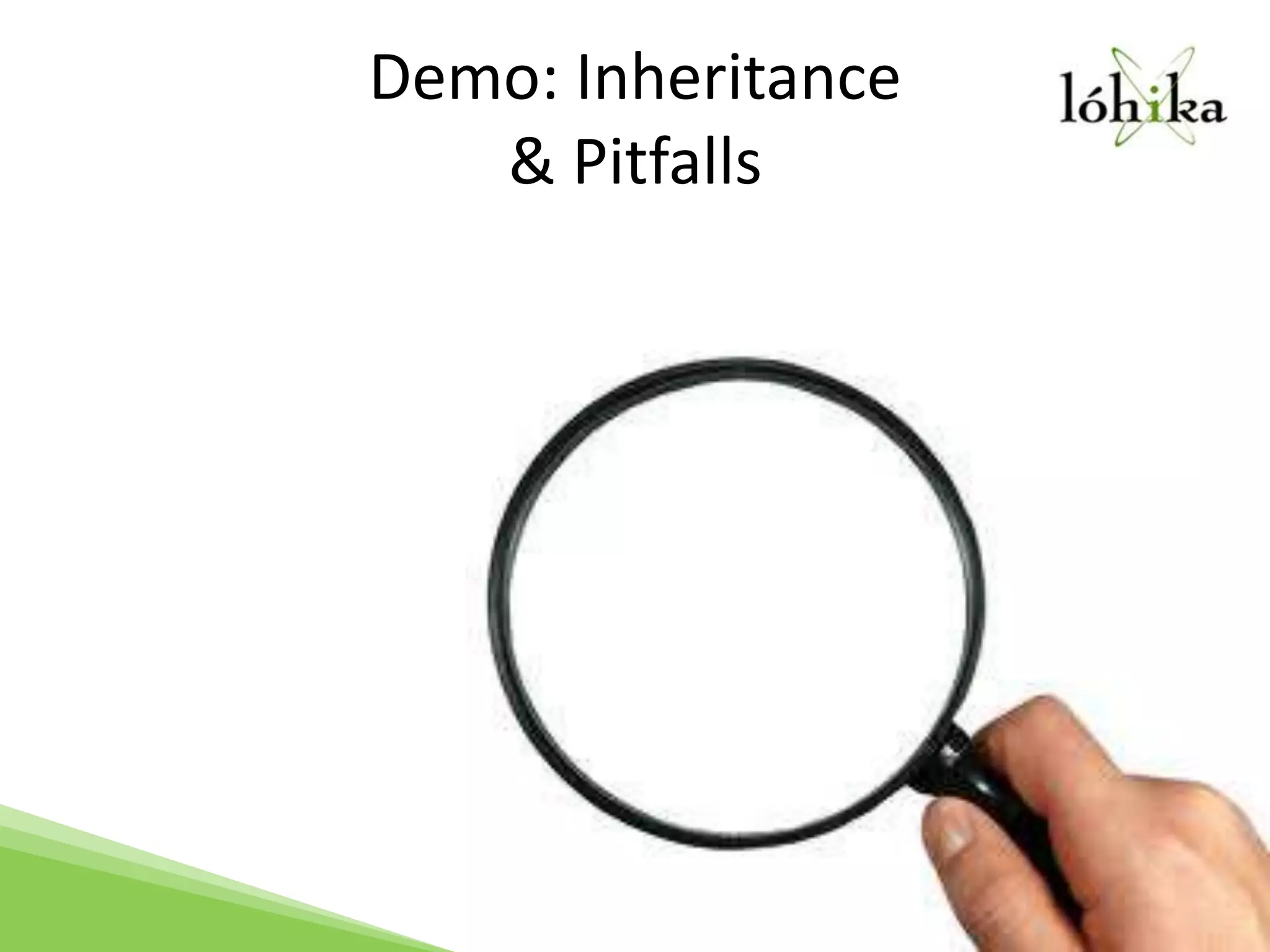

28. Demo: Inheritance& Pitfalls

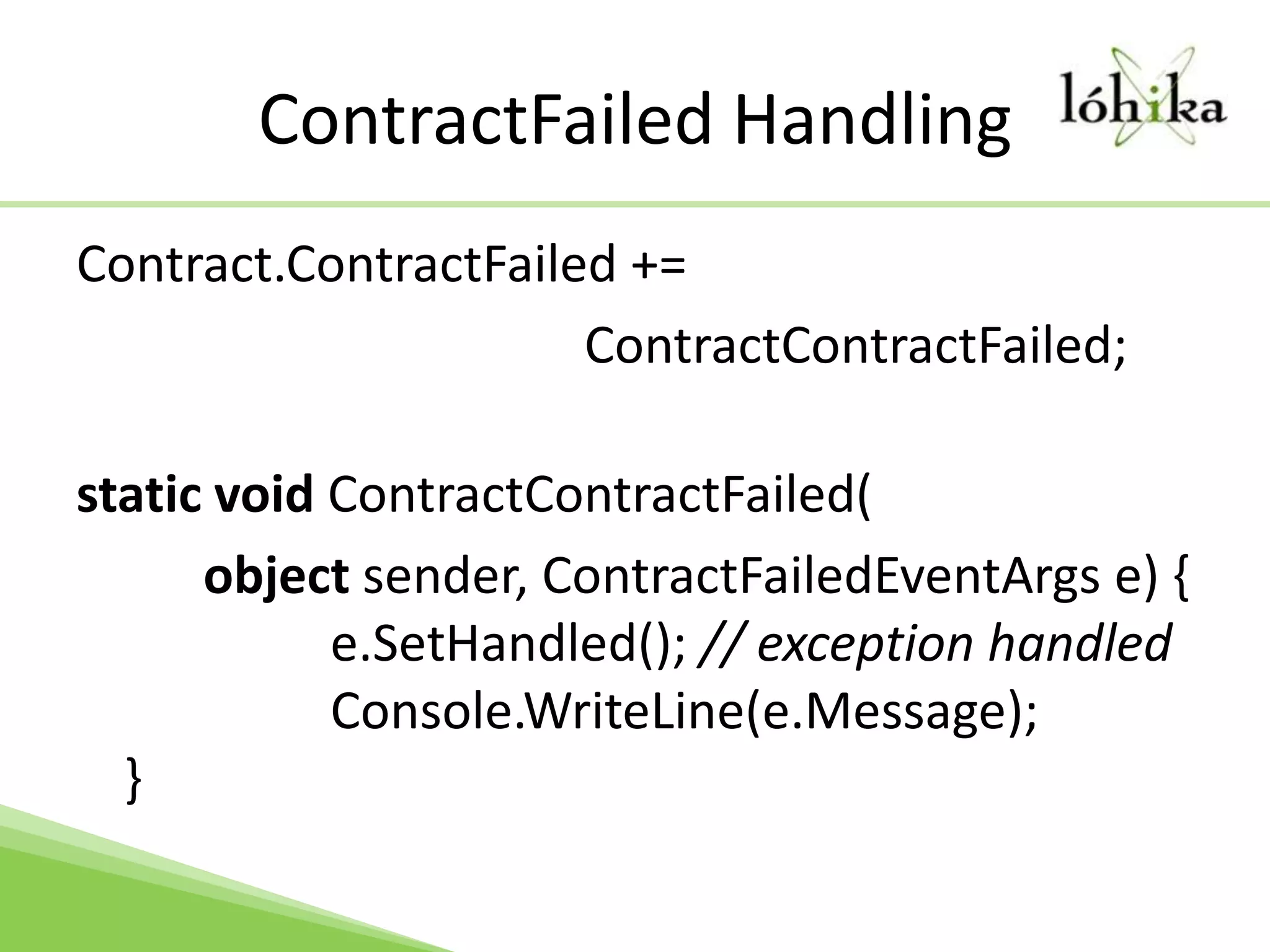

29. ContractFailed Handling Contract.ContractFailed += ContractContractFailed; static void ContractContractFailed( object sender, ContractFailedEventArgs e) { e.SetHandled(); // exception handledConsole.WriteLine(e.Message);}

30. Demo: ContractFailedfandling

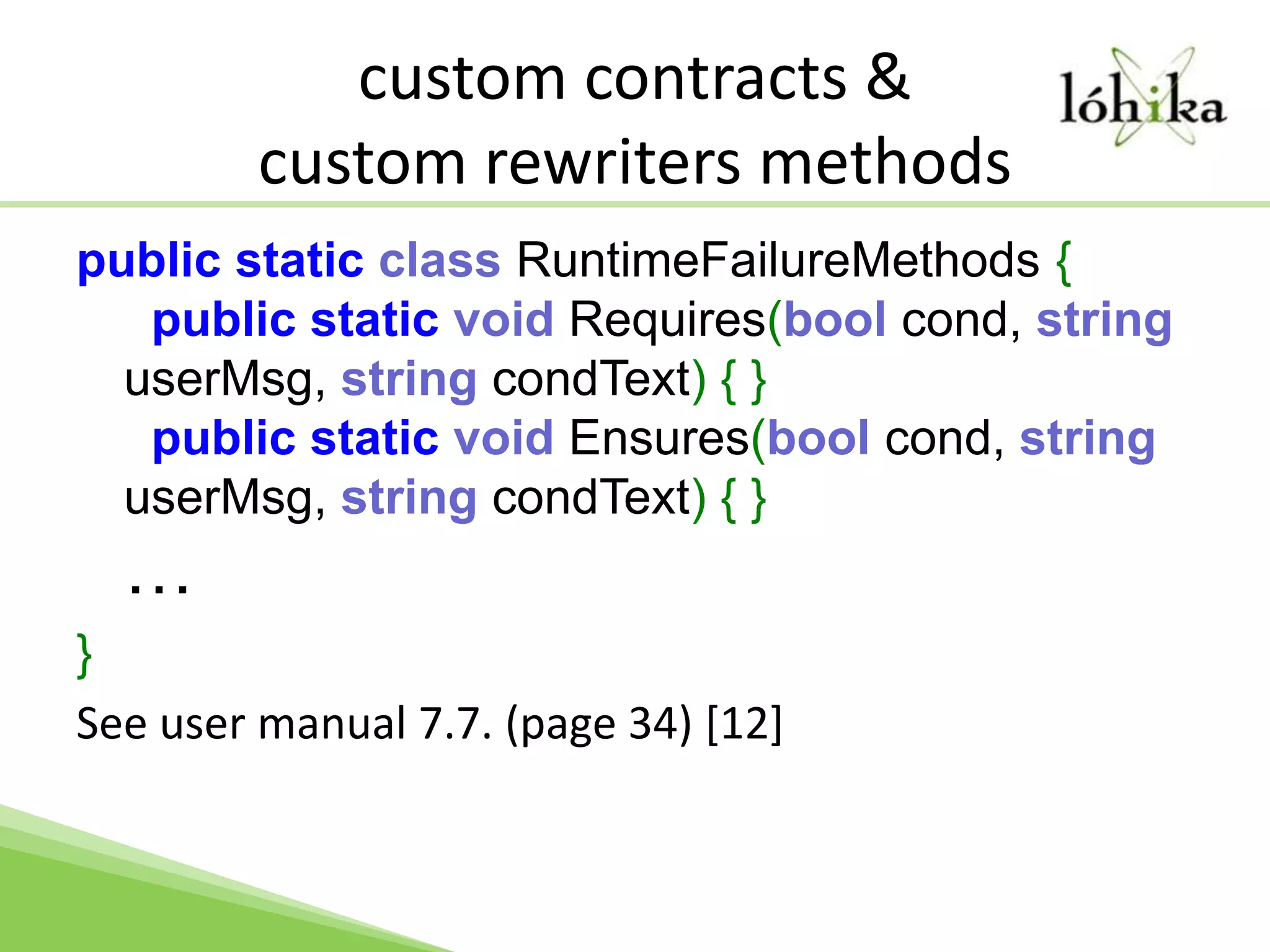

31. custom contracts &custom rewriters methods public static class RuntimeFailureMethods { public static void Requires(bool cond, string userMsg, string condText) { } public static void Ensures(bool cond, string userMsg, string condText) { }… } See user manual 7.7. (page 34) [12]

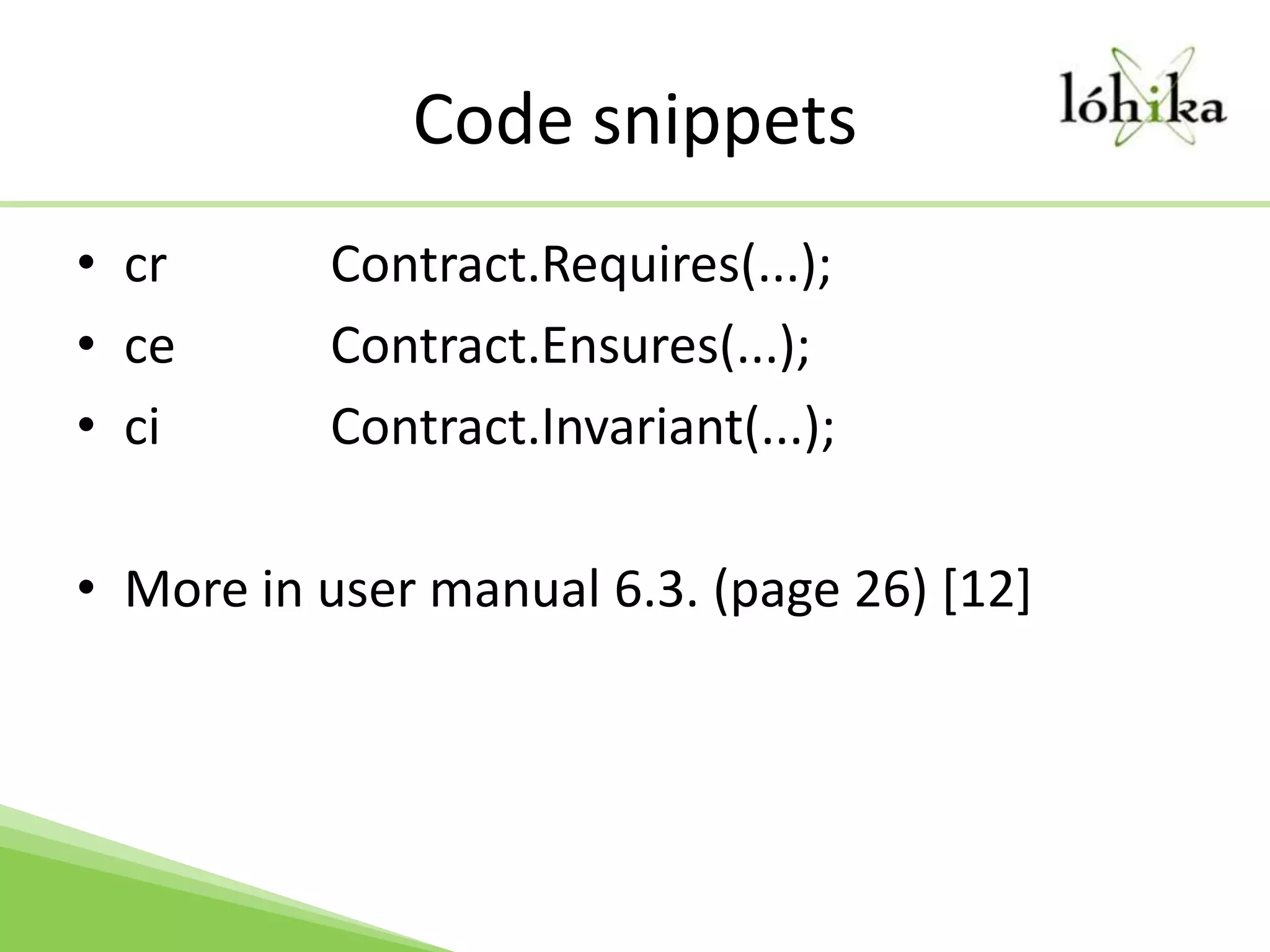

32. Code snippets crContract.Requires(...); ce Contract.Ensures(...); ci Contract.Invariant(...); More in user manual 6.3. (page 26) [12]

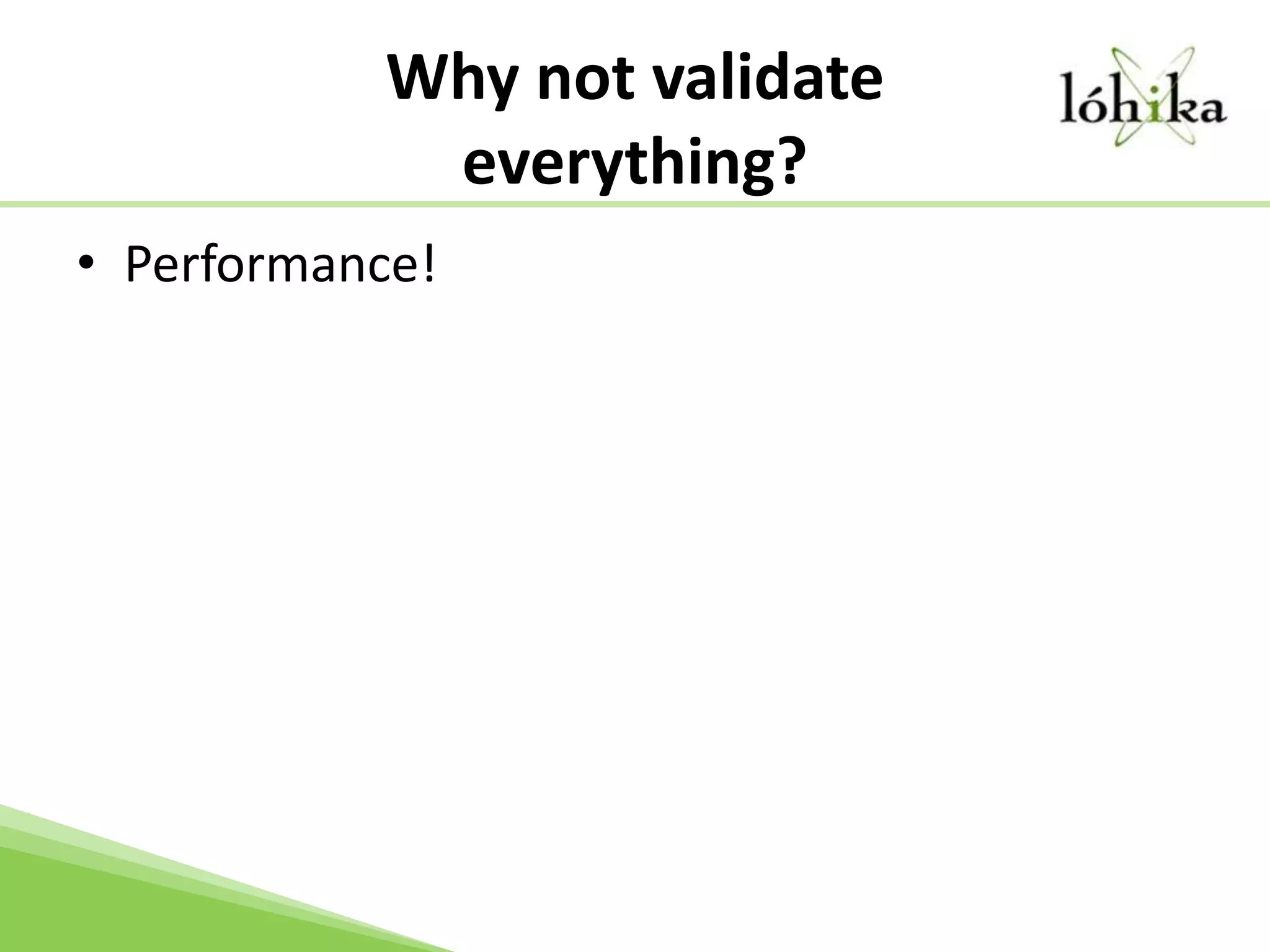

33. Why not validate everything? Performance!

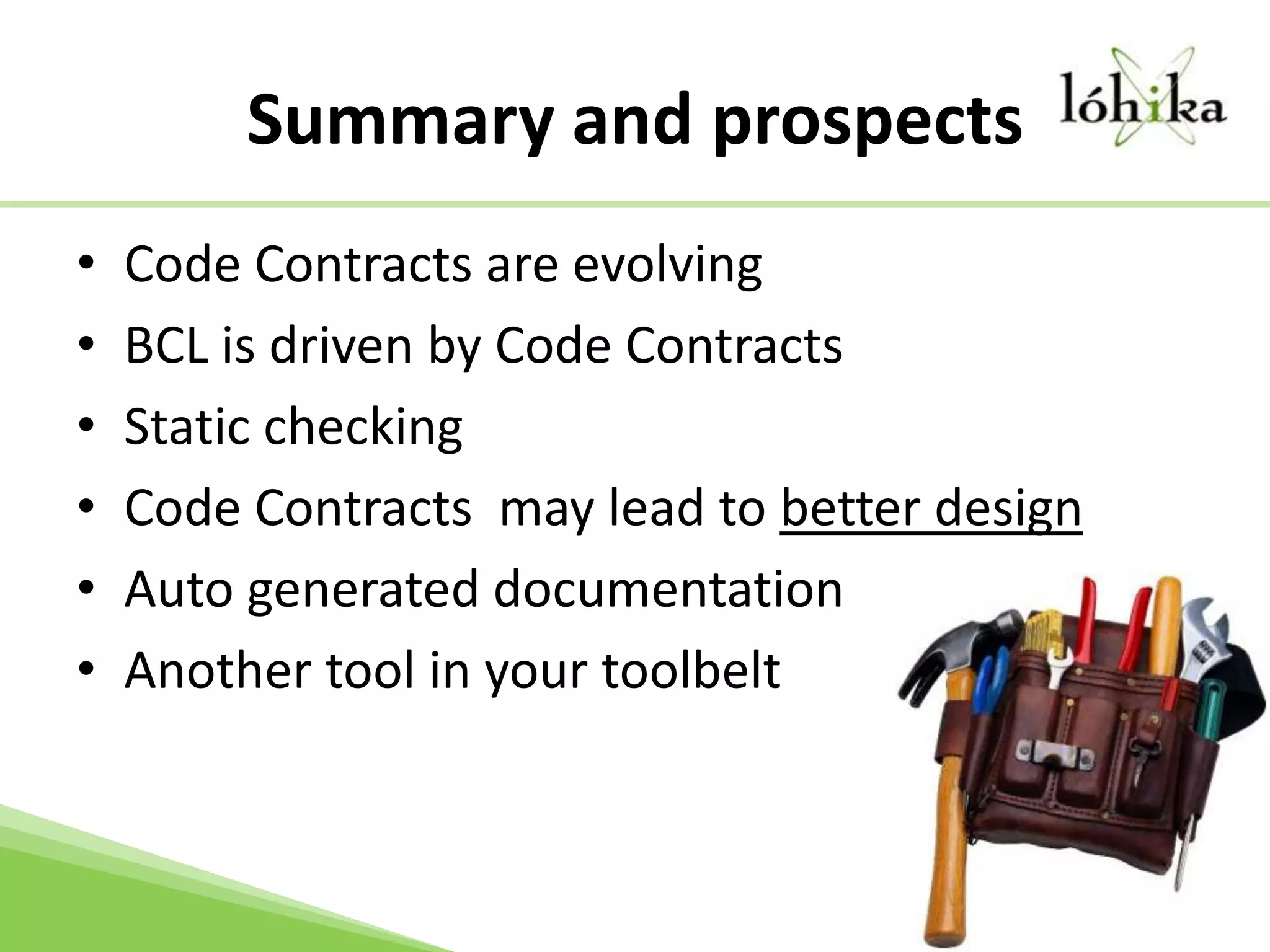

34. Summary and prospects Code Contracts are evolving BCL is driven by Code Contracts Static checking Code Contracts may lead to better design Auto generated documentation Another tool in your toolbelt

35. PEX Path-based program exploration

36. Pex Demo

37. Additional reading

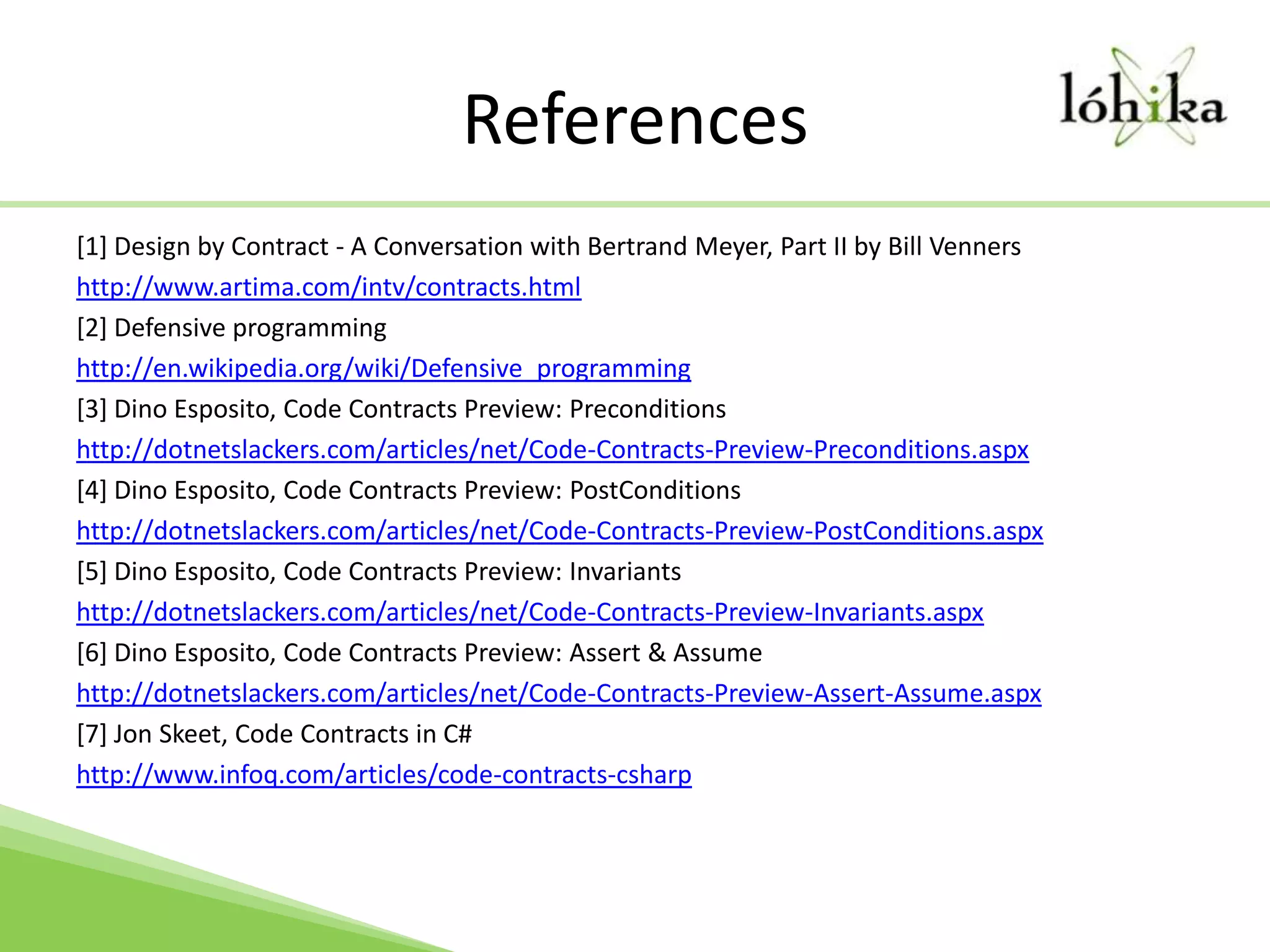

38. References [1] Design by Contract - A Conversation with Bertrand Meyer, Part II by Bill Venners http://www.artima.com/intv/contracts.html [2] Defensive programming http://en.wikipedia.org/wiki/Defensive_programming [3] Dino Esposito, Code Contracts Preview: Preconditions http://dotnetslackers.com/articles/net/Code-Contracts-Preview-Preconditions.aspx [4] Dino Esposito, Code Contracts Preview: PostConditions http://dotnetslackers.com/articles/net/Code-Contracts-Preview-PostConditions.aspx [5] Dino Esposito, Code Contracts Preview: Invariants http://dotnetslackers.com/articles/net/Code-Contracts-Preview-Invariants.aspx [6] Dino Esposito, Code Contracts Preview: Assert & Assume http://dotnetslackers.com/articles/net/Code-Contracts-Preview-Assert-Assume.aspx [7] Jon Skeet, Code Contracts in C# http://www.infoq.com/articles/code-contracts-csharp

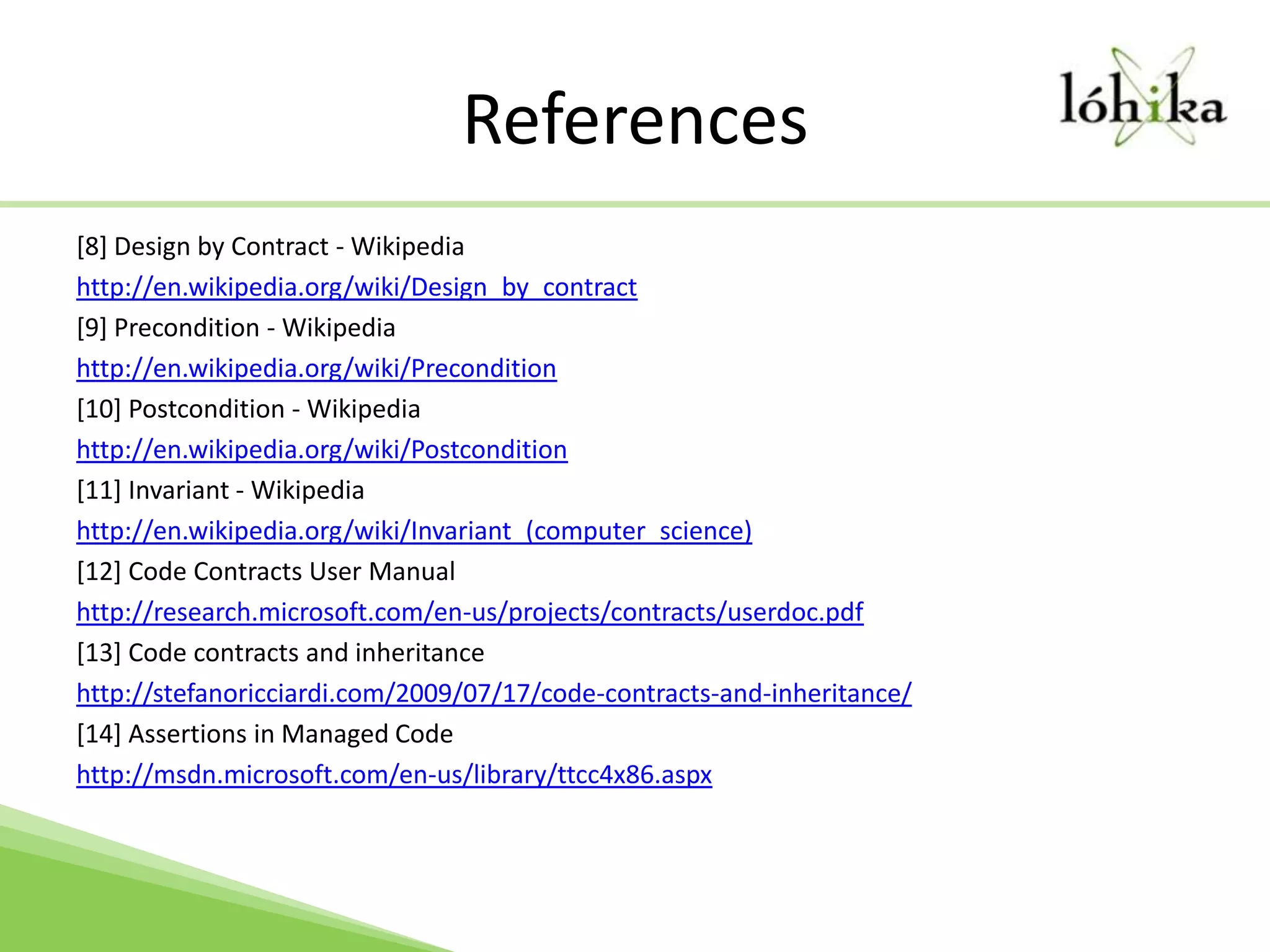

39. References [8] Design by Contract - Wikipedia http://en.wikipedia.org/wiki/Design_by_contract [9] Precondition - Wikipedia http://en.wikipedia.org/wiki/Precondition [10] Postcondition - Wikipedia http://en.wikipedia.org/wiki/Postcondition [11] Invariant - Wikipedia http://en.wikipedia.org/wiki/Invariant_(computer_science) [12] Code Contracts User Manual http://research.microsoft.com/en-us/projects/contracts/userdoc.pdf [13] Code contracts and inheritance http://stefanoricciardi.com/2009/07/17/code-contracts-and-inheritance/ [14] Assertions in Managed Code http://msdn.microsoft.com/en-us/library/ttcc4x86.aspx

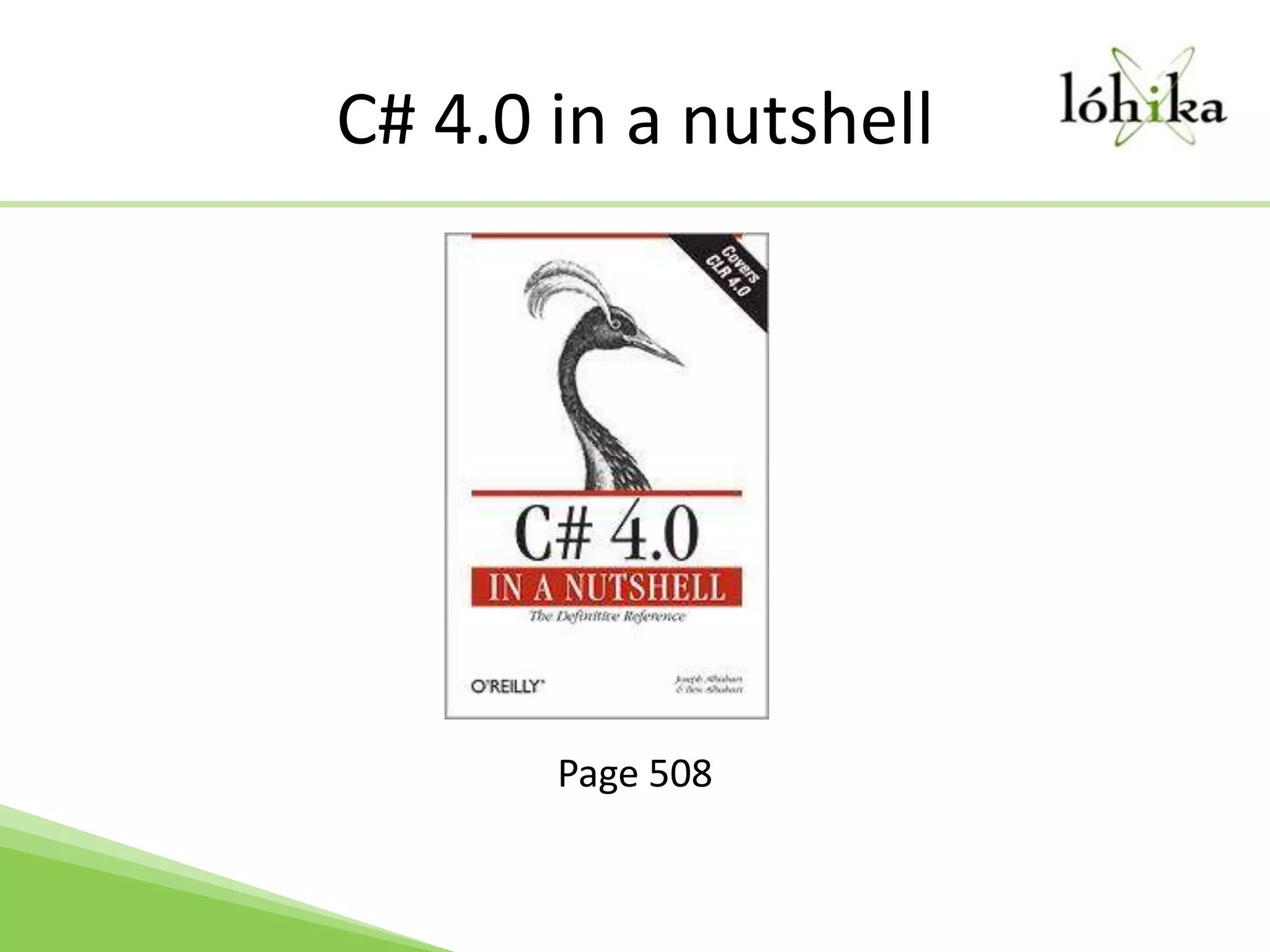

40. C# 4.0 in a nutshell Page 508

41. Object-Oriented Software Construction Object-Oriented Software Construction Bertrand Meyer 1988,1997

42. Questions ?

43. Thank YOU !
