1. Citrix CloudBridge and Branch Repeater
Specifications Sheet
Citrix CloudBridge and Branch Repeater
Specifications sheet

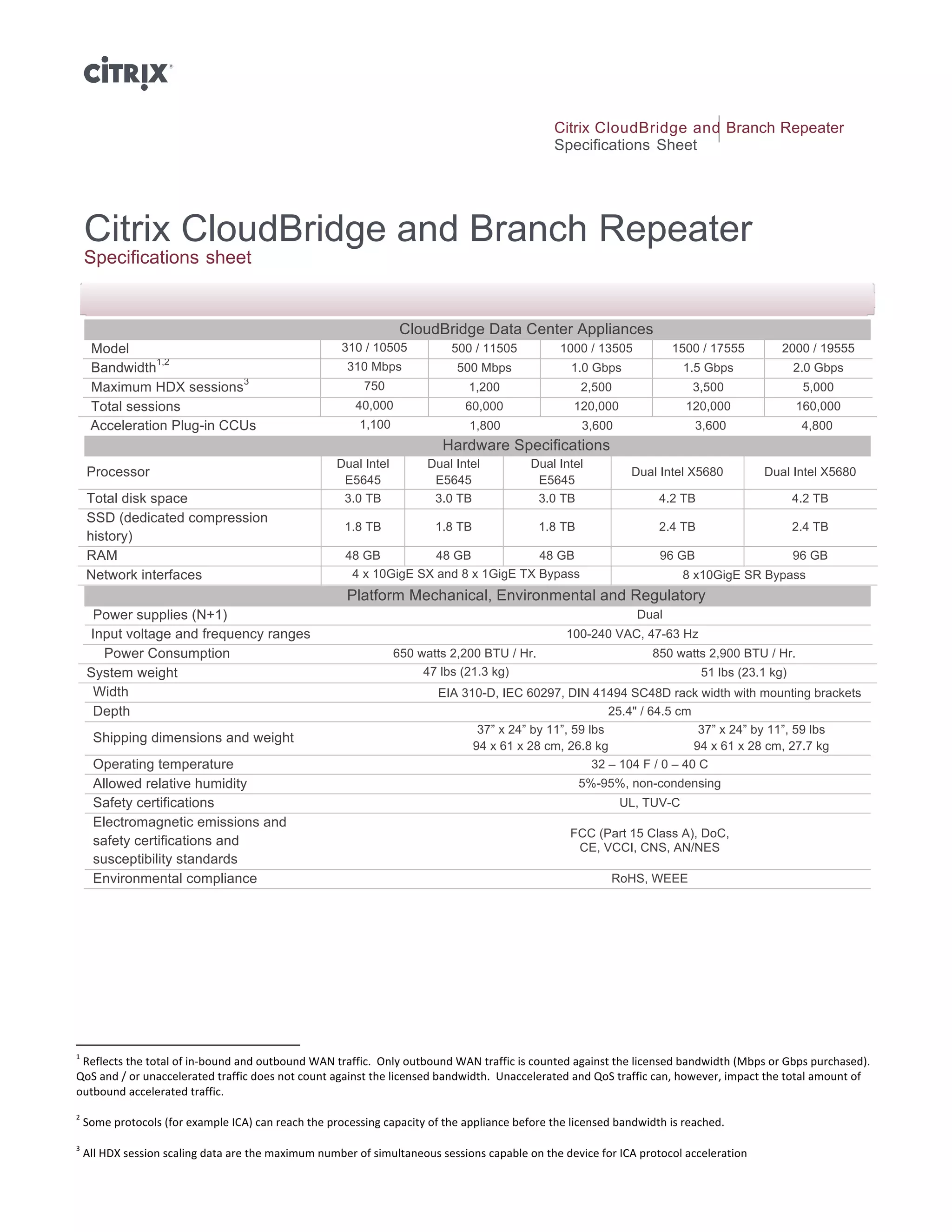

CloudBridge Data Center Appliances
Model 310 / 10505 500 / 11505 1000 / 13505 1500 / 17555 2000 / 19555
1,2
Bandwidth 310 Mbps 500 Mbps 1.0 Gbps 1.5 Gbps 2.0 Gbps
3
Maximum HDX sessions 750 1,200 2,500 3,500 5,000
Total sessions 40,000 60,000 120,000 120,000 160,000
Acceleration Plug-in CCUs 1,100 1,800 3,600 3,600 4,800
Hardware Specifications
Dual Intel Dual Intel Dual Intel
Processor Dual Intel X5680 Dual Intel X5680
E5645 E5645 E5645
Total disk space 3.0 TB 3.0 TB 3.0 TB 4.2 TB 4.2 TB
SSD (dedicated compression
1.8 TB 1.8 TB 1.8 TB 2.4 TB 2.4 TB
history)
RAM 48 GB 48 GB 48 GB 96 GB 96 GB
Network interfaces 4 x 10GigE SX and 8 x 1GigE TX Bypass 8 x10GigE SR Bypass
Platform Mechanical, Environmental and Regulatory
Power supplies (N+1) Dual
Input voltage and frequency ranges 100-240 VAC, 47-63 Hz
Power Consumption 650 watts 2,200 BTU / Hr. 850 watts 2,900 BTU / Hr.
System weight 47 lbs (21.3 kg) 51 lbs (23.1 kg)
Width EIA 310-D, IEC 60297, DIN 41494 SC48D rack width with mounting brackets
Depth 25.4" / 64.5 cm
37” x 24” by 11”, 59 lbs 37” x 24” by 11”, 59 lbs
Shipping dimensions and weight
94 x 61 x 28 cm, 26.8 kg 94 x 61 x 28 cm, 27.7 kg
Operating temperature 32 – 104 F / 0 – 40 C
Allowed relative humidity 5%-95%, non-condensing
Safety certifications UL, TUV-C
Electromagnetic emissions and
FCC (Part 15 Class A), DoC,
safety certifications and CE, VCCI, CNS, AN/NES
susceptibility standards
Environmental compliance RoHS, WEEE
1
Reflects
the
total
of
in-­‐bound
and
outbound
WAN
traffic.
Only
outbound
WAN
traffic
is
counted
against
the
licensed
bandwidth
(Mbps
or
Gbps
purchased).
QoS
and
/
or
unaccelerated
traffic
does
not
count
against
the
licensed
bandwidth.
Unaccelerated
and
QoS
traffic
can,
however,
impact
the
total
amount
of
outbound
accelerated
traffic.
2
Some
protocols
(for
example
ICA)
can
reach
the
processing
capacity
of
the
appliance
before
the
licensed
bandwidth
is
reached.
All
HDX
session
scaling
data
are
the
maximum
number
of
simultaneous
sessions
capable
on
the
device
for
ICA
protocol
acceleration
3

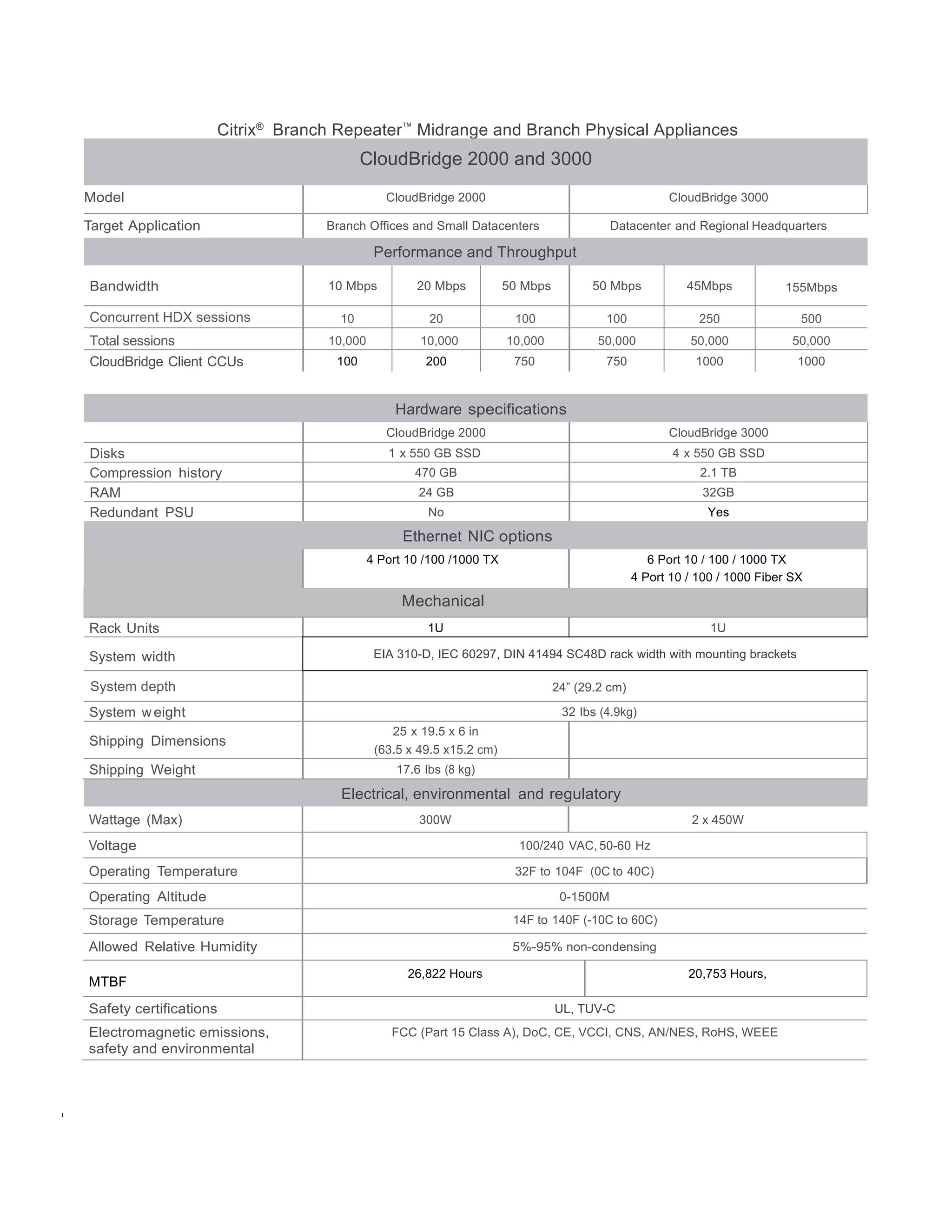

2. Citrix® Branch Repeater™ Midrange and Branch Physical Appliances
CloudBridge 2000 and 3000
Model CloudBridge 2000 CloudBridge 3000
Target Application Branch Offices and Small Datacenters Datacenter and Regional Headquarters
Performance and Throughput
Bandwidth 10 Mbps 20 Mbps 50 Mbps 50 Mbps 45Mbps 155Mbps
Concurrent HDX sessions 10 20 100 100 250 500
Total sessions 10,000 10,000 10,000 50,000 50,000 50,000
CloudBridge Client CCUs 100 200 750 750 1000 1000
Hardware specifications
CloudBridge 2000 CloudBridge 3000
Disks 1 x 550 GB SSD Repeater 8800
4 x 550 GB SSD
Compression history 470 GB 6 x 300GB 2.1 TB
RAM 24 GB 50GB
32GB
Redundant PSU No Yes
Ethernet NIC options
4 Port 10 /100 /1000 TX 6 Port 10 / 100 / 1000 TX
4 Port 10 / 100 / 1000 Fiber SX
Mechanical
Rack Units 1U 1U
2U
System width EIA 310-D, IEC 60297, DIN 41494 SC48D rack width with mounting brackets
System depth 24” (29.2 cm)
System w eight 32 lbs (4.9kg)
25 x 19.5 x 6 in
Shipping Dimensions
(63.5 x 49.5 x15.2 cm)
Shipping Weight 17.6 lbs (8 kg)
Electrical, environmental and regulatory
Wattage (Max) 300W 2 x 450W
Voltage 100/240 VAC, 50-60 Hz 800W
Operating Temperature 100/240 VAC, 50-60 Hz
32F to 104F (0C to 40C)
110/240 VAC, 50-60 Hz
Operating Altitude 0-1500M
Storage Temperature 14F to 140F (-10C to 60C)
Allowed Relative Humidity 5%-95% non-condensing
26,822 Hours 20,753 Hours,
MTBF
Safety certifications UL, TUV-C
Electromagnetic emissions, FCC (Part 15 Class A), DoC, CE, VCCI, CNS, AN/NES, RoHS, WEEE
safety and environmental

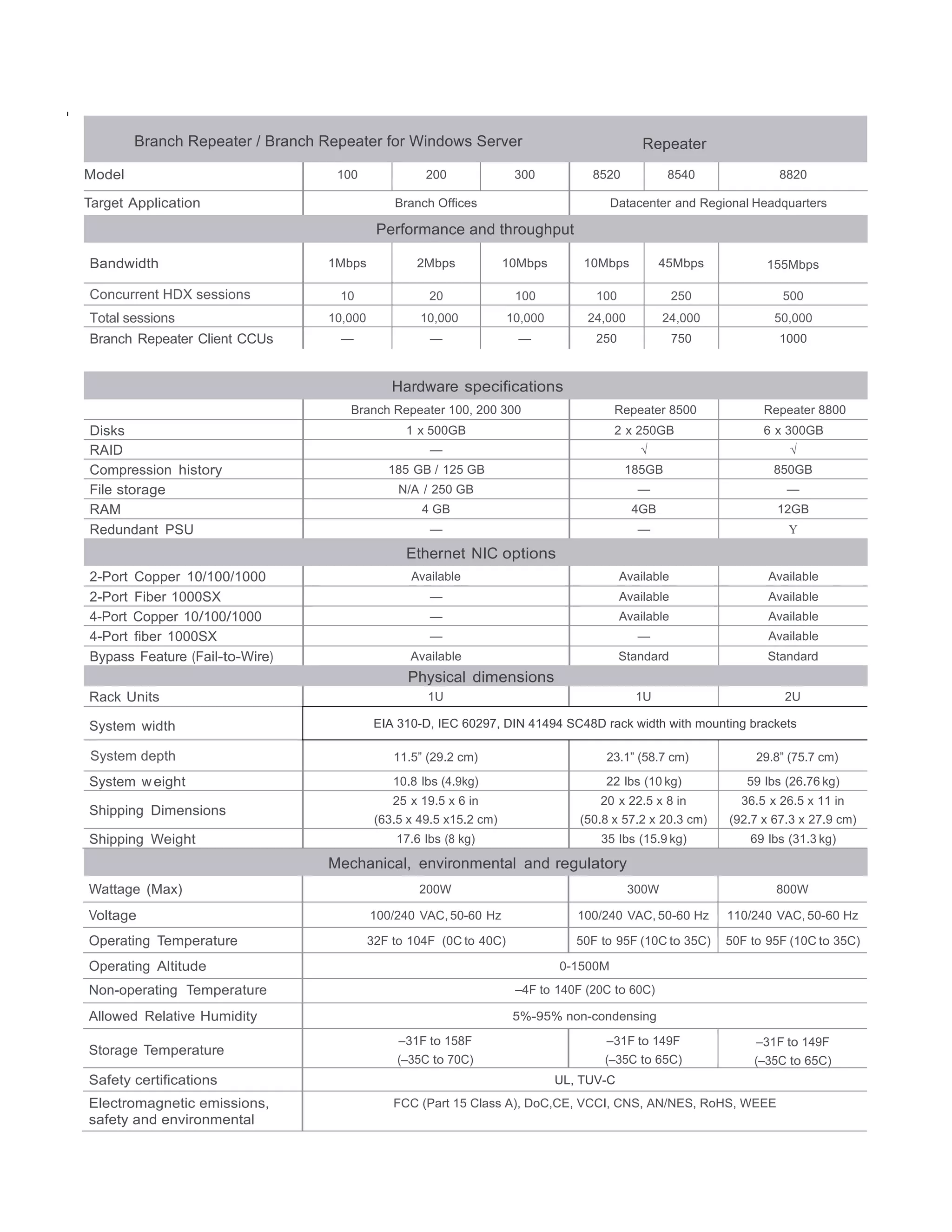

3. Branch Repeater / Branch Repeater for Windows Server Repeater
Model 100 200 300 8520 8540 8820
Target Application Branch Offices Datacenter and Regional Headquarters
Performance and throughput
Bandwidth 1Mbps 2Mbps 10Mbps 10Mbps 45Mbps 155Mbps
Concurrent HDX sessions 10 20 100 100 250 500
Total sessions 10,000 10,000 10,000 24,000 24,000 50,000
Branch Repeater Client CCUs — — — 250 750 1000
Hardware specifications
Branch Repeater 100, 200 300 Repeater 8500 Repeater 8800
Disks 1 x 500GB 2 x 250GB 6 x 300GB
RAID — √ √
Compression history 185 GB / 125 GB 185GB 850GB
File storage N/A / 250 GB — —
RAM 4 GB 4GB 12GB
Redundant PSU — — Y
es
Ethernet NIC options
2-Port Copper 10/100/1000 Available Available Available
2-Port Fiber 1000SX — Available Available
4-Port Copper 10/100/1000 — Available Available
4-Port fiber 1000SX — — Available
Bypass Feature (Fail-to-Wire) Available Standard Standard
Physical dimensions
Rack Units 1U 1U 2U
System width EIA 310-D, IEC 60297, DIN 41494 SC48D rack width with mounting brackets
System depth 11.5” (29.2 cm) 23.1” (58.7 cm) 29.8” (75.7 cm)
System w eight 10.8 lbs (4.9kg) 22 lbs (10 kg) 59 lbs (26.76 kg)
25 x 19.5 x 6 in 20 x 22.5 x 8 in 36.5 x 26.5 x 11 in
Shipping Dimensions
(63.5 x 49.5 x15.2 cm) (50.8 x 57.2 x 20.3 cm) (92.7 x 67.3 x 27.9 cm)
Shipping Weight 17.6 lbs (8 kg) 35 lbs (15.9 kg) 69 lbs (31.3 kg)
Mechanical, environmental and regulatory
Wattage (Max) 200W 300W 800W
Voltage 100/240 VAC, 50-60 Hz 100/240 VAC, 50-60 Hz 110/240 VAC, 50-60 Hz
Operating Temperature 32F to 104F (0C to 40C) 50F to 95F (10C to 35C) 50F to 95F (10C to 35C)
Operating Altitude 0-1500M
Non-operating Temperature –4F to 140F (20C to 60C)
Allowed Relative Humidity 5%-95% non-condensing
–31F to 158F –31F to 149F –31F to 149F
Storage Temperature
(–35C to 70C) (–35C to 65C) (–35C to 65C)
Safety certifications UL, TUV-C
Electromagnetic emissions, FCC (Part 15 Class A), DoC,CE, VCCI, CNS, AN/NES, RoHS, WEEE
safety and environmental

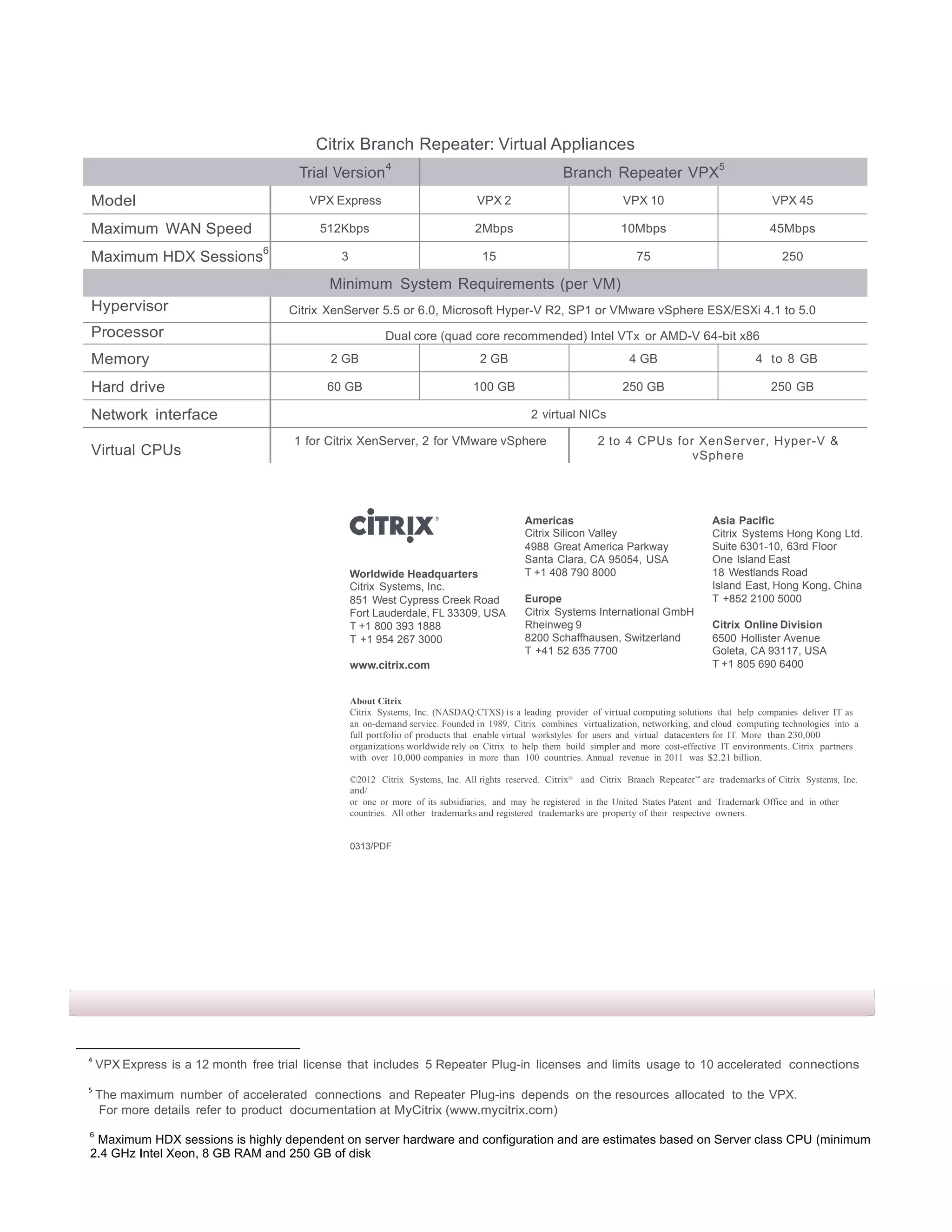

4. Citrix Branch Repeater: Virtual Appliances
4 5
Trial Version Branch Repeater VPX
Model VPX Express VPX 2 VPX 10 VPX 45
Maximum WAN Speed 512Kbps 2Mbps 10Mbps 45Mbps
6
Maximum HDX Sessions 3 15 75 250
Minimum System Requirements (per VM)
Hypervisor Citrix XenServer 5.5 or 6.0, Microsoft Hyper-V R2, SP1 or VMware vSphere ESX/ESXi 4.1 to 5.0
Processor Dual core (quad core recommended) Intel VTx or AMD-V 64-bit x86
Memory 2 GB 2 GB 4 GB 4 to 8 GB
Hard drive 60 GB 100 GB 250 GB 250 GB
Network interface 2 virtual NICs
1 for Citrix XenServer, 2 for VMware vSphere 2 to 4 CPUs for XenServer, Hyper-V &
Virtual CPUs vSphere
Americas Asia Pacific
Citrix Silicon Valley Citrix Systems Hong Kong Ltd.
4988 Great America Parkway Suite 6301-10, 63rd Floor
Santa Clara, CA 95054, USA One Island East
Worldwide Headquarters T +1 408 790 8000 18 Westlands Road
Citrix Systems, Inc. Island East, Hong Kong, China
851 West Cypress Creek Road Europe T +852 2100 5000
Fort Lauderdale, FL 33309, USA Citrix Systems International GmbH
T +1 800 393 1888 Rheinweg 9 Citrix Online Division
T +1 954 267 3000 8200 Schaffhausen, Switzerland 6500 Hollister Avenue
T +41 52 635 7700 Goleta, CA 93117, USA
www.citrix.com T +1 805 690 6400
About Citrix
Citrix Systems, Inc. (NASDAQ:CTXS) is a leading provider of virtual computing solutions that help companies deliver IT as
an on-demand service. Founded in 1989, Citrix combines virtualization, networking, and cloud computing technologies into a
full portfolio of products that enable virtual workstyles for users and virtual datacenters for IT. More than 230,000
organizations worldwide rely on Citrix to help them build simpler and more cost-effective IT environments. Citrix partners
with over 10,000 companies in more than 100 countries. Annual revenue in 2011 was $2.21 billion.
©2012 Citrix Systems, Inc. All rights reserved. Citrix® and Citrix Branch Repeater™ are trademarks of Citrix Systems, Inc.
and/
or one or more of its subsidiaries, and may be registered in the United States Patent and Trademark Office and in other
countries. All other trademarks and registered trademarks are property of their respective owners.
0313/PDF
4
VPX Express is a 12 month free trial license that includes 5 Repeater Plug-in licenses and limits usage to 10 accelerated connections
5
The maximum number of accelerated connections and Repeater Plug-ins depends on the resources allocated to the VPX.
For more details refer to product documentation at MyCitrix (www.mycitrix.com)
6
Maximum HDX sessions is highly dependent on server hardware and configuration and are estimates based on Server class CPU (minimum
2.4 GHz Intel Xeon, 8 GB RAM and 250 GB of disk
