Cloud nativeworkshop

1

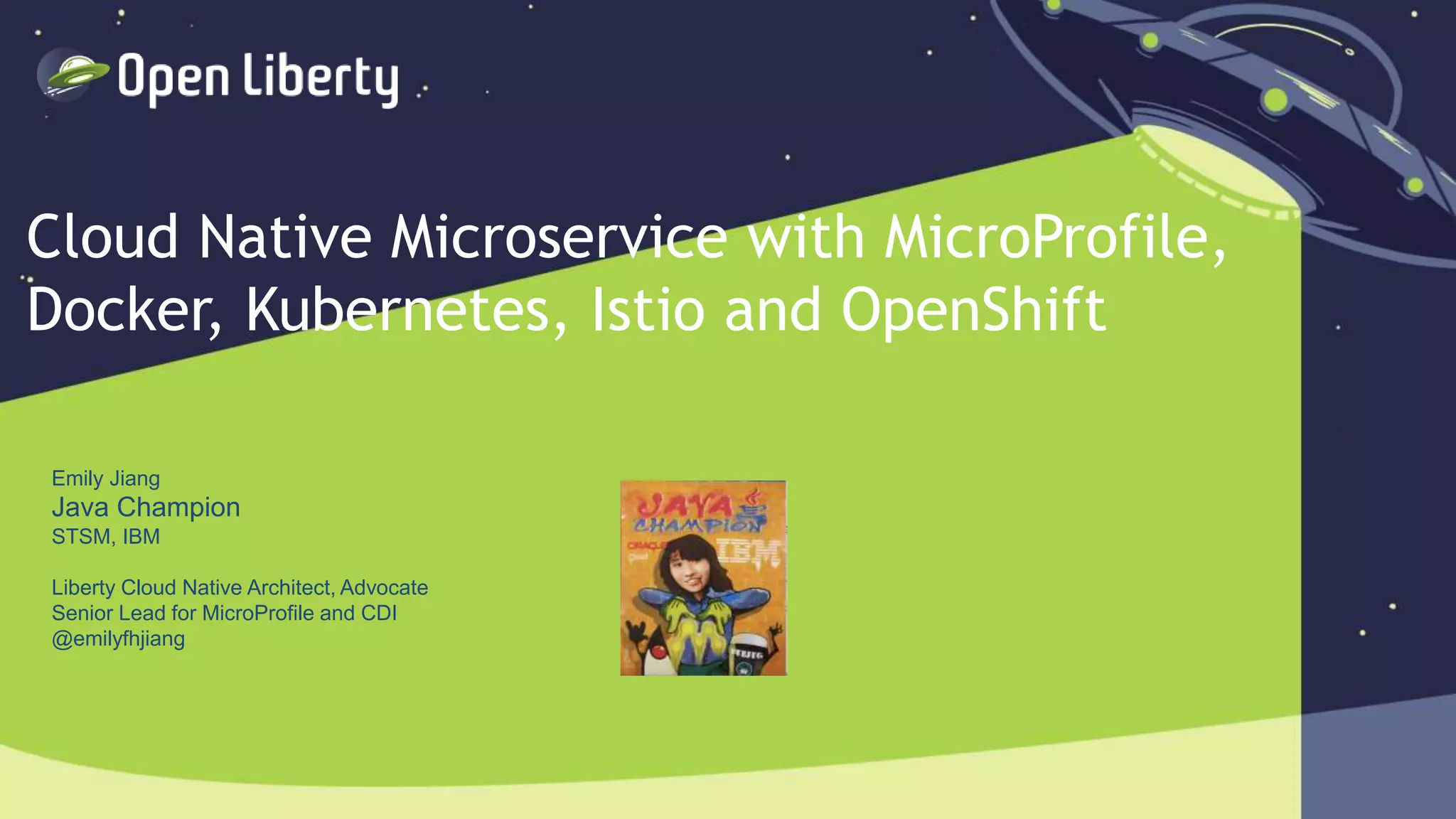

Cloud Native Microservice with MicroProfile,
Docker, Kubernetes, Istio and OpenShift
Emily Jiang
Java Champion
STSM, IBM
Liberty Cloud Native Architect, Advocate
Senior Lead for MicroProfile and CDI
@emilyfhjiang

2
Agenda
• Introduction to MicroProfile
• Introduction to Open Liberty
• Introduction to the Lab
• Summary
• Time to code!

3
Community Driven
Lightweight, Iterative
Processes
Specs, APIs, TCKs
NO Reference
Implementation

4
MicroProfile Community
● Over a dozen vendors and Java
user groups
● 166 individual contributors
● Over half a dozen independent
implementations

5
Open specifications
Wide vendor support
REST Client
OpenAPI support
Security
Fault Tolerance
Configuration
Metrics
Health
Open Tracing
https://wiki.eclipse.org/MicroProfile/Implementation
Quarkus

6
6
MicroProfile 1.0 (Fall 2016)
JAX-RS 2.0
CDI 1.2
MicroProfile 1.1 (August 2017)
microProfile-1.0
Config 1.0
MicroProfile 1.2 (Sept 2017)
MicroProfile-1.1
Config 1.1
Fault Tolerance 1.0
Health 1.0
Metrics 1.0
JWT 1.0
2017
2018
MicroProfile 1.3 (Dec 2017)
MicroProfile 1.2
Config 1.2
Metrics 1.1
OpenApi 1.0
OpenTracing 1.0
RestClient 1.0
MicroProfile 1.4 (June 2018)
MicroProfile 1.3
Config 1.3
Fault Tolerance 1.1
JWT 1.1
Open Tracing-1.1
Rest Client-1.1
2019
MicroProfile 2.0.1 (July 2018)
MicroProfile 1.4
JAX-RS 2.1 // Java EE 8
CDI 2.0 // Java EE 8
JSON-P 1.1 // Java EE 8
JSON-B 1.0 // Java EE 8
MicroProfile 2.1 (Oct
2018)
MicroProfile 2.0
OpenTracing 1.2
MicroProfile 2.2 (Feb 2019)
Fault Tolerance 2.0
OpenAPI 1.1
OpenTracing 1.3
Rest Client 1.2
MicroProfile 3.0 (June
2019)
MicroProfile 2.1
Metrics 2.0
Health Check 2.0
Rest Client 1.3
MicroProfile 3.2 (Nov 2019)
MicroProfile 3.0
Metrics 2.2
Health Check 2.1
2020
MicroProfile 3.3 (Feb 2020)
MicroProfile 3.2
Config 1.4
Metrics 2.3
Fault Tolerance 2.1
Health 2.2
Rest Client 1.4
11 releases

7
Eclipse MicroProfile
Health Metrics
Fault
Tolerance
Open API Config
Open Tracing
JWT
JSON-B
Rest Client
JAX-RS
CDI JSON-P LRA
GraphQL
Reactive
Streams
Operators
Reactive
Messaging
Context
Propagation
early
evolution
specifications

8
openliberty.io
Jan Dec
20.0.0.2
20.0.0.1 20.0.0.3
4-week release cadence

9
https://github.com/OpenLiberty/tutorial-microprofile

10
There’s a good chance you’ll use REST APIs

11
JAX-RS JSON-P
CDI
Rest Client JSON-B
microprofile.io

12
JAX-RS
B
@ApplicationPath("System")
public class SystemApplication extends
Application {}
@Path("properties")
public class PropertiesResource {
@GET
@Produces(MediaType.APPLICATION_JSON)
public JsonObject getProperties() {…}
}

13
CDI
B
A
public class InventoryManager {
@Inject
private SystemClient systemClient;
…
}

14
JSON-B & JSON-P
A B
...
@GET
public InventoryList listContents() {
return manager.list();
}
public class InventoryList {
private List<SystemData> systems;
public InventoryList(List<SystemData> systems) {
this.systems = systems;
}
public List<SystemData> getSystems() {
return systems;
}
public int getTotal() {
return systems.size();
}
}

15
MicroProfile REST Client
B
A
@Inject
@RestClient
private SystemClient defaultRestClient;
@Dependent
@RegisterRestClient
@RegisterProvider(UnknownUrlExceptionMapper.class)
@Path("/properties")
public interface SystemClient {
@GET
public Properties getProperties() throws
UnknownUrlException, ProcessingException;
}
io.openliberty.guides.inventory.client.SystemClient/mp-rest/url=http://localhost:9080/system

16

18
JAX-RS JSON-P
CDI
Config
Fault
Tolerance
JWT
Propagation
Open API
Rest Client JSON-B
microprofile.io

19
MicroProfile OpenAPI
A B
openapi: 3.0.0
info:
title: Inventory App
description: App for storing JVM system properties of various
hosts.
license:
name: Eclipse Public License - v 1.0
url: https://www.eclipse.org/legal/epl-v10.html
version: "1.0"
servers: - url: http://localhost:{port} description: Simple Open
Liberty.
variables:
port:
description: Server HTTP port.
default: "9080"
paths:
/inventory/systems:
get:
summary: List inventory contents.
description: Returns the currently stored host:properties pairs
in the inventory.
operationId: listContents
responses:
200:
description: host:properties pairs stored in the inventory.
content:
application/json:
schema:
$ref: '#/components/schemas/InventoryList’
….
http://localhost:9080/openapi/ui

20
MicroProfile JWT
A B
@GET
@RolesAllowed({ "admin", "user" })
@Path("{hostname}")
public Response getPropertiesForHost(@PathParam("hostname") String hostname,
@Context HttpHeaders httpHeaders) {…}

21
MicroProfile Fault Tolerance
A B
@Fallback(fallbackMethod = "fallbackForGet")
public Properties get(String hostname) throws
IOException {
return invUtils.getProperties(hostname);
}

22
A
MicroProfile Config
B
@Inject
@ConfigProperty(name = ”customer_name")
private String customer;
config_ordinal=100
customer_name=Bob
{
"config_ordinal":150,
”customer_name":Tom
}

23

24
Handling 100s of collaborating services requires a strong operations
focus

25
Health Metrics Open Tracing
microprofile.io
JAX-RS JSON-P
CDI
Config
Fault
Tolerance
JWT
Propagation
Open API
Rest Client JSON-B

26
MicroProfile Health
A B
@Readiness
@ApplicationScoped
public class InventoryResource implements HealthCheck {
...
public boolean isHealthy() {...}
@Override
public HealthCheckResponse call() {
if (!isHealthy()) {
return
HealthCheckResponse.named(“ServiceHealthCheck”).withData(…).down().build();
}
return
HealthCheckResponse.named(“ServiceHealthCheck”).withData(…).up().build();
}
}

27
MicroProfile Metrics
A B
@Timed(name = "inventoryPropertiesRequestTime",
absolute = true,
description = "Time needed to get the properties of" +
"a system from the given hostname")
public Properties get(String hostname) {
return invUtils.getProperties(hostname);
}

28
MicroProfile OpenTracing
A B
@Traced(value = true, operationName = "InventoryManager.list")
public InventoryList list() {
return new InventoryList(systems);
}
JAX-RS methods are
automatically
traced by default

29

31
Microservice Deployment
microprofile.io
Kubernetes Istio
Docker
Health
Metrics Open Tracing
JAX-RS JSON-P
CDI
Config
Fault
Tolerance
JWT
Propagation
Open API
Rest Client JSON-B

32
Think Warszawa / September 17th, 2019 / © 2019 IBM Corporation 32
Containers
docker build -t ol-runtime --no-cache=true .
docker run -d --name rest-app -p 9080:9080 -p
9443:9443 -v <absolute path to
guide>/start/target/liberty/wlp/usr/servers:/servers ol-
runtime

34
MicroProfile Config with Kubernetes
A B
env:
- name: GREETING
valueFrom:
configMapKeyRef:
name: greeting-config
key: message
kubectl create configmap greeting-config --from-literal
message=Greetings...
@Inject
@ConfigProperty(name = "GREETING")
private String greeting;

35
MicroProfile Health with Kubernetes
A B
readinessProbe:
httpGet:
path: /health/ready
port: 9080
initialDelaySeconds: 15
periodSeconds: 5
failureThreshold: 1

36
Summary
• MicroProfile - Java APIs for cloud-native applications
o Produce and consume REST services
o Handle faults, security, configuration, APIs
o Monitor health, metrics and trace request flows
• Open Liberty - Java platform for cloud-native applications
o Open Source, Simple, Lightweight, Fast
o Supports latest MicroProfile and Java EE APIs
o Flexible package to suit your Microservices

37
Useful links
• https://microprofile.io
• https://jakarta.ee/
• https://openliberty.io/
• https://github.com/openliberty/open-liberty
• http://groups.io/g/openliberty
• https://stackoverflow.com/questions/tagged/open-liberty
• http://www.eclipse.org/openj9/
• https://openliberty.io/guides/
• https://www.eclipse.org/community/eclipse_newsletter/2019/september/microprofile.php

38
38
Thank You!
&
enjoy the lab!
