This document provides an overview of Platform as a Service (PaaS) using Cloud Foundry and IBM Bluemix. It discusses what PaaS is, demos Cloud Foundry and Bluemix, covers the Cloud Foundry architecture including buildpacks and services, and demos DevOps with PaaS.

1. Platform as a Service
Cloud Foundry and IBM Bluemix
David Currie
@dcurrie
Rob Nicholson
@nicholsr

2. © 2015 IBM Corporation2
IBM Innovation Center &
Technical Exploration Center
Emerging Technology Services
Software Development & Support
Executive Briefing
Center
Software Services
Full disclosure…..
We work at IBM on stuff related to Bluemix
…..but this is NOT a sales pitch 

3. © 2015 IBM Corporation3

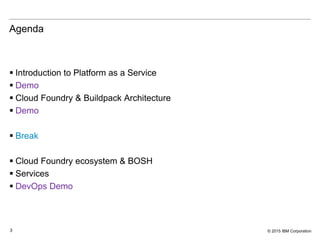

Agenda
 Introduction to Platform as a Service
 Demo
 Cloud Foundry & Buildpack Architecture
 Demo
 Break
 Cloud Foundry ecosystem & BOSH
 Services
 DevOps Demo

4. © 2015 IBM Corporation4

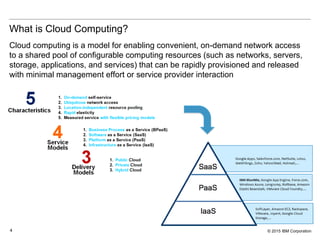

What is Cloud Computing?
Cloud computing is a model for enabling convenient, on-demand network access
to a shared pool of configurable computing resources (such as networks, servers,
storage, applications, and services) that can be rapidly provisioned and released
with minimal management effort or service provider interaction

5. © 2015 IBM Corporation5 Standardization; OPEX savings; faster time to value
Networking
Storage
Servers
Virtualization
O/S
Middleware
Runtime
Data
Applications
Traditional
On-Premises
Networking
Storage
Servers
Virtualization
O/S
Middleware
Runtime
Data
Applications
Platform
as a Service
Networking
Storage
Servers
Virtualization
O/S
Middleware
Runtime
Data
Applications
Software
as a Service
Networking
Storage
Servers
Virtualization
Middleware
Runtime
Data
Applications
Infrastructure
as a Service
O/S
Vendor Manages in CloudClient Manages
PaaS allows the developer to focus on the app by
covering all infrastructure and middleware-related mgmt aspects

6. © 2015 IBM Corporation6
Pizza as a Service

7. © 2015 IBM Corporation7

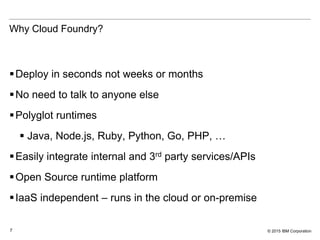

Why Cloud Foundry?
Deploy in seconds not weeks or months
No need to talk to anyone else
Polyglot runtimes
 Java, Node.js, Ruby, Python, Go, PHP, …
Easily integrate internal and 3rd party services/APIs
Open Source runtime platform
IaaS independent – runs in the cloud or on-premise

8. © 2015 IBM Corporation8

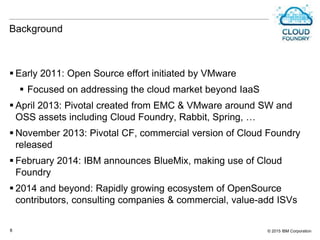

Background
 Early 2011: Open Source effort initiated by VMware
 Focused on addressing the cloud market beyond IaaS
 April 2013: Pivotal created from EMC & VMware around SW and
OSS assets including Cloud Foundry, Rabbit, Spring, …
 November 2013: Pivotal CF, commercial version of Cloud Foundry
released
 February 2014: IBM announces BlueMix, making use of Cloud
Foundry
 2014 and beyond: Rapidly growing ecosystem of OpenSource
contributors, consulting companies & commercial, value-add ISVs

9. © 2015 IBM Corporation9
Who is using Cloud Foundry?

10. © 2015 IBM Corporation10
Cloud Foundry Foundation: Launched December 2014
10
Platinum Founding Sponsors
Gold Founding Sponsors
Silver Founding Sponsors

11. © 2015 IBM Corporation11

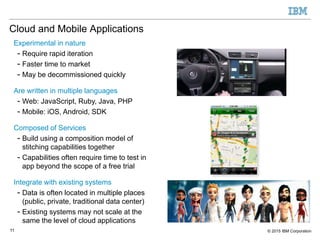

Experimental in nature
- Require rapid iteration
- Faster time to market
- May be decommissioned quickly
Are written in multiple languages
- Web: JavaScript, Ruby, Java, PHP
- Mobile: iOS, Android, SDK
Composed of Services
- Build using a composition model of
stitching capabilities together
- Capabilities often require time to test in
app beyond the scope of a free trial
Integrate with existing systems
- Data is often located in multiple places
(public, private, traditional data center)
- Existing systems may not scale at the
same the level of cloud applications
Cloud and Mobile Applications

12. © 2015 IBM Corporation

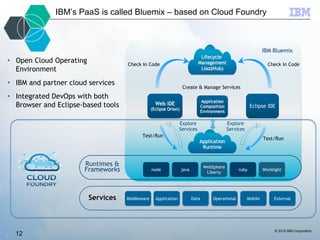

IBM’s PaaS is called Bluemix – based on Cloud Foundry
• Open Cloud Operating
Environment
• IBM and partner cloud services
• Integrated DevOps with both
Browser and Eclipse-based tools
Services
Lifecycle
Management
(JazzHub)
Application
Runtime
Runtimes &
Frameworks
Middleware Application Operational Mobile ExternalData
node java ruby Worklight
WebSphere
Liberty
Web IDE
(Eclipse Orion)
Eclipse IDE
Application
Composition
Environment
Create & Manage Services
Test/Run
Test/Run
Explore
Services
Explore
Services
IBM Bluemix
Check In Code Check In Code
12

13. © 2015 IBM Corporation13
TWILIO DEMO (ROB)

14. © 2015 IBM Corporation14
CLOUD FOUNDRY
ARCHITECTURE (DAVID)

15. © 2015 IBM Corporation15

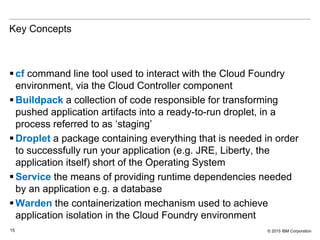

Key Concepts
 cf command line tool used to interact with the Cloud Foundry
environment, via the Cloud Controller component
 Buildpack a collection of code responsible for transforming
pushed application artifacts into a ready-to-run droplet, in a
process referred to as ‘staging’
 Droplet a package containing everything that is needed in order
to successfully run your application (e.g. JRE, Liberty, the
application itself) short of the Operating System
 Service the means of providing runtime dependencies needed
by an application e.g. a database
 Warden the containerization mechanism used to achieve
application isolation in the Cloud Foundry environment

16. © 2015 IBM Corporation16

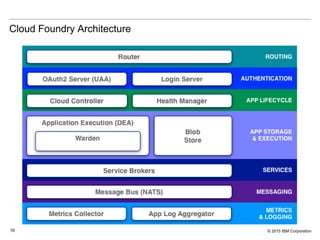

Cloud Foundry Architecture

17. © 2015 IBM Corporation17
IBM Confidential June 7, 2013
Application Push
cf push {APPNAME}

18. © 2015 IBM Corporation18

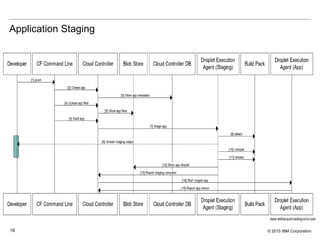

Application Staging

19. © 2015 IBM Corporation19

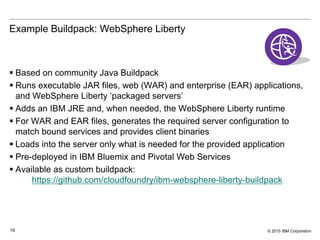

Example Buildpack: WebSphere Liberty
 Based on community Java Buildpack
 Runs executable JAR files, web (WAR) and enterprise (EAR) applications,
and WebSphere Liberty ‘packaged servers’
 Adds an IBM JRE and, when needed, the WebSphere Liberty runtime
 For WAR and EAR files, generates the required server configuration to
match bound services and provides client binaries
 Loads into the server only what is needed for the provided application
 Pre-deployed in IBM Bluemix and Pivotal Web Services
 Available as custom buildpack:
https://github.com/cloudfoundry/ibm-websphere-liberty-buildpack

20. © 2015 IBM Corporation20

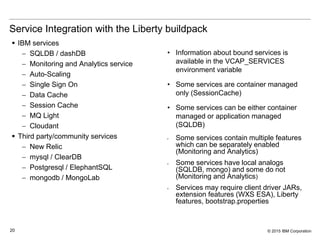

Service Integration with the Liberty buildpack
 IBM services
 SQLDB / dashDB
 Monitoring and Analytics service
 Auto-Scaling
 Single Sign On
 Data Cache
 Session Cache
 MQ Light
 Cloudant
 Third party/community services
 New Relic
 mysql / ClearDB
 Postgresql / ElephantSQL
 mongodb / MongoLab
• Information about bound services is
available in the VCAP_SERVICES
environment variable
• Some services are container managed
only (SessionCache)
• Some services can be either container
managed or application managed
(SQLDB)
• Some services contain multiple features
which can be separately enabled
(Monitoring and Analytics)
• Some services have local analogs
(SQLDB, mongo) and some do not
(Monitoring and Analytics)
• Services may require client driver JARs,
extension features (WXS ESA), Liberty
features, bootstrap.properties

21. © 2015 IBM Corporation21
DEMO (ROB)

22. © 2015 IBM Corporation22
BREAK

23. © 2015 IBM Corporation23
ECOSYSTEM: WHERE DOES
CLOUDFOUNDRY RUN? (ROB)

24. © 2015 IBM Corporation24

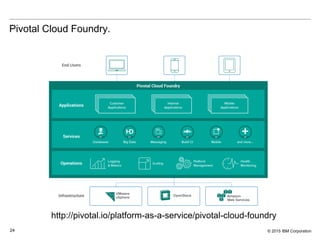

Pivotal Cloud Foundry.
http://pivotal.io/platform-as-a-service/pivotal-cloud-foundry

25. © 2015 IBM Corporation25

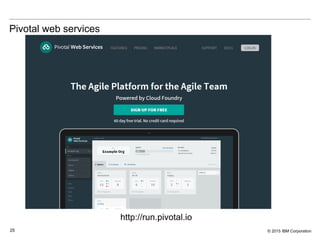

Pivotal web services
http://run.pivotal.io

26. © 2015 IBM Corporation26

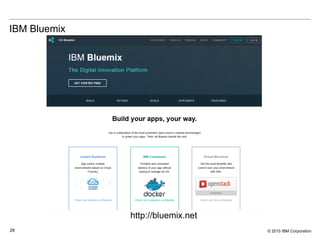

IBM Bluemix
http://bluemix.net

27. © 2015 IBM Corporation27
Bluemix Hybrid Cloud

28. © 2015 IBM Corporation28
Deploying Cloudfoundry onto an IaaS.
BOSH
BOSH Cloud Provider Interface
VMware
vSphere

29. © 2015 IBM Corporation29
BOSH
 Provisioning system for VMs used by CloudFoundry (and others)
 Release Engineering, deployment, lifecycle management
 Monitoring, failure recovery, updates
 Cloud Provider Interface abstracts details of the IaaS layer.
 Helps with
 Packaging up a myriad dependencies at defined levels.
 Consistency between Staging and production environments.
 How?
 Stemcells package up OS tailored for each combination of VM Type and IaaS
 Release is a back of configuration and software that installs on top of a stemcell.
 Director manages deployments.
 Bosh CLI.

30. © 2015 IBM Corporation30
SERVICES (ROB)

31. © 2015 IBM Corporation31
PAAS DEVOPS (DAVID)

32. © 2015 IBM Corporation32
Ordering
(Java)
Ordering
(Java)
Microservices Example
UI
(PHP)
Ordering
(Java) Catalog
(node.js)
SQLDB
Cloudant
Analytics Auto
Scaling
https://developer.ibm.com/bluemix/2015/03/16/
sample-application-using-microservices-bluemix/
User-Provided
User-Provided
Delivery Pipeline
