Cloudesire offers a solution for software vendors to reduce sales time through customized and global marketplaces in a cloud environment. It provides a robust API for flexibility and control, enabling seamless integration and management of applications across various cloud infrastructures. The platform supports full lifecycle management including deployment, monitoring, billing, and customer interactions, facilitating a streamlined experience for both vendors and customers.

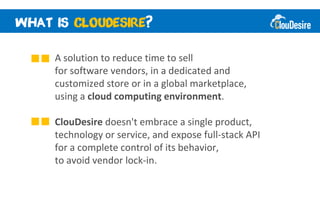

2. ?
A solution to reduce time to sell
for software vendors, in a dedicated and
customized store or in a global marketplace,
using a cloud computing environment.
ClouDesire doesn't embrace a single product,
technology or service, and expose full-stack API
for a complete control of its behavior,
to avoid vendor lock-in.

3. -

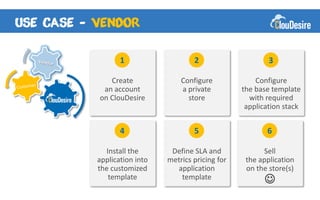

1 2 3
Create Configure Configure
an account a private the base template
on ClouDesire store with required
application stack
4 5 6
Install the Define SLA and Sell
application into metrics pricing for the application
the customized application on the store(s)
template template 

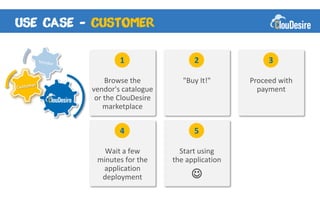

4. -
1 2 3
Browse the "Buy It!" Proceed with
vendor's catalogue payment
or the ClouDesire
marketplace
4 5
Wait a few Start using
minutes for the the application
application
deployment 

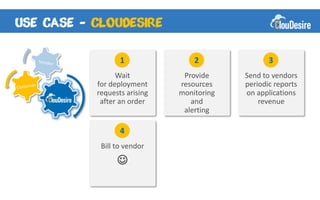

5. -
1 2 3
Wait Provide Send to vendors
for deployment resources periodic reports
requests arising monitoring on applications
after an order and revenue
alerting
4
Bill to vendor


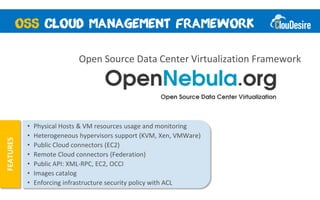

7. Open Source Data Center Virtualization Framework
• Physical Hosts & VM resources usage and monitoring
• Heterogeneous hypervisors support (KVM, Xen, VMWare)
FEATURES
• Public Cloud connectors (EC2)
• Remote Cloud connectors (Federation)
• Public API: XML-RPC, EC2, OCCI
• Images catalog
• Enforcing infrastructure security policy with ACL

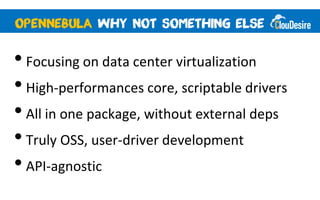

8. • Focusing on data center virtualization
• High-performances core, scriptable drivers
• All in one package, without external deps
• Truly OSS, user-driver development
• API-agnostic

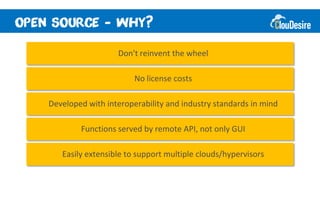

10. - ?
Don't reinvent the wheel
No license costs
Developed with interoperability and industry standards in mind
Functions served by remote API, not only GUI
Easily extensible to support multiple clouds/hypervisors

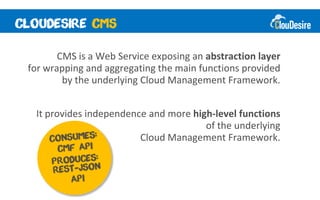

11. CMS is a Web Service exposing an abstraction layer
for wrapping and aggregating the main functions provided
by the underlying Cloud Management Framework.
It provides independence and more high-level functions
of the underlying
Cloud Management Framework.

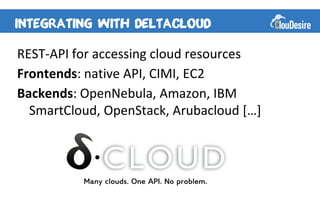

12. REST-API for accessing cloud resources
Frontends: native API, CIMI, EC2
Backends: OpenNebula, Amazon, IBM
SmartCloud, OpenStack, Arubacloud […]

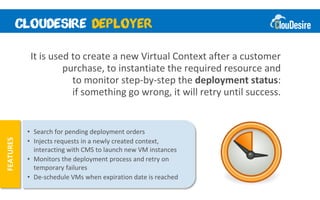

13. It is used to create a new Virtual Context after a customer
purchase, to instantiate the required resource and
to monitor step-by-step the deployment status:
if something go wrong, it will retry until success.
• Search for pending deployment orders
• Injects requests in a newly created context,
FEATURES
interacting with CMS to launch new VM instances
• Monitors the deployment process and retry on
temporary failures
• De-schedule VMs when expiration date is reached

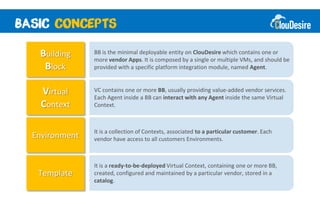

14. Building BB is the minimal deployable entity on ClouDesire which contains one or
more vendor Apps. It is composed by a single or multiple VMs, and should be
Block provided with a specific platform integration module, named Agent.
Virtual VC contains one or more BB, usually providing value-added vendor services.
Each Agent inside a BB can interact with any Agent inside the same Virtual
Context Context.
It is a collection of Contexts, associated to a particular customer. Each
Environment vendor have access to all customers Environments.
It is a ready-to-be-deployed Virtual Context, containing one or more BB,
Template created, configured and maintained by a particular vendor, stored in a
catalog.

15. Web Service that expose all the business-logic functions
to achieve the platform requirements.
It rely on the CMS to interact with the lower infrastructure.
• Catalog management and Billing
•
FEATURES
Monitoring and metrics gathering
• Backups and restores
• Agent Communication
• Template/Sandboxing management
• User management and Authentication

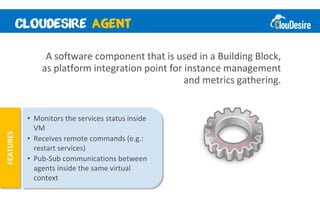

16. A software component that is used in a Building Block,
as platform integration point for instance management
and metrics gathering.
• Monitors the services status inside
VM
FEATURES
• Receives remote commands (e.g.:
restart services)
• Pub-Sub communications between
agents inside the same virtual
context

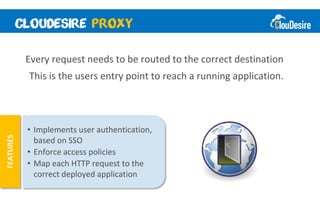

17. Every request needs to be routed to the correct destination
This is the users entry point to reach a running application.
• Implements user authentication,
FEATURES
based on SSO
• Enforce access policies
• Map each HTTP request to the
correct deployed application

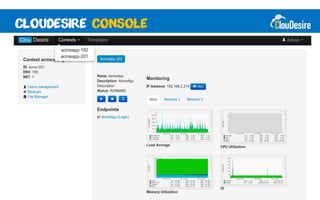

18. A Symfony2 web application where different
entities can:
Orders status, BB availability and basic instance
Customers
management.
List of their Customers, Orders, BBs.
Vendors Monitoring and automation of deployed instances.
Template and billing management.
Administrators Managing and monitoring of the entire platform.
Twitter bootstrap: front-end framework for geeks
Guzzle: HTTP-client REST-friendly
NoVNC: HTML5 VNC viewer (NO MORE JAVA)

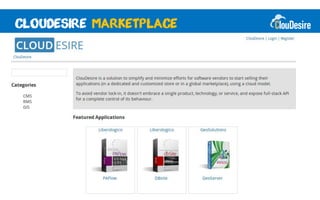

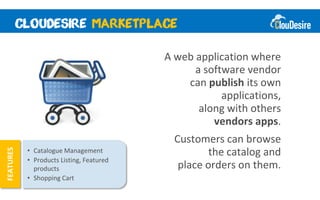

20. A web application where
a software vendor
can publish its own
applications,
along with others
vendors apps.
Customers can browse
• Catalogue Management the catalog and
FEATURES
• Products Listing, Featured
products place orders on them.
• Shopping Cart

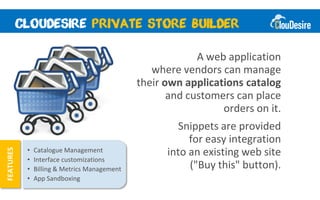

22. A web application
where vendors can manage
their own applications catalog
and customers can place
orders on it.
Snippets are provided
for easy integration
• Catalogue Management into an existing web site
FEATURES
• Interface customizations
• Billing & Metrics Management ("Buy this" button).
• App Sandboxing

23. More on ClouDesire
http://www.cloudesire.com
We are hiring!
job@liberologico.com
Contact me
http://twitter.com/gionn
g.toraldo@liberologico.com
