Climate Change and CCS

The document discusses the causes and impacts of climate change, focusing on greenhouse gases like CO2 and methane, and their roles in global warming. It highlights the potential for human intervention to mitigate these effects through initiatives like the Montreal Protocol and CO2 sequestration projects. Additionally, it evaluates future scenarios affected by climate change, including effects on ecosystems, food productivity, and health risks.

Education◦Technology◦News & Politics◦

Climate Change and CCS

1.
CO2 Sequestrationand ClimateChange
2.
The 2 BigQuestionsIs Climate Change For Real?What Causes Climate Change?
3.

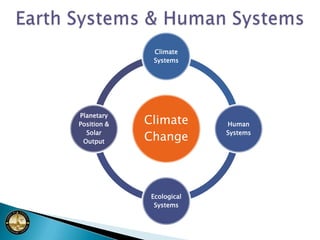

Earth Systems &Human Systems
4.

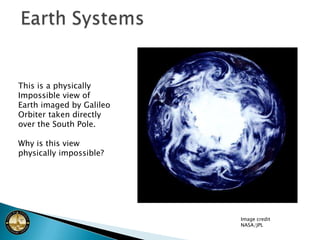

Earth SystemsThis isa physically Impossible view of Earth imaged by Galileo Orbiter taken directly over the South Pole.Why is this view physically impossible?Image creditNASA/JPL
5.

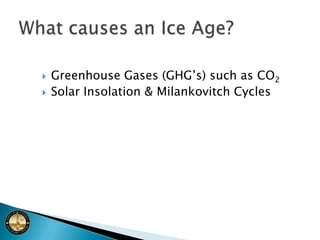

Greenhouse Gases (GHG’s)such as CO2Solar Insolation & Milankovitch CyclesWhat causes an Ice Age?
6.

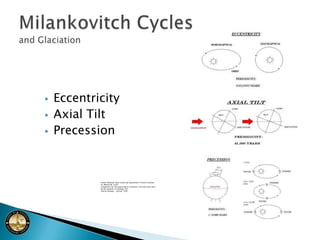

Eccentricity
7.
Axial Tilt
8.
PrecessionMilankovitch Cyclesand GlaciationCredit:Montana State University Department of Earth SciencesDr. William W. LockeA hypertext for the appreciation of glaciers, and how they workBy the students in Geology 445 Glacial Geology - Spring, 1999
9.
Glacial Deterioration
10.

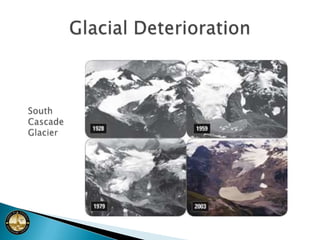

Glacial DeteriorationSouth CascadeGlacier
11.

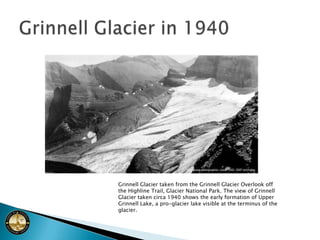

Grinnell Glacier in1940Grinnell Glacier taken from the Grinnell Glacier Overlook off the Highline Trail, Glacier National Park. The view of Grinnell Glacier taken circa 1940 shows the early formation of Upper Grinnell Lake, a pro-glacier lake visible at the terminus of the glacier.
12.

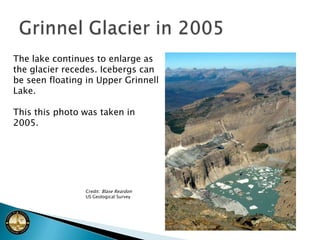

Grinnel Glacier in2005The lake continues to enlarge as the glacier recedes. Icebergs can be seen floating in Upper Grinnell Lake.This this photo was taken in 2005.Credit: Blase Reardon US Geological Survey
13.
Polar ice deterioration
14.
Solar activity &Orbital CentricityThe Sun observed by SUMER instrument on the SOHO satellite on March 2-4, 1996. (Source:SOHO - SUMER Instrument).
15.

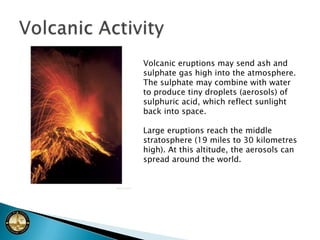

Volcanic ActivityVolcanic eruptionsmay send ash and sulphate gas high into the atmosphere. The sulphate may combine with water to produce tiny droplets (aerosols) of sulphuric acid, which reflect sunlight back into space. Large eruptions reach the middle stratosphere (19 miles to 30 kilometres high). At this altitude, the aerosols can spread around the world.
16.

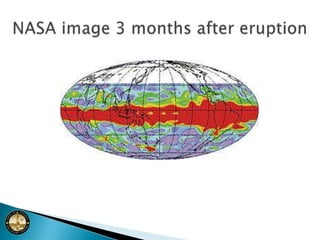

NASA image 3months after eruption
17.
Clouds Water vapouris the most abundant greenhouse gasCloud feedback could accelerate global warming. Fewer low level clouds mean that more sunlight reaches Earth’s surface, leading to further warming. Credit: Goddard Space Flight Center - EOS Project Science Office
18.

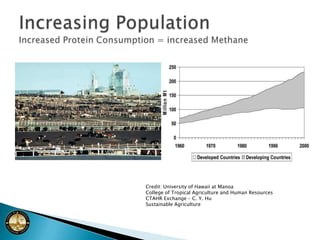

Increasing PopulationIncreased ProteinConsumption = increased MethaneCredit: University of Hawaii at ManoaCollege of Tropical Agriculture and Human ResourcesCTAHR Exchange – C. Y. HuSustainable Agriculture
19.

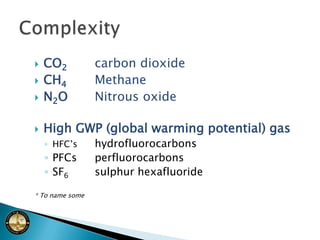

CO2 carbondioxideCH4MethaneN2O Nitrous oxide High GWP (global warming potential) gasHFC’s hydrofluorocarbons PFCs perfluorocarbons SF6 sulphur hexafluoride* To name someComplexity
20.

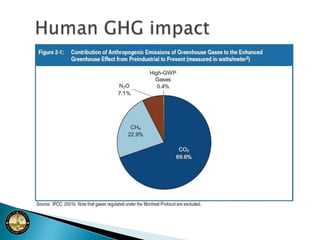

Human GHG impact
21.

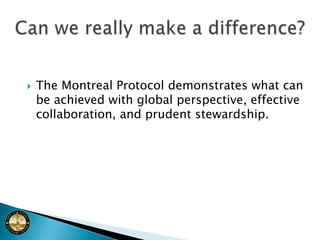

Can we reallymake a difference?The Montreal Protocol demonstrates what can be achieved with global perspective, effective collaboration, and prudent stewardship.
22.

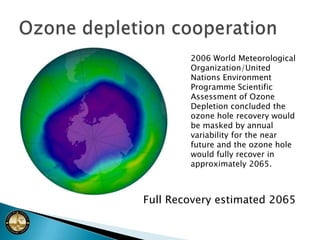

Ozone depletion cooperation2006World Meteorological Organization/United Nations Environment Programme Scientific Assessment of Ozone Depletion concluded the ozone hole recovery would be masked by annual variability for the near future and the ozone hole would fully recover in approximately 2065.Full Recovery estimated 2065
23.

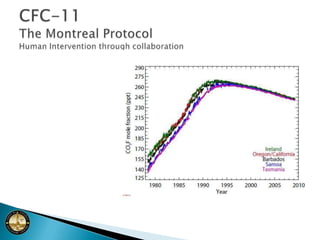

CFC-11The Montreal ProtocolHuman Intervention through collaboration
24.

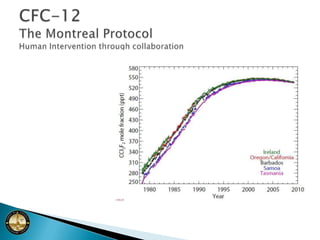

CFC-12The Montreal ProtocolHuman Intervention through collaboration
25.
Why are CO2and CH4 so important?Carbon dioxide and MethaneWe know about CO2 and CH4We can mitigate through human interventionMethane Gas (CH4)has significant potential to damage to Earth’s Atmosphere There could be 400 Gigatons of Methane locked in the frozen Arctic Tundra
26.

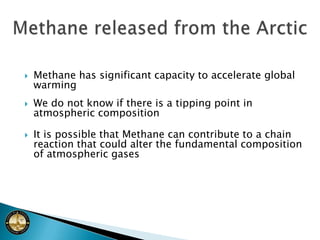

Methane released fromthe ArcticMethane has significant capacity to accelerate global warmingWe do not know if there is a tipping point in atmospheric compositionIt is possible that Methane can contribute to a chain reaction that could alter the fundamental composition of atmospheric gases
27.
Carbon dioxide sequestrationandbridges to clean renewable energy
28.

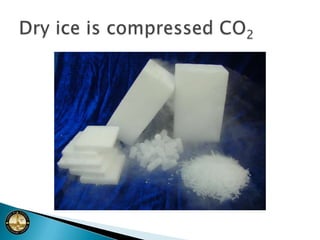

Dry ice iscompressed CO2
29.

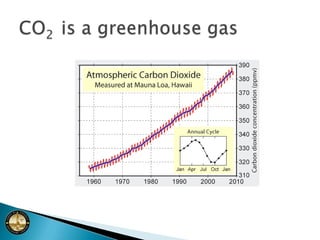

CO2 isa greenhouse gas
30.
CO2 Ice CoreData
31.

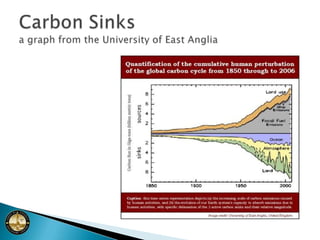

Carbon Sinks agraph from the University of East Anglia
32.
Image of GlobalCarbon Sinks2001 - 2002
33.

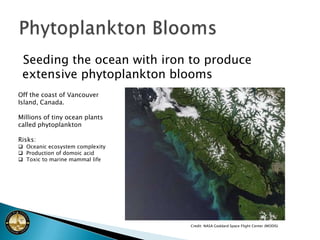

Seeding the oceanwith iron to produce extensive phytoplankton bloomsPhytoplankton BloomsOff the coast of Vancouver Island, Canada.Millions of tiny ocean plants called phytoplanktonRisks: Oceanic ecosystem complexity
34.
Productionof domoic acid
35.
Toxicto marine mammal lifeCredit: NASA Goddard Space Flight Center (MODIS)
36.

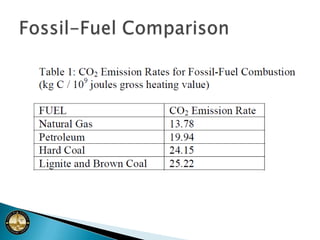

Fossil-Fuel Comparison
37.

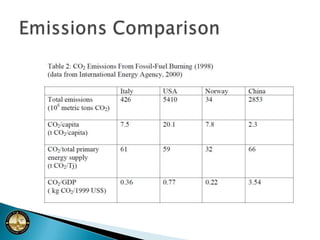

Emissions Comparison
38.

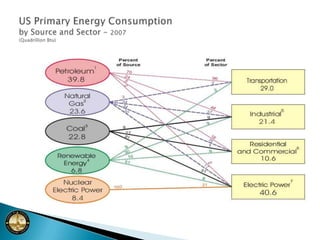

US Primary EnergyConsumption by Source and Sector - 2007(Quadrillion Btu)
39.

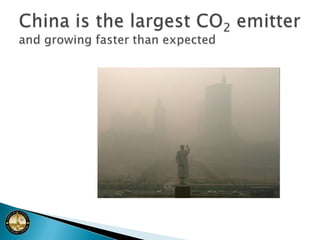

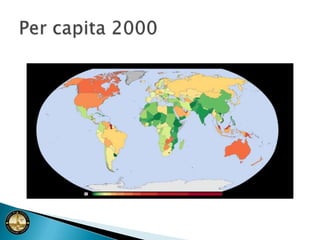

China is thelargest CO2 emitter and growing faster than expected

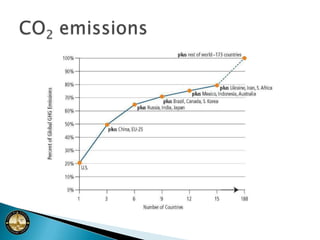

40.
Emissions by CountryTheGrowth of China
41.

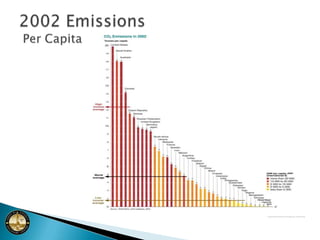

2002 Emissions PerCapita
42.

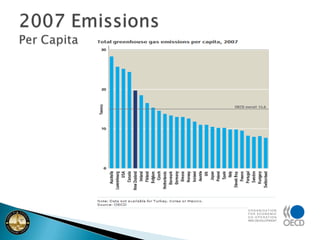

2007 EmissionsPer Capita
43.
Per capita 2000
44.
CO2 emissions
45.

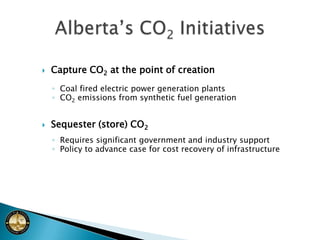

Capture CO2 atthe point of creationCoal fired electric power generation plants CO2 emissions from synthetic fuel generationSequester (store) CO2Requires significant government and industry supportPolicy to advance case for cost recovery of infrastructureAlberta’s CO2 Initiatives
46.

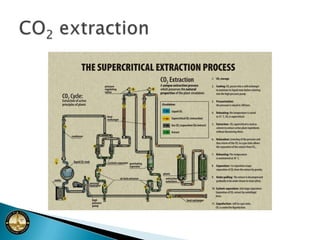

CO2 extraction
47.

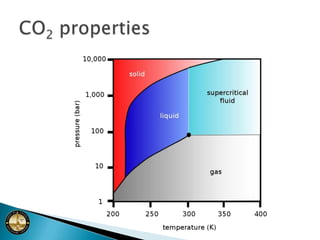

CO2 properties
48.

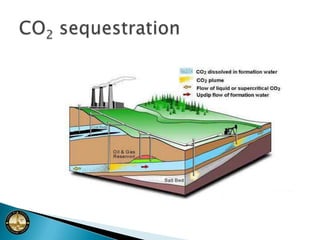

CO2 sequestration
49.

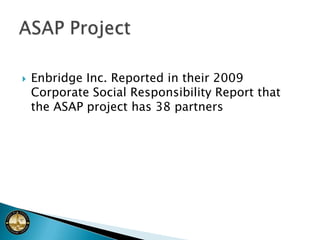

Enbridge Inc. Reportedin their 2009 Corporate Social Responsibility Report that the ASAP project has 38 partners ASAP Project
50.

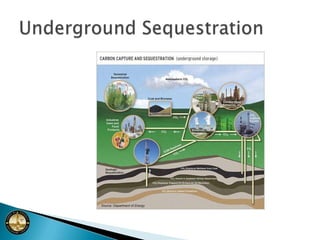

Underground Sequestration
51.

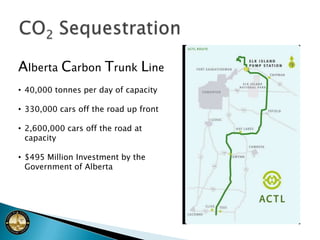

CO2 SequestrationAlberta CarbonTrunk Line40,000 tonnes per day of capacity
52.

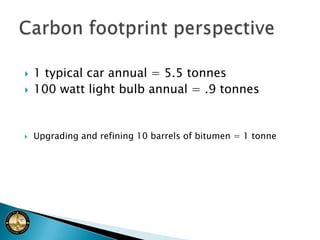

330,000 cars offthe road up front
53.
2,600,000 cars offthe road at capacity
54.

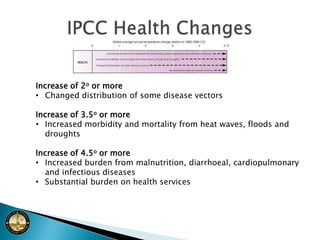

$495 Million Investmentby the Government of AlbertaCO2 footprint reduction
55.

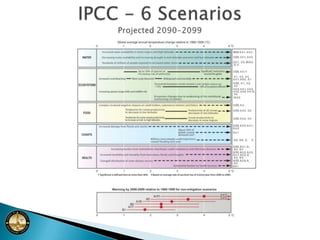

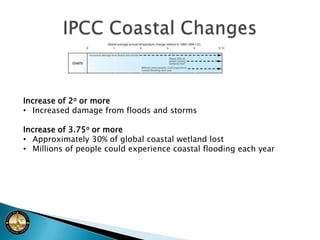

IPCC - 6ScenariosProjected 2090-2099
56.

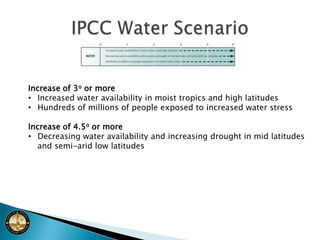

IPCC Water ScenarioIncreaseof 3o or moreIncreased water availability in moist tropics and high latitudes
57.

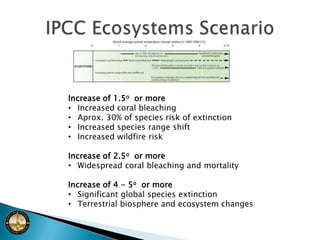

Hundreds of millionsof people exposed to increased water stressIncrease of 4.5o or moreDecreasing water availability and increasing drought in mid latitudes and semi-arid low latitudesIPCC Ecosystems ScenarioIncrease of 1.5o or moreIncreased coral bleaching

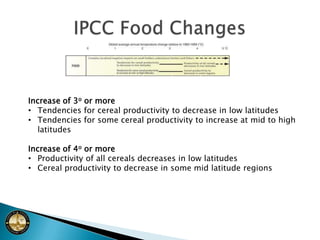

58.
Aprox. 30% ofspecies risk of extinction
59.
Increased species rangeshift
