1. Cisco Integrated System
for Microsoft Azure Stack
Designed for Performance and Manageability

2. © 2018 Cisco and/or its affiliates. All rights reserved.
Summary: Cisco & Microsoft
Sales
GTM
Exec
Sponsorship
Marketing
Engineering
Solutions
Partnership
• Production Azure network
• Azure Stack hybrid cloud
• Security integration
• IoT connectivity & analytics
• Cisco virtual appliances
• CVDs across many solutions
• Alignment at senior levels:
CEOs, exec leadership teams
• Cross-organizational activities
worldwide in Engineering,
Alliances, Marketing and Sales
• Joint WW activities: roadshows,
regional events, webinars
• Sponsorship for key
tradeshows: Inspire, Ignite
• Joint partner and solution
awards
• 3-year joint go-to-market
agreement; evolving…
• Azure Marketplace “Nurture”
campaigns
• Focus on new work streams to
generate differentiated value

3. © 2018 Cisco and/or its affiliates. All rights reserved.
Cisco in Azure Marketplace
Next-generation intrusion prevention
system providing industry-leading
threat protection, real-time contextual
awareness, full-stack visibility, and
intelligent security automation
Firepower NGFWv
A virtual instance of a Meraki security
appliance, dedicated to providing the
simple configuration benefits of site-to-
site Auto VPN for customers running or
migrating IT services
Meraki vMX
Provides behavior-based application
insight and security monitoring of
Azure workloads
*In beta and not yet publically released
Tetration*
A set of WAN optimization solutions
that minimize enterprise bandwidth
usage and accelerate application
performance
vWAAS
Full ASA firewall and VPN capabilities
to virtualized environments to help
safeguard traffic and multitenant
architectures
ASAv Firewall
Full-featured Cisco IOS XE router,
enabling enterprise-class networking
services
CSR1000v
Cisco virtual appliances are currently available in the Azure public cloud and in most cases the Azure Gov Cloud.
Syndication for use on Azure Stack is in progress.

4. © 2018 Cisco and/or its affiliates. All rights reserved.
Majority of Cloud Users Implementing Hybrid
Intersection of Public and Private is the target for Azure Stack
Source: RightScale 2018 State of the Cloud Report™ - 997 Respondents

5. © 2018 Cisco and/or its affiliates. All rights reserved.
The Solution:
Cisco Azure Stack

6. © 2018 Cisco and/or its affiliates. All rights reserved.
Azure
Stack
Hosted and
On-premises
• The ability to run Azure within a customer’s
datacenter.
• Specifically, Azure Services:
(applications, dev ops, and data).
• Azure IaaS and Services sine IaaS is the most
used feature in Azure Stack at first go.
• What makes Azure Stack unique?
• Same API’s for Azure and Azure Stack
• Same user interface
What is Azure Stack?

7. © 2018 Cisco and/or its affiliates. All rights reserved.
Microsoft’s Hybrid Cloud Platform
The Power of Azure in Your Data Center
Developers
IT
“Microsoft and Cisco are proven innovators and trusted technology partners, giving customers the
confidence that their IT environments can be supported and secure.” Mike Neil
Corporate Vice President
Enterprise Cloud Group
Microsoft Corporation

8. © 2018 Cisco and/or its affiliates. All rights reserved.

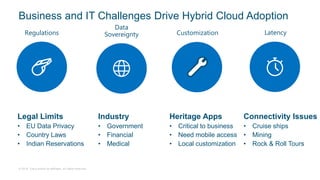

Business and IT Challenges Drive Hybrid Cloud Adoption
Latency
Data
SovereigntyRegulations Customization
Legal Limits
• EU Data Privacy
• Country Laws
• Indian Reservations
Industry
• Government
• Financial
• Medical
Heritage Apps
• Critical to business
• Need mobile access
• Local customization
Connectivity Issues
• Cruise ships
• Mining
• Rock & Roll Tours

9. © 2018 Cisco and/or its affiliates. All rights reserved.
Cisco Integrated System
For Microsoft Azure Stack
Accelerated Time to Value
• From concept to operations in days, not months
• Help developers be productive faster
Enriched Lifecycle Management
• Greater quality and system reliability
• Focus on delivering Azure services, not operations
Continuous Innovation
• Newest services and fastest updates
• No disruption to tenant availability or experience

10. © 2018 Cisco and/or its affiliates. All rights reserved.
Source: RightScale 2018 State of the Cloud Report™ - 997 Respondents

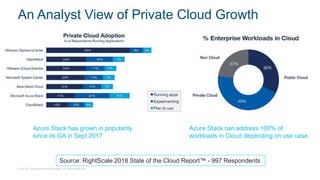

An Analyst View of Private Cloud Growth
Azure Stack has grown in popularity
since its GA in Sept 2017
Azure Stack can address 100% of
workloads in Cloud depending on use case.

11. © 2018 Cisco and/or its affiliates. All rights reserved.
The Cisco Solution:
Cisco Integrated System for
Microsoft Azure Stack

12. © 2018 Cisco and/or its affiliates. All rights reserved.

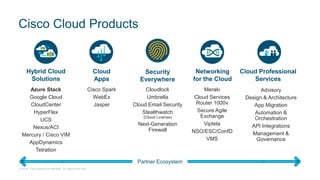

Cisco Cloud Products
Cloud
Apps
Networking
for the Cloud
Cloud Professional
Services
Hybrid Cloud
Solutions
Cisco Spark
WebEx
Jasper
Azure Stack
Google Cloud
CloudCenter
HyperFlex
UCS
Nexus/ACI
Mercury / Cisco VIM
AppDynamics
Tetration
Meraki
Cloud Services
Router 1000v
Secure Agile
Exchange
Viptela
NSO/ESC/ConfD
VMS
Advisory
Design & Architecture
App Migration
Automation &
Orchestration
API Integrations
Management &
Governance
Cloudlock
Umbrella
Cloud Email Security
Stealthwatch
(Cloud License)
Next-Generation
Firewall
Security
Everywhere
Partner Ecosystem

13. © 2018 Cisco and/or its affiliates. All rights reserved.

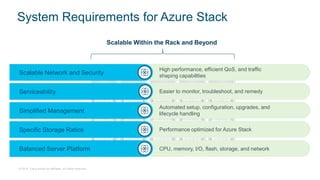

System Requirements for Azure Stack
Scalable Within the Rack and Beyond
High performance, efficient QoS, and traffic
shaping capabilities
Easier to monitor, troubleshoot, and remedy
Automated setup, configuration, upgrades, and
lifecycle handling
Performance optimized for Azure Stack
CPU, memory, I/O, flash, storage, and network
Scalable Network and Security
Serviceability
Simplified Management
Specific Storage Ratios
Balanced Server Platform

14. © 2018 Cisco and/or its affiliates. All rights reserved.
BMC Switch
ToR Switch
ToR Switch
Software Hardware
Support Services
HLH Server
(Management)
Commodity Architecture Cisco Integrated System
Software Hardware
Support Services
Fabric Interconnect
Nexus Switch
Nexus Switch
Server
Server
Server
Server
Fabric Interconnect
BMC
BMC
BMC
BMC
N2K FEX Mgr.
N2K FEX Mgr.
Management Points
managed via
Service Profile in
UCS Manager
Azure Stack Integrated System Alternatives
Difficult
IntegratedSystem
ManagementPoints
System elements
colored by vendor

15. © 2018 Cisco and/or its affiliates. All rights reserved.

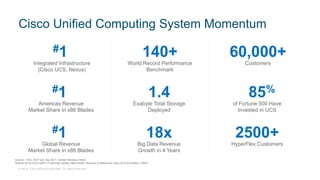

Cisco Unified Computing System Momentum
Source: 1 IDC, 2017 Q2, Sep 2017, Vendor Revenue Share
Source: As of Cisco Q4FY17 earnings results. Data Center Revenue is defined as Cisco UCS and Nexus 1000V
Integrated Infrastructure
(Cisco UCS, Nexus)
#1
Americas Revenue
Market Share in x86 Blades
#1
Global Revenue
Market Share in x86 Blades
#1
World Record Performance
Benchmark
140+
Exabyte Total Storage
Deployed
1.4
Big Data Revenue
Growth in 4 Years
18x
Customers
60,000+
of Fortune 500 Have
Invested in UCS
>85%
HyperFlex Customers
2500+

16. © 2018 Cisco and/or its affiliates. All rights reserved.
Cisco UCS Simplicity
Fabric Centric Design and Centralized Management = Simplicity at Portfolio Scale
UCS Fabric Interconnect/UCSM
• Single Point of Management and Connectivity
• Common policy definitions and Service Profiles
• Forward/Backward compatibility
• Independent upgrades for fabric and compute
• Continuous feature evolution via SW upgrades
Many Form Factors, One System
Data Center LAN/SAN
B-Series
Blade
Servers
C-Series
Rack
Servers
S-Series
Storage
Optimized
Servers
UCS Mini Converged
Systems
Hyper
Converged
Systems

17. © 2018 Cisco and/or its affiliates. All rights reserved.
• Industry-leading tool provision, manage, and monitor all software and
hardware
• Provides policy and model-based management, with service profiles, that
improves agility and reduces risk
• Uses autodiscovery to detect, inventory, manage, and provision system
components
• Offers a comprehensive open XML API, which facilitates integration with third-
party management tools
Cisco UCS
Manager
• Manages multiple, globally distributed Cisco UCS domains with thousands of
servers from a single pane
• Provides global configuration capabilities for pools, policies, and firmware
Cisco UCS
Multidomain
Manager
Cisco ONE™
Enterprise
Cloud Suite
• Delivers a unified converged infrastructure management solution
• Provides programmable application containers across computing, networking,
and
storage resources and extends automation benefits to the entire infrastructure
stack
• Provides private and hybrid cloud management
Abstraction of all configuration and identity information into a service profile speeds deployment, reduces errors, and lowers costs
Cisco UCS™ management software provides:
Speed
Ease of
experimentation
Consistency Simplicity Visibility
Provisioning
Maintenance
Growth Monitoring
Cisco UCS Advantage:
Programmable Infrastructure
Policy-Based Management

18. © 2018 Cisco and/or its affiliates. All rights reserved.
Cisco UCS™
SAN
LAN
Traditional

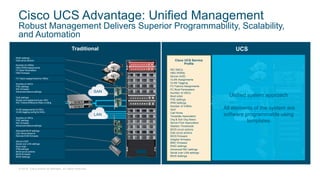

Cisco UCS Advantage: Unified Management
Robust Management Delivers Superior Programmability, Scalability,
and Automation
Cisco UCS Service
Profile
NIC MACs
HBA WWNs
Server UUID
VLAN Assignments
VLAN Tagging
FC Fabrics Assignments
FC Boot Parameters
Number of vNICs
Boot order
PXE settings
IPMI Settings
Number of vHBAs
QoS
Call Home
Template Association
Org & Sub Org Assoc.
Server Pool Association
Statistic Thresholds
BIOS scrub actions
Disk scrub actions
BIOS firmware
Adapter firmware
BMC firmware
RAID settings
Advanced NIC settings
Serial over LAN settings
BIOS Settings
Server UUID
Serial over LAN settings
Boot order
IPMI settings
BIOS scrub actions
BIOS firmware
BIOS Settings
RemoteKVM IP settings
Call Home behavior
Remote KVM firmware
Number of vNICs
PXE settings
NIC firmware
Advanced feature settings
VLAN assignments for NICs
VLAN tagging config for NICs
Number of vNICs
PXE settings
NIC firmware
Advanced feature settings
FC Fabric assignments for HBAs
Number of vHBAs
HBA WWN assignments
FC Boot Parameters
HBA firmware
RAID settings
Disk scrub actions
QoS settings
Border port assignment per vNIC
NIC Transmit/Receive Rate Limiting
SAN
LAN
Unified system approach
All elements of the system are
software programmable using
templates

19. © 2018 Cisco and/or its affiliates. All rights reserved.
Azure Stack on Cisco UCS M5 – Hybrid Storage
Example 4-node: Sold today as a fixed BOM
FI 6332 (40G)
vPC 1
4 to15 Nodes
Per Cluster
1 to 2 clusters
vPC 0 vPC 1
UCS 6332 FI
2 x 40 Gbe Ports
1RU
CS C240 M4L
2-Socket
12LFF/SFF Drives
2x40Gbe Ports
2RU
4 to15 Nodes
Per Cluster
1 to 2 clusters
Nexus 9332PQ
32 x 40 Gbe Ports
1RU EoR Switch
FI 6332 (40G)
Cisco Automation Scripts
On-site Installation Services
Cisco Support Services
• Service Profile Template Driven
• Automated system setup
• Reduces set up from hours to minutes
• Leveraging Cisco best practices
• Download and setup of Azure Stack
• Integration into environment including Active
Directory, Azure Services billing to Microsoft
• Cisco/Microsoft is your single call for any
issue
FI 6332 (40G)
C240 M5L
vPC 0 vPC 1
4 to15 Nodes
Per Cluster
1 to 2 clusters
FEX
vPC 0 vPC 1
UCS 6332 FI
32 x 40 Gbe Ports
1RU
UCS C240 M4L
2-Socket
12LFF/SFF Drives
2x40Gbe Ports
2RU
4 to15 Nodes
Per Cluster
1 to 2 clusters
Nexus 9332PQ
32 x 40 Gbe Ports
1RU EoR Switch
FEX
9336C-FX29336C-FX2

20. © 2018 Cisco and/or its affiliates. All rights reserved.
Azure Stack on Cisco UCS M5 – All Flash Storage
Example 4-node: To be sold only as a fixed BOM
FI 6332 (40G)
9336C-FX2
vPC 1
4 to15 Nodes
Per Cluster
1 to 2 clusters
vPC 0 vPC 1
UCS 6332 FI
2 x 40 Gbe Ports
1RU
CS C240 M4L
2-Socket
12LFF/SFF Drives
2x40Gbe Ports
2RU
4 to15 Nodes
Per Cluster
1 to 2 clusters
Nexus 9332PQ
32 x 40 Gbe Ports
1RU EoR Switch
FI 6332 (40G)
9336C-FX2
Cisco Automation Scripts
On-site Installation Services
Cisco Support Services
FI 6332 (40G)
C240 M5sx
vPC 0 vPC 1
4 to15 Nodes
Per Cluster
1 to 2 clusters
FEX
vPC 0 vPC 1
UCS 6332 FI
32 x 40 Gbe Ports
1RU
UCS C240 M4L
2-Socket
12LFF/SFF Drives
2x40Gbe Ports
2RU
4 to15 Nodes
Per Cluster
1 to 2 clusters
Nexus 9332PQ
32 x 40 Gbe Ports
1RU EoR Switch
FEX
• The only change in the system
design is the C240 M5sx
• Mix of NVMe PCIe cards and
SSD provides the highest
performance for storage tier
• Cisco is uniquely positioned to
provide a solution that combines
performance, scalability and
manageability

21. © 2018 Cisco and/or its affiliates. All rights reserved.
All Flash Option
45TB
60TB
Up to 1.5TB of Main Memory Capacity!
C240 M5SX
• 2 x Intel Xeon Scalable proc (12c to 28c)
• 384GB to 1500GB DDR4 Memory
• 40GbE NIC
• 2 x 1.6 TB NVMe cards
• 8 x 3.8 TB 2.5 inch 6G SATA SSD
• 1 X SAS 12G SAS HBA
• 2 x 960GB 2.5 inch Boot SSD (Raid 1)
• TPM 2.0
• 2 x Intel Xeon Scalable proc (12c to 28c)
• 384GB to 1500GB DDR4 Memory
• 40GbE NIC
• 3 x 1.6 TB NVMe cards
• 12 x 3.8 TB 2.5 inch 6G SATA SSD
• 1 X SAS 12G SAS HBA
• 2 x 960GB 2.5 inch Boot SSD (Raid 1)
• TPM 2.0
• 2 x Intel Xeon Scalable proc (12c to 28c)
• 384GB to 1500GB DDR4 Memory
• 40GbE NIC
• 4 x 1.6 TB NVMe cards
• 16 x 3.8 TB 2.5 inch 6G SATA SSD
• 1 X SAS 12G SAS HBA
• 2 x 960GB 2.5 inch Boot SSD (Raid 1)
• TPM 2.0
30TB
C240 M5L
• 2 x Intel Xeon Scalable proc (12c to 28c)
• 384GB to 1500GB DDR4 Memory
• 40GbE NIC
• 2 x 1.6 TB NVMe cards
• 4 x 8 TB 12G SAS 7.2k RPM LFF HDD
• 1 X SAS 12G SAS HBA
• 2 x 960GB 2.5 inch Boot SSD (Raid 1)
• TPM 2.0
• 2 x Intel Xeon Scalable proc (12c to 28c)
• 384GB to 1500GB DDR4 Memory
• 40GbE NIC
• 2 x 3.2 TB NVMe cards
• 8 x 8 TB 12G SAS 7.2k RPM LFF HDD
• 1 X SAS 12G SAS HBA
• 2 x 960GB 2.5 inch Boot SSD (Raid 1)
• TPM 2.0
• 2 x Intel Xeon Scalable proc (12c to 28c)
• 384GB to 1500GB DDR4 Memory
• 40GbE NIC
• 3 x 3.2 TB NVMe cards
• 12 x 8 TB 12G SAS 7.2k RPM LFF HDD
• 1 X SAS 12G SAS HBA
• 2 x 960GB 2.5 inch Boot SSD (Raid 1)
• TPM 2.0
32TB
64TB
96TB
Hybrid OptionComparing Storage Options
The right size for YOUR business

22. © 2018 Cisco and/or its affiliates. All rights reserved.

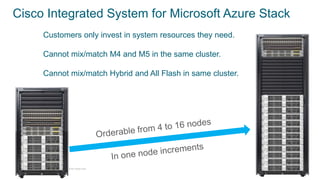

Cisco Integrated System for Microsoft Azure Stack
Customers only invest in system resources they need.
Cannot mix/match M4 and M5 in the same cluster.
Cannot mix/match Hybrid and All Flash in same cluster.

23. © 2018 Cisco and/or its affiliates. All rights reserved.
Hybrid
• More economical solution
• Disk access is more random with
smaller read/write blocks
• Workloads target development or
PoC activity
• Adding to current installed cluster
• Consistency in storage choice
All Flash
• Require fastest read/write to disk
• Desire up to 1.5TB memory/node
• Require more than 22 core per socket
• Fastest Intel processor performance
• More storage capacity choice
• Longest server node purchase
availability
Which Storage Option to Select?

24. © 2018 Cisco and/or its affiliates. All rights reserved.
How Azure Stack Connects to Data Center Network
FI 6332 (40G)
9336C-FX2
vPC 0 vPC 1
UCS 6332 FI
32 x 40 Gbe Ports
1RU
UCS C240 M4L
2-Socket
12LFF/SFF Drives
2x40Gbe Ports
2RU
4 to15 Nodes
Per Cluster
1 to 2 clusters
Nexus 9332PQ
32 x 40 Gbe Ports
1RU EoR Switch
vPC 0 vPC 1
UCS 6332 FI
32 x 40 Gbe Ports
1RU
UCS C240 M4L
2-Socket
12LFF/SFF Drives
2x40Gbe Ports
2RU
4 to15 Nodes
Per Cluster
1 to 2 clusters
Nexus 9332PQ
32 x 40 Gbe Ports
1RU EoR Switch
FI 6332 (40G)
9336C-FX2
Cisco Azure Stack System
FI 6332 (40G)
C240 M5L
vPC 0 vPC 1
UCS 6332 FI
32 x 40 Gbe Ports
1RU
UCS C240 M4L
2-Socket
12LFF/SFF Drives
2x40Gbe Ports
4 to15 Nodes
Per Cluster
Nexus 9332PQ
32 x 40 Gbe Ports
1RU EoR Switch
FEX
vPC 0 vPC 1
UCS 6332 FI
32 x 40 Gbe Ports
1RU
UCS C240 M4L
2-Socket
12LFF/SFF Drives
4 to15 Nodes
Per Cluster
Nexus 9332PQ
32 x 40 Gbe Ports
1RU EoR Switch
FEX
vPC 0 vPC 1
UCS 6332 FI
32 x 40 Gbe Ports
1RU
UCS C240 M4L
2-Socket
12LFF/SFF Drives
2x40Gbe Ports
2RU
4 to15 Nodes
Per Cluster
1 to 2 clusters
Nexus 9332PQ
32 x 40 Gbe Ports
1RUEoR Switch
vPC 0 vPC 1
UCS 6332 FI
32 x 40 Gbe Ports
1RU
UCS C240 M4L
2-Socket
12LFF/SFF Drives
2x40Gbe Ports
2RU
4 to15 Node
Per Cluster
1 to 2 cluster
Nexus 9332PQ
32 x 40 Gbe Ports
1RUEoR Switch
Border
Switches• Must be a direct L3 point to point connection
to border switch
• The protocol can be either:
• BGP
• Static Routing
• Express Route connection is not required
Note:
Azure Stack Services will consume 31 customer
addressable IP addresses.
Data Center
Border Switch
Data Center
Border Switch

25. © 2018 Cisco and/or its affiliates. All rights reserved.

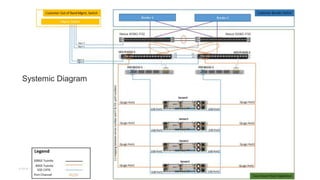

Systemic Diagram
Nexus 9336C-FX2 Nexus 9336C-FX2

26. © 2018 Cisco and/or its affiliates. All rights reserved.

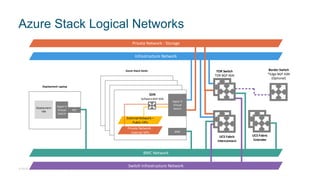

Azure Stack Logical Networks
BMC
SDN
Software BGP ASN
BMC Network
Switch Infrastructure Network
Infrastructure Network
External Network –
Public VIPs
Private Network -
Internal VIPs
Private Network - Storage
Hyper-V
Virtual
Switch
TOR Switch
TOR BGP ASN
UCS Fabric
Interconnect
Border Switch
*Edge BGP ASN
(Optional)
Deployment
VM
Deployment Laptop
Azure Stack Hosts
Hyper-V
Virtual
Switch
NIC
UCS Fabric
Extender

27. © 2018 Cisco and/or its affiliates. All rights reserved.
Cisco Integrated System for Microsoft Azure Stack
Drives maximum VM density per server.
Maximize potential of your single cluster.
Cisco: Partners:
• Azure Stack Planning
• Cloud Design Workshop
• Cloud App re-architect
• Data Security
• System Tuning/Backup

28. © 2018 Cisco and/or its affiliates. All rights reserved.
Cisco and Docker Solutions
+
Stronger Together
Open Source community and technology partners to build solutions
Docker Datacenter
On FlexPod CVD
Contiv
Network Plugin
Docker Datacenter
On Cisco UCS
Modernize Traditional
Applications: Turnkey Offer

29. © 2018 Cisco and/or its affiliates. All rights reserved.

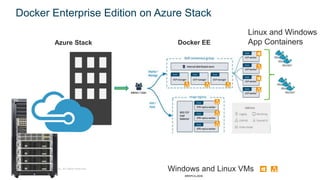

Docker Enterprise Edition on Azure Stack
Linux and Windows
App ContainersDocker EEAzure Stack
BRKPCA-2939

30. © 2018 Cisco and/or its affiliates. All rights reserved.

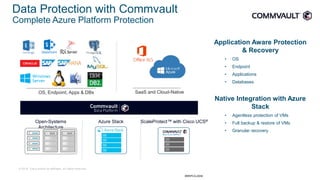

Data Protection with Commvault
Complete Azure Platform Protection
SaaS and Cloud-NativeOS, Endpoint, Apps & DBs
Open-Systems
Architecture
Azure Stack ScaleProtect™ with Cisco UCS®
Application Aware Protection
& Recovery
• OS
• Endpoint
• Applications
• Databases
Native Integration with Azure
Stack
• Agentless protection of VMs
• Full backup & restore of VMs
• Granular recovery
BRKPCA-2939

31. © 2018 Cisco and/or its affiliates. All rights reserved.
4 node - Cisco Integrated System for
Microsoft Azure Stack
Border Switch 2X 10GBe
!
Intel
Inside
XEON
UCS
C240 M4
Console
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB UCS-HDD2TI2F213 / 2TB UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
Cloud Data Mover/
Data Manager
Agentless Protection
1. Define SLA-based protection policy
2. Discovery using Azure Stack APIs
3. Perform Azure Stack snapshot of a
VM
4. Index, compress, de-duplicate, and
encrypt, copy data to storage pool
5. Release Azure Stack snapshot
Use Cases
• Agentless protection of VMs
• Full backup & restore of VMs
• Granular recovery - guest files &
folders
• Agent-based protection &
recovery
4
Discovered
VM
Snapshot
3

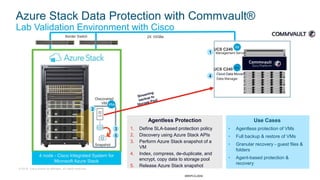

Azure Stack Data Protection with Commvault®
Lab Validation Environment with Cisco
5
!
Intel
Inside
XEON
UCS
C240 M4
Console
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB UCS-HDD2TI2F213 / 2TB UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
!
Intel
Inside
XEON
UCS
C240 M4
Console
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB UCS-HDD2TI2F213 / 2TB UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS-HDD2TI2F213 / 2TB
UCS C240 !
Intel
Inside
XEON
UCS
C240 M4
Console
UCS-HDD300GI2F105
15KSAS
300GB
!
1 6 12 18 24
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
UCS-HDD300GI2F105
15KSAS
300GB
!
Management Server1
2
UCS C240
BRKPCA-2939

32. © 2018 Cisco and/or its affiliates. All rights reserved.
Cisco Integrated System Advantages for Azure Stack
Control all roadmaps and system integration pointsAll system elements come from Cisco
World’s leading standard for data connectivity and security.Nexus as networking standard
Maintains approved best practice for system rackUtilize customer’s choice of rack in data center
Purchase from Microsoft of Cloud Service Partner (CSP)Customer choice for Azure Services
NVMe, 40GbE standard. Up to 1536 GB memory to drive more
VM per server and positioned for future growth
Positioned for Performance
Products that help enable management, security, and related
capabilities.
Leverage eco-system partners and products
Leverage Cisco’s vast hybrid-cloud experience and services
developed for other solutions. Cisco products on Azure cloud.
Leverage broad range of hybrid cloud experience
Battle tested UCS based solutions enabling single screen
management across multiple domains/regions globally
Proven management solutions across domains/regions

33. © 2018 Cisco and/or its affiliates. All rights reserved.
Fully
Automated
Infrastructure
Tools ensure
your system
stays constantly
updated
Architectural
Approach
Built as integrated
system, an extensively
deployed design
World Class
Products &
Support
Hybrid cloud
experience from
multiple solutions
Performance
and Scale
Built for superior
Performance and
Scale
Extensive Partner
Eco-system
World-wide reach
Proven technical knowhow
The Cisco
Advantage for
Microsoft
Azure Stack
Summary
