Techno Agencies produces various types of circular fryers for foods like chips, snacks, and grains. The circular batch fryer with an inbuilt heat exchanger has a 48" pan, Italian burner, and temperature controller. It can produce 50-175 kg per hour of foods like chips, dal, and besan-based snacks while using 11-12 liters of fuel per hour. The auto controlled circular batch fryer uses direct heating and is suited for low bulk density foods. It has automated temperature control and uses 20-30% less fuel than traditional systems. Techno also produces portable kerosene or diesel furnaces in various sizes for frying foods.

1. Techno Agencies
84, Shree Hari Industrial Estate,
Panna Estate Road, Rakhial, Ahmedabad
Gujarat, India, Postal code: 380023
E Mail:- admin@pulverizerindia.com
Phone:- +91-79-22743454
Fax:- +91-79-22745062
Mobile:- +91-9426088680

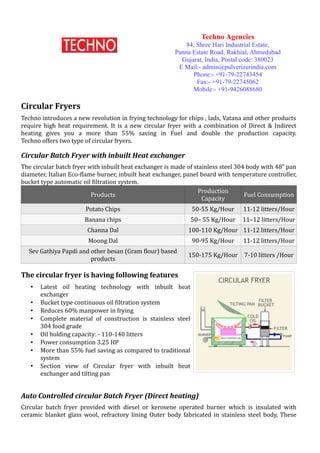

Circular Fryers
Techno introduces a new revolution in frying technology for chips , lads, Vatana and other products
require high heat requirement. It is a new circular fryer with a combination of Direct & Indirect
heating gives you a more than 55% saving in Fuel and double the production capacity.
Techno offers two type of circular fryers.
Circular Batch Fryer with inbuilt Heat exchanger
The circular batch fryer with inbuilt heat exchanger is made of stainless steel 304 body with 48” pan
diameter, Italian Eco-flame burner, inbuilt heat exchanger, panel board with temperature controller,
bucket type automatic oil filtration system.
Production
Products
Fuel Consumption
Capacity
Potato Chips
50-55 Kg/Hour
11-12 litters/Hour
Banana chips
50– 55 Kg/Hour
11–12 litters/Hour
Channa Dal
100-110 Kg/Hour 11-12 litters/Hour
Moong Dal
90-95 Kg/Hour
11-12 litters/Hour
Sev Gathiya Papdi and other besan (Gram flour) based
products
150-175 Kg/Hour
7-10 litters /Hour
The circular fryer is having following features
•
•
•
•
•
•
•
•
Latest oil heating technology with inbuilt heat
exchanger
Bucket type continuous oil filtration system
Reduces 60% manpower in frying
Complete material of construction is stainless steel
304 food grade
Oil holding capacity: - 110-140 litters
Power consumption 3.25 HP
More than 55% fuel saving as compared to traditional
system
Section view of Circular fryer with inbuilt heat
exchanger and tilting pan
Auto Controlled circular Batch Fryer (Direct heating)
Circular batch fryer provided with diesel or kerosene operated burner which is insulated with
ceramic blanket glass wool, refractory lining Outer body fabricated in stainless steel body, These

2. enhancements mean that the manufacturing process becomes far more economical, environment
friendly, fully safe, easy to operate. This circular Batch Frying system is ideally suited for potato
chips, banana chips and other low bulk density products like namkeens (salt snacks) Indian sweets,
This system is available in different sizes depending upon the production capacity.
Circular batch type frying system is exclusively used in hotels, restaurants and canteens. Made of
high graded raw materials these fryers provide quick frying of various food items required instantly.
We offers these Auto Controlled circular Batch Fryer in multiple sizes 12"/18"/24”/ 30”/36”/42”
& /60”, specifications and varieties.
The main features of batch frying systems are
Low fuel cost almost 20-30% less as compared to traditional system (bhatti).
Low electricity cost, 80% less as compared to traditional system
Automated temperature control that provide better and consistent product quality.
Highly environment friendly process.(minimal noise & air pollution).
High hygiene quotient
Auto ignition
Italian burners are fitted for heating
Type
of
Sr. No. Pan Diameter
Products
Capacity
extrusion
•
•
•
•
•
•
•
1
12"
N.A.
Soan Papdi
40 kg sugar/hr.
2
18"
Hand Driven
Bikaneri Bhujiya & Mava
20 to 25 kg/hr.
3
24" & 30"
Hand Driven
Nylon Sev, Garlic Sev, Samosa, Kachori 20 to 35 kg/hr.
4
36"
motor Driven
Papdi, All Types Gathiya & Sev
35 to 40 kg/hr.
5
42"
Motor Driven
Chana, Mung Dal, Coated Peanuts
40 to 50 kg/hr.
6
60"
Motor Driven
Potato Wafer, Banana Wafer
50 to 60 kg/hr.
Economic portable kerosene or diesel bhatti (furnace)
Economic diesel bhatti provided with diesel or kerosene
operated burner bhatti is insulated with fire clay bricks body
fabricated in mild steel body, these enhancements mean that
the manufacturing process becomes far more economical,
environment friendly, fully safe, easy to operate. This circular
batch frying system is ideally suited for potato chips, banana
chips and other low bulk density products like namkeens
(salty snacks) Indian sweets, this system is available in
different sizes depending upon the production capacity.
Made of high graded raw materials these fryers provide quick
frying of various food items required instantly. We offers
these economic circular batch fryer in multiple sizes having
different burner size 8,12,14,16 and 18 inch specifications
and varieties.
Available models of Economic Portable kerosene or diesel bhatti (Furnace)
Model No.
Burner Inch Blower HP
Techno-DB-8
8"
0.25

3. Model No.
Burner Inch Blower HP
Techno-DB-12 12"
0.5
Techno-DB-14 14"
1
Techno-DB-16 16"
1.5
Techno-DB-18 18"
2
If you required any information please contact to us admin@pulverizerindia.com or call to us at
+91-9426088680.
