Chubb AFx™ System Design Guide

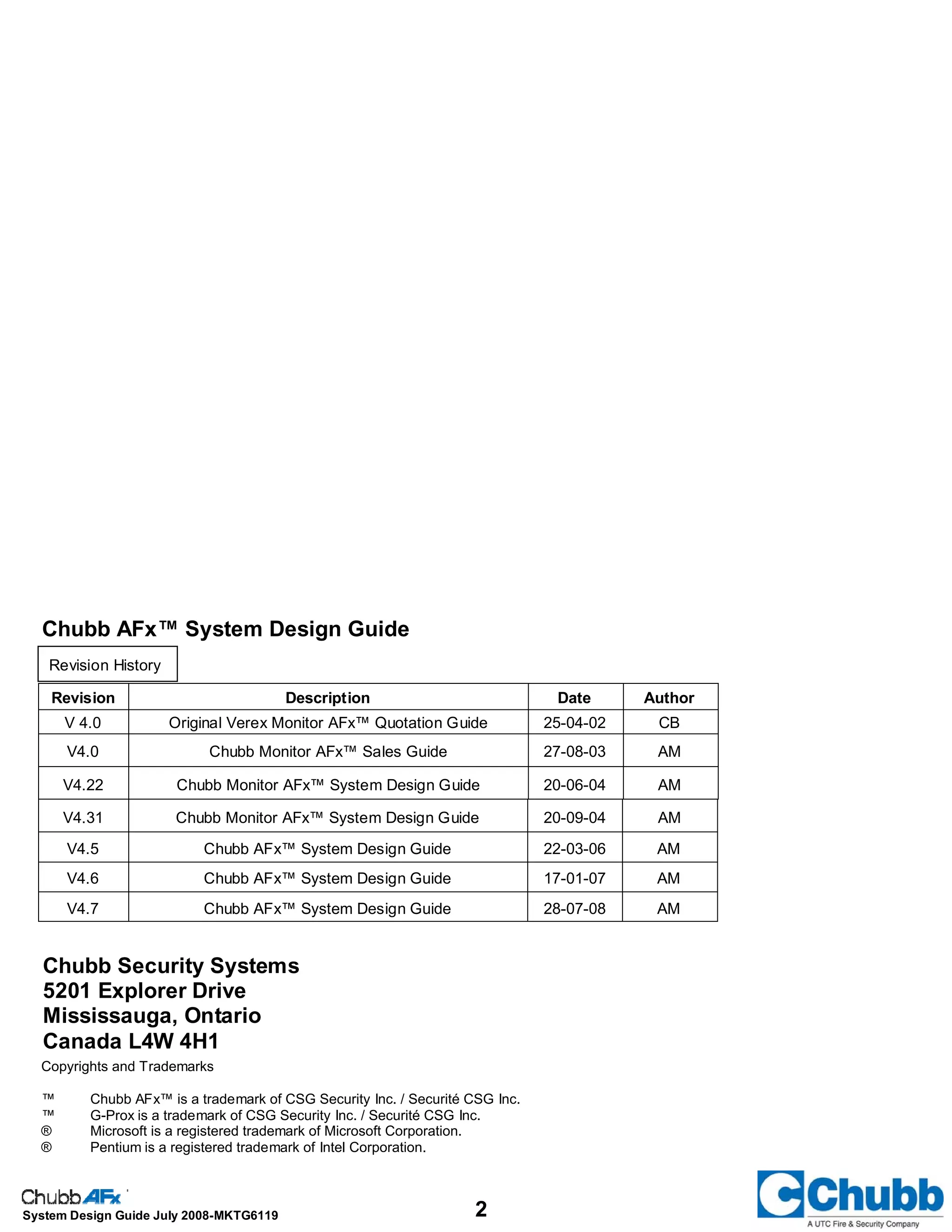

Revision History
Revision Description Date Author
V 4.0 Original Verex Monitor AFx™ Quotation Guide 25-04-02 CB
V4.0 Chubb Monitor AFx™ Sales Guide 27-08-03 AM
V4.22 Chubb Monitor AFx™ System Design Guide 20-06-04 AM
V4.5 Chubb AFx™ System Design Guide 22-03-06 AM
V4.31 Chubb Monitor AFx™ System Design Guide 20-09-04 AM

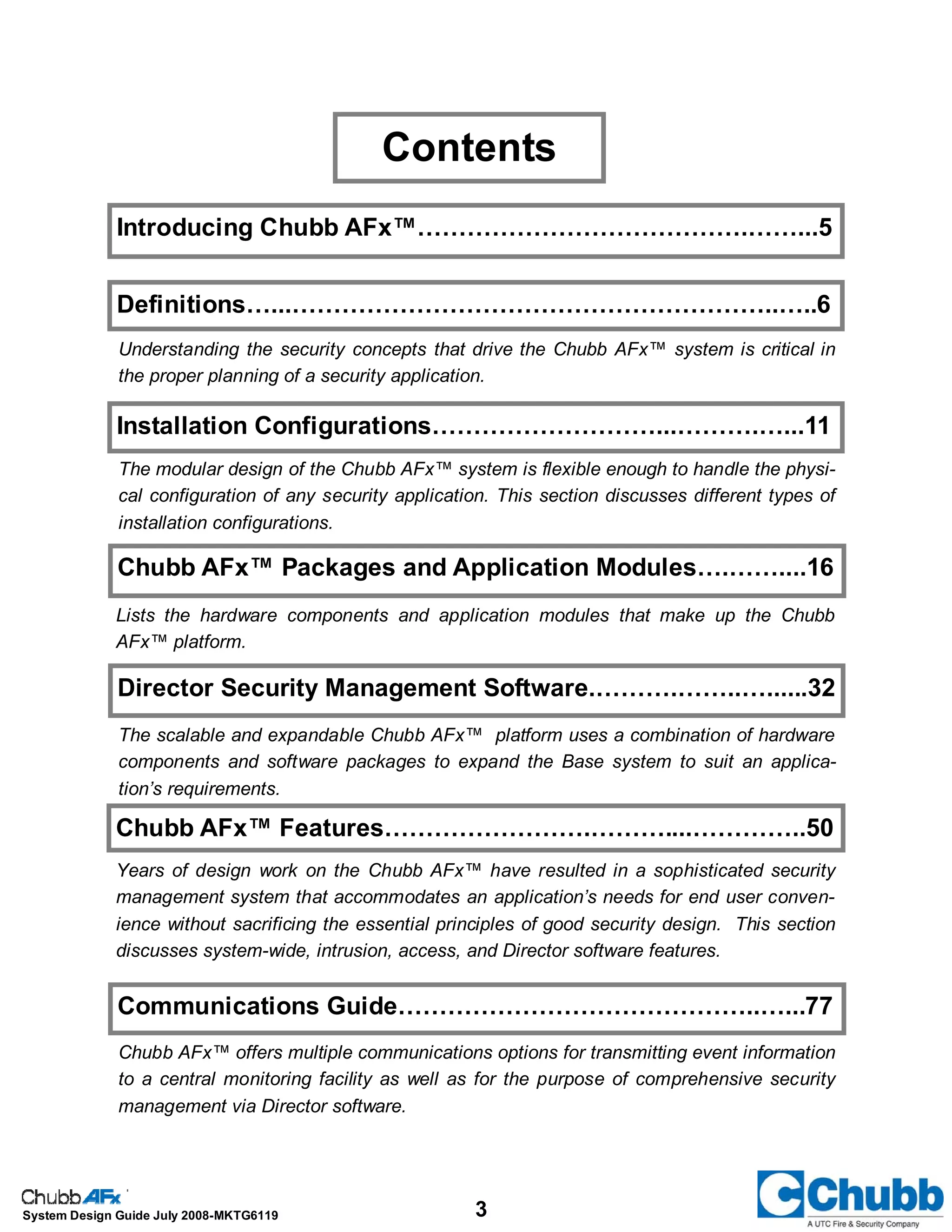

Contents
Introducing Chubb AFx™………………………………….……...5
Chubb AFx™ Packages and Application Modules….……....16
Communications Guide……………………………………..…...77
The modular design of the Chubb AFx™ system is flexible enough to handle the physi-
cal configuration of any security application. This section discusses different types of
installation configurations.
Lists the hardware components and application modules that make up the Chubb
AFx™ platform.
Chubb AFx™ offers multiple communications options for transmitting event information
to a central monitoring facility as well as for the purpose of comprehensive security
management via Director software.
Chubb AFx™ Features…………………….………....…………..50
Years of design work on the Chubb AFx™ have resulted in a sophisticated security
management system that accommodates an application’s needs for end user conven-
ience without sacrificing the essential principles of good security design. This section
discusses system-wide, intrusion, access, and Director software features.
Definitions…...…………………………………………………..…..6
Understanding the security concepts that drive the Chubb AFx™ system is critical in
the proper planning of a security application.
Installation Configurations………………………...……….…...11
Director Security Management Software.……….……..…......32
The scalable and expandable Chubb AFx™ platform uses a combination of hardware
components and software packages to expand the Base system to suit an applica-
tion’s requirements.

5
The Chubb AFx™ system fully integrates all aspects of security technology to
provide comprehensive, cost-effective premises protection solutions.
The Chubb AFx™ platform is scalable and expandable : its modular hardware design and user-
friendly Windows®-based management software packages allow you to offer prospects custom-
tailored systems that will address their current security needs with easy expansion capability at any
time in the future.
Introducing Chubb AFx™

6

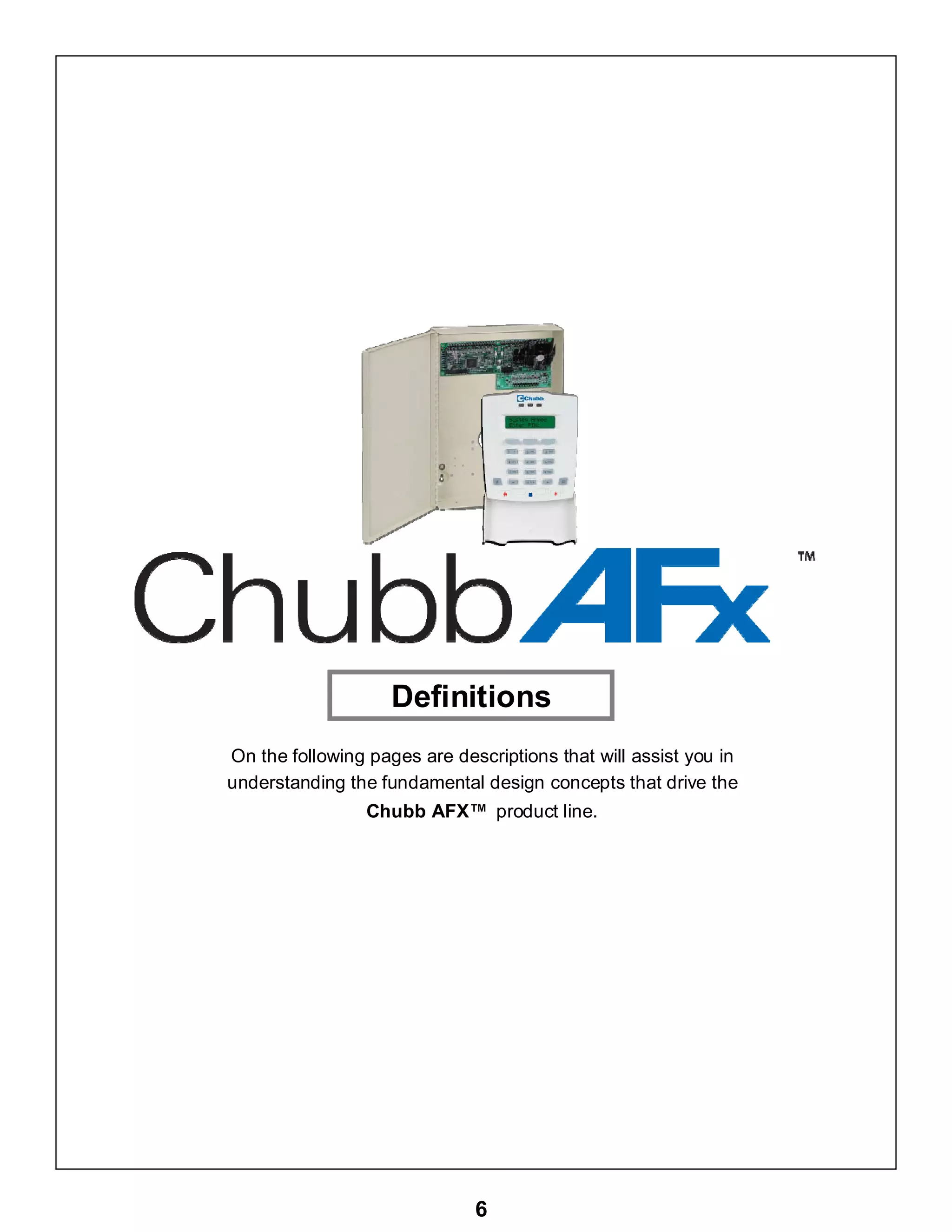

On the following pages are descriptions that will assist you in
understanding the fundamental design concepts that drive the
Chubb AFX™ product line.

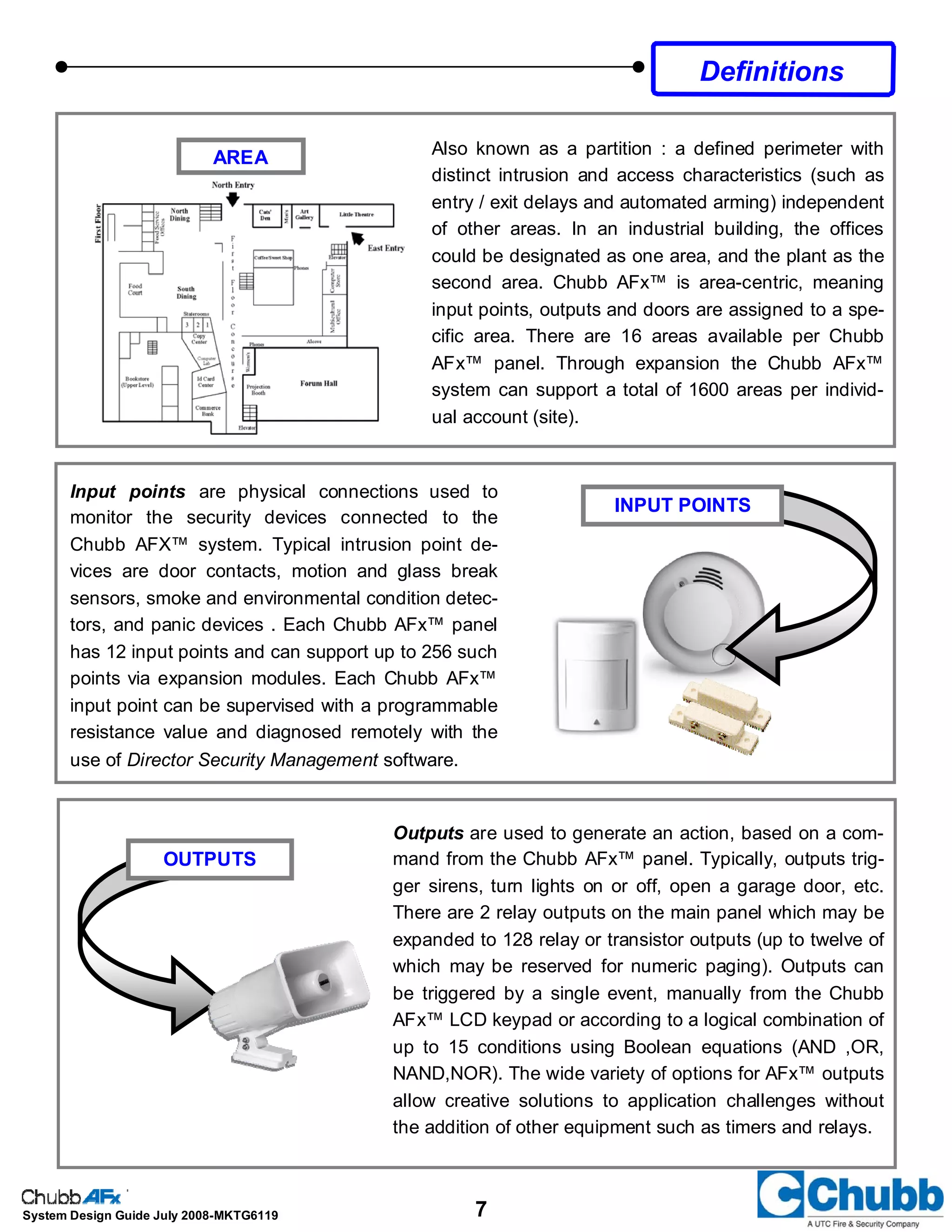

Definitions

Also known as a partition : a defined perimeter with
distinct intrusion and access characteristics (such as
entry / exit delays and automated arming) independent
of other areas. In an industrial building, the offices
could be designated as one area, and the plant as the
second area. Chubb AFx™ is area-centric, meaning
input points, outputs and doors are assigned to a spe-
cific area. There are 16 areas available per Chubb
AFx™ panel. Through expansion the Chubb AFx™
system can support a total of 1600 areas per individ-
ual account (site).
Input points are physical connections used to
monitor the security devices connected to the
Chubb AFX™ system. Typical intrusion point de-
vices are door contacts, motion and glass break
sensors, smoke and environmental condition detec-
tors, and panic devices . Each Chubb AFx™ panel
has 12 input points and can support up to 256 such
points via expansion modules. Each Chubb AFx™
input point can be supervised with a programmable
resistance value and diagnosed remotely with the
use of Director Security Management software.
INPUT POINTS
Outputs are used to generate an action, based on a com-
mand from the Chubb AFx™ panel. Typically, outputs trig-
ger sirens, turn lights on or off, open a garage door, etc.
There are 2 relay outputs on the main panel which may be
expanded to 128 relay or transistor outputs (up to twelve of
which may be reserved for numeric paging). Outputs can
be triggered by a single event, manually from the Chubb
AFx™ LCD keypad or according to a logical combination of
up to 15 conditions using Boolean equations (AND ,OR,
NAND,NOR). The wide variety of options for AFx™ outputs
allow creative solutions to application challenges without
the addition of other equipment such as timers and relays.
OUTPUTS
AREA
Definitions

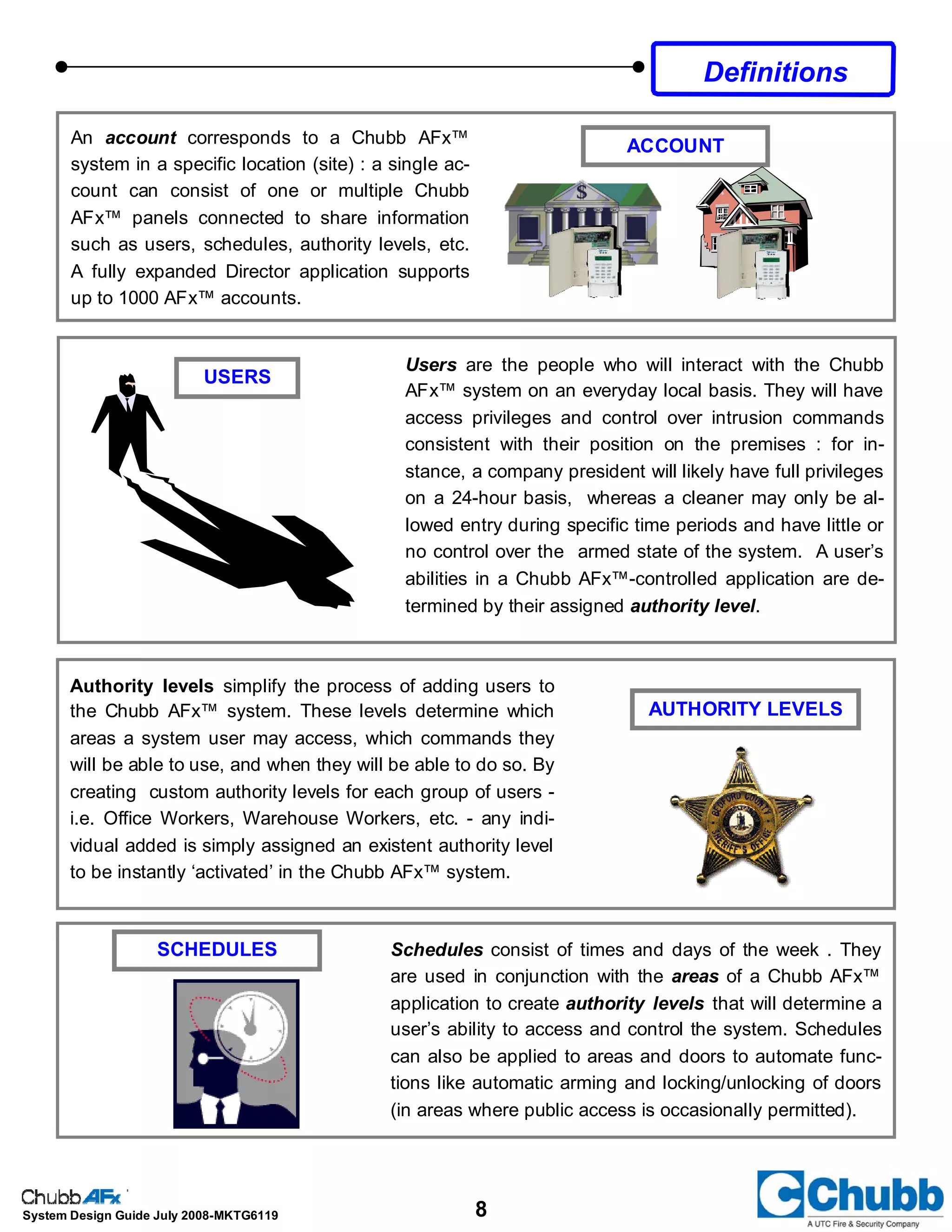

An account corresponds to a Chubb AFx™
system in a specific location (site) : a single ac-
count can consist of one or multiple Chubb
AFx™ panels connected to share information
such as users, schedules, authority levels, etc.
A fully expanded Director application supports
up to 1000 AFx™ accounts.
ACCOUNT
USERS
Authority levels simplify the process of adding users to
the Chubb AFx™ system. These levels determine which
areas a system user may access, which commands they
will be able to use, and when they will be able to do so. By
creating custom authority levels for each group of users -
i.e. Office Workers, Warehouse Workers, etc. - any indi-
vidual added is simply assigned an existent authority level
to be instantly ‘activated’ in the Chubb AFx™ system.
AUTHORITY LEVELS
Users are the people who will interact with the Chubb
AFx™ system on an everyday local basis. They will have
access privileges and control over intrusion commands
consistent with their position on the premises : for in-
stance, a company president will likely have full privileges
on a 24-hour basis, whereas a cleaner may only be al-
lowed entry during specific time periods and have little or
no control over the armed state of the system. A user’s
abilities in a Chubb AFx™-controlled application are de-
termined by their assigned authority level.
Schedules consist of times and days of the week . They
are used in conjunction with the areas of a Chubb AFx™
application to create authority levels that will determine a
user’s ability to access and control the system. Schedules
can also be applied to areas and doors to automate func-
tions like automatic arming and locking/unlocking of doors
(in areas where public access is occasionally permitted).
SCHEDULES
Definitions

Supervision is an important concept in security : it refers to the
ability of a system to monitor the presence and status of a device
or devices that are associated with the system, either by physical
(hardwired) connection or Radio Frequency (wireless) transmis-
sion. If a device is disconnected or malfunctioning, supervision
will provide instantaneous notice of the condition, prompting an
immediate response to investigate and correct if necessary.
Control panels also monitor local conditions such as the AC
power supply, telephone line and backup battery .
Anti-passback is a mode of operation in access
control that requires a user to both enter and exit a
designated area before that user can enter the same
or another controlled area. This prevents users from
loaning their cards to other users and provides a
comprehensive audit trail of a user’s passage
through a system. Anti-passback can be pro-
grammed to reset after a specified time period.
ANTI-PASSBACK
TROUBLE
SUPERVISION

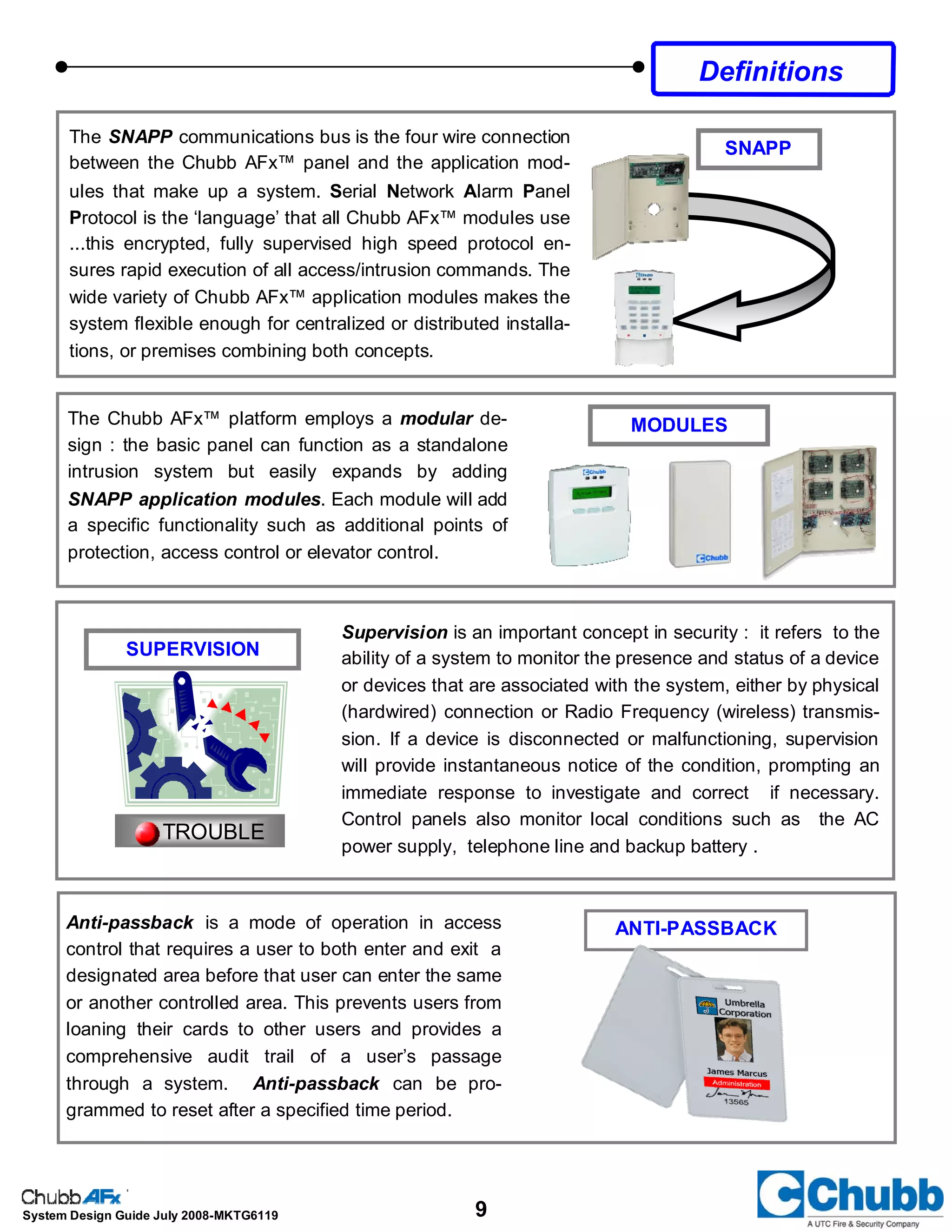

The SNAPP communications bus is the four wire connection
between the Chubb AFx™ panel and the application mod-
ules that make up a system. Serial Network Alarm Panel
Protocol is the ‘language’ that all Chubb AFx™ modules use
...this encrypted, fully supervised high speed protocol en-
sures rapid execution of all access/intrusion commands. The
wide variety of Chubb AFx™ application modules makes the
system flexible enough for centralized or distributed installa-
tions, or premises combining both concepts.
SNAPP
The Chubb AFx™ platform employs a modular de-
sign : the basic panel can function as a standalone
intrusion system but easily expands by adding
SNAPP application modules. Each module will add
a specific functionality such as additional points of
protection, access control or elevator control.
MODULES
Definitions

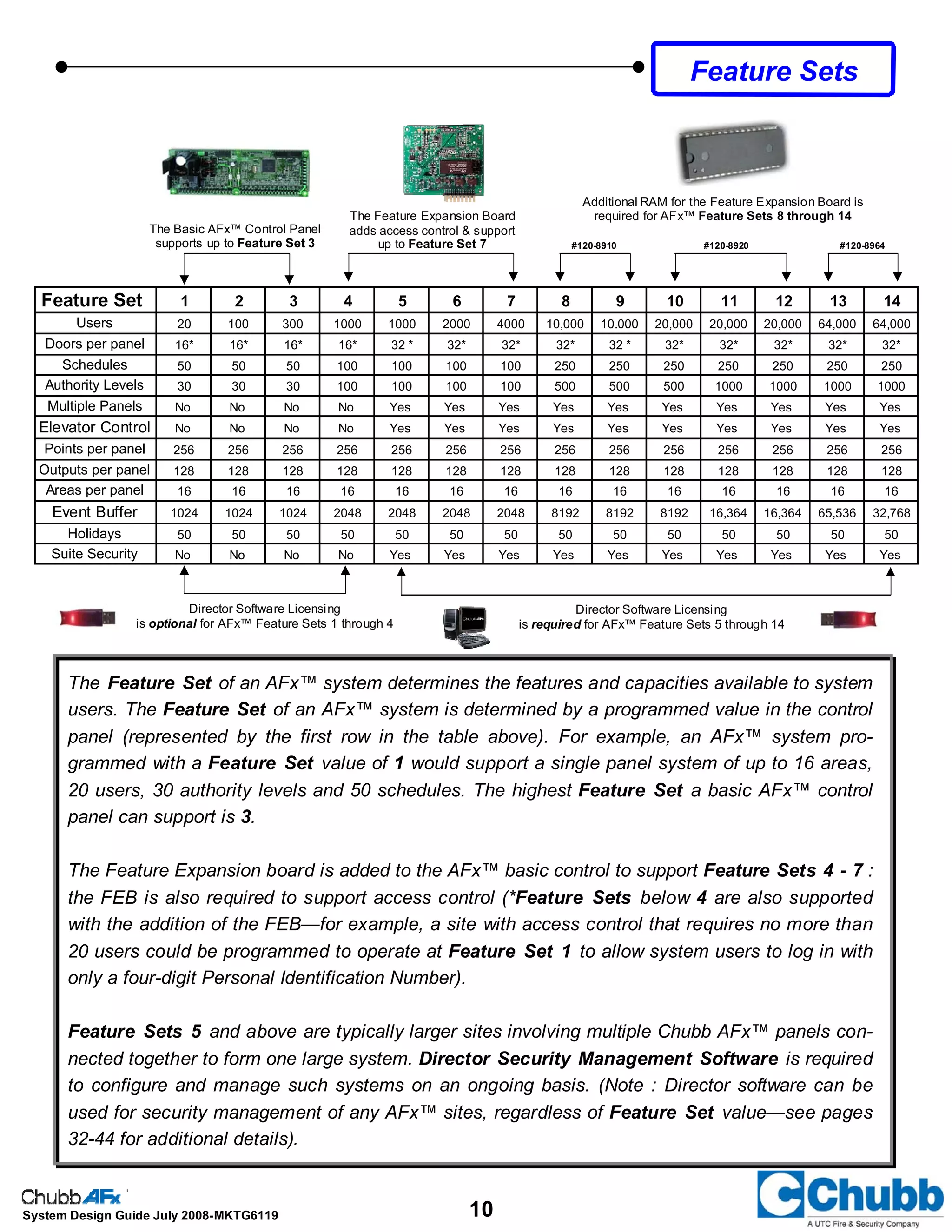

The Feature Set of an AFx™ system determines the features and capacities available to system
users. The Feature Set of an AFx™ system is determined by a programmed value in the control
panel (represented by the first row in the table above). For example, an AFx™ system pro-
grammed with a Feature Set value of 1 would support a single panel system of up to 16 areas,
20 users, 30 authority levels and 50 schedules. The highest Feature Set a basic AFx™ control
panel can support is 3.
The Feature Expansion board is added to the AFx™ basic control to support Feature Sets 4 - 7 :
the FEB is also required to support access control (*Feature Sets below 4 are also supported
with the addition of the FEB—for example, a site with access control that requires no more than
20 users could be programmed to operate at Feature Set 1 to allow system users to log in with
only a four-digit Personal Identification Number).
Feature Sets 5 and above are typically larger sites involving multiple Chubb AFx™ panels con-
nected together to form one large system. Director Security Management Software is required
to configure and manage such systems on an ongoing basis. (Note : Director software can be
used for security management of any AFx™ sites, regardless of Feature Set value—see pages
32-44 for additional details).
Feature Sets
Feature Set 1 2 3 4 5 6 7 8 9 10 11 12 13 14
Users 20 100 300 1000 1000 2000 4000 10,000 10.000 20,000 20,000 20,000 64,000 64,000
Doors per panel 16* 16* 16* 16* 32 * 32* 32* 32* 32 * 32* 32* 32* 32* 32*
Schedules 50 50 50 100 100 100 100 250 250 250 250 250 250 250
Authority Levels 30 30 30 100 100 100 100 500 500 500 1000 1000 1000 1000
Multiple Panels No No No No Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Elevator Control No No No No Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Points per panel 256 256 256 256 256 256 256 256 256 256 256 256 256 256
Outputs per panel 128 128 128 128 128 128 128 128 128 128 128 128 128 128
Areas per panel 16 16 16 16 16 16 16 16 16 16 16 16 16 16
Event Buffer 1024 1024 1024 2048 2048 2048 2048 8192 8192 8192 16,364 16,364 65,536 32,768
Holidays 50 50 50 50 50 50 50 50 50 50 50 50 50 50
Suite Security No No No No Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
The Basic AFx™ Control Panel
supports up to Feature Set 3
The Feature Expansion Board
adds access control & support
up to Feature Set 7
Additional RAM for the Feature Expansion Board is
required for AFx™ Feature Sets 8 through 14
Director Software Licensing
is required for AFx™ Feature Sets 5 through 14
Director Software Licensing
is optional for AFx™ Feature Sets 1 through 4
#120-8910 #120-8920 #120-8964

11

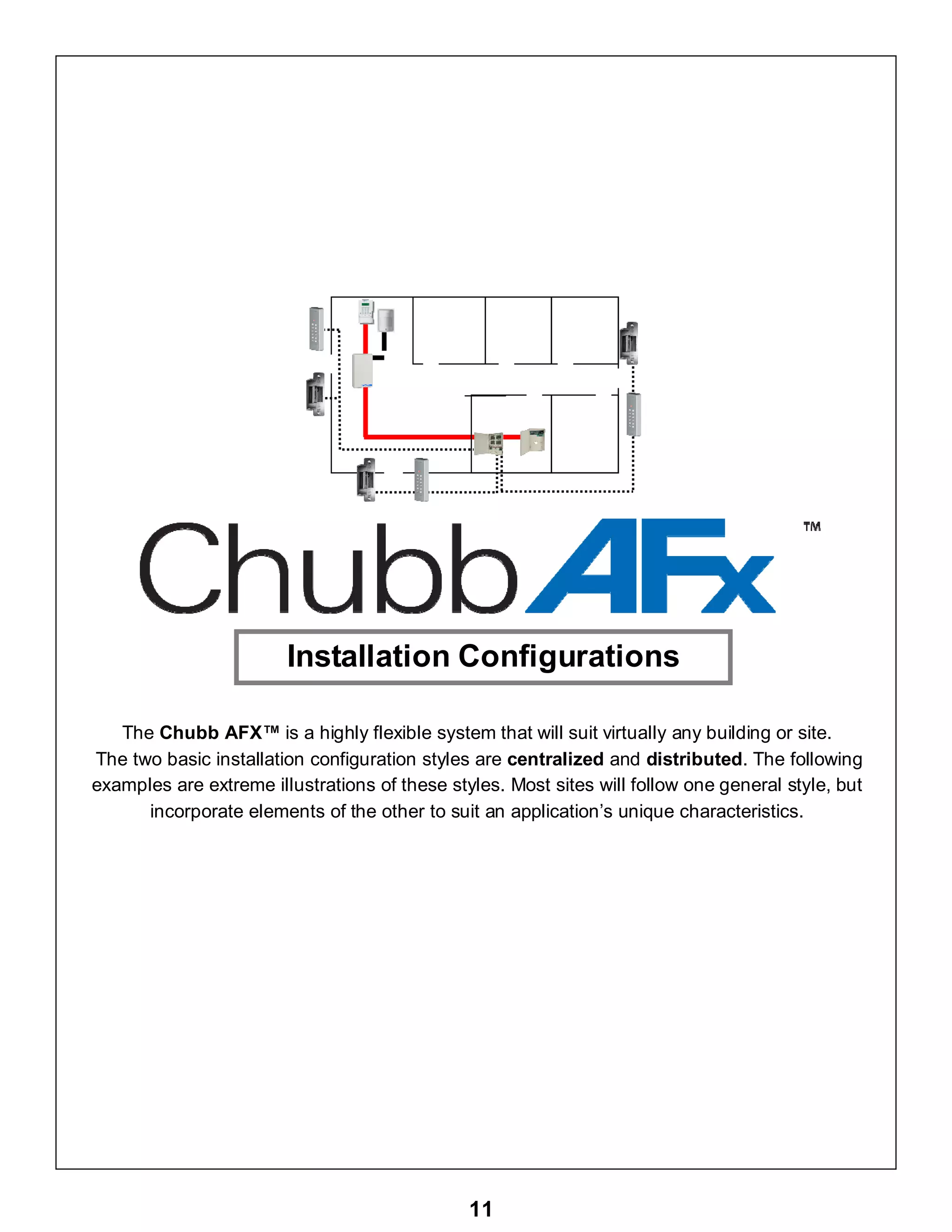

The Chubb AFX™ is a highly flexible system that will suit virtually any building or site.
The two basic installation configuration styles are centralized and distributed. The following
examples are extreme illustrations of these styles. Most sites will follow one general style, but
incorporate elements of the other to suit an application’s unique characteristics.
Installation Configurations

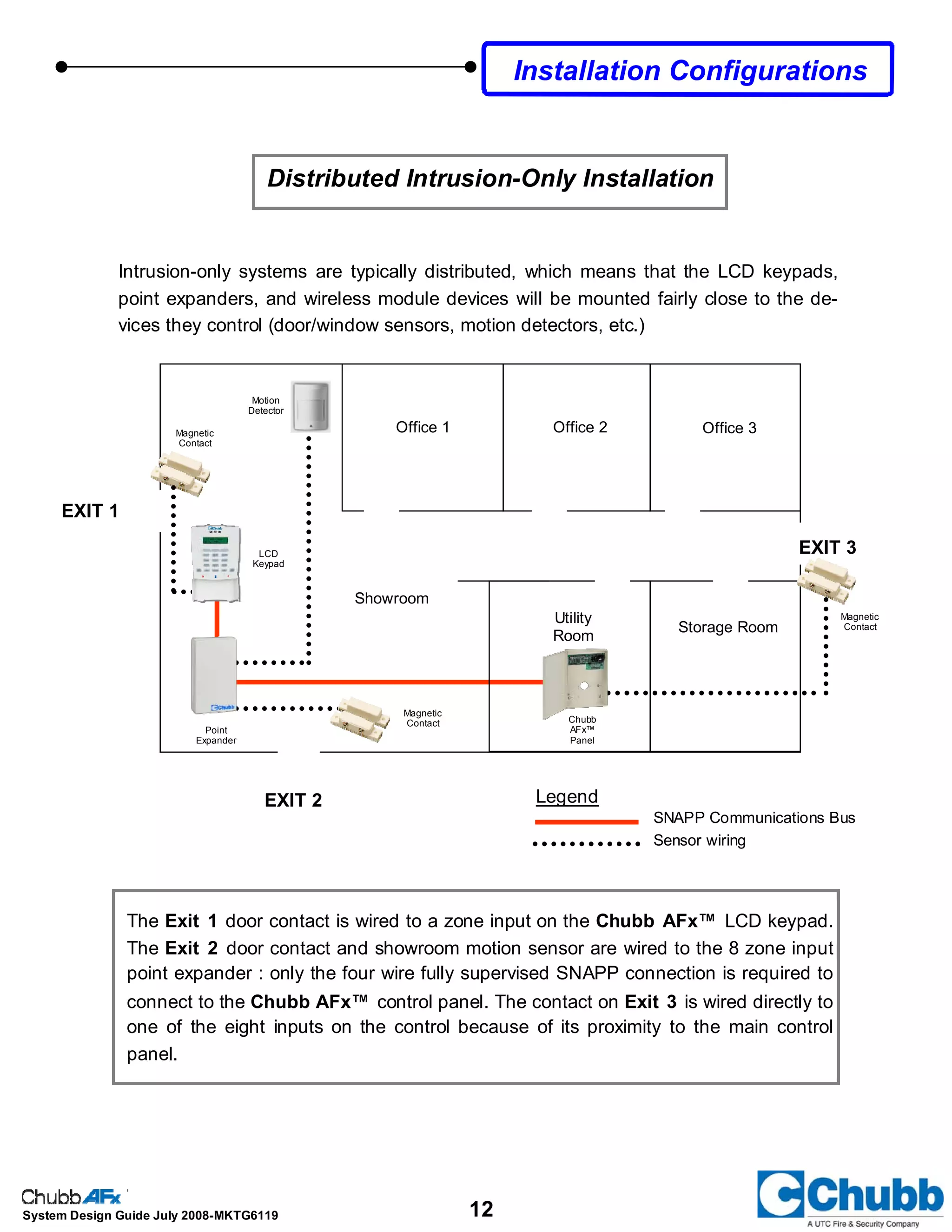

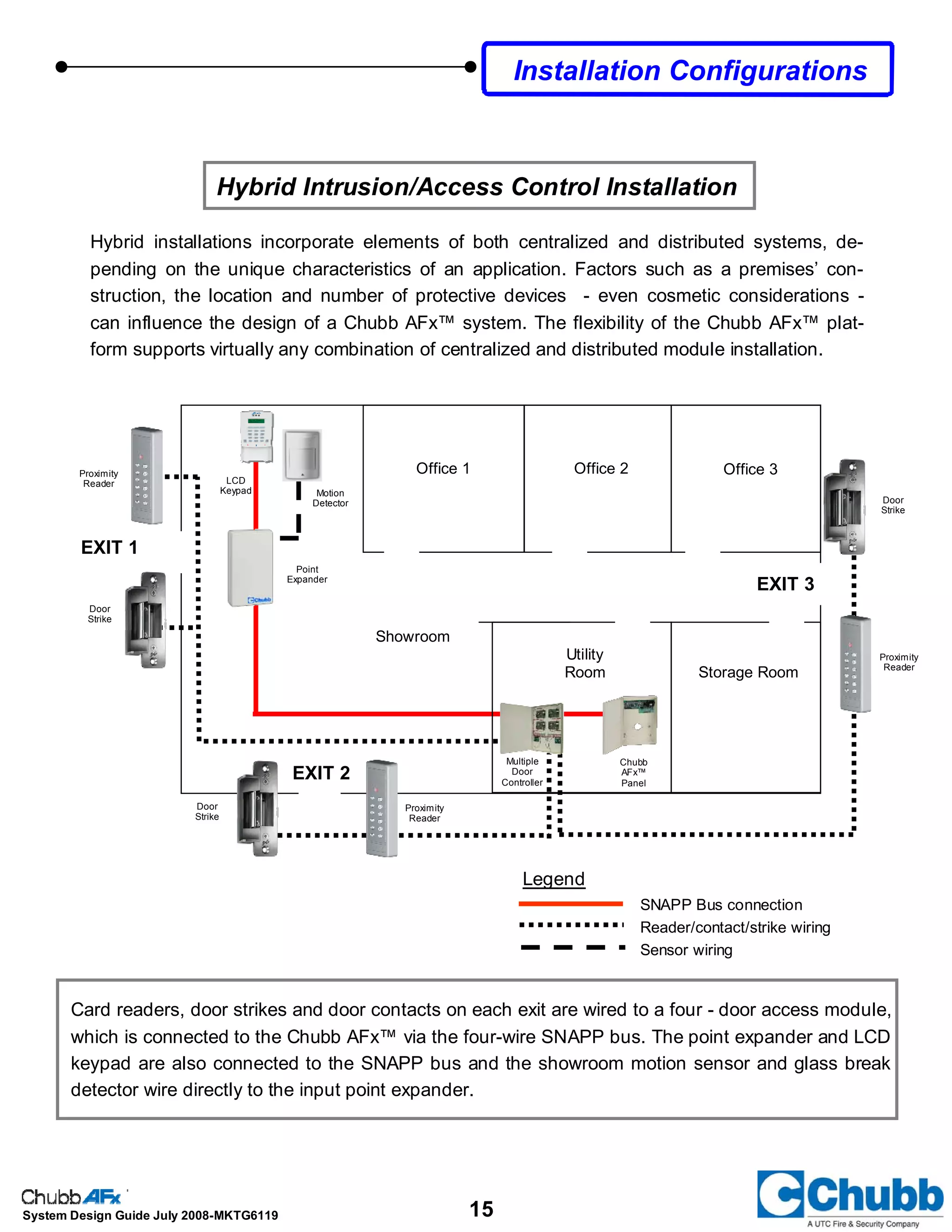

The Exit 1 door contact is wired to a zone input on the Chubb AFx™ LCD keypad.
The Exit 2 door contact and showroom motion sensor are wired to the 8 zone input
point expander : only the four wire fully supervised SNAPP connection is required to
connect to the Chubb AFx™ control panel. The contact on Exit 3 is wired directly to
one of the eight inputs on the control because of its proximity to the main control
panel.
Intrusion-only systems are typically distributed, which means that the LCD keypads,
point expanders, and wireless module devices will be mounted fairly close to the de-
vices they control (door/window sensors, motion detectors, etc.)
Office 1 Office 2 Office 3
Storage Room
Utility
Room
Showroom
EXIT 1
EXIT 2 Legend
SNAPP Communications Bus
Sensor wiring
EXIT 3
Magnetic
Contact
Magnetic
Contact
Point
Expander
Magnetic
Contact
Motion
Detector
LCD
Keypad
Chubb
AFx™
Panel
Distributed Intrusion-Only Installation

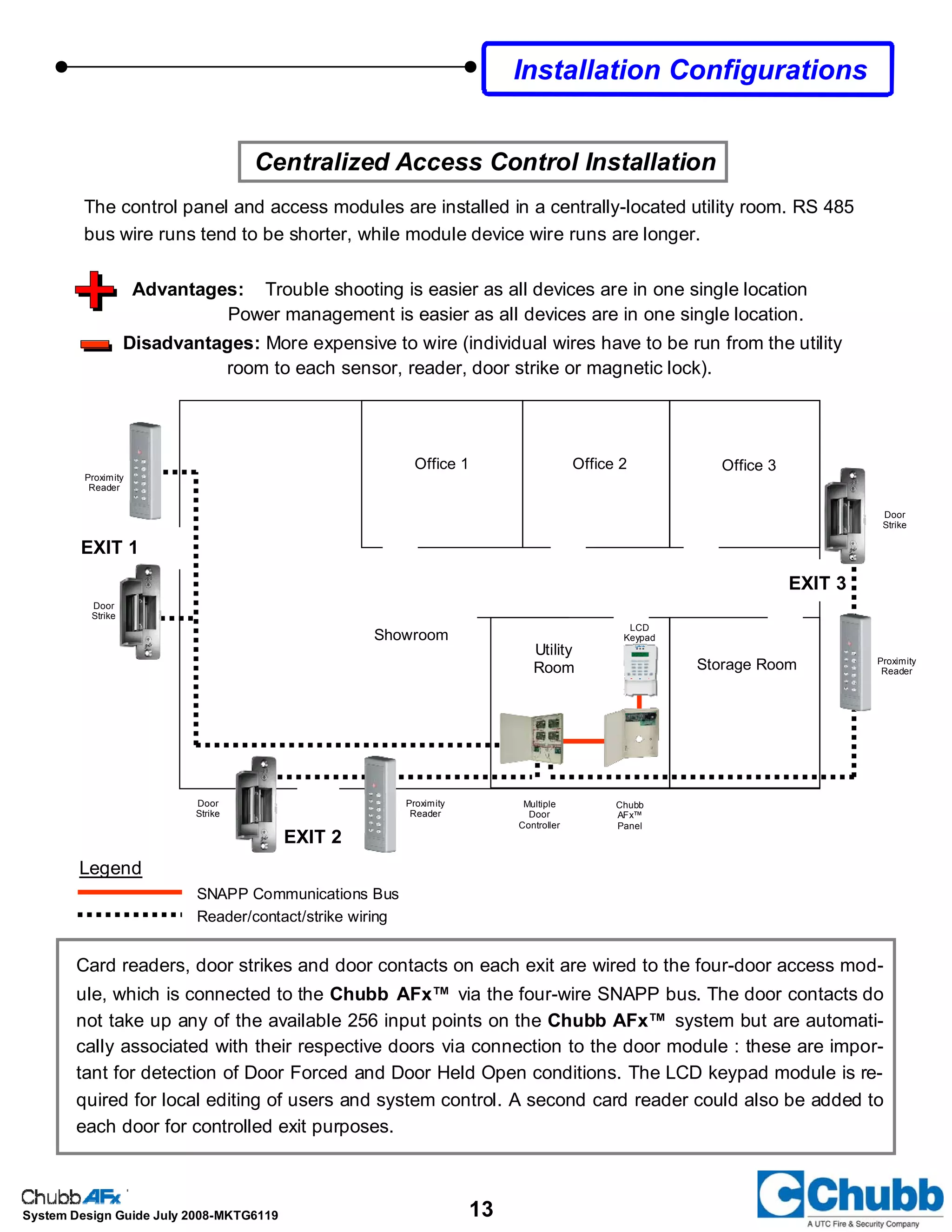

Centralized Access Control Installation
The control panel and access modules are installed in a centrally-located utility room. RS 485
bus wire runs tend to be shorter, while module device wire runs are longer.
Advantages: Trouble shooting is easier as all devices are in one single location
Power management is easier as all devices are in one single location.
Disadvantages: More expensive to wire (individual wires have to be run from the utility
room to each sensor, reader, door strike or magnetic lock).
Storage Room
Utility
Room
Showroom
Legend
Reader/contact/strike wiring
EXIT 1
EXIT 2
EXIT 3
Card readers, door strikes and door contacts on each exit are wired to the four-door access mod-
ule, which is connected to the Chubb AFx™ via the four-wire SNAPP bus. The door contacts do
not take up any of the available 256 input points on the Chubb AFx™ system but are automati-
cally associated with their respective doors via connection to the door module : these are impor-
tant for detection of Door Forced and Door Held Open conditions. The LCD keypad module is re-
quired for local editing of users and system control. A second card reader could also be added to
each door for controlled exit purposes.
Chubb
AFx™
Panel
Proximity
Reader
Multiple
Door
Controller
Door
Strike
Door
Strike
Proximity
Reader
Door
Strike
Proximity
Reader
LCD
Keypad

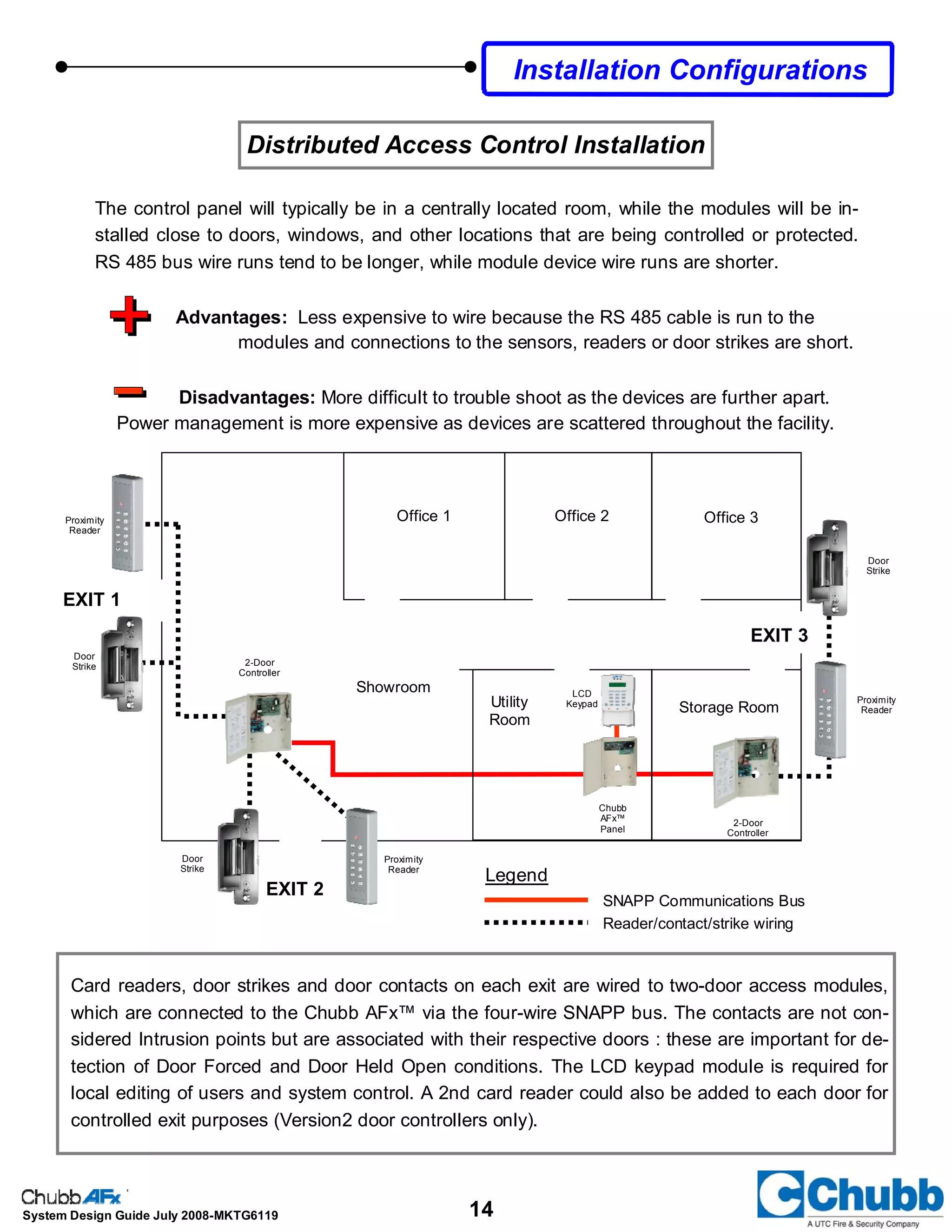

Distributed Access Control Installation
The control panel will typically be in a centrally located room, while the modules will be in-
stalled close to doors, windows, and other locations that are being controlled or protected.
RS 485 bus wire runs tend to be longer, while module device wire runs are shorter.
Advantages: Less expensive to wire because the RS 485 cable is run to the
modules and connections to the sensors, readers or door strikes are short.
Disadvantages: More difficult to trouble shoot as the devices are further apart.
Power management is more expensive as devices are scattered throughout the facility.
Storage RoomUtility
Room
Showroom
Legend
EXIT 1
EXIT 2
EXIT 3
Card readers, door strikes and door contacts on each exit are wired to two-door access modules,
which are connected to the Chubb AFx™ via the four-wire SNAPP bus. The contacts are not con-
sidered Intrusion points but are associated with their respective doors : these are important for de-
tection of Door Forced and Door Held Open conditions. The LCD keypad module is required for
local editing of users and system control. A 2nd card reader could also be added to each door for
controlled exit purposes (Version2 door controllers only).
Chubb
AFx™
Panel
Door
Strike
Proximity
Reader
Door
Strike
Door
Strike
Proximity
Reader
2-Door
Controller
2-Door
Controller
Proximity
Reader
LCD
Keypad

Hybrid Intrusion/Access Control Installation
Hybrid installations incorporate elements of both centralized and distributed systems, de-
pending on the unique characteristics of an application. Factors such as a premises’ con-
struction, the location and number of protective devices - even cosmetic considerations -
can influence the design of a Chubb AFx™ system. The flexibility of the Chubb AFx™ plat-
form supports virtually any combination of centralized and distributed module installation.
Storage Room
Utility
Room
Showroom
Legend
SNAPP Bus connection
Sensor wiring
EXIT 1
EXIT 2
EXIT 3
Card readers, door strikes and door contacts on each exit are wired to a four - door access module,
which is connected to the Chubb AFx™ via the four-wire SNAPP bus. The point expander and LCD
keypad are also connected to the SNAPP bus and the showroom motion sensor and glass break
detector wire directly to the input point expander.
Chubb
AFx™
Panel
Door
Strike
Proximity
Reader
Door
Strike
Proximity
Reader
Point
Expander
Motion
Detector
LCD
Keypad
Multiple
Door
Controller
Door
Strike
Proximity
Reader

16
Packages and Application Modules

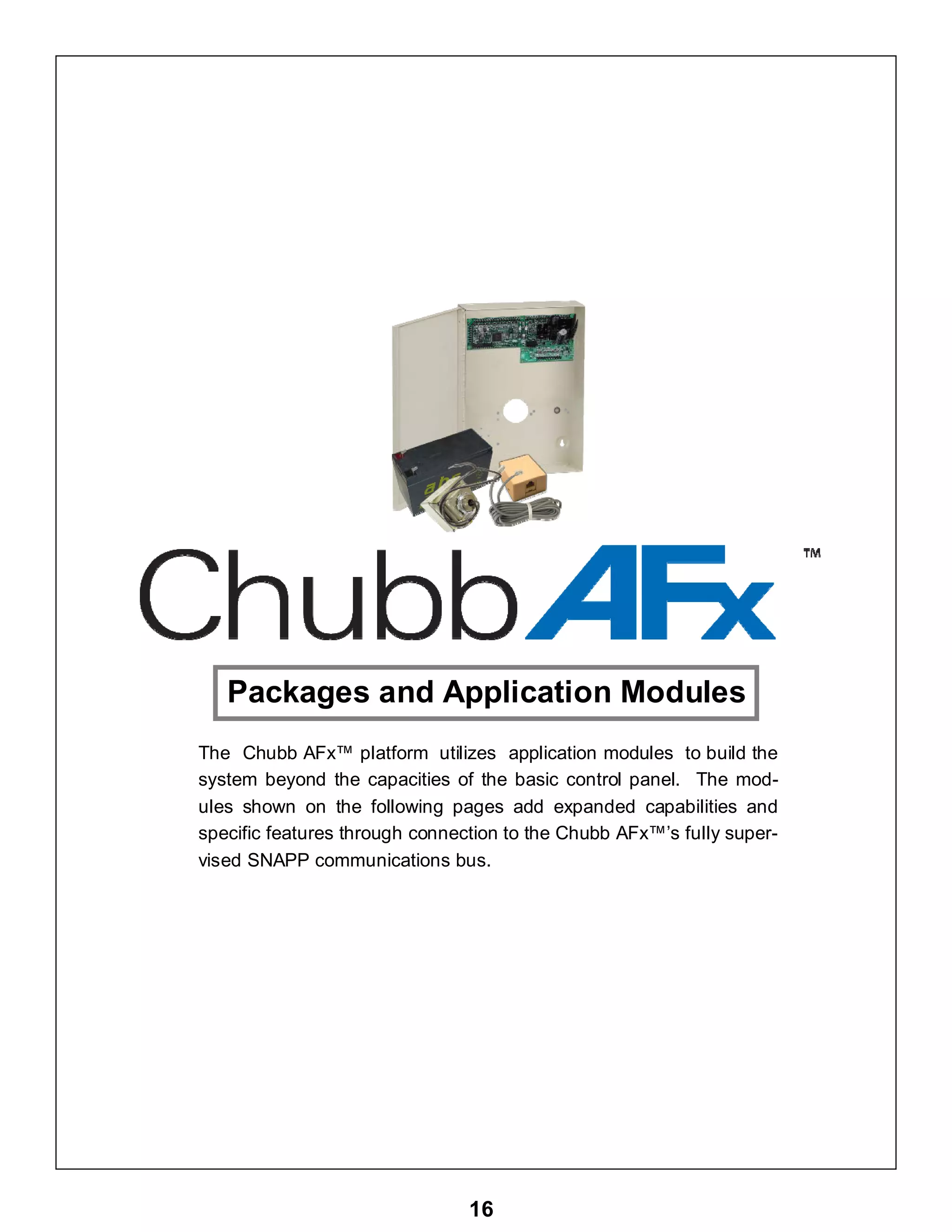

The Chubb AFx™ platform utilizes application modules to build the
system beyond the capacities of the basic control panel. The mod-
ules shown on the following pages add expanded capabilities and
specific features through connection to the Chubb AFx™’s fully super-
vised SNAPP communications bus.

Access Control
Director Security Management Software
Wireless Sensors
Point Expansion
Graphic DisplaySuite Security
Local Control
Chubb AFx™
System Architecture

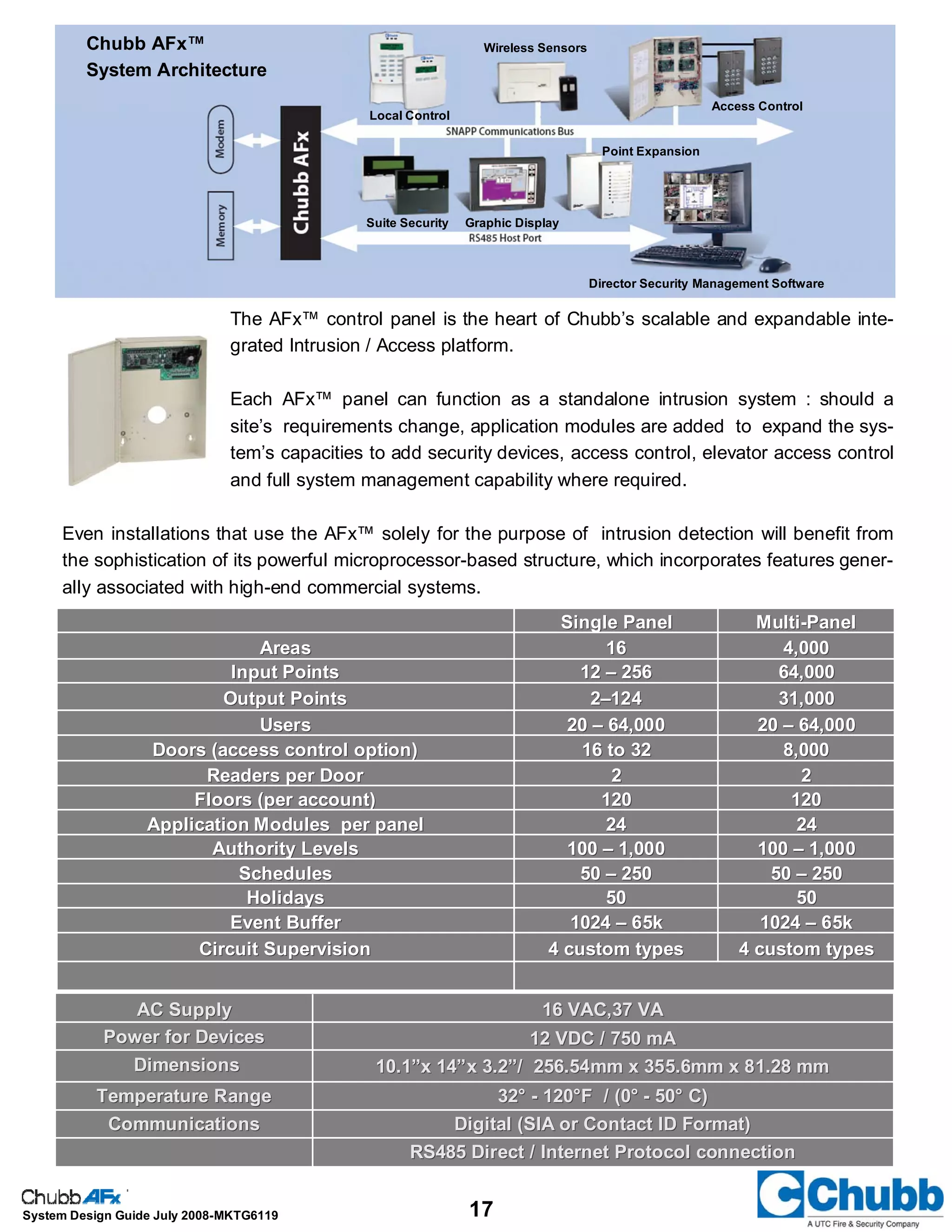

The AFx™ control panel is the heart of Chubb’s scalable and expandable inte-
grated Intrusion / Access platform.
Each AFx™ panel can function as a standalone intrusion system : should a
site’s requirements change, application modules are added to expand the sys-
tem’s capacities to add security devices, access control, elevator access control
and full system management capability where required.
Even installations that use the AFx™ solely for the purpose of intrusion detection will benefit from
the sophistication of its powerful microprocessor-based structure, which incorporates features gener-
ally associated with high-end commercial systems.
Single PanelSingle Panel MultiMulti--PanelPanel
AreasAreas 1616 4,0004,000
Input PointsInput Points 1212 –– 256256 64,00064,000
Output PointsOutput Points 22––124124 31,00031,000
UsersUsers 2020 –– 64,00064,000 2020 –– 64,00064,000
Doors (access control option)Doors (access control option) 16 to 3216 to 32 8,0008,000
Readers per DoorReaders per Door 22 22
Floors (per account)Floors (per account) 120120 120120
Application Modules per panelApplication Modules per panel 2424 2424
Authority LevelsAuthority Levels 100100 –– 1,0001,000 100100 –– 1,0001,000
SchedulesSchedules 5050 –– 250250 5050 –– 250250
HolidaysHolidays 5050 5050
Event BufferEvent Buffer 10241024 –– 65k65k 10241024 –– 65k65k
Circuit SupervisionCircuit Supervision 4 custom types4 custom types 4 custom types4 custom types
AC SupplyAC Supply 16 VAC,37 VA16 VAC,37 VA
Power for DevicesPower for Devices 12 VDC / 750 mA12 VDC / 750 mA
DimensionsDimensions 10.1”x 14”x 3.2”/ 256.54mm x 355.6mm x 81.28 mm10.1”x 14”x 3.2”/ 256.54mm x 355.6mm x 81.28 mm
Temperature RangeTemperature Range 32°32° -- 120°F / (0°120°F / (0° -- 50° C)50° C)
RS485 Direct / Internet Protocol connectionRS485 Direct / Internet Protocol connection
CommunicationsCommunications Digital (SIA or Contact ID Format)Digital (SIA or Contact ID Format)

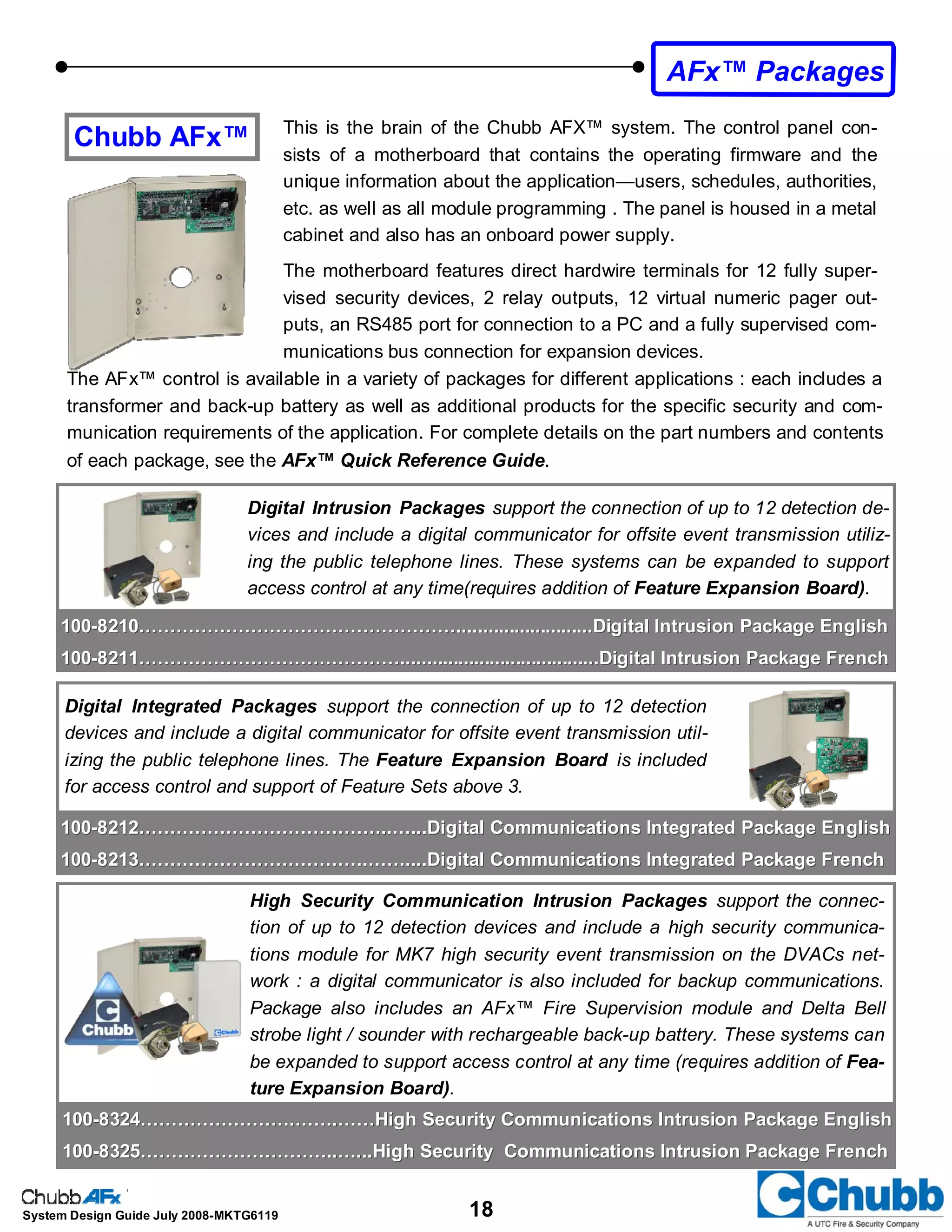

This is the brain of the Chubb AFX™ system. The control panel con-
sists of a motherboard that contains the operating firmware and the
unique information about the application—users, schedules, authorities,
etc. as well as all module programming . The panel is housed in a metal
cabinet and also has an onboard power supply.
The motherboard features direct hardwire terminals for 12 fully super-
vised security devices, 2 relay outputs, 12 virtual numeric pager out-
puts, an RS485 port for connection to a PC and a fully supervised com-
munications bus connection for expansion devices.
Chubb AFx™
The AFx™ control is available in a variety of packages for different applications : each includes a
transformer and back-up battery as well as additional products for the specific security and com-
munication requirements of the application. For complete details on the part numbers and contents
of each package, see the AFx™ Quick Reference Guide.
Digital Intrusion Packages support the connection of up to 12 detection de-
vices and include a digital communicator for offsite event transmission utiliz-
ing the public telephone lines. These systems can be expanded to support
access control at any time(requires addition of Feature Expansion Board).
Digital Integrated Packages support the connection of up to 12 detection
devices and include a digital communicator for offsite event transmission util-
izing the public telephone lines. The Feature Expansion Board is included
for access control and support of Feature Sets above 3.
AFx™ Packages
100100--8210……………………………………………..........................Digital Intrusion Package English8210……………………………………………..........................Digital Intrusion Package English
100100--8211……………………………………......................................Digital Intrusion Package French8211……………………………………......................................Digital Intrusion Package French
100100--8212…………………………………..…...Digital Communications Integrated Package English8212…………………………………..…...Digital Communications Integrated Package English
100100--8213……………………………….……....Digital Communications Integrated Package French8213……………………………….……....Digital Communications Integrated Package French

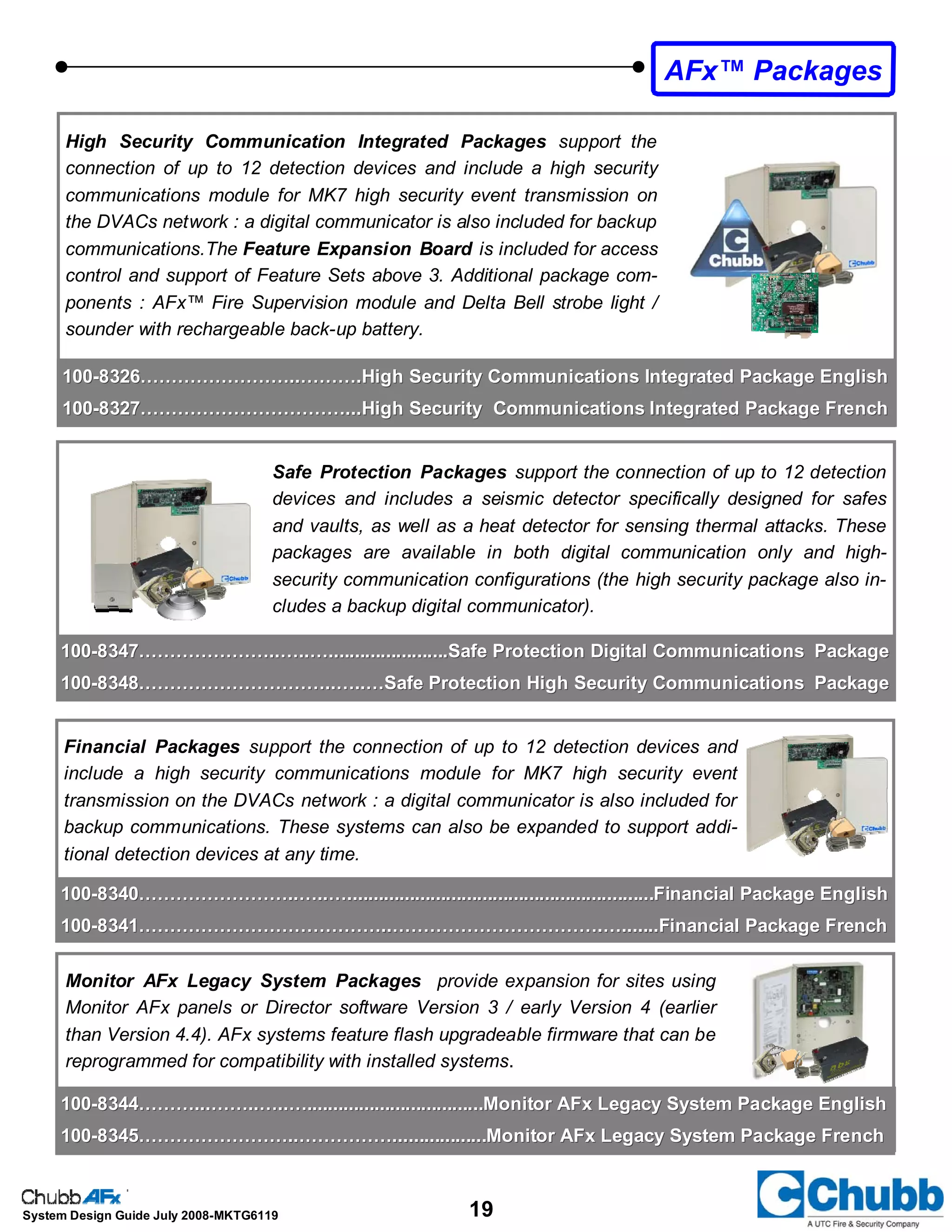

High Security Communication Intrusion Packages support the connec-
tion of up to 12 detection devices and include a high security communica-
tions module for MK7 high security event transmission on the DVACs net-
work : a digital communicator is also included for backup communications.
Package also includes an AFx™ Fire Supervision module and Delta Bell
strobe light / sounder with rechargeable back-up battery. These systems can
be expanded to support access control at any time (requires addition of Fea-
ture Expansion Board).
100100--8324…………………….…….……High Security Communications Intrusion Package English8324…………………….…….……High Security Communications Intrusion Package English
100100--8325…………………………..…...High Security Communications Intrusion Package French8325…………………………..…...High Security Communications Intrusion Package French

Safe Protection Packages support the connection of up to 12 detection
devices and includes a seismic detector specifically designed for safes
and vaults, as well as a heat detector for sensing thermal attacks. These
packages are available in both digital communication only and high-
security communication configurations (the high security package also in-
cludes a backup digital communicator).
Financial Packages support the connection of up to 12 detection devices and
include a high security communications module for MK7 high security event
transmission on the DVACs network : a digital communicator is also included for
backup communications. These systems can also be expanded to support addi-
tional detection devices at any time.
High Security Communication Integrated Packages support the
connection of up to 12 detection devices and include a high security
communications module for MK7 high security event transmission on
the DVACs network : a digital communicator is also included for backup
communications.The Feature Expansion Board is included for access
control and support of Feature Sets above 3. Additional package com-
ponents : AFx™ Fire Supervision module and Delta Bell strobe light /
sounder with rechargeable back-up battery.
Monitor AFx Legacy System Packages provide expansion for sites using
Monitor AFx panels or Director software Version 3 / early Version 4 (earlier
than Version 4.4). AFx systems feature flash upgradeable firmware that can be
reprogrammed for compatibility with installed systems.
AFx™ Packages
100100--8326……………………..……….High Security Communications Integrated Package English8326……………………..……….High Security Communications Integrated Package English
100100--8327……………………………...High Security Communications Integrated Package French8327……………………………...High Security Communications Integrated Package French
100100--8347…………………..…..….......................Safe Protection Digital Communications Package8347…………………..…..….......................Safe Protection Digital Communications Package
100100--8348…………………………..…..…Safe Protection High Security Communications Package8348…………………………..…..…Safe Protection High Security Communications Package
100100--8340……………………..…..…...........................................................Financial Package English8340……………………..…..…...........................................................Financial Package English
100100--8341…………………………………..…………………………….….......Financial Package French8341…………………………………..…………………………….….......Financial Package French
100100--8344………...……..…..…..................................Monitor AFx Legacy System Package English8344………...……..…..…..................................Monitor AFx Legacy System Package English
100100--8345……………………..……………..................Monitor AFx Legacy System Package French8345……………………..……………..................Monitor AFx Legacy System Package French

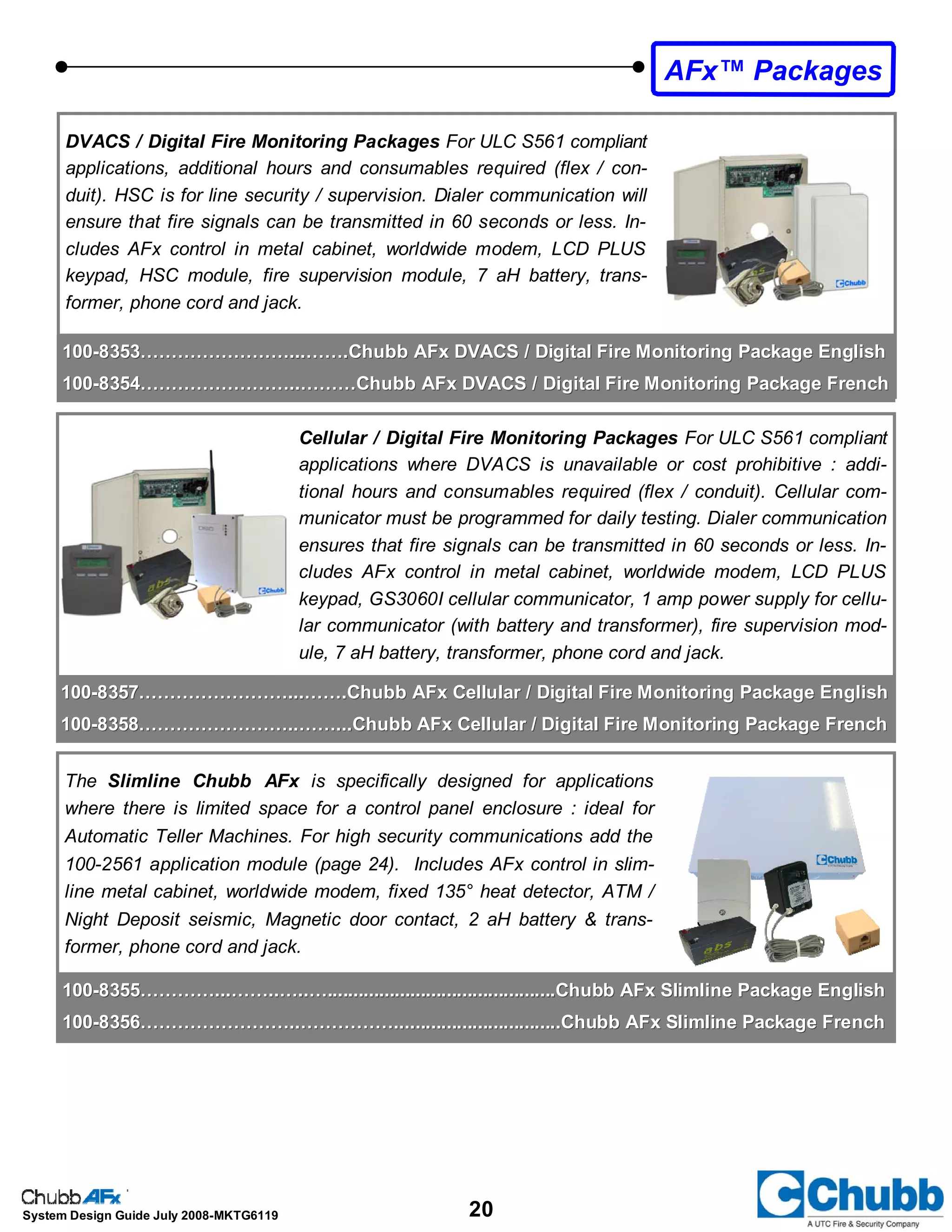

Cellular / Digital Fire Monitoring Packages For ULC S561 compliant
applications where DVACS is unavailable or cost prohibitive : addi-
tional hours and consumables required (flex / conduit). Cellular com-
municator must be programmed for daily testing. Dialer communication
ensures that fire signals can be transmitted in 60 seconds or less. In-
cludes AFx control in metal cabinet, worldwide modem, LCD PLUS
keypad, GS3060I cellular communicator, 1 amp power supply for cellu-
lar communicator (with battery and transformer), fire supervision mod-
ule, 7 aH battery, transformer, phone cord and jack.
DVACS / Digital Fire Monitoring Packages For ULC S561 compliant
applications, additional hours and consumables required (flex / con-
duit). HSC is for line security / supervision. Dialer communication will
ensure that fire signals can be transmitted in 60 seconds or less. In-
cludes AFx control in metal cabinet, worldwide modem, LCD PLUS
keypad, HSC module, fire supervision module, 7 aH battery, trans-
former, phone cord and jack.
100100--8353……………………...…….Chubb AFx DVACS / Digital Fire Monitoring Package English8353……………………...…….Chubb AFx DVACS / Digital Fire Monitoring Package English
100100--8354……………………..………Chubb AFx DVACS / Digital Fire Monitoring Package French8354……………………..………Chubb AFx DVACS / Digital Fire Monitoring Package French
100100--8357……………………...…….Chubb AFx Cellular / Digital Fire Monitoring Package English8357……………………...…….Chubb AFx Cellular / Digital Fire Monitoring Package English
100100--8358……………………..……...Chubb AFx Cellular / Digital Fire Monitoring Package French8358……………………..……...Chubb AFx Cellular / Digital Fire Monitoring Package French
AFx™ Packages
The Slimline Chubb AFx is specifically designed for applications
where there is limited space for a control panel enclosure : ideal for
Automatic Teller Machines. For high security communications add the
100-2561 application module (page 24). Includes AFx control in slim-
line metal cabinet, worldwide modem, fixed 135° heat detector, ATM /
Night Deposit seismic, Magnetic door contact, 2 aH battery & trans-
former, phone cord and jack.
100100--8355…………...……..…..…............................................Chubb AFx Slimline Package English8355…………...……..…..…............................................Chubb AFx Slimline Package English
100100--8356……………………..……………................................Chubb AFx Slimline Package French8356……………………..……………................................Chubb AFx Slimline Package French

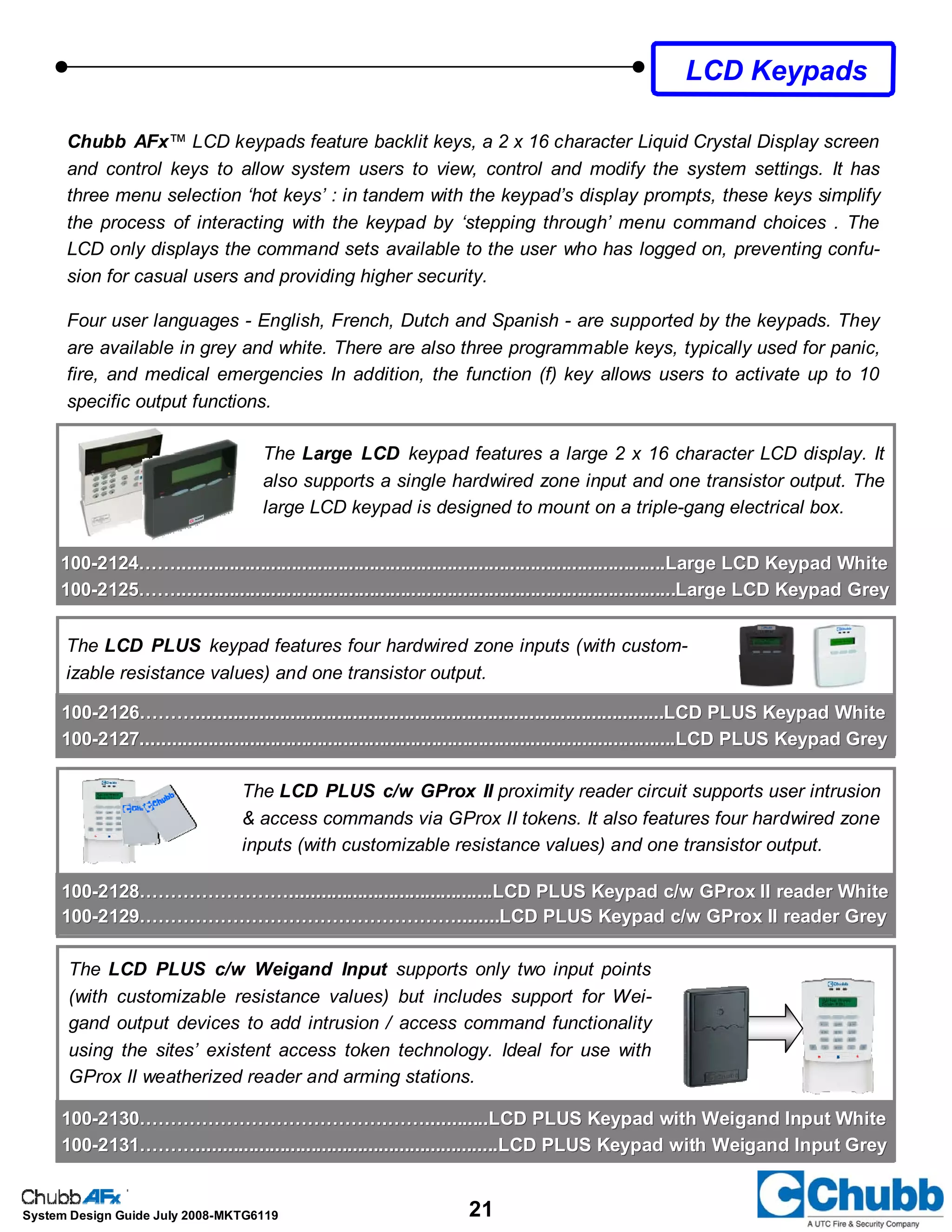

Chubb AFx™ LCD keypads feature backlit keys, a 2 x 16 character Liquid Crystal Display screen
and control keys to allow system users to view, control and modify the system settings. It has
three menu selection ‘hot keys’ : in tandem with the keypad’s display prompts, these keys simplify
the process of interacting with the keypad by ‘stepping through’ menu command choices . The
LCD only displays the command sets available to the user who has logged on, preventing confu-
sion for casual users and providing higher security.
Four user languages - English, French, Dutch and Spanish - are supported by the keypads. They
are available in grey and white. There are also three programmable keys, typically used for panic,
fire, and medical emergencies In addition, the function (f) key allows users to activate up to 10
specific output functions.
LCD Keypads
The Large LCD keypad features a large 2 x 16 character LCD display. It
also supports a single hardwired zone input and one transistor output. The
large LCD keypad is designed to mount on a triple-gang electrical box.
The LCD PLUS keypad features four hardwired zone inputs (with custom-
izable resistance values) and one transistor output.
The LCD PLUS c/w GProx II proximity reader circuit supports user intrusion
& access commands via GProx II tokens. It also features four hardwired zone
inputs (with customizable resistance values) and one transistor output.
The LCD PLUS c/w Weigand Input supports only two input points
(with customizable resistance values) but includes support for Wei-
gand output devices to add intrusion / access command functionality
using the sites’ existent access token technology. Ideal for use with
GProx II weatherized reader and arming stations.
100100--2126………..........................................................................................LCD PLUS Keypad White2126………..........................................................................................LCD PLUS Keypad White
100100--2127.......................................................................................................LCD PLUS Keypad G2127.......................................................................................................LCD PLUS Keypad Greyrey
100100--2128…………………….......................................LCD PLUS Keypad c/w GProx II reader White2128…………………….......................................LCD PLUS Keypad c/w GProx II reader White
100100--2129……………………………………………........LCD PLUS Keypad c/w GProx II reader Grey2129……………………………………………........LCD PLUS Keypad c/w GProx II reader Grey
100100--2130………………………………….……............LCD PLUS Keypad with Weigand Input White2130………………………………….……............LCD PLUS Keypad with Weigand Input White
100100--2131………..........................................................LCD PLUS Keypad with Weigand Input Grey2131………..........................................................LCD PLUS Keypad with Weigand Input Grey
100100--2124……..............................................................................................Large LCD Keypad White2124……..............................................................................................Large LCD Keypad White
100100--2125……................................................................................................Large LCD Keypad Grey2125……................................................................................................Large LCD Keypad Grey

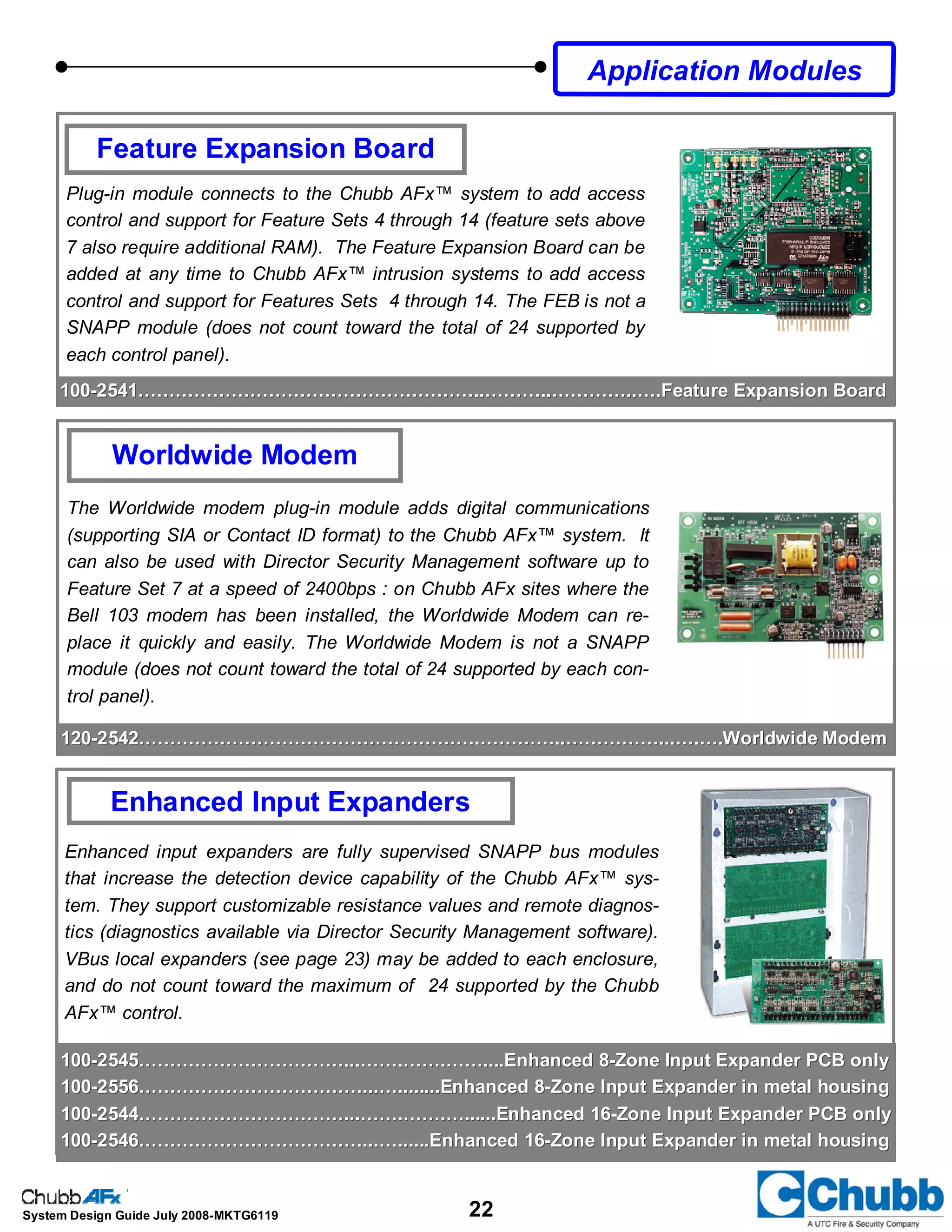

Worldwide Modem
The Worldwide modem plug-in module adds digital communications
(supporting SIA or Contact ID format) to the Chubb AFx™ system. It
can also be used with Director Security Management software up to
Feature Set 7 at a speed of 2400bps : on Chubb AFx sites where the
Bell 103 modem has been installed, the Worldwide Modem can re-
place it quickly and easily. The Worldwide Modem is not a SNAPP
module (does not count toward the total of 24 supported by each con-
trol panel).
Enhanced Input Expanders
Application Modules
100100--2541………………………………………………..………..…………..….Feature Expansion Board2541………………………………………………..………..…………..….Feature Expansion Board
Feature Expansion Board
Plug-in module connects to the Chubb AFx™ system to add access
control and support for Feature Sets 4 through 14 (feature sets above
7 also require additional RAM). The Feature Expansion Board can be
added at any time to Chubb AFx™ intrusion systems to add access
control and support for Features Sets 4 through 14. The FEB is not a
SNAPP module (does not count toward the total of 24 supported by
each control panel).
120120--2542……………………………………………….…………..……………...….….Worldwide Modem2542……………………………………………….…………..……………...….….Worldwide Modem
100100--2545……………………………...…….…….……....Enhanced 82545……………………………...…….…….……....Enhanced 8--Zone Input Expander PCB onlyZone Input Expander PCB only
100100--2556………………………………...…........Enhanced 82556………………………………...…........Enhanced 8--Zone Input Expander in metal housingZone Input Expander in metal housing
100100--2544……………………………...…….…….…......Enhanced 162544……………………………...…….…….…......Enhanced 16--Zone Input Expander PCB onlyZone Input Expander PCB only
100100--2546………………………………...…......Enhanced 162546………………………………...…......Enhanced 16--Zone Input Expander in metal housingZone Input Expander in metal housing
Enhanced input expanders are fully supervised SNAPP bus modules
that increase the detection device capability of the Chubb AFx™ sys-
tem. They support customizable resistance values and remote diagnos-
tics (diagnostics available via Director Security Management software).
VBus local expanders (see page 23) may be added to each enclosure,
and do not count toward the maximum of 24 supported by the Chubb
AFx™ control.

Chubb AFx™ Control
8-Input(100-2556) or 16-Input (100-2546)
SNAPP Expansion Module in Metal Housing
- room for two Vbus input or
output modules in housing
The 8 or 16-input SNAPP expansion
module occupies one of the 24 available
SNAPP slots .
Up to 16 VBus inputs
(2 x 8 VBus module 100-2549)
OR
Up to 16 VBus outputs
(2 x 8 VBus module
100-2547 [Transistor] or
100-2548 [Dry Contact])
without an additional
SNAPP module assignment
A combination of one Vbus Input & one
Vbus Output module may also be used.
12 Inputs
2 Relay Outputs

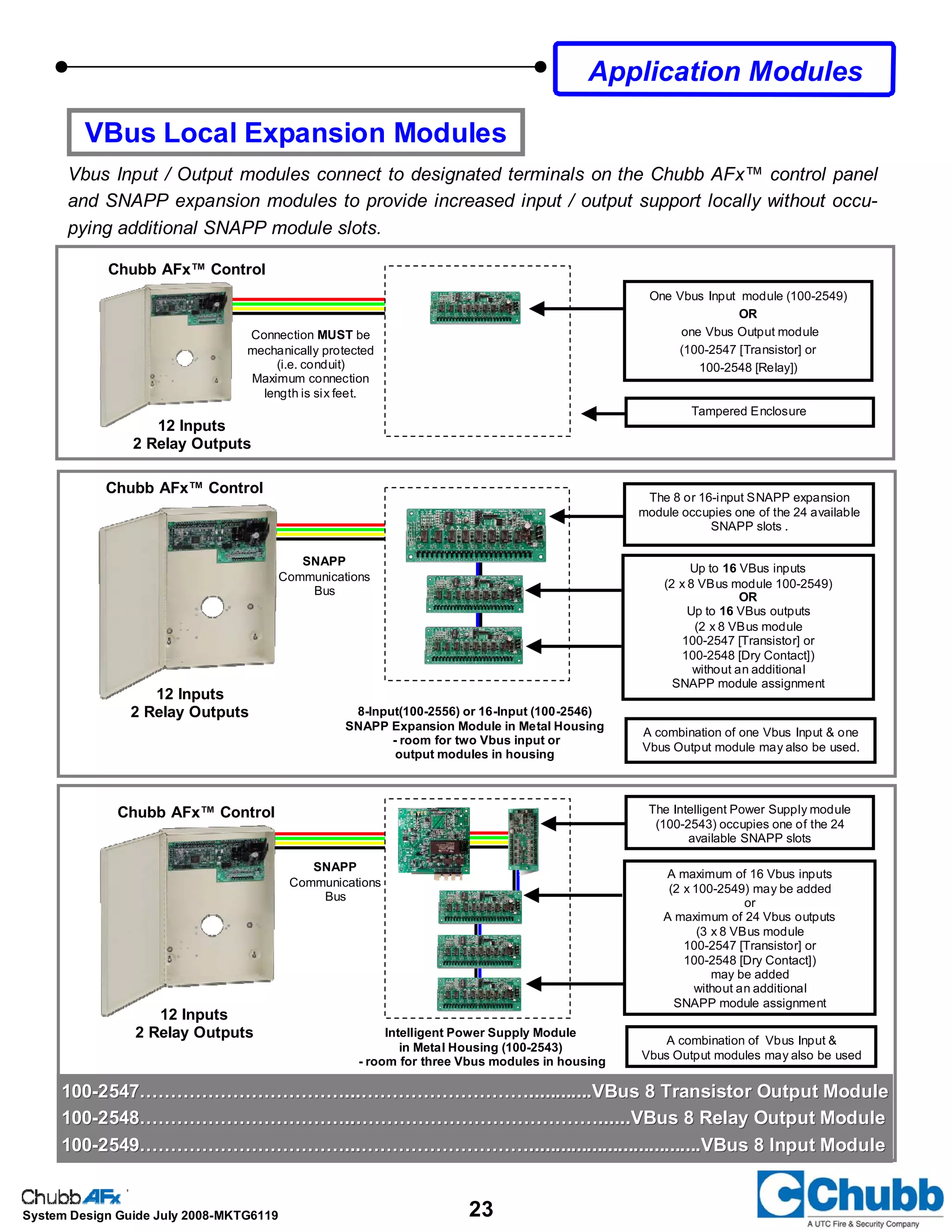

VBus Local Expansion Modules
Vbus Input / Output modules connect to designated terminals on the Chubb AFx™ control panel
and SNAPP expansion modules to provide increased input / output support locally without occu-
pying additional SNAPP module slots.
Intelligent Power Supply Module
in Metal Housing (100-2543)
- room for three Vbus modules in housing
The Intelligent Power Supply module
(100-2543) occupies one of the 24
available SNAPP slots
A maximum of 16 Vbus inputs
(2 x 100-2549) may be added
or
A maximum of 24 Vbus outputs
(3 x 8 VBus module
100-2547 [Transistor] or
100-2548 [Dry Contact])
may be added
without an additional
SNAPP module assignment
Application Modules
A combination of Vbus Input &
Vbus Output modules may also be used
100100--2547……………………………...………………………............VBus 8 Transistor Output Module2547……………………………...………………………............VBus 8 Transistor Output Module
100100--2548……………………………..…………………………………......VBus 8 Relay Output Module2548……………………………..…………………………………......VBus 8 Relay Output Module
100100--2549……………………………...……………………….................................VBus 8 Input Module2549……………………………...……………………….................................VBus 8 Input Module
12 Inputs
2 Relay Outputs
12 Inputs
2 Relay Outputs
One Vbus Input module (100-2549)
OR
one Vbus Output module
(100-2547 [Transistor] or
100-2548 [Relay])
Tampered Enclosure
Connection MUST be
mechanically protected
(i.e. conduit)
Maximum connection
length is six feet.
SNAPP
Communications
Bus
SNAPP
Communications
Bus

SMART / High-Security Communications / Printer Module

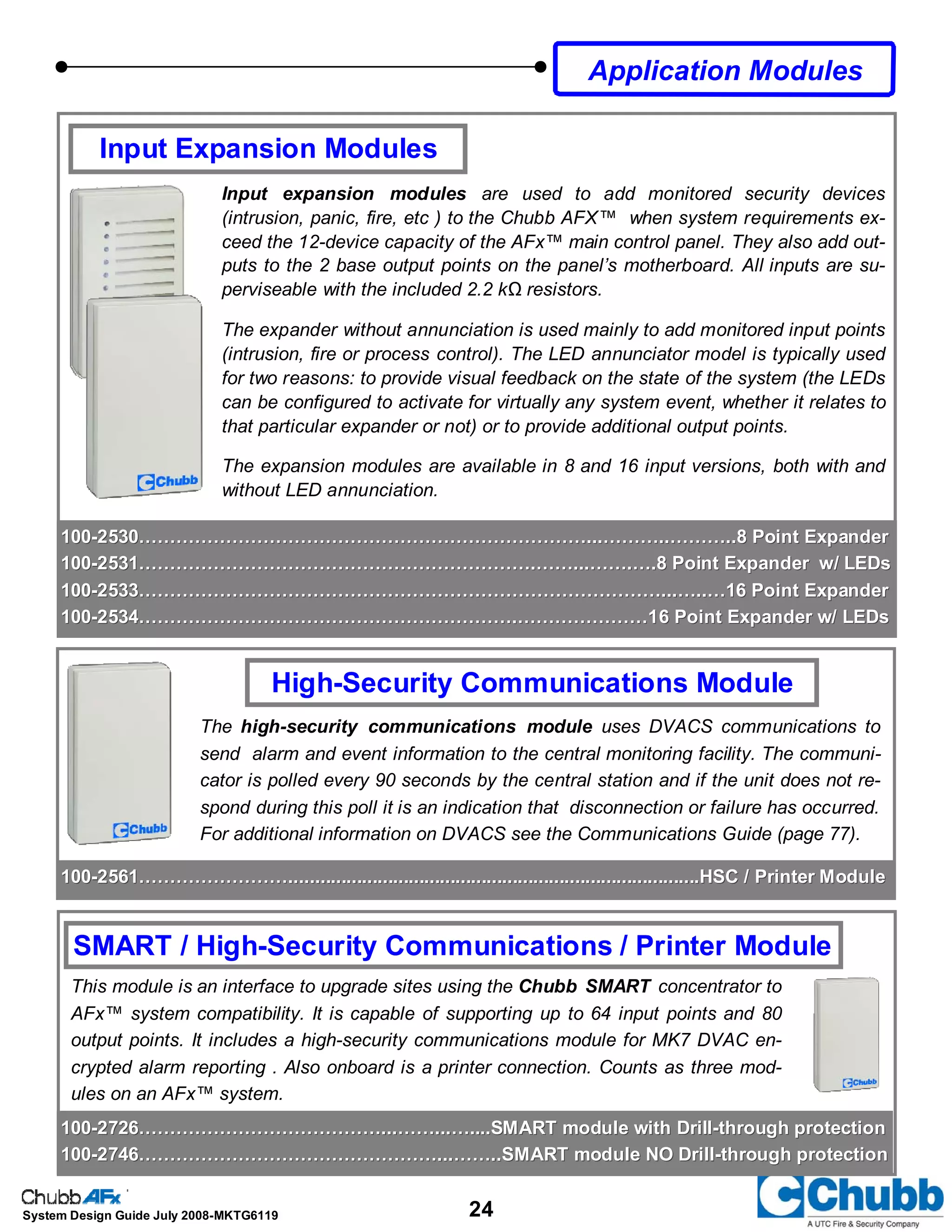

This module is an interface to upgrade sites using the Chubb SMART concentrator to
AFx™ system compatibility. It is capable of supporting up to 64 input points and 80
output points. It includes a high-security communications module for MK7 DVAC en-
crypted alarm reporting . Also onboard is a printer connection. Counts as three mod-
ules on an AFx™ system.
High-Security Communications Module

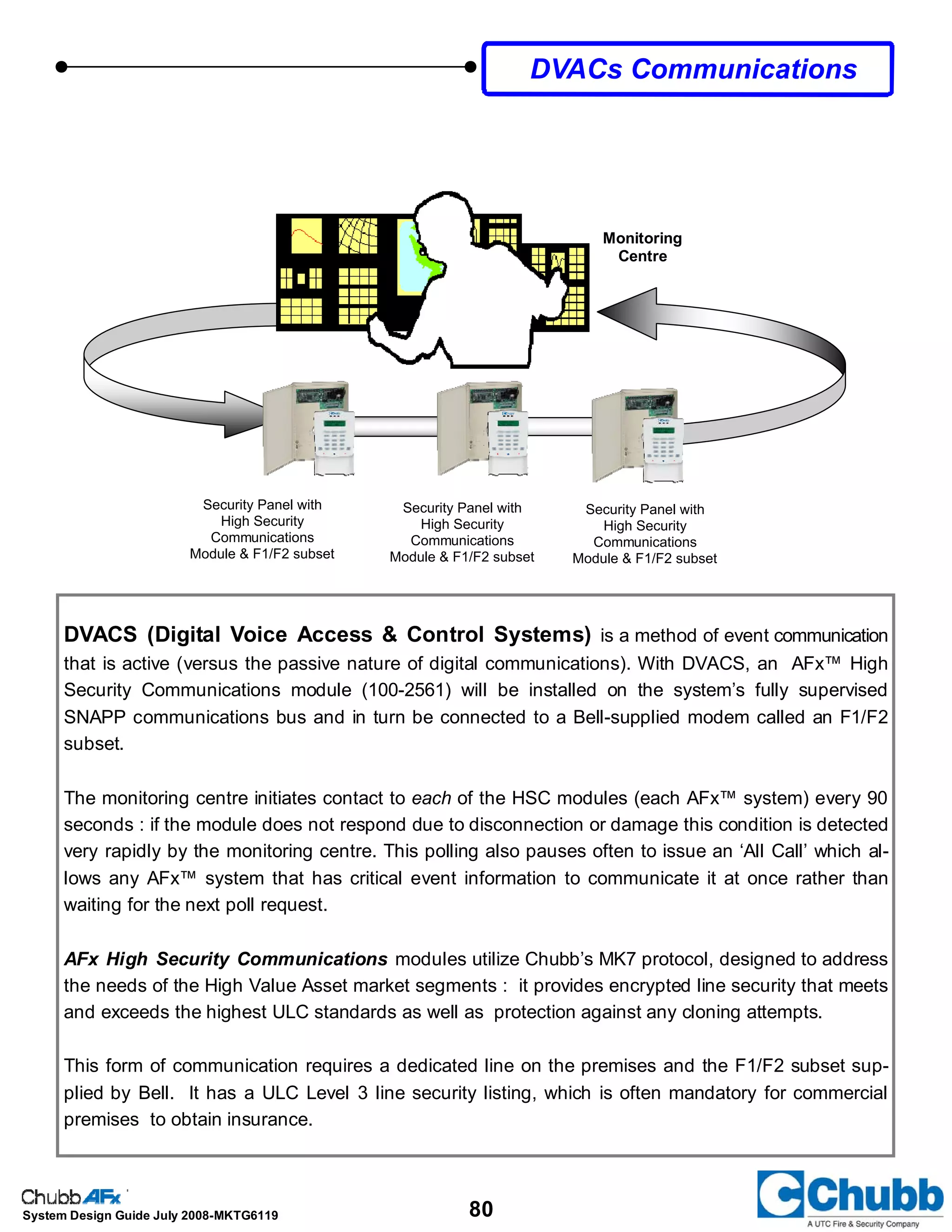

The high-security communications module uses DVACS communications to
send alarm and event information to the central monitoring facility. The communi-
cator is polled every 90 seconds by the central station and if the unit does not re-
spond during this poll it is an indication that disconnection or failure has occurred.
For additional information on DVACS see the Communications Guide (page 77).
Input Expansion Modules
Input expansion modules are used to add monitored security devices
(intrusion, panic, fire, etc ) to the Chubb AFX™ when system requirements ex-
ceed the 12-device capacity of the AFx™ main control panel. They also add out-
puts to the 2 base output points on the panel’s motherboard. All inputs are su-
perviseable with the included 2.2 kΩ resistors.
The expander without annunciation is used mainly to add monitored input points
(intrusion, fire or process control). The LED annunciator model is typically used
for two reasons: to provide visual feedback on the state of the system (the LEDs
can be configured to activate for virtually any system event, whether it relates to
that particular expander or not) or to provide additional output points.
The expansion modules are available in 8 and 16 input versions, both with and
without LED annunciation.
Application Modules
100100--2530………………………………………………………………...………..………..8 Point Expander2530………………………………………………………………...………..………..8 Point Expander
100100--2531……………………………………………………….……...…….….8 Point Expander w/ LEDs2531……………………………………………………….……...…….….8 Point Expander w/ LEDs
100100--2533…………………………………………………………………………...…..…16 Point Expander2533…………………………………………………………………………...…..…16 Point Expander
100100--2534…………………………………………………….…………………16 Point Expander w/ LEDs2534…………………………………………………….…………………16 Point Expander w/ LEDs
100100--2726…………………………………...……...…....SMART module with Drill2726…………………………………...……...…....SMART module with Drill--through protectionthrough protection
100100--2746…………………………………………...……..SMART module NO Drill2746…………………………………………...……..SMART module NO Drill--through protectionthrough protection
100100--2561……………………...............................................................................HSC / Printer Module2561……………………...............................................................................HSC / Printer Module

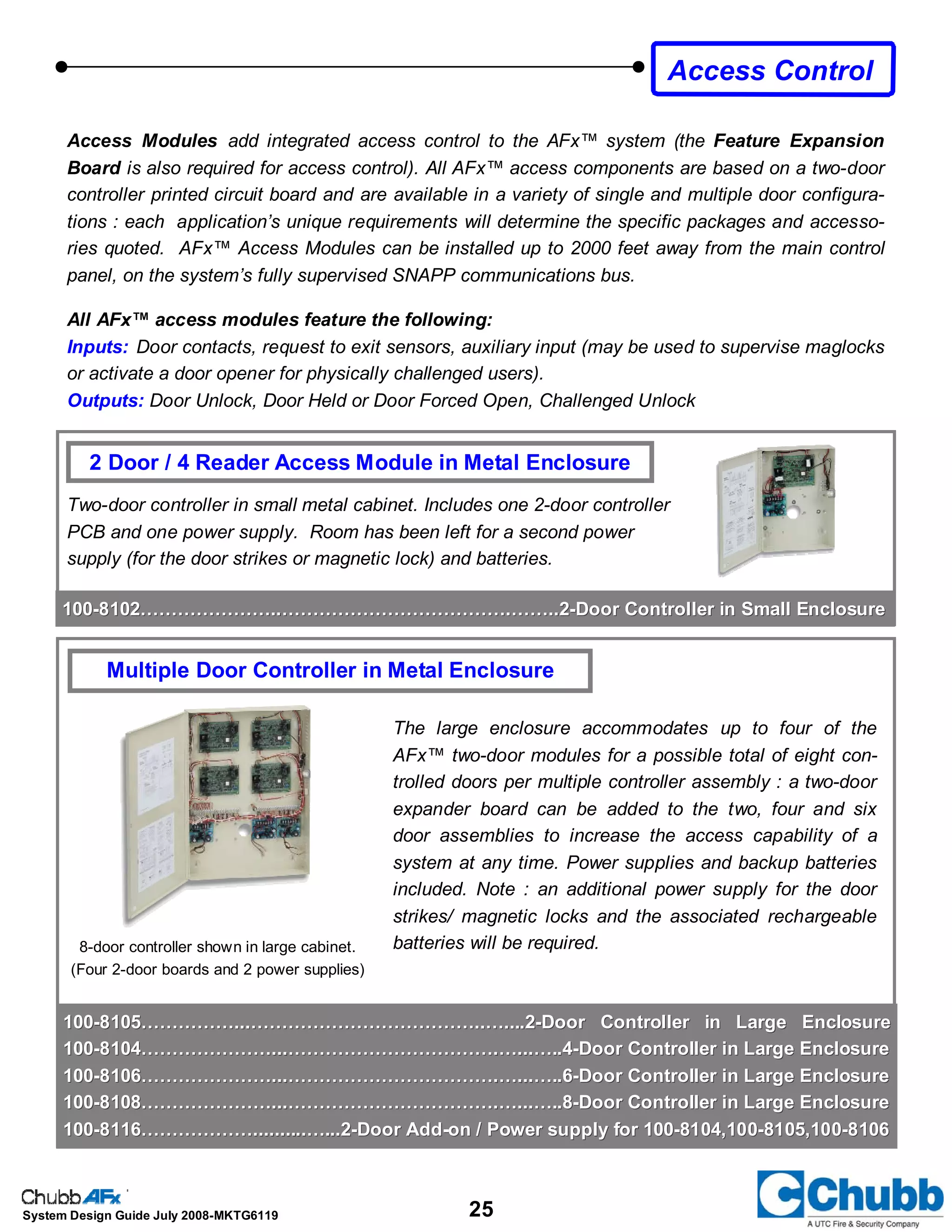

Two-door controller in small metal cabinet. Includes one 2-door controller
PCB and one power supply. Room has been left for a second power
supply (for the door strikes or magnetic lock) and batteries.
Access Modules add integrated access control to the AFx™ system (the Feature Expansion
Board is also required for access control). All AFx™ access components are based on a two-door
controller printed circuit board and are available in a variety of single and multiple door configura-
tions : each application’s unique requirements will determine the specific packages and accesso-
ries quoted. AFx™ Access Modules can be installed up to 2000 feet away from the main control
panel, on the system’s fully supervised SNAPP communications bus.
All AFx™ access modules feature the following:
Inputs: Door contacts, request to exit sensors, auxiliary input (may be used to supervise maglocks
or activate a door opener for physically challenged users).
Outputs: Door Unlock, Door Held or Door Forced Open, Challenged Unlock
2 Door / 4 Reader Access Module in Metal Enclosure
The large enclosure accommodates up to four of the
AFx™ two-door modules for a possible total of eight con-
trolled doors per multiple controller assembly : a two-door
expander board can be added to the two, four and six
door assemblies to increase the access capability of a
system at any time. Power supplies and backup batteries
included. Note : an additional power supply for the door
strikes/ magnetic locks and the associated rechargeable
batteries will be required.
Multiple Door Controller in Metal Enclosure
8-door controller shown in large cabinet.
(Four 2-door boards and 2 power supplies)
Access Control
100100--8102…………………..……………………………….……..28102…………………..……………………………….……..2--Door Controller in Small EnclosureDoor Controller in Small Enclosure
100100--8105……………...………………………………..…....28105……………...………………………………..…....2--Door Controller in Large EnclosureDoor Controller in Large Enclosure
100100--8104…………………...…………………………….…...…..48104…………………...…………………………….…...…..4--Door Controller in Large EnclosureDoor Controller in Large Enclosure
100100--8116………………..........…...28116………………..........…...2--Door AddDoor Add--on / Power supply for 100on / Power supply for 100--8104,1008104,100--8105,1008105,100--81068106

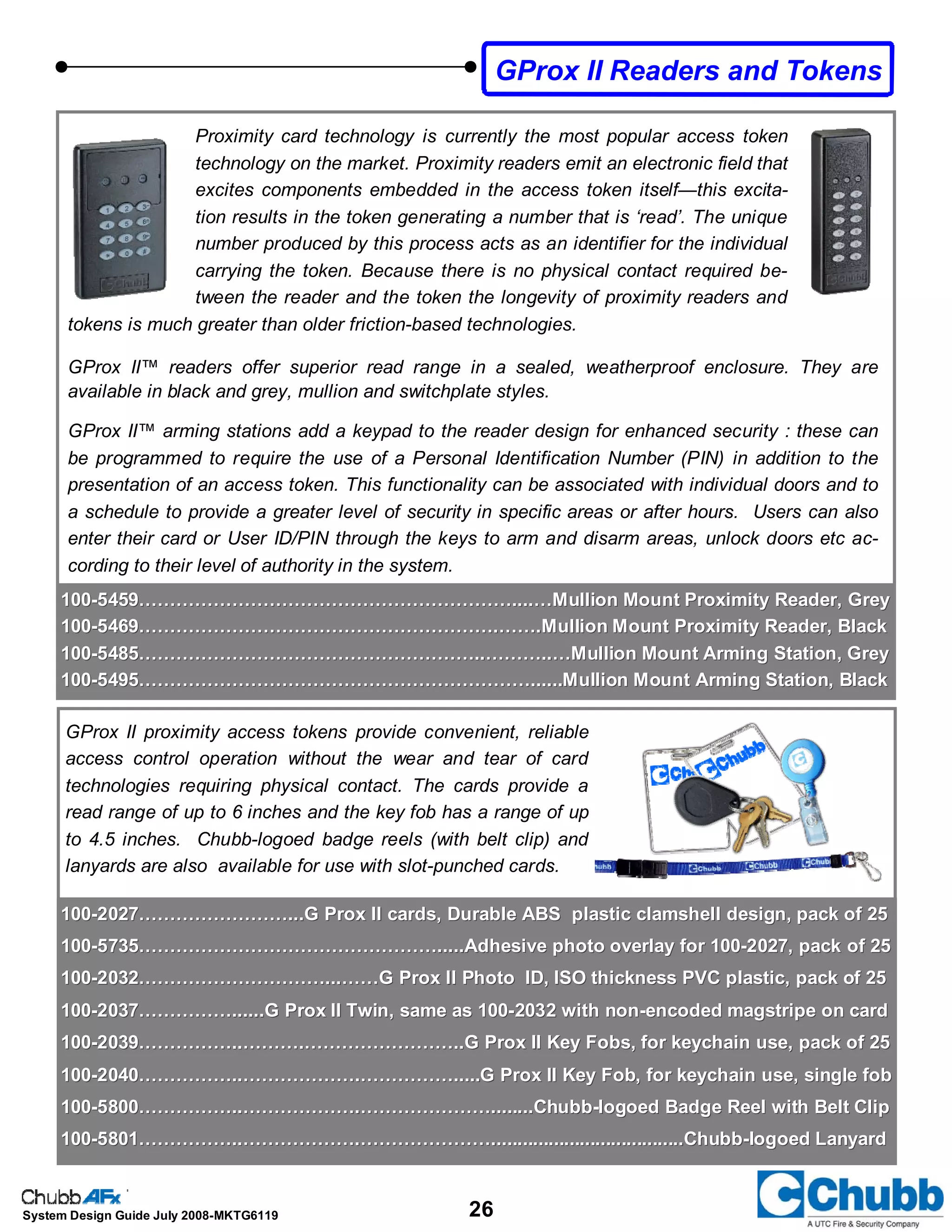

GProx II Readers and Tokens
100100--5459……………………………………………………....…Mullion Mount Proximity Reader, Grey5459……………………………………………………....…Mullion Mount Proximity Reader, Grey
100100--5469………………………………………………….…….Mullion Mount Proximity Reader, Black5469………………………………………………….…….Mullion Mount Proximity Reader, Black
100100--5485………………………………………………..………..…Mullion Mount Arming Station, Grey5485………………………………………………..………..…Mullion Mount Arming Station, Grey
100100--5495………………………………………………………......Mullion Mount Arming Station, Black5495………………………………………………………......Mullion Mount Arming Station, Black
GProx II proximity access tokens provide convenient, reliable
access control operation without the wear and tear of card
technologies requiring physical contact. The cards provide a
read range of up to 6 inches and the key fob has a range of up
to 4.5 inches. Chubb-logoed badge reels (with belt clip) and
lanyards are also available for use with slot-punched cards.
Proximity card technology is currently the most popular access token
technology on the market. Proximity readers emit an electronic field that
excites components embedded in the access token itself—this excita-
tion results in the token generating a number that is ‘read’. The unique
number produced by this process acts as an identifier for the individual
carrying the token. Because there is no physical contact required be-
tween the reader and the token the longevity of proximity readers and
tokens is much greater than older friction-based technologies.
GProx II™ readers offer superior read range in a sealed, weatherproof enclosure. They are
available in black and grey, mullion and switchplate styles.

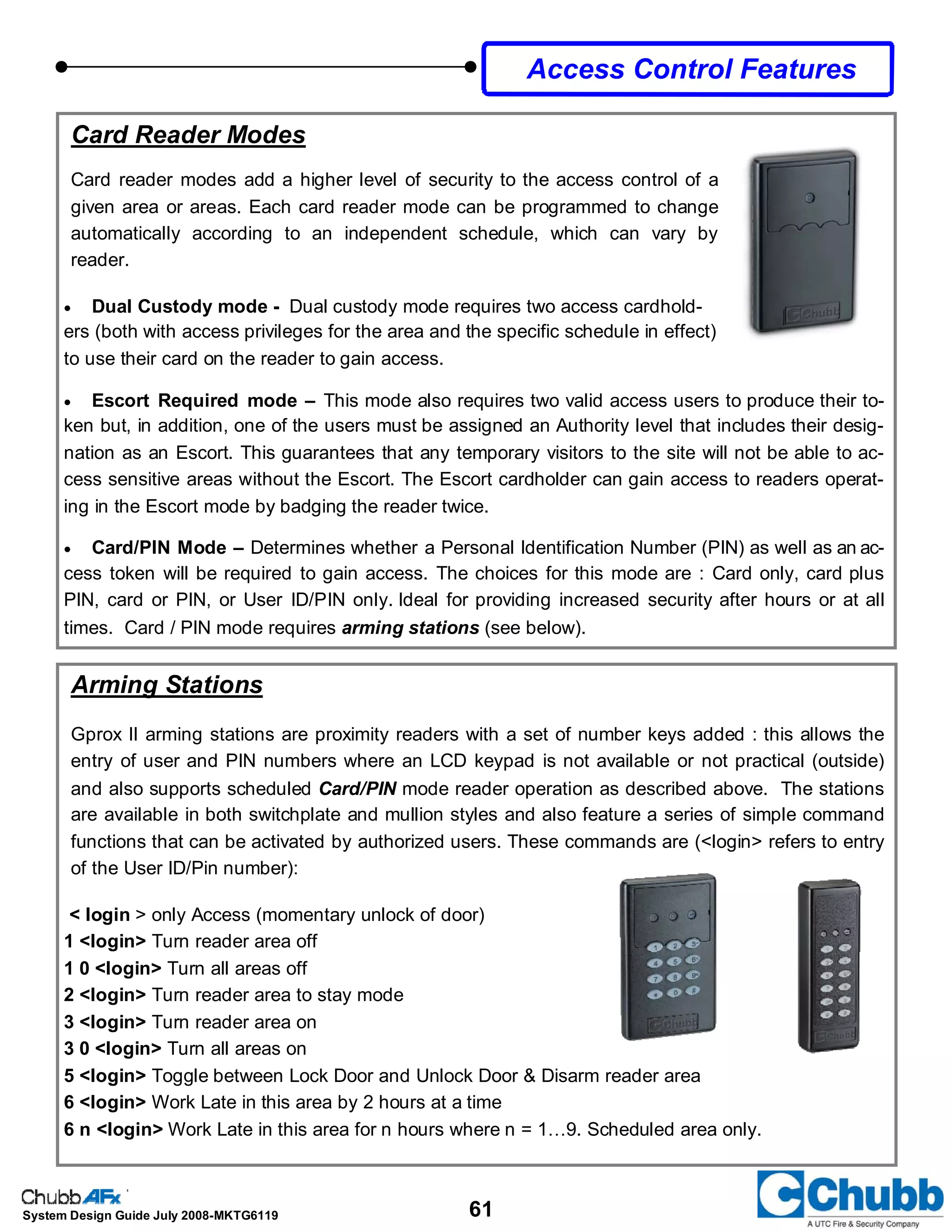

GProx II™ arming stations add a keypad to the reader design for enhanced security : these can
be programmed to require the use of a Personal Identification Number (PIN) in addition to the
presentation of an access token. This functionality can be associated with individual doors and to
a schedule to provide a greater level of security in specific areas or after hours. Users can also
enter their card or User ID/PIN through the keys to arm and disarm areas, unlock doors etc ac-
cording to their level of authority in the system.
100100--2027……………………...G Prox II cards, Durable ABS plastic clamshell design, pack of 252027……………………...G Prox II cards, Durable ABS plastic clamshell design, pack of 25
100100--5735………………………………………….....Adhesive photo overlay for 1005735………………………………………….....Adhesive photo overlay for 100--2027, pack of 252027, pack of 25
100100--2032…………………………...……G Prox II Photo ID, ISO thickness PVC plastic, pack of 252032…………………………...……G Prox II Photo ID, ISO thickness PVC plastic, pack of 25
100100--2037……………......G Prox II Twin, same as 1002037……………......G Prox II Twin, same as 100--2032 with non2032 with non--encoded magstripe on cardencoded magstripe on card
100100--2039……………..……….……………………..G Prox II Key Fobs, for keychain use, pack of 252039……………..……….……………………..G Prox II Key Fobs, for keychain use, pack of 25
100100--2040……………..……………….…………….....G Prox II Key Fob, for keychain use, single fob2040……………..……………….…………….....G Prox II Key Fob, for keychain use, single fob
100100--5800……………..……………….…………………........Chubb5800……………..……………….…………………........Chubb--logoed Badge Reel with Belt Cliplogoed Badge Reel with Belt Clip
100100--5801……………..……………….………………….....................................Chubb5801……………..……………….………………….....................................Chubb--logoed Lanyardlogoed Lanyard

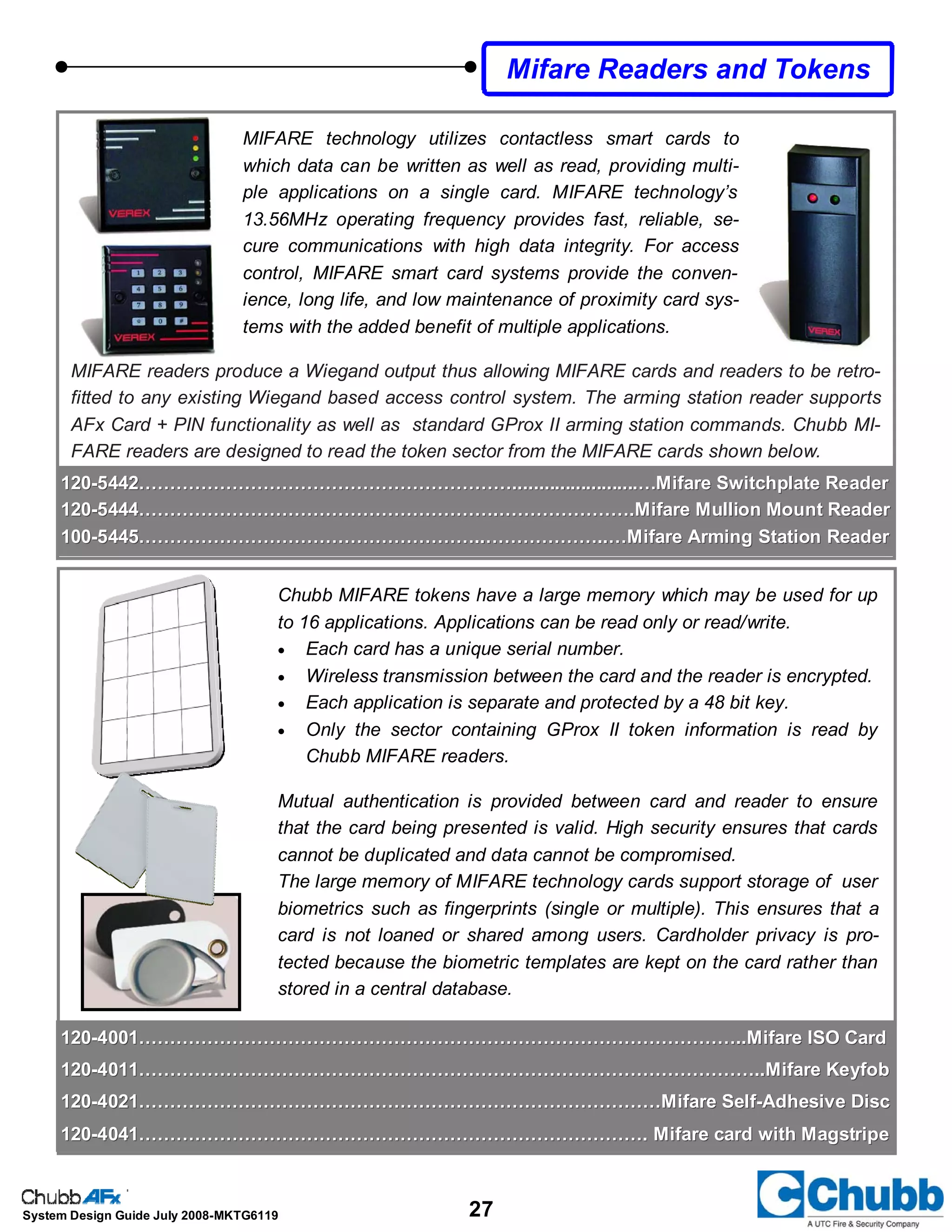

MIFARE technology utilizes contactless smart cards to
which data can be written as well as read, providing multi-
ple applications on a single card. MIFARE technology’s
13.56MHz operating frequency provides fast, reliable, se-
cure communications with high data integrity. For access
control, MIFARE smart card systems provide the conven-
ience, long life, and low maintenance of proximity card sys-
tems with the added benefit of multiple applications.
Mifare Readers and Tokens
120120--5442……………………………………………………........................…Mifare Switchplate Reader5442……………………………………………………........................…Mifare Switchplate Reader
120120--5444………………………………………………….………………….Mifare Mullion Mount Reader5444………………………………………………….………………….Mifare Mullion Mount Reader
100100--5445………………………………………………..………………..…Mifare Arming Station Reader5445………………………………………………..………………..…Mifare Arming Station Reader
120120--4001……………………………………………………………………………………..Mifare ISO Card4001……………………………………………………………………………………..Mifare ISO Card
120120--4011………………………………………………………………………………………..Mifare Keyfob4011………………………………………………………………………………………..Mifare Keyfob
120120--4021…………………………………………………………………………Mifare Self4021…………………………………………………………………………Mifare Self--Adhesive DiscAdhesive Disc
120120--4041………………………………………………………………………. Mifare card with Magstripe4041………………………………………………………………………. Mifare card with Magstripe
Chubb MIFARE tokens have a large memory which may be used for up
to 16 applications. Applications can be read only or read/write.
• Each card has a unique serial number.
• Wireless transmission between the card and the reader is encrypted.
• Each application is separate and protected by a 48 bit key.
• Only the sector containing GProx II token information is read by
Chubb MIFARE readers.
Mutual authentication is provided between card and reader to ensure
that the card being presented is valid. High security ensures that cards
cannot be duplicated and data cannot be compromised.
The large memory of MIFARE technology cards support storage of user
biometrics such as fingerprints (single or multiple). This ensures that a
card is not loaned or shared among users. Cardholder privacy is pro-
tected because the biometric templates are kept on the card rather than
stored in a central database.
MIFARE readers produce a Wiegand output thus allowing MIFARE cards and readers to be retro-
fitted to any existing Wiegand based access control system. The arming station reader supports
AFx Card + PIN functionality as well as standard GProx II arming station commands. Chubb MI-
FARE readers are designed to read the token sector from the MIFARE cards shown below.

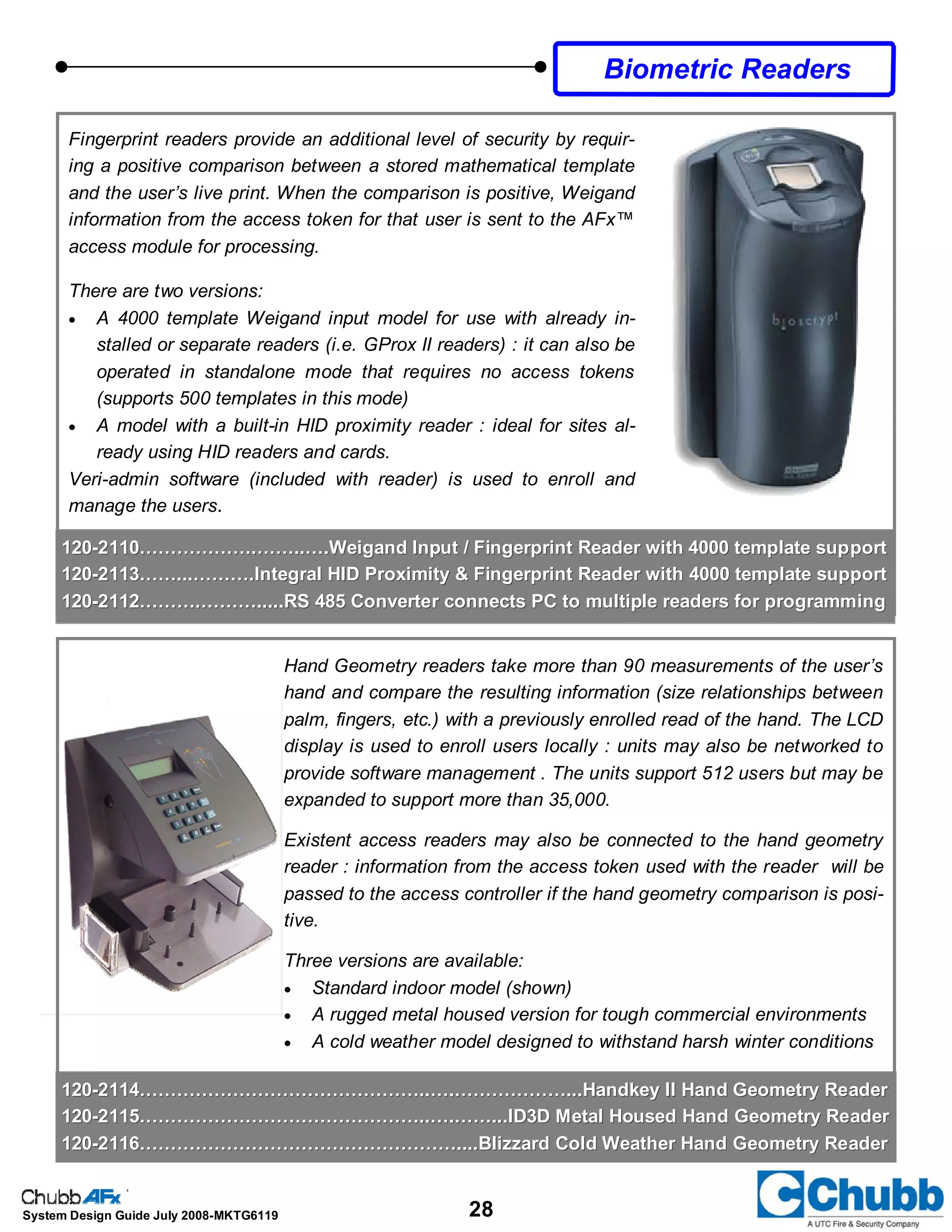

Biometric Readers
Fingerprint readers provide an additional level of security by requir-
ing a positive comparison between a stored mathematical template
and the user’s live print. When the comparison is positive, Weigand
information from the access token for that user is sent to the AFx™
access module for processing.
There are two versions:
• A 4000 template Weigand input model for use with already in-
stalled or separate readers (i.e. GProx II readers) : it can also be
operated in standalone mode that requires no access tokens
(supports 500 templates in this mode)
• A model with a built-in HID proximity reader : ideal for sites al-
ready using HID readers and cards.
Veri-admin software (included with reader) is used to enroll and
manage the users.
Hand Geometry readers take more than 90 measurements of the user’s
hand and compare the resulting information (size relationships between
palm, fingers, etc.) with a previously enrolled read of the hand. The LCD
display is used to enroll users locally : units may also be networked to
provide software management . The units support 512 users but may be
expanded to support more than 35,000.
Existent access readers may also be connected to the hand geometry
reader : information from the access token used with the reader will be
passed to the access controller if the hand geometry comparison is posi-
tive.
Three versions are available:
• Standard indoor model (shown)
• A rugged metal housed version for tough commercial environments
• A cold weather model designed to withstand harsh winter conditions
120120--2114………………………………………..….………………...Handkey II Hand Geometry Reader2114………………………………………..….………………...Handkey II Hand Geometry Reader
120120--2115………………………………………..….……...ID3D Metal Housed Hand Geometry Reader2115………………………………………..….……...ID3D Metal Housed Hand Geometry Reader
120120--2116……………………………………………....Blizzard Cold Weather Hand Geometry Reader2116……………………………………………....Blizzard Cold Weather Hand Geometry Reader
120120--2110……………….……..….Weigand Input / Fingerprint Reader with 4000 template support2110……………….……..….Weigand Input / Fingerprint Reader with 4000 template support
120120--2113……...……….Integral HID Proximity & Fingerprint Reader with 4000 template support2113……...……….Integral HID Proximity & Fingerprint Reader with 4000 template support
120120--2112……….……….....RS 485 Converter connects PC to multiple readers for programming2112……….……….....RS 485 Converter connects PC to multiple readers for programming

AFx™
Elevator
ModuleSNAPP Bus
Relay
Enclosure/
Relay
Modules
Elevator
Company
Control
Box
Floor Selection Relay Connections
Call Button
Report Outputs
AFx™ Control Panel
Elevator Control

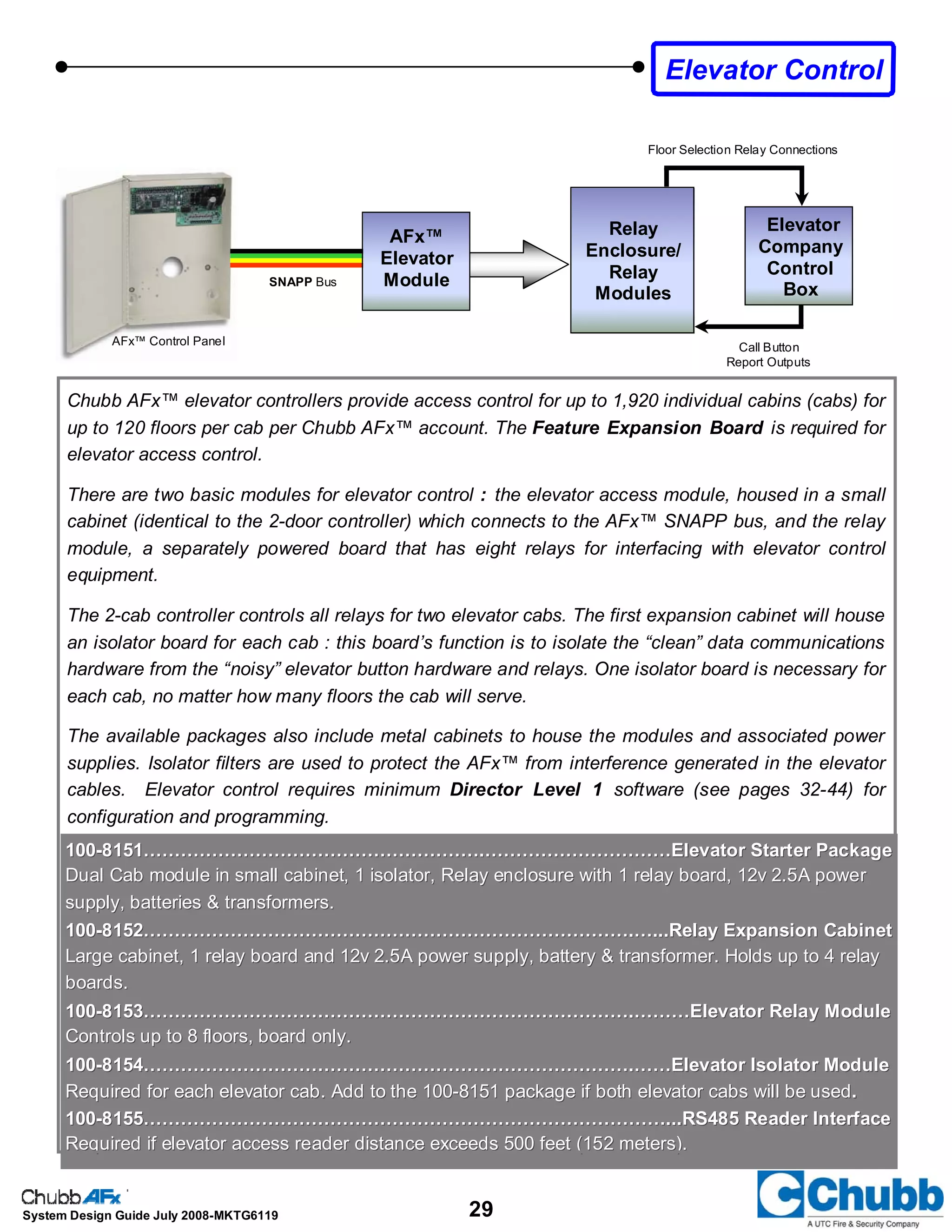

Chubb AFx™ elevator controllers provide access control for up to 1,920 individual cabins (cabs) for
up to 120 floors per cab per Chubb AFx™ account. The Feature Expansion Board is required for
elevator access control.
There are two basic modules for elevator control : the elevator access module, housed in a small
cabinet (identical to the 2-door controller) which connects to the AFx™ SNAPP bus, and the relay
module, a separately powered board that has eight relays for interfacing with elevator control
equipment.
The 2-cab controller controls all relays for two elevator cabs. The first expansion cabinet will house
an isolator board for each cab : this board’s function is to isolate the “clean” data communications
hardware from the “noisy” elevator button hardware and relays. One isolator board is necessary for
each cab, no matter how many floors the cab will serve.
The available packages also include metal cabinets to house the modules and associated power
supplies. Isolator filters are used to protect the AFx™ from interference generated in the elevator
cables. Elevator control requires minimum Director Level 1 software (see pages 32-44) for
configuration and programming.
100100--8151……………………………………………….…………………………Elevator Starter Package8151……………………………………………….…………………………Elevator Starter Package
Dual Cab module in small cabinet, 1 isolator, Relay enclosure with 1 relay board, 12v 2.5A powerDual Cab module in small cabinet, 1 isolator, Relay enclosure with 1 relay board, 12v 2.5A power
supply, batteries & transformers.supply, batteries & transformers.
100100--8152…………………………………………………………………….…...Relay Expansion Cabinet8152…………………………………………………………………….…...Relay Expansion Cabinet
Large cabinet, 1 relay board and 12v 2.5A power supply, battery & transformer. Holds up to 4 relayLarge cabinet, 1 relay board and 12v 2.5A power supply, battery & transformer. Holds up to 4 relay
boards.boards.
100100--8153…………………………………………………………………….………Elevator Relay Module8153…………………………………………………………………….………Elevator Relay Module
Controls up to 8 floors, board only.Controls up to 8 floors, board only.
100100--8154…………………………………………………………………….……Elevator Isolator Module8154…………………………………………………………………….……Elevator Isolator Module
Required for each elevator cab. Add to the 100Required for each elevator cab. Add to the 100--8151 package if both elevator cabs will be used8151 package if both elevator cabs will be used..
100100--8155…………………………………………………………………………...RS485 Reader Interface8155…………………………………………………………………………...RS485 Reader Interface
Required if elevator access reader distance exceeds 500 feet (152 meters).Required if elevator access reader distance exceeds 500 feet (152 meters).

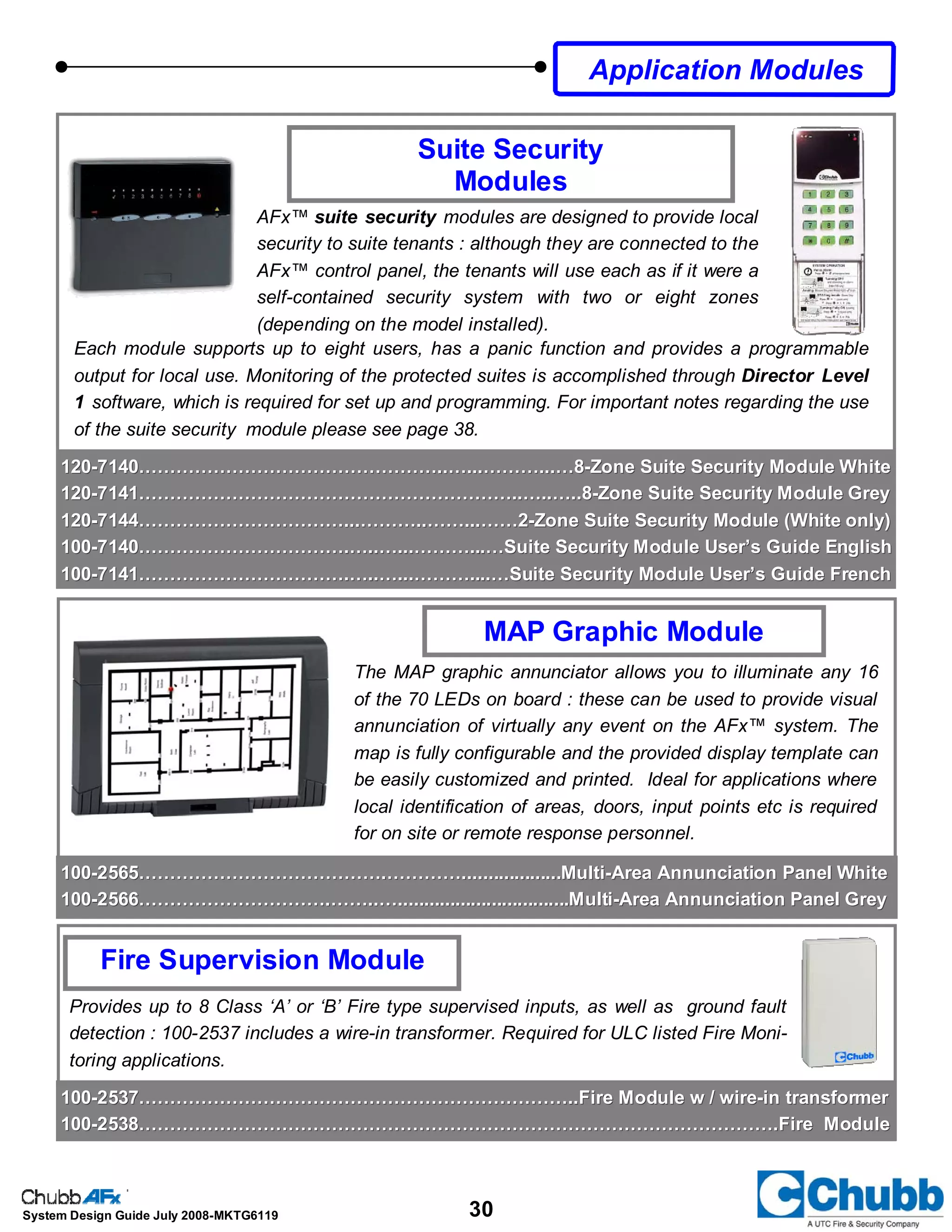

Suite Security
Modules
Each module supports up to eight users, has a panic function and provides a programmable
output for local use. Monitoring of the protected suites is accomplished through Director Level
1 software, which is required for set up and programming. For important notes regarding the use
of the suite security module please see page 38.
MAP Graphic Module
The MAP graphic annunciator allows you to illuminate any 16
of the 70 LEDs on board : these can be used to provide visual
annunciation of virtually any event on the AFx™ system. The
map is fully configurable and the provided display template can
be easily customized and printed. Ideal for applications where
local identification of areas, doors, input points etc is required
for on site or remote response personnel.
AFx™ suite security modules are designed to provide local
security to suite tenants : although they are connected to the
AFx™ control panel, the tenants will use each as if it were a
self-contained security system with two or eight zones
(depending on the model installed).
Application Modules
120120--7140…………………………………………..…...………...…87140…………………………………………..…...………...…8--Zone Suite Security Module WhiteZone Suite Security Module White
120120--7141……………………………………………………..…..…..87141……………………………………………………..…..…..8--Zone Suite Security Module GreyZone Suite Security Module Grey
120120--7144……………………………...………..……...……27144……………………………...………..……...……2--Zone Suite Security Module (White only)Zone Suite Security Module (White only)
100100--7140…………………………….…..…...………...…Suite Security Module User’s Guide English7140…………………………….…..…...………...…Suite Security Module User’s Guide English
100100--7141…………………………….…..…...………....…Suite Security Module User’s Guide French7141…………………………….…..…...………....…Suite Security Module User’s Guide French
100100--2565………………………………….…………...................Multi2565………………………………….…………...................Multi--Area Annunciation Panel WhiteArea Annunciation Panel White
100100--2566………………………….……..….................................Multi2566………………………….……..….................................Multi--Area Annunciation Panel GreyArea Annunciation Panel Grey
Fire Supervision Module
Provides up to 8 Class ‘A’ or ‘B’ Fire type supervised inputs, as well as ground fault
detection : 100-2537 includes a wire-in transformer. Required for ULC listed Fire Moni-
toring applications.
100100--2537……………………………………………………………..Fire Module w / wire2537……………………………………………………………..Fire Module w / wire--in transformerin transformer
100100--2538………………………………………………………………………………………….Fire Module2538………………………………………………………………………………………….Fire Module

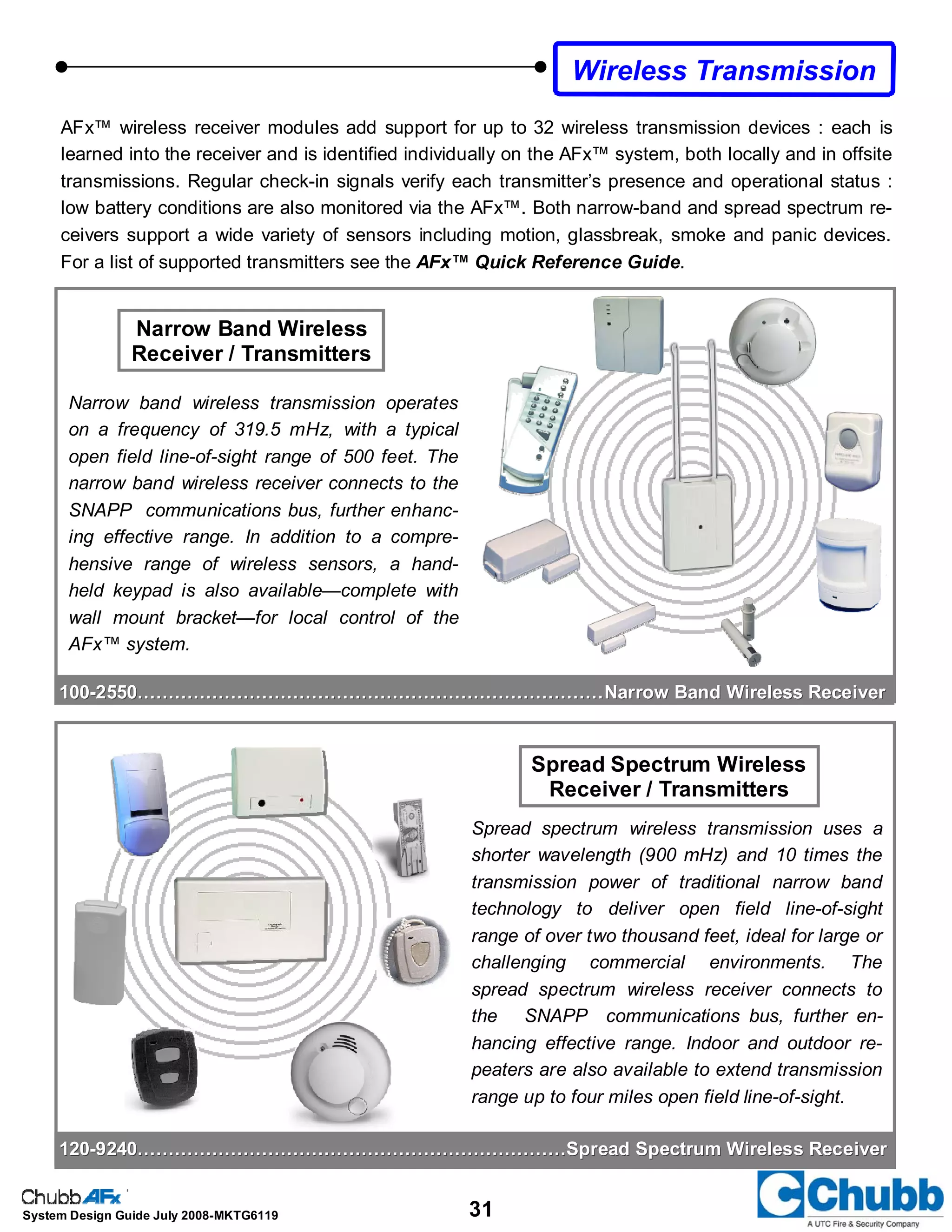

AFx™ wireless receiver modules add support for up to 32 wireless transmission devices : each is
learned into the receiver and is identified individually on the AFx™ system, both locally and in offsite
transmissions. Regular check-in signals verify each transmitter’s presence and operational status :
low battery conditions are also monitored via the AFx™. Both narrow-band and spread spectrum re-
ceivers support a wide variety of sensors including motion, glassbreak, smoke and panic devices.
For a list of supported transmitters see the AFx™ Quick Reference Guide.
Wireless Transmission
Narrow band wireless transmission operates
on a frequency of 319.5 mHz, with a typical
open field line-of-sight range of 500 feet. The
narrow band wireless receiver connects to the
SNAPP communications bus, further enhanc-
ing effective range. In addition to a compre-
hensive range of wireless sensors, a hand-
held keypad is also available—complete with
wall mount bracket—for local control of the
AFx™ system.
Narrow Band Wireless
Receiver / Transmitters
Spread Spectrum Wireless
Receiver / Transmitters
Spread spectrum wireless transmission uses a
shorter wavelength (900 mHz) and 10 times the
transmission power of traditional narrow band
technology to deliver open field line-of-sight
range of over two thousand feet, ideal for large or
challenging commercial environments. The
spread spectrum wireless receiver connects to
the SNAPP communications bus, further en-
hancing effective range. Indoor and outdoor re-
peaters are also available to extend transmission
range up to four miles open field line-of-sight.
100100--2550…………………………………………………………………Narrow Band Wireless Receiver2550…………………………………………………………………Narrow Band Wireless Receiver
120120--9240……………………………………………………………Spread Spectrum Wireless Receiver9240……………………………………………………………Spread Spectrum Wireless Receiver

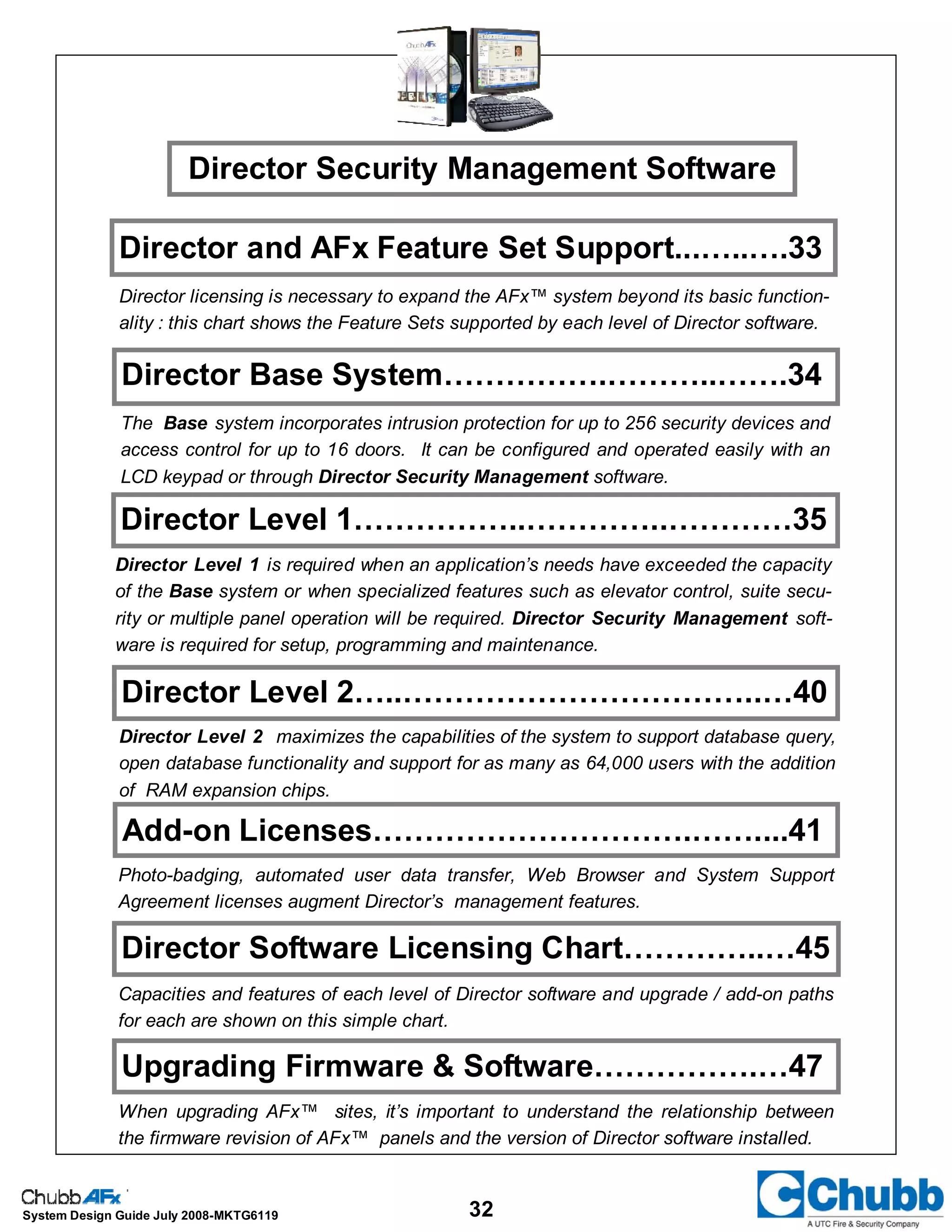

Director Base System…………….………..…….34
Director Level 1……………..…………..…………35
Director Level 2…..……………………………..…40
The Base system incorporates intrusion protection for up to 256 security devices and
access control for up to 16 doors. It can be configured and operated easily with an
LCD keypad or through Director Security Management software.
Director Level 1 is required when an application’s needs have exceeded the capacity
of the Base system or when specialized features such as elevator control, suite secu-
rity or multiple panel operation will be required. Director Security Management soft-
ware is required for setup, programming and maintenance.
Director Security Management Software
Director Level 2 maximizes the capabilities of the system to support database query,
open database functionality and support for as many as 64,000 users with the addition
of RAM expansion chips.
Photo-badging, automated user data transfer, Web Browser and System Support
Agreement licenses augment Director’s management features.
Director Software Licensing Chart…………..…45
Add-on Licenses………………………….……....41
Capacities and features of each level of Director software and upgrade / add-on paths
for each are shown on this simple chart.
Director and AFx Feature Set Support...…..….33
Director licensing is necessary to expand the AFx™ system beyond its basic function-
ality : this chart shows the Feature Sets supported by each level of Director software.
Upgrading Firmware & Software…………….…47
When upgrading AFx™ sites, it’s important to understand the relationship between
the firmware revision of AFx™ panels and the version of Director software installed.

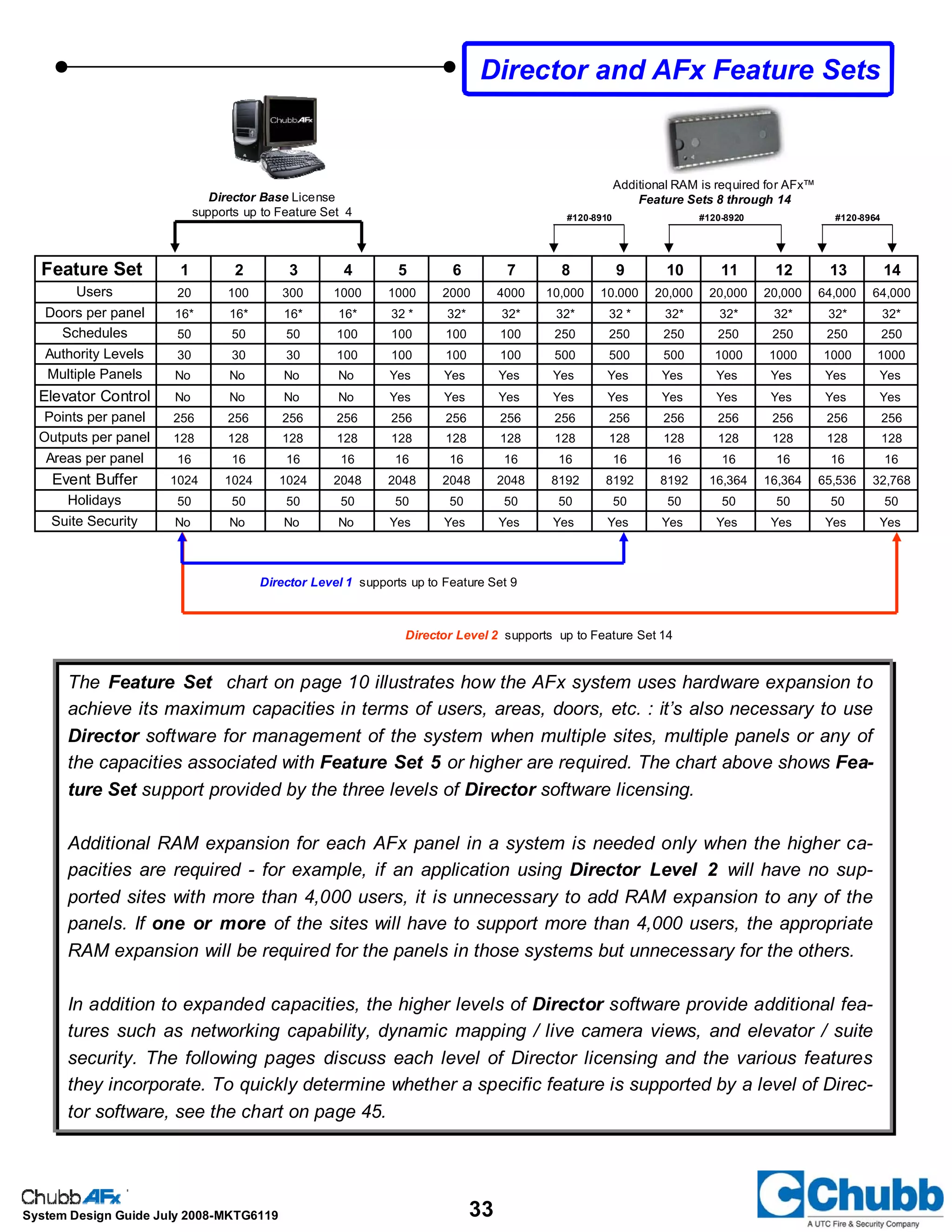

The Feature Set chart on page 10 illustrates how the AFx system uses hardware expansion to
achieve its maximum capacities in terms of users, areas, doors, etc. : it’s also necessary to use
Director software for management of the system when multiple sites, multiple panels or any of
the capacities associated with Feature Set 5 or higher are required. The chart above shows Fea-
ture Set support provided by the three levels of Director software licensing.
Additional RAM expansion for each AFx panel in a system is needed only when the higher ca-
pacities are required - for example, if an application using Director Level 2 will have no sup-
ported sites with more than 4,000 users, it is unnecessary to add RAM expansion to any of the
panels. If one or more of the sites will have to support more than 4,000 users, the appropriate
RAM expansion will be required for the panels in those systems but unnecessary for the others.
In addition to expanded capacities, the higher levels of Director software provide additional fea-
tures such as networking capability, dynamic mapping / live camera views, and elevator / suite
security. The following pages discuss each level of Director licensing and the various features
they incorporate. To quickly determine whether a specific feature is supported by a level of Direc-
tor software, see the chart on page 45.
Director and AFx Feature Sets
Feature Set 1 2 3 4 5 6 7 8 9 10 11 12 13 14
Users 20 100 300 1000 1000 2000 4000 10,000 10.000 20,000 20,000 20,000 64,000 64,000
Doors per panel 16* 16* 16* 16* 32 * 32* 32* 32* 32 * 32* 32* 32* 32* 32*
Schedules 50 50 50 100 100 100 100 250 250 250 250 250 250 250
Authority Levels 30 30 30 100 100 100 100 500 500 500 1000 1000 1000 1000
Multiple Panels No No No No Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Elevator Control No No No No Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Points per panel 256 256 256 256 256 256 256 256 256 256 256 256 256 256
Outputs per panel 128 128 128 128 128 128 128 128 128 128 128 128 128 128
Areas per panel 16 16 16 16 16 16 16 16 16 16 16 16 16 16
Event Buffer 1024 1024 1024 2048 2048 2048 2048 8192 8192 8192 16,364 16,364 65,536 32,768
Holidays 50 50 50 50 50 50 50 50 50 50 50 50 50 50
Suite Security No No No No Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
Director Level 2 supports up to Feature Set 14
Director Level 1 supports up to Feature Set 9
Additional RAM is required for AFx™
Feature Sets 8 through 14
#120-8910 #120-8920 #120-8964
Director Base License
supports up to Feature Set 4

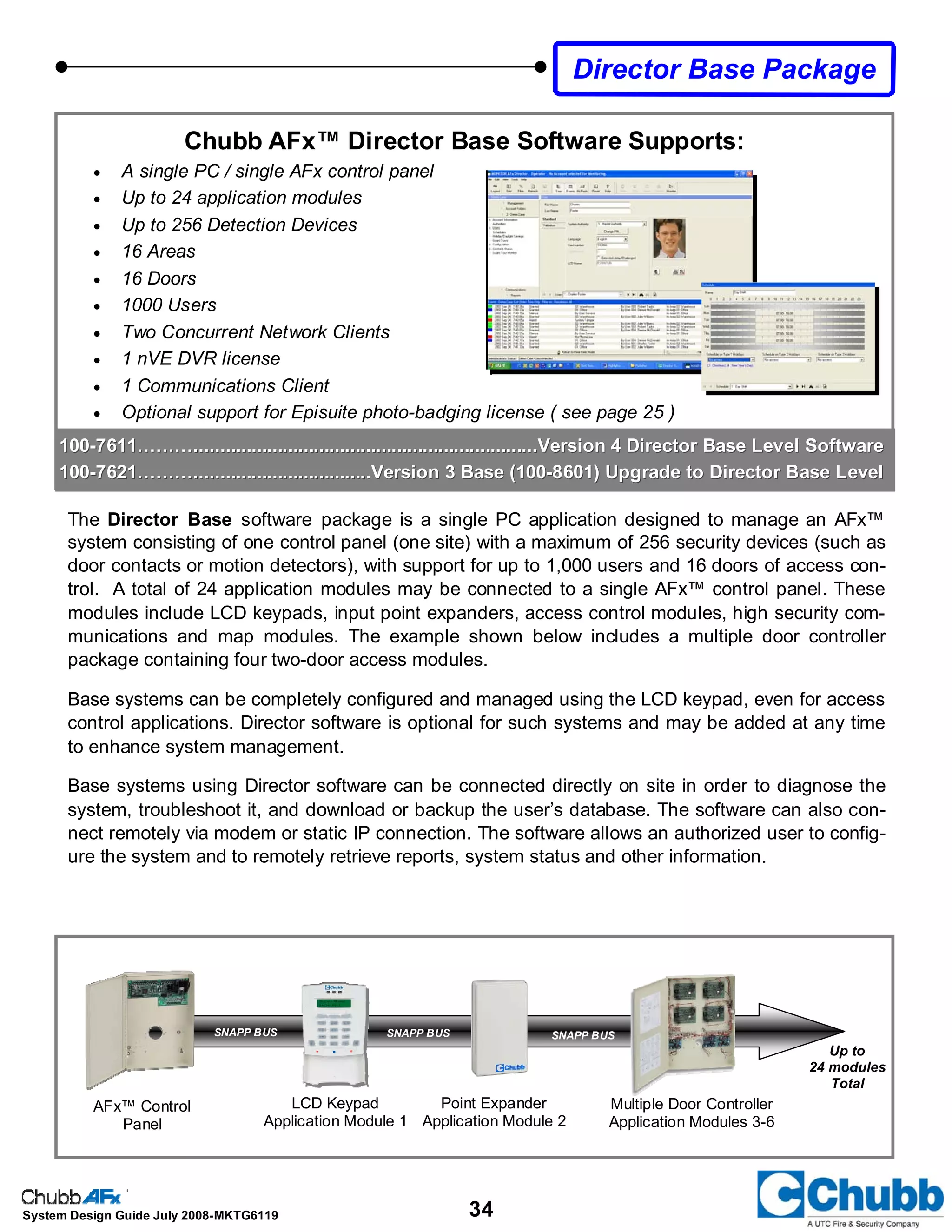

Director Base Package
100100--7611………..................................................................Version 4 Director Base Level Software7611………..................................................................Version 4 Director Base Level Software
100100--7621………..................................Version 3 Base (1007621………..................................Version 3 Base (100--8601) Upgrade to Director Base Level8601) Upgrade to Director Base Level
Chubb AFx™ Director Base Software Supports:
• A single PC / single AFx control panel
• Up to 24 application modules
• Up to 256 Detection Devices
• 16 Areas
• 16 Doors
• 1000 Users
• Two Concurrent Network Clients
• 1 nVE DVR license
• 1 Communications Client
• Optional support for Episuite photo-badging license ( see page 25 )
LCD Keypad
Application Module 1
SNAPP BUS SNAPP BUSSNAPP BUS
AFx™ Control
Panel
Point Expander
Application Module 2
Up to
24 modules
Total
Multiple Door Controller
Application Modules 3-6
The Director Base software package is a single PC application designed to manage an AFx™
system consisting of one control panel (one site) with a maximum of 256 security devices (such as
door contacts or motion detectors), with support for up to 1,000 users and 16 doors of access con-
trol. A total of 24 application modules may be connected to a single AFx™ control panel. These
modules include LCD keypads, input point expanders, access control modules, high security com-
munications and map modules. The example shown below includes a multiple door controller
package containing four two-door access modules.
Base systems can be completely configured and managed using the LCD keypad, even for access
control applications. Director software is optional for such systems and may be added at any time
to enhance system management.
Base systems using Director software can be connected directly on site in order to diagnose the
system, troubleshoot it, and download or backup the user’s database. The software can also con-
nect remotely via modem or static IP connection. The software allows an authorized user to config-
ure the system and to remotely retrieve reports, system status and other information.

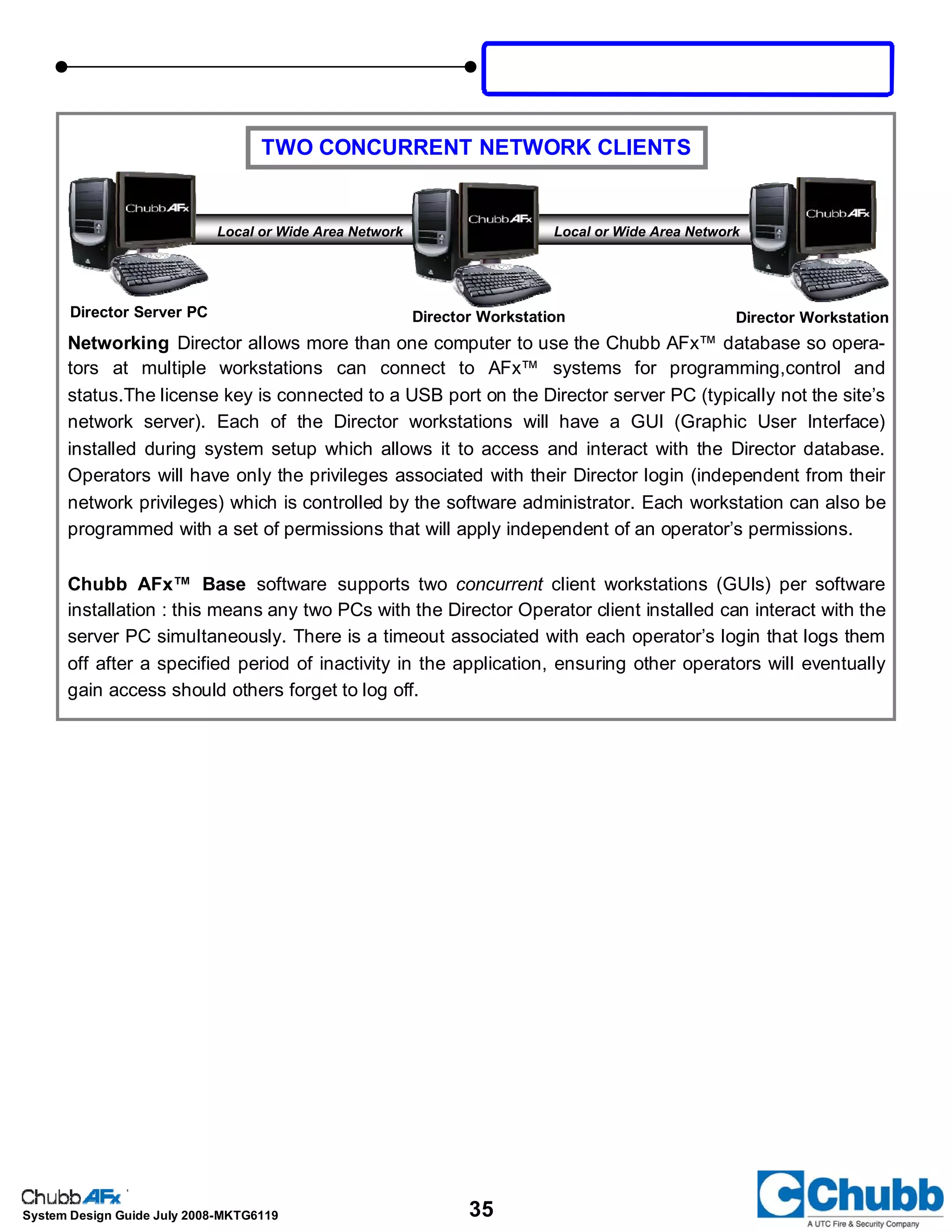

Director Server PC Director Workstation Director Workstation
Local or Wide Area Network Local or Wide Area Network
Networking Director allows more than one computer to use the Chubb AFx™ database so opera-
tors at multiple workstations can connect to AFx™ systems for programming,control and
status.The license key is connected to a USB port on the Director server PC (typically not the site’s
network server). Each of the Director workstations will have a GUI (Graphic User Interface)
installed during system setup which allows it to access and interact with the Director database.
Operators will have only the privileges associated with their Director login (independent from their
network privileges) which is controlled by the software administrator. Each workstation can also be
programmed with a set of permissions that will apply independent of an operator’s permissions.
Chubb AFx™ Base software supports two concurrent client workstations (GUIs) per software
installation : this means any two PCs with the Director Operator client installed can interact with the
server PC simultaneously. There is a timeout associated with each operator’s login that logs them
off after a specified period of inactivity in the application, ensuring other operators will eventually
gain access should others forget to log off.
TWO CONCURRENT NETWORK CLIENTS

MULTIPLE PANEL CONNECTIVITY

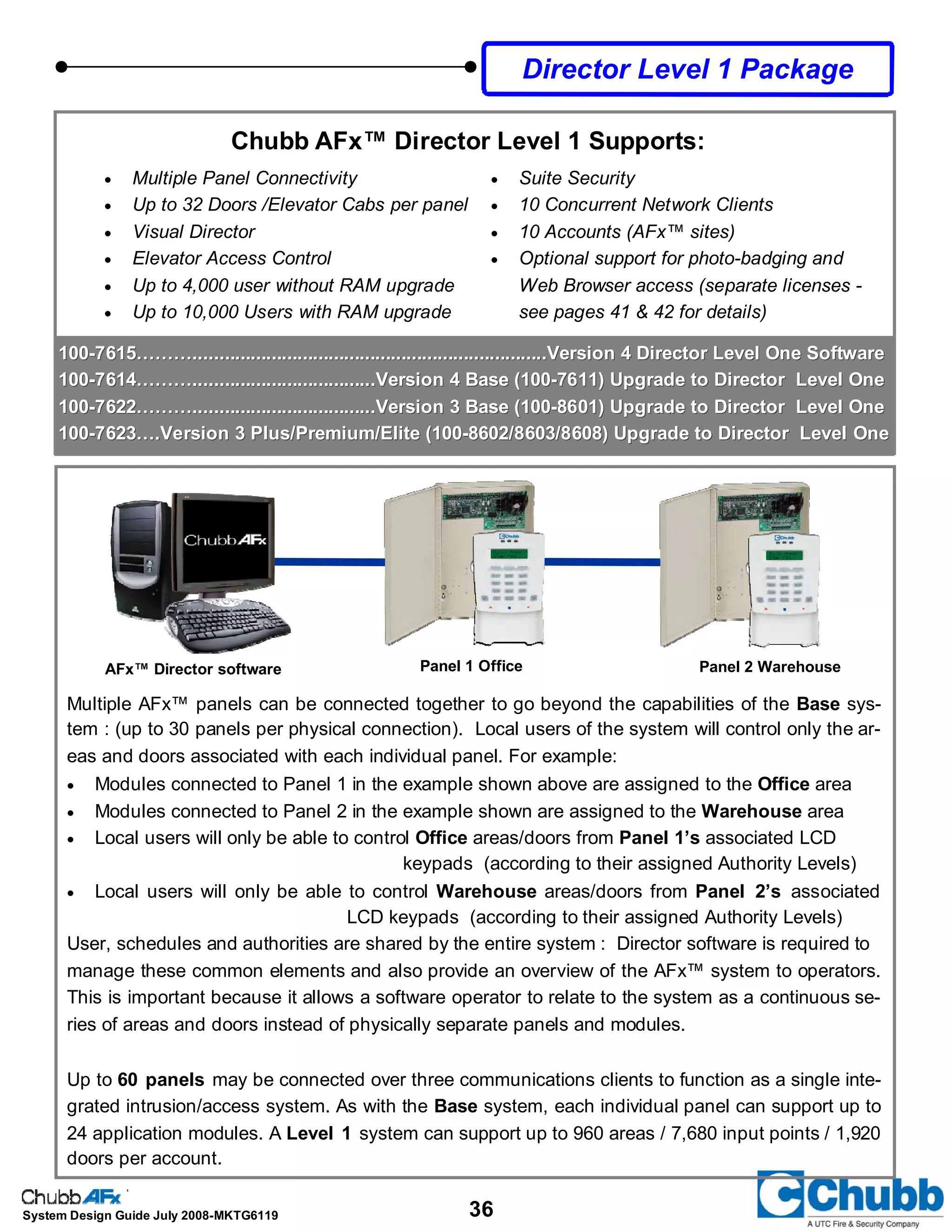

Multiple AFx™ panels can be connected together to go beyond the capabilities of the Base sys-
tem : (up to 30 panels per physical connection). Local users of the system will control only the ar-
eas and doors associated with each individual panel. For example:
• Modules connected to Panel 1 in the example shown above are assigned to the Office area
• Modules connected to Panel 2 in the example shown are assigned to the Warehouse area
• Local users will only be able to control Office areas/doors from Panel 1’s associated LCD
keypads (according to their assigned Authority Levels)
• Local users will only be able to control Warehouse areas/doors from Panel 2’s associated
LCD keypads (according to their assigned Authority Levels)
User, schedules and authorities are shared by the entire system : Director software is required to
manage these common elements and also provide an overview of the AFx™ system to operators.
This is important because it allows a software operator to relate to the system as a continuous se-
ries of areas and doors instead of physically separate panels and modules.
Up to 60 panels may be connected over three communications clients to function as a single inte-
grated intrusion/access system. As with the Base system, each individual panel can support up to
24 application modules. A Level 1 system can support up to 960 areas / 7,680 input points / 1,920
doors per account.
AFx™ Director software Panel 1 Office Panel 2 Warehouse
Director Level 1 Package
• Multiple Panel Connectivity
• Up to 32 Doors /Elevator Cabs per panel
• Visual Director
• Elevator Access Control
• Up to 4,000 user without RAM upgrade
• Up to 10,000 Users with RAM upgrade
• Suite Security
• 10 Concurrent Network Clients
• 10 Accounts (AFx™ sites)
• Optional support for photo-badging and
Web Browser access (separate licenses -
see pages 41 & 42 for details)
Chubb AFx™ Director Level 1 Supports:
100100--7615………....................................................................Version 4 Director Level One Software7615………....................................................................Version 4 Director Level One Software
100100--7614………...................................Version 4 Base (1007614………...................................Version 4 Base (100--7611) Upgrade to Director Level One7611) Upgrade to Director Level One
100100--7622………...................................Version 3 Base (1007622………...................................Version 3 Base (100--8601) Upgrade to Director Level One8601) Upgrade to Director Level One
100100--7623….Version 3 Plus/Premium/Elite (1007623….Version 3 Plus/Premium/Elite (100--8602/8603/8608) Upgrade to Director Level One8602/8603/8608) Upgrade to Director Level One

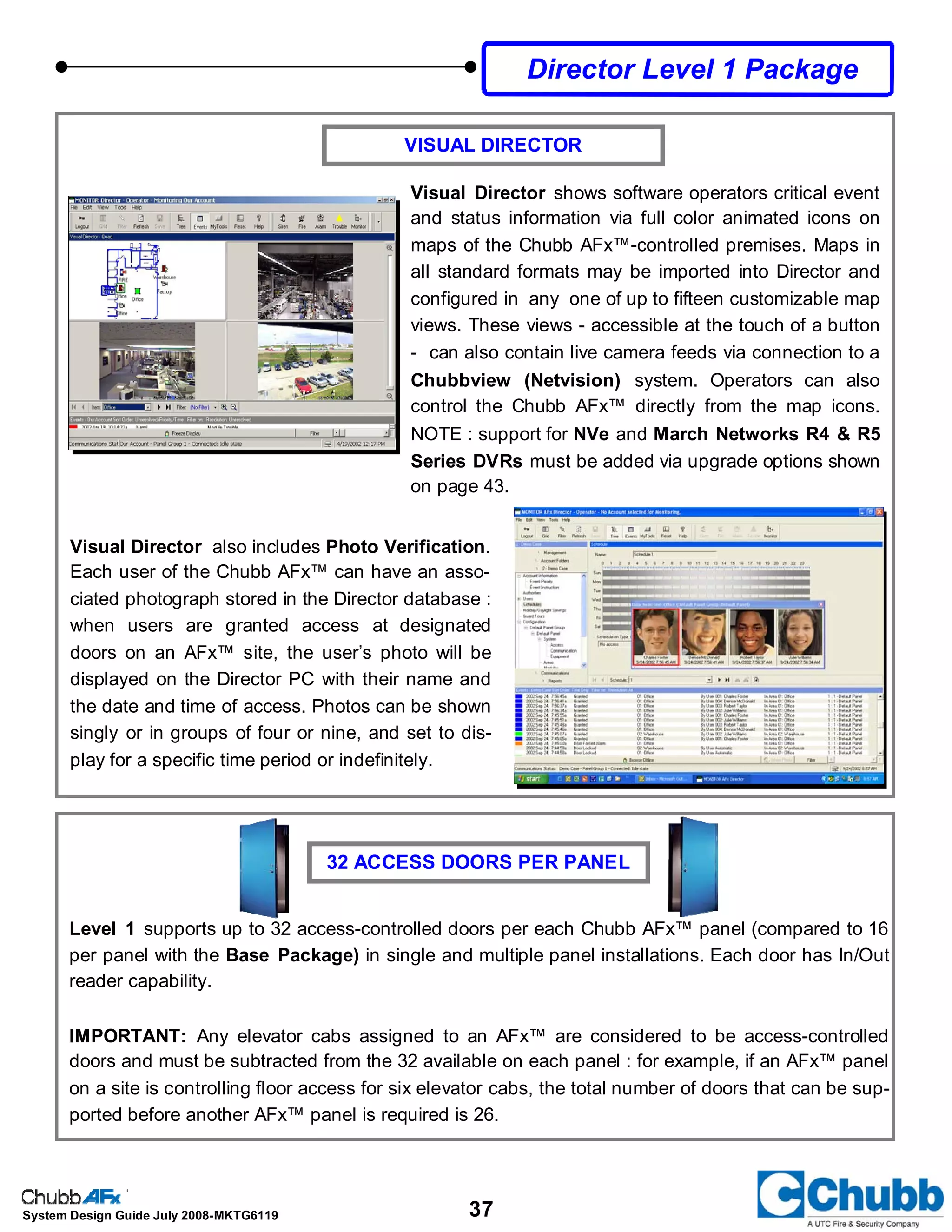

VISUAL DIRECTOR
Visual Director shows software operators critical event
and status information via full color animated icons on
maps of the Chubb AFx™-controlled premises. Maps in
all standard formats may be imported into Director and
configured in any one of up to fifteen customizable map
views. These views - accessible at the touch of a button
- can also contain live camera feeds via connection to a
Chubbview (Netvision) system. Operators can also
control the Chubb AFx™ directly from the map icons.
NOTE : support for NVe and March Networks R4 & R5
Series DVRs must be added via upgrade options shown
on page 43.
Visual Director also includes Photo Verification.
Each user of the Chubb AFx™ can have an asso-
ciated photograph stored in the Director database :
when users are granted access at designated
doors on an AFx™ site, the user’s photo will be
displayed on the Director PC with their name and
the date and time of access. Photos can be shown
singly or in groups of four or nine, and set to dis-
play for a specific time period or indefinitely.
32 ACCESS DOORS PER PANEL
Level 1 supports up to 32 access-controlled doors per each Chubb AFx™ panel (compared to 16
per panel with the Base Package) in single and multiple panel installations. Each door has In/Out
reader capability.
IMPORTANT: Any elevator cabs assigned to an AFx™ are considered to be access-controlled
doors and must be subtracted from the 32 available on each panel : for example, if an AFx™ panel
on a site is controlling floor access for six elevator cabs, the total number of doors that can be sup-
ported before another AFx™ panel is required is 26.

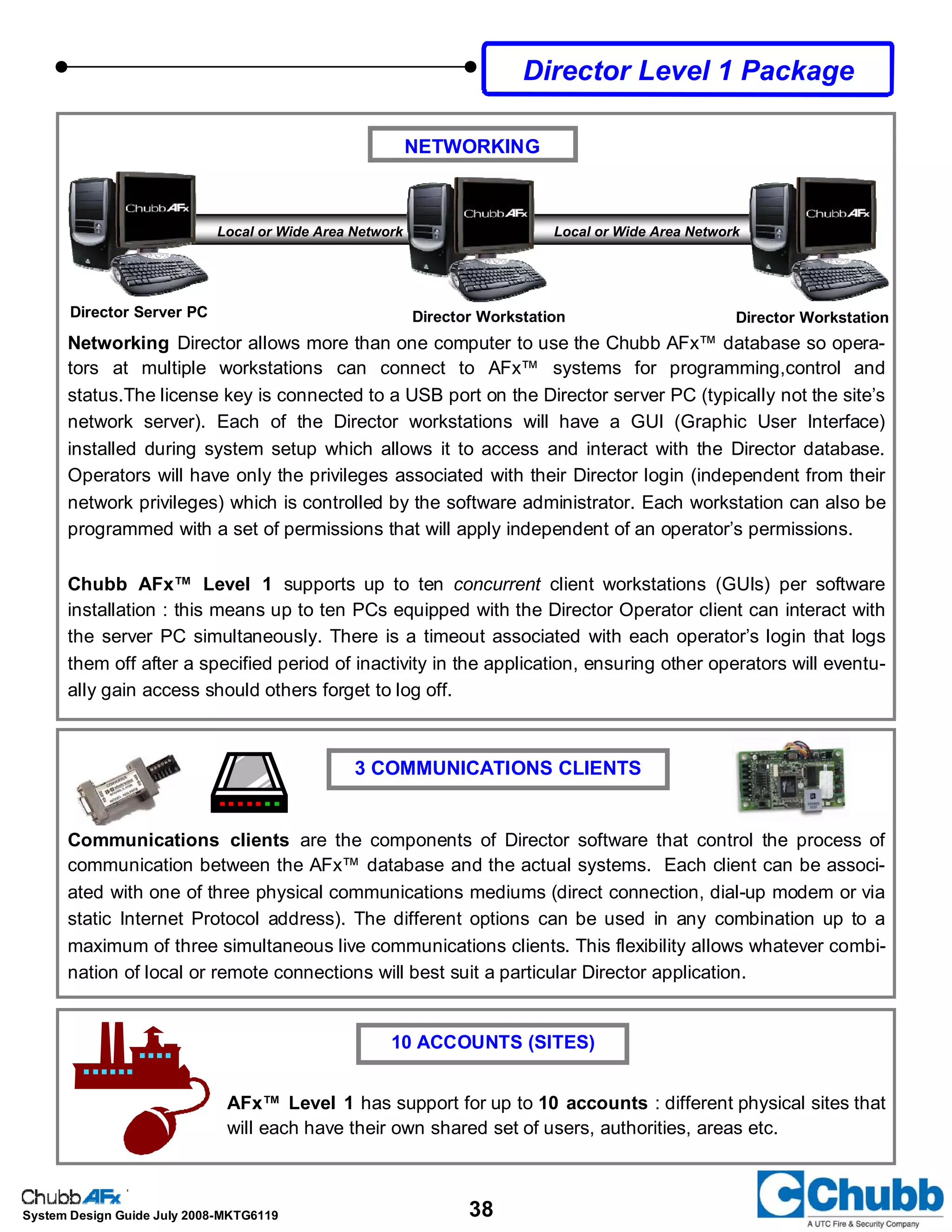

NETWORKING
Director Server PC Director Workstation Director Workstation
Local or Wide Area Network Local or Wide Area Network
Networking Director allows more than one computer to use the Chubb AFx™ database so opera-
tors at multiple workstations can connect to AFx™ systems for programming,control and
status.The license key is connected to a USB port on the Director server PC (typically not the site’s
network server). Each of the Director workstations will have a GUI (Graphic User Interface)
installed during system setup which allows it to access and interact with the Director database.
Operators will have only the privileges associated with their Director login (independent from their
network privileges) which is controlled by the software administrator. Each workstation can also be
programmed with a set of permissions that will apply independent of an operator’s permissions.
Chubb AFx™ Level 1 supports up to ten concurrent client workstations (GUIs) per software
installation : this means up to ten PCs equipped with the Director Operator client can interact with
the server PC simultaneously. There is a timeout associated with each operator’s login that logs
them off after a specified period of inactivity in the application, ensuring other operators will eventu-
ally gain access should others forget to log off.
Communications clients are the components of Director software that control the process of
communication between the AFx™ database and the actual systems. Each client can be associ-
ated with one of three physical communications mediums (direct connection, dial-up modem or via
static Internet Protocol address). The different options can be used in any combination up to a
maximum of three simultaneous live communications clients. This flexibility allows whatever combi-
nation of local or remote connections will best suit a particular Director application.
3 COMMUNICATIONS CLIENTS
10 ACCOUNTS (SITES)
AFx™ Level 1 has support for up to 10 accounts : different physical sites that
will each have their own shared set of users, authorities, areas etc.

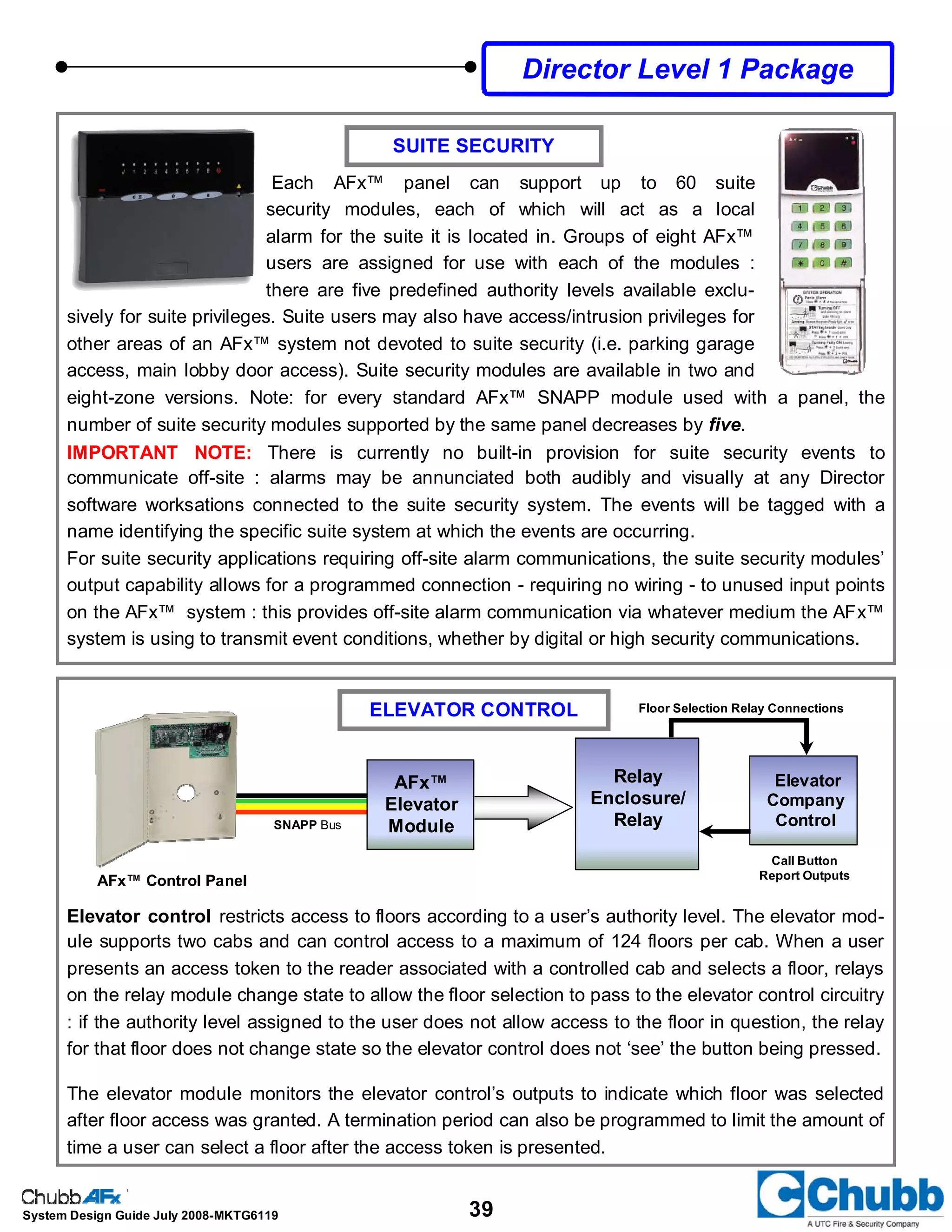

SUITE SECURITY
ELEVATOR CONTROL
Elevator control restricts access to floors according to a user’s authority level. The elevator mod-
ule supports two cabs and can control access to a maximum of 124 floors per cab. When a user
presents an access token to the reader associated with a controlled cab and selects a floor, relays
on the relay module change state to allow the floor selection to pass to the elevator control circuitry
: if the authority level assigned to the user does not allow access to the floor in question, the relay
for that floor does not change state so the elevator control does not ‘see’ the button being pressed.
The elevator module monitors the elevator control’s outputs to indicate which floor was selected
after floor access was granted. A termination period can also be programmed to limit the amount of
time a user can select a floor after the access token is presented.
AFx™
Elevator
ModuleSNAPP Bus
Relay
Enclosure/
Relay
Elevator
Company
Control
Floor Selection Relay Connections
Call Button
Report Outputs
AFx™ Control Panel
Each AFx™ panel can support up to 60 suite
security modules, each of which will act as a local
alarm for the suite it is located in. Groups of eight AFx™
users are assigned for use with each of the modules :
there are five predefined authority levels available exclu-
sively for suite privileges. Suite users may also have access/intrusion privileges for
other areas of an AFx™ system not devoted to suite security (i.e. parking garage
access, main lobby door access). Suite security modules are available in two and
eight-zone versions. Note: for every standard AFx™ SNAPP module used with a panel, the
number of suite security modules supported by the same panel decreases by five.
IMPORTANT NOTE: There is currently no built-in provision for suite security events to
communicate off-site : alarms may be annunciated both audibly and visually at any Director
software worksations connected to the suite security system. The events will be tagged with a
name identifying the specific suite system at which the events are occurring.
For suite security applications requiring off-site alarm communications, the suite security modules’
output capability allows for a programmed connection - requiring no wiring - to unused input points
on the AFx™ system : this provides off-site alarm communication via whatever medium the AFx™
system is using to transmit event conditions, whether by digital or high security communications.

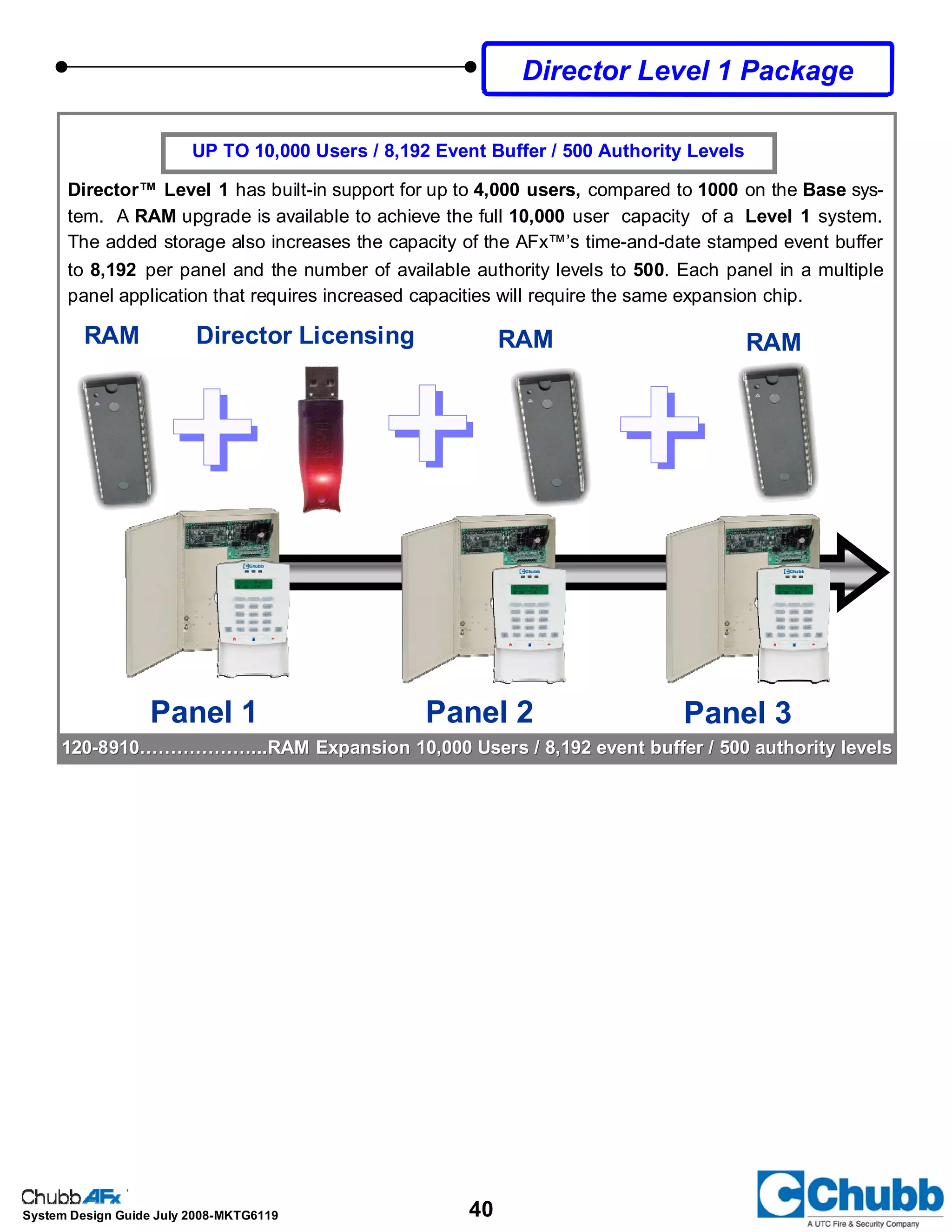

UP TO 10,000 Users / 8,192 Event Buffer / 500 Authority Levels
Director™ Level 1 has built-in support for up to 4,000 users, compared to 1000 on the Base sys-
tem. A RAM upgrade is available to achieve the full 10,000 user capacity of a Level 1 system.
The added storage also increases the capacity of the AFx™’s time-and-date stamped event buffer
to 8,192 per panel and the number of available authority levels to 500. Each panel in a multiple
panel application that requires increased capacities will require the same expansion chip.
RAM RAMRAM Director Licensing
Panel 1 Panel 2 Panel 3
120120--8910………………...RAM Expansion 10,000 Users / 8,192 event buffer / 500 authority levels8910………………...RAM Expansion 10,000 Users / 8,192 event buffer / 500 authority levels

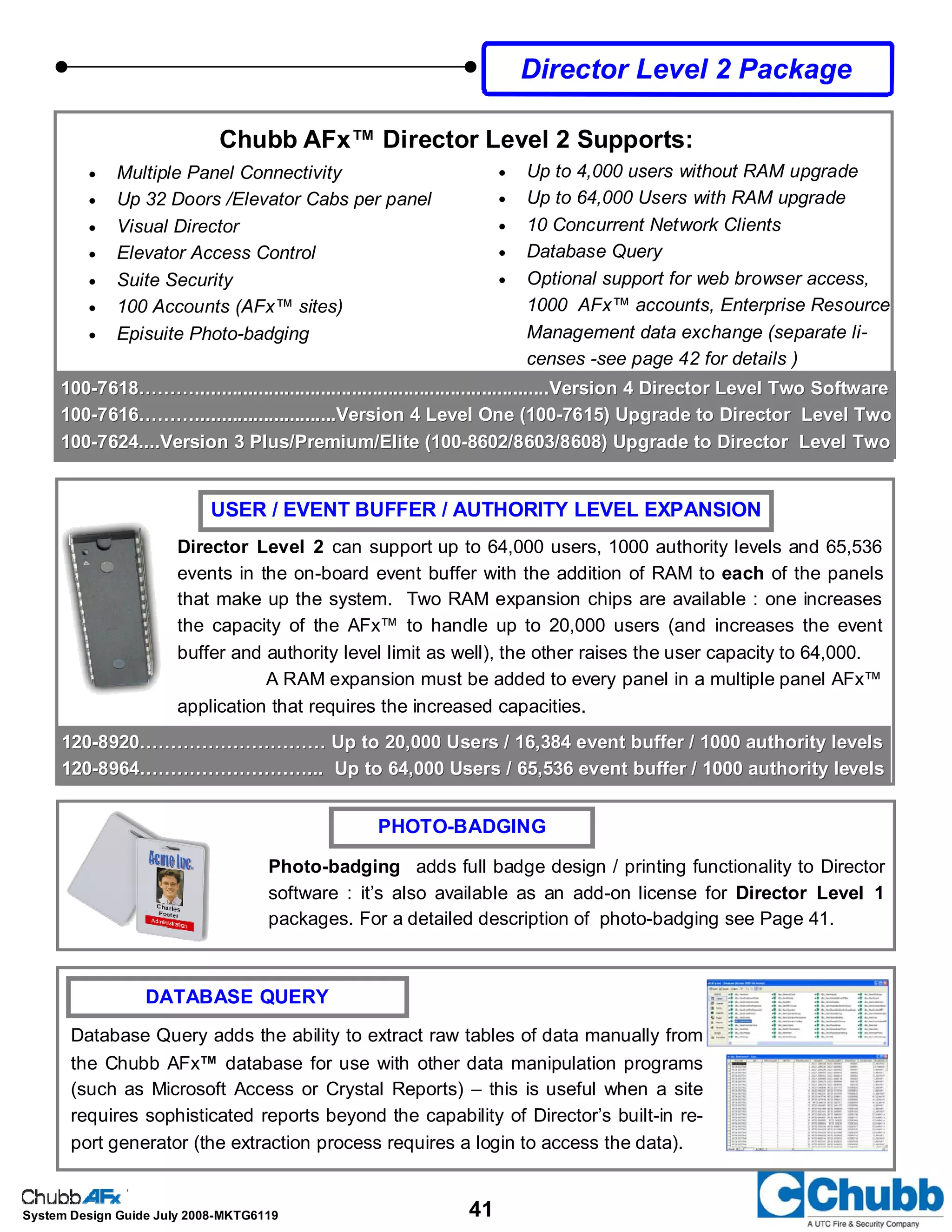

100100--7618………....................................................................Version 4 Director Level Two Software7618………....................................................................Version 4 Director Level Two Software
100100--7616………...........................Version 4 Level One (1007616………...........................Version 4 Level One (100--7615) Upgrade to Director Level Two7615) Upgrade to Director Level Two
100100--7624....Version 3 Plus/Premium/Elite (1007624....Version 3 Plus/Premium/Elite (100--8602/8603/8608) Upgrade to Director Level Two8602/8603/8608) Upgrade to Director Level Two
120120--8920………………………… Up to 20,000 Users / 16,384 event buffer / 1000 authority levels8920………………………… Up to 20,000 Users / 16,384 event buffer / 1000 authority levels
120120--8964………………………... Up to 64,000 Users / 65,536 event buffer / 1000 authority levels8964………………………... Up to 64,000 Users / 65,536 event buffer / 1000 authority levels
USER / EVENT BUFFER / AUTHORITY LEVEL EXPANSION
PHOTO-BADGING
Photo-badging adds full badge design / printing functionality to Director
software : it’s also available as an add-on license for Director Level 1
packages. For a detailed description of photo-badging see Page 41.
Director Level 2 can support up to 64,000 users, 1000 authority levels and 65,536
events in the on-board event buffer with the addition of RAM to each of the panels
that make up the system. Two RAM expansion chips are available : one increases
the capacity of the AFx™ to handle up to 20,000 users (and increases the event
buffer and authority level limit as well), the other raises the user capacity to 64,000.
A RAM expansion must be added to every panel in a multiple panel AFx™
application that requires the increased capacities.
DATABASE QUERY
Database Query adds the ability to extract raw tables of data manually from
the Chubb AFx™ database for use with other data manipulation programs
(such as Microsoft Access or Crystal Reports) – this is useful when a site
requires sophisticated reports beyond the capability of Director’s built-in re-
port generator (the extraction process requires a login to access the data).
• Multiple Panel Connectivity
• Up 32 Doors /Elevator Cabs per panel
• Visual Director
• Elevator Access Control
• Suite Security
• 100 Accounts (AFx™ sites)
• Episuite Photo-badging
• Up to 4,000 users without RAM upgrade
• Up to 64,000 Users with RAM upgrade
• 10 Concurrent Network Clients
• Database Query
• Optional support for web browser access,
1000 AFx™ accounts, Enterprise Resource
Management data exchange (separate li-
censes -see page 42 for details )
Chubb AFx™ Director Level 2 Supports:

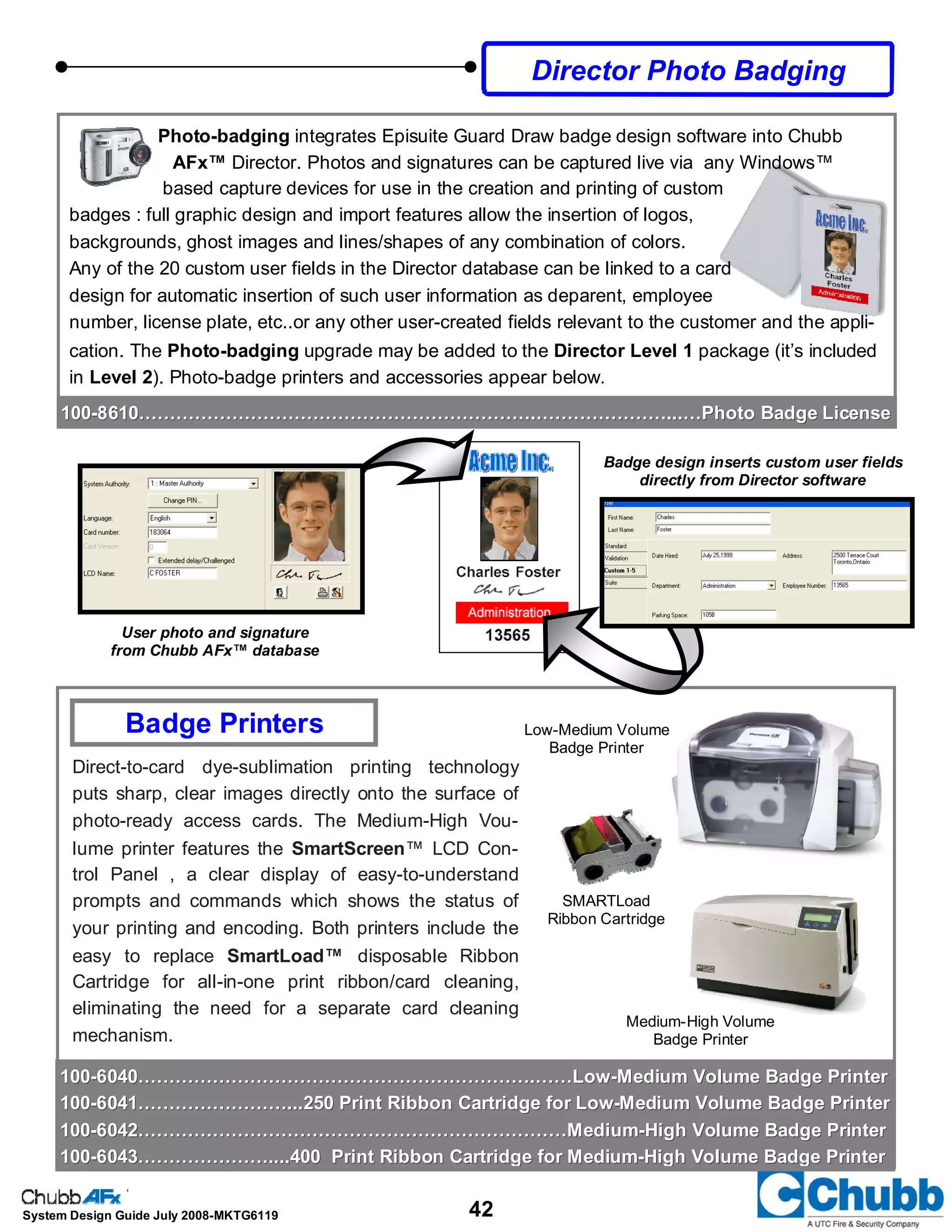

Badge design inserts custom user fields
directly from Director software
User photo and signature
from Chubb AFx™ database
Photo-badging integrates Episuite Guard Draw badge design software into Chubb
AFx™ Director. Photos and signatures can be captured live via any Windows™
based capture devices for use in the creation and printing of custom
badges : full graphic design and import features allow the insertion of logos,
backgrounds, ghost images and lines/shapes of any combination of colors.
Any of the 20 custom user fields in the Director database can be linked to a card
design for automatic insertion of such user information as deparent, employee
number, license plate, etc..or any other user-created fields relevant to the customer and the appli-
cation. The Photo-badging upgrade may be added to the Director Level 1 package (it’s included
in Level 2). Photo-badge printers and accessories appear below.
Director Photo Badging
Direct-to-card dye-sublimation printing technology
puts sharp, clear images directly onto the surface of
photo-ready access cards. The Medium-High Vou-
lume printer features the SmartScreen™ LCD Con-
trol Panel , a clear display of easy-to-understand
prompts and commands which shows the status of
your printing and encoding. Both printers include the
easy to replace SmartLoad™ disposable Ribbon
Cartridge for all-in-one print ribbon/card cleaning,
eliminating the need for a separate card cleaning
mechanism.
100100--6040……………………………………………………….……Low6040……………………………………………………….……Low--Medium Volume Badge PrinterMedium Volume Badge Printer
100100--6041……………………...250 Print Ribbon Cartridge for Low6041……………………...250 Print Ribbon Cartridge for Low--Medium Volume Badge PrinterMedium Volume Badge Printer
100100--6042……………………………………………………………Medium6042……………………………………………………………Medium--High Volume Badge PrinterHigh Volume Badge Printer
100100--6043…………………....400 Print Ribbon Cartridge for Medium6043…………………....400 Print Ribbon Cartridge for Medium--High Volume Badge PrinterHigh Volume Badge Printer
Badge Printers Low-Medium Volume
Badge Printer
Medium-High Volume
Badge Printer
SMARTLoad
Ribbon Cartridge
100100--8610……………………………………………………….…………………...…Photo Badge License8610……………………………………………………….…………………...…Photo Badge License

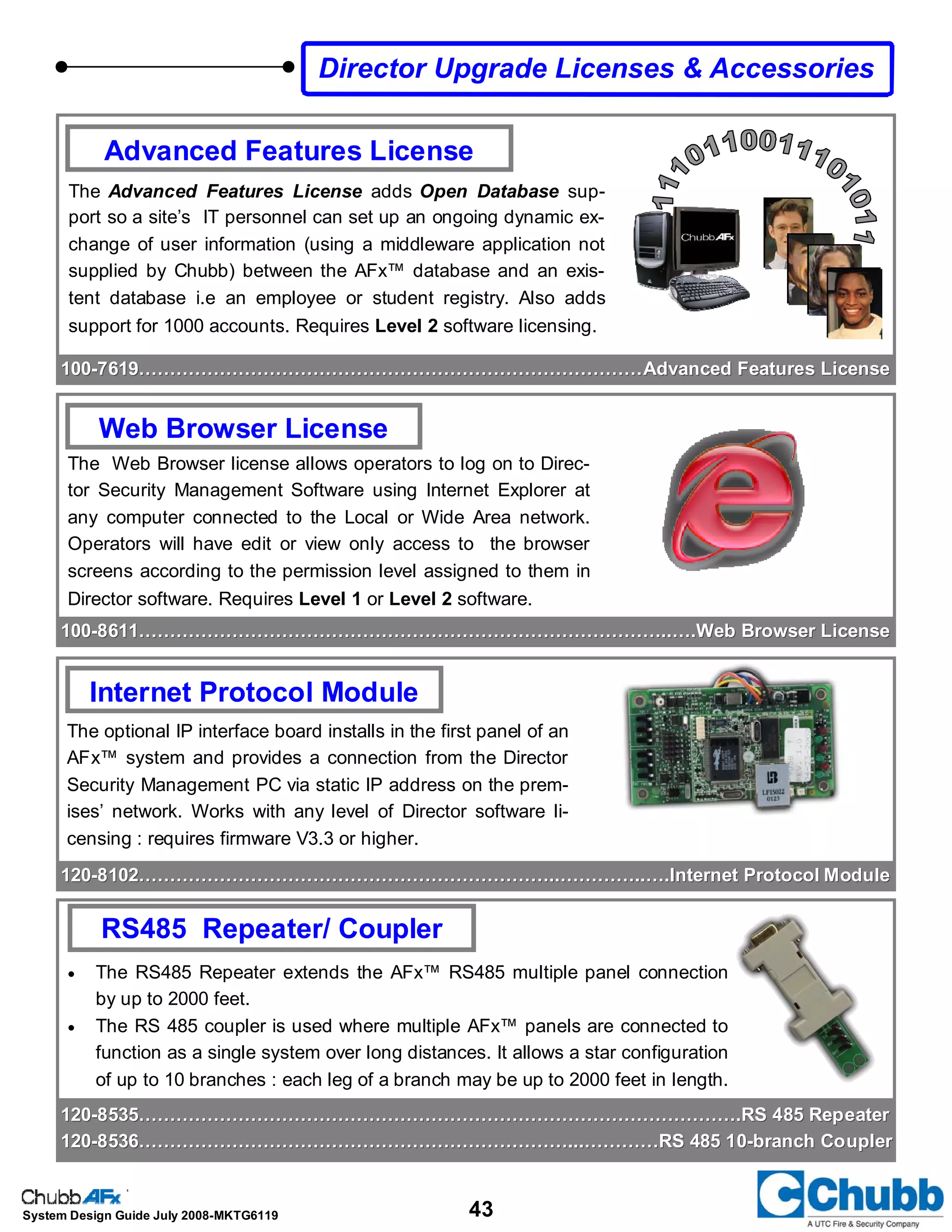

Advanced Features License
The Advanced Features License adds Open Database sup-
port so a site’s IT personnel can set up an ongoing dynamic ex-
change of user information (using a middleware application not
supplied by Chubb) between the AFx™ database and an exis-
tent database i.e an employee or student registry. Also adds
support for 1000 accounts. Requires Level 2 software licensing.
Web Browser License
The Web Browser license allows operators to log on to Direc-
tor Security Management Software using Internet Explorer at
any computer connected to the Local or Wide Area network.
Operators will have edit or view only access to the browser
screens according to the permission level assigned to them in
Director software. Requires Level 1 or Level 2 software.
100100--8611…………………………………………………………………………..….Web Browser License8611…………………………………………………………………………..….Web Browser License
Internet Protocol Module
The optional IP interface board installs in the first panel of an
AFx™ system and provides a connection from the Director
Security Management PC via static IP address on the prem-
ises’ network. Works with any level of Director software li-
censing : requires firmware V3.3 or higher.
• The RS485 Repeater extends the AFx™ RS485 multiple panel connection
by up to 2000 feet.
• The RS 485 coupler is used where multiple AFx™ panels are connected to
function as a single system over long distances. It allows a star configuration
of up to 10 branches : each leg of a branch may be up to 2000 feet in length.
RS485 Repeater/ Coupler
Director Upgrade Licenses & Accessories
100100--7619………………………………………………………………………Advanced Features License7619………………………………………………………………………Advanced Features License
120120--8102…………………………………………………………..…………..….Internet Protocol Module8102…………………………………………………………..…………..….Internet Protocol Module
120120--8535…………………………………………………………………………………….RS 485 Repeater8535…………………………………………………………………………………….RS 485 Repeater
120120--8536……………………………………………………………...…………RS 485 108536……………………………………………………………...…………RS 485 10--branch Couplerbranch Coupler

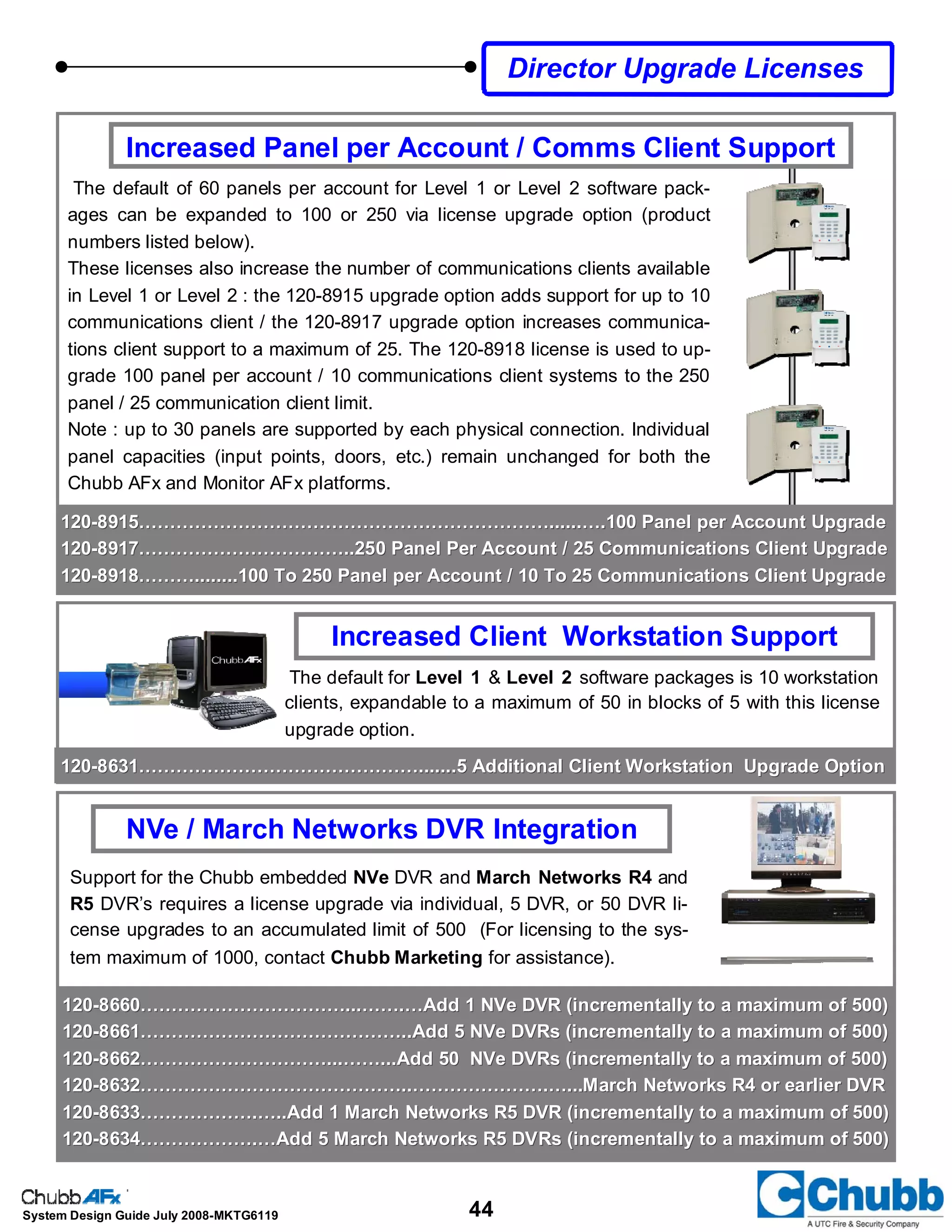

Director Upgrade Licenses
Increased Panel per Account / Comms Client Support
The default of 60 panels per account for Level 1 or Level 2 software pack-
ages can be expanded to 100 or 250 via license upgrade option (product
numbers listed below).
These licenses also increase the number of communications clients available
in Level 1 or Level 2 : the 120-8915 upgrade option adds support for up to 10
communications client / the 120-8917 upgrade option increases communica-
tions client support to a maximum of 25. The 120-8918 license is used to up-
grade 100 panel per account / 10 communications client systems to the 250
panel / 25 communication client limit.
Note : up to 30 panels are supported by each physical connection. Individual
panel capacities (input points, doors, etc.) remain unchanged for both the
Chubb AFx and Monitor AFx platforms.
120120--8915…………………………………………………………......….100 Panel per Account Upgrade8915…………………………………………………………......….100 Panel per Account Upgrade
120120--8917……………………………..250 Panel Per Account / 25 Communications Client Upgrade8917……………………………..250 Panel Per Account / 25 Communications Client Upgrade
120120--8918………........100 To 250 Panel per Account / 10 To 25 Communications Client Upgrade8918………........100 To 250 Panel per Account / 10 To 25 Communications Client Upgrade
The default for Level 1 & Level 2 software packages is 10 workstation
clients, expandable to a maximum of 50 in blocks of 5 with this license
upgrade option.
Increased Client Workstation Support
120120--8631……………………………………….......5 Additional Client Workstation Upgrade Option8631……………………………………….......5 Additional Client Workstation Upgrade Option
120120--8660……………………………...…….…Add 1 NVe DVR (incrementally to a maximum of 500)8660……………………………...…….…Add 1 NVe DVR (incrementally to a maximum of 500)
120120--8661……………………………………..Add 5 NVe DVRs (incrementally to a maximum of 500)8661……………………………………..Add 5 NVe DVRs (incrementally to a maximum of 500)
120120--8662…………………………...……...Add 50 NVe DVRs (incrementally to a maximum of 500)8662…………………………...……...Add 50 NVe DVRs (incrementally to a maximum of 500)
120120--8632……………………………………..………………….…...March Networks R4 or earlier DVR8632……………………………………..………………….…...March Networks R4 or earlier DVR
120120--8633……………….…..Add 1 March Networks R5 DVR (incrementally to a maximum of 500)8633……………….…..Add 1 March Networks R5 DVR (incrementally to a maximum of 500)
120120--8634……………….…Add 5 March Networks R5 DVRs (incrementally to a maximum of 500)8634……………….…Add 5 March Networks R5 DVRs (incrementally to a maximum of 500)
Support for the Chubb embedded NVe DVR and March Networks R4 and
R5 DVR’s requires a license upgrade via individual, 5 DVR, or 50 DVR li-
cense upgrades to an accumulated limit of 500 (For licensing to the sys-
tem maximum of 1000, contact Chubb Marketing for assistance).
NVe / March Networks DVR Integration

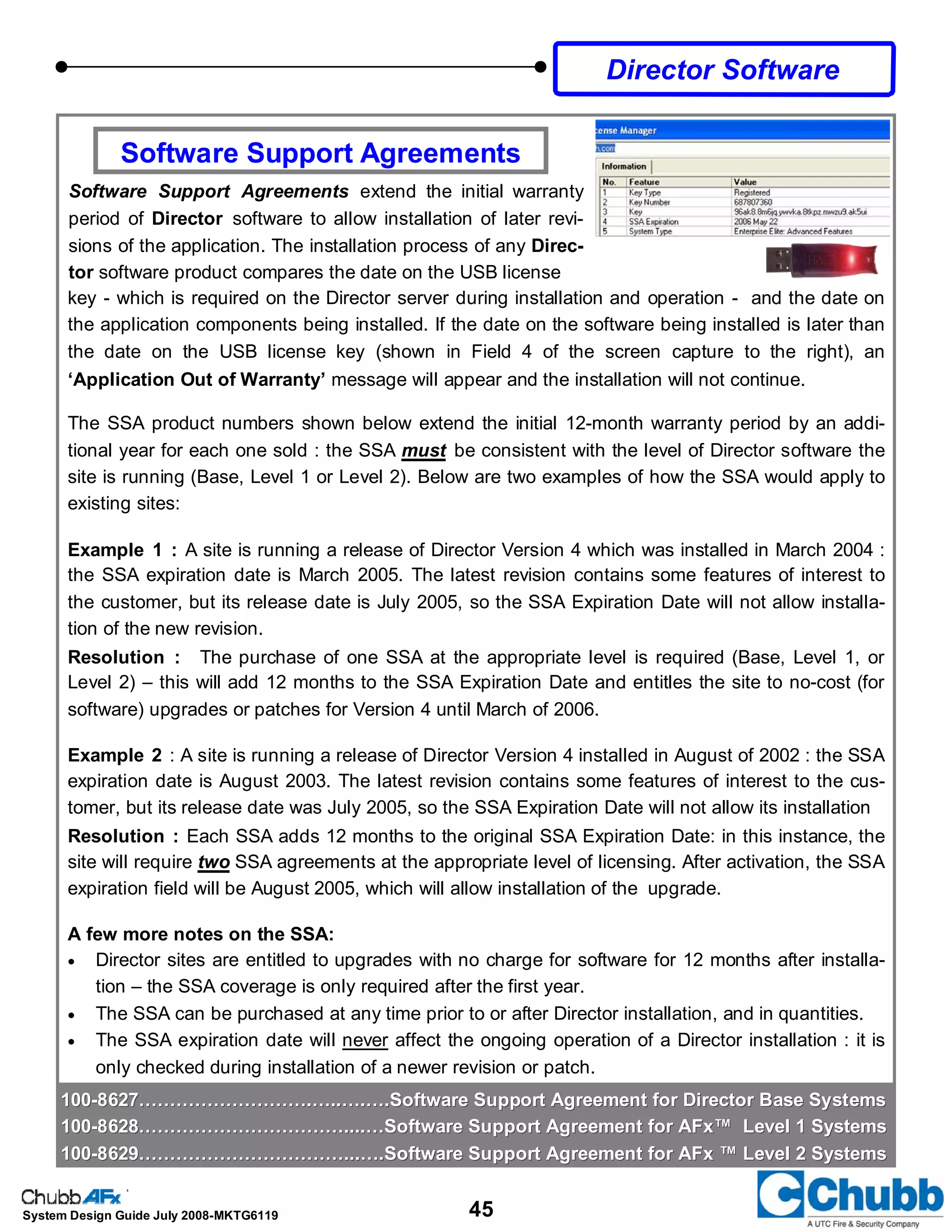

Software Support Agreements
Software Support Agreements extend the initial warranty
period of Director software to allow installation of later revi-
sions of the application. The installation process of any Direc-
tor software product compares the date on the USB license
Director Software
100100--8627……………………….…..….….Software Support Agreement for Director Base Systems8627……………………….…..….….Software Support Agreement for Director Base Systems
100100--8628……………………………....…Software Support Agreement for AFx™ Level 1 Systems8628……………………………....…Software Support Agreement for AFx™ Level 1 Systems
100100--8629……………………………...….Software Support Agreement for AFx ™ Level 2 Systems8629……………………………...….Software Support Agreement for AFx ™ Level 2 Systems
key - which is required on the Director server during installation and operation - and the date on
the application components being installed. If the date on the software being installed is later than
the date on the USB license key (shown in Field 4 of the screen capture to the right), an
‘Application Out of Warranty’ message will appear and the installation will not continue.
The SSA product numbers shown below extend the initial 12-month warranty period by an addi-
tional year for each one sold : the SSA must be consistent with the level of Director software the
site is running (Base, Level 1 or Level 2). Below are two examples of how the SSA would apply to
existing sites:
Example 1 : A site is running a release of Director Version 4 which was installed in March 2004 :
the SSA expiration date is March 2005. The latest revision contains some features of interest to
the customer, but its release date is July 2005, so the SSA Expiration Date will not allow installa-
tion of the new revision.
Resolution : The purchase of one SSA at the appropriate level is required (Base, Level 1, or
Level 2) – this will add 12 months to the SSA Expiration Date and entitles the site to no-cost (for
software) upgrades or patches for Version 4 until March of 2006.
Example 2 : A site is running a release of Director Version 4 installed in August of 2002 : the SSA
expiration date is August 2003. The latest revision contains some features of interest to the cus-
tomer, but its release date was July 2005, so the SSA Expiration Date will not allow its installation
Resolution : Each SSA adds 12 months to the original SSA Expiration Date: in this instance, the
site will require two SSA agreements at the appropriate level of licensing. After activation, the SSA
expiration field will be August 2005, which will allow installation of the upgrade.
A few more notes on the SSA:
• Director sites are entitled to upgrades with no charge for software for 12 months after installa-
tion – the SSA coverage is only required after the first year.
• The SSA can be purchased at any time prior to or after Director installation, and in quantities.
• The SSA expiration date will never affect the ongoing operation of a Director installation : it is
only checked during installation of a newer revision or patch.

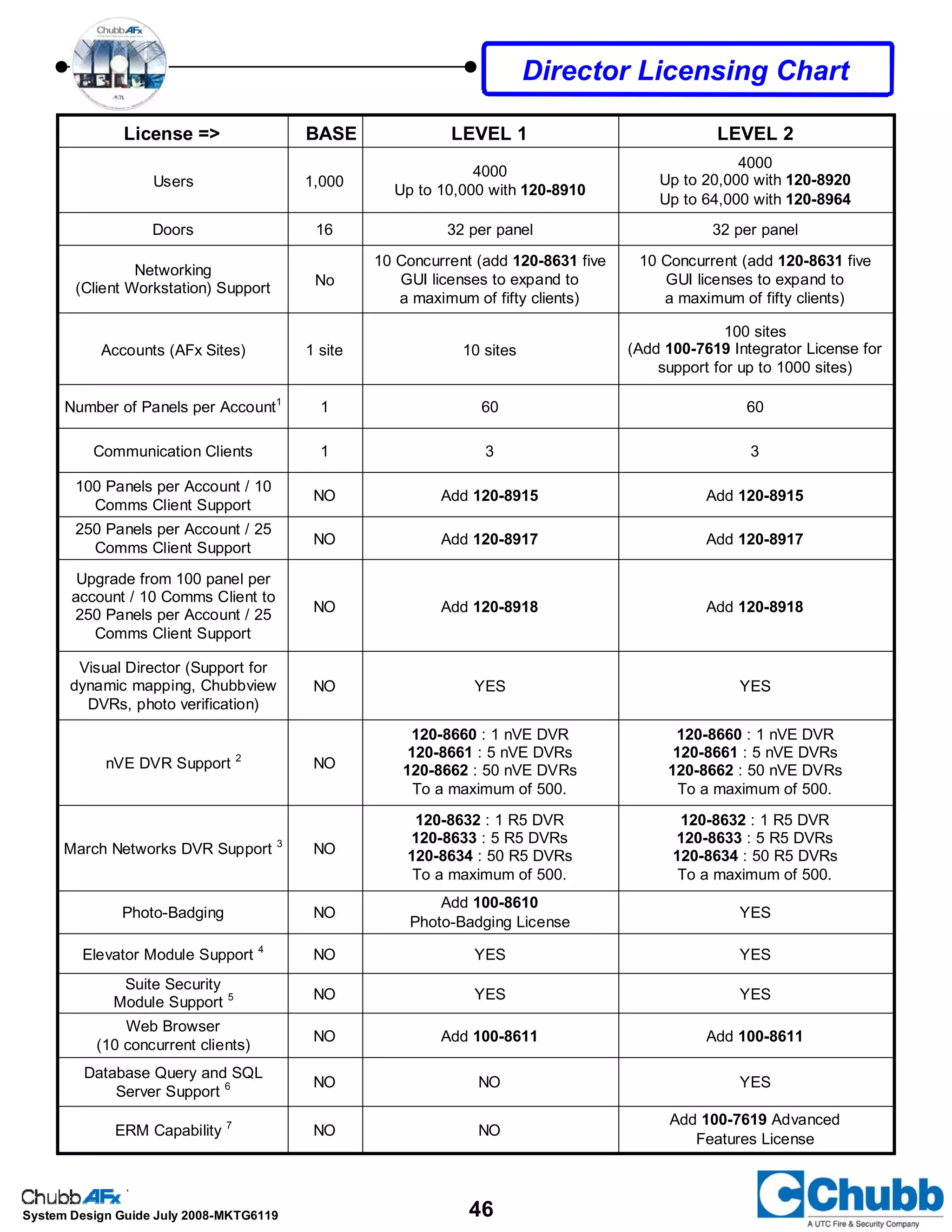

License => BASE LEVEL 1 LEVEL 2
Users 1,000
4000
Up to 10,000 with 120-8910
4000
Up to 20,000 with 120-8920
Up to 64,000 with 120-8964
Doors 16 32 per panel 32 per panel
Networking
(Client Workstation) Support
No
10 Concurrent (add 120-8631 five
GUI licenses to expand to
a maximum of fifty clients)
10 Concurrent (add 120-8631 five
GUI licenses to expand to
a maximum of fifty clients)
Accounts (AFx Sites) 1 site 10 sites
100 sites
(Add 100-7619 Integrator License for
support for up to 1000 sites)
Number of Panels per Account1
1 60 60
Communication Clients 1 3 3
100 Panels per Account / 10
Comms Client Support
NO Add 120-8915 Add 120-8915
NO Add 120-8917 Add 120-8917
Upgrade from 100 panel per
account / 10 Comms Client to
NO Add 120-8918 Add 120-8918
Visual Director (Support for
dynamic mapping, Chubbview
DVRs, photo verification)
NO YES YES
nVE DVR Support 2
NO
120-8660 : 1 nVE DVR
120-8661 : 5 nVE DVRs
120-8662 : 50 nVE DVRs
To a maximum of 500.
120-8660 : 1 nVE DVR
120-8661 : 5 nVE DVRs
120-8662 : 50 nVE DVRs
March Networks DVR Support 3
NO
120-8632 : 1 R5 DVR
120-8633 : 5 R5 DVRs
120-8634 : 50 R5 DVRs
120-8632 : 1 R5 DVR
120-8633 : 5 R5 DVRs
120-8634 : 50 R5 DVRs
Photo-Badging NO
Add 100-8610
Photo-Badging License
YES
Elevator Module Support 4
NO YES YES
Suite Security
Module Support 5 NO YES YES
Web Browser
(10 concurrent clients)
NO Add 100-8611 Add 100-8611
Database Query and SQL
Server Support 6 NO NO YES
ERM Capability 7
NO NO
Add 100-7619 Advanced
Features License
Director Licensing Chart

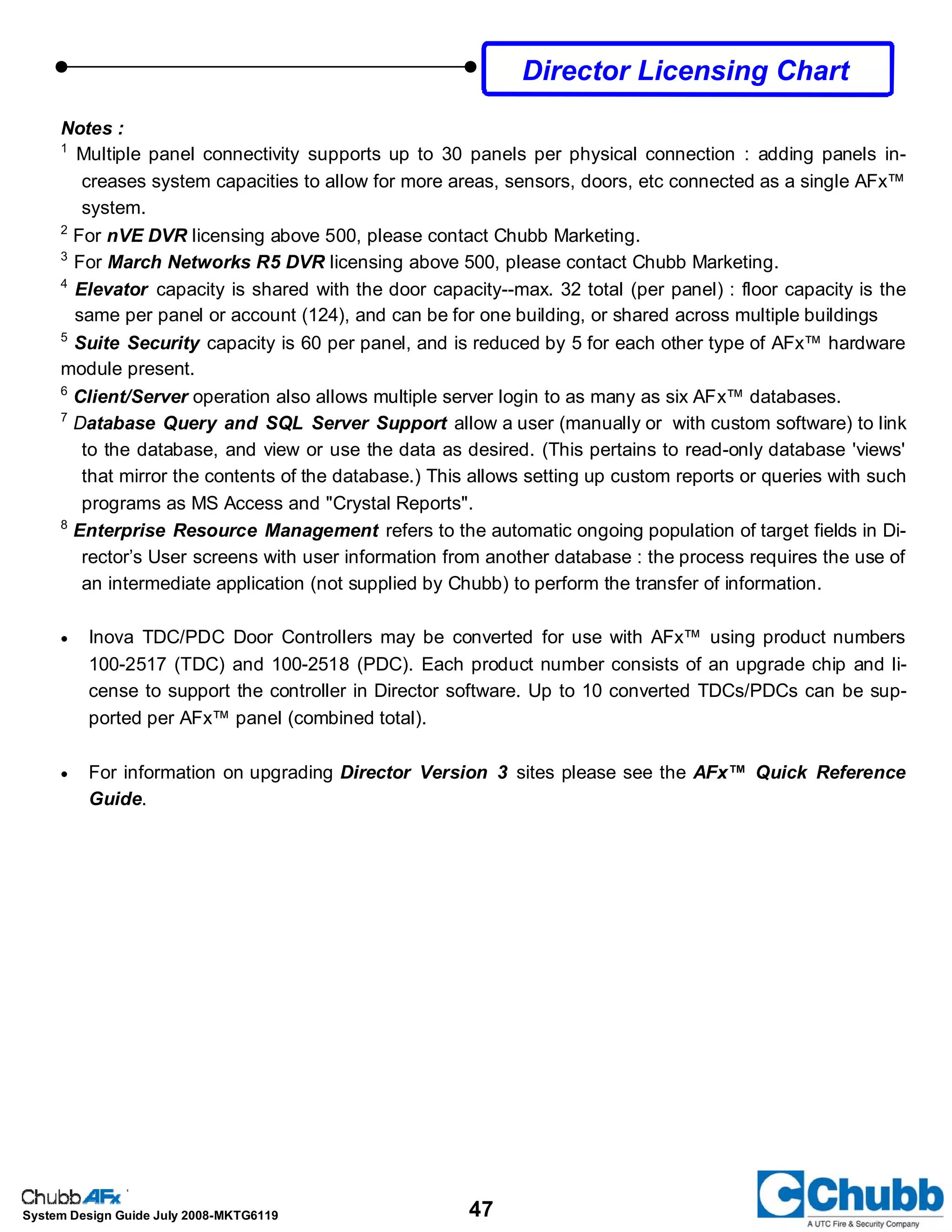

Notes :
1
Multiple panel connectivity supports up to 30 panels per physical connection : adding panels in-
creases system capacities to allow for more areas, sensors, doors, etc connected as a single AFx™
system.
2
For nVE DVR licensing above 500, please contact Chubb Marketing.
3
For March Networks R5 DVR licensing above 500, please contact Chubb Marketing.
4
Elevator capacity is shared with the door capacity--max. 32 total (per panel) : floor capacity is the
same per panel or account (124), and can be for one building, or shared across multiple buildings
5
Suite Security capacity is 60 per panel, and is reduced by 5 for each other type of AFx™ hardware
module present.
6
Client/Server operation also allows multiple server login to as many as six AFx™ databases.
7
Database Query and SQL Server Support allow a user (manually or with custom software) to link
to the database, and view or use the data as desired. (This pertains to read-only database 'views'
that mirror the contents of the database.) This allows setting up custom reports or queries with such
programs as MS Access and "Crystal Reports".
8
Enterprise Resource Management refers to the automatic ongoing population of target fields in Di-
rector’s User screens with user information from another database : the process requires the use of
an intermediate application (not supplied by Chubb) to perform the transfer of information.
• Inova TDC/PDC Door Controllers may be converted for use with AFx™ using product numbers
100-2517 (TDC) and 100-2518 (PDC). Each product number consists of an upgrade chip and li-
cense to support the controller in Director software. Up to 10 converted TDCs/PDCs can be sup-
ported per AFx™ panel (combined total).
• For information on upgrading Director Version 3 sites please see the AFx™ Quick Reference
Guide.
Director Licensing Chart

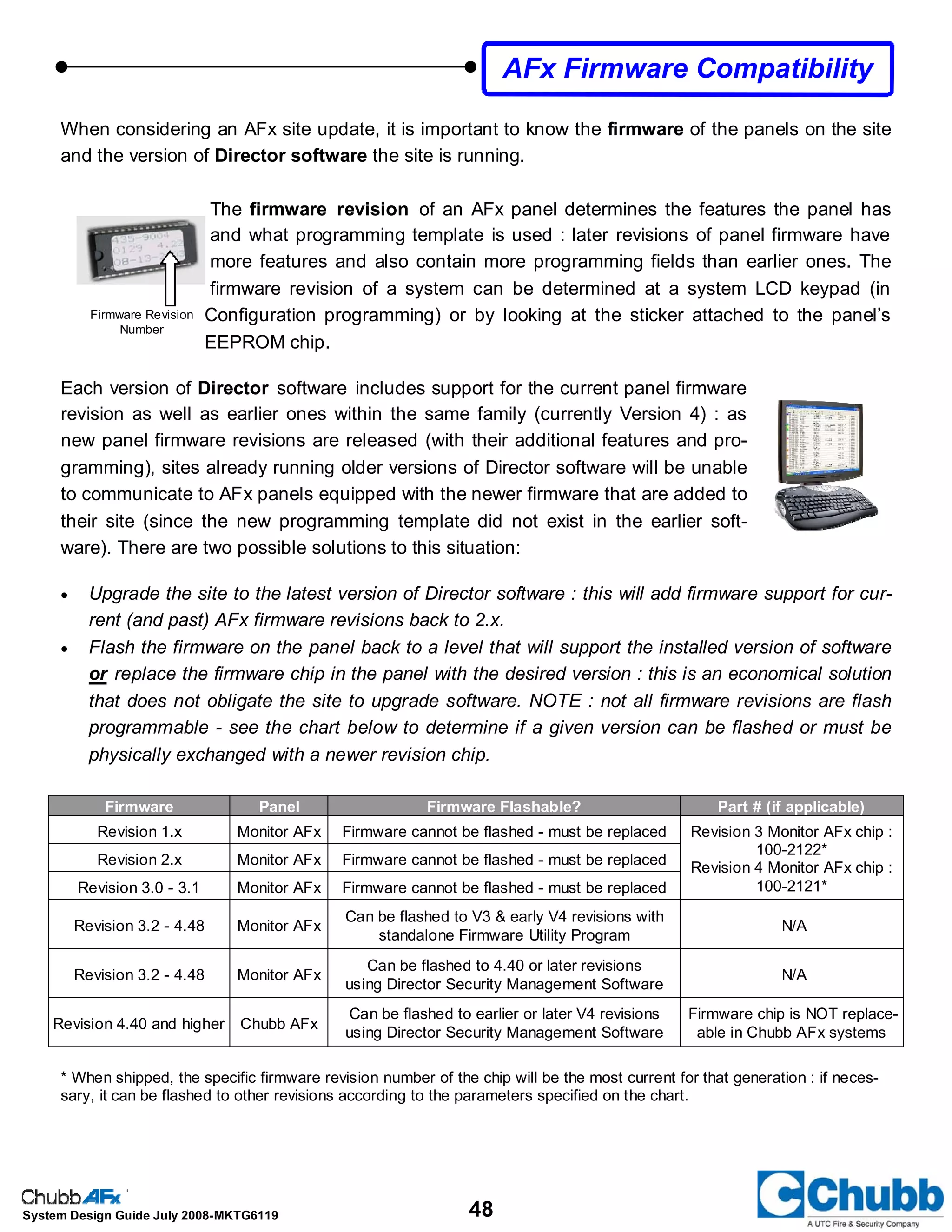

AFx Firmware Compatibility
When considering an AFx site update, it is important to know the firmware of the panels on the site
and the version of Director software the site is running.
The firmware revision of an AFx panel determines the features the panel has
and what programming template is used : later revisions of panel firmware have
more features and also contain more programming fields than earlier ones. The
firmware revision of a system can be determined at a system LCD keypad (in
Configuration programming) or by looking at the sticker attached to the panel’s
EEPROM chip.
Each version of Director software includes support for the current panel firmware
revision as well as earlier ones within the same family (currently Version 4) : as
new panel firmware revisions are released (with their additional features and pro-
gramming), sites already running older versions of Director software will be unable
to communicate to AFx panels equipped with the newer firmware that are added to
their site (since the new programming template did not exist in the earlier soft-
ware). There are two possible solutions to this situation:
• Upgrade the site to the latest version of Director software : this will add firmware support for cur-
rent (and past) AFx firmware revisions back to 2.x.
• Flash the firmware on the panel back to a level that will support the installed version of software
or replace the firmware chip in the panel with the desired version : this is an economical solution
that does not obligate the site to upgrade software. NOTE : not all firmware revisions are flash
programmable - see the chart below to determine if a given version can be flashed or must be
physically exchanged with a newer revision chip.
Firmware Revision
Number
Firmware Panel Firmware Flashable? Part # (if applicable)
Revision 1.x Monitor AFx Firmware cannot be flashed - must be replaced Revision 3 Monitor AFx chip :
100-2122*
Revision 4 Monitor AFx chip :
100-2121*
Revision 2.x Monitor AFx Firmware cannot be flashed - must be replaced
Revision 3.0 - 3.1 Monitor AFx Firmware cannot be flashed - must be replaced
Revision 3.2 - 4.48 Monitor AFx
Can be flashed to V3 & early V4 revisions with
standalone Firmware Utility Program
N/A
Revision 3.2 - 4.48 Monitor AFx
Can be flashed to 4.40 or later revisions
using Director Security Management Software
N/A
Revision 4.40 and higher Chubb AFx
Can be flashed to earlier or later V4 revisions
using Director Security Management Software
Firmware chip is NOT replace-
able in Chubb AFx systems
* When shipped, the specific firmware revision number of the chip will be the most current for that generation : if neces-
sary, it can be flashed to other revisions according to the parameters specified on the chart.

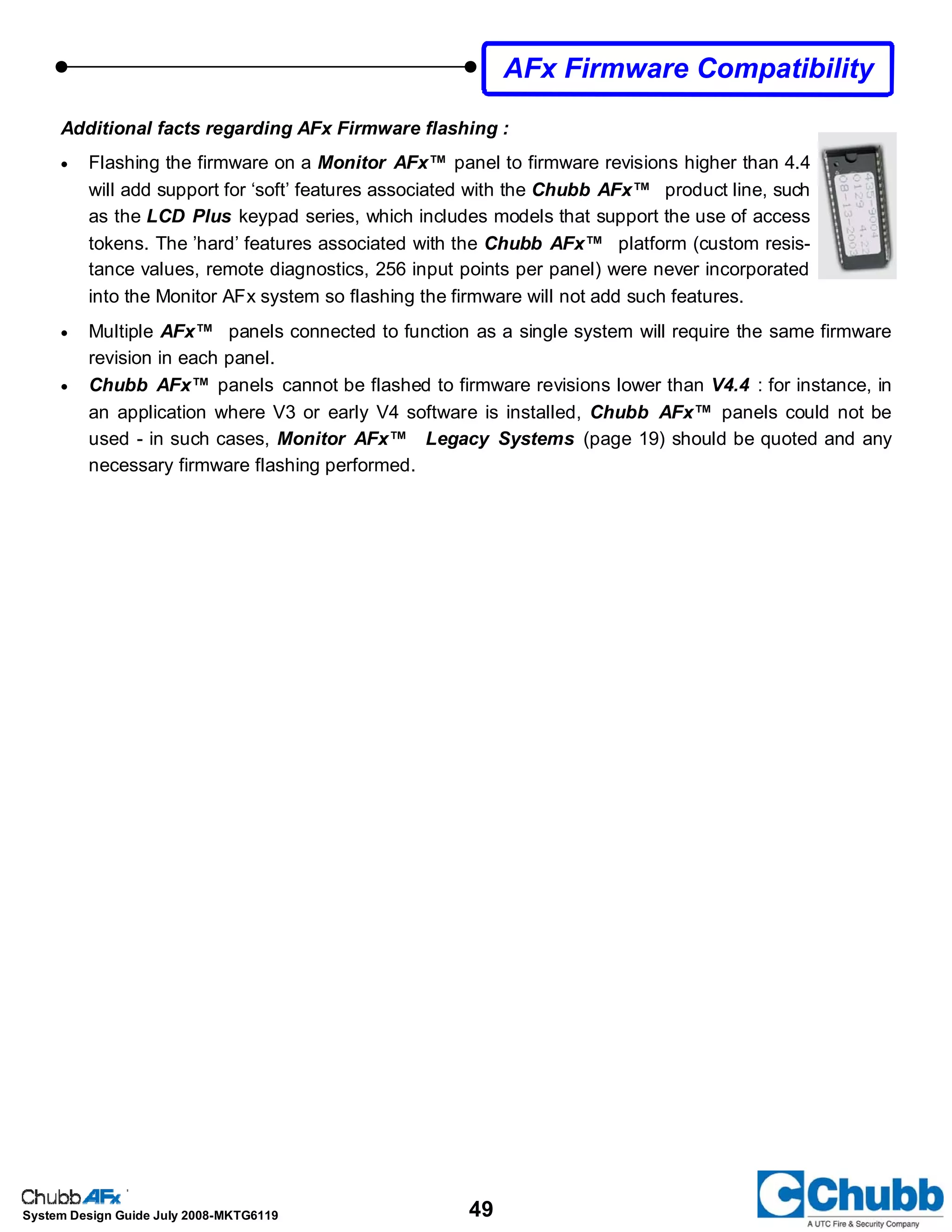

Additional facts regarding AFx Firmware flashing :
• Flashing the firmware on a Monitor AFx™ panel to firmware revisions higher than 4.4
will add support for ‘soft’ features associated with the Chubb AFx™ product line, such
as the LCD Plus keypad series, which includes models that support the use of access
tokens. The ’hard’ features associated with the Chubb AFx™ platform (custom resis-
tance values, remote diagnostics, 256 input points per panel) were never incorporated
into the Monitor AFx system so flashing the firmware will not add such features.
• Multiple AFx™ panels connected to function as a single system will require the same firmware
revision in each panel.
• Chubb AFx™ panels cannot be flashed to firmware revisions lower than V4.4 : for instance, in
an application where V3 or early V4 software is installed, Chubb AFx™ panels could not be
used - in such cases, Monitor AFx™ Legacy Systems (page 19) should be quoted and any
necessary firmware flashing performed.
AFx Firmware Compatibility

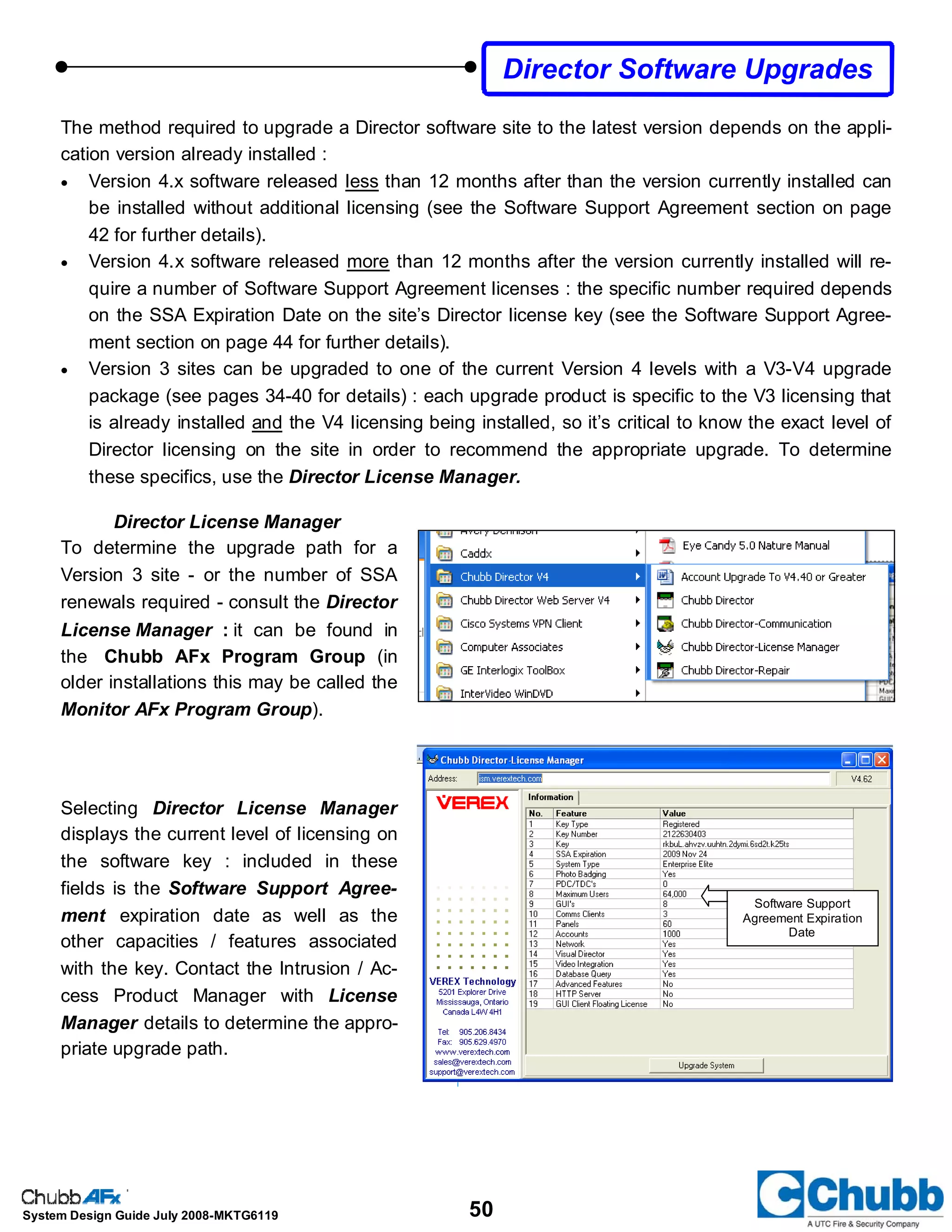

The method required to upgrade a Director software site to the latest version depends on the appli-
cation version already installed :
• Version 4.x software released less than 12 months after than the version currently installed can
be installed without additional licensing (see the Software Support Agreement section on page
42 for further details).
• Version 4.x software released more than 12 months after the version currently installed will re-
quire a number of Software Support Agreement licenses : the specific number required depends
on the SSA Expiration Date on the site’s Director license key (see the Software Support Agree-
ment section on page 44 for further details).
• Version 3 sites can be upgraded to one of the current Version 4 levels with a V3-V4 upgrade
package (see pages 34-40 for details) : each upgrade product is specific to the V3 licensing that
is already installed and the V4 licensing being installed, so it’s critical to know the exact level of
Director licensing on the site in order to recommend the appropriate upgrade. To determine
these specifics, use the Director License Manager.
Director License Manager
To determine the upgrade path for a
Version 3 site - or the number of SSA
renewals required - consult the Director
License Manager : it can be found in
the Chubb AFx Program Group (in
older installations this may be called the
Monitor AFx Program Group).
Selecting Director License Manager
displays the current level of licensing on
the software key : included in these
fields is the Software Support Agree-
ment expiration date as well as the
other capacities / features associated
with the key. Contact the Intrusion / Ac-
cess Product Manager with License
Manager details to determine the appro-
priate upgrade path.
Director Software Upgrades
Software Support
Agreement Expiration
Date

Features
The Chubb AFx™ platform is a powerful and sophisticated system that
incorporates a multitude of user-friendly features : these allow the system to be
as convenient as an application’s users require without compromising the
security considerations of the premises. Most of these features are consistent
throughout all levels of the Chubb AFx™ system : where specific licensing is as-
sociated with a feature this is noted in the description.
System Features…………….………..…………...51
Intrusion Features………….……………………..54
Access Control Features...………………………60
Director Software Features…………….….…….66

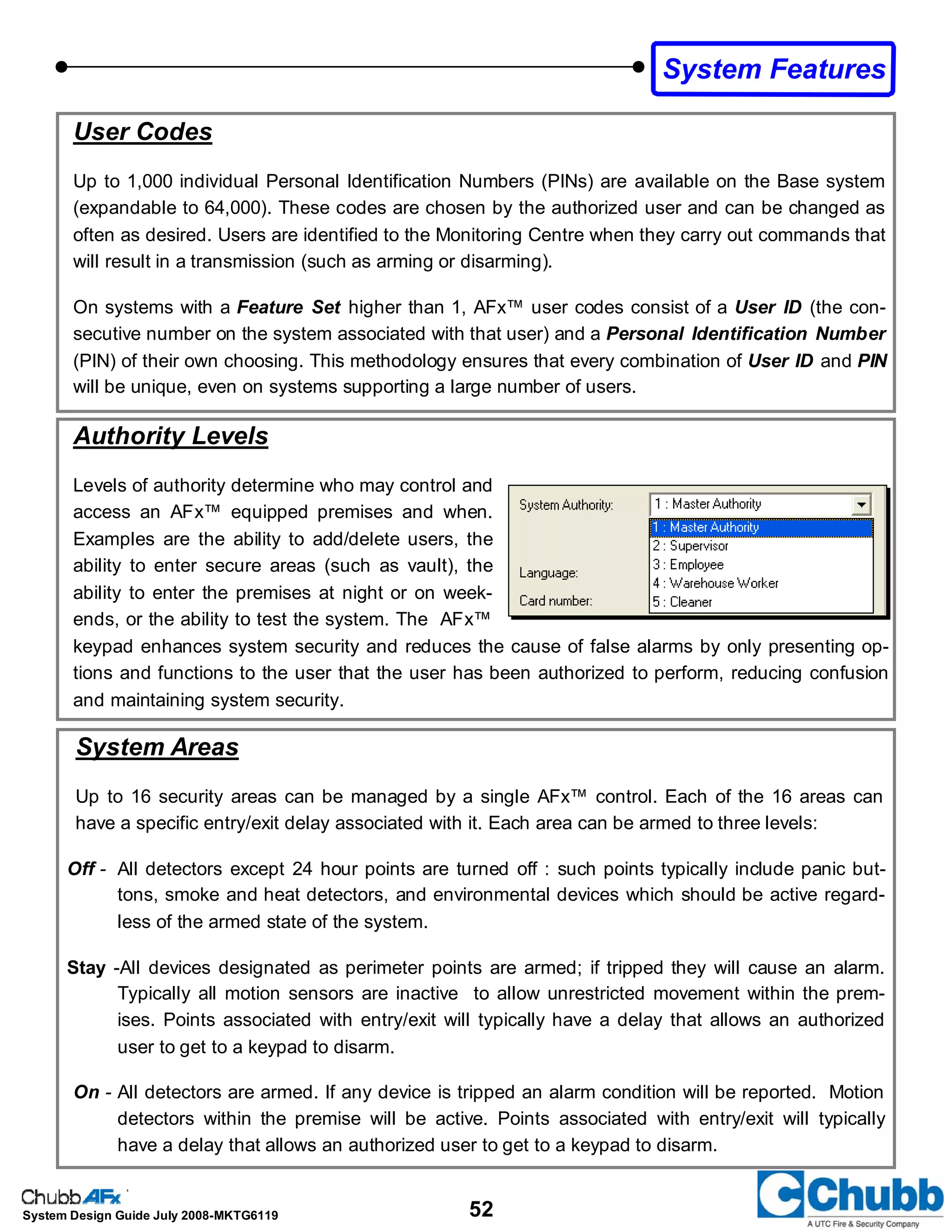

User Codes
Up to 1,000 individual Personal Identification Numbers (PINs) are available on the Base system
(expandable to 64,000). These codes are chosen by the authorized user and can be changed as
often as desired. Users are identified to the Monitoring Centre when they carry out commands that
will result in a transmission (such as arming or disarming).
On systems with a Feature Set higher than 1, AFx™ user codes consist of a User ID (the con-
secutive number on the system associated with that user) and a Personal Identification Number
(PIN) of their own choosing. This methodology ensures that every combination of User ID and PIN
will be unique, even on systems supporting a large number of users.
Authority Levels
Levels of authority determine who may control and
access an AFx™ equipped premises and when.
Examples are the ability to add/delete users, the
ability to enter secure areas (such as vault), the
ability to enter the premises at night or on week-
ends, or the ability to test the system. The AFx™
keypad enhances system security and reduces the cause of false alarms by only presenting op-
tions and functions to the user that the user has been authorized to perform, reducing confusion
and maintaining system security.
System Features
System Areas
Up to 16 security areas can be managed by a single AFx™ control. Each of the 16 areas can
have a specific entry/exit delay associated with it. Each area can be armed to three levels:
Off - All detectors except 24 hour points are turned off : such points typically include panic but-
tons, smoke and heat detectors, and environmental devices which should be active regard-
less of the armed state of the system.
Stay -All devices designated as perimeter points are armed; if tripped they will cause an alarm.
Typically all motion sensors are inactive to allow unrestricted movement within the prem-
ises. Points associated with entry/exit will typically have a delay that allows an authorized
user to get to a keypad to disarm.
On - All detectors are armed. If any device is tripped an alarm condition will be reported. Motion
detectors within the premise will be active. Points associated with entry/exit will typically
have a delay that allows an authorized user to get to a keypad to disarm.

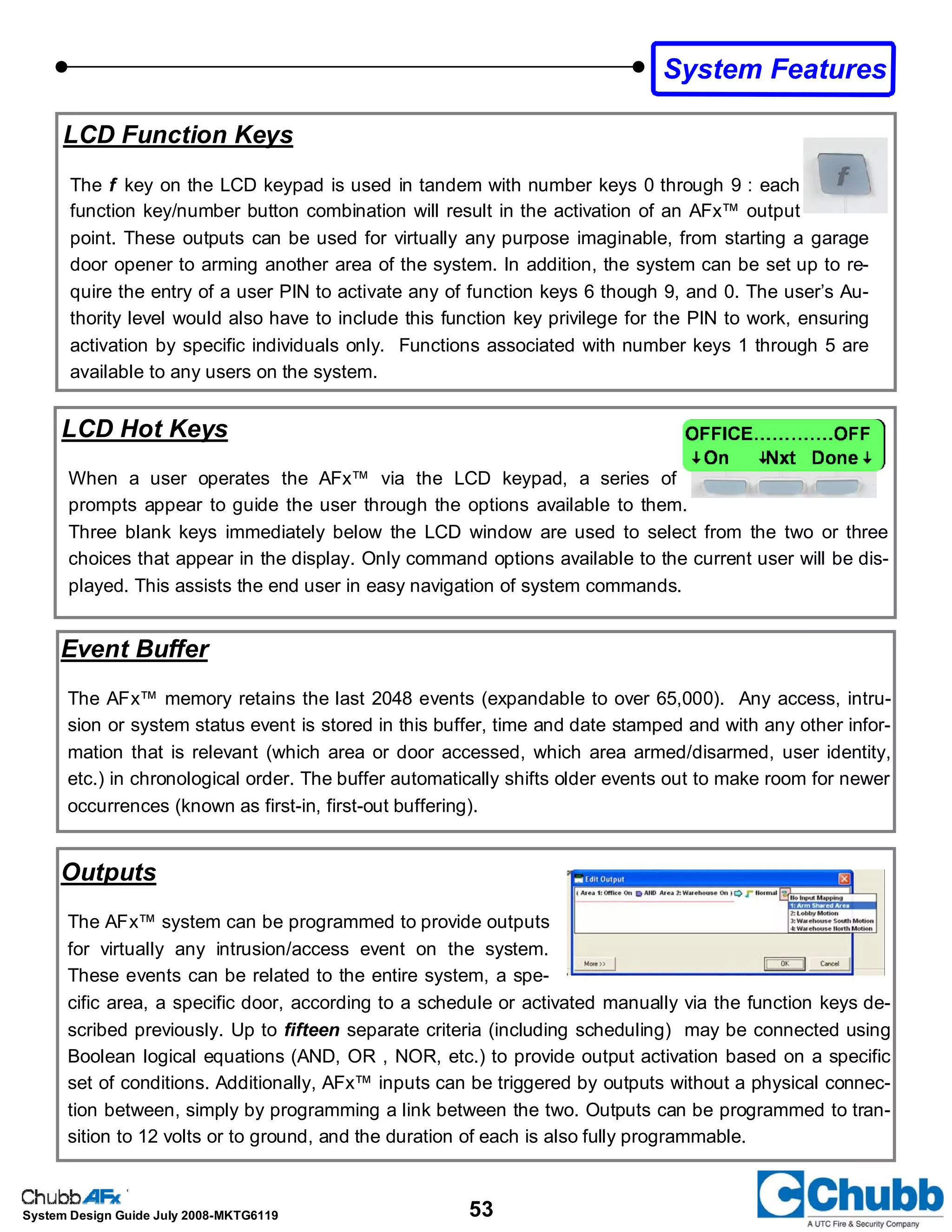

LCD Function Keys
The f key on the LCD keypad is used in tandem with number keys 0 through 9 : each
function key/number button combination will result in the activation of an AFx™ output
point. These outputs can be used for virtually any purpose imaginable, from starting a garage
door opener to arming another area of the system. In addition, the system can be set up to re-
quire the entry of a user PIN to activate any of function keys 6 though 9, and 0. The user’s Au-
thority level would also have to include this function key privilege for the PIN to work, ensuring
activation by specific individuals only. Functions associated with number keys 1 through 5 are
available to any users on the system.
Event Buffer
The AFx™ memory retains the last 2048 events (expandable to over 65,000). Any access, intru-
sion or system status event is stored in this buffer, time and date stamped and with any other infor-
mation that is relevant (which area or door accessed, which area armed/disarmed, user identity,
etc.) in chronological order. The buffer automatically shifts older events out to make room for newer
occurrences (known as first-in, first-out buffering).
Outputs
The AFx™ system can be programmed to provide outputs
for virtually any intrusion/access event on the system.
These events can be related to the entire system, a spe-
cific area, a specific door, according to a schedule or activated manually via the function keys de-
scribed previously. Up to fifteen separate criteria (including scheduling) may be connected using
Boolean logical equations (AND, OR , NOR, etc.) to provide output activation based on a specific
set of conditions. Additionally, AFx™ inputs can be triggered by outputs without a physical connec-
tion between, simply by programming a link between the two. Outputs can be programmed to tran-
sition to 12 volts or to ground, and the duration of each is also fully programmable.
LCD Hot Keys
When a user operates the AFx™ via the LCD keypad, a series of
prompts appear to guide the user through the options available to them.
Three blank keys immediately below the LCD window are used to select from the two or three
choices that appear in the display. Only command options available to the current user will be dis-
played. This assists the end user in easy navigation of system commands.
System Features

System Features

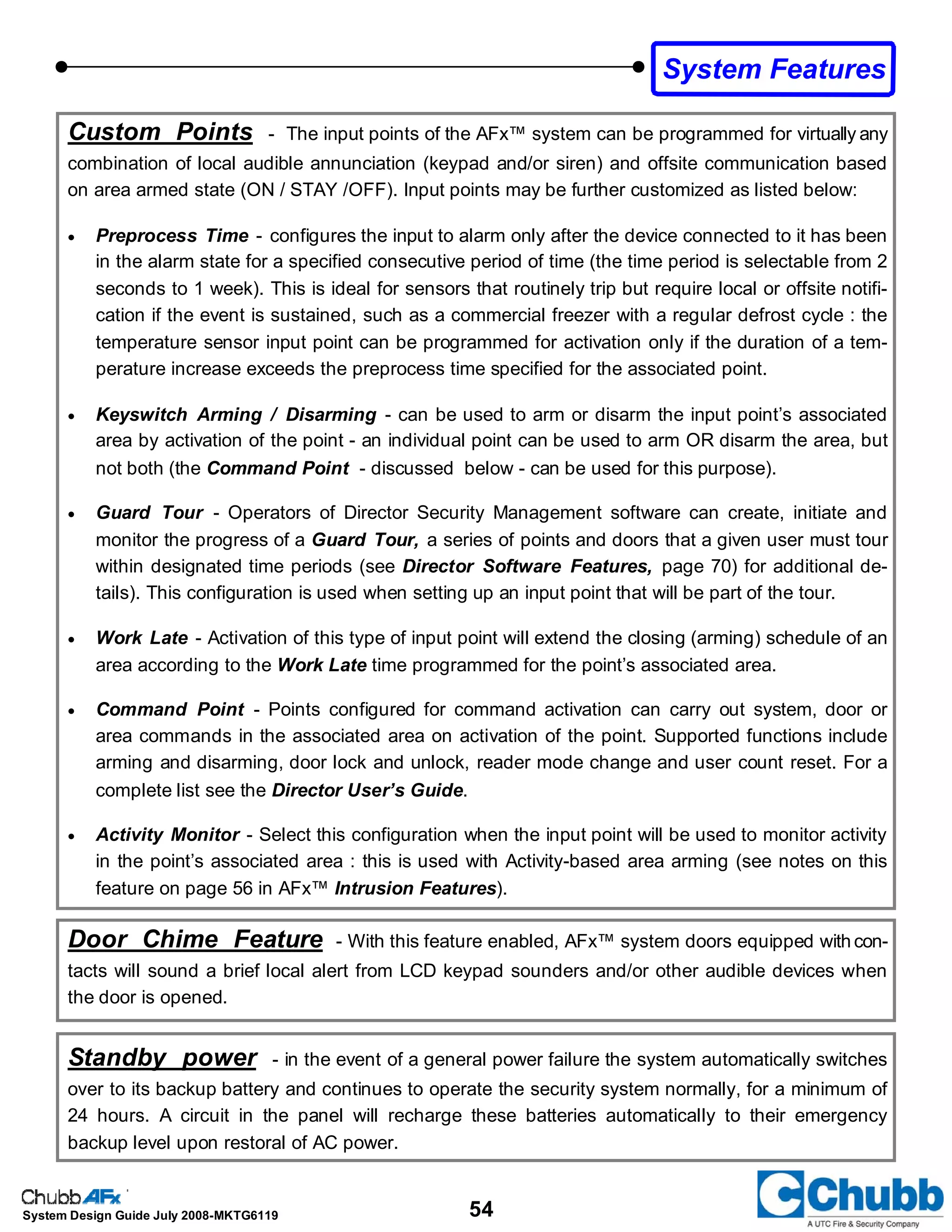

Custom Points - The input points of the AFx™ system can be programmed for virtually any
combination of local audible annunciation (keypad and/or siren) and offsite communication based
on area armed state (ON / STAY /OFF). Input points may be further customized as listed below:
• Preprocess Time - configures the input to alarm only after the device connected to it has been
in the alarm state for a specified consecutive period of time (the time period is selectable from 2
seconds to 1 week). This is ideal for sensors that routinely trip but require local or offsite notifi-
cation if the event is sustained, such as a commercial freezer with a regular defrost cycle : the
temperature sensor input point can be programmed for activation only if the duration of a tem-
perature increase exceeds the preprocess time specified for the associated point.
• Keyswitch Arming / Disarming - can be used to arm or disarm the input point’s associated
area by activation of the point - an individual point can be used to arm OR disarm the area, but
not both (the Command Point - discussed below - can be used for this purpose).
• Guard Tour - Operators of Director Security Management software can create, initiate and
monitor the progress of a Guard Tour, a series of points and doors that a given user must tour
within designated time periods (see Director Software Features, page 70) for additional de-
tails). This configuration is used when setting up an input point that will be part of the tour.
• Work Late - Activation of this type of input point will extend the closing (arming) schedule of an
area according to the Work Late time programmed for the point’s associated area.
• Command Point - Points configured for command activation can carry out system, door or
area commands in the associated area on activation of the point. Supported functions include
arming and disarming, door lock and unlock, reader mode change and user count reset. For a
complete list see the Director User’s Guide.
• Activity Monitor - Select this configuration when the input point will be used to monitor activity
in the point’s associated area : this is used with Activity-based area arming (see notes on this
feature on page 56 in AFx™ Intrusion Features).
Door Chime Feature - With this feature enabled, AFx™ system doors equipped with con-
tacts will sound a brief local alert from LCD keypad sounders and/or other audible devices when
the door is opened.
Standby power - in the event of a general power failure the system automatically switches
over to its backup battery and continues to operate the security system normally, for a minimum of
24 hours. A circuit in the panel will recharge these batteries automatically to their emergency
backup level upon restoral of AC power.

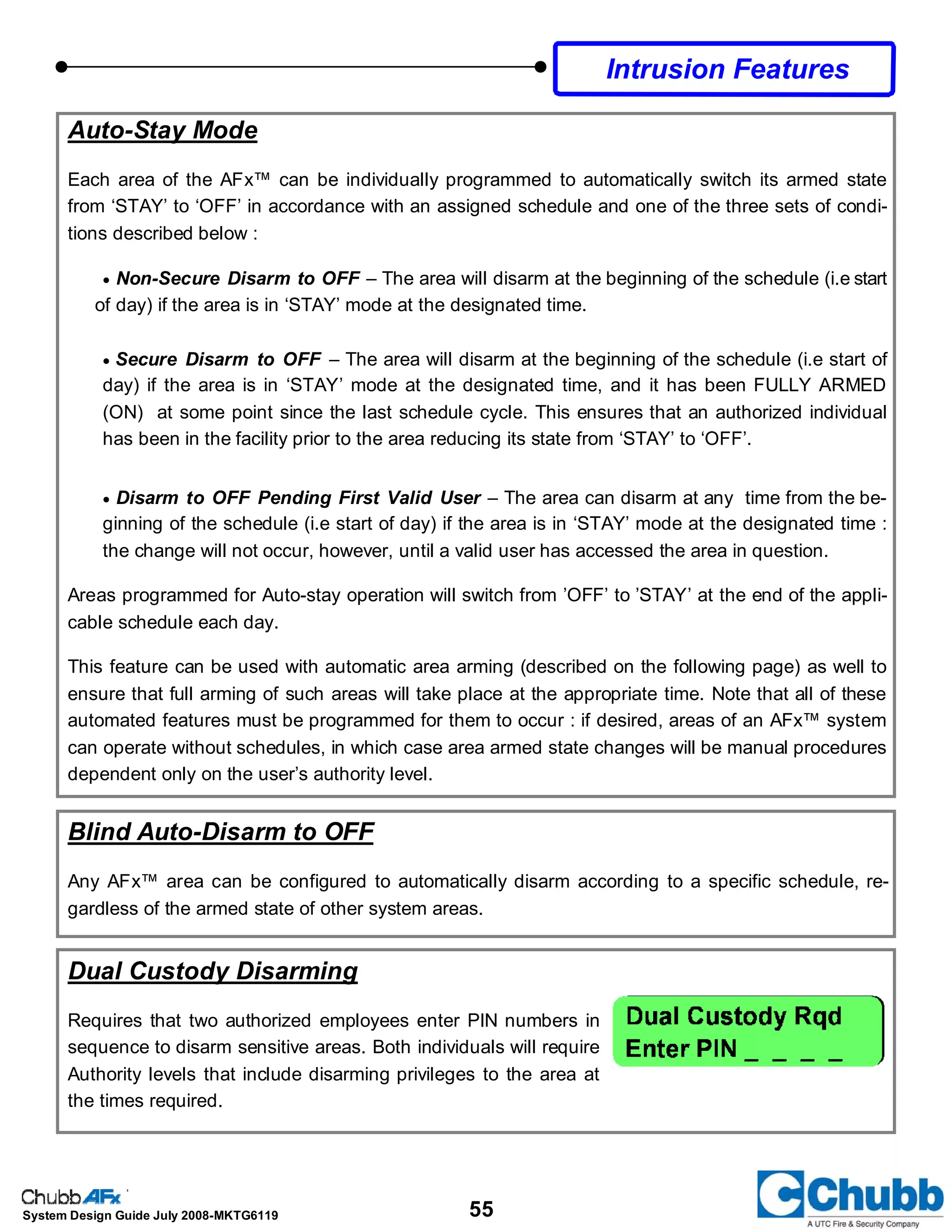

Auto-Stay Mode
Each area of the AFx™ can be individually programmed to automatically switch its armed state
from ‘STAY’ to ‘OFF’ in accordance with an assigned schedule and one of the three sets of condi-
tions described below :
• Non-Secure Disarm to OFF – The area will disarm at the beginning of the schedule (i.e start
of day) if the area is in ‘STAY’ mode at the designated time.
• Secure Disarm to OFF – The area will disarm at the beginning of the schedule (i.e start of
day) if the area is in ‘STAY’ mode at the designated time, and it has been FULLY ARMED
(ON) at some point since the last schedule cycle. This ensures that an authorized individual
has been in the facility prior to the area reducing its state from ‘STAY’ to ‘OFF’.
• Disarm to OFF Pending First Valid User – The area can disarm at any time from the be-
ginning of the schedule (i.e start of day) if the area is in ‘STAY’ mode at the designated time :
the change will not occur, however, until a valid user has accessed the area in question.
Areas programmed for Auto-stay operation will switch from ’OFF’ to ’STAY’ at the end of the appli-
cable schedule each day.
This feature can be used with automatic area arming (described on the following page) as well to
ensure that full arming of such areas will take place at the appropriate time. Note that all of these
automated features must be programmed for them to occur : if desired, areas of an AFx™ system
can operate without schedules, in which case area armed state changes will be manual procedures
dependent only on the user’s authority level.
Blind Auto-Disarm to OFF
Any AFx™ area can be configured to automatically disarm according to a specific schedule, re-
gardless of the armed state of other system areas.
Dual Custody Disarming
Requires that two authorized employees enter PIN numbers in
sequence to disarm sensitive areas. Both individuals will require
Authority levels that include disarming privileges to the area at
the times required.
Intrusion Features

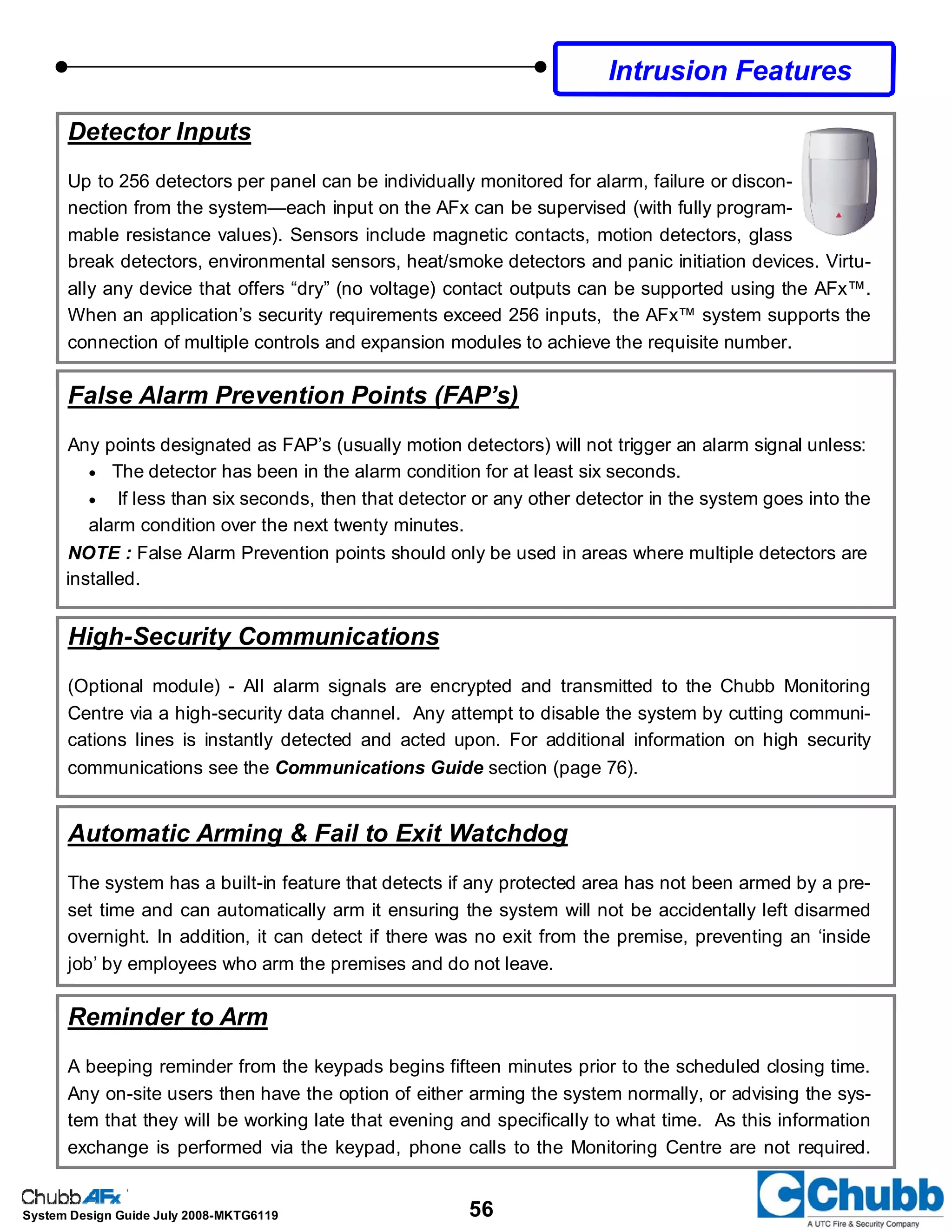

Detector Inputs
Up to 256 detectors per panel can be individually monitored for alarm, failure or discon-
nection from the system—each input on the AFx can be supervised (with fully program-
mable resistance values). Sensors include magnetic contacts, motion detectors, glass
break detectors, environmental sensors, heat/smoke detectors and panic initiation devices. Virtu-
ally any device that offers “dry” (no voltage) contact outputs can be supported using the AFx™.
When an application’s security requirements exceed 256 inputs, the AFx™ system supports the
connection of multiple controls and expansion modules to achieve the requisite number.
False Alarm Prevention Points (FAP’s)
Any points designated as FAP’s (usually motion detectors) will not trigger an alarm signal unless:
• The detector has been in the alarm condition for at least six seconds.
• If less than six seconds, then that detector or any other detector in the system goes into the
alarm condition over the next twenty minutes.
NOTE : False Alarm Prevention points should only be used in areas where multiple detectors are
installed.
High-Security Communications
(Optional module) - All alarm signals are encrypted and transmitted to the Chubb Monitoring
Centre via a high-security data channel. Any attempt to disable the system by cutting communi-
cations lines is instantly detected and acted upon. For additional information on high security
communications see the Communications Guide section (page 76).
Automatic Arming & Fail to Exit Watchdog
The system has a built-in feature that detects if any protected area has not been armed by a pre-
set time and can automatically arm it ensuring the system will not be accidentally left disarmed
overnight. In addition, it can detect if there was no exit from the premise, preventing an ‘inside
job’ by employees who arm the premises and do not leave.
Reminder to Arm
A beeping reminder from the keypads begins fifteen minutes prior to the scheduled closing time.
Any on-site users then have the option of either arming the system normally, or advising the sys-
tem that they will be working late that evening and specifically to what time. As this information
exchange is performed via the keypad, phone calls to the Monitoring Centre are not required.
Intrusion Features

Automatic Arming Based on Area Inactivity
Each individual AFx™ area can be configured to automatically arm if there has been a sustained
period of inactivity (i.e. no detection devices such as door contacts or motion detectors have acti-
vated) : this value in minutes is selectable by area.
Area activity arming can be programmed to operate throughout the day or only outside an area’s
regular arming schedule if required.
Invalid PIN Lockout
The system can be programmed to lock out (ignore) further at-
tempts to enter a PIN number after a designated number of in-
valid PIN attempts. The lockout duration is programmable from
2 seconds to 1 week.
There is also a ‘Global Lockout’ setting that specifies a maximum number of lockout conditions—
programmable responses to the global lockout include local and off-site notification (transmission
to the monitoring centre) and a lockout for all users (on an area by area basis).
Intrusion Features

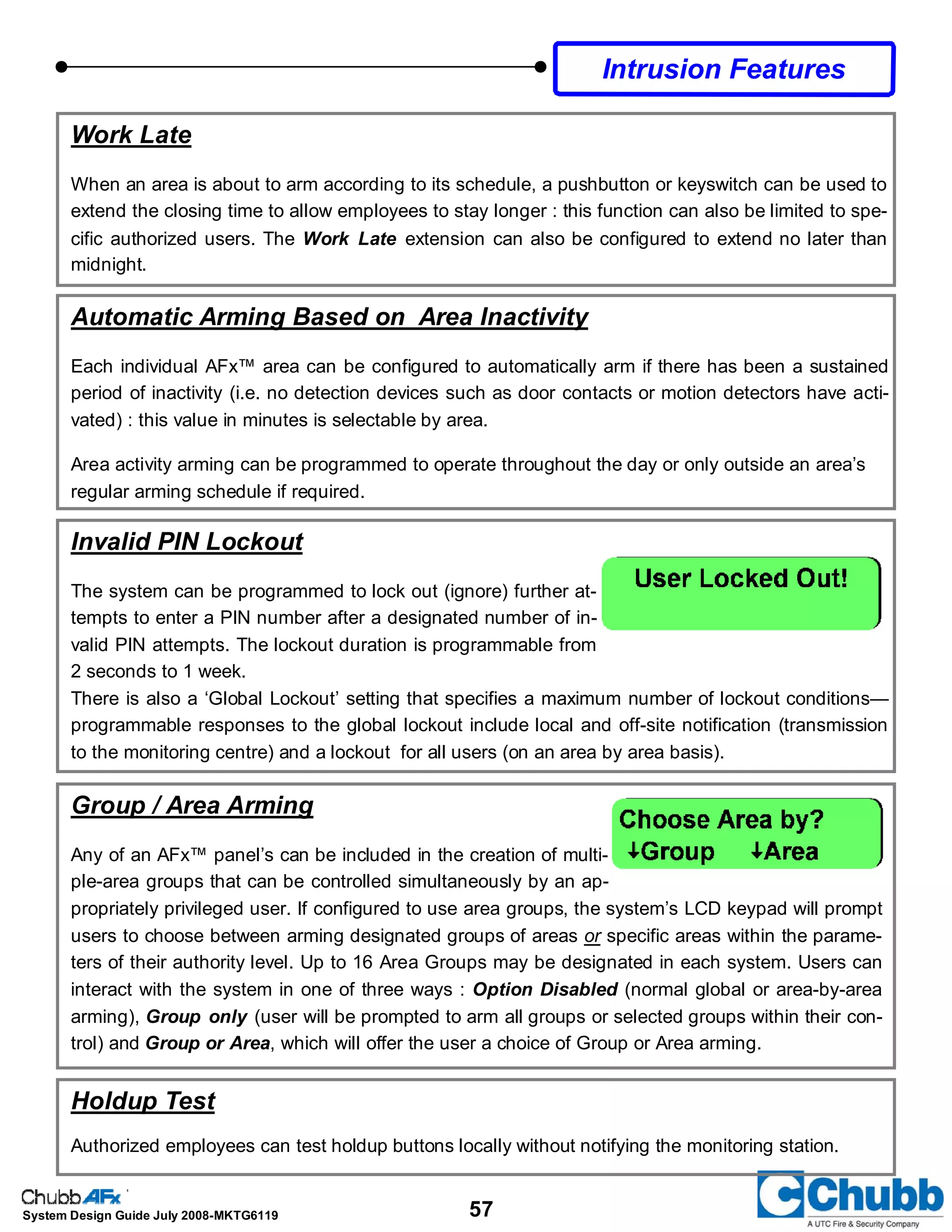

Work Late
When an area is about to arm according to its schedule, a pushbutton or keyswitch can be used to
extend the closing time to allow employees to stay longer : this function can also be limited to spe-
cific authorized users. The Work Late extension can also be configured to extend no later than
midnight.
Group / Area Arming
Any of an AFx™ panel’s can be included in the creation of multi-
ple-area groups that can be controlled simultaneously by an ap-
propriately privileged user. If configured to use area groups, the system’s LCD keypad will prompt
users to choose between arming designated groups of areas or specific areas within the parame-
ters of their authority level. Up to 16 Area Groups may be designated in each system. Users can
interact with the system in one of three ways : Option Disabled (normal global or area-by-area
arming), Group only (user will be prompted to arm all groups or selected groups within their con-
trol) and Group or Area, which will offer the user a choice of Group or Area arming.
Holdup Test
Authorized employees can test holdup buttons locally without notifying the monitoring station.

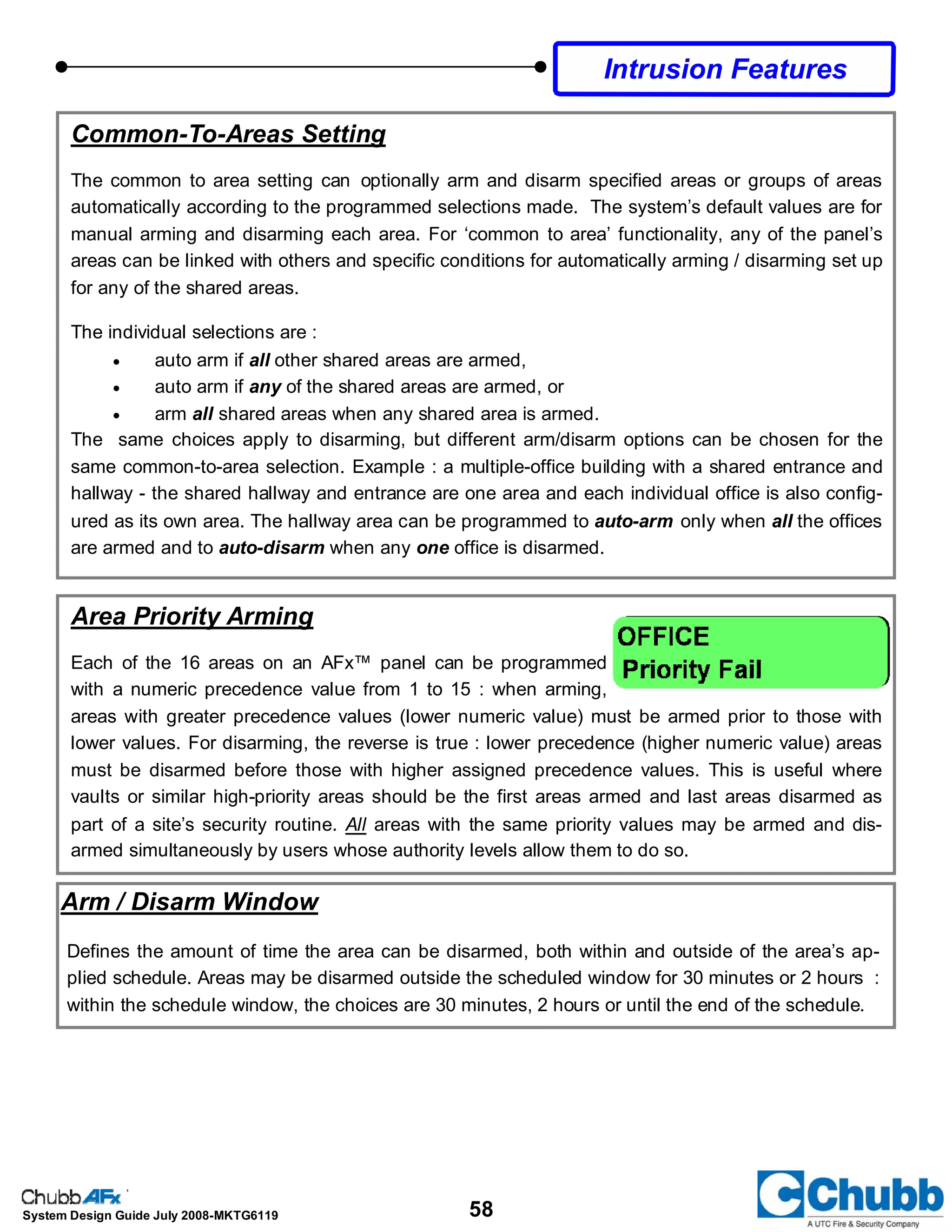

Common-To-Areas Setting
The common to area setting can optionally arm and disarm specified areas or groups of areas
automatically according to the programmed selections made. The system’s default values are for
manual arming and disarming each area. For ‘common to area’ functionality, any of the panel’s
areas can be linked with others and specific conditions for automatically arming / disarming set up
for any of the shared areas.
The individual selections are :
• auto arm if all other shared areas are armed,
• auto arm if any of the shared areas are armed, or
• arm all shared areas when any shared area is armed.
The same choices apply to disarming, but different arm/disarm options can be chosen for the
same common-to-area selection. Example : a multiple-office building with a shared entrance and
hallway - the shared hallway and entrance are one area and each individual office is also config-
ured as its own area. The hallway area can be programmed to auto-arm only when all the offices
are armed and to auto-disarm when any one office is disarmed.
Area Priority Arming
Each of the 16 areas on an AFx™ panel can be programmed
with a numeric precedence value from 1 to 15 : when arming,
areas with greater precedence values (lower numeric value) must be armed prior to those with
lower values. For disarming, the reverse is true : lower precedence (higher numeric value) areas
must be disarmed before those with higher assigned precedence values. This is useful where
vaults or similar high-priority areas should be the first areas armed and last areas disarmed as
part of a site’s security routine. All areas with the same priority values may be armed and dis-
armed simultaneously by users whose authority levels allow them to do so.
Intrusion Features
Arm / Disarm Window
Defines the amount of time the area can be disarmed, both within and outside of the area’s ap-
plied schedule. Areas may be disarmed outside the scheduled window for 30 minutes or 2 hours :
within the schedule window, the choices are 30 minutes, 2 hours or until the end of the schedule.

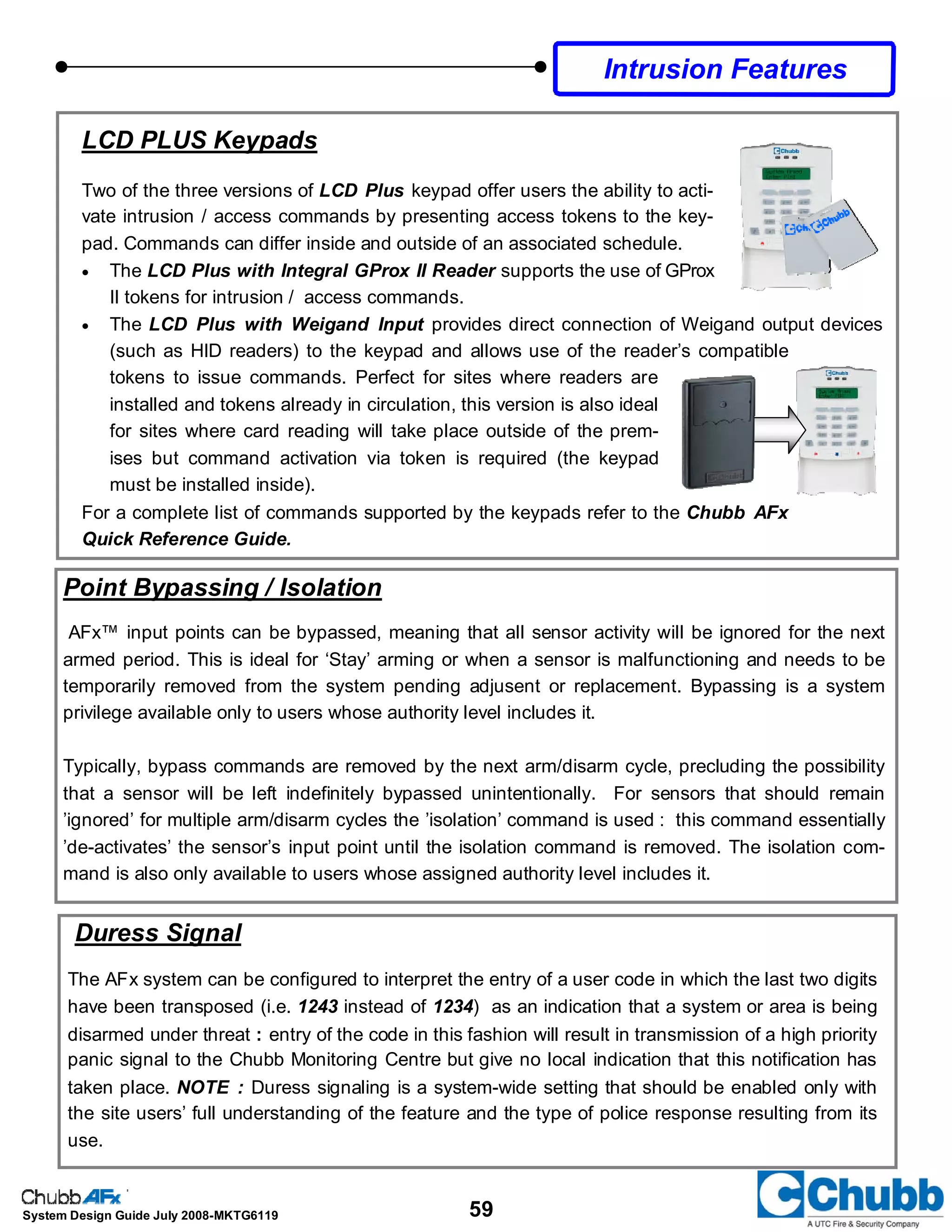

LCD PLUS Keypads
Two of the three versions of LCD Plus keypad offer users the ability to acti-
vate intrusion / access commands by presenting access tokens to the key-
pad. Commands can differ inside and outside of an associated schedule.
• The LCD Plus with Integral GProx II Reader supports the use of GProx
II tokens for intrusion / access commands.
• The LCD Plus with Weigand Input provides direct connection of Weigand output devices
(such as HID readers) to the keypad and allows use of the reader’s compatible
tokens to issue commands. Perfect for sites where readers are
installed and tokens already in circulation, this version is also ideal
for sites where card reading will take place outside of the prem-
ises but command activation via token is required (the keypad
must be installed inside).
For a complete list of commands supported by the keypads refer to the Chubb AFx
Quick Reference Guide.
Intrusion Features
Point Bypassing / Isolation
AFx™ input points can be bypassed, meaning that all sensor activity will be ignored for the next
armed period. This is ideal for ‘Stay’ arming or when a sensor is malfunctioning and needs to be
temporarily removed from the system pending adjusent or replacement. Bypassing is a system
privilege available only to users whose authority level includes it.
Typically, bypass commands are removed by the next arm/disarm cycle, precluding the possibility
that a sensor will be left indefinitely bypassed unintentionally. For sensors that should remain
’ignored’ for multiple arm/disarm cycles the ’isolation’ command is used : this command essentially
’de-activates’ the sensor’s input point until the isolation command is removed. The isolation com-
mand is also only available to users whose assigned authority level includes it.
Duress Signal
The AFx system can be configured to interpret the entry of a user code in which the last two digits
have been transposed (i.e. 1243 instead of 1234) as an indication that a system or area is being
disarmed under threat : entry of the code in this fashion will result in transmission of a high priority
panic signal to the Chubb Monitoring Centre but give no local indication that this notification has
taken place. NOTE : Duress signaling is a system-wide setting that should be enabled only with
the site users’ full understanding of the feature and the type of police response resulting from its
use.

Intrusion Features

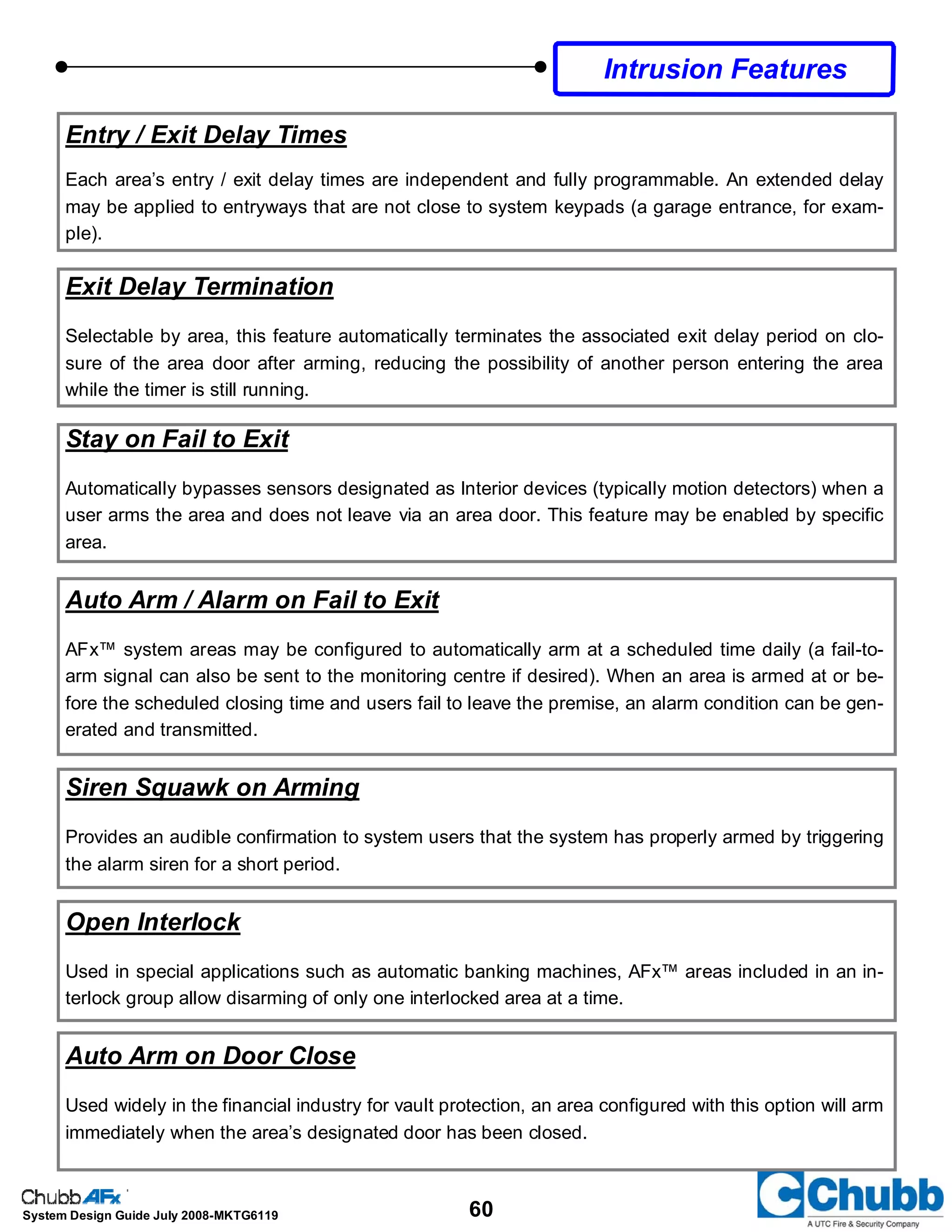

Entry / Exit Delay Times
Each area’s entry / exit delay times are independent and fully programmable. An extended delay
may be applied to entryways that are not close to system keypads (a garage entrance, for exam-
ple).
Exit Delay Termination
Selectable by area, this feature automatically terminates the associated exit delay period on clo-
sure of the area door after arming, reducing the possibility of another person entering the area
while the timer is still running.
Stay on Fail to Exit
Automatically bypasses sensors designated as Interior devices (typically motion detectors) when a
user arms the area and does not leave via an area door. This feature may be enabled by specific
area.
Auto Arm / Alarm on Fail to Exit
AFx™ system areas may be configured to automatically arm at a scheduled time daily (a fail-to-
arm signal can also be sent to the monitoring centre if desired). When an area is armed at or be-
fore the scheduled closing time and users fail to leave the premise, an alarm condition can be gen-
erated and transmitted.
Siren Squawk on Arming
Provides an audible confirmation to system users that the system has properly armed by triggering
the alarm siren for a short period.
Open Interlock
Used in special applications such as automatic banking machines, AFx™ areas included in an in-
terlock group allow disarming of only one interlocked area at a time.
Auto Arm on Door Close
Used widely in the financial industry for vault protection, an area configured with this option will arm
immediately when the area’s designated door has been closed.

Arming Stations
Gprox II arming stations are proximity readers with a set of number keys added : this allows the
entry of user and PIN numbers where an LCD keypad is not available or not practical (outside)
and also supports scheduled Card/PIN mode reader operation as described above. The stations
are available in both switchplate and mullion styles and also feature a series of simple command
functions that can be activated by authorized users. These commands are (<login> refers to entry
of the User ID/Pin number):
< login > only Access (momentary unlock of door)
1 <login> Turn reader area off
1 0 <login> Turn all areas off
2 <login> Turn reader area to stay mode
3 <login> Turn reader area on
3 0 <login> Turn all areas on
5 <login> Toggle between Lock Door and Unlock Door & Disarm reader area
6 <login> Work Late in this area by 2 hours at a time
6 n <login> Work Late in this area for n hours where n = 1…9. Scheduled area only.
Card Reader Modes
Card reader modes add a higher level of security to the access control of a
given area or areas. Each card reader mode can be programmed to change
automatically according to an independent schedule, which can vary by
reader.
• Dual Custody mode - Dual custody mode requires two access cardhold-
ers (both with access privileges for the area and the specific schedule in effect)
to use their card on the reader to gain access.
• Escort Required mode – This mode also requires two valid access users to produce their to-
ken but, in addition, one of the users must be assigned an Authority level that includes their desig-
nation as an Escort. This guarantees that any temporary visitors to the site will not be able to ac-
cess sensitive areas without the Escort. The Escort cardholder can gain access to readers operat-
ing in the Escort mode by badging the reader twice.
• Card/PIN Mode – Determines whether a Personal Identification Number (PIN) as well as an ac-
cess token will be required to gain access. The choices for this mode are : Card only, card plus
PIN, card or PIN, or User ID/PIN only. Ideal for providing increased security after hours or at all
times. Card / PIN mode requires arming stations (see below).
Access Control Features

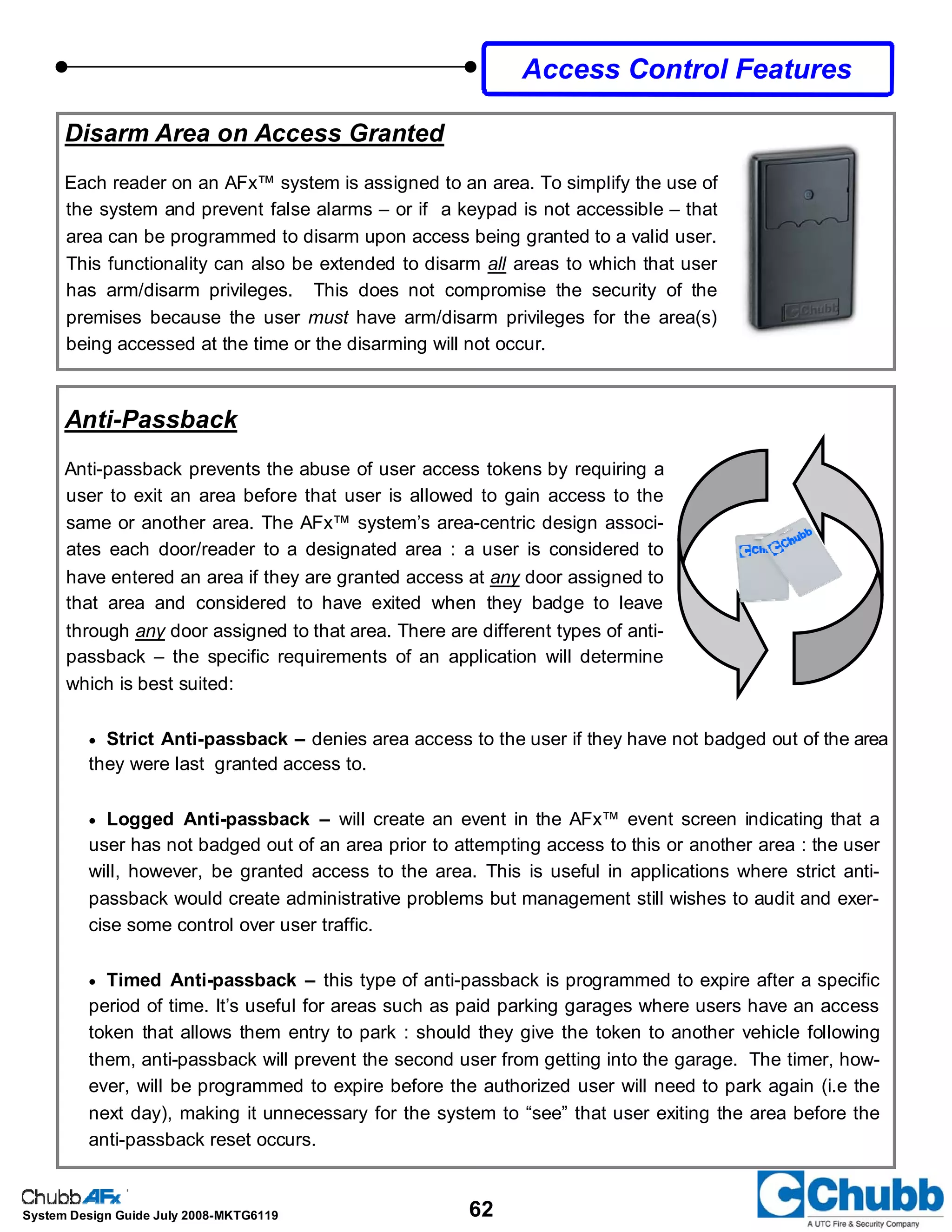

Disarm Area on Access Granted
Each reader on an AFx™ system is assigned to an area. To simplify the use of
the system and prevent false alarms – or if a keypad is not accessible – that
area can be programmed to disarm upon access being granted to a valid user.
This functionality can also be extended to disarm all areas to which that user
has arm/disarm privileges. This does not compromise the security of the
premises because the user must have arm/disarm privileges for the area(s)
being accessed at the time or the disarming will not occur.
Anti-Passback
Anti-passback prevents the abuse of user access tokens by requiring a
user to exit an area before that user is allowed to gain access to the
same or another area. The AFx™ system’s area-centric design associ-
ates each door/reader to a designated area : a user is considered to
have entered an area if they are granted access at any door assigned to
that area and considered to have exited when they badge to leave
through any door assigned to that area. There are different types of anti-
passback – the specific requirements of an application will determine
which is best suited:
• Strict Anti-passback – denies area access to the user if they have not badged out of the area
they were last granted access to.
• Logged Anti-passback – will create an event in the AFx™ event screen indicating that a
user has not badged out of an area prior to attempting access to this or another area : the user
will, however, be granted access to the area. This is useful in applications where strict anti-
passback would create administrative problems but management still wishes to audit and exer-
cise some control over user traffic.
• Timed Anti-passback – this type of anti-passback is programmed to expire after a specific
period of time. It’s useful for areas such as paid parking garages where users have an access
token that allows them entry to park : should they give the token to another vehicle following
them, anti-passback will prevent the second user from getting into the garage. The timer, how-
ever, will be programmed to expire before the authorized user will need to park again (i.e the
next day), making it unnecessary for the system to “see” that user exiting the area before the
anti-passback reset occurs.

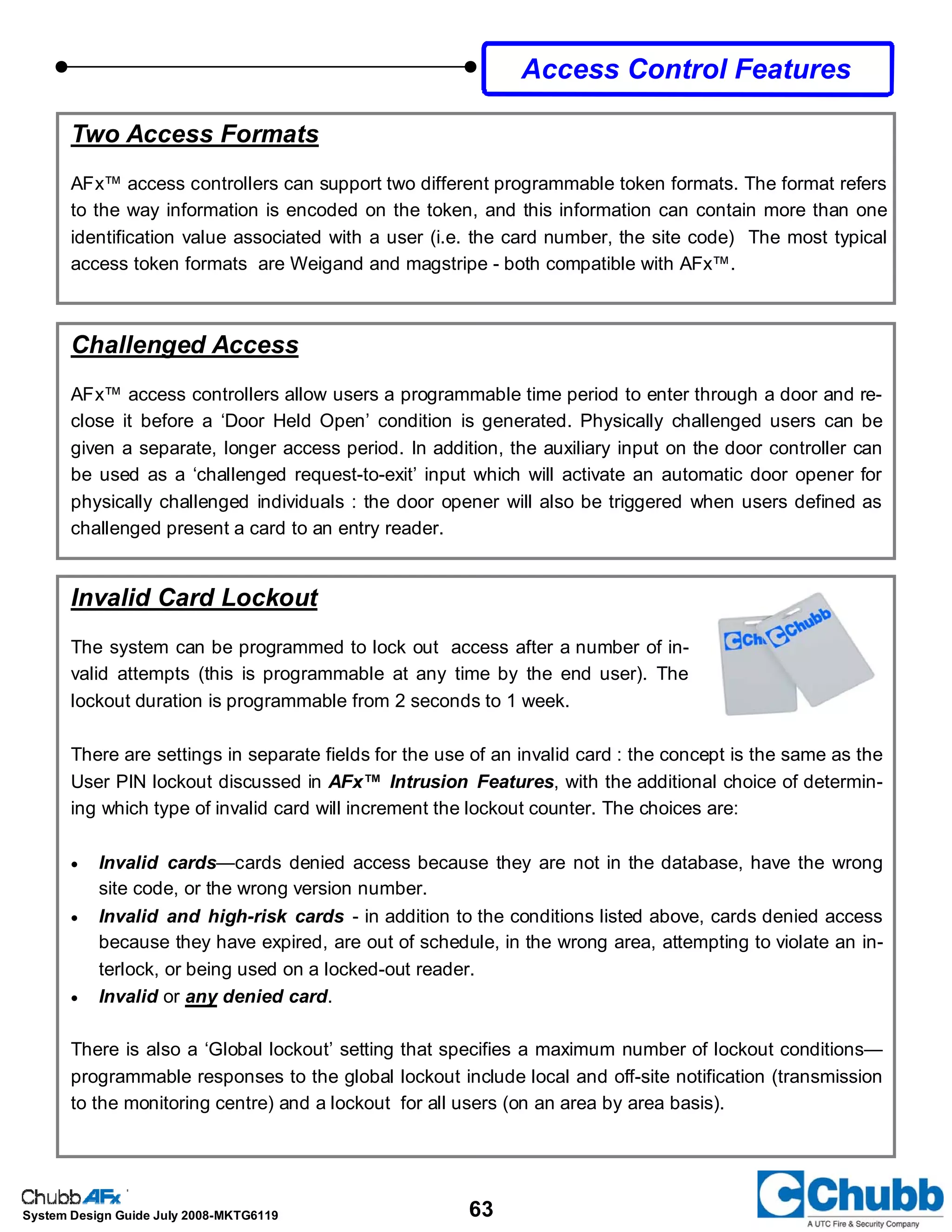

Invalid Card Lockout
The system can be programmed to lock out access after a number of in-
valid attempts (this is programmable at any time by the end user). The
lockout duration is programmable from 2 seconds to 1 week.
There are settings in separate fields for the use of an invalid card : the concept is the same as the
User PIN lockout discussed in AFx™ Intrusion Features, with the additional choice of determin-
ing which type of invalid card will increment the lockout counter. The choices are:
• Invalid cards—cards denied access because they are not in the database, have the wrong
site code, or the wrong version number.
• Invalid and high-risk cards - in addition to the conditions listed above, cards denied access
because they have expired, are out of schedule, in the wrong area, attempting to violate an in-
terlock, or being used on a locked-out reader.
• Invalid or any denied card.
There is also a ‘Global lockout’ setting that specifies a maximum number of lockout conditions—
programmable responses to the global lockout include local and off-site notification (transmission
to the monitoring centre) and a lockout for all users (on an area by area basis).
Challenged Access
AFx™ access controllers allow users a programmable time period to enter through a door and re-
close it before a ‘Door Held Open’ condition is generated. Physically challenged users can be
given a separate, longer access period. In addition, the auxiliary input on the door controller can
be used as a ‘challenged request-to-exit’ input which will activate an automatic door opener for
physically challenged individuals : the door opener will also be triggered when users defined as
challenged present a card to an entry reader.
Two Access Formats
AFx™ access controllers can support two different programmable token formats. The format refers
to the way information is encoded on the token, and this information can contain more than one
identification value associated with a user (i.e. the card number, the site code) The most typical
access token formats are Weigand and magstripe - both compatible with AFx™.

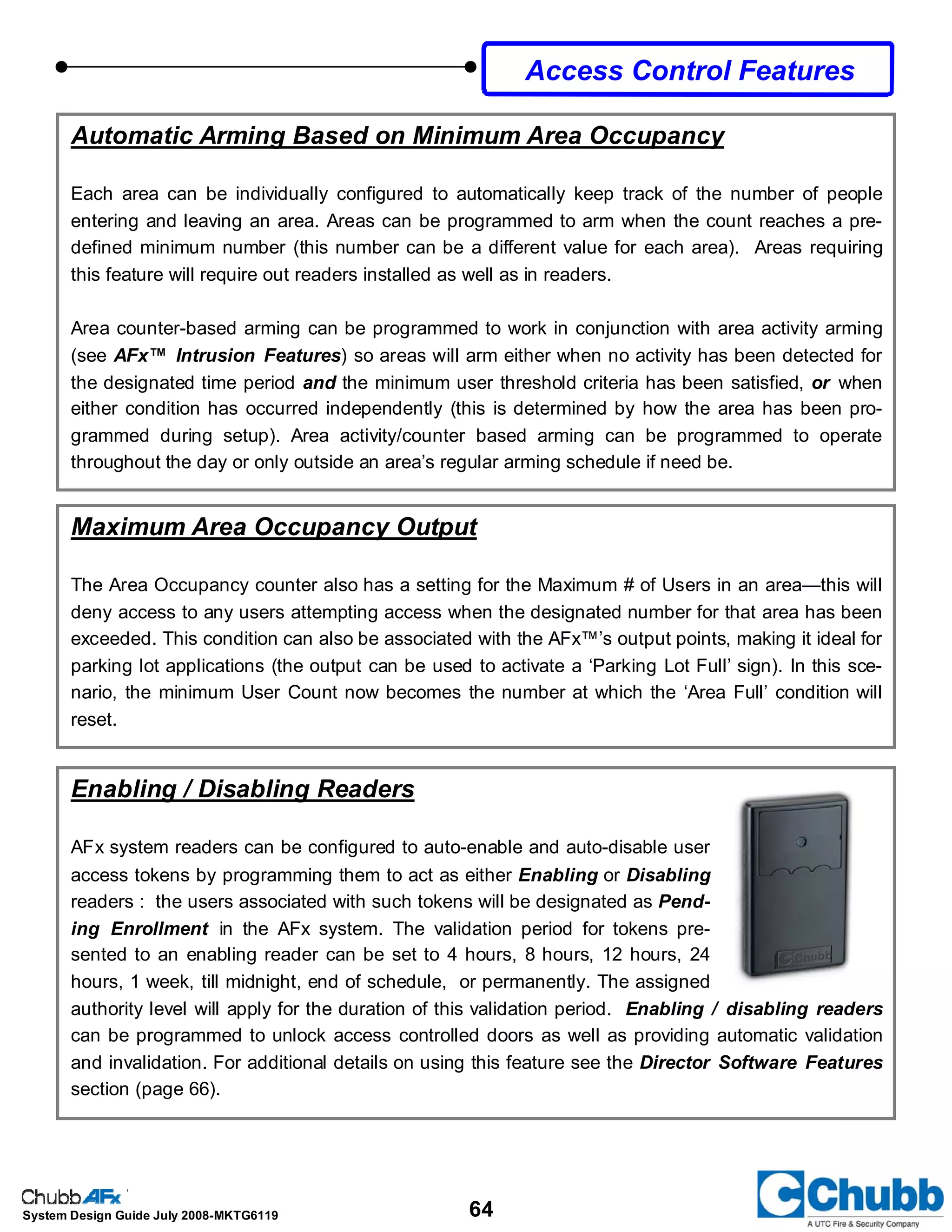

Maximum Area Occupancy Output
The Area Occupancy counter also has a setting for the Maximum # of Users in an area—this will
deny access to any users attempting access when the designated number for that area has been
exceeded. This condition can also be associated with the AFx™’s output points, making it ideal for
parking lot applications (the output can be used to activate a ‘Parking Lot Full’ sign). In this sce-
nario, the minimum User Count now becomes the number at which the ‘Area Full’ condition will
reset.
Automatic Arming Based on Minimum Area Occupancy
Each area can be individually configured to automatically keep track of the number of people
entering and leaving an area. Areas can be programmed to arm when the count reaches a pre-
defined minimum number (this number can be a different value for each area). Areas requiring
this feature will require out readers installed as well as in readers.
Area counter-based arming can be programmed to work in conjunction with area activity arming
(see AFx™ Intrusion Features) so areas will arm either when no activity has been detected for
the designated time period and the minimum user threshold criteria has been satisfied, or when
either condition has occurred independently (this is determined by how the area has been pro-
grammed during setup). Area activity/counter based arming can be programmed to operate
throughout the day or only outside an area’s regular arming schedule if need be.
Enabling / Disabling Readers
AFx system readers can be configured to auto-enable and auto-disable user
access tokens by programming them to act as either Enabling or Disabling
readers : the users associated with such tokens will be designated as Pend-
ing Enrollment in the AFx system. The validation period for tokens pre-
sented to an enabling reader can be set to 4 hours, 8 hours, 12 hours, 24
hours, 1 week, till midnight, end of schedule, or permanently. The assigned
authority level will apply for the duration of this validation period. Enabling / disabling readers
can be programmed to unlock access controlled doors as well as providing automatic validation
and invalidation. For additional details on using this feature see the Director Software Features
section (page 66).

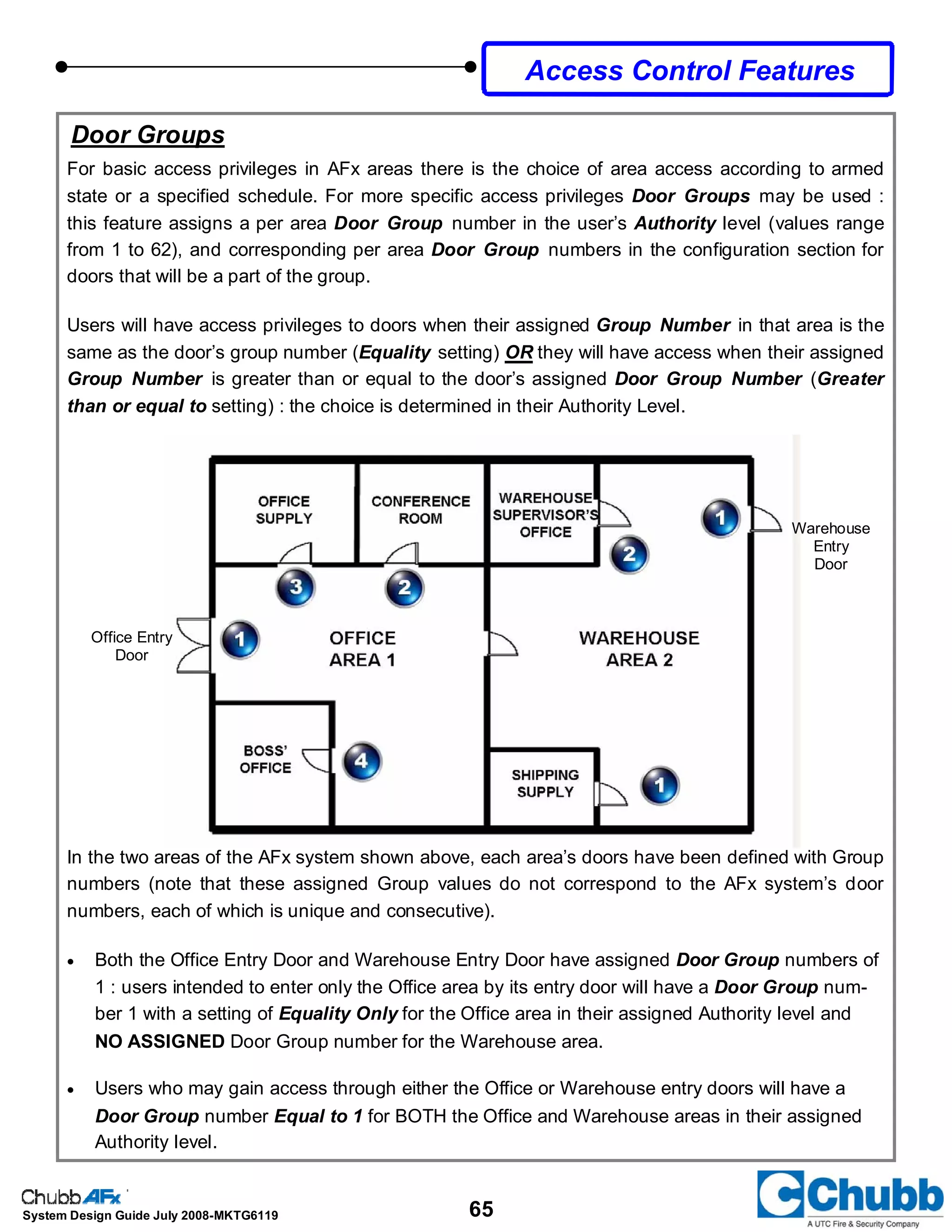

Door Groups
For basic access privileges in AFx areas there is the choice of area access according to armed
state or a specified schedule. For more specific access privileges Door Groups may be used :
this feature assigns a per area Door Group number in the user’s Authority level (values range
from 1 to 62), and corresponding per area Door Group numbers in the configuration section for
doors that will be a part of the group.
Users will have access privileges to doors when their assigned Group Number in that area is the
same as the door’s group number (Equality setting) OR they will have access when their assigned
Group Number is greater than or equal to the door’s assigned Door Group Number (Greater
than or equal to setting) : the choice is determined in their Authority Level.
In the two areas of the AFx system shown above, each area’s doors have been defined with Group
numbers (note that these assigned Group values do not correspond to the AFx system’s door
numbers, each of which is unique and consecutive).
• Both the Office Entry Door and Warehouse Entry Door have assigned Door Group numbers of
1 : users intended to enter only the Office area by its entry door will have a Door Group num-
ber 1 with a setting of Equality Only for the Office area in their assigned Authority level and
NO ASSIGNED Door Group number for the Warehouse area.
• Users who may gain access through either the Office or Warehouse entry doors will have a
Door Group number Equal to 1 for BOTH the Office and Warehouse areas in their assigned
Authority level.
Office Entry
Door
Warehouse
Entry
Door

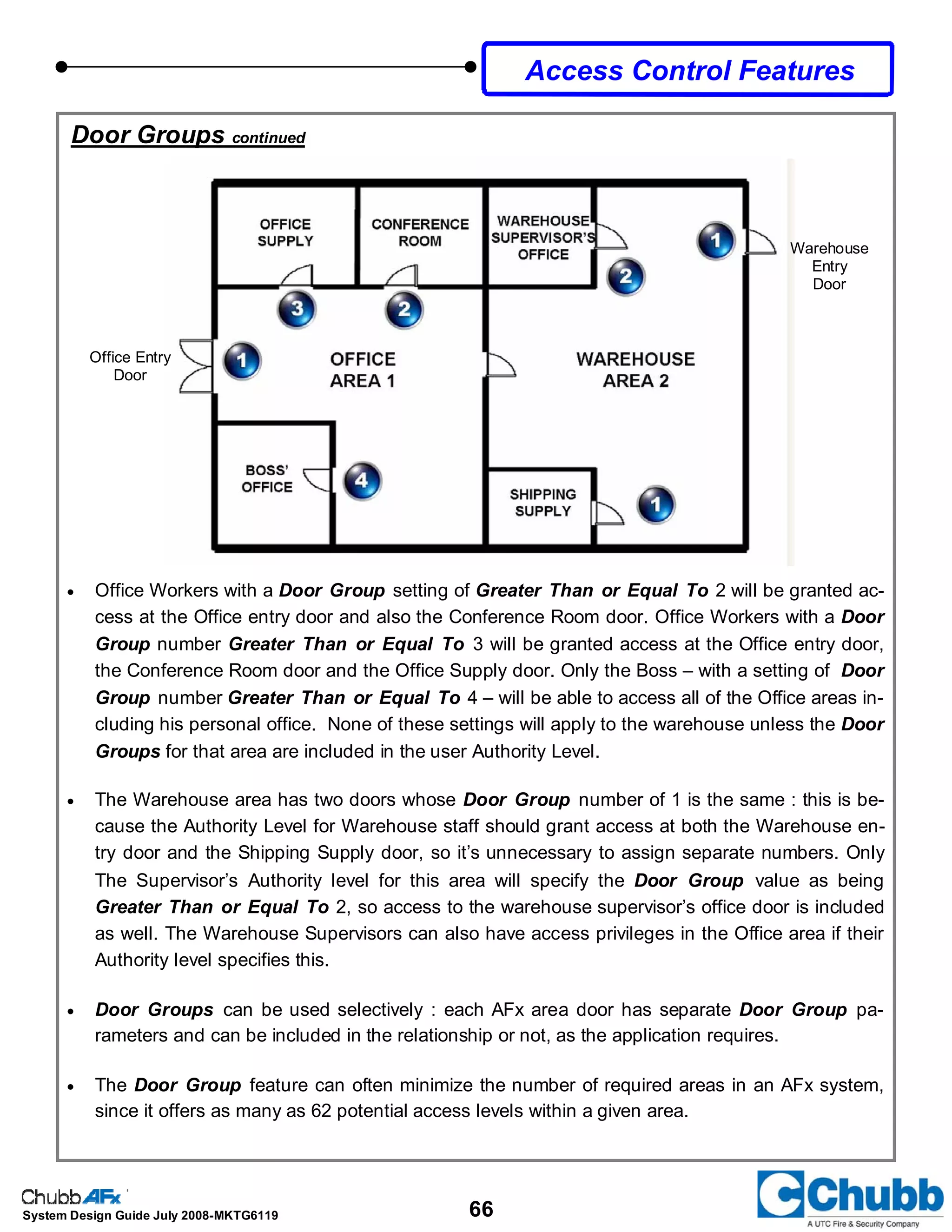

Door Groups continued
• Office Workers with a Door Group setting of Greater Than or Equal To 2 will be granted ac-
cess at the Office entry door and also the Conference Room door. Office Workers with a Door
Group number Greater Than or Equal To 3 will be granted access at the Office entry door,
the Conference Room door and the Office Supply door. Only the Boss – with a setting of Door
Group number Greater Than or Equal To 4 – will be able to access all of the Office areas in-
cluding his personal office. None of these settings will apply to the warehouse unless the Door
Groups for that area are included in the user Authority Level.
• The Warehouse area has two doors whose Door Group number of 1 is the same : this is be-
cause the Authority Level for Warehouse staff should grant access at both the Warehouse en-
try door and the Shipping Supply door, so it’s unnecessary to assign separate numbers. Only
The Supervisor’s Authority level for this area will specify the Door Group value as being
Greater Than or Equal To 2, so access to the warehouse supervisor’s office door is included
as well. The Warehouse Supervisors can also have access privileges in the Office area if their
Authority level specifies this.
• Door Groups can be used selectively : each AFx area door has separate Door Group pa-
rameters and can be included in the relationship or not, as the application requires.
• The Door Group feature can often minimize the number of required areas in an AFx system,
since it offers as many as 62 potential access levels within a given area.
Office Entry
Door
Warehouse
Entry
Door

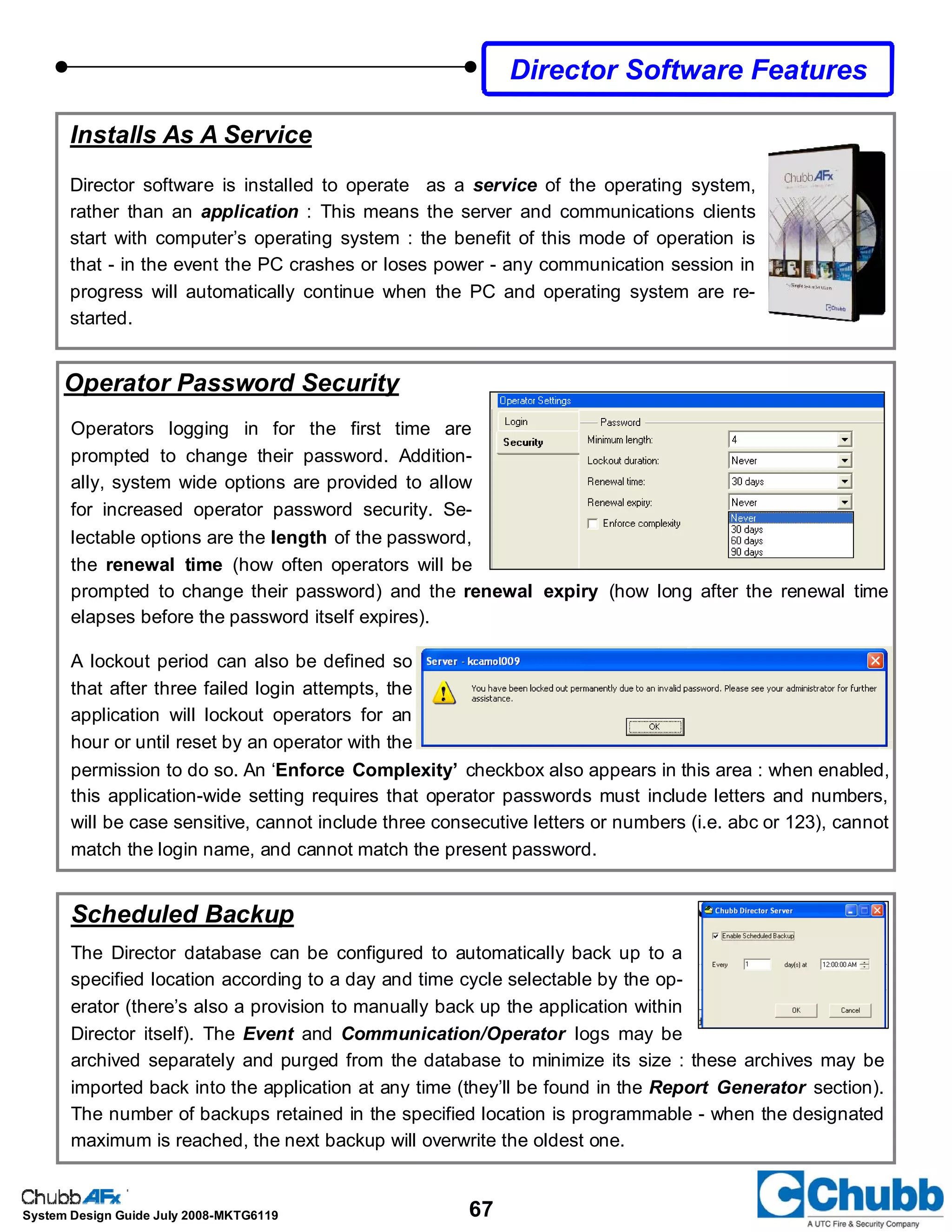

Director Software Features
Installs As A Service
Director software is installed to operate as a service of the operating system,
rather than an application : This means the server and communications clients
start with computer’s operating system : the benefit of this mode of operation is
that - in the event the PC crashes or loses power - any communication session in
progress will automatically continue when the PC and operating system are re-
started.
Operator Password Security
Operators logging in for the first time are
prompted to change their password. Addition-
ally, system wide options are provided to allow
for increased operator password security. Se-
lectable options are the length of the password,
the renewal time (how often operators will be
prompted to change their password) and the renewal expiry (how long after the renewal time
elapses before the password itself expires).
A lockout period can also be defined so
that after three failed login attempts, the
application will lockout operators for an
hour or until reset by an operator with the
permission to do so. An ‘Enforce Complexity’ checkbox also appears in this area : when enabled,
this application-wide setting requires that operator passwords must include letters and numbers,
will be case sensitive, cannot include three consecutive letters or numbers (i.e. abc or 123), cannot
match the login name, and cannot match the present password.
Scheduled Backup
The Director database can be configured to automatically back up to a
specified location according to a day and time cycle selectable by the op-
erator (there’s also a provision to manually back up the application within
Director itself). The Event and Communication/Operator logs may be
archived separately and purged from the database to minimize its size : these archives may be
imported back into the application at any time (they’ll be found in the Report Generator section).
The number of backups retained in the specified location is programmable - when the designated
maximum is reached, the next backup will overwrite the oldest one.

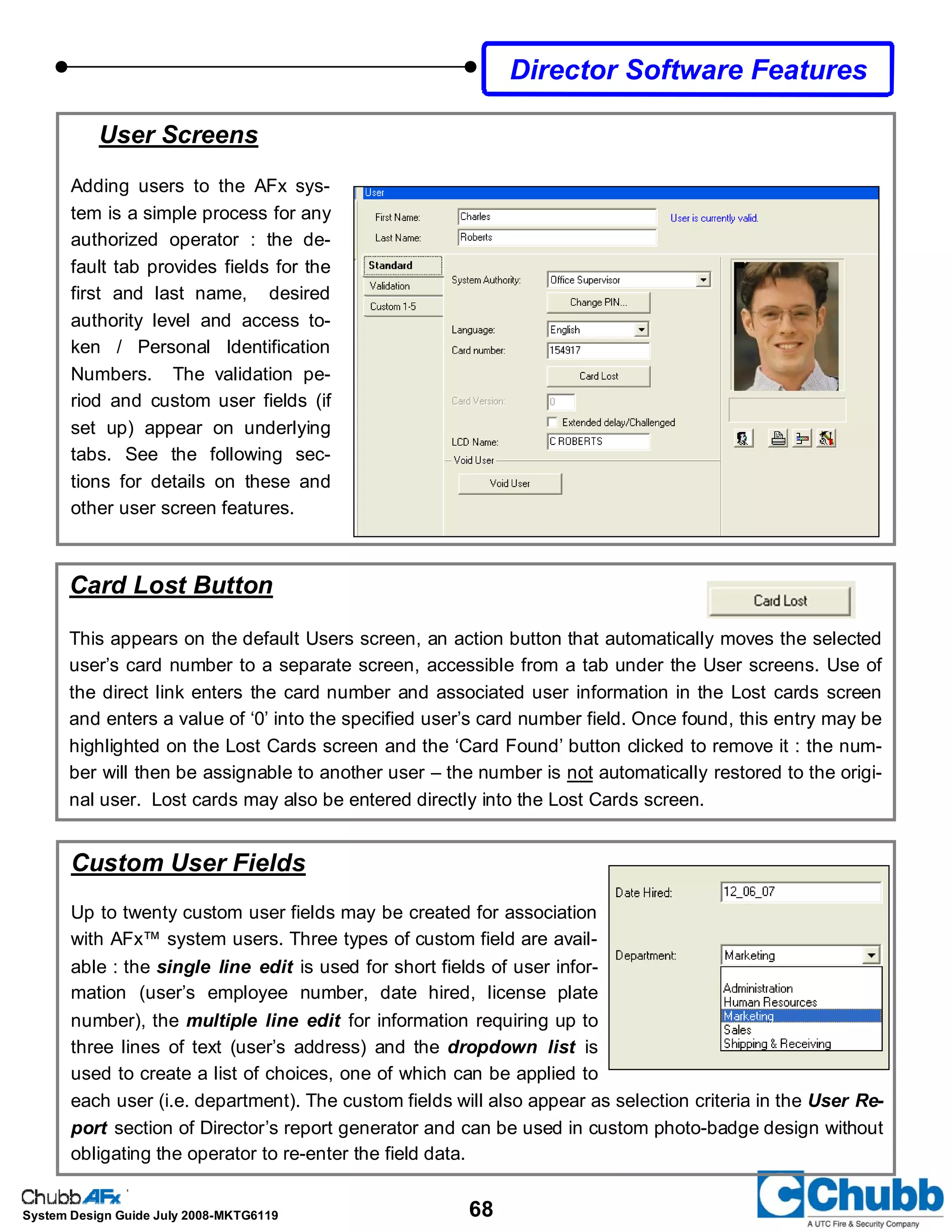

User Screens
Adding users to the AFx sys-
tem is a simple process for any
authorized operator : the de-
fault tab provides fields for the
first and last name, desired
authority level and access to-
ken / Personal Identification
Numbers. The validation pe-
riod and custom user fields (if
set up) appear on underlying
tabs. See the following sec-
tions for details on these and
other user screen features.
Card Lost Button
This appears on the default Users screen, an action button that automatically moves the selected
user’s card number to a separate screen, accessible from a tab under the User screens. Use of
the direct link enters the card number and associated user information in the Lost cards screen
and enters a value of ‘0’ into the specified user’s card number field. Once found, this entry may be
highlighted on the Lost Cards screen and the ‘Card Found’ button clicked to remove it : the num-
ber will then be assignable to another user – the number is not automatically restored to the origi-
nal user. Lost cards may also be entered directly into the Lost Cards screen.
Custom User Fields
Up to twenty custom user fields may be created for association
with AFx™ system users. Three types of custom field are avail-
able : the single line edit is used for short fields of user infor-
mation (user’s employee number, date hired, license plate
number), the multiple line edit for information requiring up to
three lines of text (user’s address) and the dropdown list is
used to create a list of choices, one of which can be applied to
each user (i.e. department). The custom fields will also appear as selection criteria in the User Re-
port section of Director’s report generator and can be used in custom photo-badge design without
obligating the operator to re-enter the field data.

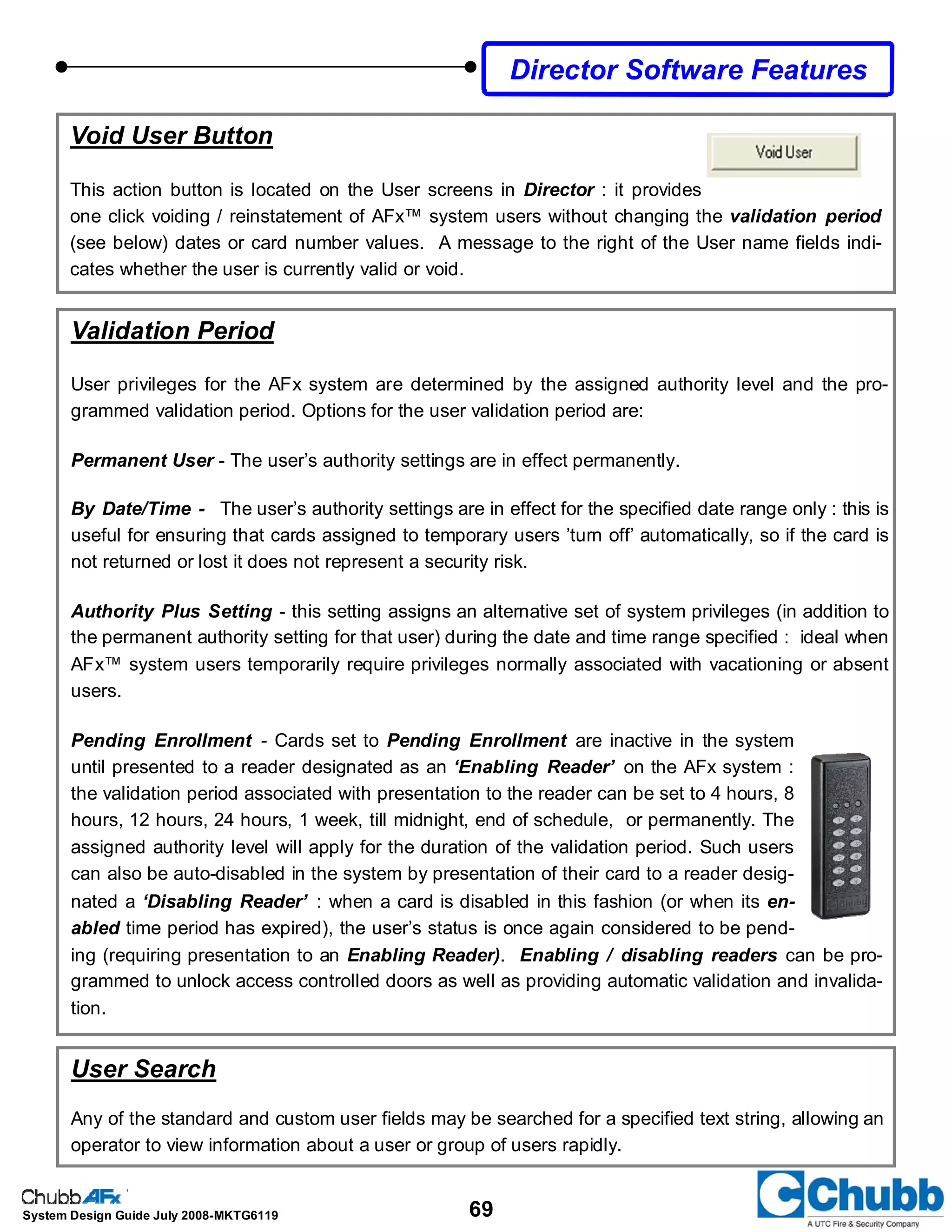

Void User Button
This action button is located on the User screens in Director : it provides
one click voiding / reinstatement of AFx™ system users without changing the validation period
(see below) dates or card number values. A message to the right of the User name fields indi-
cates whether the user is currently valid or void.
Validation Period
User privileges for the AFx system are determined by the assigned authority level and the pro-
grammed validation period. Options for the user validation period are:
Permanent User - The user’s authority settings are in effect permanently.
By Date/Time - The user’s authority settings are in effect for the specified date range only : this is
useful for ensuring that cards assigned to temporary users ’turn off’ automatically, so if the card is
not returned or lost it does not represent a security risk.
Authority Plus Setting - this setting assigns an alternative set of system privileges (in addition to
the permanent authority setting for that user) during the date and time range specified : ideal when
AFx™ system users temporarily require privileges normally associated with vacationing or absent
users.
Pending Enrollment - Cards set to Pending Enrollment are inactive in the system
until presented to a reader designated as an ‘Enabling Reader’ on the AFx system :
the validation period associated with presentation to the reader can be set to 4 hours, 8
hours, 12 hours, 24 hours, 1 week, till midnight, end of schedule, or permanently. The
assigned authority level will apply for the duration of the validation period. Such users
can also be auto-disabled in the system by presentation of their card to a reader desig-
nated a ‘Disabling Reader’ : when a card is disabled in this fashion (or when its en-
abled time period has expired), the user’s status is once again considered to be pend-
ing (requiring presentation to an Enabling Reader). Enabling / disabling readers can be pro-
grammed to unlock access controlled doors as well as providing automatic validation and invalida-
tion.
User Search
Any of the standard and custom user fields may be searched for a specified text string, allowing an
operator to view information about a user or group of users rapidly.

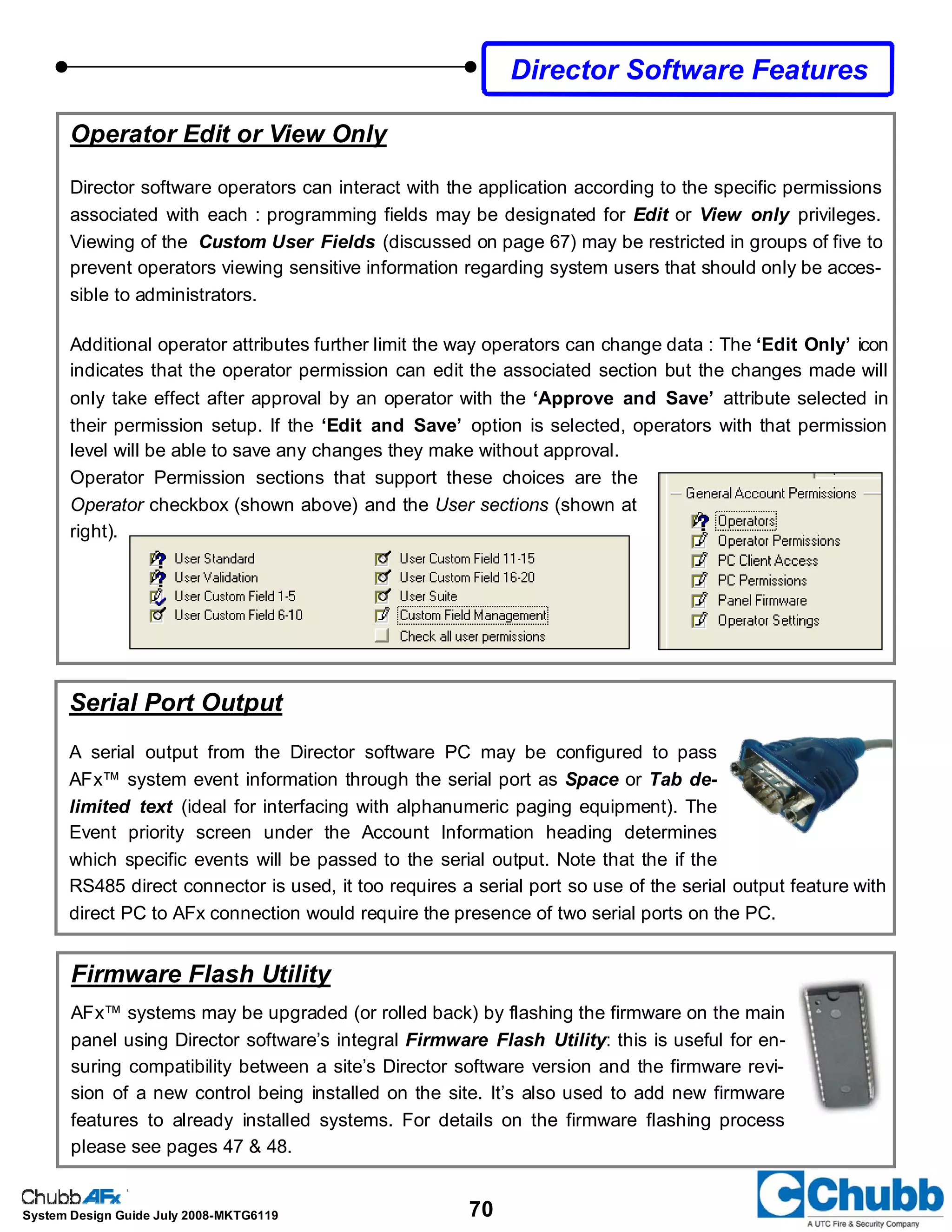

Operator Edit or View Only
Director software operators can interact with the application according to the specific permissions
associated with each : programming fields may be designated for Edit or View only privileges.
Viewing of the Custom User Fields (discussed on page 67) may be restricted in groups of five to
prevent operators viewing sensitive information regarding system users that should only be acces-
sible to administrators.
Additional operator attributes further limit the way operators can change data : The ‘Edit Only’ icon
indicates that the operator permission can edit the associated section but the changes made will
only take effect after approval by an operator with the ‘Approve and Save’ attribute selected in
their permission setup. If the ‘Edit and Save’ option is selected, operators with that permission
level will be able to save any changes they make without approval.
Operator Permission sections that support these choices are the
Operator checkbox (shown above) and the User sections (shown at
right).
Firmware Flash Utility
AFx™ systems may be upgraded (or rolled back) by flashing the firmware on the main
panel using Director software’s integral Firmware Flash Utility: this is useful for en-
suring compatibility between a site’s Director software version and the firmware revi-
sion of a new control being installed on the site. It’s also used to add new firmware
features to already installed systems. For details on the firmware flashing process
please see pages 47 & 48.
Serial Port Output
A serial output from the Director software PC may be configured to pass
AFx™ system event information through the serial port as Space or Tab de-
limited text (ideal for interfacing with alphanumeric paging equipment). The
Event priority screen under the Account Information heading determines
which specific events will be passed to the serial output. Note that the if the
RS485 direct connector is used, it too requires a serial port so use of the serial output feature with
direct PC to AFx connection would require the presence of two serial ports on the PC.

Scheduled Synchronization
Communications between the Director PC and AFx™ systems may be initiated manually or
scheduled for regular contact hourly, daily, or weekly (specific day and time are specifiable). Upon
connection, the time and date stamped event buffer on the AFx™ board (see System Features,
page 52) is copied to the Director database. By selecting a schedule that connects to the system
regularly before the AFx™ event buffer reaches its maximum capacity - and begins moving out
older events to make room for new ones - the audit trail for the system in the Director database
will show the continuous history of the system although the system is not constantly on line with
the software. Synchronization is also useful for ensuring panel time remains consistent on site
(each system’s time zone is programmable).

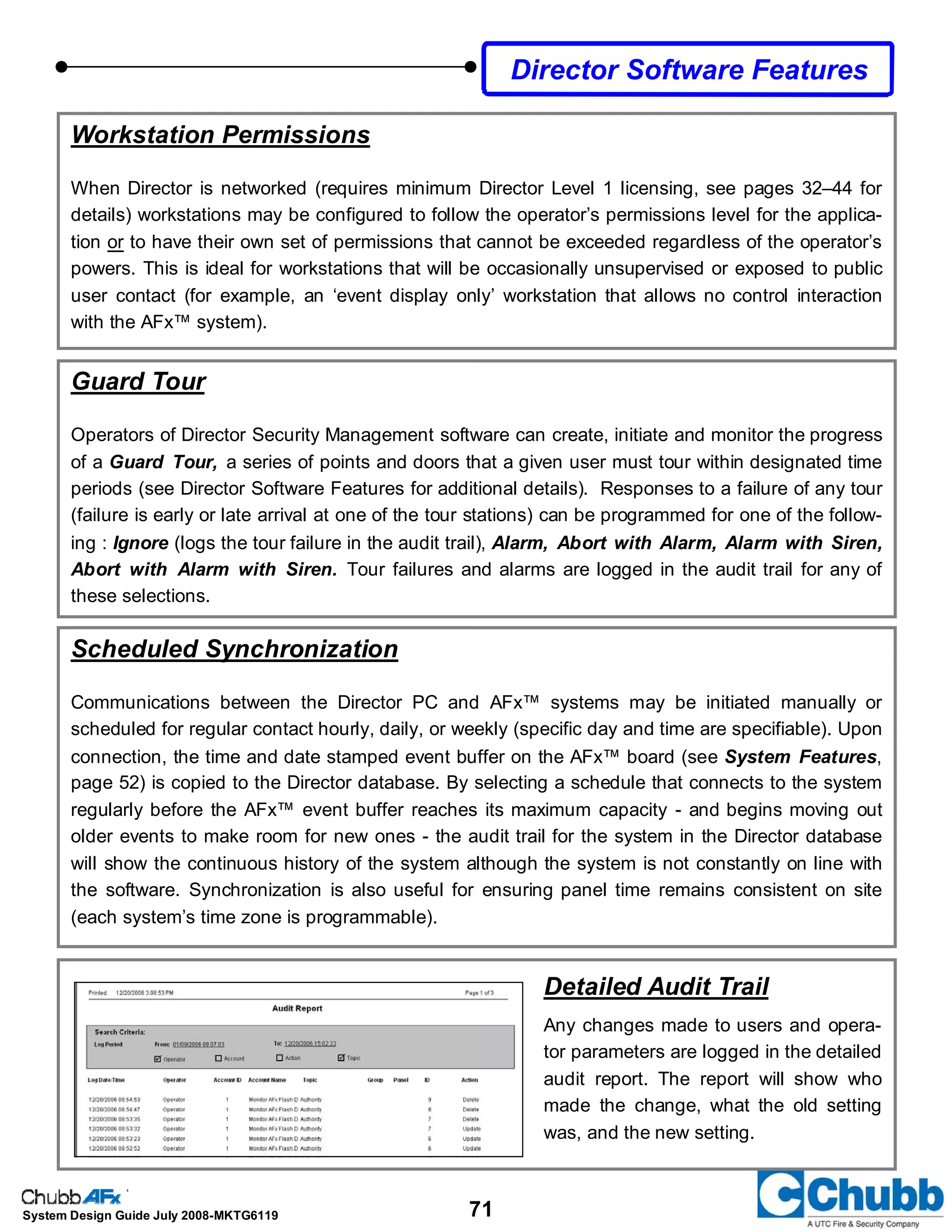

Workstation Permissions
When Director is networked (requires minimum Director Level 1 licensing, see pages 32–44 for
details) workstations may be configured to follow the operator’s permissions level for the applica-
tion or to have their own set of permissions that cannot be exceeded regardless of the operator’s
powers. This is ideal for workstations that will be occasionally unsupervised or exposed to public
user contact (for example, an ‘event display only’ workstation that allows no control interaction
with the AFx™ system).
Guard Tour
Operators of Director Security Management software can create, initiate and monitor the progress
of a Guard Tour, a series of points and doors that a given user must tour within designated time
periods (see Director Software Features for additional details). Responses to a failure of any tour
(failure is early or late arrival at one of the tour stations) can be programmed for one of the follow-
ing : Ignore (logs the tour failure in the audit trail), Alarm, Abort with Alarm, Alarm with Siren,
Abort with Alarm with Siren. Tour failures and alarms are logged in the audit trail for any of
these selections.
Detailed Audit Trail
Any changes made to users and opera-
tor parameters are logged in the detailed
audit report. The report will show who
made the change, what the old setting
was, and the new setting.

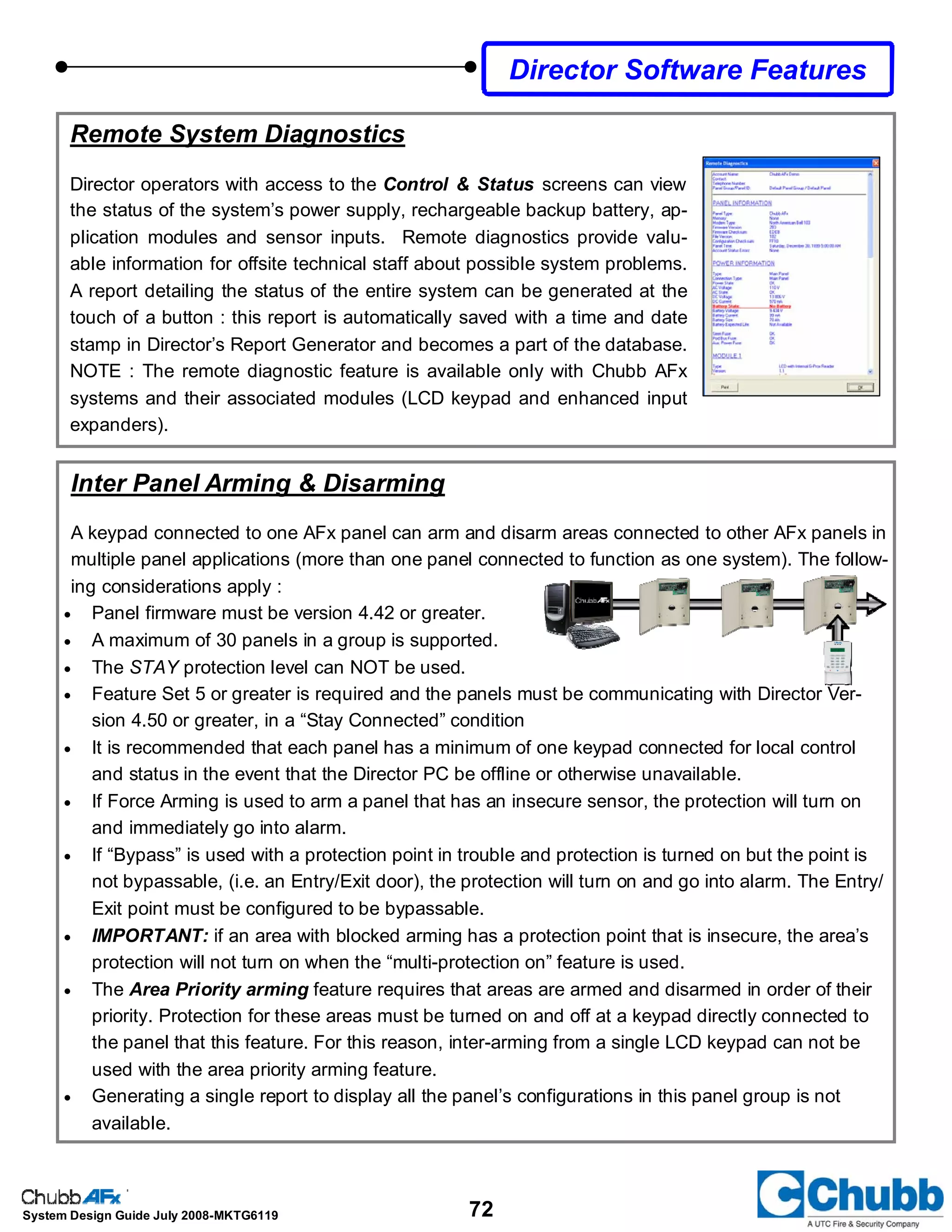

Remote System Diagnostics
Director operators with access to the Control & Status screens can view
the status of the system’s power supply, rechargeable backup battery, ap-
plication modules and sensor inputs. Remote diagnostics provide valu-
able information for offsite technical staff about possible system problems.
A report detailing the status of the entire system can be generated at the
touch of a button : this report is automatically saved with a time and date
stamp in Director’s Report Generator and becomes a part of the database.
NOTE : The remote diagnostic feature is available only with Chubb AFx
systems and their associated modules (LCD keypad and enhanced input
expanders).
Inter Panel Arming & Disarming
A keypad connected to one AFx panel can arm and disarm areas connected to other AFx panels in
multiple panel applications (more than one panel connected to function as one system). The follow-
ing considerations apply :
• Panel firmware must be version 4.42 or greater.
• A maximum of 30 panels in a group is supported.
• The STAY protection level can NOT be used.
• Feature Set 5 or greater is required and the panels must be communicating with Director Ver-
sion 4.50 or greater, in a “Stay Connected” condition
• It is recommended that each panel has a minimum of one keypad connected for local control
and status in the event that the Director PC be offline or otherwise unavailable.
• If Force Arming is used to arm a panel that has an insecure sensor, the protection will turn on
and immediately go into alarm.
• If “Bypass” is used with a protection point in trouble and protection is turned on but the point is
not bypassable, (i.e. an Entry/Exit door), the protection will turn on and go into alarm. The Entry/
Exit point must be configured to be bypassable.
• IMPORTANT: if an area with blocked arming has a protection point that is insecure, the area’s
protection will not turn on when the “multi-protection on” feature is used.
• The Area Priority arming feature requires that areas are armed and disarmed in order of their
priority. Protection for these areas must be turned on and off at a keypad directly connected to
the panel that this feature. For this reason, inter-arming from a single LCD keypad can not be
used with the area priority arming feature.
• Generating a single report to display all the panel’s configurations in this panel group is not
available.

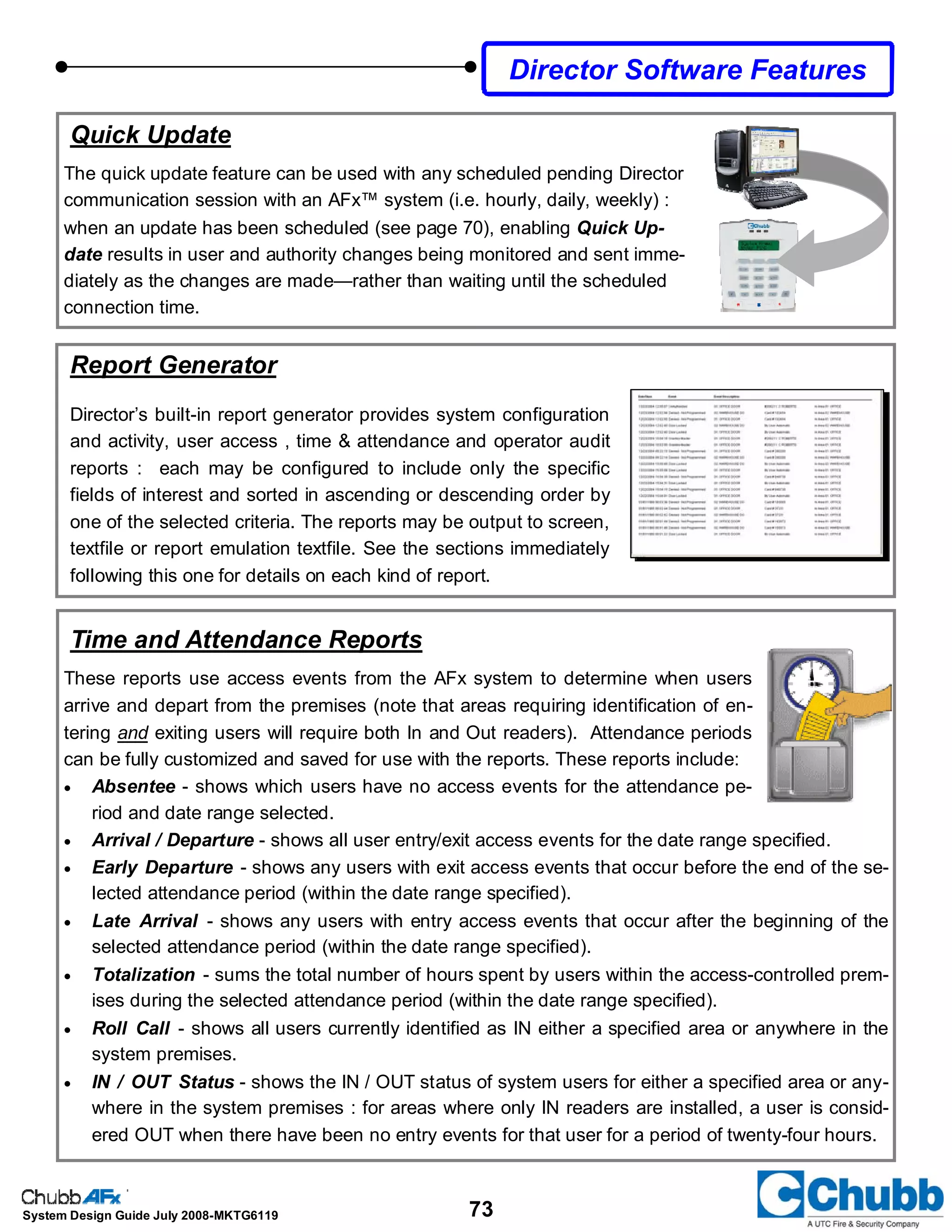

Quick Update
The quick update feature can be used with any scheduled pending Director
communication session with an AFx™ system (i.e. hourly, daily, weekly) :
when an update has been scheduled (see page 70), enabling Quick Up-
date results in user and authority changes being monitored and sent imme-
diately as the changes are made—rather than waiting until the scheduled
connection time.
Time and Attendance Reports
These reports use access events from the AFx system to determine when users
arrive and depart from the premises (note that areas requiring identification of en-
tering and exiting users will require both In and Out readers). Attendance periods
can be fully customized and saved for use with the reports. These reports include:
• Absentee - shows which users have no access events for the attendance pe-
riod and date range selected.
• Arrival / Departure - shows all user entry/exit access events for the date range specified.
• Early Departure - shows any users with exit access events that occur before the end of the se-
lected attendance period (within the date range specified).
• Late Arrival - shows any users with entry access events that occur after the beginning of the
selected attendance period (within the date range specified).
• Totalization - sums the total number of hours spent by users within the access-controlled prem-
ises during the selected attendance period (within the date range specified).
• Roll Call - shows all users currently identified as IN either a specified area or anywhere in the
system premises.
• IN / OUT Status - shows the IN / OUT status of system users for either a specified area or any-
where in the system premises : for areas where only IN readers are installed, a user is consid-
ered OUT when there have been no entry events for that user for a period of twenty-four hours.
Report Generator
Director’s built-in report generator provides system configuration
and activity, user access , time & attendance and operator audit
reports : each may be configured to include only the specific
fields of interest and sorted in ascending or descending order by
one of the selected criteria. The reports may be output to screen,
textfile or report emulation textfile. See the sections immediately
following this one for details on each kind of report.

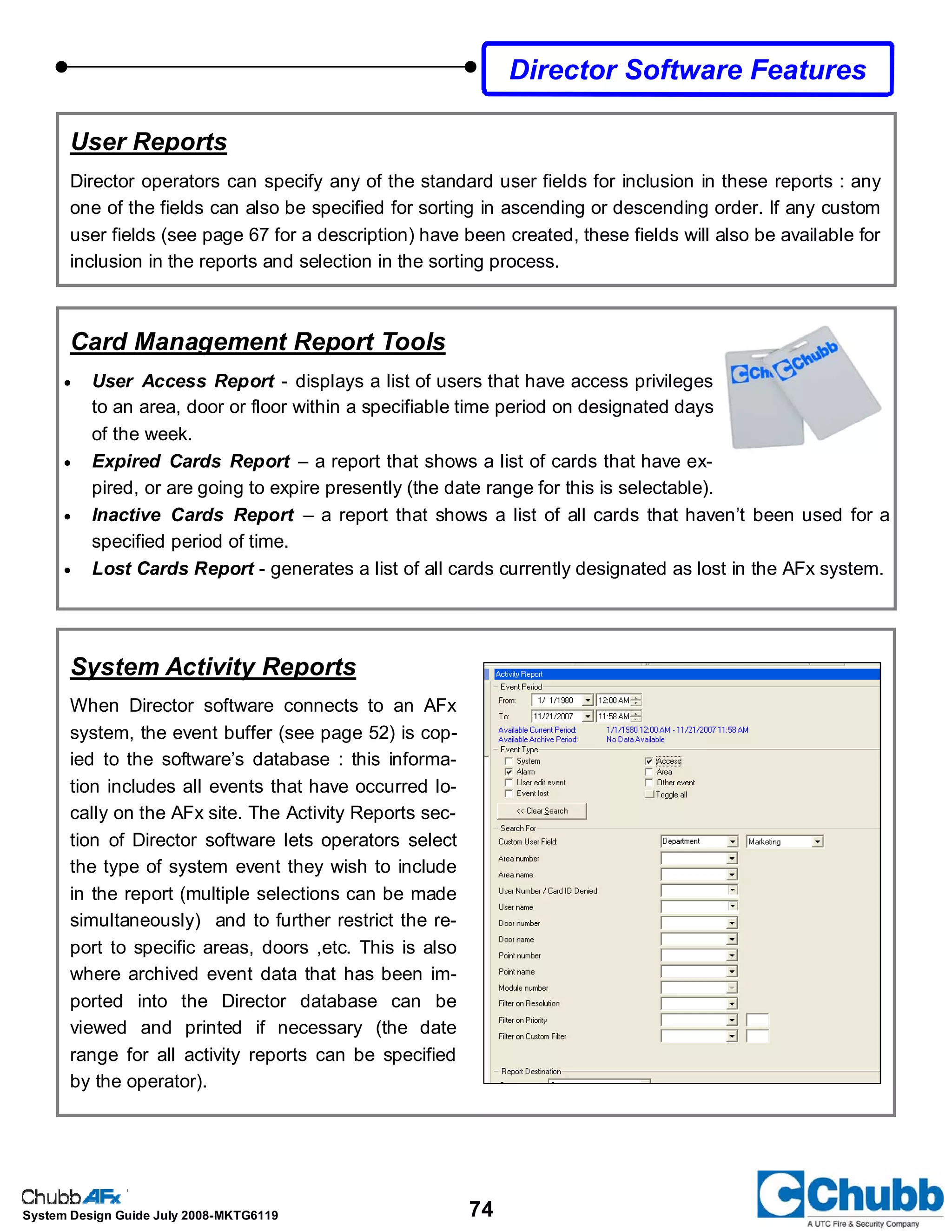

User Reports
Director operators can specify any of the standard user fields for inclusion in these reports : any
one of the fields can also be specified for sorting in ascending or descending order. If any custom
user fields (see page 67 for a description) have been created, these fields will also be available for
inclusion in the reports and selection in the sorting process.
System Activity Reports
When Director software connects to an AFx
system, the event buffer (see page 52) is cop-
ied to the software’s database : this informa-
tion includes all events that have occurred lo-
cally on the AFx site. The Activity Reports sec-
tion of Director software lets operators select
the type of system event they wish to include
in the report (multiple selections can be made
simultaneously) and to further restrict the re-
port to specific areas, doors ,etc. This is also
where archived event data that has been im-
ported into the Director database can be
viewed and printed if necessary (the date
range for all activity reports can be specified
by the operator).
Card Management Report Tools
• User Access Report - displays a list of users that have access privileges
to an area, door or floor within a specifiable time period on designated days
of the week.
• Expired Cards Report – a report that shows a list of cards that have ex-
pired, or are going to expire presently (the date range for this is selectable).
• Inactive Cards Report – a report that shows a list of all cards that haven’t been used for a
specified period of time.
• Lost Cards Report - generates a list of all cards currently designated as lost in the AFx system.

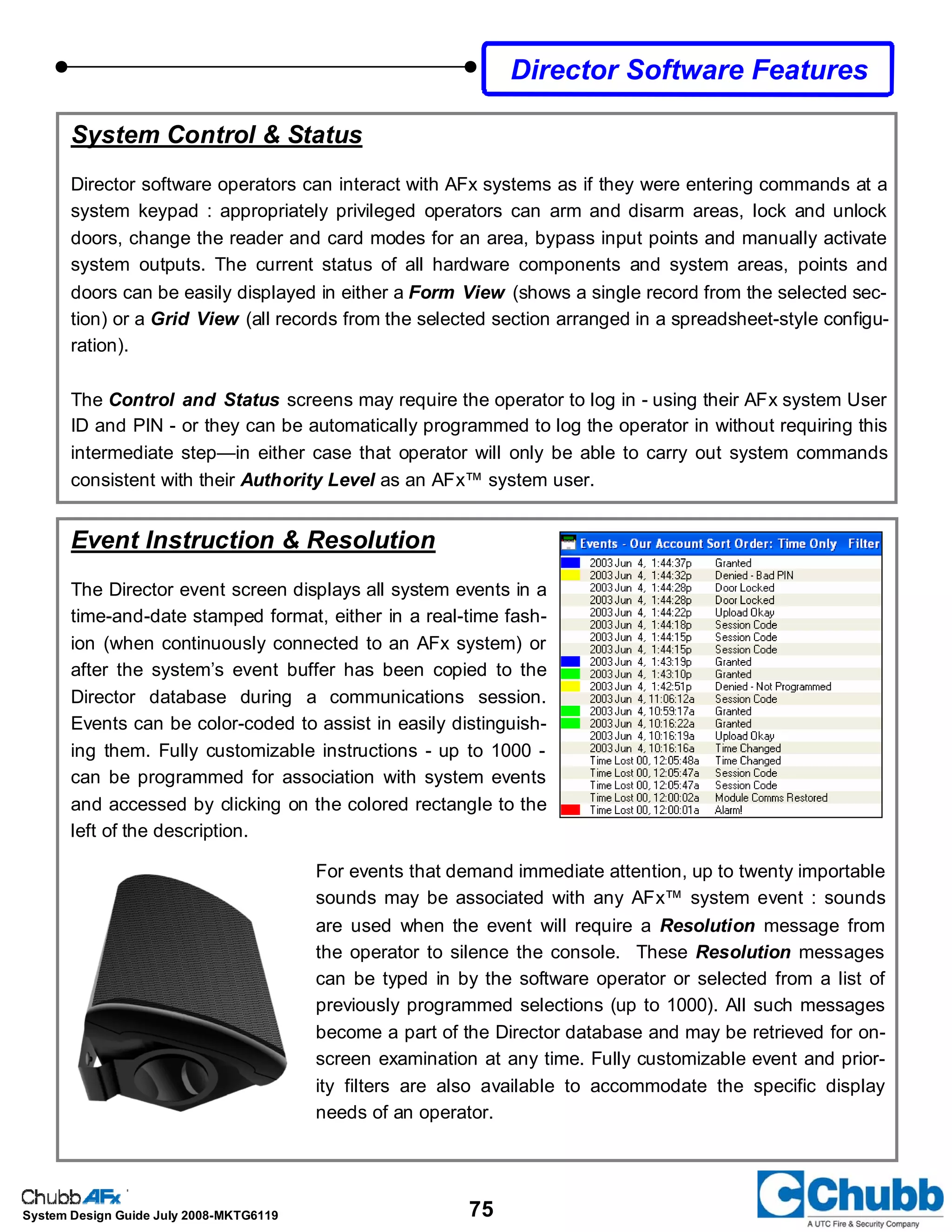

System Control & Status
Director software operators can interact with AFx systems as if they were entering commands at a
system keypad : appropriately privileged operators can arm and disarm areas, lock and unlock
doors, change the reader and card modes for an area, bypass input points and manually activate
system outputs. The current status of all hardware components and system areas, points and
doors can be easily displayed in either a Form View (shows a single record from the selected sec-
tion) or a Grid View (all records from the selected section arranged in a spreadsheet-style configu-
ration).
The Control and Status screens may require the operator to log in - using their AFx system User
ID and PIN - or they can be automatically programmed to log the operator in without requiring this
intermediate step—in either case that operator will only be able to carry out system commands
consistent with their Authority Level as an AFx™ system user.
Event Instruction & Resolution
The Director event screen displays all system events in a
time-and-date stamped format, either in a real-time fash-
ion (when continuously connected to an AFx system) or
after the system’s event buffer has been copied to the
Director database during a communications session.
Events can be color-coded to assist in easily distinguish-
ing them. Fully customizable instructions - up to 1000 -
can be programmed for association with system events
and accessed by clicking on the colored rectangle to the
left of the description.
For events that demand immediate attention, up to twenty importable
sounds may be associated with any AFx™ system event : sounds
are used when the event will require a Resolution message from
the operator to silence the console. These Resolution messages
can be typed in by the software operator or selected from a list of
previously programmed selections (up to 1000). All such messages
become a part of the Director database and may be retrieved for on-
screen examination at any time. Fully customizable event and prior-
ity filters are also available to accommodate the specific display
needs of an operator.

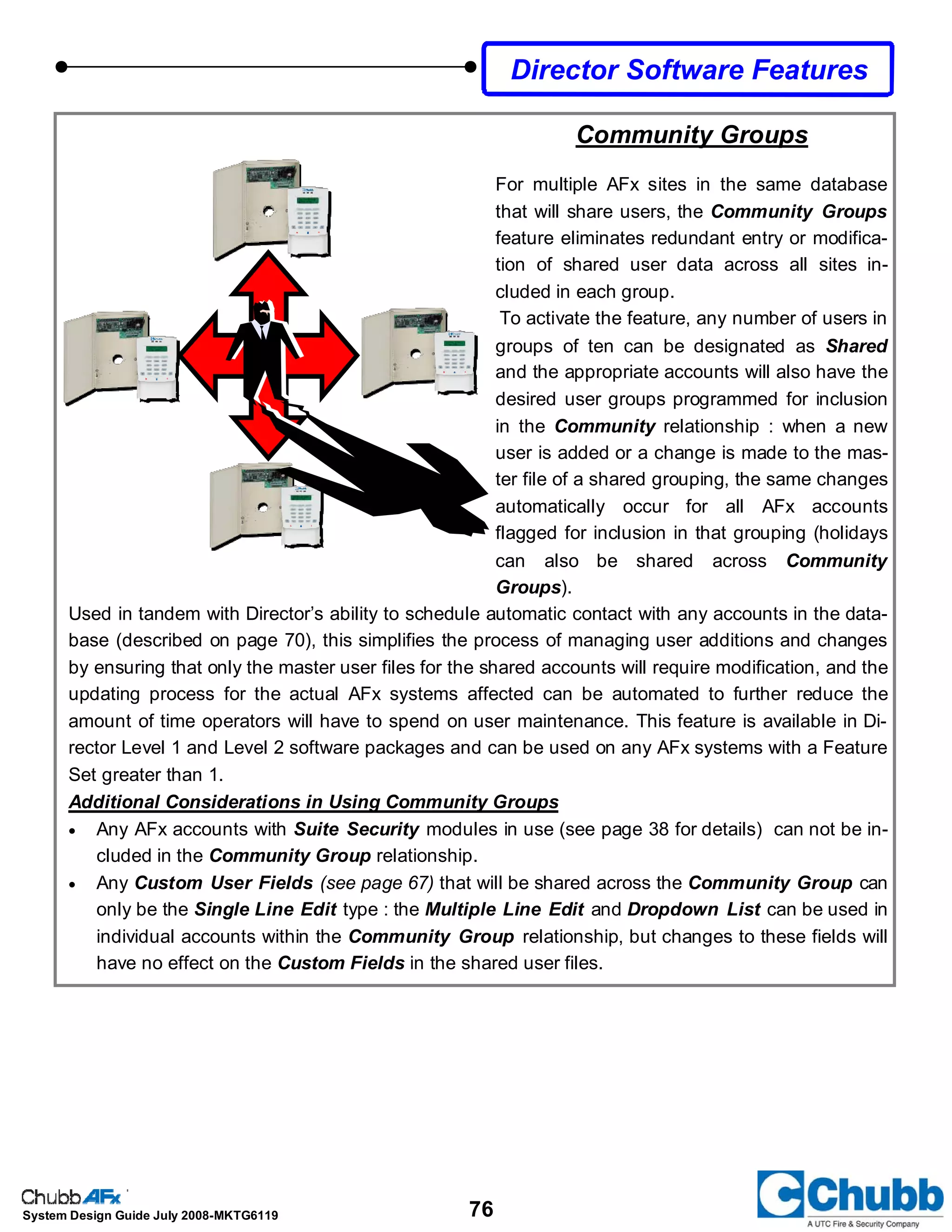

Community Groups
For multiple AFx sites in the same database
that will share users, the Community Groups
feature eliminates redundant entry or modifica-
tion of shared user data across all sites in-
cluded in each group.
To activate the feature, any number of users in
groups of ten can be designated as Shared
and the appropriate accounts will also have the
desired user groups programmed for inclusion
in the Community relationship : when a new
user is added or a change is made to the mas-
ter file of a shared grouping, the same changes
automatically occur for all AFx accounts
flagged for inclusion in that grouping (holidays
can also be shared across Community
Groups).
Used in tandem with Director’s ability to schedule automatic contact with any accounts in the data-
base (described on page 70), this simplifies the process of managing user additions and changes
by ensuring that only the master user files for the shared accounts will require modification, and the
updating process for the actual AFx systems affected can be automated to further reduce the
amount of time operators will have to spend on user maintenance. This feature is available in Di-
rector Level 1 and Level 2 software packages and can be used on any AFx systems with a Feature
Set greater than 1.
Additional Considerations in Using Community Groups
• Any AFx accounts with Suite Security modules in use (see page 38 for details) can not be in-
cluded in the Community Group relationship.
• Any Custom User Fields (see page 67) that will be shared across the Community Group can
only be the Single Line Edit type : the Multiple Line Edit and Dropdown List can be used in
individual accounts within the Community Group relationship, but changes to these fields will
have no effect on the Custom Fields in the shared user files.

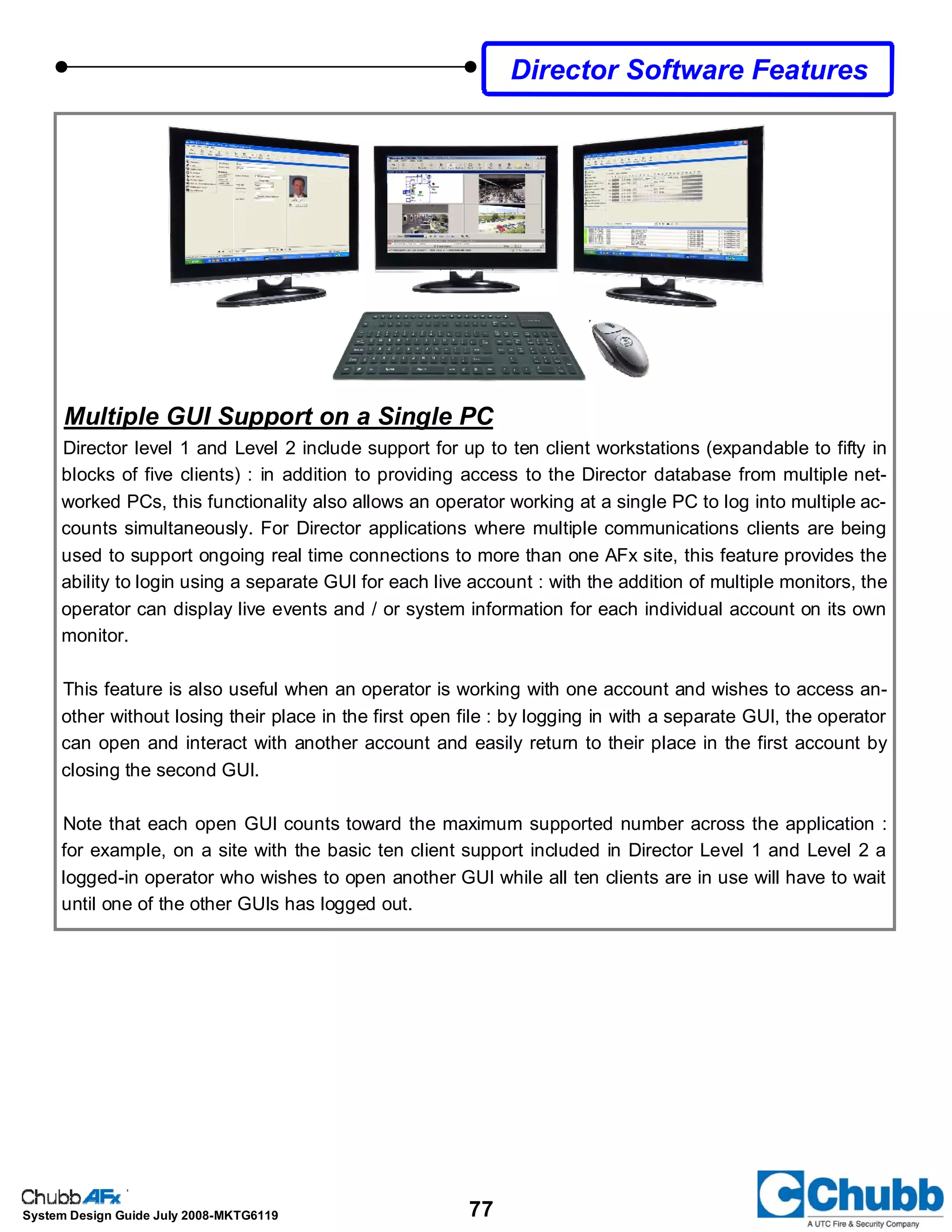

Multiple GUI Support on a Single PC
Director level 1 and Level 2 include support for up to ten client workstations (expandable to fifty in
blocks of five clients) : in addition to providing access to the Director database from multiple net-
worked PCs, this functionality also allows an operator working at a single PC to log into multiple ac-
counts simultaneously. For Director applications where multiple communications clients are being
used to support ongoing real time connections to more than one AFx site, this feature provides the
ability to login using a separate GUI for each live account : with the addition of multiple monitors, the
operator can display live events and / or system information for each individual account on its own
monitor.
This feature is also useful when an operator is working with one account and wishes to access an-
other without losing their place in the first open file : by logging in with a separate GUI, the operator
can open and interact with another account and easily return to their place in the first account by
closing the second GUI.
Note that each open GUI counts toward the maximum supported number across the application :
for example, on a site with the basic ten client support included in Director Level 1 and Level 2 a
logged-in operator who wishes to open another GUI while all ten clients are in use will have to wait
until one of the other GUIs has logged out.

Communications Guide
Digital Communications………………………….78
High Security Communications………………..79
Director Communications………………………..80
The Chubb AFx™ panel has an on-board digital communicator designed to transmit
event information using regular phone lines.
DVACS communication provides a higher level of communication security via active
communication with each Chubb AFx™ panel.
Director security management software offers a number of choices for connection of
the managing computer to remote or local systems.
Direct Cable Connections…………………………………………………………………81
Modem Connections…………………………………………………………….…………82
Internet Protocol Connections……...………………………………………..……….....84
Multiple Connection System……...………………………………………..………........86

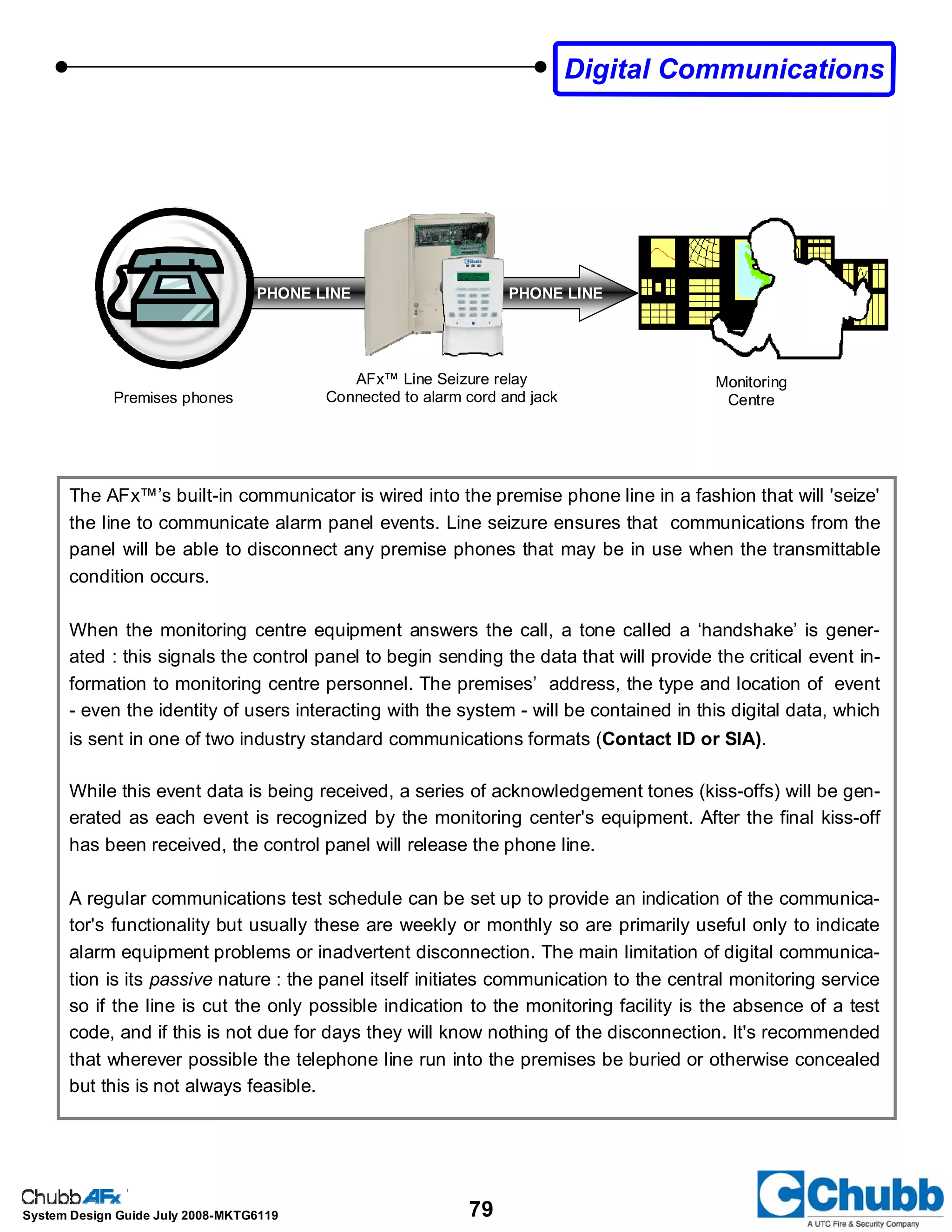

Premises phones
AFx™ Line Seizure relay
Connected to alarm cord and jack
Monitoring
Centre
The AFx™’s built-in communicator is wired into the premise phone line in a fashion that will 'seize'
the line to communicate alarm panel events. Line seizure ensures that communications from the
panel will be able to disconnect any premise phones that may be in use when the transmittable
condition occurs.
When the monitoring centre equipment answers the call, a tone called a ‘handshake’ is gener-
ated : this signals the control panel to begin sending the data that will provide the critical event in-
formation to monitoring centre personnel. The premises’ address, the type and location of event
- even the identity of users interacting with the system - will be contained in this digital data, which
is sent in one of two industry standard communications formats (Contact ID or SIA).
While this event data is being received, a series of acknowledgement tones (kiss-offs) will be gen-
erated as each event is recognized by the monitoring center's equipment. After the final kiss-off
has been received, the control panel will release the phone line.
A regular communications test schedule can be set up to provide an indication of the communica-
tor's functionality but usually these are weekly or monthly so are primarily useful only to indicate
alarm equipment problems or inadvertent disconnection. The main limitation of digital communica-
tion is its passive nature : the panel itself initiates communication to the central monitoring service
so if the line is cut the only possible indication to the monitoring facility is the absence of a test
code, and if this is not due for days they will know nothing of the disconnection. It's recommended
that wherever possible the telephone line run into the premises be buried or otherwise concealed
but this is not always feasible.
PHONE LINEPHONE LINE
Digital Communications

Monitoring
Centre
Security Panel with
High Security
Communications
Module & F1/F2 subset
Security Panel with
High Security
Communications
Security Panel with
High Security
Communications
DVACs Communications
DVACS (Digital Voice Access & Control Systems) is a method of event communication
that is active (versus the passive nature of digital communications). With DVACS, an AFx™ High
Security Communications module (100-2561) will be installed on the system’s fully supervised
SNAPP communications bus and in turn be connected to a Bell-supplied modem called an F1/F2
subset.
The monitoring centre initiates contact to each of the HSC modules (each AFx™ system) every 90
seconds : if the module does not respond due to disconnection or damage this condition is detected
very rapidly by the monitoring centre. This polling also pauses often to issue an ‘All Call’ which al-
lows any AFx™ system that has critical event information to communicate it at once rather than
waiting for the next poll request.
AFx High Security Communications modules utilize Chubb’s MK7 protocol, designed to address
the needs of the High Value Asset market segments : it provides encrypted line security that meets
and exceeds the highest ULC standards as well as protection against any cloning attempts.
This form of communication requires a dedicated line on the premises and the F1/F2 subset sup-
plied by Bell. It has a ULC Level 3 line security listing, which is often mandatory for commercial
premises to obtain insurance.

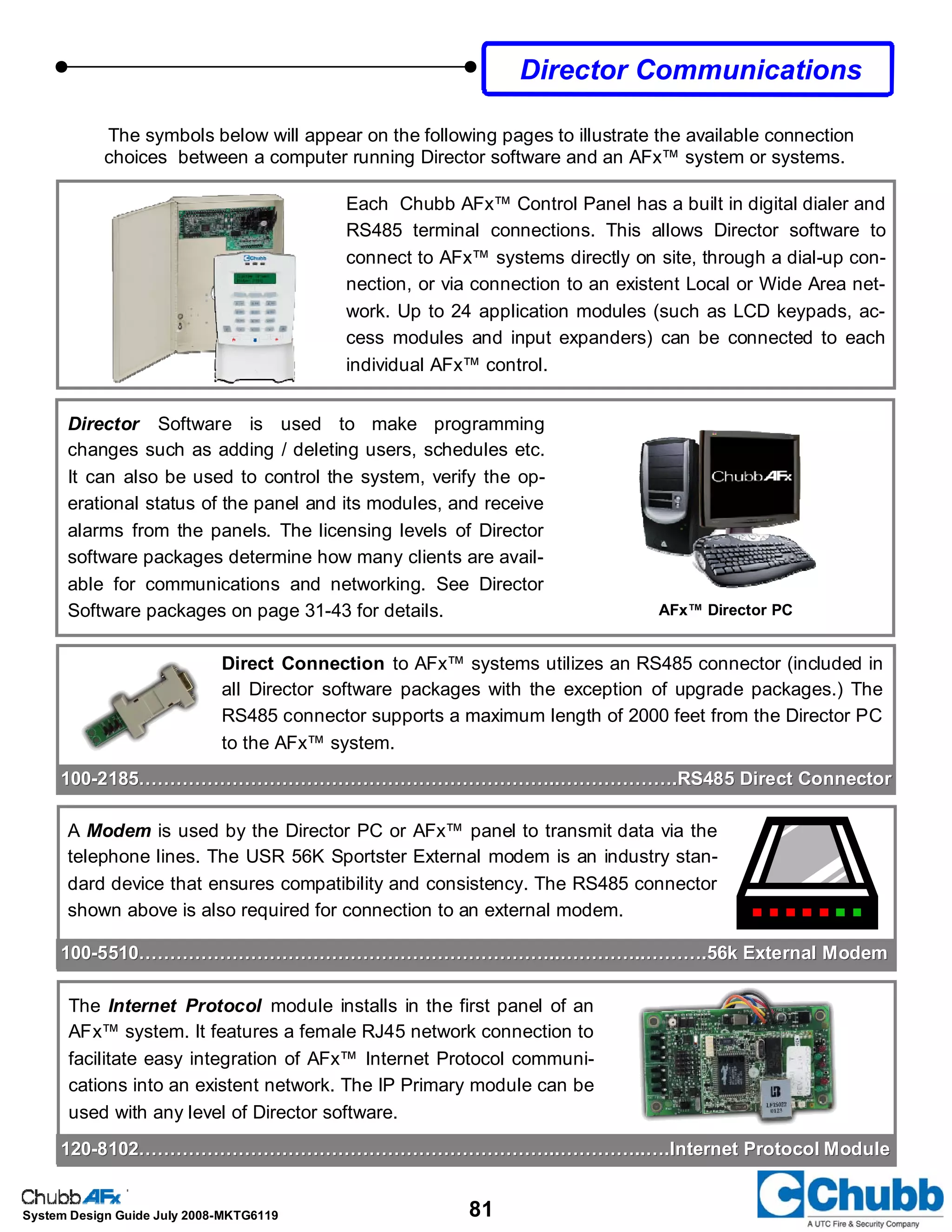

AFx™ Director PC
Each Chubb AFx™ Control Panel has a built in digital dialer and
RS485 terminal connections. This allows Director software to
connect to AFx™ systems directly on site, through a dial-up con-
nection, or via connection to an existent Local or Wide Area net-
work. Up to 24 application modules (such as LCD keypads, ac-
cess modules and input expanders) can be connected to each
individual AFx™ control.
Director Software is used to make programming
changes such as adding / deleting users, schedules etc.
It can also be used to control the system, verify the op-
erational status of the panel and its modules, and receive
alarms from the panels. The licensing levels of Director
software packages determine how many clients are avail-
able for communications and networking. See Director
Software packages on page 31-43 for details.
A Modem is used by the Director PC or AFx™ panel to transmit data via the
telephone lines. The USR 56K Sportster External modem is an industry stan-
dard device that ensures compatibility and consistency. The RS485 connector
shown above is also required for connection to an external modem.
The Internet Protocol module installs in the first panel of an
AFx™ system. It features a female RJ45 network connection to
facilitate easy integration of AFx™ Internet Protocol communi-
cations into an existent network. The IP Primary module can be
used with any level of Director software.
The symbols below will appear on the following pages to illustrate the available connection
choices between a computer running Director software and an AFx™ system or systems.
Director Communications
120120--8102…………………………………………………………..…………..….Internet Protocol Module8102…………………………………………………………..…………..….Internet Protocol Module
100100--5510…………………………………………………………..…………..……….56k External Modem5510…………………………………………………………..…………..……….56k External Modem
100100--2185…………………………………………………………..……………….RS485 Direct Connector2185…………………………………………………………..……………….RS485 Direct Connector

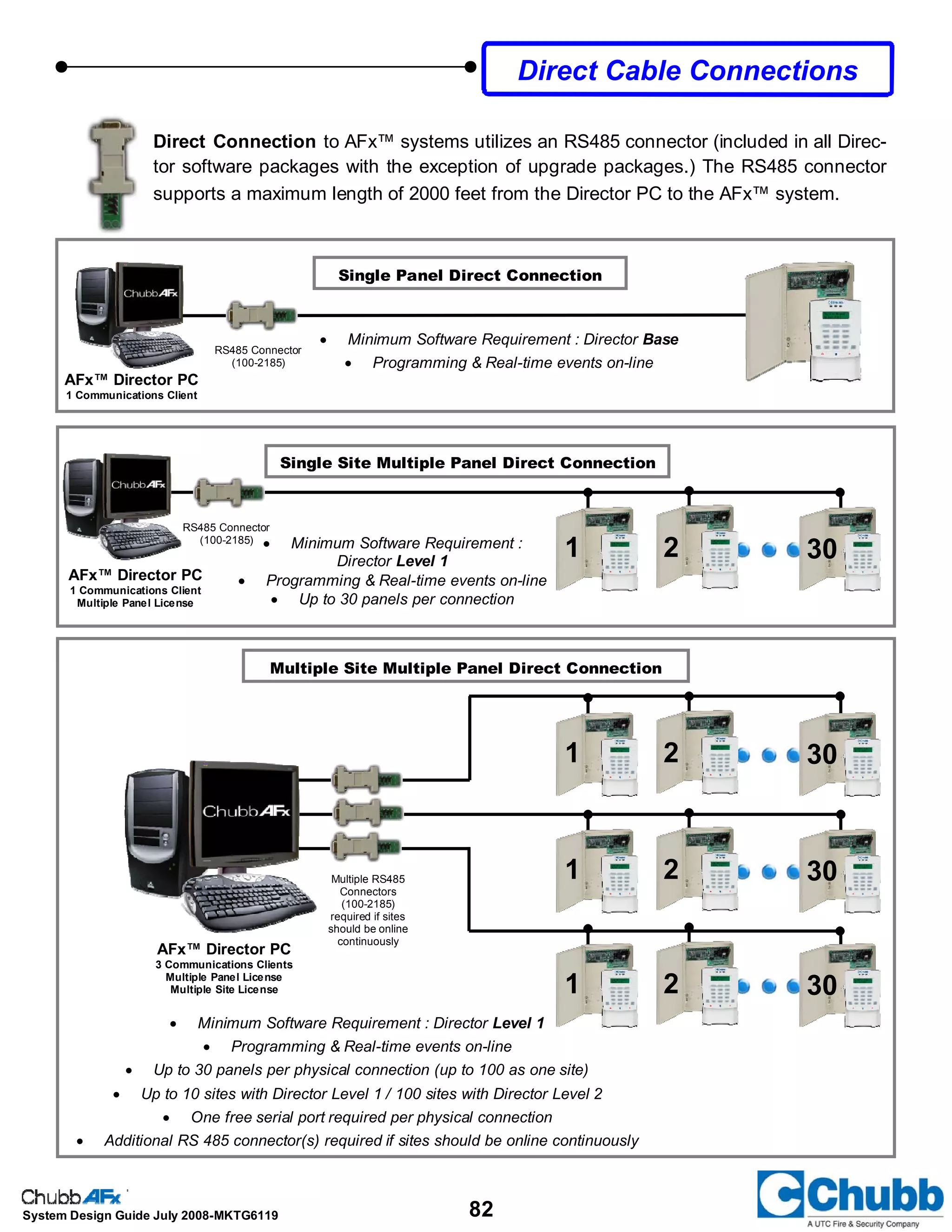

Direct Connection to AFx™ systems utilizes an RS485 connector (included in
all Director software packages with the exception of upgrade packages.) The
RS485 connector supports a maximum length of 2000 feet from the Director PC
to the AFx™ system.

1 2 30
Single Panel Direct Connection
• Minimum Software Requirement : Director Base
• Programming & Real-time events on-line
AFx™ Director PC
1 Communications Client
Direct Cable Connections
Direct Connection to AFx™ systems utilizes an RS485 connector (included in all Direc-
tor software packages with the exception of upgrade packages.) The RS485 connector
supports a maximum length of 2000 feet from the Director PC to the AFx™ system.
Single Site Multiple Panel Direct Connection
• Minimum Software Requirement :
Director Level 1
• Up to 30 panels per connection
1 2 30
Multiple Site Multiple Panel Direct Connection
1 2 30
1 2 30
• Minimum Software Requirement : Director Level 1
• Up to 30 panels per physical connection (up to 100 as one site)
• Up to 10 sites with Director Level 1 / 100 sites with Director Level 2
• One free serial port required per physical connection
• Additional RS 485 connector(s) required if sites should be online continuously
AFx™ Director PC
3 Communications Clients
Multiple Panel License
Multiple Site License
AFx™ Director PC
RS485 Connector
(100-2185)
RS485 Connector
(100-2185)
Multiple RS485
Connectors
(100-2185)
required if sites
should be online
continuously

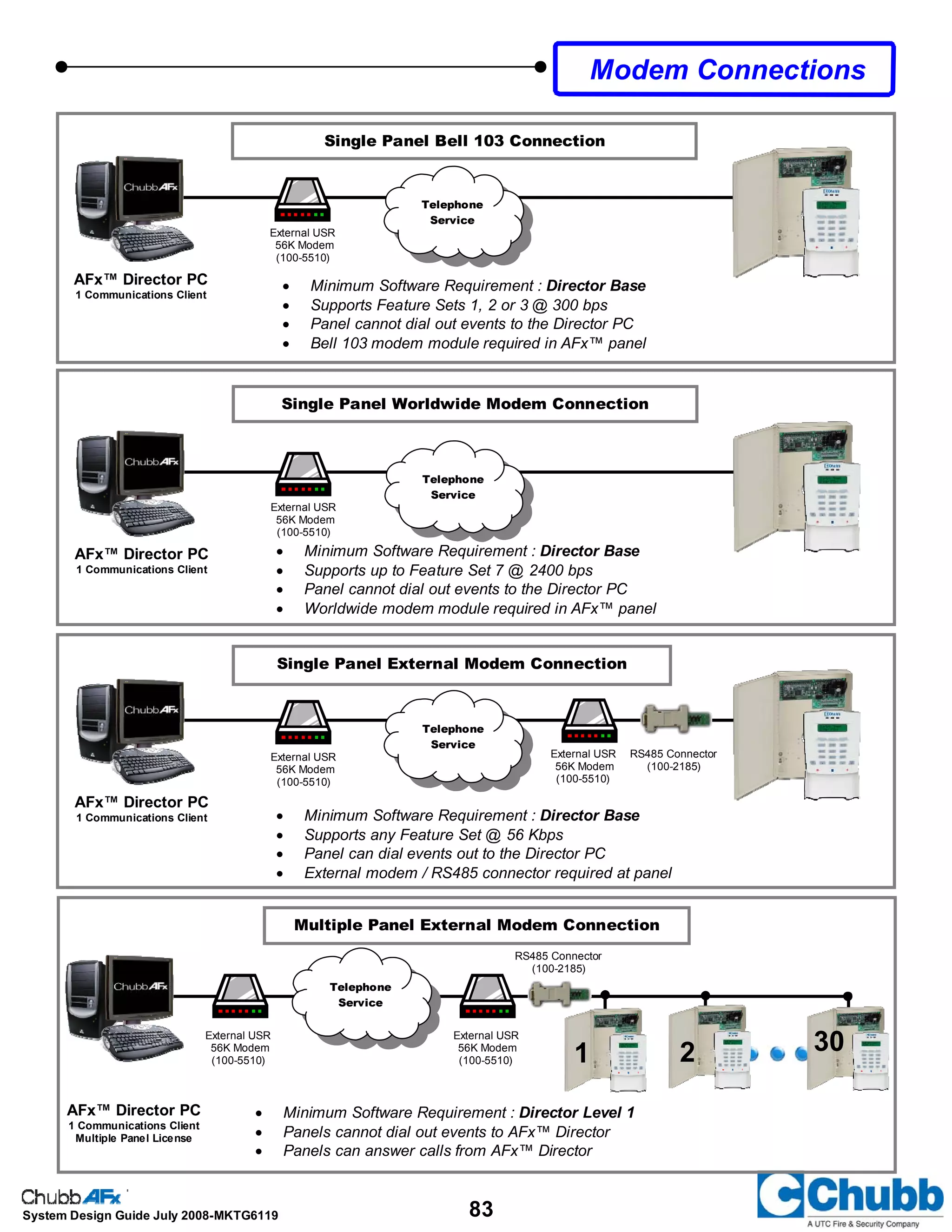

Modem Connections
Single Panel Bell 103 Connection
AFx™ Director PC
Telephone
Service
• Supports Feature Sets 1, 2 or 3 @ 300 bps
• Panel cannot dial out events to the Director PC
• Bell 103 modem module required in AFx™ panel
External USR
56K Modem
(100-5510)
Single Panel Worldwide Modem Connection
AFx™ Director PC
Telephone
Service
• Supports up to Feature Set 7 @ 2400 bps
• Panel cannot dial out events to the Director PC
• Worldwide modem module required in AFx™ panel
External USR
56K Modem
(100-5510)
Multiple Panel External Modem Connection
2
AFx™ Director PC
Telephone
Service
• Panels cannot dial out events to AFx™ Director
• Panels can answer calls from AFx™ Director
External USR
56K Modem
(100-5510)
301
Single Panel External Modem Connection
AFx™ Director PC
1 Communications Client • Minimum Software Requirement : Director Base
• Supports any Feature Set @ 56 Kbps
• Panel can dial events out to the Director PC
• External modem / RS485 connector required at panel
External USR
56K Modem
(100-5510)
External USR
56K Modem
(100-5510)
Telephone
Service
RS485 Connector
(100-2185)
External USR
56K Modem
(100-5510)
RS485 Connector
(100-2185)

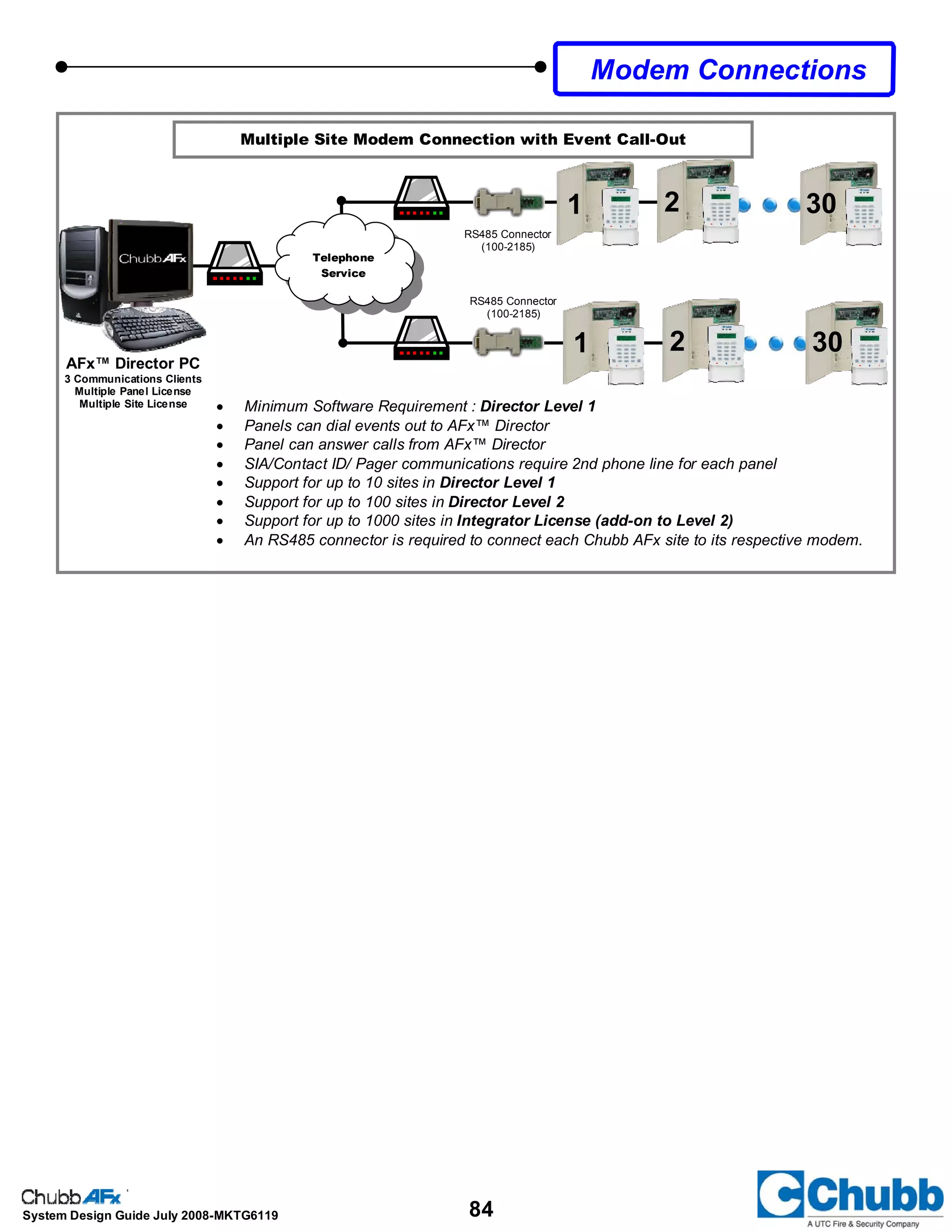

Multiple Site Modem Connection with Event Call-Out
Telephone
Service
• Panels can dial events out to AFx™ Director
• Panel can answer calls from AFx™ Director
• SIA/Contact ID/ Pager communications require 2nd phone line for each panel
• Support for up to 10 sites in Director Level 1
• Support for up to 1000 sites in Integrator License (add-on to Level 2)
• An RS485 connector is required to connect each Chubb AFx site to its respective modem.
Modem Connections
2 301
2 301
AFx™ Director PC
RS485 Connector
(100-2185)
RS485 Connector
(100-2185)

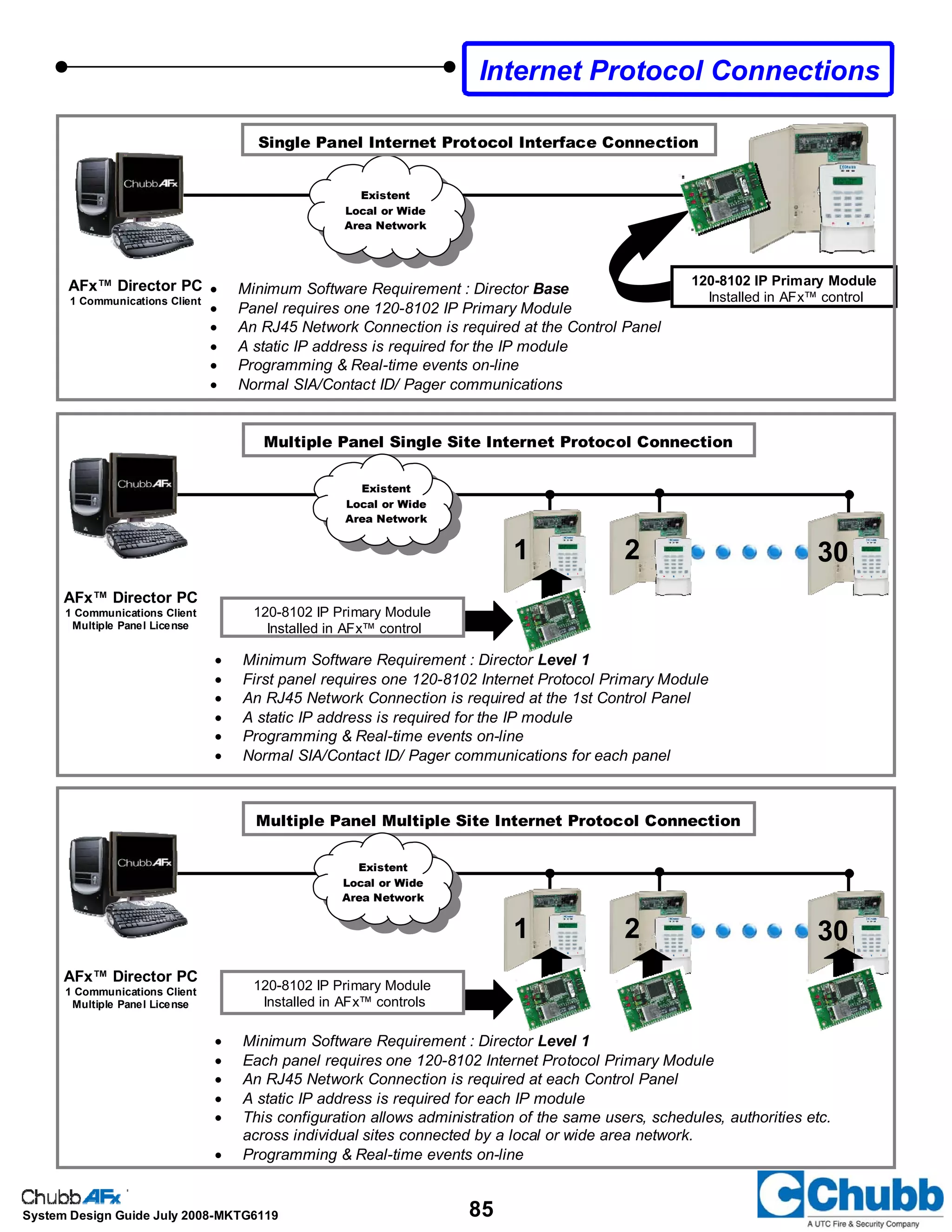

Single Panel Internet Protocol Interface Connection
AFx™ Director PC
• Panel requires one 120-8102 IP Primary Module
• An RJ45 Network Connection is required at the Control Panel
• A static IP address is required for the IP module
• Normal SIA/Contact ID/ Pager communications
120-8102 IP Primary Module
Installed in AFx™ control
Internet Protocol Connections
1 2
Multiple Panel Single Site Internet Protocol Connection
AFx™ Director PC
• First panel requires one 120-8102 Internet Protocol Primary Module
• An RJ45 Network Connection is required at the 1st Control Panel
• Normal SIA/Contact ID/ Pager communications for each panel
Installed in AFx™ control
30
1 2
Multiple Panel Multiple Site Internet Protocol Connection
AFx™ Director PC
• Each panel requires one 120-8102 Internet Protocol Primary Module
• An RJ45 Network Connection is required at each Control Panel
• A static IP address is required for each IP module
• This configuration allows administration of the same users, schedules, authorities etc.
across individual sites connected by a local or wide area network.
Installed in AFx™ controls
Existent
Local or Wide
Area Network
30
Existent
Local or Wide
Area Network
Existent
Local or Wide
Area Network

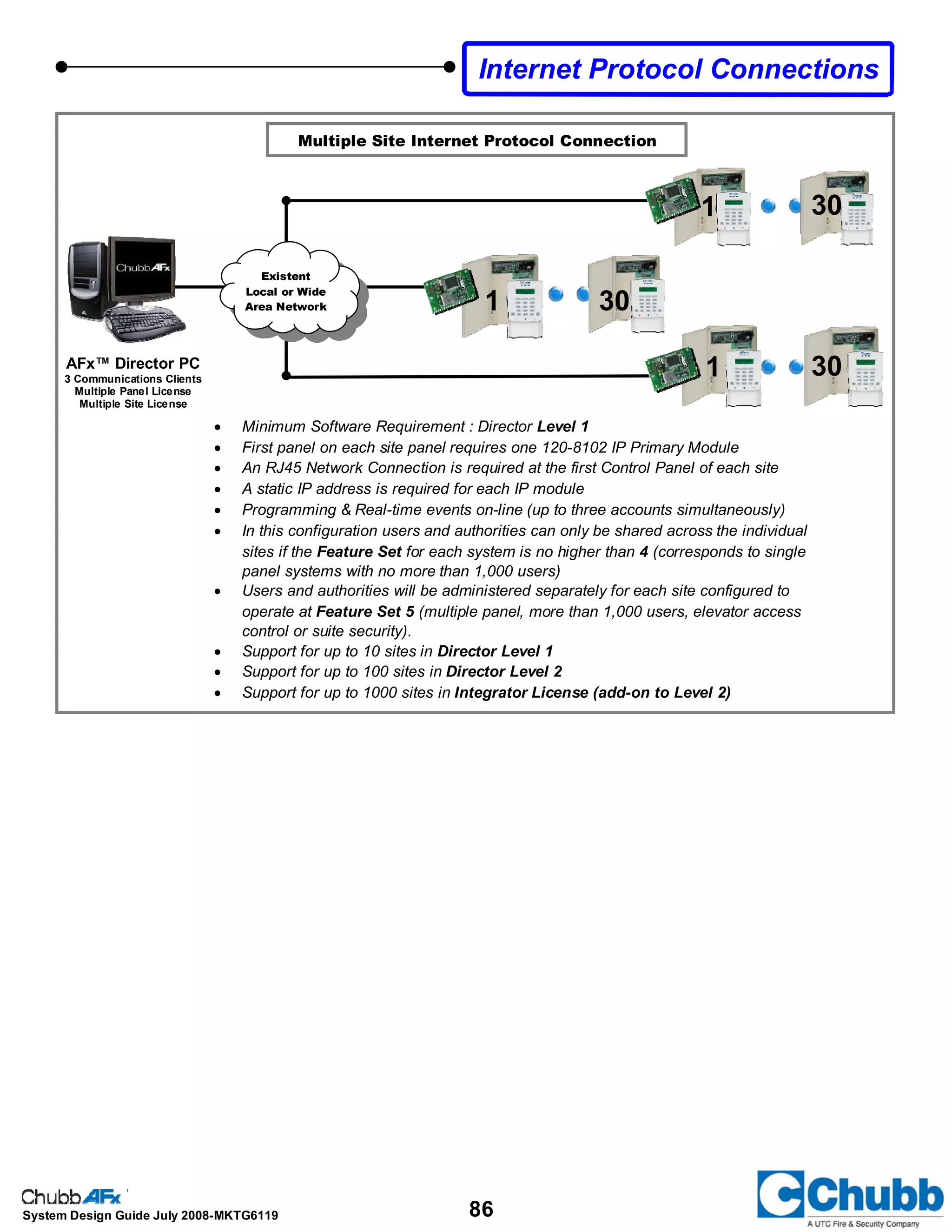

Internet Protocol Connections
• First panel on each site panel requires one 120-8102 IP Primary Module
• An RJ45 Network Connection is required at the first Control Panel of each site
• A static IP address is required for each IP module
• Programming & Real-time events on-line (up to three accounts simultaneously)
• In this configuration users and authorities can only be shared across the individual
sites if the Feature Set for each system is no higher than 4 (corresponds to single
panel systems with no more than 1,000 users)
• Users and authorities will be administered separately for each site configured to
operate at Feature Set 5 (multiple panel, more than 1,000 users, elevator access
control or suite security).
• Support for up to 1000 sites in Integrator License (add-on to Level 2)
Multiple Site Internet Protocol Connection
30
301
301
1
Existent
Local or Wide
Area Network
AFx™ Director PC

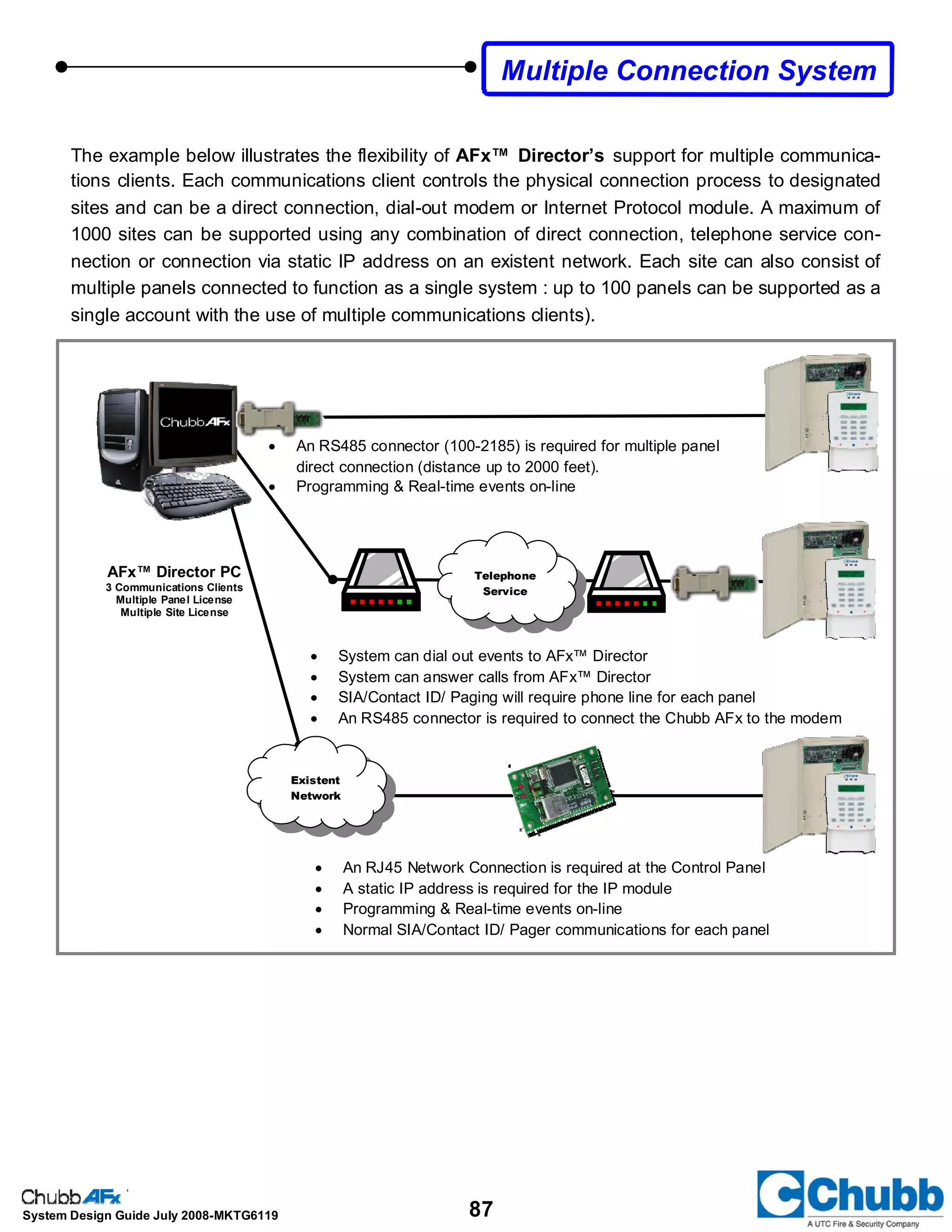

The example below illustrates the flexibility of AFx™ Director’s support for multiple communica-
tions clients. Each communications client controls the physical connection process to designated
sites and can be a direct connection, dial-out modem or Internet Protocol module. A maximum of
1000 sites can be supported using any combination of direct connection, telephone service con-
nection or connection via static IP address on an existent network. Each site can also consist of
multiple panels connected to function as a single system : up to 100 panels can be supported as a
single account with the use of multiple communications clients).
Multiple Connection System
Telephone
Service
Existent
Network
• An RJ45 Network Connection is required at the Control Panel
• Normal SIA/Contact ID/ Pager communications for each panel
• System can dial out events to AFx™ Director
• System can answer calls from AFx™ Director
• SIA/Contact ID/ Paging will require phone line for each panel
• An RS485 connector is required to connect the Chubb AFx to the modem
• An RS485 connector (100-2185) is required for multiple panel
direct connection (distance up to 2000 feet).
AFx™ Director PC

Chubb AFx System Design Guide June 2009

Chubb AFx System Design Guide June 2009

More Related Content

Viewers also liked

Similar to Chubb AFx System Design Guide June 2009

Chubb AFx System Design Guide June 2009
