Resilient Technologies deals with access control system, centeralised soultion, attendance management system,visitor management system, canteen management system, door interlocking terminals etc. In Access Control it facilitate control over the accessibility of areas in an organization to authorized employees. It can be used to control a particular device, a complete building or entire organisation.

1. Access Control
Solution

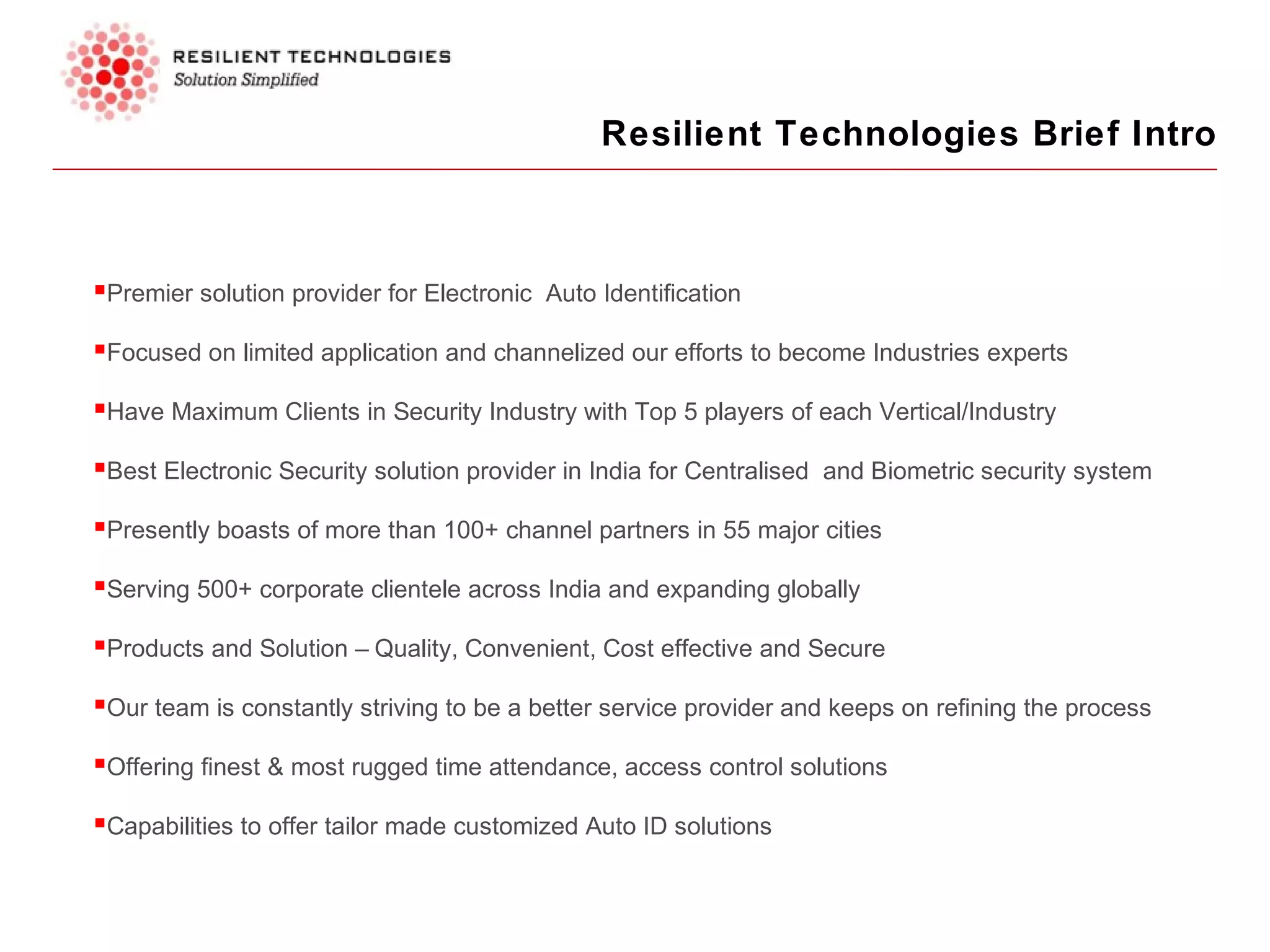

2. Resilient Technologies Brief Intro
Premier solution provider for Electronic Auto Identification
Focused on limited application and channelized our efforts to become Industries experts
Have Maximum Clients in Security Industry with Top 5 players of each Vertical/Industry
Best Electronic Security solution provider in India for Centralised and Biometric security system
Presently boasts of more than 100+ channel partners in 55 major cities
Serving 500+ corporate clientele across India and expanding globally
Products and Solution – Quality, Convenient, Cost effective and Secure
Our team is constantly striving to be a better service provider and keeps on refining the process
Offering finest & most rugged time attendance, access control solutions
Capabilities to offer tailor made customized Auto ID solutions

3. TwinXs 2C
2 Door / 4 Reader
Access Controller
QuadXs 2C
4 Door / 8 Reader
Access Controller
Access Control Products
BioStamp 2C
Standalone Access
Controller
Hardware
Software

4. RUGGED OPTICAL
FINGERPRINT SENSOR
Ultra Sleek
Design
IP65 WEATHER
PROOF HOUSING
FIELD UPGRADABLE
SOFTWARE
TAMPER
PROOF
BioStam
p
2C
A new generation of biometric device with perfect blend of
quality, aesthetics and spectra trust.

5. State LED Colour
Idle Blue
Power ON Blue + Red + Green + Beep Sound
User Not Found Steady Red light (3 secs)
Finger Not Found Steady Red light for almost 300ms.
FP Registration
Prompt for finger Green (Blinking)
Lift and Place Blue (once) + Short Beep
Registration Success Blue (steady) + Long Beep
System Busy Blue (blinking)
Access Allowed/ Denied
Access allowed Green (steady) + Long Beep
Access denied Red (steady for 3 seconds)
LED Indications

6. Parameter Description / Options
Buzzer Time Configure Buzzer ON time
Free Scan ON / OFF
FP Compulsory YES / NO
FP Enable YES / NO
FP Enable FP Compulsory Result
YES YES Fingerprint verification compulsory
YES NO Those employees whose fp is not registered but
card is registered will get access for others it will
be both fp+card
NO YES Temporarily all the employees irrespective of
whose fp is registered or not, will be allowed by
showing their cards
NO NO Temporarily all the employees irrespective of
whose fp are registered or not, will be allowed
access by showing cards
Firmware Version Displays the existing firmware version
Controller Parameters

7. Parameter Description / Options
Security Level 0-7
Fast Mode 0-5
Enroll Mode Normal / Auto
Sensitivity 0-7
Timeout 1-10
Watch Dog On / Off
Image Quality 0-3
Light mode Indoor / Outdoor
Rotation 15/30/45/60/75/90°
Firmware Version Displays current firmware version
Fingerprint Parameters

8. Logical Connection
Diagram

9. TwinXs
2C
 Controls up to TWO doors and FOUR readers
 8 Bit Microcontroller running at 42Mhz
 Supports HID Prox / HID iClass readers
 User configurable multiple card formats
 30,000 card holder database
 55,000 last transaction storage
 Built-in Ethernet interface
 Built-in 2.5 amp supply with battery backup option

10. Multi Door Connection

11. QuadXs
2C
 Controls up to FOUR doors and EIGHT readers
 8 Bit Microcontroller running at 42Mhz
 Supports HID Prox / HID iClass readers
 User configurable multiple card formats
 30,000 card holder database
 55,000 last transaction storage
 Built-in Ethernet interface
Exit Verify
 Built-in 5 amp supply with battery backup option

12. Multi Door Connection

13. Multi user
environment
Export data in
excel format
Flexible reports
with user selectable
field
Alarms monitoring
Configurable
rights
Visitor Access
Supports variety of
RFID and Biometric
readers
Complete controller
configuration
from software
Supports Industry
standard Weigand &
clock/data
interface
Time zone
access grouping
Day of the week
access and
holiday access map
Supports
anti pass back
Net XS Control
Access Control Software
NetXs Control : Access Control
Software

14. Users’ Access and Rights Managemen
Multi level security with controller and user rights.
Support upto 999 Controllers on single platform.
Card Inventory Setup.
SAP ID integration available.
250 Timezone Xs groups to schedule selective access to sensitive area.
Allocation of 4 timezone xs groups per employee.
Management of controller and finger parameters.
Exclusive gate access feature available.
Salient Feature

15. 30 Week off groups.
10 Holiday groups.
Dual access or double authentication available for better security.
Customisable Reader format.
Doorwise antipass back facility.
One click detect and repair database troubleshoot
Multiple MIS reports available to track and analyse access of employees.
In-Built Visitor management Module.
Feature Contine..

16. User and rights management is used to enroll users in the software.
Admin user is a root user having all the menu rights.
Multiple users can be added as ‘super user’ and ‘user’ and can be assigned specific menu
rights.
Supports the entry of various categories e.g. Business Guest, Vendor, Company Guest etc.
Entry of Assets being carried by the visitor.
Supports capturing Photograph of the visitor and two finger images if required for law
enforcement
or for allowing permissions on the gates covered under Access Control.
Visitor list and reports available to keep a track on visitors.
Once the visitor details are entered, Visitor pass can be printed.
Visitor Master Entry
Module

17. Visitor Pass

18. Time is the most valuable thing a man
can spend
Resilient Technologies
578 | Udyog Vihar | Phase -5 | Gurgaon | 122001
+91 9810995267
http://resilienttec.com
