Users hate picking and having to remember them. Developers hate dealing with and storing them. Why are we still using passwords again? Surely there is a better way to log into websites. This talk will introduce the technology behind Persona and the BrowserID protocol. Mozilla intends to solve the password problem on the web with a federated cross-browser system that is intensely focused on user experience and privacy. We may not be able to get rid of all passwords, after all, you probably don’t want to be subjected to a fingerprint check before leaving a comment on someone’s blog, but we can eliminate site-specific passwords and replace them with something better: a decentralized system that’s under the control of users, not a for-profit gatekeeper. It’s just four easy steps to add it to your Ruby site/app from scratch and there are already plugins for Devise, Omniauth, Rails, Sinatra, and Warden.

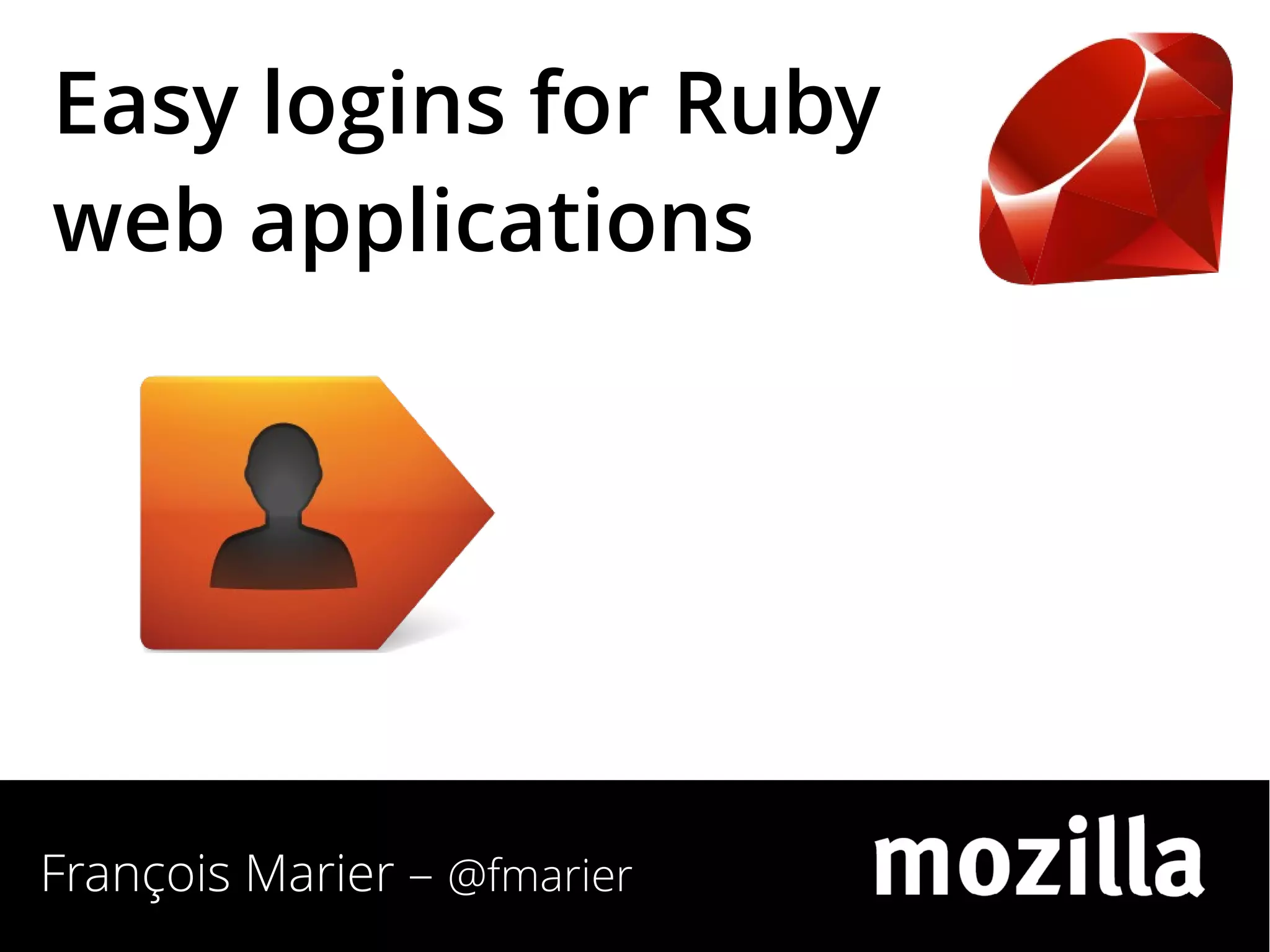

1. Easy logins for Ruby
web applications
François Marier – @fmarier

12. problem #1:
passwords are hard to secure

13. bcrypt / scrypt / pbkdf2
per-user salt
site secret
password & lockout policies
secure recovery

14. bcrypt / scrypt / pbkdf2
per-user salt
site secret
password & lockout policies
secure recovery

15. bcrypt / scrypt / pbkdf2
per-user salt
site secret
password & lockout policies
secure recovery

16. bcrypt / scrypt / pbkdf2
per-user salt
site secret
password & lockout policies
secure recovery

17. bcrypt / scrypt / pbkdf2
per-user salt
site secret
password & lockout policies
secure recovery

18. bcrypt / scrypt / pbkdf2
3
1
0
2
per-user salt
d
r
o
site secret
w
s
s
s
a & lockoutne
p
password
li policies
e
id
u
secure recovery
g

19. passwords are hard to secure
they are a liability

20. ALTER TABLE user
DROP COLUMN password;

21. problem #2:
passwords are hard to remember

22. pick an easy password

23. pick an easy password
use it everywhere

24. passwords are hard to remember
they need to be reset

26. control
email
account
=
control
all
accounts

28. “People want a little
dating before marriage.”
Eric Vishria – Rockmelt

30. decentralised

31. myid.com/u/francois

34. privacy®

35. existing login systems
are not good enough

36. ideal web-wide identity system

37. ideal web-wide identity system

38. ideal web-wide identity system

39. ideal web-wide identity system

40. what if it were a standard
part of the web browser?

42. how does it work?

43. fmarier@gmail.com

44. fmarier@gmail.com

45. getting a proof of email ownership

46. authenticate?

47. authenticate?
public key

48. authenticate?
public key
signed public key

49. you have a signed statement from your
provider that you own your email address

51. logging into a 3rd party site

52. assertion
wikipedia.org
Valid for:
2 minutes

53. assertion
wikipedia.org
Valid for:
2 minutes
check audience

54. assertion
wikipedia.org
Valid for:
2 minutes
check audience
check expiry

55. assertion
wikipedia.org
Valid for:
2 minutes
check audience
check expiry
check signature

56. assertion
public key
wikipedia.org
Valid for:
2 minutes

57. assertion
wikipedia.org
Valid for:
2 minutes

58. assertion
session cookie

59. demo #1:
http://www.voo.st/
http://www.debuggex.com
fmariertest@eyedee.me

60. Persona is already a
decentralised system

61. decentralisation is the answer, but it's not
a product adoption strategy

62. we can't wait for all domains
to adopt Persona

63. we can't wait for all domains
to adopt Persona
solution: a temporary
centralised fallback

64. demo #2:
http://sloblog.io/
fmariertest@aol.com

65. Persona already works
with all email domains

66. identity bridging

67. demo #3:
http://www.reasonwell.com/
fmariertest@yahoo.com

71. Persona supports
all modern browsers
>= 8

72. Persona is decentralised,
simple and cross-browser

73. it's simple for users, but is it also
simple for developers?

75. <script src=”https://login.persona.org/include.js”>
</script>
</body></html>

76. navigator.id.watch({
loggedInEmail: “francois@mozilla.com”,
onlogin: function (assertion) {
$.post('/login',
{assertion: assertion},
function (data) {
// do something
}
);
},
onlogout: function () {
window.location = '/logout';
}
});

77. navigator.id.watch({
loggedInUser: “francois@mozilla.com”,
onlogin: function (assertion) {
$.post('/login',
{assertion: assertion},
function (data) {
// do something
}
);
},
onlogout: function () {
window.location = '/logout';
}
});

78. navigator.id.watch({
loggedInUser: null,
onlogin: function (assertion) {
$.post('/login',
{assertion: assertion},
function (data) {
// do something
}
);
},
onlogout: function () {
window.location = '/logout';
}
});

79. navigator.id.watch({
loggedInUser: null,
onlogin: function (assertion) {
$.post('/login',
{assertion: assertion},
function (data) {
// do something
}
);
},
onlogout: function () {
window.location = '/logout';
}
});

80. navigator.id.watch({
loggedInUser: null,
onlogin: function (assertion) {
$.post('/login',
{assertion: assertion},
function (data) {
window.location = '/';
}
);
},
onlogout: function () {
window.location = '/logout';
}
});

82. navigator.id.request()

86. navigator.id.watch({
loggedInUser: null,
onlogin: function (assertion) {
$.post('/login',
{assertion: assertion},
function (data) {
window.location = '/';
}
);
},
onlogout: function () {
window.location = '/logout';
}
});

87. eyJhbGciOiJEUzEyOCJ9.eyJwdWJsaWMta2V5Ijp7ImFsZ29yaXRobSI6IkRTIiwieSI6ImNhZDg2ZDg
yNWU0MjBkMGI4Njk5MjM4ZDM5ZTFjYjIyOGMyMTk1NWFiMzcwOTQ1YzExNzBhMzM4NjcyNDM0ZDJmNGY
xZDg5ZjFkZjMzNmU1ZjZjZjk2YjhiOTlmMjgyNmFjNTYxZmI1YWMyYTc4ZjNhMzBkNGYxNTVhYjc3ZGE
xYmY3MWU4ZGMzNjQ0MmU2NjQ3MmE5Mjg0N2I2YjFlNDRkMTJlM2IwMjVjOWZmNTFmNDdhMWE5ZWYyMGZ
hOTVjMTcxZjBkMTYzNGE4ZTY4YTk5NWU3ZjFjY2FiYTJlOTRjYTI3ODE1ZWVkMTcxYjY1YTJmZGQzNTE
1NjY3OTI0ZjUiLCJwIjoiZmY2MDA0ODNkYjZhYmZjNWI0NWVhYjc4NTk0YjM1MzNkNTUwZDlmMWJmMmE
5OTJhN2E4ZGFhNmRjMzRmODA0NWFkNGU2ZTBjNDI5ZDMzNGVlZWFhZWZkN2UyM2Q0ODEwYmUwMGU0Y2M
xNDkyY2JhMzI1YmE4MWZmMmQ1YTViMzA1YThkMTdlYjNiZjRhMDZhMzQ5ZDM5MmUwMGQzMjk3NDRhNTE
3OTM4MDM0NGU4MmExOGM0NzkzMzQzOGY4OTFlMjJhZWVmODEyZDY5YzhmNzVlMzI2Y2I3MGVhMDAwYzN
mNzc2ZGZkYmQ2MDQ2MzhjMmVmNzE3ZmMyNmQwMmUxNyIsInEiOiJlMjFlMDRmOTExZDFlZDc5OTEwMDh
lY2FhYjNiZjc3NTk4NDMwOWMzIiwiZyI6ImM1MmE0YTBmZjNiN2U2MWZkZjE4NjdjZTg0MTM4MzY5YTY
xNTRmNGFmYTkyOTY2ZTNjODI3ZTI1Y2ZhNmNmNTA4YjkwZTVkZTQxOWUxMzM3ZTA3YTJlOWUyYTNjZDV
kZWE3MDRkMTc1ZjhlYmY2YWYzOTdkNjllMTEwYjk2YWZiMTdjN2EwMzI1OTMyOWU0ODI5YjBkMDNiYmM
3ODk2YjE1YjRhZGU1M2UxMzA4NThjYzM0ZDk2MjY5YWE4OTA0MWY0MDkxMzZjNzI0MmEzODg5NWM5ZDV
iY2NhZDRmMzg5YWYxZDdhNGJkMTM5OGJkMDcyZGZmYTg5NjIzMzM5N2EifSwicHJpbmNpcGFsIjp7ImV
tYWlsIjoiZm9vQG1vY2tteWlkLmNvbSJ9LCJpYXQiOjEzNzY1MzY0NjM1MTgsImV4cCI6MTM3NjU0MDA
2MzUxOCwiaXNzIjoibW9ja215aWQuY29tIn0.IeUR0_3ayAZkdNSXjF4aaCwSHnHa4X1lzrjX-qkNcPI
bXx1hmQQPwg~eyJhbGciOiJEUzEyOCJ9.eyJleHAiOjEzNzY1MzY3MDc2MzUsImF1ZCI6Imh0dHA6Ly9
sb2NhbGhvc3QifQ.NJ8H1qZcWXbXfPJSdgB_mORHQ442ZkY0XYfdQsZZsIjooG7k7qWyVw

88. navigator.id.watch({
loggedInUser: null,
onlogin: function (assertion) {
$.post('/login',
{assertion: assertion},
function (data) {
window.location = '/home';
}
);
},
onlogout: function () {
window.location = '/logout';
}
});

89. gem install browserid-verifier

90. require 'browserid/verifier'
response = verify("http://123done.org",
params["assertion"])

91. {
status: “okay”,
audience: “http://123done.org”,
expires: 1344849682560,
email: “francois@mozilla.com”,
}
issuer: “login.persona.org”

92. require 'browserid/verifier'
response = verify("http://123done.org",
params["assertion"])
if response["status"] == "okay"
session[:email] = response["email"]
end

93. {
status: “failed”,
}
reason: “assertion has expired”

94. require 'browserid/verifier'
response = verify("http://123done.org",
params["assertion"])
if response["status"] == "okay"
session[:email] = response["email"]
else
session[:email] = nil
end

97. navigator.id.logout()

98. navigator.id.watch({
loggedInUser: null,
onlogin: function (assertion) {
$.post('/login',
{assertion: assertion},
function (data) {
window.location = '/home';
}
);
},
onlogout: function () {
window.location = '/logout';
}
});

100. 1. load javascript library

101. 1. load javascript library
2. setup login & logout callbacks

102. 1. load javascript library
2. setup login & logout callbacks
3. add login and logout buttons

103. 1. load javascript library
2. setup login & logout callbacks
3. add login and logout buttons
4. verify proof of ownership

104. no
1. load javascript library API key
needed
2. setup login & logout callbacks
3. add login and logout buttons
4. verify proof of ownership

105. Devise
warden

106. one simple request

108. building a new site:
default to Persona

109. working on an existing site/app:
add support for Persona

110. before

111. after

112. after
navigator.id.request()

114. ALTER TABLE user
DROP COLUMN password;

115. To learn more about Persona:
https://login.persona.org/
http://identity.mozilla.com/
https://developer.mozilla.org/docs/Persona/Why_Persona
https://developer.mozilla.org/docs/Persona/Quick_Setup
https://github.com/mozilla/browserid-cookbook
https://developer.mozilla.org/docs/Persona/Libraries_and_plugins
http://123done.org/
https://wiki.mozilla.org/Identity#Get_Involved
@fmarier
http://fmarier.org

116. identity provider API
https://eyedee.me/.well-known/browserid:
{
"public-key": {
"algorithm":"RS",
"n":"8606...",
"e":"65537"
},
"authentication": "/browserid/sign_in.html",
"provisioning": "/browserid/provision.html"
}

117. identity provider API
https://eyedee.me/.well-known/browserid:
{
"public-key": {
"algorithm":"RS",
"n":"8606...",
"e":"65537"
},
"authentication": "/browserid/sign_in.html",
"provisioning": "/browserid/provision.html"
}

118. identity provider API
https://eyedee.me/.well-known/browserid:
{
"public-key": {
"algorithm":"RS",
"n":"8606...",
"e":"65537"
},
"authentication": "/browserid/sign_in.html",
"provisioning": "/browserid/provision.html"
}

119. identity provider API
https://eyedee.me/.well-known/browserid:
{
"public-key": {
"algorithm":"RS",
"n":"8606...",
"e":"65537"
},
"authentication": "/browserid/sign_in.html",
"provisioning": "/browserid/provision.html"
}

120. identity provider API
https://eyedee.me/.well-known/browserid:
{
"public-key": {
"algorithm":"RS",
"n":"8606...",
"e":"65537"
},
"authentication": "/browserid/sign_in.html",
"provisioning": "/browserid/provision.html"
}

121. identity provider API
1. check for your /.well-known/browserid
2. try the provisioning endpoint
3. show the authentication page
4. call the provisioning endpoint again

122. identity provider API
1. check for your /.well-known/browserid
2. try the provisioning endpoint
3. show the authentication page
4. call the provisioning endpoint again

123. identity provider API
1. check for your /.well-known/browserid
2. try the provisioning endpoint
3. show the authentication page
4. call the provisioning endpoint again

124. identity provider API
1. check for your /.well-known/browserid
2. try the provisioning endpoint
3. show the authentication page
4. call the provisioning endpoint again

125. Photo credits:
Top 500 passwords: http://xato.net/passwords/more-top-worst-passwords/
Parchment: https://secure.flickr.com/photos/27613359@N03/6750396225/
Restaurant dinner: https://secure.flickr.com/photos/yourdon/3977084094/
Stop sign: https://secure.flickr.com/photos/artbystevejohnson/6673406227/
© 2013 François Marier <francois@mozilla.com>
This work is licensed under a
Creative Commons Attribution-ShareAlike 3.0 New Zealand License.
