Chrome Apps & Extension
About Me

Varun Raj
Web Developer | Internet Addict |
Android Fan Boy | Techie | Engineering

Student
Chrome Extensions and Apps
Looking beyond browsing on Chrome

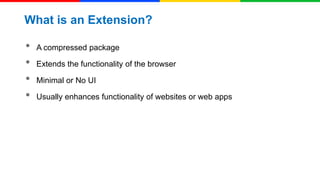

What is an Extension?

•
•
•
•

A compressed package
Extends the functionality of the browser
Minimal or No UI

Usually enhances functionality of websites or web apps

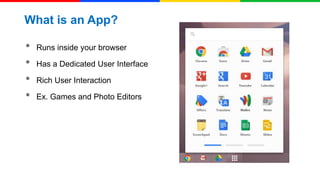

What is an App?

•
•
•
•

Runs inside your browser
Has a Dedicated User Interface
Rich User Interaction

Ex. Games and Photo Editors

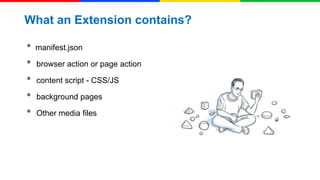

What an Extension contains?

•
•
•
•
•

manifest.json
browser action or page action
content script - CSS/JS

background pages
Other media files
Extension UIs

Browser Action

Page Action
Layout of an Extension
chrome - top-level object & is exposed to extensions

•
•
•
•
•
•
•

chrome.extension.*

chrome.browserAction.*
chrome.pageAction.*
chrome.windows.*
chrome.tabs.*
chrome.bookmarks.*

Does not access much of the native code

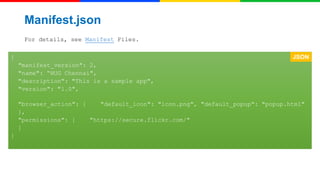

Manifest.json
For details, see Manifest Files.
{

JSON

"manifest_version": 2,
"name": “HUG Chennai",
"description": "This is a sample app",
"version": "1.0",
"browser_action": {
"default_icon": "icon.png", "default_popup": "popup.html"
},
"permissions": [
"https://secure.flickr.com/"
]
}

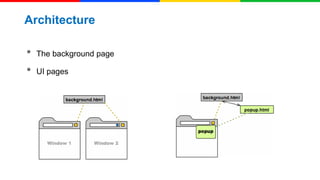

Architecture

•
•

The background page

UI pages

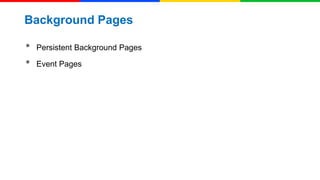

Background Pages

•
•

Persistent Background Pages
Event Pages

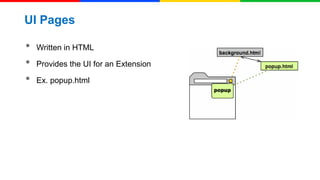

UI Pages

•
•
•

Written in HTML
Provides the UI for an Extension
Ex. popup.html
Content Script

•
•
•

Part of the loaded page
Injects contents into the page using scripts
Exchange messages to parent script

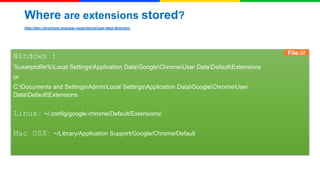

Where are extensions stored?
http://dev.chromium.org/user-experience/user-data-directory

Windows :
%userprofile%Local SettingsApplication DataGoogleChromeUser DataDefaultExtensions

or
C:Documents and SettingsAdminLocal SettingsApplication DataGoogleChromeUser
DataDefaultExtensions

Linux :

~/.config/google-chrome/Default/Extensions/

Mac OSX :

~/Library/Application Support/Google/Chrome/Default

File:///
Demo Time !
Nothing works!
• Refused to load script from 'http://code.jquery.com/jquery-latest.js' because of
Content-Security-Policy.
• Refused to execute inline script because of Content-Security-Policy.
• Refused to execute inline event handler because of Content-Security-Policy.
Need to:
• Load external scripts over HTTPS
• Extract own scripts to .js files
• Remove inline event handlers
CSP-ready extension
<!DOCTYPE html>
<html>
<head><title>ManifestLint</title>
<script src="https://ajax.googleapis.com/.../jquery.min.js"
type="text/javascript"></script>
<script src="main.js" type="text/javascript"></script>
</head>
<body>
...

HTML
Chrome Apps

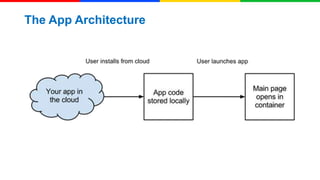

The App Architecture
Links
• Manifest versions:
o

http://code.google.com/chrome/extensions/manifestVersion.html

• Content Security Policy:
o

http://code.google.com/chrome/extensions/contentSecurityPolicy.html

• HTML5 sandbox attribute for iframes:
o

http://www.whatwg.org/specs/web-apps/current-work/multipage/the-

iframe-element.html#attr-iframe-sandbox

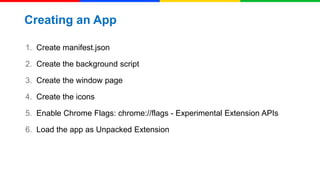

Creating an App
1. Create manifest.json
2. Create the background script
3. Create the window page

4. Create the icons
5. Enable Chrome Flags: chrome://flags - Experimental Extension APIs
6. Load the app as Unpacked Extension

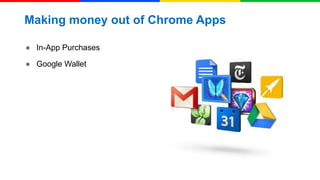

Making money out of Chrome Apps
● In-App Purchases
● Google Wallet
Thank You !
Contact Me
mailme@varunraj.in
