This document summarizes the key aspects of Chrome extensions including:
- Chrome extensions are small programs that modify and enhance the Chrome browser functionality

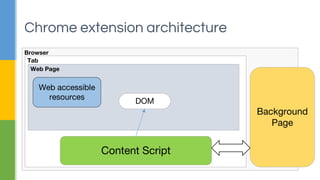

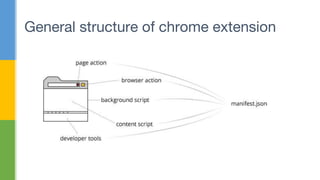

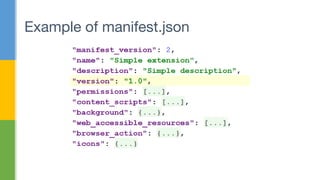

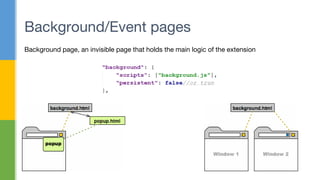

- Extensions have a general structure including manifest.json, background pages, content scripts, and CSS/HTML/JS files
- Content scripts run in the context of web pages and have limited access to the Chrome API and web page resources

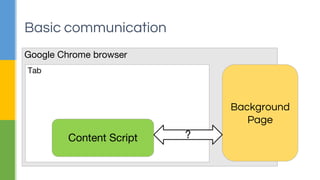

- Extensions use message passing to communicate between the background page and content scripts

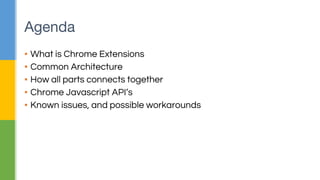

2. ▪ What is Chrome Extensions
▪ Common Architecture
▪ How all parts connects together
▪ Chrome Javascript API’s
▪ Known issues, and possible workarounds
Agenda
3. What is chrome extension?
Extensions are small software
programs that can modify and
enhance the functionality of the
Chrome browser.
Chrome
Extension
(.crx)
CSS
JS
HTM
L

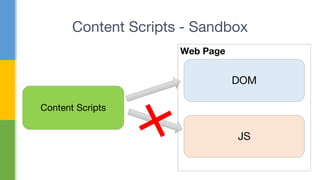

7. Content scripts
Content scripts are JS files that run in the context of
web pages.
▪ Use limited chrome.* APIs
▪ Cannot use variables or functions
defined by their extension's
pages
▪ Cannot use variables or functions
defined by web pages or by other
content scripts

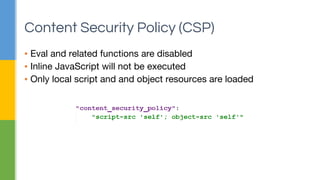

8. ▪ Eval and related functions are disabled
▪ Inline JavaScript will not be executed
▪ Only local script and and object resources are loaded
Content Security Policy (CSP)

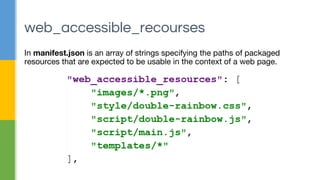

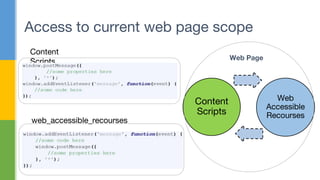

14. In manifest.json is an array of strings specifying the paths of packaged
resources that are expected to be usable in the context of a web page.
web_accessible_recourses

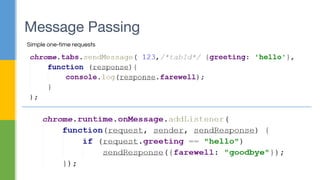

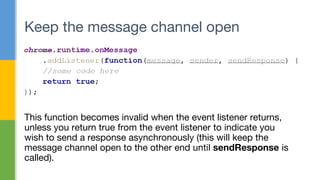

19. This function becomes invalid when the event listener returns,
unless you return true from the event listener to indicate you
wish to send a response asynchronously (this will keep the
message channel open to the other end until sendResponse is
called).
Keep the message channel open

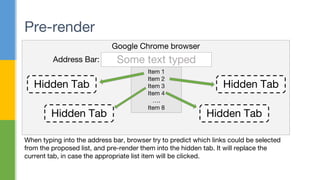

20. Pre-render
Google Chrome browser
Some text typed
Item 1
Item 2
Item 3
Item 4
….
Item 8
Hidden Tab
When typing into the address bar, browser try to predict which links could be selected
from the proposed list, and pre-render them into the hidden tab. It will replace the
current tab, in case the appropriate list item will be clicked.
Hidden Tab Hidden Tab
Hidden Tab
Address Bar:

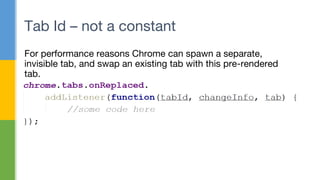

21. For performance reasons Chrome can spawn a separate,
invisible tab, and swap an existing tab with this pre-rendered
tab.
Tab Id – not a constant

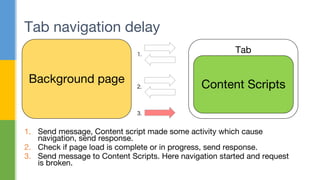

22. Tab navigation delay
Background page
Tab
Content Scripts
1.
2.
3.
1. Send message, Content script made some activity which cause
navigation, send response.
2. Check if page load is complete or in progress, send response.
3. Send message to Content Scripts. Here navigation started and request
is broken.

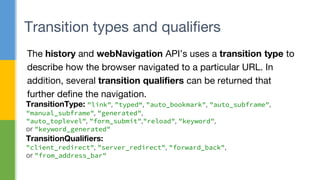

24. The history and webNavigation API’s uses a transition type to
describe how the browser navigated to a particular URL. In
addition, several transition qualifiers can be returned that
further define the navigation.
Transition types and qualifiers
TransitionType: "link", "typed“, "auto_bookmark", "auto_subframe",
"manual_subframe", "generated",
"auto_toplevel", "form_submit","reload", "keyword",
or "keyword_generated"
TransitionQualifiers:
"client_redirect", "server_redirect", "forward_back",
or "from_address_bar"

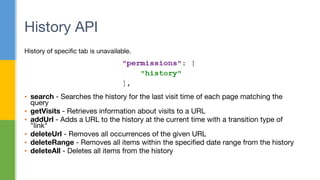

25. History of specific tab is unavailable.
▪ search - Searches the history for the last visit time of each page matching the
query
▪ getVisits - Retrieves information about visits to a URL
▪ addUrl - Adds a URL to the history at the current time with a transition type of
"link"
▪ deleteUrl - Removes all occurrences of the given URL
▪ deleteRange - Removes all items within the specified date range from the history
▪ deleteAll - Deletes all items from the history
History API

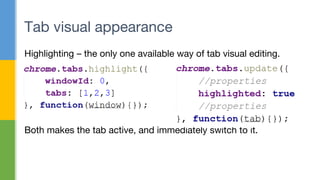

26. Highlighting – the only one available way of tab visual editing.
Both makes the tab active, and immediately switch to it.
Tab visual appearance

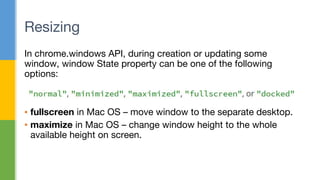

27. In chrome.windows API, during creation or updating some
window, window State property can be one of the following
options:
▪ fullscreen in Mac OS – move window to the separate desktop.
▪ maximize in Mac OS – change window height to the whole
available height on screen.
Resizing
28. NPAPI Plugins(Deprecated)
You can bundle an NPAPI plugin with your extension, allowing you to call into native
binary code from JavaScript.

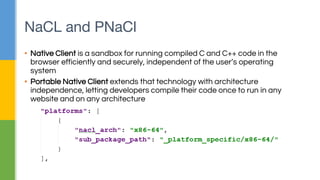

29. NaCL and PNaCl
▪ Native Client is a sandbox for running compiled C and C++ code in the
browser efficiently and securely, independent of the user’s operating
system
▪ Portable Native Client extends that technology with architecture
independence, letting developers compile their code once to run in any
website and on any architecture

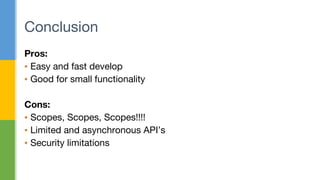

30. Pros:
▪ Easy and fast develop
▪ Good for small functionality
Cons:
▪ Scopes, Scopes, Scopes!!!!
▪ Limited and asynchronous API’s
▪ Security limitations
Conclusion
