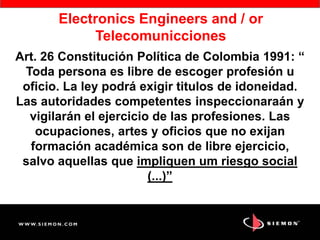

- 2. Art. 26 ConstituciónPolítica de Colombia 1991: “ Toda persona es libre de escoger profesión u oficio. La ley podrá exigir titulos de idoneidad. Las autoridades competentes inspeccionaraán y vigilarán el ejercicio de las profesiones. Las ocupaciones, artes y oficios que no exijan formación académica son de libre ejercicio, salvo aquellas que impliquen um riesgo social (...)” Electronics Engineers and / or Telecomunicciones

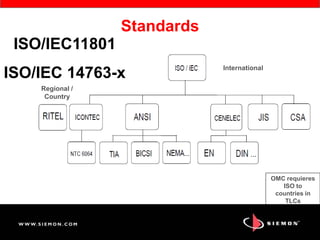

- 3. Standards OMC requieres ISO to countriesin TLCs Regional / Country International ISO/IEC11801 ISO/IEC 14763-x

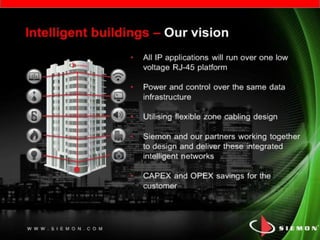

- 6. Standard/Traditional building Phone CCTVAudio Access Control Intrusion detection Power DataLightAudio

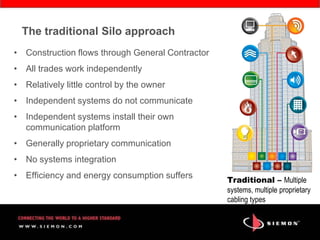

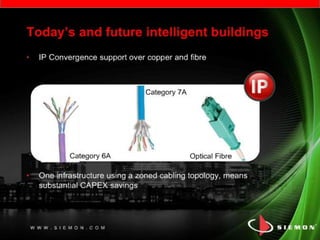

- 8. The traditional Siloapproach • Construction flows through General Contractor • All trades work independently • Relatively little control by the owner • Independent systems do not communicate • Independent systems install their own communication platform • Generally proprietary communication • No systems integration • Efficiency and energy consumption suffers Traditional – Multiple systems, multiple proprietary cabling types

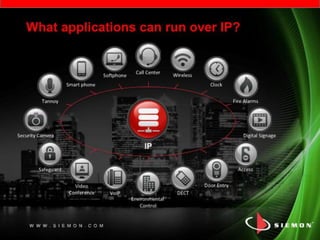

- 9. The ConvergeIT/Integrated approach •All systems communicate on a single IP platform and communication protocol supported by a PoE powered ConvergeIT zoned topology • True integration, all systems have equal access to a single BAS database • No proprietary communication, physical connectivity or protocols • Construction flows through the Integrated Project Delivery Team • All members are involved in the decision making, risk management and incentives ConvergeIT – Multiple systems, one structured cabling infrastructure

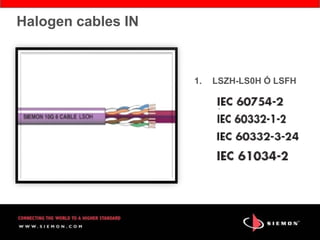

- 10. 1. LSZH-LS0H ÓLSFH IEC 60754 IEC 60332-1-2 Halogen cables IN

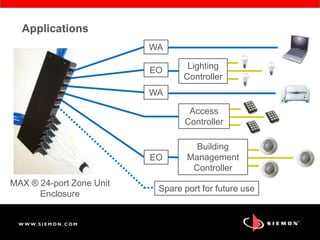

- 11. Applications MAX ® 24-portZone Unit Enclosure Building Management Controller EO WA EO Spare port for future use Lighting Controller WA Access Controller
- 12. Siemon’s ConvergeIT -‘All over IP’ Power over ConvergeIT

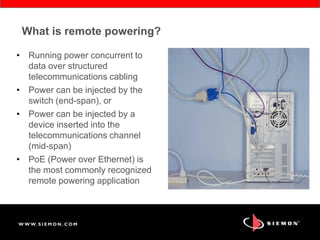

- 13. What is remotepowering? • Running power concurrent to data over structured telecommunications cabling • Power can be injected by the switch (end-span), or • Power can be injected by a device inserted into the telecommunications channel (mid-span) • PoE (Power over Ethernet) is the most commonly recognized remote powering application

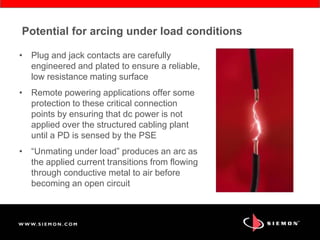

- 14. Potential for arcingunder load conditions • Plug and jack contacts are carefully engineered and plated to ensure a reliable, low resistance mating surface • Remote powering applications offer some protection to these critical connection points by ensuring that dc power is not applied over the structured cabling plant until a PD is sensed by the PSE • “Unmating under load” produces an arc as the applied current transitions from flowing through conductive metal to air before becoming an open circuit

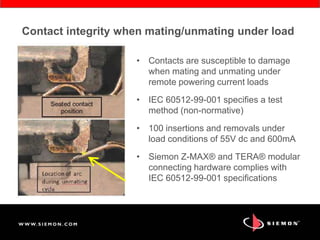

- 15. Contact integrity whenmating/unmating under load • Contacts are susceptible to damage when mating and unmating under remote powering current loads • IEC 60512-99-001 specifies a test method (non-normative) • 100 insertions and removals under load conditions of 55V dc and 600mA • Siemon Z-MAX® and TERA® modular connecting hardware complies with IEC 60512-99-001 specifications

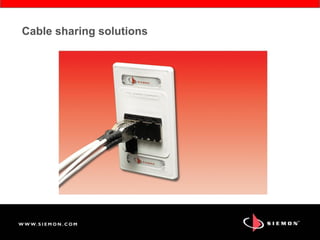

- 17.
- 18. Cable sharing withSiemon TERA® • Fully-shielded, quadrant isolated interface • 1-pair and 2-pair hybrid cords can be used to access specific pairs • TERA can support two 10/100BASE-T Type 1 (12.95 W to the PD) or two Type 2 (29.95 W to the PD) PoE “Plus” applications as long as power is delivered using IEEE 802.3-2012 Alternative A!

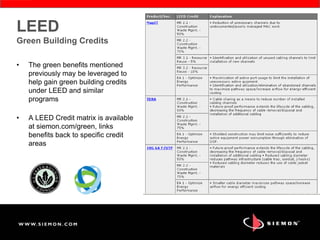

- 19. LEED Green Building Credits •The green benefits mentioned previously may be leveraged to help gain green building credits under LEED and similar programs • A LEED Credit matrix is available at siemon.com/green, links benefits back to specific credit areas

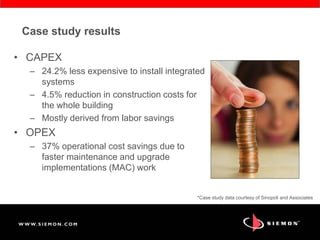

- 20. Case study results •CAPEX – 24.2% less expensive to install integrated systems – 4.5% reduction in construction costs for the whole building – Mostly derived from labor savings • OPEX – 37% operational cost savings due to faster maintenance and upgrade implementations (MAC) work *Case study data courtesy of Sinopoli and Associates
- 21. Resources Siemon.com/green • Resumen deRoHS • Artículos Técnicos sobre Estrategias Verdes • Resumen LEED • Branch Hill Farms • Noticias de Siemon Green
- 22.
- 23. Christian Ramírez Montilla Christian_ramirez@siemon.com TechnicalManager Caribbean and Andean Regional Champion LATAM – Optical Fiber 23
