1. chef@recordedfuture
Ulf Månsson, infra coder
@ulfmansson

3. DevOps - CAMS
●
Break the silos
●
Culture
●
Automation
●
Measurement
●
Sharing

4. Why automation and configuration management
●
Quality
●
Continuous delivery, deploy many times per day
●
Deployment by developers
●
Everything is documented as it has been created by code
●
No single point of knowledge, human redundancy
●
Working in a global team

5. Process driven
●
Don't document
●
Don't train people in processes
Automate and build the
processes into our tools

6. Lower uptime
●
We are aiming for lowering uptime to 1-2
weeks per server
●
Use and throw
●
Never patch
●
Deploy often - every day
●
Green-blue deployment
●
Running on latest version of OS and
components

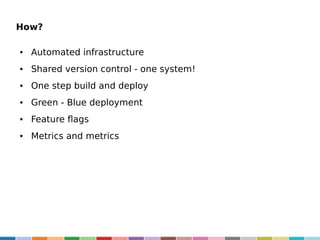

7. How?
●
Automated infrastructure
●
Shared version control - one system!
●
One step build and deploy
●
Green - Blue deployment
●
Feature flags
●
Metrics and metrics

8. What to automate - everything!
●
Provisioning
●
Deployment and configuration
●
Metrics
●
Monitoring
●
Scaling & up and down
●
Build process - continuous delivery
●
Log handling
●
Obscure host names
●
Never login to a server

9. Standardize on Ruby as lingua franca
One language for everything ops are doing!
●
Scripting in Ruby
●
Configuration management in Ruby
●
Operation applications in Ruby
●
System tools in Ruby
●
Add-on applications in Ruby
●
Application integration in Ruby

10. Why Ruby?
●
We like Ruby
●
Used by Chef
●
Easy to script
●
Object oriented and functional
●
Lot of good libs - gems
●
Great community - “Matz is nice so we are nice”
●
Reuse of the same gem both in Chef, system tools and
applications

11. What do we do with Chef?
●
Provision EC2 instances
●
Deploy packages
●
Deploy our own code
●
Deploy configurations
●
Deploy metrics
●
Update metrics
●
Collect data
●
Deploy monitoring configurations
●
Deploy users
●
Create databases
●
Provision vagrant instances
●
Local installations for customers

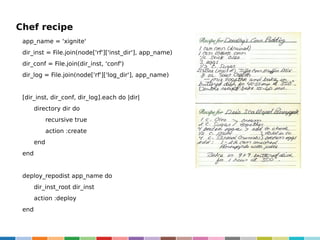

12. Chef recipe
app_name = 'xignite'
dir_inst = File.join(node['rf']['inst_dir'], app_name)
dir_conf = File.join(dir_inst, 'conf')
dir_log = File.join(node['rf']['log_dir'], app_name)
[dir_inst, dir_conf, dir_log].each do |dir|
directory dir do
recursive true
action :create
end
end
deploy_repodist app_name do
dir_inst_root dir_inst
action :deploy
end

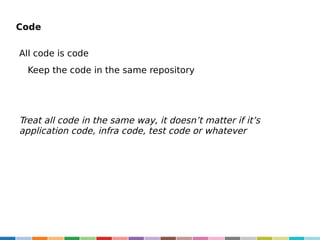

13. Code
All code is code
Keep the code in the same repository
Treat all code in the same way, it doesn’t matter if it’s
application code, infra code, test code or whatever

14. Wrapper cookbooks
Use community cookbooks!
Wrap community cookbooks!
Cookbook elasticsearch_rf → elasticsearch
In elasticserch_rf/recipes/default.rb:
include_recipe "elasticsearch::default"
Chef rewind to override resources in original cookbooks

15. Use LWRP - Light Weight Resource Providers
●
Create your own providers
●
Abstraction
●
Cleaner code
●
Easier to use
●
Better error handling
deploy_build “ha_document_analyzer” do
action :deploy
end

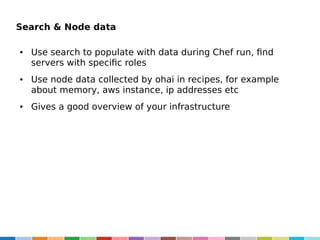

16. Search & Node data
●
●
●
Use search to populate with data during Chef run, find
servers with specific roles
Use node data collected by ohai in recipes, for example
about memory, aws instance, ip addresses etc
Gives a good overview of your infrastructure

17. Lint tools – to check the code
●
Use foodcritic
●
By default all rules are enabled
●
Consider to use Ruby lint tools
–
Rubocop
–
Laser
–
ruby-lint
$ foodcritic app_sinatra_rf
FC019: Access node attributes in a consistent manner: ./providers/web_app.rb:87
FC048: Prefer Mixlib::ShellOut: ./recipes/nginx.rb:38

18. Manage cookbooks
●
To manage cookbooks and dependency use tool like
librarian-chef or berkshelf
●
Like bundler and maven
●
Separate your own cookbooks from community cookbooks
chef/
community_cookbooks
databags
forked_cookbooks
rf_cookbooks
roles

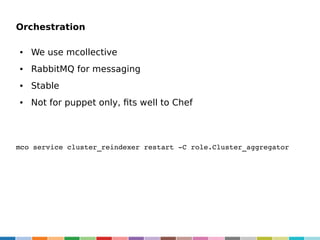

19. Orchestration
●
We use mcollective
●
RabbitMQ for messaging
●
Stable
●
Not for puppet only, fits well to Chef
mco service cluster_reindexer restart ­C role.Cluster_aggregator

20. Testing of Chef
●
Test kitchen!
–
kitchen test lxc
–
kitchen converge lxc
–
kitchen login lxc
●
Server spec isolated tests via Test kitchen
●
Chef spec, quick unit tests
●
Create test cookbooks with the test data
and preparation recipes
Use vagrant (lxc) for testing
.
|-attributes
|-files
|-libraries
|-providers
|-recipes
|-resources
|-templates
|-test
|---cookbooks
|-----app_java_rf_test
|-------attributes
|-------libraries
|-------recipes
|-------templates
|---integration
|-----data_bags
|-------rfapps
|-------rfconf
|-----default
|-------serverspec
|---------localhost

21. Roles
●
Keep roles simple, just include a recipe
●
Don't put a lot of attributes in roles
●
When using search, search for roles
●
Just roles to show what running on the server

22. Treat your servers as cattle not as cows
●
Autoscale
●
Make logs available
●
Make it hard to login
●
Use obscure server names
●
Make it easy to launch an instance
●
Make process manipulation easy
●
Run Chef every 30 minute or so
●
Use Chef server to collect info and query

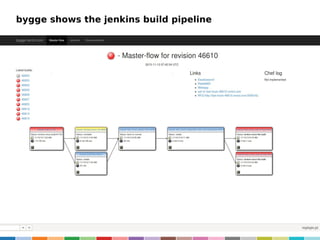

23. bygge shows the jenkins build pipeline

24. Read more
●
Continuous delivery by Jez Humble
●
Test-Driven Infrastructure with Chef
●
Chef Infrastructure Automation Cookbook
●
#opschef
