Chef Analytics provides a server-side event stream of infrastructure changes from Chef runs. It includes tools to access this data for visibility, compliance reporting, and integrating with external systems. The initial release includes recording Chef Actions and a basic analytics pipeline. Future releases will expand notification rules, external integration, and predictive capabilities. It is deployed separately from the Chef server for high availability.

1. Chef Analytics
CHEF NYC Meetup
July 2014
!
James Casey, Engineering Lead, Chef
!
@jamesc_000 james@getchef.com

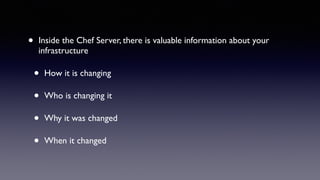

2. • Inside the Chef Server, there is valuable information about your
infrastructure
• How it is changing
• Who is changing it
• Why it was changed
• When it changed

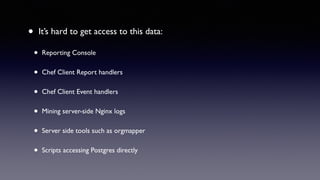

3. • It’s hard to get access to this data:
• Reporting Console
• Chef Client Report handlers
• Chef Client Event handlers
• Mining server-side Nginx logs
• Server side tools such as orgmapper
• Scripts accessing Postgres directly

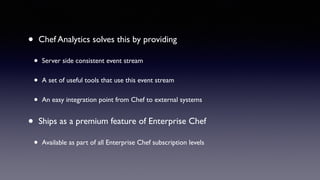

4. • Chef Analytics solves this by providing
• Server side consistent event stream
• A set of useful tools that use this event stream
• An easy integration point from Chef to external systems
• Ships as a premium feature of Enterprise Chef
• Available as part of all Enterprise Chef subscription levels

5. Analytics as a stream of events
• Create an event for each “interesting” API call in a well defined format
• Send all the events through a pipeline
• Apply transformations and notifications on the events
• Store them for historical investigation
!
n.b. “interesting” means things which change the state of the infrastructure

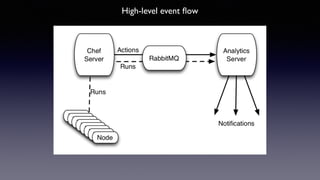

6. High-level event flow

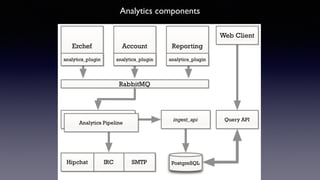

7. Analytics components

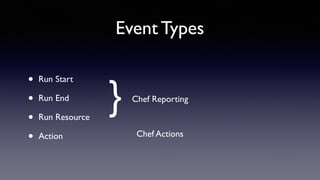

8. Event Types
• Run Start
• Run End
• Run Resource
• Action
} Chef Reporting
Chef Actions

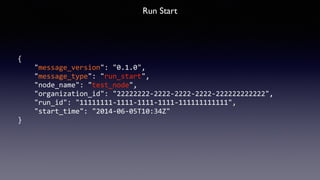

9. {
"message_version":
"0.1.0",
"message_type":
"run_start",
"node_name":
"test_node",
"organization_id":
"22222222-­‐2222-­‐2222-­‐2222-­‐222222222222",
"run_id":
"11111111-­‐1111-­‐1111-­‐1111-­‐111111111111",
"start_time":
"2014-­‐06-­‐05T10:34Z"
}
Run Start

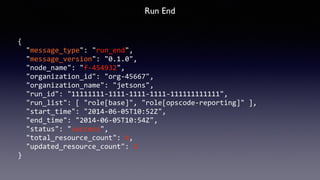

10. Run End
{
"message_type":
"run_end",
"message_version":
"0.1.0",
"node_name":
"f-­‐454932",
"organization_id":
"org-­‐45667",
"organization_name":
"jetsons",
"run_id":
"11111111-­‐1111-­‐1111-­‐1111-­‐111111111111",
"run_list":
[
"role[base]",
"role[opscode-­‐reporting]"
],
"start_time":
"2014-­‐06-­‐05T10:52Z",
"end_time":
"2014-­‐06-­‐05T10:54Z",
"status":
"success",
"total_resource_count":
4,
"updated_resource_count":
2
}

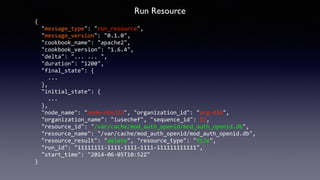

11. Run Resource
{
"message_type":
"run_resource",
"message_version":
"0.1.0",
"cookbook_name":
"apache2",
"cookbook_version":
"1.6.4",
"delta":
"...
...
",
"duration":
"1200",
"final_state":
{
...
},
"initial_state":
{
...
},
"node_name":
"node-­‐456322",
"organization_id":
"org-­‐456",
"organization_name":
"iusechef",
"sequence_id":
15,
"resource_id":
"/var/cache/mod_auth_openid/mod_auth_openid.db",
"resource_name":
"/var/cache/mod_auth_openid/mod_auth_openid.db",
"resource_result":
"delete",
"resource_type":
"file",
"run_id":
"11111111-­‐1111-­‐1111-­‐1111-­‐111111111111",
"start_time":
"2014-­‐06-­‐05T10:52Z"
}

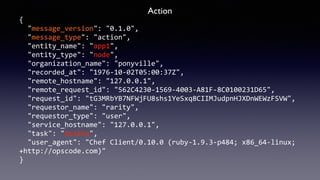

12. Action
{
"message_version":
"0.1.0",
"message_type":
"action",
"entity_name":
"app1",
"entity_type":
"node",
"organization_name":
"ponyville",
"recorded_at":
"1976-­‐10-­‐02T05:00:37Z",
"remote_hostname":
"127.0.0.1",
"remote_request_id":
"562C4230-­‐1569-­‐4003-­‐A81F-­‐8C0100231D65",
"request_id":
"tG3MRbYB7NFWjFU8shs1YeSxq8CIIMJudpnHJXDnWEWzFSVW",
"requestor_name":
"rarity",
"requestor_type":
"user",
"service_hostname":
"127.0.0.1",
"task":
"delete",
"user_agent":
"Chef
Client/0.10.0
(ruby-­‐1.9.3-­‐p484;
x86_64-­‐linux;
+http://opscode.com)"
}

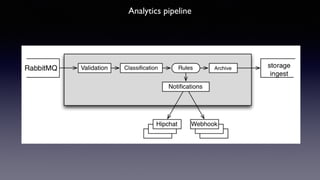

13. Analytics pipeline

14. Analytics Use Cases

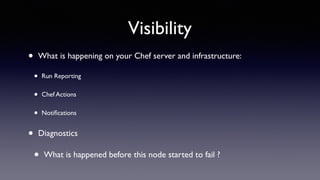

15. Visibility
• What is happening on your Chef server and infrastructure:
• Run Reporting
• Chef Actions
• Notifications
• Diagnostics
• What is happened before this node started to fail ?

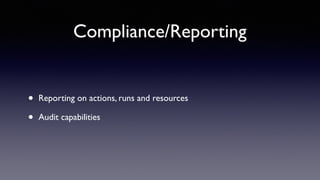

16. Compliance/Reporting
• Reporting on actions, runs and resources
• Audit capabilities

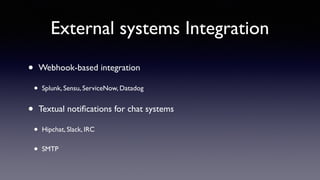

17. External systems Integration
• Webhook-based integration
• Splunk, Sensu, ServiceNow, Datadog
• Textual notifications for chat systems
• Hipchat, Slack, IRC
• SMTP

18. Analytics architecture

19. What’s shipping now ?

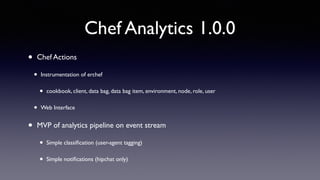

20. Chef Analytics 1.0.0
• Chef Actions
• Instrumentation of erchef
• cookbook, client, data bag, data bag item, environment, node, role, user
• Web Interface
• MVP of analytics pipeline on event stream
• Simple classification (user-agent tagging)
• Simple notifications (hipchat only)

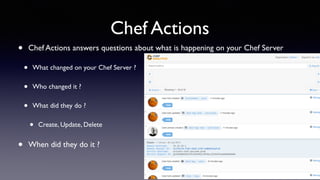

21. Chef Actions
• Chef Actions answers questions about what is happening on your Chef Server
• What changed on your Chef Server ?
• Who changed it ?
• What did they do ?
• Create, Update, Delete
• When did they do it ?

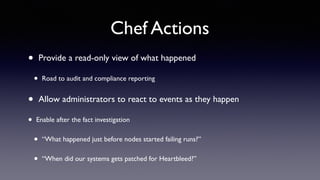

22. Chef Actions
• Provide a read-only view of what happened
• Road to audit and compliance reporting
• Allow administrators to react to events as they happen
• Enable after the fact investigation
• “What happened just before nodes started failing runs?”
• “When did our systems gets patched for Heartbleed?”

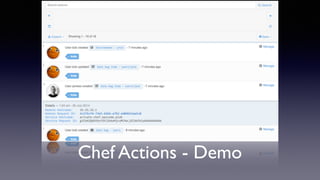

23. Chef Actions - Demo

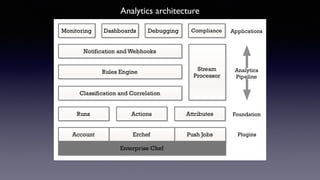

24. Analytics architecture

25. Analytics 1.0.0 Architecture (Q2 - now)

26. What’s next ?

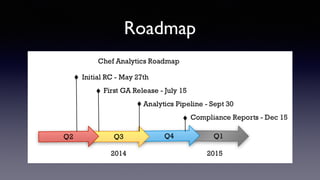

27. Roadmap

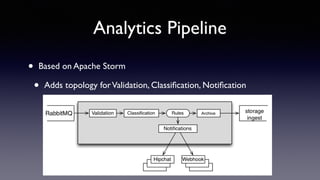

28. Analytics Pipeline
• Based on Apache Storm
• Adds topology for Validation, Classification, Notification

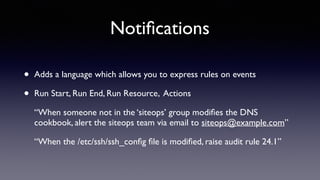

29. Notifications
• Adds a language which allows you to express rules on events
• Run Start, Run End, Run Resource, Actions
“When someone not in the ‘siteops’ group modifies the DNS
cookbook, alert the siteops team via email to siteops@example.com”
“When the /etc/ssh/ssh_config file is modified, raise audit rule 24.1”

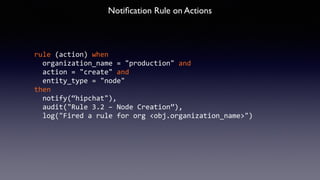

30. Notification Rule on Actions
rule
(action)
when
organization_name
=
"production"
and
action
=
"create"
and
entity_type
=
"node"
then
notify(“hipchat"),
audit("Rule
3.2
–
Node
Creation”),
log("Fired
a
rule
for
org
<obj.organization_name>")

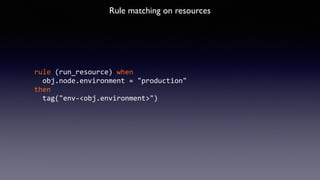

31. Rule matching on resources
rule
(run_resource)
when
obj.node.environment
=
"production"
then
tag("env-­‐<obj.environment>")

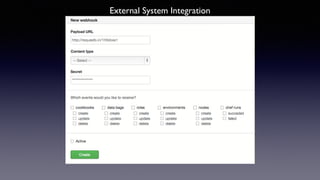

32. External System Integration

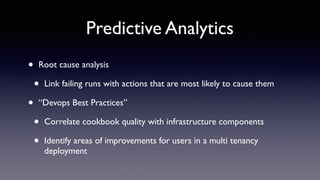

33. Predictive Analytics
• Root cause analysis
• Link failing runs with actions that are most likely to cause them
• “Devops Best Practices”
• Correlate cookbook quality with infrastructure components
• Identify areas of improvements for users in a multi tenancy
deployment

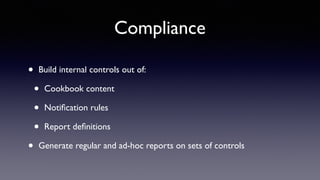

34. Compliance
• Build internal controls out of:
• Cookbook content
• Notification rules
• Report definitions
• Generate regular and ad-hoc reports on sets of controls

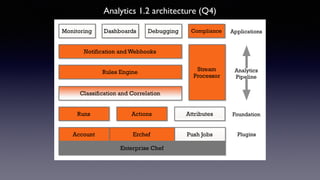

35. Analytics 1.2 architecture (Q4)

36. Deployment

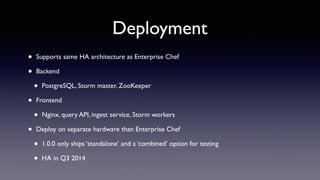

37. Deployment
• Supports same HA architecture as Enterprise Chef
• Backend
• PostgreSQL, Storm master, ZooKeeper
• Frontend
• Nginx, query API, ingest service, Storm workers
• Deploy on separate hardware than Enterprise Chef
• 1.0.0 only ships ‘standalone’ and a ‘combined’ option for testing
• HA in Q3 2014

38. Packaging
• New add-on “chef-­‐analytics”
• Delivered as a single omnibus package
• Hosted on separate domain
• E.g. analytics.getchef.com
• Only interactions with Private Chef
• RabbitMQ configuration details
• Manage root URL for generation of links
http://docs.getchef.com/install_analytics.html

39. Summary

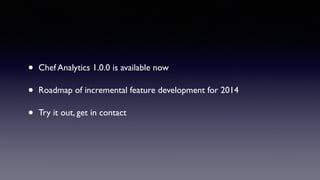

40. • Chef Analytics 1.0.0 is available now
• Roadmap of incremental feature development for 2014
• Try it out, get in contact
