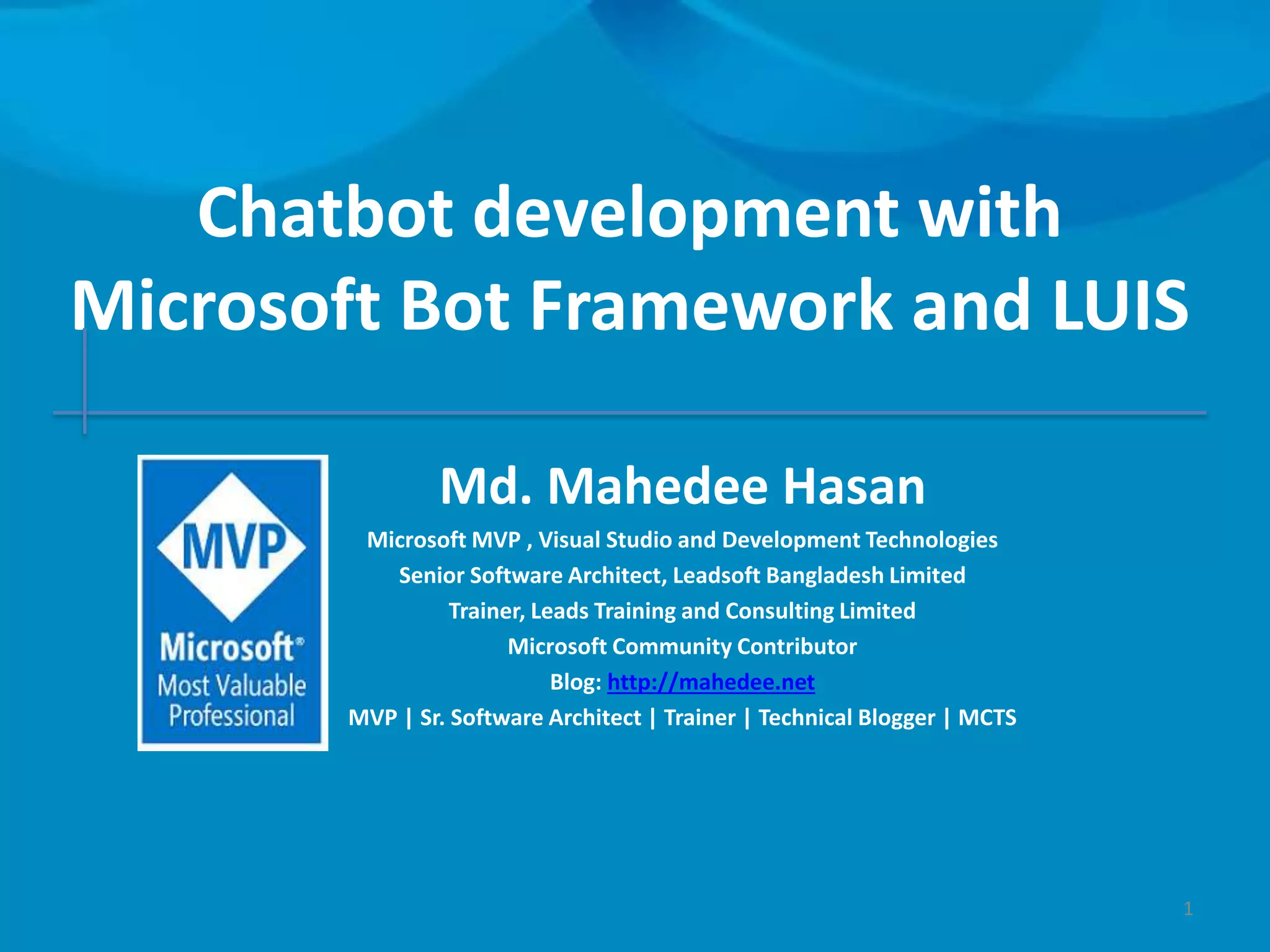

1. Chatbot development with
Microsoft Bot Framework and LUIS
Md. Mahedee Hasan
Microsoft MVP , Visual Studio and Development Technologies
Senior Software Architect, Leadsoft Bangladesh Limited
Trainer, Leads Training and Consulting Limited
Microsoft Community Contributor
Blog: http://mahedee.net
MVP | Sr. Software Architect | Trainer | Technical Blogger | MCTS
1

2. MAHEDEE.NET
2
What is Chatbot?
Bot is a automated software designed by human
programmers to do tasks
Chatbot is a automated software to talk customer using
messaging apps

3. MAHEDEE.NET
3

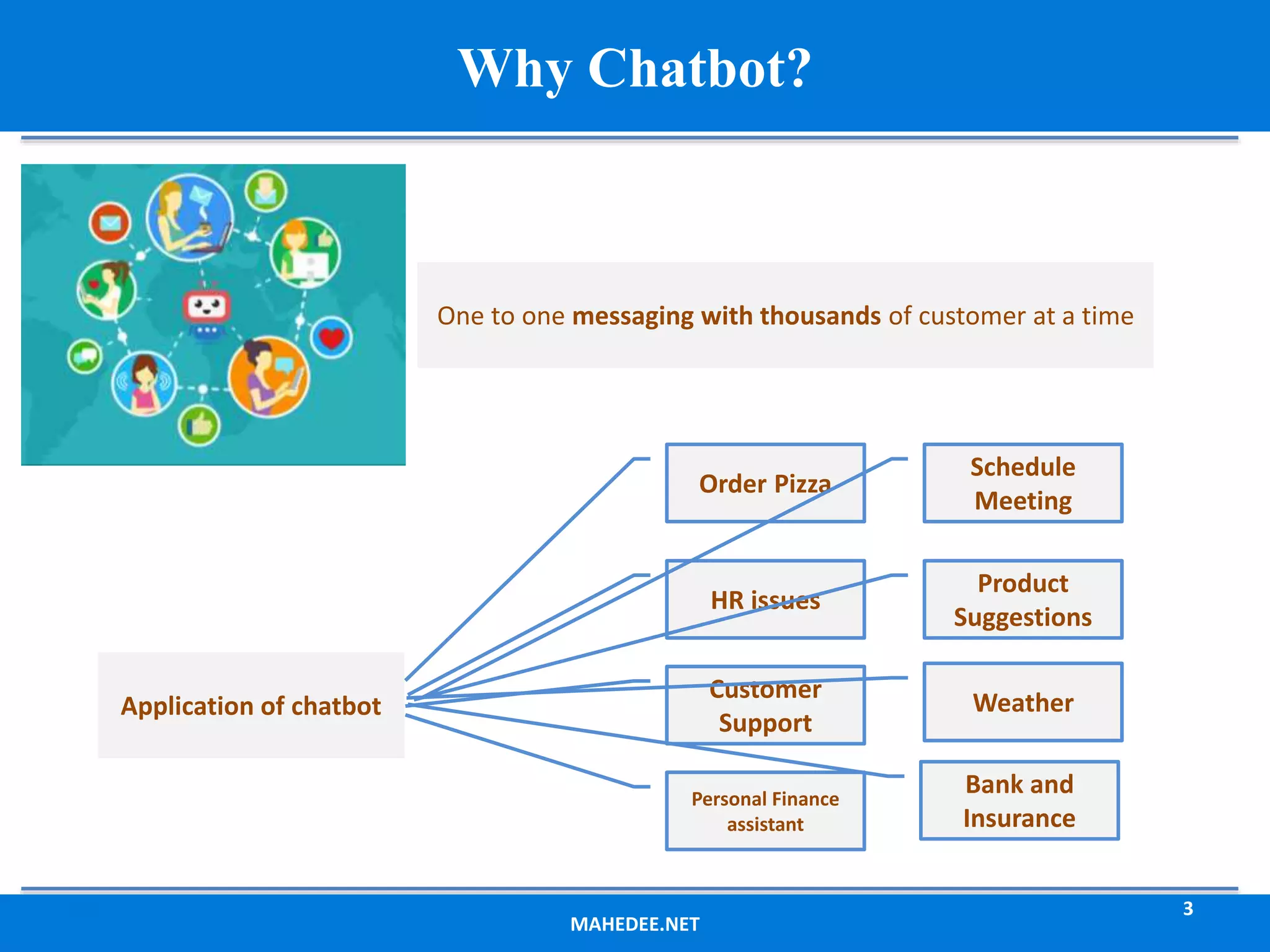

Why Chatbot?
One to one messaging with thousands of customer at a time
Application of chatbot
Order Pizza
HR issues
Customer
Support
Personal Finance
assistant
Schedule
Meeting
Product
Suggestions
Weather
Bank and
Insurance

4. MAHEDEE.NET
4

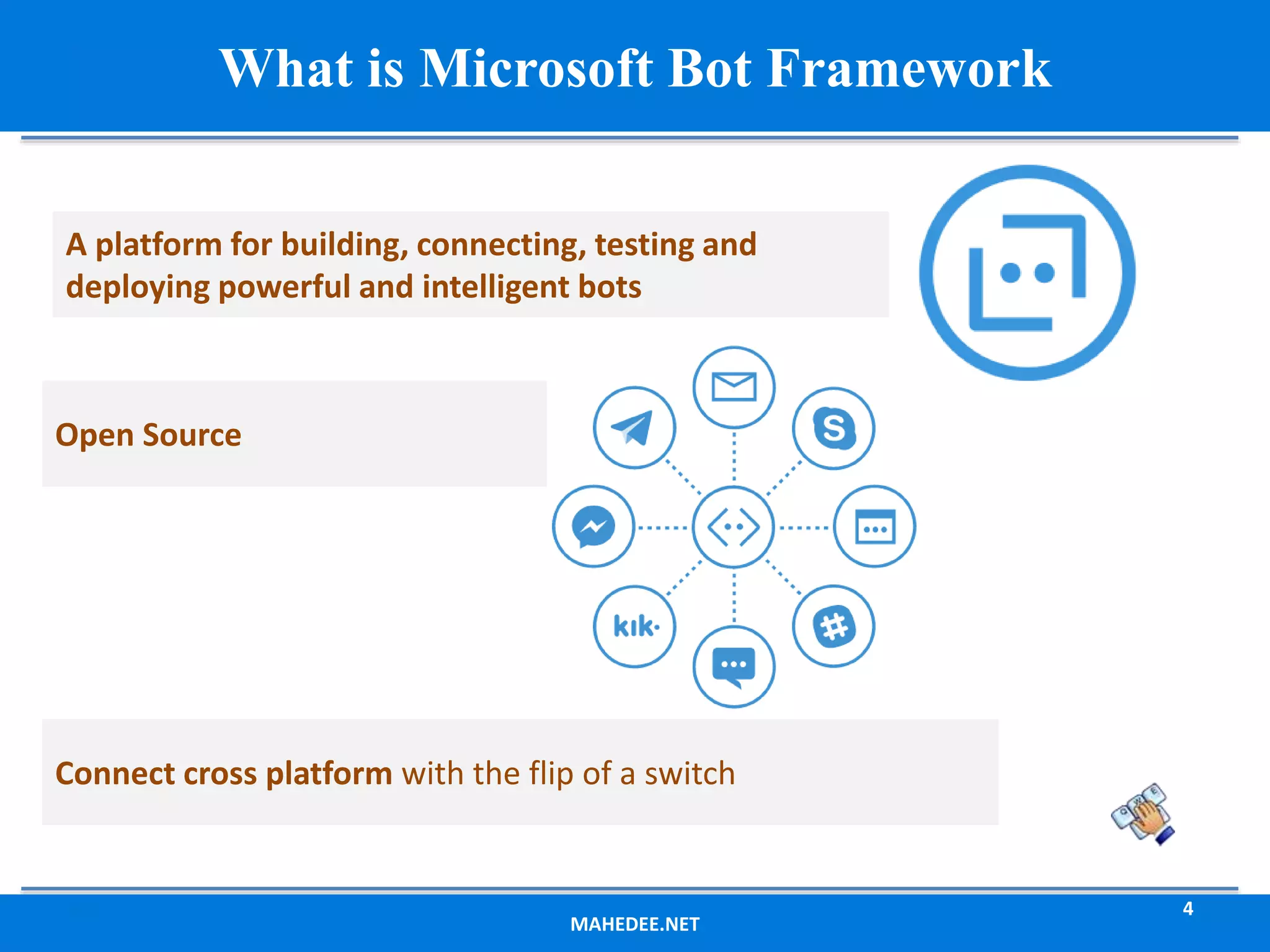

What is Microsoft Bot Framework
A platform for building, connecting, testing and
deploying powerful and intelligent bots
Open Source
Connect cross platform with the flip of a switch

5. MAHEDEE.NET
5
Installation Requirements
• Visual Studio 2015 / 2017
• Download Bot template: Visual Studio Bot Template - C#
• Save the zip file to Visual Studio 2015/2017 template directory
“%USERPROFILE%DocumentsVisual Studio
2017TemplatesProjectTemplatesVisual C#"

6. MAHEDEE.NET
6

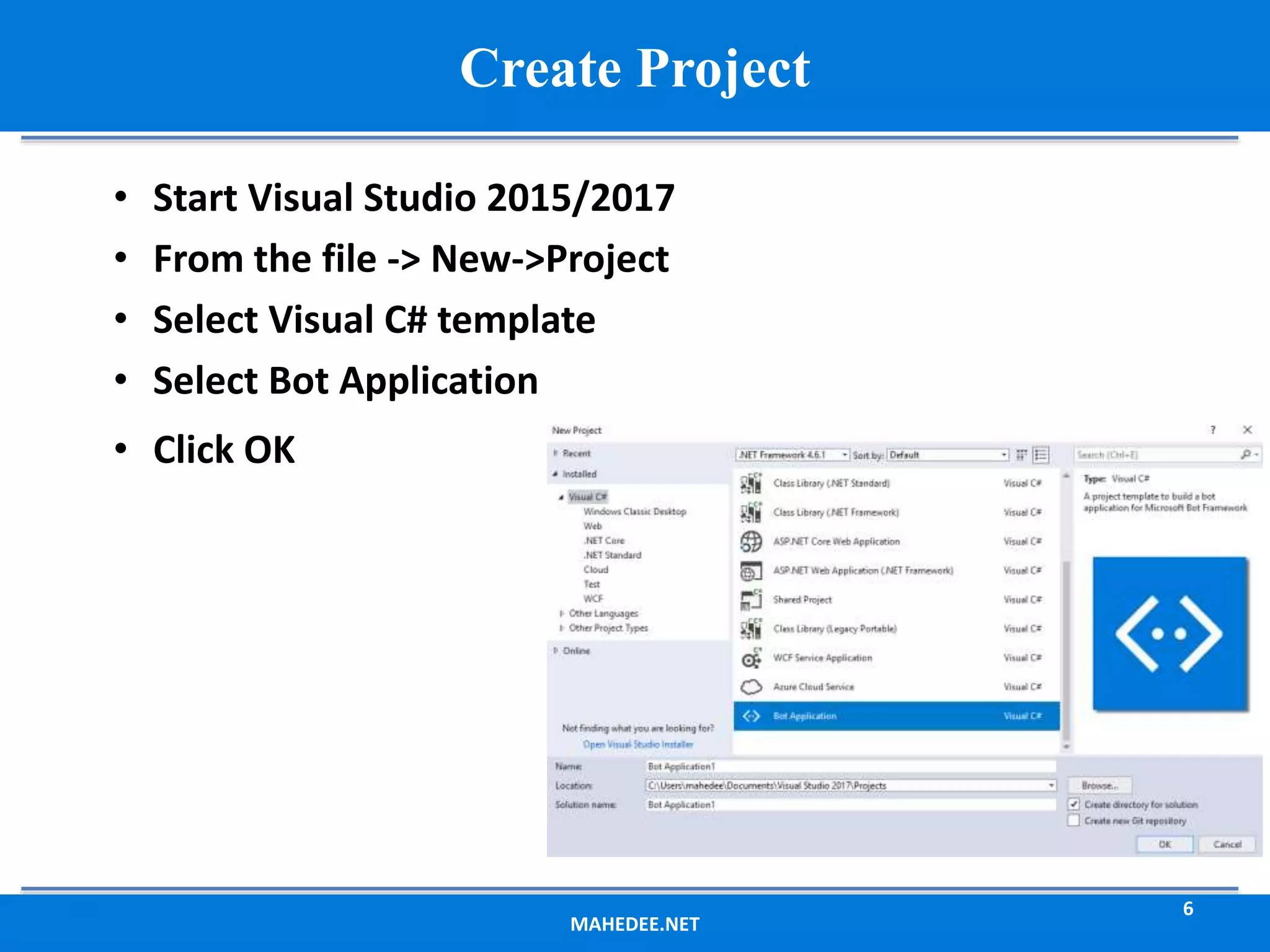

Create Project
• Start Visual Studio 2015/2017
• From the file -> New->Project
• Select Visual C# template
• Select Bot Application
• Click OK

7. MAHEDEE.NET
7

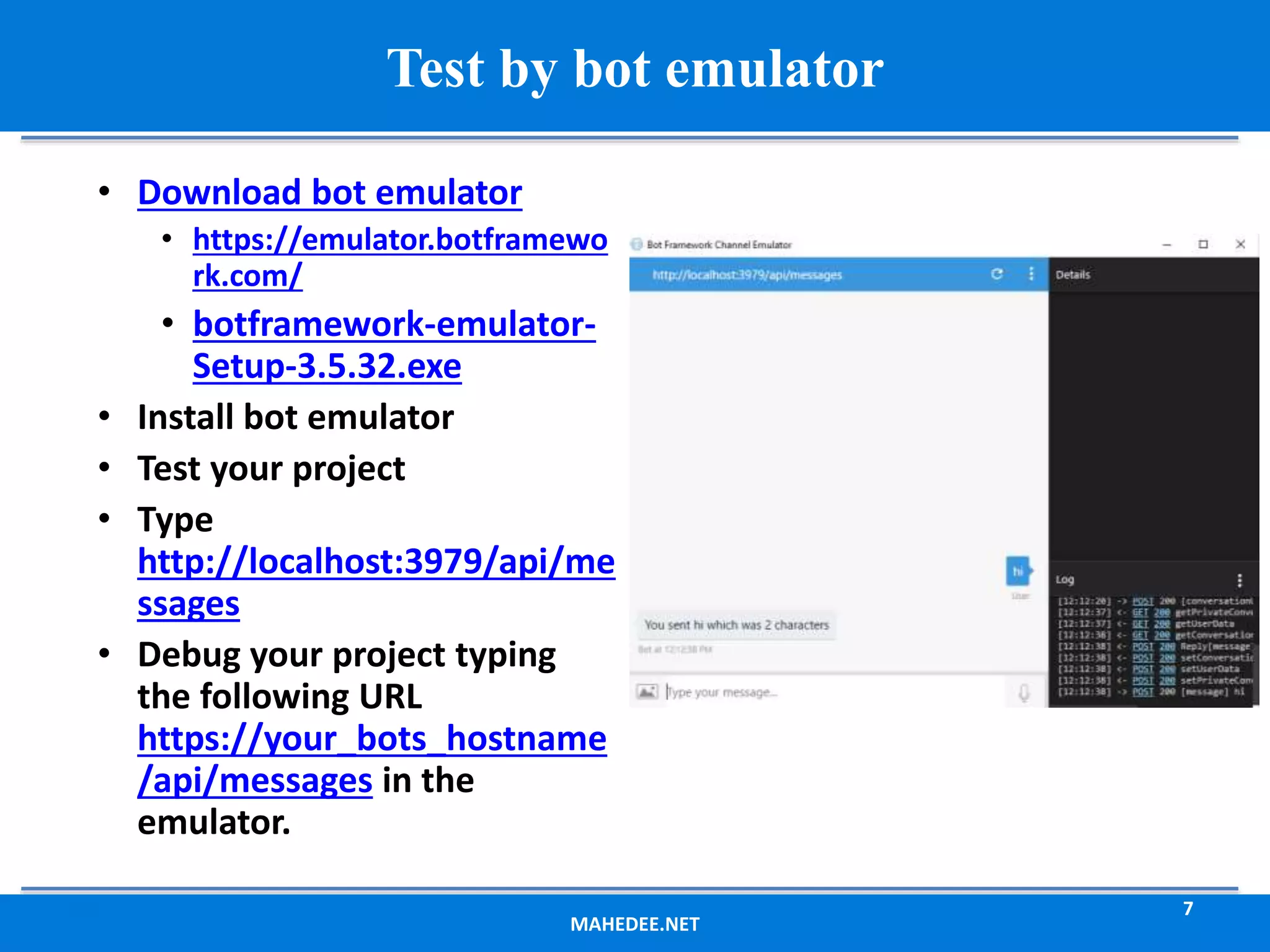

Test by bot emulator
• Download bot emulator
• https://emulator.botframewo
rk.com/
• botframework-emulator-
Setup-3.5.32.exe
• Install bot emulator
• Test your project
• Type
http://localhost:3979/api/me
ssages
• Debug your project typing
the following URL
https://your_bots_hostname
/api/messages in the
emulator.

8. MAHEDEE.NET
8

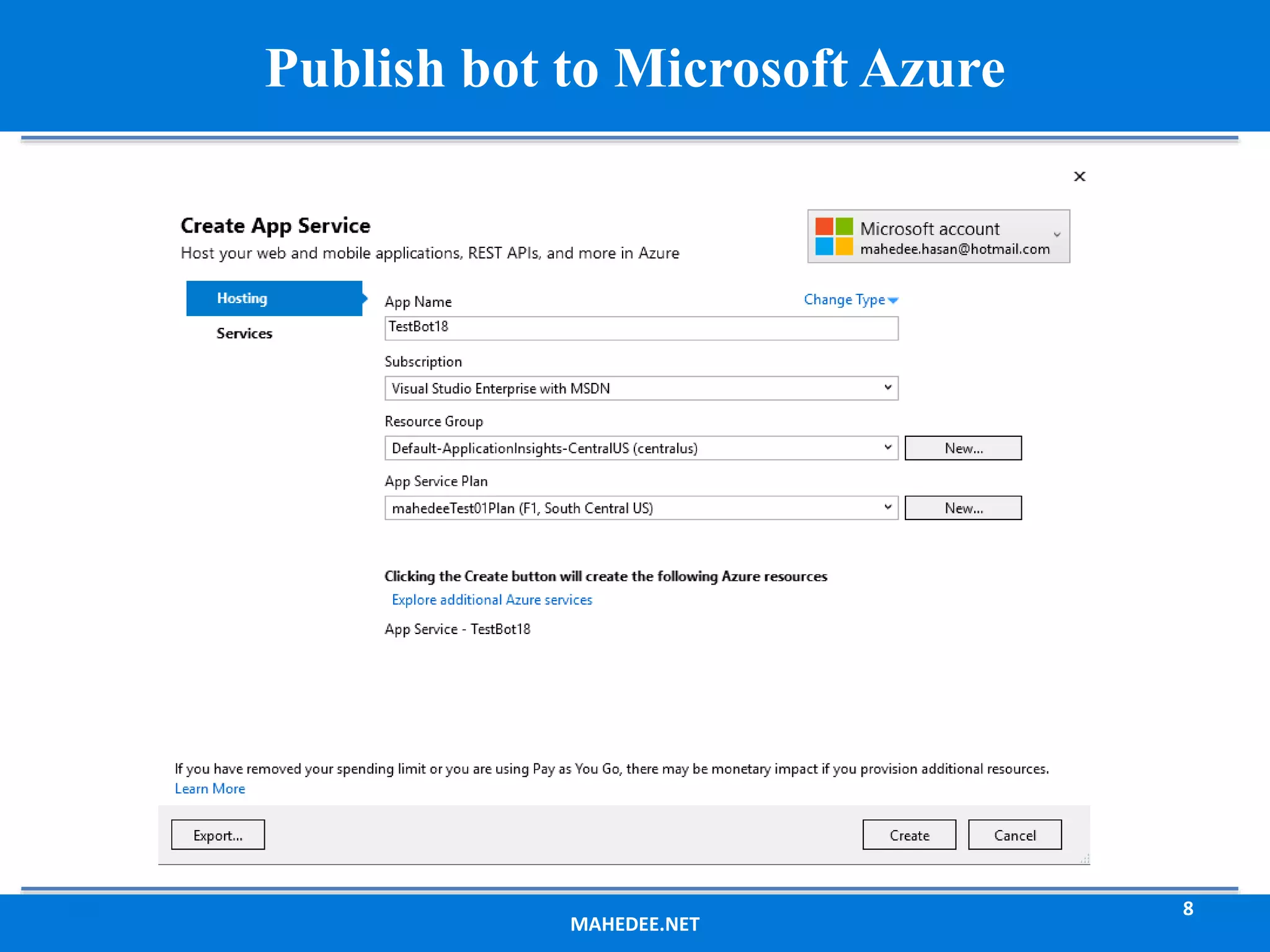

Publish bot to Microsoft Azure

9. MAHEDEE.NET
9

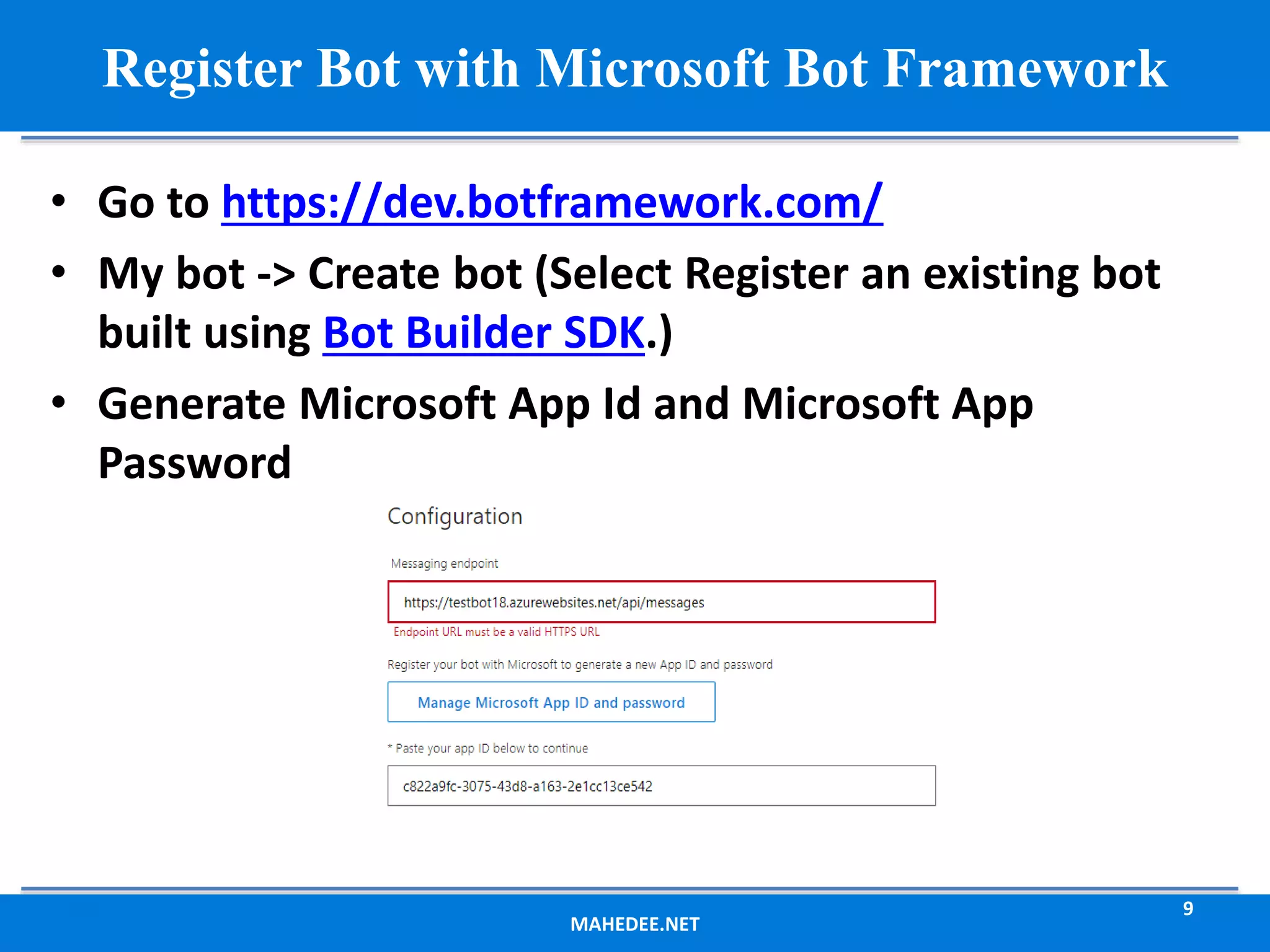

Register Bot with Microsoft Bot Framework
• Go to https://dev.botframework.com/
• My bot -> Create bot (Select Register an existing bot
built using Bot Builder SDK.)
• Generate Microsoft App Id and Microsoft App
Password

10. MAHEDEE.NET
10

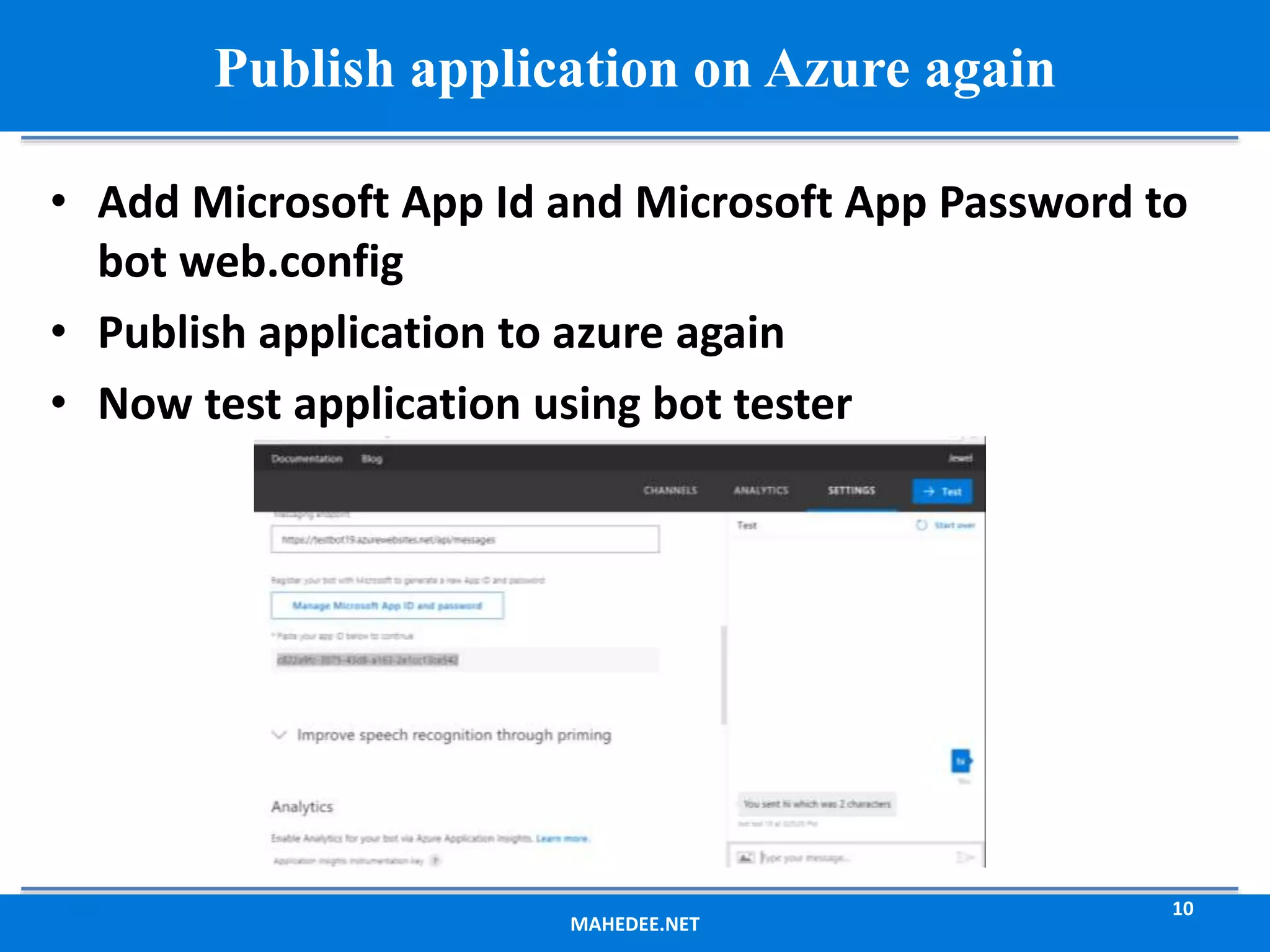

Publish application on Azure again
• Add Microsoft App Id and Microsoft App Password to
bot web.config
• Publish application to azure again
• Now test application using bot tester

11. MAHEDEE.NET
11

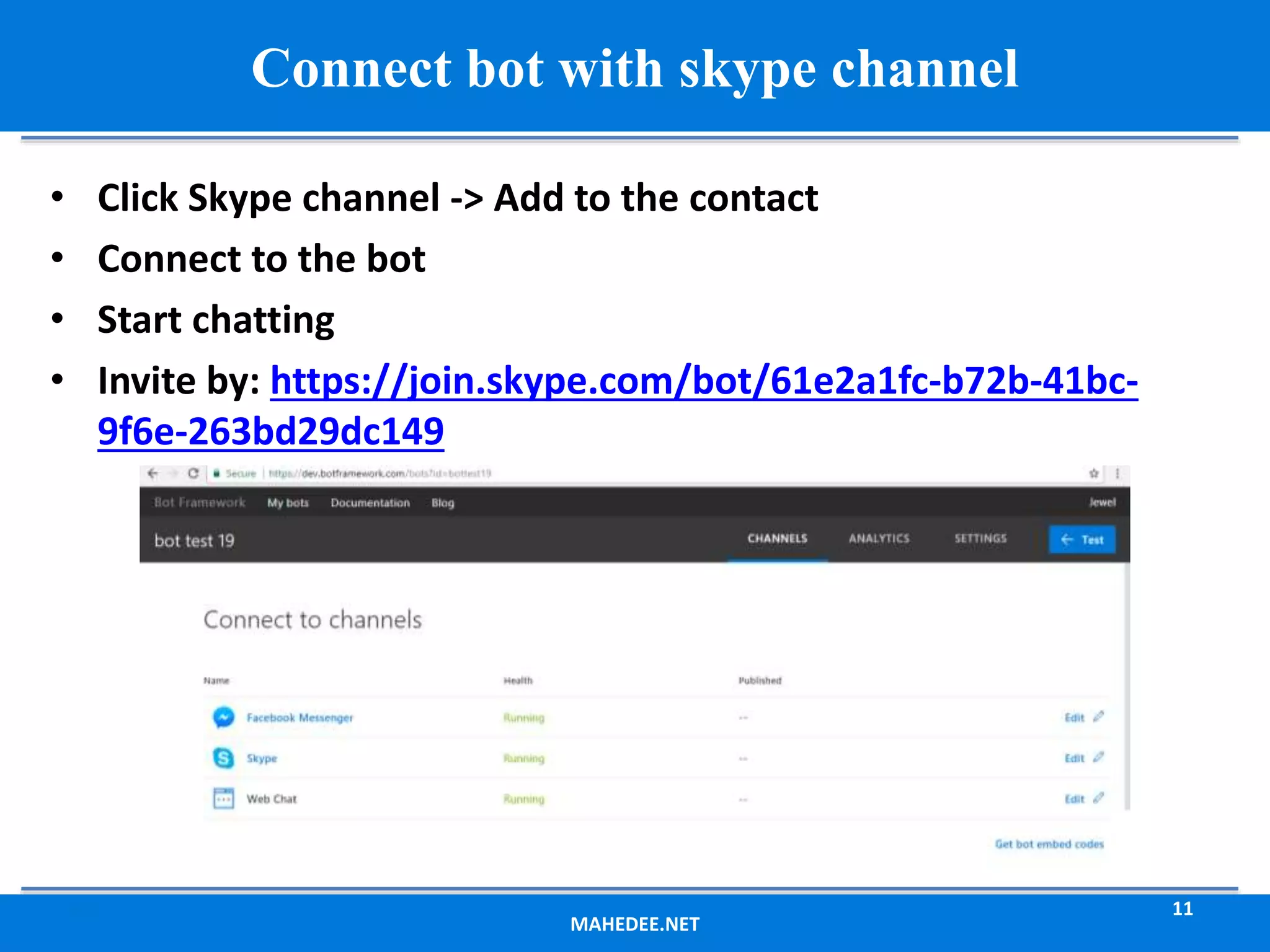

Connect bot with skype channel
• Click Skype channel -> Add to the contact
• Connect to the bot
• Start chatting
• Invite by: https://join.skype.com/bot/61e2a1fc-b72b-41bc-
9f6e-263bd29dc149

12. MAHEDEE.NET
12

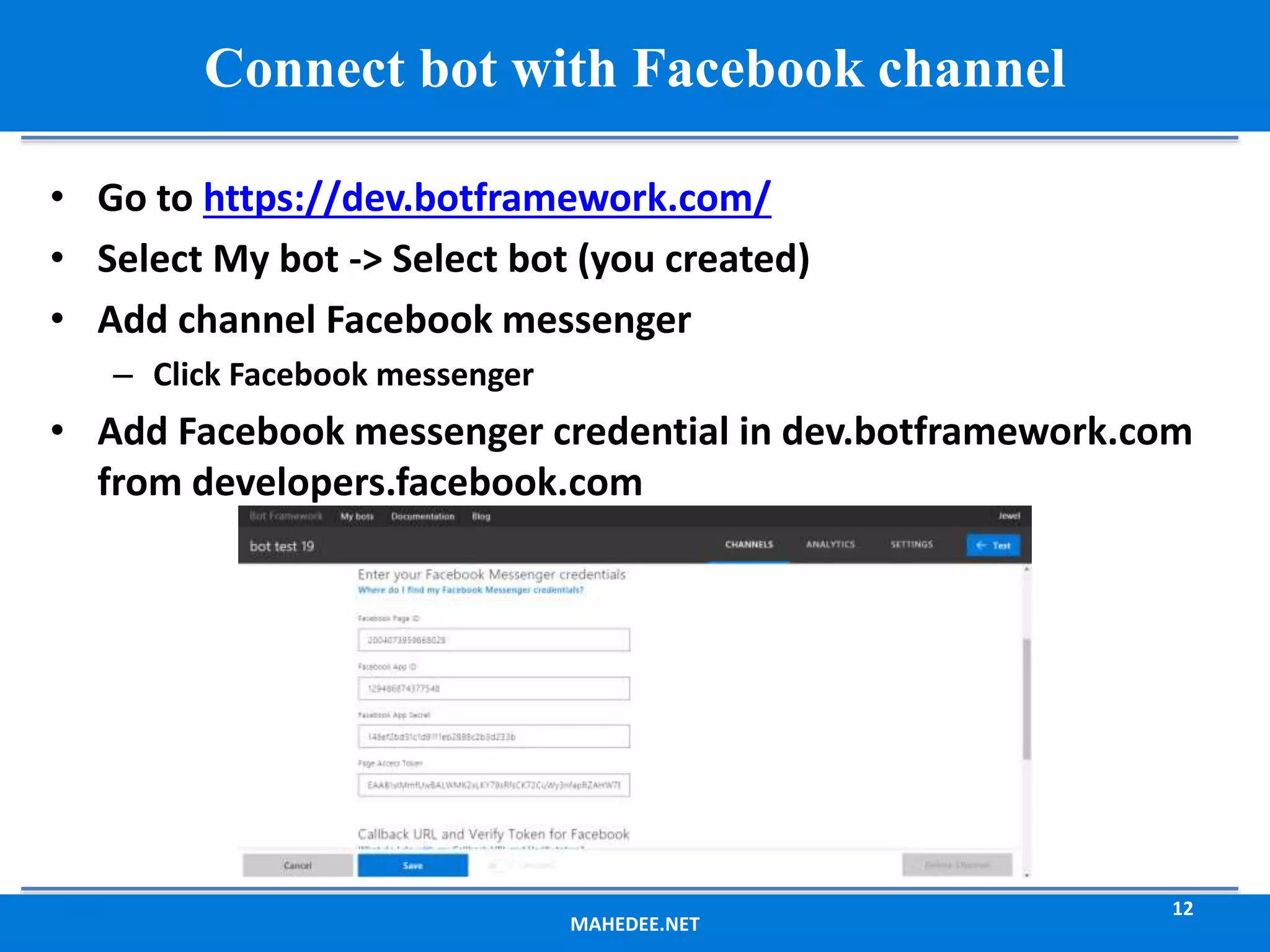

Connect bot with Facebook channel
• Go to https://dev.botframework.com/
• Select My bot -> Select bot (you created)
• Add channel Facebook messenger
– Click Facebook messenger
• Add Facebook messenger credential in dev.botframework.com
from developers.facebook.com

13. MAHEDEE.NET
13

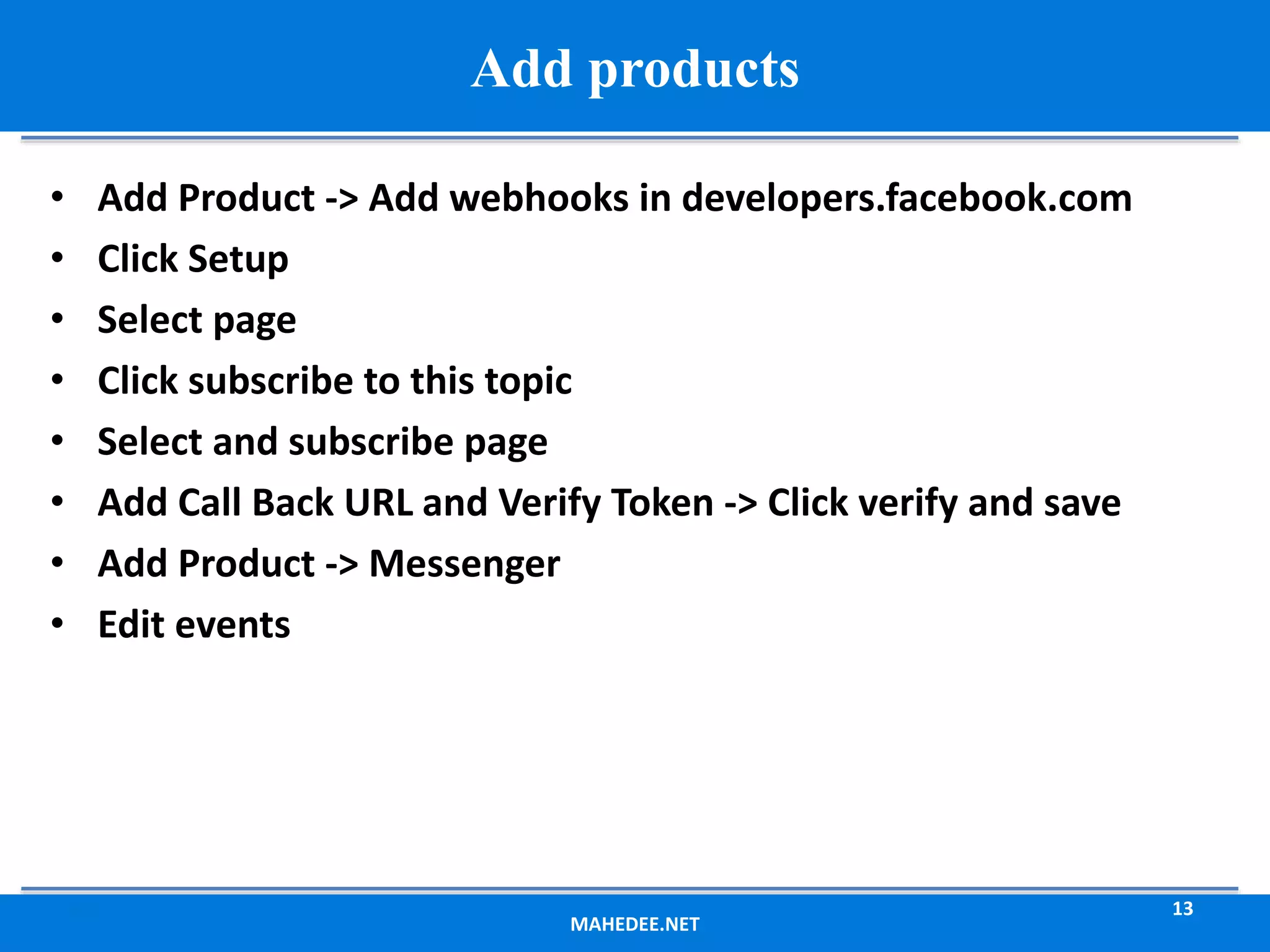

Add products
• Add Product -> Add webhooks in developers.facebook.com
• Click Setup
• Select page
• Click subscribe to this topic
• Select and subscribe page
• Add Call Back URL and Verify Token -> Click verify and save
• Add Product -> Messenger
• Edit events

14. MAHEDEE.NET
14
Complete chatbot with Facebook
• Add a Facebook user in role as tester in
developers.facebook.com
• Now from the user send message to the page and get auto
response

15. MAHEDEE.NET
15

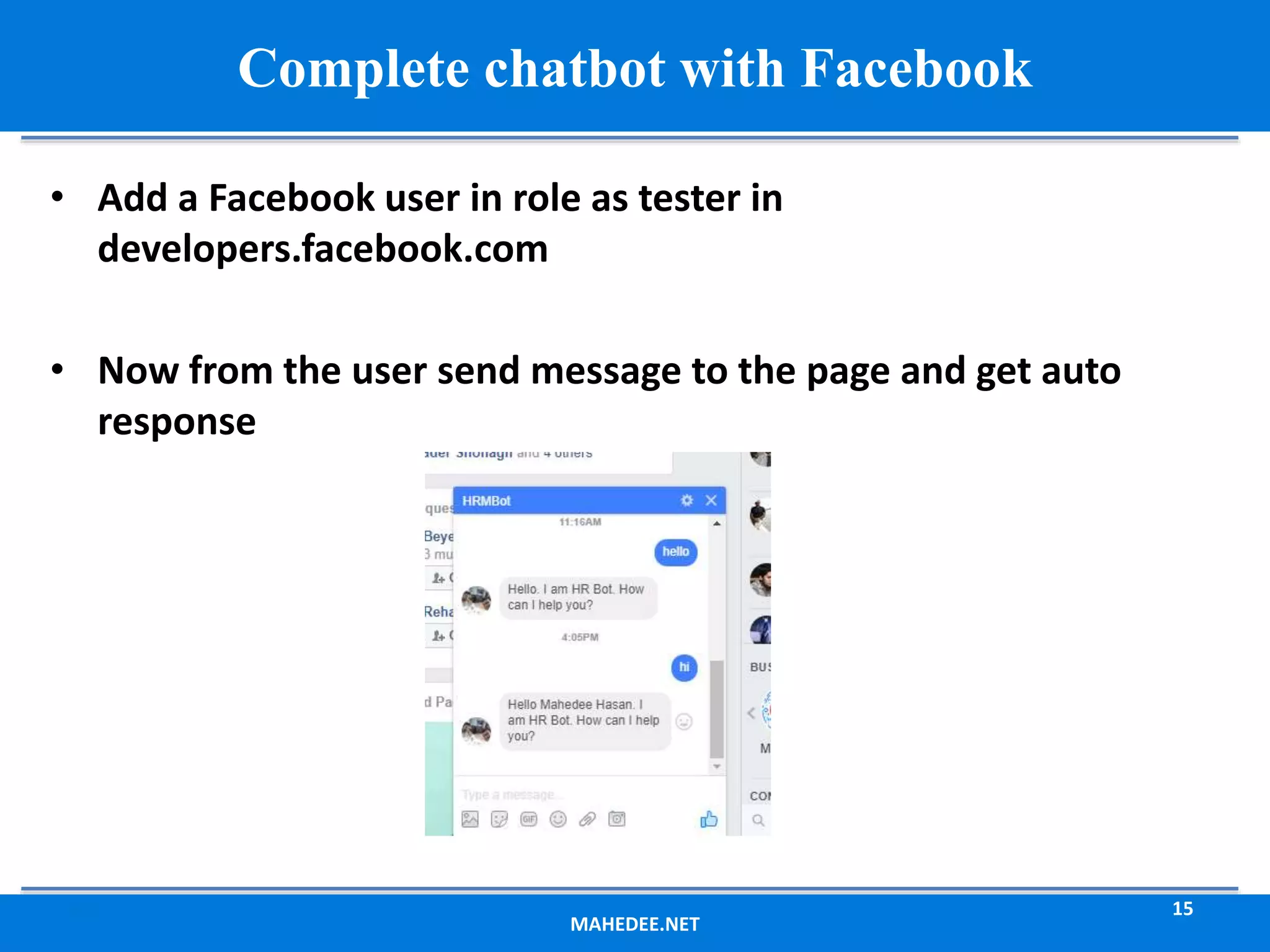

Complete chatbot with Facebook
• Add a Facebook user in role as tester in
developers.facebook.com
• Now from the user send message to the page and get auto
response

16. MAHEDEE.NET
16
What is LUIS
• Language Understanding Intelligent Service
• It is one of Microsoft Cognitive Services
• It is build on NLP
• You can add conversational intelligence to your app

17. MAHEDEE.NET
17

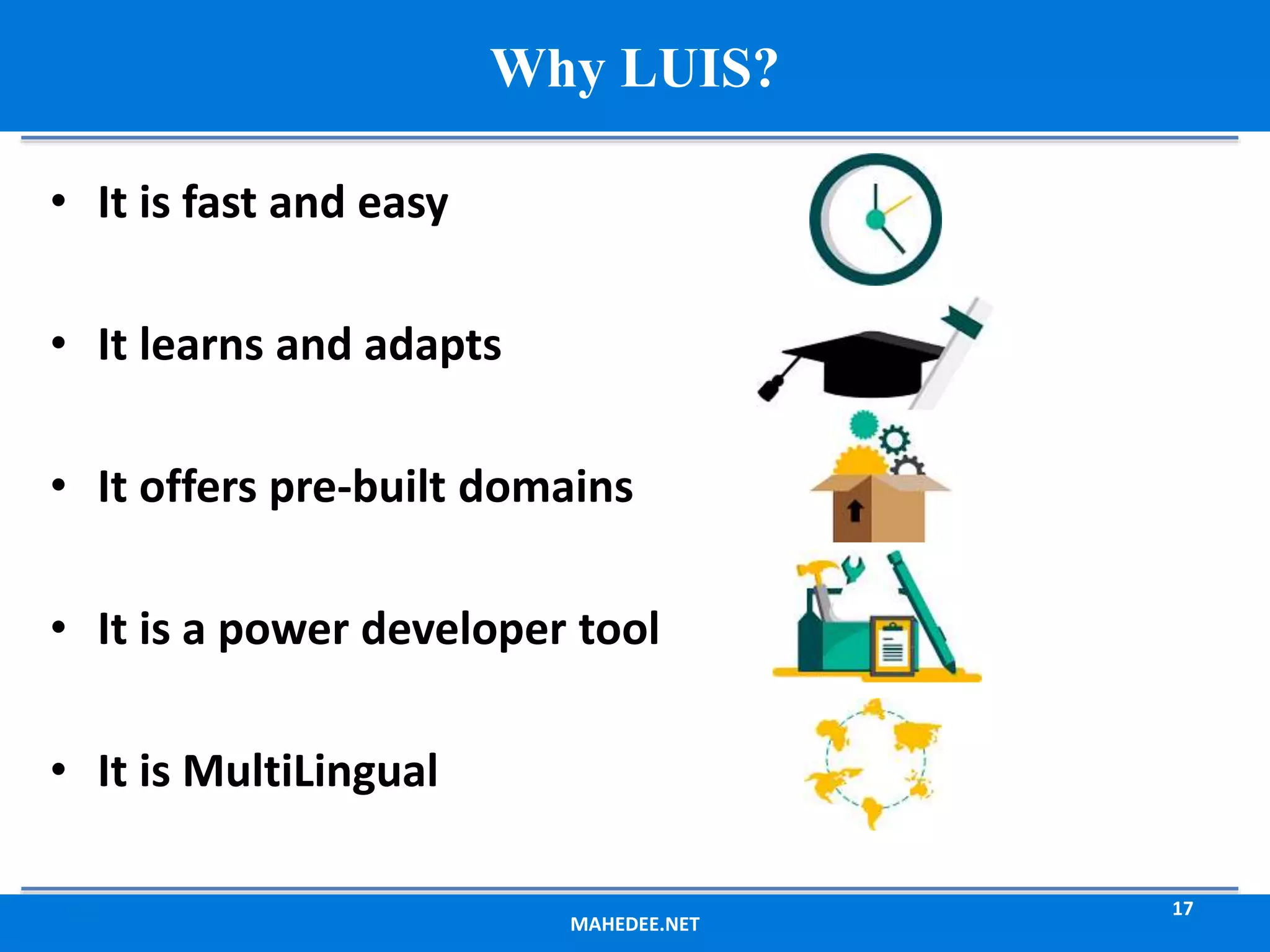

Why LUIS?
• It is fast and easy
• It learns and adapts
• It offers pre-built domains
• It is a power developer tool
• It is MultiLingual

18. MAHEDEE.NET
18

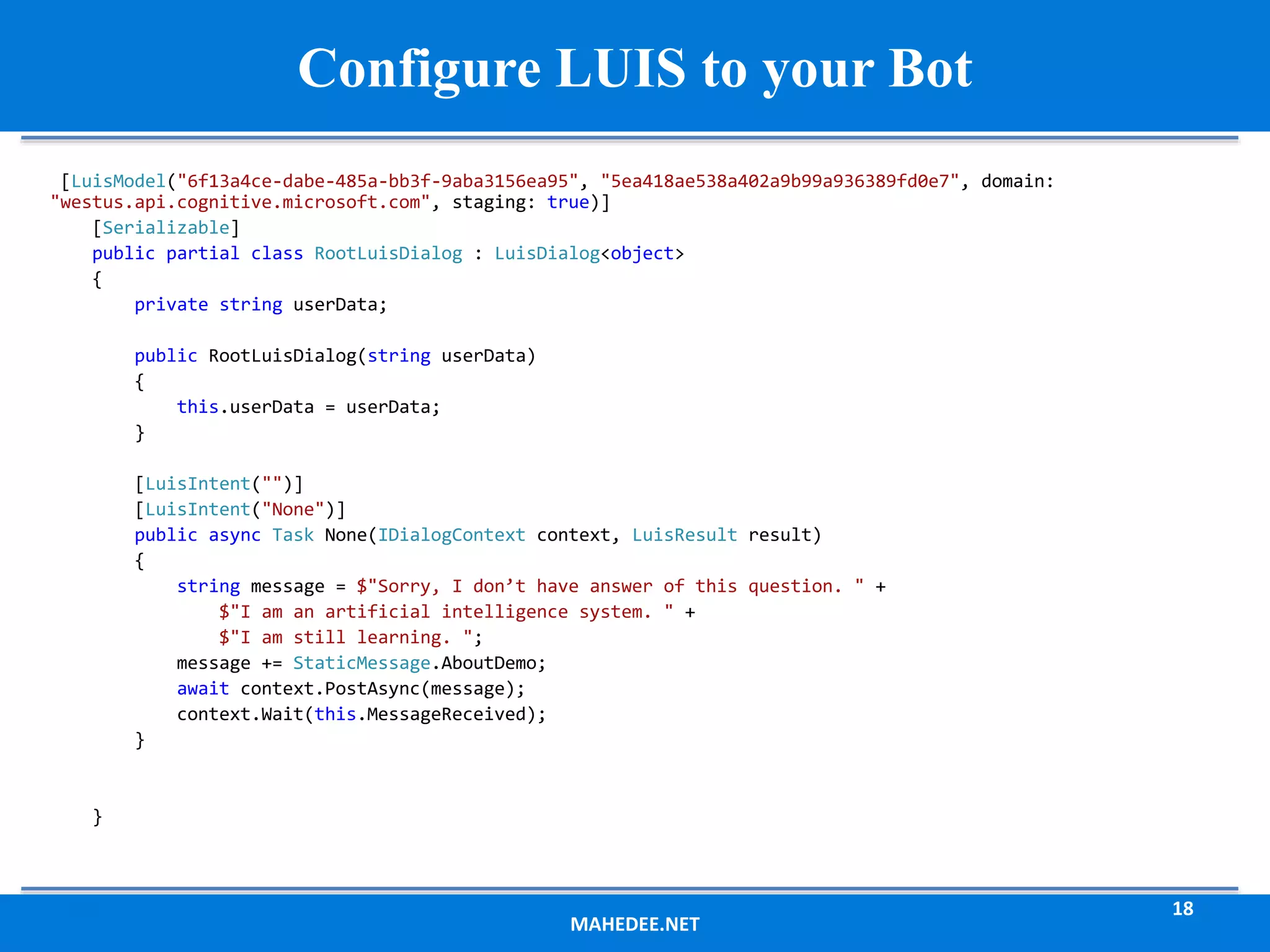

Configure LUIS to your Bot
[LuisModel("6f13a4ce-dabe-485a-bb3f-9aba3156ea95", "5ea418ae538a402a9b99a936389fd0e7", domain:
"westus.api.cognitive.microsoft.com", staging: true)]
[Serializable]
public partial class RootLuisDialog : LuisDialog<object>
{
private string userData;
public RootLuisDialog(string userData)
{
this.userData = userData;
}
[LuisIntent("")]
[LuisIntent("None")]
public async Task None(IDialogContext context, LuisResult result)
{
string message = $"Sorry, I don’t have answer of this question. " +
$"I am an artificial intelligence system. " +
$"I am still learning. ";
message += StaticMessage.AboutDemo;
await context.PostAsync(message);
context.Wait(this.MessageReceived);
}
}

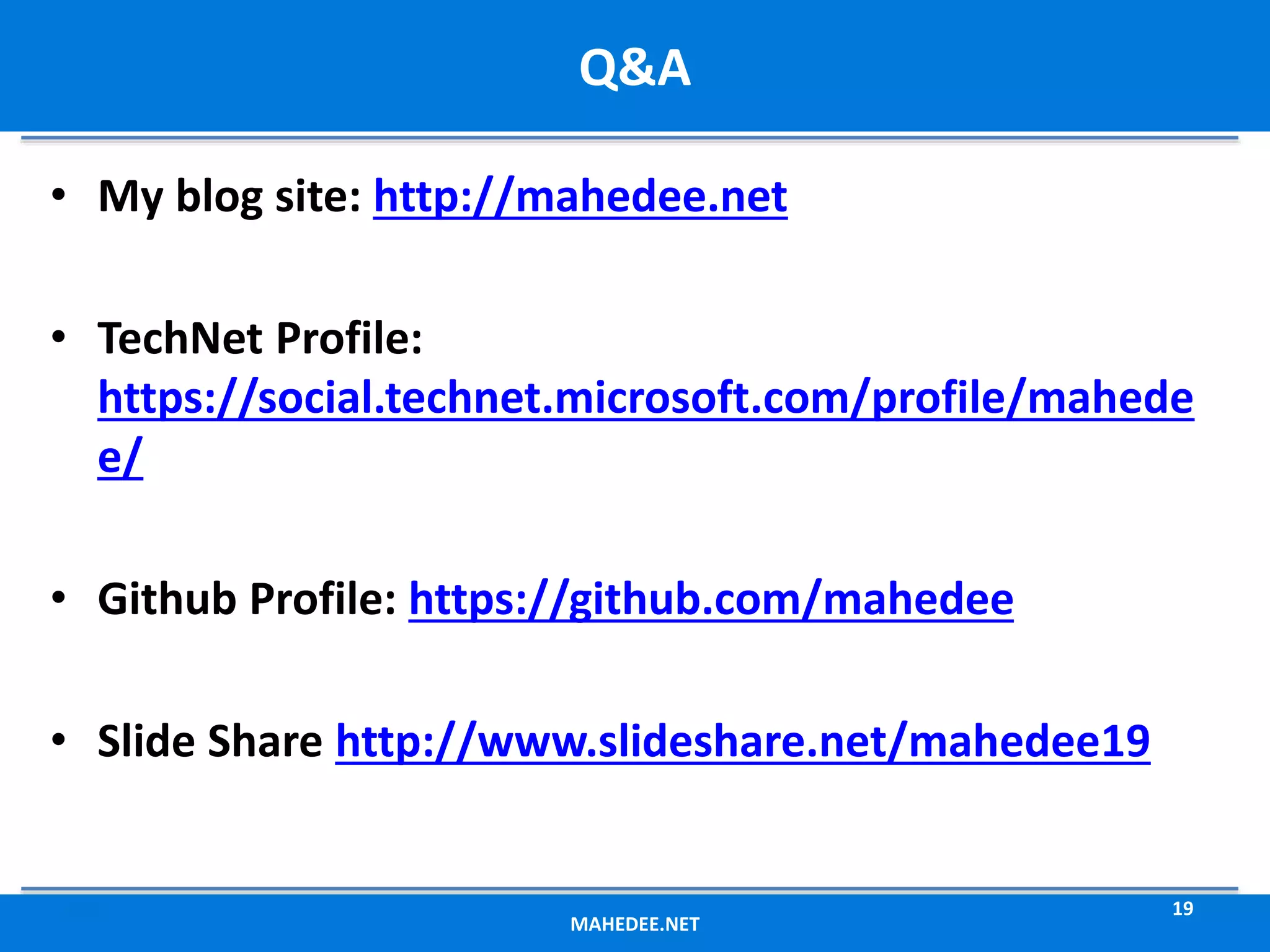

19. • My blog site: http://mahedee.net
• TechNet Profile:
https://social.technet.microsoft.com/profile/mahede
e/
• Github Profile: https://github.com/mahedee
• Slide Share http://www.slideshare.net/mahedee19
MAHEDEE.NET
19
Q&A

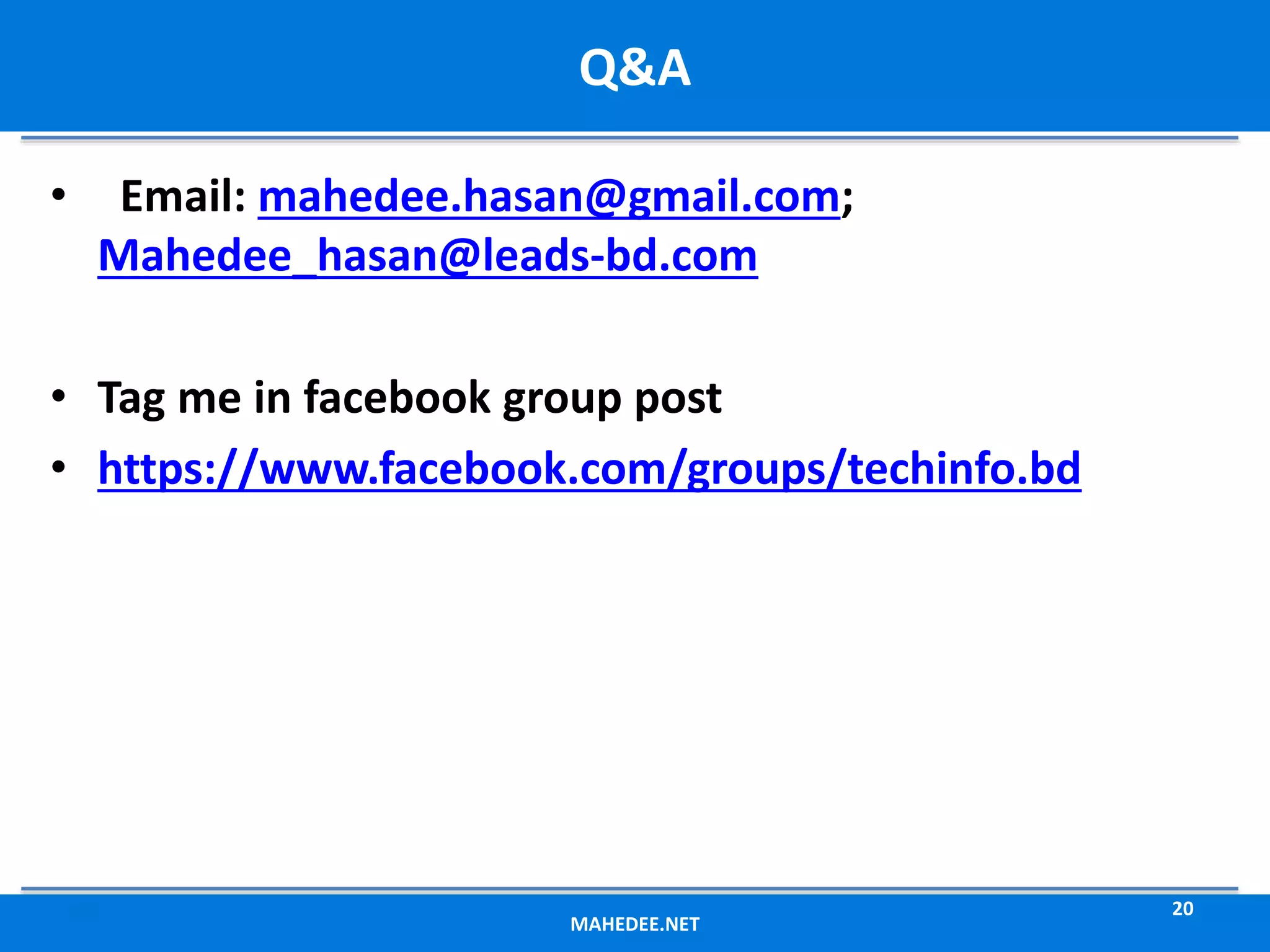

20. • Email: mahedee.hasan@gmail.com;
Mahedee_hasan@leads-bd.com
• Tag me in facebook group post
• https://www.facebook.com/groups/techinfo.bd
MAHEDEE.NET
20
Q&A

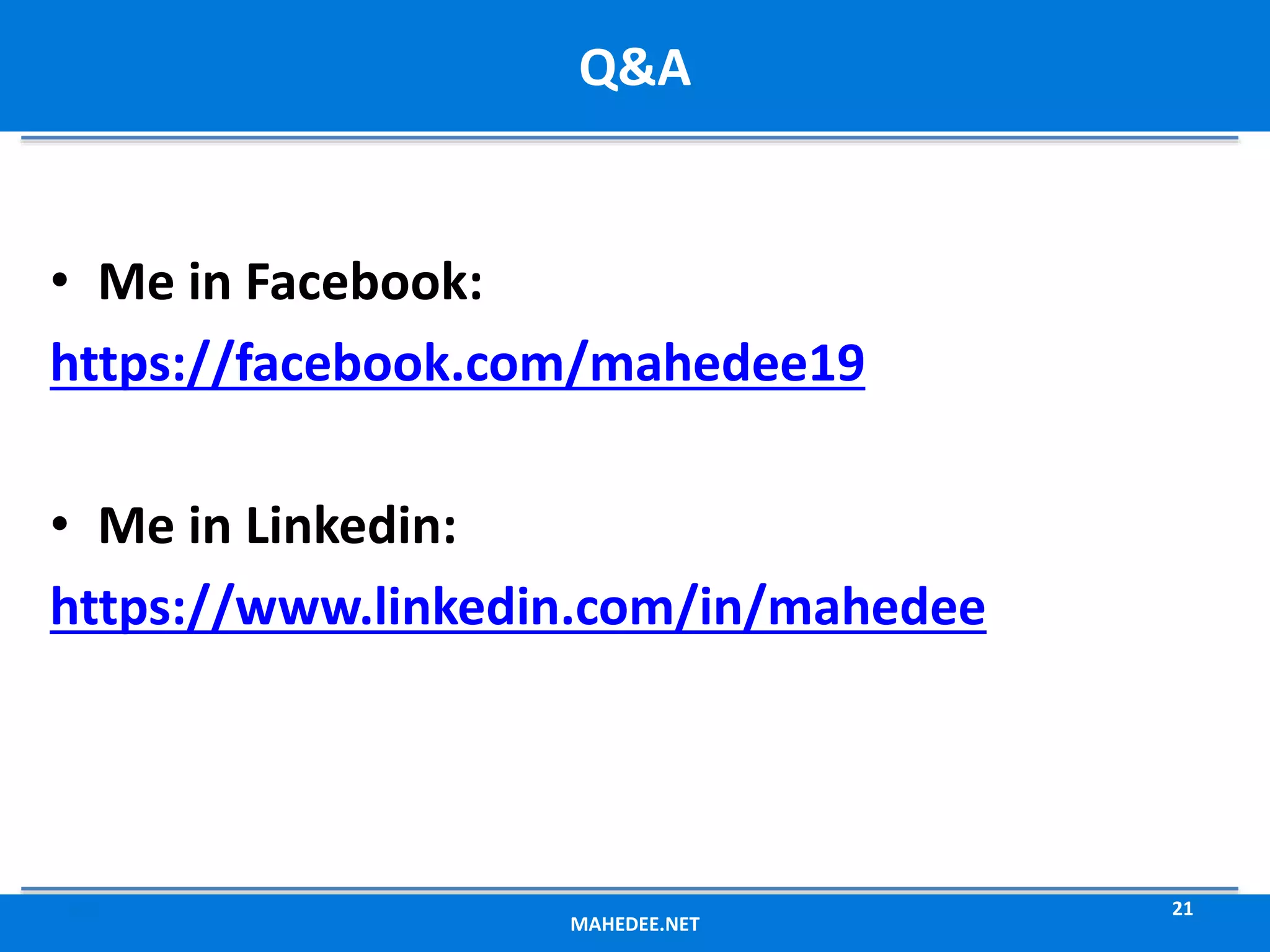

21. • Me in Facebook:
