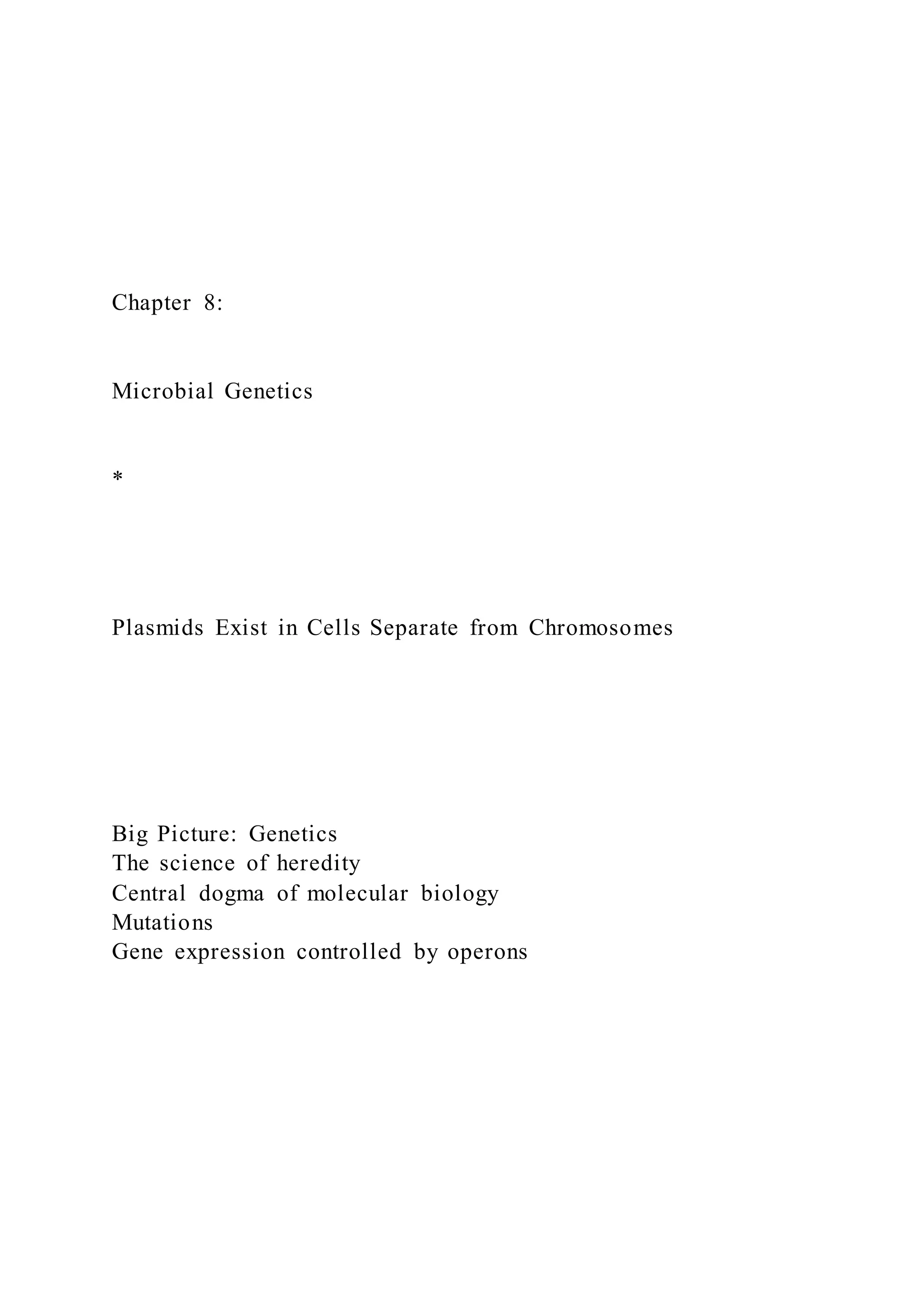

Chapter 8:
Microbial Genetics
*
Plasmids Exist in Cells Separate from Chromosomes
Big Picture: Genetics
The science of heredity
Central dogma of molecular biology
Mutations
Gene expression controlled by operons
Alteration of bacterial genes and/or gene expression
Cause of disease
Prevent disease treatment
Manipulated for human benefit
Big Picture: Genetics
Structure and Function of the Genetic Material
Learning Objectives
8-1 Define genetics, genome, chromosome, gene, genetic code,
genotype, phenotype, and genomics.
8-2 Describe how DNA serves as genetic information.
8-3 Describe the process of DNA replication.
8-4 Describe protein synthesis, including transcription, RNA
processing, and translation.
8-5 Compare protein synthesis in prokaryotes and eukaryotes.
Structure and Function of the Genetic Material
Genetics: the study of genes, how they carry information, how
information is expressed, and how genes are replicated
Chromosomes: structures containing DNA that physically carry
hereditary information; the chromosomes contain genes
Genes: segments of DNA that encode functional products,
usually proteins
Genome: all the genetic information in a cell
Structure and Function of the Genetic Material The genetic code
is a set of rules that determines how a nucleotide sequence is
converted to an amino acid sequence of a proteinCentral dogma:
Genotype and Phenotype
Genotype: the genetic makeup of an organism
Phenotype: expression of the genes
DNA and Chromosomes
Bacteria usually have a single circular chromosome made of
DNA and associated proteins
Short tandem repeats (STRs): repeating sequences of noncoding
DNA
Figure 8.1 A Prokaryotic Chromosome
Chromosome
The Flow of Genetic Information
Vertical gene transfer: flow of genetic information from one
generation to the next
Horizontal gene transfer: flow of genetic information between
individuals of the SAME generation (see the middle portion of
the next slide!)
Figure 8.2 The Flow of Genetic Information
Parent cell
DNA
Genetic information is used
within a cell to produce the
proteins needed for the cell
to function.
Genetic information can be
transferred horizontally between
cells of the same generation.
Genetic information can be
transferred vertically to the
next generation of cells.
New combinations
of genes
Translation
Cell metabolizes and grows
Recombinant cell
Offspring cells
Transcription
DNA Replication
DNA forms a double helix
“Backbone” consists of deoxyribose-phosphate
Two strands of nucleotides are held together by hydrogen bonds
between A-T and C-G
Strands are antiparallel
Order of the nitrogen-containing bases forms the genetic
instructions of the organism
DNA Replication
One strand serves as a template for the production of a second
strand
Topoisomerase and gyrase relax the strands
Helicase separates the strands
A replication fork is created
DNA Replication
DNA polymerase adds nucleotides to the growing DNA strand
In the 5‘ 3' direction
Initiated by an RNA primer
Leading strand is synthesized continuously
Lagging strand is synthesized discontinuously, creating Okazaki
fragments
DNA polymerase removes RNA primers; Okazaki fragments are
joined by the DNA polymerase and DNA ligase
Figure 8.5 A Summary of Events at the DNA Replication Fork
REPLICATION
Proteins stabilize the
unwound parental DNA.
The leading strand is
synthesized continuously
by DNA polymerase.
DNA polymerase
Enzymes unwind the
parental double
helix.
Primase
Parental
strand
The lagging strand is
synthesized discontinuously.
Primase, an RNA polymerase,
synthesizes a short RNA primer,
which is then extended by
DNA polymerase.
DNA polymerase
digests RNA primer
and replaces it with DNA.
DNA ligase joins
the discontinuous
fragments of the
lagging strand.
DNA
polymerase
DNA polymerase
Okazaki fragment
DNA ligase
RNA primer
Replication
fork
3'
5'
5'
3'
3'
5'
DNA Replication
Energy Needs
Energy for replication is supplied by nucleotides (remember,
ATP is one example of a nucleotide!)
Hydrolysis of two phosphate groups on ATP provides energy
Figure 8.4 Adding a Nucleotide to DNA
New
Strand
Template
Strand
Sugar
Phosphate
When a nucleoside triphosphate bonds to the sugar, it loses
two phosphates.
Hydrolysis of the phosphate bonds
provides the energy for the reaction.
DNA Replication
Most bacterial DNA replication is bidirectional
Each offspring cell receives one copy of the DNA molecule
Replication is highly accurate due to the proofreading capability
of DNA polymerase
Figure 8.6 Replication of Bacterial DNA
Check Your Understanding
Check Your Understanding
8-3 Describe DNA replication, including the functions of DNA
gyrase, DNA ligase, and DNA polymerase.
RNA and Protein Synthesis
Ribonucleic acid
Single-stranded nucleotide
5-carbon ribose sugar
Contains uracil (U) instead of thymine (T)
Ribosomal RNA (rRNA): integral part of ribosomes
Transfer RNA (tRNA): transports amino acids during protein
synthesis
Messenger RNA (mRNA): carries coded information from DNA
to ribosomes
Transcription in Prokaryotes
Synthesis of a complementary mRNA strand from a DNA
template
Transcription begins when RNA polymerase binds to the
promoter sequence on DNA
Transcription proceeds in the 5‘ 3' direction; only one of the
two DNA strands is transcribed
Transcription stops when it reaches the terminator sequence on
DNA
Figure 8.7 The Process of Transcription
TRANSCRIPTION
DNA
mRNA
Protein
RNA
polymerase
DNA
RNA polymerase bound to DNA
RNA polymerase
RNA nucleotides
Template strand of DNA
RNA
Promoter
(gene begins)
RNA polymerase
RNA
RNA synthesis
Terminator
(gene ends)
RNA
polymerase
binds to the
promoter, and
DNA unwinds at
the beginning of
a gene.
RNA is synthesized
by complementary
base pairing of free
nucleotides with the
nucleotide bases on
the template strand
of DNA.
The site of synthesis
moves along DNA;
DNA that has been
transcribed rewinds.
Transcription reaches
the terminator.
Complete
RNA strand
RNA and RNA
polymerase are
released, and the
DNA helix re-forms.
Promoter
Translation
mRNA is translated into the “language” of proteins
Codons are groups of three mRNA nucleotides that code for a
particular amino acid (20 potential amino acids)
Each amino acid is coded by several codons… but each codon
will code for just one amino acid (the chart on next slide shows
you this better):
Translation
Translation of mRNA begins at the start codon: AUG
Translation ends at nonsense codons: UAA, UAG, UGA
Codons of mRNA are “read” sequentially
tRNA molecules transport the required amino acids to the
ribosome
tRNA molecules also have an anticodon that base-pairs with the
codon
Amino acids are joined by peptide bonds
Figure 8.9 The Process of Translation
Ribosome
P Site
Start
codon
Second
codon
mRNA
On the assembled ribosome, a tRNA carrying the first
amino acid is paired with the start codon on the mRNA.
The place where this first tRNA sits is called the P site.
A tRNA carrying the second amino acid approaches.
Components needed to begin
translation come together.
mRNA
Anticodon
Ribosomal
subunit
Ribosomal
subunit
tRNA
Figure 8.9 The Process of Translation
Peptide bond forms
A site
mRNA
E site
mRNA
Ribosome moves
along mRNA
The second codon of the mRNA pairs with a tRNA
carrying the second amino acid at the A site. The first
amino acid joins to the second by a peptide bond. This
attaches the polypeptide to the tRNA in the P site.
The ribosome moves along the mRNA until the second tRNA is
in the P site. The next codon to be translated is brought into the
A site. The first tRNA now occupies the E site.
Figure 8.9 The Process of Translation
tRNA released
mRNA
The second amino acid joins to the third by another
peptide bond, and the first tRNA is released from the E
site.
The ribosome continues to move along the mRNA,
and new amino acids are added to the polypeptide.
mRNA
Growing
polypeptide
chain
Figure 8.9 The Process of Translation
mRNA
Polypeptide
released
Stop codon
When the ribosome reaches a stop
codon, the polypeptide is released.
Finally, the last tRNA is released, and the ribosome
comes apart. The released polypeptide forms a new
protein.
mRNA
New protein
Figure 8.10 Simultaneous Transcription and Translation in
Bacteria
TRANSLATION
DNA
mRNA
Protein
DNA
RNA
polymerase
Direction of transcription
Peptide
Polyribosome
Ribosome
mRNA
Direction of translation
5'
In bacteria, translation can begin before transcription is
complete
Transcription in Eukaryotes
In eukaryotes, transcription occurs in the nucleus, whereas
translation occurs in the cytoplasm
Exons are regions of DNA that code for proteins
Introns are regions of DNA that do not code for proteins
Small nuclear ribonucleoproteins (snRNPs) remove introns and
splice exons together
Check Your Understanding
8-5 How does mRNA production in eukaryotes differ from the
process in prokaryotes?
Figure 8.11 RNA Processing in Eukaryotic Cells
The Regulation of Bacterial Gene Expression
Constitutive genes are expressed at a fixed rate
Other genes are expressed only as needed
Inducible genes
Repressible genes
Catabolite repression
Pre-Transcriptional Control
Repression inhibits gene expression and decreases enzyme
synthesis
Mediated by repressors, proteins that block transcription
Default position of a repressible gene is on
Induction turns on gene expression
Initiated by an inducer
Default position of an inducible gene is off
The Operon Model of Gene Expression
Promoter: segment of DNA where RNA polymerase initiates
transcription of structural genes
Operator: segment of DNA that controls transcription of
structural genes
Operon: set of operator and promoter sites and the structural
genes they control
The Operon Model of Gene Expression
In an inducible operon, structural genes are not transcribed
unless an inducer is present
In the absence of lactose, the repressor binds to the operator,
preventing transcription
In the presence of lactose, metabolite of lactose–allolactose
(inducer)–binds to the repressor; the repressor cannot bind to
the operator and transcription occurs
Figure 8.12 An Inducible Operon
Control region
Structural genes
Operon
I
P
O
Z
Y
A
DNA
Regulatory
gene
Promoter
Operator
Structure of the operon. The operon consists of the promoter (P)
and operator (O) sites and structural genes that code for the
protein.
The operon is regulated by the product of the regulatory gene
(I)
Figure 8.12 An Inducible Operon
RNA polymerase
I
P
Z
Y
A
Transcription
Translation
Repressor
mRNA
Active
repressor
protein
Repressor active, operon off. The repressor protein binds with
the
operator, preventing transcription from the operon.
Figure 8.12 An Inducible Operon (3 of 3)
Allolactose
(inducer)
I
P
O
Z
Y
A
Transcription
Translation
Transacetylase
Permease
β-Galactosidase
Inactive
repressor
protein
Repressor inactive, operon on. When the inducer allolactose
binds
to the repressor protein, the inactivated repressor can no longer
block
transcription. The structural genes are transcribed, ultimately
resulting
in the production of the enzymes needed for lactose catabolism.
Operon
mRNA
The Operon Model of Gene Expression
In repressible operons, structural genes are transcribed until
they are turned off
Excess tryptophan is a corepressor that binds and activates the
repressor to bind to the operator, stopping tryptophan synthesis
Figure 8.13 A Repressible Operon
Control region
Structural genes
Operon
I
P
O
E
C
A
DNA
Regulatory
gene
Promoter
Operator
Structure of the operon. The operon consists of the promoter (P)
and operator (O) sites and structural genes that code for the
protein.
The operon is regulated by the product of the regulatory gene
(I)
D
B
Figure 8.13 A Repressible Operon (2 of 3)
RNA polymerase
I
P
O
E
D
C
B
A
Transcription
Repressor
mRNA
Translation
Inactive
repressor
protein
Polypeptides
comprising the
enzymes for
tryptophan
synthesis
Operon
mRNA
Repressor inactive, operon on. The repressor is inactive, and
transcription and translation proceed, leading to the synthesis
of tryptophan.
Figure 8.13 A Repressible Operon (3 of 3)
I
P
E
D
C
B
A
Active
repressor
protein
Tryptophan
(corepressor)
Repressor active, operon off. When the corepressor tryptophan
binds
to the repressor protein, the activated repressor binds with the
operator, preventing transcription from the operon.
Positive Regulation
Catabolite repression inhibits cells from using carbon sources
other than glucose
Cyclic AMP (cAMP) builds up in a cell when glucose is not
available
cAMP binds to the catabolic activator protein (CAP) that in turn
binds the lac promoter, initiating transcription and allowing the
cell to use lactose
Figure 8.14 The Growth Rate of E. Coli on Glucose and Lactose
Bacteria growing on
glucose as the sole carbon
source grow faster than on
lactose.
Bacteria growing in a
medium containing glucose
and lactose first consume
the glucose and then, after a short lag time, the lactose. During
the lag time, intra-cellular cAMP increases, the lac operon is
transcribed, more lactose is transported into the cell, and β-
galacto-sidase is synthesized to break down lactose.
Glucose
Lactose
All glucose
consumed
Glucose
used
Lag
time
Lactose used
Figure 8.15 Positive Regulation of the Lac Operon
Promoter
lacZ
lacl
DNA
Operator
RNA
polymerase
can bind
and transcribe
cAMP
Inactive
CAP
Active
CAP
Inactive lac
repressor
Lactose present, glucose scarce (cAMP level high). If
glucose is
scarce, the high level of cAMP activates CAP, and the lac
operon produces
large amounts of mRNA for lactose digestion.
CAP-binding site
CAP-binding site
DNA
lacl
Promoter
lacZ
Operator
RNA
polymerase
can't bind
Inactive
CAP
Inactive lac
repressor
Lactose present, glucose present (cAMP level low). When
glucose is
present, cAMP is scarce, and CAP is unable to stimulate
transcription.
Epigenetic Control
Methylating nucleotides turn genes off
Methylated (off) genes can be passed to offspring cells
Not permanent
Changes in Genetic Material
Mutation: a permanent change in the base sequence of DNA
Mutations may be neutral, beneficial, or harmful
Mutagens: agents that cause mutations
Spontaneous mutations: occur in the absence of a mutagen
Types of Mutations
Base substitution (point mutation)
Change in one base in DNA
Missense mutation
Base substitution results in change in an amino acid
Nonsense mutation
Base substitution results in a nonsense (stop) codon
Frameshift mutation
Insertion or deletion of one or more nucleotide pairs
Shifts the translational “reading frame”
Chemical Mutagens & radiation
Nitrous acid: causes adenine to bind with cytosine instead of
thymine
Nucleoside analog: incorporates into DNA in place of a normal
base; causes mistakes in base pairing
Glyphosate / RoundUp has also been seen to be directly
mutagenic (again, see paper in supplemental folder)
Ionizing radiation (X-rays and gamma rays) causes the
formation of ions that can oxidize nucleotides and break the
deoxyribose-phosphate backbone
UV radiation causes thymine dimers
Repair of mutations can happen:
Photolyases separate thymine dimers
Nucleotide excision repair: Enzymes cut out incorrect bases and
fill in correct bases
Ultraviolet light
Exposure to ultraviolet light
causes adjacent thymines to
become cross-linked, forming
a thymine dimer and disrupting
their normal base pairing.
Thymine dimer
An endonuclease cuts the
DNA, and an exonuclease
removes the damaged DNA.
New DNA
DNA polymerase fills the gap
by synthesizing new DNA,
using the intact strand as
a template.
DNA ligase seals the
remaining gap by joining the
old and new DNA.
The Frequency of Mutation
Spontaneous mutation rate = 1 in 109 replicated base pairs or 1
in 106 replicated genes
Mutagens increase the mutation rate to per 10-5 or 10-3
replicated gene
Identifying Mutants
Positive (direct) selection detects mutant cells because they
grow or appear different than unmutated cells
Negative (indirect) selection detects mutant cells that cannot
grow or perform a certain function
Auxtotroph: mutant that has a nutritional requirement absent in
the parent
Identifying Chemical Carcinogens
The Ames test exposes mutant bacteria to mutagenic substances
to measure the rate of reversal of the mutation
Indicates degree to which a substance is mutagenic
IMPORTANT: If the Ames test suggests no mutagenicity, this
is NOT a “for-sure” negative– sometimes chemicals react with a
human protein to yield a carcinogen !
Genetic Transfer and Recombination
Learning Objectives
8-14 Describe the functions of plasmids and transposons.
8-15 Differentiate horizontal and vertical gene transfer.
8-16 Compare the mechanisms of genetic recombination in
bacteria.
Genetic Transfer and Recombination
Genetic recombination: exchange of genes between two DNA
molecules…in particular, between 2 same-aged individuals
instead of from parent to offspring; creates genetic diversity
especially among microbes (which do not normally sexually
reproduce…sexual reproduction / meiosis and fertilization is the
norm for most multicellular creatures, but unicellular organisms
cannot do that)
Vertical gene transfer: transfer of genes from an organism to its
offspring
Horizontal gene transfer: transfer of genes between cells of the
same generation
Plasmids and Transposons
Transposons = Mobile genetic elements
Move from one chromosome to another or from one cell to
another
Occur in prokaryotic and eukaryotic organisms
Plasmids are self-replicating circular pieces of DNA
1 to 5% the size of a bacterial chromosome
Often code for proteins that enhance the pathogenicity of a
bacterium
Plasmids
Conjugative plasmid: carries genes for sex pili and transfer of
the plasmid
Dissimilation plasmids: encode enzymes for the catabolism of
unusual compounds
Resistance factors (R factors): encode antibiotic resi stance
Transposons
Transposons are segments of DNA that can move from one
region of DNA to another
Contain insertion sequences (IS) that code for transposase that
cuts and reseals DNA
Complex transposons carry other genes (e.g., in antibiotic
resistance)
Transformation in Bacteria
Transformation: genes transferred from one bacterium to
another as “naked” DNA
Figure 8.28 The Mechanism of Genetic Transformation in
Bacteria
a
b
c
d
DNA fragments
from donor cells
Recipient cell
A
D
B
C
Chromosomal DNA
Recipient cell takes
up donor DNA.
Donor DNA aligns
with complementary
bases.
Recombination occurs
between donor DNA
and recipient DNA.
A
D
B
C
A
D
B
C
Degraded
unrecombined DNA
Genetically transformed cell
a
b
c
d
b
c
d
B
C
D
a
5'
3'
5'
3'
Conjugation in Bacteria
Conjugation: plasmids transferred from one bacterium to
another
Requires cell-to-cell contact via sex pili
Figure 8.30a Conjugation in E. coli
RECOMBINATION
Bacterial
chromosome
Mating bridge
Replication
and transfer
of F factor
F factor
F+ cell
F– cell
When an F factor (a plasmid) is transferred from a donor (F+)
to a recipient (F–), the F– cell is converted to an F+ cell.
F+ cell
F+ cell
Transduction in Bacteria
DNA is transferred from a donor cell to a recipient via a
bacteriophage
Generalized transduction: Random bacterial DNA is packaged
inside a phage (virus that infects bacteria) and transferred to a
recipient cell
Specialized transduction: Specific bacterial genes are packaged
inside a phage and transferred to a recipient cell
Figure 8.32 Transduction by a Bacteriophage
RECOMBINATION
Phage protein coat
Phage DNA
Bacterial
chromosome
A phage infects the
donor bacterial cell.
Phage DNA and proteins are made,
and the bacterial chromosome is
broken into pieces.
Occasionally during phage assembly,
pieces of bacterial DNA are pack-
aged in a phage capsid. Then the
donor cell lyses and releases phage
particles containing bacterial DNA.
Phage
DNA
Bacterial
DNA
A phage carrying
bacterial DNA infects
a new host cell, the
recipient cell.
Recipient
cell
Donor
bacterial
DNA
Recipient
bacterial
DNA
Recombinant
cell reproduces
normally
Recombination can
occur, producing a
recombinant cell with
a genotype different
from both the donor
and recipient cells.
Many cell
divisions
Donor
cell
Genes and Evolution
Mutations and recombination create cell diversity
Diversity is the raw material for evolution
Natural selection acts on populations of organisms to ensure the
survival of organisms fit for a particular environment
Check Your Understanding
Check Your Understanding
8-17 Natural selection means that the environment favors
survival of some genotypes. From where does diversity in
genotypes come?
Use your selected company from Weeks 1-5 for this week’s
assessment.
You’ve become a trusted resource for your organization, and
they’ve asked your advice on having a competitive advantage in
the field. More specifically, they would like your analysis and
recommendations on ways to bring their company culture,
demographics, and technologies up to current industry practices
and beyond.
Review the “How to Make a Presentation” video.
Create a 10- to 12-slide presentation with detailed speaker notes
and visuals on every slide that includes the following elements:
· An analysis of the organization’s current culture (e.g., beliefs,
expectations, values, and norms). Address how managers
influence the organizational culture.
· An evaluation of the impact of demographic forces (e.g., age,
gender, ethnic origin, race, sexual orientation, and social class)
of your selected organization and what it could be
· Note: This is a good place to use your
chart/outline/infographic from Wk 5.
· An examination of the impact of technological forces (e.g.,
changes in the technology managers use to design, produce, or
distribute goods and services) of your selected company
· Consider how this can contribute to innovation within the
industry.
· An examination on how the organization has complied with
ethics and social responsibility behavior
· Recommendations of ways to innovate based on your analysis
· Summary
· References

More Related Content

Similar to Chapter 8 Microbial GeneticsPlasm

Chapter 20 Molecular Genetics Lesson 2 - Genes_Transcription and Translation
Chapter 20 Molecular Genetics Lesson 2 - Genes_Transcription and TranslationChapter 20 Molecular Genetics Lesson 2 - Genes_Transcription and Translation
Chapter 20 Molecular Genetics Lesson 2 - Genes_Transcription and Translationj3di79

Chapter13 worksheets
Chapter13 worksheetsChapter13 worksheets
Chapter13 worksheetsCXG050

central-dogma-of-dna-1201627180232055-2.pdf
central-dogma-of-dna-1201627180232055-2.pdfcentral-dogma-of-dna-1201627180232055-2.pdf
central-dogma-of-dna-1201627180232055-2.pdf
monsterroy098

Dna synthesis and protein synthesis
Dna synthesis and protein synthesisDna synthesis and protein synthesis
Dna synthesis and protein synthesis
Trixie Piloton

Dna replication transcription and translation
Dna replication transcription and translationDna replication transcription and translation
Dna replication transcription and translationJames H. Workman

• Define transcription• Define translation• What are the 3 steps.pdf
• Define transcription• Define translation• What are the 3 steps.pdf• Define transcription• Define translation• What are the 3 steps.pdf
• Define transcription• Define translation• What are the 3 steps.pdf
arihantelehyb

lecture 3 Gene expression pptx
lecture 3 Gene expression           pptxlecture 3 Gene expression           pptx
lecture 3 Gene expression pptx
HanySaid33

Transcription,translation and genetic code(cell biology)by welfredo yu
Transcription,translation and genetic code(cell biology)by welfredo yuTranscription,translation and genetic code(cell biology)by welfredo yu
Transcription,translation and genetic code(cell biology)by welfredo yu
Glee Cillo

Chapter 13 packet
Chapter 13 packetChapter 13 packet
Chapter 13 packetjfg082

Transcription in prokaryotes and eukaryotes.pdf
Transcription in prokaryotes and eukaryotes.pdfTranscription in prokaryotes and eukaryotes.pdf
Transcription in prokaryotes and eukaryotes.pdf
ssuser880f82

Central dogma
Central dogmaCentral dogma
Central dogma
RISHAV DROLIA

protein synthesis
protein synthesisprotein synthesis
protein synthesis
Nawfal Aldujaily

Provide an in depth description of biological information transfer (.pdf
Provide an in depth description of biological information transfer (.pdfProvide an in depth description of biological information transfer (.pdf
Provide an in depth description of biological information transfer (.pdf
MALASADHNANI

Ch10 lecture from dna to protein
Ch10 lecture from dna to proteinCh10 lecture from dna to protein
Ch10 lecture from dna to protein
Tia Hohler

Molecular basis of inheritance-Protein synthesis part 1 Transcriptionein ppt...
Molecular basis of inheritance-Protein  synthesis part 1 Transcriptionein ppt...Molecular basis of inheritance-Protein  synthesis part 1 Transcriptionein ppt...
Molecular basis of inheritance-Protein synthesis part 1 Transcriptionein ppt...
Nilima Patil

Gene expression
Gene expressionGene expression
Gene expression
ARPUTHA SELVARAJ A


Similar to Chapter 8 Microbial GeneticsPlasm (20)

Chapter 20 Molecular Genetics Lesson 2 - Genes_Transcription and Translation
Chapter 20 Molecular Genetics Lesson 2 - Genes_Transcription and TranslationChapter 20 Molecular Genetics Lesson 2 - Genes_Transcription and Translation
Chapter 20 Molecular Genetics Lesson 2 - Genes_Transcription and Translation

Ig
IgIg
Ig

Chapter13 worksheets
Chapter13 worksheetsChapter13 worksheets
Chapter13 worksheets

Genetics
GeneticsGenetics
Genetics

central-dogma-of-dna-1201627180232055-2.pdf
central-dogma-of-dna-1201627180232055-2.pdfcentral-dogma-of-dna-1201627180232055-2.pdf
central-dogma-of-dna-1201627180232055-2.pdf

Dna synthesis and protein synthesis
Dna synthesis and protein synthesisDna synthesis and protein synthesis
Dna synthesis and protein synthesis

Dna replication transcription and translation
Dna replication transcription and translationDna replication transcription and translation
Dna replication transcription and translation

• Define transcription• Define translation• What are the 3 steps.pdf
• Define transcription• Define translation• What are the 3 steps.pdf• Define transcription• Define translation• What are the 3 steps.pdf
• Define transcription• Define translation• What are the 3 steps.pdf

Chapter 10
Chapter 10Chapter 10
Chapter 10

lecture 3 Gene expression pptx
lecture 3 Gene expression           pptxlecture 3 Gene expression           pptx
lecture 3 Gene expression pptx

Transcription,translation and genetic code(cell biology)by welfredo yu
Transcription,translation and genetic code(cell biology)by welfredo yuTranscription,translation and genetic code(cell biology)by welfredo yu
Transcription,translation and genetic code(cell biology)by welfredo yu

Chapter 13 packet
Chapter 13 packetChapter 13 packet
Chapter 13 packet

Transcription in prokaryotes and eukaryotes.pdf
Transcription in prokaryotes and eukaryotes.pdfTranscription in prokaryotes and eukaryotes.pdf
Transcription in prokaryotes and eukaryotes.pdf

Central dogma
Central dogmaCentral dogma
Central dogma

protein synthesis
protein synthesisprotein synthesis
protein synthesis

Provide an in depth description of biological information transfer (.pdf
Provide an in depth description of biological information transfer (.pdfProvide an in depth description of biological information transfer (.pdf
Provide an in depth description of biological information transfer (.pdf

Ch10 lecture from dna to protein
Ch10 lecture from dna to proteinCh10 lecture from dna to protein
Ch10 lecture from dna to protein

Molecular basis of inheritance-Protein synthesis part 1 Transcriptionein ppt...
Molecular basis of inheritance-Protein  synthesis part 1 Transcriptionein ppt...Molecular basis of inheritance-Protein  synthesis part 1 Transcriptionein ppt...
Molecular basis of inheritance-Protein synthesis part 1 Transcriptionein ppt...

Proteins
ProteinsProteins
Proteins

Gene expression
Gene expressionGene expression
Gene expression


More from JinElias52

my professor ask me this question what should be answer(your resea.docx
my professor ask me this question what should be answer(your resea.docxmy professor ask me this question what should be answer(your resea.docx
my professor ask me this question what should be answer(your resea.docx
JinElias52

My assignment is to create a 12-page argumentativepersuasive rese.docx
My assignment is to create a 12-page argumentativepersuasive rese.docxMy assignment is to create a 12-page argumentativepersuasive rese.docx
My assignment is to create a 12-page argumentativepersuasive rese.docx
JinElias52

Myths in Neolithic Cultures Around the Globe Please respond to th.docx
Myths in Neolithic Cultures Around the Globe Please respond to th.docxMyths in Neolithic Cultures Around the Globe Please respond to th.docx
Myths in Neolithic Cultures Around the Globe Please respond to th.docx
JinElias52

Myths in Neolithic Cultures Around the GlobePlease respond to .docx
Myths in Neolithic Cultures Around the GlobePlease respond to .docxMyths in Neolithic Cultures Around the GlobePlease respond to .docx
Myths in Neolithic Cultures Around the GlobePlease respond to .docx
JinElias52

Mycobacterium tuberculosisYou must review the contents of your n.docx
Mycobacterium tuberculosisYou must review the contents of your n.docxMycobacterium tuberculosisYou must review the contents of your n.docx
Mycobacterium tuberculosisYou must review the contents of your n.docx
JinElias52

My TopicI would like to do my case application on Helen Keller’s.docx
My TopicI would like to do my case application on Helen Keller’s.docxMy TopicI would like to do my case application on Helen Keller’s.docx
My TopicI would like to do my case application on Helen Keller’s.docx
JinElias52

My topic is the terms a Congress person serves and debate on adding .docx
My topic is the terms a Congress person serves and debate on adding .docxMy topic is the terms a Congress person serves and debate on adding .docx
My topic is the terms a Congress person serves and debate on adding .docx
JinElias52

My topic is anywhere, anytime information work, which means tele-wor.docx
My topic is anywhere, anytime information work, which means tele-wor.docxMy topic is anywhere, anytime information work, which means tele-wor.docx
My topic is anywhere, anytime information work, which means tele-wor.docx
JinElias52

My topic for module-2 reaction paper was on news, data, and other me.docx
My topic for module-2 reaction paper was on news, data, and other me.docxMy topic for module-2 reaction paper was on news, data, and other me.docx
My topic for module-2 reaction paper was on news, data, and other me.docx
JinElias52

My Topic for the paper I would like to do my case application on He.docx
My Topic for the paper I would like to do my case application on He.docxMy Topic for the paper I would like to do my case application on He.docx
My Topic for the paper I would like to do my case application on He.docx
JinElias52

n a 2 page paper, written in APA format using proper spellinggramma.docx
n a 2 page paper, written in APA format using proper spellinggramma.docxn a 2 page paper, written in APA format using proper spellinggramma.docx
n a 2 page paper, written in APA format using proper spellinggramma.docx
JinElias52

My research proposal is  on fall prevention WRTG 394 s.docx
My research proposal is  on fall prevention WRTG 394 s.docxMy research proposal is  on fall prevention WRTG 394 s.docx
My research proposal is  on fall prevention WRTG 394 s.docx
JinElias52

My portion of the group assignment Must be done by Wednesday even.docx
My portion of the group assignment Must be done by Wednesday even.docxMy portion of the group assignment Must be done by Wednesday even.docx
My portion of the group assignment Must be done by Wednesday even.docx
JinElias52

my project is about construcation houses for poor poeple in Denver .docx
my project is about construcation houses for poor poeple in Denver .docxmy project is about construcation houses for poor poeple in Denver .docx
my project is about construcation houses for poor poeple in Denver .docx
JinElias52

my name is abdullah aljedanii am from saudi arabia i graduate fr.docx
my name is abdullah aljedanii am from saudi arabia i graduate fr.docxmy name is abdullah aljedanii am from saudi arabia i graduate fr.docx
my name is abdullah aljedanii am from saudi arabia i graduate fr.docx
JinElias52

My hypothesis Being disconnected from social media (texting, Facebo.docx
My hypothesis Being disconnected from social media (texting, Facebo.docxMy hypothesis Being disconnected from social media (texting, Facebo.docx
My hypothesis Being disconnected from social media (texting, Facebo.docx
JinElias52

My group is the Los Angeles Rams. We are looking to be sponsors with.docx
My group is the Los Angeles Rams. We are looking to be sponsors with.docxMy group is the Los Angeles Rams. We are looking to be sponsors with.docx
My group is the Los Angeles Rams. We are looking to be sponsors with.docx
JinElias52

My Captain does not answer, his lips are pale and still;My father .docx
My Captain does not answer, his lips are pale and still;My father .docxMy Captain does not answer, his lips are pale and still;My father .docx
My Captain does not answer, his lips are pale and still;My father .docx
JinElias52

My character is Phoenix Jackson from the story A Worn PathMLA Form.docx
My character is Phoenix Jackson from the story A Worn PathMLA Form.docxMy character is Phoenix Jackson from the story A Worn PathMLA Form.docx
My character is Phoenix Jackson from the story A Worn PathMLA Form.docx
JinElias52

My assignment is to write an original essay of four to fivr parargra.docx
My assignment is to write an original essay of four to fivr parargra.docxMy assignment is to write an original essay of four to fivr parargra.docx
My assignment is to write an original essay of four to fivr parargra.docx
JinElias52


More from JinElias52 (20)

my professor ask me this question what should be answer(your resea.docx
my professor ask me this question what should be answer(your resea.docxmy professor ask me this question what should be answer(your resea.docx
my professor ask me this question what should be answer(your resea.docx

My assignment is to create a 12-page argumentativepersuasive rese.docx
My assignment is to create a 12-page argumentativepersuasive rese.docxMy assignment is to create a 12-page argumentativepersuasive rese.docx
My assignment is to create a 12-page argumentativepersuasive rese.docx

Myths in Neolithic Cultures Around the Globe Please respond to th.docx
Myths in Neolithic Cultures Around the Globe Please respond to th.docxMyths in Neolithic Cultures Around the Globe Please respond to th.docx
Myths in Neolithic Cultures Around the Globe Please respond to th.docx

Myths in Neolithic Cultures Around the GlobePlease respond to .docx
Myths in Neolithic Cultures Around the GlobePlease respond to .docxMyths in Neolithic Cultures Around the GlobePlease respond to .docx
Myths in Neolithic Cultures Around the GlobePlease respond to .docx

Mycobacterium tuberculosisYou must review the contents of your n.docx
Mycobacterium tuberculosisYou must review the contents of your n.docxMycobacterium tuberculosisYou must review the contents of your n.docx
Mycobacterium tuberculosisYou must review the contents of your n.docx

My TopicI would like to do my case application on Helen Keller’s.docx
My TopicI would like to do my case application on Helen Keller’s.docxMy TopicI would like to do my case application on Helen Keller’s.docx
My TopicI would like to do my case application on Helen Keller’s.docx

My topic is the terms a Congress person serves and debate on adding .docx
My topic is the terms a Congress person serves and debate on adding .docxMy topic is the terms a Congress person serves and debate on adding .docx
My topic is the terms a Congress person serves and debate on adding .docx

My topic is anywhere, anytime information work, which means tele-wor.docx
My topic is anywhere, anytime information work, which means tele-wor.docxMy topic is anywhere, anytime information work, which means tele-wor.docx
My topic is anywhere, anytime information work, which means tele-wor.docx

My topic for module-2 reaction paper was on news, data, and other me.docx
My topic for module-2 reaction paper was on news, data, and other me.docxMy topic for module-2 reaction paper was on news, data, and other me.docx
My topic for module-2 reaction paper was on news, data, and other me.docx

My Topic for the paper I would like to do my case application on He.docx
My Topic for the paper I would like to do my case application on He.docxMy Topic for the paper I would like to do my case application on He.docx
My Topic for the paper I would like to do my case application on He.docx

n a 2 page paper, written in APA format using proper spellinggramma.docx
n a 2 page paper, written in APA format using proper spellinggramma.docxn a 2 page paper, written in APA format using proper spellinggramma.docx
n a 2 page paper, written in APA format using proper spellinggramma.docx

My research proposal is  on fall prevention WRTG 394 s.docx
My research proposal is  on fall prevention WRTG 394 s.docxMy research proposal is  on fall prevention WRTG 394 s.docx
My research proposal is  on fall prevention WRTG 394 s.docx

My portion of the group assignment Must be done by Wednesday even.docx
My portion of the group assignment Must be done by Wednesday even.docxMy portion of the group assignment Must be done by Wednesday even.docx
My portion of the group assignment Must be done by Wednesday even.docx

my project is about construcation houses for poor poeple in Denver .docx
my project is about construcation houses for poor poeple in Denver .docxmy project is about construcation houses for poor poeple in Denver .docx
my project is about construcation houses for poor poeple in Denver .docx

my name is abdullah aljedanii am from saudi arabia i graduate fr.docx
my name is abdullah aljedanii am from saudi arabia i graduate fr.docxmy name is abdullah aljedanii am from saudi arabia i graduate fr.docx
my name is abdullah aljedanii am from saudi arabia i graduate fr.docx

My hypothesis Being disconnected from social media (texting, Facebo.docx
My hypothesis Being disconnected from social media (texting, Facebo.docxMy hypothesis Being disconnected from social media (texting, Facebo.docx
My hypothesis Being disconnected from social media (texting, Facebo.docx

My group is the Los Angeles Rams. We are looking to be sponsors with.docx
My group is the Los Angeles Rams. We are looking to be sponsors with.docxMy group is the Los Angeles Rams. We are looking to be sponsors with.docx
My group is the Los Angeles Rams. We are looking to be sponsors with.docx

My Captain does not answer, his lips are pale and still;My father .docx
My Captain does not answer, his lips are pale and still;My father .docxMy Captain does not answer, his lips are pale and still;My father .docx
My Captain does not answer, his lips are pale and still;My father .docx

My character is Phoenix Jackson from the story A Worn PathMLA Form.docx
My character is Phoenix Jackson from the story A Worn PathMLA Form.docxMy character is Phoenix Jackson from the story A Worn PathMLA Form.docx
My character is Phoenix Jackson from the story A Worn PathMLA Form.docx

My assignment is to write an original essay of four to fivr parargra.docx
My assignment is to write an original essay of four to fivr parargra.docxMy assignment is to write an original essay of four to fivr parargra.docx
My assignment is to write an original essay of four to fivr parargra.docx


Recently uploaded

The Roman Empire A Historical Colossus.pdf
The Roman Empire A Historical Colossus.pdfThe Roman Empire A Historical Colossus.pdf
The Roman Empire A Historical Colossus.pdf
kaushalkr1407

Polish students' mobility in the Czech Republic
Polish students' mobility in the Czech RepublicPolish students' mobility in the Czech Republic
Polish students' mobility in the Czech Republic
Anna Sz.

Unit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdfUnit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdf
Thiyagu K

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
siemaillard

Introduction to Quality Improvement Essentials
Introduction to Quality Improvement EssentialsIntroduction to Quality Improvement Essentials
Introduction to Quality Improvement Essentials
Excellence Foundation for South Sudan

Palestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptxPalestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptx
RaedMohamed3

Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdf
Welcome to TechSoup   New Member Orientation and Q&A (May 2024).pdfWelcome to TechSoup   New Member Orientation and Q&A (May 2024).pdf
Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdf
TechSoup

The geography of Taylor Swift - some ideas
The geography of Taylor Swift - some ideasThe geography of Taylor Swift - some ideas
The geography of Taylor Swift - some ideas
GeoBlogs

How libraries can support authors with open access requirements for UKRI fund...
How libraries can support authors with open access requirements for UKRI fund...How libraries can support authors with open access requirements for UKRI fund...
How libraries can support authors with open access requirements for UKRI fund...
Jisc

How to Create Map Views in the Odoo 17 ERP
How to Create Map Views in the Odoo 17 ERPHow to Create Map Views in the Odoo 17 ERP
How to Create Map Views in the Odoo 17 ERP
Celine George

Template Jadual Bertugas Kelas (Boleh Edit)
Template Jadual Bertugas Kelas (Boleh Edit)Template Jadual Bertugas Kelas (Boleh Edit)
Template Jadual Bertugas Kelas (Boleh Edit)
rosedainty

Additional Benefits for Employee Website.pdf
Additional Benefits for Employee Website.pdfAdditional Benefits for Employee Website.pdf
Additional Benefits for Employee Website.pdf
joachimlavalley1

special B.ed 2nd year old paper_20240531.pdf
special B.ed 2nd year old paper_20240531.pdfspecial B.ed 2nd year old paper_20240531.pdf
special B.ed 2nd year old paper_20240531.pdf
Special education needs

Basic phrases for greeting and assisting costumers
Basic phrases for greeting and assisting costumersBasic phrases for greeting and assisting costumers
Basic phrases for greeting and assisting costumers
PedroFerreira53928

The French Revolution Class 9 Study Material pdf free download
The French Revolution Class 9 Study Material pdf free downloadThe French Revolution Class 9 Study Material pdf free download
The French Revolution Class 9 Study Material pdf free download
Vivekanand Anglo Vedic Academy

Language Across the Curriculm LAC B.Ed.
Language Across the  Curriculm LAC B.Ed.Language Across the  Curriculm LAC B.Ed.
Language Across the Curriculm LAC B.Ed.
Atul Kumar Singh

2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...
Sandy Millin

Operation Blue Star - Saka Neela Tara
Operation Blue Star   -  Saka Neela TaraOperation Blue Star   -  Saka Neela Tara
Operation Blue Star - Saka Neela Tara
Balvir Singh

The Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve ThomasonThe Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve Thomason
Steve Thomason

Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX
Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXXPhrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX
Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX
MIRIAMSALINAS13


Recently uploaded (20)

The Roman Empire A Historical Colossus.pdf
The Roman Empire A Historical Colossus.pdfThe Roman Empire A Historical Colossus.pdf
The Roman Empire A Historical Colossus.pdf

Polish students' mobility in the Czech Republic
Polish students' mobility in the Czech RepublicPolish students' mobility in the Czech Republic
Polish students' mobility in the Czech Republic

Unit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdfUnit 2- Research Aptitude (UGC NET Paper I).pdf
Unit 2- Research Aptitude (UGC NET Paper I).pdf

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa

Introduction to Quality Improvement Essentials
Introduction to Quality Improvement EssentialsIntroduction to Quality Improvement Essentials
Introduction to Quality Improvement Essentials

Palestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptxPalestine last event orientationfvgnh .pptx
Palestine last event orientationfvgnh .pptx

Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdf
Welcome to TechSoup   New Member Orientation and Q&A (May 2024).pdfWelcome to TechSoup   New Member Orientation and Q&A (May 2024).pdf
Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdf

The geography of Taylor Swift - some ideas
The geography of Taylor Swift - some ideasThe geography of Taylor Swift - some ideas
The geography of Taylor Swift - some ideas

How libraries can support authors with open access requirements for UKRI fund...
How libraries can support authors with open access requirements for UKRI fund...How libraries can support authors with open access requirements for UKRI fund...
How libraries can support authors with open access requirements for UKRI fund...

How to Create Map Views in the Odoo 17 ERP
How to Create Map Views in the Odoo 17 ERPHow to Create Map Views in the Odoo 17 ERP
How to Create Map Views in the Odoo 17 ERP

Template Jadual Bertugas Kelas (Boleh Edit)
Template Jadual Bertugas Kelas (Boleh Edit)Template Jadual Bertugas Kelas (Boleh Edit)
Template Jadual Bertugas Kelas (Boleh Edit)

Additional Benefits for Employee Website.pdf
Additional Benefits for Employee Website.pdfAdditional Benefits for Employee Website.pdf
Additional Benefits for Employee Website.pdf

special B.ed 2nd year old paper_20240531.pdf
special B.ed 2nd year old paper_20240531.pdfspecial B.ed 2nd year old paper_20240531.pdf
special B.ed 2nd year old paper_20240531.pdf

Basic phrases for greeting and assisting costumers
Basic phrases for greeting and assisting costumersBasic phrases for greeting and assisting costumers
Basic phrases for greeting and assisting costumers

The French Revolution Class 9 Study Material pdf free download
The French Revolution Class 9 Study Material pdf free downloadThe French Revolution Class 9 Study Material pdf free download
The French Revolution Class 9 Study Material pdf free download

Language Across the Curriculm LAC B.Ed.
Language Across the  Curriculm LAC B.Ed.Language Across the  Curriculm LAC B.Ed.
Language Across the Curriculm LAC B.Ed.

2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...2024.06.01 Introducing a competency framework for languag learning materials ...
2024.06.01 Introducing a competency framework for languag learning materials ...

Operation Blue Star - Saka Neela Tara
Operation Blue Star   -  Saka Neela TaraOperation Blue Star   -  Saka Neela Tara
Operation Blue Star - Saka Neela Tara

The Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve ThomasonThe Art Pastor's Guide to Sabbath | Steve Thomason
The Art Pastor's Guide to Sabbath | Steve Thomason

Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX
Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXXPhrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX
Phrasal Verbs.XXXXXXXXXXXXXXXXXXXXXXXXXX


Chapter 8 Microbial GeneticsPlasm

  • 1. Chapter 8: Microbial Genetics * Plasmids Exist in Cells Separate from Chromosomes Big Picture: Genetics The science of heredity Central dogma of molecular biology Mutations Gene expression controlled by operons
  • 2. Alteration of bacterial genes and/or gene expression Cause of disease Prevent disease treatment Manipulated for human benefit Big Picture: Genetics Structure and Function of the Genetic Material Learning Objectives 8-1 Define genetics, genome, chromosome, gene, genetic code, genotype, phenotype, and genomics. 8-2 Describe how DNA serves as genetic information. 8-3 Describe the process of DNA replication. 8-4 Describe protein synthesis, including transcription, RNA processing, and translation. 8-5 Compare protein synthesis in prokaryotes and eukaryotes.
  • 3. Structure and Function of the Genetic Material Genetics: the study of genes, how they carry information, how information is expressed, and how genes are replicated Chromosomes: structures containing DNA that physically carry hereditary information; the chromosomes contain genes Genes: segments of DNA that encode functional products, usually proteins Genome: all the genetic information in a cell Structure and Function of the Genetic Material The genetic code is a set of rules that determines how a nucleotide sequence is converted to an amino acid sequence of a proteinCentral dogma: Genotype and Phenotype Genotype: the genetic makeup of an organism Phenotype: expression of the genes DNA and Chromosomes Bacteria usually have a single circular chromosome made of DNA and associated proteins Short tandem repeats (STRs): repeating sequences of noncoding
  • 4. DNA Figure 8.1 A Prokaryotic Chromosome Chromosome The Flow of Genetic Information Vertical gene transfer: flow of genetic information from one generation to the next Horizontal gene transfer: flow of genetic information between individuals of the SAME generation (see the middle portion of the next slide!) Figure 8.2 The Flow of Genetic Information Parent cell DNA Genetic information is used within a cell to produce the proteins needed for the cell
  • 5. to function. Genetic information can be transferred horizontally between cells of the same generation. Genetic information can be transferred vertically to the next generation of cells. New combinations of genes Translation Cell metabolizes and grows Recombinant cell Offspring cells Transcription DNA Replication DNA forms a double helix “Backbone” consists of deoxyribose-phosphate Two strands of nucleotides are held together by hydrogen bonds between A-T and C-G Strands are antiparallel Order of the nitrogen-containing bases forms the genetic instructions of the organism
  • 6. DNA Replication One strand serves as a template for the production of a second strand Topoisomerase and gyrase relax the strands Helicase separates the strands A replication fork is created DNA Replication DNA polymerase adds nucleotides to the growing DNA strand In the 5‘ 3' direction Initiated by an RNA primer Leading strand is synthesized continuously Lagging strand is synthesized discontinuously, creating Okazaki fragments DNA polymerase removes RNA primers; Okazaki fragments are joined by the DNA polymerase and DNA ligase
  • 7. Figure 8.5 A Summary of Events at the DNA Replication Fork REPLICATION Proteins stabilize the unwound parental DNA. The leading strand is synthesized continuously by DNA polymerase. DNA polymerase Enzymes unwind the parental double helix. Primase Parental strand The lagging strand is synthesized discontinuously. Primase, an RNA polymerase, synthesizes a short RNA primer, which is then extended by DNA polymerase. DNA polymerase digests RNA primer and replaces it with DNA. DNA ligase joins the discontinuous fragments of the lagging strand. DNA polymerase DNA polymerase Okazaki fragment DNA ligase RNA primer Replication
  • 8. fork 3' 5' 5' 3' 3' 5' DNA Replication Energy Needs Energy for replication is supplied by nucleotides (remember, ATP is one example of a nucleotide!) Hydrolysis of two phosphate groups on ATP provides energy Figure 8.4 Adding a Nucleotide to DNA New Strand Template Strand Sugar Phosphate When a nucleoside triphosphate bonds to the sugar, it loses two phosphates. Hydrolysis of the phosphate bonds provides the energy for the reaction.
  • 9. DNA Replication Most bacterial DNA replication is bidirectional Each offspring cell receives one copy of the DNA molecule Replication is highly accurate due to the proofreading capability of DNA polymerase Figure 8.6 Replication of Bacterial DNA Check Your Understanding Check Your Understanding 8-3 Describe DNA replication, including the functions of DNA gyrase, DNA ligase, and DNA polymerase. RNA and Protein Synthesis Ribonucleic acid
  • 10. Single-stranded nucleotide 5-carbon ribose sugar Contains uracil (U) instead of thymine (T) Ribosomal RNA (rRNA): integral part of ribosomes Transfer RNA (tRNA): transports amino acids during protein synthesis Messenger RNA (mRNA): carries coded information from DNA to ribosomes Transcription in Prokaryotes Synthesis of a complementary mRNA strand from a DNA template Transcription begins when RNA polymerase binds to the promoter sequence on DNA Transcription proceeds in the 5‘ 3' direction; only one of the two DNA strands is transcribed Transcription stops when it reaches the terminator sequence on DNA Figure 8.7 The Process of Transcription TRANSCRIPTION DNA mRNA Protein RNA
  • 11. polymerase DNA RNA polymerase bound to DNA RNA polymerase RNA nucleotides Template strand of DNA RNA Promoter (gene begins) RNA polymerase RNA RNA synthesis Terminator (gene ends) RNA polymerase binds to the promoter, and DNA unwinds at the beginning of a gene. RNA is synthesized by complementary base pairing of free nucleotides with the nucleotide bases on the template strand of DNA. The site of synthesis moves along DNA; DNA that has been transcribed rewinds. Transcription reaches the terminator. Complete RNA strand
  • 12. RNA and RNA polymerase are released, and the DNA helix re-forms. Promoter Translation mRNA is translated into the “language” of proteins Codons are groups of three mRNA nucleotides that code for a particular amino acid (20 potential amino acids) Each amino acid is coded by several codons… but each codon will code for just one amino acid (the chart on next slide shows you this better): Translation Translation of mRNA begins at the start codon: AUG Translation ends at nonsense codons: UAA, UAG, UGA Codons of mRNA are “read” sequentially
  • 13. tRNA molecules transport the required amino acids to the ribosome tRNA molecules also have an anticodon that base-pairs with the codon Amino acids are joined by peptide bonds Figure 8.9 The Process of Translation Ribosome P Site Start codon Second codon mRNA On the assembled ribosome, a tRNA carrying the first amino acid is paired with the start codon on the mRNA. The place where this first tRNA sits is called the P site. A tRNA carrying the second amino acid approaches. Components needed to begin translation come together. mRNA Anticodon Ribosomal subunit Ribosomal subunit tRNA
  • 14. Figure 8.9 The Process of Translation Peptide bond forms A site mRNA E site mRNA Ribosome moves along mRNA The second codon of the mRNA pairs with a tRNA carrying the second amino acid at the A site. The first amino acid joins to the second by a peptide bond. This attaches the polypeptide to the tRNA in the P site. The ribosome moves along the mRNA until the second tRNA is in the P site. The next codon to be translated is brought into the A site. The first tRNA now occupies the E site. Figure 8.9 The Process of Translation tRNA released mRNA The second amino acid joins to the third by another peptide bond, and the first tRNA is released from the E site. The ribosome continues to move along the mRNA, and new amino acids are added to the polypeptide. mRNA
  • 15. Growing polypeptide chain Figure 8.9 The Process of Translation mRNA Polypeptide released Stop codon When the ribosome reaches a stop codon, the polypeptide is released. Finally, the last tRNA is released, and the ribosome comes apart. The released polypeptide forms a new protein. mRNA New protein Figure 8.10 Simultaneous Transcription and Translation in Bacteria TRANSLATION DNA mRNA Protein DNA
  • 16. RNA polymerase Direction of transcription Peptide Polyribosome Ribosome mRNA Direction of translation 5' In bacteria, translation can begin before transcription is complete Transcription in Eukaryotes In eukaryotes, transcription occurs in the nucleus, whereas translation occurs in the cytoplasm Exons are regions of DNA that code for proteins Introns are regions of DNA that do not code for proteins Small nuclear ribonucleoproteins (snRNPs) remove introns and splice exons together Check Your Understanding 8-5 How does mRNA production in eukaryotes differ from the process in prokaryotes? Figure 8.11 RNA Processing in Eukaryotic Cells
  • 17. The Regulation of Bacterial Gene Expression Constitutive genes are expressed at a fixed rate Other genes are expressed only as needed Inducible genes Repressible genes Catabolite repression Pre-Transcriptional Control Repression inhibits gene expression and decreases enzyme synthesis Mediated by repressors, proteins that block transcription Default position of a repressible gene is on Induction turns on gene expression Initiated by an inducer Default position of an inducible gene is off The Operon Model of Gene Expression Promoter: segment of DNA where RNA polymerase initiates transcription of structural genes Operator: segment of DNA that controls transcription of structural genes Operon: set of operator and promoter sites and the structural
  • 18. genes they control The Operon Model of Gene Expression In an inducible operon, structural genes are not transcribed unless an inducer is present In the absence of lactose, the repressor binds to the operator, preventing transcription In the presence of lactose, metabolite of lactose–allolactose (inducer)–binds to the repressor; the repressor cannot bind to the operator and transcription occurs Figure 8.12 An Inducible Operon Control region Structural genes Operon I P O Z Y A DNA Regulatory
  • 19. gene Promoter Operator Structure of the operon. The operon consists of the promoter (P) and operator (O) sites and structural genes that code for the protein. The operon is regulated by the product of the regulatory gene (I) Figure 8.12 An Inducible Operon RNA polymerase I P Z Y A Transcription Translation Repressor mRNA Active repressor protein Repressor active, operon off. The repressor protein binds with the operator, preventing transcription from the operon.
  • 20. Figure 8.12 An Inducible Operon (3 of 3) Allolactose (inducer) I P O Z Y A Transcription Translation Transacetylase Permease β-Galactosidase Inactive repressor protein Repressor inactive, operon on. When the inducer allolactose binds to the repressor protein, the inactivated repressor can no longer block transcription. The structural genes are transcribed, ultimately resulting in the production of the enzymes needed for lactose catabolism. Operon mRNA The Operon Model of Gene Expression In repressible operons, structural genes are transcribed until they are turned off
  • 21. Excess tryptophan is a corepressor that binds and activates the repressor to bind to the operator, stopping tryptophan synthesis Figure 8.13 A Repressible Operon Control region Structural genes Operon I P O E C A DNA Regulatory gene Promoter Operator Structure of the operon. The operon consists of the promoter (P) and operator (O) sites and structural genes that code for the protein. The operon is regulated by the product of the regulatory gene (I) D B
  • 22. Figure 8.13 A Repressible Operon (2 of 3) RNA polymerase I P O E D C B A Transcription Repressor mRNA Translation Inactive repressor protein Polypeptides comprising the enzymes for tryptophan synthesis Operon mRNA Repressor inactive, operon on. The repressor is inactive, and transcription and translation proceed, leading to the synthesis of tryptophan.
  • 23. Figure 8.13 A Repressible Operon (3 of 3) I P E D C B A Active repressor protein Tryptophan (corepressor) Repressor active, operon off. When the corepressor tryptophan binds to the repressor protein, the activated repressor binds with the operator, preventing transcription from the operon. Positive Regulation Catabolite repression inhibits cells from using carbon sources other than glucose Cyclic AMP (cAMP) builds up in a cell when glucose is not available cAMP binds to the catabolic activator protein (CAP) that in turn binds the lac promoter, initiating transcription and allowing the cell to use lactose
  • 24. Figure 8.14 The Growth Rate of E. Coli on Glucose and Lactose Bacteria growing on glucose as the sole carbon source grow faster than on lactose. Bacteria growing in a medium containing glucose and lactose first consume the glucose and then, after a short lag time, the lactose. During the lag time, intra-cellular cAMP increases, the lac operon is transcribed, more lactose is transported into the cell, and β- galacto-sidase is synthesized to break down lactose. Glucose Lactose All glucose consumed Glucose used Lag time Lactose used Figure 8.15 Positive Regulation of the Lac Operon Promoter lacZ lacl DNA
  • 25. Operator RNA polymerase can bind and transcribe cAMP Inactive CAP Active CAP Inactive lac repressor Lactose present, glucose scarce (cAMP level high). If glucose is scarce, the high level of cAMP activates CAP, and the lac operon produces large amounts of mRNA for lactose digestion. CAP-binding site CAP-binding site DNA lacl Promoter lacZ Operator RNA polymerase can't bind Inactive CAP Inactive lac repressor Lactose present, glucose present (cAMP level low). When glucose is present, cAMP is scarce, and CAP is unable to stimulate transcription.
  • 26. Epigenetic Control Methylating nucleotides turn genes off Methylated (off) genes can be passed to offspring cells Not permanent Changes in Genetic Material Mutation: a permanent change in the base sequence of DNA Mutations may be neutral, beneficial, or harmful Mutagens: agents that cause mutations Spontaneous mutations: occur in the absence of a mutagen Types of Mutations Base substitution (point mutation) Change in one base in DNA Missense mutation Base substitution results in change in an amino acid Nonsense mutation Base substitution results in a nonsense (stop) codon Frameshift mutation Insertion or deletion of one or more nucleotide pairs Shifts the translational “reading frame”
  • 27. Chemical Mutagens & radiation Nitrous acid: causes adenine to bind with cytosine instead of thymine Nucleoside analog: incorporates into DNA in place of a normal base; causes mistakes in base pairing Glyphosate / RoundUp has also been seen to be directly mutagenic (again, see paper in supplemental folder) Ionizing radiation (X-rays and gamma rays) causes the formation of ions that can oxidize nucleotides and break the deoxyribose-phosphate backbone UV radiation causes thymine dimers Repair of mutations can happen: Photolyases separate thymine dimers Nucleotide excision repair: Enzymes cut out incorrect bases and fill in correct bases Ultraviolet light Exposure to ultraviolet light causes adjacent thymines to become cross-linked, forming a thymine dimer and disrupting their normal base pairing. Thymine dimer An endonuclease cuts the DNA, and an exonuclease removes the damaged DNA. New DNA DNA polymerase fills the gap
  • 28. by synthesizing new DNA, using the intact strand as a template. DNA ligase seals the remaining gap by joining the old and new DNA. The Frequency of Mutation Spontaneous mutation rate = 1 in 109 replicated base pairs or 1 in 106 replicated genes Mutagens increase the mutation rate to per 10-5 or 10-3 replicated gene Identifying Mutants Positive (direct) selection detects mutant cells because they grow or appear different than unmutated cells Negative (indirect) selection detects mutant cells that cannot grow or perform a certain function Auxtotroph: mutant that has a nutritional requirement absent in the parent Identifying Chemical Carcinogens The Ames test exposes mutant bacteria to mutagenic substances to measure the rate of reversal of the mutation Indicates degree to which a substance is mutagenic IMPORTANT: If the Ames test suggests no mutagenicity, this
  • 29. is NOT a “for-sure” negative– sometimes chemicals react with a human protein to yield a carcinogen ! Genetic Transfer and Recombination Learning Objectives 8-14 Describe the functions of plasmids and transposons. 8-15 Differentiate horizontal and vertical gene transfer. 8-16 Compare the mechanisms of genetic recombination in bacteria. Genetic Transfer and Recombination Genetic recombination: exchange of genes between two DNA molecules…in particular, between 2 same-aged individuals instead of from parent to offspring; creates genetic diversity especially among microbes (which do not normally sexually reproduce…sexual reproduction / meiosis and fertilization is the norm for most multicellular creatures, but unicellular organisms cannot do that) Vertical gene transfer: transfer of genes from an organism to its offspring Horizontal gene transfer: transfer of genes between cells of the same generation
  • 30. Plasmids and Transposons Transposons = Mobile genetic elements Move from one chromosome to another or from one cell to another Occur in prokaryotic and eukaryotic organisms Plasmids are self-replicating circular pieces of DNA 1 to 5% the size of a bacterial chromosome Often code for proteins that enhance the pathogenicity of a bacterium Plasmids Conjugative plasmid: carries genes for sex pili and transfer of the plasmid Dissimilation plasmids: encode enzymes for the catabolism of unusual compounds Resistance factors (R factors): encode antibiotic resi stance Transposons Transposons are segments of DNA that can move from one region of DNA to another Contain insertion sequences (IS) that code for transposase that cuts and reseals DNA Complex transposons carry other genes (e.g., in antibiotic resistance)
  • 31. Transformation in Bacteria Transformation: genes transferred from one bacterium to another as “naked” DNA Figure 8.28 The Mechanism of Genetic Transformation in Bacteria a b c d DNA fragments from donor cells Recipient cell A D B C Chromosomal DNA Recipient cell takes up donor DNA. Donor DNA aligns with complementary bases. Recombination occurs between donor DNA and recipient DNA. A D B C
  • 32. A D B C Degraded unrecombined DNA Genetically transformed cell a b c d b c d B C D a 5' 3' 5' 3' Conjugation in Bacteria Conjugation: plasmids transferred from one bacterium to another Requires cell-to-cell contact via sex pili
  • 33. Figure 8.30a Conjugation in E. coli RECOMBINATION Bacterial chromosome Mating bridge Replication and transfer of F factor F factor F+ cell F– cell When an F factor (a plasmid) is transferred from a donor (F+) to a recipient (F–), the F– cell is converted to an F+ cell. F+ cell F+ cell Transduction in Bacteria DNA is transferred from a donor cell to a recipient via a bacteriophage Generalized transduction: Random bacterial DNA is packaged inside a phage (virus that infects bacteria) and transferred to a recipient cell Specialized transduction: Specific bacterial genes are packaged inside a phage and transferred to a recipient cell
  • 34. Figure 8.32 Transduction by a Bacteriophage RECOMBINATION Phage protein coat Phage DNA Bacterial chromosome A phage infects the donor bacterial cell. Phage DNA and proteins are made, and the bacterial chromosome is broken into pieces. Occasionally during phage assembly, pieces of bacterial DNA are pack- aged in a phage capsid. Then the donor cell lyses and releases phage particles containing bacterial DNA. Phage DNA Bacterial DNA A phage carrying bacterial DNA infects a new host cell, the recipient cell. Recipient cell Donor bacterial DNA Recipient bacterial DNA Recombinant cell reproduces normally
  • 35. Recombination can occur, producing a recombinant cell with a genotype different from both the donor and recipient cells. Many cell divisions Donor cell Genes and Evolution Mutations and recombination create cell diversity Diversity is the raw material for evolution Natural selection acts on populations of organisms to ensure the survival of organisms fit for a particular environment Check Your Understanding Check Your Understanding 8-17 Natural selection means that the environment favors survival of some genotypes. From where does diversity in genotypes come? Use your selected company from Weeks 1-5 for this week’s assessment. You’ve become a trusted resource for your organization, and they’ve asked your advice on having a competitive advantage in the field. More specifically, they would like your analysis and
  • 36. recommendations on ways to bring their company culture, demographics, and technologies up to current industry practices and beyond. Review the “How to Make a Presentation” video. Create a 10- to 12-slide presentation with detailed speaker notes and visuals on every slide that includes the following elements: · An analysis of the organization’s current culture (e.g., beliefs, expectations, values, and norms). Address how managers influence the organizational culture. · An evaluation of the impact of demographic forces (e.g., age, gender, ethnic origin, race, sexual orientation, and social class) of your selected organization and what it could be · Note: This is a good place to use your chart/outline/infographic from Wk 5. · An examination of the impact of technological forces (e.g., changes in the technology managers use to design, produce, or distribute goods and services) of your selected company · Consider how this can contribute to innovation within the industry. · An examination on how the organization has complied with ethics and social responsibility behavior · Recommendations of ways to innovate based on your analysis · Summary · References
