Chapter 6 Test and Measurement in sports

ROCKWOOD HIGH SCHOOL UDAIPUR 9809037221,7014734358
BY DR.GAJENDER SHARMA
CHAPTER- 6
TEST AND MEASUREMENT IN SPORTS
Insert LOGO

CONTENTS
 Motor Fitness Test- 50M Standing Start, 600M Run
/Walk, Sit & Reach, Partial Curl Up, Push Ups(Boys)
, Modified Push Ups (Girls), Standing Board Jump,
Agility 4x10M Shuttle Run.
 General Motor Fitness-Barrow Three Items.
 Measurement of Cardio Vascular Fitness- Harvard S
tep Test/Rockport Test.
 Computation of Fitness Index: Duration of the Exer
cise in secondsx100/5.5x Pulse Count of 1-1.5 Min.
after Exercise,
 Duration of the Exercise in seconds x100/2 X Sum
of Heart beats in Pulse1,2,3
 Rikli & Jones – Senior Citizen Fitness Test
2
ROCKWOOD HIGH SCHOOL,UDAIPUR
9829037221,7014734358

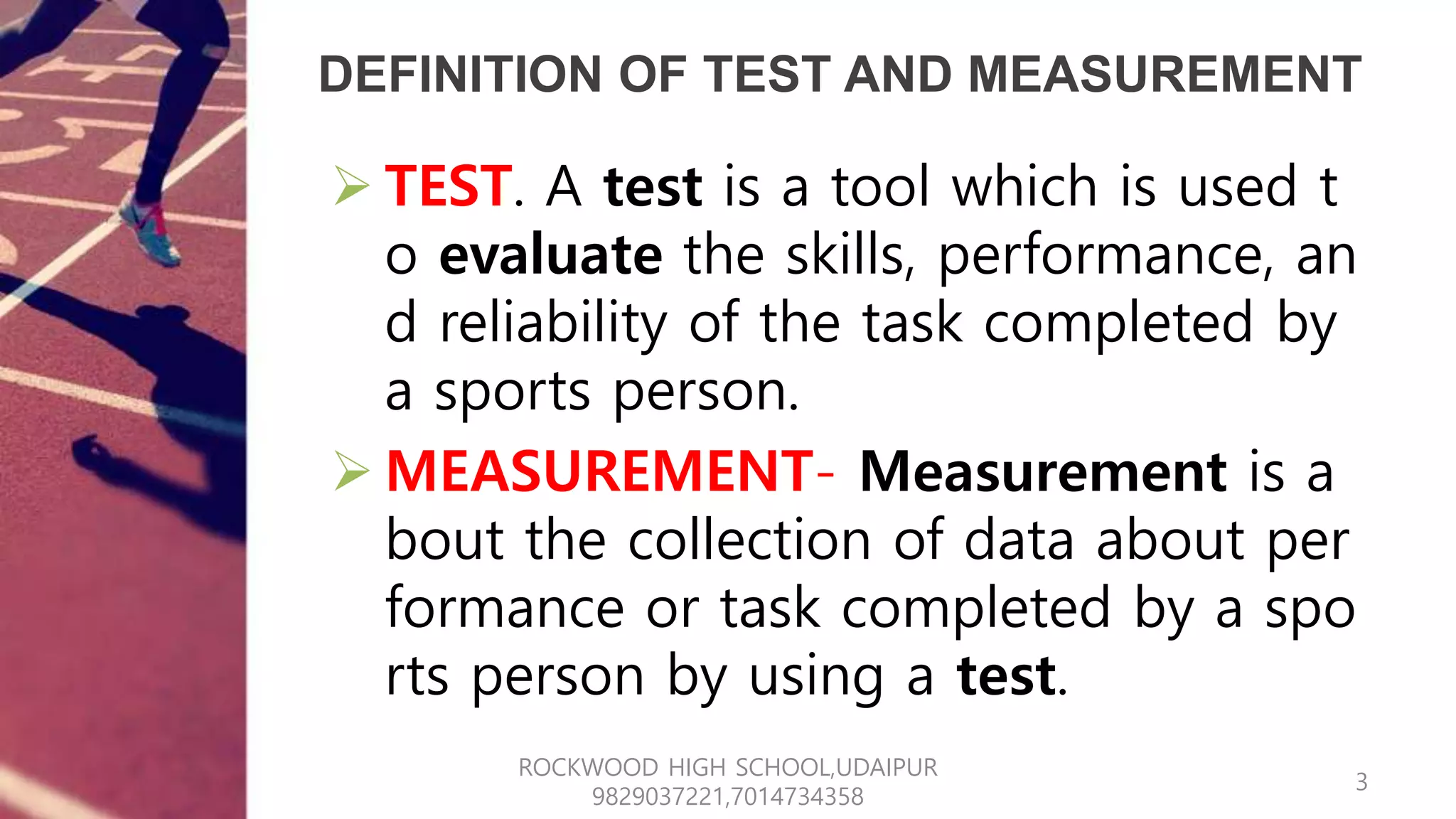

DEFINITION OF TEST AND MEASUREMENT
 TEST. A test is a tool which is used t
o evaluate the skills, performance, an
d reliability of the task completed by
a sports person.
 MEASUREMENT- Measurement is a
bout the collection of data about per
formance or task completed by a spo
rts person by using a test.
3
9829037221,7014734358

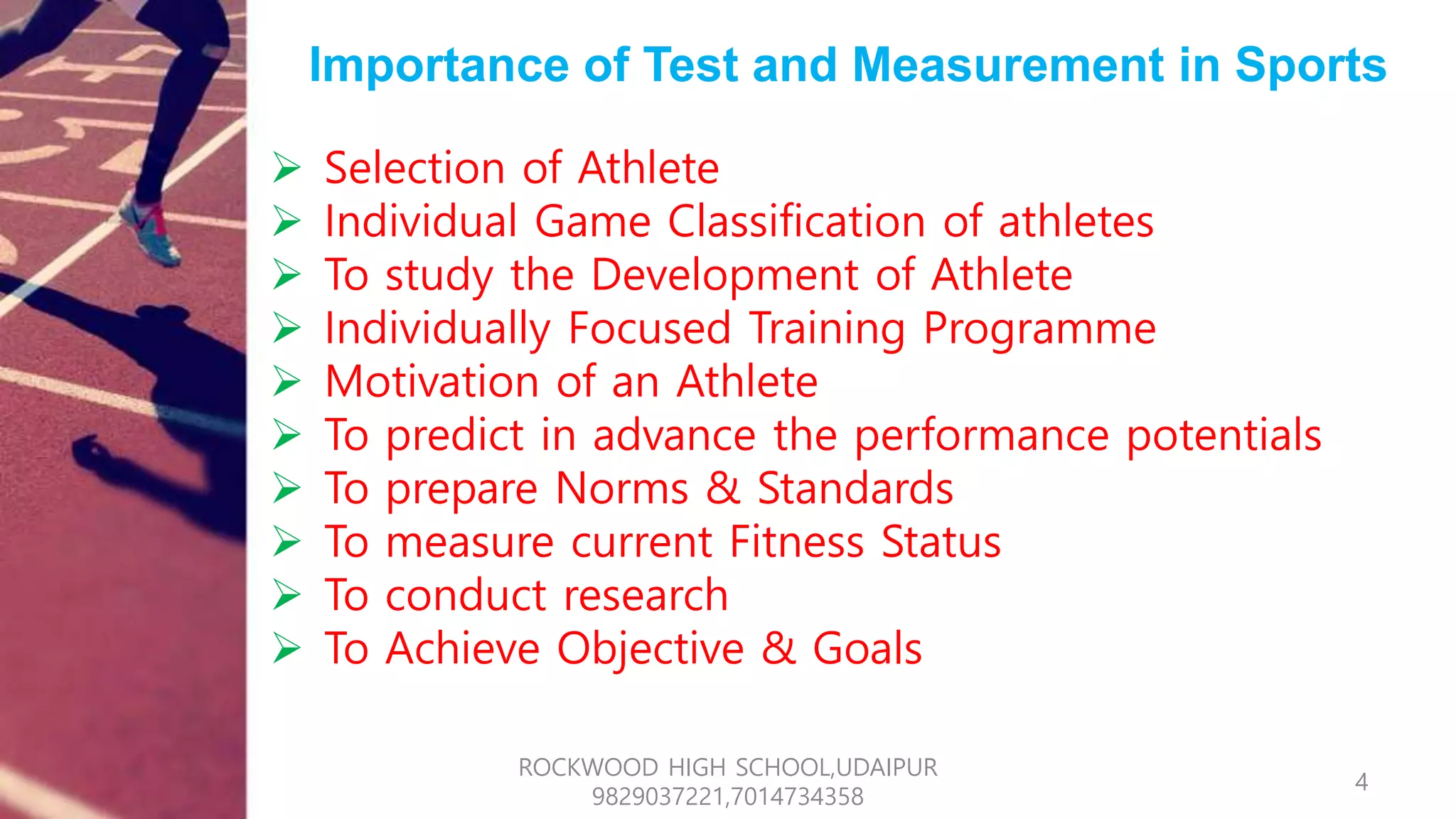

Importance of Test and Measurement in Sports
 Selection of Athlete
 Individual Game Classification of athletes
 To study the Development of Athlete
 Individually Focused Training Programme
 Motivation of an Athlete
 To predict in advance the performance potentials
 To prepare Norms & Standards
 To measure current Fitness Status
 To conduct research
 To Achieve Objective & Goals
4
9829037221,7014734358

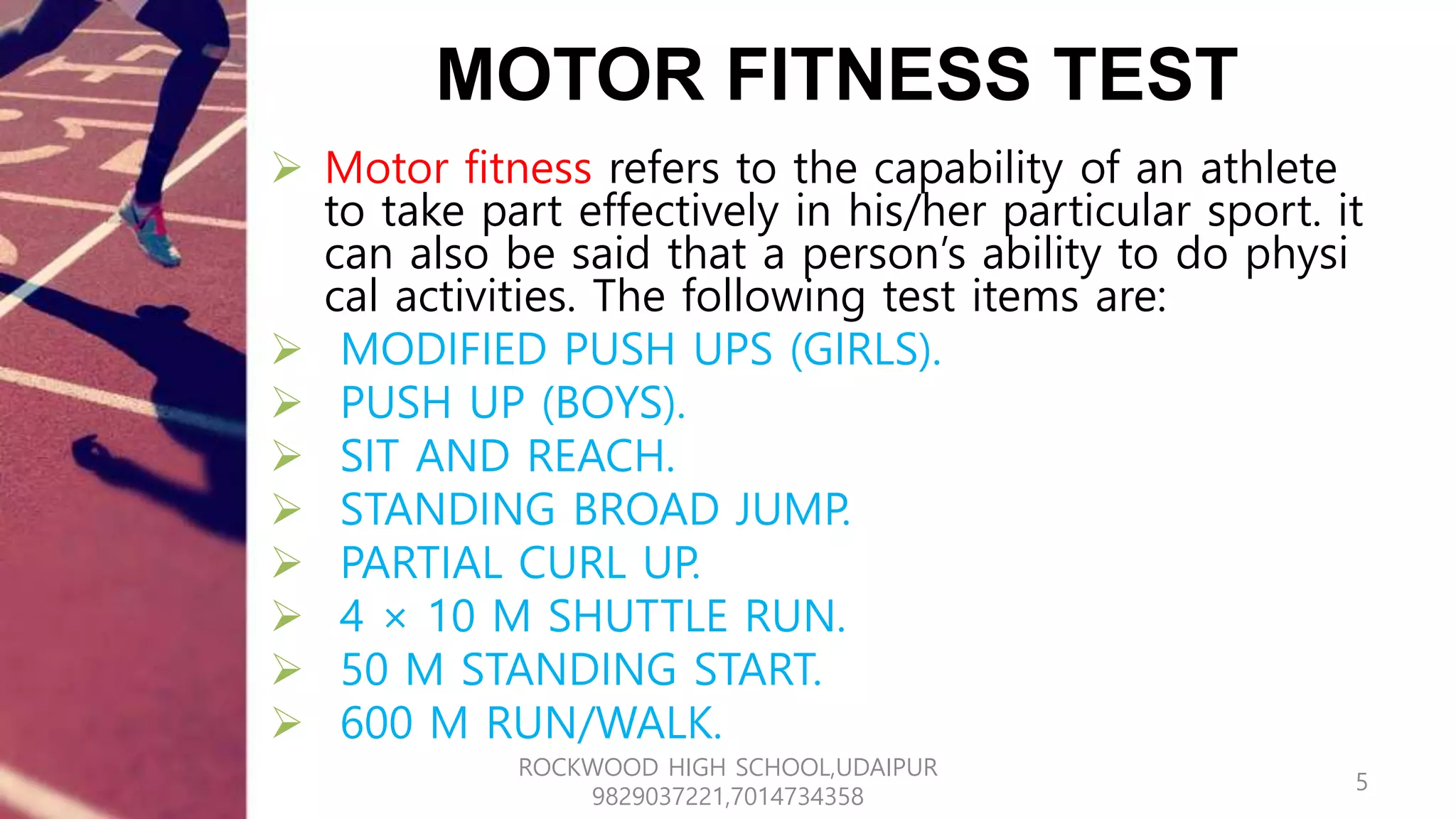

MOTOR FITNESS TEST
 Motor fitness refers to the capability of an athlete
to take part effectively in his/her particular sport. it
can also be said that a person’s ability to do physi
cal activities. The following test items are:
 MODIFIED PUSH UPS (GIRLS).
 PUSH UP (BOYS).
 SIT AND REACH.
 STANDING BROAD JUMP.
 PARTIAL CURL UP.
 4 × 10 M SHUTTLE RUN.
 50 M STANDING START.
 600 M RUN/WALK.
5
9829037221,7014734358

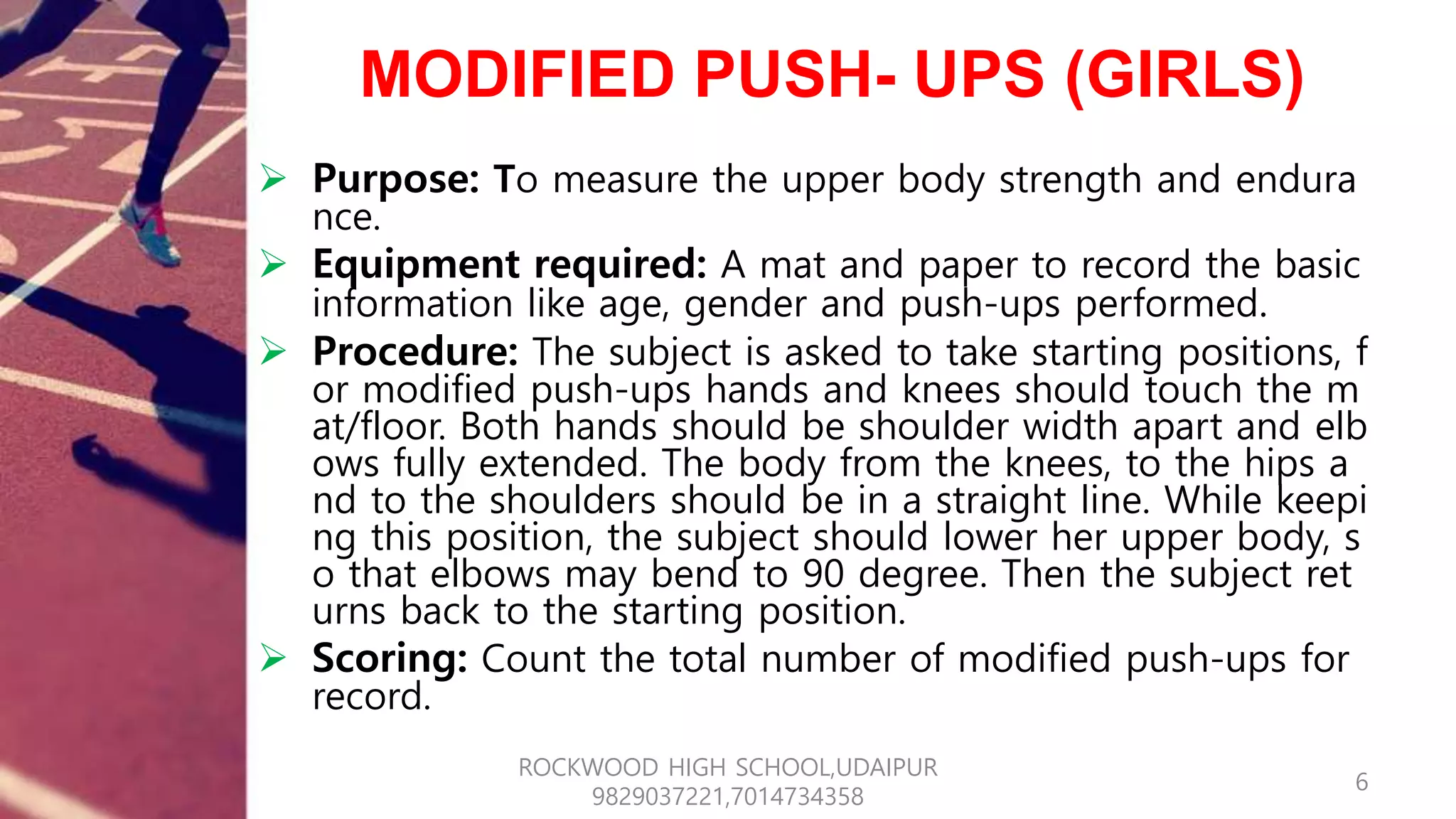

MODIFIED PUSH- UPS (GIRLS)
 Purpose: To measure the upper body strength and endura
nce.
 Equipment required: A mat and paper to record the basic
information like age, gender and push-ups performed.
 Procedure: The subject is asked to take starting positions, f
or modified push-ups hands and knees should touch the m
at/floor. Both hands should be shoulder width apart and elb
ows fully extended. The body from the knees, to the hips a
nd to the shoulders should be in a straight line. While keepi
ng this position, the subject should lower her upper body, s
o that elbows may bend to 90 degree. Then the subject ret
urns back to the starting position.
 Scoring: Count the total number of modified push-ups for
record.
6
9829037221,7014734358

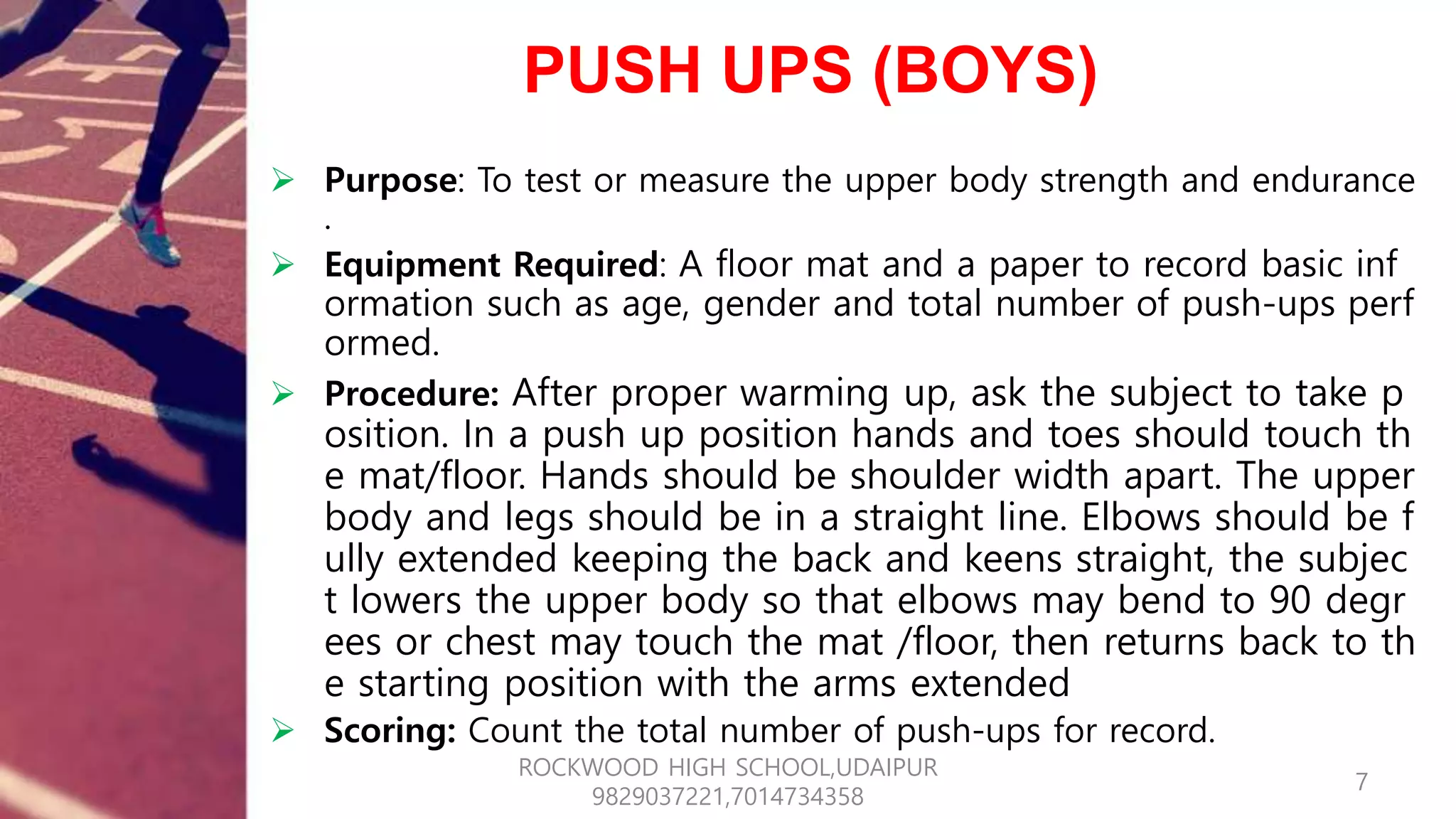

PUSH UPS (BOYS)
 Purpose: To test or measure the upper body strength and endurance
.
 Equipment Required: A floor mat and a paper to record basic inf
ormation such as age, gender and total number of push-ups perf
ormed.
 Procedure: After proper warming up, ask the subject to take p
osition. In a push up position hands and toes should touch th
e mat/floor. Hands should be shoulder width apart. The upper
body and legs should be in a straight line. Elbows should be f
ully extended keeping the back and keens straight, the subjec
t lowers the upper body so that elbows may bend to 90 degr
ees or chest may touch the mat /floor, then returns back to th
e starting position with the arms extended
 Scoring: Count the total number of push-ups for record.
7
9829037221,7014734358

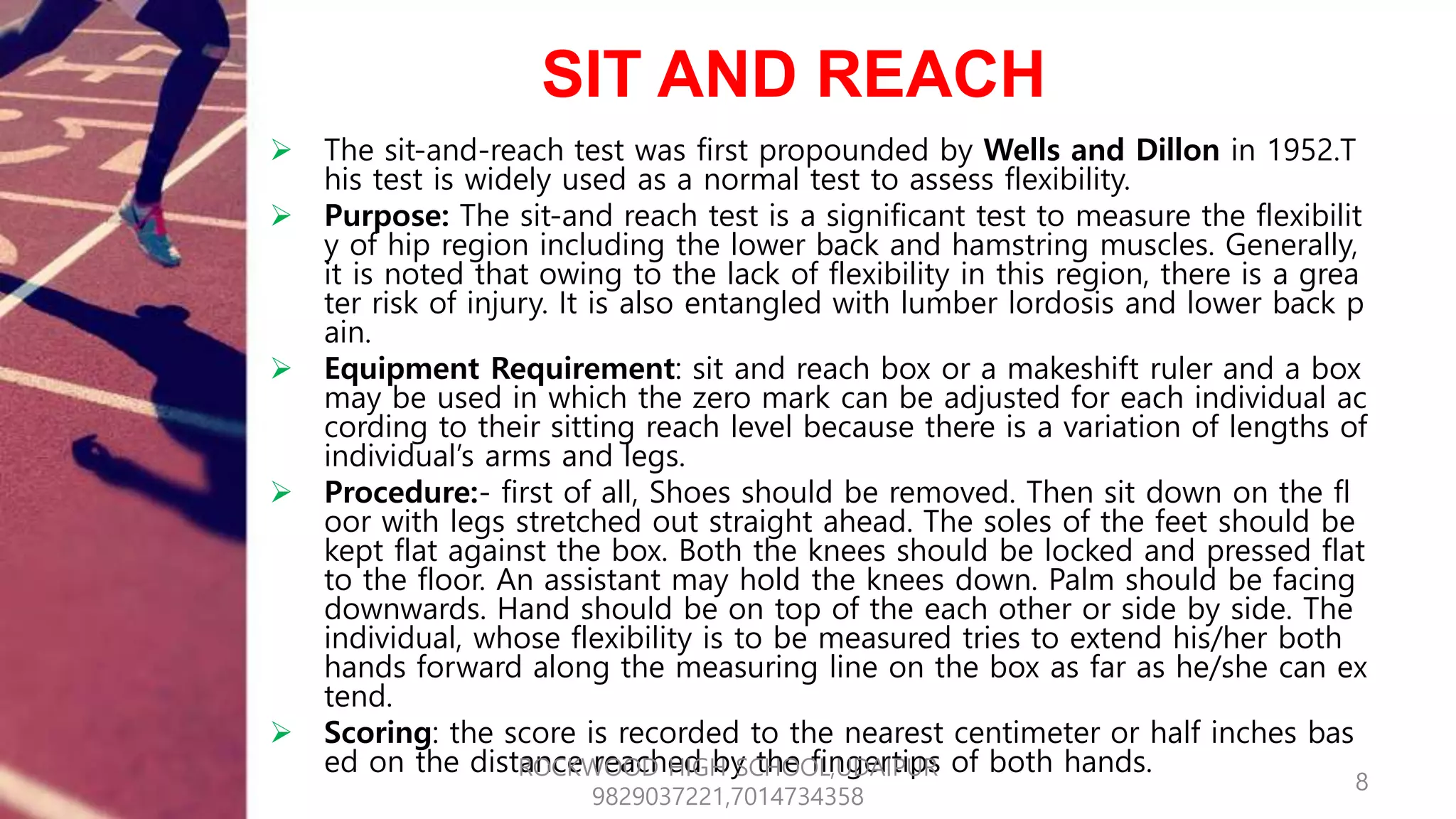

SIT AND REACH
 The sit-and-reach test was first propounded by Wells and Dillon in 1952.T
his test is widely used as a normal test to assess flexibility.
 Purpose: The sit-and reach test is a significant test to measure the flexibilit
y of hip region including the lower back and hamstring muscles. Generally,
it is noted that owing to the lack of flexibility in this region, there is a grea
ter risk of injury. It is also entangled with lumber lordosis and lower back p
ain.
 Equipment Requirement: sit and reach box or a makeshift ruler and a box
may be used in which the zero mark can be adjusted for each individual ac
cording to their sitting reach level because there is a variation of lengths of
individual’s arms and legs.
 Procedure:- first of all, Shoes should be removed. Then sit down on the fl
oor with legs stretched out straight ahead. The soles of the feet should be
kept flat against the box. Both the knees should be locked and pressed flat
to the floor. An assistant may hold the knees down. Palm should be facing
downwards. Hand should be on top of the each other or side by side. The
individual, whose flexibility is to be measured tries to extend his/her both
hands forward along the measuring line on the box as far as he/she can ex
tend.
 Scoring: the score is recorded to the nearest centimeter or half inches bas
ed on the distance reached by the fingertips of both hands.
8
9829037221,7014734358

STANDING BROAD JUMP
 Purpose: To measure explosive strength/ power of legs.
 Equipment required: A sandy long jump pit and a
measuring steel tape.
 Procedure: A take-off line is marked on the ground.
Subject stands just behind the take-off line with the
feet several inches apart. The subject swings the arms
and bends the knees to take a jump in the long jump
pit.
 Scoring : The measurement is noted in feet and
inches.
9
9829037221,7014734358

PARTIAL CURL UP
 Purpose: To test the strength and endurance of abdominal
muscles.
 Equipment’s required: A flat clean and cushioned
surfaced, recording sheet and pen.
 Procedure: First of all, the complete test procedure is expl
ained to the subject. After that the subject lies in supine
on cushioned surface the knees should be flexed and feet
should be 12 inches from the buttocks .Both the feet’s sho
uld be slightly apart. Arms are extended and rested on thi
ghs. Head should be in neutral position. This is the startin
g position. Then, the subject curls up with a slow controlle
d movement, until his/her shouldered come off the cushio
ned surface or mat two inches then back down again.
 Scoring: Record the total no of partial curl ups. It should n
ot be counted if the shoulders are not raised up by two in
ches. 10
9829037221,7014734358

4 × 10 M SHUTTLE RUN
 Purpose: To measure agility
 Equipment required: Two wooden blocks, marker cones,
measuring tape, stopwatch and a flat surface with two
lines 10 m apart.
 Procedure: Mark two parallel lines 3 meters in length, 10
meters apart using marking tape or cones, considering
one line as starting line. On the signal ‘go’ the subject runs
to the wooden blocks, lifts one block, returns to the
starting line and places the block behind the line. Then
the subject returns to the second block, lifts it and then
runs across the starting line on the way back.
 Scoring: Record the best time to complete the test in sec
onds.
11
9829037221,7014734358

50 M STANDING START
 Purpose: To Determine Speed
 Equipment Required: Measuring Tape to Marked
Track, 2 Stop Watches.
 Procedure: An area of 50 m is marked on a track.
Two parallel lines are drawn 50 m apart considering
one as the starting line. The subject takes the
starting position behind the starting line. The starter
commands ‘Ready’ and ‘Go’. The word Go is accompa
nied by a downward sweep of the starters arm as a
signal to the timer. Two subjects can run at the same
time if there are two stopwatches.
 Scoring: The score is recorded in seconds.
12
9829037221,7014734358

600 M RUN/WALK
 Purpose : To Measure Endurance.
 Equipment Required: 600 M Track And
Stop Watches..
 Procedure: The subject takes the position
of standing right behind the starting line
at the signal of ready and go the subject
starts running. During the course of
running he/she may walk also. Many
students can run at a same time.
 Scoring: Time is recorded in minutes and
seconds.
13
9829037221,7014734358

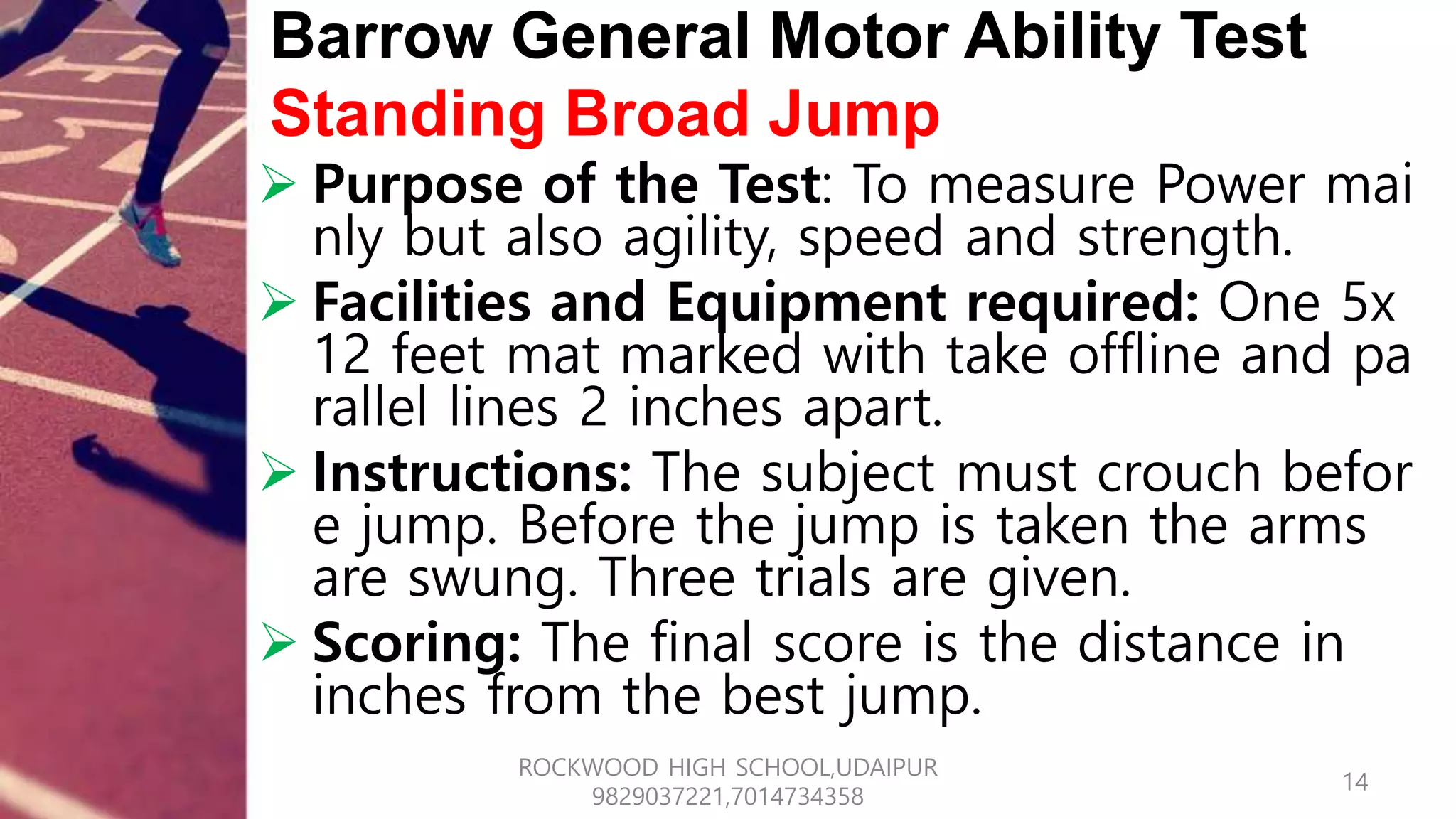

Barrow General Motor Ability Test
Standing Broad Jump
 Purpose of the Test: To measure Power mai
nly but also agility, speed and strength.
 Facilities and Equipment required: One 5x
12 feet mat marked with take offline and pa
rallel lines 2 inches apart.
 Instructions: The subject must crouch befor
e jump. Before the jump is taken the arms
are swung. Three trials are given.
 Scoring: The final score is the distance in
inches from the best jump.
14
9829037221,7014734358

Zig-Zag Run
 Purpose of the Test: To measure agility
mainly but also speeds.
 Facilities and Equipment required: One
stop watch & 5 flags or cones.
 Instructions: The subject can take start
from standing position. After the start ru
nning is done in a manner of figure of ei
ght. Like this three circuits are completed
 Scoring: The final score is the time in se
conds for three laps.
15
9829037221,7014734358

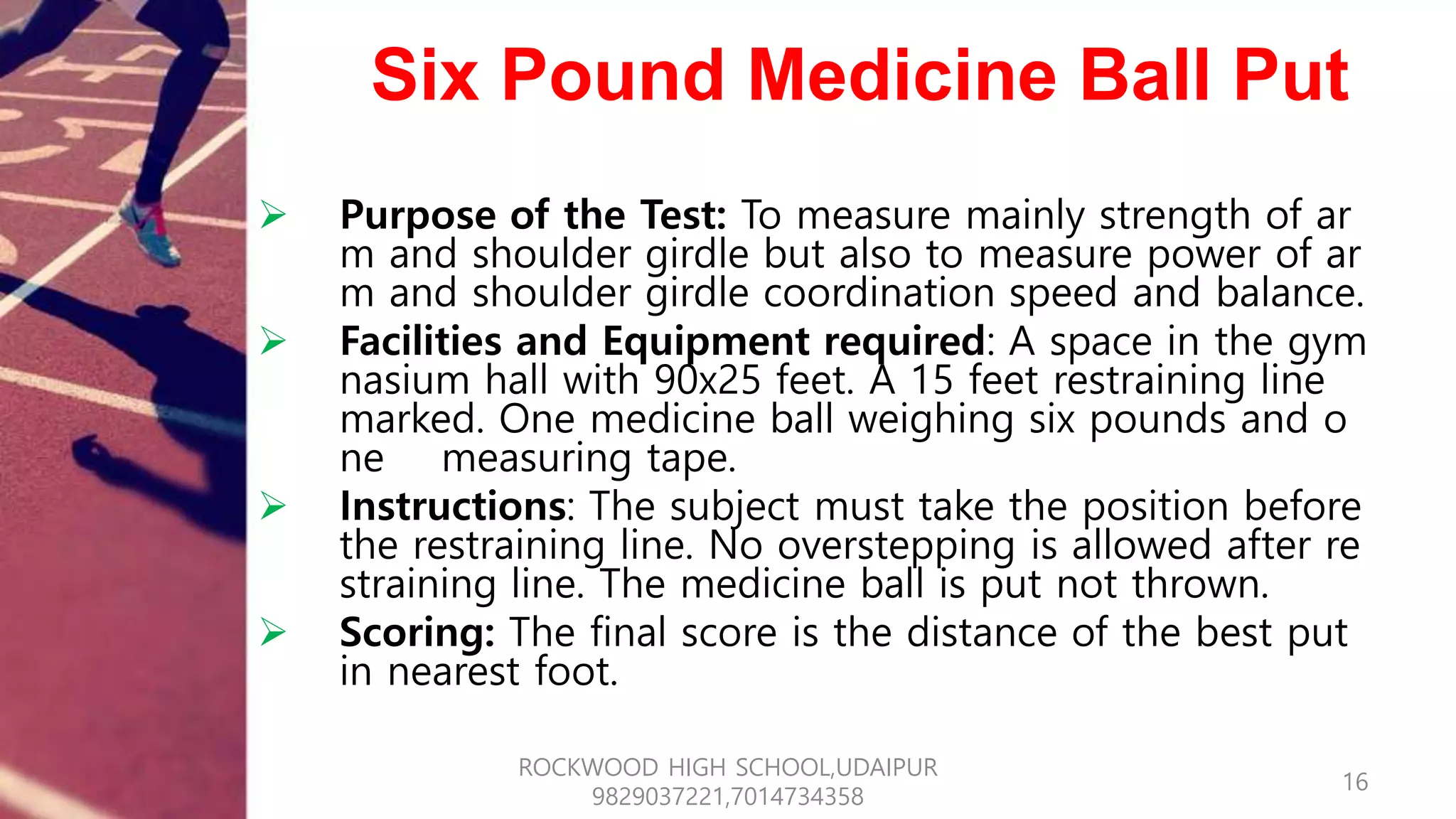

Six Pound Medicine Ball Put
 Purpose of the Test: To measure mainly strength of ar
m and shoulder girdle but also to measure power of ar
m and shoulder girdle coordination speed and balance.
 Facilities and Equipment required: A space in the gym
nasium hall with 90x25 feet. A 15 feet restraining line
marked. One medicine ball weighing six pounds and o
ne measuring tape.
 Instructions: The subject must take the position before
the restraining line. No overstepping is allowed after re
straining line. The medicine ball is put not thrown.
 Scoring: The final score is the distance of the best put
in nearest foot.
16
9829037221,7014734358

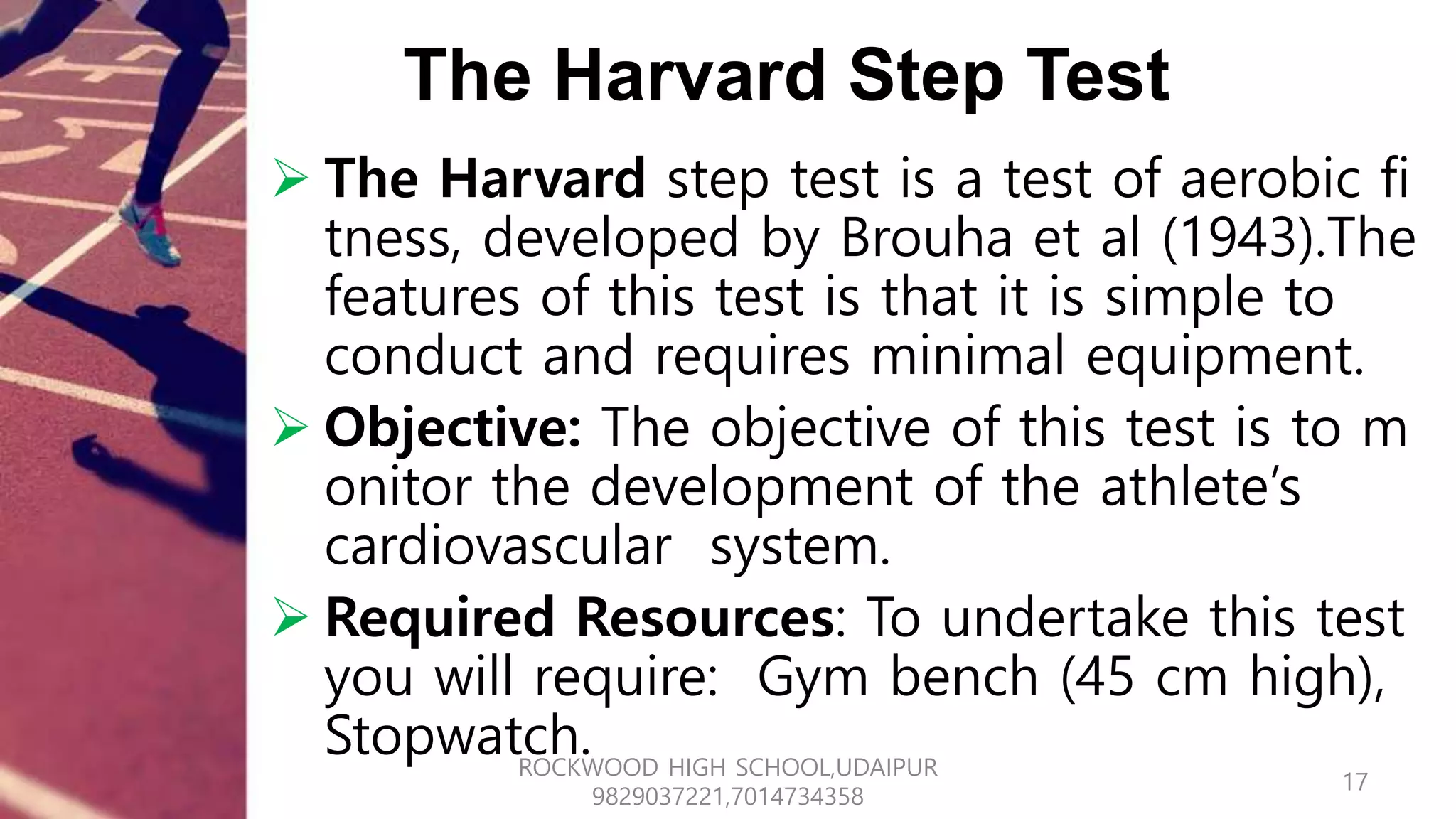

The Harvard Step Test
 The Harvard step test is a test of aerobic fi
tness, developed by Brouha et al (1943).The
features of this test is that it is simple to
conduct and requires minimal equipment.
 Objective: The objective of this test is to m
onitor the development of the athlete’s
cardiovascular system.
 Required Resources: To undertake this test
you will require: Gym bench (45 cm high),
Stopwatch.
17
9829037221,7014734358

How to conduct the Test (HST)
 The athlete warms up for 10 minutes
 The assistant gives the command “Go” and starts the
stopwatch
 The athlete steps up and down onto a standard gym
bench(45cm) for five minutes at a rate 30 steps/min
ute (150 steps)
 The assistant stops the test after 5 minutes.
 The assistant measures the athlete’s heart (bpm) one
minute after finishing the test pulse1
 The assistant measures the athlete’s rate (bpm) two
minutes after finishing the test - Pulse-2
 The assistant measures the athlete’s heart rate (bpm)
three minutes after finishing the test pulse-3
18
9829037221,7014734358

Computation of Fitness Index (HST)
 Short formula = Fitness Index= (100 × test duration in
seconds)/ (5.5 × pulse count between 1 and 1.5 mm)
 Long Formula (100 × test duration in seconds) /(2 × su
m of heart beats in the recovery periods).
 The fitness index score is determined by the following
equations.
 For example. If the total test time was 300 seconds (if
completed the whole 5 minutes) and the number of
heart beats between 1-1.5 minutes was 90. between 2-
2.5 it was 80 and between 3-3.5 it was 70, then the lo
ng form fitness index score would be : (100x300) / (2
40x2) = 62.5.
 Note: you are using the total number of heart beats in
the 30 second period. Not the rate (beats per minute)
during that time.
19
9829037221,7014734358

Fitness Index Score Card
20
9829037221,7014734358

ROCKPORT ONE MILE WALK TEST (ROMWT)
 Purpose : The purpose of this Rockport fitness walking tes
t (Kilne 1987) is to monitor the development of the athlet
e’s VO2 max.
 Equipment Requires : 400 mts track , Stopwatch,
Weighing scales, One Assistant.
 Procedure : This test requires the athlete to walk one mile
(1609 mts) as fast as possible.
 The assistant weighs and records the athlete’s weight
 The athlete warms up for 10 minutes.
 The assistant gives the command “GO”. starts the stopwatc
h and the athlete commences the test.
 The assistant records the time taken for the athlete to com
plete the test and the athlete’s heart rate immediately on
finishing.
21
9829037221,7014734358

SCORING (ROMWT)
A VO2max Score can be calculated u
sing the following equation :
Females : VO2 =- 139.168 - (0.388 x
age) - (0.077 x weight in lb.) - (3.265
x walk time in minutes) - (0.156 x he
art rate).
Males : add 6.318 to the equation
for females above.
22
9829037221,7014734358

Rockport One Mile Test Score Card
23
9829037221,7014734358

RIKLI AND JONES SENIOR CITIZEN FITNESS TEST
• The senior fitness test was developed as part of the li
fespan, wellness program at Fullerton university. By
Dr. Roberta Rikli and Dr. Jessie Jones. As such, the
test is sometimes known as the Fullerton functional t
est. It is a simple easy to use battery. This test
consists of six test items:
• Chair Stand Test
• Arm Curl Test
• Chair Sit and Reach Test
• Back Scratch Test
• 8 Foot Up and Go Test
• Six Minute Walk Test
24
9829037221,7014734358

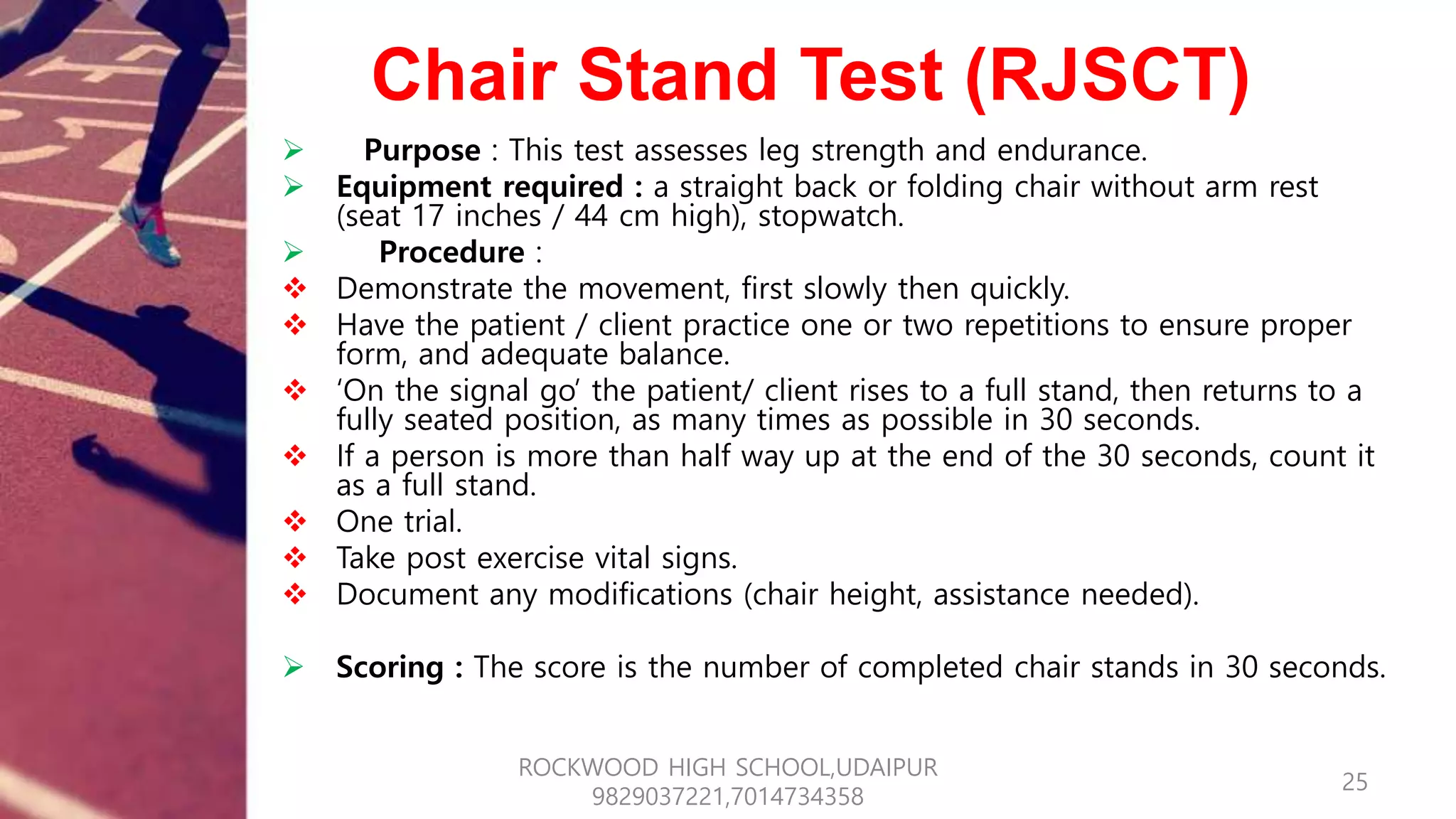

Chair Stand Test (RJSCT)
 Purpose : This test assesses leg strength and endurance.
 Equipment required : a straight back or folding chair without arm rest
(seat 17 inches / 44 cm high), stopwatch.
 Procedure :
 Demonstrate the movement, first slowly then quickly.
 Have the patient / client practice one or two repetitions to ensure proper
form, and adequate balance.
 ‘On the signal go’ the patient/ client rises to a full stand, then returns to a
fully seated position, as many times as possible in 30 seconds.
 If a person is more than half way up at the end of the 30 seconds, count it
as a full stand.
 One trial.
 Take post exercise vital signs.
 Document any modifications (chair height, assistance needed).
 Scoring : The score is the number of completed chair stands in 30 seconds.
25
9829037221,7014734358

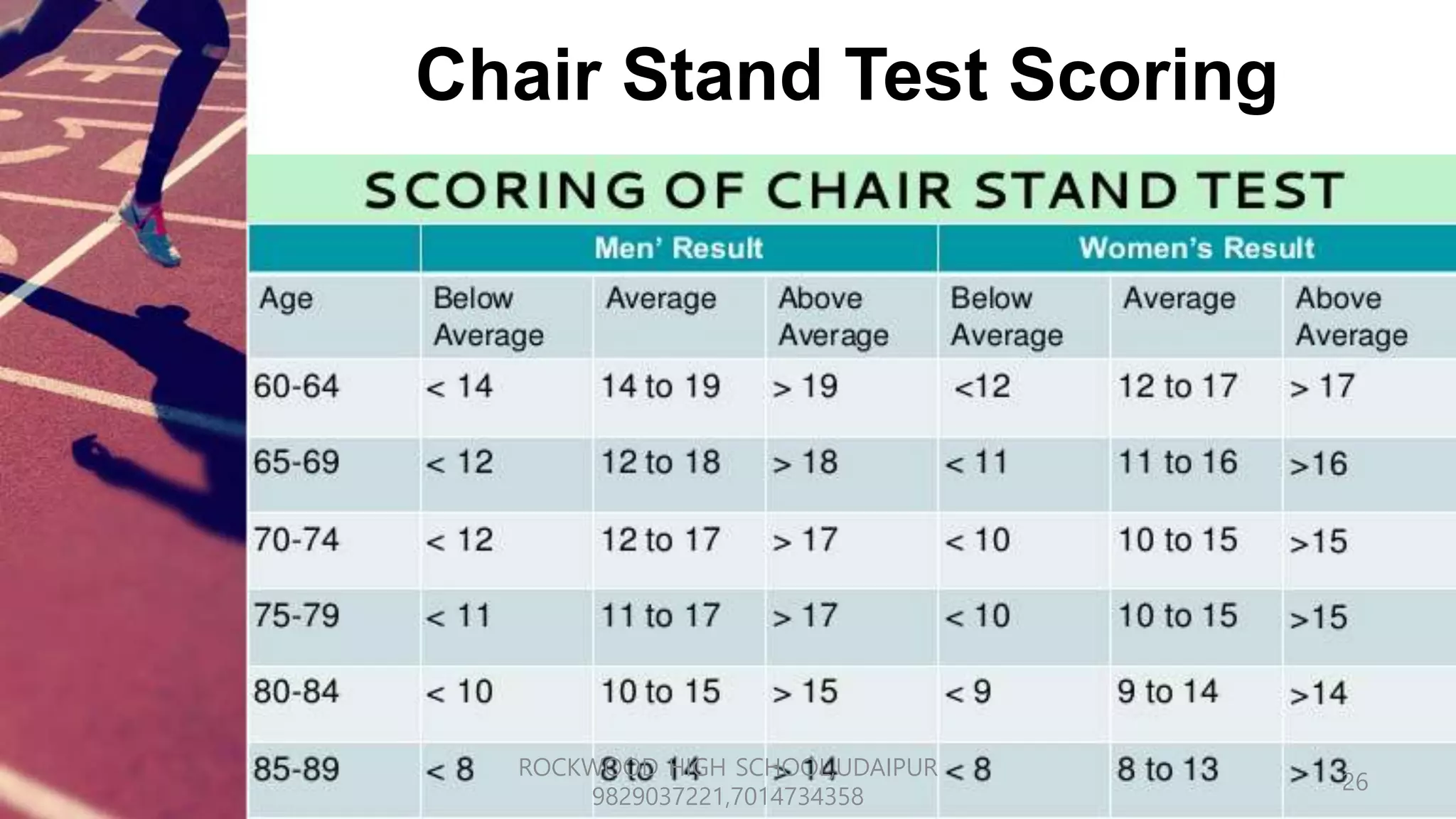

Chair Stand Test Scoring
26
9829037221,7014734358

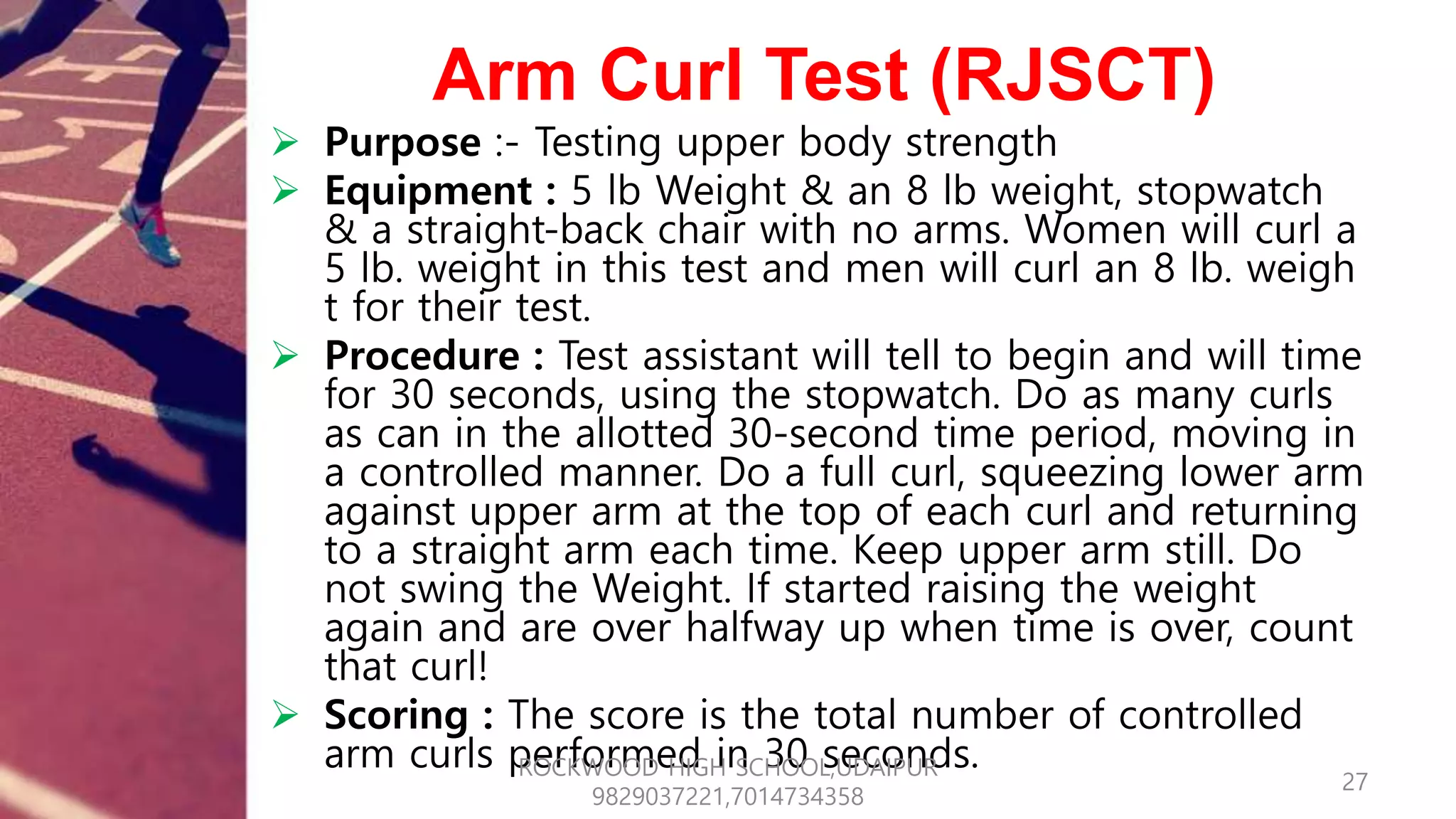

Arm Curl Test (RJSCT)
 Purpose :- Testing upper body strength
 Equipment : 5 lb Weight & an 8 lb weight, stopwatch
& a straight-back chair with no arms. Women will curl a
5 lb. weight in this test and men will curl an 8 lb. weigh
t for their test.
 Procedure : Test assistant will tell to begin and will time
for 30 seconds, using the stopwatch. Do as many curls
as can in the allotted 30-second time period, moving in
a controlled manner. Do a full curl, squeezing lower arm
against upper arm at the top of each curl and returning
to a straight arm each time. Keep upper arm still. Do
not swing the Weight. If started raising the weight
again and are over halfway up when time is over, count
that curl!
 Scoring : The score is the total number of controlled
arm curls performed in 30 seconds.
27
9829037221,7014734358

Arm Curl Test Scoring
28
9829037221,7014734358

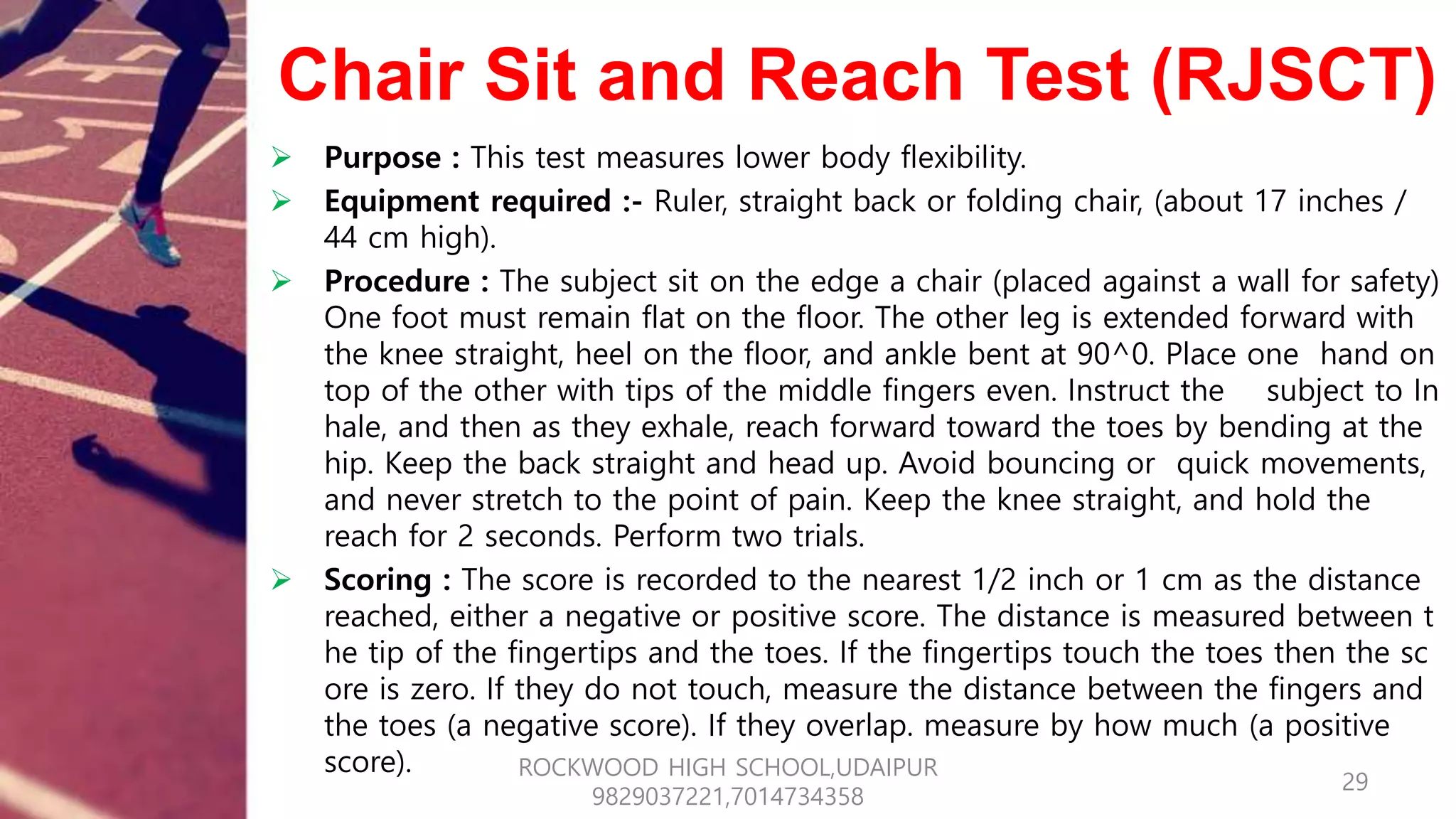

Chair Sit and Reach Test (RJSCT)
 Purpose : This test measures lower body flexibility.
 Equipment required :- Ruler, straight back or folding chair, (about 17 inches /
44 cm high).
 Procedure : The subject sit on the edge a chair (placed against a wall for safety)
One foot must remain flat on the floor. The other leg is extended forward with
the knee straight, heel on the floor, and ankle bent at 90^0. Place one hand on
top of the other with tips of the middle fingers even. Instruct the subject to In
hale, and then as they exhale, reach forward toward the toes by bending at the
hip. Keep the back straight and head up. Avoid bouncing or quick movements,
and never stretch to the point of pain. Keep the knee straight, and hold the
reach for 2 seconds. Perform two trials.
 Scoring : The score is recorded to the nearest 1/2 inch or 1 cm as the distance
reached, either a negative or positive score. The distance is measured between t
he tip of the fingertips and the toes. If the fingertips touch the toes then the sc
ore is zero. If they do not touch, measure the distance between the fingers and
the toes (a negative score). If they overlap. measure by how much (a positive
score).
29
9829037221,7014734358

Chair Sit & Reach Test Scoring
30
9829037221,7014734358

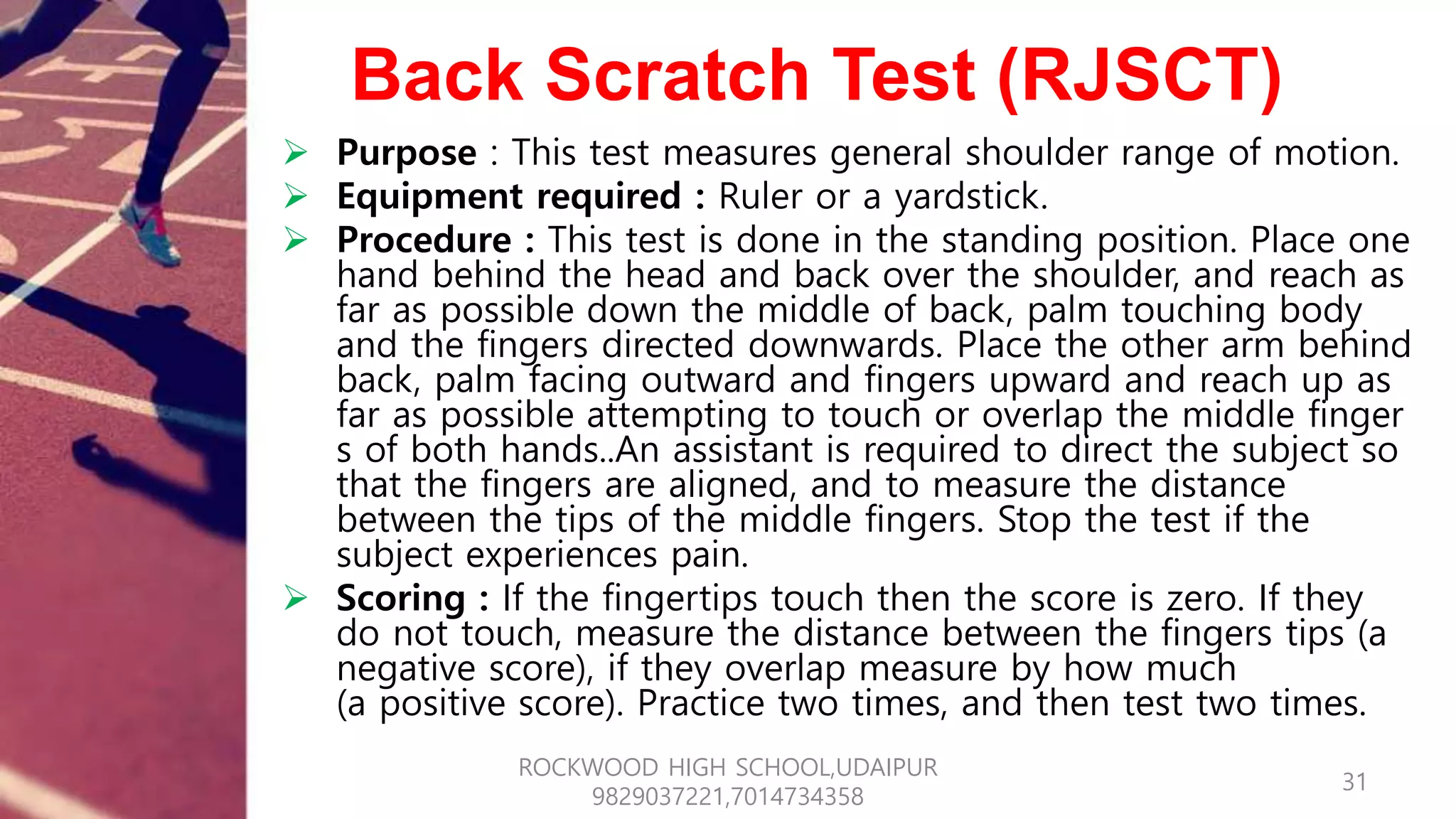

Back Scratch Test (RJSCT)
 Purpose : This test measures general shoulder range of motion.
 Equipment required : Ruler or a yardstick.
 Procedure : This test is done in the standing position. Place one
hand behind the head and back over the shoulder, and reach as
far as possible down the middle of back, palm touching body
and the fingers directed downwards. Place the other arm behind
back, palm facing outward and fingers upward and reach up as
far as possible attempting to touch or overlap the middle finger
s of both hands..An assistant is required to direct the subject so
that the fingers are aligned, and to measure the distance
between the tips of the middle fingers. Stop the test if the
subject experiences pain.
 Scoring : If the fingertips touch then the score is zero. If they
do not touch, measure the distance between the fingers tips (a
negative score), if they overlap measure by how much
(a positive score). Practice two times, and then test two times.
31
9829037221,7014734358

Back Stretch Test Scoring
32
9829037221,7014734358

8 Foot Up and Go Test (RJSCT)
 Purpose : To measures power, speed, agility and dynamic
balance.
 Equipment required : Stopwatch, straight back or folding
chair (about 17 inches / 44 cm high), cone marker,
measuring tape, area clear of obstacles.
 Procedure : Place the chair next to a wall (for safety) and
the marker 8 feet in front in of the chair. Clear the path
between the chair the marker. The subject starts fully seate
d, hands resting on the knees and feet flat on the ground.
On the command, “Go,” timing is started and the subject
stands and walks (no running) as quickly as possible (and
safety) to and around the cone; returning to the chair to
sit down. Timing stops as they sit down. Perform two trials
 Scoring : Take the best time of the two trials to the
nearest 1/ 10th second.
33
9829037221,7014734358

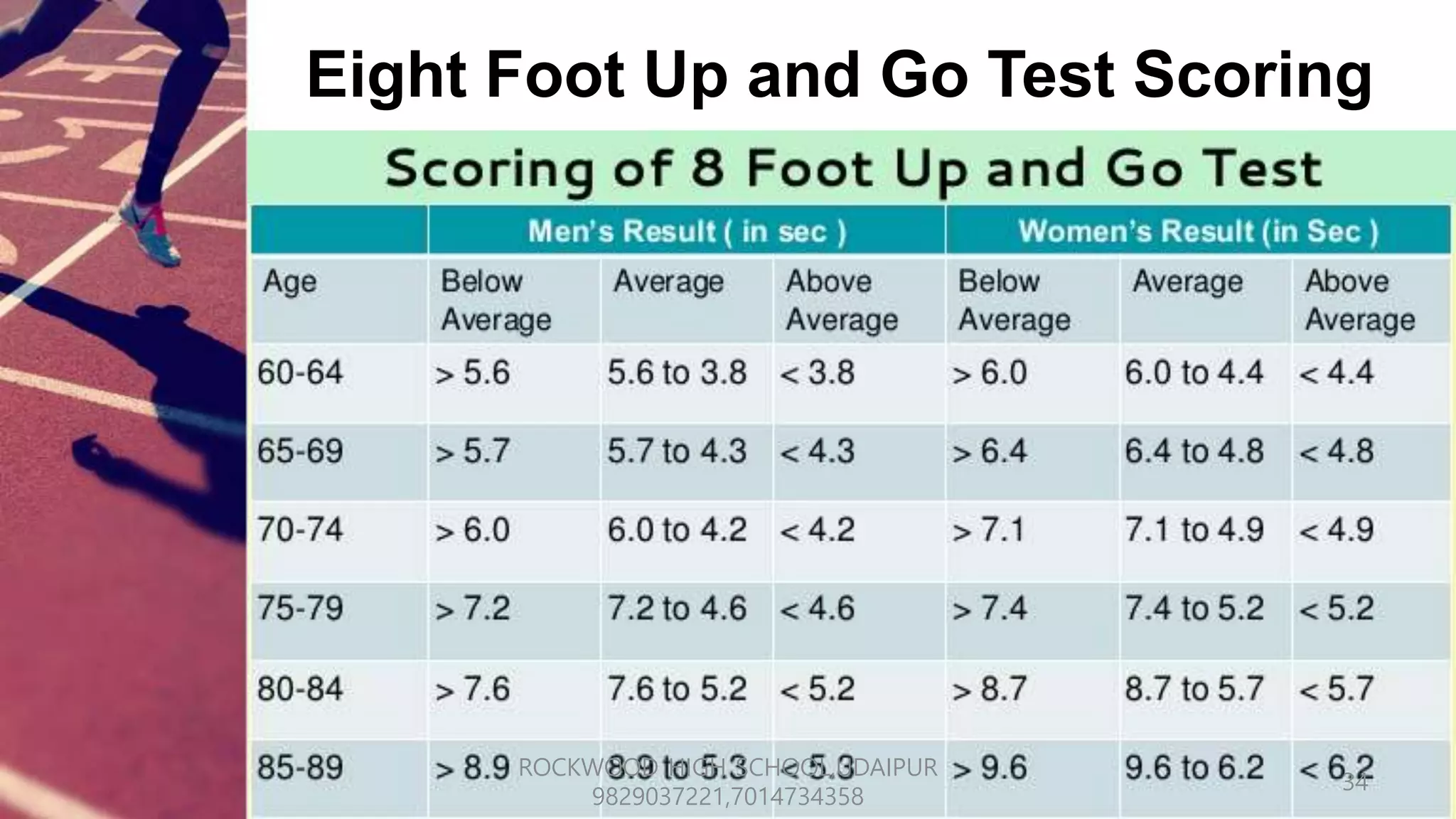

Eight Foot Up and Go Test Scoring
34
9829037221,7014734358

Six Minute Walk Test (RJSCT)
 Purpose : This test measures aerobic fitness.
 Equipment required : Measuring tap to mark out
the track distance, stopwatch, chairs positioned for
resting.
 Procedure : The walking course is laid out in a 50 ya
rd (45.72m) rectangular area (dimensions 45 x 5 yard
s), with cones placed at regular intervals to indicate
distance walked. The aim of this test is to walk as
quickly as possible for six minutes to cover as much
ground as possible. Subjects are set their own pace
(a preliminary trial is useful to practice pacing), and
are able to stop for a rest if they desire.
 Scoring : measure the distance walked in 6 minutes
to the nearest meters.
35
9829037221,7014734358

Six Minute Run/Walk Test Scoring
36
9829037221,7014734358

Chapter 6 Test and Measurement in sports

More Related Content

What's hot

Similar to Chapter 6 Test and Measurement in sports

Recently uploaded

Chapter 6 Test and Measurement in sports
