This document discusses how network design should consider application requirements and traffic flows. It identifies the main types of application communication and how to characterize applications. Key factors that affect network design are internal and external traffic patterns, hardware capabilities, and quality of service implementation. Specific application categories like voice/video, file transfer, and web traffic are examined for their network impacts. The document emphasizes documenting application network needs through diagrams of traffic flows within the local network and to remote sites.

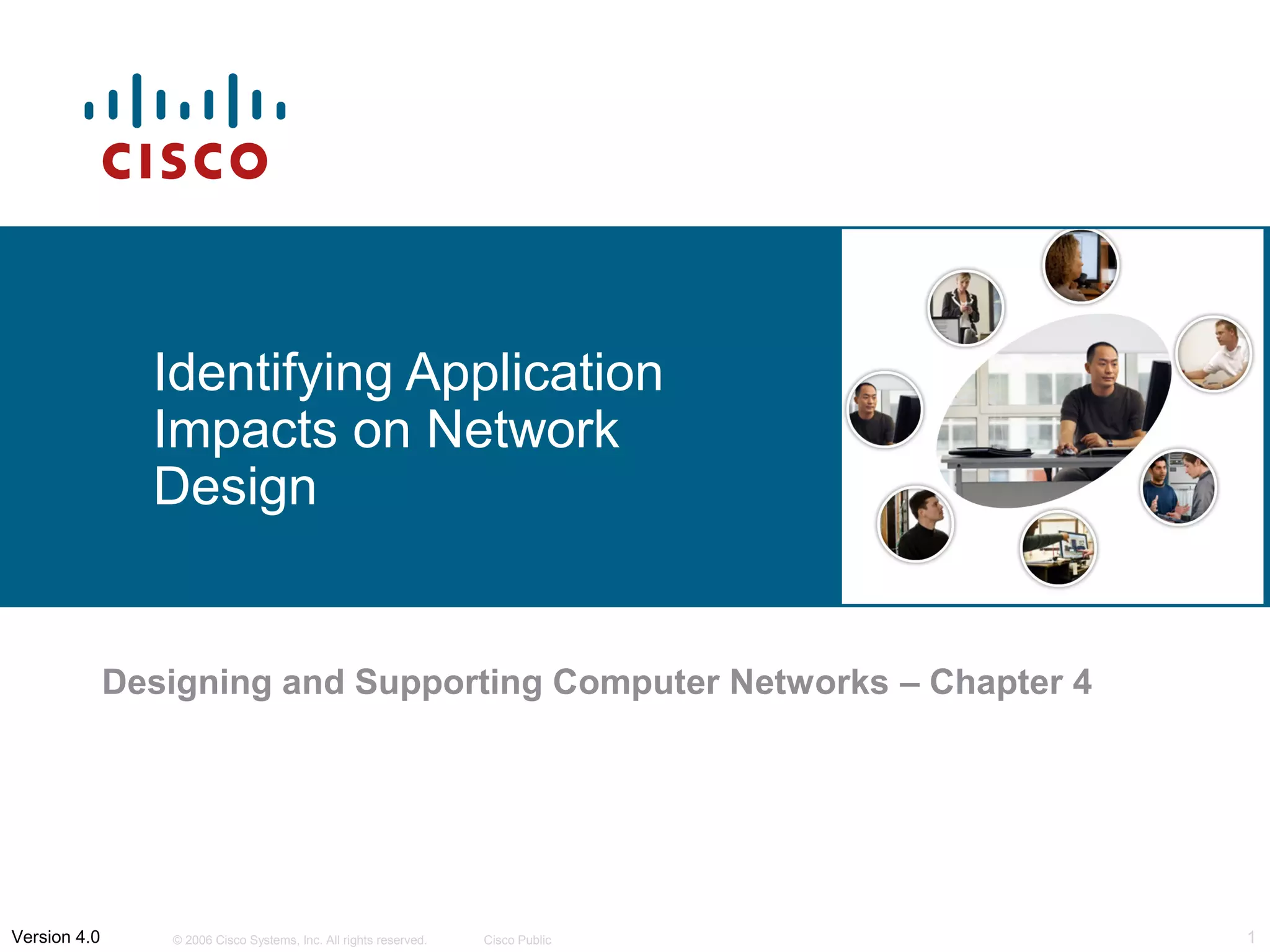

1. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 1Version 4.0
Identifying Application
Impacts on Network
Design
Designing and Supporting Computer Networks – Chapter 4

2. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 2
Objectives
 Explain how applications and traffic flow can affect the
design of the network
 Identify application impacts on network design
 Explain how Quality of Service is implemented on the
LAN/WAN
 Explain the options for supporting voice and video
traffic on the network
 Document the network requirements of specific
categories of applications and diagram the application
traffic flows through the network

3. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 3
Explain How Applications and Traffic
Flow Can Affect the Network Design
 Application performance depends on availability and
responsiveness
 Measurement: user satisfaction, throughput, technical
metrics

4. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 4
Explain How Applications and Traffic
Flow Can Affect the Network Design
Four main types of application communication:
 Client-to-client
 Client-to-distributed server
 Client-to-server farm
 Client-to-enterprise edge

5. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 5
Characterize applications by gathering information:
 Organizational output
 Network audit
 Traffic analysis
Explain How Applications and Traffic
Flow Can Affect the Network Design

6. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 6
Explain How Applications and Traffic
Flow Can Affect the Network Design
 Internal traffic: identify areas where high bandwidth is
needed, and possible bottlenecks
 External traffic: determine placement of firewalls and
DMZ networks

7. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 7
Explain How Applications and Traffic
Flow Can Affect the Network Design
 Installed hardware affects application performance
 Choose hardware after analyzing technical
requirements

8. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 8
Identifying Application Impacts on
Network Design
Transaction-processing
applications:
 Additional operations
required
 Immediate response to
user requests
 Redundancy and security
required

9. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 9
Identifying Application Impacts on
Network Design
Real-time streaming applications:
 Minimize latency and jitter
 Infrastructure may need to be upgraded

10. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 10
Identifying Application Impacts on
Network Design
File transfer and email applications:
 Unpredictable bandwidth usage
 Large packet size
 Centralization of file and mail servers in a secure
location
 Redundancy to ensure reliable service

11. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 11
Identifying Application Impacts on
Network Design
HTTP and web traffic:
 Network media
 Redundancy
 Security

12. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 12
Identifying Application Impacts on
Network Design
Microsoft Domain Services:
 Active Directory Services
 Broadcast generation
 Tight integration between ADS, DNS, and DHCP

13. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 13
Explain how Quality of Service is
Implemented on the LAN/WAN
 Capability of a network to provide preferential service to
selected network traffic
 Dedicated bandwidth, controlled jitter and latency, and
reduced packet loss

14. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 14
Explain how Quality of Service is
Implemented on the LAN/WAN
Implementing traffic queues:
 Identify traffic requirements
 Define traffic classes
 Define QoS policies

15. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 15
Explain how Quality of Service is
Implemented on the LAN/WAN
Set priorities to manage
traffic:
 Queue type
 Traffic assignment
 Size
 Filter traffic into high,
medium, normal and
low priorities

16. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 16
Explain how Quality of Service is
Implemented on the LAN/WAN
Where QoS can be implemented to affect traffic flow:
 Layer 2 devices
 Layer 3 devices

17. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 17
Explain the Options for Supporting Voice
and Video Traffic on the Network
Network design implications of converged networking:
 Strong performance
 Security features
 Mandatory use of QoS mechanisms

18. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 18
Explain the Options for Supporting Voice
and Video Traffic on the Network
Network design implications of IP telephony:
 Power and capacity planning
 Identifying contending traffic flows
 Selecting components for the IP telephony solution

19. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 19
Explain the Options for Supporting Voice
and Video Traffic on the Network
Live video:
• Streaming media files
• User sees content before all
packets have arrived
• No need to store large media
files before playing them
• Uses multicast packets to
many users at the same time
Video on Demand:
 Either stream or download
before viewing
 Users can store content and
view later
 Unicast packets to a specific
user requesting the service

20. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 20
Explain the Options for Supporting Voice
and Video Traffic on the Network
Supporting remote workers with voice and video:
 Assess bandwidth requirements for WAN connection
 Permanent link or on-demand

21. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 21
Document the Network Requirements of
Specific Categories of Applications
 Estimate the volume of application traffic during the
initial design phase.
 Document projected applications and associated
hardware in a network diagram.

22. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 22
Document the Network Requirements of
Specific Categories of Applications
 Diagram the flow of traffic to and from hosts and
servers within the LAN

23. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 23
Document the Network Requirements of
Specific Categories of Applications
 Diagram the flow of traffic to and from remote sites,
including VPN traffic

24. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 24
Document the Network Requirements of
Specific Categories of Applications
 Diagram outgoing traffic flows destined for the Internet
gateway and incoming traffic from the Internet to
locally-provided services

25. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 25
Document the Network Requirements of
Specific Categories of Applications
 Diagram extranet traffic flows to and from selected
trusted partners, customers, and vendors

26. © 2006 Cisco Systems, Inc. All rights reserved. Cisco Public 26
Summary
 End users evaluate network performance based on the
availability and responsiveness of their applications.
 The choice of hardware installed on a network can
affect the performance of the applications.
 When adding a new application, the designer must
consider the impact on the performance of existing
applications.
 Voice and video applications present unique
requirements, as they cannot tolerate delays.
 Security and reliability are primary concerns in a
network supporting high volumes of web traffic.
 The primary goal of QoS is to provide priority,
dedicated bandwidth, controlled jitter and latency, and
reduced packet loss.
