1. The Research Process: An Eight-step Model
Research
Methodology
March 2023
1
S. Hassan Adelyar, Ph.D
Instructor of Computer Science Faculty
Kabul University
July 2023
The Research Process: An Eight-step Model

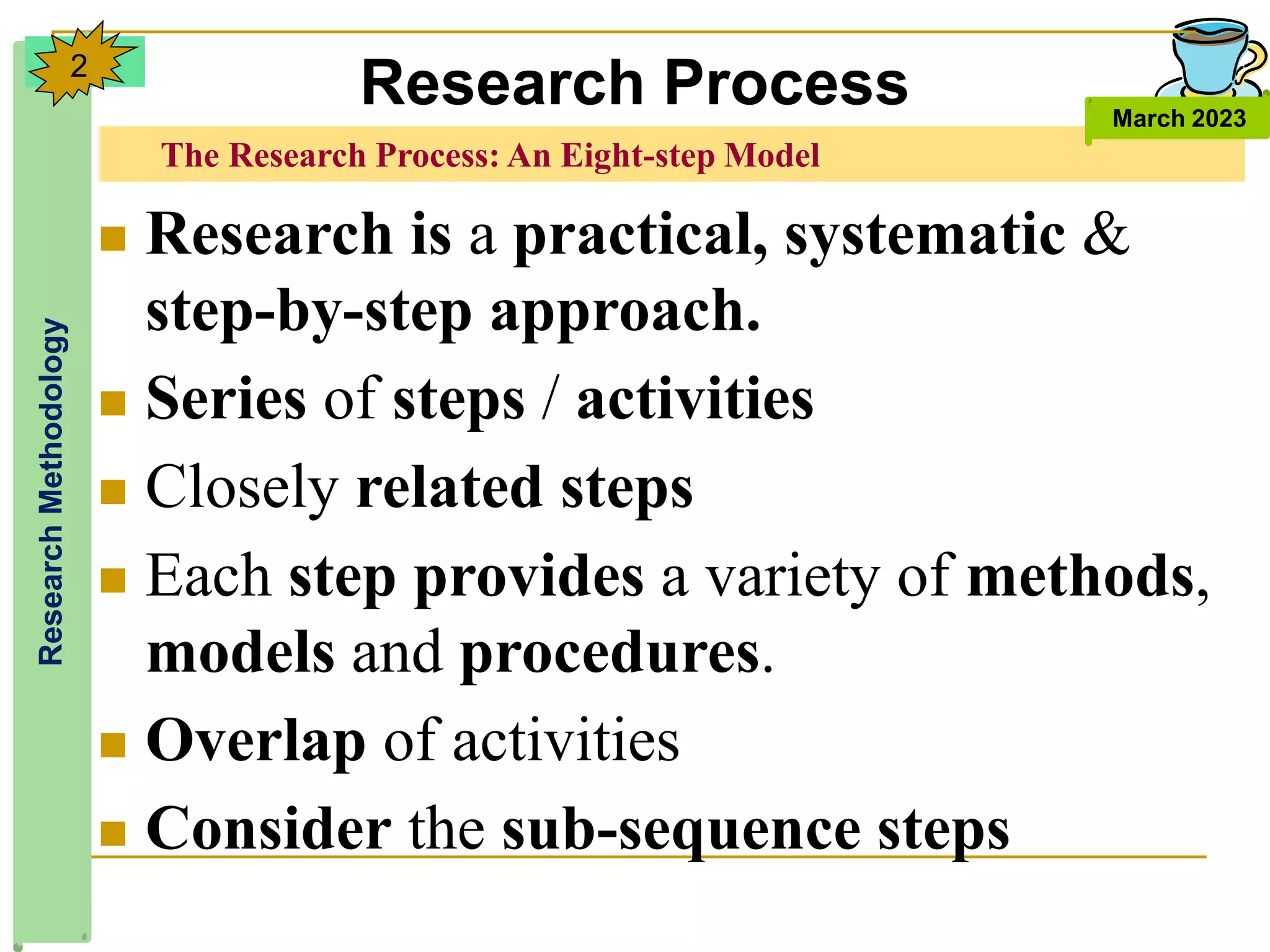

2. The Research Process: An Eight-step Model
Research
Methodology
March 2023
2
 Research is a practical, systematic &
step-by-step approach.
 Series of steps / activities
 Closely related steps
 Each step provides a variety of methods,
models and procedures.
 Overlap of activities
 Consider the sub-sequence steps
Research Process

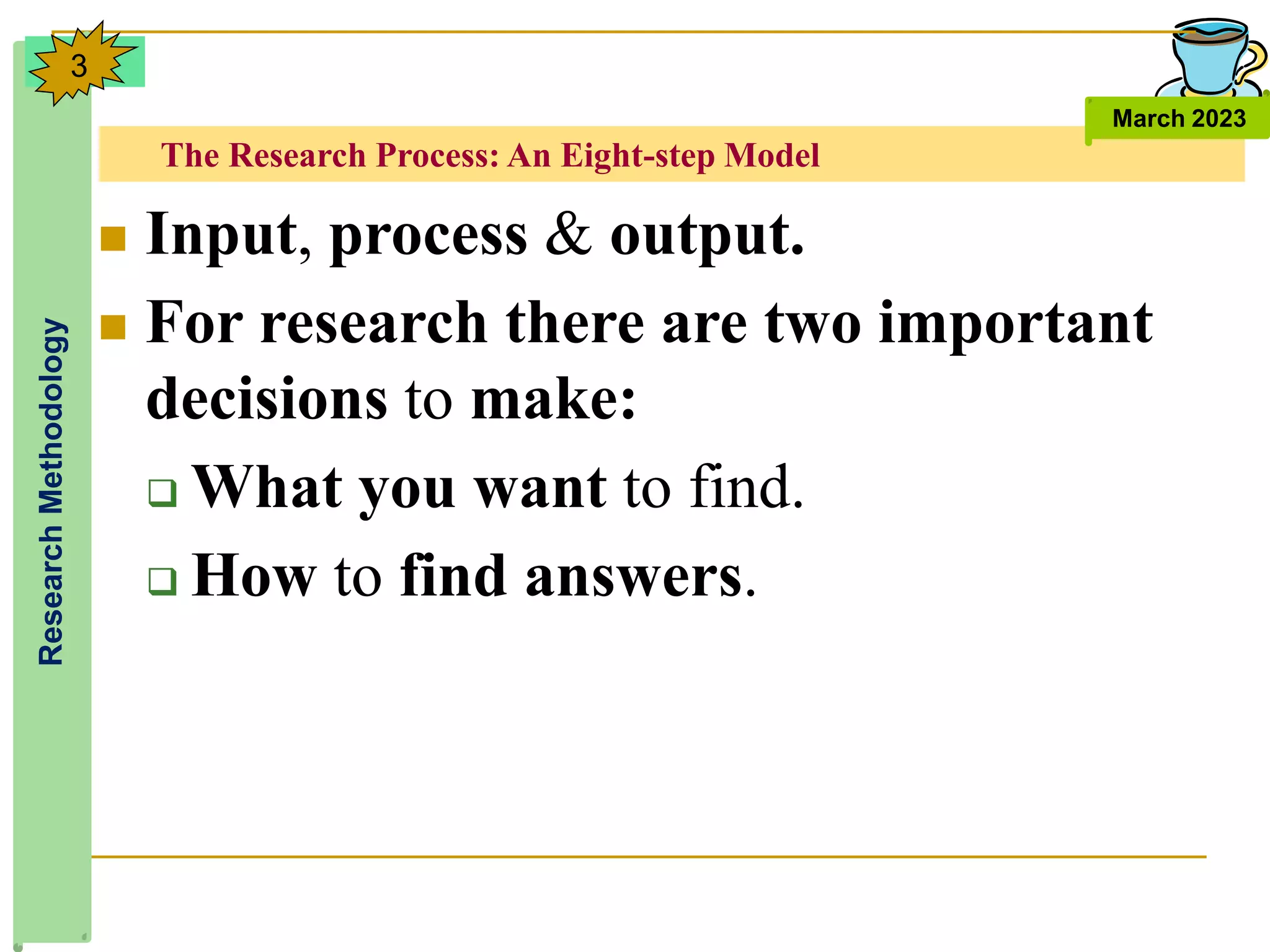

3. The Research Process: An Eight-step Model
Research
Methodology
March 2023
3
 Input, process & output.
 For research there are two important
decisions to make:
 What you want to find.
 How to find answers.

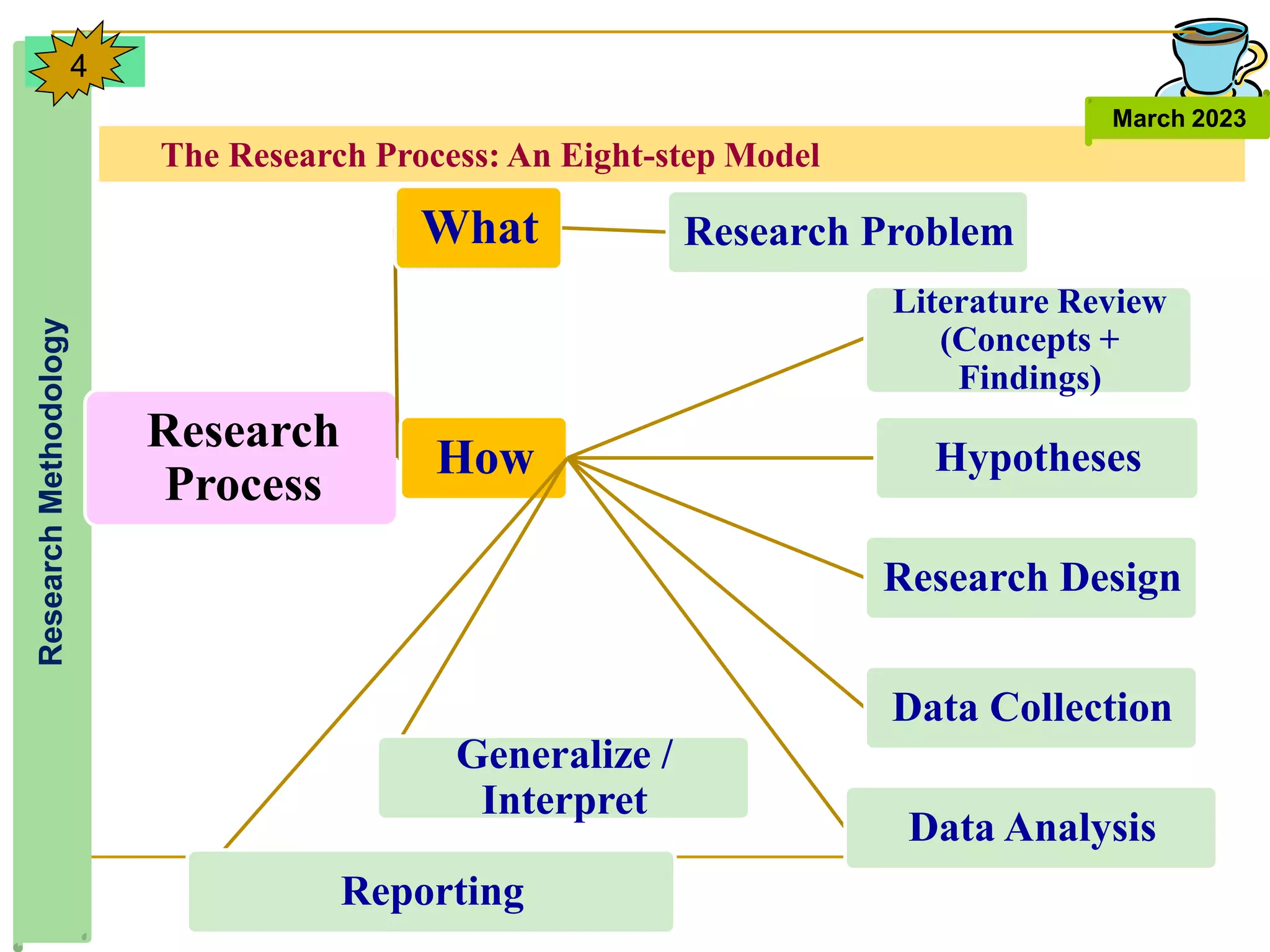

4. The Research Process: An Eight-step Model
Research
Methodology
March 2023
4
Research
Process
What Research Problem
How
Literature Review
(Concepts +
Findings)
Hypotheses
Research Design
Data Collection
Data Analysis
Generalize /
Interpret
Reporting

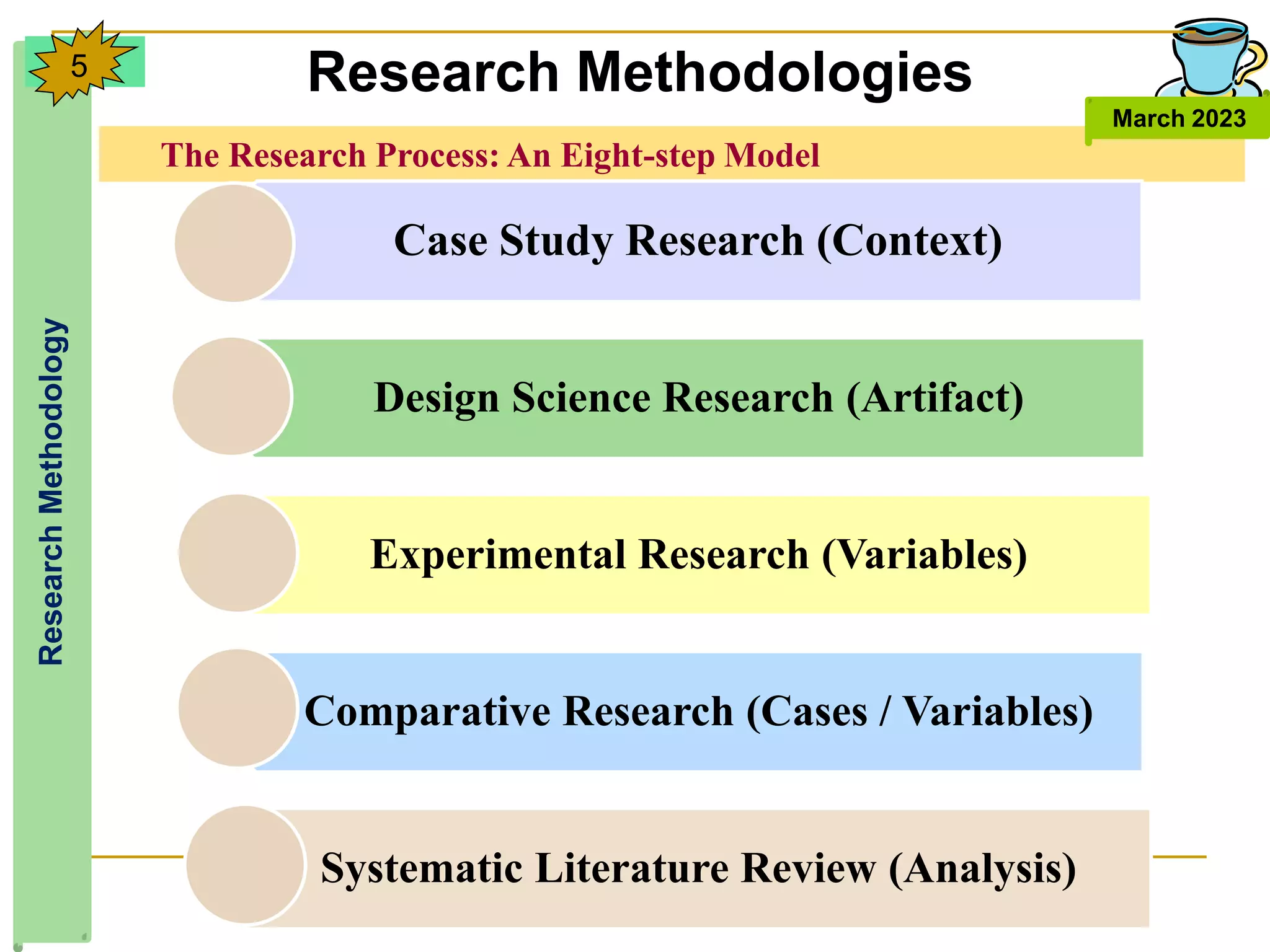

5. The Research Process: An Eight-step Model
Research
Methodology
March 2023
5 Research Methodologies
Case Study Research (Context)
Design Science Research (Artifact)
Experimental Research (Variables)
Comparative Research (Cases / Variables)
Systematic Literature Review (Analysis)

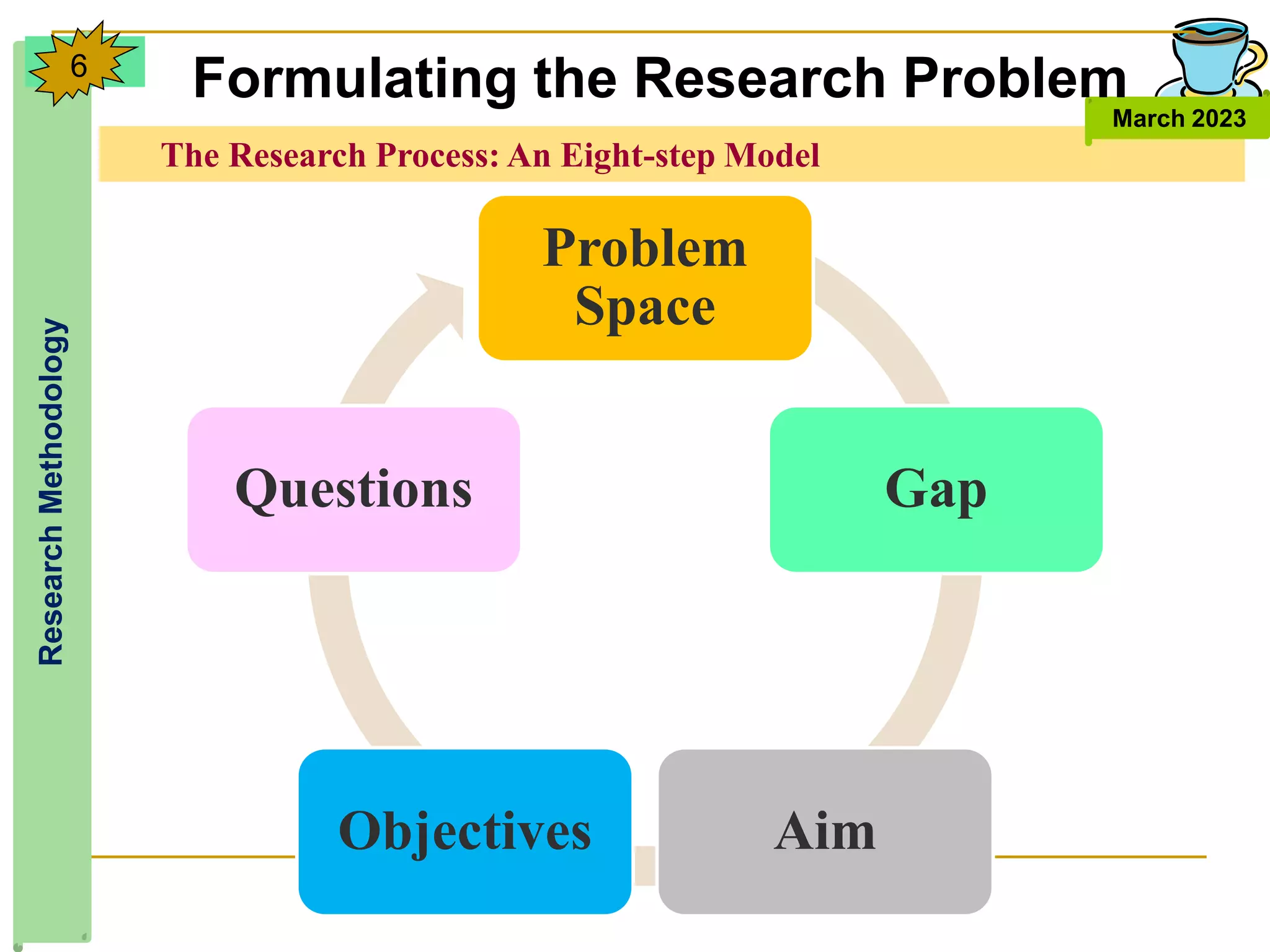

6. The Research Process: An Eight-step Model
Research
Methodology
March 2023
6
Formulating the Research Problem
Problem
Space
Gap
Aim
Objectives
Questions

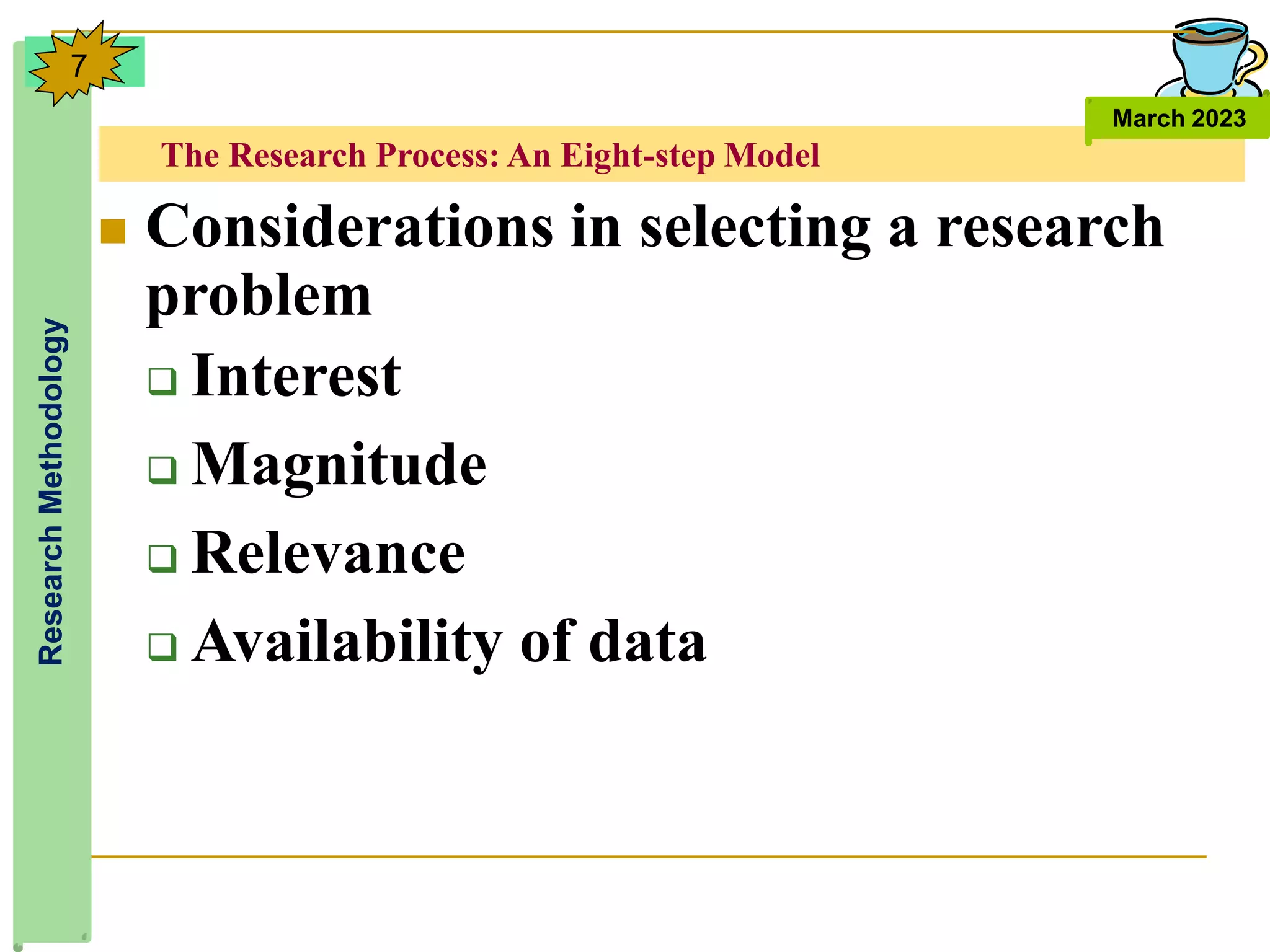

7. The Research Process: An Eight-step Model
Research
Methodology
March 2023
7
 Considerations in selecting a research
problem
 Interest
 Magnitude
 Relevance
 Availability of data

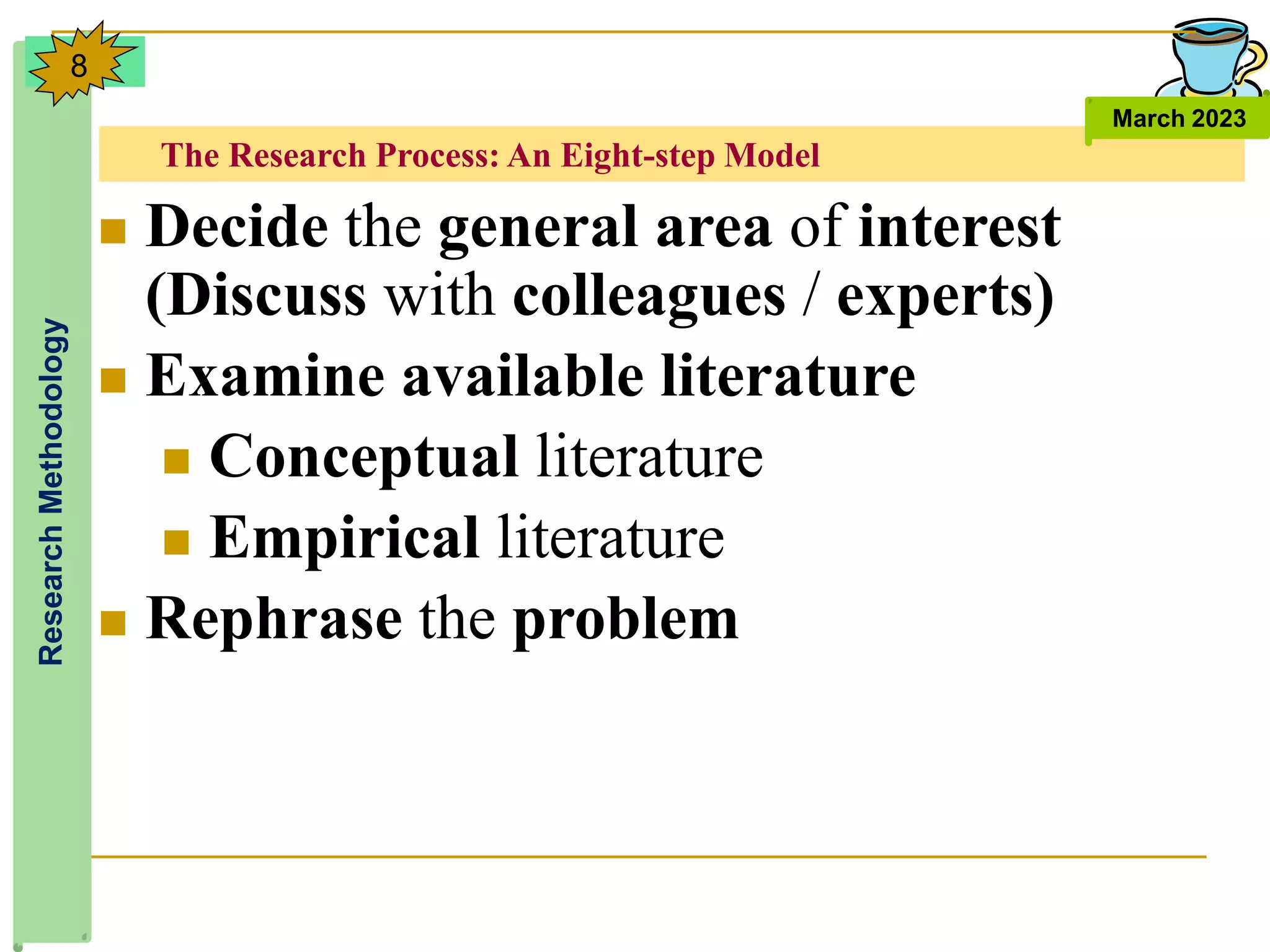

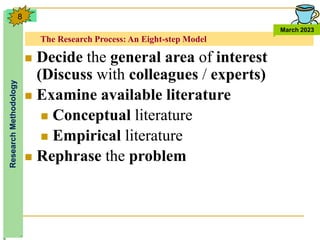

8. The Research Process: An Eight-step Model
Research
Methodology
March 2023
8
 Decide the general area of interest
(Discuss with colleagues / experts)
 Examine available literature
 Conceptual literature
 Empirical literature
 Rephrase the problem

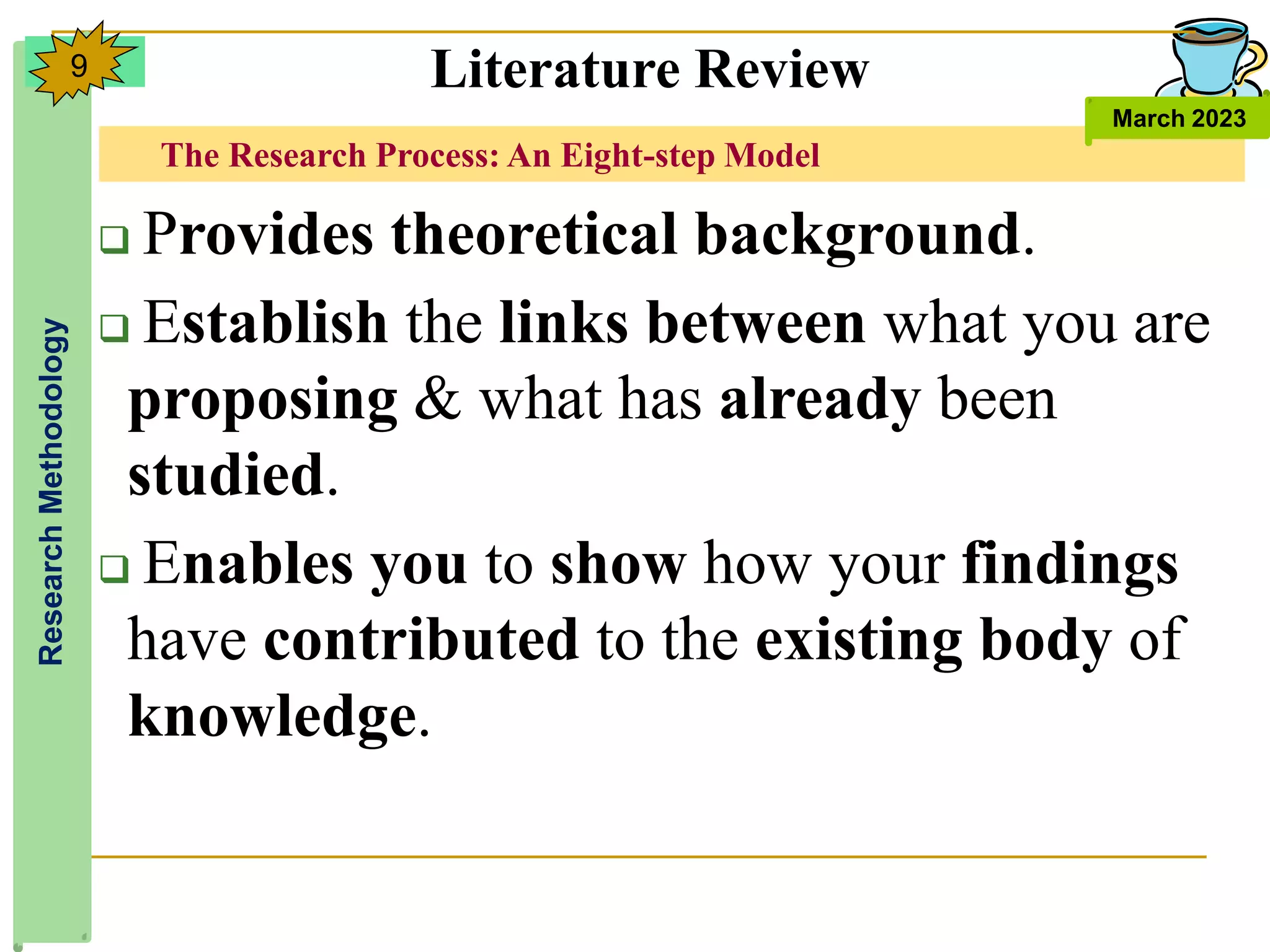

9. The Research Process: An Eight-step Model
Research
Methodology
March 2023
9
 Provides theoretical background.
 Establish the links between what you are
proposing & what has already been
studied.
 Enables you to show how your findings
have contributed to the existing body of
knowledge.
Literature Review

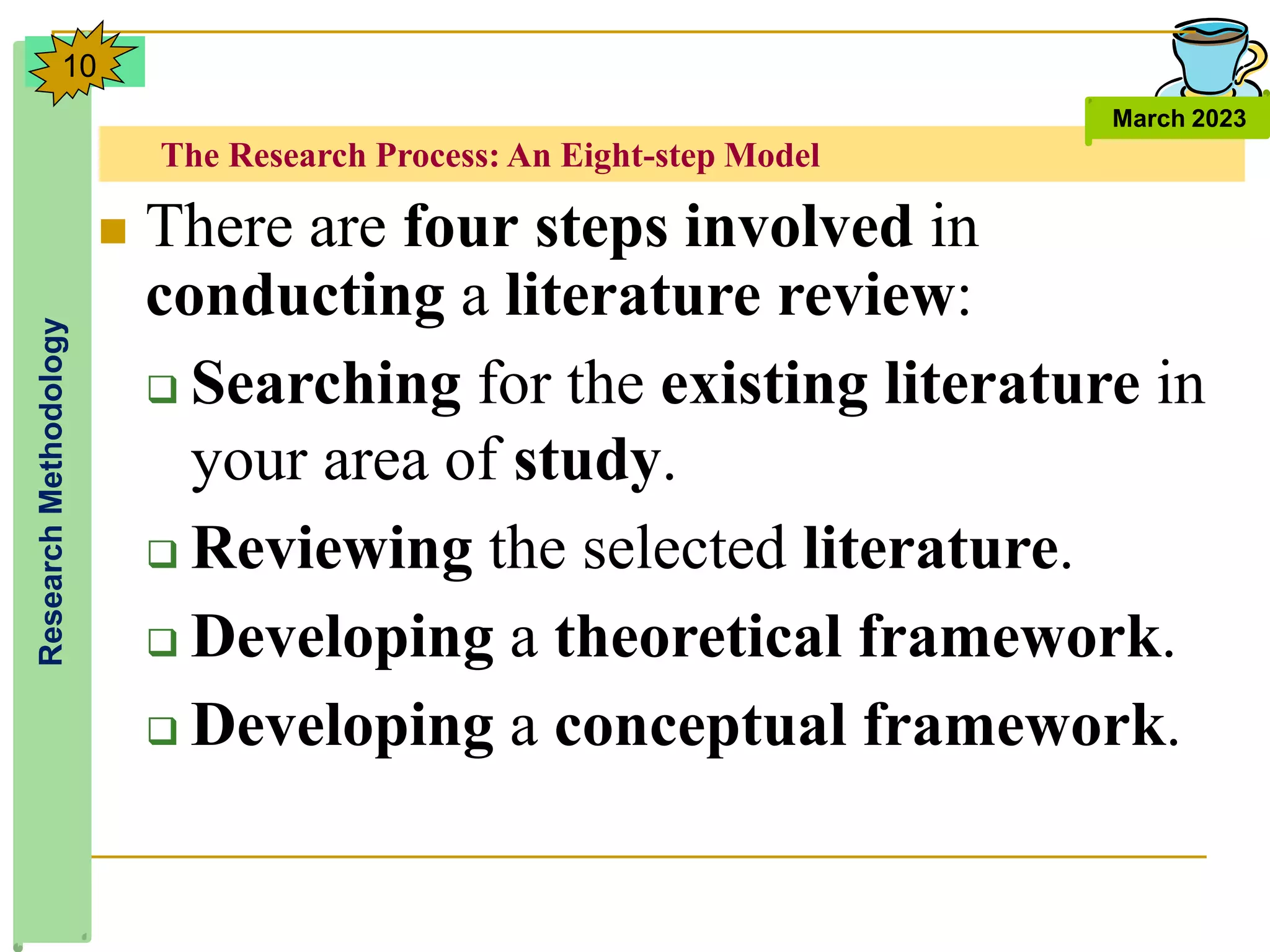

10. The Research Process: An Eight-step Model
Research
Methodology
March 2023
10
 There are four steps involved in
conducting a literature review:
 Searching for the existing literature in
your area of study.
 Reviewing the selected literature.
 Developing a theoretical framework.
 Developing a conceptual framework.

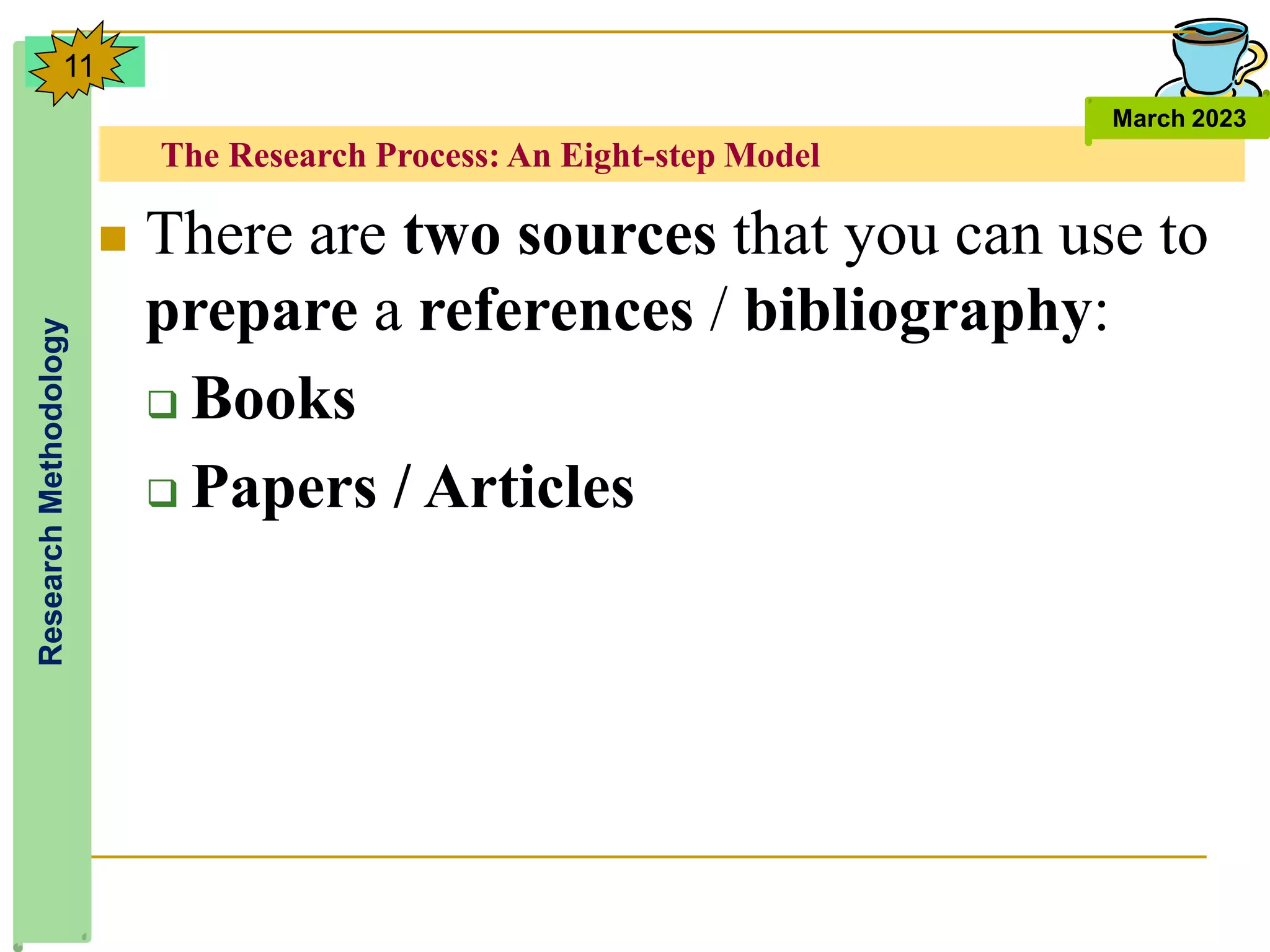

11. The Research Process: An Eight-step Model
Research
Methodology
March 2023
11
 There are two sources that you can use to
prepare a references / bibliography:
 Books
 Papers / Articles

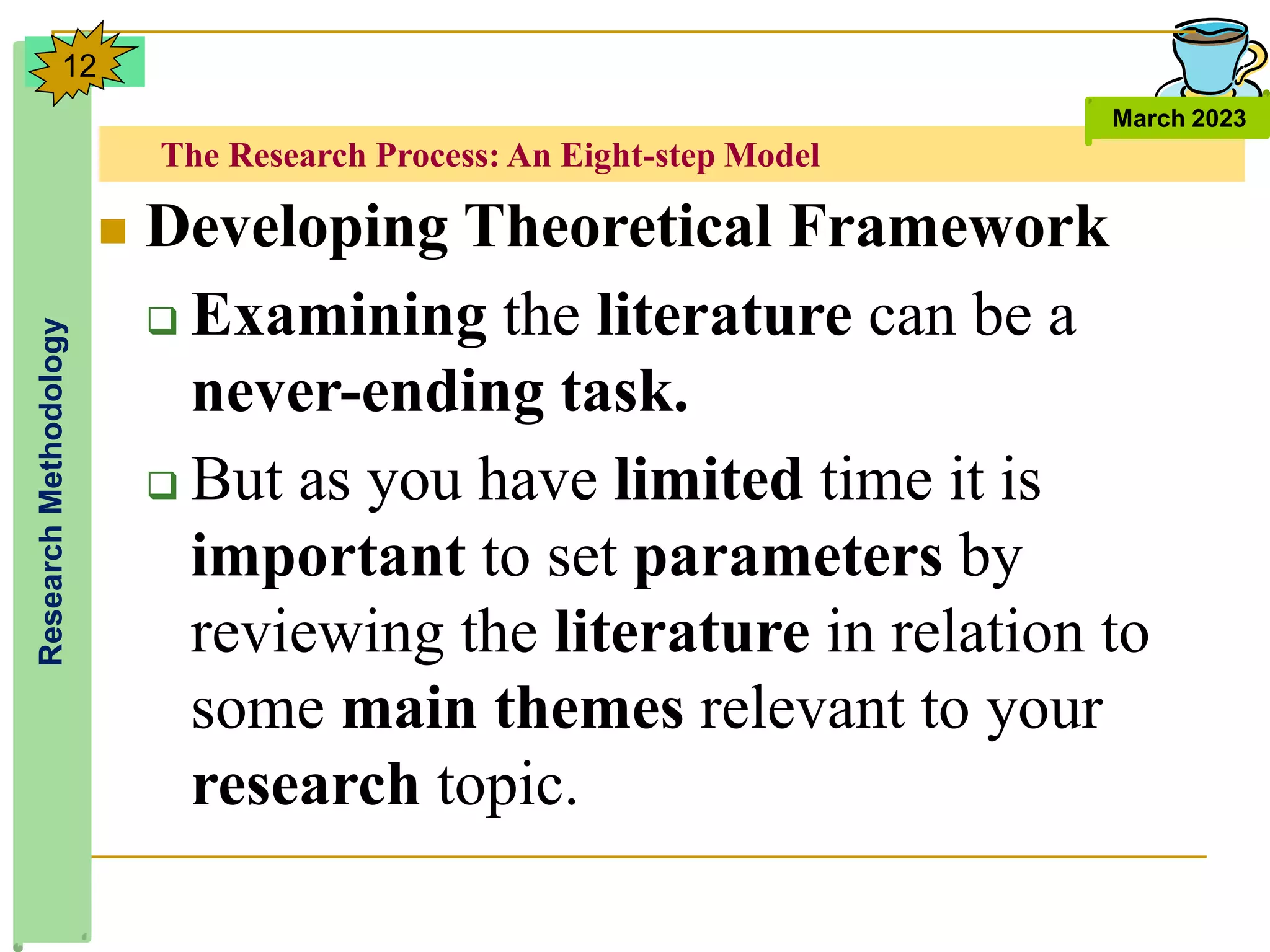

12. The Research Process: An Eight-step Model
Research
Methodology
March 2023
12
 Developing Theoretical Framework
 Examining the literature can be a
never-ending task.
 But as you have limited time it is
important to set parameters by
reviewing the literature in relation to
some main themes relevant to your
research topic.

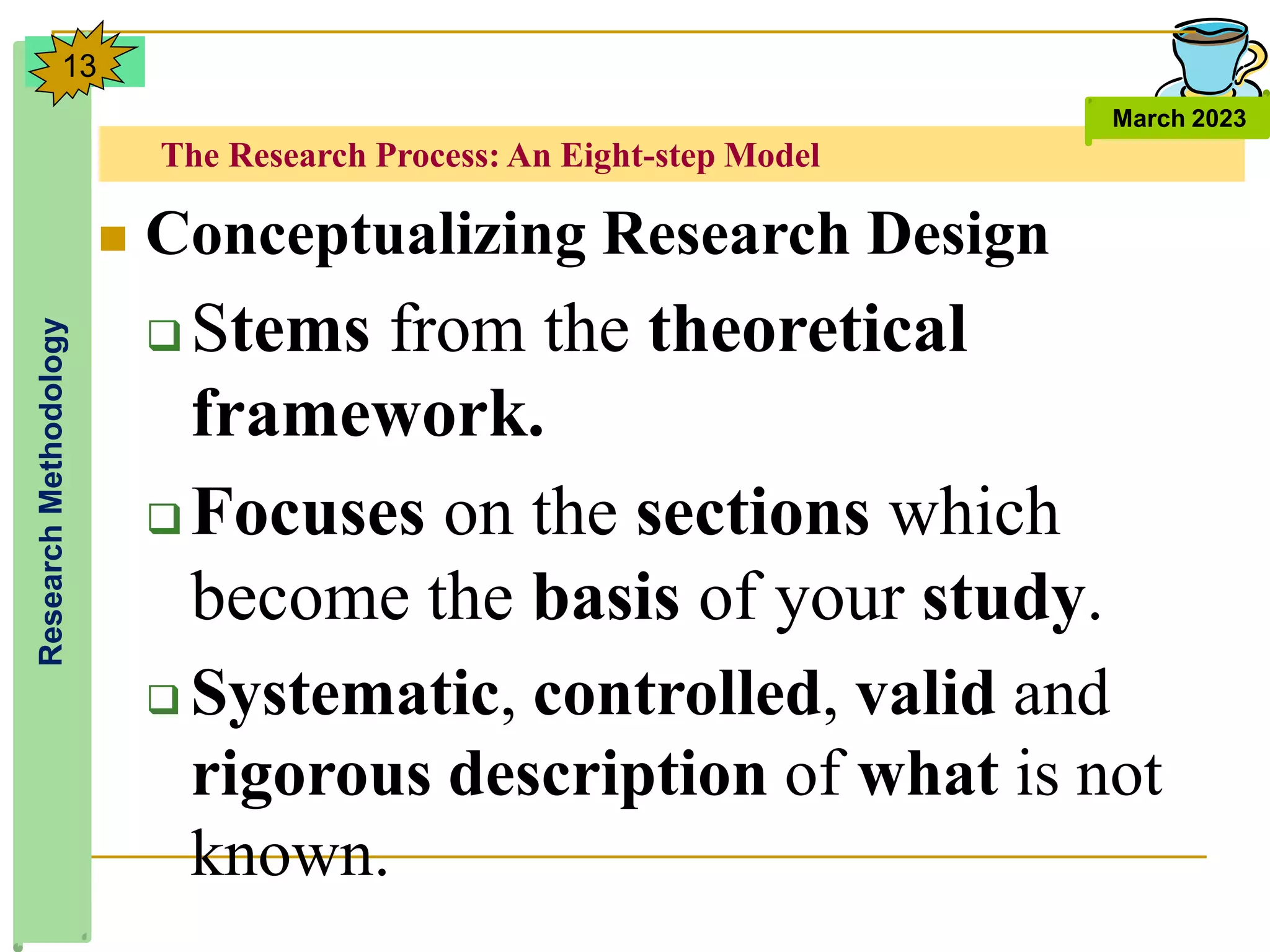

13. The Research Process: An Eight-step Model
Research
Methodology
March 2023
13
 Conceptualizing Research Design
 Stems from the theoretical
framework.
 Focuses on the sections which
become the basis of your study.
 Systematic, controlled, valid and
rigorous description of what is not
known.

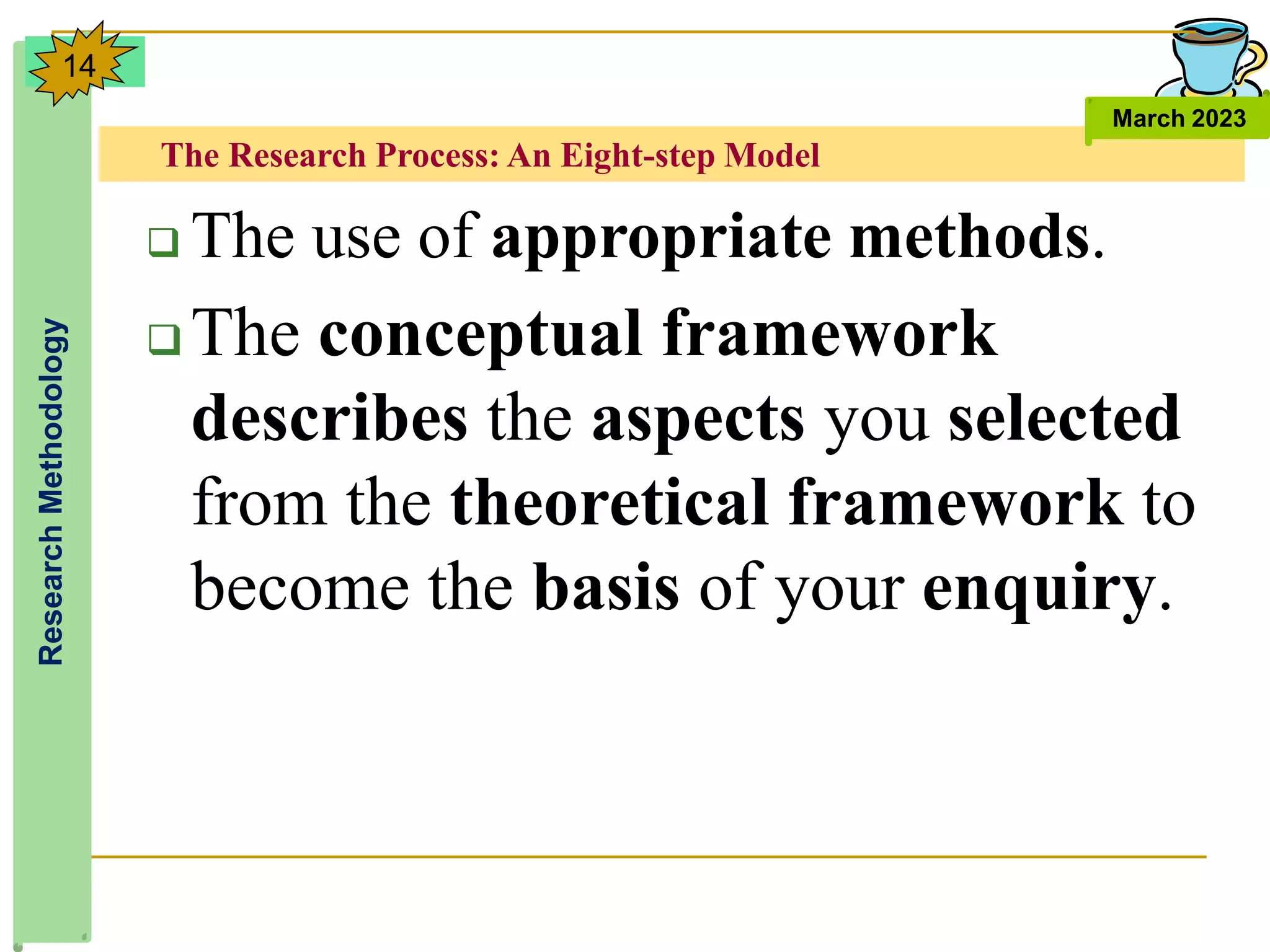

14. The Research Process: An Eight-step Model
Research
Methodology
March 2023
14
 The use of appropriate methods.
 The conceptual framework
describes the aspects you selected
from the theoretical framework to
become the basis of your enquiry.

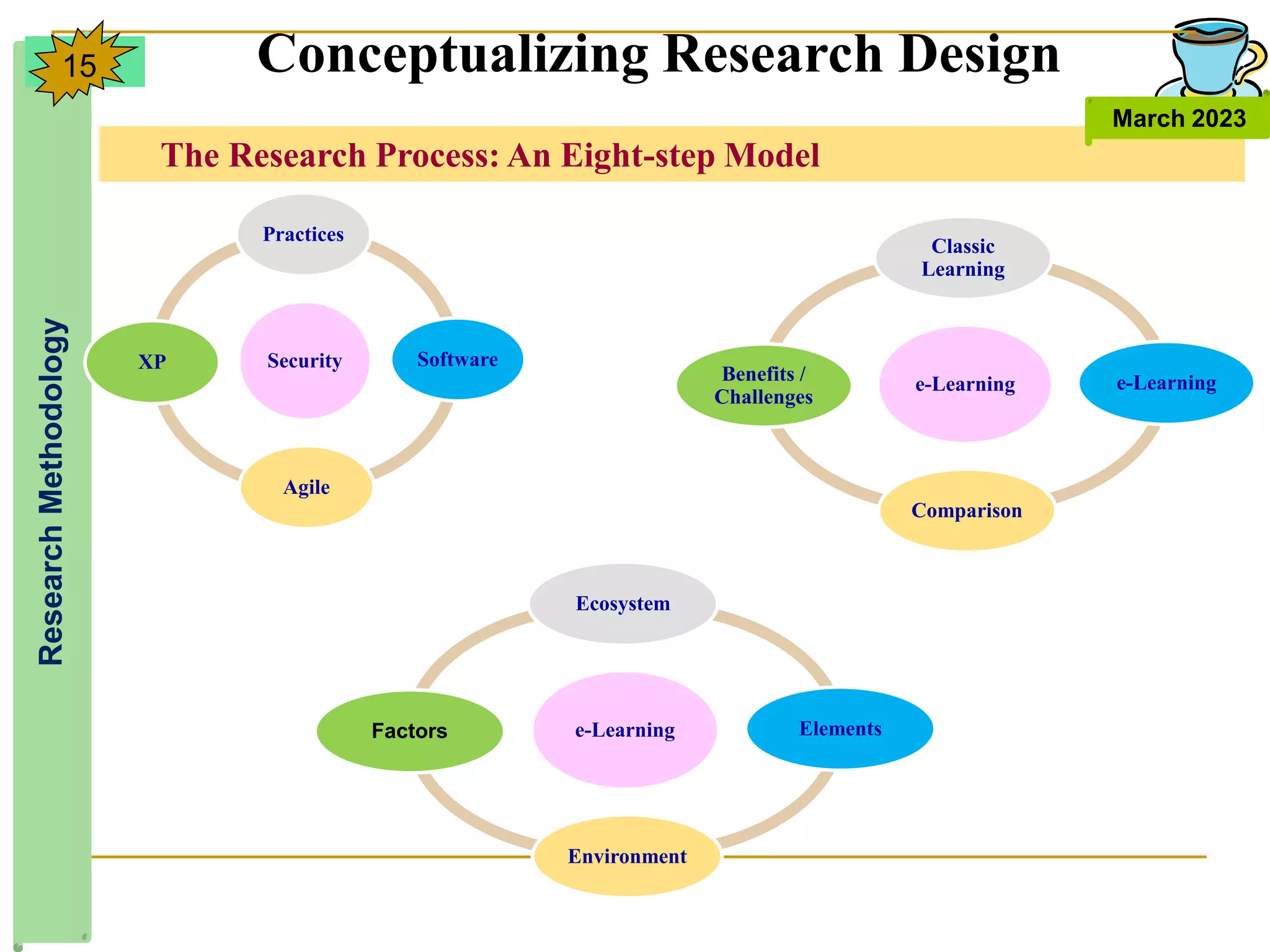

15. The Research Process: An Eight-step Model
Research
Methodology
March 2023
15 Conceptualizing Research Design
Security
Practices
Software
Agile
XP
e-Learning
Classic
Learning
e-Learning
Comparison
Benefits /
Challenges
e-Learning
Ecosystem
Elements
Environment
Factors

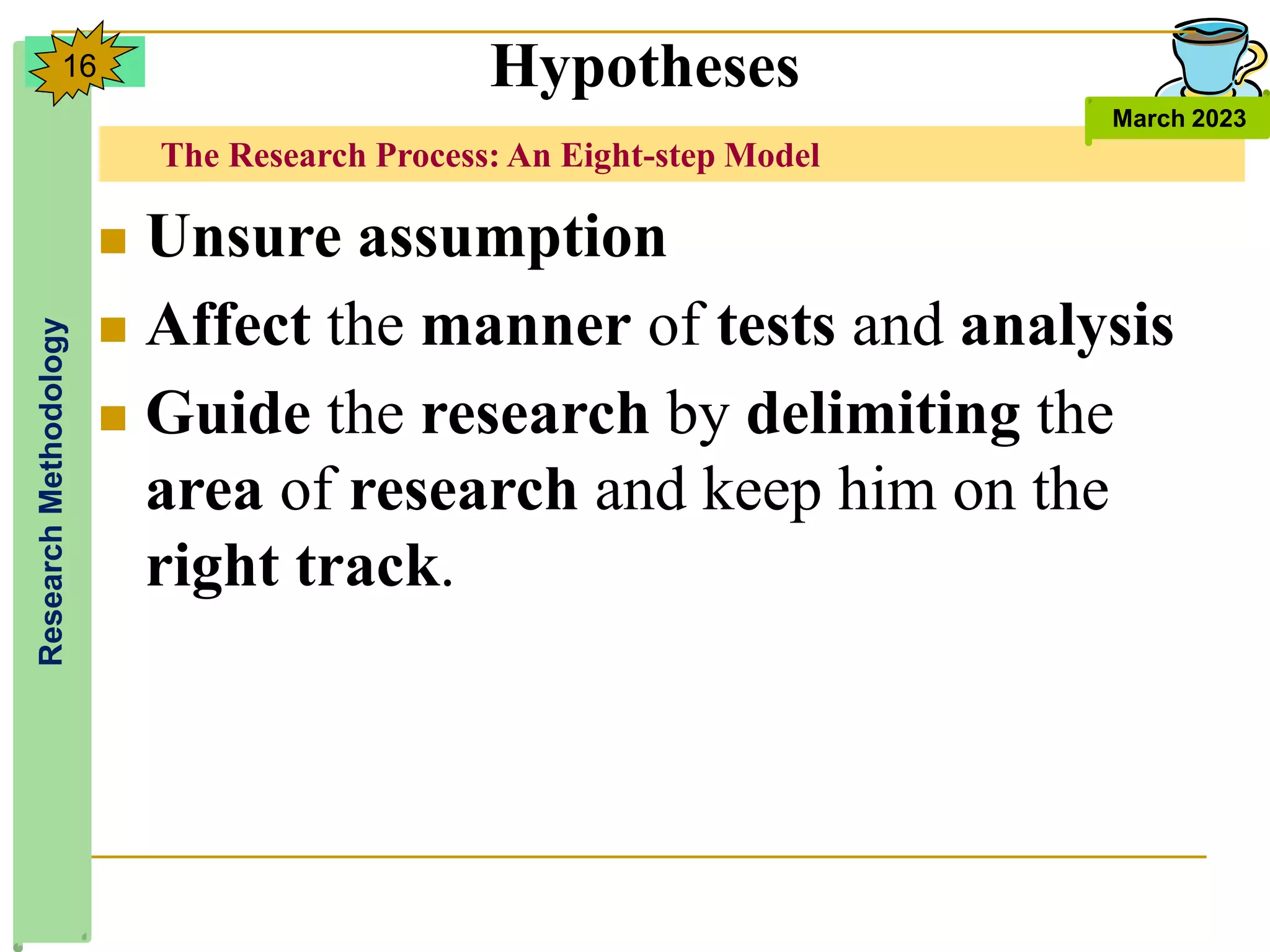

16. The Research Process: An Eight-step Model
Research
Methodology
March 2023
16
 Unsure assumption
 Affect the manner of tests and analysis
 Guide the research by delimiting the
area of research and keep him on the
right track.
Hypotheses

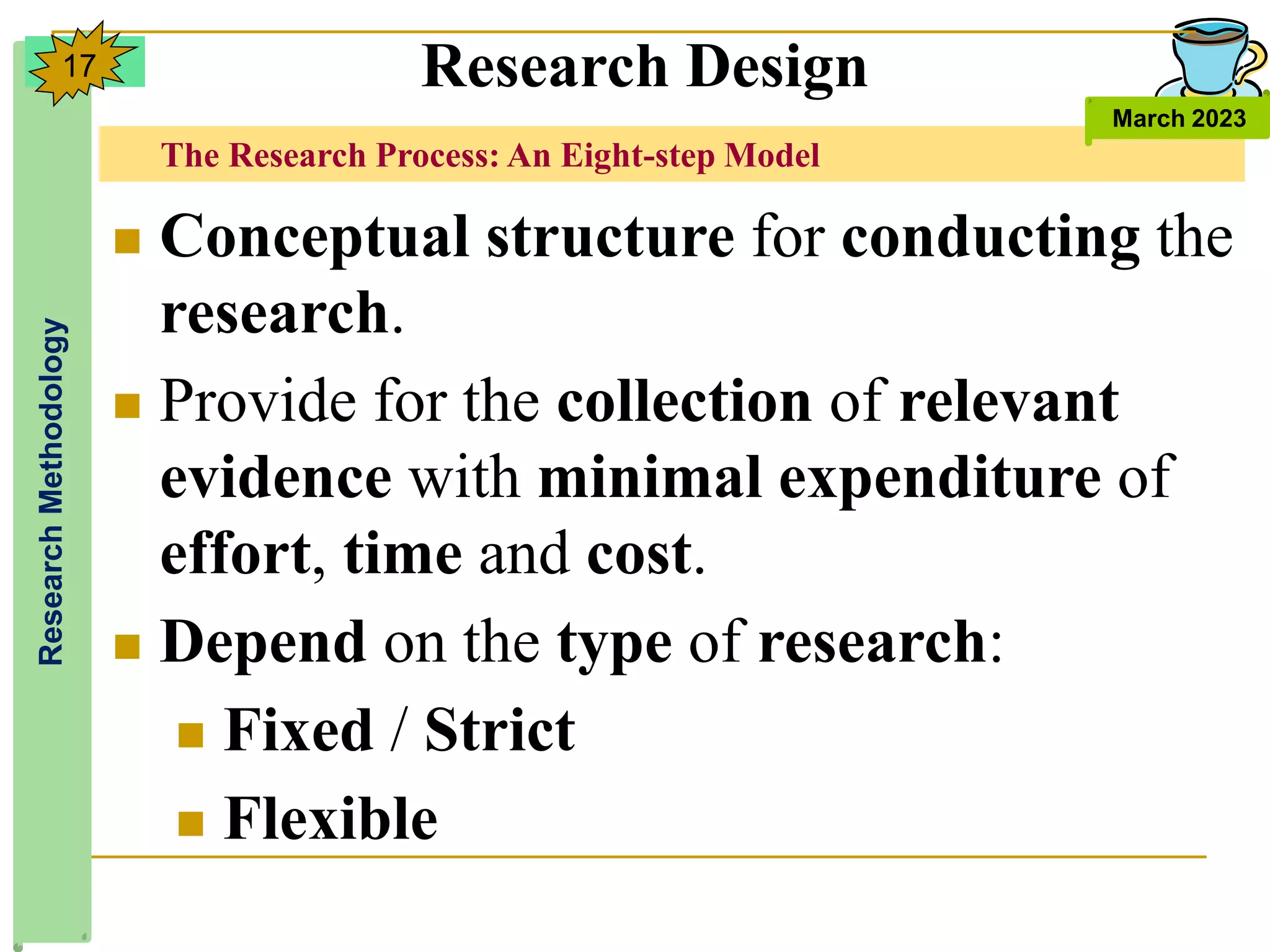

17. The Research Process: An Eight-step Model
Research
Methodology
March 2023
17
 Conceptual structure for conducting the
research.
 Provide for the collection of relevant
evidence with minimal expenditure of
effort, time and cost.
 Depend on the type of research:
 Fixed / Strict
 Flexible
Research Design

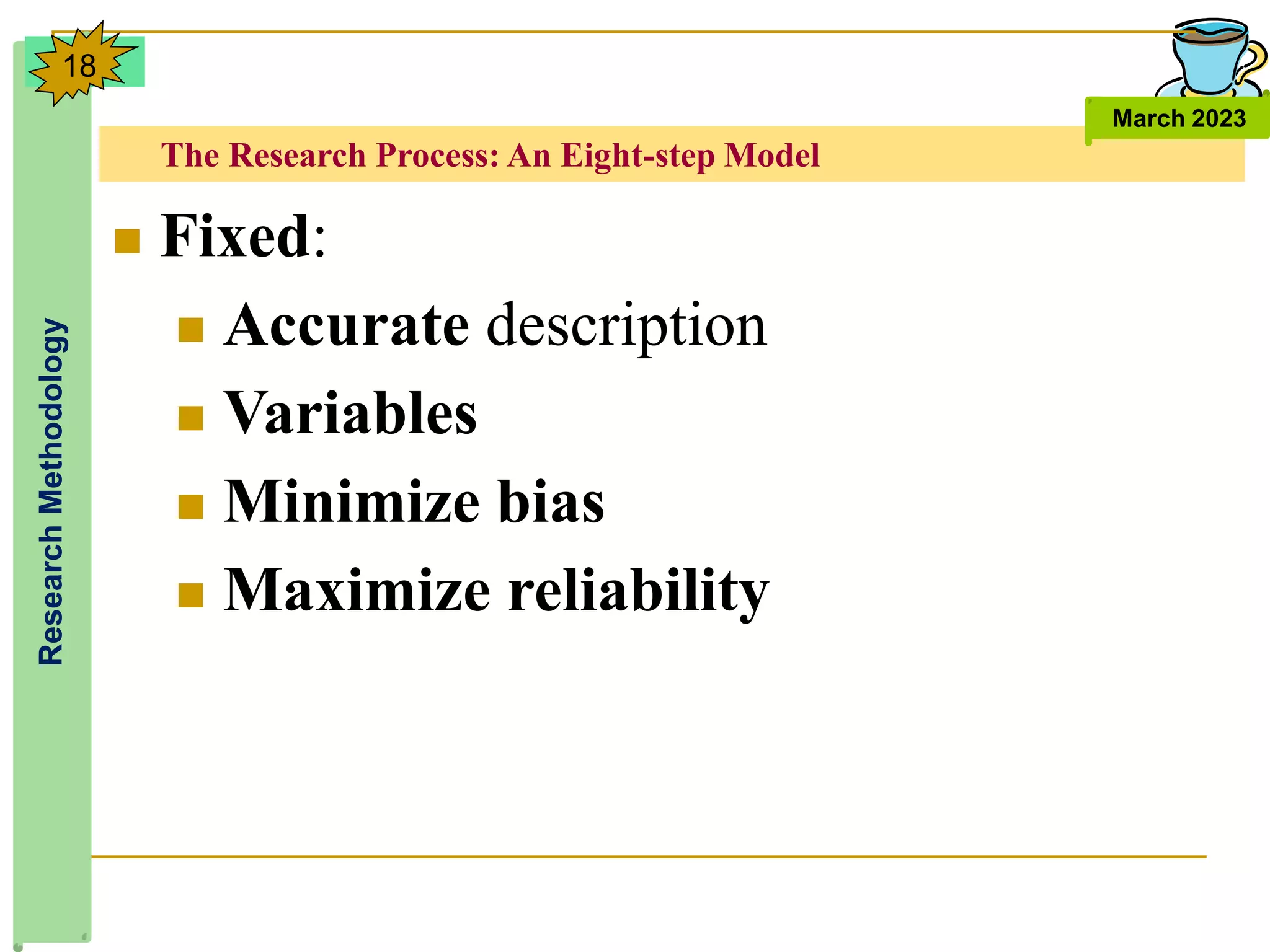

18. The Research Process: An Eight-step Model
Research
Methodology
March 2023
18
 Fixed:
 Accurate description
 Variables
 Minimize bias
 Maximize reliability

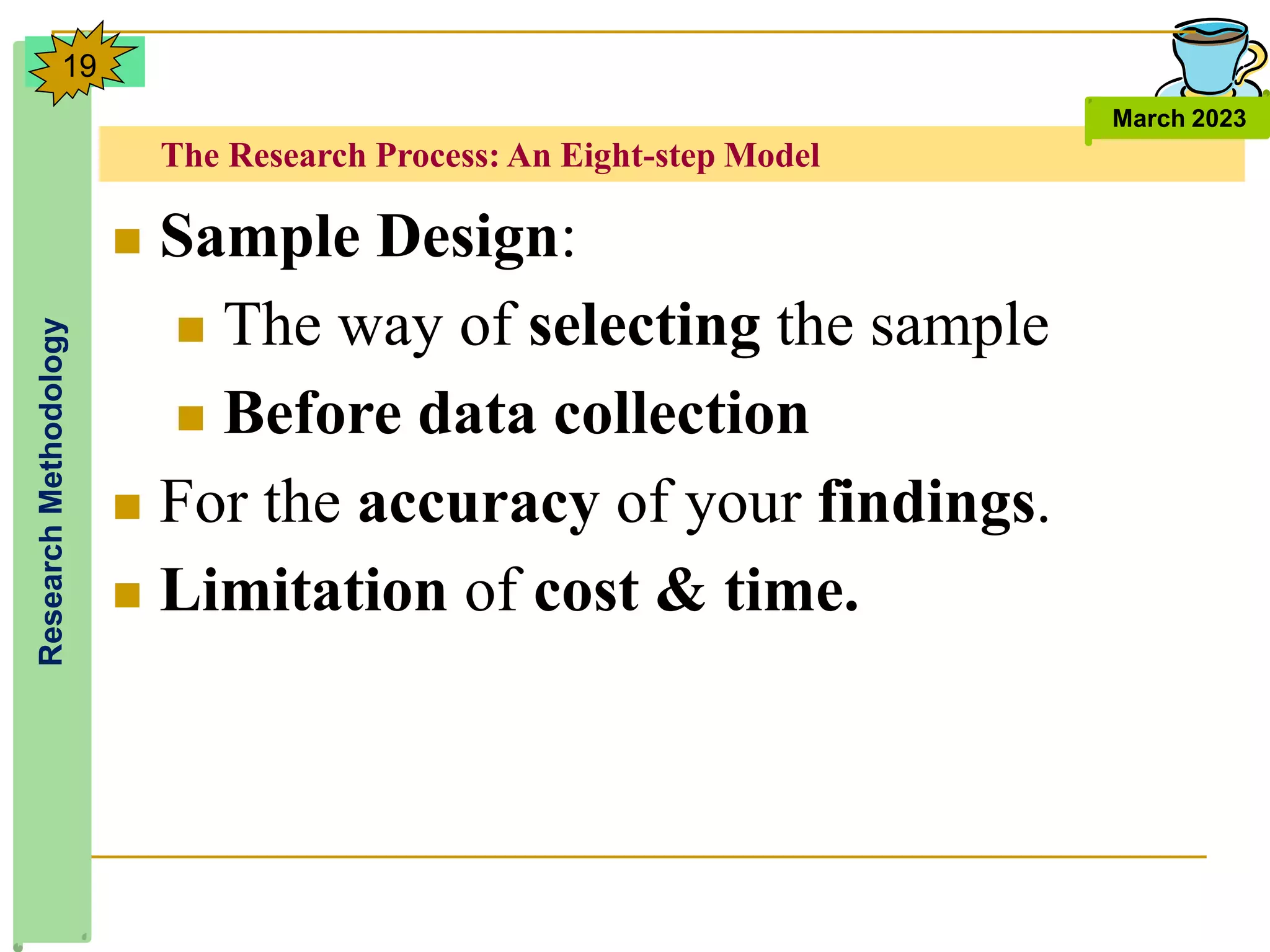

19. The Research Process: An Eight-step Model
Research
Methodology
March 2023
19
 Sample Design:
 The way of selecting the sample
 Before data collection
 For the accuracy of your findings.
 Limitation of cost & time.

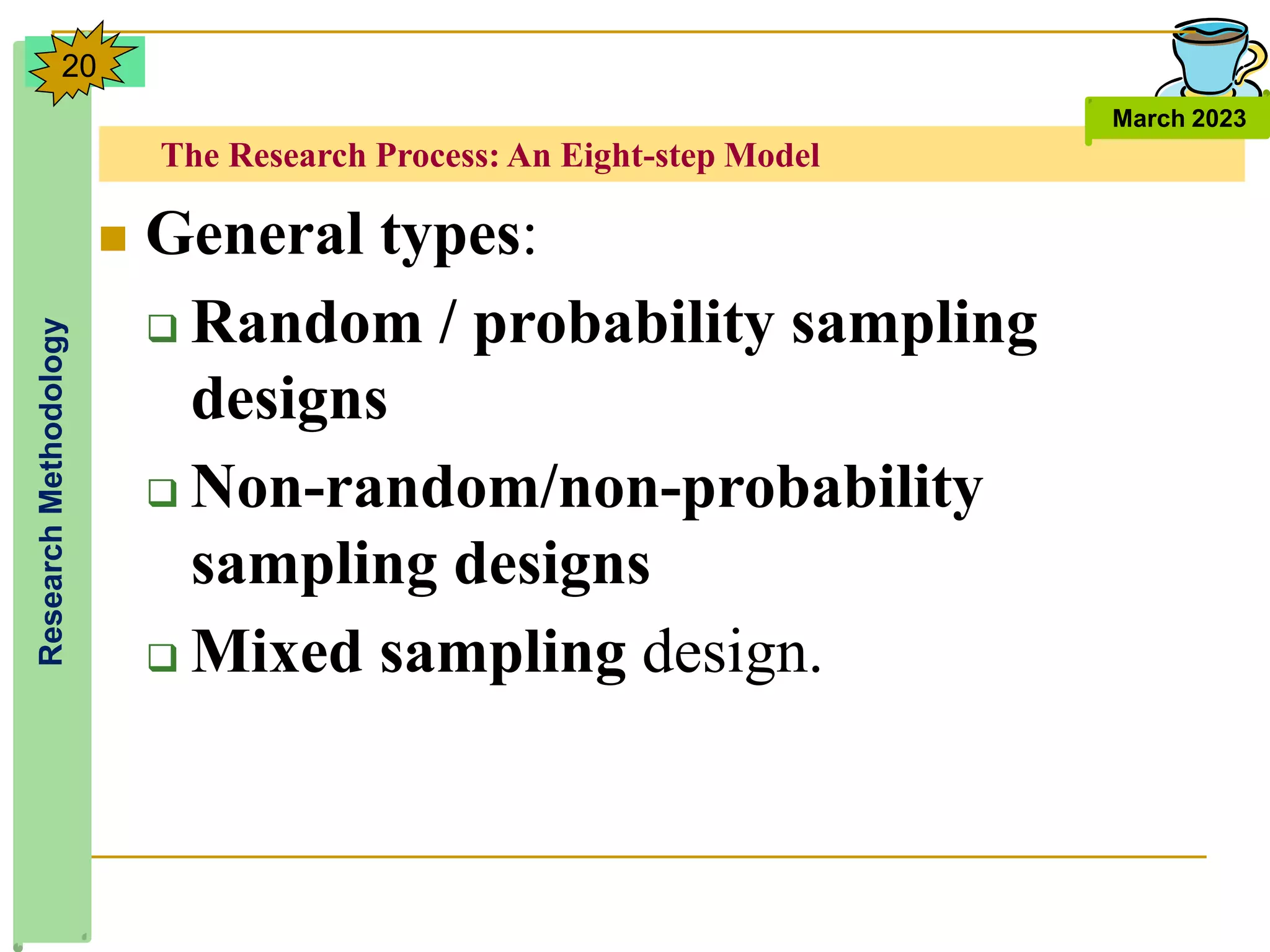

20. The Research Process: An Eight-step Model
Research
Methodology
March 2023
20
 General types:
 Random / probability sampling
designs
 Non-random/non-probability
sampling designs
 Mixed sampling design.

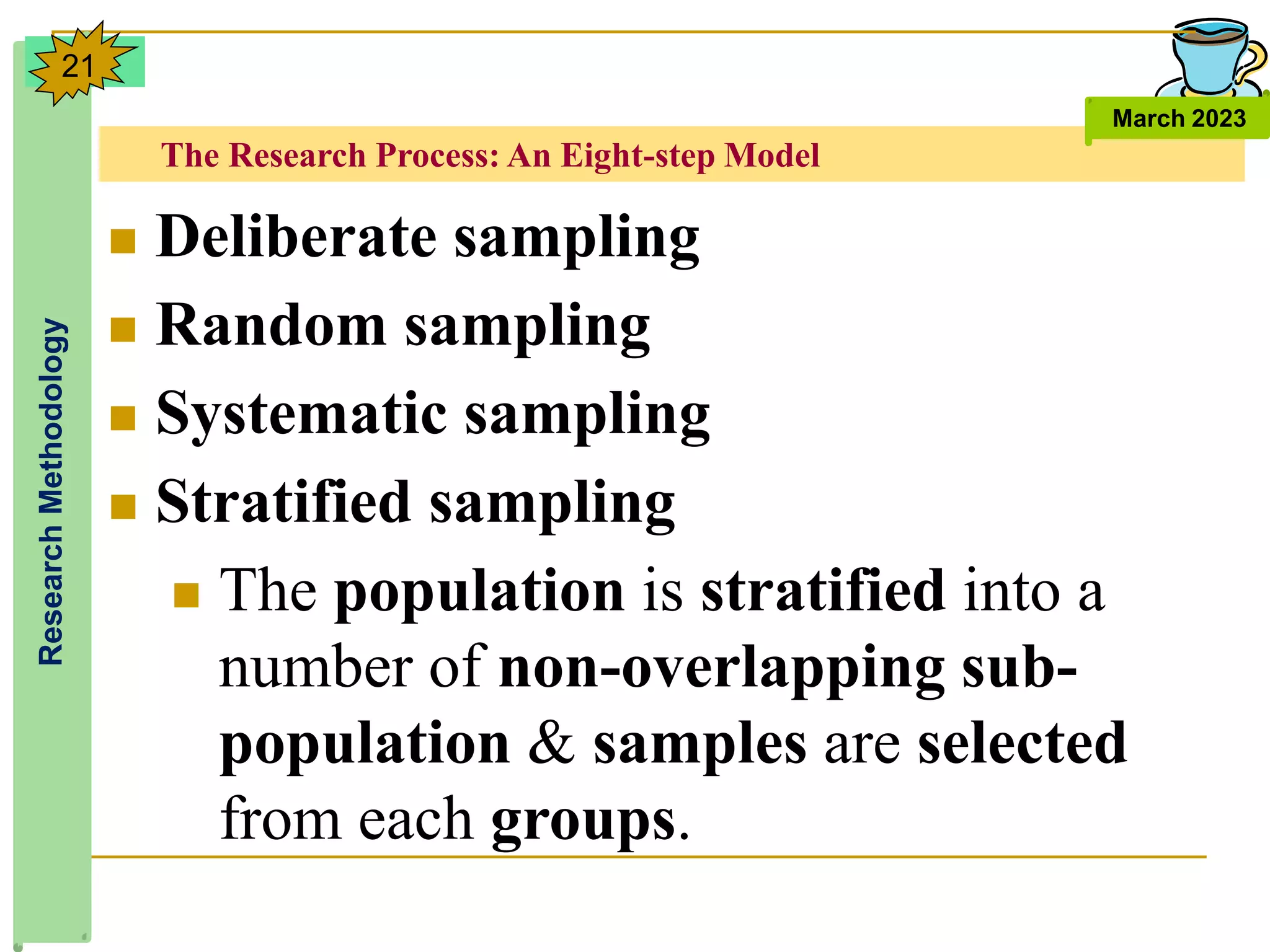

21. The Research Process: An Eight-step Model
Research
Methodology
March 2023
21
 Deliberate sampling
 Random sampling
 Systematic sampling
 Stratified sampling
 The population is stratified into a
number of non-overlapping sub-
population & samples are selected
from each groups.

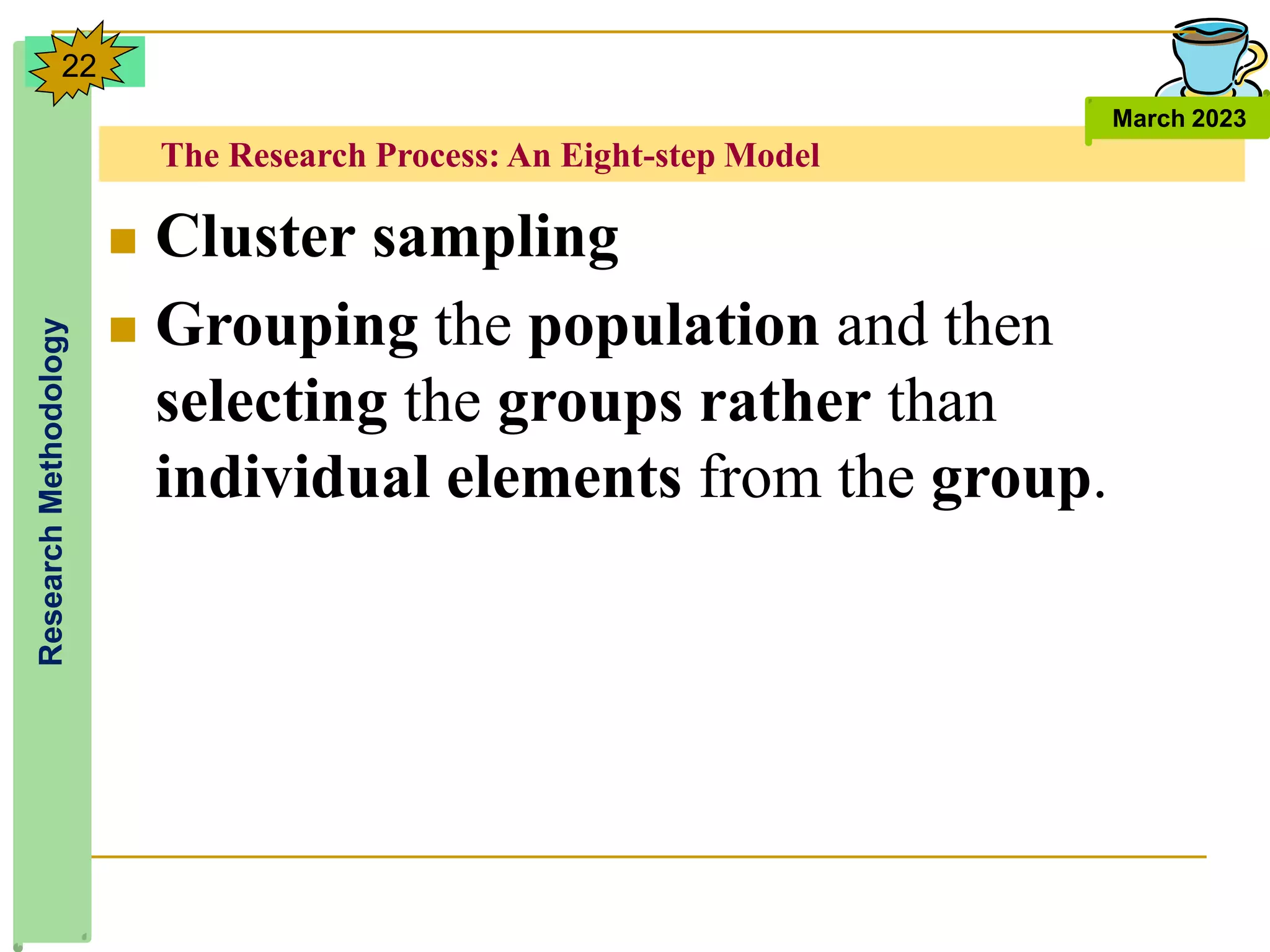

22. The Research Process: An Eight-step Model
Research
Methodology
March 2023
22
 Cluster sampling
 Grouping the population and then
selecting the groups rather than
individual elements from the group.

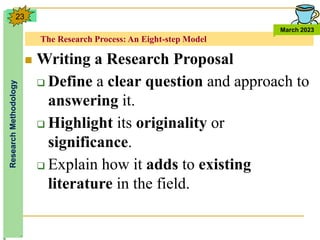

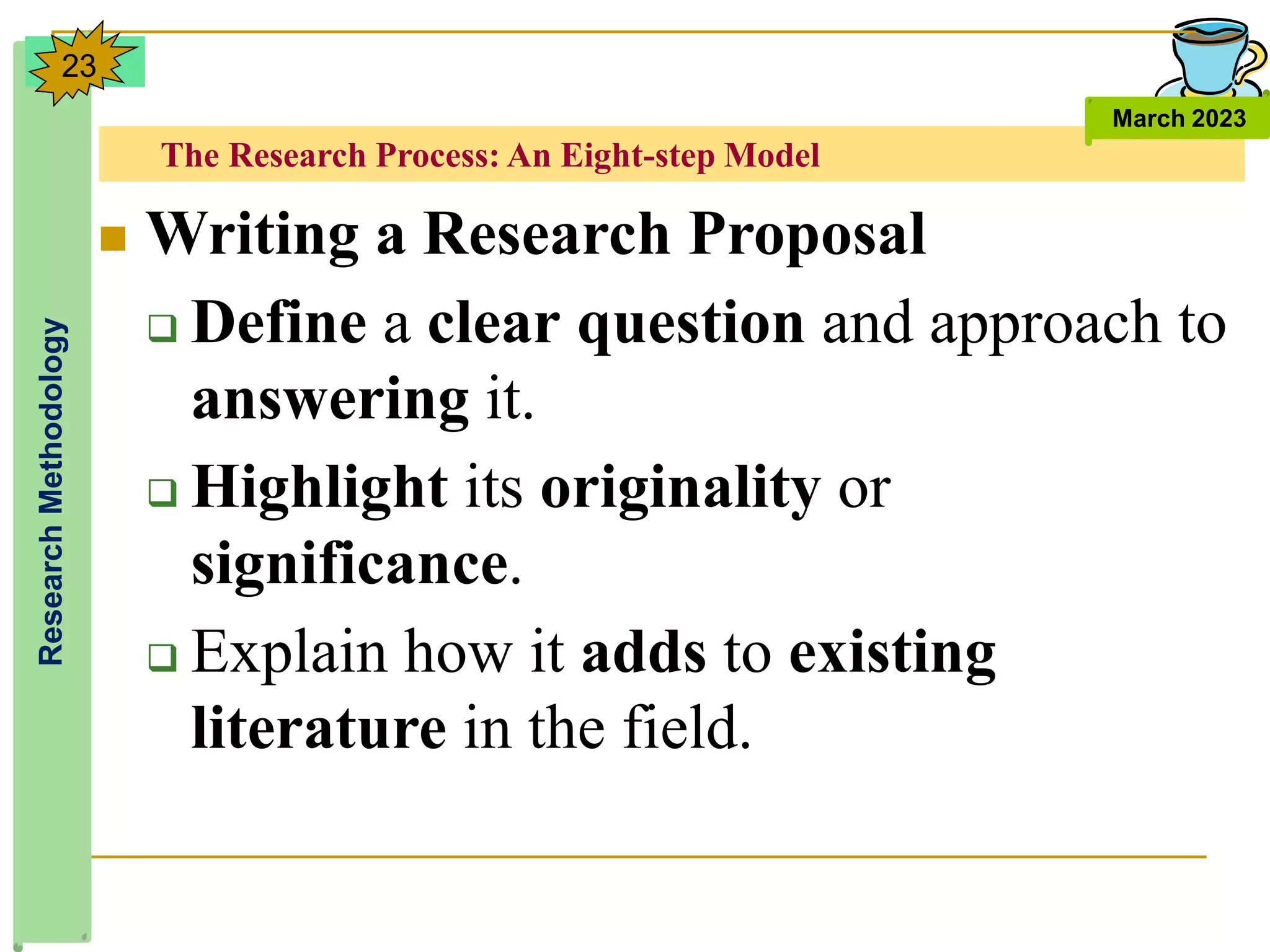

23. The Research Process: An Eight-step Model
Research
Methodology
March 2023
23
 Writing a Research Proposal
 Define a clear question and approach to
answering it.
 Highlight its originality or
significance.
 Explain how it adds to existing
literature in the field.

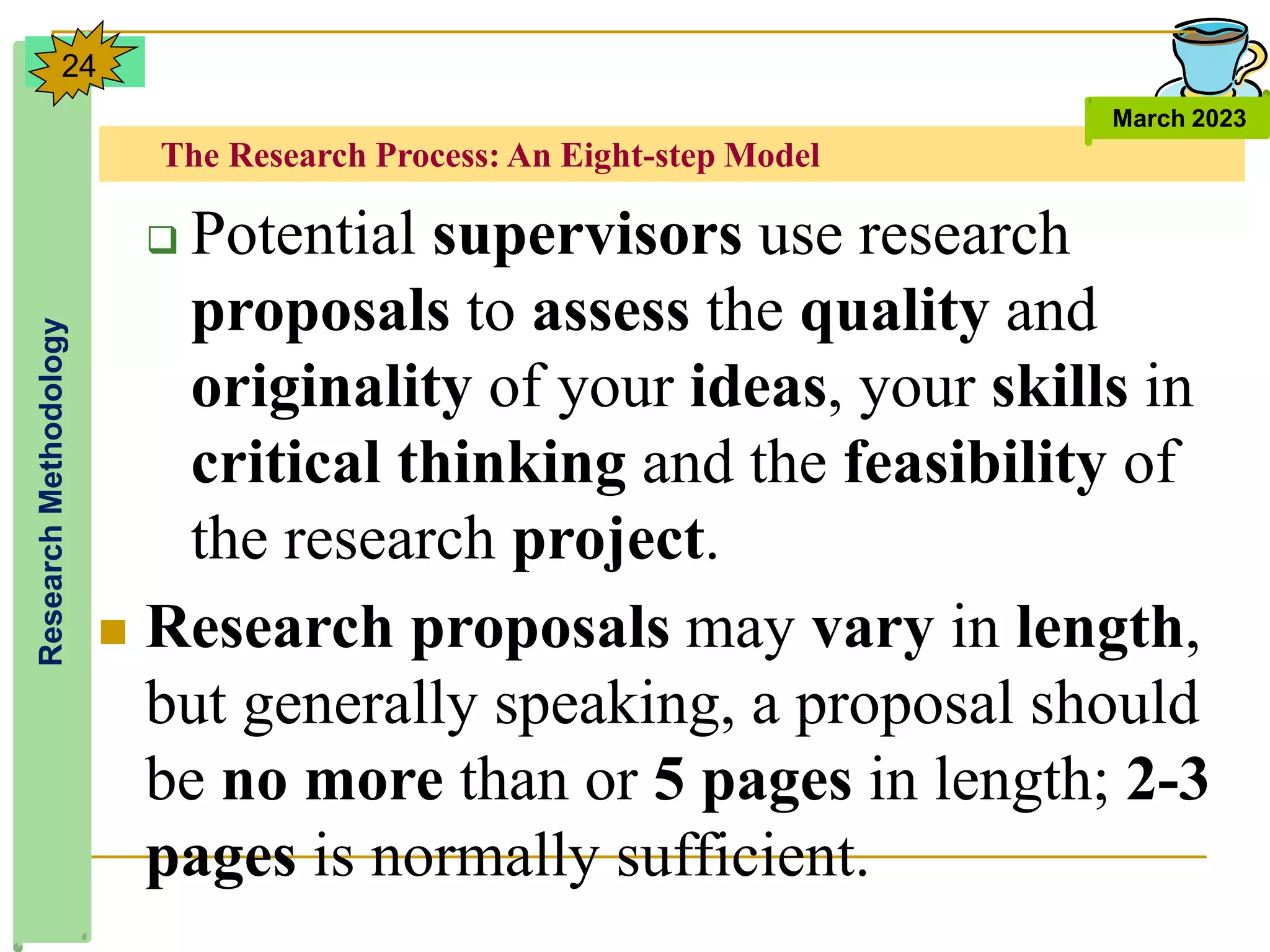

24. The Research Process: An Eight-step Model
Research
Methodology
March 2023
24
 Potential supervisors use research
proposals to assess the quality and
originality of your ideas, your skills in
critical thinking and the feasibility of
the research project.
 Research proposals may vary in length,
but generally speaking, a proposal should
be no more than or 5 pages in length; 2-3
pages is normally sufficient.

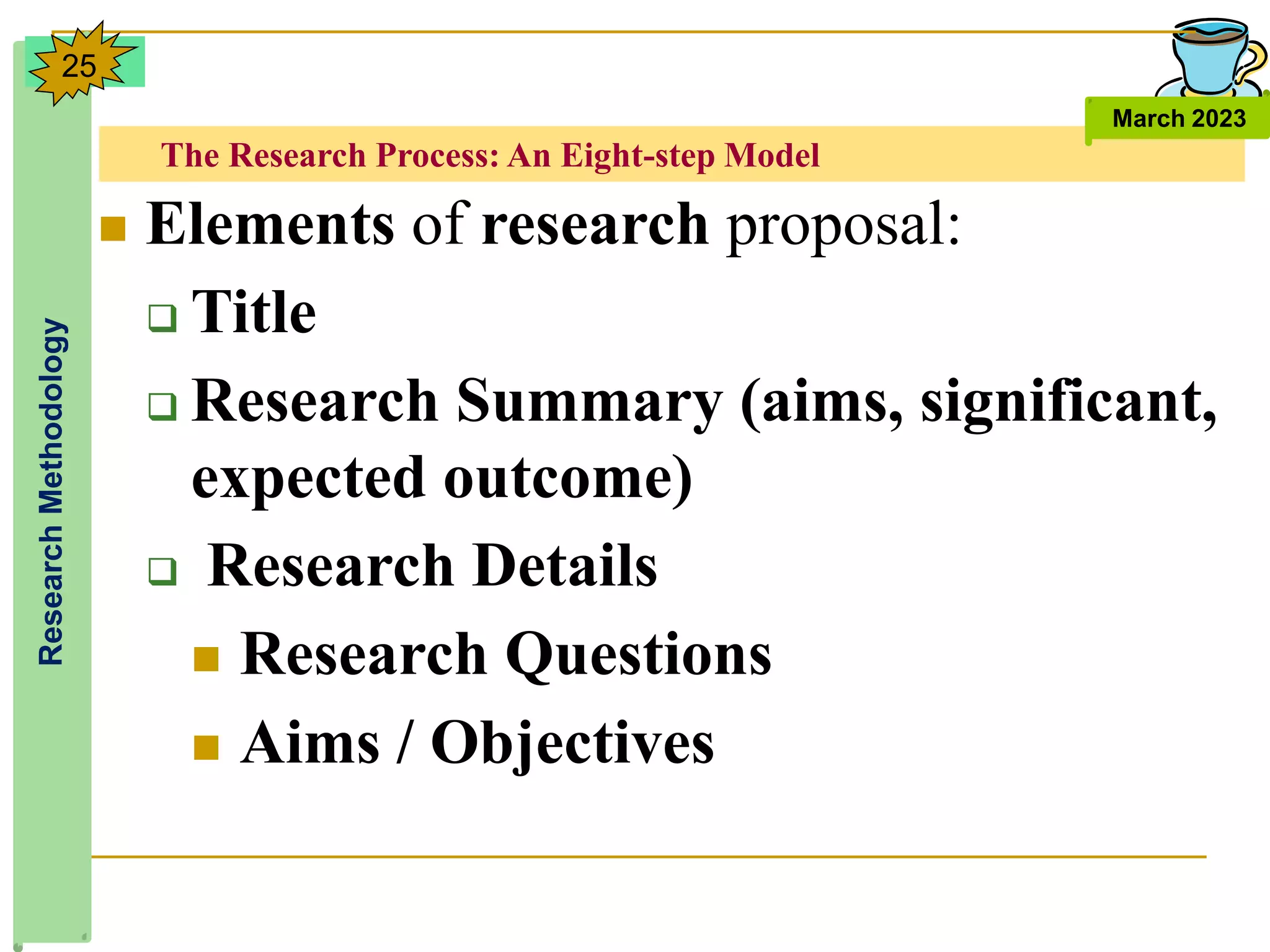

25. The Research Process: An Eight-step Model
Research
Methodology
March 2023
25
 Elements of research proposal:
 Title
 Research Summary (aims, significant,
expected outcome)
 Research Details
 Research Questions
 Aims / Objectives

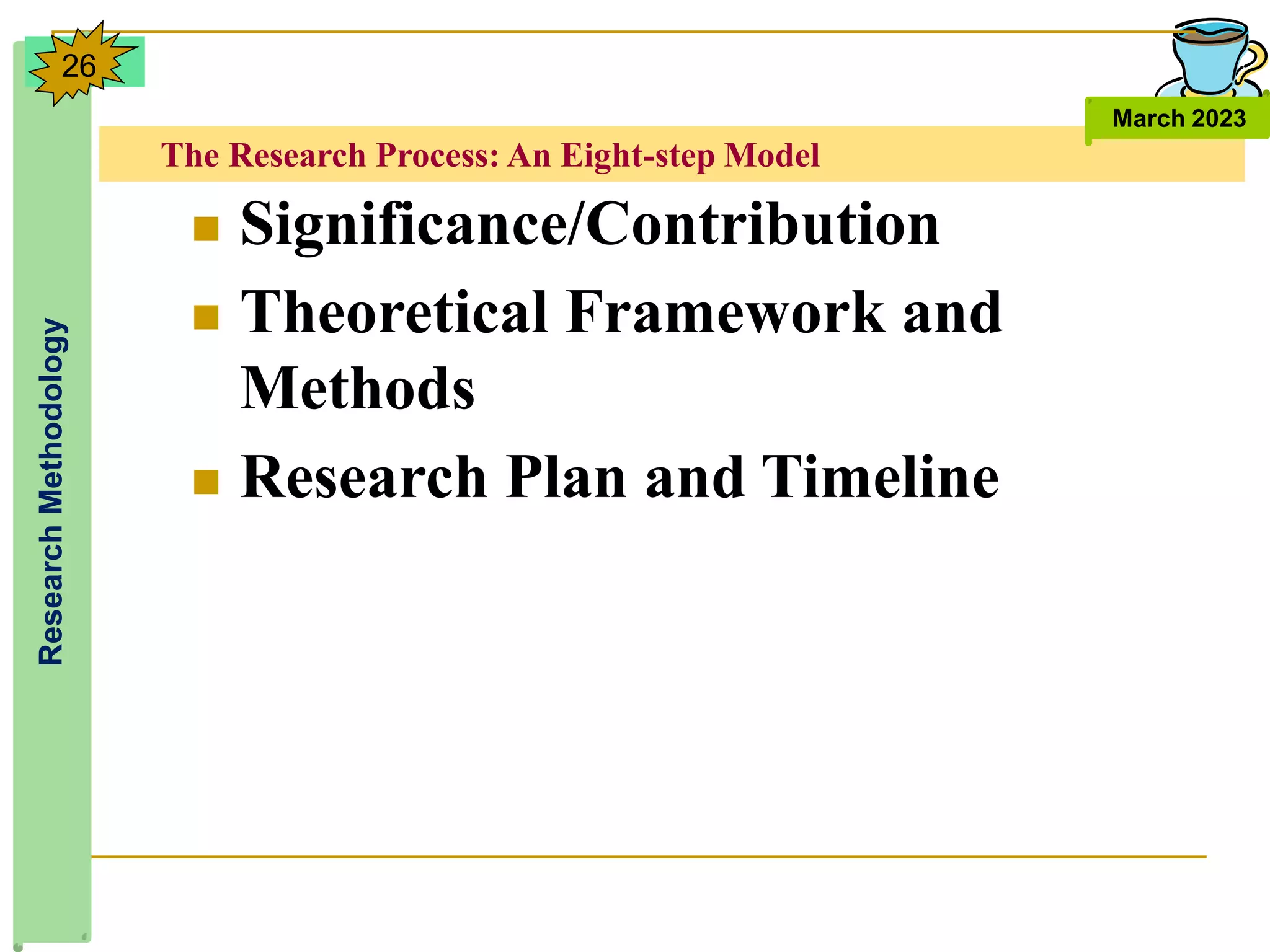

26. The Research Process: An Eight-step Model
Research
Methodology
March 2023
26
 Significance/Contribution
 Theoretical Framework and
Methods
 Research Plan and Timeline

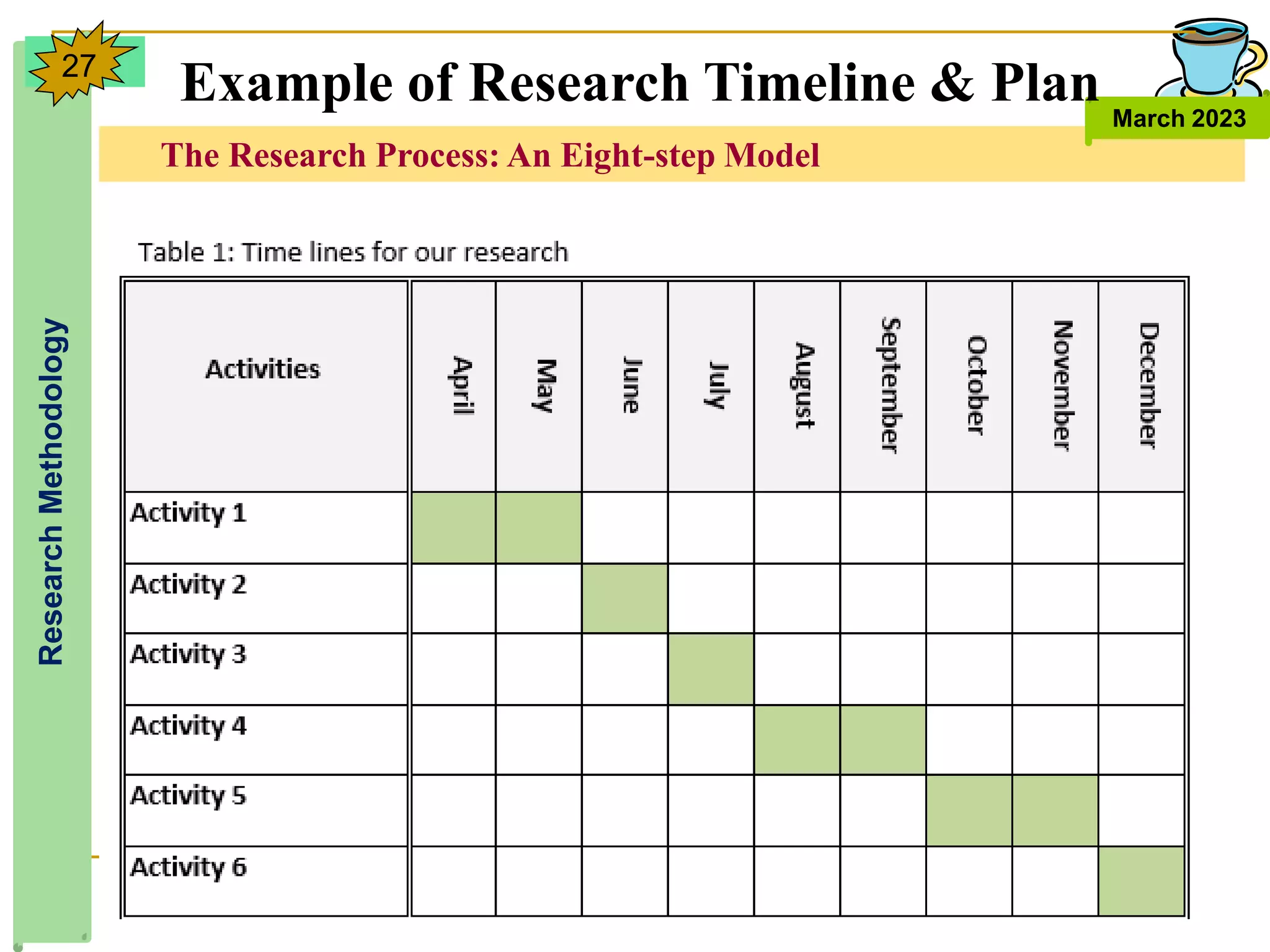

27. The Research Process: An Eight-step Model
Research
Methodology
March 2023
27
Example of Research Timeline & Plan

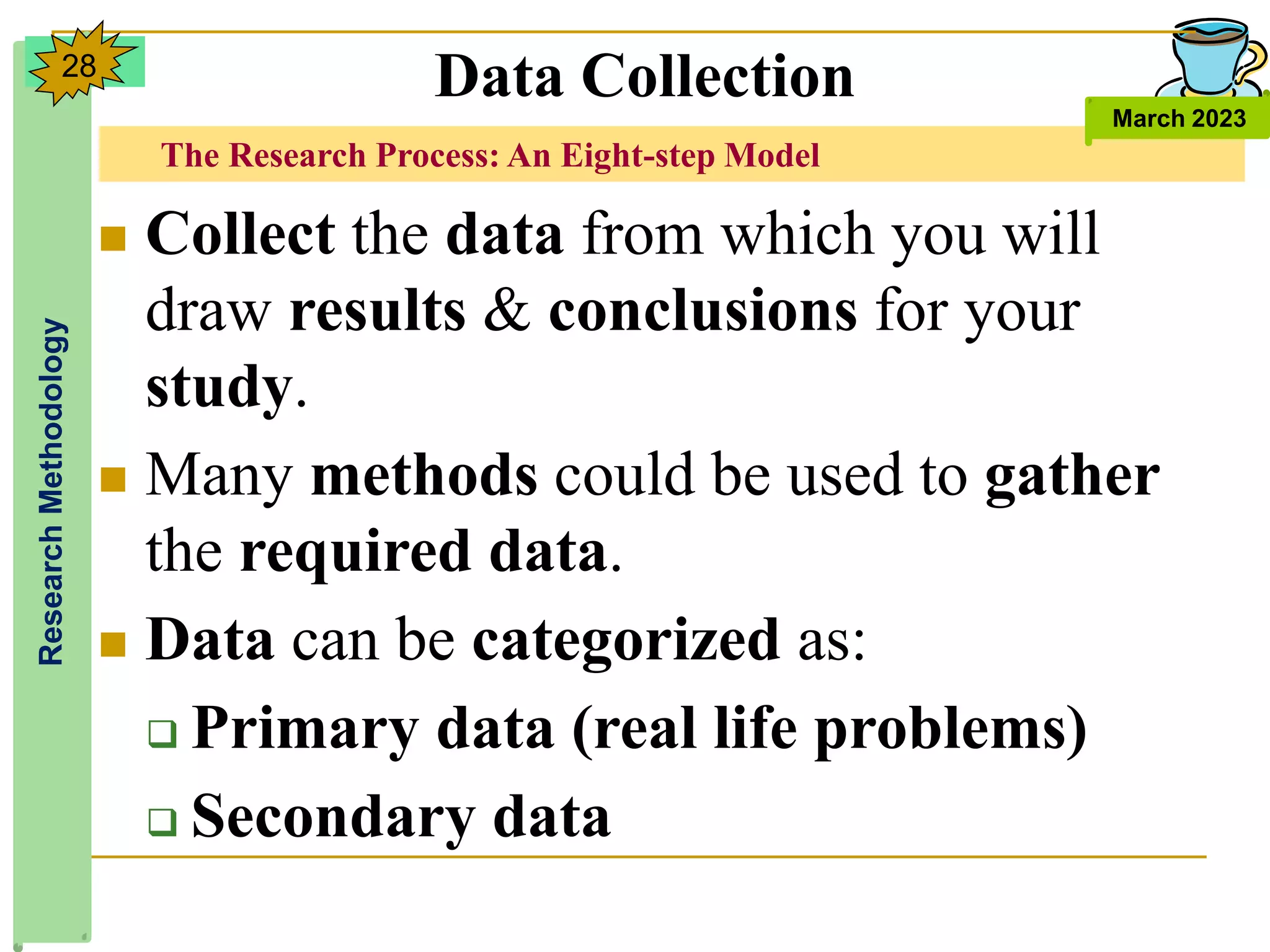

28. The Research Process: An Eight-step Model
Research
Methodology
March 2023
28
 Collect the data from which you will
draw results & conclusions for your
study.
 Many methods could be used to gather
the required data.
 Data can be categorized as:
 Primary data (real life problems)
 Secondary data
Data Collection

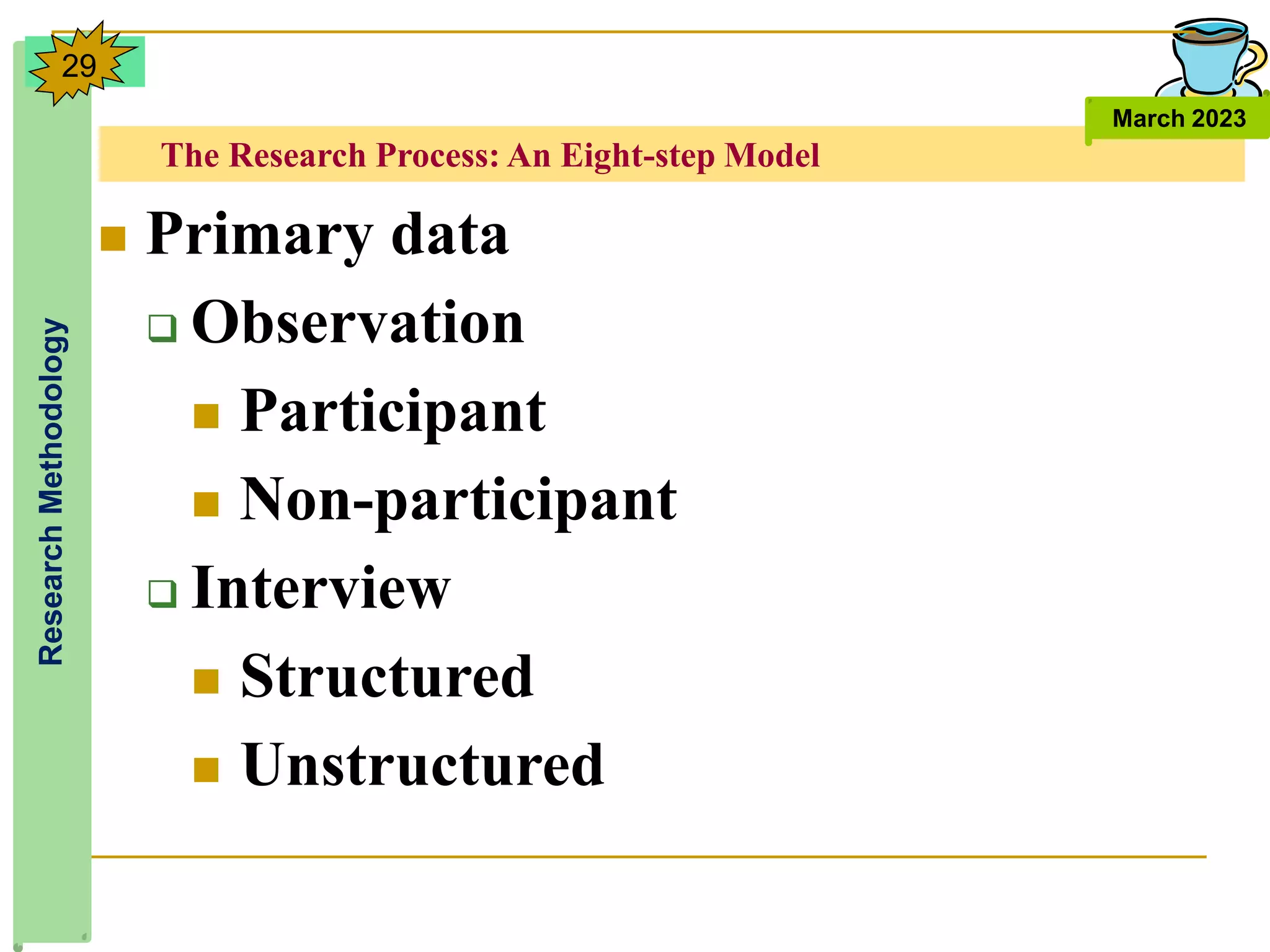

29. The Research Process: An Eight-step Model
Research
Methodology
March 2023
29
 Primary data
 Observation
 Participant
 Non-participant
 Interview
 Structured
 Unstructured

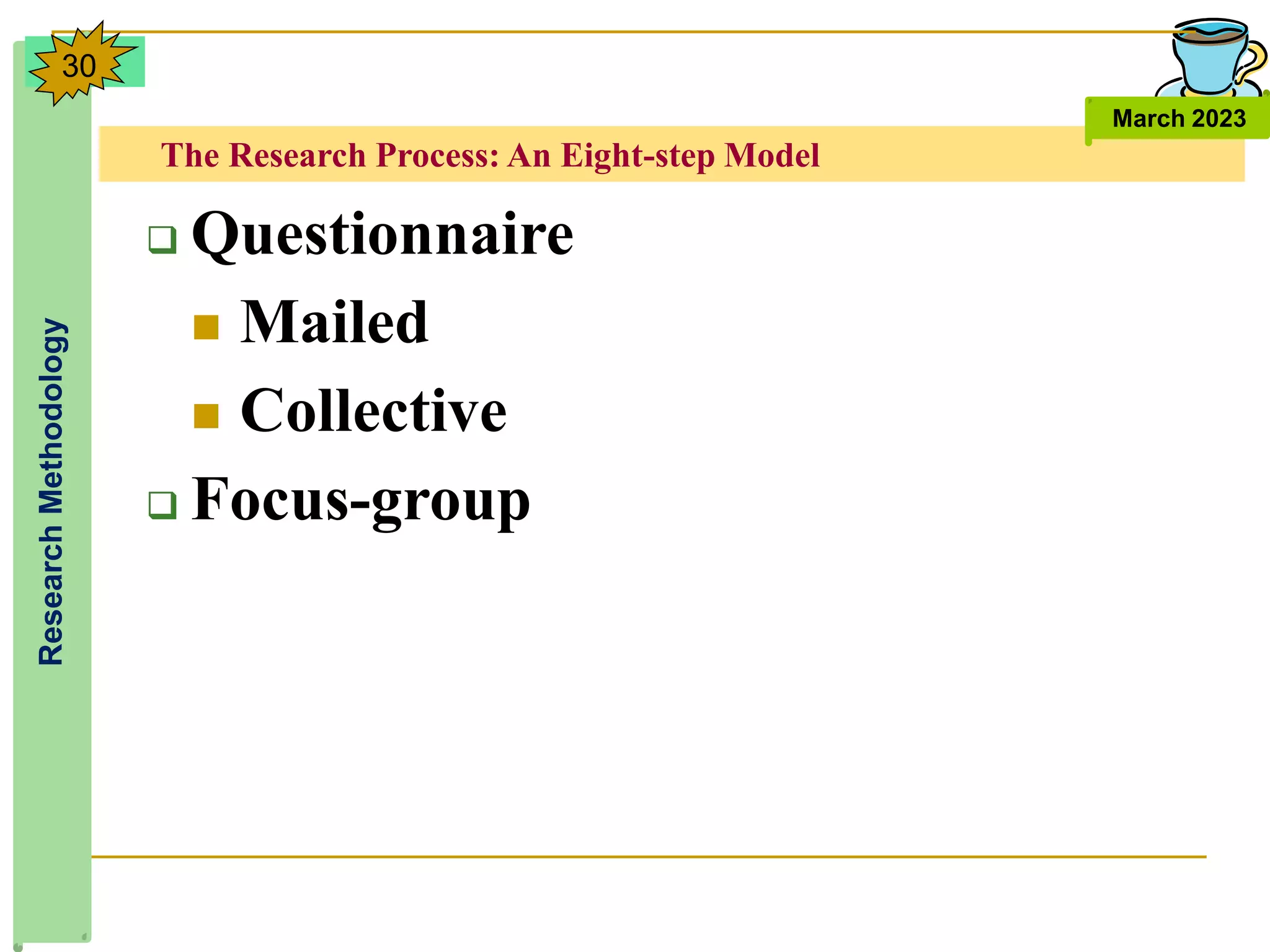

30. The Research Process: An Eight-step Model
Research
Methodology
March 2023
30
 Questionnaire
 Mailed
 Collective
 Focus-group

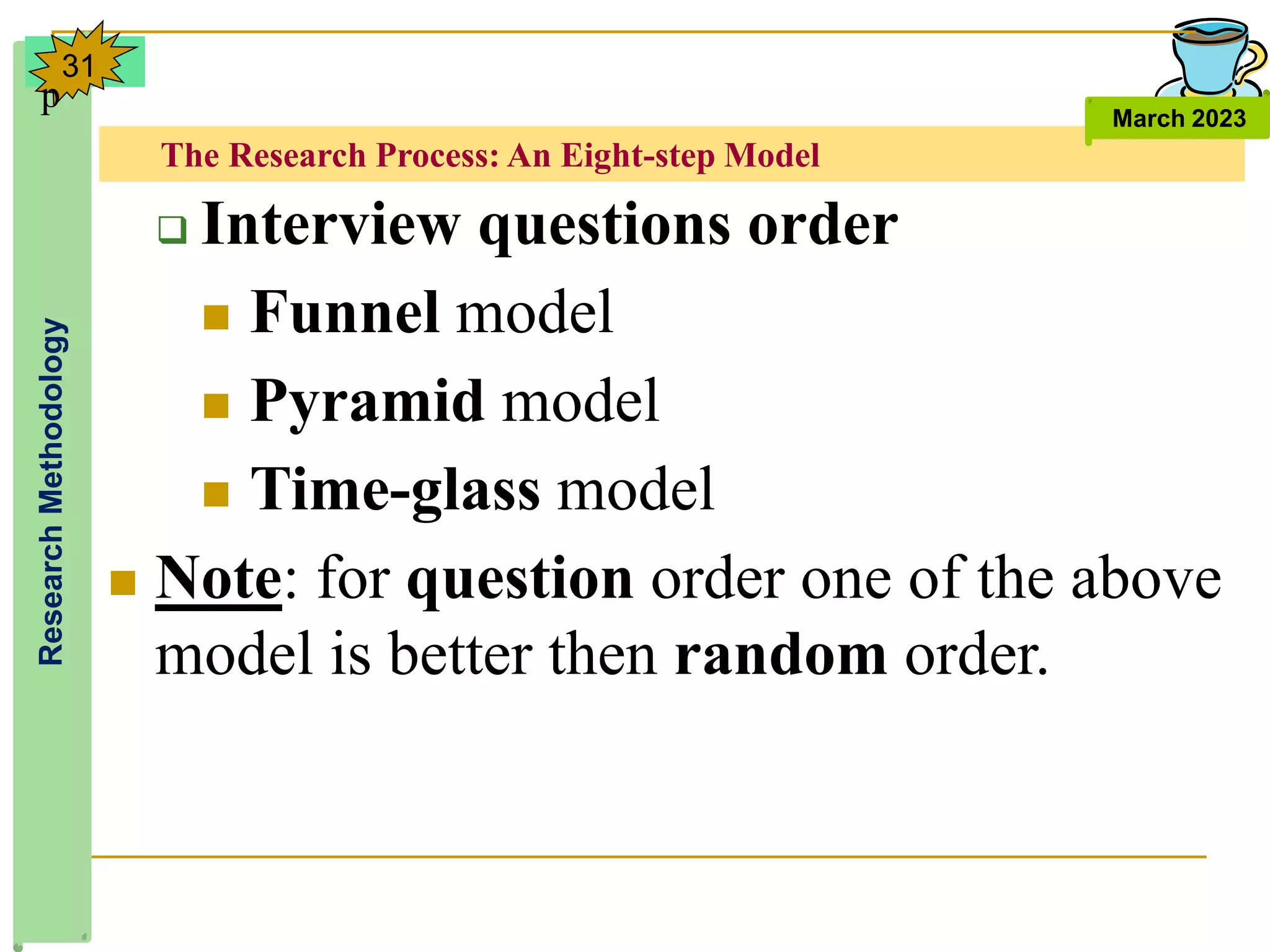

31. The Research Process: An Eight-step Model
Research
Methodology
March 2023
31
 Interview questions order
 Funnel model
 Pyramid model
 Time-glass model
 Note: for question order one of the above
model is better then random order.
p

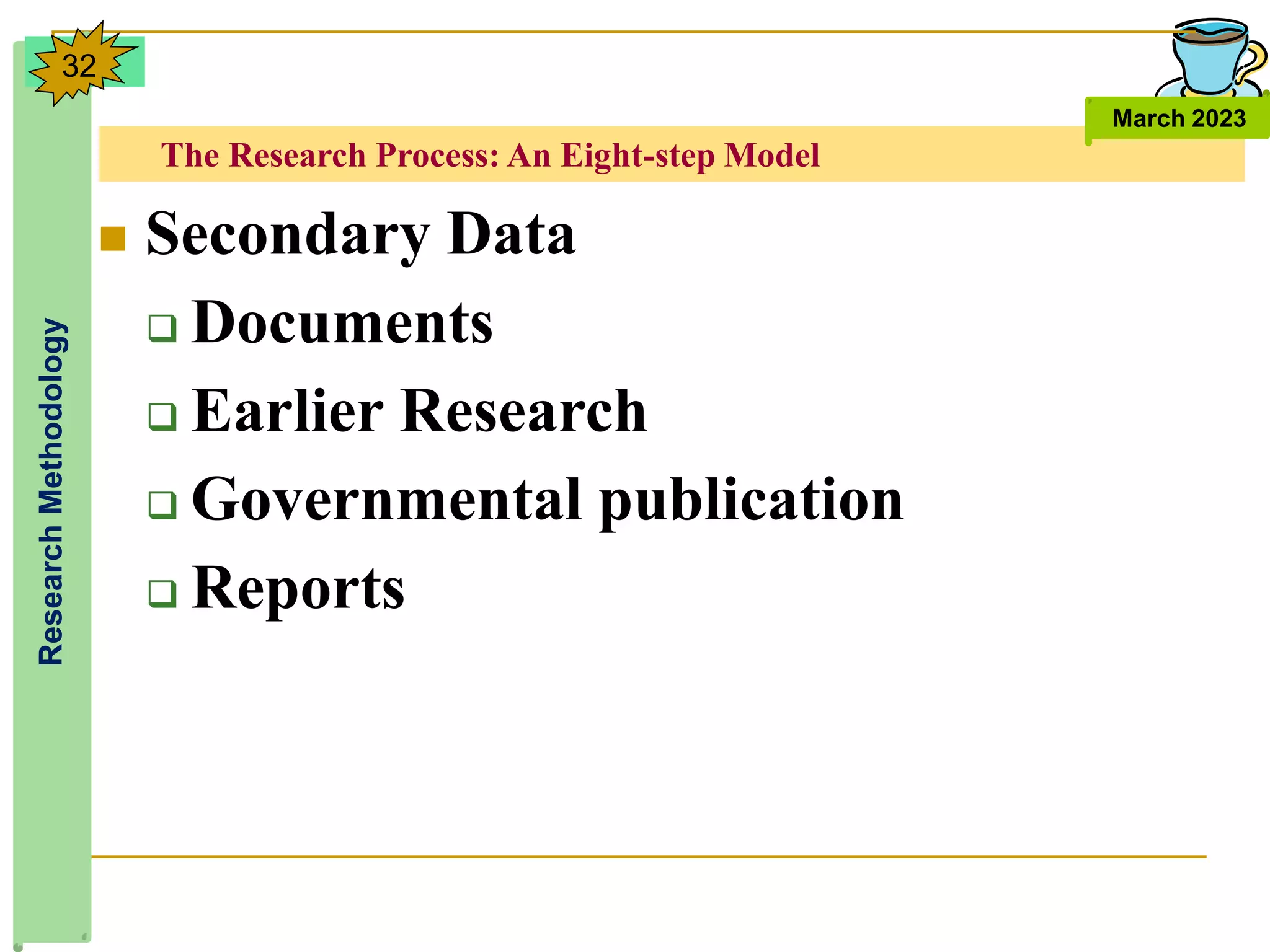

32. The Research Process: An Eight-step Model
Research
Methodology
March 2023
32
 Secondary Data
 Documents
 Earlier Research
 Governmental publication
 Reports

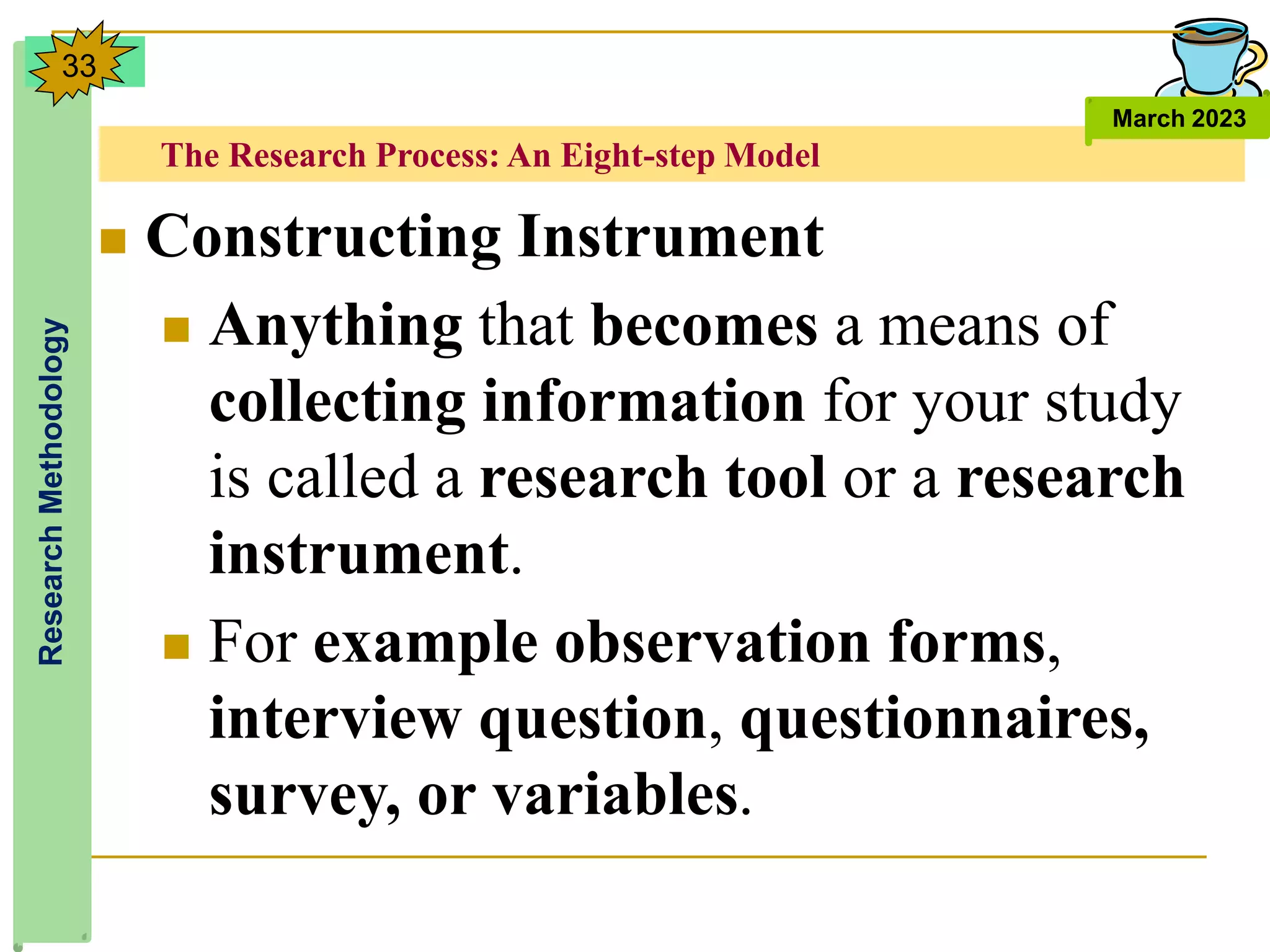

33. The Research Process: An Eight-step Model
Research
Methodology
March 2023
33
 Constructing Instrument
 Anything that becomes a means of
collecting information for your study
is called a research tool or a research
instrument.
 For example observation forms,
interview question, questionnaires,
survey, or variables.

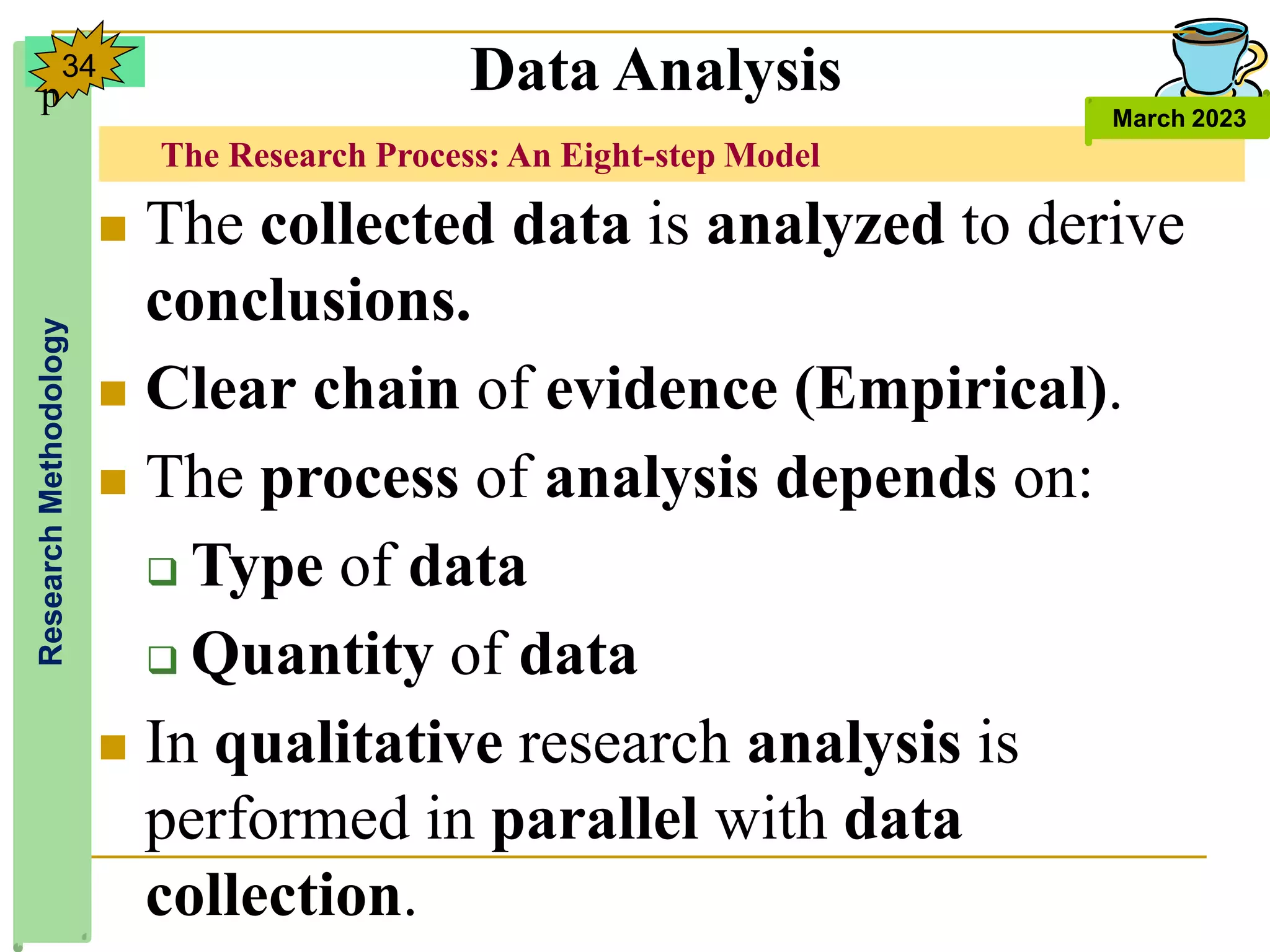

34. The Research Process: An Eight-step Model
Research
Methodology
March 2023
34 Data Analysis
 The collected data is analyzed to derive
conclusions.
 Clear chain of evidence (Empirical).
 The process of analysis depends on:
 Type of data
 Quantity of data
 In qualitative research analysis is
performed in parallel with data
collection.
p

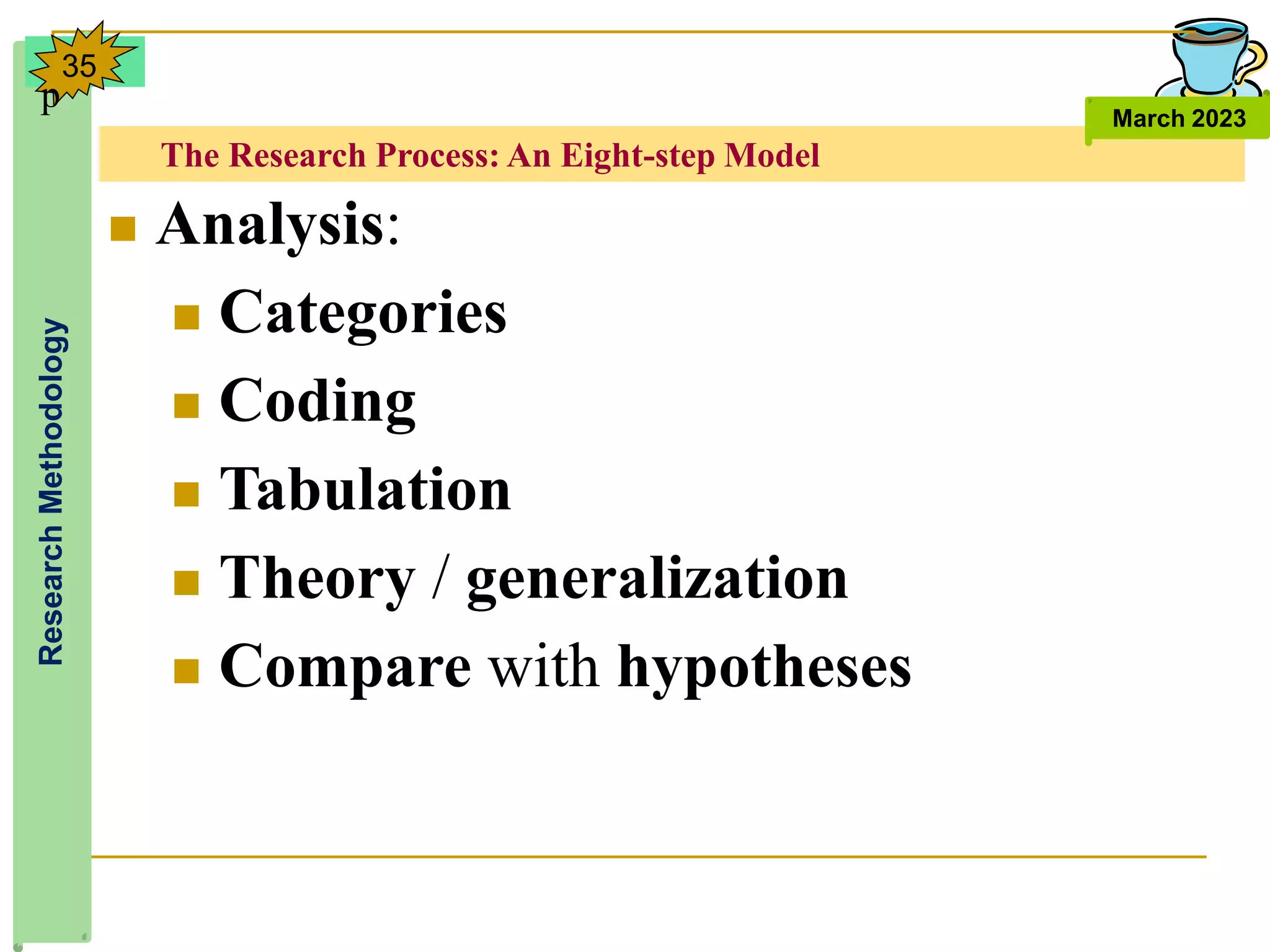

35. The Research Process: An Eight-step Model
Research
Methodology
March 2023
35
 Analysis:
 Categories
 Coding
 Tabulation
 Theory / generalization
 Compare with hypotheses
p

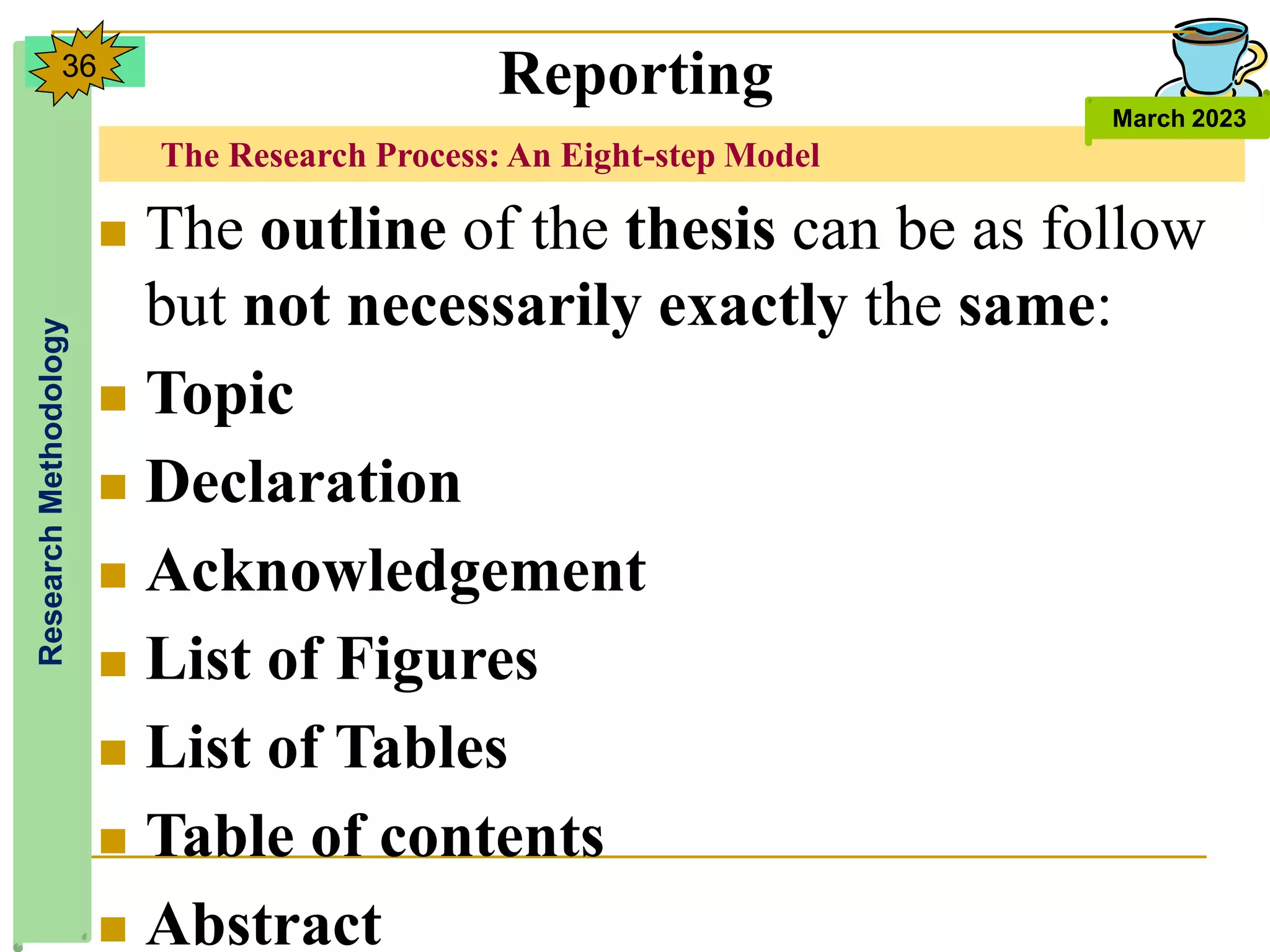

36. The Research Process: An Eight-step Model
Research
Methodology
March 2023
36
 The outline of the thesis can be as follow
but not necessarily exactly the same:
 Topic
 Declaration
 Acknowledgement
 List of Figures
 List of Tables
 Table of contents
 Abstract
Reporting

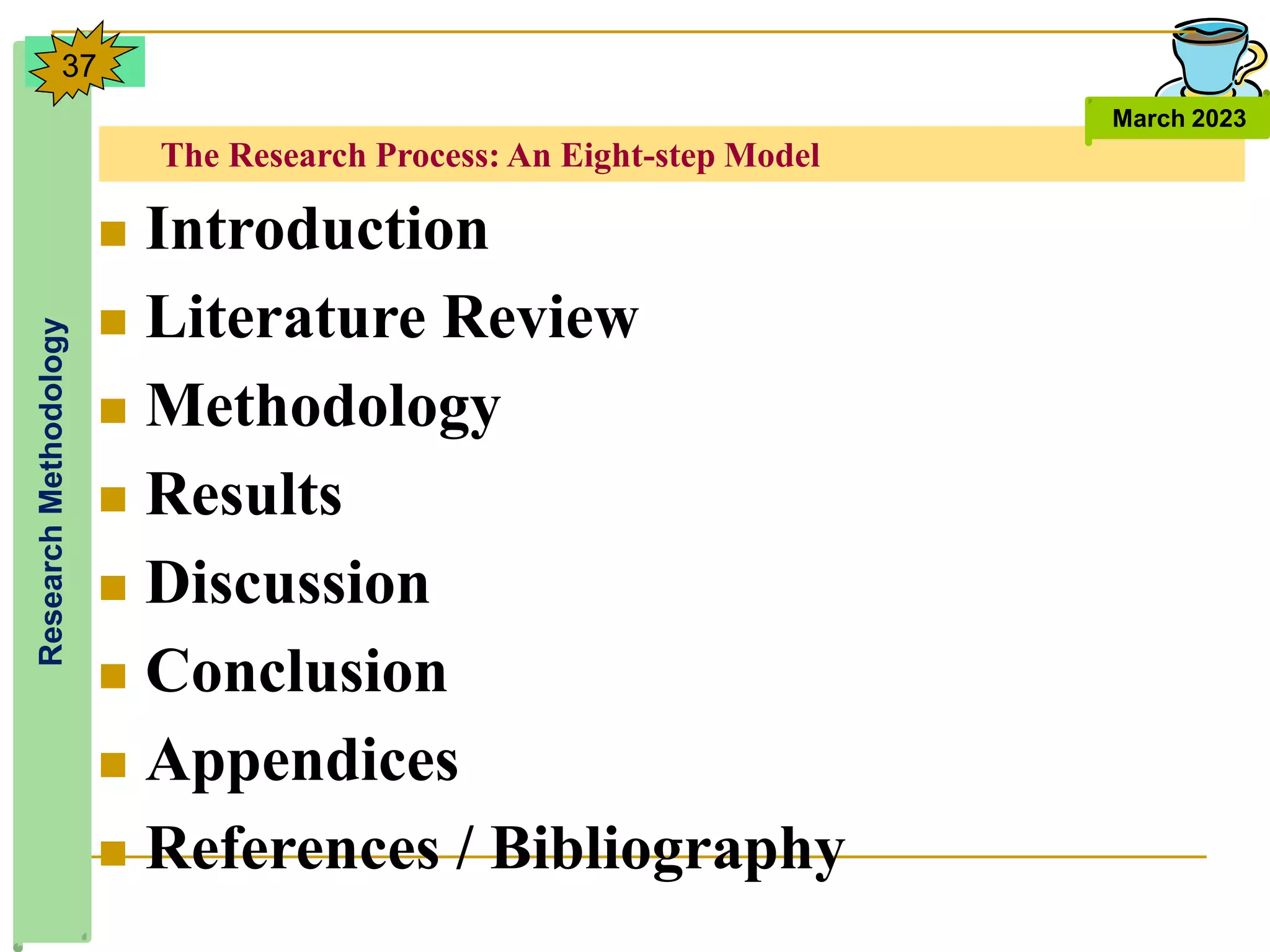

37. The Research Process: An Eight-step Model
Research
Methodology
March 2023
37
 Introduction
 Literature Review
 Methodology
 Results
 Discussion
 Conclusion
 Appendices
 References / Bibliography

38. End of Chapter 2
Question?
