- 1. Arduino Designer Turning Eclipseinto an Arduino programming platform for kids Mélanie Bats melanie.bats@obeo.fr @melaniebats
- 2.
- 3.
- 4.
- 5.
- 6.
- 7.
- 8.
- 9.
- 10. Understand programming Many opensource software are dedicated to learn programming to kids: Scratch, TurlteLogo, KidsRuby, Python4Kids… Initiatives: Programatoo, Devoxx4Kids, greenlight, coding goûter...
- 11.
- 12.
- 13. Program the realworld
- 14.
- 15.
- 16.
- 17. A dedicated tooling GraphicalProgramming Light UI
- 18. A dedicated tooling GraphicalProgramming = Sirius Light UI
- 19. A dedicated tooling GraphicalProgramming = Sirius Light UI = RCP application
- 20. Create graphical editor AcceleoArduinoSDK EMF GMF Runtime Sirius Runtime Eclipse RCP Arduino Designer
- 21. Data AcceleoArduino SDK EMF GMF Runtime SiriusRuntime Eclipse RCP Arduino Designer
- 22. Ecore Modeling Framework (EMF) Amodeling framework and code generation facility for building tools and other applications based on a structured data model. https://eclipse.org/modeling/emf/
- 23.
- 38.
- 39.
- 54. EMF.edit JAVA API : ★Content & label providers ★ Command framework ★ Default tree editor
- 55. Create graphical editor AcceleoArduinoSDK EMF GMF Runtime Sirius Runtime Eclipse RCP Arduino Designer
- 56. Sirius A tool toquickly define DSL based on custom multi- view workbenches with dedicated representations http://eclipse.org/sirius
- 57. Diagram definition Create aSirius Specification Project and provide diagram descriptions : ● Mappings ● Styles ● Tools Interpreted @ runtime
- 59.
- 60.
- 61.
- 62.
- 65. Tools Defined thanks to asimple action langage and/or Java services
- 69. Queries Coupling to semanticsis low thanks to queries!
- 70. Diet RCP Keep only inthe UI what’s really necessary
- 71. Simplified UI AcceleoArduino SDK EMF GMFRuntime Sirius Runtime Eclipse RCP Arduino Designer
- 72.
- 73. Diet RCP Simplify theworkflow
- 74. Use Sirius API Havea look to the Sirius Developer Manual
- 75. Integrate code generator Generateino file with Acceleo
- 76. Integrate code generator AcceleoArduinoSDK EMF GMF Runtime Sirius Runtime Eclipse RCP Arduino Designer
- 80.
- 81. All is instruction! Use inheritance forthe templates!
- 83. Combine with Arduinotools AcceleoArduino SDK EMF GMF Runtime Sirius Runtime Eclipse RCP Arduino Designer

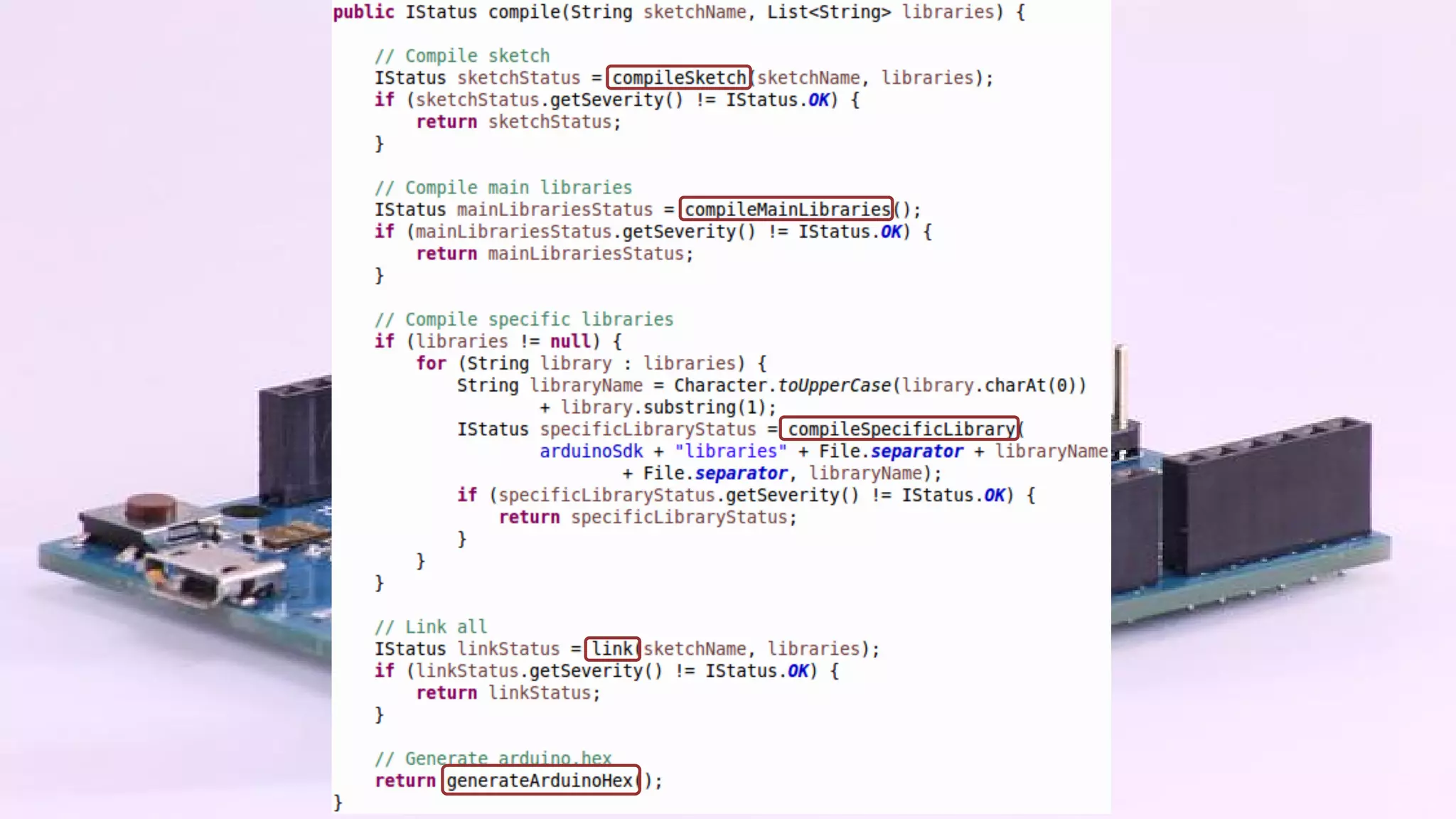

- 84. Combine with Arduinotools Arduino compiler Target uploader Based on Arduino IDE to get well packaged tools : avr-gcc, avrdude
- 92.
- 93. And where isthe cat in this story?
- 94.
- 95.
- 96. Touch Push button nosecommmands a blinking necklace
- 97. See Infrared sensor eyecommands the servo-motored tail
- 98. GEMOC ANR INS Project(2012-2016): “A Language Workbench for Heterogeneous Modeling and Analysis of Complex Software-Intensive Systems”
- 99. Arduino simulator 2 plugins: fr.obeo.dsl.arduino.simulator fr.obeo.dsl.arduino.simulator.design Languagefiles blank comment code Java 14 229 318 1185 XML 5 0 0 329 Maven 2 12 18 54 SUM: 21 241 336 1568
- 100.
- 101.
- 102.
- 103.
- 104.
- 105.
- 106.
- 108. Products available On github: https://github.com/mbats/arduino/releases
- 109. Inspire and createyours! Code available on : https://github.com/mbats/arduino Ask questions about Sirius on the forum
