This document proposes the development of a multi-bean sheller machine. It begins with an introduction to the background and current problems with shelling multiple types of beans: the long production time, high labor costs, and ability to only shell one bean type at a time. It then presents the perceived solution of a multi-bean sheller machine that can shell at least four different bean types. The objectives are then outlined as designing and fabricating a prototype that can test shelling different bean types more efficiently than manual labor. The document provides examples of existing single-bean sheller machines and outlines the proposed scope and limitations of the new multi-bean sheller, such as being able to shell 1-2 kg of mixed beans per

1. TITLE DEFENSE
TECHNOLOGICAL UNIVERSITY OF THE PHILIPPINES VISAYAS
Capt. Sabi St., Talisay City, Negros Occidental

2. Proposed by:
Aguirre, Cherry Ann E.
Bulandres, Renz Francis E.
Castro, Gabriel M.
De Julian, Donald N.
Musa, Michael B.
Subere, Mary Jane C.
Tagolimot, Bryan Paul A.

3. DEVELOPMENT OF
MULTI-BEAN
SHELLER

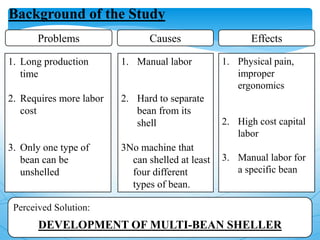

4. Background of the StudyBackground of the Study
Problems Causes Effects
1. Long production
time
2. Requires more labor
cost
3. Only one type of
bean can be
unshelled
1. Manual labor
2. Hard to separate
bean from its
shell
3No machine that
can shelled at least
four different
types of bean.
1. Physical pain,
improper
ergonomics
2. High cost capital
labor
3. Manual labor for
a specific bean
Perceived Solution:
DEVELOPMENT OF MULTI-BEAN SHELLER

5. SHELLED
BEANS
MULTI-BEAN
SHELLER Accumulator
Proper Disposal Waste
PROCESSES
SEPARATION OF BEAN
FROM ITS SHELL
FEATURES
CAPABLE OF
PEELING FOUR
TYPES OF BEAN
Easy to Operate
More Efficient than
Manual Process
Background of the Study
Introduce
Blower
REMOVAL OF SMALL
PARTICLES THROUGH
BLOWER
STORING OF
UNSHELLED BEAN

6. Background of the Study
PEAS PEANUTS
SOY BEAN COFFE BEAN
MULTI-BEAN
SHELLER

7. General Objectives
This study aims to develop a prototype that unshell four
different type of beans.
Specifically, this study aims to:
1. Design a prototype multi-bean sheller.
2. Fabricate the prototype , as designed with the following
parts:
a) 1-hp dc motor
b) Belt and pulley e) chassis
c) blower f) Rotating Sheller
d) Collector basin g) Shaft h)sieving screen
Objectives of the Study

8. 1. To fabricate as design
2 To test the capability of the machine to shell the different types
of beans.
3. To improve the production time.
4. To evaluate the aesthetics, and the efficiency of the
machine.
Objectives of the Study

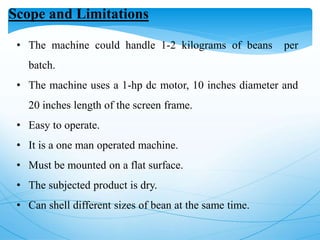

9. Scope and Limitations
• The machine could handle 1-2 kilograms of beans per
batch.
• The machine uses a 1-hp dc motor, 10 inches diameter and
20 inches length of the screen frame.
• Easy to operate.
• It is a one man operated machine.
• Must be mounted on a flat surface.
• The subjected product is dry.
• Can shell different sizes of bean at the same time.

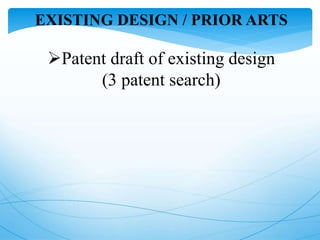

10. EXISTING DESIGN / PRIOR ARTS
Patent draft of existing design
(3 patent search)

11. (a' [.1 "'f)
f T .nn
~PR 1
THE UNIVERSITY OF TENNESSEE
AGRICULTURAL EXPERIMENT STATION
BULLETIN No. 187 JANUARY, 1944
THE IMPROVED CASTOR..BEAN SHELLE~
Description, Operation, and Adjustment of the
24 ·inch Sheller and Separator
By
H. A. Arnold and M. A. Sharp
End view of improved castor-bean sheller.
KNOXVILLE

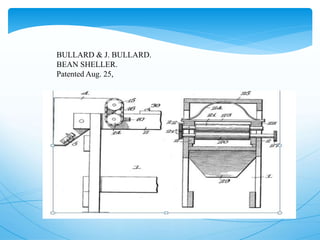

12. BULLARD & J. BULLARD.
BEAN SHELLER.
Patented Aug. 25,
