Cebit 2015 icinga

WWW.ICINGA.ORG
CeBIT 2015 - Hannover
03/18/2015 Icinga - Open Source Monitoring

EXCHANGE. DEV. WIKI. BLOG. DOC. | WWW.ICINGA.ORG
#icinga

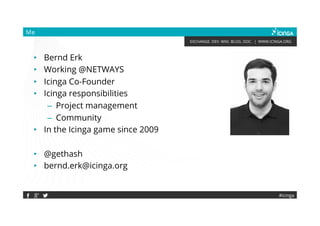

Me
• Bernd Erk
• Working @NETWAYS
• Icinga Co-Founder
• Icinga responsibilities
– Project management
– Community
• In the Icinga game since 2009
• @gethash
• bernd.erk@icinga.org

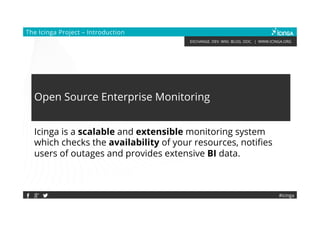

The Icinga Project – Introduction
#icinga
Open Source Enterprise Monitoring
Icinga is a scalable and extensible monitoring system
which checks the availability of your resources, notifies
users of outages and provides extensive BI data.

#icinga

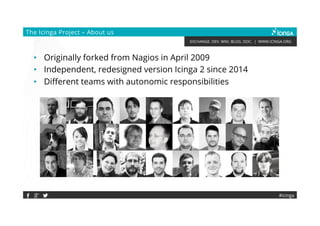

The Icinga Project – About us
• Originally forked from Nagios in April 2009
• Independent, redesigned version Icinga 2 since 2014
• Different teams with autonomic responsibilities

#icinga

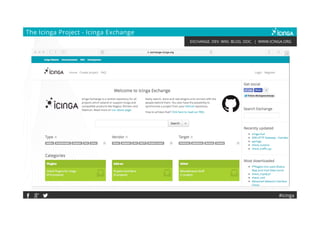

The Icinga Project - Icinga Exchange

#icinga

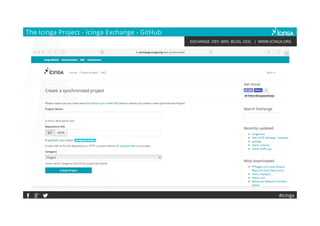

The Icinga Project - Icinga Exchange - GitHub

#icinga

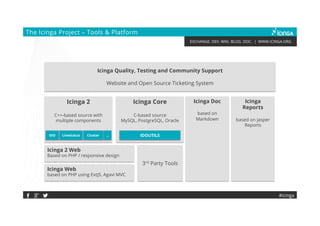

The Icinga Project – Tools & Platform
Icinga Core
C-based source
MySQL, PostgreSQL, Oracle
Icinga Quality, Testing and Community Support
Website and Open Source Ticketing System
Icinga Reports
based on Jasper
Reports
Icinga Doc
based on
Markdown
3rd Party Tools
Icinga Web
based on PHP using ExtJS, Agavi MVC
IDOUTILS
Icinga 2 Web
Based on PHP / responsive design
Icinga 2
C++-based source with
multiple components
IDO Livestatus Cluster …

Host
Databases Network

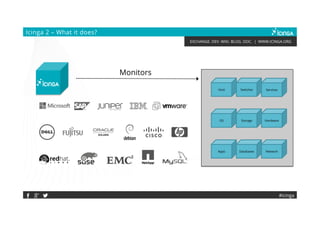

Icinga 2 – What it does?
#icinga
Monitors
Apps
HardwareOS Storage
Host Switches Services

#icinga
Alerts
Mail
SMS
Voice
Ticket

#icinga

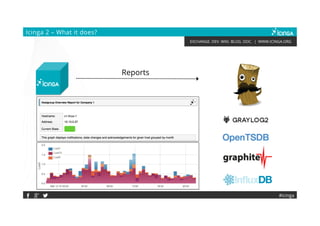

Reports

#icinga

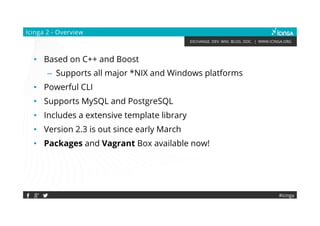

Icinga 2 - Overview
• Based on C++ and Boost
– Supports all major *NIX and Windows platforms
• Powerful CLI
• Supports MySQL and PostgreSQL
• Includes a extensive template library
• Version 2.3 is out since early March
• Packages and Vagrant Box available now!

Checker
Statusdat
Gelf
Perfdata Graphite
IDO
Compat
Livestatus
Icinga 2 - Architecture
#icinga

Livestatus

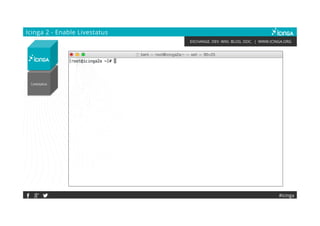

Icinga 2 - Enable Livestatus
#icinga

Icinga 2 - Configuration
• Different config format
– there is a conversion script!
– but you won’t miss the old config!
• It is really time for change
• Could be that you hate it now, but you’ll love it later!
#icinga

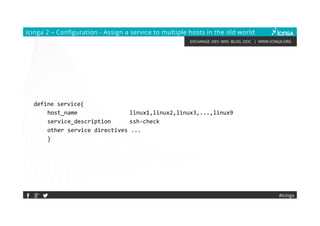

Icinga 2 – Configuration - Assign a service to multiple hosts in the old world
define service{
host_name linux1,linux2,linux3,...,linux9
service_description ssh-check
other service directives ...
}
#icinga

#icinga

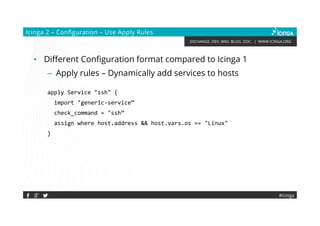

Icinga 2 – Configuration – Use Apply Rules
• Different Configuration format compared to Icinga 1
– Apply rules – Dynamically add services to hosts
apply Service "ssh" {
import "generic-service”
check_command = "ssh”
assign where host.address && host.vars.os == "Linux"
}

Icinga 2 – Configuration – Another cool thing
#icinga

#icinga
Icinga 2 – Configuration - Conditionals
• Conditionals – Time dependent thresholds
object Service ”webservice" {
import "generic-service”
check_command = ”load”
host_name = “a really great server”
vars.load_wload1 = {{
if (get_time_period(“9to5”).is_inside) {
return 40
} else {
return 60
}
}}
}

CA Zones API

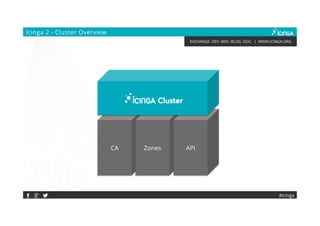

Icinga 2 - Cluster Overview
Cluster
#icinga

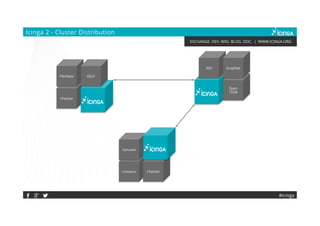

Icinga 2 - Cluster Distribution
Checker
Perfdata GELF
IDO
Open
TSDB
Graphite
Livestatus Checker
Statusdat
#icinga

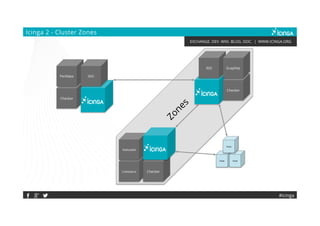

Icinga 2 - Cluster Zones
IDO
Checker
Graphite
Livestatus Checker
Statusdat
Host Host
Host
Checker
Perfdata IDO
#icinga

#icinga

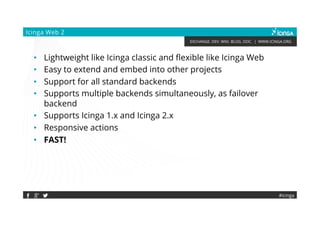

Icinga Web 2
• Lightweight like Icinga classic and flexible like Icinga Web
• Easy to extend and embed into other projects
• Support for all standard backends
• Supports multiple backends simultaneously, as failover backend
• Supports Icinga 1.x and Icinga 2.x
• Responsive actions
• FAST!

Backends Authentication Installer
Framework / Icinga PHP LibraryWeb 2
Icinga Web 2 - Foundation
#icinga

Web 2
Monitoring Docs

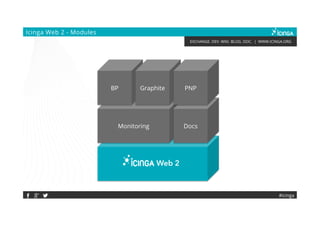

Icinga Web 2 - Modules
BP Graphite PNP
#icinga

#icinga
Icinga Web 2 - Demo
DEMO

#icinga
The Community - Users
You?

#icinga

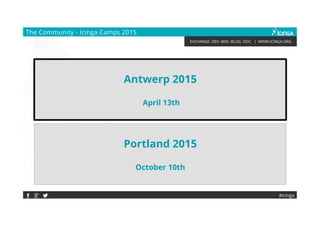

The Community - Icinga Camps 2015
Kuala Lumpur 2015
June 9th
Portland 2015
October 10th
Antwerp 2015
April 13th

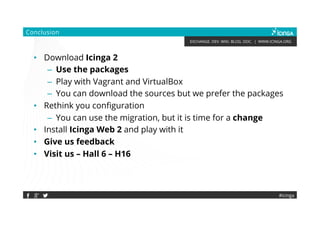

Conclusion
• Download Icinga 2
– Use the packages
– Play with Vagrant and VirtualBox
– You can download the sources but we prefer the packages
• Rethink you configuration
– You can use the migration, but it is time for a change
• Install Icinga Web 2 and play with it
• Give us feedback
• Visit us – Hall 6 – H16
#icinga

!!!

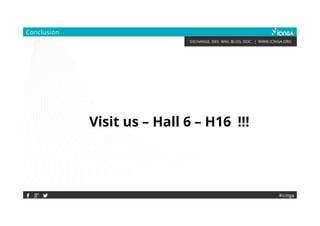

Conclusion
Visit us – Hall 6 – H16
#icinga

#icinga

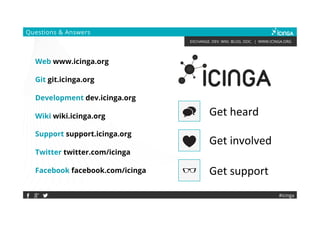

Questions & Answers
Web www.icinga.org
Git git.icinga.org
Development dev.icinga.org
Wiki wiki.icinga.org
Support support.icinga.org
Twitter twitter.com/icinga
Facebook facebook.com/icinga Get support
Get involved
Get heard
