1. Managing IT outages with
Icinga and StackStorm

3. @jfryman

6. Placingtoolsdirectlyinthe
middleoftheconversation
— Jesse Newland

7. ChatHipChat
Slack
FlowDock
CampFire
IRC

8. BotsLita
Hubot
Err
Lazlo*

10. BotsareNOT100%
necessary

11. Benefits
· Sharing
· Learning
· Speed
· Security
· Brainstorming
· Fun

12. Design

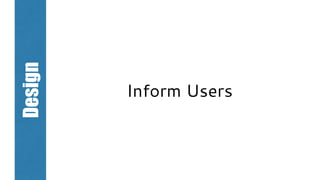

13. Design
Inform Users

14. But the problem isn’t that
they don’t trust you, they
want to know it’s being fixed.
Trust

15. Integration
Create integration
from Icinga ->
StackStorm

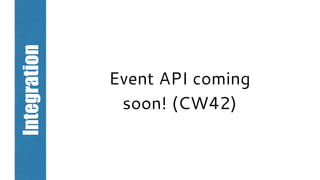

17. Integration
Event API coming
soon! (CW42)

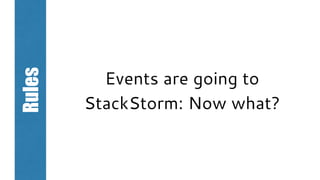

18. Rules
Events are going to
StackStorm: Now what?

19. Rules
Triggers are emitted into
the system, match against
criteria, and then take an
action if successful.

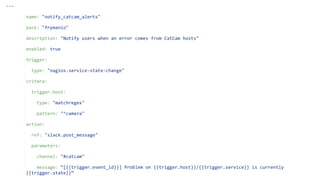

20. ---
name: "notify_catcam_alerts"
pack: "frymanio"
description: "Notify users when an error comes from CatCam hosts"
enabled: true
trigger:
type: "nagios.service-state-change"
critera:
trigger.host:
type: "matchregex"
pattern: "^camera"
action:
ref: "slack.post_message"
parameters:
channel: "#catcam"
message: “[{{trigger.event_id}}] Problem on {{trigger.host}}/{{trigger.service}} is currently
{{trigger.state}}“

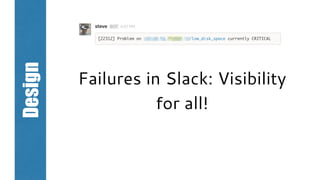

21. Design
Failures in Slack: Visibility
for all!

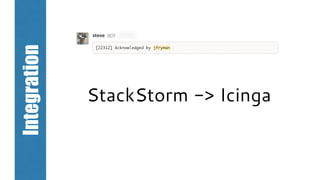

22. StackStorm -> Icinga
Integration

23. Design
Allows you to expose tools
that would normally be
foreign to developers/
users.

24. Give control back to users.
Have user also execute
command.
GiveBackControl

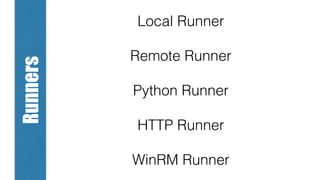

25. Local Runner
Remote Runner
Python Runner
HTTP Runner
WinRM Runner
Runners

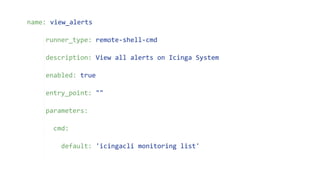

26. name: view_alerts
runner_type: remote-shell-cmd
description: View all alerts on Icinga System
enabled: true
entry_point: ""
parameters:
cmd:
default: 'icingacli monitoring list'

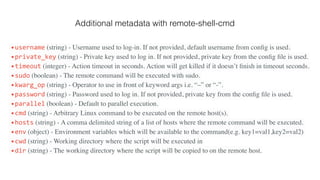

27. •username (string) - Username used to log-in. If not provided, default username from config is used.
•private_key (string) - Private key used to log in. If not provided, private key from the config file is used.
•timeout (integer) - Action timeout in seconds. Action will get killed if it doesn’t finish in timeout seconds.
•sudo (boolean) - The remote command will be executed with sudo.
•kwarg_op (string) - Operator to use in front of keyword args i.e. “–” or “-”.
•password (string) - Password used to log in. If not provided, private key from the config file is used.
•parallel (boolean) - Default to parallel execution.
•cmd (string) - Arbitrary Linux command to be executed on the remote host(s).
•hosts (string) - A comma delimited string of a list of hosts where the remote command will be executed.
•env (object) - Environment variables which will be available to the command(e.g. key1=val1,key2=val2)
•cwd (string) - Working directory where the script will be executed in
•dir (string) - The working directory where the script will be copied to on the remote host.
Additional metadata with remote-shell-cmd

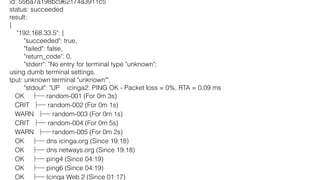

28. id: 55ba7a198bc962174a3911c5
status: succeeded
result:
{
"192.168.33.5": {
"succeeded": true,
"failed": false,
"return_code": 0,
"stderr": "No entry for terminal type "unknown";
using dumb terminal settings.
tput: unknown terminal "unknown"",
"stdout": "UP icinga2: PING OK - Packet loss = 0%, RTA = 0.09 ms
OK random-001 (For 0m 3s)
CRIT random-002 (For 0m 1s)
WARN random-003 (For 0m 1s)
CRIT random-004 (For 0m 5s)
WARN random-005 (For 0m 2s)
OK dns icinga.org (Since 19:18)
OK dns netways.org (Since 19:18)
OK ping4 (Since 04:19)
OK ping6 (Since 04:19)
OK Icinga Web 2 (Since 01:17)

29. What About
ChatOps?

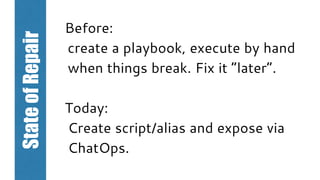

30. Before:
create a playbook, execute by hand
when things break. Fix it “later”.
Today:
Create script/alias and expose via
ChatOps.
StateofRepair

31. Design
Describe The
Service

32. /ci

33. /graph

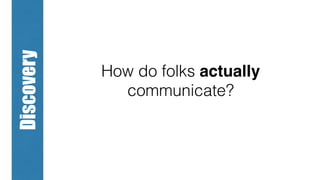

34. How do folks actually
communicate?
Discovery

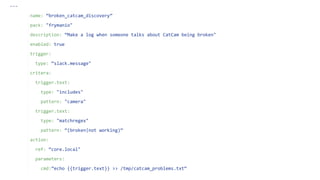

35. ---
name: “broken_catcam_discovery”
pack: "frymanio"
description: “Make a log when someone talks about CatCam being broken"
enabled: true
trigger:
type: “slack.message"
critera:
trigger.text:
type: "includes"
pattern: "camera"
trigger.text:
type: "matchregex"
pattern: “(broken|not working)“
action:
ref: “core.local"
parameters:
cmd:”echo {{trigger.text}} >> /tmp/catcam_problems.txt“

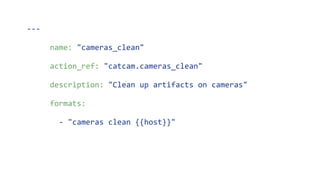

36. ---
name: "cameras_clean"
action_ref: "catcam.cameras_clean"
description: "Clean up artifacts on cameras"
formats:
- "cameras clean {{host}}"

37. Discovery

38. Design
Help comes first, not last

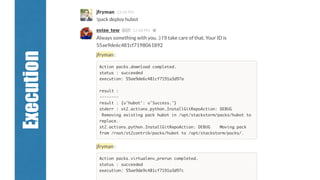

39. Execution

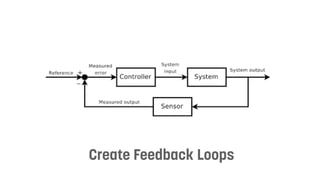

40. Create Feedback Loops

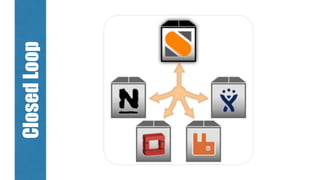

41. ClosedLoop

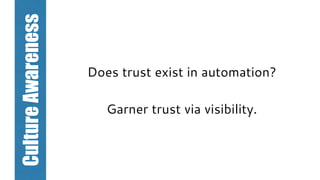

42. Does trust exist in automation?
Garner trust via visibility.
CultureAwareness

43. Next level: kick off workflow.

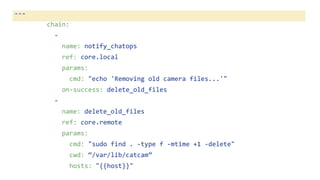

44. ---
chain:
-
name: notify_chatops
ref: core.local
params:
cmd: "echo 'Removing old camera files...'"
on-success: delete_old_files
-
name: delete_old_files
ref: core.remote
params:
cmd: "sudo find . -type f -mtime +1 -delete"
cwd: “/var/lib/catcam”
hosts: "{{host}}"

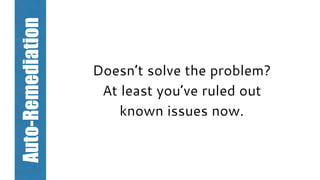

45. Doesn’t solve the problem?
At least you’ve ruled out
known issues now.
Auto-Remediation

47. WHY

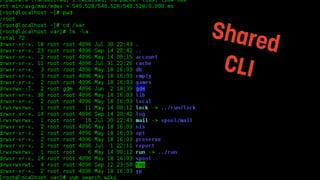

48. Shared
CLI

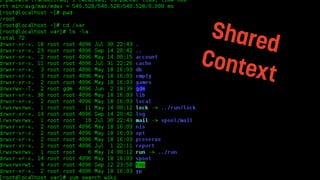

49. Shared
Context

50. A different kind of bus…

54. Official Release:
11.11.2015

55. https://stackstorm.com/community-signup
https://stackstorm.com/#try-now
AMI / VMDK / All in One Installer

56. Thanks!
