Loadays 2015 - Enterprise Monitoring with Icinga

WWW.ICINGA.ORG
LOADays - Antwerp
04/12/2015 Icinga - Open Source Monitoring

EXCHANGE. DEV. WIKI. BLOG. DOC. | WWW.ICINGA.ORG
#icinga
Me
• Bernd Erk
• Working @NETWAYS
• Icinga Co-Founder
• Icinga responsibilities
– Project management
– Community
• In the Icinga game since 2009
• @gethash
• bernd.erk@icinga.org

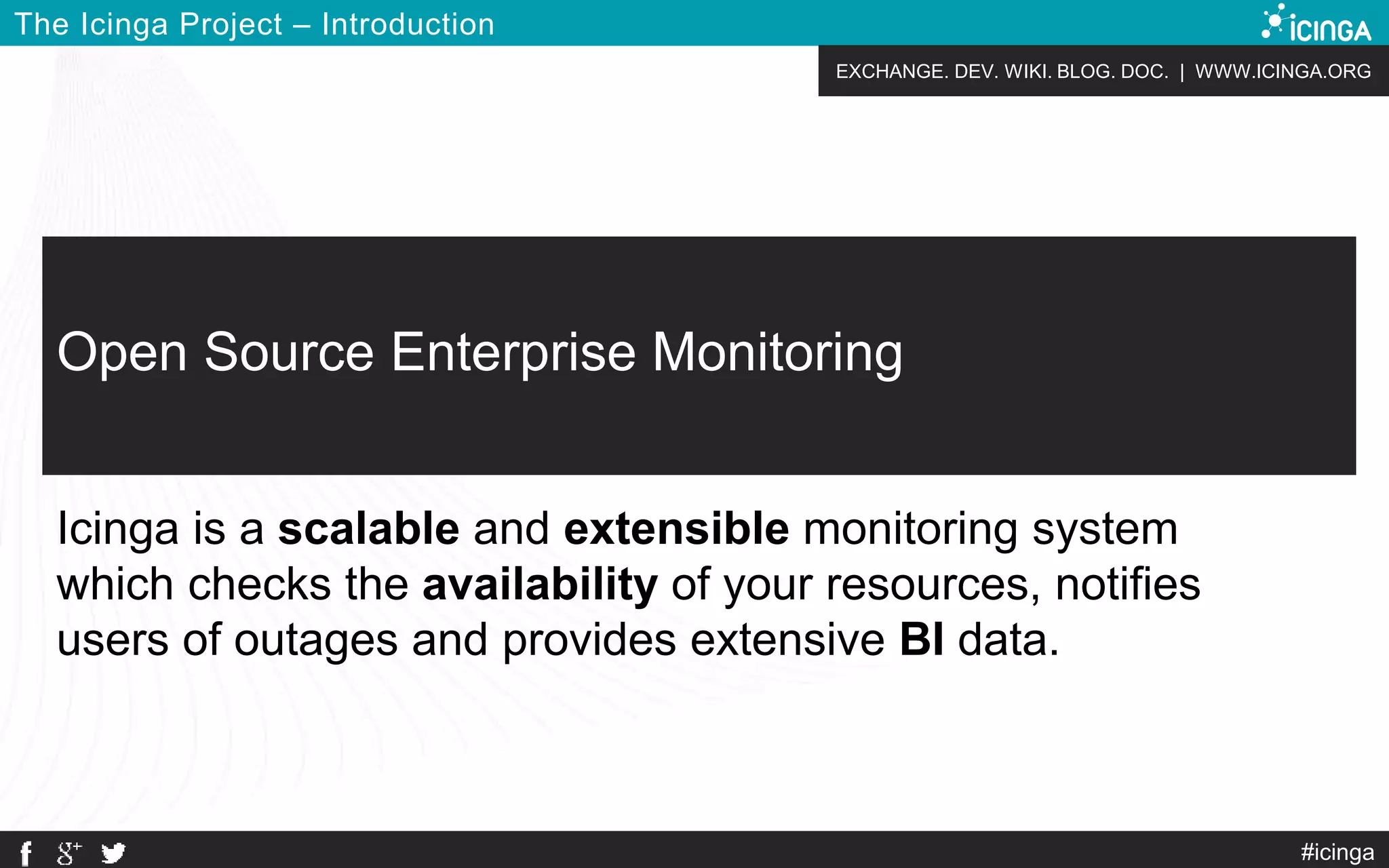

The Icinga Project – Introduction
#icinga
Open Source Enterprise Monitoring
Icinga is a scalable and extensible monitoring system
which checks the availability of your resources, notifies
users of outages and provides extensive BI data.

#icinga
The Icinga Project – About us
• Originally forked from Nagios in April 2009
• Independent, redesigned version Icinga 2 since 2014
• Different teams with autonomic responsibilities

#icinga

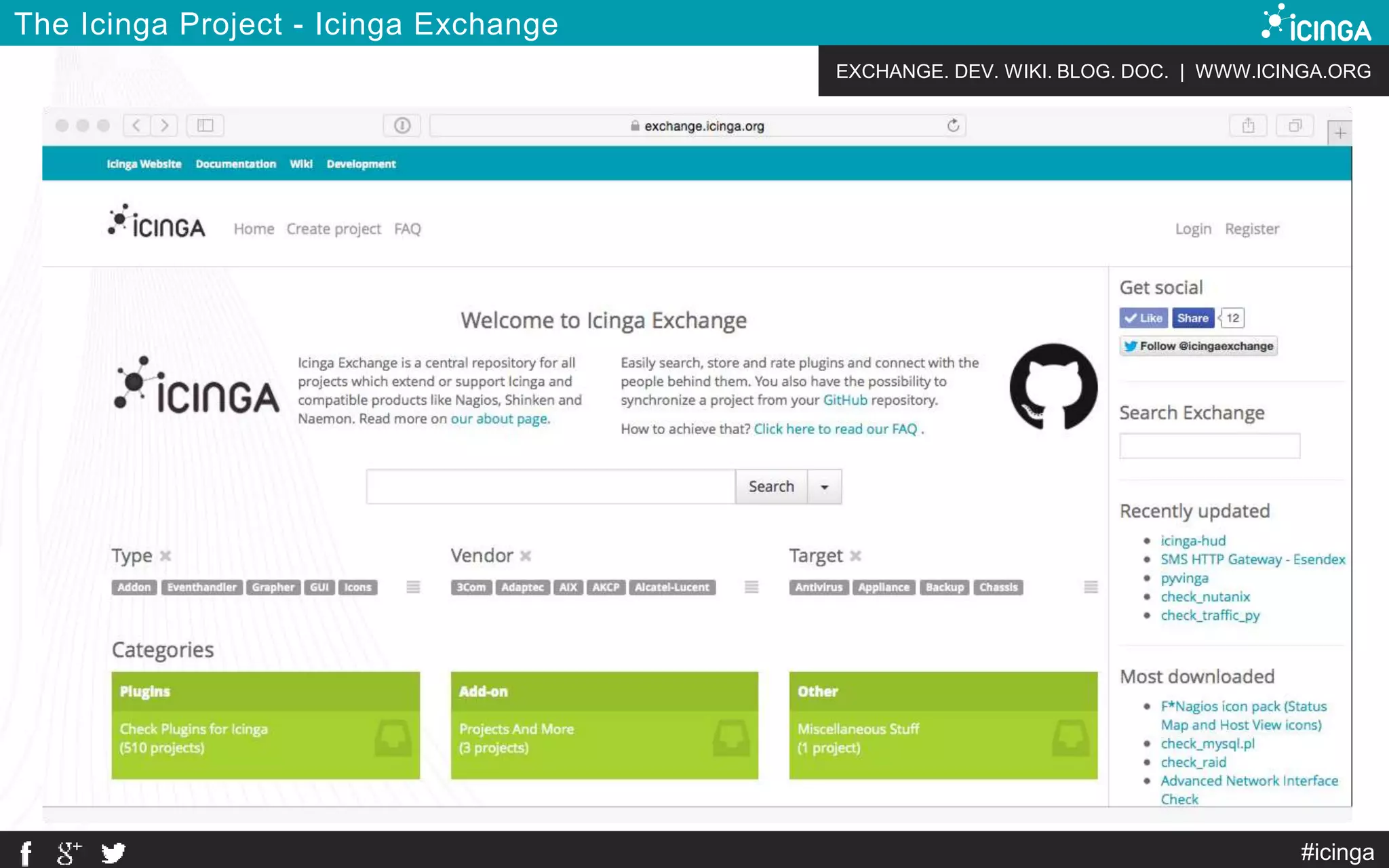

The Icinga Project - Icinga Exchange

#icinga

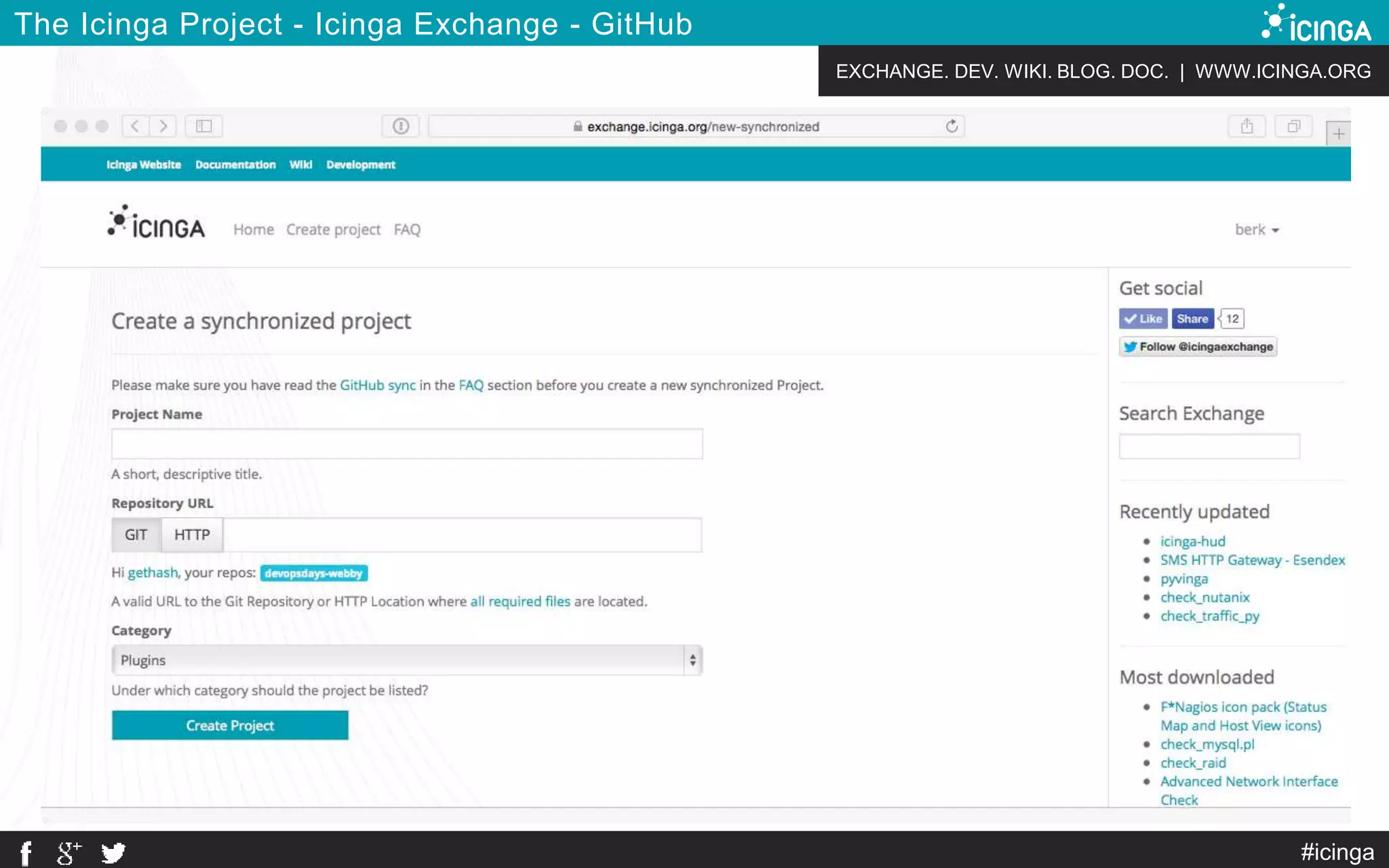

The Icinga Project - Icinga Exchange - GitHub

#icinga

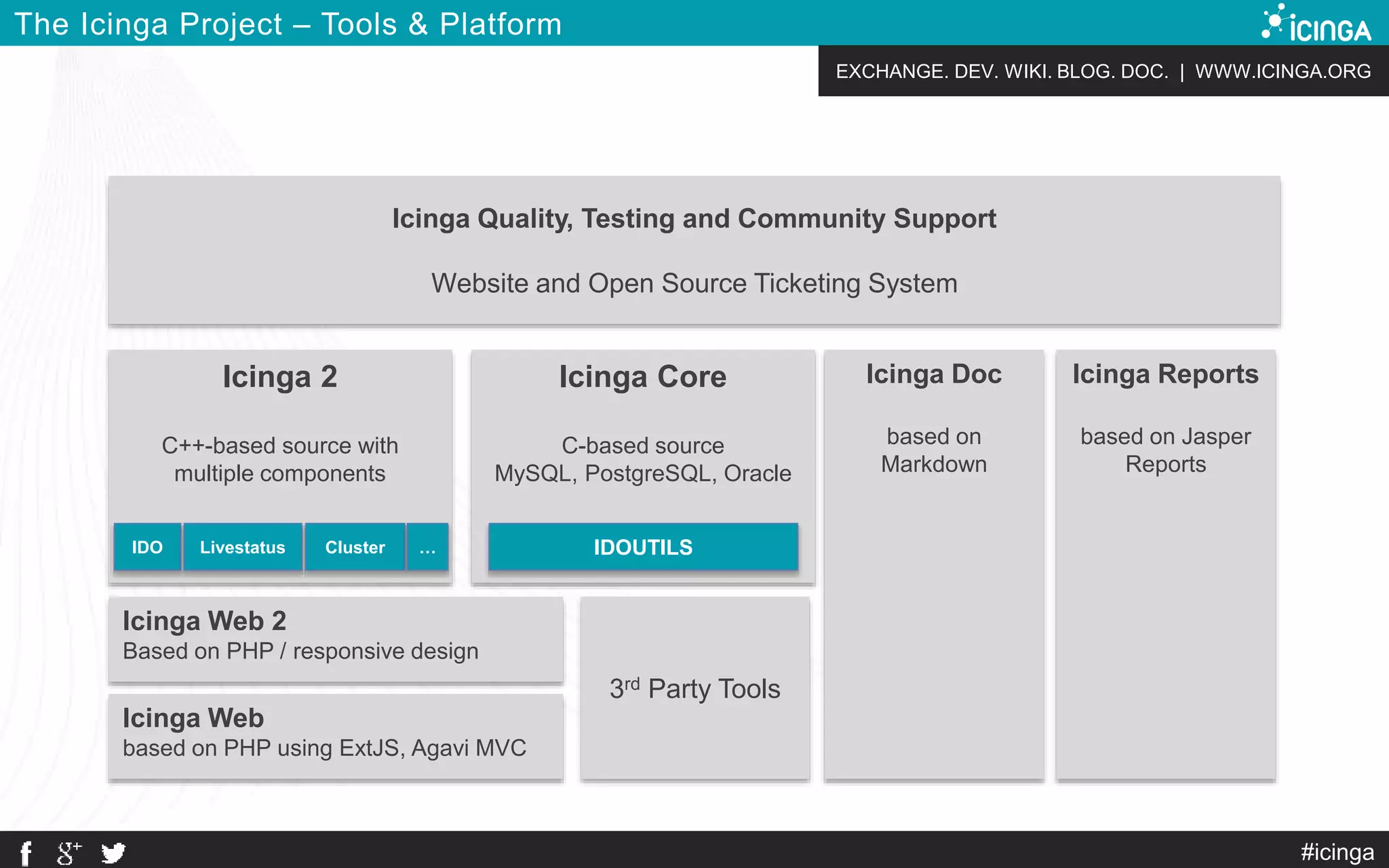

The Icinga Project – Tools & Platform
Icinga Core
C-based source
MySQL, PostgreSQL, Oracle
Icinga Quality, Testing and Community Support
Website and Open Source Ticketing System
Icinga Reports
based on Jasper
Reports
Icinga Doc
based on
Markdown
3rd Party Tools
Icinga Web
based on PHP using ExtJS, Agavi MVC
IDOUTILS
Icinga Web 2
Based on PHP / responsive design
Icinga 2
C++-based source with
multiple components
IDO Livestatus Cluster …

Host
Databases Network

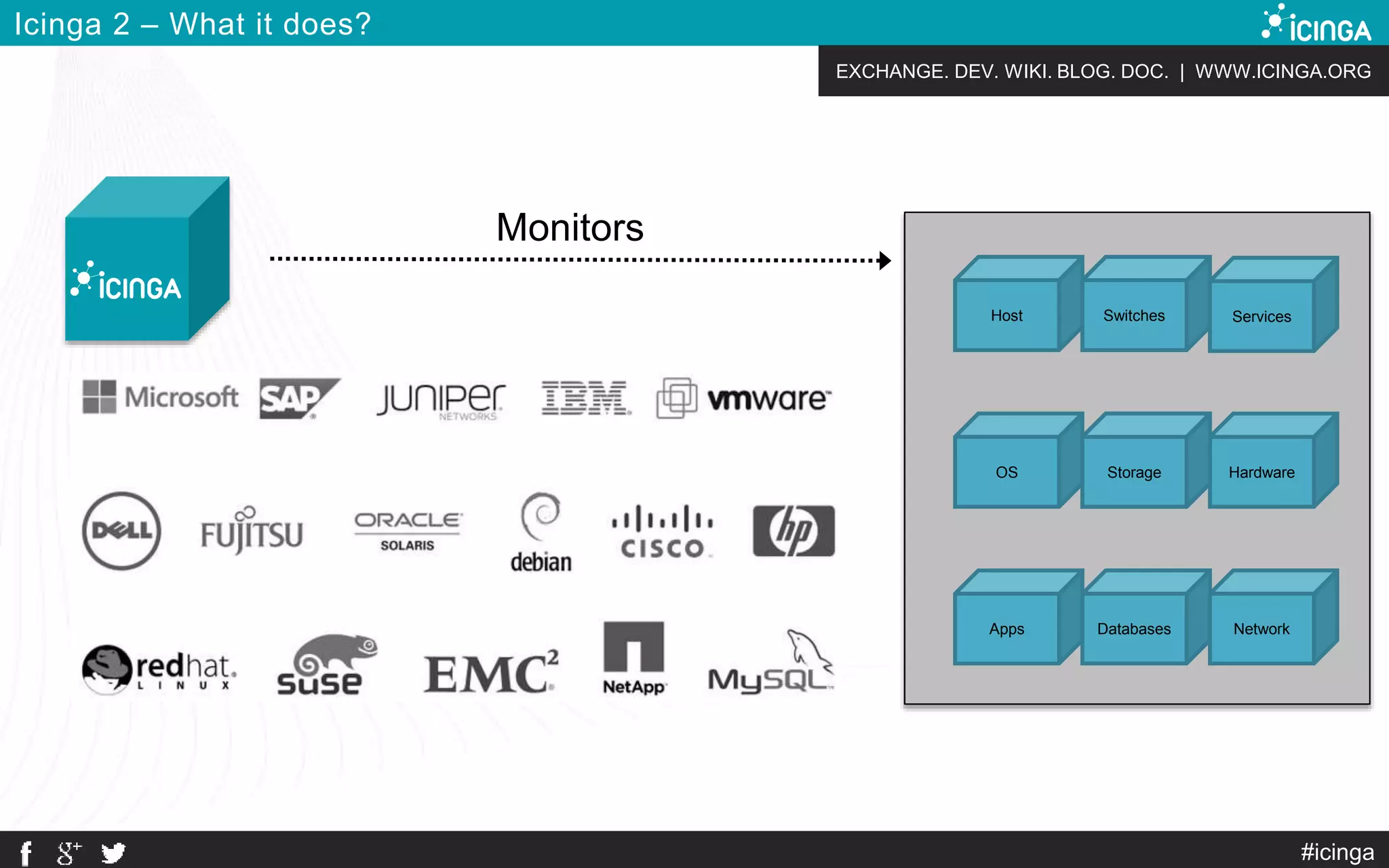

Icinga 2 – What it does?
#icinga
Monitors
Apps
HardwareOS Storage
Host Switches Services

#icinga

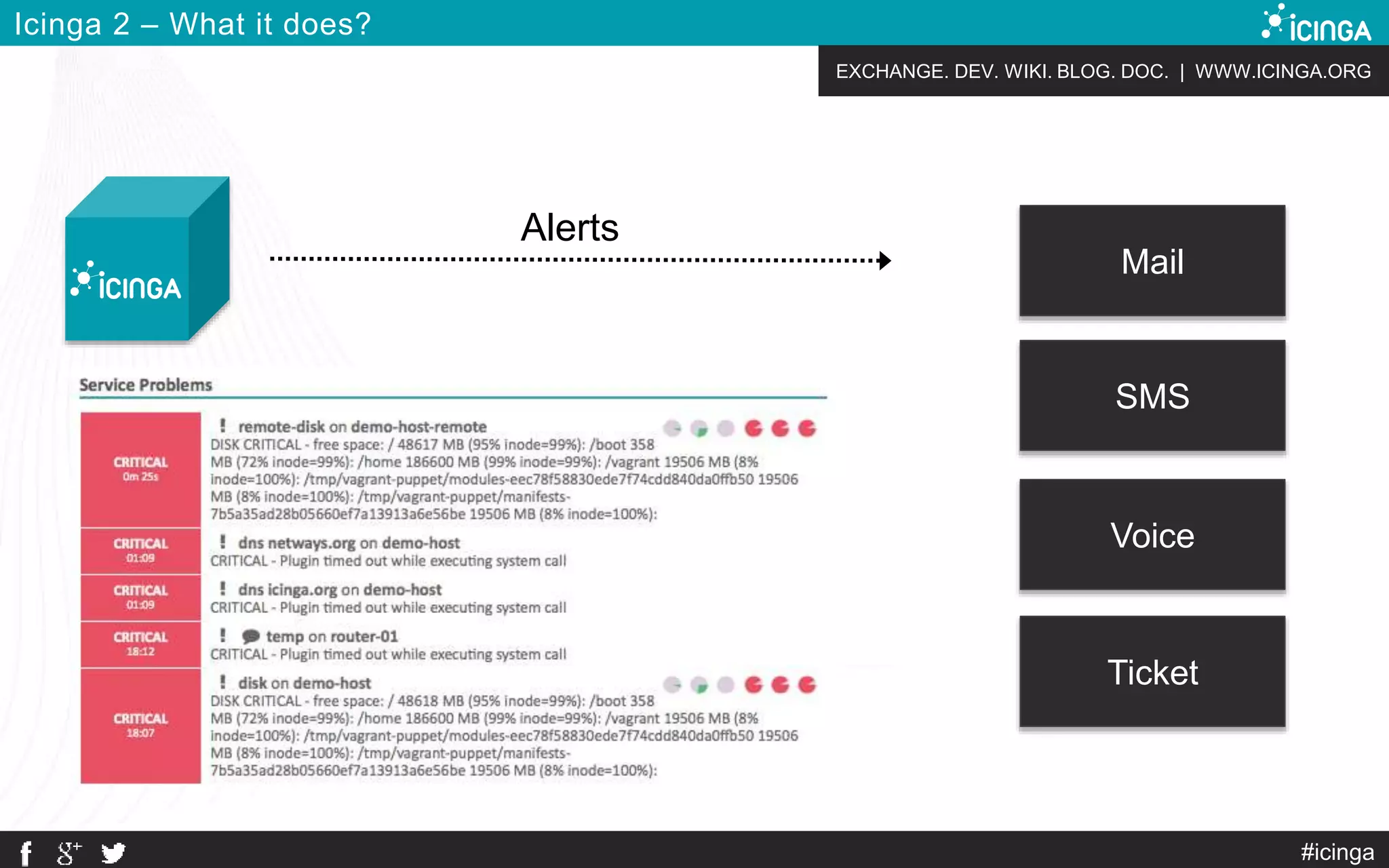

Alerts
Mail
SMS
Voice
Ticket

#icinga

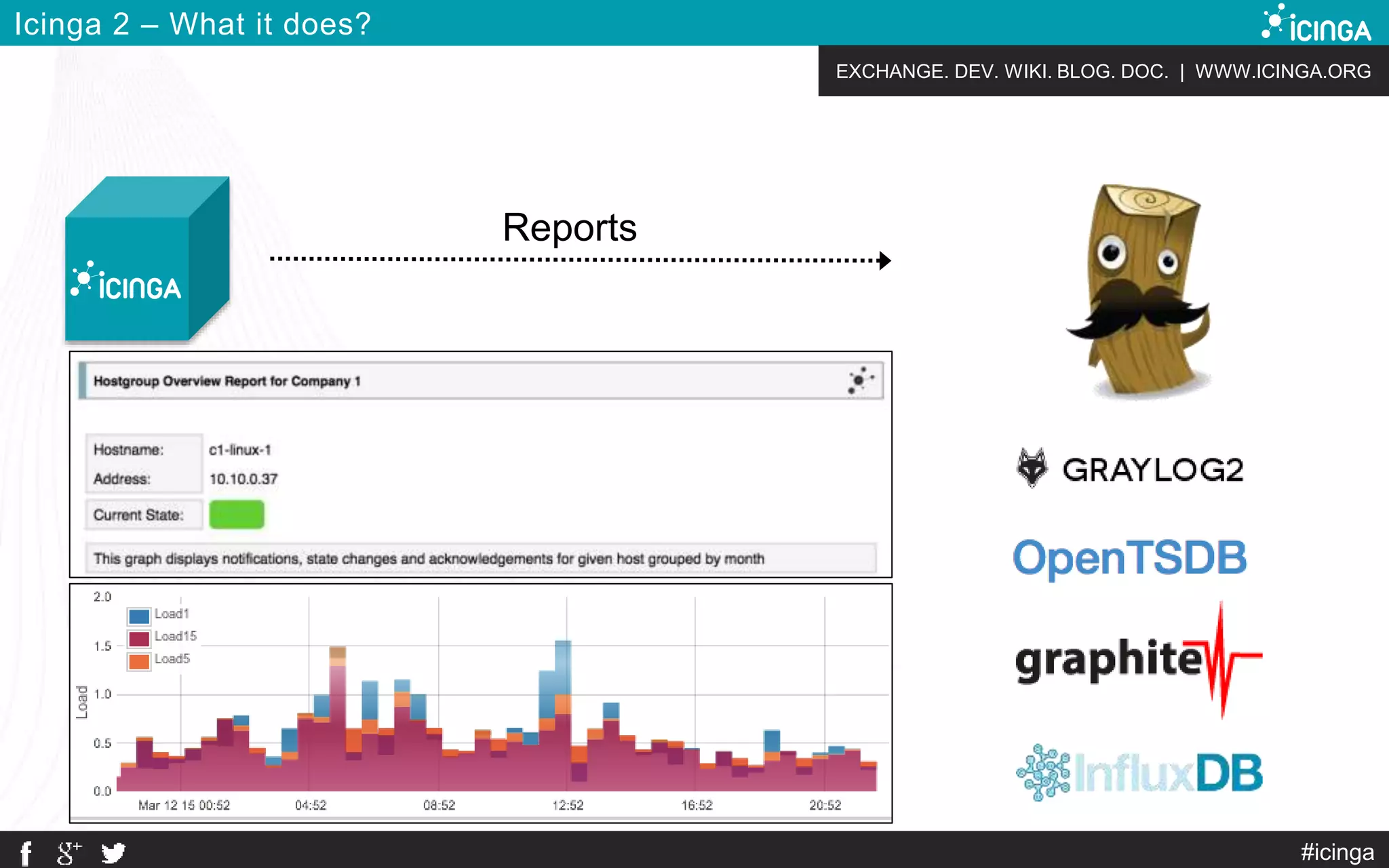

Reports

#icinga

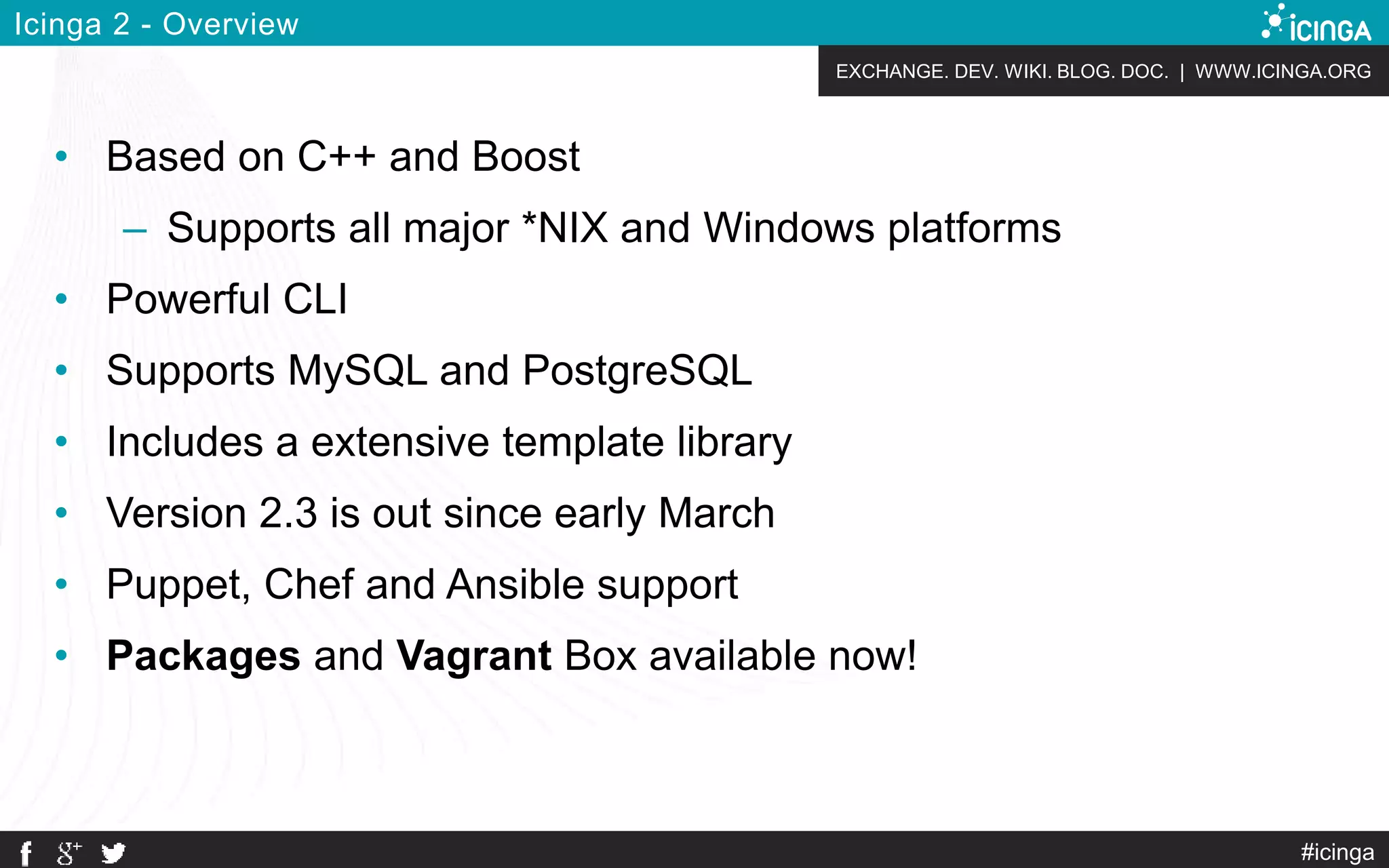

Icinga 2 - Overview
• Based on C++ and Boost
– Supports all major *NIX and Windows platforms
• Powerful CLI
• Supports MySQL and PostgreSQL
• Includes a extensive template library
• Version 2.3 is out since early March
• Puppet, Chef and Ansible support
• Packages and Vagrant Box available now!

Checker
Statusdat
Gelf
Perfdata Graphite
IDO
Compat
Livestatus

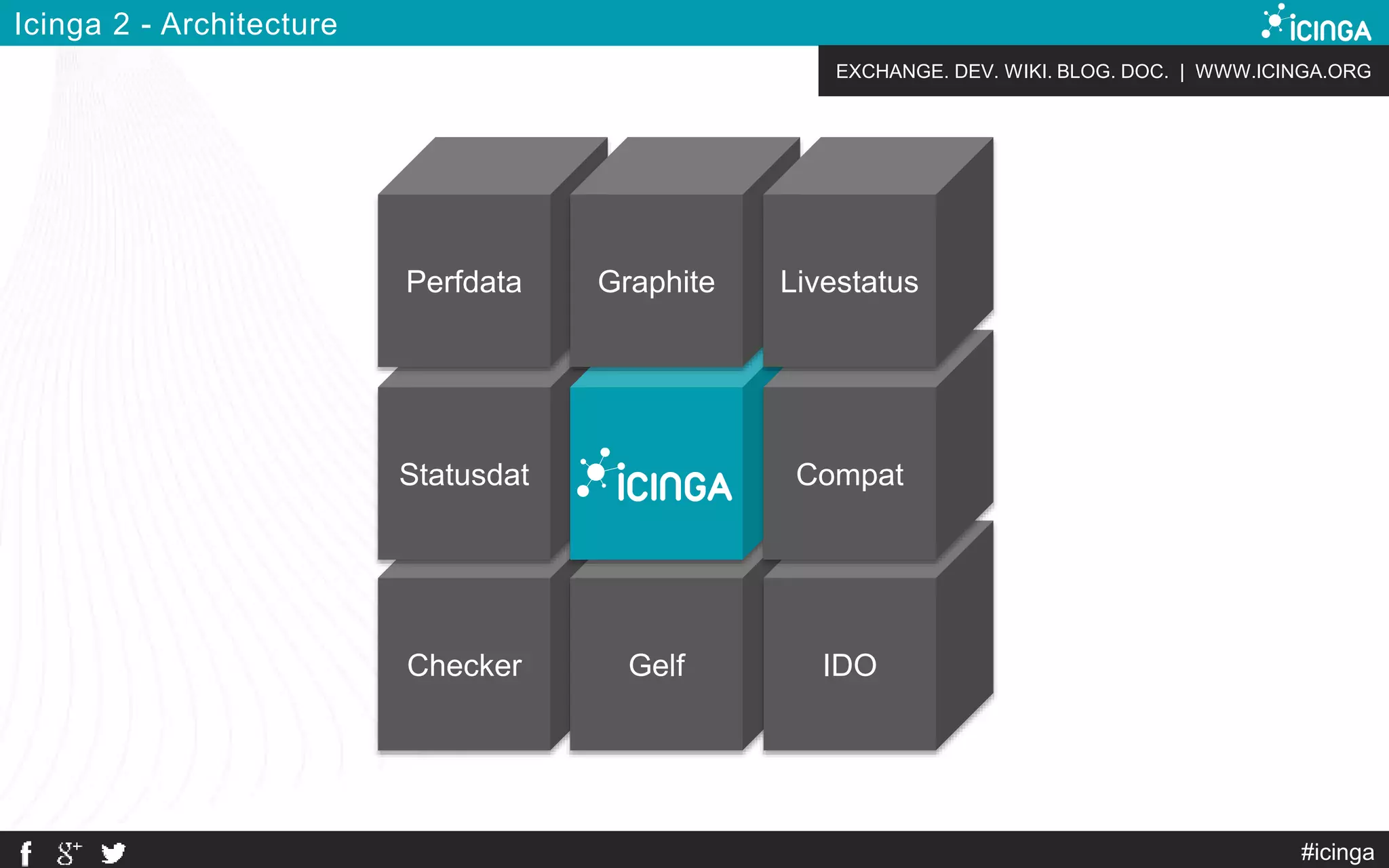

Icinga 2 - Architecture
#icinga

#icinga
Icinga 2 - Demo
DEMO

Icinga 2 - Configuration
• Different config format
• Won’t miss the old config!
• It is really time for change
• You will love it!
#icinga

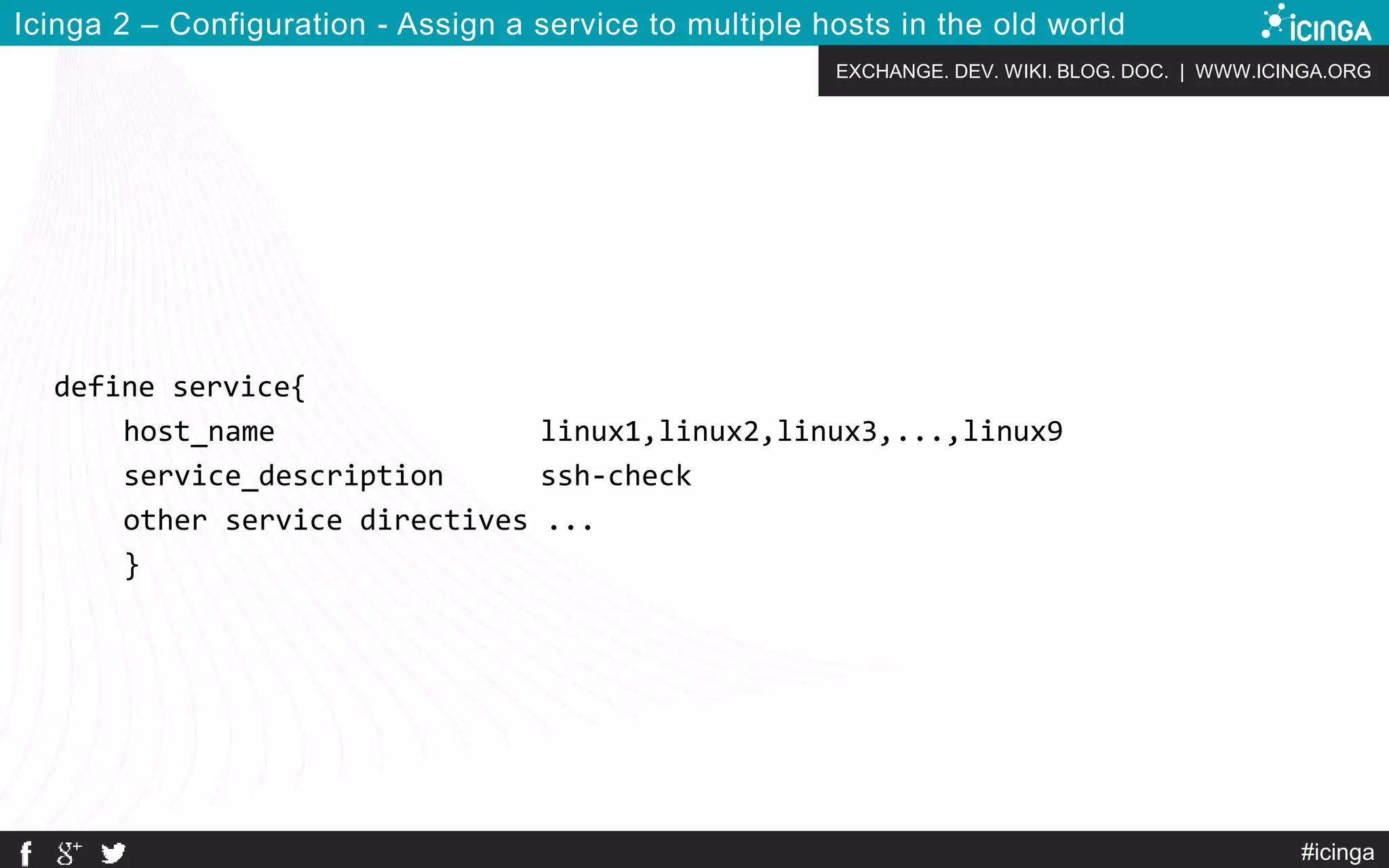

Icinga 2 – Configuration - Assign a service to multiple hosts in the old world
define service{
host_name linux1,linux2,linux3,...,linux9
service_description ssh-check
other service directives ...
}
#icinga

#icinga

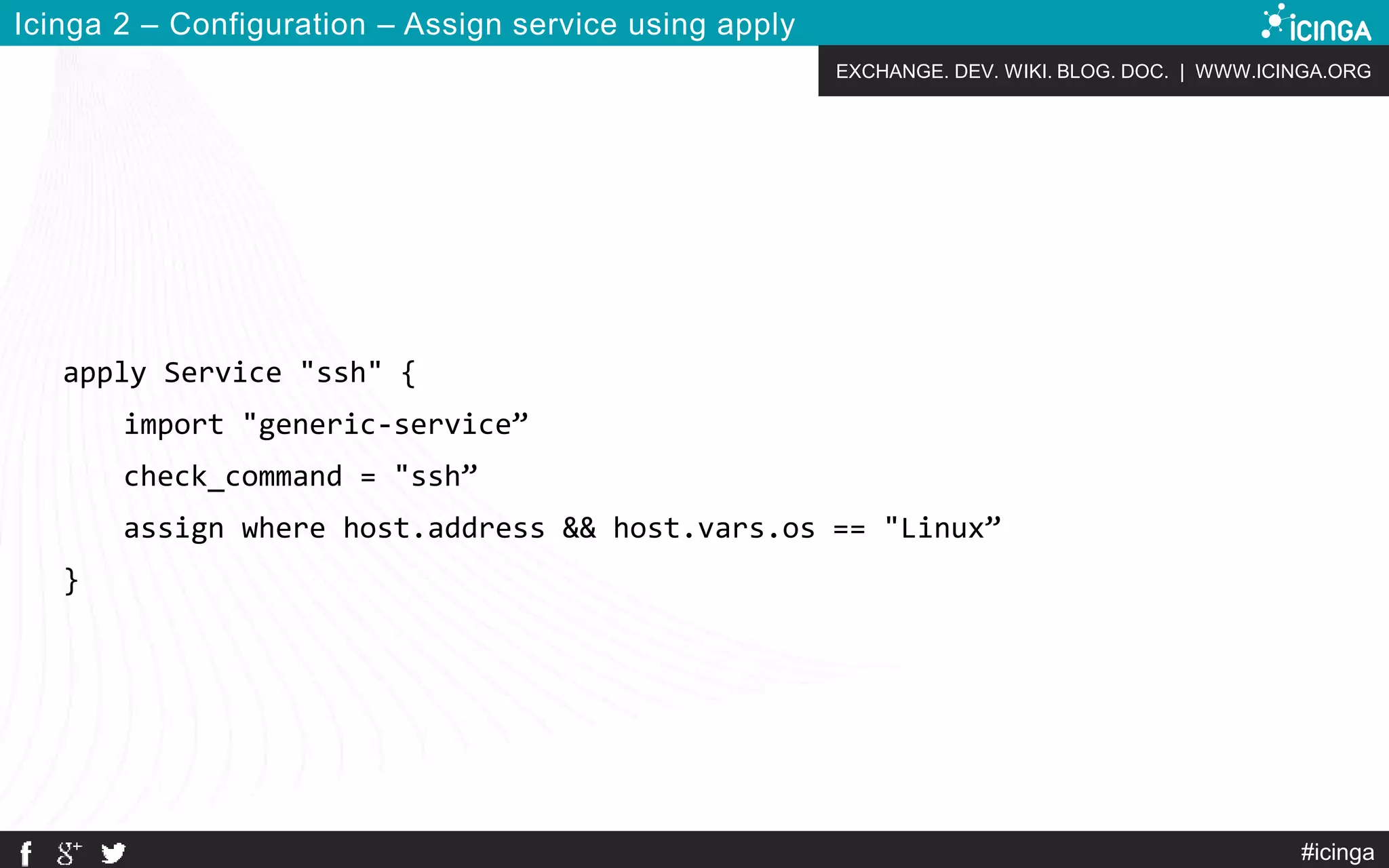

Icinga 2 – Configuration – Assign service using apply
apply Service "ssh" {
import "generic-service”
check_command = "ssh”
assign where host.address && host.vars.os == "Linux”
}

#osmc

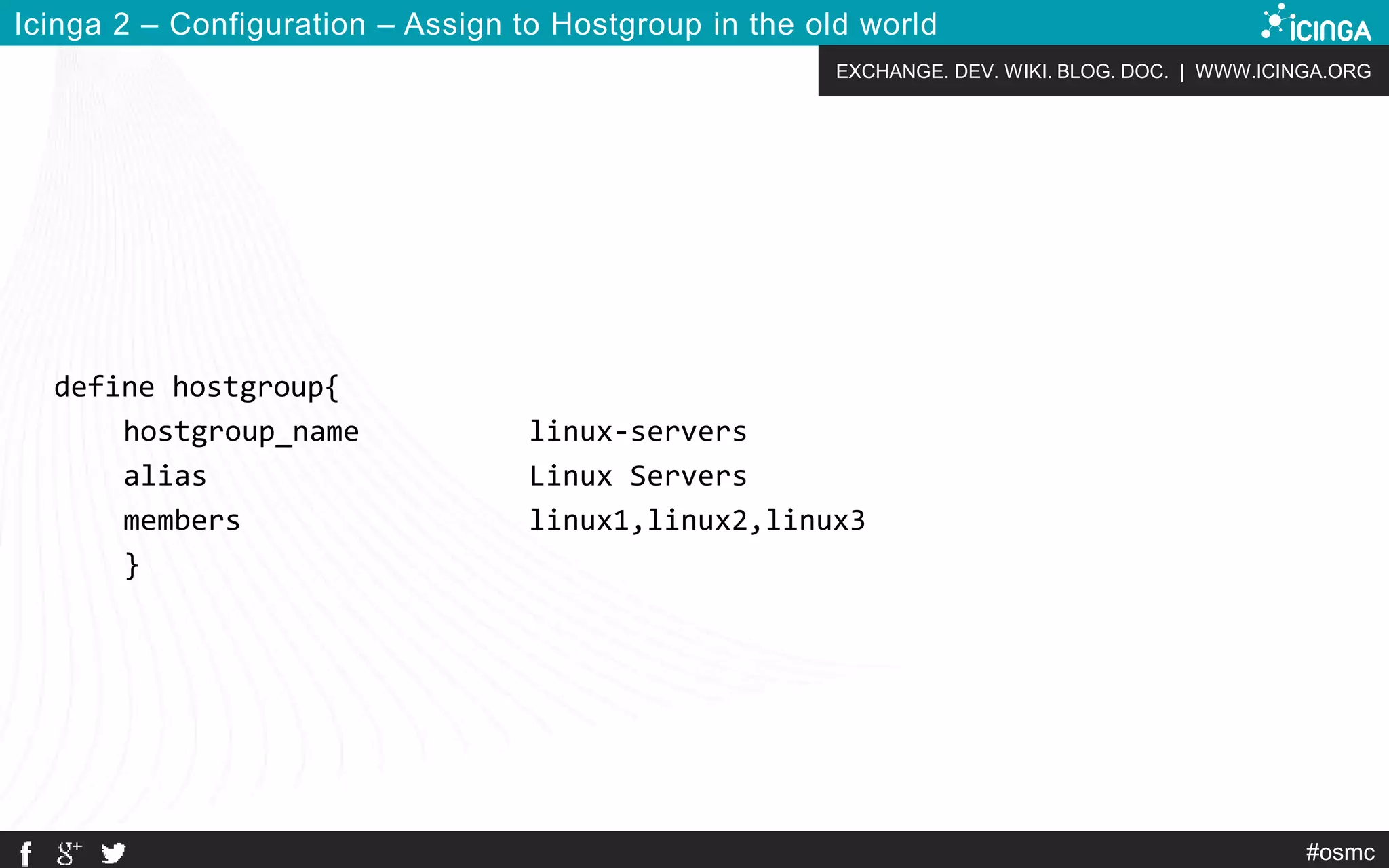

Icinga 2 – Configuration – Assign to Hostgroup in the old world
define hostgroup{
hostgroup_name linux-servers
alias Linux Servers
members linux1,linux2,linux3
}

#osmc

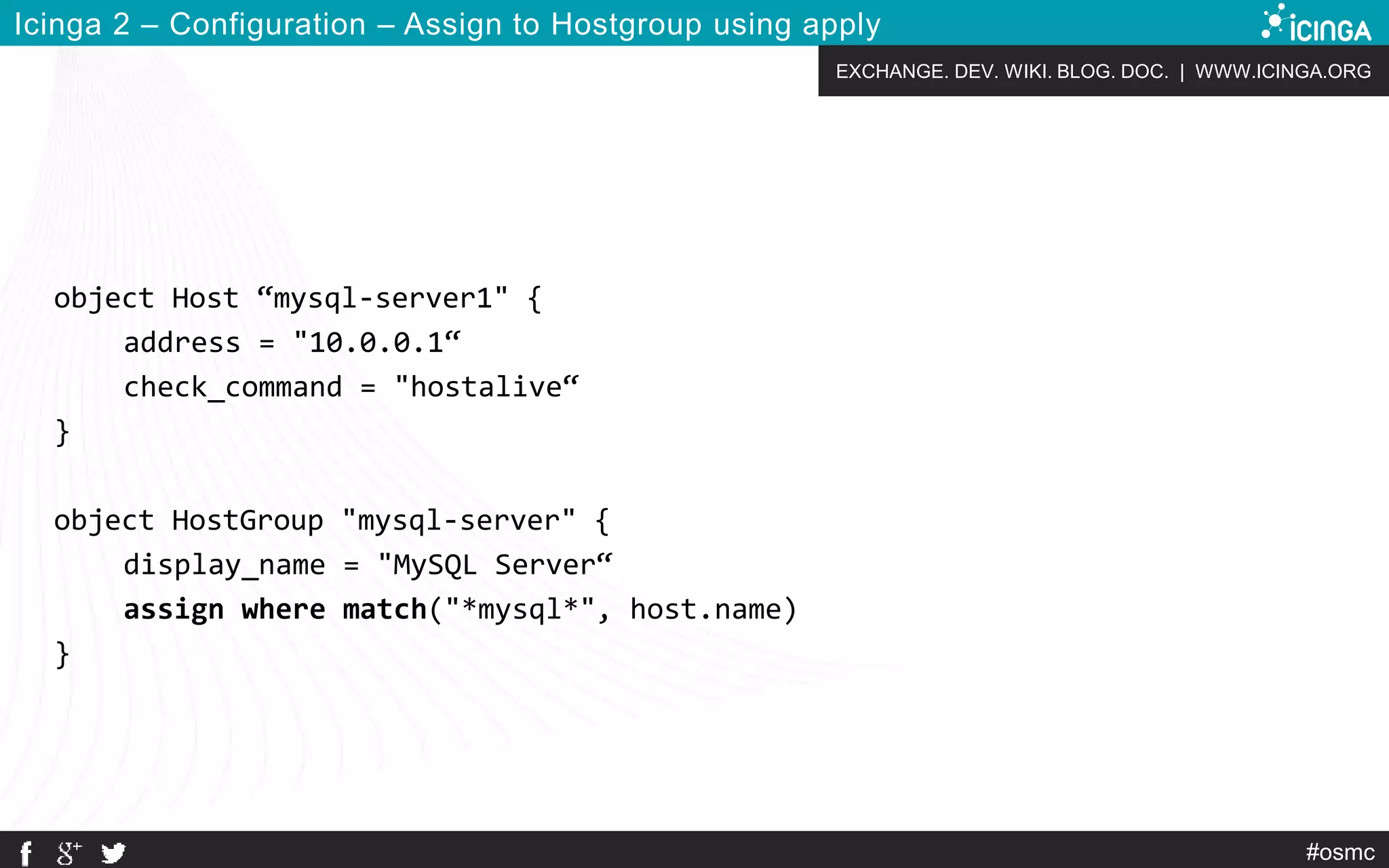

Icinga 2 – Configuration – Assign to Hostgroup using apply
object Host “mysql-server1" {
address = "10.0.0.1“
check_command = "hostalive“
}
object HostGroup "mysql-server" {
display_name = "MySQL Server“
assign where match("*mysql*", host.name)
}

Icinga 2 – Configuration – Another cool thing
#icinga

#icinga

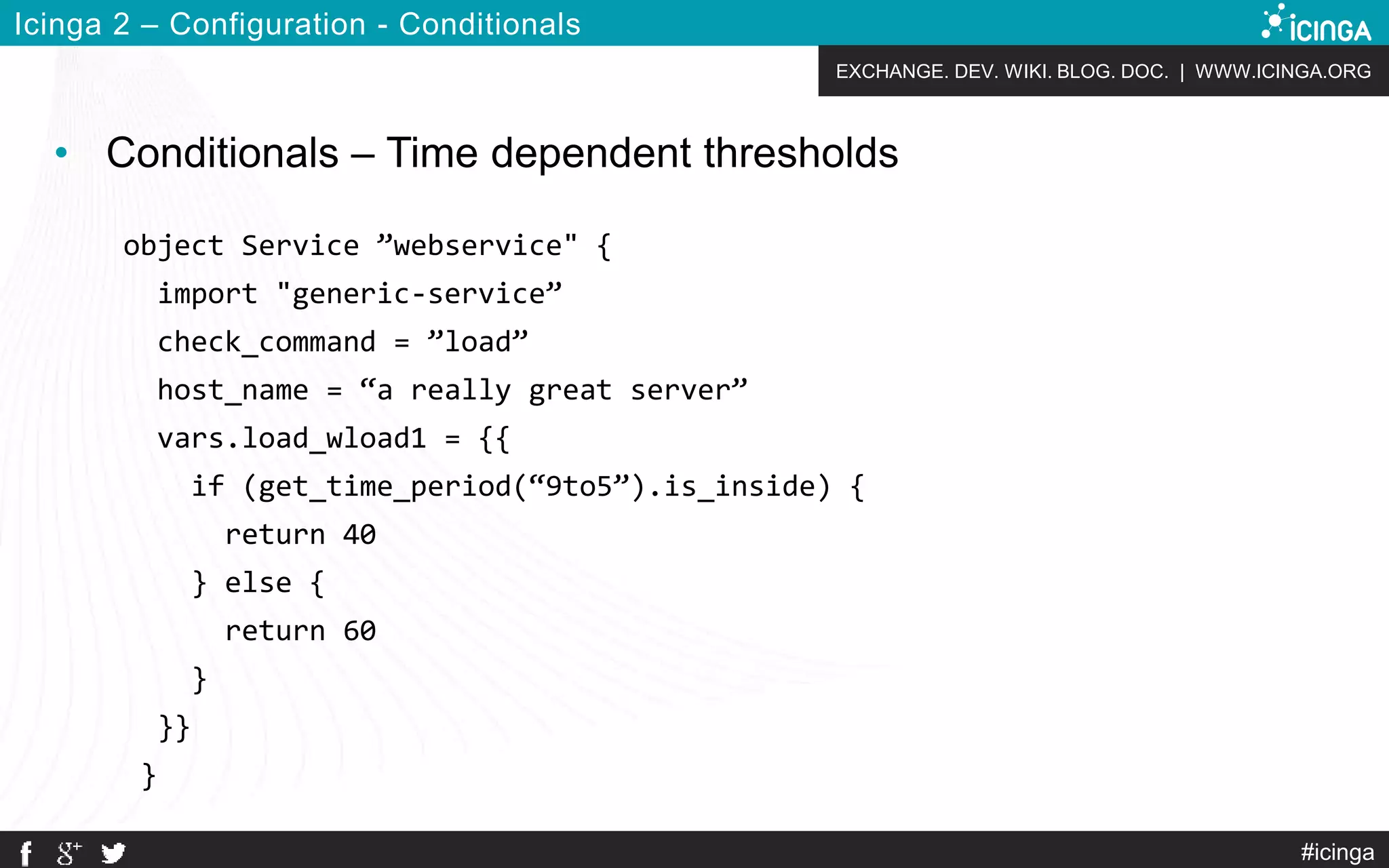

Icinga 2 – Configuration - Conditionals
• Conditionals – Time dependent thresholds
object Service ”webservice" {
import "generic-service”
check_command = ”load”
host_name = “a really great server”
vars.load_wload1 = {{
if (get_time_period(“9to5”).is_inside) {
return 40
} else {
return 60
}
}}
}

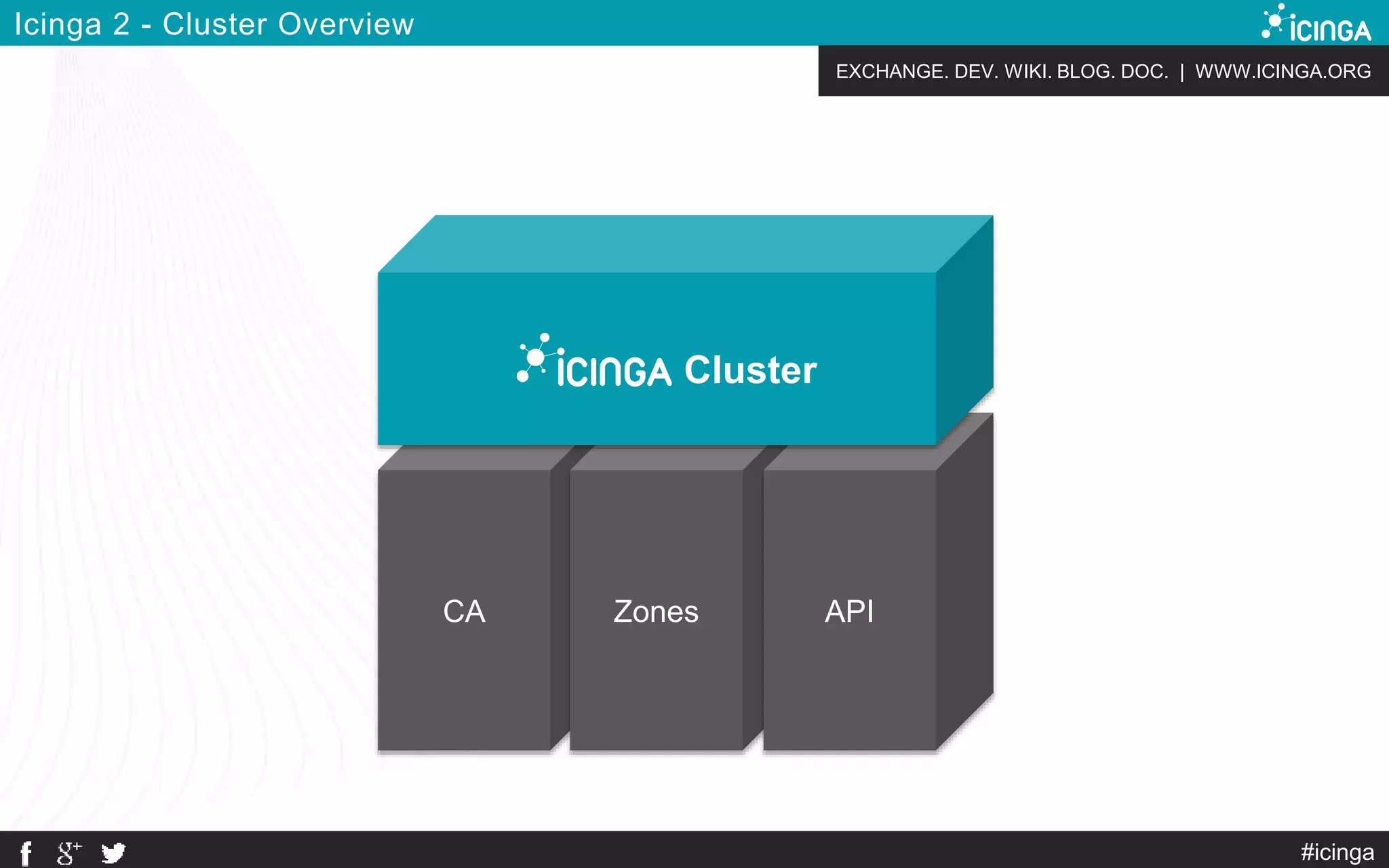

CA Zones API
Icinga 2 - Cluster Overview
Cluster
#icinga

#osmc

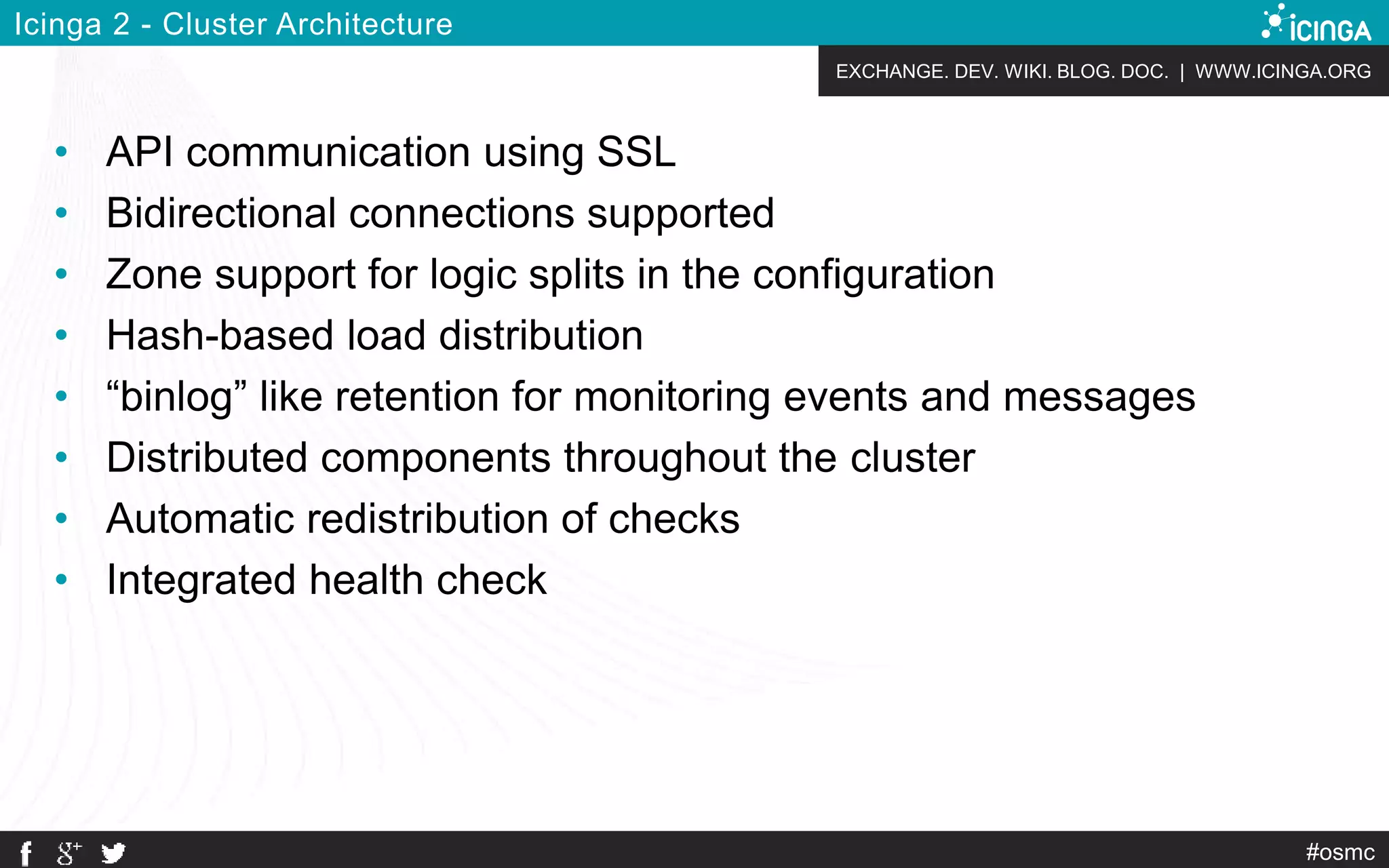

Icinga 2 - Cluster Architecture
• API communication using SSL
• Bidirectional connections supported
• Zone support for logic splits in the configuration
• Hash-based load distribution
• “binlog” like retention for monitoring events and messages
• Distributed components throughout the cluster
• Automatic redistribution of checks
• Integrated health check

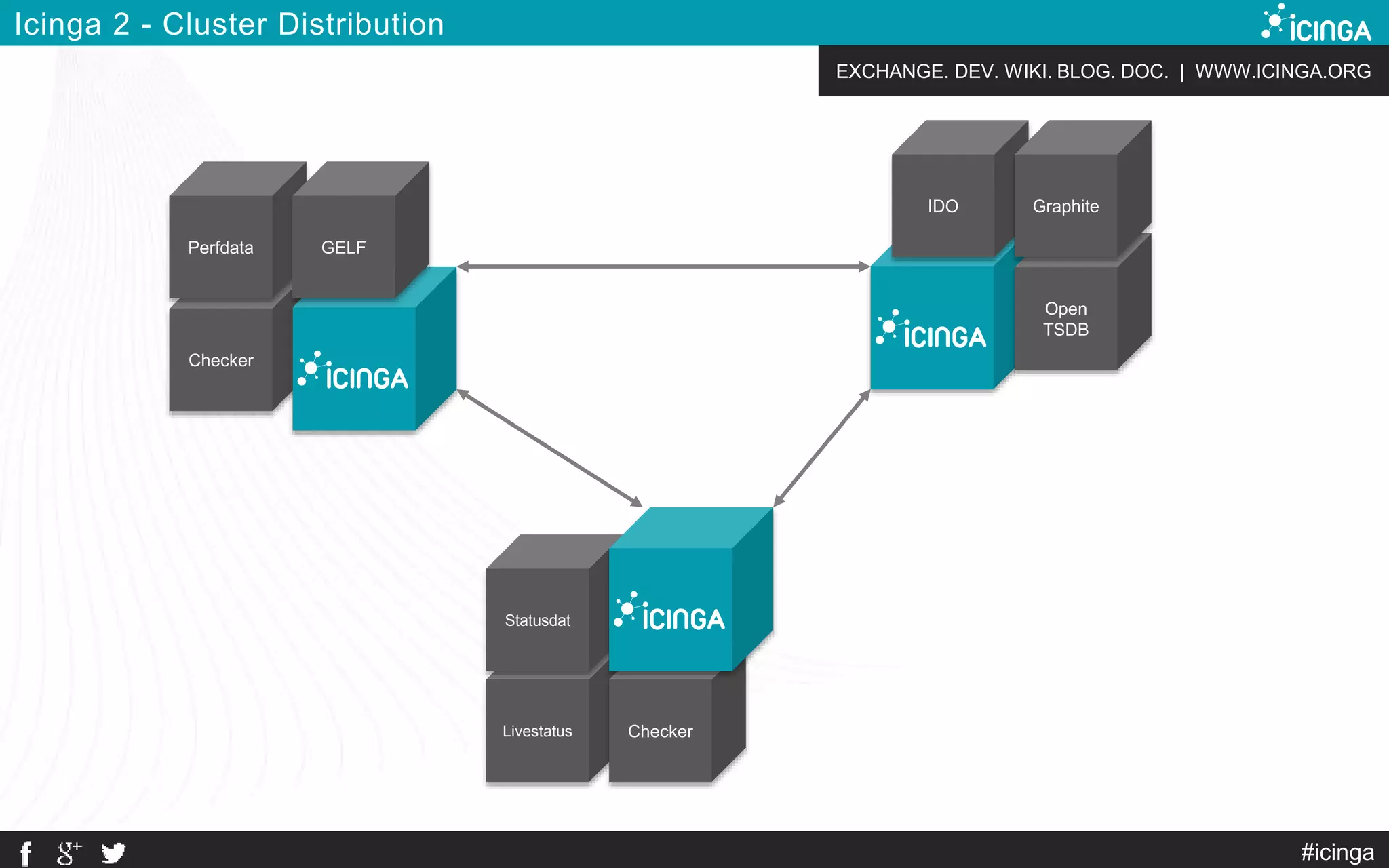

Icinga 2 - Cluster Distribution
Checker
Perfdata GELF
IDO
Open
TSDB
Graphite
Livestatus Checker
Statusdat
#icinga

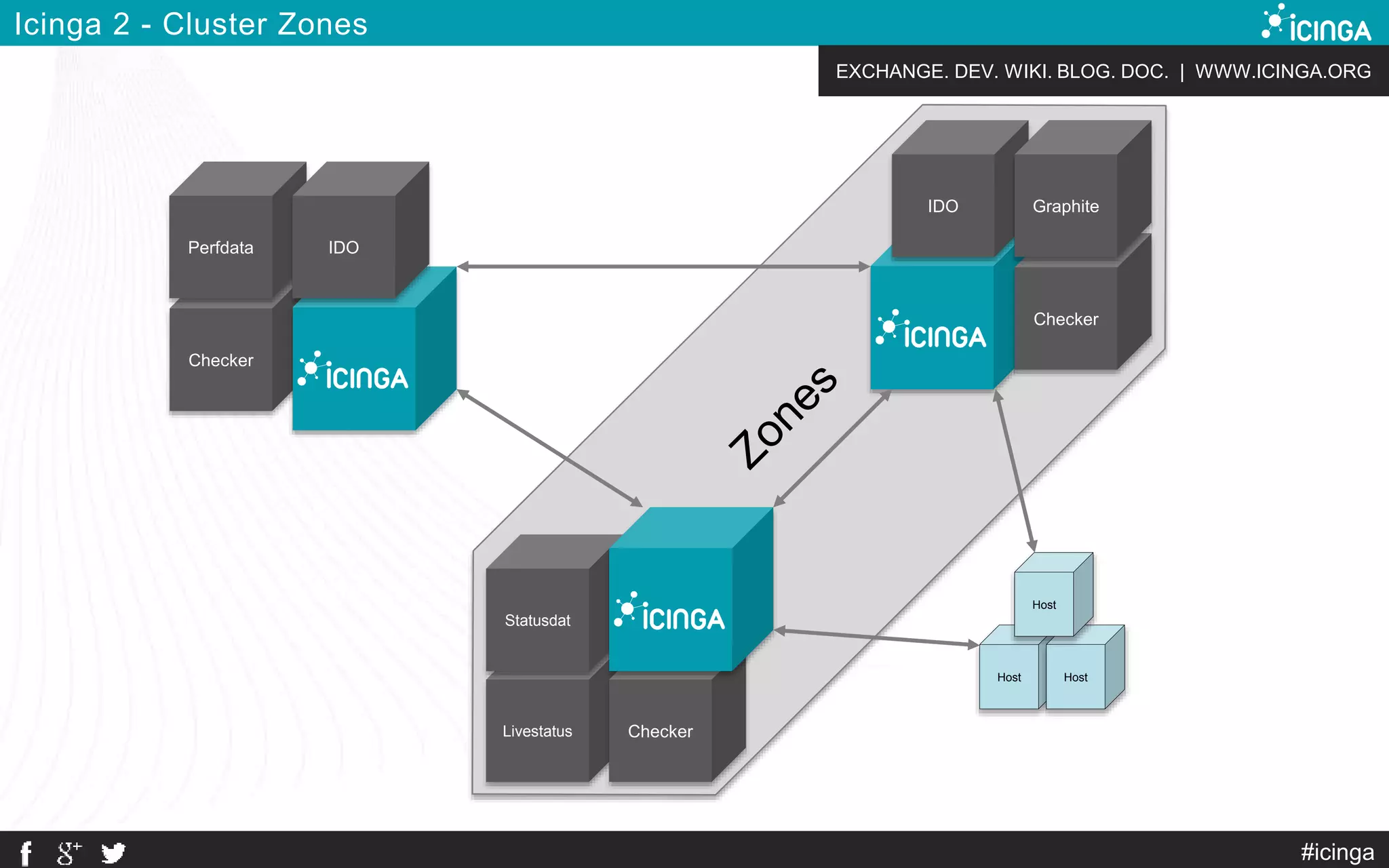

Icinga 2 - Cluster Zones
IDO
Checker
Graphite
Livestatus Checker
Statusdat
Host Host
Host
#icinga
Checker
Perfdata IDO

#icinga

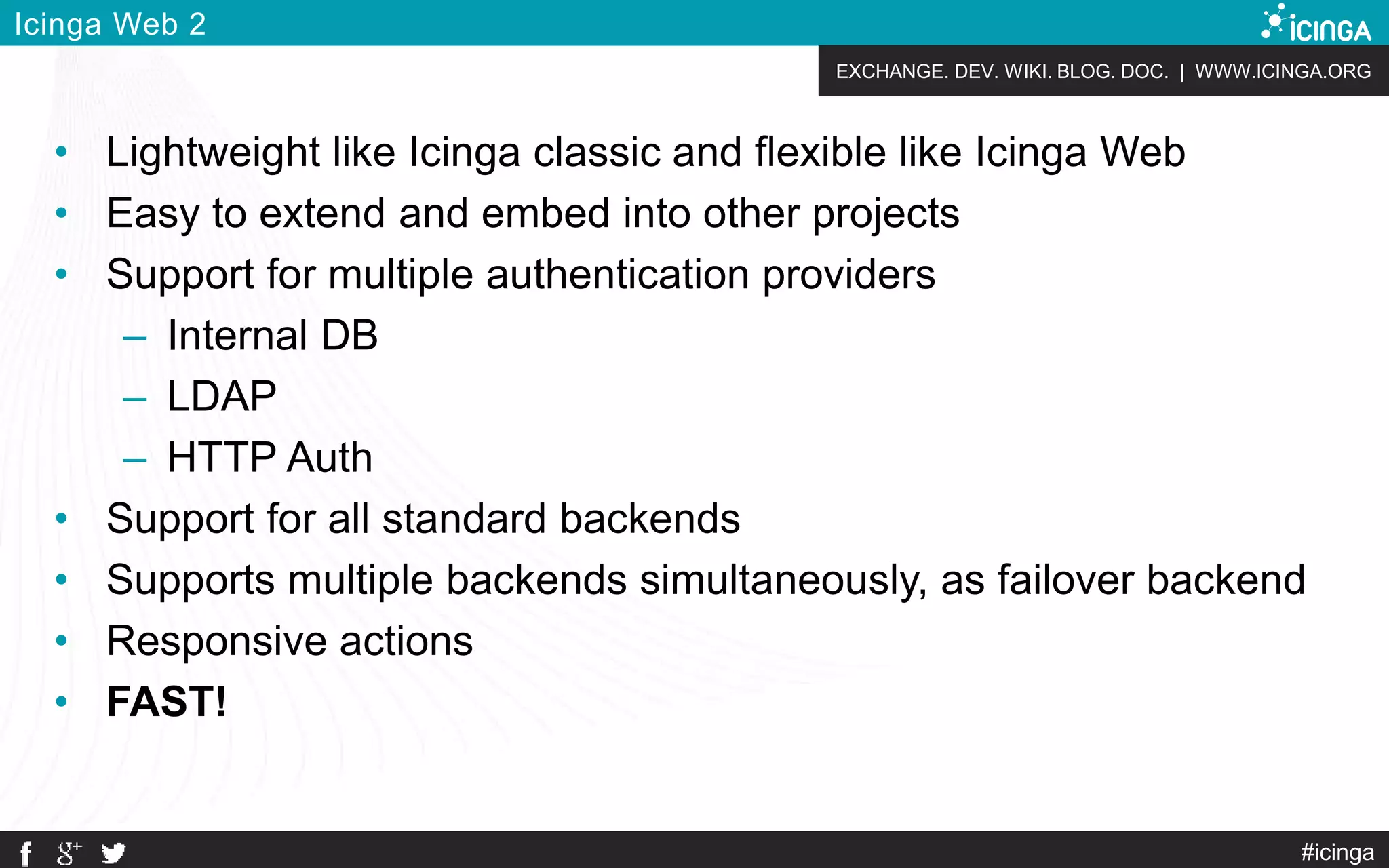

Icinga Web 2
• Lightweight like Icinga classic and flexible like Icinga Web
• Easy to extend and embed into other projects
• Support for multiple authentication providers
– Internal DB
– LDAP
– HTTP Auth
• Support for all standard backends
• Supports multiple backends simultaneously, as failover backend
• Responsive actions
• FAST!

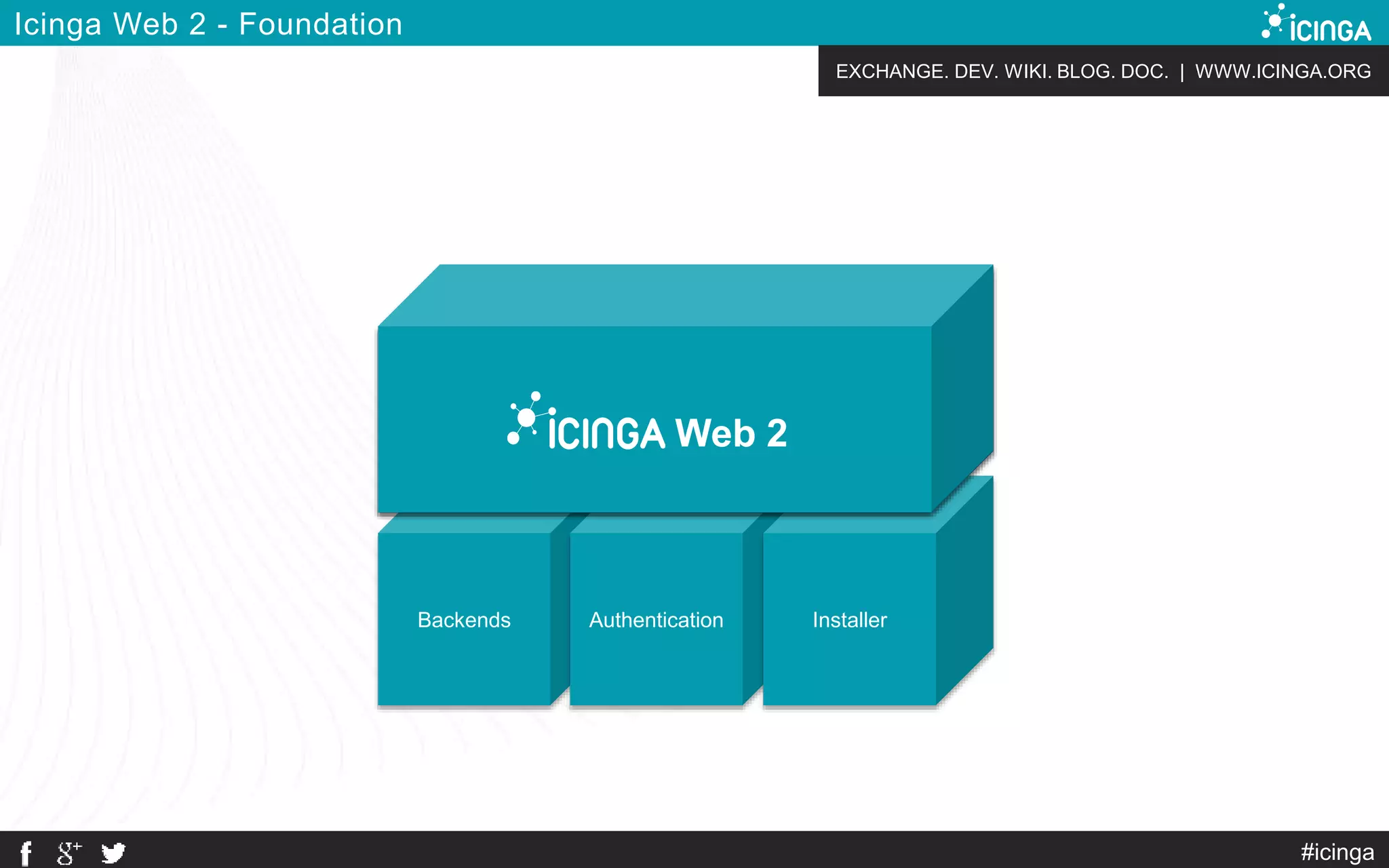

Backends Authentication Installer
Framework / Icinga PHP LibraryWeb 2
Icinga Web 2 - Foundation
#icinga

Web 2
Monitoring Docs

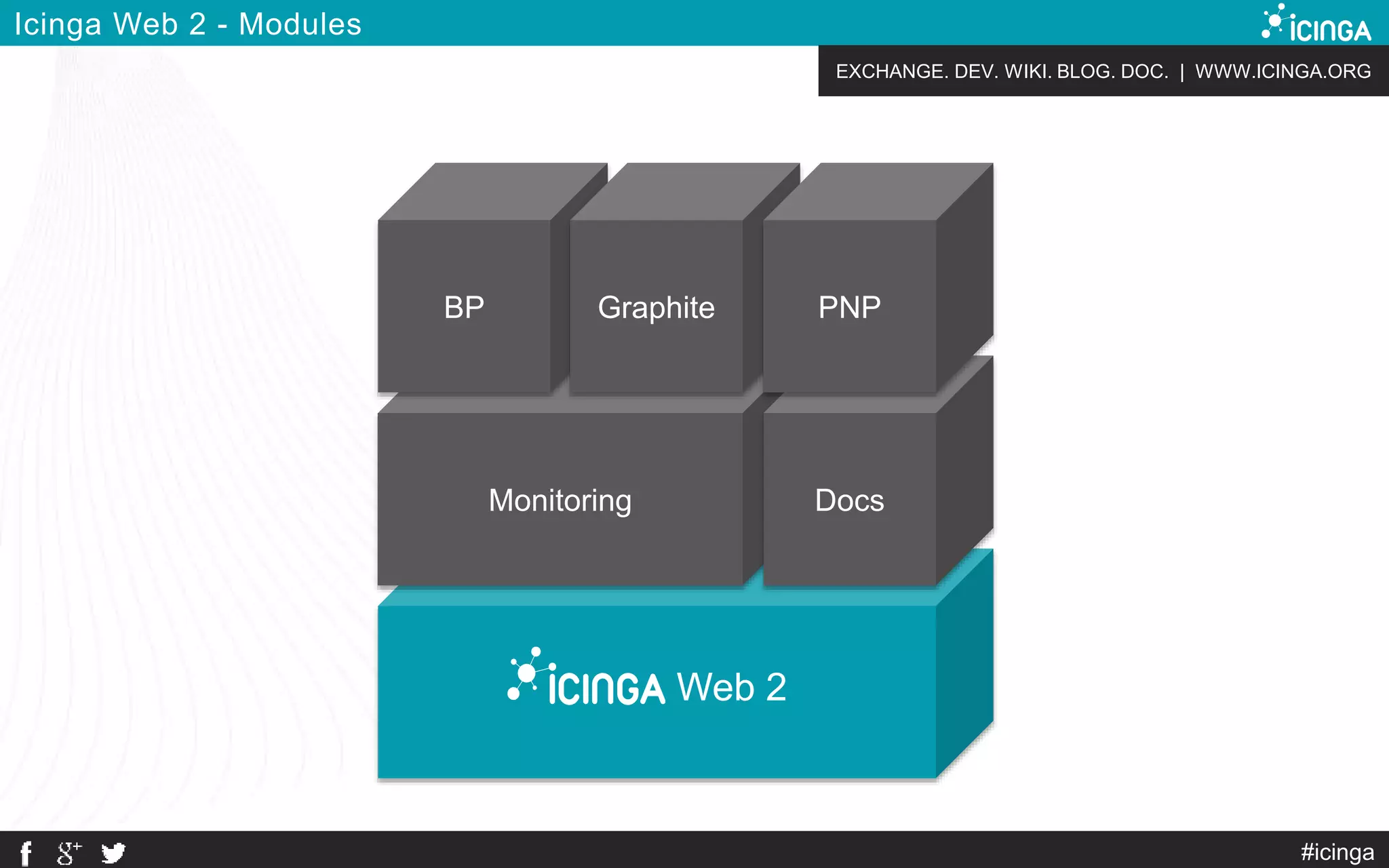

Icinga Web 2 - Modules
BP Graphite PNP
#icinga

#icinga
Icinga Web 2 - Demo
DEMO

#icinga
The Community - Users
You?

#icinga
The Community - Icinga Camps 2015
Antwerp 2015
April 13th
Portland 2015
October 10th
Antwerp 2015
April 13th

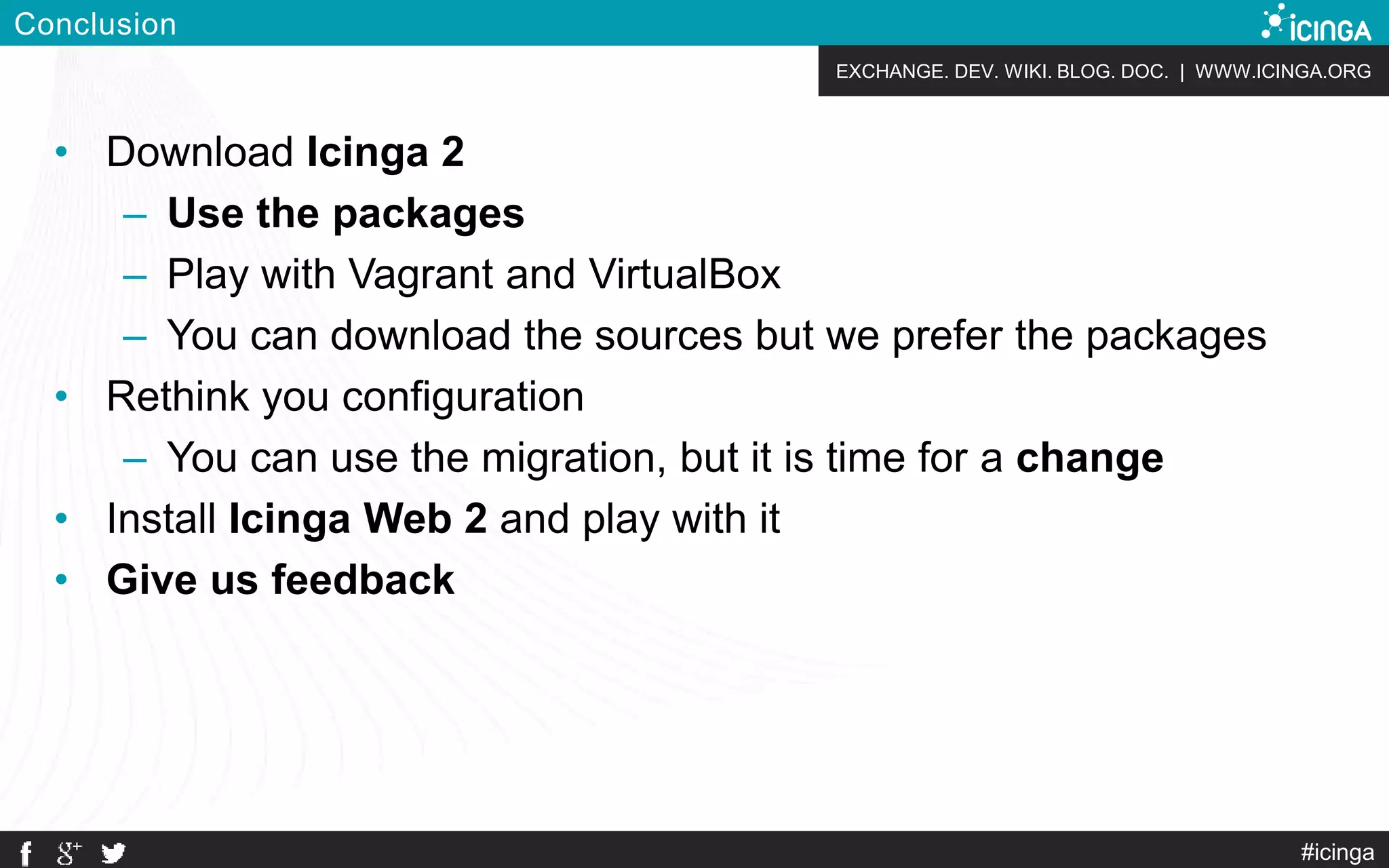

Conclusion
• Download Icinga 2
– Use the packages
– Play with Vagrant and VirtualBox
– You can download the sources but we prefer the packages
• Rethink you configuration
– You can use the migration, but it is time for a change
• Install Icinga Web 2 and play with it
• Give us feedback
#icinga

#icinga
Questions & Answers
Web www.icinga.org
Git git.icinga.org
Development dev.icinga.org
Wiki wiki.icinga.org
Support support.icinga.org
Twitter twitter.com/icinga
Facebook facebook.com/icinga Get support
Get involved
Get heard
