Integrating multiple CDNs at Etsy

Integrating Multiple CDN Providers
Our experiences at Etsy

@lozzd • @ickymettle

Marcus Barczak

Laurie Denness

Staff Operations Engineers

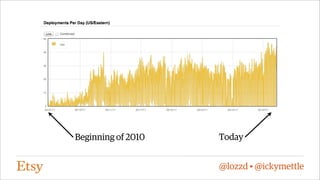

Beginning of 2010

Today

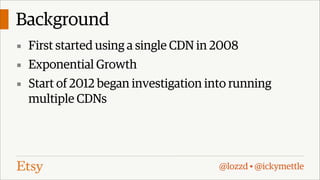

Background
▪ First started using a single CDN in 2008
▪ Exponential Growth
▪ Start of 2012 began investigation into running

multiple CDNs

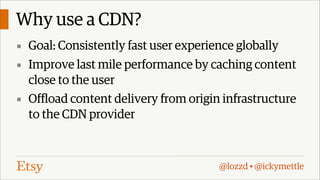

Why use a CDN?
▪ Goal: Consistently fast user experience globally
▪ Improve last mile performance by caching content

close to the user
▪ Offload content delivery from origin infrastructure
to the CDN provider

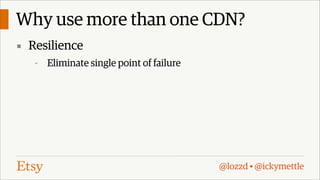

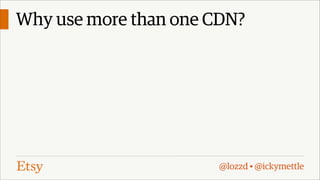

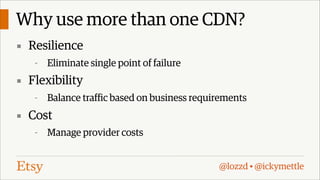

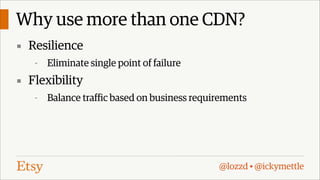

Why use more than one CDN?


▪ Resilience
-

Eliminate single point of failure


▪ Resilience
-


▪ Flexibility
-

Balance traffic based on business requirements


▪ Resilience
-


▪ Flexibility
-

Balance traffic based on business requirements

▪ Cost
-

Manage provider costs

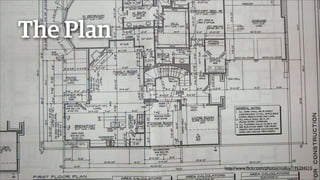

The Plan

http://www.ﬂickr.com/photos/malloy/195204215

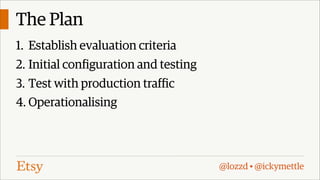

The Plan
1. Establish evaluation criteria
2. Initial configuration and testing
3. Test with production traffic
4. Operationalising


Evaluation Criteria

http://www.ﬂickr.com/photos/49212595@N00/5646403386

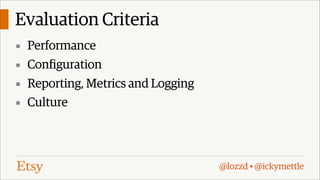

Evaluation Criteria
▪ Performance
▪ Configuration
▪ Reporting, Metrics and Logging
▪ Culture

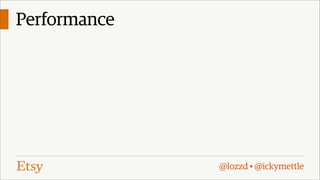

Performance


Performance
▪ Baseline Response Times
-

Should be within ±5% of our existing CDN provider’s
response times

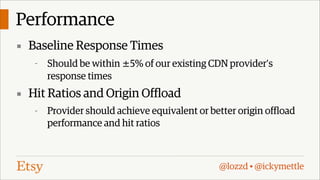

Performance
▪ Baseline Response Times
-

Should be within ±5% of our existing CDN provider’s
response times

▪ Hit Ratios and Origin Offload
-

Provider should achieve equivalent or better origin offload
performance and hit ratios

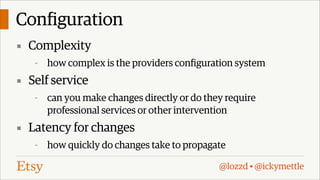

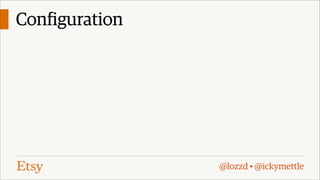

Configuration

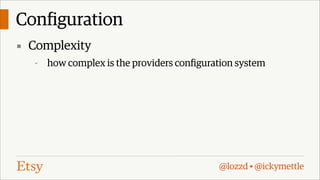

Configuration
▪ Complexity
-

how complex is the providers configuration system

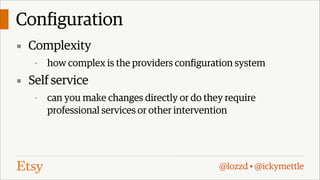

Configuration
▪ Complexity
-


▪ Self service
-

can you make changes directly or do they require
professional services or other intervention


Configuration
▪ Complexity
-


▪ Self service
-

can you make changes directly or do they require
professional services or other intervention

▪ Latency for changes
-

how quickly do changes take to propagate

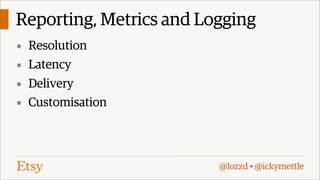

Reporting, Metrics and Logging
▪ Resolution
▪ Latency
▪ Delivery
▪ Customisation


Culture
▪ Understand our culture
▪ Postmortems
▪ Access to technical staff
▪ Shared success


Initial
Configuration
and Testing


Clean the house
http://www.ﬂickr.com/photos/mastergeorge/8562623590

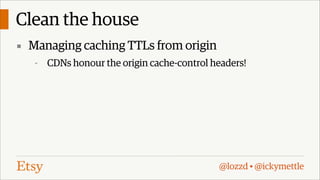

Clean the house
▪ Managing caching TTLs from origin
-

CDNs honour the origin cache-control headers!

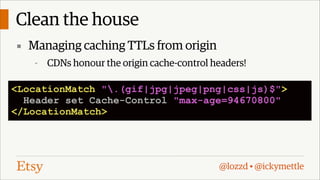

Clean the house
▪ Managing caching TTLs from origin
-

CDNs honour the origin cache-control headers!

<LocationMatch ".(gif|jpg|jpeg|png|css|js)$">
Header set Cache-Control "max-age=94670800"
</LocationMatch>


Clean the house
▪ Manage gzip compression from origin
-

Honoured by CDNs

-

Compression from origin to CDN

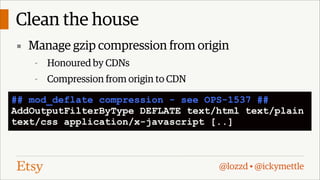

Clean the house
▪ Manage gzip compression from origin
-

Honoured by CDNs

-

Compression from origin to CDN

## mod_deflate compression - see OPS-1537 ##
AddOutputFilterByType DEFLATE text/html text/plain
text/css application/x-javascript [..]


Clean the house


Clean the house
If you can do it at origin,
do it at origin


Mean Time To Curl
http://www.ﬂickr.com/photos/wwarby/3297205226

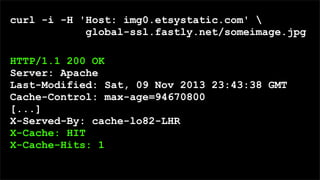

curl -i -H 'Host: img0.etsystatic.com'
global-ssl.fastly.net/someimage.jpg

HTTP/1.1 200 OK
Server: Apache
Last-Modified: Sat, 09 Nov 2013 23:43:38 GMT
Cache-Control: max-age=94670800
[...]
X-Served-By: cache-lo82-LHR
X-Cache: MISS
X-Cache-Hits: 0

HTTP/1.1 200 OK
Server: Apache
Last-Modified: Sat, 09 Nov 2013 23:43:38 GMT
Cache-Control: max-age=94670800
[...]
X-Served-By: cache-lo82-LHR
X-Cache: HIT
X-Cache-Hits: 1

Mean Time To Curl = Done
https://www.etsy.com/listing/99871278

Mean Time To Curl
▪ No need to touch existing infrastructure
▪ Smoke test of functionality
▪ 10 minutes from configuration to curl
▪ New providers should be plug and play


Testing In Production
http://www.ﬂickr.com/photos/solarnu/10646426865

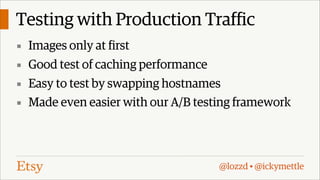

Testing with Production Traffic
▪ Images only at first
▪ Good test of caching performance
▪ Easy to test by swapping hostnames
▪ Made even easier with our A/B testing framework

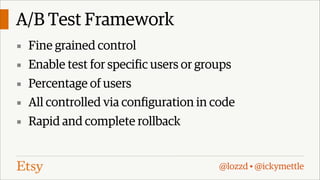

A/B Test Framework
▪ Fine grained control
▪ Enable test for specific users or groups
▪ Percentage of users
▪ All controlled via configuration in code
▪ Rapid and complete rollback

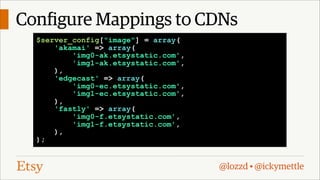

Configure Mappings to CDNs
$server_config["image"] = array(
'akamai' => array(
'img0-ak.etsystatic.com',
'img1-ak.etsystatic.com',
),
'edgecast' => array(
'img0-ec.etsystatic.com',
'img1-ec.etsystatic.com',
),
'fastly' => array(
'img0-f.etsystatic.com',
'img1-f.etsystatic.com',
),
);

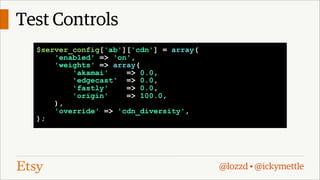

Test Controls
$server_config['ab']['cdn'] = array(
'enabled' => 'on',
'weights' => array(
'akamai'
=> 0.0,
'edgecast' => 0.0,
'fastly'
=> 0.0,
'origin'
=> 100.0,
),
'override' => 'cdn_diversity',
);

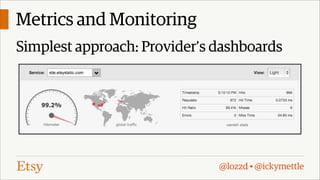

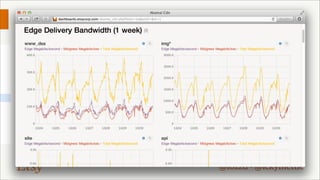

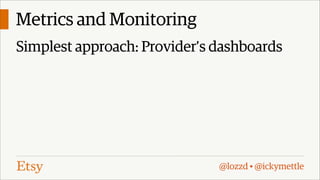

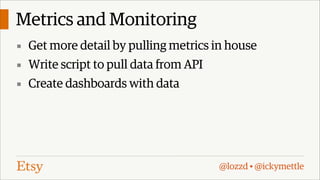

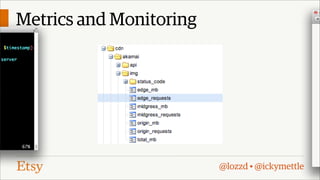

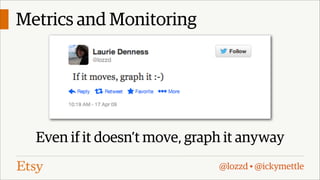

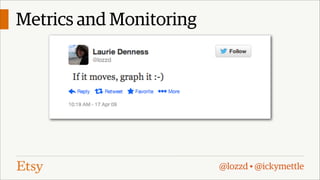

Metrics and Monitoring

http://www.ﬂickr.com/photos/nicolasﬂeury/6073151084


Even if it doesn’t move, graph it anyway

Simplest approach: Provider’s dashboards


▪ Get more detail by pulling metrics in house
▪ Write script to pull data from API
▪ Create dashboards with data

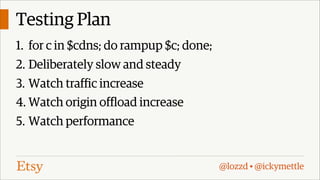

Testing Plan
1. for c in $cdns; do rampup $c; done;
2. Deliberately slow and steady
3. Watch traffic increase
4. Watch origin offload increase
5. Watch performance


Downsides of this approach
▪ AB testing can’t be used for main site
▪ Exposing your test CNAMEs
▪ Especially if hotlinking is a concern


Downsides of this approach
▪ Exposing your test CNAMEs
▪ Especially if hotlinking is a concern

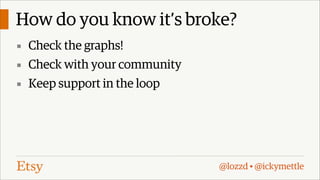

How do you know it’s broke?
▪ Check the graphs!
▪ Check with your community
▪ Keep support in the loop


Operationalising

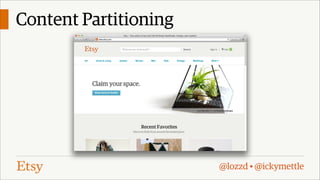

Content Partitioning

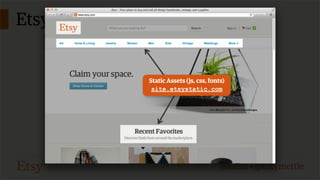

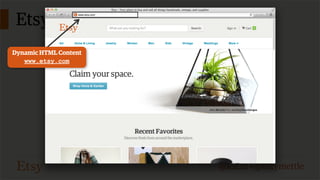

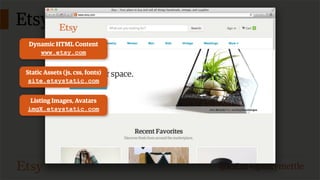

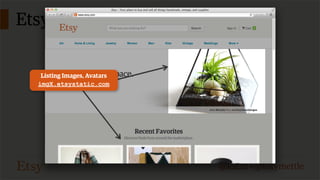

Etsy’s site partitioning
Dynamic HTML Content
www.etsy.com



Static Assets (js, css, fonts)
site.etsystatic.com


Listing Images, Avatars
imgX.etsystatic.com


Dynamic HTML Content
www.etsy.com
Static Assets (js, css, fonts)
site.etsystatic.com
Listing Images, Avatars
imgX.etsystatic.com


Balancing Traffic in
Production

http://www.ﬂickr.com/photos/wok_design/2499217405

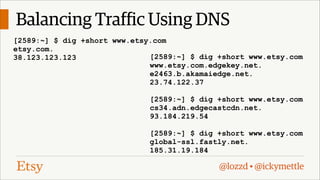

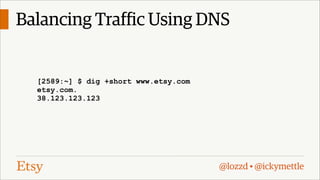

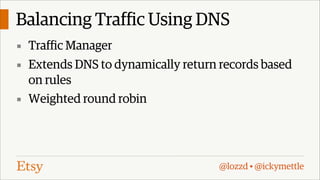

Balancing Traffic Using DNS
▪ Traffic Manager
▪ Extends DNS to dynamically return records based

on rules
▪ Weighted round robin


[2589:~] $ dig +short www.etsy.com
www.etsy.com.edgekey.net.
e2463.b.akamaiedge.net.
23.74.122.37
etsy.com.
cs34.adn.edgecastcdn.net.
38.123.123.123
93.184.219.54
global-ssl.fastly.net.
185.31.19.184


etsy.com.
38.123.123.123
www.etsy.com.edgekey.net.
e2463.b.akamaiedge.net.
23.74.122.37
cs34.adn.edgecastcdn.net.
93.184.219.54
global-ssl.fastly.net.
185.31.19.184


▪ Rule updates typically made via web UI
▪ Can be slow and error prone
▪ Changes need to be applied to all three domains
▪ API available to make changes programmatically

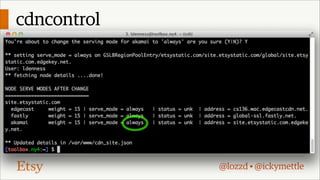

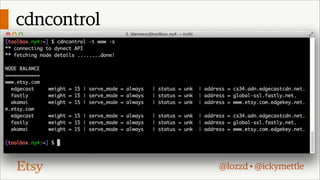

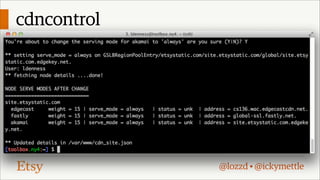

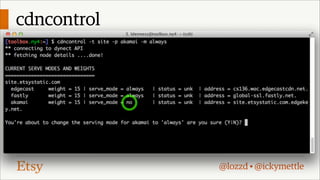

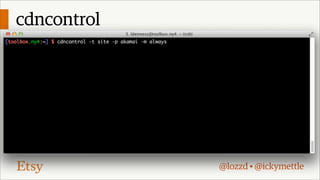

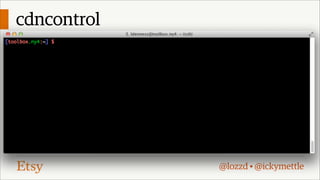

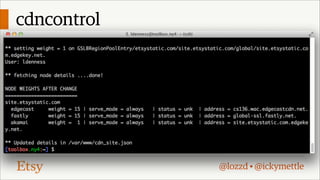

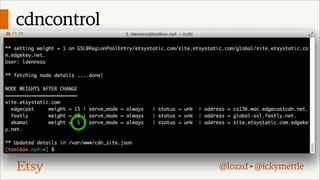

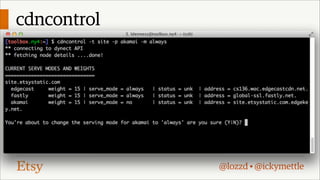

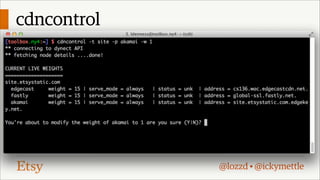

cdncontrol

http://www.ﬂickr.com/photos/foshydog/4441105829

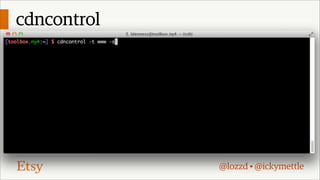

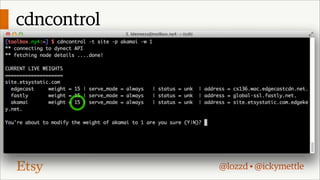

cdncontrol

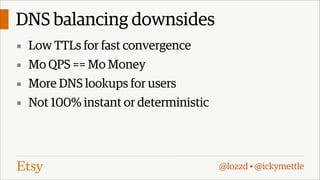

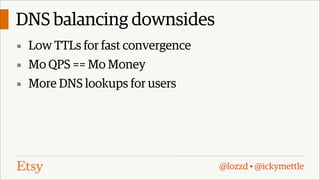

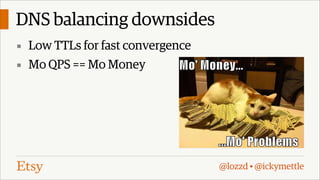

DNS balancing downsides
▪ Low TTLs for fast convergence


▪ Mo QPS == Mo Money


▪ More DNS lookups for users


▪ More DNS lookups for users
▪ Not 100% instant or deterministic

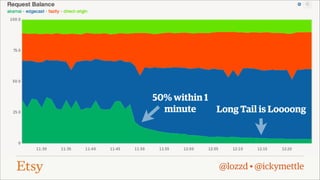

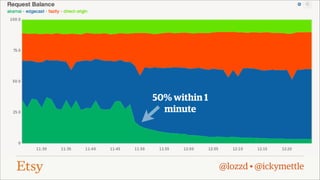

50% within 1
minute


50% within 1
minute
Long Tail is Loooong


Monitoring in Production

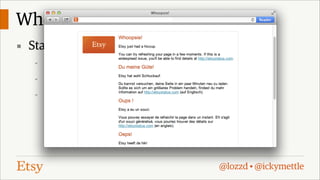

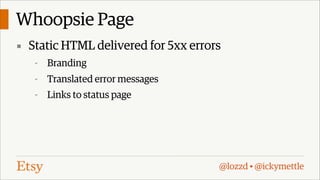

Whoopsie Page
▪ Static HTML delivered for 5xx errors
-

Branding

-

Translated error messages

-

Links to status page

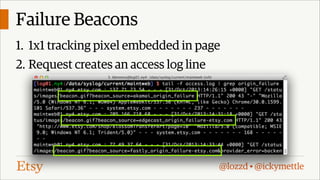

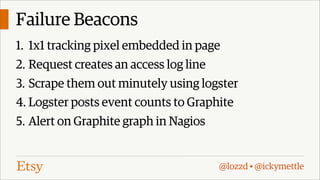

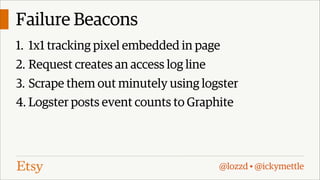

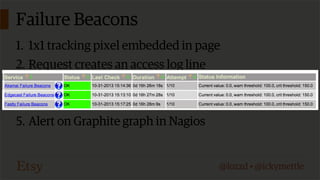

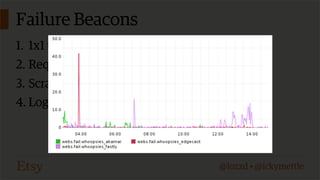

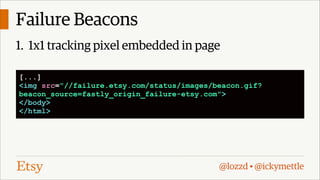

Failure Beacons
1. 1x1 tracking pixel embedded in page
[...]
<img src="//failure.etsy.com/status/images/beacon.gif?
beacon_source=fastly_origin_failure-etsy.com">
</body>
</html>


Failure Beacons
2. Request creates an access log line


Failure Beacons
3. Scrape them out minutely using logster
self.reg = re.compile('^S+(s:)? (?P<remote_addr>[0-9.]+),?
[0-9.,- ]+ [[^]]+] "GET /status/images/beacon.gif?
(beacon_)?source=(?P<source>S+) HTTP/1.d" d+ [d-]+ "(?
P<referrer>[^"]+)" "(?P<user_agent>[^"]+)" .*$')


Failure Beacons
4. Logster posts event counts to Graphite


Failure Beacons
4. Logster posts event counts to Graphite
5. Alert on Graphite graph in Nagios


Failure Beacons

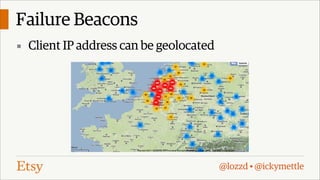

▪ Client IP address can be geolocated


Failure Beacons
▪ Optional extra debugging information
[31/Oct/2013:07:06:42 +0000] "GET /status/images/
beacon.gif?beacon_source=fastly_origin_failure-etsy.com
&provider_error=Connection%20timed%20out
&server_identity=cache-ny57-NYC HTTP/1.1"

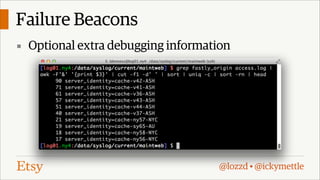

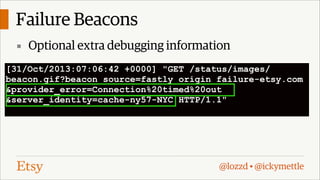

Failure Beacons
▪ Optional extra debugging information

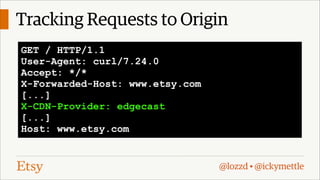

Tracking Requests to Origin
GET / HTTP/1.1
User-Agent: curl/7.24.0
Accept: */*
X-Forwarded-Host: www.etsy.com
[...]
X-CDN-Provider: edgecast
[...]
Host: www.etsy.com

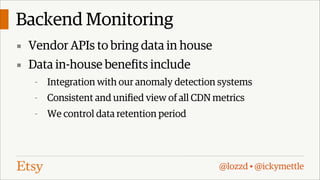

Backend Monitoring
▪ Vendor APIs to bring data in house


Backend Monitoring
▪ Logster on CDN provider header


Backend Monitoring
▪ Data in-house benefits include
-

Integration with our anomaly detection systems

-

Consistent and unified view of all CDN metrics

-

We control data retention period

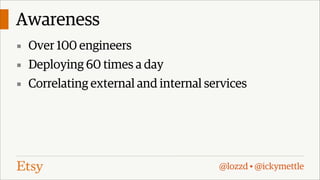

Awareness
▪ Over 100 engineers
▪ Deploying 60 times a day
▪ Correlating external and internal services

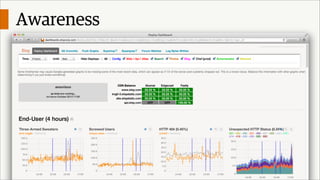

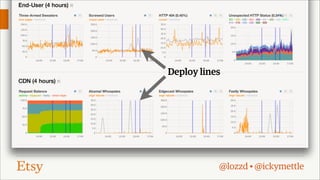

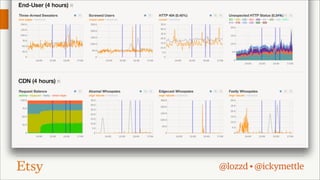

Awareness


Awareness
Deploy lines

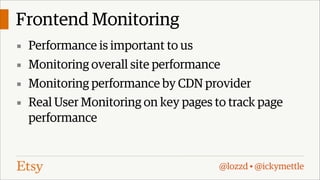

Frontend Monitoring
▪ Performance is important to us
▪ Monitoring overall site performance
▪ Monitoring performance by CDN provider
▪ Real User Monitoring on key pages to track page

performance

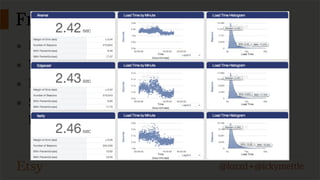

Frontend Monitoring
▪ Performance is important to us
▪ Monitoring overall site performance
▪ Monitoring performance by CDN provider
▪ SOASTA mPulse on key pages to track real user

page performance


Downsides

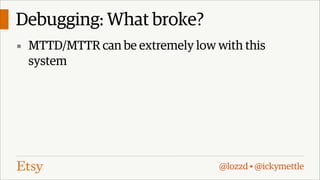

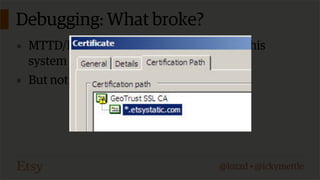

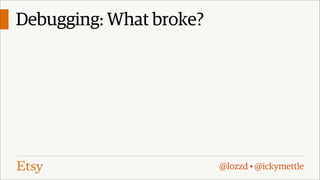

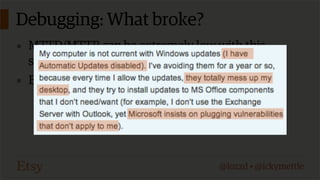

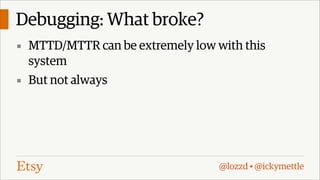

Debugging: What broke?


▪ MTTD/MTTR can be extremely low with this

system


▪ MTTD/MTTR can be extremely low with this

system
▪ But not always


▪ Non technical member base
▪ Confusing and time consuming
▪ Amazing support team
▪ Log as much information as possible


http://www.ﬂickr.com/photos/sk8geek/4649776194

Conclusions/Takeaways

Great success
▪ 12 months in the benefits have far outweighed the

few downsides
▪ We’re continuing to evolve the system
▪ We’ll be sure to share our experience with the

community along the way

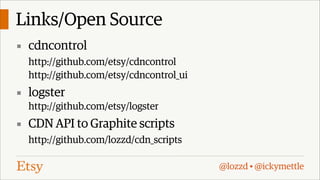

Links/Open Source
▪ cdncontrol
http://github.com/etsy/cdncontrol
http://github.com/etsy/cdncontrol_ui

▪ logster
http://github.com/etsy/logster

▪ CDN API to Graphite scripts
http://github.com/lozzd/cdn_scripts

Thanks!
Questions?
