1. Abe
Stanway
@jonlives
BRING THE NOISE!
MAKING SENSE OF
A HAILSTORM
OF METRICS
Jon Cowie
@abestanway
Tuesday, 9 July 13

2. Ninety minutes is a
long time.
- motivations
- skyline
- oculus
- demo!
- questions
This talk:
~10
~25
~30
~10
~15
Tuesday, 9 July 13

3. Ninety minutes is a
long time.
- motivations
- skyline
- oculus
- demo!
- questions
This talk:
~10
~25
~30
~10
~15
But we have some
sweet stuff to show
you.
Tuesday, 9 July 13

4. Background and Motivations
Tuesday, 9 July 13

5. Tuesday, 9 July 13

6. 1.5 billion page views
$117 million of goods sold
950 thousand users
Tuesday, 9 July 13

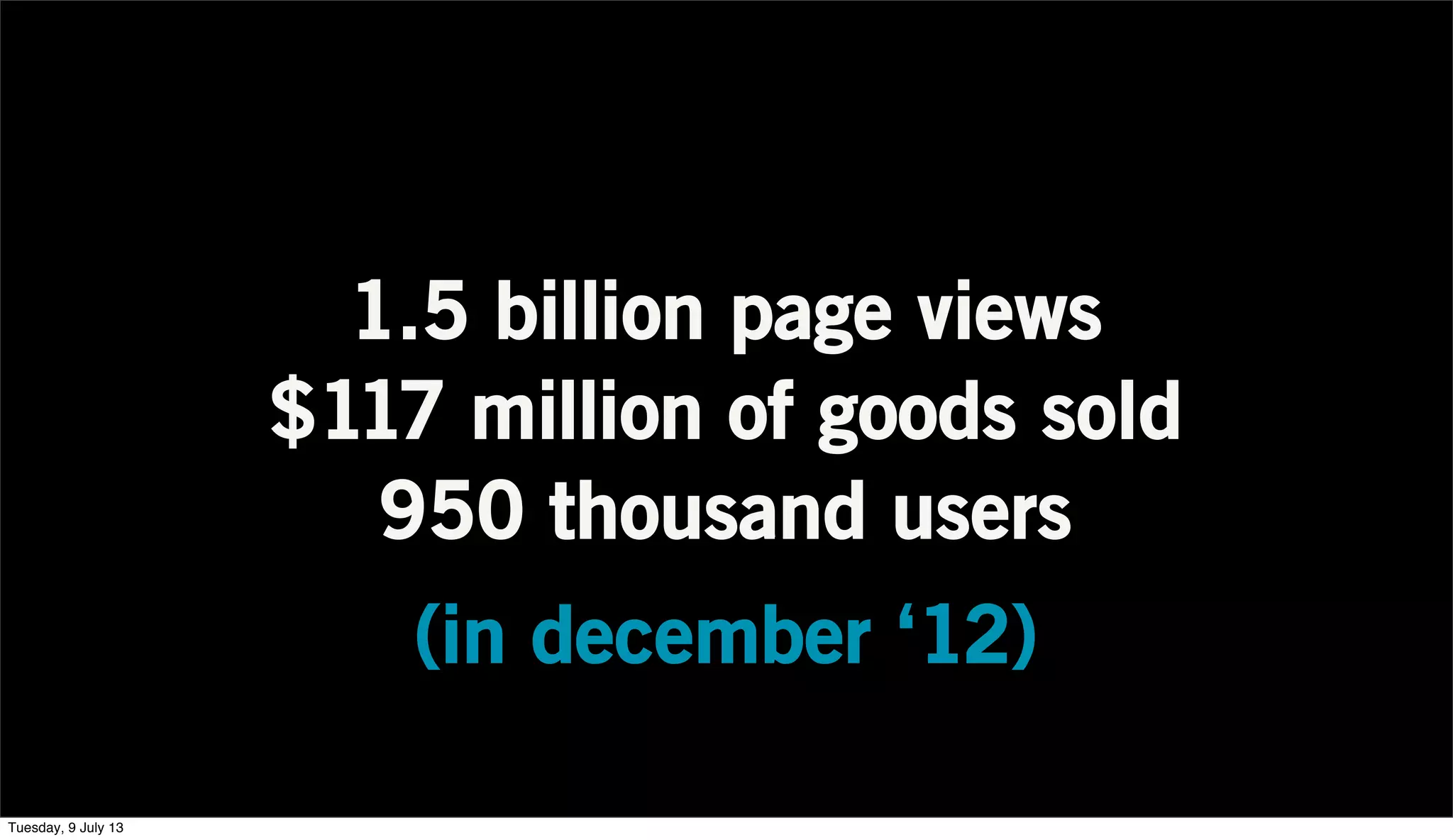

7. 1.5 billion page views
$117 million of goods sold
950 thousand users
(in december ‘12)
Tuesday, 9 July 13

8. We practice continuous
deployment.
Tuesday, 9 July 13

9. de•ploy /diˈploi/
Verb
To release your code for the
world to see, hopefully without
breaking the Internet
Tuesday, 9 July 13

10. Everyone deploys.
250+ committers.
Tuesday, 9 July 13

11. Day one:
DEPLOY
Tuesday, 9 July 13

12. Tuesday, 9 July 13

13. 30+ DEPLOYS A DAY
(~8 commits per deploy!)
Tuesday, 9 July 13

14. “30 deploys a day? Is that safe?”
Tuesday, 9 July 13

15. We optimize for quick recovery
by anticipating problems...
Tuesday, 9 July 13

16. ...instead of fearing human error.
Tuesday, 9 July 13

17. Can’t fix what you
don’t measure!
- W. Edwards Deming
Tuesday, 9 July 13

18. StatsD
graphite
Skyline
Oculus
Supergrep
homemade!not homemade
Nagios
Ganglia
Tuesday, 9 July 13

19. Text
Real time error logging
Tuesday, 9 July 13

20. “Not all things that
break throw errors.”
- Oscar Wilde
Tuesday, 9 July 13

21. StatsD
Tuesday, 9 July 13

22. StatsD::increment(“foo.bar”)
Tuesday, 9 July 13

23. If it moves,
graph it!
Tuesday, 9 July 13

24. If it moves,
graph it!
we would graph them ➞
Tuesday, 9 July 13

25. If it doesn’t move,
graph it anyway
(it might make a run for it)
Tuesday, 9 July 13

26. DASHBOARDS!
Tuesday, 9 July 13

27. [1358731200,20]
[1358731200,20]
[1358731200,20]
[1358731200,20]
[1358731200,20]
[1358731200,20]
[1358731200,20]
[1358731200,20]
[1358731200,60]
[1358731200,20]
[1358731200,20]
Tuesday, 9 July 13

28. DASHBOARDS! x 250,000
Tuesday, 9 July 13

29. Tuesday, 9 July 13

30. lol nagios
Tuesday, 9 July 13

31. “...but there are also
unknown unknowns -
there are things we do
not know we don’t
know.”
Tuesday, 9 July 13

32. Unknown
anomalies
Tuesday, 9 July 13

33. Unknown
correlations
Tuesday, 9 July 13

34. Kale.
Tuesday, 9 July 13

35. Kale:
- leaves
- green stuff
Tuesday, 9 July 13

36. Kale:
- leaves
- green stuff
OCULUS
SKYLINE
Tuesday, 9 July 13

37. Q). How do you analyze a
timeseries for anomalies
in real time?
Tuesday, 9 July 13

38. A). Lots of HTTP requests
to Graphite’s API!
Tuesday, 9 July 13

39. Q). How do you analyze a
quarter million timeseries
for anomalies in real time?
Tuesday, 9 July 13

40. SKYLINE
Tuesday, 9 July 13

41. SKYLINE
Tuesday, 9 July 13

42. A real time
anomaly detection
system
Tuesday, 9 July 13

43. Real time?
Tuesday, 9 July 13

44. Kinda.
Tuesday, 9 July 13

45. StatsD
Ten second resolution
Tuesday, 9 July 13

46. Ganglia
One minute resolution
Tuesday, 9 July 13

47. ~ 10s
( ~ 1minBest case:
Tuesday, 9 July 13

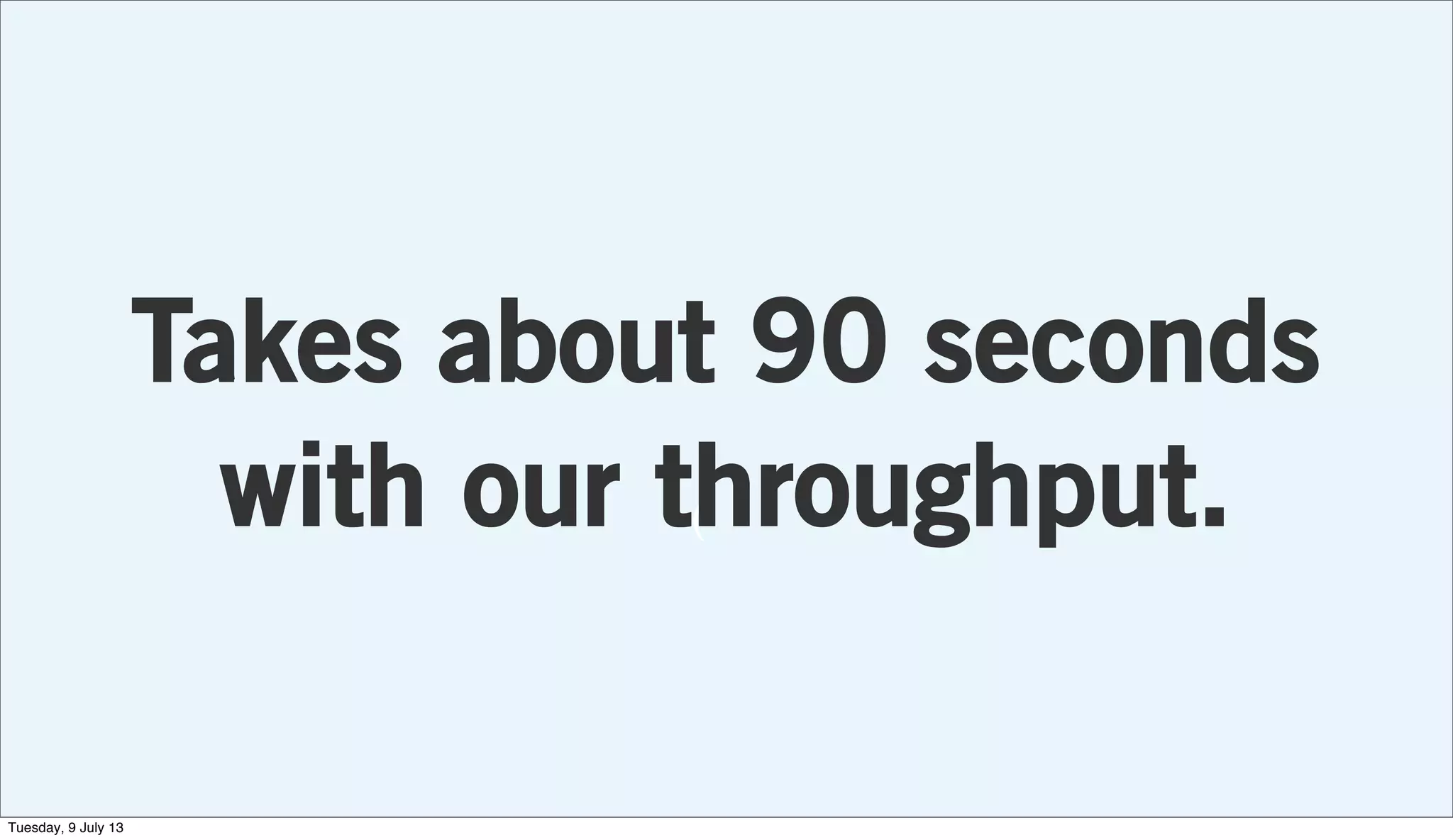

48. (
Takes about 90 seconds
with our throughput.
Tuesday, 9 July 13

49. (
Still faster than you would
have discovered it otherwise.
Tuesday, 9 July 13

50. Memory > Disk
Tuesday, 9 July 13

51. Tuesday, 9 July 13

52. Q). How do you get a
quarter million timeseries
into Redis on time?
Tuesday, 9 July 13

53. STREAM IT!
Tuesday, 9 July 13

54. Graphite’s relay agent
original
graphite backup graphite
Tuesday, 9 July 13

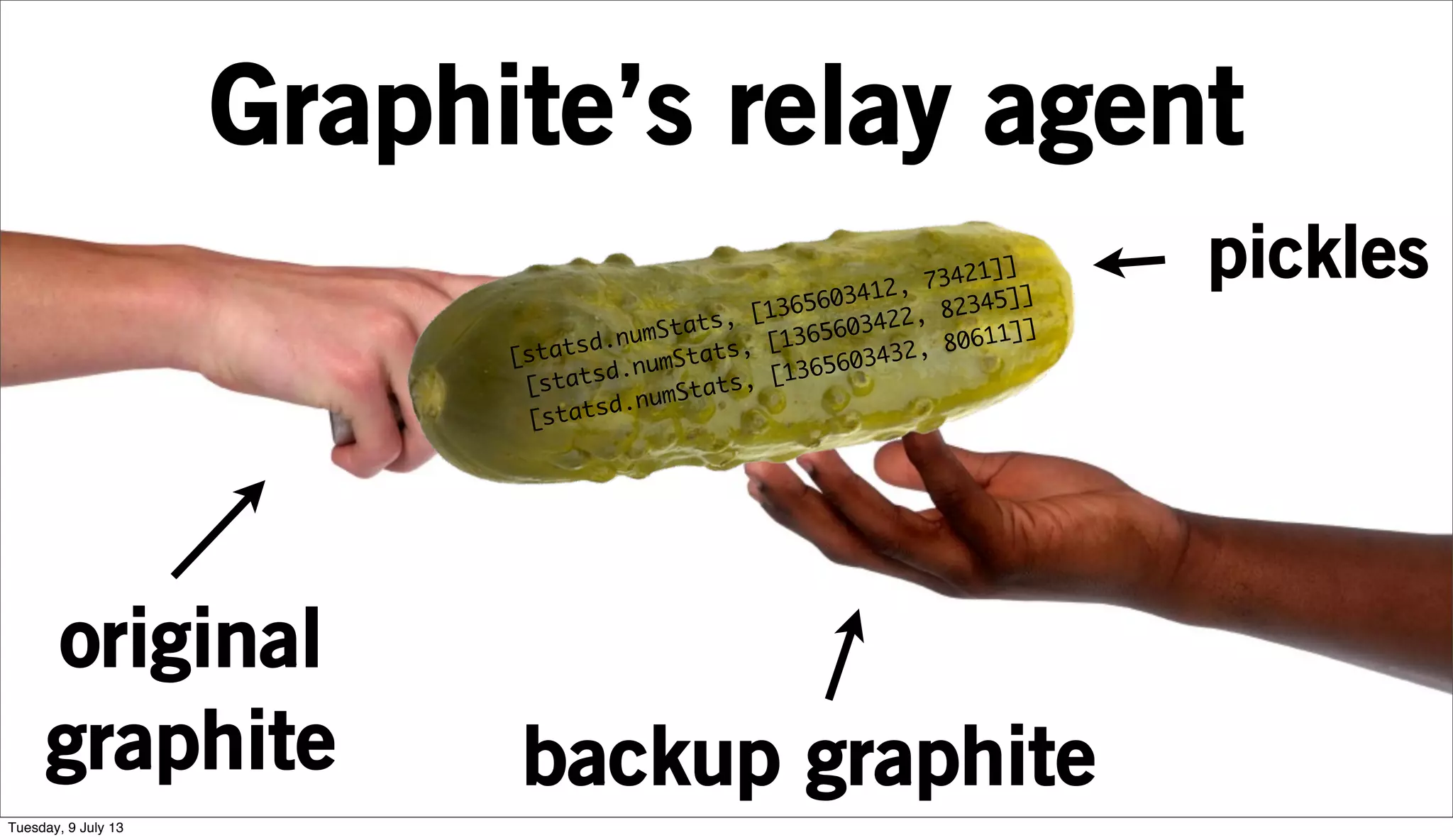

55. Graphite’s relay agent
original
graphite backup graphite
[statsd.numStats, [1365603422, 82345]]
pickles
[statsd.numStats, [1365603432, 80611]]
[statsd.numStats, [1365603412, 73421]]
Tuesday, 9 July 13

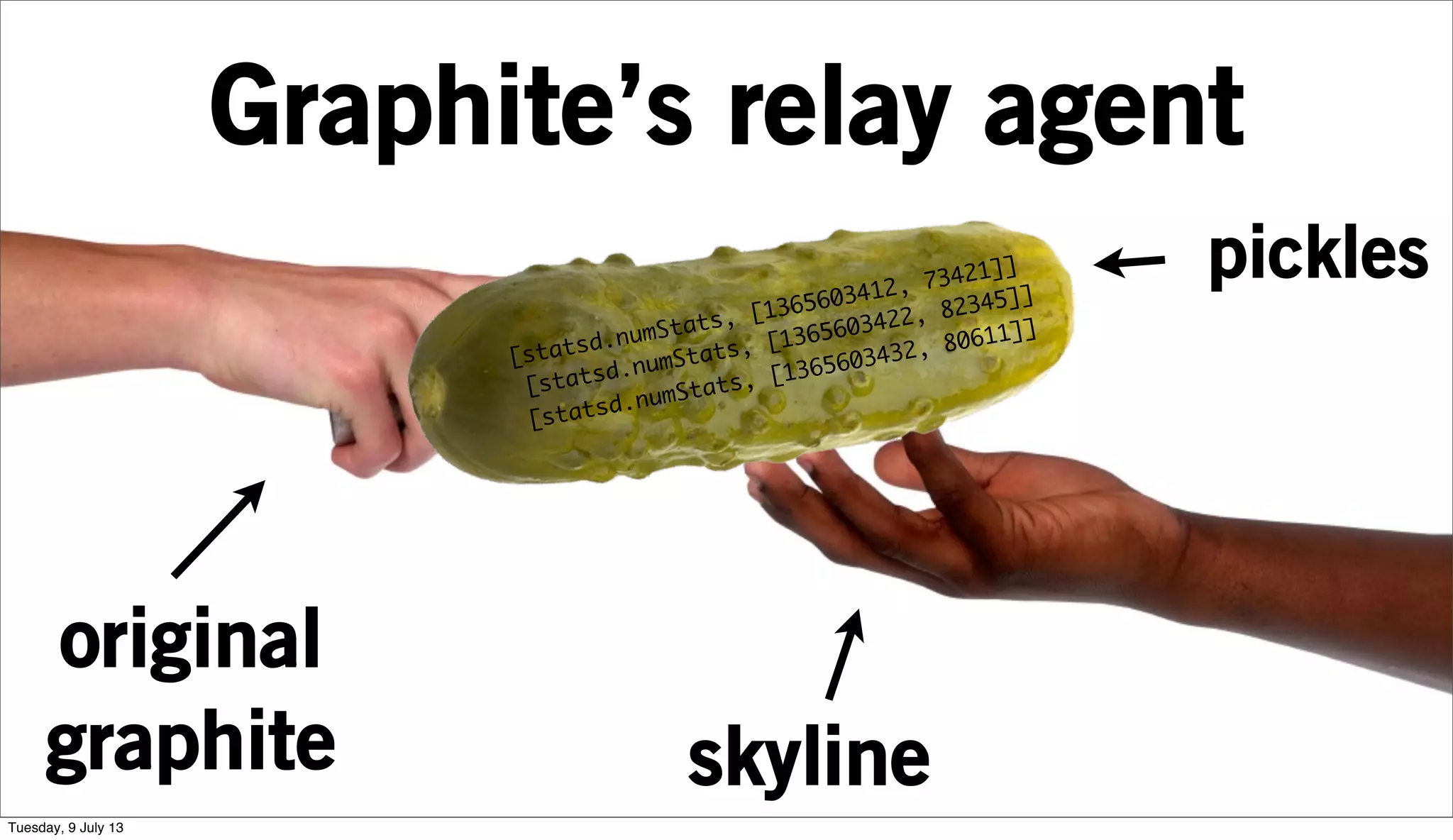

56. Graphite’s relay agent
original
graphite skyline
[statsd.numStats, [1365603422, 82345]]
pickles
[statsd.numStats, [1365603432, 80611]]
[statsd.numStats, [1365603412, 73421]]
Tuesday, 9 July 13

57. We import from Ganglia too.
Tuesday, 9 July 13

58. Storing timeseries
Tuesday, 9 July 13

59. Minimize I/O
Minimize memory
Tuesday, 9 July 13

60. redis.append()
- Strings
- Constant time
- One operation per update
Tuesday, 9 July 13

61. JSON?
Tuesday, 9 July 13

62. “[1358711400, 51],”
=> get statsD.numStats
----------------------------
Tuesday, 9 July 13

63. “[1358711400, 51],
=> get statsD.numStats
----------------------------
[1358711410, 23],”
Tuesday, 9 July 13

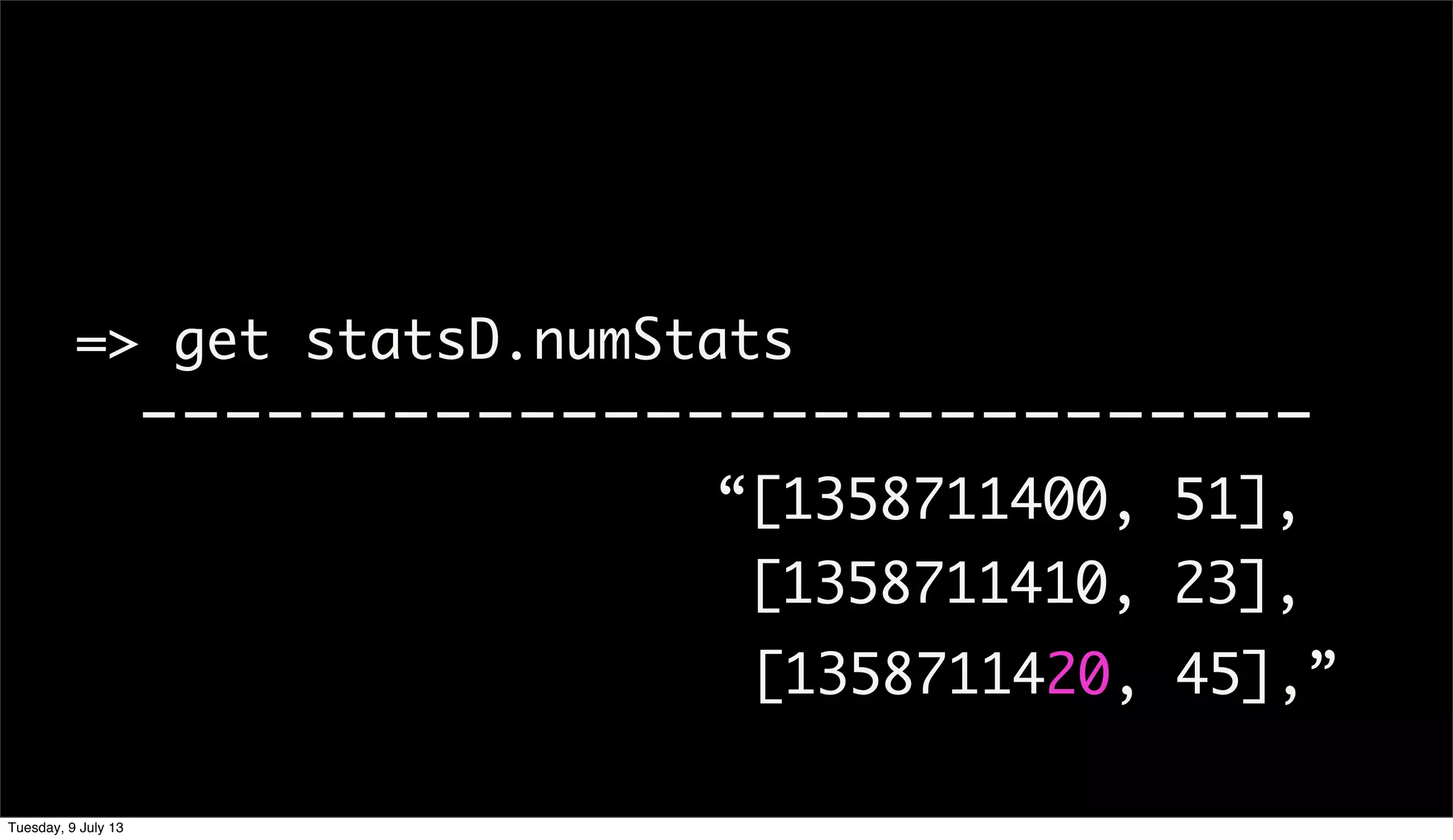

64. “[1358711400, 51],
=> get statsD.numStats
----------------------------
[1358711410, 23],
[1358711420, 45],”
Tuesday, 9 July 13

65. OVER HALF
CPU time spent
decoding JSON
Tuesday, 9 July 13

66. [1,2]
Tuesday, 9 July 13

67. [ 1 , 2 ]
Stuff we care about
Extra junk
Tuesday, 9 July 13

68. MESSAGEPACK
Tuesday, 9 July 13

69. MESSAGEPACK
A binary-based
serialization protocol
Tuesday, 9 July 13

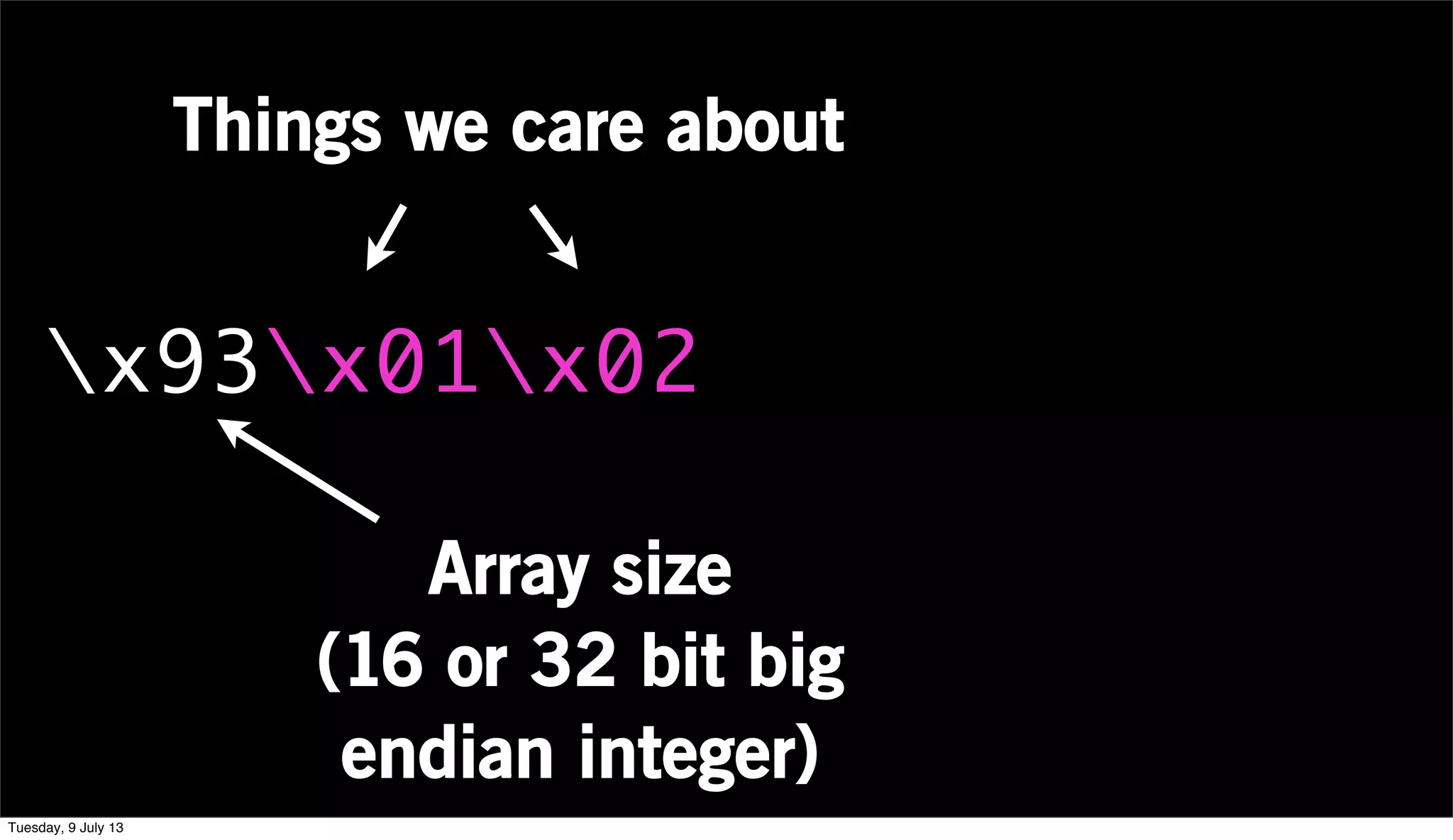

70. x93x01x02
Array size
(16 or 32 bit big
endian integer)
Things we care about
Tuesday, 9 July 13

71. x93x01x02
Array size
(16 or 32 bit big
endian integer)
Things we care about
x93x02x03
Tuesday, 9 July 13

72. CUT IN HALF
Run Time + Memory Used
Tuesday, 9 July 13

73. ROOMBA.PY
CLEANS THE DATA
Tuesday, 9 July 13

74. “Wait...you wrote this in Python?”
Tuesday, 9 July 13

75. Great statistics libraries
Not fun for parallelism
Tuesday, 9 July 13

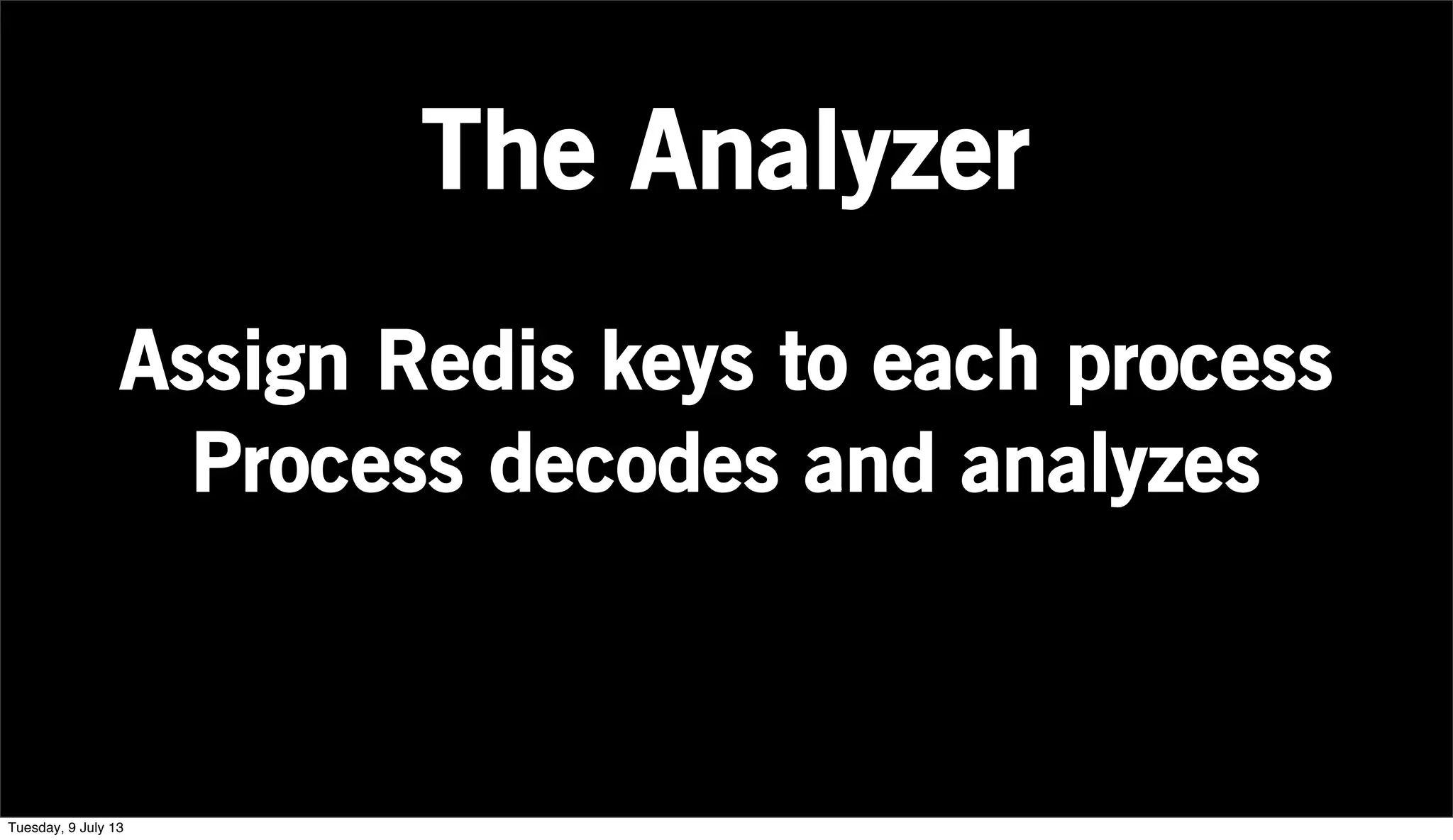

76. Assign Redis keys to each process
Process decodes and analyzes
The Analyzer
Tuesday, 9 July 13

77. Anomalous metrics written as JSON
setInterval() retrieves from front end
The Analyzer
Tuesday, 9 July 13

78. Tuesday, 9 July 13

79. What does it mean
to be anomalous?
Tuesday, 9 July 13

80. Consensus model
Tuesday, 9 July 13

81. Implement everything you
can get your hands on
Tuesday, 9 July 13

82. Basic algorithm:
“A metric is anomalous if its
latest datapoint is over three
standard deviations above
its moving average.”
Tuesday, 9 July 13

83. Grubb’s test, ordinary least squares
Tuesday, 9 July 13

84. Histogram binning
Tuesday, 9 July 13

85. Four horsemen of the modelpocalypse
Tuesday, 9 July 13

86. 1. Seasonality
2. Spike influence
3. Normality
4. Parameters
Tuesday, 9 July 13

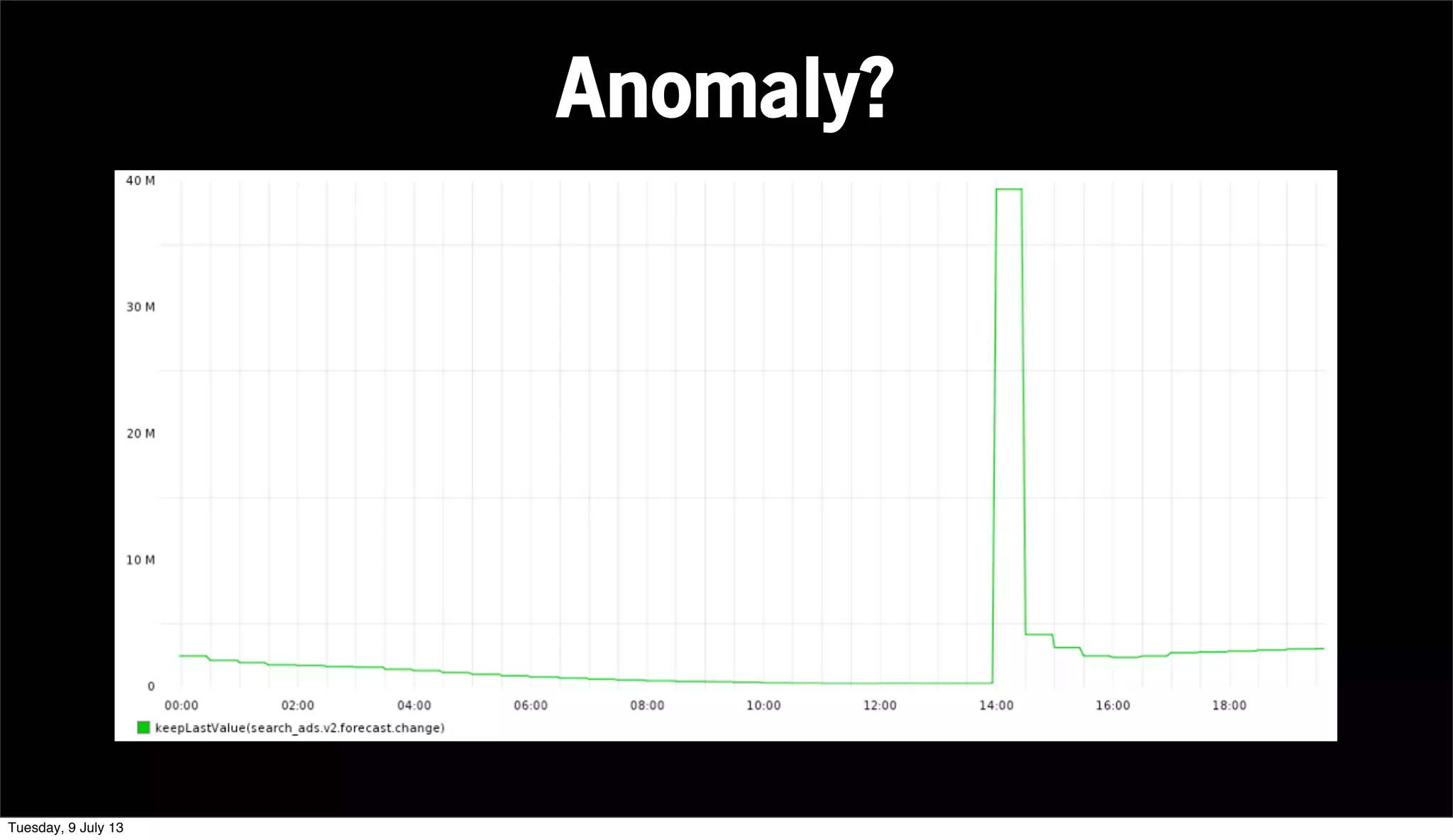

87. Anomaly?
Tuesday, 9 July 13

88. Nope.
Tuesday, 9 July 13

89. Text
Spikes artificially raise the moving average
Anomaly
detected (yay!)
Anomaly missed :(
Bigger moving average
Tuesday, 9 July 13

90. Real world data doesn’t
necessarily follow a perfect
normal distribution.
Tuesday, 9 July 13

91. Too many metrics to fit
parameters for them all!
Tuesday, 9 July 13

92. A robust set of algorithms is the
current focus of this project.
Tuesday, 9 July 13

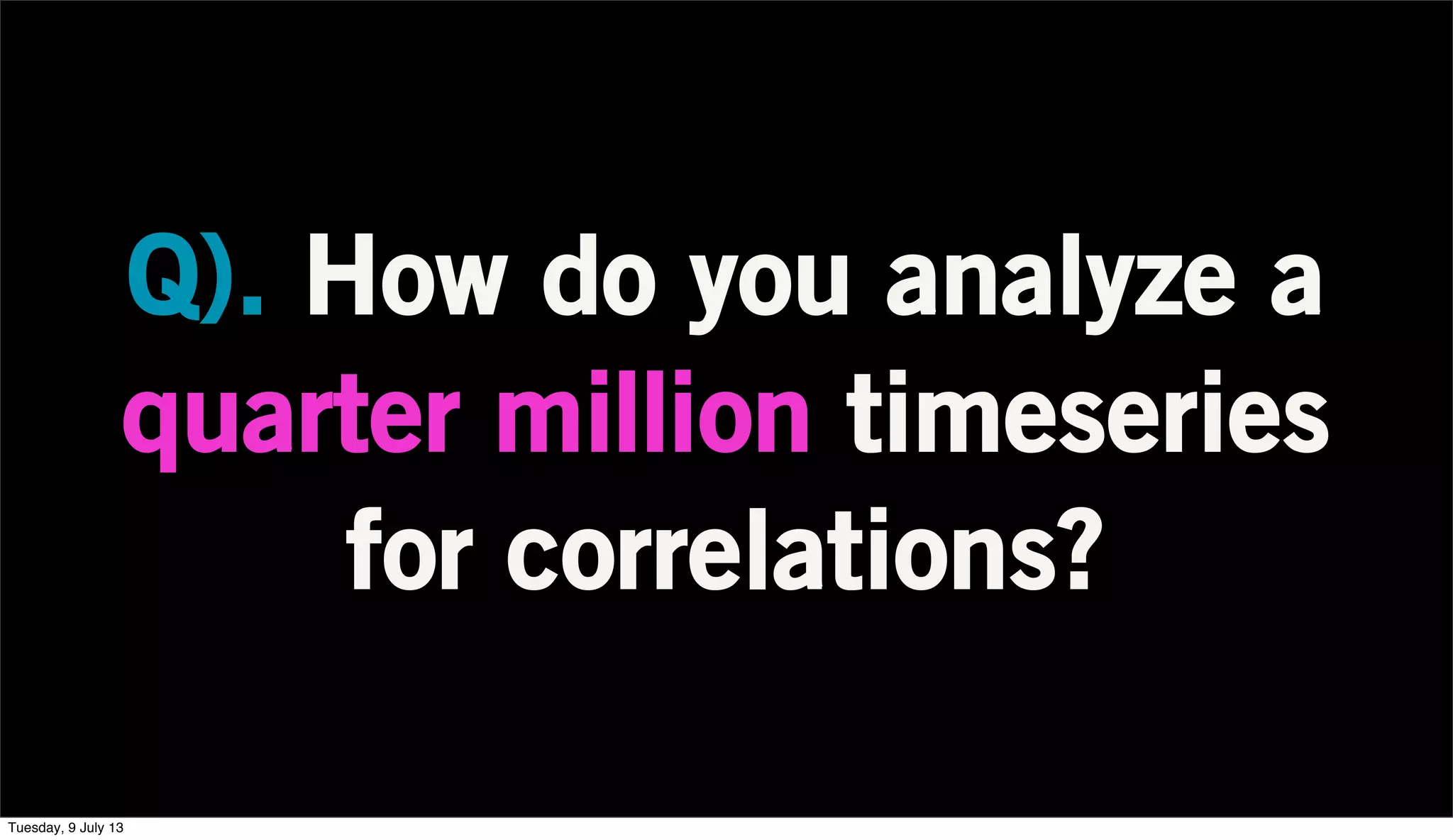

93. Q). How do you analyze a
quarter million timeseries
for correlations?
Tuesday, 9 July 13

94. OCULUS
Tuesday, 9 July 13

95. Image comparison is expensive and slow
Tuesday, 9 July 13

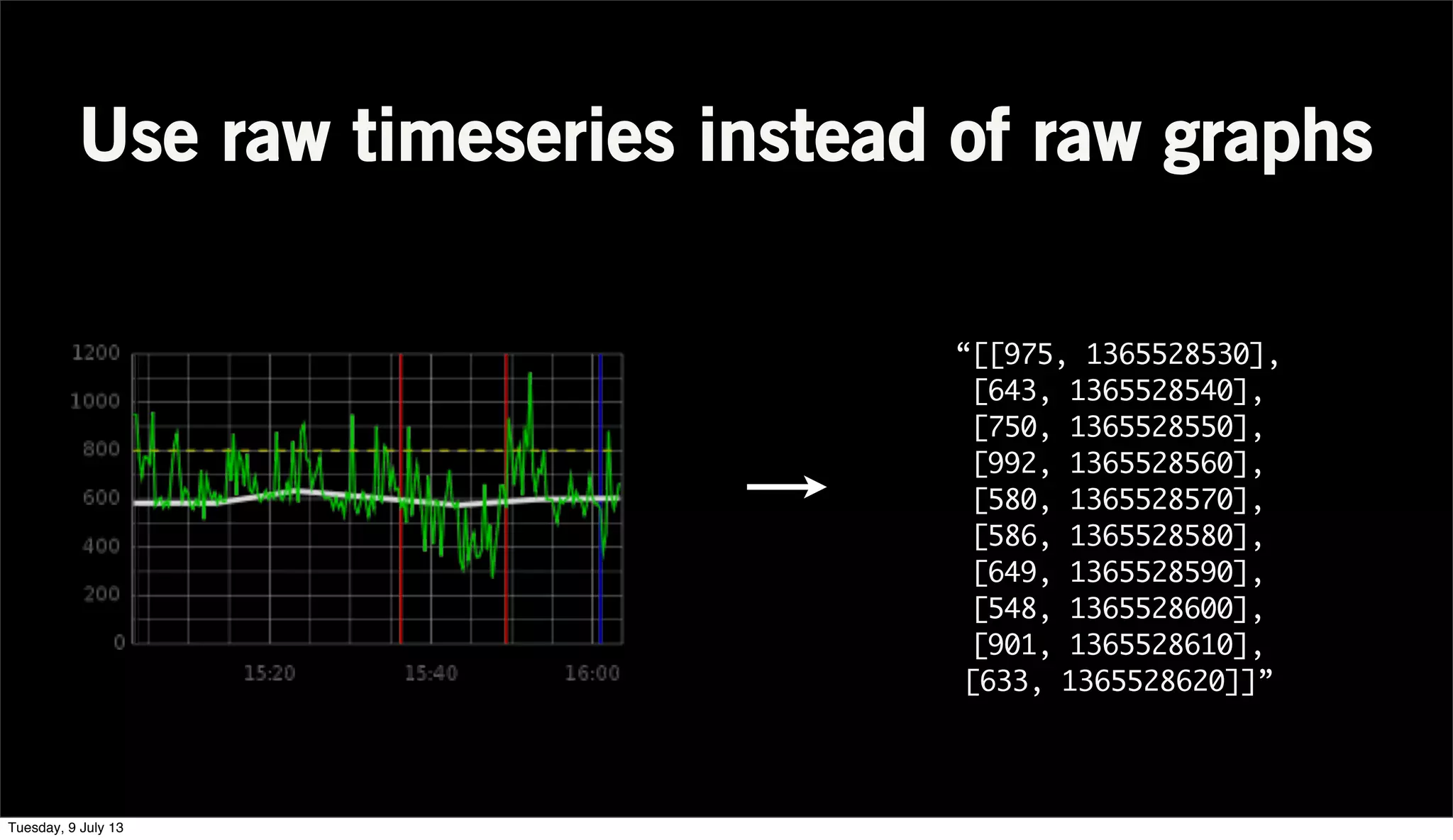

96. “[[975, 1365528530],
[643, 1365528540],
[750, 1365528550],
[992, 1365528560],
[580, 1365528570],
[586, 1365528580],
[649, 1365528590],
[548, 1365528600],
[901, 1365528610],
[633, 1365528620]]”
Use raw timeseries instead of raw graphs
Tuesday, 9 July 13

97. Naming Things
Cache Invalidation
Numerical Comparison?
HARD PROBLEMS
Tuesday, 9 July 13

98. Naming Things
Cache Invalidation
Numerical Comparison?
HARD PROBLEMS
Tuesday, 9 July 13

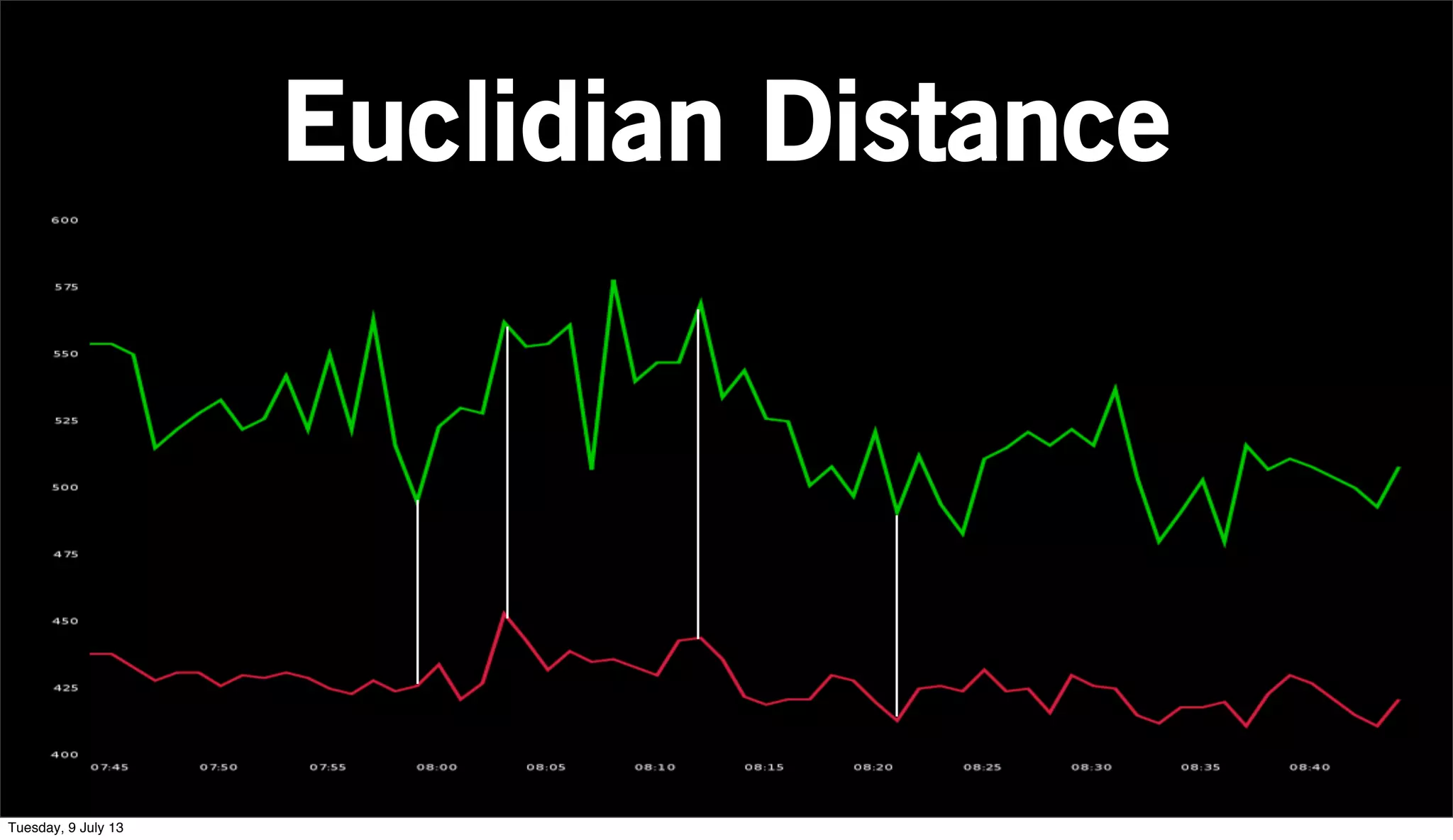

99. Euclidian Distance
Tuesday, 9 July 13

100. Dynamic Time Warping
(helps with phase shifts)
Tuesday, 9 July 13

101. We’ve solved it!
Tuesday, 9 July 13

102. O(N2)
Tuesday, 9 July 13

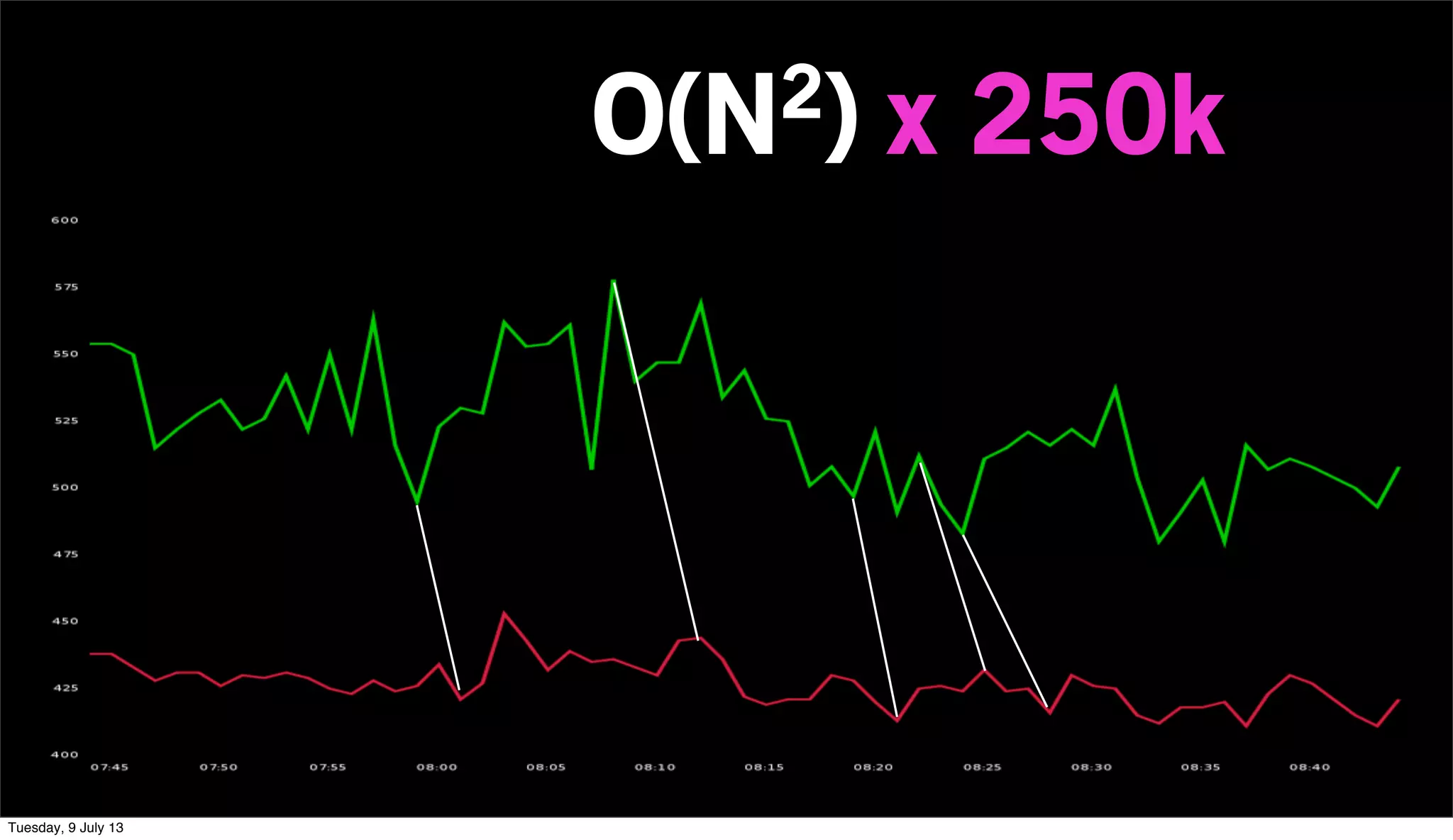

103. O(N2) x 250k
Tuesday, 9 July 13

104. Too slow!
Tuesday, 9 July 13

105. doesn’t
Tuesday, 9 July 13

106. No need to run DTW on all 250k.
Tuesday, 9 July 13

107. Discard obviously dissimilar metrics.
Tuesday, 9 July 13

108. “975 643 643 750 992 992 992 580”
“sharpdecrement flat increment
sharpincrement flat flat
shapdecrement”
Shape Description Alphabet
Tuesday, 9 July 13

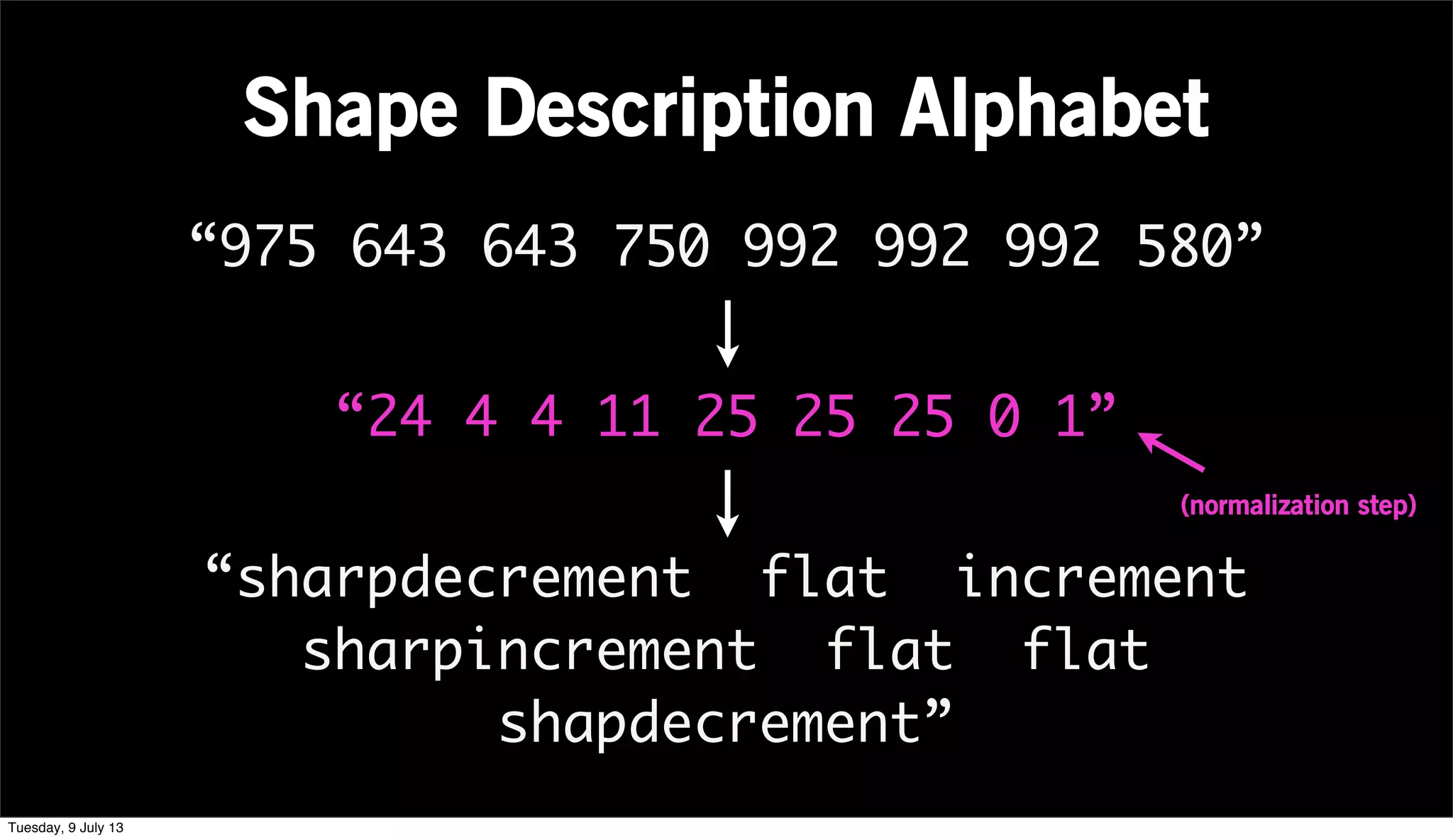

109. “975 643 643 750 992 992 992 580”
“sharpdecrement flat increment
sharpincrement flat flat
shapdecrement”
Shape Description Alphabet
“24 4 4 11 25 25 25 0 1”
(normalization step)
Tuesday, 9 July 13

110. Tuesday, 9 July 13

111. Search for shape description
fingerprint in Elasticsearch
Tuesday, 9 July 13

112. Run DTW on results
as final polish
Tuesday, 9 July 13

113. O(N2) on ~10k metrics
Tuesday, 9 July 13

114. Still too slow.
Tuesday, 9 July 13

115. Fast DTW - O(N)
coarsen
project
refine
Tuesday, 9 July 13

116. Elasticsearch Details
Phrase search for first
pass scores across shape
description fingerprints
Tuesday, 9 July 13

117. Elasticsearch Details
Phrase search for first pass scores
across shape description fingerprints
Custom FastDTW and euclidian
distance plugins to score across the
remaining filtered timeseries
Tuesday, 9 July 13

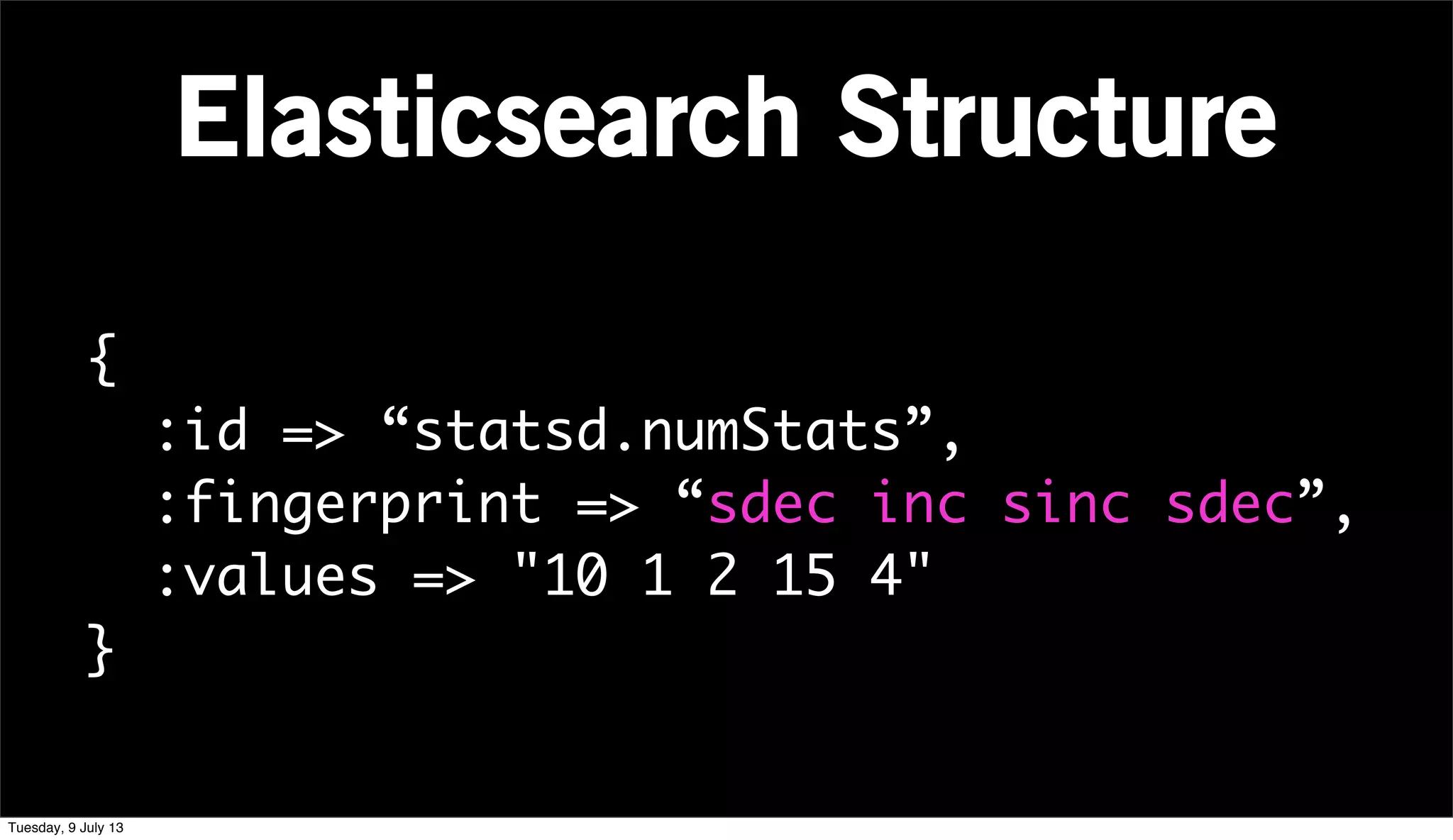

118. Elasticsearch Structure
{
:id => “statsd.numStats”,
:fingerprint => “sdec inc sinc sdec”,
:values => "10 1 2 15 4"
}
Tuesday, 9 July 13

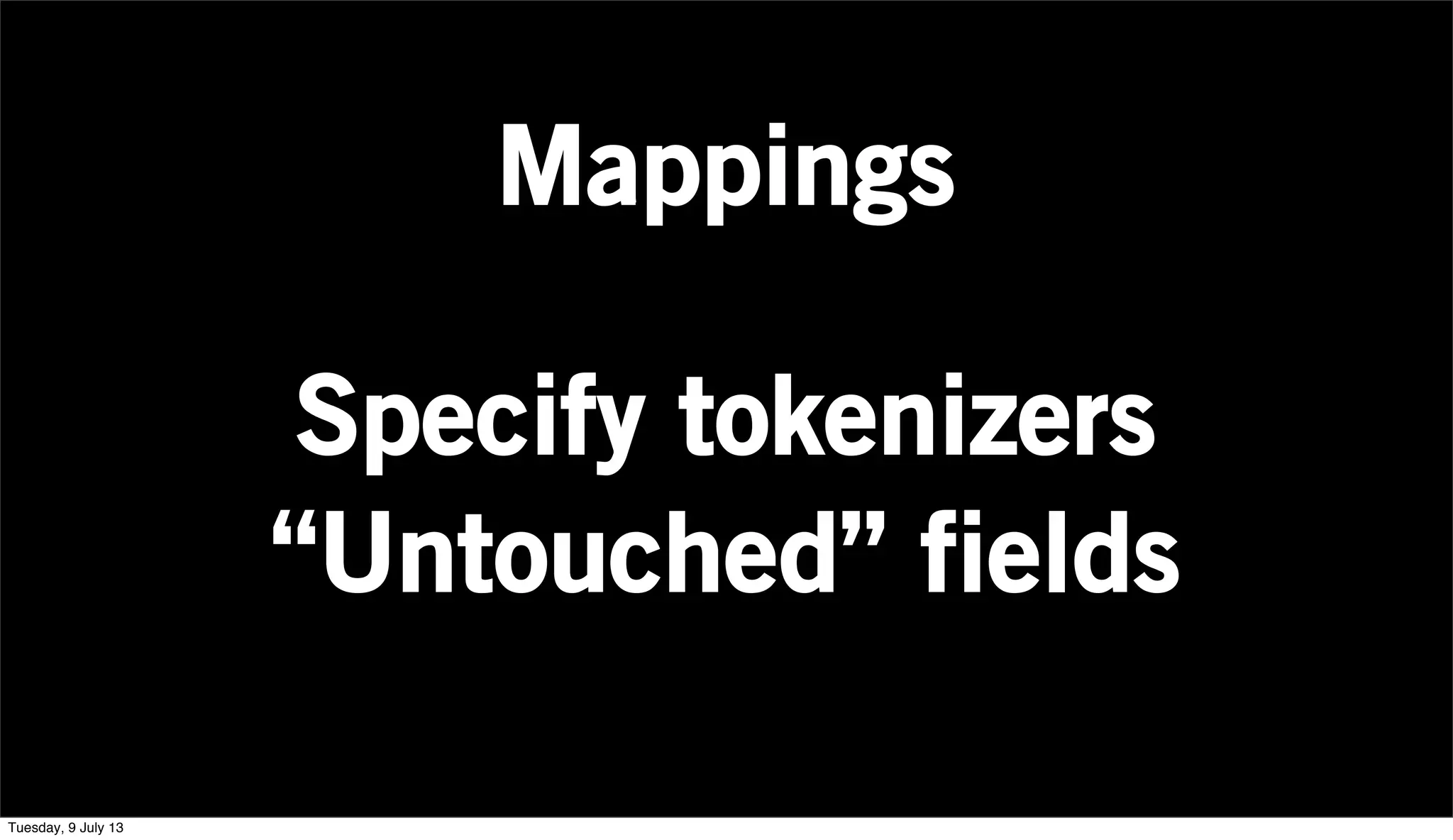

119. Mappings
Specify tokenizers
“Untouched” fields
Tuesday, 9 July 13

120. First pass query
:match => {
:fingerprint => {
:query => “sdec inc sinc sdec inc”,
:type => "phrase",
:slop => 20
}
}
shape description
fingerprint
Tuesday, 9 July 13

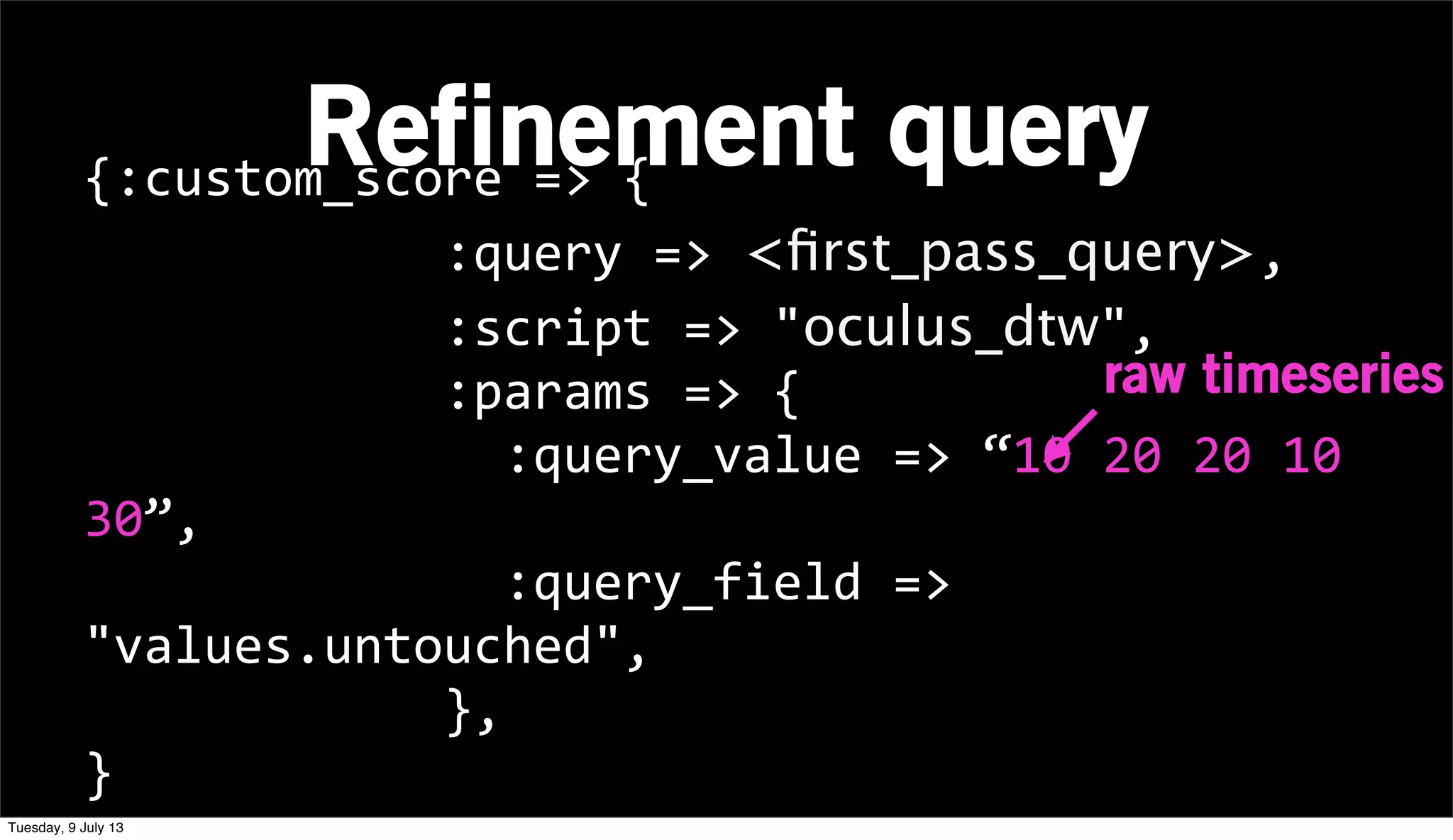

121. Refinement query{:custom_score
=>
{
:query
=>
<first_pass_query>,
:script
=>
"oculus_dtw",
:params
=>
{
:query_value
=>
“10
20
20
10
30”,
:query_field
=>
"values.untouched",
},
}
raw timeseries
Tuesday, 9 July 13

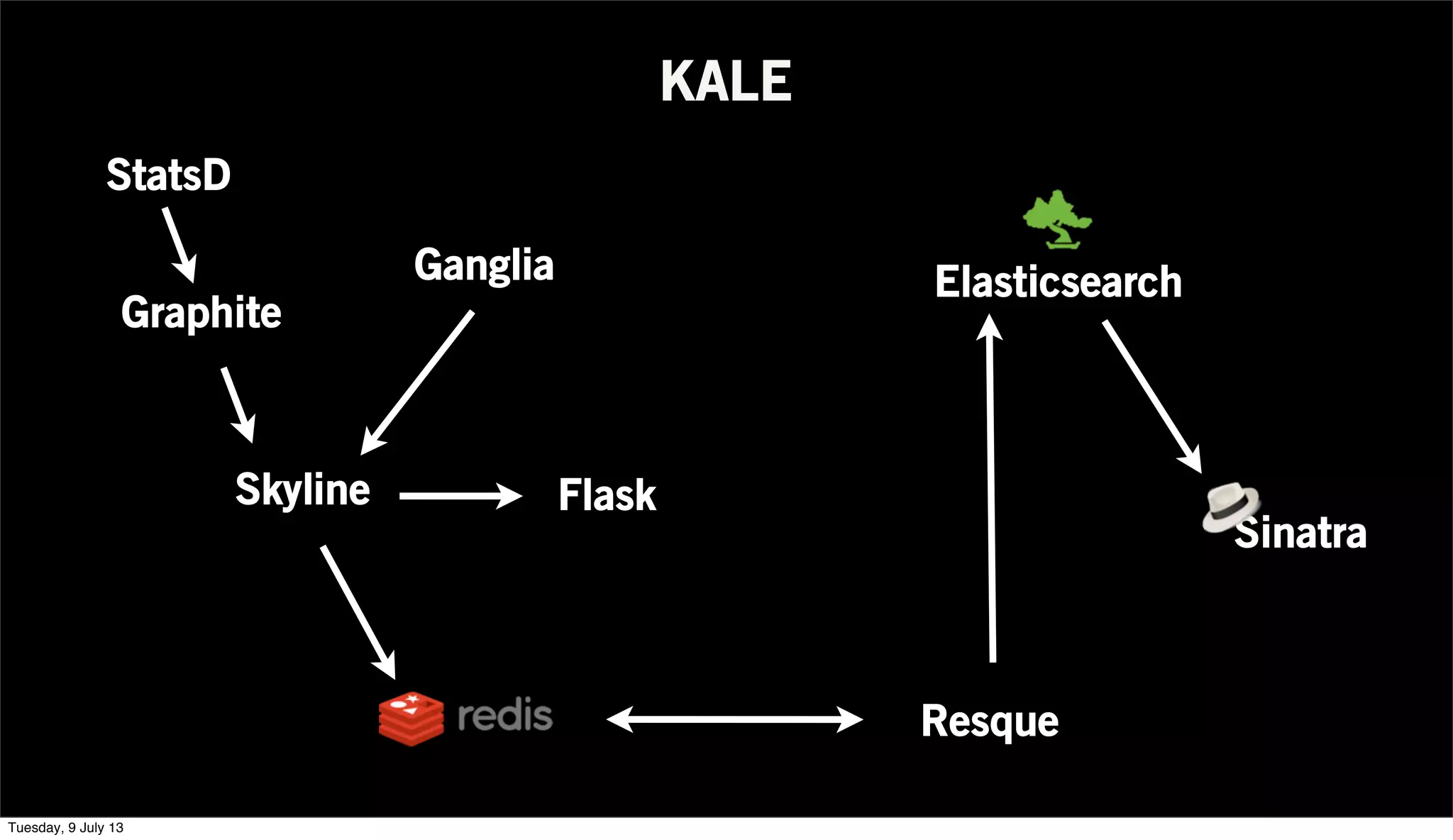

122. Skyline
Elasticsearch
Resque
Sinatra
Ganglia
Graphite
StatsD
KALE
Flask
Tuesday, 9 July 13

123. Populating Elasticsearch
Tuesday, 9 July 13

124. ES
Index
resque workers
Tuesday, 9 July 13

125. Too slow to
update and search
Tuesday, 9 July 13

126. New
Index
Last
Index
Webapp
Tuesday, 9 July 13

127. Sinatra frontend
Queries ES
Renders results
Tuesday, 9 July 13

128. Collections
Tuesday, 9 July 13

129. devops <3
Tuesday, 9 July 13

130. Tuesday, 9 July 13

131. Special thanks to:
Dr. Neil Gunther, PerfDynamics
Dr. Brian Whitman, Echonest
Burc Arpat, Facebook
Seth Walker, Etsy
Rafe Colburn, Etsy
Mike Rembetsy, Etsy
John Allspaw, Etsy
Tuesday, 9 July 13

132. @abestanway @jonlives
Thanks!
github.com/etsy/skyline
github.com/etsy/oculus
