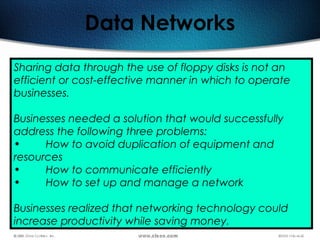

Data Networks
Sharing data through the use of floppy disks is not an
efficient or cost-effective manner in which to operate
businesses.
Businesses needed a solution that would successfully
address the following three problems:
• How to avoid duplication of equipment and
resources
• How to communicate efficiently
• How to set up and manage a network
Businesses realized that networking technology could
increase productivity while saving money.

4
Networking Devices
Equipment that connects directly to a network segment
is referred to as a device.
These devices are broken up into two classifications.
• end-user devices
• network devices
End-user devices include computers, printers, scanners,
and other devices that provide services directly to the
user.
Network devices include all the devices that connect
the end-user devices together to allow them to
communicate.

5

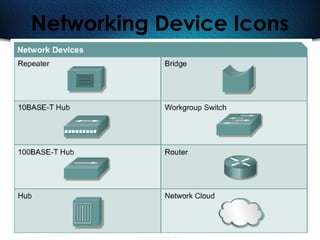

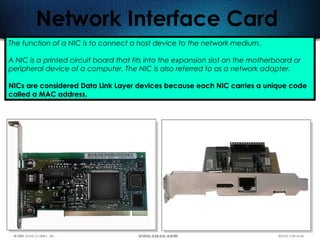

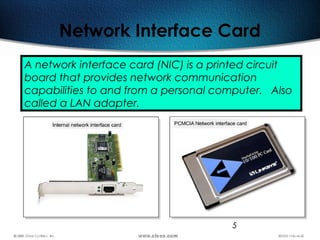

Network Interface Card
A network interface card (NIC) is a printed circuit
board that provides network communication
capabilities to and from a personal computer. Also
called a LAN adapter.

7
Repeater
A repeater is a network device used to regenerate a
signal.
Repeaters regenerate analog or digital signals distorted
by transmission loss due to attenuation. A repeater does
not perform intelligent routing.

8

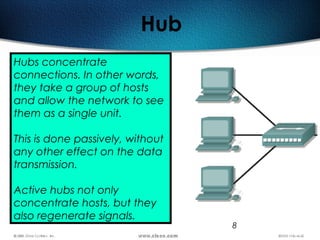

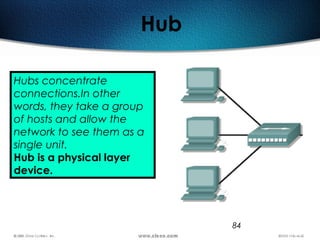

Hub
Hubs concentrate
connections. In other words,
they take a group of hosts
and allow the network to see
them as a single unit.
This is done passively, without
any other effect on the data
transmission.
Active hubs not only
concentrate hosts, but they
also regenerate signals.

9

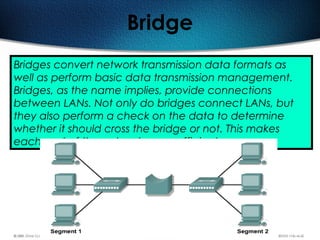

Bridge
Bridges convert network transmission data formats as
well as perform basic data transmission management.
Bridges, as the name implies, provide connections
between LANs. Not only do bridges connect LANs, but
they also perform a check on the data to determine
whether it should cross the bridge or not. This makes
each part of the network more efficient.

10

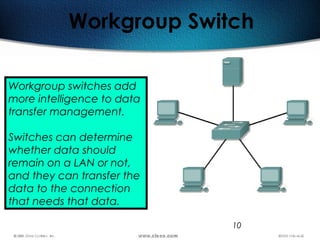

Workgroup Switch
Workgroup switches add
more intelligence to data
transfer management.
Switches can determine
whether data should
remain on a LAN or not,
and they can transfer the
data to the connection
that needs that data.

11
Router
Routers have all capabilities of the previous devices.
Routers can regenerate signals, concentrate multiple
connections, convert data transmission formats, and
manage data transfers.They can also connect to a
WAN, which allows them to connect LANs that are
separated by great distances.

12

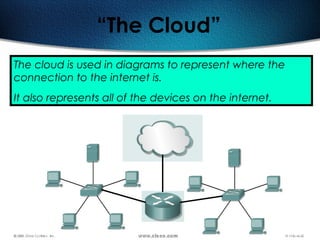

“The Cloud”
The cloud is used in diagrams to represent where the
connection to the internet is.
It also represents all of the devices on the internet.

13

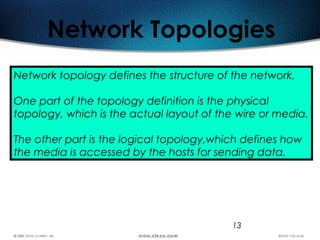

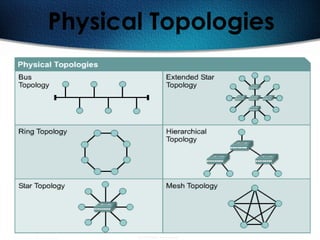

Network Topologies
Network topology defines the structure of the network.
One part of the topology definition is the physical
topology, which is the actual layout of the wire or media.
The other part is the logical topology,which defines how
the media is accessed by the hosts for sending data.

15

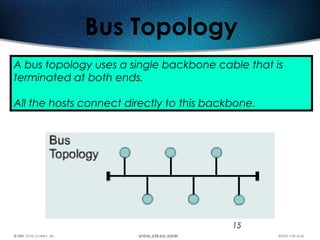

Bus Topology
A bus topology uses a single backbone cable that is
terminated at both ends.
All the hosts connect directly to this backbone.

16
Ring Topology
A ring topology connects one host to the next and the
last host to the first.
This creates a physical ring of cable.

17

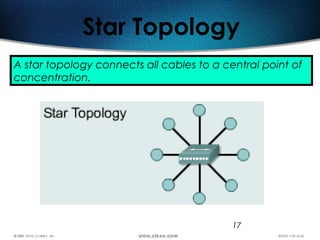

Star Topology
A star topology connects all cables to a central point of
concentration.

18

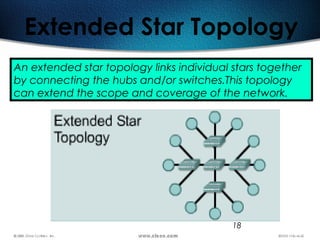

Extended Star Topology
An extended star topology links individual stars together
by connecting the hubs and/or switches.This topology
can extend the scope and coverage of the network.

19

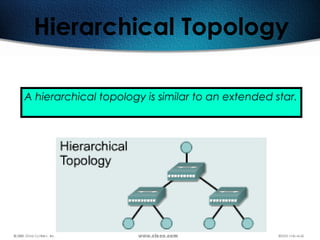

Hierarchical Topology
A hierarchical topology is similar to an extended star.

20

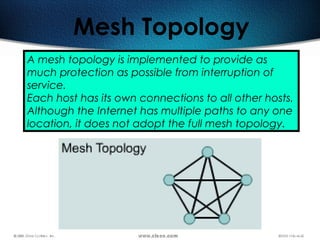

Mesh Topology
A mesh topology is implemented to provide as
much protection as possible from interruption of
service.
Each host has its own connections to all other hosts.
Although the Internet has multiple paths to any one
location, it does not adopt the full mesh topology.

21

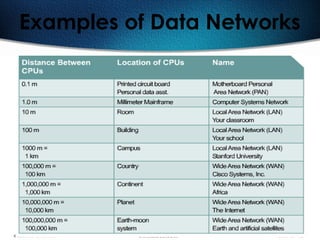

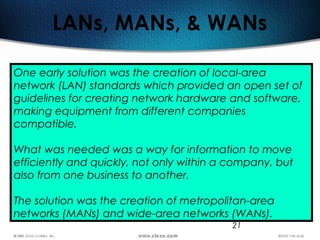

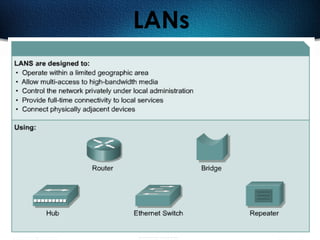

LANs, MANs, & WANs
One early solution was the creation of local-area
network (LAN) standards which provided an open set of
guidelines for creating network hardware and software,
making equipment from different companies
compatible.
What was needed was a way for information to move
efficiently and quickly, not only within a company, but
also from one business to another.
The solution was the creation of metropolitan-area
networks (MANs) and wide-area networks (WANs).

24

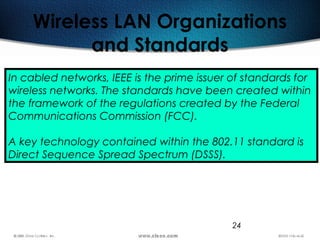

Wireless LAN Organizations
and Standards
In cabled networks, IEEE is the prime issuer of standards for
wireless networks. The standards have been created within
the framework of the regulations created by the Federal
Communications Commission (FCC).
A key technology contained within the 802.11 standard is
Direct Sequence Spread Spectrum (DSSS).

25

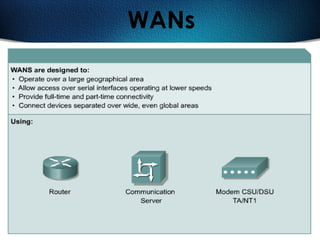

Cellular Topology for Wireless

27
SANs
A SAN is a dedicated,
high-performance network
used to move data
between servers and
storage resources.
Because it is a separate,
dedicated network, it
avoids any traffic conflict
between clients and
servers.

28

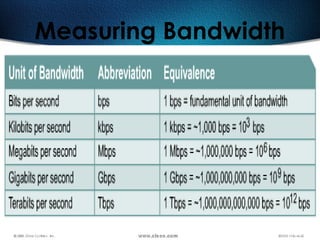

Virtual Private Network
A VPN is a private network that is constructed within a public network
infrastructure such as the global Internet. Using VPN, a telecommuter
can access the network of the company headquarters through the
Internet by building a secure tunnel between the telecommuter’s PC
and a VPN router in the headquarters.

32

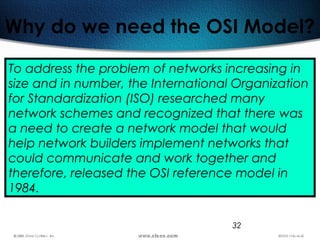

Why do we need the OSI Model?
To address the problem of networks increasing in
size and in number, the International Organization
for Standardization (ISO) researched many
network schemes and recognized that there was
a need to create a network model that would
help network builders implement networks that
could communicate and work together and
therefore, released the OSI reference model in
1984.

33

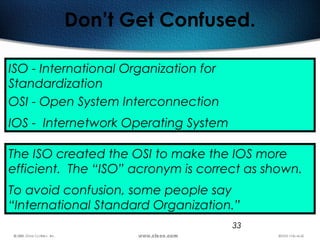

Don’t Get Confused.
ISO - International Organization for
Standardization
OSI - Open System Interconnection
IOS - Internetwork Operating System
The ISO created the OSI to make the IOS more
efficient. The “ISO” acronym is correct as shown.
To avoid confusion, some people say
“International Standard Organization.”

34

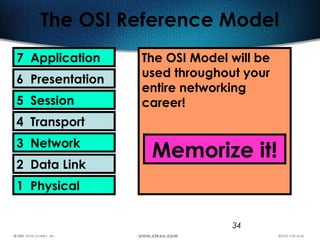

The OSI Reference Model
7 Application
6 Presentation
5 Session
4 Transport
3 Network
2 Data Link
1 Physical
The OSI Model will be
used throughout your
entire networking
career!
Memorize it!

35

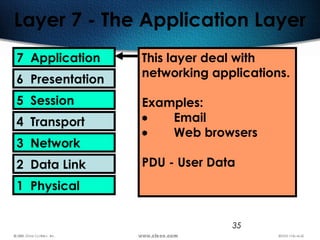

Layer 7 - The Application Layer
7 Application
6 Presentation
5 Session
4 Transport
3 Network
2 Data Link
1 Physical
This layer deal with
networking applications.
Examples:
• Email
• Web browsers
PDU - User Data

36
Layer 6 - The Presentation Layer
7 Application
6 Presentation
5 Session
4 Transport
3 Network
2 Data Link
1 Physical
This layer is responsible
for presenting the data in
the required format which
may include:
• Encryption
• Compression
PDU - Formatted Data

37

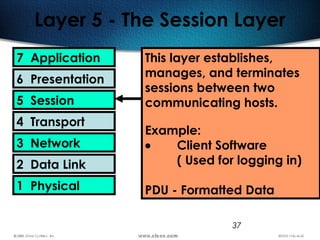

Layer 5 - The Session Layer
7 Application
6 Presentation
5 Session
4 Transport
3 Network
2 Data Link
1 Physical
This layer establishes,
manages, and terminates
sessions between two
communicating hosts.
Example:
• Client Software
( Used for logging in)
PDU - Formatted Data

38

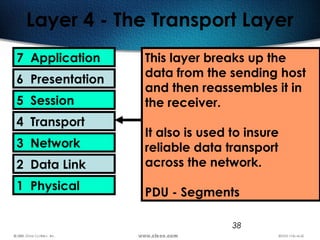

Layer 4 - The Transport Layer
7 Application
6 Presentation
5 Session
4 Transport
3 Network
2 Data Link
1 Physical
This layer breaks up the
data from the sending host
and then reassembles it in
the receiver.
It also is used to insure
reliable data transport
across the network.
PDU - Segments

39

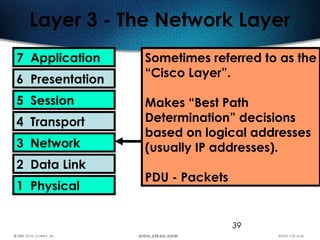

Layer 3 - The Network Layer
7 Application
6 Presentation
5 Session
4 Transport
3 Network
2 Data Link
1 Physical
Sometimes referred to as the
“Cisco Layer”.
Makes “Best Path
Determination” decisions
based on logical addresses
(usually IP addresses).
PDU - Packets

40

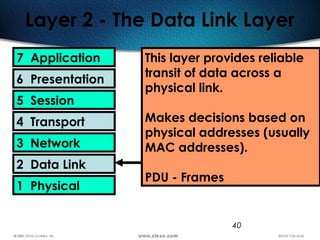

Layer 2 - The Data Link Layer
7 Application
6 Presentation
5 Session
4 Transport
3 Network
2 Data Link
1 Physical
This layer provides reliable
transit of data across a
physical link.
Makes decisions based on
physical addresses (usually
MAC addresses).
PDU - Frames

41

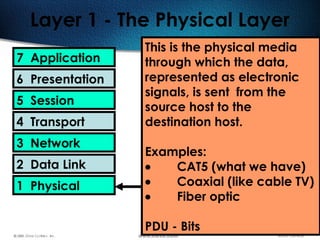

Layer 1 - The Physical Layer
7 Application
6 Presentation
5 Session
4 Transport
3 Network
2 Data Link
1 Physical
This is the physical media
through which the data,
represented as electronic
signals, is sent from the
source host to the
destination host.
Examples:
• CAT5 (what we have)
• Coaxial (like cable TV)
• Fiber optic
PDU - Bits

42
OSI Model Analogy
Application Layer - Source Host
After riding your new bicycle a few times in
NewYork, you decide that you want to give it to
a friend who lives in Munich,Germany.

43
OSI Model Analogy
Presentation Layer - Source Host
Make sure you have the proper directions to
disassemble and reassemble the bicycle.

44
OSI Model Analogy
Session Layer - Source Host
Call your friend and make sure you have his
correct address.

45
OSI Model Analogy
Transport Layer - Source Host
Disassemble the bicycle and put different pieces
in different boxes. The boxes are labeled
“1 of 3”, “2 of 3”, and “3 of 3”.

46

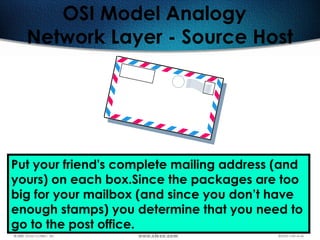

OSI Model Analogy
Network Layer - Source Host
Put your friend's complete mailing address (and
yours) on each box.Since the packages are too
big for your mailbox (and since you don’t have
enough stamps) you determine that you need to
go to the post office.

47
OSI Model Analogy
Data Link Layer – Source Host
Jamshedpur post office takes possession of the
boxes.

48
OSI Model Analogy
Physical Layer - Media
The boxes are flown from India to USA.

49
OSI Model Analogy
Data Link Layer - Destination
New York post office receives your boxes.

50

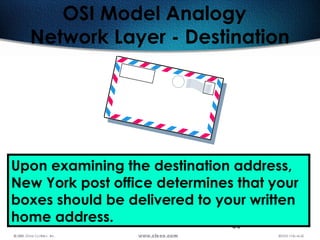

OSI Model Analogy
Network Layer - Destination
Upon examining the destination address,
New York post office determines that your
boxes should be delivered to your written
home address.

51
OSI Model Analogy
Transport Layer - Destination
Your friend calls you and tells you he got all 3
boxes and he is having another friend named
BOB reassemble the bicycle.

52
OSI Model Analogy
Session Layer - Destination
Your friend hangs up because he is done talking
to you.

53
OSI Model Analogy
Presentation Layer - Destination
BOB is finished and “presents” the bicycle to
your friend. Another way to say it is that your
friend is finally getting him “present”.

54
OSI Model Analogy
Application Layer - Destination
Your friend enjoys riding his new bicycle in New
York.

55

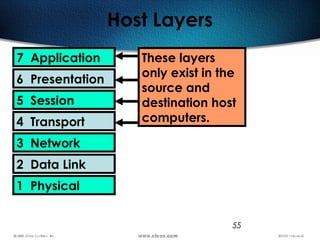

Host Layers
7 Application
6 Presentation
5 Session
4 Transport
3 Network
2 Data Link
1 Physical
These layers
only exist in the
source and
destination host
computers.

56

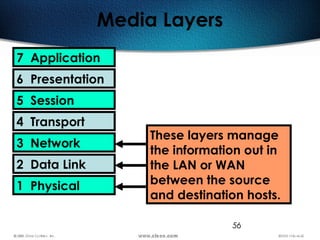

Media Layers
7 Application
6 Presentation
5 Session
4 Transport
3 Network
2 Data Link
1 Physical
These layers manage
the information out in
the LAN or WAN
between the source
and destination hosts.

59
Data Flow Through a Network

61

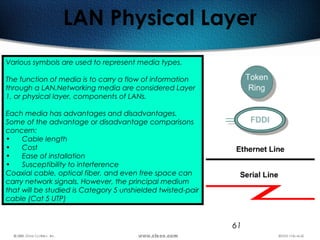

LAN Physical Layer
Various symbols are used to represent media types.
The function of media is to carry a flow of information
through a LAN.Networking media are considered Layer
1, or physical layer, components of LANs.
Each media has advantages and disadvantages.
Some of the advantage or disadvantage comparisons
concern:
• Cable length
• Cost
• Ease of installation
• Susceptibility to interference
Coaxial cable, optical fiber, and even free space can
carry network signals. However, the principal medium
that will be studied is Category 5 unshielded twisted-pair
cable (Cat 5 UTP)

62
Unshielded Twisted Pair (UTP) Cable

63
UTP Implementation
EIA/TIA specifies an RJ-45 connector for UTP cable.
The RJ-45 transparent end connector shows eight colored wires.
Four of the wires carry the voltage and are considered “tip” (T1
through T4).
The other four wires are grounded and are called “ring” (R1 through
R4).
The wires in the first pair in a cable or a connector are designated as T1
& R1

64
Connection Media

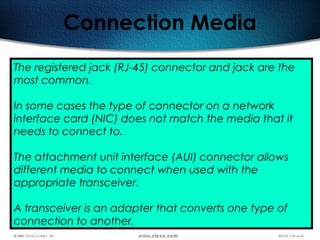

The registered jack (RJ-45) connector and jack are the
most common.
In some cases the type of connector on a network
interface card (NIC) does not match the media that it
needs to connect to.
The attachment unit interface (AUI) connector allows
different media to connect when used with the
appropriate transceiver.
A transceiver is an adapter that converts one type of
connection to another.

65

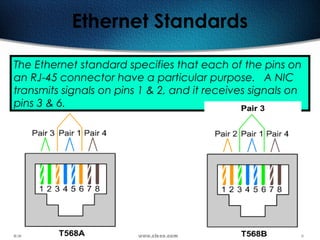

Ethernet Standards
The Ethernet standard specifies that each of the pins on
an RJ-45 connector have a particular purpose. A NIC
transmits signals on pins 1 & 2, and it receives signals on
pins 3 & 6.

66

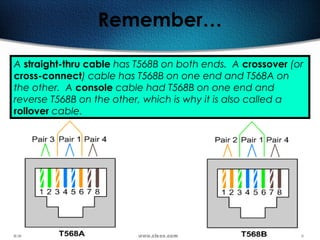

Remember…
A straight-thru cable has T568B on both ends. A crossover (or
cross-connect) cable has T568B on one end and T568A on
the other. A console cable had T568B on one end and
reverse T568B on the other, which is why it is also called a
rollover cable.

67

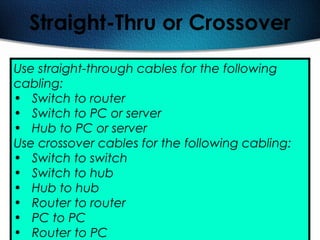

Straight-Thru or Crossover
Use straight-through cables for the following
cabling:
• Switch to router
• Switch to PC or server
• Hub to PC or server
Use crossover cables for the following cabling:
• Switch to switch
• Switch to hub
• Hub to hub
• Router to router
• PC to PC
• Router to PC

68

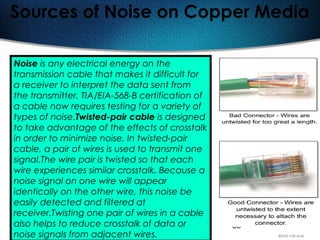

Sources of Noise on Copper Media
Noise is any electrical energy on the
transmission cable that makes it difficult for
a receiver to interpret the data sent from
the transmitter. TIA/EIA-568-B certification of
a cable now requires testing for a variety of
types of noise.Twisted-pair cable is designed
to take advantage of the effects of crosstalk
in order to minimize noise. In twisted-pair
cable, a pair of wires is used to transmit one
signal.The wire pair is twisted so that each
wire experiences similar crosstalk. Because a
noise signal on one wire will appear
identically on the other wire, this noise be
easily detected and filtered at
receiver.Twisting one pair of wires in a cable
also helps to reduce crosstalk of data or
noise signals from adjacent wires.

69

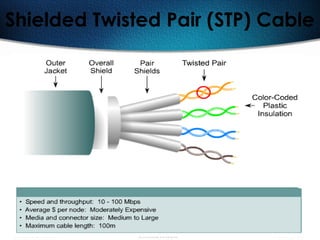

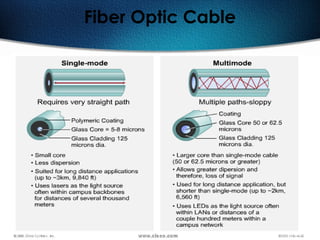

Shielded Twisted Pair (STP) Cable

72

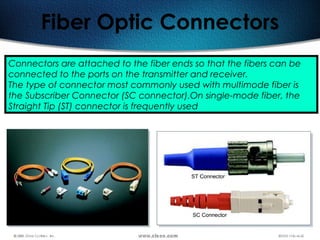

Fiber Optic Connectors
Connectors are attached to the fiber ends so that the fibers can be
connected to the ports on the transmitter and receiver.
The type of connector most commonly used with multimode fiber is
the Subscriber Connector (SC connector).On single-mode fiber, the
Straight Tip (ST) connector is frequently used

73

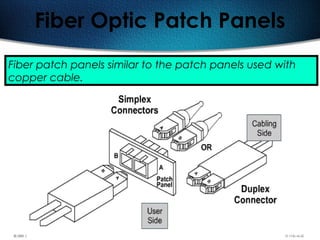

Fiber Optic Patch Panels
Fiber patch panels similar to the patch panels used with
copper cable.

74

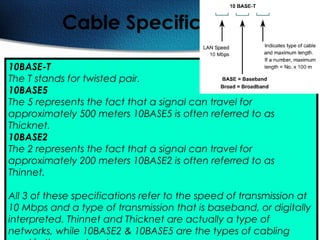

Cable Specifications
10BASE-T
The T stands for twisted pair.
10BASE5
The 5 represents the fact that a signal can travel for
approximately 500 meters 10BASE5 is often referred to as
Thicknet.
10BASE2
The 2 represents the fact that a signal can travel for
approximately 200 meters 10BASE2 is often referred to as
Thinnet.
All 3 of these specifications refer to the speed of transmission at
10 Mbps and a type of transmission that is baseband, or digitally
interpreted. Thinnet and Thicknet are actually a type of
networks, while 10BASE2 & 10BASE5 are the types of cabling

75
Ethernet Media Connector
Requirements

76

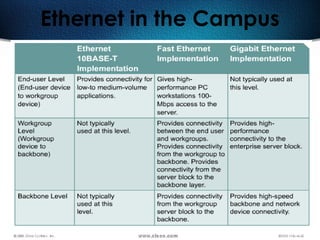

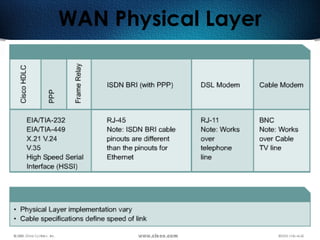

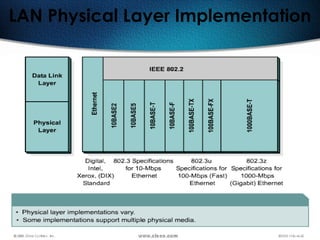

LAN Physical Layer Implementation

79

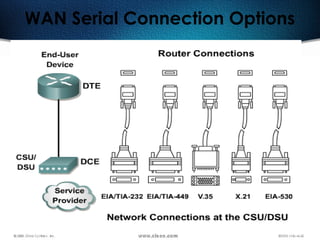

WAN Serial Connection Options

80

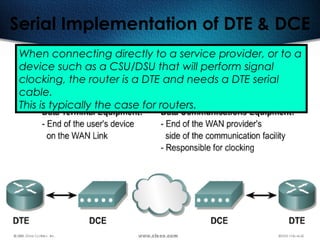

Serial Implementation of DTE & DCE
When connecting directly to a service provider, or to a
device such as a CSU/DSU that will perform signal
clocking, the router is a DTE and needs a DTE serial
cable.
This is typically the case for routers.

81

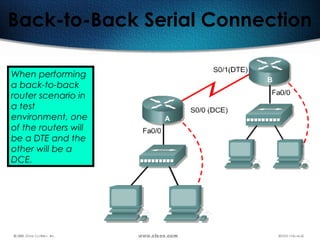

Back-to-Back Serial Connection
When performing
a back-to-back
router scenario in
a test
environment, one
of the routers will
be a DTE and the
other will be a
DCE.

82

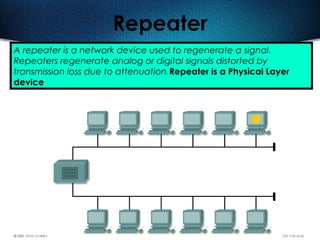

Repeater
A repeater is a network device used to regenerate a signal.
Repeaters regenerate analog or digital signals distorted by
transmission loss due to attenuation.Repeater is a Physical Layer
device

83

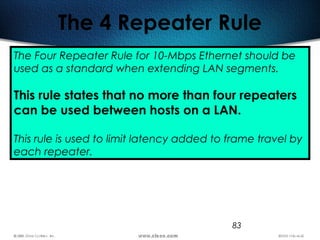

The 4 Repeater Rule
The Four Repeater Rule for 10-Mbps Ethernet should be
used as a standard when extending LAN segments.
This rule states that no more than four repeaters
can be used between hosts on a LAN.
This rule is used to limit latency added to frame travel by
each repeater.

84
Hub
Hubs concentrate
connections.In other
words, they take a group
of hosts and allow the
network to see them as a
single unit.
Hub is a physical layer
device.

85
Network Interface Card
The function of a NIC is to connect a host device to the network medium.
A NIC is a printed circuit board that fits into the expansion slot on the motherboard or
peripheral device of a computer. The NIC is also referred to as a network adapter.
NICs are considered Data Link Layer devices because each NIC carries a unique code
called a MAC address.

86

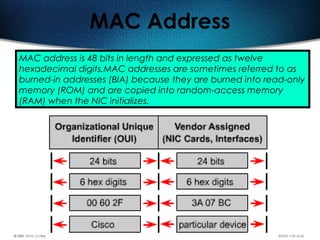

MAC Address
MAC address is 48 bits in length and expressed as twelve
hexadecimal digits.MAC addresses are sometimes referred to as
burned-in addresses (BIA) because they are burned into read-only
memory (ROM) and are copied into random-access memory
(RAM) when the NIC initializes.

87

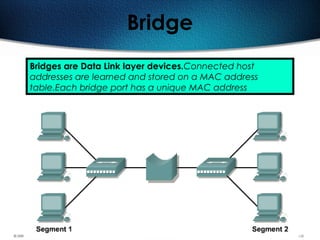

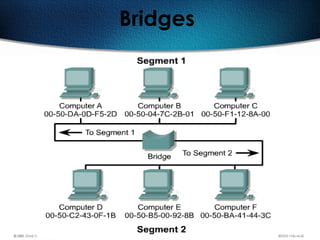

Bridge

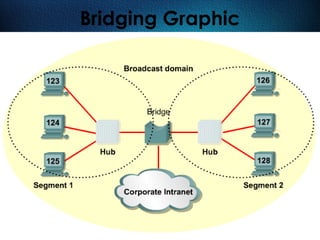

Bridges are Data Link layer devices.Connected host
addresses are learned and stored on a MAC address
table.Each bridge port has a unique MAC address

90

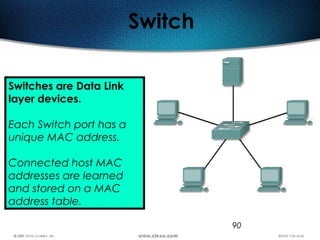

Switch
Switches are Data Link
layer devices.
Each Switch port has a
unique MAC address.
Connected host MAC
addresses are learned
and stored on a MAC
address table.

91

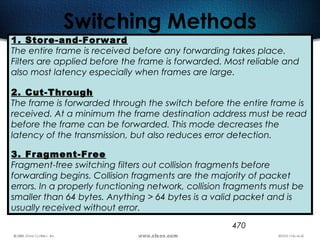

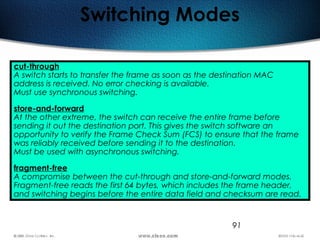

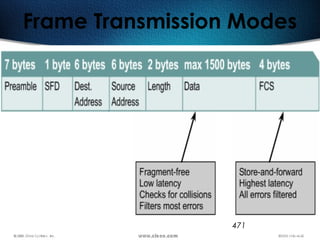

Switching Modes
cut-through
A switch starts to transfer the frame as soon as the destination MAC
address is received. No error checking is available.
Must use synchronous switching.
store-and-forward
At the other extreme, the switch can receive the entire frame before
sending it out the destination port. This gives the switch software an
opportunity to verify the Frame Check Sum (FCS) to ensure that the frame
was reliably received before sending it to the destination.
Must be used with asynchronous switching.
fragment-free
A compromise between the cut-through and store-and-forward modes.
Fragment-free reads the first 64 bytes, which includes the frame header,
and switching begins before the entire data field and checksum are read.

92

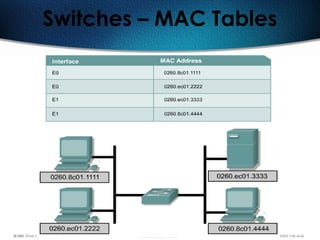

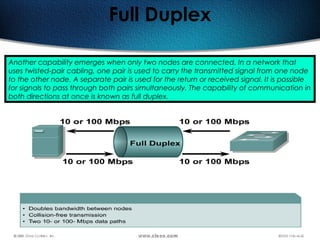

Full Duplex
Another capability emerges when only two nodes are connected. In a network that
uses twisted-pair cabling, one pair is used to carry the transmitted signal from one node
to the other node. A separate pair is used for the return or received signal. It is possible
for signals to pass through both pairs simultaneously. The capability of communication in
both directions at once is known as full duplex.

94

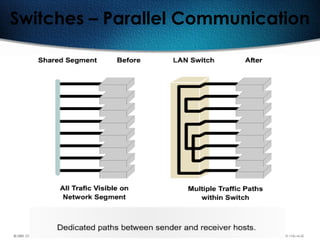

Switches – Parallel Communication

95

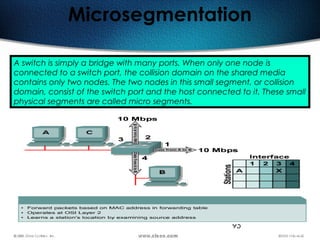

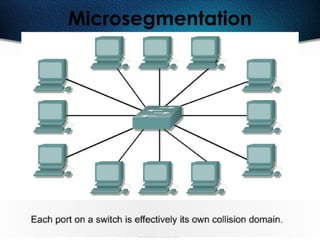

Microsegmentation
A switch is simply a bridge with many ports. When only one node is
connected to a switch port, the collision domain on the shared media
contains only two nodes. The two nodes in this small segment, or collision
domain, consist of the switch port and the host connected to it. These small
physical segments are called micro segments.

96

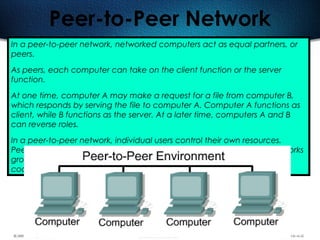

Peer-to-Peer Network
In a peer-to-peer network, networked computers act as equal partners, or
peers.
As peers, each computer can take on the client function or the server
function.
At one time, computer A may make a request for a file from computer B,
which responds by serving the file to computer A. Computer A functions as
client, while B functions as the server. At a later time, computers A and B
can reverse roles.
In a peer-to-peer network, individual users control their own resources.
Peer-to-peer networks are relatively easy to install and operate. As networks
grow, peer-to-peer relationships become increasingly difficult to
coordinate.

97

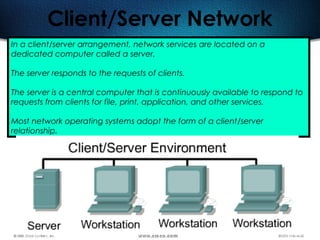

Client/Server Network
In a client/server arrangement, network services are located on a
dedicated computer called a server.
The server responds to the requests of clients.
The server is a central computer that is continuously available to respond to
requests from clients for file, print, application, and other services.
Most network operating systems adopt the form of a client/server
relationship.

99
Why Another Model?
Although the OSI reference model is universally
recognized, the historical and technical open standard of
the Internet is Transmission Control Protocol / Internet
Protocol (TCP/IP).
The TCP/IP reference model and the TCP/IP protocol stack
make data communication possible between any two
computers, anywhere in the world, at nearly the speed of
light.
The U.S. Department of Defense (DoD) created the TCP/IP
reference model because it wanted a network that could
survive any conditions, even a nuclear war.

100
Don’t Confuse the Models
Application
Transport
Internet
Network
Access
7 Application
6 Presentation
5 Session
4 Transport
3 Network
2 Data Link
1 Physical

101
2 Models
Side-By-Side
Application
Transport
Internet
Network
Access
7 Application
6 Presentation
5 Session
4 Transport
3 Network
2 Data Link
1 Physical

102
The Application Layer
The application
layer of the
TCP/IP model
handles high-
level protocols,
issues of
representation,
encoding, and
dialog control.

103

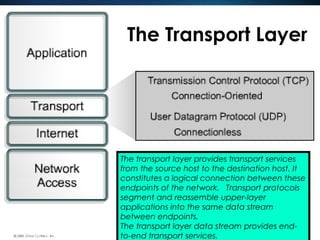

The transport layer provides transport services
from the source host to the destination host. It
constitutes a logical connection between these
endpoints of the network. Transport protocols
segment and reassemble upper-layer
applications into the same data stream
between endpoints.
The transport layer data stream provides end-
to-end transport services.
The Transport Layer

104
The Internet Layer
The purpose of the Internet layer is to select the
best path through the network for packets to
travel. The main protocol that functions at this
layer is the Internet Protocol (IP). Best path
determination and packet switching occur at
this layer.

105

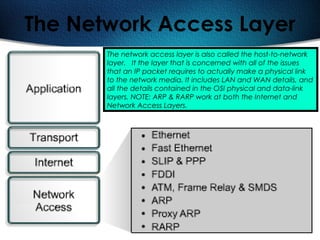

The Network Access Layer
The network access layer is also called the host-to-network
layer. It the layer that is concerned with all of the issues
that an IP packet requires to actually make a physical link
to the network media. It includes LAN and WAN details, and
all the details contained in the OSI physical and data-link
layers. NOTE: ARP & RARP work at both the Internet and
Network Access Layers.

106
Comparing TCP/IP & OSI Models
NOTE: TCP/IP transport layer using UDP does not always guarantee reliable
delivery of packets as the transport layer in the OSI model does.

107

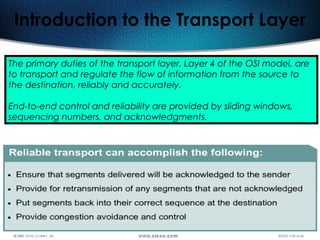

Introduction to the Transport Layer
The primary duties of the transport layer, Layer 4 of the OSI model, are
to transport and regulate the flow of information from the source to
the destination, reliably and accurately.
End-to-end control and reliability are provided by sliding windows,
sequencing numbers, and acknowledgments.

108

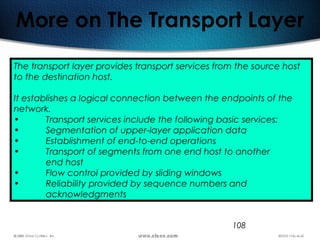

More on The Transport Layer
The transport layer provides transport services from the source host
to the destination host.
It establishes a logical connection between the endpoints of the
network.
• Transport services include the following basic services:
• Segmentation of upper-layer application data
• Establishment of end-to-end operations
• Transport of segments from one end host to another
end host
• Flow control provided by sliding windows
• Reliability provided by sequence numbers and
acknowledgments

109

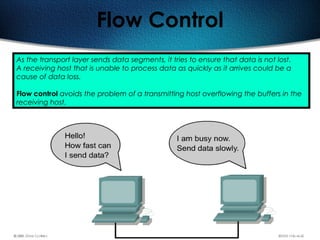

Flow Control
As the transport layer sends data segments, it tries to ensure that data is not lost.
A receiving host that is unable to process data as quickly as it arrives could be a
cause of data loss.
Flow control avoids the problem of a transmitting host overflowing the buffers in the
receiving host.

110

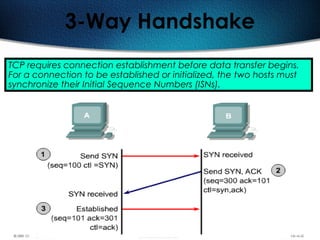

3-Way Handshake
TCP requires connection establishment before data transfer begins.
For a connection to be established or initialized, the two hosts must
synchronize their Initial Sequence Numbers (ISNs).

111

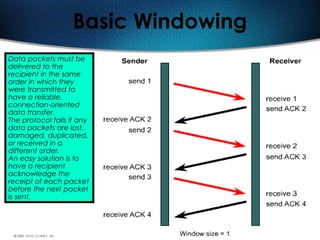

Basic Windowing
Data packets must be
delivered to the
recipient in the same
order in which they
were transmitted to
have a reliable,
connection-oriented
data transfer.
The protocol fails if any
data packets are lost,
damaged, duplicated,
or received in a
different order.
An easy solution is to
have a recipient
acknowledge the
receipt of each packet
before the next packet
is sent.

113

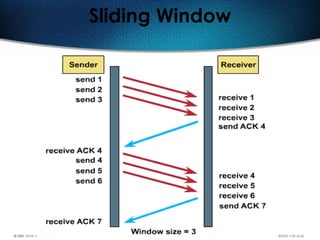

Sliding Window
with Different Window Sizes

114

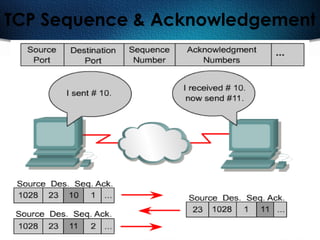

TCP Sequence & Acknowledgement

115

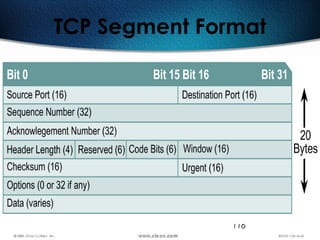

TCP
Transmission Control Protocol (TCP) is a connection-oriented Layer
4 protocol that provides reliable full-duplex data transmission.
TCP is part of the TCP/IP protocol stack. In a connection-oriented
environment, a connection is established between both ends
before the transfer of information can begin.
TCP is responsible for breaking messages into segments,
reassembling them at the destination station, resending anything
that is not received, and reassembling messages from the
segments.TCP supplies a virtual circuit between end-user
applications.
The protocols that use TCP include:
• FTP (File Transfer Protocol)
• HTTP (Hypertext Transfer Protocol)
• SMTP (Simple Mail Transfer Protocol)
• Telnet

117

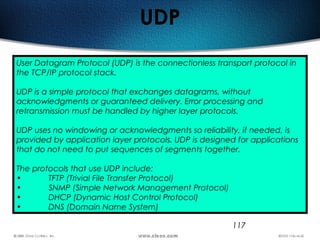

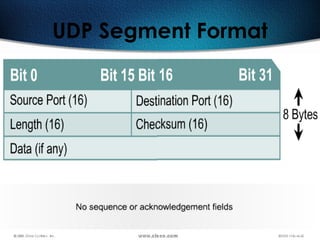

UDP
User Datagram Protocol (UDP) is the connectionless transport protocol in
the TCP/IP protocol stack.
UDP is a simple protocol that exchanges datagrams, without
acknowledgments or guaranteed delivery. Error processing and
retransmission must be handled by higher layer protocols.
UDP uses no windowing or acknowledgments so reliability, if needed, is
provided by application layer protocols. UDP is designed for applications
that do not need to put sequences of segments together.
The protocols that use UDP include:
• TFTP (Trivial File Transfer Protocol)
• SNMP (Simple Network Management Protocol)
• DHCP (Dynamic Host Control Protocol)
• DNS (Domain Name System)

119

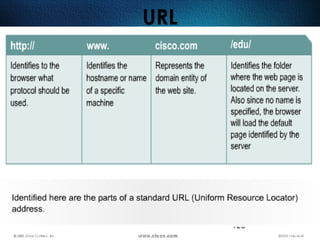

Well Known Port Numbers
The following port numbers should be memorized:
NOTE:
The curriculum forgot to mention one of the most important port numbers.
Port 80 is used for HTTP or WWW protocols. (Essentially access to the internet.)

123

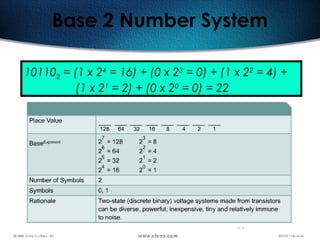

Base 2 Number System
101102 = (1 x 24
= 16) + (0 x 23
= 0) + (1 x 22
= 4) +
(1 x 21
= 2) + (0 x 20
= 0) = 22

124
Converting Decimal to Binary
Convert 20110 to binary:
201 / 2 = 100 remainder 1
100 / 2 = 50 remainder 0
50 / 2 = 25 remainder 0
25 / 2 = 12 remainder 1
12 / 2 = 6 remainder 0
When the quotient is 0, take all the remainders in reverse
order for your answer: 20110 = 110010012

126

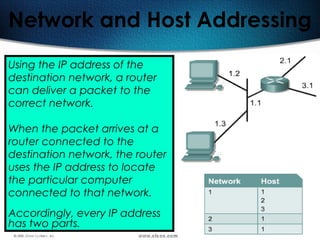

Network and Host Addressing
Using the IP address of the
destination network, a router
can deliver a packet to the
correct network.
When the packet arrives at a
router connected to the
destination network, the router
uses the IP address to locate
the particular computer
connected to that network.
Accordingly, every IP address
has two parts.

127

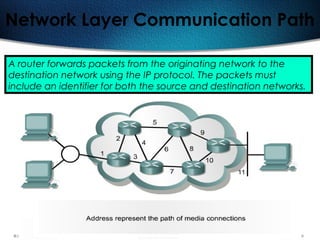

Network Layer Communication Path
A router forwards packets from the originating network to the
destination network using the IP protocol. The packets must
include an identifier for both the source and destination networks.

128

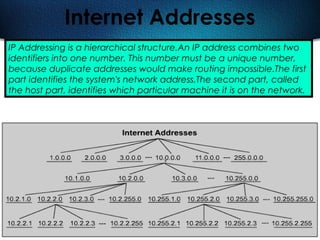

Internet Addresses
IP Addressing is a hierarchical structure.An IP address combines two
identifiers into one number. This number must be a unique number,
because duplicate addresses would make routing impossible.The first
part identifies the system's network address.The second part, called
the host part, identifies which particular machine it is on the network.

129

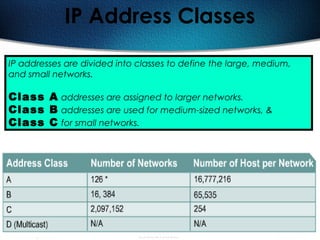

IP Address Classes
IP addresses are divided into classes to define the large, medium,
and small networks.
Class A addresses are assigned to larger networks.
Class B addresses are used for medium-sized networks, &
Class C for small networks.

130

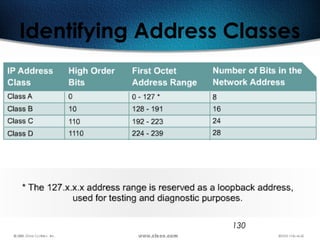

Identifying Address Classes

131

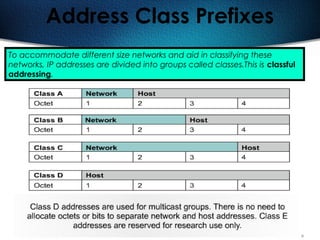

Address Class Prefixes
To accommodate different size networks and aid in classifying these
networks, IP addresses are divided into groups called classes.This is classful
addressing.

132

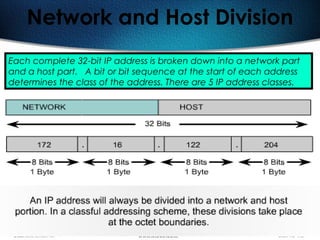

Network and Host Division
Each complete 32-bit IP address is broken down into a network part
and a host part. A bit or bit sequence at the start of each address
determines the class of the address. There are 5 IP address classes.

133
Class A Addresses
The Class A address was designed to support extremely
large networks, with more than 16 million host addresses
available. Class A IP addresses use only the first octet to
indicate the network address. The remaining three octets
provide for host addresses.

134
Class B Addresses
The Class B address was designed to support the needs of moderate
to large-sized networks.A Class B IP address uses the first two of the
four octets to indicate the network address. The other two octets
specify host addresses.

135

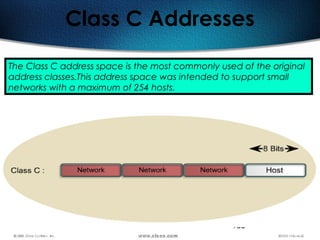

Class C Addresses
The Class C address space is the most commonly used of the original
address classes.This address space was intended to support small
networks with a maximum of 254 hosts.

136

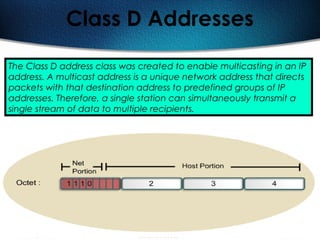

Class D Addresses
The Class D address class was created to enable multicasting in an IP
address. A multicast address is a unique network address that directs
packets with that destination address to predefined groups of IP
addresses. Therefore, a single station can simultaneously transmit a
single stream of data to multiple recipients.

137

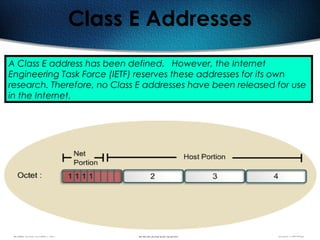

Class E Addresses
A Class E address has been defined. However, the Internet
Engineering Task Force (IETF) reserves these addresses for its own
research. Therefore, no Class E addresses have been released for use
in the Internet.

138

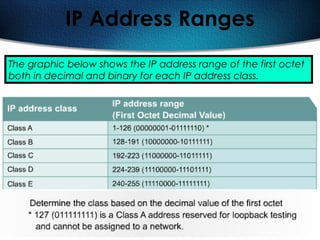

IP Address Ranges
The graphic below shows the IP address range of the first octet
both in decimal and binary for each IP address class.

139
IPv4
As early as 1992, the Internet Engineering
Task Force (IETF) identified two specific
concerns: Exhaustion of the remaining,
unassigned IPv4 network addresses and
the increase in the size of Internet routing
tables.
Over the past two decades, numerous
extensions to IPv4 have been developed.
Two of the more important of these are
subnet masks and classless interdomain
routing (CIDR).

140

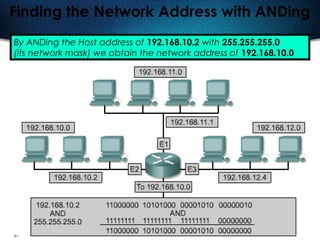

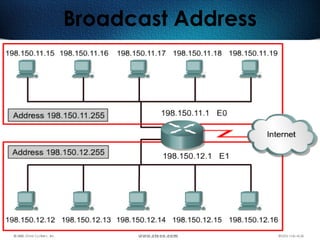

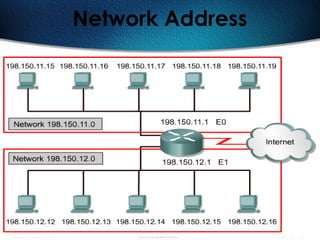

Finding the Network Address with ANDing
By ANDing the Host address of 192.168.10.2 with 255.255.255.0
(its network mask) we obtain the network address of 192.168.10.0

143
Network/Broadcast Addresses
at the Binary Level
An IP address that has binary 0s in all host bit positions is
reserved for the network address, which identifies the network.
An IP address that has binary 1s in all host bit positions is
reserved for the broadcast address, which is used to send data
to all hosts on the network. Here are some examples:
Class Network Address Broadcast Address
A 100.0.0.0 100.255.255.255
B 150.75.0.0 150.75.255.255
C 200.100.50.0 200.100.50.255

144

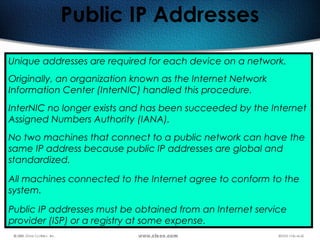

Public IP Addresses
Unique addresses are required for each device on a network.
Originally, an organization known as the Internet Network
Information Center (InterNIC) handled this procedure.
InterNIC no longer exists and has been succeeded by the Internet
Assigned Numbers Authority (IANA).
No two machines that connect to a public network can have the
same IP address because public IP addresses are global and
standardized.
All machines connected to the Internet agree to conform to the
system.
Public IP addresses must be obtained from an Internet service
provider (ISP) or a registry at some expense.

145

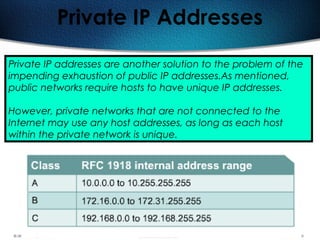

Private IP Addresses
Private IP addresses are another solution to the problem of the
impending exhaustion of public IP addresses.As mentioned,
public networks require hosts to have unique IP addresses.
However, private networks that are not connected to the
Internet may use any host addresses, as long as each host
within the private network is unique.

146

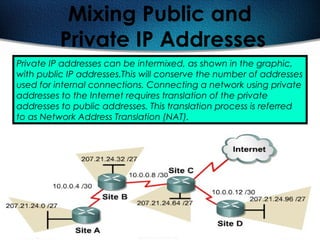

Mixing Public and
Private IP Addresses
Private IP addresses can be intermixed, as shown in the graphic,
with public IP addresses.This will conserve the number of addresses
used for internal connections. Connecting a network using private
addresses to the Internet requires translation of the private
addresses to public addresses. This translation process is referred
to as Network Address Translation (NAT).

147

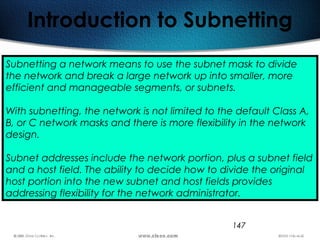

Introduction to Subnetting
Subnetting a network means to use the subnet mask to divide
the network and break a large network up into smaller, more
efficient and manageable segments, or subnets.
With subnetting, the network is not limited to the default Class A,
B, or C network masks and there is more flexibility in the network
design.
Subnet addresses include the network portion, plus a subnet field
and a host field. The ability to decide how to divide the original
host portion into the new subnet and host fields provides
addressing flexibility for the network administrator.

148

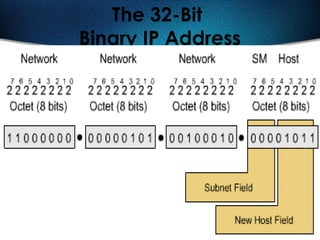

The 32-Bit
Binary IP Address

149

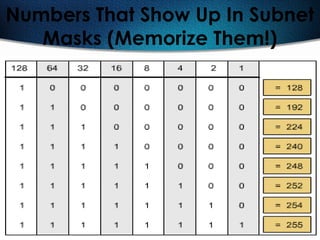

Numbers That Show Up In Subnet
Masks (Memorize Them!)

150

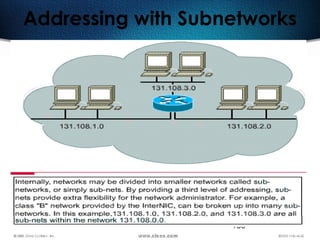

Addressing with Subnetworks

151

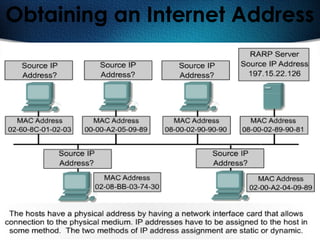

Obtaining an Internet Address

152

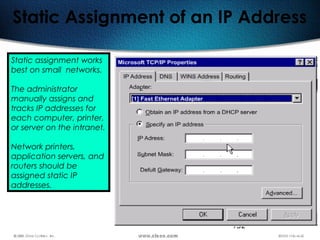

Static Assignment of an IP Address
Static assignment works
best on small networks.
The administrator
manually assigns and
tracks IP addresses for
each computer, printer,
or server on the intranet.
Network printers,
application servers, and
routers should be
assigned static IP
addresses.

153
SIEMENS
NI XDORF
SIEMENS
NIXDORF
Host A
Host B
IP Address: 128.0.10.4
HW Address: 080020021545
ARP Reply
ARP Request - Broadcast to all hosts
„What is the hardware address for IP address 128.0.10.4?“
SI EMENS
NI XDORF

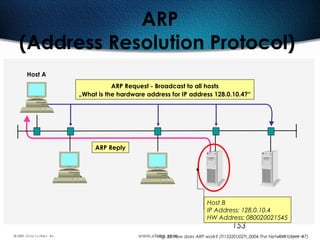

Fig. 32 How does ARP work? (TI1332EU02TI_0004 The Network Layer, 47)
ARP
(Address Resolution Protocol)

154

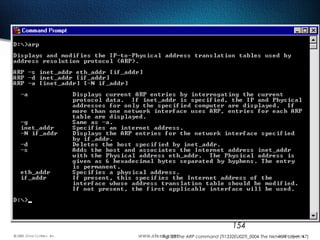

Fig. 33 The ARP command (TI1332EU02TI_0004 The Network Layer, 47)

155
B
1 Network = 1 Broadcast Domain
Broadcast: ARP requestBroadcast: ARP request
A
B
2 Networks = 2 Broadcast Domains
Broadcast: ARP requestBroadcast: ARP request
A
Router
host B would reply
no one would reply
Fig. 34 Proxy-ARP concept (TI1332EU02TI_0004 The Network Layer, 49)

156

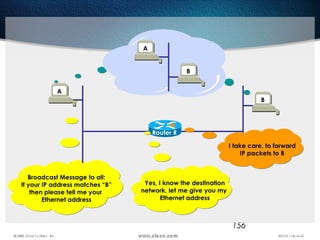

A
Router R
Broadcast Message to all:
If your IP address matches “B”
then please tell me your
Ethernet address
B
A
B
Yes, I know the destination
network, let me give you my
Ethernet address
I take care, to forward
IP packets to B

157

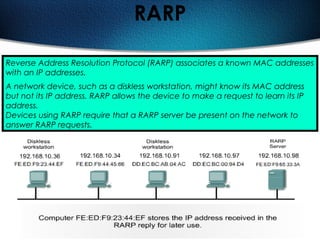

RARP
Reverse Address Resolution Protocol (RARP) associates a known MAC addresses
with an IP addresses.
A network device, such as a diskless workstation, might know its MAC address
but not its IP address. RARP allows the device to make a request to learn its IP
address.
Devices using RARP require that a RARP server be present on the network to
answer RARP requests.

158

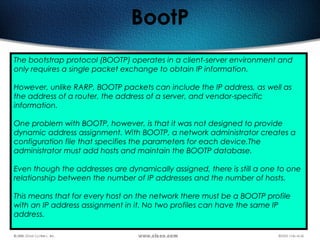

BootP
The bootstrap protocol (BOOTP) operates in a client-server environment and
only requires a single packet exchange to obtain IP information.
However, unlike RARP, BOOTP packets can include the IP address, as well as
the address of a router, the address of a server, and vendor-specific
information.
One problem with BOOTP, however, is that it was not designed to provide
dynamic address assignment. With BOOTP, a network administrator creates a
configuration file that specifies the parameters for each device.The
administrator must add hosts and maintain the BOOTP database.
Even though the addresses are dynamically assigned, there is still a one to one
relationship between the number of IP addresses and the number of hosts.
This means that for every host on the network there must be a BOOTP profile
with an IP address assignment in it. No two profiles can have the same IP
address.

159

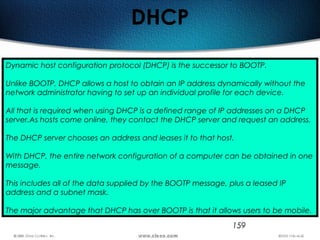

DHCP
Dynamic host configuration protocol (DHCP) is the successor to BOOTP.
Unlike BOOTP, DHCP allows a host to obtain an IP address dynamically without the
network administrator having to set up an individual profile for each device.
All that is required when using DHCP is a defined range of IP addresses on a DHCP
server.As hosts come online, they contact the DHCP server and request an address.
The DHCP server chooses an address and leases it to that host.
With DHCP, the entire network configuration of a computer can be obtained in one
message.
This includes all of the data supplied by the BOOTP message, plus a leased IP
address and a subnet mask.
The major advantage that DHCP has over BOOTP is that it allows users to be mobile.

161

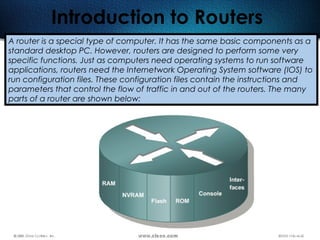

Introduction to Routers
A router is a special type of computer. It has the same basic components as a
standard desktop PC. However, routers are designed to perform some very
specific functions. Just as computers need operating systems to run software
applications, routers need the Internetwork Operating System software (IOS) to
run configuration files. These configuration files contain the instructions and
parameters that control the flow of traffic in and out of the routers. The many
parts of a router are shown below:

162

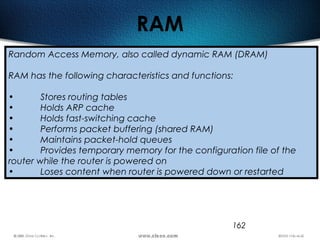

RAM
Random Access Memory, also called dynamic RAM (DRAM)
RAM has the following characteristics and functions:
• Stores routing tables
• Holds ARP cache
• Holds fast-switching cache
• Performs packet buffering (shared RAM)
• Maintains packet-hold queues
• Provides temporary memory for the configuration file of the
router while the router is powered on
• Loses content when router is powered down or restarted

163

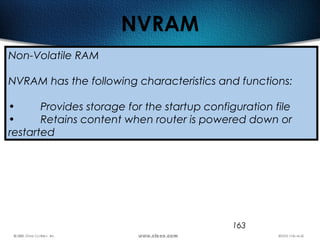

NVRAM
Non-Volatile RAM
NVRAM has the following characteristics and functions:
• Provides storage for the startup configuration file
• Retains content when router is powered down or
restarted

164

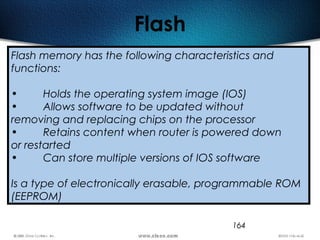

Flash
Flash memory has the following characteristics and
functions:
• Holds the operating system image (IOS)
• Allows software to be updated without
removing and replacing chips on the processor
• Retains content when router is powered down
or restarted
• Can store multiple versions of IOS software
Is a type of electronically erasable, programmable ROM
(EEPROM)

165

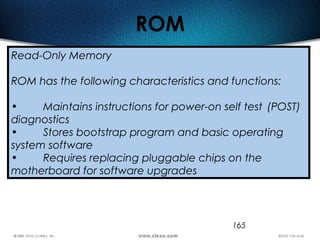

ROM
Read-Only Memory
ROM has the following characteristics and functions:
• Maintains instructions for power-on self test (POST)
diagnostics
• Stores bootstrap program and basic operating
system software
• Requires replacing pluggable chips on the
motherboard for software upgrades

166

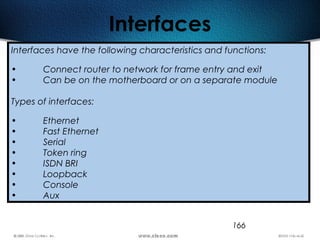

Interfaces
Interfaces have the following characteristics and functions:
• Connect router to network for frame entry and exit
• Can be on the motherboard or on a separate module
Types of interfaces:
• Ethernet
• Fast Ethernet
• Serial
• Token ring
• ISDN BRI
• Loopback
• Console
• Aux

167

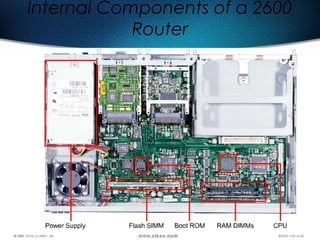

Internal Components of a 2600
Router

168

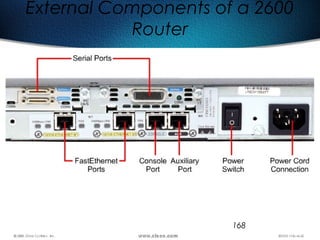

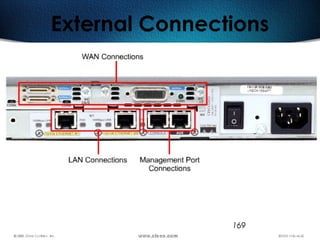

External Components of a 2600
Router

170
Fixed Interfaces
When cabling routers for serial connectivity, the routers will either have
fixed or modular ports. The type of port being used will affect the syntax
used later to configure each interface. Interfaces on routers with fixed
serial ports are labeled for port type and port number.

171

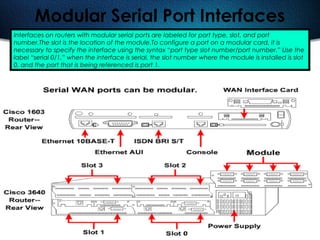

Modular Serial Port Interfaces
Interfaces on routers with modular serial ports are labeled for port type, slot, and port
number.The slot is the location of the module.To configure a port on a modular card, it is
necessary to specify the interface using the syntax “port type slot number/port number.” Use the
label “serial 0/1,” when the interface is serial, the slot number where the module is installed is slot
0, and the port that is being referenced is port 1.

172

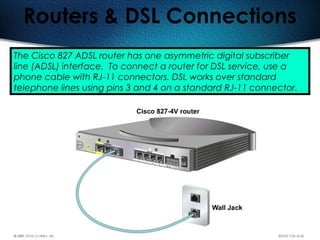

Routers & DSL Connections
The Cisco 827 ADSL router has one asymmetric digital subscriber
line (ADSL) interface. To connect a router for DSL service, use a
phone cable with RJ-11 connectors. DSL works over standard
telephone lines using pins 3 and 4 on a standard RJ-11 connector.

173

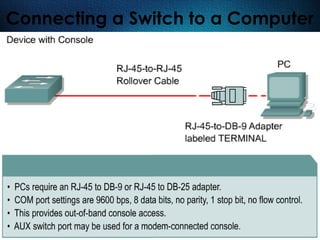

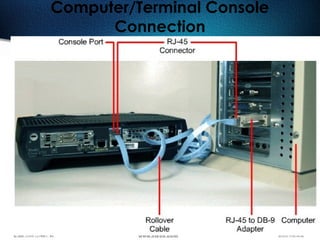

Computer/Terminal Console
Connection

174

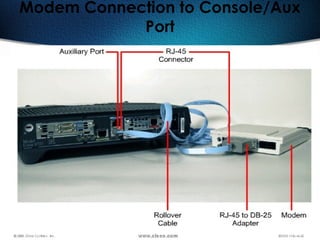

Modem Connection to Console/Aux
Port

175

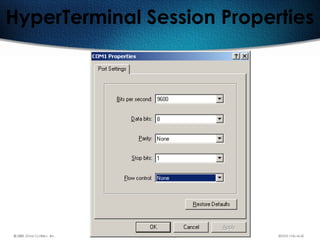

HyperTerminal Session Properties

176
Establishing a
HyperTerminal Session
Take the following steps
to connect a terminal to
the console port on the
router:
First, connect the
terminal using the RJ-45
to RJ-45 rollover cable
and an RJ-45 to DB-9 or
RJ-45 to DB-25 adapter.
Then, configure the
terminal or PC terminal
emulation software for
9600 baud, 8 data bits,
no parity, 1 stop bit, and
no flow control.

177

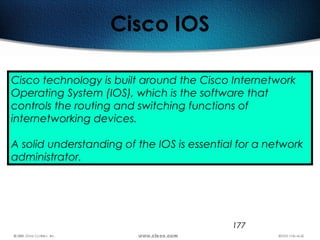

Cisco IOS
Cisco technology is built around the Cisco Internetwork
Operating System (IOS), which is the software that
controls the routing and switching functions of
internetworking devices.
A solid understanding of the IOS is essential for a network
administrator.

178

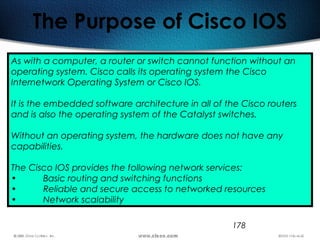

The Purpose of Cisco IOS
As with a computer, a router or switch cannot function without an
operating system. Cisco calls its operating system the Cisco
Internetwork Operating System or Cisco IOS.
It is the embedded software architecture in all of the Cisco routers
and is also the operating system of the Catalyst switches.
Without an operating system, the hardware does not have any
capabilities.
The Cisco IOS provides the following network services:
• Basic routing and switching functions
• Reliable and secure access to networked resources
• Network scalability

179
Router Command Line
Interface

180

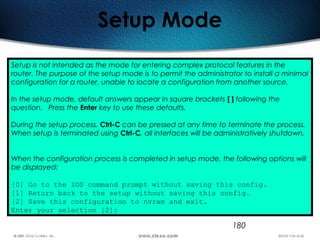

Setup Mode
Setup is not intended as the mode for entering complex protocol features in the
router. The purpose of the setup mode is to permit the administrator to install a minimal
configuration for a router, unable to locate a configuration from another source.
In the setup mode, default answers appear in square brackets [ ] following the
question. Press the Enter key to use these defaults.
During the setup process, Ctrl-C can be pressed at any time to terminate the process.
When setup is terminated using Ctrl-C, all interfaces will be administratively shutdown.
When the configuration process is completed in setup mode, the following options will
be displayed:
[0] Go to the IOS command prompt without saving this config.
[1] Return back to the setup without saving this config.
[2] Save this configuration to nvram and exit.
Enter your selection [2]:

181
Operation of Cisco IOS Software
The Cisco IOS devices have three distinct operating environments or modes:
• ROM monitor
• Boot ROM
• Cisco IOS
The startup process of the router normally loads into RAM and executes one
of these operating environments. The configuration register setting can be
used by the system administrator to control the default start up mode for the
router.
To see the IOS image and version that is running, use the show version
command, which also indicates the configuration register setting.

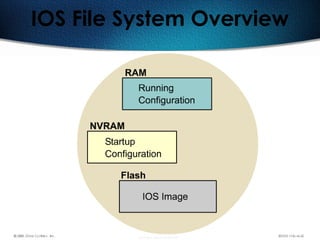

183

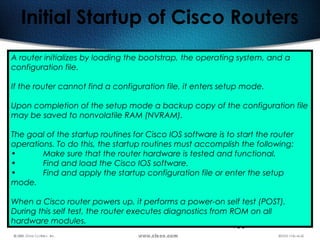

Initial Startup of Cisco Routers
A router initializes by loading the bootstrap, the operating system, and a
configuration file.
If the router cannot find a configuration file, it enters setup mode.
Upon completion of the setup mode a backup copy of the configuration file
may be saved to nonvolatile RAM (NVRAM).
The goal of the startup routines for Cisco IOS software is to start the router
operations. To do this, the startup routines must accomplish the following:
• Make sure that the router hardware is tested and functional.
• Find and load the Cisco IOS software.
• Find and apply the startup configuration file or enter the setup
mode.
When a Cisco router powers up, it performs a power-on self test (POST).
During this self test, the router executes diagnostics from ROM on all
hardware modules.

184

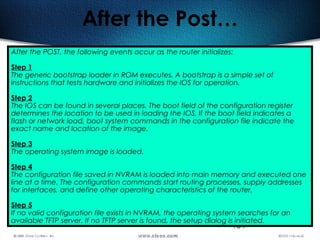

After the Post…
After the POST, the following events occur as the router initializes:
Step 1
The generic bootstrap loader in ROM executes. A bootstrap is a simple set of
instructions that tests hardware and initializes the IOS for operation.
Step 2
The IOS can be found in several places. The boot field of the configuration register
determines the location to be used in loading the IOS. If the boot field indicates a
flash or network load, boot system commands in the configuration file indicate the
exact name and location of the image.
Step 3
The operating system image is loaded.
Step 4
The configuration file saved in NVRAM is loaded into main memory and executed one
line at a time. The configuration commands start routing processes, supply addresses
for interfaces, and define other operating characteristics of the router.
Step 5
If no valid configuration file exists in NVRAM, the operating system searches for an
available TFTP server. If no TFTP server is found, the setup dialog is initiated.

185
Step in Router Initialization

186
Router LED Indicators
Cisco routers use LED indicators to provide status information.
Depending upon the Cisco router model, the LED indicators will vary.
An interface LED indicates the activity of the corresponding
interface. If an LED is off when the interface is active and the
interface is correctly connected, a problem may be indicated. If an
interface is extremely busy, its LED will always be on. The green OK
LED to the right of the AUX port will be on after the system initializes
correctly.

187

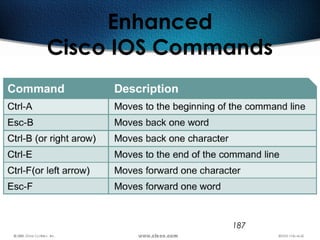

Enhanced
Cisco IOS Commands

188

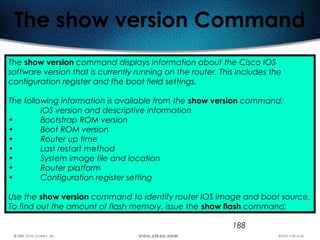

The show version Command
The show version command displays information about the Cisco IOS
software version that is currently running on the router. This includes the
configuration register and the boot field settings.
The following information is available from the show version command:
IOS version and descriptive information
• Bootstrap ROM version
• Boot ROM version
• Router up time
• Last restart method
• System image file and location
• Router platform
• Configuration register setting
Use the show version command to identify router IOS image and boot source.
To find out the amount of flash memory, issue the show flash command.

191

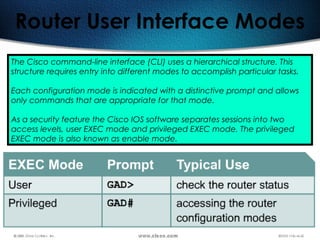

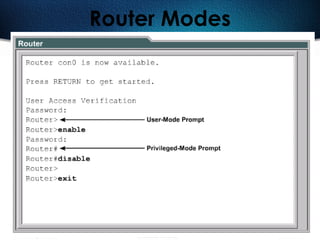

Router User Interface Modes
The Cisco command-line interface (CLI) uses a hierarchical structure. This
structure requires entry into different modes to accomplish particular tasks.
Each configuration mode is indicated with a distinctive prompt and allows
only commands that are appropriate for that mode.
As a security feature the Cisco IOS software separates sessions into two
access levels, user EXEC mode and privileged EXEC mode. The privileged
EXEC mode is also known as enable mode.

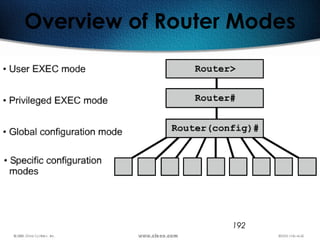

195
Privileged Mode Commands
NOTE:
There are
many more
commands
available in
privileged
mode.

196

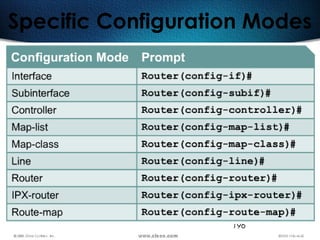

Specific Configuration Modes

197

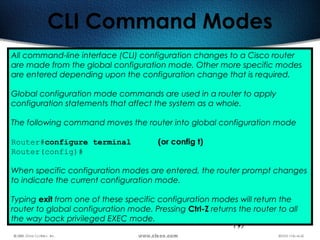

CLI Command Modes
All command-line interface (CLI) configuration changes to a Cisco router
are made from the global configuration mode. Other more specific modes
are entered depending upon the configuration change that is required.
Global configuration mode commands are used in a router to apply
configuration statements that affect the system as a whole.
The following command moves the router into global configuration mode
Router#configure terminal (or config t)
Router(config)#
When specific configuration modes are entered, the router prompt changes
to indicate the current configuration mode.
Typing exit from one of these specific configuration modes will return the
router to global configuration mode. Pressing Ctrl-Z returns the router to all
the way back privileged EXEC mode.

198

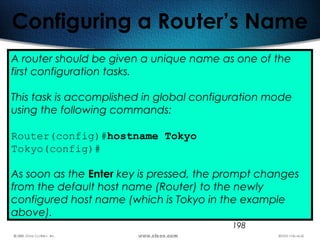

Configuring a Router’s Name
A router should be given a unique name as one of the
first configuration tasks.
This task is accomplished in global configuration mode
using the following commands:
Router(config)#hostname Tokyo
Tokyo(config)#
As soon as the Enter key is pressed, the prompt changes
from the default host name (Router) to the newly
configured host name (which is Tokyo in the example
above).

199

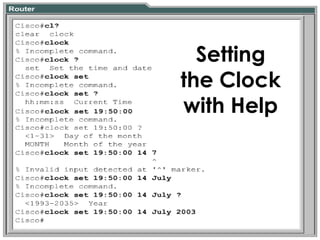

Setting
the Clock
with Help

200
Message Of The Day (MOTD)
A message-of-the-day (MOTD) banner can be displayed on all
connected terminals.
Enter global configuration mode by using the command config t
Enter the command
banner motd # The message of the day goes here #.
Save changes by issuing the command copy run start

201

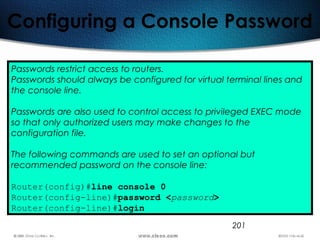

Configuring a Console Password
Passwords restrict access to routers.
Passwords should always be configured for virtual terminal lines and
the console line.
Passwords are also used to control access to privileged EXEC mode
so that only authorized users may make changes to the
configuration file.
The following commands are used to set an optional but
recommended password on the console line:
Router(config)#line console 0
Router(config-line)#password <password>
Router(config-line)#login

202

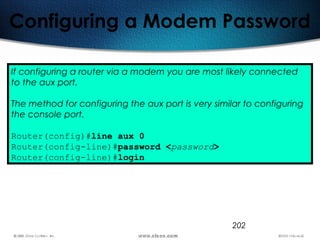

Configuring a Modem Password
If configuring a router via a modem you are most likely connected
to the aux port.
The method for configuring the aux port is very similar to configuring
the console port.
Router(config)#line aux 0

203

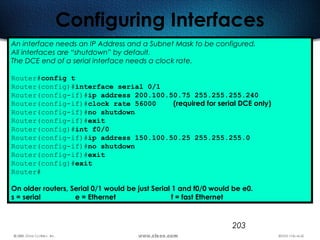

Configuring Interfaces
An interface needs an IP Address and a Subnet Mask to be configured.
All interfaces are “shutdown” by default.
The DCE end of a serial interface needs a clock rate.
Router#config t
Router(config)#interface serial 0/1
Router(config-if)#ip address 200.100.50.75 255.255.255.240
Router(config-if)#clock rate 56000 (required for serial DCE only)
Router(config-if)#no shutdown
Router(config-if)#exit
Router(config)#int f0/0
Router(config-if)#ip address 150.100.50.25 255.255.255.0
Router(config-if)#no shutdown
Router(config-if)#exit
Router(config)#exit
Router#
On older routers, Serial 0/1 would be just Serial 1 and f0/0 would be e0.
s = serial e = Ethernet f = fast Ethernet

204

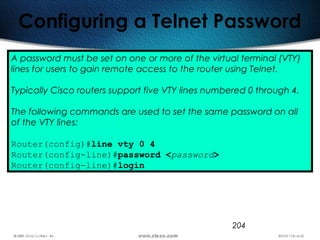

Configuring a Telnet Password
A password must be set on one or more of the virtual terminal (VTY)
lines for users to gain remote access to the router using Telnet.
Typically Cisco routers support five VTY lines numbered 0 through 4.
The following commands are used to set the same password on all
of the VTY lines:
Router(config)#line vty 0 4

205

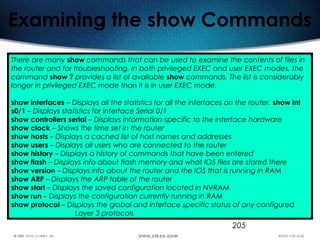

Examining the show Commands
There are many show commands that can be used to examine the contents of files in
the router and for troubleshooting. In both privileged EXEC and user EXEC modes, the
command show ? provides a list of available show commands. The list is considerably
longer in privileged EXEC mode than it is in user EXEC mode.
show interfaces – Displays all the statistics for all the interfaces on the router. show int
s0/1 – Displays statistics for interface Serial 0/1
show controllers serial – Displays information-specific to the interface hardware
show clock – Shows the time set in the router
show hosts – Displays a cached list of host names and addresses
show users – Displays all users who are connected to the router
show history – Displays a history of commands that have been entered
show flash – Displays info about flash memory and what IOS files are stored there
show version – Displays info about the router and the IOS that is running in RAM
show ARP – Displays the ARP table of the router
show start – Displays the saved configuration located in NVRAM
show run – Displays the configuration currently running in RAM
show protocol – Displays the global and interface specific status of any configured
Layer 3 protocols

209

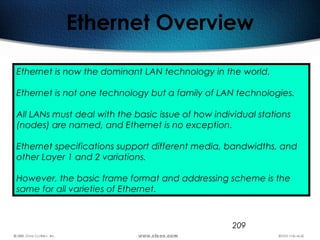

Ethernet Overview
Ethernet is now the dominant LAN technology in the world.
Ethernet is not one technology but a family of LAN technologies.
All LANs must deal with the basic issue of how individual stations
(nodes) are named, and Ethernet is no exception.
Ethernet specifications support different media, bandwidths, and
other Layer 1 and 2 variations.
However, the basic frame format and addressing scheme is the
same for all varieties of Ethernet.

210

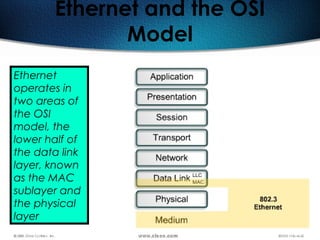

Ethernet and the OSI
Model
Ethernet
operates in
two areas of
the OSI
model, the
lower half of
the data link
layer, known
as the MAC
sublayer and
the physical
layer

211
Ethernet Technologies
Mapped to the OSI Model

212

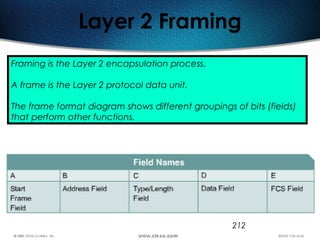

Layer 2 Framing
Framing is the Layer 2 encapsulation process.
A frame is the Layer 2 protocol data unit.
The frame format diagram shows different groupings of bits (fields)
that perform other functions.

213
Ethernet and IEEE Frame
Formats are Very Similar

214

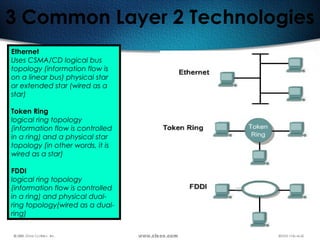

3 Common Layer 2 Technologies
Ethernet
Uses CSMA/CD logical bus
topology (information flow is
on a linear bus) physical star
or extended star (wired as a
star)
Token Ring
logical ring topology
(information flow is controlled
in a ring) and a physical star
topology (in other words, it is
wired as a star)
FDDI
logical ring topology
(information flow is controlled
in a ring) and physical dual-
ring topology(wired as a dual-
ring)

215

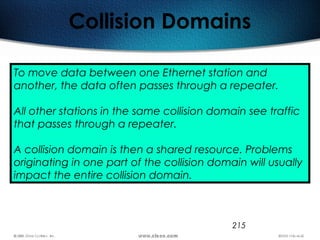

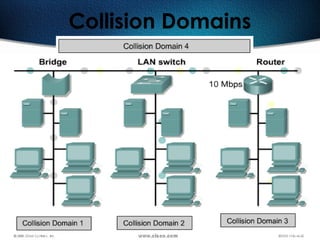

Collision Domains
To move data between one Ethernet station and
another, the data often passes through a repeater.
All other stations in the same collision domain see traffic
that passes through a repeater.
A collision domain is then a shared resource. Problems
originating in one part of the collision domain will usually
impact the entire collision domain.

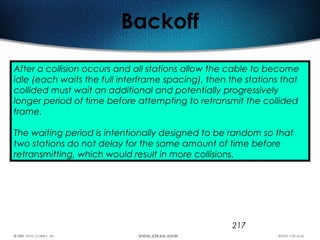

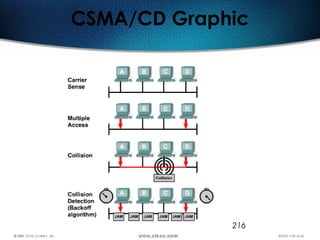

217
Backoff
After a collision occurs and all stations allow the cable to become
idle (each waits the full interframe spacing), then the stations that
collided must wait an additional and potentially progressively
longer period of time before attempting to retransmit the collided
frame.
The waiting period is intentionally designed to be random so that
two stations do not delay for the same amount of time before
retransmitting, which would result in more collisions.

Hierarchical Addressing Using
Variable-Length Subnet Masks
© 2003, Cisco Systems, Inc. All rights reserved. 219

220

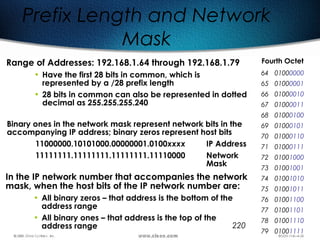

Prefix Length and Network
Mask
Range of Addresses: 192.168.1.64 through 192.168.1.79
• Have the first 28 bits in common, which is
represented by a /28 prefix length
• 28 bits in common can also be represented in dotted
decimal as 255.255.255.240
In the IP network number that accompanies the network
mask, when the host bits of the IP network number are:
• All binary zeros – that address is the bottom of the
address range
• All binary ones – that address is the top of the
address range
Binary ones in the network mask represent network bits in the
accompanying IP address; binary zeros represent host bits
11000000.10101000.00000001.0100xxxx IP Address
11111111.11111111.11111111.11110000 Network
Mask
Fourth Octet
64 01000000
65 01000001
66 01000010
67 01000011
68 01000100
69 01000101
70 01000110
71 01000111
72 01001000
73 01001001
74 01001010
75 01001011
76 01001100
77 01001101
78 01001110
79 01001111

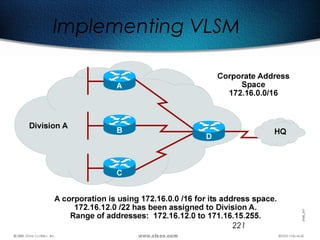

222

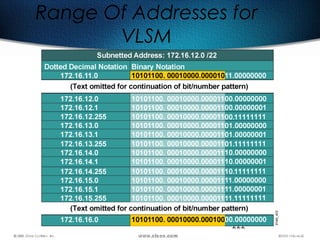

Range Of Addresses for
VLSM

223

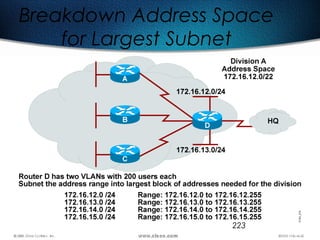

Breakdown Address Space
for Largest Subnet

224

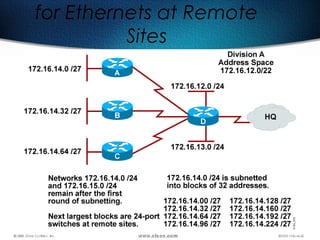

for Ethernets at Remote
Sites

225

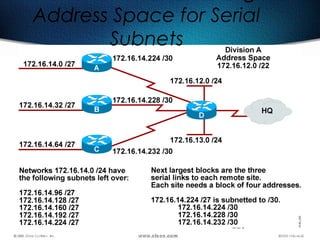

Address Space for Serial
Subnets

Route Summarization and
Classless Interdomain Routing

228

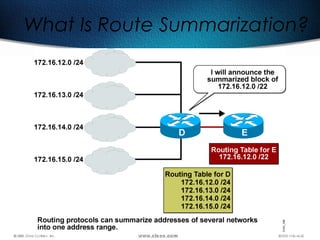

What Is Route Summarization?

229

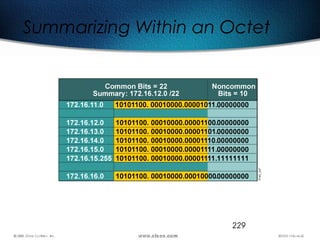

Summarizing Within an Octet

230

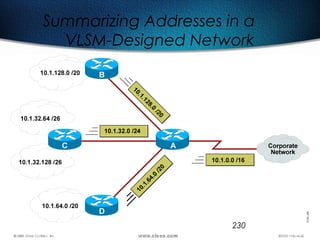

Summarizing Addresses in a
VLSM-Designed Network

231

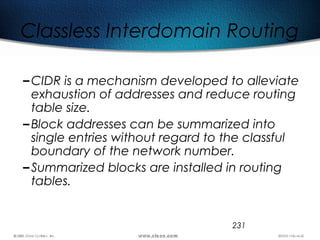

Classless Interdomain Routing
–CIDR is a mechanism developed to alleviate
exhaustion of addresses and reduce routing
table size.
–Block addresses can be summarized into
single entries without regard to the classful
boundary of the network number.
–Summarized blocks are installed in routing
tables.

232

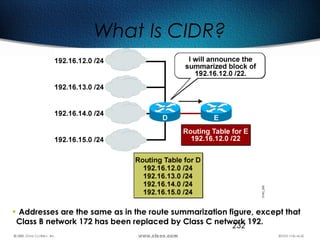

What Is CIDR?
• Addresses are the same as in the route summarization figure, except that
Class B network 172 has been replaced by Class C network 192.

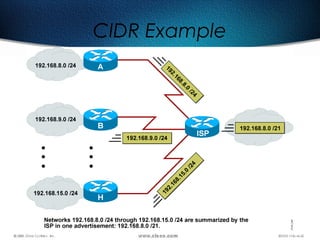

235

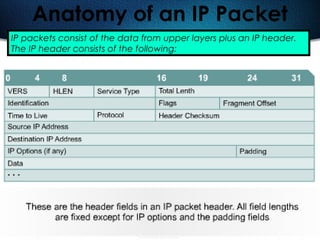

Anatomy of an IP Packet
IP packets consist of the data from upper layers plus an IP header.
The IP header consists of the following:

239

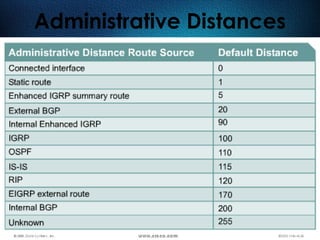

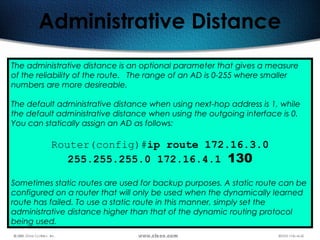

Administrative Distance
The administrative distance is an optional parameter that gives a measure
of the reliability of the route. The range of an AD is 0-255 where smaller
numbers are more desireable.
The default administrative distance when using next-hop address is 1, while
the default administrative distance when using the outgoing interface is 0.
You can statically assign an AD as follows:
Router(config)#ip route 172.16.3.0
255.255.255.0 172.16.4.1 130
Sometimes static routes are used for backup purposes. A static route can be
configured on a router that will only be used when the dynamically learned
route has failed. To use a static route in this manner, simply set the
administrative distance higher than that of the dynamic routing protocol
being used.

240
Configuring Default Routes
Default routes are used to route packets with destinations that do
not match any of the other routes in the routing table.
A default route is actually a special static route that uses this format:
ip route 0.0.0.0 0.0.0.0 [next-hop-address | outgoing interface]
This is sometimes referred to as a “Quad-Zero” route.
Example using next hop address:
Router(config)#ip route 0.0.0.0 0.0.0.0 172.16.4.1
Example using the exit interface:
Router(config)#ip route 0.0.0.0 0.0.0.0 s0/0

241

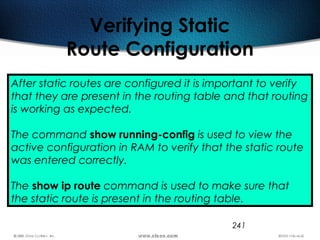

Verifying Static
Route Configuration
After static routes are configured it is important to verify
that they are present in the routing table and that routing
is working as expected.
The command show running-config is used to view the
active configuration in RAM to verify that the static route
was entered correctly.
The show ip route command is used to make sure that
the static route is present in the routing table.

243

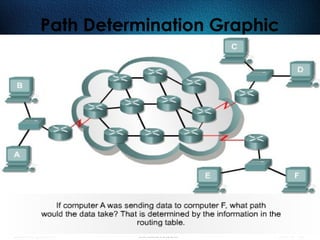

Path Determination Graphic

244

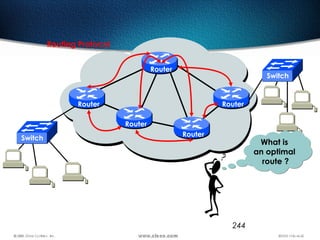

Router
Router
Router
Router Router
What is
an optimal
route ?
What is
an optimal
route ?
Switch
Switch
Routing Protocol

245

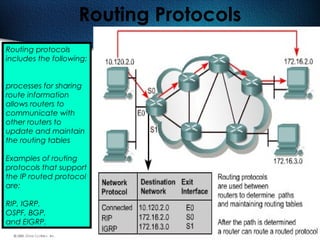

Routing Protocols
Routing protocols
includes the following:
processes for sharing
route information
allows routers to
communicate with
other routers to
update and maintain
the routing tables
Examples of routing
protocols that support
the IP routed protocol
are:
RIP, IGRP,
OSPF, BGP,
and EIGRP.

247

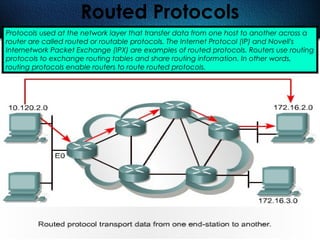

Routed Protocols
Protocols used at the network layer that transfer data from one host to another across a
router are called routed or routable protocols. The Internet Protocol (IP) and Novell's
Internetwork Packet Exchange (IPX) are examples of routed protocols. Routers use routing
protocols to exchange routing tables and share routing information. In other words,
routing protocols enable routers to route routed protocols.

249
Autonomous System
AS 2000
AS 3000
IGP
Interior Gateway Protocols are
used for routing decisions
within an Autonomous System.
Exterior Gateway
Protocols are used
for routing between
Autonomous Systems
EGP
AS 1000
An Autonomous System (AS) is a group of IP networks,
which has a single and clearly defined external routing
policy.
Fig. 48 IGP and EGP (TI1332EU02TI_0004 The Network Layer, 67)

250

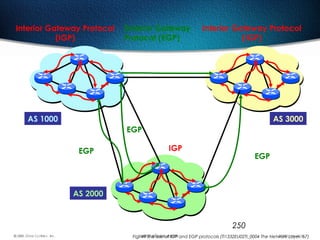

IGP
Interior Gateway Protocol
(IGP)
Exterior Gateway
Protocol (EGP)
EGP
EGP
EGP
Interior Gateway Protocol
(IGP)
AS 1000
AS 2000
AS 3000
Fig. 49 The use of IGP and EGP protocols (TI1332EU02TI_0004 The Network Layer, 67)

251

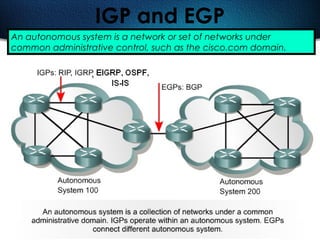

IGP and EGP
An autonomous system is a network or set of networks under
common administrative control, such as the cisco.com domain.

252

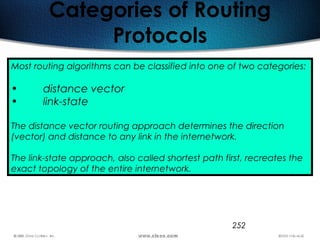

Categories of Routing
Protocols
Most routing algorithms can be classified into one of two categories:
• distance vector
• link-state
The distance vector routing approach determines the direction
(vector) and distance to any link in the internetwork.
The link-state approach, also called shortest path first, recreates the
exact topology of the entire internetwork.

253

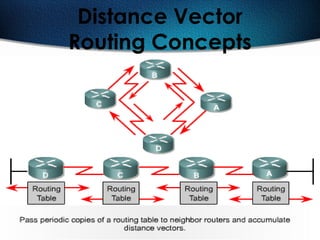

Distance Vector
Routing Concepts

254

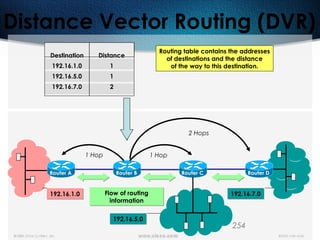

2 Hops
1 Hop1 Hop
Destination
192.16.1.0
192.16.5.0
192.16.7.0
Distance
1
1
2
Routing table contains the addresses
of destinations and the distance
of the way to this destination.
Flow of routing
information
Flow of routing
information
Router B Router CRouter A Router D
192.16.1.0192.16.1.0 192.16.7.0192.16.7.0
192.16.5.0192.16.5.0
Distance Vector Routing (DVR)

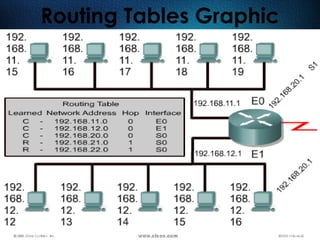

256

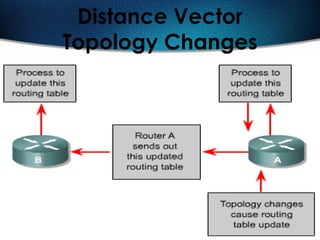

Distance Vector
Topology Changes

258
Router CRouter A Router D
192.16.1.0192.16.1.0 192.16.7.0192.16.7.0
192.16.5.0192.16.5.0
Router B
192.16.3.0192.16.3.0
192.16.2.0192.16.2.0
192.16.4.0192.16.4.0
192.16.6.0192.16.6.0
192.16.1.0192.16.1.0
192.16.2.0192.16.2.0
192.16.4.0192.16.4.0
192.16.5.0192.16.5.0
192.16.6.0192.16.6.0
192.16.6.0192.16.6.0
192.16.7.0192.16.7.0
192.16.2.0192.16.2.0
192.16.3.0192.16.3.0
192.16.4.0192.16.4.0
192.16.4.0192.16.4.0
192.16.5.0192.16.5.0
192.16.6.0192.16.6.0
192.16.6.0192.16.6.0
192.16.7.0192.16.7.0
192.16.1.0192.16.1.0
192.16.2.0192.16.2.0
192.16.2.0192.16.2.0
192.16.3.0192.16.3.0
192.16.4.0192.16.4.0192.16.3.0192.16.3.0
192.16.4.0192.16.4.0 192.16.1.0192.16.1.0
192.16.5.0192.16.5.0
192.16.6.0192.16.6.0
192.16.3.0192.16.3.0
192.16.2.0192.16.2.0
192.16.7.0192.16.7.0
192.16.5.0192.16.5.0
192.16.4.0192.16.4.0
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
11
11
11
11
11
11
11
11
LL
LL
LL
LL
LL
LL
LL
LL
LL
LL
LL
LL
LL
LL
LL
LL
LL
LL
11
11
00
00
LL
LL
BB
BB AA
CC
CC
BB
BB
DD
CC
CC
LL Locally connectedLocally connected

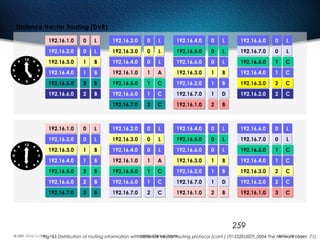

259
192.16.4.0192.16.4.0
192.16.5.0192.16.5.0
192.16.6.0192.16.6.0
192.16.6.0192.16.6.0
192.16.7.0192.16.7.0
192.16.1.0192.16.1.0
192.16.2.0192.16.2.0
192.16.2.0192.16.2.0
192.16.3.0192.16.3.0
192.16.4.0192.16.4.0192.16.3.0192.16.3.0
192.16.4.0192.16.4.0 192.16.1.0192.16.1.0
192.16.5.0192.16.5.0
192.16.6.0192.16.6.0
192.16.3.0192.16.3.0
192.16.2.0192.16.2.0
192.16.7.0192.16.7.0
192.16.5.0192.16.5.0
192.16.4.0192.16.4.0
192.16.5.0192.16.5.0
192.16.6.0192.16.6.0
192.16.7.0192.16.7.0 192.16.1.0192.16.1.0
192.16.3.0192.16.3.0
192.16.2.0192.16.2.0
00
00
00
00
00
00
00
00
00
00
11
11 11
11
11
11
11
11
11
11
22
22
22 22
22
22
LL
LL
LL
LL
LL
LL
LL
LL
LL
LL
BB
BB AA
CC
CC
BB
BB
DD
CC
CC
BB
BB
CC BB
CC
CC
192.16.4.0192.16.4.0
192.16.5.0192.16.5.0
192.16.6.0192.16.6.0
192.16.6.0192.16.6.0
192.16.7.0192.16.7.0
192.16.1.0192.16.1.0
192.16.2.0192.16.2.0
192.16.2.0192.16.2.0
192.16.3.0192.16.3.0
192.16.4.0192.16.4.0192.16.3.0192.16.3.0
192.16.4.0192.16.4.0 192.16.1.0192.16.1.0
192.16.5.0192.16.5.0
192.16.6.0192.16.6.0
192.16.3.0192.16.3.0
192.16.2.0192.16.2.0
192.16.7.0192.16.7.0
192.16.5.0192.16.5.0
192.16.4.0192.16.4.0
192.16.5.0192.16.5.0
192.16.6.0192.16.6.0
192.16.7.0192.16.7.0 192.16.1.0192.16.1.0
192.16.3.0192.16.3.0
192.16.2.0192.16.2.0
192.16.1.0192.16.1.0192.16.7.0192.16.7.0
00
00
00
00
00
00
00
00
00
00
11
11 11
11
11
11
11
11
11
11
22
22
22
22
22 22 3333
LL
LL
LL
LL
LL
LL
LL
LL
LL
LL
BB
BB AA
CC
CC
BB
BB
DD
CC
CC
BB
BB
CC BB
CC
CC
BB CC
Fig. 53 Distribution of routing information with distance vector routing protocol (cont.) (TI1332EU02TI_0004 The Network Layer, 71)

260
RIPv1
Distance Vector Routing Protocol,
classful
Distribution of Routing Tables via broadcast
to adjacent routers
Only one kind of metric:
Number of Hops
Connections with different
bandwidth can not be weighted
Routing loops can occur
-> bad convergence in case of a failure
Count to infinity problem
(infinity = 16)
Maximum network size is limited
by the number of hops
Fig.59PropertiesofRIPv1(TI1332EU02TI_0004TheNetworkLayer,81)

262
200.14.13.0/24200.14.13.0/24
130.24.13.0/24130.24.13.0/24
Router A
Port 2
200.14.13.2/24
Port 2
200.14.13.2/24
Port 1
130.24.13.1/24
Port 1
130.24.13.1/24
130.24.36.0/24130.24.36.0/24
RIP-1: 130.24.36.0 RIP-1: 130.24.36.0
RIP-1: 130.24.0.0
130.24.25.0/24130.24.25.0/24
RIP-1 permits only a Single Subnet Mask

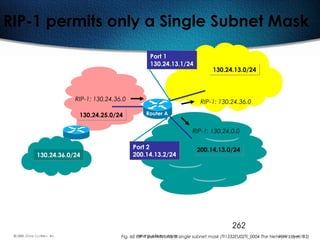

Fig. 60 RIP-1 permits only a single subnet mask (TI1332EU02TI_0004 The Network Layer, 83)

263
Router Configuration
The router command starts a routing process.
The network command is required because it enables the routing
process to determine which interfaces participate in the sending
and receiving of routing updates.
An example of a routing configuration is:
GAD(config)#router rip
GAD(config-router)#network 172.16.0.0
The network numbers are based on the network class addresses, not
subnet addresses or individual host addresses.

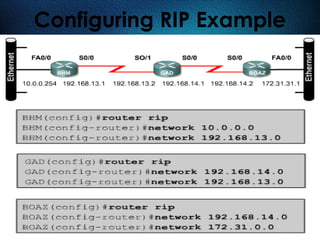

265

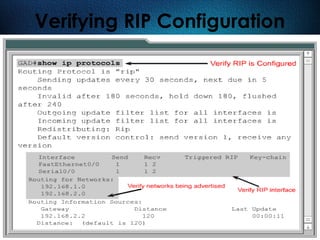

Verifying RIP Configuration

266

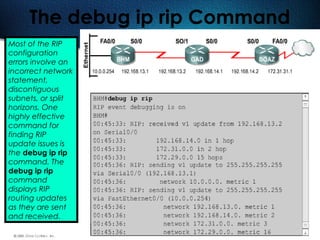

The debug ip rip Command
Most of the RIP
configuration
errors involve an
incorrect network
statement,
discontiguous
subnets, or split
horizons. One
highly effective
command for
finding RIP
update issues is
the debug ip rip
command. The
debug ip rip
command
displays RIP
routing updates
as they are sent
and received.

267

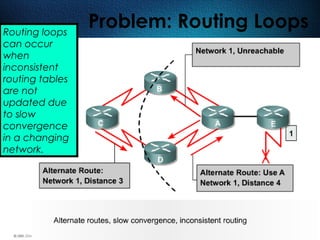

Problem: Routing LoopsRouting loops
can occur
when
inconsistent
routing tables
are not
updated due
to slow
convergence
in a changing
network.

268

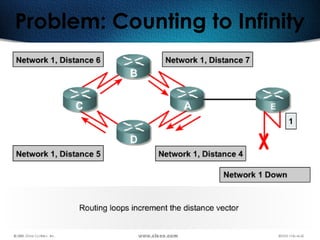

Problem: Counting to Infinity

269

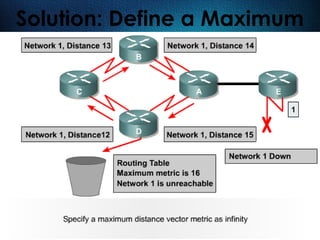

Solution: Define a Maximum

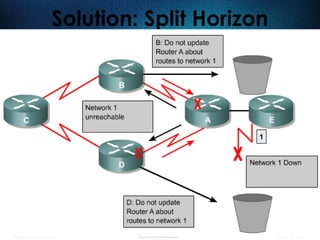

271

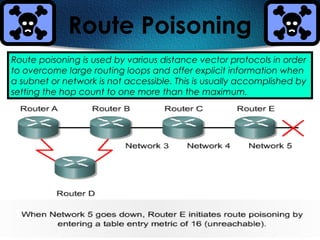

Route Poisoning
Route poisoning is used by various distance vector protocols in order
to overcome large routing loops and offer explicit information when
a subnet or network is not accessible. This is usually accomplished by
setting the hop count to one more than the maximum.

272

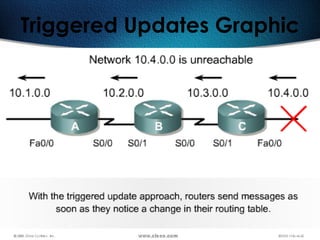

Triggered Updates
New routing tables are sent to neighboring routers on a regular basis.
For example, RIP updates occur every 30 seconds.
However a triggered update is sent immediately in response to some
change in the routing table.
The router that detects a topology change immediately sends an
update message to adjacent routers that, in turn, generate triggered
updates notifying their adjacent neighbors of the change.
When a route fails, an update is sent immediately rather than waiting on
the update timer to expire.
Triggered updates, used in conjunction with route poisoning, ensure that
all routers know of failed routes before any holddown timers can expire.

275

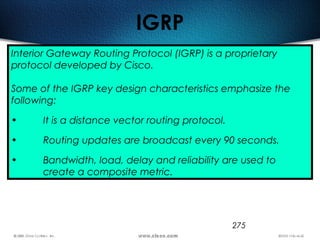

IGRP
Interior Gateway Routing Protocol (IGRP) is a proprietary
protocol developed by Cisco.
Some of the IGRP key design characteristics emphasize the
following:
• It is a distance vector routing protocol.
• Routing updates are broadcast every 90 seconds.
• Bandwidth, load, delay and reliability are used to
create a composite metric.

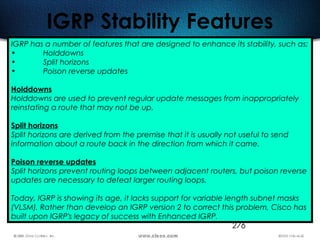

276
IGRP Stability Features
IGRP has a number of features that are designed to enhance its stability, such as:
• Holddowns
• Split horizons
• Poison reverse updates
Holddowns
Holddowns are used to prevent regular update messages from inappropriately
reinstating a route that may not be up.
Split horizons
Split horizons are derived from the premise that it is usually not useful to send
information about a route back in the direction from which it came.
Poison reverse updates
Split horizons prevent routing loops between adjacent routers, but poison reverse
updates are necessary to defeat larger routing loops.
Today, IGRP is showing its age, it lacks support for variable length subnet masks
(VLSM). Rather than develop an IGRP version 2 to correct this problem, Cisco has
built upon IGRP's legacy of success with Enhanced IGRP.

280

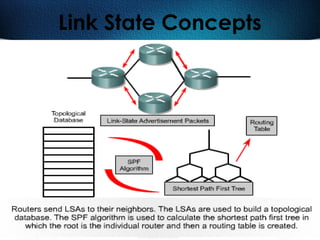

Link State Topology Changes

281
LSP:
„My links to
R2 and R4 are
up“
LSP: „My links to
R1 and R3 are up,
my link to R4 is down.“
LSP: „My links to
R2 and R4 are up.“
LSP:
„My links to R1 and R3 are
up.
My link to R2 is down.“
Router 1 Router 4
Router 2 Router 3
SPF
Routing
Table
Link State Routing (LSR)
LSP....link state packet
SPF... shortest path first

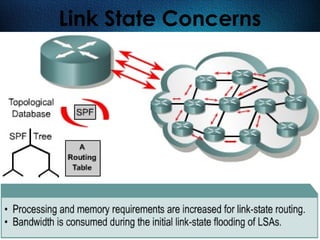

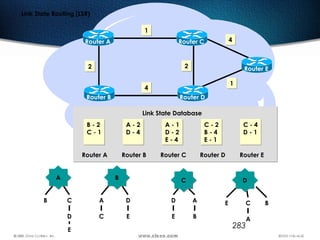

283
Router A Router C
Router B Router D
Router E22
11
44
22
44
11
B - 2
C - 1
B - 2
C - 1
A - 2
D - 4
A - 2
D - 4
A - 1
D - 2
E - 4
A - 1
D - 2
E - 4
C - 2
B - 4
E - 1
C - 2
B - 4
E - 1
C - 4
D - 1
C - 4
D - 1
Router A Router B Router C Router D Router E
Link State Database
AA
CB
D
E
A D
EC
BB
D A
E B
CC
E C B
A
DD
Link State Routing (LSR)

284

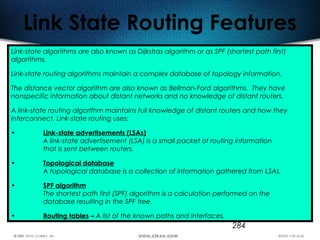

Link State Routing Features
Link-state algorithms are also known as Dijkstras algorithm or as SPF (shortest path first)
algorithms.
Link-state routing algorithms maintain a complex database of topology information.
The distance vector algorithm are also known as Bellman-Ford algorithms. They have
nonspecific information about distant networks and no knowledge of distant routers.
A link-state routing algorithm maintains full knowledge of distant routers and how they
interconnect. Link-state routing uses:
• Link-state advertisements (LSAs)
A link-state advertisement (LSA) is a small packet of routing information
that is sent between routers.
• Topological database
A topological database is a collection of information gathered from LSAs.
• SPF algorithm
The shortest path first (SPF) algorithm is a calculation performed on the
database resulting in the SPF tree.
• Routing tables – A list of the known paths and interfaces.

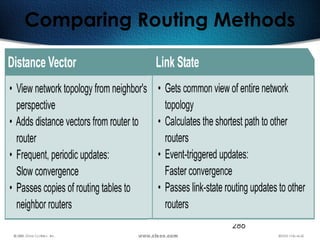

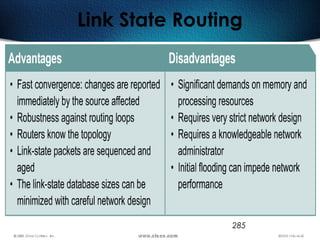

OSPF (Open Shortest Path First)
Protocol

288

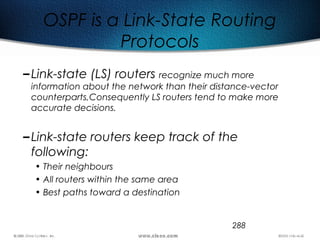

OSPF is a Link-State Routing
Protocols
–Link-state (LS) routers recognize much more
information about the network than their distance-vector
counterparts,Consequently LS routers tend to make more
accurate decisions.
–Link-state routers keep track of the
following:
• Their neighbours
• All routers within the same area
• Best paths toward a destination

289

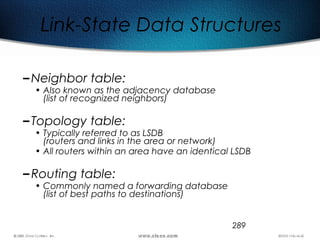

Link-State Data Structures
–Neighbor table:
• Also known as the adjacency database
(list of recognized neighbors)
–Topology table:
• Typically referred to as LSDB
(routers and links in the area or network)
• All routers within an area have an identical LSDB
–Routing table:
• Commonly named a forwarding database
(list of best paths to destinations)

290

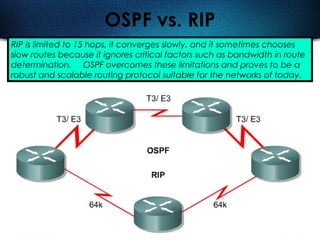

OSPF vs. RIP
RIP is limited to 15 hops, it converges slowly, and it sometimes chooses
slow routes because it ignores critical factors such as bandwidth in route
determination. OSPF overcomes these limitations and proves to be a
robust and scalable routing protocol suitable for the networks of today.

291
OSPF Terminology
The next several slides explain various OSPF terms
-one per slide.

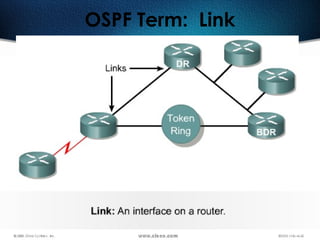

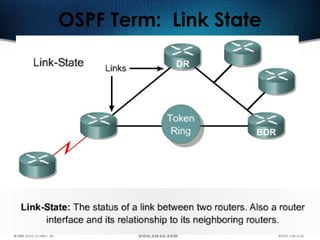

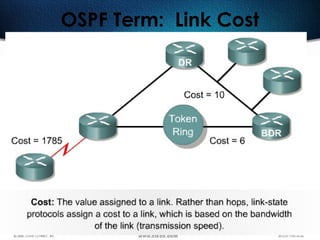

296

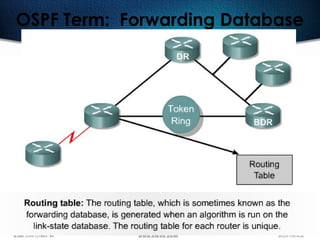

OSPF Term: Forwarding Database

297

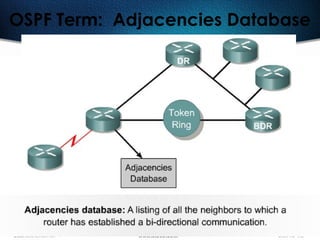

OSPF Term: Adjacencies Database

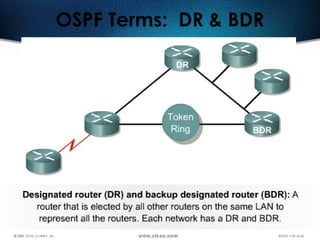

299

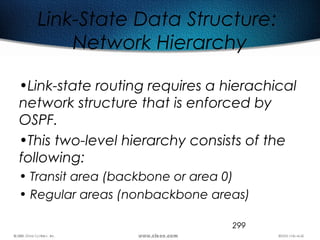

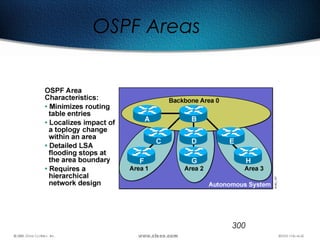

Link-State Data Structure:
Network Hierarchy
•Link-state routing requires a hierachical
network structure that is enforced by
OSPF.
•This two-level hierarchy consists of the
following:
• Transit area (backbone or area 0)
• Regular areas (nonbackbone areas)

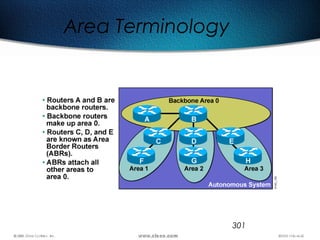

302
LS Data Structures:
Adjacency Database
– Routers discover neighbors by exchanging
hello packets.
– Routers declare neighbors to be up after checking
certain parameters or options in the hello packet.
– Point-to-point WAN links:
• Both neighbors become fully adjacent.
– LAN links:
• Neighbors form an adjacency with the DR and BDR.
• Maintain two-way state with the other routers (DROTHERs).
– Routing updates and topology information are only
passed between adjacent routers.

303

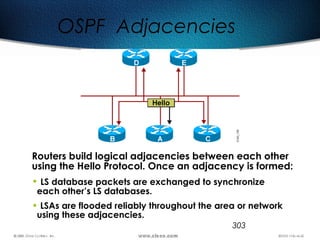

OSPF Adjacencies
Routers build logical adjacencies between each other
using the Hello Protocol. Once an adjacency is formed:
• LS database packets are exchanged to synchronize
each other’s LS databases.
• LSAs are flooded reliably throughout the area or network
using these adjacencies.

305

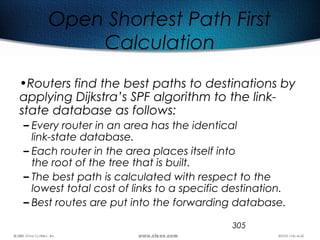

Open Shortest Path First
Calculation
•Routers find the best paths to destinations by
applying Dijkstra’s SPF algorithm to the link-
state database as follows:
– Every router in an area has the identical
link-state database.
– Each router in the area places itself into
the root of the tree that is built.
– The best path is calculated with respect to the
lowest total cost of links to a specific destination.
– Best routes are put into the forwarding database.

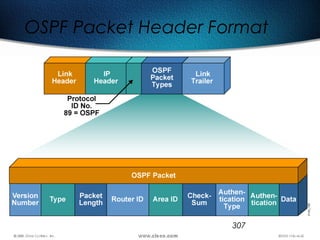

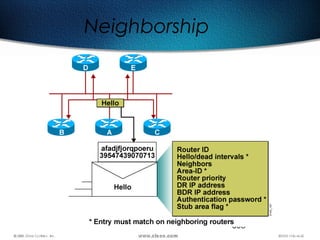

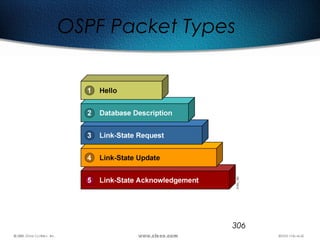

309
Establishing Bidirectional
Communication

310

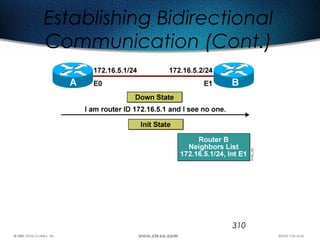

Communication (Cont.)

311
Communication (Cont.)

312

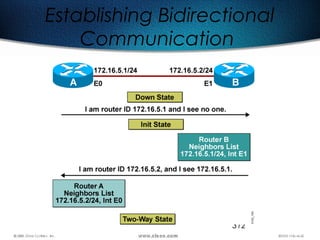

Communication

313

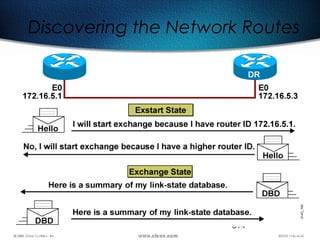

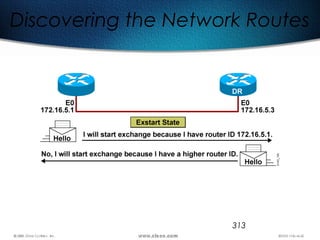

Discovering the Network Routes

314
Discovering the Network Routes

315
Adding the Link-State Entries

316
(Cont.)

317

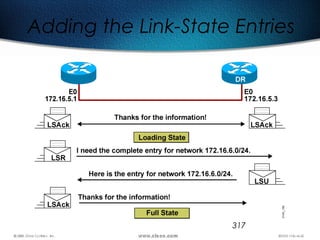

318

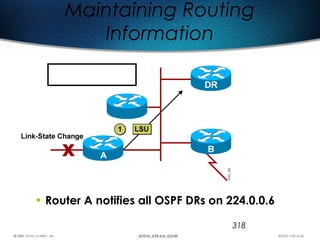

Maintaining Routing
Information
• Router A notifies all OSPF DRs on 224.0.0.6

319

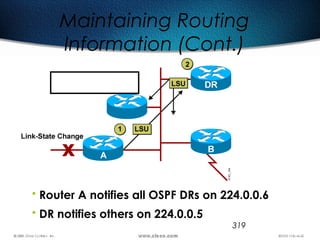

Maintaining Routing
Information (Cont.)
• DR notifies others on 224.0.0.5

320

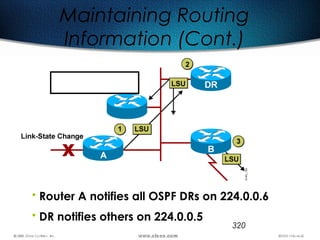

Maintaining Routing
Information (Cont.)

321

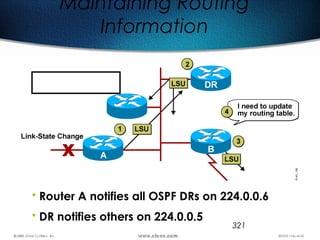

Maintaining Routing
Information

322
router ospf process-idrouter ospf process-id
Router(config)#
•Turns on one or more OSPF routing processes in
the IOS software.
Configuring Basic OSPF:
Single Area
network address inverse-mask area [area-id]network address inverse-mask area [area-id]
Router(config-router)#
•Router OSPF subordinate command that defines
the interfaces (by network number) that OSPF
will run on. Each network number must be
defined to a specific area.

323
Configuring OSPF on Internal
Routers of a Single Area

324

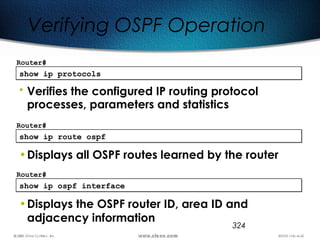

show ip protocolsshow ip protocols
Router#
• Verifies the configured IP routing protocol
processes, parameters and statistics
Verifying OSPF Operation
show ip route ospfshow ip route ospf
Router#
•Displays all OSPF routes learned by the router
show ip ospf interfaceshow ip ospf interface
Router#
•Displays the OSPF router ID, area ID and
adjacency information

325
show ip ospfshow ip ospf
Router#
•Displays the OSPF router ID, timers, and statistics
Verifying OSPF Operation
(Cont.)
show ip ospf neighbor [detail]show ip ospf neighbor [detail]
Router#
•Displays information about the OSPF neighbors,
including Designated Router (DR) and Backup
Designated Router (BDR) information on
broadcast networks

326

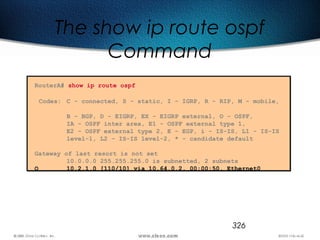

The show ip route ospf
Command
RouterA# show ip route ospf
Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile,
B - BGP, D - EIGRP, EX - EIGRP external, O - OSPF,
IA - OSPF inter area, E1 - OSPF external type 1,
E2 - OSPF external type 2, E - EGP, i - IS-IS, L1 - IS-IS
level-1, L2 - IS-IS level-2, * - candidate default
Gateway of last resort is not set
10.0.0.0 255.255.255.0 is subnetted, 2 subnets
O 10.2.1.0 [110/10] via 10.64.0.2, 00:00:50, Ethernet0

327

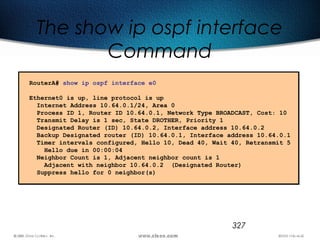

The show ip ospf interface
Command
RouterA# show ip ospf interface e0
Ethernet0 is up, line protocol is up
Internet Address 10.64.0.1/24, Area 0
Process ID 1, Router ID 10.64.0.1, Network Type BROADCAST, Cost: 10
Transmit Delay is 1 sec, State DROTHER, Priority 1
Designated Router (ID) 10.64.0.2, Interface address 10.64.0.2
Backup Designated router (ID) 10.64.0.1, Interface address 10.64.0.1
Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
Hello due in 00:00:04
Neighbor Count is 1, Adjacent neighbor count is 1
Adjacent with neighbor 10.64.0.2 (Designated Router)
Suppress hello for 0 neighbor(s)

328

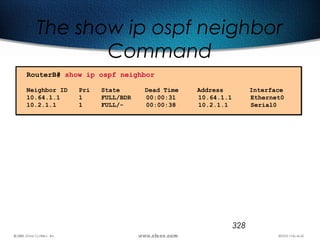

The show ip ospf neighbor
Command
RouterB# show ip ospf neighbor
Neighbor ID Pri State Dead Time Address Interface
10.64.1.1 1 FULL/BDR 00:00:31 10.64.1.1 Ethernet0
10.2.1.1 1 FULL/- 00:00:38 10.2.1.1 Serial0

329

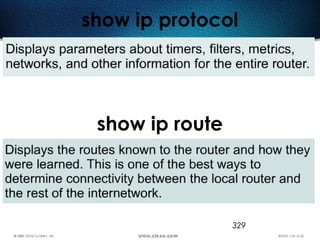

show ip protocol
show ip route

330

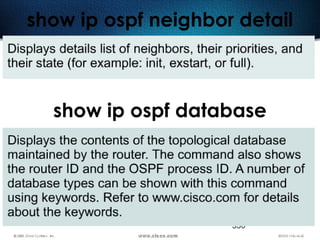

show ip ospf neighbor detail
show ip ospf database

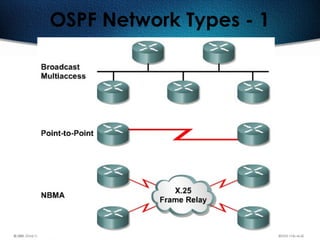

332

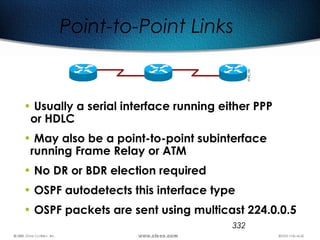

Point-to-Point Links
• Usually a serial interface running either PPP
or HDLC
• May also be a point-to-point subinterface
running Frame Relay or ATM
• No DR or BDR election required
• OSPF autodetects this interface type
• OSPF packets are sent using multicast 224.0.0.5

333
Multi-access Broadcast
Network
• Generally LAN technologies like Ethernet and Token Ring
• DR and BDR selection required
• All neighbor routers form full adjacencies with the DR and
BDR only
• Packets to the DR use 224.0.0.6
• Packets from DR to all other routers use 224.0.0.5

334

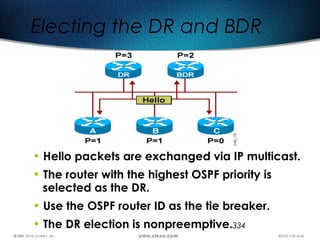

Electing the DR and BDR
• Hello packets are exchanged via IP multicast.
• The router with the highest OSPF priority is
selected as the DR.
• Use the OSPF router ID as the tie breaker.
• The DR election is nonpreemptive.

335

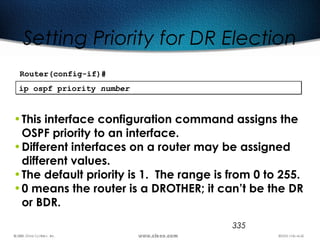

Setting Priority for DR Election
ip ospf priority numberip ospf priority number
•This interface configuration command assigns the
OSPF priority to an interface.
•Different interfaces on a router may be assigned
different values.
•The default priority is 1. The range is from 0 to 255.
•0 means the router is a DROTHER; it can’t be the DR
or BDR.
Router(config-if)#

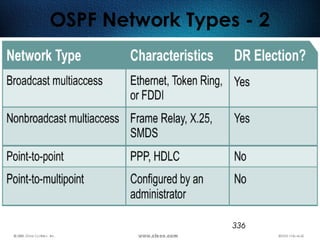

337
Creation of Adjacencies
RouterA# debug ip ospf adj
Point-to-point interfaces coming up: No election
%LINK-3-UPDOWN: Interface Serial1, changed state to up
OSPF: Interface Serial1 going Up
OSPF: Rcv hello from 192.168.0.11 area 0 from Serial1 10.1.1.2
OSPF: End of hello processing
OSPF: Build router LSA for area 0, router ID 192.168.0.10
OSPF: Rcv DBD from 192.168.0.11 on Serial1 seq 0x20C4 opt 0x2 flag 0x7 len 32
state INIT
OSPF: 2 Way Communication to 192.168.0.11 on Serial1, state 2WAY
OSPF: Send DBD to 192.168.0.11 on Serial1 seq 0x167F opt 0x2 flag 0x7 len 32
OSPF: NBR Negotiation Done. We are the SLAVE
OSPF: Send DBD to 192.168.0.11 on Serial1 seq 0x20C4 opt 0x2 flag 0x2 len 72

338
Creation of Adjacencies
(Cont.)
RouterA# debug ip ospf adj
Ethernet interface coming up: Election
OSPF: 2 Way Communication to 192.168.0.10 on Ethernet0, state 2WAY
OSPF: end of Wait on interface Ethernet0
OSPF: DR/BDR election on Ethernet0
OSPF: Elect BDR 192.168.0.12
OSPF: Elect DR 192.168.0.12
DR: 192.168.0.12 (Id) BDR: 192.168.0.12 (Id)
OSPF: Send DBD to 192.168.0.12 on Ethernet0 seq 0x546 opt 0x2 flag 0x7 len 32
<…>
OSPF: DR/BDR election on Ethernet0
OSPF: Elect BDR 192.168.0.11
OSPF: Elect DR 192.168.0.12
DR: 192.168.0.12 (Id) BDR: 192.168.0.11 (Id)

340

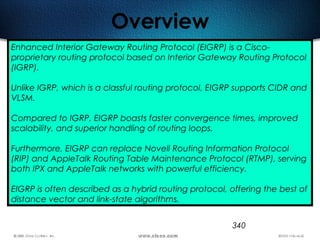

Overview
Enhanced Interior Gateway Routing Protocol (EIGRP) is a Cisco-
proprietary routing protocol based on Interior Gateway Routing Protocol
(IGRP).
Unlike IGRP, which is a classful routing protocol, EIGRP supports CIDR and
VLSM.
Compared to IGRP, EIGRP boasts faster convergence times, improved
scalability, and superior handling of routing loops.
Furthermore, EIGRP can replace Novell Routing Information Protocol
(RIP) and AppleTalk Routing Table Maintenance Protocol (RTMP), serving
both IPX and AppleTalk networks with powerful efficiency.
EIGRP is often described as a hybrid routing protocol, offering the best of
distance vector and link-state algorithms.

341

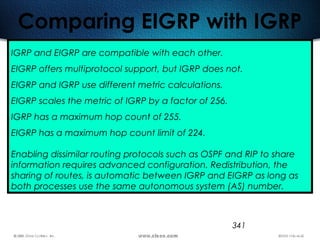

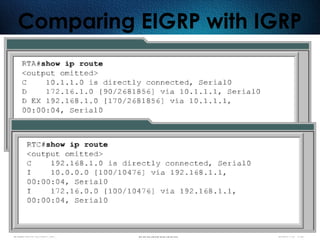

Comparing EIGRP with IGRP
IGRP and EIGRP are compatible with each other.
EIGRP offers multiprotocol support, but IGRP does not.
EIGRP and IGRP use different metric calculations.
EIGRP scales the metric of IGRP by a factor of 256.
IGRP has a maximum hop count of 255.
EIGRP has a maximum hop count limit of 224.
Enabling dissimilar routing protocols such as OSPF and RIP to share
information requires advanced configuration. Redistribution, the
sharing of routes, is automatic between IGRP and EIGRP as long as
both processes use the same autonomous system (AS) number.

342

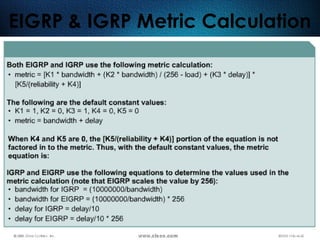

EIGRP & IGRP Metric Calculation

345

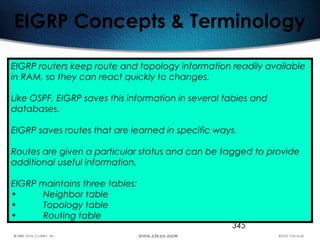

EIGRP Concepts & Terminology
EIGRP routers keep route and topology information readily available
in RAM, so they can react quickly to changes.
Like OSPF, EIGRP saves this information in several tables and
databases.
EIGRP saves routes that are learned in specific ways.
Routes are given a particular status and can be tagged to provide
additional useful information.
EIGRP maintains three tables:
• Neighbor table
• Topology table
• Routing table

346

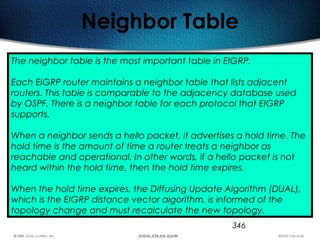

Neighbor Table
The neighbor table is the most important table in EIGRP.
Each EIGRP router maintains a neighbor table that lists adjacent
routers. This table is comparable to the adjacency database used
by OSPF. There is a neighbor table for each protocol that EIGRP
supports.
When a neighbor sends a hello packet, it advertises a hold time. The
hold time is the amount of time a router treats a neighbor as
reachable and operational. In other words, if a hello packet is not
heard within the hold time, then the hold time expires.
When the hold time expires, the Diffusing Update Algorithm (DUAL),
which is the EIGRP distance vector algorithm, is informed of the
topology change and must recalculate the new topology.

347

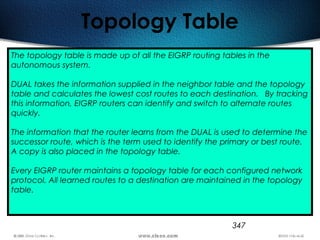

Topology Table
The topology table is made up of all the EIGRP routing tables in the
autonomous system.
DUAL takes the information supplied in the neighbor table and the topology
table and calculates the lowest cost routes to each destination. By tracking
this information, EIGRP routers can identify and switch to alternate routes
quickly.
The information that the router learns from the DUAL is used to determine the
successor route, which is the term used to identify the primary or best route.
A copy is also placed in the topology table.
Every EIGRP router maintains a topology table for each configured network
protocol. All learned routes to a destination are maintained in the topology
table.

348

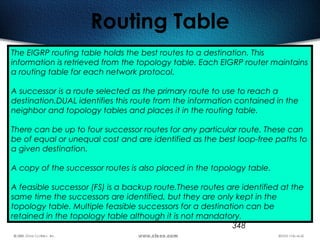

Routing Table
The EIGRP routing table holds the best routes to a destination. This
information is retrieved from the topology table. Each EIGRP router maintains
a routing table for each network protocol.
A successor is a route selected as the primary route to use to reach a
destination.DUAL identifies this route from the information contained in the
neighbor and topology tables and places it in the routing table.
There can be up to four successor routes for any particular route. These can
be of equal or unequal cost and are identified as the best loop-free paths to
a given destination.
A copy of the successor routes is also placed in the topology table.
A feasible successor (FS) is a backup route.These routes are identified at the
same time the successors are identified, but they are only kept in the
topology table. Multiple feasible successors for a destination can be
retained in the topology table although it is not mandatory.

349

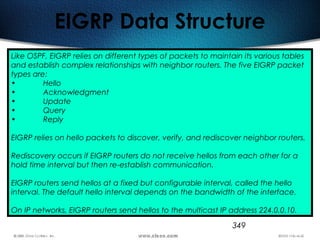

EIGRP Data Structure
Like OSPF, EIGRP relies on different types of packets to maintain its various tables
and establish complex relationships with neighbor routers. The five EIGRP packet
types are:
• Hello
• Acknowledgment
• Update
• Query
• Reply
EIGRP relies on hello packets to discover, verify, and rediscover neighbor routers.
Rediscovery occurs if EIGRP routers do not receive hellos from each other for a
hold time interval but then re-establish communication.
EIGRP routers send hellos at a fixed but configurable interval, called the hello
interval. The default hello interval depends on the bandwidth of the interface.
On IP networks, EIGRP routers send hellos to the multicast IP address 224.0.0.10.

350

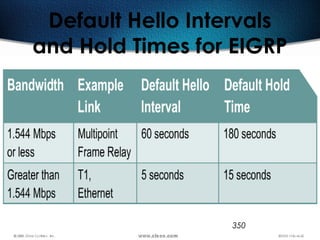

Default Hello Intervals
and Hold Times for EIGRP

351

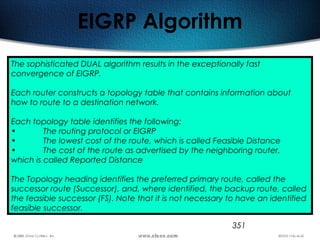

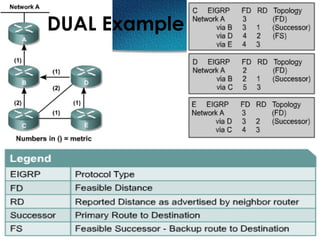

EIGRP Algorithm
The sophisticated DUAL algorithm results in the exceptionally fast
convergence of EIGRP.
Each router constructs a topology table that contains information about
how to route to a destination network.
Each topology table identifies the following:
• The routing protocol or EIGRP
• The lowest cost of the route, which is called Feasible Distance
• The cost of the route as advertised by the neighboring router,
which is called Reported Distance
The Topology heading identifies the preferred primary route, called the
successor route (Successor), and, where identified, the backup route, called
the feasible successor (FS). Note that it is not necessary to have an identified
feasible successor.

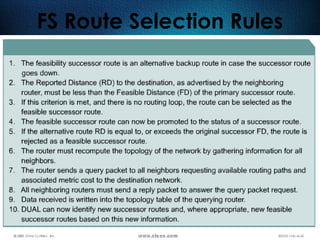

358
Verifying the EIGRP Configuration
To verify the EIGRP configuration a number of show and
debug commands are available.
These commands are shown on the next few slides.

360
show ip eigrp topology
[active | pending | successors]

361

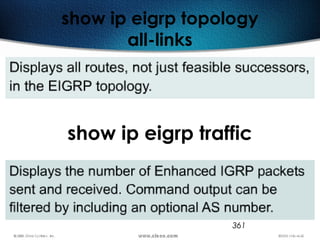

all-links
show ip eigrp traffic

363

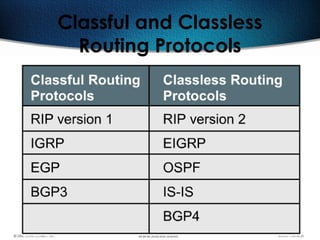

Classful and Classless
Routing Protocols

365

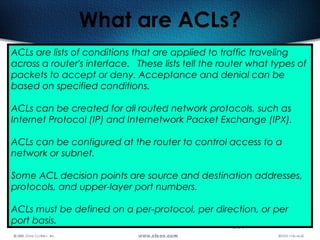

What are ACLs?
ACLs are lists of conditions that are applied to traffic traveling
across a router's interface. These lists tell the router what types of
packets to accept or deny. Acceptance and denial can be
based on specified conditions.
ACLs can be created for all routed network protocols, such as
Internet Protocol (IP) and Internetwork Packet Exchange (IPX).
ACLs can be configured at the router to control access to a
network or subnet.
Some ACL decision points are source and destination addresses,
protocols, and upper-layer port numbers.
ACLs must be defined on a per-protocol, per direction, or per
port basis.

366

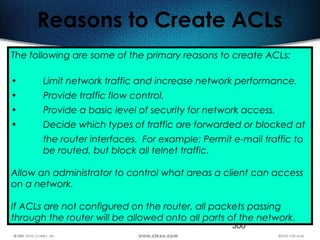

Reasons to Create ACLs
The following are some of the primary reasons to create ACLs:
• Limit network traffic and increase network performance.
• Provide traffic flow control.
• Provide a basic level of security for network access.
• Decide which types of traffic are forwarded or blocked at
the router interfaces. For example: Permit e-mail traffic to
be routed, but block all telnet traffic.
Allow an administrator to control what areas a client can access
on a network.
If ACLs are not configured on the router, all packets passing
through the router will be allowed onto all parts of the network.

367

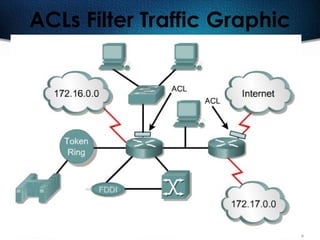

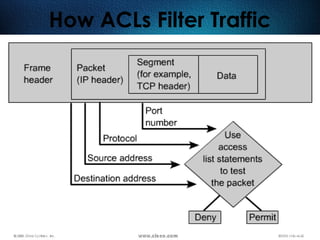

ACLs Filter Traffic Graphic

369

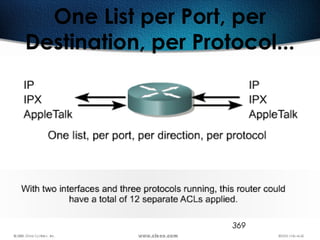

One List per Port, per
Destination, per Protocol...

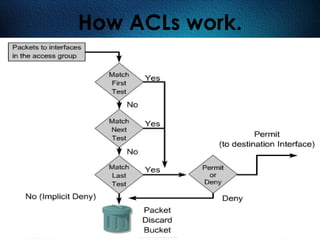

371

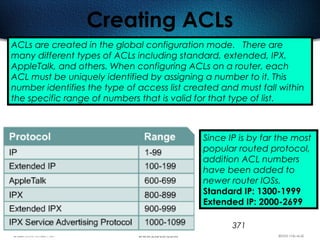

Creating ACLs
ACLs are created in the global configuration mode. There are
many different types of ACLs including standard, extended, IPX,
AppleTalk, and others. When configuring ACLs on a router, each
ACL must be uniquely identified by assigning a number to it. This
number identifies the type of access list created and must fall within
the specific range of numbers that is valid for that type of list.
Since IP is by far the most
popular routed protocol,
addition ACL numbers
have been added to
newer router IOSs.
Standard IP: 1300-1999

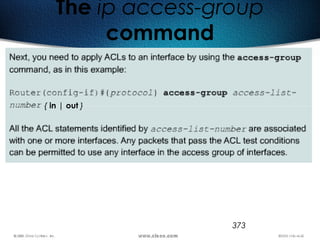

Extended IP: 2000-2699

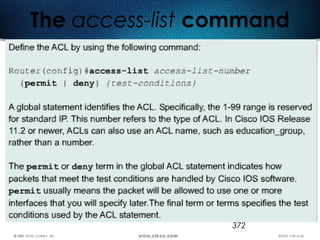

373
The ip access-group
command
{ in | out }

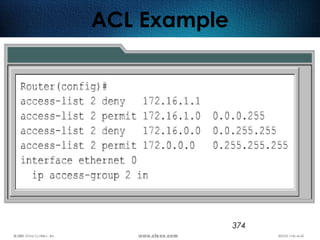

375
Basic Rules for ACLs
These basic rules should be followed when creating and applying access lists:
• One access list per protocol per direction.
• Standard IP access lists should be applied closest to the destination.
• Extended IP access lists should be applied closest to the source.
• Use the inbound or outbound interface reference as if looking at the port
from inside the router.
• Statements are processed sequentially from the top of list to the bottom
until a match is found, if no match is found then the packet is denied.
• There is an implicit deny at the end of all access lists. This will not appear in
the configuration listing.
• Access list entries should filter in the order from specific to general.
Specific hosts should be denied first, and groups or general filters should come last.
• Never work with an access list that is actively applied.
• New lines are always added to the end of the access list.
• A no access-list x command will remove the whole list. It is not possible to
selectively add and remove lines with numbered ACLs.
• Outbound filters do not affect traffic originating from the local router.

376

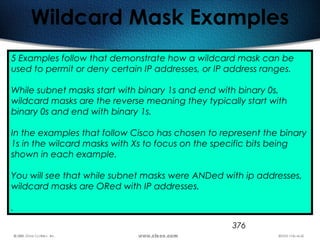

Wildcard Mask Examples
5 Examples follow that demonstrate how a wildcard mask can be
used to permit or deny certain IP addresses, or IP address ranges.
While subnet masks start with binary 1s and end with binary 0s,
wildcard masks are the reverse meaning they typically start with
binary 0s and end with binary 1s.
In the examples that follow Cisco has chosen to represent the binary
1s in the wilcard masks with Xs to focus on the specific bits being
shown in each example.
You will see that while subnet masks were ANDed with ip addresses,
wildcard masks are ORed with IP addresses.
.

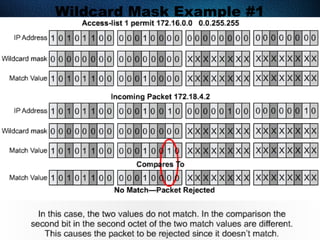

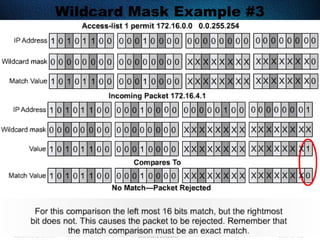

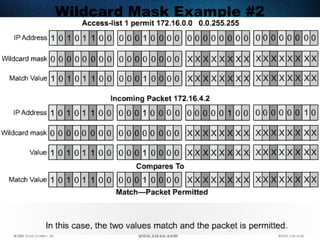

380

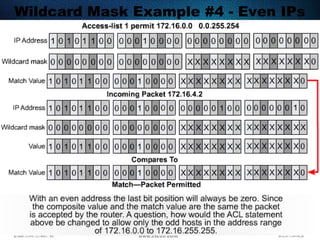

Wildcard Mask Example #4 - Even IPs

381

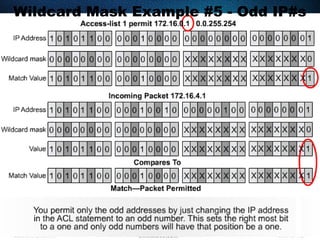

Wildcard Mask Example #5 - Odd IP#s

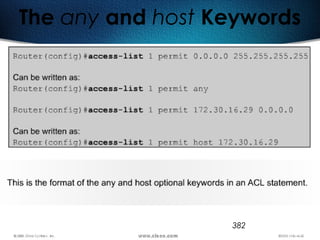

383
Verifying ACLs
There are many show commands that will verify the content and
placement of ACLs on the router.
The show ip interface command displays IP interface information
and indicates whether any ACLs are set.
The show access-lists command displays the contents of all ACLs on
the router.
show access-list 1 shows just access-list 1.
The show running-config command will also reveal the access lists
on a router and the interface assignment information.

384

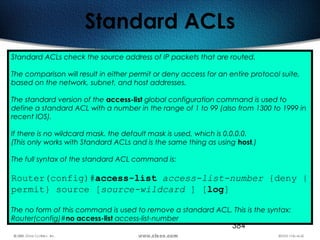

Standard ACLs
Standard ACLs check the source address of IP packets that are routed.
The comparison will result in either permit or deny access for an entire protocol suite,
based on the network, subnet, and host addresses.
The standard version of the access-list global configuration command is used to
define a standard ACL with a number in the range of 1 to 99 (also from 1300 to 1999 in
recent IOS).
If there is no wildcard mask. the default mask is used, which is 0.0.0.0.
(This only works with Standard ACLs and is the same thing as using host.)
The full syntax of the standard ACL command is:
Router(config)#access-list access-list-number {deny |
permit} source [source-wildcard ] [log]
The no form of this command is used to remove a standard ACL. This is the syntax:
Router(config)#no access-list access-list-number

385

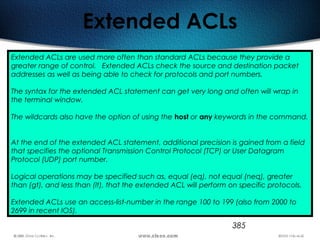

Extended ACLs
Extended ACLs are used more often than standard ACLs because they provide a
greater range of control. Extended ACLs check the source and destination packet
addresses as well as being able to check for protocols and port numbers.
The syntax for the extended ACL statement can get very long and often will wrap in
the terminal window.
The wildcards also have the option of using the host or any keywords in the command.
At the end of the extended ACL statement, additional precision is gained from a field
that specifies the optional Transmission Control Protocol (TCP) or User Datagram
Protocol (UDP) port number.
Logical operations may be specified such as, equal (eq), not equal (neq), greater
than (gt), and less than (lt), that the extended ACL will perform on specific protocols.
Extended ACLs use an access-list-number in the range 100 to 199 (also from 2000 to
2699 in recent IOS).

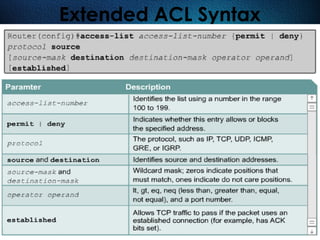

388

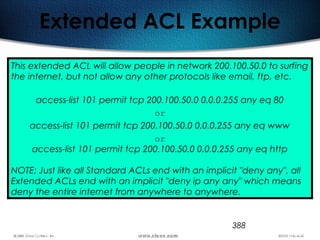

Extended ACL Example
This extended ACL will allow people in network 200.100.50.0 to surfing
the internet, but not allow any other protocols like email, ftp, etc.
access-list 101 permit tcp 200.100.50.0 0.0.0.255 any eq 80
or
access-list 101 permit tcp 200.100.50.0 0.0.0.255 any eq www
or
access-list 101 permit tcp 200.100.50.0 0.0.0.255 any eq http
NOTE: Just like all Standard ACLs end with an implicit "deny any", all
Extended ACLs end with an implicit "deny ip any any" which means
deny the entire internet from anywhere to anywhere.

389
ip access-group
The ip access-group command links an existing standard or
extended ACL to an interface.
Remember that only one ACL per interface, per direction, per
protocol is allowed.
The format of the command is:
Router(config-if)#ip access-group access-list-
number {in | out}

390

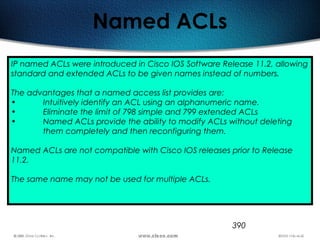

Named ACLs
IP named ACLs were introduced in Cisco IOS Software Release 11.2, allowing
standard and extended ACLs to be given names instead of numbers.
The advantages that a named access list provides are:
• Intuitively identify an ACL using an alphanumeric name.
• Eliminate the limit of 798 simple and 799 extended ACLs
• Named ACLs provide the ability to modify ACLs without deleting
them completely and then reconfiguring them.
Named ACLs are not compatible with Cisco IOS releases prior to Release
11.2.
The same name may not be used for multiple ACLs.

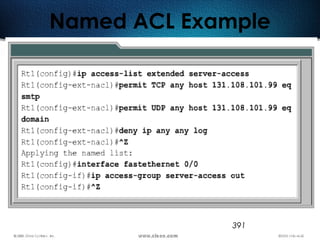

392

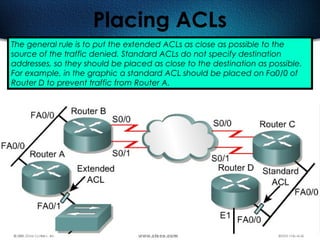

Placing ACLs
The general rule is to put the extended ACLs as close as possible to the
source of the traffic denied. Standard ACLs do not specify destination
addresses, so they should be placed as close to the destination as possible.
For example, in the graphic a standard ACL should be placed on Fa0/0 of
Router D to prevent traffic from Router A.

394

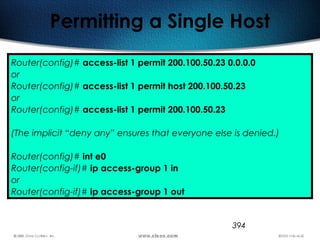

Permitting a Single Host
Router(config)# access-list 1 permit 200.100.50.23 0.0.0.0
or
Router(config)# access-list 1 permit host 200.100.50.23
or
Router(config)# access-list 1 permit 200.100.50.23
(The implicit “deny any” ensures that everyone else is denied.)
Router(config)# int e0
Router(config-if)# ip access-group 1 in
or
Router(config-if)# ip access-group 1 out

395

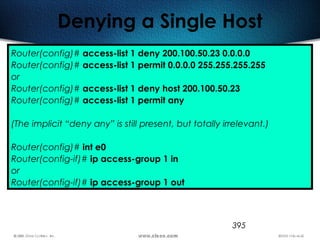

Denying a Single Host
Router(config)# access-list 1 deny 200.100.50.23 0.0.0.0
or
Router(config)# access-list 1 deny host 200.100.50.23
Router(config)# access-list 1 permit any
(The implicit “deny any” is still present, but totally irrelevant.)
or

396

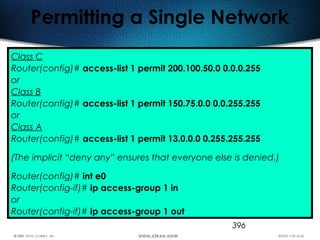

Permitting a Single Network
Class C
or
Class B
or
Class A
or

397
Denying a Single Network
Class C
or
Class B
or
Class A

398

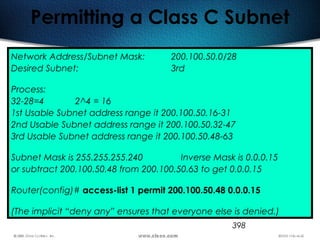

Permitting a Class C Subnet
Network Address/Subnet Mask: 200.100.50.0/28
Desired Subnet: 3rd
Process:
32-28=4 2^4 = 16
1st Usable Subnet address range it 200.100.50.16-31
2nd Usable Subnet address range it 200.100.50.32-47
3rd Usable Subnet address range it 200.100.50.48-63
Subnet Mask is 255.255.255.240 Inverse Mask is 0.0.0.15
or subtract 200.100.50.48 from 200.100.50.63 to get 0.0.0.15

399
Denying a Class C Subnet
Undesired Subnet: 2nd
Process:
32-27=5 2^5=32
1st Usable Subnet address range it 192.68.72.32-63
2nd Usable Subnet address range it 192.68.72.64-95

400

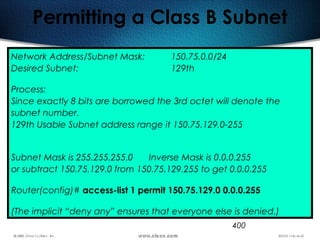

Permitting a Class B Subnet
Desired Subnet: 129th
Process:
Since exactly 8 bits are borrowed the 3rd octet will denote the
subnet number.
129th Usable Subnet address range it 150.75.129.0-255

401

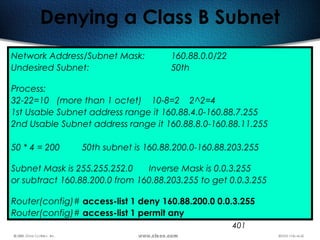

Denying a Class B Subnet
Undesired Subnet: 50th
Process:
32-22=10 (more than 1 octet) 10-8=2 2^2=4
1st Usable Subnet address range it 160.88.4.0-160.88.7.255
2nd Usable Subnet address range it 160.88.8.0-160.88.11.255
50 * 4 = 200 50th subnet is 160.88.200.0-160.88.203.255

402

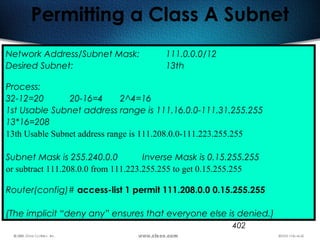

Permitting a Class A Subnet
Desired Subnet: 13th
Process:
32-12=20 20-16=4 2^4=16
1st Usable Subnet address range is 111.16.0.0-111.31.255.255
13*16=208
13th Usable Subnet address range is 111.208.0.0-111.223.255.255

403
Denying a Class A Subnet
Undesired Subnet: 500th
Process:
Since exactly 16 bits were borrowed the 2nd and 3rd octet will denote
the subnet.
1st Usable Subnet address range is 40.0.1.0-40.0.1.255
Router(config)# access-list 1 deny 40.1.244.0 0 0.0.0.255

405

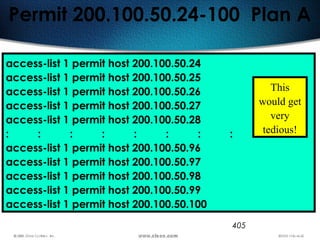

Permit 200.100.50.24-100 Plan A
access-list 1 permit host 200.100.50.24
: : : : : : : :
This
would get
very
tedious!

406
Permit 200.100.50.24-100 Plan B
access-list 1 permit 200.100.50.24 0.0.0.7 (24-31)
access-list 1 permit host 200.100.50.100 (100)

407

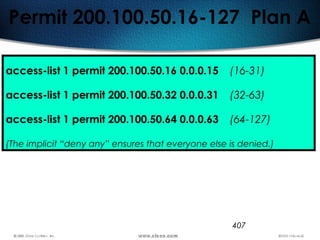

Permit 200.100.50.16-127 Plan A

408

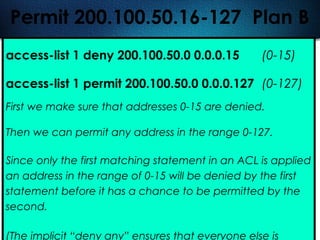

Permit 200.100.50.16-127 Plan B
access-list 1 deny 200.100.50.0 0.0.0.15 (0-15)
First we make sure that addresses 0-15 are denied.
Then we can permit any address in the range 0-127.
Since only the first matching statement in an ACL is applied
an address in the range of 0-15 will be denied by the first
statement before it has a chance to be permitted by the
second.
(The implicit “deny any” ensures that everyone else is

409
Permit 200.100.50.1,5,13,29,42,77
Sometimes a group of addresses has no pattern and the
best way to deal with them is individually.
(The implicit “deny any” ensures that everyone else is

411
Permit Source Network
access-list 101 permit ip 200.100.50.0 0.0.0.255
0.0.0.0 255.255.255.255
or
access-list 101 permit ip 200.100.50.0 0.0.0.255 any
Implicit deny ip any any

412

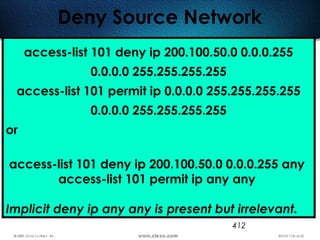

Deny Source Network
access-list 101 deny ip 200.100.50.0 0.0.0.255
0.0.0.0 255.255.255.255
0.0.0.0 255.255.255.255
or
access-list 101 deny ip 200.100.50.0 0.0.0.255 any
access-list 101 permit ip any any
Implicit deny ip any any is present but irrelevant.

413

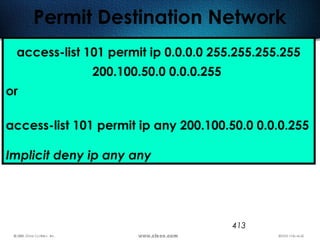

Permit Destination Network
200.100.50.0 0.0.0.255
or
access-list 101 permit ip any 200.100.50.0 0.0.0.255

414
Deny Destination Network
200.100.50.0 0.0.0.255
0.0.0.0 255.255.255.255
or
access-list 101 deny ip any 200.100.50.0 0.0.0.255
Implicit deny ip any any is present but irrelevant.

415

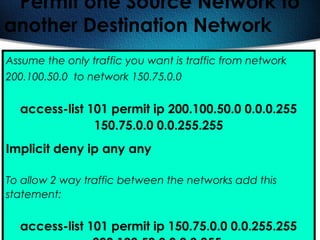

Permit one Source Network to
another Destination Network
Assume the only traffic you want is traffic from network
200.100.50.0 to network 150.75.0.0
150.75.0.0 0.0.255.255
To allow 2 way traffic between the networks add this
statement:

416

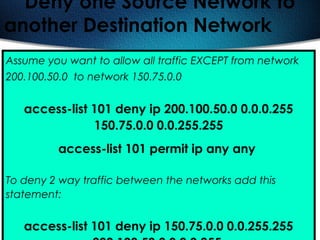

Deny one Source Network to
another Destination Network
Assume you want to allow all traffic EXCEPT from network
200.100.50.0 to network 150.75.0.0
150.75.0.0 0.0.255.255
To deny 2 way traffic between the networks add this
statement:

417

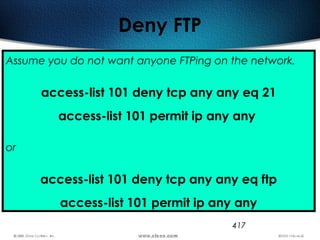

Deny FTP
Assume you do not want anyone FTPing on the network.
access-list 101 deny tcp any any eq 21
or
access-list 101 deny tcp any any eq ftp

418

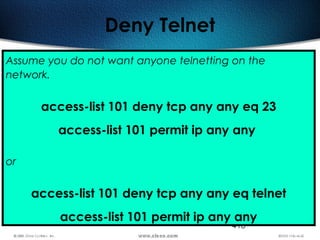

Deny Telnet
Assume you do not want anyone telnetting on the
network.
or
access-list 101 deny tcp any any eq telnet

419

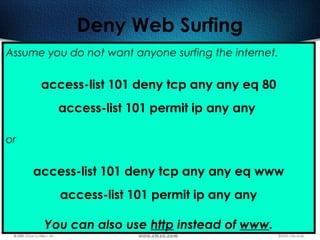

Deny Web Surfing
Assume you do not want anyone surfing the internet.
or
access-list 101 deny tcp any any eq www
You can also use http instead of www.

420

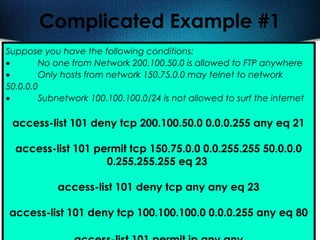

Complicated Example #1
Suppose you have the following conditions:
• No one from Network 200.100.50.0 is allowed to FTP anywhere
• Only hosts from network 150.75.0.0 may telnet to network
50.0.0.0
• Subnetwork 100.100.100.0/24 is not allowed to surf the internet
access-list 101 deny tcp 200.100.50.0 0.0.0.255 any eq 21
access-list 101 permit tcp 150.75.0.0 0.0.255.255 50.0.0.0
0.255.255.255 eq 23
access-list 101 deny tcp 100.100.100.0 0.0.0.255 any eq 80

421

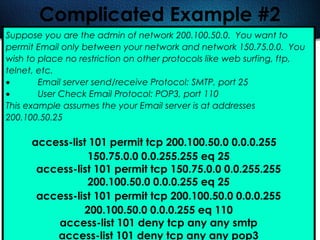

Complicated Example #2
Suppose you are the admin of network 200.100.50.0. You want to
permit Email only between your network and network 150.75.0.0. You
wish to place no restriction on other protocols like web surfing, ftp,
telnet, etc.
• Email server send/receive Protocol: SMTP, port 25
• User Check Email Protocol: POP3, port 110
This example assumes the your Email server is at addresses
200.100.50.25
access-list 101 permit tcp 200.100.50.0 0.0.0.255
150.75.0.0 0.0.255.255 eq 25
200.100.50.0 0.0.0.255 eq 25
200.100.50.0 0.0.0.255 eq 110
access-list 101 deny tcp any any smtp
access-list 101 deny tcp any any pop3

422
NAT
Network Address
Translator
Fig. 3 NAT (TI1332EU02TI_0003 New Address Concepts, 7)

423

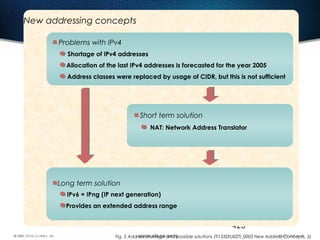

New addressing concepts
Problems with IPv4
Shortage of IPv4 addresses
Allocation of the last IPv4 addresses is forecasted for the year 2005
Address classes were replaced by usage of CIDR, but this is not sufficient
Short term solution
NAT: Network Address Translator
Long term solution
IPv6 = IPng (IP next generation)
Provides an extended address range
Fig. 2 Address shortage and possible solutions (TI1332EU02TI_0003 New Address Concepts, 5)

424
NAT
Translates between local addresses and public ones
Many private hosts share few global addresses
Public Network
Uses public addresses
Public addresses are
globally unique
Private Network
Uses private address range
(local addresses)
Local addresses may not
be used externally
Fig. 4 How does NAT work? (TI1332EU02TI_0003 New Address Concepts, 9)

425

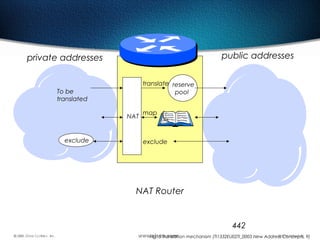

NAT
To be
translated
exclude
reserve
pool
exclude
realm with
private addresses
NAT Router
realm with
public addresses
map
translate
Fig. 5 Translation mechanism (TI1332EU02TI_0003 New Address Concepts, 9)

426

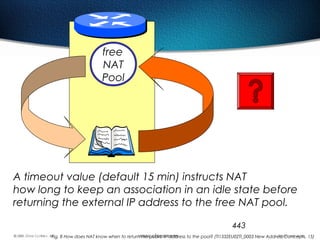

free
NAT
Pool
A timeout value (default 15 min) instructs NAT
how long to keep an association in an idle state before
returning the external IP address to the free NAT pool.
Fig. 8 How does NAT know when to return the public IP address to the pool? (TI1332EU02TI_0003 New Address Concepts, 15)

427

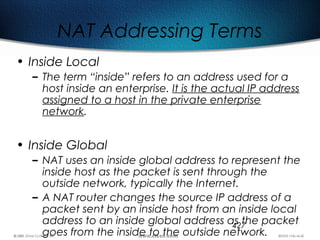

NAT Addressing Terms
• Inside Local
– The term “inside” refers to an address used for a
host inside an enterprise. It is the actual IP address
assigned to a host in the private enterprise
network.
• Inside Global
– NAT uses an inside global address to represent the
inside host as the packet is sent through the
outside network, typically the Internet.
– A NAT router changes the source IP address of a
packet sent by an inside host from an inside local
address to an inside global address as the packet
goes from the inside to the outside network.

428

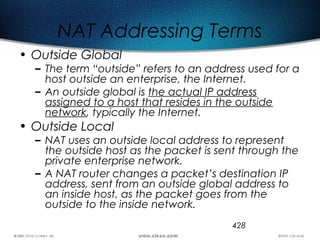

• Outside Global
– The term “outside” refers to an address used for a
host outside an enterprise, the Internet.
– An outside global is the actual IP address
assigned to a host that resides in the outside
network, typically the Internet.
• Outside Local
– NAT uses an outside local address to represent
the outside host as the packet is sent through the
private enterprise network.
– A NAT router changes a packet’s destination IP
address, sent from an outside global address to
an inside host, as the packet goes from the
outside to the inside network.

429
10.47.10.10 192.50.20.5
WAN
Net A
Net B
LAN LAN
192.50.20.0
10.0.0.0
Router Router
RouterRouter
Router
SA = 10.47.10.10SA = 10.47.10.10
DA = 192.50.20.5DA = 192.50.20.5
SA = 193.50.30.4SA = 193.50.30.4
DA = 192.50.20.5DA = 192.50.20.5
Router A with NATRouter A with NAT
Router BRouter B
Fig. 7 An example for NAT (TI1332EU02TI_0003 New Address Concepts, 13)

430
WAN
138.76.29.7
Net A
10.0.0.0/8
Router
Router
Router
SA = 10.0.0.10SA = 10.0.0.10
DA = 138.76.29.7DA = 138.76.29.7
SA = 138.76.28.4SA = 138.76.28.4
DA =138.76.29.7DA =138.76.29.7
NAT with
WAN interface:
138.76.28.4
NAT with
WAN interface:
138.76.28.4
SA = 138.76.29.7SA = 138.76.29.7
DA = 138.76.28.4DA = 138.76.28.4
SA = 138.76.29.7SA = 138.76.29.7
DA = 10.0.0.10DA = 10.0.0.10
10.0.0.10
Fig. 11 An example for NAPT (TI1332EU02TI_0003 New Address Concepts, 21)

431

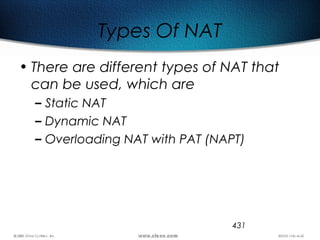

Types Of NAT
• There are different types of NAT that
can be used, which are
– Static NAT
– Dynamic NAT
– Overloading NAT with PAT (NAPT)

432

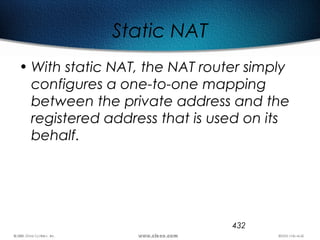

Static NAT
• With static NAT, the NAT router simply
configures a one-to-one mapping
between the private address and the
registered address that is used on its
behalf.

434
Dynamic NAT
• Like static NAT, the NAT router creates
a one-to-one mapping between an
inside local and inside global address
and changes the IP addresses in
packets as they exit and enter the
inside network.
• However, the mapping of an inside
local address to an inside global
address happens dynamically.

435

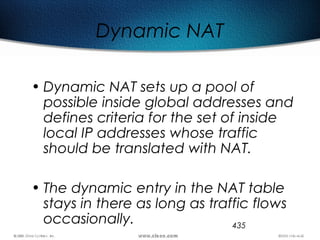

Dynamic NAT
• Dynamic NAT sets up a pool of
possible inside global addresses and
defines criteria for the set of inside
local IP addresses whose traffic
should be translated with NAT.
• The dynamic entry in the NAT table
stays in there as long as traffic flows
occasionally.

436
PAT
Port Address
Translator
Fig. 9 NAPT (TI1332EU02TI_0003 New Address Concepts, 17)

437

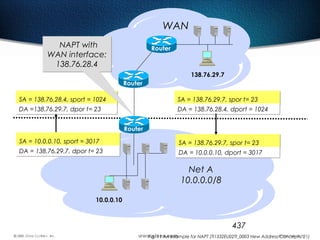

WAN
138.76.29.7
Net A
10.0.0.0/8
Router
Router
Router
SA = 10.0.0.10, sport = 3017SA = 10.0.0.10, sport = 3017
DA = 138.76.29.7, dpor t= 23DA = 138.76.29.7, dpor t= 23
SA = 138.76.28.4, sport = 1024SA = 138.76.28.4, sport = 1024
DA =138.76.29.7, dpor t= 23DA =138.76.29.7, dpor t= 23
NAPT with
WAN interface:
138.76.28.4
NAPT with
WAN interface:
138.76.28.4
SA = 138.76.29.7, spor t= 23SA = 138.76.29.7, spor t= 23
DA = 138.76.28.4, dport = 1024DA = 138.76.28.4, dport = 1024
SA = 138.76.29.7, spor t= 23SA = 138.76.29.7, spor t= 23
DA = 10.0.0.10, dport = 3017DA = 10.0.0.10, dport = 3017
10.0.0.10

438
WAN
private IP network
(e.g. SOHO)
registered IP @,
assigned TU port #
local IP @,
local TU port #
single public
IP address
mapping
pool of TU port numbers
PAT with e.g. a single public IP addressPAT with e.g. a single public IP address
TU....TCP/UDP

439
NAT&PAT
Network Address Translation
&
Port Address Transation
Fig. 3 NAT (TI1332EU02TI_0003 New Address Concepts, 7)

440
New addressing concepts
Problems with IPv4
Shortage of IPv4 addresses
Allocation of the last IPv4 addresses is forecasted for the year 2006
Address classes were replaced by usage of CIDR, but this is not sufficient
Short term solution
Long term solution
IPv6 = IPng (IP next generation)
Provides an extended address range

441

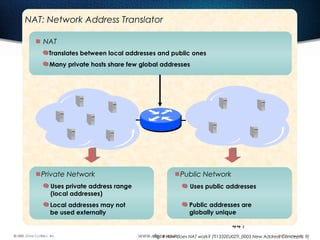

NAT
Translates between local addresses and public ones
Many private hosts share few global addresses
Public Network
Uses public addresses
Public addresses are
globally unique
Private Network
Uses private address range
(local addresses)
Local addresses may not
be used externally
Fig. 4 How does NAT work? (TI1332EU02TI_0003 New Address Concepts, 9)

442
NAT
To be
translated
exclude
reserve
pool
exclude
private addresses
NAT Router
public addresses
map
translate
Fig. 5 Translation mechanism (TI1332EU02TI_0003 New Address Concepts, 9)

443
free
NAT
Pool
A timeout value (default 15 min) instructs NAT
how long to keep an association in an idle state before
returning the external IP address to the free NAT pool.
Fig. 8 How does NAT know when to return the public IP address to the pool? (TI1332EU02TI_0003 New Address Concepts, 15)

444
• Inside Local “Private address”
– The term “inside” refers to an address used for a
host inside an enterprise. It is the actual IP address
assigned to a host in the private enterprise
network.
• Inside Global “Public address”
– NAT uses an inside global address to represent the
inside host as the packet is sent through the
outside network, typically the WAN.
– A NAT router changes the source IP address of a
packet sent by an inside host from an inside local
address to an inside global address as the packet
goes from the inside to the outside network.Fig. 2 Address shortage and possible solutions (TI1332EU02TI_0003 New Address Concepts, 5)

445

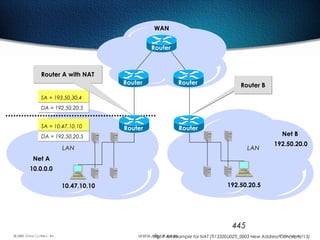

10.47.10.10 192.50.20.5
WAN
Net A
Net B
LAN LAN
192.50.20.0
10.0.0.0
Router Router
RouterRouter
Router
SA = 10.47.10.10SA = 10.47.10.10
DA = 192.50.20.5DA = 192.50.20.5
SA = 193.50.30.4SA = 193.50.30.4
DA = 192.50.20.5DA = 192.50.20.5
Router A with NATRouter A with NAT
Router BRouter B
Fig. 7 An example for NAT (TI1332EU02TI_0003 New Address Concepts, 13)

446
WAN
138.76.29.7
Net A
10.0.0.0/8
Router
Router
Router
SA = 10.0.0.10SA = 10.0.0.10
DA = 138.76.29.7DA = 138.76.29.7
SA = 138.76.28.4SA = 138.76.28.4
DA =138.76.29.7DA =138.76.29.7
NAT with
WAN interface:
138.76.28.4
NAT with
WAN interface:
138.76.28.4
SA = 138.76.29.7SA = 138.76.29.7
DA = 138.76.28.4DA = 138.76.28.4
SA = 138.76.29.7SA = 138.76.29.7
DA = 10.0.0.10DA = 10.0.0.10
10.0.0.10

447

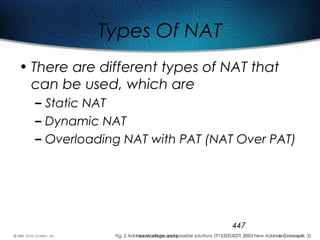

Types Of NAT
• There are different types of NAT that
can be used, which are
– Static NAT
– Dynamic NAT
– Overloading NAT with PAT (NAT Over PAT)

448

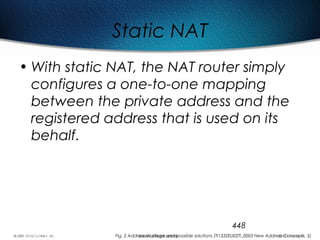

Static NAT
• With static NAT, the NAT router simply
configures a one-to-one mapping
between the private address and the
registered address that is used on its
behalf.

450

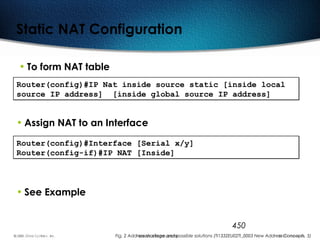

Static NAT Configuration
• To form NAT table
Router(config)#IP Nat inside source static [inside local
source IP address] [inside global source IP address]
Router(config)#IP Nat inside source static [inside local
source IP address] [inside global source IP address]
• Assign NAT to an Interface
Router(config)#Interface [Serial x/y]
Router(config-if)#IP NAT [Inside]
• See Example

451

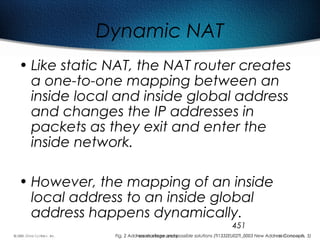

Dynamic NAT
• Like static NAT, the NAT router creates
a one-to-one mapping between an
inside local and inside global address
and changes the IP addresses in
packets as they exit and enter the
inside network.
• However, the mapping of an inside
local address to an inside global
address happens dynamically.

452

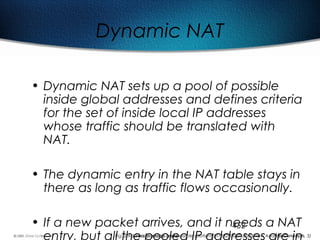

Dynamic NAT
• Dynamic NAT sets up a pool of possible
inside global addresses and defines criteria
for the set of inside local IP addresses
whose traffic should be translated with
NAT.
• The dynamic entry in the NAT table stays in
there as long as traffic flows occasionally.
• If a new packet arrives, and it needs a NAT
entry, but all the pooled IP addresses are inFig. 2 Address shortage and possible solutions (TI1332EU02TI_0003 New Address Concepts, 5)

453
Dynamic NAT Configuration
• Specify inside addresses to be translated
Router(config)#IP Nat inside source list [standard Access
List number] pool [NAT Pool Name]
List number] pool [NAT Pool Name]
• Specify NAT pool
Router(config)#IP Nat pool [NAT Pool Name] [First inside
global address] [Last inside global address] netmask
[subnet mask]
[subnet mask]
• Assign NAT to an Interface
• See Example

454
PAT
Port Address
Translator

455
WAN
138.76.29.7
Net A
10.0.0.0/8
Router
Router
Router
SA = 10.0.0.10, sport = 3017SA = 10.0.0.10, sport = 3017
DA = 138.76.29.7, dpor t= 23DA = 138.76.29.7, dpor t= 23
SA = 138.76.28.4, sport = 1024SA = 138.76.28.4, sport = 1024
DA =138.76.29.7, dpor t= 23DA =138.76.29.7, dpor t= 23
NAPT with
WAN interface:
138.76.28.4
NAPT with
WAN interface:
138.76.28.4
SA = 138.76.29.7, spor t= 23SA = 138.76.29.7, spor t= 23
DA = 138.76.28.4, dport = 1024DA = 138.76.28.4, dport = 1024
SA = 138.76.29.7, spor t= 23SA = 138.76.29.7, spor t= 23
DA = 10.0.0.10, dport = 3017DA = 10.0.0.10, dport = 3017
10.0.0.10

456

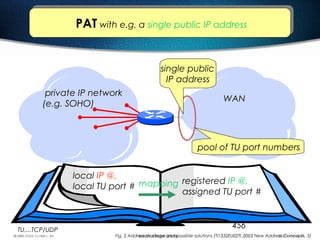

WAN
private IP network
(e.g. SOHO)
registered IP @,
assigned TU port #
local IP @,
local TU port #
single public
IP address
mapping
pool of TU port numbers
PAT with e.g. a single public IP addressPAT with e.g. a single public IP address
TU....TCP/UDP

457
PAT Configuration
• Specify inside addresses to be translated
List number] pool [NAT Pool Name] overload
List number] pool [NAT Pool Name] overload
• Specify PAT pool
[subnet mask]
[subnet mask]
• Assign PAT to an Interface
• See Example

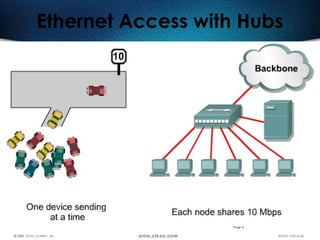

460

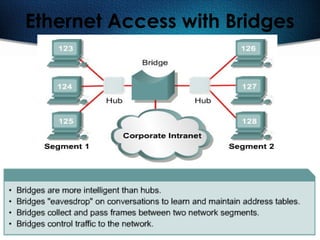

Ethernet Access with Bridges

461
Ethernet Access with Switches

463
Full Duplex Transmitting
Full-duplex Ethernet allows the transmission of a packet and the reception of
a different packet at the same time.
This simultaneous transmission and reception requires the use of two pairs of
wires in the cable and a switched connection between each node. This
connection is considered point-to-point and is collision free.
The full-duplex Ethernet switch takes advantage of the two pairs of wires in
the cable by creating a direct connection between the transmit (TX) at one
end of the circuit and the receive (RX) at the other end.
Ethernet usually can only use 50%-60% of the available 10 Mbps of
bandwidth because of collisions and latency. Full-duplex Ethernet offers
100% of the bandwidth in both directions. This produces a potential 20 Mbps
throughput.

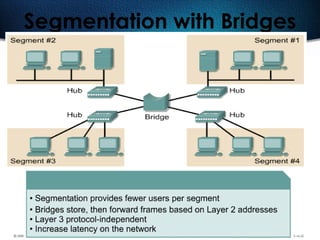

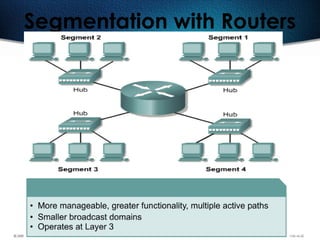

468

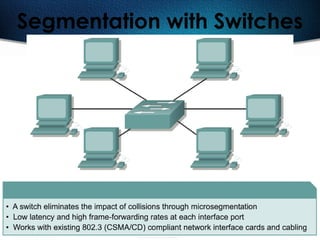

Segmentation with Switches

469

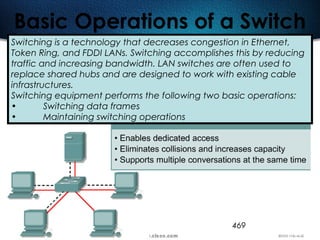

Basic Operations of a Switch
Switching is a technology that decreases congestion in Ethernet,
Token Ring, and FDDI LANs. Switching accomplishes this by reducing
traffic and increasing bandwidth. LAN switches are often used to
replace shared hubs and are designed to work with existing cable
infrastructures.
Switching equipment performs the following two basic operations:
• Switching data frames
• Maintaining switching operations

470
Switching Methods
1. Store-and-Forward
The entire frame is received before any forwarding takes place.
Filters are applied before the frame is forwarded. Most reliable and
also most latency especially when frames are large.
2. Cut-Through
The frame is forwarded through the switch before the entire frame is
received. At a minimum the frame destination address must be read
before the frame can be forwarded. This mode decreases the
latency of the transmission, but also reduces error detection.
3. Fragment-Free
Fragment-free switching filters out collision fragments before
forwarding begins. Collision fragments are the majority of packet
errors. In a properly functioning network, collision fragments must be
smaller than 64 bytes. Anything > 64 bytes is a valid packet and is
usually received without error.

473

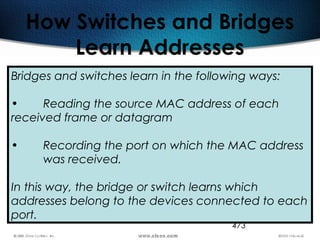

How Switches and Bridges
Learn Addresses
Bridges and switches learn in the following ways:
• Reading the source MAC address of each
received frame or datagram
• Recording the port on which the MAC address
was received.
In this way, the bridge or switch learns which
addresses belong to the devices connected to each
port.

474

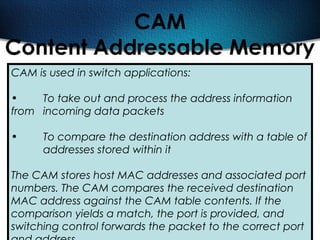

CAM
Content Addressable Memory
CAM is used in switch applications:
• To take out and process the address information
from incoming data packets
• To compare the destination address with a table of
addresses stored within it
The CAM stores host MAC addresses and associated port
numbers. The CAM compares the received destination
MAC address against the CAM table contents. If the
comparison yields a match, the port is provided, and
switching control forwards the packet to the correct port

475

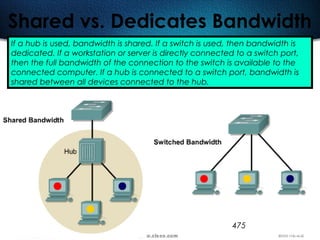

Shared vs. Dedicates Bandwidth
If a hub is used, bandwidth is shared. If a switch is used, then bandwidth is
dedicated. If a workstation or server is directly connected to a switch port,
then the full bandwidth of the connection to the switch is available to the
connected computer. If a hub is connected to a switch port, bandwidth is
shared between all devices connected to the hub.

476
Microsegmentation of a Network

478

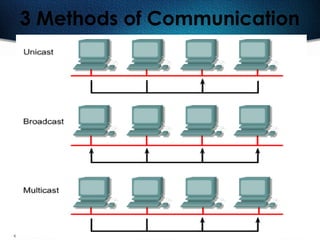

3 Methods of Communication

479

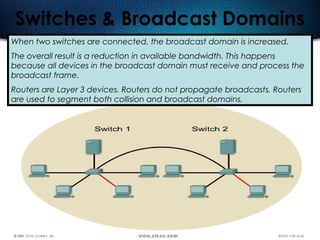

Switches & Broadcast Domains
When two switches are connected, the broadcast domain is increased.
The overall result is a reduction in available bandwidth. This happens
because all devices in the broadcast domain must receive and process the
broadcast frame.
Routers are Layer 3 devices. Routers do not propagate broadcasts. Routers
are used to segment both collision and broadcast domains.

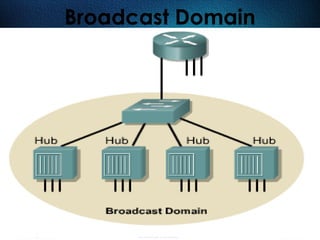

482

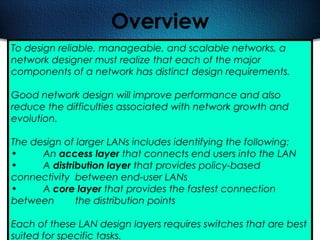

Overview
To design reliable, manageable, and scalable networks, a
network designer must realize that each of the major
components of a network has distinct design requirements.
Good network design will improve performance and also
reduce the difficulties associated with network growth and
evolution.
The design of larger LANs includes identifying the following:
• An access layer that connects end users into the LAN
• A distribution layer that provides policy-based
connectivity between end-user LANs
• A core layer that provides the fastest connection
between the distribution points
Each of these LAN design layers requires switches that are best
suited for specific tasks.

483

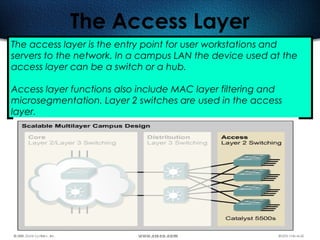

The Access Layer
The access layer is the entry point for user workstations and
servers to the network. In a campus LAN the device used at the
access layer can be a switch or a hub.
Access layer functions also include MAC layer filtering and
microsegmentation. Layer 2 switches are used in the access
layer.

484
Access Layer Switches
Access layer switches operate at Layer 2 of the OSI model
The main purpose of an access layer switch is to allow end users into
the network.
An access layer switch should provide this functionality with low cost
and high port density.
The following Cisco switches are commonly used at the access
layer:
• Catalyst 1900 series

485

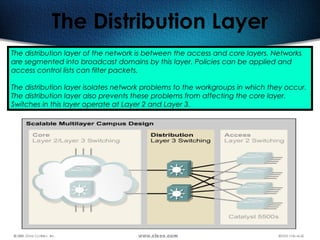

The Distribution Layer
The distribution layer of the network is between the access and core layers. Networks
are segmented into broadcast domains by this layer. Policies can be applied and
access control lists can filter packets.
The distribution layer isolates network problems to the workgroups in which they occur.
The distribution layer also prevents these problems from affecting the core layer.
Switches in this layer operate at Layer 2 and Layer 3.

486

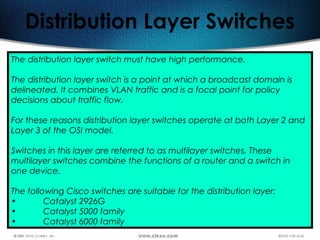

Distribution Layer Switches
The distribution layer switch must have high performance.
The distribution layer switch is a point at which a broadcast domain is
delineated. It combines VLAN traffic and is a focal point for policy
decisions about traffic flow.
For these reasons distribution layer switches operate at both Layer 2 and
Layer 3 of the OSI model.
Switches in this layer are referred to as multilayer switches. These
multilayer switches combine the functions of a router and a switch in
one device.
The following Cisco switches are suitable for the distribution layer:
• Catalyst 2926G
• Catalyst 5000 family
• Catalyst 6000 family

487
The Core Layer
The core layer is a high-speed switching backbone.
This layer of the network design should not perform any packet
manipulation. Packet manipulation, such as access list filtering, would slow
down the process.
Providing a core infrastructure with redundant alternate paths gives stability
to the network in the event of a single device failure.
The core can be designed to use Layer 2 or Layer 3 switching. Asynchronous
Transfer Mode (ATM) or Ethernet switches can be used.

488

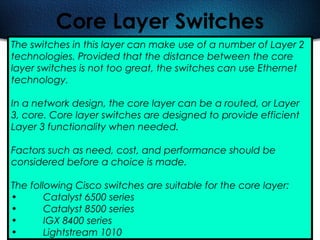

Core Layer Switches
The switches in this layer can make use of a number of Layer 2
technologies. Provided that the distance between the core
layer switches is not too great, the switches can use Ethernet
technology.
In a network design, the core layer can be a routed, or Layer
3, core. Core layer switches are designed to provide efficient
Layer 3 functionality when needed.
Factors such as need, cost, and performance should be
considered before a choice is made.
The following Cisco switches are suitable for the core layer:
• IGX 8400 series
• Lightstream 1010

490
Physical Startup of the Catalyst
SwitchSwitches are dedicated, specialized
computers, which contain a CPU, RAM,
and an operating system.
Switches usually have several ports for
the purpose of connecting hosts, as well
as specialized ports for the purpose of
management.
A switch can be managed by
connecting to the console port to view
and make changes to the configuration.
Switches typically have no power switch
to turn them on and off. They simply
connect or disconnect from a power
source.
Several switches from the Cisco Catalyst
2950 series are shown in graphic to the

491

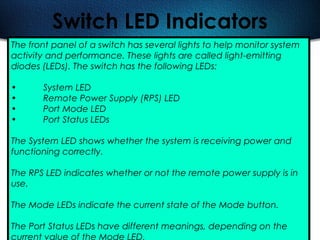

Switch LED Indicators
The front panel of a switch has several lights to help monitor system
activity and performance. These lights are called light-emitting
diodes (LEDs). The switch has the following LEDs:
• System LED
• Remote Power Supply (RPS) LED
• Port Mode LED
• Port Status LEDs
The System LED shows whether the system is receiving power and
functioning correctly.
The RPS LED indicates whether or not the remote power supply is in
use.
The Mode LEDs indicate the current state of the Mode button.
The Port Status LEDs have different meanings, depending on the
current value of the Mode LED.

492

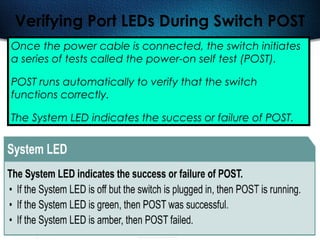

Verifying Port LEDs During Switch POST
Once the power cable is connected, the switch initiates
a series of tests called the power-on self test (POST).
POST runs automatically to verify that the switch
functions correctly.
The System LED indicates the success or failure of POST.

493
Connecting a Switch to a Computer

494

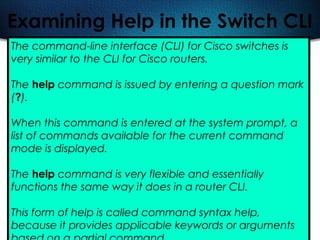

Examining Help in the Switch CLI
The command-line interface (CLI) for Cisco switches is
very similar to the CLI for Cisco routers.
The help command is issued by entering a question mark
(?).
When this command is entered at the system prompt, a
list of commands available for the current command
mode is displayed.
The help command is very flexible and essentially
functions the same way it does in a router CLI.
This form of help is called command syntax help,
because it provides applicable keywords or arguments

495

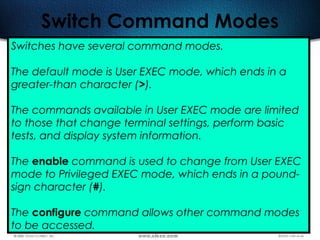

Switch Command Modes
Switches have several command modes.
The default mode is User EXEC mode, which ends in a
greater-than character (>).
The commands available in User EXEC mode are limited
to those that change terminal settings, perform basic
tests, and display system information.
The enable command is used to change from User EXEC
mode to Privileged EXEC mode, which ends in a pound-
sign character (#).
The configure command allows other command modes
to be accessed.

496

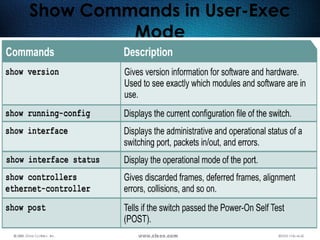

Show Commands in User-Exec
Mode

497

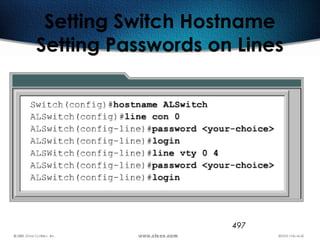

Setting Switch Hostname
Setting Passwords on Lines

499

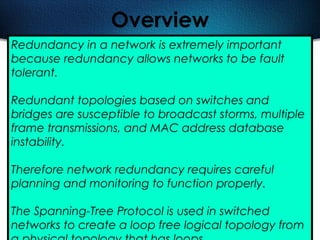

Overview
Redundancy in a network is extremely important
because redundancy allows networks to be fault
tolerant.
Redundant topologies based on switches and
bridges are susceptible to broadcast storms, multiple
frame transmissions, and MAC address database
instability.
Therefore network redundancy requires careful
planning and monitoring to function properly.
The Spanning-Tree Protocol is used in switched
networks to create a loop free logical topology from

500

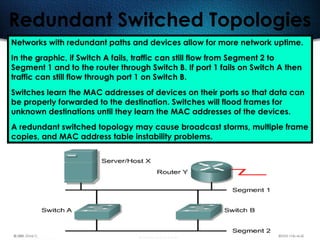

Redundant Switched Topologies
Networks with redundant paths and devices allow for more network uptime.
In the graphic, if Switch A fails, traffic can still flow from Segment 2 to
Segment 1 and to the router through Switch B. If port 1 fails on Switch A then
traffic can still flow through port 1 on Switch B.
Switches learn the MAC addresses of devices on their ports so that data can
be properly forwarded to the destination. Switches will flood frames for
unknown destinations until they learn the MAC addresses of the devices.
A redundant switched topology may cause broadcast storms, multiple frame
copies, and MAC address table instability problems.

501

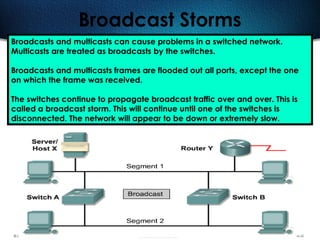

Broadcast Storms
Broadcasts and multicasts can cause problems in a switched network.
Multicasts are treated as broadcasts by the switches.
Broadcasts and multicasts frames are flooded out all ports, except the one
on which the frame was received.
The switches continue to propagate broadcast traffic over and over. This is
called a broadcast storm. This will continue until one of the switches is
disconnected. The network will appear to be down or extremely slow.

502
Multiple Frame Transmissions
In a redundant switched network it is possible for an end device to receive
multiple frames. Assume that the MAC address of Router Y has been timed
out by both switches. Also assume that Host X still has the MAC address of
Router Y in its ARP cache and sends a unicast frame to Router Y. The router
receives the frame because it is on the same segment as Host X. Switch A
does not have the MAC address of the Router Y and will therefore flood the
frame out its ports. Switch B also does not know which port Router Y is on.
Switch B then floods the frame it received causing Router Y to receive
multiple copies of the same frame. This is a cause of unnecessary processing
in all devices.

503

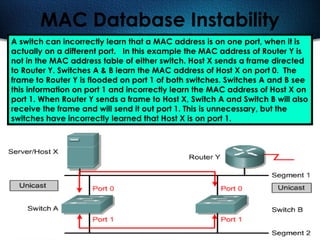

MAC Database Instability
A switch can incorrectly learn that a MAC address is on one port, when it is
actually on a different port. In this example the MAC address of Router Y is
not in the MAC address table of either switch. Host X sends a frame directed
to Router Y. Switches A & B learn the MAC address of Host X on port 0. The
frame to Router Y is flooded on port 1 of both switches. Switches A and B see
this information on port 1 and incorrectly learn the MAC address of Host X on
port 1. When Router Y sends a frame to Host X, Switch A and Switch B will also
receive the frame and will send it out port 1. This is unnecessary, but the
switches have incorrectly learned that Host X is on port 1.

504

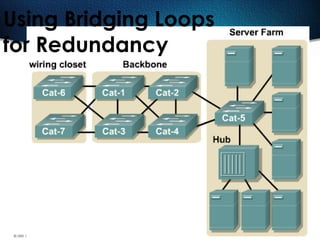

Using Bridging Loops
for Redundancy

505

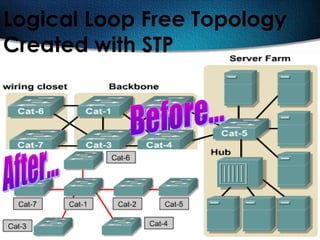

Logical Loop Free Topology
Created with STP

506

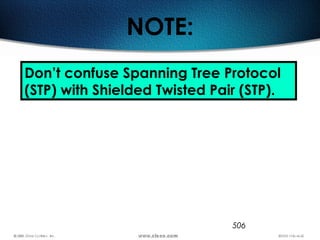

NOTE:
Don’t confuse Spanning Tree Protocol
(STP) with Shielded Twisted Pair (STP).

507
Spanning Tree Protocol - 1
Ethernet bridges
and switches can
implement the
IEEE 802.1D
Spanning-Tree
Protocol and use
the spanning-tree
algorithm to
construct a loop
free shortest path
network.
Shortest path is
based on
cumulative link
costs.
Link costs are
based on the
speed of the link.

508

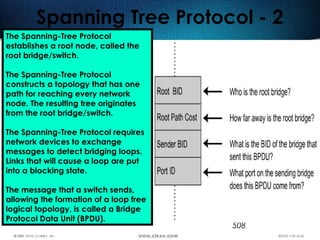

Spanning Tree Protocol - 2
The Spanning-Tree Protocol
establishes a root node, called the
root bridge/switch.
The Spanning-Tree Protocol
constructs a topology that has one
path for reaching every network
node. The resulting tree originates
from the root bridge/switch.
The Spanning-Tree Protocol requires
network devices to exchange
messages to detect bridging loops.
Links that will cause a loop are put
into a blocking state.
The message that a switch sends,
allowing the formation of a loop free
logical topology, is called a Bridge
Protocol Data Unit (BPDU).

509

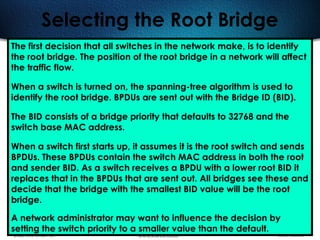

Selecting the Root Bridge
The first decision that all switches in the network make, is to identify
the root bridge. The position of the root bridge in a network will affect
the traffic flow.
When a switch is turned on, the spanning-tree algorithm is used to
identify the root bridge. BPDUs are sent out with the Bridge ID (BID).
The BID consists of a bridge priority that defaults to 32768 and the
switch base MAC address.
When a switch first starts up, it assumes it is the root switch and sends
BPDUs. These BPDUs contain the switch MAC address in both the root
and sender BID. As a switch receives a BPDU with a lower root BID it
replaces that in the BPDUs that are sent out. All bridges see these and
decide that the bridge with the smallest BID value will be the root
bridge.
A network administrator may want to influence the decision by
setting the switch priority to a smaller value than the default.

510

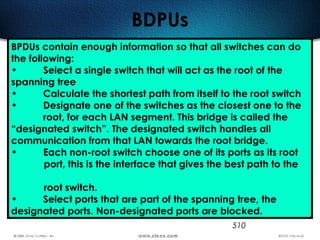

BDPUs
BPDUs contain enough information so that all switches can do
the following:
• Select a single switch that will act as the root of the
spanning tree
• Calculate the shortest path from itself to the root switch
• Designate one of the switches as the closest one to the
root, for each LAN segment. This bridge is called the
“designated switch”. The designated switch handles all
communication from that LAN towards the root bridge.
• Each non-root switch choose one of its ports as its root
port, this is the interface that gives the best path to the
root switch.
• Select ports that are part of the spanning tree, the
designated ports. Non-designated ports are blocked.

511
Spanning Tree Operation
When the network has stabilized, it has converged and there is one spanning
tree per network. As a result, for every switched network the following
elements exist:
• One root bridge per network
• One root port per non root bridge
• One designated port per segment
• Unused, non-designated ports
Root ports and designated ports are used for forwarding (F) data traffic.
Non-designated ports discard data traffic.
Non-designated ports are called blocking (B) or discarding ports.

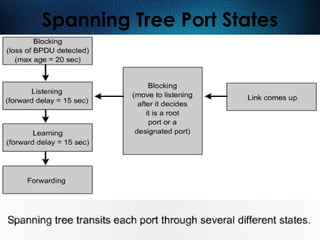

513
Spanning Tree Recalculation
A switched internetwork has converged when all the switch and
bridge ports are in either the forwarding or blocked state.
Forwarding ports send and receive data traffic and BPDUs.
Blocked ports will only receive BPDUs.
When the network topology changes, switches and bridges
recompute the Spanning Tree and cause a disruption of user
traffic.
Convergence on a new spanning-tree topology using the IEEE
802.1D standard can take up to 50 seconds.
This convergence is made up of the max-age of 20 seconds, plus
the listening forward delay of 15 seconds, and the learning
forward delay of 15 seconds.

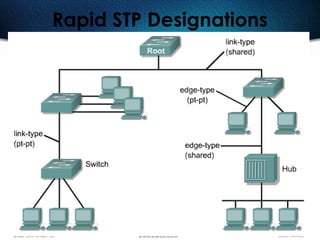

516

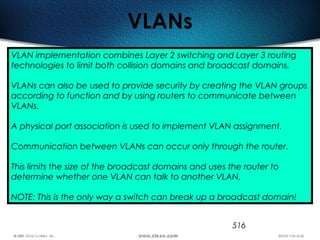

VLANs
VLAN implementation combines Layer 2 switching and Layer 3 routing
technologies to limit both collision domains and broadcast domains.
VLANs can also be used to provide security by creating the VLAN groups
according to function and by using routers to communicate between
VLANs.
A physical port association is used to implement VLAN assignment.
Communication between VLANs can occur only through the router.
This limits the size of the broadcast domains and uses the router to
determine whether one VLAN can talk to another VLAN.
NOTE: This is the only way a switch can break up a broadcast domain!

517

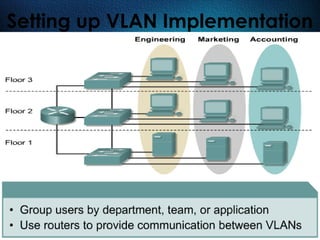

Setting up VLAN Implementation

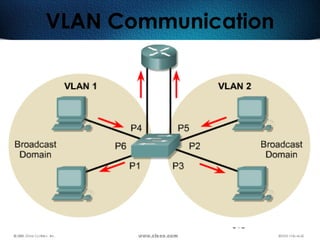

519
VLAN Membership Modes
• VLAN membership can either be static or dynamic.

520

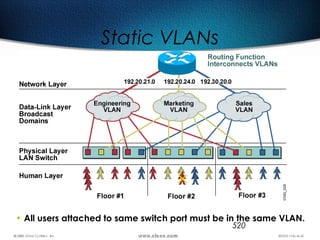

• All users attached to same switch port must be in the same VLAN.
Static VLANs

521

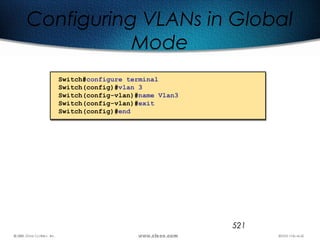

Configuring VLANs in Global
Mode
Switch#configure terminal
Switch(config)#vlan 3
Switch(config-vlan)#name Vlan3
Switch(config-vlan)#exit
Switch(config)#end

522

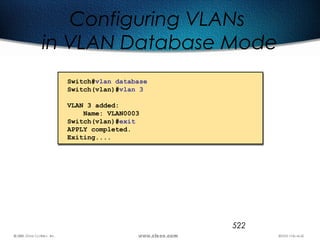

Configuring VLANs
in VLAN Database Mode
Switch#vlan database
Switch(vlan)#vlan 3
VLAN 3 added:
Name: VLAN0003
Switch(vlan)#exit
APPLY completed.
Exiting....

523

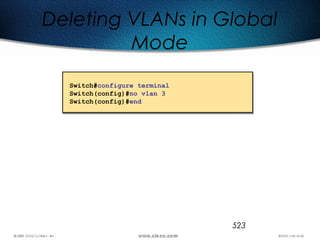

Deleting VLANs in Global
Mode
Switch(config)#no vlan 3
Switch(config)#end

524

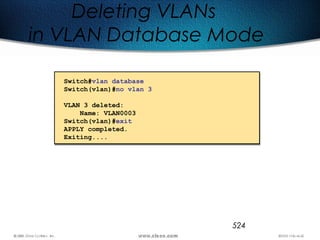

Deleting VLANs
in VLAN Database Mode
Switch#vlan database
Switch(vlan)#no vlan 3
VLAN 3 deleted:
Name: VLAN0003
Switch(vlan)#exit
APPLY completed.
Exiting....

525

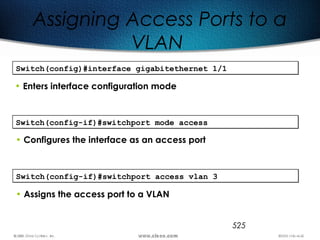

Assigning Access Ports to a
VLAN
Switch(config)#interface gigabitethernet 1/1Switch(config)#interface gigabitethernet 1/1
• Enters interface configuration mode
Switch(config-if)#switchport mode accessSwitch(config-if)#switchport mode access
• Configures the interface as an access port
Switch(config-if)#switchport access vlan 3Switch(config-if)#switchport access vlan 3
• Assigns the access port to a VLAN

526

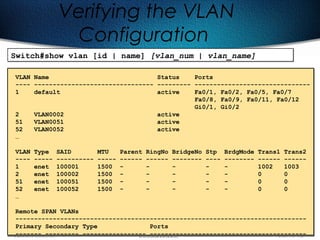

Verifying the VLAN
Configuration
Switch#show vlan [id | name] [vlan_num | vlan_name]Switch#show vlan [id | name] [vlan_num | vlan_name]
VLAN Name Status Ports
---- -------------------------------- --------- -------------------------------
1 default active Fa0/1, Fa0/2, Fa0/5, Fa0/7
Fa0/8, Fa0/9, Fa0/11, Fa0/12
Gi0/1, Gi0/2
2 VLAN0002 active
51 VLAN0051 active
52 VLAN0052 active
…
VLAN Type SAID MTU Parent RingNo BridgeNo Stp BrdgMode Trans1 Trans2
---- ----- ---------- ----- ------ ------ -------- ---- -------- ------ ------
1 enet 100001 1500 - - - - - 1002 1003
2 enet 100002 1500 - - - - - 0 0
51 enet 100051 1500 - - - - - 0 0
52 enet 100052 1500 - - - - - 0 0
…
Remote SPAN VLANs
------------------------------------------------------------------------------
Primary Secondary Type Ports
------- --------- ----------------- ------------------------------------------

527

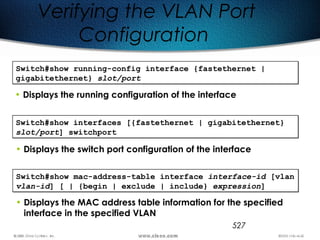

Verifying the VLAN Port
Configuration
Switch#show running-config interface {fastethernet |
gigabitethernet} slot/port
• Displays the running configuration of the interface
Switch#show interfaces [{fastethernet | gigabitethernet}
slot/port] switchport
Switch#show interfaces [{fastethernet | gigabitethernet}
slot/port] switchport
• Displays the switch port configuration of the interface
Switch#show mac-address-table interface interface-id [vlan
vlan-id] [ | {begin | exclude | include} expression]
Switch#show mac-address-table interface interface-id [vlan
vlan-id] [ | {begin | exclude | include} expression]
• Displays the MAC address table information for the specified
interface in the specified VLAN

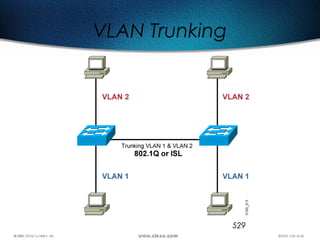

530

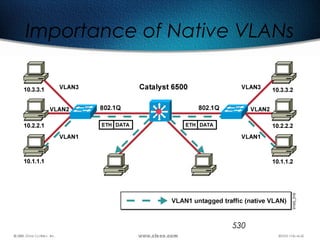

Importance of Native VLANs

531

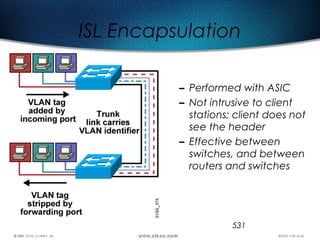

– Performed with ASIC
– Not intrusive to client
stations; client does not
see the header
– Effective between
switches, and between
routers and switches
ISL Encapsulation

532
ISL and Layer 2 Encapsulation

533
Configuring ISL Trunking
Switch(config)#interface fastethernet 2/1Switch(config)#interface fastethernet 2/1
Switch(config-if)#switchport mode trunkSwitch(config-if)#switchport mode trunk
Switch(config-if)#switchport trunk encapsulation [isl|dot1q]Switch(config-if)#switchport trunk encapsulation [isl|dot1q]
•Enters interface configuration mode
•Selects the encapsulation
• Configures the interface as a Layer 2 trunk

534

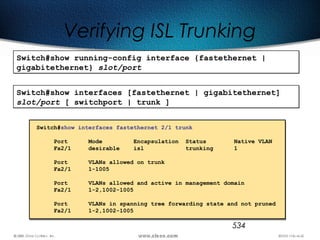

Verifying ISL Trunking
Switch#show interfaces [fastethernet | gigabitethernet]
slot/port [ switchport | trunk ]
Switch#show interfaces fastethernet 2/1 trunk
Port Mode Encapsulation Status Native VLAN
Fa2/1 desirable isl trunking 1
Port VLANs allowed on trunk
Fa2/1 1-1005
Port VLANs allowed and active in management domain
Fa2/1 1-2,1002-1005
Port VLANs in spanning tree forwarding state and not pruned
Fa2/1 1-2,1002-1005

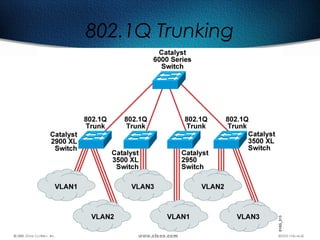

536
Configuring 802.1Q Trunking
Switch(config)#interface fastethernet 5/8
Switch(config-if)#shutdown
Switch(config-if)#switchport trunk encapsulation dot1q
Switch(config-if)#switchport trunk allowed vlan 1,15,11,1002-1005
Switch(config-if)#switchport mode trunk
Switch(config-if)#switchport nonegotiate
Switch(config-if)#no shutdown

537
Verifying 802.1Q Trunking
Switch#show interfaces gigabitEthernet 0/1 switchport
Name: Gi0/1
Switchport: Enabled
Administrative Mode: trunk
Operational Mode: trunk
Administrative Trunking Encapsulation: dot1q
Operational Trunking Encapsulation: dot1q
Negotiation of Trunking: On
Access Mode VLAN: 1 (default)
Trunking Native Mode VLAN: 1 (default)
Trunking VLANs Enabled: ALL
Pruning VLANs Enabled: 2-1001
. . .

539

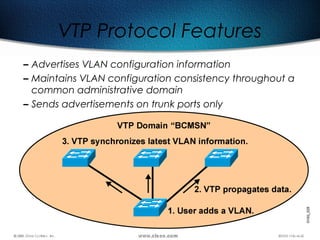

– Advertises VLAN configuration information
– Maintains VLAN configuration consistency throughout a
common administrative domain
– Sends advertisements on trunk ports only
VTP Protocol Features

540

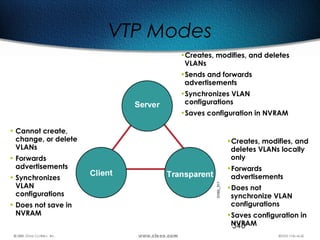

• Cannot create,
change, or delete
VLANs
• Forwards
advertisements
• Synchronizes
VLAN
configurations
• Does not save in
NVRAM
•Creates, modifies, and deletes
VLANs
•Sends and forwards
advertisements
•Synchronizes VLAN
configurations
•Saves configuration in NVRAM
•Creates, modifies, and
deletes VLANs locally
only
•Forwards
advertisements
•Does not
synchronize VLAN
configurations
•Saves configuration in
NVRAM
VTP Modes

541

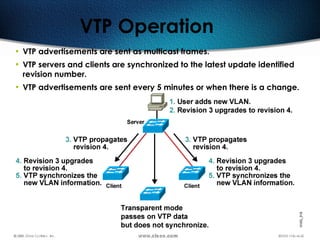

VTP Operation
• VTP advertisements are sent as multicast frames.
• VTP servers and clients are synchronized to the latest update identified
revision number.
• VTP advertisements are sent every 5 minutes or when there is a change.

542

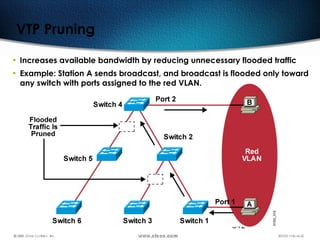

• Increases available bandwidth by reducing unnecessary flooded traffic
• Example: Station A sends broadcast, and broadcast is flooded only toward
any switch with ports assigned to the red VLAN.
VTP Pruning

543

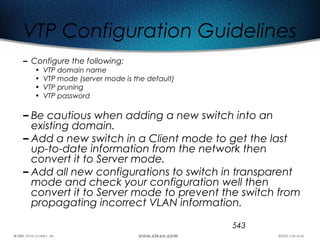

VTP Configuration Guidelines
– Configure the following:
• VTP domain name
• VTP mode (server mode is the default)
• VTP pruning
• VTP password
– Be cautious when adding a new switch into an
existing domain.
– Add a new switch in a Client mode to get the last
up-to-date information from the network then
convert it to Server mode.
– Add all new configurations to switch in transparent
mode and check your configuration well then
convert it to Server mode to prevent the switch from
propagating incorrect VLAN information.

544

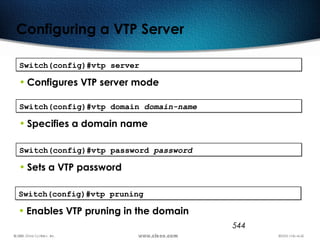

Configuring a VTP Server
Switch(config)#vtp serverSwitch(config)#vtp server
• Configures VTP server mode
Switch(config)#vtp domain domain-nameSwitch(config)#vtp domain domain-name
• Specifies a domain name
Switch(config)#vtp password passwordSwitch(config)#vtp password password
• Sets a VTP password
Switch(config)#vtp pruningSwitch(config)#vtp pruning
• Enables VTP pruning in the domain

545

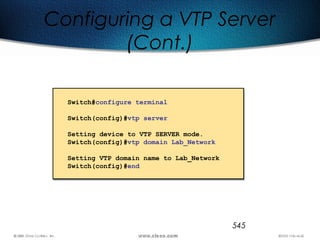

Configuring a VTP Server
(Cont.)
Switch(config)#vtp server
Setting device to VTP SERVER mode.
Switch(config)#vtp domain Lab_Network
Setting VTP domain name to Lab_Network
Switch(config)#end

546

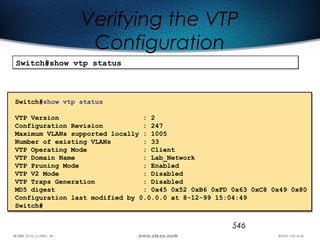

Verifying the VTP
Configuration
Switch#show vtp statusSwitch#show vtp status
Switch#show vtp status
VTP Version : 2
Configuration Revision : 247
Maximum VLANs supported locally : 1005
Number of existing VLANs : 33
VTP Operating Mode : Client
VTP Domain Name : Lab_Network
VTP Pruning Mode : Enabled
VTP V2 Mode : Disabled
VTP Traps Generation : Disabled
MD5 digest : 0x45 0x52 0xB6 0xFD 0x63 0xC8 0x49 0x80
Configuration last modified by 0.0.0.0 at 8-12-99 15:04:49
Switch#

547

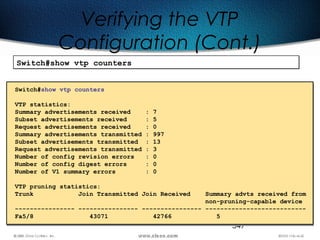

Verifying the VTP
Configuration (Cont.)
Switch#show vtp countersSwitch#show vtp counters
Switch#show vtp counters
VTP statistics:
Summary advertisements received : 7
Subset advertisements received : 5
Request advertisements received : 0
Summary advertisements transmitted : 997
Subset advertisements transmitted : 13
Request advertisements transmitted : 3
Number of config revision errors : 0
Number of config digest errors : 0
Number of V1 summary errors : 0
VTP pruning statistics:
Trunk Join Transmitted Join Received Summary advts received from
non-pruning-capable device
---------------- ---------------- ---------------- ---------------------------
Fa5/8 43071 42766 5

549

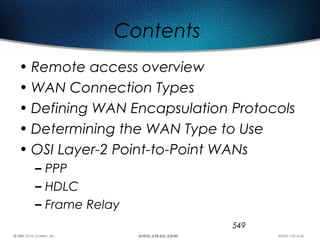

Contents
• Remote access overview
• WAN Connection Types
• Defining WAN Encapsulation Protocols
• Determining the WAN Type to Use
• OSI Layer-2 Point-to-Point WANs
– PPP
– HDLC
– Frame Relay

550

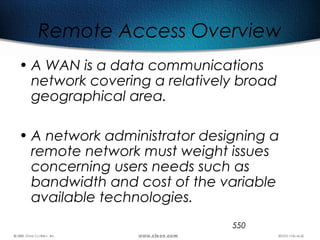

Remote Access Overview
• A WAN is a data communications
network covering a relatively broad
geographical area.
• A network administrator designing a
remote network must weight issues
concerning users needs such as
bandwidth and cost of the variable
available technologies.

552

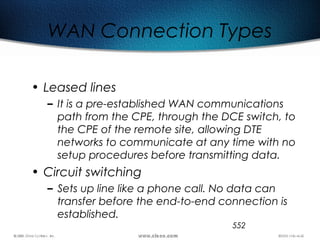

WAN Connection Types
• Leased lines
– It is a pre-established WAN communications
path from the CPE, through the DCE switch, to
the CPE of the remote site, allowing DTE
networks to communicate at any time with no
setup procedures before transmitting data.
• Circuit switching
– Sets up line like a phone call. No data can
transfer before the end-to-end connection is
established.

553
WAN Connection Types
• Packet switching
– WAN switching method that allows you to share
bandwidth with other companies to save money.
As long as you are not constantly transmitting
data and are instead using bursty data transfers,
packet switching can save you a lot of money.
– However, if you have constant data transfers,
then you will need to get a leased line.
– Frame Relay and X.25 are packet switching
technologies.

554

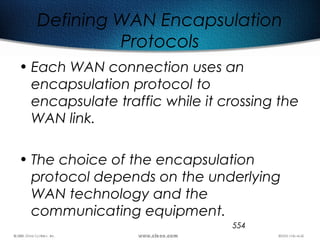

Defining WAN Encapsulation
Protocols
• Each WAN connection uses an
encapsulation protocol to
encapsulate traffic while it crossing the
WAN link.
• The choice of the encapsulation
protocol depends on the underlying
WAN technology and the
communicating equipment.

555

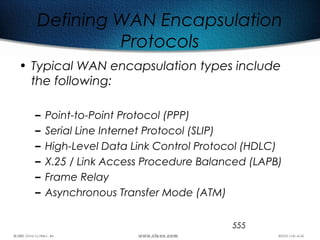

Defining WAN Encapsulation
Protocols
• Typical WAN encapsulation types include
the following:
– Point-to-Point Protocol (PPP)
– Serial Line Internet Protocol (SLIP)
– High-Level Data Link Control Protocol (HDLC)
– X.25 / Link Access Procedure Balanced (LAPB)
– Frame Relay
– Asynchronous Transfer Mode (ATM)

556

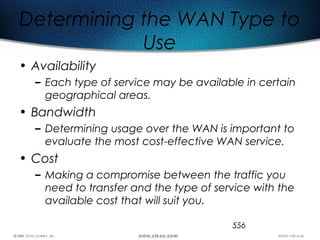

Determining the WAN Type to
Use
• Availability
– Each type of service may be available in certain
geographical areas.
• Bandwidth
– Determining usage over the WAN is important to
evaluate the most cost-effective WAN service.
• Cost
– Making a compromise between the traffic you
need to transfer and the type of service with the
available cost that will suit you.

557
Determining the WAN Type to
Use
• Ease of Management
– Connection management includes both
the initial start-up configuration and the
outgoing configuration of the normal
operation.
• Application Traffic
– Traffic may be as small as during a
terminal session , or very large packets as
during file transfer.

558

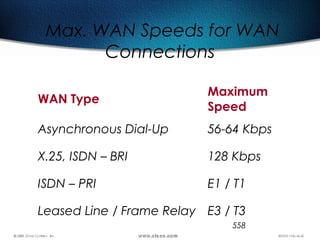

Max. WAN Speeds for WAN
Connections
WAN Type
Maximum
Speed
Asynchronous Dial-Up 56-64 Kbps
X.25, ISDN – BRI 128 Kbps
ISDN – PRI E1 / T1
Leased Line / Frame Relay E3 / T3

559

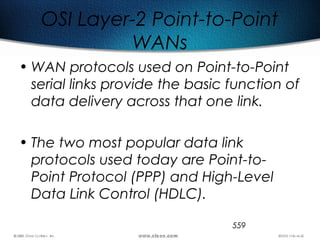

OSI Layer-2 Point-to-Point
WANs
• WAN protocols used on Point-to-Point
serial links provide the basic function of
data delivery across that one link.
• The two most popular data link
protocols used today are Point-to-
Point Protocol (PPP) and High-Level
Data Link Control (HDLC).

560
HDLC
• HDLC performs OSI Layer-2 functions.
• It determines when it is appropriate to
use the physical medium.
• Ensures that the correct recipient
receives and processes the data that
is sent.
• Determines whether the sent data was
received correctly or not (error
detection).

561

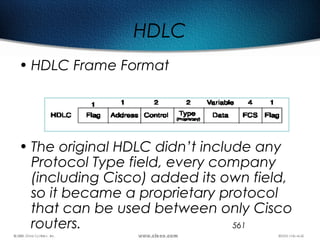

HDLC
• HDLC Frame Format
• The original HDLC didn’t include any
Protocol Type field, every company
(including Cisco) added its own field,
so it became a proprietary protocol
that can be used between only Cisco
routers.

562

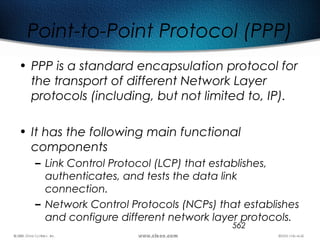

Point-to-Point Protocol (PPP)
• PPP is a standard encapsulation protocol for
the transport of different Network Layer
protocols (including, but not limited to, IP).
• It has the following main functional
components
– Link Control Protocol (LCP) that establishes,
authenticates, and tests the data link
connection.
– Network Control Protocols (NCPs) that establishes
and configure different network layer protocols.

563

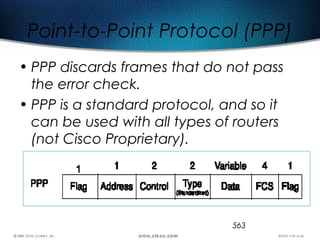

Point-to-Point Protocol (PPP)
• PPP discards frames that do not pass
the error check.
• PPP is a standard protocol, and so it
can be used with all types of routers
(not Cisco Proprietary).

564

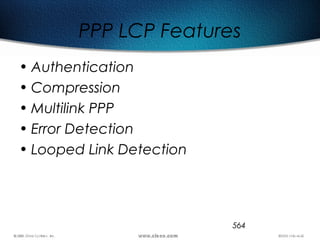

PPP LCP Features
• Authentication
• Compression
• Multilink PPP
• Error Detection
• Looped Link Detection

567

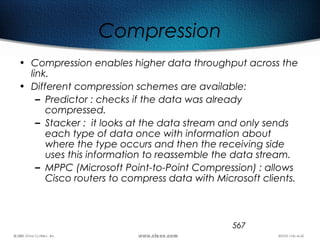

Compression
• Compression enables higher data throughput across the
link.
• Different compression schemes are available:
– Predictor : checks if the data was already
compressed.
– Stacker : it looks at the data stream and only sends
each type of data once with information about
where the type occurs and then the receiving side
uses this information to reassemble the data stream.
– MPPC (Microsoft Point-to-Point Compression) : allows
Cisco routers to compress data with Microsoft clients.

568

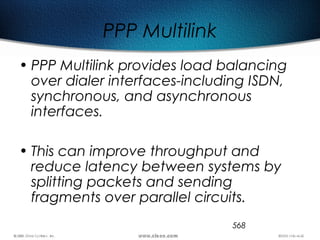

PPP Multilink
• PPP Multilink provides load balancing
over dialer interfaces-including ISDN,
synchronous, and asynchronous
interfaces.
• This can improve throughput and
reduce latency between systems by
splitting packets and sending
fragments over parallel circuits.

569

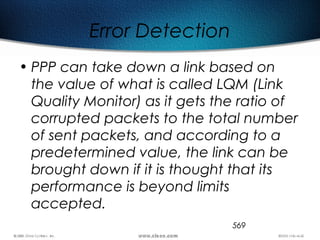

Error Detection
• PPP can take down a link based on
the value of what is called LQM (Link
Quality Monitor) as it gets the ratio of
corrupted packets to the total number
of sent packets, and according to a
predetermined value, the link can be
brought down if it is thought that its
performance is beyond limits
accepted.

570

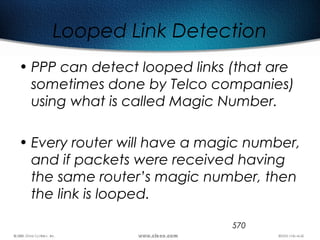

Looped Link Detection
• PPP can detect looped links (that are
sometimes done by Telco companies)
using what is called Magic Number.
• Every router will have a magic number,
and if packets were received having
the same router’s magic number, then
the link is looped.

571

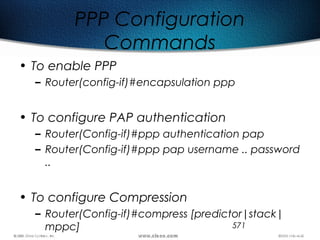

PPP Configuration
Commands
• To enable PPP
– Router(config-if)#encapsulation ppp
• To configure PAP authentication
– Router(Config-if)#ppp authentication pap
– Router(Config-if)#ppp pap username .. password
..
• To configure Compression
– Router(Config-if)#compress [predictor|stack|
mppc]

572
Frame Relay

575

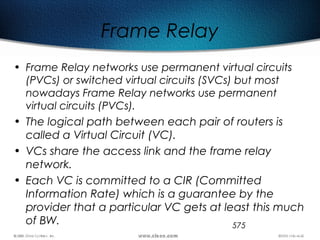

Frame Relay
• Frame Relay networks use permanent virtual circuits
(PVCs) or switched virtual circuits (SVCs) but most
nowadays Frame Relay networks use permanent
virtual circuits (PVCs).
• The logical path between each pair of routers is
called a Virtual Circuit (VC).
• VCs share the access link and the frame relay
network.
• Each VC is committed to a CIR (Committed
Information Rate) which is a guarantee by the
provider that a particular VC gets at least this much
of BW.

576
Video
PBX
Controller
PC
Router
CPE
UNI
ISDN dial-up connection
or
direct connection
(V.35, E1, RS232)
Desktop & LAN Network access Frame Relay
Network
Formats
packets
in frames
Port
PVC
PVC
PVC
SVC
SVC
Switch

577

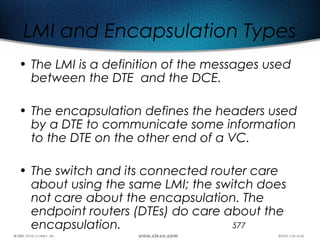

LMI and Encapsulation Types
• The LMI is a definition of the messages used
between the DTE and the DCE.
• The encapsulation defines the headers used
by a DTE to communicate some information
to the DTE on the other end of a VC.
• The switch and its connected router care
about using the same LMI; the switch does
not care about the encapsulation. The
endpoint routers (DTEs) do care about the
encapsulation.

578

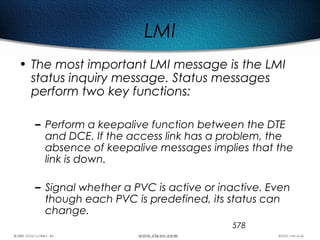

LMI
• The most important LMI message is the LMI
status inquiry message. Status messages
perform two key functions:
– Perform a keepalive function between the DTE
and DCE. If the access link has a problem, the
absence of keepalive messages implies that the
link is down.
– Signal whether a PVC is active or inactive. Even
though each PVC is predefined, its status can
change.

580
LAPF
• A Frame Relay-connected router
encapsulates each Layer 3 packet inside a
Frame Relay header and trailer before it is
sent out an access link.
• The header and trailer are defined by the Link
Access Procedure Frame Bearer Services
(LAPF) specification.
• The LAPF framing provides error detection
with an FCS in the trailer, as well as the DLCI,
DE, FECN, and BECN fields in the header.

581

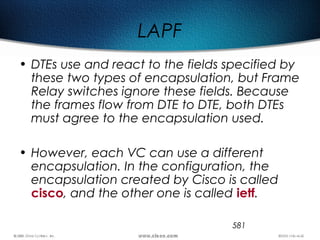

LAPF
• DTEs use and react to the fields specified by
these two types of encapsulation, but Frame
Relay switches ignore these fields. Because
the frames flow from DTE to DTE, both DTEs
must agree to the encapsulation used.
• However, each VC can use a different
encapsulation. In the configuration, the
encapsulation created by Cisco is called
cisco, and the other one is called ietf.

582
DLCI Addressing Details
• The logical path between a pair of DTEs is
called a virtual circuit (VC).
• The data-link connection identifier (DLCI)
identifies each individual PVC.
• When multiple VCs use the same access link,
the Frame Relay switches know how to forward
the frames to the correct remote sites.
The DLCI is the Frame Relay address
describing a Virtual Circuit

583

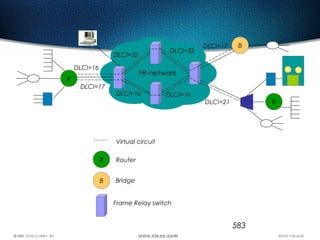

B
R
R
Virtual circuit
Router
Bridge
Frame Relay switch
R
B
FR-network
DLCI=16
DLCI=32
DLCI=16 DLCI=16
DLCI=21
DLCI=17
DLCI=17
DLCI=32

584

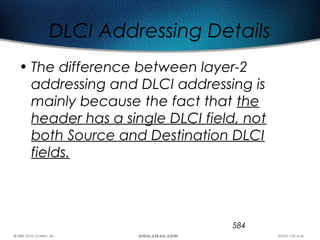

DLCI Addressing Details
• The difference between layer-2
addressing and DLCI addressing is
mainly because the fact that the
header has a single DLCI field, not
both Source and Destination DLCI
fields.

585
Global DLCI Addressing
• Frame Relay DLCIs are locally significant; this
means that the addresses need to be
unique only on the local access link.
• Global addressing is simply a way of
choosing DLCI numbers when planning a
Frame Relay network so that working with
DLCIs is much easier.
• Because local addressing is a fact, global
addressing does not change these rules.
Global addressing just makes DLCI
assignment more obvious.

587

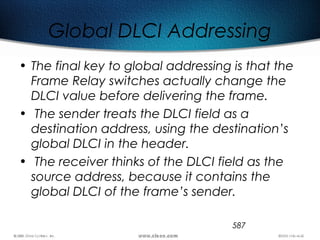

Global DLCI Addressing
• The final key to global addressing is that the
Frame Relay switches actually change the
DLCI value before delivering the frame.
• The sender treats the DLCI field as a
destination address, using the destination’s
global DLCI in the header.
• The receiver thinks of the DLCI field as the
source address, because it contains the
global DLCI of the frame’s sender.

588

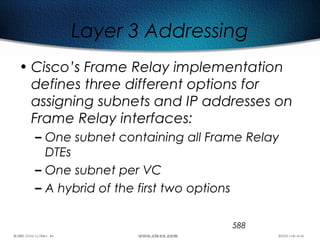

Layer 3 Addressing
• Cisco’s Frame Relay implementation
defines three different options for
assigning subnets and IP addresses on
Frame Relay interfaces:
– One subnet containing all Frame Relay
DTEs
– One subnet per VC
– A hybrid of the first two options

589

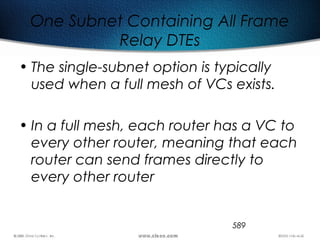

One Subnet Containing All Frame
Relay DTEs
• The single-subnet option is typically
used when a full mesh of VCs exists.
• In a full mesh, each router has a VC to
every other router, meaning that each
router can send frames directly to
every other router

592

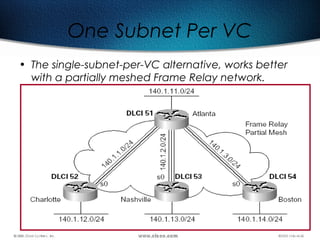

One Subnet Per VC
• The single-subnet-per-VC alternative, works better
with a partially meshed Frame Relay network.

594

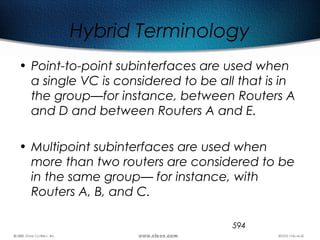

Hybrid Terminology
• Point-to-point subinterfaces are used when
a single VC is considered to be all that is in
the group—for instance, between Routers A
and D and between Routers A and E.
• Multipoint subinterfaces are used when
more than two routers are considered to be
in the same group— for instance, with
Routers A, B, and C.

597
Frame Relay Address
Mapping
• Mapping creates a correlation between a
Layer-3 address (IP Address) and its
corresponding Layer-2 address (DLCI in
Frame Relay).
• It is used so that after the router receives the
packet with the intended IP address could
be able to handle it to the right Frame Relay
switch (with the appropriate DLCI)

598

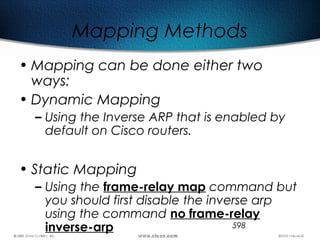

Mapping Methods
• Mapping can be done either two
ways:
• Dynamic Mapping
– Using the Inverse ARP that is enabled by
default on Cisco routers.
• Static Mapping
– Using the frame-relay map command but
you should first disable the inverse arp
using the command no frame-relay
inverse-arp

602
Integrated Services Digital
Network (ISDN)

606

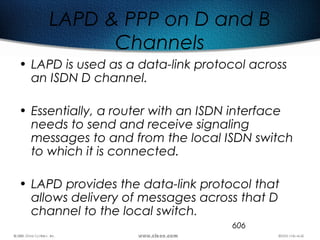

LAPD & PPP on D and B
Channels
• LAPD is used as a data-link protocol across
an ISDN D channel.
• Essentially, a router with an ISDN interface
needs to send and receive signaling
messages to and from the local ISDN switch
to which it is connected.
• LAPD provides the data-link protocol that
allows delivery of messages across that D
channel to the local switch.

607

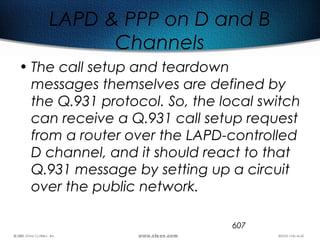

Channels
• The call setup and teardown
messages themselves are defined by
the Q.931 protocol. So, the local switch
can receive a Q.931 call setup request
from a router over the LAPD-controlled
D channel, and it should react to that
Q.931 message by setting up a circuit
over the public network.

608
Channels
• An ISDN switch often requires some form of
authentication with the device connecting
to it.
• Switches use a free-form decimal value, call
the service profile identifier (SPID), to
perform authentication.
• In short, before any Q.931 call setup
messages are accepted, the switch asks for
the configured SPID values. If the values
match what is configured in the switch, call

609

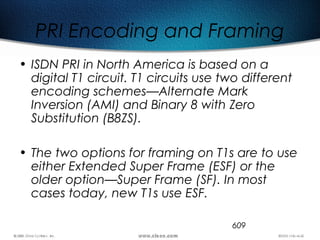

PRI Encoding and Framing
• ISDN PRI in North America is based on a
digital T1 circuit. T1 circuits use two different
encoding schemes—Alternate Mark
Inversion (AMI) and Binary 8 with Zero
Substitution (B8ZS).
• The two options for framing on T1s are to use
either Extended Super Frame (ESF) or the
older option—Super Frame (SF). In most
cases today, new T1s use ESF.

610

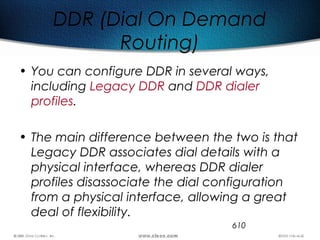

DDR (Dial On Demand
Routing)
• You can configure DDR in several ways,
including Legacy DDR and DDR dialer
profiles.
• The main difference between the two is that
Legacy DDR associates dial details with a
physical interface, whereas DDR dialer
profiles disassociate the dial configuration
from a physical interface, allowing a great
deal of flexibility.

611

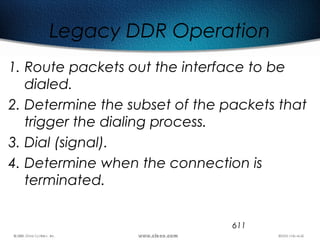

Legacy DDR Operation
1. Route packets out the interface to be
dialed.
2. Determine the subset of the packets that
trigger the dialing process.
3. Dial (signal).
4. Determine when the connection is
terminated.

613

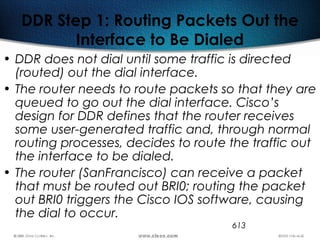

DDR Step 1: Routing Packets Out the
Interface to Be Dialed
• DDR does not dial until some traffic is directed
(routed) out the dial interface.
• The router needs to route packets so that they are
queued to go out the dial interface. Cisco’s
design for DDR defines that the router receives
some user-generated traffic and, through normal
routing processes, decides to route the traffic out
the interface to be dialed.
• The router (SanFrancisco) can receive a packet
that must be routed out BRI0; routing the packet
out BRI0 triggers the Cisco IOS software, causing
the dial to occur.

614

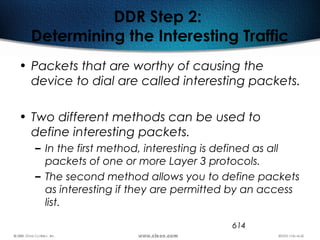

DDR Step 2:
Determining the Interesting Traffic
• Packets that are worthy of causing the
device to dial are called interesting packets.
• Two different methods can be used to
define interesting packets.
– In the first method, interesting is defined as all
packets of one or more Layer 3 protocols.
– The second method allows you to define packets
as interesting if they are permitted by an access
list.

615
DDR Step 3:
Dialing (Signaling)
• Defining the phone number to be
dialed.
• The command is dialer string , where
string is the phone number (used when
dialing only one site).
• The dialer map command maps the
different dialer numbers to the
equivalent IP addresses of the routers

616

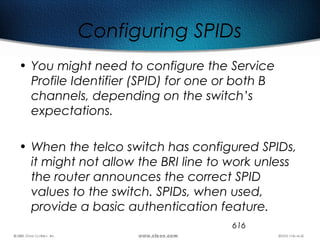

Configuring SPIDs
• You might need to configure the Service
Profile Identifier (SPID) for one or both B
channels, depending on the switch’s
expectations.
• When the telco switch has configured SPIDs,
it might not allow the BRI line to work unless
the router announces the correct SPID
values to the switch. SPIDs, when used,
provide a basic authentication feature.

617

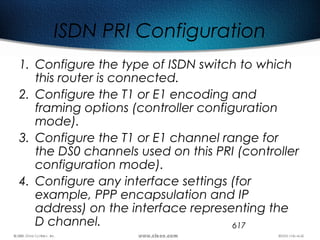

ISDN PRI Configuration
1. Configure the type of ISDN switch to which
this router is connected.
2. Configure the T1 or E1 encoding and
framing options (controller configuration
mode).
3. Configure the T1 or E1 channel range for
the DS0 channels used on this PRI (controller
configuration mode).
4. Configure any interface settings (for
example, PPP encapsulation and IP
address) on the interface representing the
D channel.

620

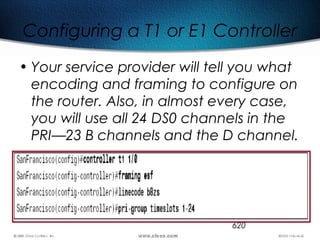

Configuring a T1 or E1 Controller
• Your service provider will tell you what
encoding and framing to configure on
the router. Also, in almost every case,
you will use all 24 DS0 channels in the
PRI—23 B channels and the D channel.

621

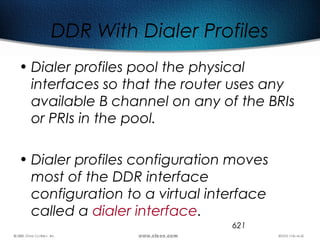

DDR With Dialer Profiles
• Dialer profiles pool the physical
interfaces so that the router uses any
available B channel on any of the BRIs
or PRIs in the pool.
• Dialer profiles configuration moves
most of the DDR interface
configuration to a virtual interface
called a dialer interface.

With all my best wishes for you
to succeed and distinguish in the
CCNA International Exam,
Keep In touch

Ccna presentation{complete]

More Related Content

What's hot

Similar to Ccna presentation{complete]

Recently uploaded

Ccna presentation{complete]

Editor's Notes
