![ ﺑﻪ اﮐﺴﺲ ﺳﺮورHostname ﺗﺨﺼﯿﺺ
Router>enable
Router#configure terminal
Enter configuration commands, one per
line.
End with CNTL/Z
Router(config)#hostname Access_Server
Access_Server(config)#
از ﺳﻤﺖ آن ﺑﻪ ﺳﺎﯾﺮ ادواتTelnet اﯾﺠﺎد ﯾﮏ ﻟﻮپ ﺑﮏ اﯾﻨﺘﺮﻓﯿﺲ ﺟﻬﺖ ﺑﺮﻗﺮاري
Access_Server(config)#interface loopback 0
Access_Server(config-if)#ip address 10.10.10.10 255.255.255.255
Access_Server(config-if)#exit
Access_Server(config)#
Async ﻣﻌﮑﻮس روي ﺧﻄﻮطTelnet ﺟﻬﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻫﺎيIP Host ﺗﻨﻈﯿﻢ ﺟﺪول
Access_Server(config)#ip
Access_Server(config)#ip
Access_Server(config)#ip
Access_Server(config)#ip
Access_Server(config)#ip
Access_Server(config)#ip
Access_Server(config)#ip
Access_Server(config)#ip
Access_Server(config)#ip
host
host
host
host
host
host
host
host
host
r1 2001 10.10.10.10
r2 2002 10.10.10.10
r3 2003 10.10.10.10
r4 2004 10.10.10.10
r5 2005 10.10.10.10
r6 2006 10.10.10.10
sw1 2007 10.10.10.10
sw2 2008 10.10.10.10
sw3 2009 10.10.10.10
ﺑﺎ اﮐﺴﺲ ﺳﺮورExec session ﺑﻬﻢ ﻣﻨﻈﻮر ﺟﻠﻮﮔﯿﺮي از اﯾﺠﺎدAsync ﺗﻨﻈﯿﻢ ﺧﻄﻮط
Access_Server(config)#line 1 16
Access_Server(config-line)#no exec
async روي ﺧﻄﻮطTelnet ﻓﻌﺎل ﮐﺮدن ﻗﺎﺑﻠﯿﺖ
Access_Server(config-line)#transport input telnet
ﭘﺲ از ﮐﺎﻧﻔﯿﮓ دﺳﺘﮕﺎه ﺗﮏ ﺗﮏ ﺧﻄﻮط اﻧﺮا ﺟﻬﺖ ﺣﺼﻮل اﻃﻤﯿﻨﺎن از ﺻﺤﺖ اﻣﮑﺎن ﺑﺮﻗﺮاري ﺗﻤﺎس آن ﺑﺎ ادوات ﻣﺘﻨﺎﻇﺮ
.ﺗﺴﺖ ﻣﯿﮑﻨﯿﻢ
Access_Server#r1
Trying r1 (10.10.10.10, 2037)… Open
% Please answer ‘yes’ or ‘no’.
Would you like to enter the initial configuration dialog? [yes/no]:
Page 32 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-33-320.jpg)

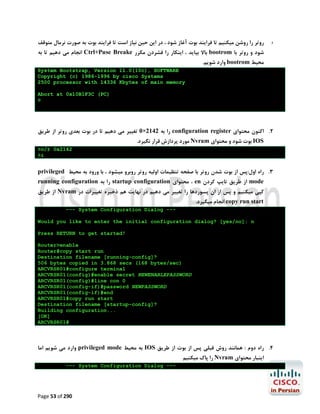

![روﺗﺮ را روﺷﻦ ﻣﯿﮑﻨﯿﻢ ﺗﺎ ﻓﺮاﯾﻨﺪ ﺑﻮت آﻏﺎز ﺷﻮد ، در اﯾﻦ ﺣﯿﻦ ﻧﯿﺎز اﺳﺖ ﺗﺎ ﻓﺮاﯾﻨﺪ ﺑﻮت ﺑﻪ ﺻﻮرت ﻧﺮﻣﺎل ﻣﺘﻮﻗﻒ
.1
اﻧﺠﺎم ﻣﯽ دﻫﯿﻢ ﺗﺎ ﺑﻪCtrl+Puse Breake ﺑﺎﻻ ﺑﯿﺎﯾﺪ ، اﯾﻨﮑﺎر را ﻓﺸﺮدن ﻣﮑﺮرbootrom ﺷﻮد و روﺗﺮ ﺑﺎ
. وارد ﺷﻮﯾﻢbootrom ﻣﺤﯿﻂ
System Bootstrap, Version 11.0(10c), SOFTWARE
Copyright (c) 1986-1996 by cisco Systems
2500 processor with 14336 Kbytes of main memory
Abort at 0x10B1F3C (PC)
>
را ﺑﻪ 2412×0 ﺗﻐﯿﯿﺮ ﻣﯽ دﻫﯿﻢ ﺗﺎ در ﺑﻮت ﺑﻌﺪي روﺗﺮ از ﻃﺮﯾﻖconfiguration register 2. اﮐﻨﻮن ﻣﺤﺘﻮاي
. ﻣﻮرد ﭘﺮدازش ﻗﺮار ﻧﮕﯿﺮدNvram ﺑﻮت ﺷﻮد و ﻣﺤﺘﻮايIOS
>o/r 0x2142
>i
privileged 3. راه اول:ﭘﺲ از ﺑﻮت ﺷﺪن روﺗﺮ ﺑﺎ ﺻﻔﺤﻪ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ روﺗﺮ روﺑﺮو ﻣﯿﺸﻮد ، ﺑﺎ ورود ﺑﻪ ﻣﺤﯿﻂ
running configuration را ﺑﻪstartup configuration ، ﻣﺤﺘﻮايen از ﻃﺮﯾﻖ ﺗﺎﯾﭗ ﮐﺮدنmode
از ﻃﺮﯾﻖNvram ﮐﭙﯽ ﻣﯿﮑﻨﯿﻢ و ﭘﺲ از ان ﭘﺴﻮردﻫﺎ را ﺗﻐﯿﯿﺮ ﻣﯽ دﻫﯿﻢ در ﻧﻬﺎﯾﺖ ﻫﻢ ذﺧﯿﺮه ﺗﻐﯿﯿﺮات در
. اﻧﺠﺎم ﻣﯿﮕﯿﺮدcopy run start
--- System Configuration Dialog --Would you like to enter the initial configuration dialog? [yes/no]: n
Press RETURN to get started!
Router>enable
Router#copy start run
Destination filename [running-config]?
506 bytes copied in 3.868 secs (168 bytes/sec)
ARCVRSR01#configure terminal
ARCVRSR01(config)#enable secret NEWENABLEPASSWORD
ARCVRSR01(config)#line con 0
ARCVRSR01(config-if)#password NEWPASSWORD
ARCVRSR01(config-if)#end
ARCVRSR01#copy run start
Destination filename [startup-config]?
Building configuration...
[OK]
ARCVRSR01#
وارد ﻣﯽ ﺷﻮﯾﻢ اﻣﺎprivileged mode ﺑﻪ ﻣﺤﯿﻂIOS 4. راه دوم : ﻫﻤﺎﻧﻨﺪ روش ﻗﺒﻠﯽ ﭘﺲ از ﺑﻮت از ﻃﺮﯾﻖ
را ﭘﺎك ﻣﯿﮑﻨﯿﻢNvram اﯾﻨﺒﺎر ﻣﺤﺘﻮاي
--- System Configuration Dialog ---
Page 53 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-54-320.jpg)
![Would you like to enter the initial configuration dialog? [yes/no]: n
Press RETURN to get started!
Router>enable
Router#write erase
Erasing the nvram filesystem will remove all files! Continue? [confirm]
[OK]
Erase of nvram: complete
Router#
را ﺑﻪconfiguration register ﻣﺤﺘﻮايNvram 5. در ﻫﺮ دو ﺣﺎﻟﺖ ﭘﺲ از رﯾﺴﺖ ﮐﺮدن ﭘﺴﻮرد ﯾﺎ ﭘﺎك ﮐﺮدن
. ﺑﻮت ﺧﻮاﻫﺪ ﺷﺪNvram 2012×0 ﺑﺮ ﻣﯿﮕﺮداﻧﯿﻢ ﺑﺎ رﯾﺒﻮت ﺑﻌﺪي ﺳﯿﺴﺘﻢ از ﻃﺮﯾﻖ ﺧﻮاﻧﺪن ﻣﺤﺘﻮاي
Router#configure terminal
Router(config)#config-register 0x2102
Router(config)#end
Page 54 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-55-320.jpg)

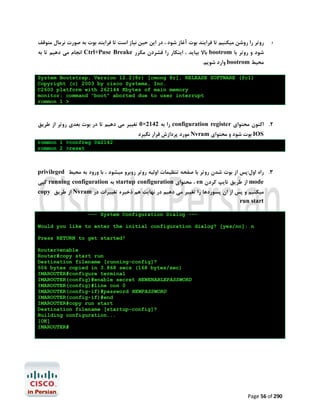

![روﺗﺮ را روﺷﻦ ﻣﯿﮑﻨﯿﻢ ﺗﺎ ﻓﺮاﯾﻨﺪ ﺑﻮت آﻏﺎز ﺷﻮد ، در اﯾﻦ ﺣﯿﻦ ﻧﯿﺎز اﺳﺖ ﺗﺎ ﻓﺮاﯾﻨﺪ ﺑﻮت ﺑﻪ ﺻﻮرت ﻧﺮﻣﺎل ﻣﺘﻮﻗﻒ
.1
اﻧﺠﺎم ﻣﯽ دﻫﯿﻢ ﺗﺎ ﺑﻪCtrl+Puse Breake ﺑﺎﻻ ﺑﯿﺎﯾﺪ ، اﯾﻨﮑﺎر را ﻓﺸﺮدن ﻣﮑﺮرbootrom ﺷﻮد و روﺗﺮ ﺑﺎ
. وارد ﺷﻮﯾﻢbootrom ﻣﺤﯿﻂ
System Bootstrap, Version 12.2(8r) [cmong 8r], RELEASE SOFTWARE (fc1)
Copyright (c) 2003 by cisco Systems, Inc.
C2600 platform with 262144 Kbytes of main memory
monitor: command "boot" aborted due to user interrupt
rommon 1 >
را ﺑﻪ 2412×0 ﺗﻐﯿﯿﺮ ﻣﯽ دﻫﯿﻢ ﺗﺎ در ﺑﻮت ﺑﻌﺪي روﺗﺮ از ﻃﺮﯾﻖconfiguration register 2. اﮐﻨﻮن ﻣﺤﺘﻮاي
ﻣﻮرد ﭘﺮدازش ﻗﺮار ﻧﮕﯿﺮدNvram ﺑﻮت ﺷﻮد و ﻣﺤﺘﻮايIOS
rommon 1 >confreg 0x2142
rommon 2 >reset
privileged 3. راه اول:ﭘﺲ از ﺑﻮت ﺷﺪن روﺗﺮ ﺑﺎ ﺻﻔﺤﻪ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ روﺗﺮ روﺑﺮو ﻣﯿﺸﻮد ، ﺑﺎ ورود ﺑﻪ ﻣﺤﯿﻂ
ﮐﭙﯽrunning configuration ﺑﻪstartup configuration ، ﻣﺤﺘﻮايen از ﻃﺮﯾﻖ ﺗﺎﯾﭗ ﮐﺮدنmode
copy از ﻃﺮﯾﻖNvram ﻣﯿﮑﻨﯿﻢ و ﭘﺲ از ان ﭘﺴﻮردﻫﺎ را ﺗﻐﯿﯿﺮ ﻣﯽ دﻫﯿﻢ در ﻧﻬﺎﯾﺖ ﻫﻢ ذﺧﯿﺮه ﺗﻐﯿﯿﺮات در
run start
--- System Configuration Dialog ---
Would you like to enter the initial configuration dialog? [yes/no]: n
Press RETURN to get started!
Router>enable
Router#copy start run
Destination filename [running-config]?
506 bytes copied in 3.868 secs (168 bytes/sec)
IMAROUTER#configure terminal
IMAROUTER(config)#enable secret NEWENABLEPASSWORD
IMAROUTER(config)#line con 0
IMAROUTER(config-if)#password NEWPASSWORD
IMAROUTER(config-if)#end
IMAROUTER#copy run start
Destination filename [startup-config]?
Building configuration...
[OK]
IMAROUTER#
Page 56 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-57-320.jpg)

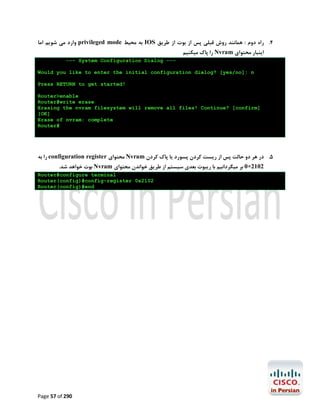

![ وارد ﻣﯽ ﺷﻮﯾﻢ اﻣﺎprivileged mode ﺑﻪ ﻣﺤﯿﻂIOS 4. راه دوم : ﻫﻤﺎﻧﻨﺪ روش ﻗﺒﻠﯽ ﭘﺲ از ﺑﻮت از ﻃﺮﯾﻖ
را ﭘﺎك ﻣﯿﮑﻨﯿﻢNvram اﯾﻨﺒﺎر ﻣﺤﺘﻮاي
--- System Configuration Dialog --Would you like to enter the initial configuration dialog? [yes/no]: n
Press RETURN to get started!
Router>enable
Router#write erase
Erasing the nvram filesystem will remove all files! Continue? [confirm]
[OK]
Erase of nvram: complete
Router#
را ﺑﻪconfiguration register ﻣﺤﺘﻮايNvram 5. در ﻫﺮ دو ﺣﺎﻟﺖ ﭘﺲ از رﯾﺴﺖ ﮐﺮدن ﭘﺴﻮرد ﯾﺎ ﭘﺎك ﮐﺮدن
. ﺑﻮت ﺧﻮاﻫﺪ ﺷﺪNvram 2012×0 ﺑﺮ ﻣﯿﮕﺮداﻧﯿﻢ ﺑﺎ رﯾﺒﻮت ﺑﻌﺪي ﺳﯿﺴﺘﻢ از ﻃﺮﯾﻖ ﺧﻮاﻧﺪن ﻣﺤﺘﻮاي
Router#configure terminal
Router(config)#config-register 0x2102
Router(config)#end
Page 57 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-58-320.jpg)
![MODE ﻫﺎ و ﻣﺪت زﻣﺎن ﻻزم ﺟﻬﺖ ﭘﺎﯾﯿﻦ ﻧﮕﻪ داﺷﺘﻦ دﮐﻤﻪLed رﻓﺘﺎر
ﻧﻮع ﺳﻮﯾﯿﭻ
ﺧﺎﻣﻮش ﻧﺸﺪه ﭘﺎﯾﻦ ﻧﮕﻪ داﺷﺘﻪ ﺷﻮدFA0/1 ﭘﻮرتLED ﺗﺎ زﻣﺎﻧﯽ ﮐﻪ
2900XL, 3500XL,
3550
زرد ﭼﺸﻤﮏSyst LED ﺧﺎﻣﻮش ﺷﺪ آﻧﺮا رﻫﺎ ﮐﻨﯿﺪ.ﭘﺲ از رﻫﺎ ﮐﺮدن آنStat LED ﺣﺪودا ﭘﺲ از 5 ﺛﺎﻧﯿﻪ و زﻣﺎﻧﯽ ﮐﻪ
زن ﺧﻮاﻫﺪ ﺷﺪ
2940, 2950
Mode زرد ﭼﺸﻤﮏ زن ﺷﺪ و ﺑﻌﺪ از آن ﮐﺎﻣﻼ ﺳﺒﺰ ﺷﺪ دﮐﻤﻪ را رﻫﺎ ﮐﻨﯿﺪ.ﭘﺲ از رﻫﺎ ﮐﺮدنSYST LED ﭘﺲ از اﯾﻨﮑﻪ
. ﺳﺒﺰ ﭼﺸﻤﮏ زن ﺧﻮاﻫﺪ ﺷﺪSYST LED ﺣﺎﻟﺖ
2960, 2970
ﺳﺒﺰSYST LED را رﻫﺎ ﮐﻨﯿﺪ.ﭘﺲ از رﻫﺎ ﮐﺮدن آنMode دﮐﻤﻪSYST LED ﺑﻌﺪ از ﺣﺪود 51 ﺛﺎﻧﯿﻪ و ﺳﺒﺰ ﺷﺪن
ﭼﺸﻤﮏ زن ﺧﻮاﻫﺪ ﺷﺪ
3560, 3750
ﺑﺎ ﻋﺒﺎرت ﻫﺎي زﯾﺮ ﻣﻮاﺟﻪ ﺧﻮاﻫﯿﻢ ﺷﺪSWITCH ROM 2. ﭘﺲ از ورود ﻣﻮﻓﻘﯿﺖ آﻣﯿﺰ ﺑﻪ ﻣﺤﯿﻂ
Boot Sector Filesystem (bs) installed, fsid: 2
Base ethernet MAC Address: 00:14:f2:d2:41:80
Xmodem file system is available.
The password-recovery mechanism is enabled.
The system has been interrupted prior to initializing the
flash filesystem. The following commands will initialize
the flash filesystem, and finish loading the operating
system software:
flash_init
boot
switch:
flash_init ﺷﺪن دارد ﺑﺎ ﺗﺎﯾﭗ دﺳﺘﻮرinitialize ﻧﯿﺎز ﺑﻪflash 3. در اﯾﻦ ﻣﺮﺣﻠﻪ
switch:flash_init
Initializing Flash...
flashfs[0]: 5 files, 1 directories
flashfs[0]: 0 orphaned files, 0 orphaned directories
flashfs[0]: Total bytes: 15998976
flashfs[0]: Bytes used: 12282368
flashfs[0]: Bytes available: 3716608
flashfs[0]: flashfs fsck took 10 seconds.
...done Initializing Flash.
switch:
Page 59 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-60-320.jpg)
![ ﺑﻪ ﻣﻨﻈﻮر ﭘﯿﺪا ﮐﺮدن ﻓﺎﯾﻞ ﮐﺎﻧﻔﯿﮓ اﺻﻠﯽ ﻟﯿﺴﺖ ﻣﯽ ﮔﯿﺮﯾﻢ.اﯾﻦ ﻓﺎﯾﻞ ﺑﻪ ﻃﻮر ﭘﯿﺶflash 4. از ﻓﺎﯾﻠﻬﺎي ﻣﻮﺟﻮد در
. ﻧﺎم داردconfig.text ﻓﺮض
switch:dir flash:
Directory of flash:/
1 -rwx 10573494
2 -rwx 684
3 -rwx 1938
4 -rwx 1654
5 -rwx 3096
c3560-advipservicesk9-mz.122-44.SE6.bin
vlan.dat
private-config.text
config.text
multiple-fs
3716608 bytes available (10508886 bytes used)
switch:
ﺗﻐﯿﯿﺮ ﻧﺎم ﻣﯽ دﻫﯿﻢconfig.old 5. ﻓﺎﯾﻞ ﮐﺎﻧﻔﯿﮓ را ﺑﻪ
switch:rename flash:config.text flash:config.old
ﭘﺎك ﮐﺮدdelete flash:config.text ﻫﻤﯿﻨﻄﻮر ﻣﯿﺘﻮان آﻧﺮا ﺑﺎ دﺳﺘﻮر
6. ﭘﺲ از ﺣﺼﻮل اﻃﻤﯿﻨﺎن از ﺗﻐﯿﯿﺮ ﻧﺎم ﻓﺎﯾﻞ ﮐﺎﻧﻔﯿﮓ ﺳﻮﯾﯿﭻ را ﻣﺠﺪدا ﺑﻮت ﻣﯿﮑﻨﯿﻢ.و وارد ﻣﺤﯿﻂ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ
.ﺳﻮﯾﯿﭻ ﻣﯿﺸﻮﯾﻢ
--- System Configuration Dialog --Would you like to enter the initial configuration dialog? [yes/no]: n
Switch>
. ﮐﭙﯽ ﻣﯿﮑﻨﯿﻢrunnin config ﮐﺎﻧﻔﯿﮓ ﻗﺪﯾﻤﯽ را ﺑﻪstart-up ﻣﺤﺘﻮايprivileged mode 7. ﭘﺲ از ورود ﺑﻪ
Switch>enable
Switch#copy flash:config.old run
Destination filename [running-config]?
1654 bytes copied in 9.647 secs (171 bytes/sec)
ARSCORESW1#
. اﻣﮑﺎن ﺗﻐﯿﯿﺮ ﭘﺴﻮردﻫﺎ ﺳﻮﯾﯿﭻ را ﺧﻮاﻫﯿﻢ داﺷﺖrunning config 8. ﭘﺲ از ﮐﭙﯽ ﺗﻨﻈﯿﻤﺎت ﻗﺪﯾﻤﯽ ﺳﻮﯾﯿﭻ ﺑﻪ
Switch#configure terminal
Switch(config)#enable password NEWENABLEPASSWORD
Switch(config)#line con0
Switch(config-line)#password NEWCONSOLELINEPASSWORD
Switch(config-line)#end
Switch#copy run start
Destination filename [startup-config]?
Building configuration...
[OK]
0 bytes copied in 1.309 secs (0 bytes/sec)
Switch#
Page 60 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-61-320.jpg)
![آزﻣﺎﯾﺶ 4.2-آﺷﻨﺎﯾﯽ ﺑﺎ ﺻﻔﺤﻪ اوﻟﯿﻪ ﺗﻨﻈﯿﻤﺎت ﺳﻮﯾﯿﭻ
در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻈﯿﻤﺎت ﭘﺎﯾﻪ ﺳﻮﯾﯿﭻ ﻣﺎﻧﻨﺪ IP address,Hostnameو ﺗﻌﺪادي دﯾﮕﺮ از ﻃﺮﯾﻖ ﺻﻔﺤﻪ
اوﻟﯿﻪ ﺗﻨﻈﯿﻤﺎت ﺳﻮﯾﯿﭻ/روﺗﺮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ.
ﮐﺎرﺑﺮد ﻋﻤﻠﯽ
ﺻﻔﺤﻪ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ ﺳﻮﯾﯿﭻ/روﺗﺮ و ﭘﯿﺎﻣﻬﺎ و ﺳﻮاﻻت آن از ﺟﻤﻠﻪ ﺻﻔﺤﺎت آذار دﻫﻨﺪه ﻣﺘﺨﺼﺼﯿﻦ ﺷﺒﮑﻪ اﺳﺖ ﭼﻮن
ﻋﻤﻮم ﻣﺘﺨﺼﺼﯿﻦ ﺗﻤﺎﯾﻠﯽ ﺑﻪ ﮐﺎﻧﻔﯿﮓ ادوات ﺧﻮد ﺑﺎ اﺳﺘﻔﺎده از ﯾﮏ وﯾﺰارد ﻣﺘﻨﯽ ﻣﺤﺪود ﻧﺪارﻧﺪ. اﻣﺎ ﺑﻪ ﻫﺮ ﺣﺎل ﺟﻬﺖ
آزﻣﻮن ccnaآﺷﻨﺎﯾﯽ ﺑﺎ آن اﻟﺰاﻣﯽ اﺳﺖ.ﻗﻄﻌﺎ در آﯾﻨﺪه ﻧﺰدﯾﮏ و ﭘﺲ از ﺗﺴﻠﻂ ﺑﻪ دﺳﺘﻮرات ﻣﺮﺑﻮﻃﻪ ﻫﯿﭻ وﻗﺖ از اﯾﻦ
ﻣﺤﯿﻂ اﺳﺘﻔﺎده ﻧﺨﻮاﻫﯿﺪ ﮐﺮد.
ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ
راه اﻧﺪازي ﯾﮏ روﺗﺮ در ﻣﺤﯿﻂ 3 Gnsو ﺑﺮﻗﺮاري اﺗﺼﺎل ﮐﻨﺴﻮل ﺑﻪ آن
اﻫﺪاف آزﻣﺎﯾﺶ
آﺷﻨﺎي ﺑﺎ ﺻﻔﺤﻪ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ روﺗﺮ/ﺳﻮﯾﯿﭻ
دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ
ﭘﺲ از ﺧﺮﯾﺪاري و روﺷﻦ ﮐﺮدن ﯾﮏ دﺳﺘﮕﺎه ﺳﻮﯾﯿﭻ/روﺗﺮ ﺳﯿﺴﮑﻮ اوﻟﯿﻦ ﺻﻔﺤﻪ اي ﮐﻪ ﻧﻤﺎﯾﺎن ﻣﯽ ﺷﻮد ﺻﻔﺤﻪ ﺗﻨﻈﯿﻤﺎت
اوﻟﯿﻪ دﺳﺘﮕﺎه اﺳﺖ.اﯾﻦ ﺻﻔﺤﻪ ﻫﻤﯿﻨﻄﻮر ﻫﻨﮕﺎم ﺑﻮت دﺳﺘﮕﺎه ﭘﺲ از اﺟﺮاي دﺳﺘﻮر eraseﮐﻪ ﺑﺎﻋﺚ ﭘﺎك ﺷﺪن Nvram
ﻣﯿﺸﻮد ﻧﻤﺎﯾﺎن ﻣﯽ ﺷﻮد.
در ﮐﺪ زﯾﺮ ﻣﺤﺘﻮاي اﯾﻦ ﺻﻔﺤﻪ را در ﺑﻮت اوﻟﯿﻪ دﺳﺘﮕﺎه ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﺪ.
-- --- System Configuration DialogWould you like to enter the initial configuration dialog? [yes/no]: yes
ﭘﺲ از اﻧﺘﺨﺎب yesوﻧﻤﺎﯾﺶ ﻣﺤﯿﻂ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ ، ﻣﺮاﺣﻞ ﺗﻨﻈﯿﻢ ﺑﻪ ﺻﻮرت ﺳﻮال و ﺟﻮاﺑﻬﺎي ﻣﺘﻮاﻟﯽ ﺑﺎ ﺗﻮﺿﯿﺤﺎت
ﻣﺨﺘﺼﺮي ﻧﻤﺎﯾﺎن ﻣﯽ ﺷﻮد.
.At any point you may enter a question mark '?' for help
.Use ctrl-c to abort configuration dialog at any prompt
.'][' Default settings are in square brackets
092 Page 61 of](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-62-320.jpg)
![Basic management setup configures only enough connectivity
for management of the system, extended setup will ask you
to configure each interface on the system
Would you like to enter basic management setup? [yes/no]: yes
را از ﻣﺎTerminal password وEnable secret وHostname اﻃﻼﻋﺎت ﻻزم ﺟﻬﺖ ﺗﻨﻈﻤﯿﺎتyes ﭘﺲ از اﻧﺘﺨﺎب
اﺧﺬ ﺧﻮاﻫﺪ ﮐﺮد
Configuring global parameters:
Enter host name [Router]: R1
The enable secret is a password used to protect access to
privileged EXEC and configuration modes. This password, after
entered, becomes encrypted in the configuration.
Enter enable secret: CISCO
The enable password is used when you do not specify an
enable secret password, with some older software versions, and
some boot images.
Enter enable password: cisco
The virtual terminal password is used to protect
access to the router over a network interface.
Enter virtual terminal password: cisco
ﭘﺮوﺗﮑﻞ اﺳﺘﺎﻧﺪاري اﺳﺖ ﮐﻪ ادوات ﻓﻌﺎل درSNMP . ﻣﻮاﺟﻪ ﺧﻮاﻫﯿﻢ ﺷﺪSNMP ﺑﻌﺪ از ﺗﻈﯿﻤﺎت ﻓﻮق ﺑﺎ ﭘﯿﻐﺎم ﻓﻌﺎل ﺳﺎزي
.ﺷﺒﮑﻪ ﺑﻪ واﺳﻄﻪ آن ﻣﺎﻧﯿﺘﻮ و ﯾﺎ ﭘﯿﮑﺮ ﺑﻨﺪي ﻣﯿﺸﻮﻧﺪ
Configure SNMP Network Management? [no]: yes
Community string [public]: COMMUNITYSTRINGGOESHERE
واﻗﻊManagement network دﻫﯽ ﺑﻪ ﯾﮑﯽ از اﯾﻨﺘﺮﻓﯿﺴﻬﺎي دﺳﺘﮕﺎه ﮐﻪ درIP ﻧﻮﺑﺖ ﺑﻪSNMP ﭘﺲ از ﭘﯿﮑﺮﺑﻨﺪي
ﺷﺪه)در آن رﻧﺞ ﻗﺮار دارد( ﻣﯿﮑﻨﯿﻢ.در ﻧﻈﺮ داﺷﺘﻪ ﺑﺎﺷﯿﺪ ﮐﻪ ﺑﺎﯾﺪ ﻧﺎم اﯾﻨﺘﺮﻓﯿﺲ ﺑﻪ ﻃﻮر ﮐﺎﻣﻞ ﻧﻮﺷﺘﻪ ﺷﻮد
Current interface summary
Any interface listed with OK? value "NO" does not have a valid configuration
Interface
Interface
FastEthernet0/0
FastEthernet0/1
Serial1/0
Serial1/1
Serial1/2
Serial1/3
IP-Address
IP-Address
unassigned
unassigned
unassigned
unassigned
unassigned
unassigned
OK?
OK?
NO
NO
NO
NO
NO
NO
Method
Method
unset
unset
unset
unset
unset
unset
Status
Status
up
up
up
up
up
up
Protocol
Protocol
up
up
down
down
down
down
Page 62 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-63-320.jpg)
![Enter interface name used to connect to the
management network from the above interface summary: FastEthernet0/0
. ﻣﯽ رﺳﺪIP ﺑﻪ ﻣﺤﺾ اﯾﻨﮑﻪ اﯾﻨﺘﺮﻓﯿﺲ ﻣﺮﺑﻮط ﺑﻪ ﻣﺪﯾﺮﯾﺖ دﺳﺘﮕﺎه را اﻧﺘﺨﺎب ﮐﺮدﯾﻢ ﻧﻮﺑﺖ ﺑﻪ ﺗﻨﻈﯿﻢ ﭘﺎراﻣﺘﺮﻫﺎي
Configuring interface FastEthernet0/0:
Operate in full-duplex mode? [no]:
Configure IP on this interface? [yes]:
IP address for this interface: 10.1.1.1
Subnet mask for this interface [255.0.0.0] : 255.255.255.0
Class A network is 10.0.0.0, 24 subnet bits; mask is /24
Running ﺧﻮب،ﭘﺲ از اﺗﻤﺎم ﻣﺮاﺣﻞ ﺑﺎﻻ روﺗﺮ/ﺳﻮﯾﯿﭻ ﮐﺪ ﮐﺎﻧﻔﯿﮓ ﻫﺎي اﻧﺠﺎم ﺷﺪه روي دﺳﺘﮕﺎه ﯾﺎ ﺑﻪ ﺑﯿﺎن دﯾﮕﺮ
: را ﺑﻪ ﻣﺎ ﻧﻤﺎﯾﺶ ﻣﯽ دﻫﺪ ﺑﻪ ﻗﺮار زﯾﺮconfig
The following configuration command script was created:
hostname R1
enable secret 5 $1$kGQ2$tr6bd7mW9zjqzfkUHhnCE0
enable password cisco
line vty 0 4
password cisco
no snmp-server
!
no ip routing
!
interface FastEthernet0/0
no shutdown
half-duplex
ip address 10.1.1.1 255.255.255.0
no mop enabled
!
interface FastEthernet0/1
shutdown
no ip address
!
interface Serial1/0
shutdown
no ip address
!
interface Serial1/1
shutdown
no ip address
!
interface Serial1/2
shutdown
no ip address
!
interface Serial1/3
shutdown
no ip address
!
Page 63 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-64-320.jpg)
![end
ﭘﺲ از ﻣﺮﺣﻠﻪ ﺑﺎﻻ ﺳﯿﺴﺘﻢ در ﺧﺼﻮص ذﺧﯿﺮه ﺗﻨﻈﯿﻤﺎت ﺻﻮرت ﮔﺮﻓﺘﻪ ﺳﻮال ﺧﻮاﻫﺪ ﭘﺮﺳﯿﺪ. ﻋﺪد 2 را ﺟﻬﺖ ذﺧﯿﺮه
اﻧﺘﺨﺎب ﻣﯿﮑﻨﯿﻢstartup config ﺗﻨﻈﯿﻤﺎت در
[0] Go to the IOS command prompt without saving this config.
[1] Return back to the setup without saving this config.
[2] Save this configuration to nvram and exit.
Enter your selection [2]: 2
The enable password you have chosen is the same as your enable secret.
This is not recommended. Re-enter the enable password.
Building configuration...
Use the enabled mode 'configure' command to modify this configuration.
% Crashinfo may not be recovered at bootflash:crashinfo
% This file system device reports an error
Press RETURN to get started!
R1>
Page 64 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-65-320.jpg)
![Router>enable
Password:
Router#
در اﯾﻦ ﻣﻮد دﺳﺘﻮرات ﻣﺪﯾﺮﯾﺘﯽ ﺟﻬﺖ ﻧﮕﻬﺪاري ﺳﯿﺴﺘﻢ اﺟﺮا ﻣﯿﺸﻮﻧﺪ ﻣﺎﻧﻨﺪ ﻣﻮرد زﯾﺮ
Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Router#
وارد ﻣﺤﯿﻂ ﭘﯿﮑﺮﺑﻨﺪي وconfigure terminal ﻫﺴﺘﯿﻢ ﺑﺎ وادر ﮐﺮدن دﺳﺘﻮرPriviledge mode ﻫﻨﮕﺎﻣﯽ ﮐﻪ در
Acess ﻧﺎم دارد.ﻻزم ﺑﻪ ذﮐﺮ اﺳﺖ اﯾﻦ ﻣﻮد درglobal configuration mode ﺗﻨﻈﯿﻤﺎت ﺳﯿﺴﺘﻢ ﻣﯿﺸﻮﯾﻢ ﮐﻪ
. ﻫﺎي ﺳﯿﺴﮑﻮ وﺟﻮد ﻧﺪارد و ﺑﻪ ﻣﺤﺾ ورود ﺑﻪ اﯾﻦ دﺳﺘﮕﺎه ﮐﻠﯿﻪ ﻓﺮاﻣﯿﻦ ﺑﻪ ﻃﻮر ﻣﺴﺘﻘﯿﻢ اﺟﺮا ﺧﻮاﻫﻨﺪ ﺷﺪserver
Router#configure terminal
Enter configuration commands, one per line.
Router(config)#
End with CNTL/Z.
ﺑﻪ ﺳﻄﺢ ﻣﺘﻔﺎوﺗﯽ از دﺳﺘﻮرات ﭘﯿﮑﺮﺑﻨﺪي دﺳﺘﺮﺳﯽ ﺧﻮاﻫﯿﻢ داﺷﺖglobal configuration mode ﭘﺲ از ورود ﺑﻪ
و ﻣﻮارد ﺑﺴﯿﺎري دﯾﮕﺮAccess list ، Vlan، ﻫﻤﭽﻮن ﺗﻨﻈﯿﻤﺎت اﯾﻨﺘﺮﻓﯿﺲ ﻫﺎ
Router(config)#interface f0/0
Router(config-if)#router eigrp 1
Router(config-router)#ip access-list extended example_acl_name
Router(config-ext-nacl)#line con 0
Router(config-line)#
اﺳﺘﻔﺎدهExit از دﺳﺘﻮرuser mode ﺑﻪPrivileged ﺑﺮاي ﺧﺮوج از ﻣﻮد ﺟﺎري و ﺑﺎزﮔﺸﺖ ﺑﻪ ﻣﻮد ﻗﺒﻠﯽ ﻓﺮﺿﺎ از
.ﻣﯿﮑﻨﯿﻢ
ﻋﻼوه ﺑﺮ دﺳﺘﻮرات ﻣﺨﺘﺺ ﻫﺮ ﻣﻮد ، ﺗﻌﺪادي دﺳﺘﻮر ﺗﺮﮐﯿﺒﯽ ﺑﻪ ﻣﻨﻈﻮر اﯾﺠﺎد ﺗﺴﻬﯿﻞ اﻣﻮر در ﻣﺤﯿﻂ ﻣﺘﻨﯽ ﺗﺎﯾﭗ
.دﺳﺘﻮرات وﺟﻮد دارﻧﺪ ﮐﻪ ﺟﺪول آﻧﻬﺎ را در زﯾﺮ ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﺪ
Key
ESC + F
ESC + B
ESC + DEL
ESC + D
ESC + C
Page 67 of 290
Result
Move insertion point to the beginning of the next word.
Move insertion point to the beginning of the current word.
Erase previous word.
Erase word, or section of a word, following the insertion point.
Capitalize letter following the insertion point.](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-68-320.jpg)
![Router con0 is now available
Press RETURN to get started.
Router>enable
Password:
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#interface fastethernet 0/0
Router(config-if)#ip address 10.1.1.2 255.255.255.0
Router(config-if)#no shutdown
Router(config-if)#end
Router#
ﺑﻪ ﺷﮑﻞ زﯾﺮ اﺳﺘﻔﺎده ﻣﯿﮑﻨﯿﻢping 2. ﺑﺮاي اﻃﻤﯿﻨﺎن از ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت و ﺑﺮﻗﺮاري اﺗﺼﺎل ﻓﯿﺰﯾﮑﯽ از دﺳﺘﻮر
Router#ping 10.1.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
Router#
ﺟﺪﯾﺪ ﺑﻪ ﻓﻠﺶ ﻣﻤﻮري روﺗﺮ ﻣﯿﺮﺳﺪ.ﺑﺎimage و روﺗﺮ ﻧﻮﺑﺖ ﺑﻪ ﮐﭙﯽPC ﭘﺲ از ﺣﺼﻮل اﻃﻤﯿﻨﺎن از ﺑﺮﻗﺮاري اﺗﺼﺎل ﻣﺎﺑﯿﻦ
ﻓﺎﯾﻞ روﺑﺮو ﺧﻮاﻫﯿﻢimage ﺳﺮور و ﻧﺎمTftp ﺑﺎ ﭘﯿﺎﻣﯽ ﻣﺒﻨﯽ ﺑﺮ ﻣﺸﺨﺺ ﮐﺮدن آدرسcopy tftp flash اﺟﺮاي دﺳﺘﻮر
ﺷﺪ
Router#copy tftp flash
Address or name of remote host []? 10.1.1.1
Source filename []? c2600-adventerprisek9-mz.124-15.T11.bin
Destination filename [c2600-adventerprisek9-mz.124-15.T11.bin]?
Accessing tftp://10.1.1.1/c2600-adventerprisek9-mz.124-15.T11.bin...
Erase flash: before copying? [confirm]
Erasing the flash filesystem will remove all files! Continue? [confirm]
Erasing device... eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee ...erased
Erase of flash: complete
Loading
c2600-adventerprisek9-mz.124-15.T11.bin
from
10.1.1.1
(via
FastEthernet0/0):
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
[OK - 34634180 bytes]
Verifying checksum... CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC OK (0x8E89)
34634180 bytes copied in 486.894 secs (71133 bytes/sec)
Router#
Page 80 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-81-320.jpg)
![ در ﻓﺮاﯾﻨﺪ ﺑﻮت دﭼﺎر ﻣﺸﮑﻞ ﺷﺪ وIOS ﻓﺎﯾﻞ ﺟﺪﯾﺪ روﺗﺮ را رﯾﺴﺖ ﻣﯿﮑﻨﯿﻢ ، در ﺻﻮرﺗﯿﮑﻪimage ﭘﺲ از ﮐﭙﯽ ﺷﺪن
.ﺳﯿﺴﺘﻢ ﺑﻮت ﻧﺸﺪ از ﻓﺮاﯾﻨﺪ رﯾﮑﺎوري درس ﺑﻌﺪي اﺳﺘﻔﺎده ﺧﻮاﻫﯿﻢ ﮐﺮد
Router#reload
System configuration has been modified. Save? [yes/no]: no
Proceed with reload? [confirm]
%SYS-5-RELOAD: Reload requested
by console. Reload Reason: Reload Command.
System Bootstrap, Version 12.2(8r) [cmong 8r], RELEASE SOFTWARE (fc1)
Copyright (c) 2003 by cisco Systems, Inc.
C2600 platform with 262144 Kbytes of main memory
program load complete, entry point: 0x80008000, size: 0x2107824
Self
decompressing
the
:
#################################################
#############################################################################
###
#############################################################################
###
#############################################################################
###
################################### [OK]
Smart Init is enabled
smart init is sizing iomem
ID
MEMORY_REQ
00036F
0X00103980
000065
0X00031500
0X00098670
0X00211000
TOTAL:
0X003DE4F0
TYPE
C2651XM Dual Fast Ethernet
Four port Voice PM
public buffer pools
public particle pools
If any of the above Memory Requirements are
"UNKNOWN", you may be using an unsupported
configuration or there is a software problem and
system operation may be compromised.
Rounded IOMEM up to: 3Mb.
Using 1 percent iomem. [3Mb/256Mb]
Increasing IOMEM up to: 8Mb
Restricted Rights Legend
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
cisco Systems, Inc.
170 West Tasman Drive
San Jose, California 95134-1706
Page 81 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-82-320.jpg)
![Copyright (c) 1986-1996 by cisco Systems
2500 processor with 14336 Kbytes of main memory
Abort at 0x10CFA0A (PC)
>
ﺑﻪRom boot image را ﺑﻪ ﻣﻨﻈﻮر ﺑﻮت ﺷﺪن ﺑﻌﺪي از ﻃﺮﯾﻖconfiguration register 2. ﻣﺤﺘﻮاي
1412×0 ﺗﻐﯿﯿﺮ ﻣﯽ دﻫﯿﻢ
>o/r 0x2141
. ﻣﯽ ﺷﻮدInitialize روﺗﺮ وارد ﭘﺮوﺳﻪi 3. ﺑﺎ وارد ﮐﺮدن ﻓﺮﻣﺎن
>I
System Bootstrap, Version 11.0(10c), SOFTWARE
Copyright (c) 1986-1996 by cisco Systems
2500 processor with 14336 Kbytes of main memory
[OUTPUT TRUNCATED]
Press RETURN to get started!
ﺳﺮور ﻧﺴﺒﺖ ﻣﯽ دﻫﯿﻢTftp ﺟﻬﺖ اﺗﺼﺎل ﺑﻪip 4. در اﯾﻦ ﻣﺮﺣﻠﻪ ﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ روﺗﺮ
Press RETURN to get started!
Router(boot)>enable
Router(boot)#config t
Router(boot)(config)#interface e0
Router(boot)(config-if)#ip add 10.1.1.20 255.255.255.0
Router(boot)(config-if)#no shut
Router(boot)(config-if)#exit
****NOTE: The line below is optional if your TFTP server is not on the same
network****
Router(boot)(config)#ip default-gateway 10.1.1.254
Router(boot)(config)#end
. ﺑﻪ ﻓﻠﺶ ﻣﻤﻮري روﺗﺮ ﮐﭙﯽ ﻣﯿﮑﻨﯿﻢTftp را ازIOS Image 5. اﮐﻨﻮن
Router(boot)#copy tftp flash
System flash directory:
No files in System flash
Page 84 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-85-320.jpg)
![[0 bytes used, 8388608 available, 8388608 total]
Address or name of remote host [255.255.255.255]? 172.16.20.17
Source file name? c2500-i-l.121-27b.bin
Destination file name [c2500-i-l.121-27b.bin]?
Accessing file 'c2500-i-l.121-27b.bin' on 10.1.1.1...
Loading c2500-i-l.121-27b.bin from 172.16.20.17 (via Ethernet0): ! [OK]
Erase flash device before writing? [confirm]
Copy 'c2500-i-l.121-27b.bin' from server
as 'c2500-i-l.121-27b.bin' into Flash WITH erase? [yes/no]y
Erasing device... eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee ...erased
Loading c2500-i-l.121-27b.bin from 172.16.20.17 (via Ethernet0):
!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!! [OUTPUT TRUNCATED]
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!
[OK - 8040260/8388608 bytes]
Verifying checksum... OK (0xCB96)
Flash copy took 0:03:58 [hh:mm:ss]
Router(boot)#
را ﺑﻪ ﻣﻘﺪار اوﻟﯿﻪ ﺑﺮ ﻣﯽ ﮔﺮداﻧﯿﻢ و روﺗﺮConfiguration register ﻣﺤﺘﻮايIOS 6. ﭘﺲ از ﮐﭙﯽ ﻣﻮﻓﻘﯿﺖ آﻣﯿﺰ
.را رﯾﺒﻮت ﻣﯽ ﮐﻨﯿﻢ ﺑﻪ اﻣﯿﺪ اﯾﻨﮑﻪ اﯾﻨﺒﺎر ﺑﺎﻻ ﺧﻮاﻫﺪ آﻣﺪ
Router(boot)#configure terminal
Router(boot)(config)#configuration-register 0x2102
Router(boot)(config)#end
Router(boot)#reload
System configuration has been modified. Save? [yes/no]: n
Proceed with reload? [confirm]
00:06:51: %SYS-5-RELOAD: Reload requested
System Bootstrap, Version 11.0(10c), SOFTWARE
Copyright (c) 1986-1996 by cisco Systems
2500 processor with 14336 Kbytes of main memory
Notice: NVRAM invalid, possibly due to write erase.
F3: 7916604+123624+619980 at 0x3000060
Restricted Rights Legend
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Page 85 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-86-320.jpg)
![Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
cisco Systems, Inc.
170 West Tasman Drive
San Jose, California 95134-1706
Cisco Internetwork Operating System Software
IOS (tm) 2500 Software (C2500-I-L), Version 12.1(27b), RELEASE SOFTWARE (fc1)
Copyright (c) 1986-2005 by cisco Systems, Inc.
Compiled Tue 16-Aug-05 22:38 by pwade
Image text-base: 0x03041FDC, data-base: 0x00001000
cisco 2500 (68030) processor (revision N) with 14336K/2048K bytes of memory.
Processor board ID 11848462, with hardware revision 00000000
Bridging software.
X.25 software, Version 3.0.0.
1 Ethernet/IEEE 802.3 interface(s)
2 Serial network interface(s)
32K bytes of non-volatile configuration memory.
8192K bytes of processor board System flash (Read ONLY)
--- System Configuration Dialog --Would you like to enter the initial configuration dialog? [yes/no]:
7. ﺧﻮب ﺗﺎ اﯾﻨﺠﺎ روﺗﺮ ﺑﺎﻻ اﻣﺪ اﻣﺎ ﺑﺪون ﻫﯿﭻ ﮔﻮﻧﻪ اﺛﺮي از ﺗﻨﻈﯿﻤﺎت ﻗﺒﻠﯽ . اﮔﺮ از ﺗﻨﻈﯿﻤﺎت ﻗﺒﻠﯽ ﭘﺸﺘﯿﺒﺎن ﺗﻬﯿﻪ
.ﮐﺮده اﯾﺪ ﮐﻪ ﻫﯿﭻ ، اﮔﺮ ﻧﮑﺮده اﯾﺪ ﺑﻬﺘﺮ اﺳﺖ رزوﻣﻪ ﺧﻮد را ﺑﺮوز ﮐﻨﯿﺪ
Page 86 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-87-320.jpg)
![System Bootstrap, Version 12.2(8r) [cmong 8r], RELEASE SOFTWARE (fc1)
Copyright (c) 2003 by cisco Systems, Inc.
C2600 platform with 262144 Kbytes of main memory
device does not contain a valid magic number
boot: cannot open "flash:"
boot: cannot determine first file name on device "flash:"
rommon 1 >
1562 وﺟﻮد دارﻧﺪ راXM روي ﭘﻠﺘﻔﺮمROMMON ﻣﯽ ﺗﻮان ﻟﯿﺴﺖ دﺳﺘﻮراﺗﯽ را ﮐﻪ در ﺣﺎﻟﺖhelp ﺑﺎ اﺟﺮاي دﺳﺘﻮر
.ﻣﺸﺎﻫﺪه ﮐﺮد
rommon 1 > help
alias
boot
break
confreg
cont
context
cookie
dev
dir
dis
dnld
frame
help
history
meminfo
repeat
reset
set
stack
sync
sysret
tftpdnld
unalias
unset
xmodem
rommon 2 >
set and display aliases command
boot up an external process
set/show/clear the breakpoint
configuration register utility
continue executing a downloaded image
display the context of a loaded image
display contents of cookie PROM in hex
list the device table
list files in file system
display instruction stream
serial download a program module
print out a selected stack frame
monitor builtin command help
monitor command history
main memory information
repeat a monitor command
system reset
display the monitor variables
produce a stack trace
write monitor environment to NVRAM
print out info from last system return
tftp image download
unset an alias
unset a monitor variable
x/ymodem image download
را ﺑﻪ درون ﻓﻠﺶ ﻣﻤﻮري روﺗﺮ داﻧﻮدIOS image اﺳﺖ.اﯾﻦ دﺳﺘﻮرtftpdnld 2. اﮐﻨﻮن ﻧﻮﺑﺖ ﮐﺎر ﺑﺎ دﺳﺘﻮر
را ﻧﯿﺰ دارا اﺳﺖ.ﺑﺎ ﺗﺎﯾﭗ اﯾﻦ دﺳﺘﻮر ﭘﺎراﻣﺘﺮﻫﺎﯾﯽ ﮐﻪ راRam ﻣﯿﮑﻨﺪ ﻫﻤﯿﻨﻄﻮر ﻗﺎﺑﻠﯿﺖ ﺑﺎرﮔﺬاري ﻣﺴﺘﻘﯿﻢ درون
ﮐﻪ ﺑﺮاي اﺟﺮا ﺑﻪ آﻧﻬﺎ ﻧﯿﺎز دارد را ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﻢ
rommon 2 > tftpdnld
Page 88 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-89-320.jpg)
![Missing or illegal ip address for variable IP_ADDRESS
Illegal IP address.
usage: tftpdnld [-r]
Use this command for disaster recovery only to recover an image via TFTP.
Monitor variables are used to set up parameters for the transfer.
(Syntax: "VARIABLE_NAME=value" and use "set" to show current variables.)
"ctrl-c" or "break" stops the transfer before flash erase begins.
The following variables are REQUIRED to be set for tftpdnld:
IP_ADDRESS: The IP address for this unit
IP_SUBNET_MASK: The subnet mask for this unit
DEFAULT_GATEWAY: The default gateway for this unit
TFTP_SERVER: The IP address of the server to fetch from
TFTP_FILE: The filename to fetch
The following variables are OPTIONAL:
TFTP_VERBOSE:
Print
setting.
0=quiet,
1=progress(default),
2=verbose
TFTP_RETRY_COUNT: Retry count for ARP and TFTP (default=12)
TFTP_TIMEOUT:
Overall
timeout
of
operation
in
seconds
(default=7200)
TFTP_CHECKSUM:
Perform
checksum
test
on
image,
0=no,
1=yes
(default=1)
FE_SPEED_MODE:
0=10/hdx,
1=10/fdx,
2=100/hdx,
3=100/fdx,
4=Auto(deflt)
Command line options:
-r: do not write flash, load to DRAM only and launch image
rommon 3 >
را وارد ﻣﯿﮑﻨﯿﻢset دﺳﺘﻮرimage ﺟﻬﺖ ﻣﻘﺪار دﻫﯽ ﺑﻪ ﭘﺎراﻣﺘﺮﻫﺎي ﻣﻮرد ﻧﯿﺎز ﺟﻬﺖ داﻧﻠﻮد
rommon 3 > set
PS1=rommon ! >
BOOT=
RET_2_RUTC=0
BSI=0
RANDOM_NUM=1492875412
ROM_PERSISTENT_UTC=1016225763
RET_2_RTS=
RET_2_RCALTS=
?=1
rommon 24 > set
PS1=rommon ! >
BOOT=
RET_2_RUTC=0
BSI=0
RANDOM_NUM=1492875412
ROM_PERSISTENT_UTC=1016225763
RET_2_RTS=
RET_2_RCALTS=
?=0
rommon 4 >
Page 89 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-90-320.jpg)

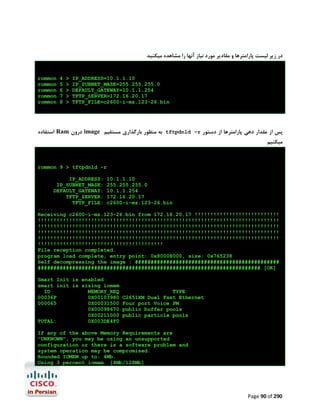

![در زﯾﺮ ﻟﯿﺴﺖ ﭘﺎراﻣﺘﺮﻫﺎ و ﻣﻘﺎدﯾﺮ ﻣﻮرد ﻧﯿﺎز آﻧﻬﺎ را ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﺪ
rommon
rommon
rommon
rommon
rommon
4
5
6
7
8
>
>
>
>
>
IP_ADDRESS=10.1.1.10
IP_SUBNET_MASK=255.255.255.0
DEFAULT_GATEWAY=10.1.1.254
TFTP_SERVER=172.16.20.17
TFTP_FILE=c2600-i-mz.123-26.bin
اﺳﺘﻔﺎدهRam درونimage ﺑﻪ ﻣﻨﻈﻮر ﺑﺎرﮔﺬاري ﻣﺴﺘﻘﯿﻢtftpdnld –r ﭘﺲ از ﻣﻘﺪار دﻫﯽ ﭘﺎراﻣﺘﺮﻫﺎ از دﺳﺘﻮر
ﻣﯿﮑﻨﯿﻢ
rommon 9 > tftpdnld -r
IP_ADDRESS:
IP_SUBNET_MASK:
DEFAULT_GATEWAY:
TFTP_SERVER:
TFTP_FILE:
10.1.1.10
255.255.255.0
10.1.1.254
172.16.20.17
c2600-i-mz.123-26.bin
.....
Receiving c2600-i-mz.123-26.bin from 172.16.20.17 !!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
File reception completed.
program load complete, entry point: 0x80008000, size: 0x765238
Self decompressing the image : ##############################################
####################################################################### [OK]
Smart Init is enabled
smart init is sizing iomem
ID
MEMORY_REQ
00036F
0X00103980
000065
0X00031500
0X00098670
0X00211000
TOTAL:
0X003DE4F0
TYPE
C2651XM Dual Fast Ethernet
Four port Voice PM
public buffer pools
public particle pools
If any of the above Memory Requirements are
"UNKNOWN", you may be using an unsupported
configuration or there is a software problem and
system operation may be compromised.
Rounded IOMEM up to: 4Mb.
Using 3 percent iomem. [4Mb/128Mb]
Page 90 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-91-320.jpg)

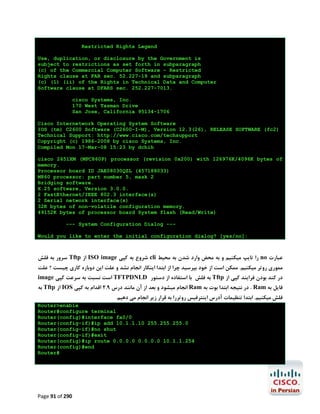

![Restricted Rights Legend
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
cisco Systems, Inc.
170 West Tasman Drive
San Jose, California 95134-1706
Cisco Internetwork Operating System Software
IOS (tm) C2600 Software (C2600-I-M), Version 12.3(26), RELEASE SOFTWARE (fc2)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2008 by cisco Systems, Inc.
Compiled Mon 17-Mar-08 15:23 by dchih
cisco 2651XM (MPC860P) processor (revision 0x200) with 126976K/4096K bytes of
memory.
Processor board ID JAE08030QZL (457188033)
M860 processor: part number 5, mask 2
Bridging software.
X.25 software, Version 3.0.0.
2 FastEthernet/IEEE 802.3 interface(s)
2 Serial network interface(s)
32K bytes of non-volatile configuration memory.
49152K bytes of processor board System flash (Read/Write)
--- System Configuration Dialog --Would you like to enter the initial configuration dialog? [yes/no]:
ﺳﺮور ﺑﻪ ﻓﻠﺶTftp ازISO image ﺷﺮوع ﺑﻪ ﮐﭙﯽcli را ﺗﺎﯾﭗ ﻣﯿﮑﻨﯿﻢ و ﺑﻪ ﻣﺤﺾ وارد ﺷﺪن ﺑﻪ ﻣﺤﯿﻂno ﻋﺒﺎرت
ﻣﻤﻮري روﺗﺮ ﻣﯿﮑﻨﯿﻢ. ﻣﻤﮑﻦ اﺳﺖ از ﺧﻮد ﺑﭙﺮﺳﯿﺪ ﭼﺮا از اﺑﺘﺪا اﯾﻨﮑﺎر اﻧﺠﺎم ﻧﺸﺪ و ﻋﻠﺖ اﯾﻦ دوﺑﺎره ﮐﺎري ﭼﯿﺴﺖ ؟ ﻋﻠﺖ
image اﺳﺖ ﻧﺴﺒﺖ ﺑﻪ ﺳﺮﻋﺖ ﮐﭙﯽTFTPDNLD ﺑﻪ ﻓﻠﺶ ﺑﺎ اﺳﺘﻔﺎده از دﺳﺘﻮرTftp در ﮐﻨﺪ ﺑﻮدن ﻓﺮاﯾﻨﺪ ﮐﭙﯽ از
ﺑﻪTftp ازIOS اﻧﺠﺎم ﻣﯿﺸﻮد و ﺑﻌﺪ از آن ﻣﺎﻧﻨﺪ درس 9.2 اﻗﺪام ﺑﻪ ﮐﭙﯽRam . در ﻧﺘﯿﺠﻪ اﺑﺘﺪا ﺑﻮت ﺑﻪRam ﻓﺎﯾﻞ ﺑﻪ
ﻓﻠﺶ ﻣﯿﮑﻨﯿﻢ. اﺑﺘﺪا ﺗﻨﻈﯿﻤﺎت آدرس اﯾﻨﺘﺮﻓﯿﺲ روﺗﺮرا ﺑﻪ ﻗﺮار زﯾﺮ اﻧﺠﺎم ﻣﯽ دﻫﯿﻢ
Router>enable
Router#configure terminal
Router(config)#interface fa0/0
Router(config-if)#ip add 10.1.1.10 255.255.255.0
Router(config-if)#no shut
Router(config-if)#exit
Router(config)#ip route 0.0.0.0 0.0.0.0 10.1.1.254
Router(config)#end
Router#
Page 91 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-92-320.jpg)
![ ﺑﻪ ﻓﻠﺶ ﻣﻤﻮريIOS وﺑﻌﺪ از آن ﮐﭙﯽ
Router#copy tftp flash
Address or name of remote host []? 172.16.20.17
Source filename []? c2600-adventerprisek9-mz.124-1.bin
Destination filename [c2600-adventerprisek9-mz.124-1.bin]?
Accessing tftp://172.16.20.17/c2600-adventerprisek9-mz.124-1.bin...
Erase flash: before copying? [confirm]
Erasing the flash filesystem will remove all files! Continue? [confirm]
Erasing
device...
eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee
eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee
e
eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee ...erased
Erase of flash: complete
Loading
c2600-adventerprisek9-mz.124-1.bin
from
172.16.20.17
(via
FastEthernet0/0):
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!
[OK - 34634180 bytes]
Verifying checksum... OK (0x8E89)
34634180 bytes copied in 279.014 secs (124131 bytes/sec)
Router#
ﺑﻪ ﻓﻠﺶ ﻣﻤﻮري ، روﺗﺮ را رﯾﺴﺖ ﻣﯽ ﮐﻨﯿﻢ و ﺑﺎ ﺳﯿﺴﺘﻢ ﻋﺎﻣﻞ ﺟﺪﯾﺪ ﻣﺴﺘﻘﺮ در ﻓﻠﺶ ﺑﻮتIOS اﮐﻨﻮن ﭘﺲ از اﺗﻤﺎم ﮐﭙﯽ
!ﻣﯽ ﺷﻮﯾﻢ
Page 92 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-93-320.jpg)
![ ﺑﻮت ﻣﯿﮑﻨﯿﻢ.ﺑﺮاي ﻣﺸﺎﻫﺪه ﺟﺰﺋﯿﺎتstat از ﻃﺮﯾﻖ ﭘﺎﯾﯿﻦ ﻧﮕﻪ داﺷﺘﻦ دﮐﻤﻪRom mode 1. ﺳﻮﯾﯿﭻ را ﺑﻪ ﻣﺤﯿﻂ
/ﺑﺒﯿﺸﺘﺮ ﺑﻪ آزﻣﺎﯾﺶ 3.2 ﻣﺮاﺟﻌﻪ ﮐﻨﯿﺪ
.ﺧﺮوﺟﯽ زﯾﺮ ﻣﺤﺘﻮاي ﺗﺮﻣﯿﻨﺎل ﭘﺲ از ورود ﺑﻪ اﯾﻦ ﻣﺤﯿﻂ را ﻧﺸﺎن ﻣﯽ دﻫﺪ
Boot Sector Filesystem (bs) installed, fsid: 2
Base ethernet MAC Address: 00:14:f2:d2:41:80
Xmodem file system is available.
The password-recovery mechanism is enabled.
The system has been interrupted prior to initializing the
flash filesystem. The following commands will initialize
the flash filesystem, and finish loading the operating
system software:
flash_init
boot
switch:
ﺧﻮاﻫﺪ ﺷﺪ ﻣﻄﺎﺑﻖ ﺑﺎ روش زﯾﺮinitialize 2. ﭘﺲ از ورود ﺑﻪ اﯾﻦ ﻣﺤﯿﻂ ﻓﺎﯾﻞ ﺳﯿﺴﺘﻢ ﻓﻠﺶ
switch: flash_init
Initializing Flash...
flashfs[0]: 1 files, 1 directories
flashfs[0]: 0 orphaned files, 0 orphaned directories
flashfs[0]: Total bytes: 15998976
flashfs[0]: Bytes used: 12474880
flashfs[0]: Bytes available: 3524096
flashfs[0]: flashfs fsck took 10 seconds.
...done Initializing Flash.
switch:
ﻓﺮﻣﺖformat flash: ﺗﺨﺮﯾﺐ ﺷﺪه اﺳﺖ ﻣﯿﺘﻮان ﻓﻠﺶ را ﺑﺎ اﺳﺘﻔﺎده ازios - در ﺻﻮرﺗﯿﮑﻪOpitonal .3
! را ﻫﻢ ﭘﺎك ﻣﯿﮑﻨﺪstartup config ﮐﺮد.اﯾﻨﮑﺎر
Switch: format flash:
Are you sure you want to format "flash:" (all data will be lost) (y/n)?y
flashfs[0]: 0 files, 1 directories
flashfs[0]: 0 orphaned files, 0 orphaned directories
flashfs[0]: Total bytes: 7741440
flashfs[0]: Bytes used: 1024
flashfs[0]: Bytes available: 7740416
flashfs[0]: flashfs fsck took 12 seconds.
Page 94 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-95-320.jpg)
![Initializing flashfs...
flashfs[1]: 1 files, 1 directories
flashfs[1]: 0 orphaned files, 0 orphaned directories
flashfs[1]: Total bytes: 15998976
flashfs[1]: Bytes used: 12474880
flashfs[1]: Bytes available: 3524096
flashfs[1]: flashfs fsck took 1 seconds.
flashfs[1]: Initialization complete....done Initializing flashfs.
Checking for Bootloader upgrade.. not needed
POST: CPU MIC register Tests : Begin
POST: CPU MIC register Tests : End, Status Passed
POST: PortASIC Memory Tests : Begin
POST: PortASIC Memory Tests : End, Status Passed
POST: CPU MIC interface Loopback Tests : Begin
POST: CPU MIC interface Loopback Tests : End, Status Passed
POST: PortASIC RingLoopback Tests : Begin
POST: PortASIC RingLoopback Tests : End, Status Passed
POST: Inline Power Controller Tests : Begin
POST: Inline Power Controller Tests : End, Status Passed
POST: PortASIC CAM Subsystem Tests : Begin
POST: PortASIC CAM Subsystem Tests : End, Status Passed
POST: PortASIC Port Loopback Tests : Begin
POST: PortASIC Port Loopback Tests : End, Status Passed
Waiting for Port download...Complete
This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.
A summary of U.S. laws governing Cisco cryptographic products may be found
at:
http://www.cisco.com/wwl/export/crypto/tool/stqrg.html
If you require further assistance please contact us by sending email to
export@cisco.com.
cisco WS-C3560-24PS (PowerPC405) processor (revision M0) with 131072K bytes
of
memory.
Processor board ID CAT0928Z2EE
Page 97 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-98-320.jpg)

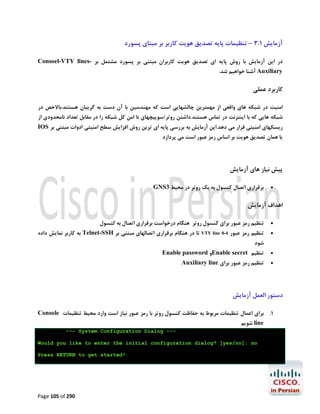

![آزﻣﺎﯾﺶ 1.3 – ﺗﻨﻈﯿﻤﺎت ﭘﺎﯾﻪ ﺗﺼﺪﯾﻖ ﻫﻮﯾﺖ ﮐﺎرﺑﺮ ﺑﺮ ﻣﺒﻨﺎي ﭘﺴﻮرد
در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ روش ﭘﺎﯾﻪ اي ﺗﺼﺪﯾﻖ ﻫﻮﯾﺖ ﮐﺎرﺑﺮان ﻣﺒﺘﻨﯽ ﺑﺮ ﭘﺴﻮرد ﻣﺸﺘﻤﻞ ﺑﺮ -Consoel-VTY lines
Auxiliaryآﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ.
ﮐﺎرﺑﺮد ﻋﻤﻠﯽ
اﻣﻨﯿﺖ در ﺷﺒﮑﻪ ﻫﺎي واﻗﻌﯽ از ﻣﻬﻤﺘﺮﯾﻦ ﭼﺎﻟﺸﻬﺎﯾﯽ اﺳﺖ ﮐﻪ ﻣﻬﻨﺪﺳﯿﻦ ﺑﺎ آن دﺳﺖ ﺑﻪ ﮔﺮﯾﺒﺎن ﻫﺴﺘﻨﺪ،ﺑﺎﻻﺧﺺ در
ﺷﺒﮑﻪ ﻫﺎﯾﯽ ﮐﻪ ﺑﺎ اﯾﻨﺘﺮﻧﺖ در ﺗﻤﺎس ﻫﺴﺘﻨﺪ.داﺷﺘﻦ روﺗﺮ/ﺳﻮﯾﯿﭽﻬﺎي ﻧﺎ اﻣﻦ ﮐﻞ ﺷﺒﮑﻪ را در ﻣﻘﺎﺑﻞ ﺗﻌﺪاد ﻧﺎﻣﺤﺪودي از
رﯾﺴﮑﻬﺎي اﻣﻨﯿﺘﯽ ﻗﺮار ﻣﯽ دﻫﺪ.اﯾﻦ آزﻣﺎﯾﺶ ﺑﻪ ﺑﺮرﺳﯽ ﭘﺎﯾﻪ اي ﺗﺮﯾﻦ روش اﻓﺰاﯾﺶ ﺳﻄﺢ اﻣﻨﯿﺘﯽ ادوات ﻣﺒﺘﻨﯽ ﺑﺮ IOS
ﯾﺎ ﻫﻤﺎن ﺗﺼﺪﯾﻖ ﻫﻮﯾﺖ ﺑﺮ اﺳﺎس رﻣﺰ ﻋﺒﻮر اﺳﺖ ﻣﯽ ﭘﺮدازد
ﭘﯿﺶ ﻧﯿﺎز ﻫﺎي آزﻣﺎﯾﺶ
ﺑﺮﻗﺮاري اﺗﺼﺎل ﮐﻨﺴﻮل ﺑﻪ ﯾﮏ روﺗﺮ در ﻣﺤﯿﻂ 3GNS
اﻫﺪاف آزﻣﺎﯾﺶ
ﺗﻨﻈﯿﻢ رﻣﺰ ﻋﺒﻮر ﺑﺮاي ﮐﻨﺴﻮل روﺗﺮ ﻫﻨﮕﺎم درﺧﻮاﺳﺖ ﺑﺮﻗﺮاري اﺗﺼﺎل ﺑﻪ ﮐﻨﺴﻮل
ﺗﻨﻈﯿﻢ رﻣﺰ ﻋﺒﻮر 4-0 VTY lineﺗﺎ در ﻫﻨﮕﺎم ﺑﺮﻗﺮاري اﺗﺼﺎﻟﻬﺎي ﻣﺒﺘﻨﯽ ﺑﺮ Telnet-SSHﺑﻪ ﮐﺎرﺑﺮ ﻧﻤﺎﯾﺶ داده
ﺗﻨﻈﯿﻢ Enable secretو Enable password
ﺷﻮد
ﺗﻨﻈﯿﻢ رﻣﺰ ﻋﺒﻮر ﺑﺮاي Auxiliary line
دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ
1. ﺑﺮاي اﻋﻤﺎل ﺗﻨﻈﯿﻤﺎت ﻣﺮﺑﻮط ﺑﻪ ﺣﻔﺎﻇﺖ ﮐﻨﺴﻮل روﺗﺮ ﺑﺎ رﻣﺰ ﻋﺒﻮر ﻧﯿﺎز اﺳﺖ وارد ﻣﺤﯿﻂ ﺗﻨﻈﯿﻤﺎت Console
lineﺷﻮﯾﻢ
-- --- System Configuration DialogWould you like to enter the initial configuration dialog? [yes/no]: no
!Press RETURN to get started
092 Page 105 of](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-106-320.jpg)

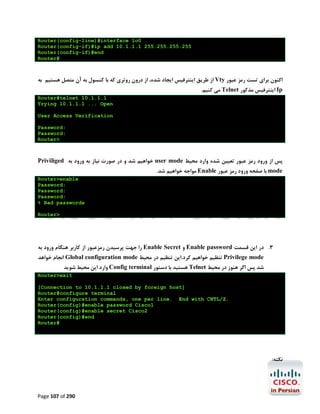

![Router(config-line)#interface lo0
Router(config-if)#ip add 10.1.1.1 255.255.255.255
Router(config-if)#end
Router#
از ﻃﺮﯾﻖ اﯾﻨﺘﺮﻓﯿﺲ اﯾﺠﺎد ﺷﺪه، از درون روﺗﺮي ﮐﻪ ﺑﺎ ﮐﻨﺴﻮل ﺑﻪ آن ﻣﺘﺼﻞ ﻫﺴﺘﯿﻢ ﺑﻪVty اﮐﻨﻮن ﺑﺮاي ﺗﺴﺖ رﻣﺰ ﻋﺒﻮر
. ﻣﯽ ﮐﻨﯿﻢTelnet اﯾﻨﺘﺮﻓﯿﺲ ﻣﺬﮐﻮرIp
Router#telnet 10.1.1.1
Trying 10.1.1.1 ... Open
User Access Verification
Password:
Password:
Router>
Priviliged ﺧﻮاﻫﯿﻢ ﺷﺪ و در ﺻﻮرت ﻧﯿﺎز ﺑﻪ ورود ﺑﻪuser mode ﭘﺲ از ورود رﻣﺰ ﻋﺒﻮر ﺗﻌﯿﯿﻦ ﺷﺪه وارد ﻣﺤﯿﻂ
. ﻣﻮاﺟﻪ ﺧﻮاﻫﯿﻢ ﺷﺪEnable ﺑﺎ ﺻﻔﺤﻪ ورود رﻣﺰ ﻋﺒﻮرmode
Router>enable
Password:
Password:
Password:
% Bad passwords
Router>
را ﺟﻬﺖ ﭘﺮﺳﯿﺪن رﻣﺰﻋﺒﻮر از ﮐﺎرﺑﺮ ﻫﻨﮕﺎم ورود ﺑﻪEnable Secret وEnable password 3. در اﯾﻦ ﻗﺴﻤﺖ
اﻧﺠﺎم ﺧﻮاﻫﺪGlobal configuration mode ﺗﻨﻈﯿﻢ ﺧﻮاﻫﯿﻢ ﮐﺮد.اﯾﻦ ﺗﻨﻈﯿﻢ در ﻣﺤﯿﻂPrivilege mode
وارد اﯾﻦ ﻣﺤﯿﻂ ﺷﻮﯾﺪConfig terminal ﻫﺴﺘﯿﺪ ﺑﺎ دﺳﺘﻮرTelnet ﺷﺪ ﭘﺲ اﮔﺮ ﻫﻨﻮز در ﻣﺤﯿﻂ
Router>exit
[Connection to 10.1.1.1 closed by foreign host]
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#enable password Cisco1
Router(config)#enable secret Cisco2
Router(config)#end
Router#
:ﻧﮑﺘﻪ
Page 107 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-108-320.jpg)

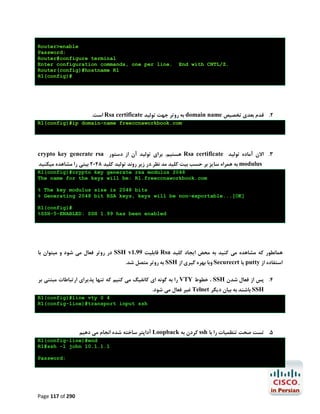

![Router>enable
Password:
Router#configure terminal
Enter configuration commands, one per line.
Router(config)#hostname R1
R1(config)#
End with CNTL/Z.
. اﺳﺖRsa certificate ﺑﻪ روﺗﺮ ﺟﻬﺖ ﺗﻮﻟﯿﺪdomain name 2. ﻗﺪم ﺑﻌﺪي ﺗﺨﺼﯿﺺ
R1(config)#ip domain-name freeccnaworkbook.com
crypto key generate rsa ﻫﺴﺘﯿﻢ. ﺑﺮاي ﺗﻮﻟﯿﺪ آن از دﺳﺘﻮرRsa certificate 3. اﻻن آﻣﺎده ﺗﻮﻟﯿﺪ
ﺑﻪ ﻫﻤﺮاه ﺳﺎﯾﺰ ﺑﺮ ﺣﺴﺐ ﺑﯿﺖ ﮐﻠﯿﺪ ﻣﺪ ﻧﻈﺮ.در زﯾﺮ روﻧﺪ ﺗﻮﻟﯿﺪ ﮐﻠﯿﺪ 8402 ﺑﯿﺘﯽ را ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﺪmodulus
R1(config)#crypto key generate rsa modulus 2048
The name for the keys will be: R1.freeccnaworkbook.com
% The key modulus size is 2048 bits
% Generating 2048 bit RSA keys, keys will be non-exportable...[OK]
R1(config)#
%SSH-5-ENABLED: SSH 1.99 has been enabled
در روﺗﺮ ﻓﻌﺎل ﻣﯽ ﺷﻮد و ﻣﯿﺘﻮان ﺑﺎSSH v1.99 ﻗﺎﺑﻠﯿﺖRsa ﻫﻤﺎﻧﻄﻮر ﮐﻪ ﻣﺸﺎﻫﺪه ﻣﯽ ﮐﻨﯿﺪ ﺑﻪ ﻣﺤﺾ اﯾﺠﺎد ﮐﻠﯿﺪ
. ﺑﻪ روﺗﺮ ﻣﺘﺼﻞ ﺷﺪSSH وﺑﺎ ﺑﻬﺮه ﮔﯿﺮي ازSecurecrt ﯾﺎputty اﺳﺘﻔﺎده از
را ﺑﻪ ﮔﻮﻧﻪ اي ﮐﺎﻧﻔﯿﮓ ﻣﯽ ﮐﻨﯿﻢ ﮐﻪ ﺗﻨﻬﺎ ﭘﺬﯾﺮاي ارﺗﺒﺎﻃﺎت ﻣﺒﺘﻨﯽ ﺑﺮVTY ، ﺧﻄﻮطSSH 4. ﭘﺲ از ﻓﻌﺎل ﺷﺪن
. ﻏﯿﺮ ﻓﻌﺎل ﻣﯽ ﺷﻮدTelnet ﺑﺎﺷﻨﺪ ﺑﻪ ﺑﯿﺎن دﯾﮕﺮSSH
R1(config)#line vty 0 4
R1(config-line)#transport input ssh
آداﭘﺘﺮ ﺳﺎﺧﺘﻪ ﺷﺪه اﻧﺠﺎم ﻣﯽ دﻫﯿﻢLoopback ﮐﺮدن ﺑﻪssh 5. ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﻤﯿﺎت را ﺑﺎ
R1(config-line)#end
R1#ssh -l john 10.1.1.1
Password:
Page 117 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-118-320.jpg)
![User Access Verification
Username: tom
Password:
R1#show users
Line
0 con 0
* 2 vty 0
Interface
User
tom
User
Host(s)
idle
idle
Idle
Location
00:14:12
00:00:00 10.1.1.2
Mode
Idle
Peer Address
R1#exit
[Connection to 10.1.1.1 closed by foreign host]
R2#ssh -l tom 10.1.1.1
Password:
R1#sh ssh
Connection
Version
Mode
Encryption
Hmac
Username
0
1.99
IN
aes128-cbc hmac-sha1
Session started
0
1.99
OUT aes128-cbc hmac-sha1
Session started
%No SSHv1 server connections running.
R1#
State
tom
tom
ازTelnet اﻧﺠﺎم ﻣﯽ دﻫﯿﻢ. ﻫﻤﺎﻧﻄﻮر ﮐﻪ در ﻗﺴﻤﺘﻬﺎي ﻗﺒﻞ دﯾﺪﯾﻢ ﺗﻨﻈﺎر ﻣﯽ رود ﺗﺮاﻓﯿﮏR3 ﺗﺴﺖ ﺑﻌﺪي را از ﺳﻤﺖ
. ﻣﺠﺎز ﺑﻪ ﻋﺒﻮر ﺑﺎﺷﺪSSH ﺳﻤﺖ آن ﺑﻼك ﺷﻮد و
R3#telnet 10.1.1.1
Trying 10.1.1.1 ...
% Connection refused by remote host
R3#ssh -l tom 10.1.1.1
Password:

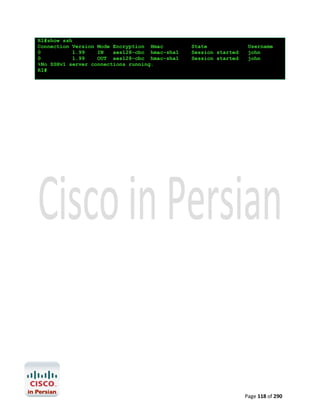

R1#show ssh
Connection
Version
Mode
Encryption
Hmac
Username
0
1.99
IN
aes128-cbc hmac-sha1
Session started
0
1.99
OUT aes128-cbc hmac-sha1
Session started
%No SSHv1 server connections running.
R1#show users
Line
User
Host(s)
Idle
Location
0 con 0
idle
00:13:53
* 2 vty 0
tom
idle
00:00:00 10.1.1.3
Interface
User
Mode
Idle
State
tom
tom
Peer Address
R1#
Page 128 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-129-320.jpg)
![R1>enable
R1#configure terminal
Enter configuration commands, one per line.
R1(config)#line vty 0 4
R1(config-line)#exec-timeout 2
R1(config-line)#end
R1#telnet 10.1.1.1
Trying 10.1.1.1 ... Open
End with CNTL/Z.
User Access Verification
Username: tom
Password:
R1#
[Connection to 10.1.1.1 closed by foreign host]
R1#
دودﻗﯿﻘﻪ اي ﺑﻪ ﺟﺎي آن اﯾﺠﺎدAbsolute timeout 2. در ﻗﺪم ﺑﻌﺪي ﺗﻨﻈﯿﻤﺎت ﻗﺒﻠﯽ را ﭘﺎك ﻣﯿﮑﻨﯿﻢ و ﯾﮏ
. ﺗﺴﺖ ﻣﯿﮑﻨﯿﻢLoopback ﻣﺠﺪد ﺑﻪTelnet ﻣﯿﮑﻨﯿﻢ . ﻧﺘﯿﺠﻪ را ﺑﺎ ﯾﮏ
R1#configure terminal
Enter configuration commands, one per line.
R1(config)#line vty 0 4
R1(config-line)#no exec-timeout
R1(config-line)#absolute-timeout 2
R1(config-line)#end
R1#telnet 10.1.1.1
Trying 10.1.1.1 ... Open
End with CNTL/Z.
User Access Verification
Username: tom
Password:
R1#
*
*
* Line timeout expired
*
[Connection to 10.1.1.1 closed by foreign host]
R1#
.
Page 132 of 290](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-133-320.jpg)
![آزﻣﺎﯾﺶ 11.3 –وب ﺳﺮور داﺧﻠﯽ ادوات ﺳﯿﺴﮑﻮ
در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت ادوات ﺳﯿﺴﮑﻮ ﺟﻬﺖ اﺣﺮاز ﻫﻮﯾﺖ ارﺗﺒﺎﻃﻬﺎي ﺑﺮﻗﺮار ﺷﺪه ﺑﺎ وب ﮐﻨﺴﻮل اﯾﻦ ادوات
آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ.
ﮐﺎرﺑﺮد ﻋﻤﻠﯽ
ﺗﻨﻈﯿﻤﺎت ﻣﺮﺗﺒﻂ ﺑﺎ اﺣﺮاز ﻫﻮﯾﺖ از ﻃﺮﯾﻖ Cisco IOS web serverﺟﻬﺖ اﯾﺠﺎد و ﮐﻨﺘﺮل دﺳﺘﺮﺳﯽ ﺑﺮﺧﯽ ﮐﺎرﺑﺮان ﺑﻪ
وب ﮐﻨﺴﻮل ادوات ﯾﺎ SDMدر ﻣﺤﯿﻄﻬﺎي ﻋﻤﻠﯿﺎﺗﯽ اﻣﺮي راﯾﺞ ﻣﯽ ﺑﺎﺷﺪ. در اﯾﻦ ﻧﻮﺷﺘﻪ ﺑﻪ ﭼﮕﻮﻧﮕﯽ اﯾﻦ ﺗﻨﻈﯿﻤﺎت
ﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ
ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ
ﺑﺮﻗﺮاري ارﺗﺒﺎط ﮐﻨﺴﻮل ﺑﺎ ﯾﮏ روﺗﺮ در ﻣﺤﯿﻂ 3Gns
اﯾﺠﺎد ارﺗﺒﺎط Cloudاﯾﻨﺘﺮﻓﯿﺲ 0/1 Faﺑﺎ ﮐﺎرت ﺷﺒﮑﻪ ﮐﺎﻣﭙﯿﻮﺗﺮ
اﯾﺠﺎد ﮐﺎرﺑﺮ ﺑﺎ ﺳﻄﺢ دﺳﺘﺮﺳﯽ 51 ﺟﻬﺖ اﺣﺮاز ﻫﻮﯾﺖ از ﻃﺮﯾﻖ وب
ﺗﺨﺼﯿﺺ آدرس ﺑﻪ 0/0 Faﺟﻬﺖ دﺳﺘﺮﺳﯽ ﺗﺤﺖ وب ﺑﻪ ﮐﻨﺴﻮل روﺗﺮ از ﻃﺮﯾﻖ IE
اﻫﺪاف آزﻣﺎﯾﺶ
ﺗﺨﺼﯿﺺ ﻧﺎم داﻣﻨﻪ stubarea.netﺑﻪ روﺗﺮ
ﻓﻌﺎل ﺳﺎزي وب ﺳﺮور داﺧﻠﯽ روﺗﺮ ﺑﺎ دﺳﺘﻮر the ip http secure-server
ﺗﻨﻈﯿﻢ وب ﺳﺮور داﺧﻠﯽ ﺑﻪ ﻣﻨﻈﻮر اﺧﺬ اﻃﻼﻋﺎت ﻫﻮﯾﺘﯽ از ﭘﺎﯾﮕﺎه داده داﺧﻠﯽ ﺣﺴﺎﺑﻬﺎي ﮐﺎرﺑﺮي
ﻻﮔﯿﻦ ﺗﺤﺖ وب از ﻃﺮﯾﻖ IEﺑﻪ روﺗﺮ و وارد ﮐﺮدن اﻃﻼﻋﺎت ﻫﻮﯾﺘﯽ
دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ
1. ﺗﺨﺼﯿﺺ ﻧﺎم داﻣﻨﻪ stubarea.netﺑﻪ روﺗﺮ و ﻓﻌﺎل ﺳﺎزي وب ﺳﺮور داﺧﻠﯽ آن
R1 con0 is now available
.Press RETURN to get started
R1>enable
R1#configure terminal
.Enter configuration commands, one per line. End with CNTL/Z
R1(config)#ip domain-name stubarea.net
R11(config)#ip http secure-server
]% Generating 1024 bit RSA keys, keys will be non-exportable...[OK
%SSH-5-ENABLED: SSH 1.99 has been enabled
092 Page 133 of](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-134-320.jpg)
![آزﻣﺎﯾﺶ 1.5-ﺗﻨﻈﯿﻤﺎت ﻟﯿﻨﮑﻬﺎي 1 PtP Tاز ﻃﺮﯾﻖ PPPﯾﺎ HDLC
در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﻤﯿﺎت ﻟﯿﻨﮑﻬﺎي ﺳﺮﯾﺎل 1 Point-to-Point Tدر روﺗﺮﻫﺎي ﺳﯿﺴﮑﻮ از ﻃﺮﯾﻖ
) PPP (Point to Point Protocolﯾﺎ ) HDPC (High-Level Data Link Control Protocolآﺷﻨﺎ
ﺧﻮاﻫﯿﻢ ﺷﺪ.
ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ
ﺑﻪ ﻋﻨﻮان ﯾﮏ ﻣﻬﻨﺪس ﺷﺒﮑﻪ ﻧﯿﺎز اﺳﺖ ﺗﺎ ﺑﺎ ﺧﻄﻮط 1 Tﮐﻪ ﺳﺎﻟﻬﺎﺳﺖ ﺑﻪ ﻋﻨﻮان اﺳﺘﺎﻧﺪاردي ﺑﺎﻟﻔﻌﻞ ﺟﻬﺖ ﺑﺮﻗﺮاري
ارﺗﺒﺎط ﻣﺤﺪود ﺑﻪ ﺳﺮﻋﺖ 1.544Mbpsﺑﺎ ﺷﻌﺐ ﮐﻮﭼﮏ ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻣﯿﮕﯿﺮد آﺷﻨﺎ ﺑﺎﺷﯿﺪ.اﺳﺘﺎﻧﺪارد 1 Tدر ﻋﻤﻞ
ﺑﻪ ﻣﺸﺘﻘﺎﺗﯽ ﺑﺎ ﭘﻬﻨﺎي ﺑﺎﻧﺪﻫﺎي ﮐﻤﺘﺮ ﻣﺎﻧﻨﺪ ﻣﺎﻧﻨﺪ 786Kbps،512Kbpsﯾﺎ ﺣﺘﯽ 1Mbpsﺗﻘﺴﯿﻢ ﻣﯿﺸﻮد. ﺧﻄﻮط 1 Tاز
ﺑﻌﺪ ﻓﯿﺰﯾﮑﯽ زوج ﺳﯿﻤﻬﺎي ﻣﺴﯽ ﺑﻪ ﻫﻢ ﺗﺎﺑﯿﺪه ﺷﺪه اي ﻫﺴﺘﻨﺪ ﮐﻪ از ﻃﺮﯾﻖ ﮐﺎرﺗﻬﺎي اﻣﺮوزي ﺗﺮ ,1WIC-1DSU-T
2 WIC-1DSU-T1-Vﯾﺎ 1 CSU/DSU Tﮐﻨﺘﺮﻟﺮﻫﺎي دروﻧﯽ ﺧﻮد روﺗﺮ ﺑﻪ آن ﻣﺘﺼﻞ ﻣﯿﺸﻮﻧﺪ.در ﻧﻤﻮﻧﻪ ﻫﺎي ﻗﺪﯾﻤﯽ
ﺗﺮ ﻧﯿﺰ ﻣﯿﺘﻮان اﯾﻦ اﺗﺼﺎﻻت را از ﻃﺮﯾﻖ ﮐﺎﺑﻠﻬﺎي 53. Vو ﮐﺎرﺗﻬﺎي WIC-1Tﯾﺎ WIC-2Tﻣﺸﺎﻫﺪه ﮐﺮد.
WIC-1Tراﯾﺞ ﺗﺮﯾﻦ راﺑﻂ ﺳﺮﯾﺎل در ﻣﺤﯿﻄﻬﺎي آزﻣﺎﯾﺸﮕﺎﻫﯽ ﻣﯿﺒﺎﺷﺪ و در ﻫﻨﮕﺎم ﮐﺎﻧﻔﯿﮓ آن ﻧﯿﺎز ﺑﻪ ﺗﻨﻈﯿﻢ ﻧﺰخ
Clockدر ﺳﻤﺖ DCEﮐﻪ ﺗﻮﺳﻂ ﺳﺮوﯾﺲ ﭘﺮواﯾﺪر ﺻﻮرت ﻣﯿﮕﯿﺮد و ﻫﻤﯿﻨﻄﻮر DTEﮐﻪ ﺗﻮﺳﻂ ﺷﻤﺎ ﺻﻮرت ﻣﯿﮕﯿﺮد
ﻣﯿﺒﺎﺷﺪ.
در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ دﺳﺘﻮرات زﯾﺮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ.
#/# :show controller serialﺟﻬﺖ ﻧﻤﺎﯾﺶ اﻃﻼﻋﺎت ﻣﺨﺘﺺ ﺑﻪ ﮐﻨﺘﺮﻟﺮ ﯾﮏ ﺳﺮﯾﺎل اﯾﻨﺘﺮﻓﯿﺲ ﺧﺎص ﺷﺎﻣﻞ
ﻧﺮخ Clockو ﻧﻮع ﺗﺮﻣﯿﻨﯿﺸﻦ ﮐﺎﺑﻞ )(DTE or DCE
# :clock rateﺟﻬﺖ ﺗﻨﻈﯿﻢ ﻧﺮخ Clockدر ﺳﻤﺖ DCE
] :encapsulation [ HDLC | PPPﺟﻬﺖ اﻧﺘﺨﺎب ﻧﻮع Encapsulation
#/# :show interface serialﺟﻬﺖ ﻧﻤﺎﯾﺶ اﯾﻨﺘﺮﻓﯿﺲ ﺳﺮﯾﺎل ﻣﺸﺨﺺ ﺷﺪه ﻣﺎﻧﻨﺪ ﻧﻮع
Utilization،Uptime،MTU،Encapsulationو ﻣﻮاردي از اﯾﻦ دﺳﺖ.
ﭘﯿﺶ ﻧﯿﺎز ﻫﺎي آزﻣﺎﯾﺶ
ﺑﺮﻗﺮاري اﺗﺼﺎل ﮐﻨﺴﻮل ﺑﻪ 2R1,R
ﺗﺨﺼﯿﺺ آدرﺳﻬﺎي 03/1.12.81.271 ﺑﻪ 1/0 Sدر 1 Rو 03/2.12.81.271 ﺑﻪ 1/0 Sدر 2R
092 Page 212 of](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-213-320.jpg)
![R1#configure terminal
Enter configuration commands, one per line.
R1(config)#ip name-server 4.2.2.2 4.2.2.4
R1(config)#end
R1#
End with CNTL/Z.
ﺟﻬﺖ ﺑﺮرﺳﯽ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت اﻧﺠﺎم ﺷﺪهgoogle.com ﭘﯿﻨﮓ ﺳﺎﯾﺖ
R1#ping google.com
Translating "google.com"...domain server (192.168.2.1) [OK]
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 72.14.204.104, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 24/35/56 ms
R1#
Page 289 of 290
](https://image.slidesharecdn.com/ccnalabinpersian-140126034115-phpapp02/85/CCNA-laboratory-in-persian-290-320.jpg)
Uploaded byFarid Nasiri
CCNA laboratory -in persian
This document is a Persian translation of a CCNA lab manual. It contains an introduction chapter about familiarizing with CCNA labs. It then has several chapters on basic router and switch management, and basic security configurations on Cisco devices. Each chapter contains multiple lab exercises with step-by-step instructions on topics like password recovery, IOS upgrades, interface configurations, access lists, AAA authentication, SSH, syslog server connections, and more.
CCNA laboratory -in persian
- 1. ﺳﯿﺴﮑﻮ ﺑﻪ ﭘﺎرﺳﯽ Cccxczxc آزﻣﺎﯾﺸﮕﺎه CCNAﺑﻪ ﭘﺎرﺳﯽ ﻧﺴﺨﻪ 0.1 ﺷﻬﺮﯾﻮر 1931 ﺗﺮﺟﻤﻪ و ﺗﺪوﯾﻦ : ﻓﺮﯾﺪ ﻧﺼﯿﺮي اﻧﺠﻤﻦ ﺳﯿﺴﮑﻮ ﺑﻪ ﭘﺎرﺳﯽ http://forum.ciscoinpersian.com

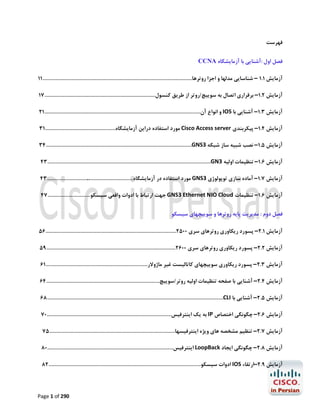

- 2. ﻓﻬﺮﺳﺖ ﻓﺼﻞ اول :آﺷﻨﺎﯾﯽﺑﺎ آزﻣﺎﯾﺸﮕﺎه CCNA آزﻣﺎﯾﺶ 1.1 – ﺷﻨﺎﺳﺎﯾﯽ ﻣﺪﻟﻬﺎ و اﺟﺰا روﺗﺮﻫﺎ.......................................................................................................................11 آزﻣﺎﯾﺶ 2.1– ﺑﺮﻗﺮاري اﺗﺼﺎل ﺑﻪ ﺳﻮﯾﯿﭻ/روﺗﺮ از ﻃﺮﯾﻖ ﮐﻨﺴﻮل........................................................................................71 آزﻣﺎﯾﺶ 3.1– آﺷﻨﺎﯾﯽ ﺑﺎ IOSو اﻧﻮاع آن............................................................................................................................12 آزﻣﺎﯾﺶ 4.1– ﭘﯿﮑﺮﺑﻨﺪي Cisco Access serverﻣﻮرد اﺳﺘﻔﺎده دراﯾﻦ آزﻣﺎﯾﺸﮕﺎه........................................................13 آزﻣﺎﯾﺶ 5.1– ﻧﺼﺐ ﺷﺒﯿﻪ ﺳﺎز ﺷﺒﮑﻪ 334....................................................................................................................GNS آزﻣﺎﯾﺶ 6.1– ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ 343..................................................................................................................................GN آزﻣﺎﯾﺶ 7.1– آﻣﺎده ﺳﺎزي ﺗﻮﭘﻮﻟﻮژي 3 GNSﻣﻮرد اﺳﺘﻔﺎده در آزﻣﺎﯾﺸﮕﺎه....................................................................34 آزﻣﺎﯾﺶ 6.1– ﺗﻨﻈﯿﻤﺎت GNS3 Ethernet NIO Cloudﺟﻬﺖ ارﺗﺒﺎط ﺑﺎ ادوات واﻗﻌﯽ ﺳﯿﺴﮑﻮ..................................74 ﻓﺼﻞ دوم : ﻣﺪﯾﺮﯾﺖ ﭘﺎﯾﻪ روﺗﺮﻫﺎ و ﺳﻮﯾﯿﭽﻬﺎي ﺳﯿﺴﮑﻮ آزﻣﺎﯾﺶ 1.2– ﭘﺴﻮرد رﯾﮑﺎوري روﺗﺮﻫﺎي ﺳﺮي 0052........................................................................................................65 آزﻣﺎﯾﺶ 2.2– ﭘﺴﻮرد رﯾﮑﺎوري روﺗﺮﻫﺎي ﺳﺮي 0062.......................................................................................................95 آزﻣﺎﯾﺶ 3.2– ﭘﺴﻮرد رﯾﮑﺎوري ﺳﻮﯾﯿﭽﻬﺎي ﮐﺎﺗﺎﻟﯿﺴﺖ ﻏﯿﺮ ﻣﺎژوﻻر.................................................................................16 آزﻣﺎﯾﺶ 4.2– آﺷﻨﺎﯾﯽ ﺑﺎ ﺻﻔﺤﻪ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ روﺗﺮ/ﺳﻮﯾﯿﭻ..........................................................................................46 آزﻣﺎﯾﺶ 5.2– آﺷﻨﺎﯾﯽ ﺑﺎ 68............................................................................................................................................CLI آزﻣﺎﯾﺶ 6.2– ﭼﮕﻮﻧﮕﯽ اﺧﺘﺼﺎص IPﺑﻪ ﯾﮏ اﯾﻨﺘﺮﻓﯿﺲ...................................................................................................07 آزﻣﺎﯾﺶ 7.2– ﺗﻨﻈﯿﻢ ﻣﺸﺨﺼﻪ ﻫﺎي وﯾﮋه اﯾﻨﺘﺮﻓﯿﺴﻬﺎ....................................................................................................57 آزﻣﺎﯾﺶ 8.2– ﭼﮕﻮﻧﮕﯽ اﯾﺠﺎد LoopBackاﯾﻨﺘﺮﻓﯿﺲ....................................................................................................08 آزﻣﺎﯾﺶ 9.2–ارﺗﻘﺎء IOSادوات ﺳﯿﺴﮑﻮ.........................................................................................................................28 092 Page 1 of
- 3. آزﻣﺎﯾﺶ 01.2– ﺑﺎزﯾﺎﺑﯽ IOSﺗﺨﺮﯾﺐ ﺷﺪه در روﺗﺮﻫﺎي ﺳﺮي 0052...................................................................................68 آزﻣﺎﯾﺶ 11.2– ﺑﺎزﯾﺎﺑﯽ IOSﺗﺨﺮﯾﺐ ﺷﺪه در روﺗﺮﻫﺎي ﺳﺮي 0062..................................................................................09 آزﻣﺎﯾﺶ 21.2– ﺑﺎزﯾﺎﺑﯽ IOSﺗﺨﺮﯾﺐ ﺷﺪه در ﺳﻮﯾﯿﭽﻬﺎي ﮐﺎﺗﺎﻟﯿﺴﺖ................................................................................69 آزﻣﺎﯾﺶ 31.2– ﺗﻨﻈﯿﻤﺎت اﯾﺠﺎد ﺑﻨﺮﻫﺎي exec ، loginو 102..................................................................................MOTD آزﻣﺎﯾﺶ 41.2– ﺑﺎزﮔﺮداﻧﺪن ﺑﺮﺧﯽ ﺗﻨﻈﯿﻤﺎت IOSﺑﻪ ﺣﺎﻟﺖ ﭘﯿﺶ ﻓﺮض ...........................................................................601 ﻓﺼﻞ ﺳﻮم:ﺗﻨﻈﯿﻤﺎت ﭘﺎﯾﻪ اﻣﻨﯿﺘﯽ در ادوات ﺳﯿﺴﮑﻮ آزﻣﺎﯾﺶ 1.3– ﺗﻨﻈﯿﻤﺎت ﭘﺎﯾﻪ اﺣﺮاز ﻫﻮﯾﺖ ﺑﺮ ﻣﺒﻨﺎي رﻣﺰ ﻋﺒﻮر..........................................................................................801 آزﻣﺎﯾﺶ 2.3–ﺗﻨﻈﻤﯿﺎت اﺣﺮاز ﻫﻮﯾﺖ ﺑﺮ ﻣﺒﻨﺎي ﭘﺎﯾﮕﺎه داده داﺧﻠﯽ ﮐﺎرﺑﺮان.....................................................................211 آزﻣﺎﯾﺶ 3.3–ﭘﯿﮑﺮﺑﻨﺪي ﻟﯿﺴﺘﻬﺎي اﺣﺮاز ﻫﻮﯾﺖ ﺑﺮ اﺳﺎس 114................................................................................... AAA آزﻣﺎﯾﺶ 4.3–ﺗﻨﻈﯿﻤﺎت اﺣﺮاز ﻫﻮﯾﺖ ﺑﺮ ﻣﺒﻨﺎي AAAاز ﻃﺮﯾﻖ 117......................................................TACACS+ server آزﻣﺎﯾﺶ 5.3–ﺗﻨﻈﯿﻤﺎت 119............................................................................................................................................SSH آزﻣﺎﯾﺶ 6.3–ﺗﻨﻈﯿﻤﺎت اﮐﺴﺲ ﻟﯿﺴﺖ ﻫﺎي ﺷﻤﺎره دار....................................................................................................221 آزﻣﺎﯾﺶ 7.3–ﺗﻨﻈﯿﻤﺎت اﮐﺴﺲ ﻟﯿﺴﺖ ﻫﺎي ﺑﺎ ﻧﺎم............................................................................................................621 آزﻣﺎﯾﺶ 8.3–ﺗﻨﻈﯿﻤﺎت اﮐﺴﺲ ﻟﯿﺴﺘﻬﺎي ﻣﺮﺗﺒﻂ ﺑﺎ 129.......................................................................................VTY line آزﻣﺎﯾﺶ 9.3–ﺳﺮوﯾﺲ رﻣﺰ ﻧﮕﺎري ﮐﻠﻤﺎت ﻋﺒﻮر................................................................................................................031 آزﻣﺎﯾﺶ 01.3–ﺗﻨﻈﻤﯿﺎت Exec timeoutو ﺗﻌﺪاد دﻓﻌﺎت ورود رﻣﺰ ﻋﺒﻮر ﺧﻄﺎ..............................................................431 آزﻣﺎﯾﺶ 11.3–اﺣﺮاز ﻫﻮﯾﺖ در وب ﺳﺮور داﺧﻠﯽ 136.....................................................................................................IOS آزﻣﺎﯾﺶ 21.3–اﺗﺼﺎل ﺑﻪ Syslogﺳﺮور.........................................................................................................................831 ﻓﺼﻞ 4 – ﺗﻨﻈﯿﻤﺎت ﺳﻮﯾﯿﭽﻬﺎي ﺳﯿﺴﮑﻮ آزﻣﺎﯾﺶ 1.4–ﺗﻨﻈﯿﻤﺎت 140...........................................................................................................................................CDP 092 Page 2 of

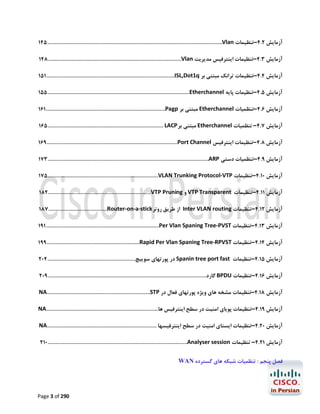

- 4. آزﻣﺎﯾﺶ 2.4–ﺗﻨﻈﯿﻤﺎت 145...........................................................................................................................................Vlan آزﻣﺎﯾﺶ3.4–ﺗﻨﻈﯿﻤﺎت اﯾﻨﺘﺮﻓﯿﺲ ﻣﺪﯾﺮﯾﺖ 148..........................................................................................................Vlan آزﻣﺎﯾﺶ 4.4–ﺗﻨﻈﯿﻤﺎت ﺗﺮاﻧﮏ ﻣﺒﺘﻨﯽ ﺑﺮ 151......................................................................................................ISL,Dot1q آزﻣﺎﯾﺶ 5.4–ﺗﻨﻈﯿﻤﺎت ﭘﺎﯾﻪ 155.................................................................................................................Etherchannel آزﻣﺎﯾﺶ 6.4–ﺗﻨﻈﻤﯿﺎت Etherchannelﻣﺒﺘﻨﯽ ﺑﺮ 161...............................................................................................Pagp آزﻣﺎﯾﺶ 7.4– ﺗﻨﻈﻤﯿﺎت Etherchannelﻣﺒﺘﻨﯽ ﺑﺮ165............................................................................................ LACP آزﻣﺎﯾﺶ 8.4–ﺗﻨﻈﯿﻤﺎت اﯾﻨﺘﺮﻓﯿﺲ 169........................................................................................................Port Channel آزﻣﺎﯾﺶ 9.4–ﺗﻨﻈﻤﯿﺎت دﺳﺘﯽ 173................................................................................................................................ARP آزﻣﺎﯾﺶ 01.4–ﺗﻨﻈﯿﻤﺎت 175........................................................................................VLAN Trunking Protocol-VTP آزﻣﺎﯾﺶ 11.4–ﺗﻨﻈﯿﻤﺎت VTP Transparentو 182..................................................................................VTP Pruning آزﻣﺎﯾﺶ 21.4–ﺗﻨﻈﯿﻤﺎت Inter VLAN routingاز ﻃﺮﯾﻖ روﺗﺮ187...............................................Router-on-a-stick آزﻣﺎﯾﺶ 31.4–ﺗﻨﻈﯿﻤﺎت 191..........................................................................................Per Vlan Spaning Tree-PVST آزﻣﺎﯾﺶ 41.4–ﺗﻨﻈﯿﻤﺎت 199..........................................................................Rapid Per Vlan Spaning Tree-RPVST آزﻣﺎﯾﺶ 51.4–ﺗﻨﻈﯿﻤﺎت Spanin tree port fastدر ﭘﻮرﺗﻬﺎي ﺳﻮﯾﯿﭻ......................................................................402 آزﻣﺎﯾﺶ 61.4–ﺗﻨﻈﯿﻤﺎت BPDUﮔﺎرد..............................................................................................................................902 آزﻣﺎﯾﺶ 81.4–ﺗﻨﻈﯿﻤﺎت ﻣﺸﺨﻪ ﻫﺎي وﯾﮋه ﭘﻮرﺗﻬﺎي ﻓﻌﺎل در NA..................................................................................STP آزﻣﺎﯾﺶ 91.4–ﺗﻨﻈﯿﻤﺎت ﭘﻮﯾﺎي اﻣﻨﯿﺖ در ﺳﻄﺢ اﯾﻨﺘﺮﻓﯿﺲ ﻫﺎ.........................................................................................NA آزﻣﺎﯾﺶ 02.4–ﺗﻨﻈﯿﻤﺎت اﯾﺴﺘﺎي اﻣﻨﯿﺖ در ﺳﻄﺢ اﯾﻨﺘﺮﻓﯿﺴﻬﺎ .......................................................................................NA آزﻣﺎﯾﺶ 12.4– ﺗﻨﻈﯿﻤﺎت 210...............................................................................................................Analyser session ﻓﺼﻞ ﭘﻨﺠﻢ : ﺗﻨﻈﻤﯿﺎت ﺷﺒﮑﻪ ﻫﺎي ﮔﺴﺘﺮده WAN 092 Page 3 of
- 5. آزﻣﺎﯾﺶ 1.5–ﺗﻨﻈﯿﻤﺎت ارﺗﺒﺎطﻧﻘﻄﻪ ﺑﻪ ﻧﻘﻄﻪ 1 Tاز ﻃﺮﯾﻖ PPPو 212.......................................................................HDLC آزﻣﺎﯾﺶ 2.5–ﺗﻨﻈﯿﻤﺎت ارﺗﺒﺎط ﻧﻘﻄﻪ ﺑﻪ ﻧﻘﻄﻪ از ﻃﺮﯾﻖ 217...........................................................................Frame relay آزﻣﺎﯾﺶ 3.5 – ﺗﻨﻈﯿﻤﺎت Sub interfaceدر ارﺗﺒﺎﻃﺎت 221....................................Ppoint to point Frame relay آزﻣﺎﯾﺶ 4.5–ﺗﻨﻈﯿﻤﺎت Point to Multipointدر 225............................................................................ Frame relay آزﻣﺎﯾﺶ 5.5–ﺗﻨﻈﯿﻤﺎت 229..................................................................................................Frame relay inverse Arp ﻓﺼﻞ ﺷﺸﻢ: ﻣﺴﯿﺮ ﯾﺎﺑﯽ اﺳﺘﺎﺗﯿﮏ آزﻣﺎﯾﺶ 1.6–ﺗﻨﻈﯿﻤﺎت ﻣﺴﯿﺮ ﯾﺎﺑﯽ اﺳﺘﺎﺗﯿﮏ..................................................................................................................332 آزﻣﺎﯾﺶ2.6 –ﺗﻨﻈﯿﻤﺎت ﻣﺴﯿﺮ ﯾﺎﺑﯽ اﺳﺘﺎﺗﯿﮏ ﺷﻨﺎور......................................................................................................932 آزﻣﺎﯾﺶ 3.6–ﻣﺴﯿﺮ ﯾﺎﺑﯽ اﺳﺘﺎﺗﯿﮏ ﭘﯿﺶ ﻓﺮض..............................................................................................................242 ﻓﺼﻞ ﻫﻔﺘﻢ: ﺳﺮوﯾﺴﻬﺎي IP آزﻣﺎﯾﺶ 1.7–ﺗﻨﻈﯿﻤﺎت NATﯾﮏ ﺑﻪ ﯾﮏ........................................................................................................................742 آزﻣﺎﯾﺶ 2.7– ﺗﻨﻈﯿﻤﺎت 257.............................................................................................................................. NAT Pool آزﻣﺎﯾﺶ 3.7–ﺗﻨﻈﯿﻤﺎت 264...........................................................................................................................................PAT آزﻣﺎﯾﺶ 4.7–ﺗﻨﻈﯿﻤﺎت 271..........................................................................................................................DHCP Server آزﻣﺎﯾﺶ 5.7–ﺗﻨﻈﯿﻤﺎت رﻧﺞ ﻫﺎي ﻣﺴﺘﺜﻨﯽ در NA....................................................................................................DHCP آزﻣﺎﯾﺶ 6.7–ﺗﻨﻈﯿﻤﺎت 275........................................................................................................................DHCP Helper آزﻣﺎﯾﺶ 7.7–ﺗﻨﻈﯿﻤﺎت 280..............................................................................................................................NTP Client آزﻣﺎﯾﺶ 8.7–ﺗﻨﻈﯿﻤﺎت 284............................................................................................................................NTP Server آزﻣﺎﯾﺶ 9.7–ﺗﻨﻈﯿﻤﺎت 287...........................................................................................................................DNS Server 092 Page 4 of
- 6. Page 5 of290
- 7. ﻣﻘﺪﻣﻪ ﻣﺘﺮﺟﻢ ﻫﺪف اﺻﻠﯽاز ﻧﮕﺎرش ﻣﺠﻤﻮﻋﻪ آزﻣﺎﯾﺸﮕﺎه CCNAﺗﻬﯿﻪ ﻣﺤﺘﻮاي آﻣﻮزﺷﯽ ﺑﻮد ﮐﻪ ﺿﻤﻦ ﻣﺮور ﻣﻔﺎﻫﯿﻢ ﺷﺒﮑﻪ ﻫﺎي ﮐﺎﻣﭙﯿﻮﺗﺮي در ﺳﻄﺢ اﯾﻦ دوره ﺑﻪ ﻃﻮر اﺟﻤﺎل ، داراي روﯾﮑﺮدي ﻋﻤﻠﯽ و ﭘﺮوژه ﻣﺤﻮر ﺑﻪ ﻣﻨﻈﻮر اﻓﺰاﯾﺶ دﯾﺪ اﺟﺮاﯾﯽ ﻣﻬﻨﺪﺳﯿﻦ ﺷﺒﮑﻪ ﻧﺴﺒﺖ ﺑﻪ ﻣﻔﺎﻫﯿﻢ و ﺗﺌﻮري ﻫﺎي ﻣﻄﺮح ﺷﺪه در ﮐﺘﺐ و آﻣﻮزﺷﻬﺎي ﻣﺮﺳﻮم ﻧﯿﺰ ﺑﺎﺷﺪ. از اﯾﻨﺮو ﭘﺲ از ﺗﺤﻘﯿﻖ ﻓﺮاوان در ﺧﺼﻮص ﻋﻨﺎوﯾﻦ ﻣﺘﻌﺪدي از ﮐﺘﺐ و ﻣﻘﺎﻻت ﻣﺮﺗﺒﻂ ﺑﺎ اﯾﻦ ﺣﻮزه ﻣﺠﻤﻮﻋﻪ CCNA Lab WorkBook ﻧﻮﺷﺘﻪ George Matthewاﻧﺘﺨﺎب ﺷﺪ و ﻣﻮرد ﺗﺮﺟﻤﻪ ﻗﺮار ﮔﺮﻓﺖ. اﯾﻦ ﻣﺠﻤﻮﻋﻪ ﻣﺸﺘﻤﻞ ﺑﺮ 07 آزﻣﺎﯾﺶ ﺑﺎ ﺗﻮﭘﻮﻟﻮژي واﺣﺪ ﻣﯽ ﺑﺎﺷﺪ ﮐﻪ ﺑﺎ ﻫﺪف ﺑﻪ دﺳﺖ آوردن درك اﺟﺮاﯾﯽ ﺑﻬﺘﺮ از ﻓﺮاﯾﻨﺪ ﻃﺮاﺣﯽ،ﭘﯿﺎده ﺳﺎزي و رﻓﻊ ﻋﯿﺐ ﺷﺒﮑﻪ ﻫﺎي ﻣﺒﺘﻨﯽ ﺑﺮ ادوات ﺳﯿﺴﮑﻮ ﻋﻤﻮﻣﺎ ﺑﺎ 3 GNSﮐﻪ راﺑﻂ ﮔﺮاﻓﯿﮑﯽ اﺑﺰار ﺷﺒﯿﻪ ﺳﺎزي Dynamipsﻣﯽ ﺑﺎﺷﺪ ﭘﯿﺎده ﺳﺎزي ﺷﺪه اﻧﺪ. Dynamipsدر ﺳﺎده ﺗﺮﯾﻦ ﺗﻌﺮﯾﻒ ﺧﻮد emulatorﻧﺮم اﻓﺰاري روﺗﺮﻫﺎي ﺳﯿﺴﮑﻮ اﺳﺖ ﮐﻪ ﺑﺎ ﺑﻬﺮه ﮔﯿﺮي از IOSﻫﺎي واﻗﻌﯽ اﯾﻦ ادوات اﻣﮑﺎن اﯾﺠﺎد و ﺷﺒﯿﻪ ﺳﺎزي ﺗﻮﭘﻮﻟﻮژﯾﻬﺎي ﭘﯿﭽﯿﺪه روﺗﯿﻨﮓ و ﺗﺎ ﺣﺪي ﺳﻮﯾﯿﭽﯿﻨﮓ را ﺟﻬﺖ اﻫﺪاف آﻣﻮزﺷﯽ ﻓﺮاﻫﻢ ﻣﯿﮑﻨﺪ. 092 Page 6 of
- 8. ﺗﻮﭘﻮﻟﻮژي ﻣﻮرد اﺳﺘﻔﺎدهدر اﯾﻦ ﻣﺠﻤﻮﻋﻪ آﻣﻮزﺷﯽ ﺗﺼﺎوﯾﺮ 2,3 در ﺻﻔﺤﺎت ﺑﻌﺪي ﺗﻮﭘﻮﻟﻮژﯾﻬﺎي ﺳﺮاﺳﺮي ﻣﻮرد اﺳﺘﻔﺎده در ﺳﻨﺎرﯾﻮﻫﺎي LAN ,WANﻣﻄﺮح ﺷﺪه در اﯾﻦ ﻣﺠﻤﻮﻋﻪ ﻫﺴﺘﻨﺪ ﮐﻪ ﻋﻤﻮﻣﺎ ﺗﻮﺳﻂ 3 GNSﻃﺮاﺣﯽ و ﭘﯿﺎده ﺳﺎزي ﺧﻮاﻫﻨﺪ ﺷﺪ. در ﻫﺮ آزﻣﺎﯾﺶ ﺑﺨﺸﯽ از اﯾﻦ ﺗﻮﭘﻮﻟﻮژي ﺟﺪا ﺷﺪه و ﻣﺘﻨﺎﻇﺮ ﺑﺎ اﻫﺪاف آن آزﻣﺎﯾﺶ ﻣﻮرد ﺗﺤﻠﯿﻞ ﻗﺮار ﻣﯿﮕﯿﺮد . در ﻣﺒﺎﺣﺚ ﺳﻮﯾﯿﭽﯿﻨﮓ ﺳﻨﺎرﯾﻮﻫﺎﯾﯽ وﺟﻮد دارﻧﺪ ﮐﻪ ﺑﻪ واﺳﻄﻪ ﻣﺤﺪودﯾﺘﻬﺎي 3 GNSﺑﺎ اﯾﻦ اﺑﺰار ﻗﺎﺑﻞ ﭘﯿﺎده ﺳﺎزي ﻧﯿﺴﺘﻨﺪ از اﯾﻨﺮو در اﯾﻦ ﺳﻨﺎرﯾﻮﻫﺎ از ادوات واﻗﻌﯽ اﺳﺘﻔﺎده ﺧﻮاﻫﺪ ﺷﺪ. در ﺻﻮرت ﺗﻤﺎﯾﻞ ﺑﻪ ﺑﺮﭘﺎﯾﯽ ﯾﮏ آزﻣﺎﯾﺸﮕﺎه واﻗﻌﯽ ﺑﺎ اﺳﺘﻔﺎده از ادوات ﻓﯿﺰﯾﮑﯽ ﺗﺮﮐﯿﺐ زﯾﺮ ﭘﯿﺸﻨﻬﺎد ﻣﯿﺸﻮد .R1 – Cisco 3725 (128MB Flash/256MB DRAM) running 12.4(15)T14 Adv Enterprise Services R2 – Cisco 3725 (128MB Flash/256MB DRAM) running 12.4(15)T14 Adv Enterprise Services .R3 – Cisco 3725 (64MB Flash/128MB DRAM) running 12.4(25d) Adv Enterprise Services .R4 – Cisco 3725 (64MB Flash/128MB DRAM) running 12.4(25d) Adv Enterprise Services .R5 – Cisco 3725 (64MB Flash/128MB DRAM) running 12.4(25d) Adv Enterprise Services SW1 – Cisco 2950G-24 Port 10/100TX w/ 2x Gigabit GBIC-SX modules running Enhanced Image .SW2 – Cisco 3550-24 Port 10/100TX w/ 2x Gigabit GBIC-SX modules running IP Services .SW3 – Cisco 3550-24 Port 10/100TX w/ 2x Gigabit GBIC-SX modules running IP Services ﺳﻮﯾﯿﭻ Frame Relayﻣﻮرد اﺳﺘﻔﺎده در ﻓﺼﻮل آﺗﯽ ﻧﯿﺰ از ﻃﺮﯾﻖ ﻣﺎژول NM-8A/Sواﻗﻊ در 1 slotروﺗﺮ 0262 ﭘﯿﺎده ﺳﺎزي ﺷﺪه اﺳﺖ.در زﯾﺮ ﺗﺼﻮﯾﺮي از رك واﻗﻌﯽ ﭘﯿﺎده ﺳﺎزي ﺷﺪه ﺑﺎ ادوات ﻓﻮق را ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﺪ. 092 Page 7 of
- 9. ﺗﺼﻮﯾﺮ 1 –رك ﭘﯿﺎده ﺳﺎزي ﺷﺪه ﺟﻬﺖ ﭘﻮﺷﺶ ﻣﺒﺎﺣﺚ آزﻣﺎﯾﺸﮕﺎه CCNA 092 Page 8 of

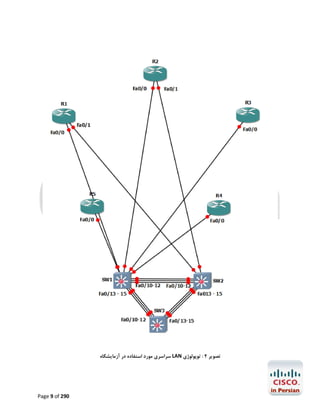

- 10. ﺗﺼﻮﯾﺮ 2 :ﺗﻮﭘﻮﻟﻮژي LANﺳﺮاﺳﺮي ﻣﻮرد اﺳﺘﻔﺎده در آزﻣﺎﯾﺸﮕﺎه 092 Page 9 of
- 11. اﺗﺼﺎﻻت روﺗﺮ ﺑﻪﺳﻮﯾﯿﭻ Router R1 R1 R2 R2 R3 R4 R5 Local Interface FastEthernet 0/0 FastEthernet 0/1 FastEthernet 0/0 FastEthernet 0/1 FastEthernet 0/0 FastEthernet 0/0 FastEthernet 0/0 Switch Switch 1 Switch 2 Switch 1 Switch 2 Switch 1 Switch 1 Switch 1 Remote Interface FastEthernet 0/1 FastEthernet 0/1 FastEthernet 0/2 FastEthernet 0/2 FastEthernet 0/3 FastEthernet 0/4 FastEthernet 0/5 اﺗﺼﺎﻻت ﺳﻮﯾﯿﭻ ﺑﻪ ﺳﻮﯾﯿﭻ Local Switch Switch 1 Switch 1 Switch 1 Switch 1 Switch 1 Switch 1 Switch 2 Switch 2 Switch 2 Switch 2 Switch 2 Switch 2 Switch 3 Switch 3 Switch 3 Switch 3 Switch 3 Switch 3 Local Interface FastEthernet 0/10 FastEthernet 0/11 FastEthernet 0/12 FastEthernet 0/13 FastEthernet 0/14 FastEthernet 0/15 FastEthernet 0/10 FastEthernet 0/11 FastEthernet 0/12 FastEthernet 0/13 FastEthernet 0/14 FastEthernet 0/15 FastEthernet 0/10 FastEthernet 0/11 FastEthernet 0/12 FastEthernet 0/13 FastEthernet 0/14 FastEthernet 0/15 Remote Switch Switch Switch Switch Switch Switch Switch Switch Switch Switch Switch Switch Switch Switch Switch Switch Switch Switch Switch 2 2 2 3 3 3 1 1 1 3 3 3 1 1 1 2 2 2 Remote Interface FastEthernet 0/10 FastEthernet 0/11 FastEthernet 0/12 FastEthernet 0/10 FastEthernet 0/11 FastEthernet 0/12 FastEthernet 0/10 FastEthernet 0/11 FastEthernet 0/12 FastEthernet 0/13 FastEthernet 0/14 FastEthernet 0/15 FastEthernet 0/13 FastEthernet 0/14 FastEthernet 0/15 FastEthernet 0/13 FastEthernet 0/14 FastEthernet 0/15 Page 10 of 290
- 12. ﺳﺮاﺳﺮي ﻣﻮرداﺳﺘﻔﺎده در آزﻣﺎﯾﺸﮕﺎهWAN ﺗﺼﻮﯾﺮ 1: ﺗﻮﭘﻮﻟﻮژي Frame relay ﺗﻨﻈﯿﻤﺎت ﺳﻮﯾﯿﭻ Local Router R1 R1 R1 R1 R2 R2 R2 R2 R3 R3 R3 R3 R4 R4 Page 11 of 290 Local Int. Serial 0/0 Serial 0/0 Serial 0/0 Serial 0/0 Serial 0/0 Serial 0/0 Serial 0/0 Serial 0/0 Serial 0/0 Serial 0/0 Serial 0/0 Serial 0/0 Serial 0/0 Serial 0/0 Local DLCI Remote Router Remote Int. 122 R2 Serial 0/0 123 R3 Serial 0/0 124 R4 Serial 0/0 125 R5 Serial 0/0 221 R1 Serial 0/0 223 R3 Serial 0/0 224 R4 Serial 0/0 225 R5 Serial 0/0 321 R1 Serial 0/0 322 R2 Serial 0/0 324 R4 Serial 0/0 325 R5 Serial 0/0 421 R1 Serial 0/0 422 R2 Serial 0/0 Remote DLCI 221 321 421 521 122 322 422 522 123 223 423 523 124 224
- 13. R4 R4 R5 R5 R5 R5 Local Router R1 R2 R2 R3 R4 R5 Serial Serial Serial Serial Serial Serial 0/0 0/0 0/0 0/0 0/0 0/0 423 425 521 522 523 524 R3 R5 R1 R2 R3 R4 Serial Serial Serial Serial Serial Serial ﻟﯿﻨﮑﻬﺎي ﻧﻘﻄﻪﺑﻪ ﻧﻘﻄﻪ ﺳﺮﯾﺎل Local Interface Remote Router Serial 0/1 R2 Serial 0/1 R1 Serial 0/2 R3 Serial 0/1 R2 Serial 0/1 R5 Serial 0/1 R4 0/0 0/0 0/0 0/0 0/0 0/0 Remote Serial Serial Serial Serial Serial Serial 324 524 125 225 325 425 Interface 0/1 0/1 0/1 0/2 0/1 0/1 Page 12 of 290
- 14. آزﻣﺎﯾﺶ 1.1-آﺷﻨﺎﯾﯽ ﺑﺎاﺟﺰاء روﺗﺮﻫﺎي ﺳﯿﺴﮑﻮ اﯾﻦ آزﻣﺎﯾﺶ ﺑﻪ ﺷﻤﺎ ﮐﻤﮏ ﻣﯿﮑﻨﺪ ﺗﺎ درك ﺑﻬﺘﺮي از ﺗﺎرﯾﺨﭽﻪ روﺗﺮﻫﺎي ﺳﯿﺴﮑﻮ، Wan interface ،Network Modules Ram،cardsو Flashوﮐﺎﺑﻠﻬﺎ ﺑﻪ دﺳﺖ آورﯾﺪ.ﻫﺪف از ﻃﺮاﺣﯽ اﯾﻦ آزﻣﺎﯾﺶ ﻓﺮاﻫﻢ آوردن اﻃﻼﻋﺎت ﻻزم ﺟﻬﺖ ﺷﻨﺎﺳﺎﯾﯽ اﺟﺰاء روﺗﺮﻫﺎ در ﮐﺎرﺑﺮدﻫﺎي روزﻣﺮه و ﻣﺘﻌﺎرف ﻣﯽ ﺑﺎﺷﺪ. از اواﯾﻞ دﻫﻪ ﻧﻮد ﮐﻤﭙﺎﻧﯽ ﺳﯿﺴﮑﻮ روﯾﮑﺮد ﺟﺪﯾﺪي را ﺑﻪ ﻣﻨﻈﻮر ﻣﺎژوﻻر ﻧﻤﻮدن ادوات ﺷﺒﮑﻪ ﺧﻮد در ﺳﻄﻮح ﺷﺒﮑﻪ ﻫﺎي ﺑﺰرگ ﺳﺎزﻣﺎﻧﯽ در ﭘﯿﺶ ﮔﺮﻓﺖ.ﻗﺒﻞ از آن )ﺳﺮي 0052 ﺑﻪ ﺟﺰ 4252( داراي ﺳﺎﺧﺘﺎر ﺛﺎﺑﺖ و ﻏﯿﺮﻗﺎﺑﻞ ﺗﻐﯿﯿﺮ از رده Fast Ethernet-Serial-Token Ringو Isdnﺑﻮدﻧﺪ. اﯾﻦ ﻣﻮﺿﻮع ﺑﺎﻋﺚ اﯾﺠﺎد ﻣﺤﺪودﯾﺘﻬﺎي ﻣﻌﻨﺎداري در ﺻﺮف ﻫﺰﯾﻨﻪ ﺟﻬﺖ ﺧﺮﯾﺪ ادوات ﺷﺒﮑﻪ ﻫﻤﯿﻨﻄﻮر ﻣﻘﯿﺎس ﭘﺬﯾﺮي ﺷﺒﮑﻪ ﻓﻌﻠﯽ در آﯾﻨﺪه ﻣﯿﺸﺪ. ﭘﺲ از ﻣﻌﺮﻓﯽ روﺗﺮﻫﺎي ﺳﺮي 0063 در ﺳﺎل 6991 ﺳﺎزﻣﺎﻧﻬﺎ از ﺻﺮف ﻫﺰﯾﻨﻪ ﻫﺎي ﻣﺠﺪد ﺑﺮاي ﺟﺎﯾﮕﺰﯾﻨﯽ ﻫﺎي ﻣﺘﻌﺪد روﺗﺮﻫﺎ ﺑﻪ دﻻﯾﻠﯽ ﻫﻤﭽﻮن اﻓﺰاﯾﺶ ﺗﻌﺪاد ﭘﻮرﺗﻬﺎي Wanو/ﯾﺎ Lanرﻫﺎﯾﯽ ﭘﯿﺪا ﮐﺮدﻧﺪ .ﺑﺎ ﻣﻌﻤﺎري ﺟﺪﯾﺪ، ﺷﺮﮐﺘﻬﺎ ﺑﻪ آﺳﺎﻧﯽ ﻣﯿﺘﻮاﻧﺴﺘﻨﺪ ادوات ISDNﺧﻮد را ﺑﺎ ﺟﺎﯾﮕﺰﯾﻨﯽ ) WIC (WAN Interface Cardﺑﻪ 1 Tارﺗﻘﺎء دﻫﻨﺪ ﯾﺎ ﺑﺎ اﻓﺰودن NM ) (Network Moduleﺗﻌﺪاد ﺑﯿﺸﺘﺮي Fast ethenetﺑﻪ روﺗﺮ ﻓﻌﻠﯽ اﺿﺎﻓﻪ ﻧﻤﺎﯾﻨﺪ. ﻣﻌﺮﻓﯽ روﺗﺮﻫﺎي ﺳﺮي 0062 درﺳﺎل 8991 ﻧﻘﻄﻪ ﻋﻄﻔﯽ ﺑﺮاي ﮐﻤﭙﺎﻧﯽ ﺳﯿﺴﮑﻮ ﻣﺤﺴﻮب ﻣﯿﺸﺪ.ﻧﺴﻞ ﺟﺪﯾﺪي از روﺗﺮﻫﺎ ﺑﺎ ﻗﺎﺑﻠﯿﺖ اراﺋﻪ ﺳﺮوﯾﺴﻬﺎي ﭼﻨﺪﮔﺎﻧﻪ ﺑﺎ ﻃﺮاﺣﯽ وﯾﮋه ﺑﻪ ﻣﻨﻈﻮر اراﺋﻪ ﻫﻤﺰﻣﺎن ﺳﺮوﯾﺴﻬﺎي Voice,data,video,wirelessﺑﻪ ﺑﺎزار آﻣﺪﻧﺪ.ﺳﺮي 0062ﺑﺎ ﻫﻤﻪ ﻗﺎﺑﻠﯿﺘﻬﺎ ﯾﮏ ﻧﻘﯿﺼﻪ ﮐﻮﭼﮏ داﺷﺖ ﮐﻪ در ﺳﺮي 0063 ﻣﺸﺎﻫﺪه ﻧﻤﯿﺸﺪ و آﻧﻬﻢ وﺟﻮد ﺣﺎﻓﻈﻪ Flashﻣﺒﺘﻨﯽ ﺑﺮ Pcmcia Slotﺑﻮد.ﻣﺘﺨﺼﺼﯿﻦ ﺷﺒﮑﻪ اي ﮐﻪ ﺗﺠﺮﺑﻪ ﮐﺎر ﺑﺎ ﺳﺮي 0063 را داﺷﺘﻨﺪ ﻣﯿﺪاﻧﺴﺘﻨﺪ ﮐﻪ در ﺷﺮاﯾﻂ ﺑﺤﺮان و ﺑﺎزﯾﺎﺑﯽ ﺗﻨﻈﯿﻤﺎت ﻫﻤﯿﻨﻄﻮر ﺗﻐﯿﯿﺮ IOSوﺟﻮد Flash Cardﺑﺎﻋﺚ ﺗﺴﺮﯾﻊ در و ﺗﺴﻬﯿﻞ اﯾﻨﮕﻮﻧﻪ ﻓﺮاﯾﻨﺪﻫﺎ ﻣﯿﺸﻮد ، وﯾﮋﮔﯽ ﮐﻪ در اﺑﺘﺪاي ﻣﻌﺮﻓﯽ ﻣﻌﻤﺎري ﺟﺪﯾﺪ وﺟﻮد ﻧﺪاﺷﺖ. ﺳﺮي 0073 ﻣﺸﺘﻤﻞ ﺑﺮ روﺗﺮﻫﺎي 5273 و 5473 ﺗﻘﺮﯾﺒﺎ ﺑﻪ ﻃﻮر ﻫﻤﺰﻣﺎن ﺑﺎ ﺳﺮي 0062 ﻣﻌﺮﻓﯽ ﺷﺪﻧﺪ.در اﯾﻦ ﻣﻌﻤﺎري ﺑﻮد ﮐﻪ اول ﺑﺎر اﺳﺘﻔﺎده از ﺣﺎﻓﻈﻬﺎ ) CF(Compact Flashاز ﺧﺎﻧﻮاده ﺣﺎﻓﻈﻪ دورﺑﯿﻨﻬﺎي دﯾﺠﯿﺘﺎل ﺣﺮﻓﻪ اي اﻣﺮوزي ﻣﻌﺮﻓﯽ ﺷﺪ .ﺣﺘﯽ اﻣﺮوزه ﻧﯿﺰ ﺗﺠﻬﯿﺰاﺗﯽ از ﻗﺒﯿﻞ ﺳﺮي0082و0083 ) ISR(Integrated service Routersو ﻓﺎﯾﺮواﻟﻬﺎي ﺳﺮي 0055 ASAو ﺗﻌﺪاد ﺑﯿﺸﻤﺎري از ادوات دﯾﮕﺮ ﺑﺎ ﻗﺎﺑﻠﯿﺖ ﭘﺸﺘﯿﺒﺎﻧﯽ از ﺣﺎﻓﻈﻪ ﻫﺎي CFﻃﺮاﺣﯽ ﻣﯿﺸﻮﻧﺪ ﮐﻪ ﺑﻪ ﻣﺮاﺗﺐ از ﻧﺴﻞ ﻗﺒﻠﯽ ﺣﺎﻓﻈﻪ ﻫﺎ ﺳﺮﯾﻌﺘﺮ و ﻗﺎﺑﻞ اﻋﺘﻤﺎد ﺗﺮ ﻫﺴﺘﻨﺪ. در ﺳﺎل 2002 ﺳﺮي ﺟﺪﯾﺪ 2600XMﺑﺎ ﺑﺮوزرﺳﺎﻧﯿﻬﺎي ﻣﺘﻌﺪدي از ﻗﺒﯿﻞ اﺳﺘﻔﺎده از آﺧﺮﯾﻦ ﺳﺮي ﭘﺮدازﻧﺪه ﻫﺎي ، 125MHZ SDRAM ، Motorolaﭘﺸﺘﯿﺒﺎﻧﯽ از 48MBﺣﺎﻓﻈﻪ Flashو ﭘﺸﺘﯿﺒﺎﻧﯽ ﺗﺎ 128MB RAMاراﺋﻪ ﺷﺪ. ﮐﻤﯽ ﺑﻌﺪ ﺑﺎ اراﺋﻪ ﻧﺴﺨﻪ ﺟﺪﯾﺪ 12.2(8r) bootromﺳﺮي ﻓﻮق ﻗﺎدر ﺑﻪ ﭘﺸﺘﯿﺒﺎﻧﯽ ﺗﺎ 256MB RAMﺷﺪ . 092 Page 13 of
- 15. ﺳﺮي 1962 ﻫﻤﺰﻣﺎنﺑﺎ ﺳﺮي 2600XMﺑﻪ ﻋﻨﻮان ﺳﺮﯾﻌﺘﺮﯾﻦ ﺳﮑﻮي ﺳﺮي 0062 ﻣﻌﺮﻓﯽ ﺷﺪ.ﺳﺮي 1962 ﺑﻪ ﻋﻨﻮان ﺑﺮادر ﮐﻮﭼﮑﺘﺮ ﺳﺮي 5273 ﺷﻨﺎﺧﺘﻪ ﻣﯿﺸﻮد . در ﯾﮏ ﻣﻘﺎﯾﺴﻪ ﻧﻈﯿﺮ ﺑﻪ ﻧﻈﯿﺮ آﻧﻬﺎ ﮐﺎﻣﻼ ﺷﺒﯿﻪ ﺑﻪ ﻧﻈﺮ ﻣﯿﺮﺳﻨﺪ ﻫﺮﭼﻨﺪ ﮐﻪ ﺗﻮان ﻋﻤﻠﯿﺎﺗﯽ ﻋﻤﻮﻣﯽ ﻫﻤﯿﻨﻄﻮر ﭘﺸﺘﯿﺒﺎﻧﯽ از ﺗﻌﺪاد ﻣﺎژوﻟﻬﺎ و ﻗﯿﻤﺖ آﻧﻬﺎ را از ﻫﻢ ﺟﺪا ﻣﯿﮑﻨﺪ. ﺳﺮي 0081 ، 0082 و 0083 از ﻣﺎژوﻟﻬﺎي ) HWIC (High-speed WAN Interface Card’sﺑﺎ ﺳﺮﻋﺖ ﺟﻤﻌﺎ 400mbpsﺑﻪ ﺻﻮرت ﺗﻮزﯾﻊ ﺷﺪه ﺑﯿﻦ ﻫﻤﻪ اﺳﻼﺗﻬﺎ ﭘﺸﺘﯿﺒﺎﻧﯽ ﻣﯿﮑﻨﺪ در ﺣﺎﻟﯽ ﮐﻪ ﺗﮑﻨﻮﻟﻮژي WICﻗﺪﯾﻤﯽ ﺣﺪاﮐﺜﺮ 8mbpsرا روي ﻫﺮ Pci Busاراﺋﻪ ﻣﯿﮑﺮد.ﺑﻪ ﻋﻨﻮا ﻣﺜﺎل ﺳﺮي 2600XMداراي دو اﯾﻨﺘﺮﻓﯿﺲ WICﻣﺠﺰا روي ﯾﮏ ﺑﺎس ﻣﺸﺘﺮك ﻣﯿﺒﺎﺷﺪ ﻧﺘﯿﺠﻪ اﯾﻨﮑﻪ ﻣﯿﺘﻮاﻧﺪ از ﯾﮏ WIC-2Tﺑﺎ ﺳﺮﻋﺖ 8Mbpsﯾﺎ دو ﭘﻮرت ﺑﺎ ﺳﺮﻋﺖ 4Mbpsاﺳﺘﻔﺎده ﮐﻨﺪ و در اﯾﻦ ﺣﺎﻟﺖ ﺑﻪ دﻟﯿﻞ اﺳﺘﻔﺎده از ﺑﺎس ﻣﺸﺘﺮك اﺳﻼت دوم WICﻗﺎﺑﻞ اﺳﺘﻔﺎده ﻧﯿﺴﺖ.اﯾﻦ ﻣﺤﺪودﯾﺖ ﻫﻤﯿﻨﻄﻮر روي ﻣﺎژوﻟﻬﺎي -NM 1FE2W, NM-1FE1R2W, NM-2FE2W and NM-2Wاﻋﻤﺎل ﻣﯿﺸﻮد. روﺗﺮﻫﺎي ﺳﺮي 0082 ﺑﻪ ﺟﺰ 1082 داراي 4 اﺳﻼت HWICﺑﺎ ﻣﺠﻮع ﺳﺮﻋﺖ 400Mbpsﺗﻮزﯾﻊ ﺷﺪه ﻣﺎﺑﯿﻦ ﻫﻤﻪ اﺳﻼﺗﻬﺎ ﺑﻪ ﻋﻼوه ﯾﮏ ﯾﺎ ﺑﯿﺶ از آن اﺳﻼت ) NME(Netwok Module Enhancedﺑﺎﺳﺮﻋﺖ 1.2Gbpsﺑﻪ ﻃﻮر ﻣﺸﺘﺮك ﻣﺎﺑﯿﻦ ﻫﻤﻪ اﺳﻼﺗﻬﺎي اﯾﻦ ﭘﻠﺘﻔﺮم در ﻣﻘﺎﯾﺴﻪ ﺑﺎ ﺳﺮﻋﺖ 600Mbpsﻣﺎژوﻟﻬﺎي ﻗﺪﯾﻤﯽ NMﻣﯿﺒﺎﺷﻨﺪ. ﭘﻠﺘﻔﺮﻣﻬﺎي ﺑﺴﯿﺎري ﻣﺎﻧﻨﺪ 0062 و 0073 و ﻣﺪﻟﻬﺎي ﺟﺪﯾﺪﺗﺮ داراي اﺳﻼﺗﻬﺎي ﺗﻮﺳﻌﻪ داﺧﻠﯽ ﺑﻪ ﻧﺎم (Advanced Integration ) AIM Moduleﺑﻪ ﻣﻨﻈﻮر اﻓﺰودن ﻗﺎﺑﻠﯿﺘﻬﺎ و ﺳﺮوﯾﺴﻬﺎ وﯾﮋه ﺑﻪ ﭘﻠﺘﻔﺮﻣﻬﺎي ﻣﻮرد ﻧﻈﺮ ﻫﺴﺘﻨﺪ.ﻋﻨﺎوﯾﻦ ﻣﺘﻌﺪدي از AIMﻫﺎ ﻧﻈﯿﺮ AIM-CUﮐﻪ ﻣﺎژول Cisco unity Expressﺑﻪ ﻣﻨﻈﻮر اراﺋﻪ ﺳﺮوﯾﺲ Voice mailﺑﺮاي ﺳﯿﺴﺘﻢ Unified Communications Manager Expressو ﯾﺎ ﻣﺎژول AIM-VPNﺟﻬﺖ رﻣﺰﻧﮕﺎري ﺗﺮاﻓﯿﮏ ﺑﺎ ﻫﺪف ﺑﺮداﺷﺘﻦ ﺑﺎر ﻣﺤﺎﺳﺒﺎﺗﯽ رﻣﺰﻧﮕﺎري از روي ﭘﺮدازﻧﺪه اﺻﻠﯽ روﺗﺮ اﺳﺖ را ﻣﯿﺘﻮان ﻧﺎم ﺑﺮد در ﺟﺪول زﯾﺮ ﻣﺸﺨﺼﻪ ﻋﻤﻮﻣﯽ روﺗﺮﻫﺎي ﻣﻌﻤﻮل اﻣﺮوزي و دﯾﺮوزي را ﻣﺸﺘﻤﻞ ﺑﺮ ﭘﻮرﺗﻬﺎ، اﺳﻼﺗﻬﺎ،ﮐﺎراﯾﯽ، ﺣﺪاﮐﺜﺮ RAMو Flashﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﺪ Cisco 2500 Series Routers *Async Lines 0 0 0 0 0 8 Lines Octal 54-8 Lines RJ 8 Lines Octal 16 Lines Octal 54-16 Lines RJ 16 Lines Octal 0 092 Page 14 of ISDN 0 0 1 1 0 0 0 0 0 0 0 0 Token Ring 0 1 0 1 0 0 0 1 0 0 1 1 54-Ethernet RJ 0 0 0 0 16 Hub Ports 0 0 0 0 0 0 0 AUI 1 0 1 0 1 1 1 0 1 1 0 1 *Serial 2H 2H 2H 2H 2H 2H 1H 2H 2H 1H 2H 2H Flash 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB RAM 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB Router 1052 2052 3052 4052 7052 9052 2509-RJ 0152 1152 2511-RJ 2152 3152
- 16. 2514 2515 2516 2518 2520 2521 2522 2523 2524 2525 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 2H 2H 2H 0 2H 2L 2H 2L 2H8L 2H 8L 0 0 2 0 0 1 1 0 0 0 0 0 14 Hub Ports 1 Ethernet Port 24 Port Module 0 0 1 – Shared 1 1 – Shared 1 0 2 0 0 1 1 0 1 0 1 0 0 1 0 0 0 0 0 0 0 0 0 0 0 1 1 0 1 :ﺗﻮﺟﻪ و دو اﺳﻼتSIMM RAM .ﯾﮏ اﺳﻼت 08ﭘﯿﻦMotorola 68030 20 MHz ﺳﺮي ﺑﺎﺳﺘﺎﻧﯽ 0052 داراي ﭘﺮدازﻧﺪه . ﻣﯿﺒﺎﺷﺪSIMM Flash 2 ﻟﺤﯿﻢ ﺷﺪه روي ﺑﺮداﺻﻠﯽ ﺟﻬﺖ ﺑﺎﻓﺮ/ﺣﺎﻓﻈﻪ اﺷﺘﺮاﮐﯽ ﻫﺴﺘﻨﺪMB DRAM ﺑﺮﺧﯽ از ﺳﺮﯾﻬﺎي 0052 داراي ﻣﯿﺘﻮان ﺑﻪ ﻋﻨﻮان ﭘﻮرت ﻣﻮدم ﯾﺎ ﺧﻄﻮط ﺗﺮﻣﯿﻨﺎل در اﮐﺴﺲ ﺳﺮور اﺳﺘﻔﺎده ﮐﺮدAsync lines از Cisco 1600 Series Routers Router 1601 1602 1603 1604 1605 RAM 24MB 24MB 24MB 24MB 24MB Flash* 16MB 16MB 16MB 16MB 16MB CPU 33Mhz 33Mhz 33Mhz 33Mhz 33Mhz Ethernet AUI RJ45 Shared AUI RJ45 Shared AUI RJ45 Shared AUI RJ45 Shared 1 RJ45 – 1 Shared WIC 1 1 1 1 1 ISDN 0 0 1 BRI 1 NT1 0 56k DSU 0 1 0 0 0 Performance 4k pps 4k pps 4k pps 4k pps 4k pps :ﺗﻮﺟﻪ اﺳﺘﻔﺎده ﻣﯿﮑﻨﺪPCMCIA Flash Card ﺳﺮي 0061 از ﺣﺎﻓﻈﻪ ﻫﺎي اﺳﺘﻔﺎده ﻣﯿﮑﻨﺪMotorola 68360 33Mhz از ﭘﺮدازﻧﺪه Cisco 3600 Series Routers Router 3620 3631-CO 3640 3660 3661-CO 3662 RAM 64MB 256MB 128MB 64MB 64MB 256MB Flash 32MB 128MB 32MB 64MB 64MB 64MB CPU 80Mhz 240Mhz 100Mhz 225Mhz 225Mhz 225Mhz Ethernet None None None 1 or 2 Fast Eth 1 or 2 Fast Eth 1 or 2 Fast Eth WIC 0 2 0 0 0 0 NM 2 2 4 6 6 6 AIM 0 2 0 2 2 2 Performance 20-40k pps 70k pps 50-70k pps 100-120k pps 100-120k pps 100-120k pps :ﺗﻮﺟﻪ اﺳﺘﻔﺎده ﻣﯿﮑﻨﻨﺪPCMCIA Flash Cards ﺳﺮي 0063 ﻣﻌﻤﺎري ﮐﺎﻣﻼ ﻣﺎژوﻻر داﺷﺘﻪ و از ﺣﺎﻓﻈﻪ ﻫﺎي اﺳﺘﻔﺎده ﻣﯿﮑﻨﻨﺪIDT R7000 RISC Processor 0263 و 0463 از ﭘﺮدازﻧﺪه ﻫﺎي اﺳﺘﻔﺎده ﻣﯿﮑﻨﺪPMC-Sierra RM7061A RISC Processor 1363 از ﭘﺮدازﻧﺪه اﺳﺘﻔﺎده ﻣﯿﮑﻨﺪQED RM5271 RISC Processor 0663 از ﭘﺮدازﻧﺪه Page 15 of 290
- 17. Cisco 2600 &2600XM Series Routers Router 2610 2611 2612* 2613* 2620 2621 2650 2651 2610XM 2611XM 2620XM 2621XM 2650XM 2651XM 2691 RAM 64MB 64MB 64MB 64MB 64MB 64MB 128MB 128MB 128MB 128MB 128MB 128MB 128MB 128MB 256MB Flash 16MB 16MB 16MB 16MB 16MB 16MB 32MB 32MB 48MB 48MB 48MB 48MB 48MB 48MB 128MB CPU 40Mhz 40Mhz 40Mhz 40Mhz 50Mhz 50Mhz 80Mhz 80Mhz 40Mhz 40Mhz 50Mhz 50Mhz 80Mhz 80Mhz 160Mhz Ethernet 1 10Base-T 2 10Base-T 1 10Base-T None 1 Fast Ethernet 2 Fast Ethernet 1 Fast Ethernet 2 Fast Ethernet 1 Fast Ethernet 2 Fast Ethernet 1 Fast Ethernet 2 Fast Ethernet 1 Fast Ethernet 2 Fast Ethernet 2 Fast Ethernet WIC 2 2 2 2 2 2 2 2 2 2 2 2 2 2 3 NM 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 AIM 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 Performance 15k pps 15k pps 15k pps 15k pps 25k pps 25k pps 37k pps 37k pps 20k pps 20k pps 30k pps 30k pps 40k pps 40k pps 70k pps :ﺗﻮﺟﻪ اﺳﺘﻔﺎده ﻣﯿﮑﻨﺪMCP860 PowerQUICC ﺳﺮي 0062 از ﭘﺮدازﻧﺪه ﻫﺎي ﻫﺴﺘﻨﺪRj45 Token ring port 2162و3162 داراي ﻣﯿﺒﺎﺷﺪCF 1962 داراي ﻫﺮدو ﺣﺎﻓﻈﻪ داﺧﻠﯽ و 3(1.21 ﯾﺎ ﺟﺪﯾﺪﺗﺮ ﻫﺴﺘﻨﺪr) bootrom ﺑﺎFlash 23 ﺣﺎﻓﻈﻪMB 0262 و 1262 داراي ﻗﺎﺑﻠﯿﺖ ﭘﺸﺘﯿﺒﺎﻧﯽ از 8(2.21 اﺳﺖr) bootrom 652 ﺑﺎ اﺳﺘﻔﺎده ازMB DRAM 0062داراي ﻗﺎﺑﻠﯿﺖ ﭘﺸﺘﯿﺒﺎﻧﯽ ازXM ﺳﺮي Cisco 1700 Series Routers Router 1701 1710 1711 1712 1720 1721 1750 1751 1760 RAM 128MB 96MB 64MB 128MB 48MB 128MB 48MB 96MB 128MB Flash 32MB 16MB 16MB 32MB 16MB 32MB 16MB 32MB 64MB CPU 40Mhz 48Mhz 100Mhz 100Mhz 48Mhz 48Mhz 48Mhz 48Mhz 80Mhz Ethernet 1 Fast Ethernet 1 Fast Eth & 1 10Base-T 1 Fast & 4 10/100 Switch 1 Fast & 4 10/100 Switch 1 Fast Ethernet 1 Fast Ethernet 1 Fast Ethernet 1 Fast Ethernet 1 Fast Ethernet ISDN 1 0 0 1 0 0 0 0 0 WIC 0 0 0 0 2 2 2 2 2 VIC 0 0 0 0 0 0 1 1 4* Performance 12k pps 7k pps 13.5k pps 13.5k pps 8.5k pps 12k pps 8.5k pps 12k pps 16k pps :ﺗﻮﺟﻪ اﺳﺘﻔﺎده ﻣﯿﮑﻨﺪMCP RISC PowerQUICC ﺳﺮي 0071 از ﭘﺮدازﻧﺪه ﻫﺎي ﻫﺴﺘﻨﺪVpn 1171 و 2171 داراي ﺳﺨﺖ اﻓﺰار اﺧﺘﺼﺎﺻﯽ ﺳﺮوﯾﺲ وﺟﻮد داردAIM-Vpn در 0271 و ﺑﺎﻻﺗﺮ اﻣﮑﺎن ﻧﺼﺐ ﻣﺎژول 65 اﺳﺖk v.90 1171 داراي ﻣﻮدم آﻧﺎﻟﻮگ Page 16 of 290
- 18. ﭘﺸﺘﯿﺒﺎﻧﯽ ﻣﯿﮑﻨﺪwic اﺳﺖ ﮐﻪ دوﺗﺎي آن ﺻﺮﻓﺎ ازVIC 0671 داري4 اﺳﻼت Cisco 3700 Series Routers Router 3725 3745 RAM 256MB 256MB Flash 128MB 128MB CPU 240Mhz 350Mhz Ethernet 2 Fast Ethernet 2 Fast Ethernet WIC 3 3 NM 2 4 AIM 2 2 HDSM 1 2 Performance 100k pps 225k pps :ﺗﻮﺟﻪ ﭘﺸﺘﯿﺒﺎﻧﯽ ﻣﯿﮑﻨﻨﺪHigh Density Service Modules (HDSM’s) ﺳﺮي 0073 ﻣﺎژوﻟﻬﺎي 215 ﭘﺸﺘﯿﺒﺎﻧﯽ ﻣﯿﮑﻨﺪMB DRAM 6(3.21 ﺗﺎr) Bootrom 543 ازﻃﺮﯾﻖ ﻣﺎژوﻟﻬﺎ و ﻣﻨﺎﺑﻊ ﺗﻐﺬﯾﻪ ﭘﺸﺘﯿﺒﺎﻧﯽNM ﺟﻬﺖOnline Insertion & Removal (OIR) ﺳﺮي 0073 از ﻗﺎﺑﻠﯿﺖ ﻣﯿﮑﻨﻨﺪ Cisco 1800 Series Routers Router 1801 RAM 384MB Flash 128MB CPU ? Ethernet 1 Fast Ethernet 1802 384MB 128MB ? 1 Fast Ethernet 1803 1805 1811 1812 1841 1861 384MB 384MB 384MB 384MB 384MB 384MB 128MB 128MB 128MB 128MB 128MB 128MB ? ? ? ? 250Mhz 250Mhz 1 Fast Ethernet 1 Fast Ethernet 2 Fast Ethernet 2 Fast Ethernet 2 Fast Ethernet 2 Fast Ethernet aDSL aDSL Over Pots aDSL over ISDN SHDSL None None None Yes* None HWIC 0 WiFi Yes USB 0 Perform. 70k pps 0 Yes 0 70k pps 0 0 0 0 2 1 Yes Yes Yes Yes No* No 0 2 2 2 1* 0 70k pps 70k pps 70k pps 70k pps 75k pps 75k pps :ﺗﻮﺟﻪ اﺳﺘﻔﺎده ﻣﯿﮑﻨﺪدQED RM52xx ﺗﻤﺎم ﻣﺪﻟﻬﺎي 0081 از ﭘﺮدازﻧﺪه ﻫﺎي ﺳﺮي از واﯾﺮﻟﺲ ﭘﺸﺘﯿﺒﺎﻧﯽ ﻣﯿﮑﻨﺪHWIC-AP 1481 از ﻃﺮﯾﻖ Usb 2 اﺳﺖ ﻣﺎﺑﻘﯽUsb 1.1 1481 داراي ﭘﺸﺘﯿﺒﺎﻧﯽ ﻣﯿﮑﻨﺪaDSL & G.SHDSL WIC and HWIC’s 1481 از اﺳﻼت اﺳﺖAIM 1481 داراي ﯾﮏ 5081 داراي 4 ﭘﻮرت 01/001 ﻣﺪﯾﺮﯾﺖ ﭘﺬاﯾﺮ اﺳﺖ 2 اﺳﺖx BRI S/T, 8 Port POE 10/100 وFXS 1681 داراي 4 ﭘﻮرت Router 2801 2811 2821 2851 RAM 512MB 768MB 1GB 1GB Page 17 of 290 Flash 256MB 256MB 256MB 256MB CPU 250Mhz 350Mhz 466Mhz 466Mhz Cisco 2800 Series Routers Ethernet HWIC 2 Fast Ethernet 4 2 Fast Ethernet 4 2 Gigabit Eth 4 2 Gigabit Eth 4 NME 2 4 4 4 AIM 2 2 2 2 DSP 2 2 3 3 Perform. 90k pps 120k pps 170k pps 220k pps

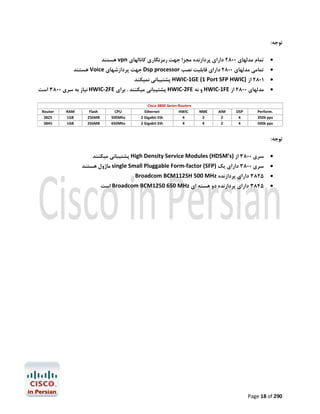

- 19. :ﺗﻮﺟﻪ ﻫﺴﺘﻨﺪvpn ﺗﻤﺎمﻣﺪﻟﻬﺎي 0082 داراي ﭘﺮدازﻧﺪه ﻣﺠﺰا ﺟﻬﺖ رﻣﺰﻧﮕﺎري ﮐﺎﻧﺎﻟﻬﺎي ﻫﺴﺘﻨﺪVoice ﺟﻬﺖ ﭘﺮدازﺷﻬﺎيDsp processor ﺗﻤﺎﻣﯽ ﻣﺪﻟﻬﺎي 0082 داراي ﻗﺎﺑﻠﯿﺖ ﻧﺼﺐ ﭘﺸﺘﯿﺒﺎﻧﯽ ﻧﻤﯿﮑﻨﺪHWIC-1GE (1 Port SFP HWIC) 1082 از ﻧﯿﺎز ﺑﻪ ﺳﺮي 0083 اﺳﺖHWIC-2FE ﭘﺸﺘﯿﺒﺎﻧﯽ ﻣﯿﮑﻨﻨﺪ . ﺑﺮايHWIC-2FE و ﻧﻪHWIC-1FE ﻣﺪﻟﻬﺎي 0082 از Router 3825 3845 RAM 1GB 1GB Flash 256MB 256MB CPU 500Mhz 650Mhz Cisco 3800 Series Routers Ethernet HWIC 2 Gigabit Eth 4 2 Gigabit Eth 4 NME 2 4 AIM 2 2 DSP 4 4 Perform. 350k pps 500k pps :ﺗﻮﺟﻪ ﭘﺸﺘﯿﺒﺎﻧﯽ ﻣﯿﮑﻨﻨﺪHigh Density Service Modules (HDSM’s) ﺳﺮي 0083 از ﻣﺎژول ﻫﺴﺘﻨﺪsingle Small Pluggable Form-factor (SFP) ﺳﺮي 0083 داراي ﯾﮏ Broadcom BCM1125H 500 MHz 5283 داراي ﭘﺮدازﻧﺪه اﺳﺖBroadcom BCM1250 650 MHz 5483 داراي ﭘﺮدازﻧﺪه دو ﻫﺴﺘﻪ اي Page 18 of 290
- 20. آزﻣﺎﯾﺶ 2.1-اﺗﺼﺎل ﺑﻪادوات ﺳﯿﺴﮑﻮ از ﻃﺮﯾﻖ ﮐﻨﺴﻮل اﯾﻦ آزﻣﺎﯾﺶ ﺑﻪ ﭼﮕﻮﻧﮕﯽ اﺗﺼﺎل ﺑﻪ ﮐﻨﺴﻮل روﺗﺮ/ﺳﻮﯾﯿﭻ ازﻃﺮﯾﻖ ﮐﺎﺑﻞ 54 DB9 to RJﻣﯿﭙﺮدازد.در اﯾﻦ آزﻣﺎﯾﺶ از ﯾﮏ ﻧﺮم اﻓﺰار ﺗﺮﻣﯿﻨﺎل ﻣﺎﻧﻨﺪ Puttyو ﯾﺎ HyperTerminalﮐﻪ در دل وﯾﻨﺪوز ﻣﻮﺟﻮد ﻣﯿﺒﺎﺷﺪ اﺳﺘﻔﺎده ﺧﻮاﻫﯿﻢ ﮐﺮد.ﻧﺮم اﻓﺰارﻫﺎي ﻣﺘﻌﺪدي در اﯾﻦ ﺧﺼﻮص وﺟﻮد دارﻧﺪ ﻣﺎﻧﻨﺪ دو ﻣﻮرد راﯾﮕﺎﻧﯽ ﮐﻪ در ﺑﺎﻻ اﺷﺎره ﺷﺪ و ﯾﺎ ﻧﺮم اﻓﺰار SecureCRT ﯾﺎ .TeraTerm ﮐﺎرﺑﺮد ﻋﻤﻠﯽ در دﻧﯿﺎي واﻗﻊ ﻣﻮاﻗﻊ زﯾﺎدي ﭘﯿﺶ ﻣﯽ آﯾﺪ ﮐﻪ ﻧﯿﺎز ﺑﻪ ﺗﻨﻈﯿﻢ ﯾﮏ ﺗﺠﻬﯿﺰ ﺳﯿﺴﮑﻮ از ﻃﺮﯾﻖ ﮐﻨﺴﻮل دارﯾﻢ. ﻣﻮاردي ﻫﻤﭽﻮن اﻣﺎده ﺳﺎزي ﯾﮏ ﺗﺠﻬﯿﺰ ﺗﺎزه ﺧﺮﯾﺪاري ﺷﺪه،ﺑﺎزﮔﺮداﻧﺪن ﺗﻨﻈﯿﻤﺎت ﻗﺒﻠﯽ ) (Image restorationﯾﺎ ﺣﺘﯽ ﻫﻨﮕﺎﻣﯽ ﮐﻪ دﺳﺘﺮﺳﯽ از ﻃﺮﯾﻖ ﺷﺒﮑﻪ ﺧﻮد ﺑﻪ ﺗﺠﻬﯿﺰ ﻣﻮرد ﻧﻄﺮ را ﺑﻪ دﻟﯿﻞ ﺗﻨﻈﯿﻤﺎت اﺷﺘﺒﺎه Access listاز دﺳﺖ داده اﯾﻢ. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ: ﻧﺮم اﻓﺰار ﺗﺮﻣﯿﻨﺎل ﻣﺎﻧﻨﺪ Putty, HyperTerminal , SecureCRT ﮐﺎﺑﻞ ﮐﻨﺴﻮل ﯾﺎ -rolloverﺑﺎ ﺗﻮﺟﻪ ﺑﻪ اﯾﻨﮑﻪ ﺑﯿﺸﺘﺮ ﮐﺎﻣﭙﯿﻮﺗﺮﻫﺎي اﻣﺮوزي ﻓﺎﻗﺪ Serial portﻫﺴﺘﻨﺪ اﺳﺘﻔﺎده از ﺗﺒﺪﯾﻞ Usbﺑﻪ 232 Rsﺗﻮﺻﯿﻪ ﻣﯿﺸﻮد اﻫﺪاف آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري اﺗﺼﺎل ﺑﻪ ﺗﺠﻬﯿﺰ ﺳﺴﯿﺴﮑﻮ از ﻃﺮﯾﻖ ﮐﻨﺴﻮل و ﻣﺸﺎﻫﺪه Cli prompt دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ ﺑﺎ اﯾﻨﮑﻪ ﻋﻤﻮﻣﺎ ﻧﺮم اﻓﺰارﻫﺎي ﺗﺮﻣﯿﻨﺎل داراي ﺗﻔﺎوﺗﻬﺎﯾﯽ در وﯾﮋﮔﯿﻬﺎ و ﭘﺮوﺗﮑﻠﻬﺎي ﻣﻮرد ﭘﺸﺘﯿﺒﺎﻧﯽ دارﻧﺪ اﻣﺎ ﻫﻤﻪ اﻧﻬﺎ ﯾﮏ ﻫﺪف واﺣﺪ را دﻧﺒﺎل ﻣﯿﮑﻨﻨﺪ و آن اﻣﮑﺎن ﺑﺮﻗﺮاري اﺗﺼﺎل ﺑﻪ ﺗﺠﻬﯿﺰ ﻣﻮرد ﻧﻈﺮ و ﭘﯿﮑﺮﺑﻨﺪي آن اﺳﺖ.در اﯾﻦ ﻧﻮﺷﺘﺎر از Puttyﺟﻬﺖ ﺑﺮﻗﺮاي اﺗﺼﺎل و ﻣﺸﺎﻫﺪه ﺧﻂ ﻓﺮﻣﺎن اﺳﺘﻔﺎده ﺧﻮاﻫﯿﻢ ﮐﺮد 1. ﮐﺎﺑﻞ ﮐﻨﺴﻮل را ﺑﻪ ﮐﺎﻣﭙﯿﻮﺗﺮ ﻣﺘﺼﻞ ﮐﻨﯿﺪ و ﺳﺮ دﯾﮕﺮ آﻧﺮا ﺑﻪ ﭘﻮرت ﮐﻨﺴﻮل ﺗﺠﻬﯿﺰ ﻣﺘﺼﻞ ﮐﻨﯿﺪ 2. ﻫﻨﮕﺎﻣﯽ ﮐﻪ ﺑﺮاي اوﻟﯿﻦ ﺑﺎر puttyرا اﺟﺮا ﻣﯿﮑﻨﯿﺪ ﺑﺎ ﺻﻔﺤﻪ ﺗﻨﻈﯿﻤﺎت زﯾﺮ روﺑﺮو ﻣﯿﺸﻮﯾﺪ 092 Page 19 of
- 21. 3. ﺑﻪ ﺟﺎي SSHﮔﺰﯾﻨﻪ Serialاﻧﺘﺨﺎب ﻣﯿﺸﻮد .1 Comﭘﻮرت ارﺗﺒﺎﻃﯽ ﭘﯿﺶ ﻓﺮض ﺑﺮاي ارﺗﺒﺎﻃﺎت ﺳﺮﯾﺎل putty اﺳﺖ.ﻣﻤﮑﻦ اﺳﺖ ﺑﺎ ﺗﻮﺟﻪ ﺑﻪ ﺷﻤﺎره Com portﮐﻪ ﮐﺎﺑﻞ ﮐﺴﻨﻮل ﺑﻪ آن ﻣﺘﺼﻞ ﺷﺪه ﻧﯿﺎر ﺑﻪ ﺗﻐﯿﯿﺮ آن داﺷﺘﻪ ﺑﺎﺷﯿﻢ. 9600 Baudﻫﻢ ﺳﺮﻋﺖ ﭘﯿﺶ ﻓﺮض puttyﺟﻬﺖ ارﺗﺒﺎﻃﺎت ﺳﺮﯾﺎل اﺳﺖ ﻫﻤﯿﻨﻄﻮر ﺳﺮﻋﺖ ﭘﯿﺶ ﻓﺮض ادوات ﺳﯿﺴﮑﻮ ﮐﻪ از ﻃﺮﯾﻖ 2012×0 Configuration Registerﺗﻨﻈﯿﻢ ﻣﯿﺸﻮد 092 Page 20 of

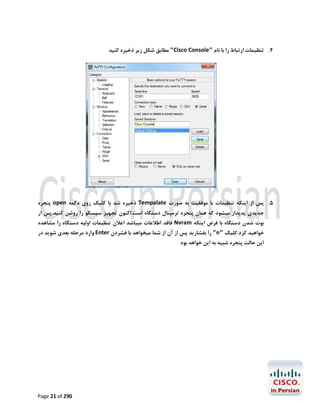

- 22. 4. ﺗﻨﻈﯿﻤﺎت ارﺗﺒﺎطرا ﺑﺎ ﻧﺎم " "Cisco Consoleﻣﻄﺎﺑﻖ ﺷﮑﻞ زﯾﺮ ذﺧﯿﺮه ﮐﻨﯿﺪ 5. ﭘﺲ از اﯾﻨﮑﻪ ﺗﻨﻈﯿﻤﺎت ﺑﺎ ﻣﻮﻓﻘﯿﺖ ﺑﻪ ﺻﻮرت Tempalateذﺧﯿﺮه ﺷﺪ ﺑﺎ ﮐﻠﯿﮏ روي دﮐﻤﻪ openﭘﻨﺠﺮه ﺟﺪﯾﺪي ﭘﺪﯾﺪار ﻣﯿﺸﻮد ﮐﻪ ﻫﻤﺎن ﭘﻨﺠﺮه ﺗﺮﻣﯿﻨﺎل دﺳﺘﮕﺎه اﺳﺖ.اﮐﻨﻮن ﺗﺠﻬﯿﺰ ﺳﯿﺴﮑﻮ را روﺷﻦ ﮐﻨﯿﺪ.ﭘﺲ ار ﺑﻮت ﺷﺪن دﺳﺘﮕﺎه ﺑﺎ ﻓﺮض اﯾﻨﮑﻪ Nvramﻓﺎﻗﺪ اﻃﻼﻋﺎت ﻣﯿﺒﺎﺷﺪ اﻋﻼن ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ دﺳﺘﮕﺎه را ﻣﺸﺎﻫﺪه ﺧﻮاﻫﯿﺪ ﮐﺮد.ﮐﻠﯿﮏ " "nرا ﺑﻔﺸﺎرﯾﺪ ﭘﺲ از آن از ﺷﻤﺎ ﻣﯿﺨﻮاﻫﺪ ﺑﺎ ﻓﺸﺮدن Enterوارد ﻣﺮﺣﻠﻪ ﺑﻌﺪي ﺷﻮﯾﺪ در اﯾﻦ ﺣﺎﻟﺖ ﭘﻨﺠﺮه ﺷﺒﯿﻪ ﺑﻪ اﯾﻦ ﺧﻮاﻫﺪ ﺑﻮد 092 Page 21 of
- 23. اﮐﻨﻮن وارد ﻣﺤﯿﻂ cliﺟﻬﺖ ﺗﻨﻈﯿﻤﺎت و ﭘﯿﮑﺮﺑﻨﺪي دﺳﺘﮕﺎه ﺳﯿﺴﮑﻮ ﺧﻮد ﺷﺪه اﯾﺪ 092 Page 22 of
- 24. آزﻣﺎﯾﺶ 3.1-آﺷﻨﺎﯾﯽ ﺑﺎﺳﯿﺴﺘﻢ ﻋﺎﻣﻞ روﺗﺮ و ﺳﻮﯾﯿﭻ اﯾﻦ آزﻣﺎﯾﺶ ﺑﻪ ﺑﺮرﺳﯽ ﻣﺸﺨﺼﻪ ﻫﺎي ) Cisco Internetwork Operating System (Cisco IOSدر ﺣﺎل اﺟﺮا ﺑﺮ روي ادوات ﺳﯿﺴﮑﻮ ﻣﯽ ﭘﺮدازد ﮐﺎرﺑﺮد ﻋﻤﻠﯽ داﻧﺴﺘﻦ اﯾﻨﮑﻪ ﭼﻪ ﻧﺴﺨﻪ اي از IOSو ﺑﺎ ﭼﻪ وﯾﮋﮔﯽ در ﺣﺎل اﺟﺮا ﺑﺮ روي ادوات ﺳﯿﺴﮑﻮ ﻣﺎ ﻣﯿﺒﺎﺷﺪ ﻧﻘﺸﯽ ﺗﻌﯿﯿﻦ ﮐﻨﻨﺪه در ﺑﺮﻧﺎﻣﻪ رﯾﺰي و ﭘﯿﺎده ﺳﺎزي ﻣﺸﺨﺼﻪ ﻫﺎي ﻣﻮرد ﻧﯿﺎز ﺧﻮاﻫﺪ داﺷﺖ. ﺑﺮاي درك ﺑﻬﺘﺮ اﯾﻦ ﻣﻔﻬﻮم ﺑﻪ ﻣﺸﺨﺼﻪ ﻫﺎي ﻧﮕﺎرﺷﻬﺎي ﻣﺨﺘﻠﻒ وﯾﻨﺪوز7 ﻣﺎﻧﻨﺪ Basic, Home Edition, Home Premium, Business, Ultimate and Enterpriseﺗﻮﺟﻪ ﮐﻨﯿﺪ،در IOSﺳﯿﺴﮑﻮ ﻫﻢ ﭼﻨﯿﻦ ﻧﺎم ﮔﺬاري ﻫﺎﯾﯽ را ﺗﺤﺖ ﻋﻨﻮان ” “Feature setﺷﺎﻫﺪ ﻫﺴﺘﯿﻢ ﮐﻪ ﺑﯿﺎﻧﮕﺮ ﻧﻮع وﯾﮋﮔﯿﻬﺎي ﻗﺎﺑﻞ اراﺋﻪ در آن ﺗﻮزﯾﻊ ﻫﺴﺘﻨﺪ در اداﻣﻪ ﺑﻪ ﭼﮕﻮﻧﮕﯽ ﻗﻮاﻋﺪ اﯾﻦ ﻧﺎم ﮔﺬاري ﻫﺎ ﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﻣﻄﺎﻟﻌﻪ آزﻣﺎﯾﺶ 2.1 و اﺗﺼﺎل ﺑﻪ ﮐﻨﺴﻮل دﺳﺘﮕﺎه اﻫﺪاف آزﻣﺎﯾﺶ ﺷﻨﺎﺳﺎﯾﯽ ﻧﮕﺎرش و ﻣﺸﺨﺼﻪ ﻫﺎي IOSدر ﺣﺎل اﺟﺮا دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ راﻫﻬﺎي ﻣﺘﻌﺪدي ﺑﺮاي ﺷﻨﺎﺳﺎﯾﯽ IOSدر ﺣﺎل اﺟﺮا روي ادوات ﺳﯿﺴﮑﻮ وﺟﻮد دارد . اوﻟﯿﻦ راه ، ﻣﻄﺎﻟﻌﻪ ﭘﯿﺎﻣﻬﺎي ﺳﯿﺴﺘﻤﯽ ﻓﺮاﯾﻨﺪ ﺑﻮت اﺳﺖ.ﻃﯽ اﯾﻦ ﻓﺮاﯾﻨﺪ ﻧﺎم Imageﻓﺎﯾﻞ ﺑﺎرﮔﺬاري ﺷﺪه از ﻓﻠﺶ ﻧﻤﺎﯾﺶ داده ﻣﯿﺸﻮد ﮐﻪ ﻧﺸﺎﻧﮕﺮ ﻧﺎم ﻓﺎﯾﻞ IOSﻣﻮرد ﻧﻈﺮ اﺳﺖ اﯾﻦ ﻧﺎم ﺑﯿﺎﻧﮕﺮ ﺷﻤﺎره ﻧﮕﺎرش IOSو Feature Setﯾﺎ ﻣﺸﺨﺼﻪ ﻫﺎي ﻓﻨﯽ IOSﻣﻮرد ﻧﻈﺮ ﻣﯽ ﺑﺎﺷﺪ. در ﻟﯿﺴﺖ زﯾﺮ ﺑﺨﺸﯽ از اﻃﻼﻋﺎت ﻧﻤﺎﯾﺶ داده ﺷﺪه ﻃﯽ ﻓﺮاﯾﻨﺪ ﺑﻮت را ﻣﺸﺎﻫﺪه ﻣﯽ ﮐﻨﯿﺪ ﮐﻪ از ﻃﺮﯾﻖ آن ﻣﯿﺘﻮان ﺑﻪ ﻧﮕﺎرش IOSو ﻣﺸﺨﺼﻪ ﻫﺎي ﻧﺴﺨﻪ در ﺣﺎل اﺳﺘﻔﺎده ﭘﯽ ﺑﺮد. Cisco Internetwork Operating System Software 092 Page 23 of
- 25. IOS (tm) 3600Software (C3620-IK9O3S7-M), Version 12.3(25), RELEASE SOFTWARE (fc1) ﺗﻮﺟﻪ ﮐﻨﯿﺪ.اﯾﻦ ﻋﺒﺎرت ﺑﯿﺎﻧﮕﺮ وﯾﮋﮔﯿﻬﺎ و ﻧﻮع ﺑﺎرﮔﺬاري)در اداﻣﻪ ﺗﻮﺿﯿﺢ دادهC3620-IK9O3S7-M در ﺧﻂ دوم ﺑﻪ . در ﺣﺎل ﺑﺎرﮔﺬاري اﺳﺖ.در اداﻣﻪ آن ﺷﻤﺎره ﻧﮕﺎرش ﻧﻤﺎﯾﺶ داده ﺷﺪه اﺳﺖIOS (ﺧﻮاﻫﺪ ﺷﺪ اﺳﺖ.اﯾﻦ دﺳﺘﻮر اﻃﻼﻋﺎتShow Version اﺳﺘﻔﺎده از دﺳﺘﻮرIOS راﯾﺞ ﺗﺮﯾﻦ راه ﺑﻪ دﺳﺖ آوردن ﻣﺸﺨﺼﻪ ﻫﺎي و ﻣﺠﻤﻮﻋﻪ وﯾﮋﮔﯿﻬﺎي ان ﻫﻤﯿﻨﻄﻮر اﻃﻼﻋﺎت ﺳﺨﺖ اﻓﺰاري ﻣﺮﺗﺒﻂ ﺑﺎ دﺳﺘﮕﺎه ﻣﻮردIOS ﻣﺨﺘﻠﻔﯽ درﻣﻮرد ﺷﻤﺎره ﻧﮕﺎرش .اﺳﺘﻔﺎده را ﻧﺸﺎن ﻣﯽ دﻫﺪ ﻟﯿﺴﺖ زﯾﺮ ﺧﺮوﺟﯽ اﯾﻦ دﺳﺘﻮر را ﺑﺮ روي روﺗﺮ 0263 ﻧﺸﺎن ﻣﯿﺪﻫﺪ Router#show version Cisco Internetwork Operating System Software IOS (tm) 3600 Software (C3620-IK9O3S7-M), Version 12.3(25), RELEASE SOFTWARE (fc1) Copyright (c) 1986-2008 by cisco Systems, Inc. Compiled Mon 28-Jan-08 20:16 by alnguyen ROM: System Bootstrap, Version 11.1(20)AA2, EARLY DEPLOYMENT RELEASE SOFTWARE (fc1) Router uptime is 23 minutes System returned to ROM by reload System image file is "flash:c3620-ik9o3s7-mz.123-25.bin" This product contains cryptographic features and is subject to United States and local country laws governing import, export, transfer and use. Delivery of Cisco cryptographic products does not imply third-party authority to import, export, distribute or use encryption. Importers, exporters, distributors and users are responsible for compliance with U.S. and local country laws. By using this product you agree to comply with applicable laws and regulations. If you are unable to comply with U.S. and local laws, return this product immediately. A summary of U.S. laws governing Cisco cryptographic products may be found at: http://www.cisco.com/wwl/export/crypto/tool/stqrg.html If you require further assistance please contact us by sending email to export@cisco.com. cisco 3620 (R4700) processor (revision 0x81) with 60416K/5120K bytes of memory. Processor board ID 24807256 R4700 CPU at 80MHz, Implementation 33, Rev 1.0 Bridging software. X.25 software, Version 3.0.0. 2 FastEthernet/IEEE 802.3 interface(s) 32 terminal line(s) DRAM configuration is 32 bits wide with parity disabled. 29K bytes of non-volatile configuration memory. 32768K bytes of processor board System flash (Read/Write) Page 24 of 290
- 26. Configuration register is0x2102 Router# ﻫﻤﺎﻧﻄﻮر ﮐﻪ از ﺧﺮوﺟﯽ ﺑﺮﻣﯽ آﯾﺪ ﺧﻂ ﻫﺎي 2و3و4 ﻫﻤﺎﻧﻨﺪ اﻃﻼﻋﺎت اﺧﺬ ﺷﺪه از ﻓﺮاﯾﻨﺪ ﺑﻮت ﻣﯽ ﺑﺎﺷﻨﺪ و ﺗﻔﺎوﺗﯽ ﻣﺸﺎﻫﺪ “flash:c3620-ik9o3s7-mz.123- ﻧﻤﯽ ﺷﻮد.در ﺧﻂ 31 ﺧﻮاﻫﯿﺪ دﯾﺪ ﮐﻪ ﻓﺎﯾﻠﯽ ﮐﻪ ﺳﯿﺴﺘﻢ از آن ﺑﻮت ﺷﺪه اﺳﺖ . ﻓﺎﯾﻠﯽ اﺳﺖ ﮐﻪ در ﺣﺎل ﺣﺎﺿﺮ روﺗﺮ ﺑﺮ ﻣﺒﻨﺎي آن ﮐﺎر ﻣﯿﮑﻨﺪImage .52 ﻧﺎم دارد اﯾﻦ ﻧﺎم واﻗﻌﯽbin” ﺑﻮد.اﯾﻦ ﻗﻮاﻋﺪ ﻧﺎم ﮔﺬاريIOS ﻗﺒﻞ از ﻧﮕﺎرش 4.21 ﺳﯿﺴﮑﻮ داراي ﻣﮑﺎﻧﯿﺰم ﻧﺎم ﮔﺬاري ﭘﯿﭽﯿﺪه اي ﺑﺮاي ﺑﯿﺎن وﯾﮋﮔﯿﻬﺎي . ﺑﻮدIOS ﻣﺸﺘﻤﻞ ﺑﺮ ﺣﺮوﻓﯽ ﺑﻮدﻧﺪ ﮐﻪ ﻫﺮﯾﮏ ﺑﯿﺎﻧﮕﺮ وﯾﮋﮔﯽ ﺧﺎﺻﯽ در .ﺟﺪول زﯾﺮ ﺷﺎﻣﻞ ﺣﺮوف و ﮐﺎراﮐﺘﺮﻫﺎي ﺷﻨﺎﺳﺎﯾﯽ اﺳﺖ ﮐﻪ ﭘﯿﺶ از ﻧﺴﺨﻪ 4.21 از آن اﺳﺘﻔﺎده ﻣﯿﺸﺪ I Y S S6 S7 J O K K8 K9 X G C *C B N V *V R U P Telco Boot IP IP on 1700 Series Routers IP Plus IP Plus – No ATM IP Plus – No Voice Enterprise IOS Firewall/Intrusion Detection Cryptography/IPSEC/SSH 56Bit DES Encryption (Weak Cryptography) Triple DES / AES Encryption (Strong Cryptography) H323 Service Selection Gateway (SSG) Remote Access Server Can also be Packet Data Serving Node (PDSN) Apple Talk Novel IP/IPX VOX This can be Video Feature set as well in the near future. IBM Unlawful Intercept Service Provider Services Telecommunications Feature Set Boot Image (Used on high end MSR’s such as 7200 Series) IOS ﺟﺪول 1.2-ﻧﺸﺎﻧﮕﺮﻫﺎي ﺑﯿﺎﻧﮕﺮ وﯾﮋﮔﯿﻬﺎي ﻓﻨﯽ ﻣﺜﺎل ﺧﻮدﻣﺎن ﻣﯿﮑﻨﯿﻢ. ﻧﺎم ﻓﺎﯾﻞ ﻣﺬﺑﻮرIOS اﮐﻨﻮن ﺑﺎ ﺗﻮﺟﻪ ﺑﻪ ﻗﻮاﻋﺪ ﻓﻮق اﻗﺪام ﺑﻪ ﺷﻨﺎﺳﺎﯾﯽ ﻣﺸﺨﺼﻪ ﻫﺎي : ﺑﻮد ﮐﻪ ﺑﺎ ﺷﮑﺴﺖ ان ﺑﻪ اﺟﺰاي ﺗﺸﮑﯿﻞ دﻫﻨﺪه ﺧﻮاﻫﯿﻢ داﺷﺖflash:c3620-ik9o3s7-mz.123-25.bin Page 25 of 290
- 27. در ﻗﺪم ﺑﻌﺪيﺑﺎ ﺗﻮﺟﻪ ﺑﻪ ﺟﺪول ﺑﺎﻻ ﻣﺸﺨﺼﻪ ﻫﺎي IOSرا ﺷﻨﺎﺳﺎﯾﯽ ﻣﯿﮑﻨﯿﻢ i = IP )k9 = Strong Cryptography (3DES / AES o3 = IOS Firewall/Intrusion Detection )s7 = Plus (7 = No Voice ﺑﯿﺸﺘﺮ Imageﻓﺎﯾﻠﻬﺎي IOSدر ﻧﺤﻮه ﺑﺎرﮔﺬاري و ﻓﺸﺮدﮔﯽ ﺑﺎ ﻫﻢ ﺗﻔﺎوت دارﻧﺪ.اﯾﻦ دو ﻣﺸﺨﺼﻪ ﻧﯿﺰ در ﻓﺮاﯾﻨﺪ ﻧﺎم ﮔﺬاري IOSﻟﺤﺎظ ﺷﺪه اﺳﺖ ﺑﺎ دﻗﺖ ﺑﻪ ﺳﺎﺧﺘﺎر ﺗﻔﮑﯿﮏ ﺷﺪه ﻗﺒﻞ درﺧﺼﻮص ﻧﺤﻮه ﻓﺸﺮده ﺳﺎزي و ﺑﺎرﮔﺬاري و ﻣﺮاﺟﻌﻪ ﺑﻪ ﺟﺪول زﯾﺮ در ﺧﻮاﻫﯿﻢ ﯾﺎﻓﺖ ﮐﻪ imageﻣﻮرد ﻧﻈﺮ ﻣﺎ از ﻓﺸﺮه ﺳﺎزي Zipاﺳﺘﻔﺎده ﻣﯿﮑﻨﺪ و ﺑﺎرﮔﺬاري آن ﻧﯿﺰ از RAM ﺻﻮرت ﻣﯽ ﮔﯿﺮد. .The image executes from Flash memory .The image executes from RAM The image executes from ROM .The image is relocatable .The image is compressed using ZIP format .The image is compressed using MZIP format .The image is compressed using STAC format f m r l z x w ﺟﺪول 2.2-ﻧﺸﺎﻧﮕﺮﻫﺎي ﻓﺸﺮه ﺳﺎزي و ﺑﺎرﮔﺬاري از ﻧﮕﺎرش 4.21 ﺑﻪ ﺑﻌﺪ ﺳﯿﺴﮑﻮ ﻗﺮارداد ﺟﺪﯾﺪي را ﺑﺮاي ﻧﺎم ﮔﺬاري ﻣﺠﻤﻮﻋﻪ ﻣﺸﺨﺼﻪ ﻫﺎي IOSﻣﻌﺮﻓﯽ ﮐﺮد.اﯾﻦ ﻗﺮارداد ﺟﺪﯾﺪ در ﻧﮕﺎرش 3.21 آﻏﺎز ﺷﺪ و اوﻟﯿﻦ در ﻧﮕﺎرش 4.21 ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﮔﺮﻓﺖ 092 Page 26 of
- 28. ﺷﮑﻞ زﯾﺮ درﺑﺮدارﻧﺪهاﺻﻮل ﺟﺪﯾﺪ ﻧﺎم ﮔﺬاري IOSﻫﺎي ﺳﯿﺴﮑﻮ از ﻧﺴﺨﻪ 12.3Tﺑﻪ ﺑﺎﻻ اﺳﺖ ﺗﺼﻮﯾﺮ 1.2-ﻗﺮارداد ﺟﺪﯾﺪ ﻧﺎم ﮔﺬاري IOSروﺗﺮﻫﺎي ﺳﯿﺴﮑﻮ ﺑﺎ ﺣﺮﮐﺖ از ﭘﺎﯾﯿﻦ ﺑﺎ ﺑﺎﻻي درﺧﺖ ﻓﻮق در ﻣﯿﺎﺑﯿﻢ ﮐﻪ IP Baseاﯾﻤﯿﺞ ﭘﺎﯾﻪ اﺳﺖ،از اﯾﻦ اﯾﻤﯿﺞ ﭘﺎﯾﻪ IP Voiceﺳﺎﺧﺘﻪ ﻣﯿﺸﻮد و ﭘﺲ از ان دو ﺷﺎﺧﻪ اﺻﻠﯽ Advanced Securityو Enterprise Baseرا ﺧﻮاﻫﯿﻢ داﺷﺖ. IP Voiceﻫﻤﭽﻨﯿﻦ داراي ﻗﺎﺑﻠﯿﺖ ارﺗﻘﺎء ﺑﻪ ﺳﺮوﯾﺴﻬﺎي Service Providerاﺳﺖ ﻣﺸﺘﻤﻞ ﺑﺮ ﻣﺸﺨﺼﻪ ﻫﺎي SP Servicesو IP Voiceو .IP Base ﻓﻘﻂ اﯾﻤﯿﺞ ﻫﺎي ” “Advancedداراي ﻣﺸﺨﺼﻪ رﻣﺰ ﻧﮕﺎري ) Advanced Encryption Standard (AESﻫﺴﺘﻨﺪ. ﺧﻼﺻﻪ ﻗﺮاردادﻫﺎي ﺟﺪﯾﺪ ﻧﺎم ﮔﺬاري را در ﮔﺮوه ﻫﺎي زﯾﺮ ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﻢ : Baseاﯾﻤﯿﺞ ﭘﺎﯾﻪ ﺑﺎ ﻣﺸﺨﺼﻪ IP Base, Enterprise Base : Servicesﻣﻌﺮف ﺳﺮوﯾﺴﻬﺎي ﭘﯿﺸﺮﻓﺘﻪ Voice over Frame Relay and Atm ، MPLS ، Voiceﺑﺎ ﻣﺸﺨﺼﻪ SP Services, Enterprise Services : Advancedﻣﻌﺮف ﻗﺎﺑﻠﯿﺘﻬﺎي Intrusion ، IPSec، 3DES encryption،Cisco IOS Firewall ، Vpn :Enterpriseﻣﻌﺮف ﭘﺮوﺗﮑﻠﻬﺎي اﺿﺎﻓﻪ اي ﻫﻤﭽﻮن Ipx,Apple talkﺑﺎ ﻣﺸﺨﺼﻪ Enterprise Baseو ) Detection Systems (IDSﺑﺎ ﻣﺸﺨﺼﻪ Advanced Security, Advanced IP Services Enterprise Servicesاﺳﺖ. 092 Page 27 of
- 29. دﻗﯿﻘﺎ ﻣﺎﻧﻨﺪ روﺗﺮﻫﺎﺑﺮاي ﺳﻮﯾﯿﭻ ﻫﺎ ﻧﯿﺰ ﭼﻨﯿﻦ ﻗﻮاﻋﺪ ﻧﺎم ﮔﺬاري وﺟﻮد دارﻧﺪ. ﺷﮑﻞ 2.2- ﻗﻮاﻧﯿﻦ ﻧﺎم ﮔﺬاري ﺟﺪﯾﺪ IOSﺳﻮﯾﯿﭻ ﻫﺎي ﺳﯿﺴﮑﻮ در ﺳﻄﺮﻫﺎي زﯾﺮ ﻧﺎم ﺗﻌﺪادي از اﯾﻤﯿﺞ ﻫﺎي IOSروﺗﺮﻫﺎي ﺳﯿﺴﮑﻮ، ﻣﻄﺎﺑﻖ ﺑﺎ ﻗﻮاﻧﯿﻦ ﺟﺪﯾﺪ ﻧﺎم ﮔﺬاري را ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﺪ روﺗﺮ 0082 ﺳﻮﯾﯿﭻ 0573 Catalyst c2800nm-adventerprisek9-mz.124-21.bin c2800nm-ipbase-mz.124-21.bin c3750-advipservicesk9-mz.122-44.SE.bin c3750-ipservicesk9-mz.122-44.SE.bin c3750-ipbase-mz.122-44.SE.bin IP Base رﺳﻤﺎ ﺑﻪ ﻋﻨﻮان ) Standard Multilayer Image (SMIروي ﺳﻮﯾﯿﭽﻬﺎ ﺳﺮي 0553 ﺷﻨﺎﺧﺘﻪ ﻣﯿﺸﻮد. اﯾﻦ ﺷﻨﺎﺳﻪ ﻧﺎم ﺑﯿﺎﻧﮕﺮ وﯾﮋﮔﯿﻬﺎﯾﯽ ﻫﻤﭽﻮن Advanced Qos-Rate limiting-Acls-static routing ,Ripﻣﯽ ﺑﺎﺷﻨﺪ. IP Service 092 Page 28 of
- 30. رﺳﻤﺎ ﺑﻪ ﻋﻨﻮان) Enhanced Multilayer Image (EMIروي ﺳﻮﯾﯿﭽﻬﺎي 0553 ﺷﻨﺎﺧﺘﻪ ﻣﯿﺸﻮد.داراي ﻣﺸﺨﺼﻪ ﻫﺎي ﻓﻨﯽ ﺑﯿﺸﺘﺮي ﻫﻤﭽﻮن hardware-based IP Unicast and IP Multicast -enterprise class routing routingو ) policy based routing (PBRاﺳﺖ Advanced IP Services اﯾﻦ ﻣﺸﺨﺼﻪ از ﻃﺮﯾﻖ ﭘﺮداﺧﺖ ﻫﺰﯾﻨﻪ ﻣﺠﺰاي ﺧﺮﯾﺪ ﻻﯾﺴﻨﺲ ﻗﺎﺑﻞ ﺗﻬﯿﻪ اﺳﺖ . داراي وﯾﮋﮔﯿﻬﺎﯾﯽ ﻫﻤﭽﻮن 6Ipv Routingو Ipv6 ACL supportاﺳﺖ. Enterprise Services & Advanced Enterprise Services ﺣﺎوي ﺗﻤﺎم وﯾﮋﮔﯿﻬﺎي ﻗﺎﺑﻞ ﭘﺸﺘﯿﺒﺎﻧﯽ ﺗﻮﺳﻂ ﭘﻠﺘﻔﺮم ﻣﻮرد ﻧﻈﺮ ﻫﺴﺘﻨﺪ ﻫﻤﯿﻨﻄﻮر ﮔﺮاﻧﺘﺮﯾﻦ از ﻟﺤﺎظ ﻻﯾﺴﻨﺲ ﻣﺤﺴﻮب ﻣﯿﺸﻮﻧﺪ.اﯾﻦ ﺳﺮي از IOSﻫﺎ ﺗﻨﻬﺎ ﺑﺮ روي ﺳﻮﯾﭽﻬﺎي ﻣﺎژوﻻر ﺳﺮي 0054 ، 0094 و 0056 ﻗﺎﺑﻞ ﻧﺼﺐ ﻫﺴﺘﻨﺪ در ﺳﻄﺮﻫﺎي زﯾﺮ ﺗﻌﺪادي از ﺳﻮﯾﯿﭽﻬﺎ ﻣﻌﻤﻮل ﺑﻪ ﻫﻤﺮاه ﻣﺸﺨﺼﻪ ﻻﯾﺴﻨﺲ ﻫﻤﺮاه ﺑﺎ آﻧﻬﺎ را ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﺪ )C3560-24PS-S = Cisco 3560 Series 24 Ports PoE with Standard Image (IP Base )C3750-48TS-E = Cisco 3750 Series 48 Port Non-PoE with Enhanced Image (IP Services از آﻧﺠﺎﯾﯽ ﮐﻪ ﺳﻮﯾﯿﭽﻬﺎي ﺳﺮي 0692 ﺑﻪ ﺻﻮرت ﻻﯾﻪ دو ﻓﻌﺎﻟﯿﺖ ﻣﯿﮑﻨﻨﺪ از ﻣﺪل ﻻﯾﺴﻨﺲ ﻣﺘﻔﺎوﺗﯽ ﭘﯿﺮوي ﻣﯿﮑﻨﻨﺪ.اﯾﻦ ﻣﺪل ﻻﯾﺴﻨﺲ ﻣﺎﻧﻨﺪ ﺳﺮوي 0592 ﺷﺎﻣﻞ دو ﮔﺮوه ﻣﺸﺨﺼﻪ اﺻﻠﯽ ﻣﯿﺒﺎﺷﺪ ﺑﻪ ﻧﺎﻣﻬﺎي Standard Imageو Enhanced Imageاﻣﺎ ﮔﺮوه ﻣﺸﺨﺼﻪ ﻫﺎي ﺟﺪﯾﺪ اﯾﻦ ﺳﺮي Lan basedو Lan Liteﻧﺎم دارﻧﺪ.اﯾﻦ ﮔﺮوه ﻣﺸﺨﺼﻪ ﻫﺎي ﺟﺪﯾﺪ وﯾﮋﮔﯿﻬﺎي ﻣﺘﻔﺎوﺗﯽ ﻫﻤﭽﻮن Qos,Gigabit Ethernet,Rps,Rstp,Linkstate tracking,Dot1x,Dhcp snooping و ﺑﺴﯿﺎري وﯾﮋﮔﯿﻬﺎي ﺟﺪﯾﺪ را ﺑﺮاي ﺳﺮي 0692 ﺑﻪ ارﻣﻐﺎن ﻣﯽ آورد. اﻣﺮوزه و ﺑﺎ ﻣﻌﺮﻓﯽ 0.51 IOSﺑﻪ ﺑﻌﺪ ﻧﺴﻞ ﺟﺪﯾﺪ از IOSﺗﺤﺖ ﻧﺎم ﮐﻠﯽ Universal imageﻣﻌﺮﻓﯽ ﺷﺪه اﺳﺖ.ﮔﺮوه ﻣﺸﺨﺼﻪ ﻫﺎي اﯾﻦ ﻧﺴﻞ ﺗﻔﺎوﺗﯽ ﺑﺎ ﻧﺴﻞ ﻗﺒﻞ ﻧﺪاﺷﺘﻪ اﻣﺎ ﺑﻪ ﻣﻨﻈﻮر اﺳﺘﻔﺎده از وﯾﮋﮔﯿﻬﺎي ﻣﺘﻌﺪد اﯾﻦ IOSﻣﯿﺒﺎﯾﺴﺖ ﻫﺮ ﮔﺮوه از آﻧﻬﺎ را از ﻃﺮﯾﻖ ﻻﯾﺴﻨﺲ ﻓﺎﯾﻞ در ﻣﺤﻞ NVRAMﻓﻌﺎل ﮐﺮد.ﻃﯽ ﻓﺮاﯾﻨﺪ ﺑﻮت، IOSﺑﻪ دﻧﺒﺎل ﻓﺎﯾﻞ ﻻﯾﺴﻨﺲ ﻣﯿﮕﺮدد و ﭘﺲ از ﯾﺎﻓﺘﻦ آن وﯾﮋﮔﯿﻬﺎي ﻣﺘﻨﺎﻇﺮ ﺑﺎ ﻻﯾﺴﻨﺴﯽ را ﮐﻪ ﺧﺮﯾﺪاري ﺷﺪه اﺳﺖ را ا ﻓﻌﺎل ﻣﯿﮑﻨﺪ.ﻫﺮ ﻻﯾﺴﻨﺲ ﻓﺎﯾﻠﯽ ﻣﺘﻌﻠﻖ ﺑﻪ ﺷﻤﺎره ﺳﺮﯾﺎل ﭘﻠﺘﻔﺮم اﺧﺘﺼﺎﺻﯽ ﺧﻮد ﻣﯽ ﺑﺎﺷﺪ ﺑﻪ اﯾﻦ ﻣﻌﻨﯽ ﮐﻪ ﻗﺎﺑﻞ اﻧﺘﻘﺎل)ﮐﭙﯽ!( ﺑﻪ ﭘﻠﺘﻔﺮم دﯾﮕﺮ ﻧﯿﺴﺘﻨﺪ. 092 Page 29 of

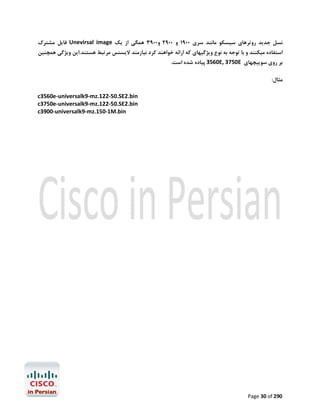

- 31. ﻧﺴﻞ ﺟﺪﯾﺪ روﺗﺮﻫﺎيﺳﯿﺴﮑﻮ ﻣﺎﻧﻨﺪ ﺳﺮي 0091 و 0092 و0093 ﻫﻤﮕﯽ از ﯾﮏ Unevirsal imageﻓﺎﯾﻞ ﻣﺸﺘﺮك اﺳﺘﻔﺎده ﻣﯿﮑﻨﻨﺪ و ﺑﺎ ﺗﻮﺟﻪ ﺑﻪ ﻧﻮع وﯾﮋﮔﯿﻬﺎي ﮐﻪ اراﺋﻪ ﺧﻮاﻫﻨﺪ ﮐﺮد ﻧﯿﺎزﻣﻨﺪ ﻻﯾﺴﻨﺲ ﻣﺮﺗﺒﻂ ﻫﺴﺘﻨﺪ.اﯾﻦ وﯾﮋﮔﯽ ﻫﻤﭽﻨﯿﻦ ﺑﺮ روي ﺳﻮﯾﯿﭽﻬﺎي 3560E, 3750Eﭘﯿﺎده ﺷﺪه اﺳﺖ. ﻣﺜﺎل: c3560e-universalk9-mz.122-50.SE2.bin c3750e-universalk9-mz.122-50.SE2.bin c3900-universalk9-mz.150-1M.bin 092 Page 30 of
- 32. آزﻣﺎﯾﺶ ٤.١ –ﺗﻨﻈﻤﯿﺎت ﭘﺎﯾﮫ اﮐﺴﺲ ﺳﺮور ﻣﻮرد اﺳﺘﻔﺎده در آزﻣﺎﯾﺸﮕﺎه در اﯾﻦ آزﻣﺎﯾﺶ ﯾﮏ دﺳﺘﮕﺎه اﮐﺴﺲ ﺳﺮور را ﺑﺎ ﻫﺪف دﺳﺘﺮﺳﯽ ﺑﻪ ﻫﻤﻪ ﺳﻮﯾﯿﭽﻬﺎ و روﺗﺮﻫﺎي ﻣﻮرد اﺳﺘﻔﺎده در اﯾﻦ آزﻣﺎﯾﺸﮕﺎه و ﻣﺪﯾﺮﯾﺖ آﻧﻬﺎ از ﯾﮏ ﻧﻘﻄﻪ ﻣﺮﮐﺰي ﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ. ﺗﻮﺿﯿﺢ:در ﺻﻮرﺗﯿﮑﻪ ﺑﺎ ﺗﻨﻈﯿﻤﺎت ﻣﺮﺗﺒﻂ ﺑﺎ روﺗﺮﻫﺎ آﺷﻨﺎﯾﯽ ﻧﺪارﯾﺪ ﻣﯿﺘﻮان از اﯾﻦ ﻣﺒﺤﺚ ﻋﺒﻮر ﮐﺮد و ﭘﺲ از آﺷﻨﺎﯾﯽ ﻣﺠﺪدا ﺑﻪ آن ﭘﺮداﺧﺖ ﮐﺎرﺑﺮد ﻋﻤﻠﯽ ﻋﻤﻮﻣﺎ در ﺳﺎزﻣﺎﻧﻬﺎﯾﯽ ﮐﻪ داراي ﺗﻌﺪاد زﯾﺎدي ادوات ﺳﯿﺴﮑﻮ ﻫﺴﺘﻨﺪ از اﮐﺴﺲ ﺳﺮور ﺟﻬﺖ دﺳﺘﺮﺳﯽ و ﻣﺪﯾﺮﯾﺖ ﻣﺮﮐﺰي اﯾﻦ ادوات ﺑﻪ ﺟﺎي اﺗﺼﺎل ﻣﺠﺰا ﺑﻪ ﻫﺮ ﯾﮏ از اﯾﻦ ادوات اﺳﺘﻔﺎده ﻣﯿﺸﻮد. اﻣﻮري ﻫﻤﭽﻮن اﻋﻤﺎل ﮐﺎﻧﻔﯿﮕﻬﺎي روزﻣﺮه ﺗﺎ ﺑﻮت ﺑﻪ ﻣﺤﯿﻂ Rommonﺟﻬﺖ ﭘﺴﻮرد رﯾﮑﺎوري ،ارﺗﻘﺎء IOSو ﺑﺴﯿﺎري دﯾﮕﺮ را از اﯾﻦ ﻃﺮﯾﻖ ﻣﯿﺘﻮان اﻧﺠﺎم داد. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﺗﮑﻤﯿﻞ آزﻣﺎﯾﺶ 2.1 و ﺑﺮﻗﺮاري اﺗﺼﺎل ﮐﻨﺴﻮل ﺑﻪ اﮐﺴﺲ ﺳﺮور اﺗﺼﺎل Async Lineﻫﺎي اﮐﺴﺲ ﺳﺮور ﺑﻪ ادوات ﻣﺘﻨﺎﻇﺮ ﺑﻪ ﺷﺮح زﯾﺮ : 1 Line 1 – Router 2 Line 2 – Router 3 Line 3 – Router 4 Line 4 – Router 5 Line 5 – Router 6 Line 6 – Router 1 Line 7 – Switch 2 Line 8 – Switch 3 Line 9 – Switch اﻫﺪاف آزﻣﺎﯾﺶ ﺗﺨﺼﯿﺺ Hostnameﺑﻪ اﮐﺴﺲ ﺳﺮور اﯾﺠﺎد ﯾﮏ ﻟﻮپ ﺑﮏ اﯾﻨﺘﺮﻓﯿﺲ ﺟﻬﺖ ﺑﺮﻗﺮاري Telnetاز ﺳﻤﺖ آن ﺑﻪ ﺳﺎﯾﺮ ادوات ﺗﻨﻈﯿﻢ ﺟﺪول IP Hostﺟﻬﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻫﺎي Telnetﻣﻌﮑﻮس روي ﺧﻄﻮط Async ﺗﻨﻈﯿﻢ ﺧﻄﻮط Asyncﺑﻪ ﻣﻨﻈﻮر ﺟﻠﻮﮔﯿﺮي از اﯾﺠﺎد Exec sessionﺑﺎ اﮐﺴﺲ ﺳﺮور ﻓﻌﺎل ﮐﺮدن ﻗﺎﺑﻠﯿﺖ Telnetروي ﺧﻄﻮط async دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ 092 Page 31 of
- 33. ﺑﻪ اﮐﺴﺲﺳﺮورHostname ﺗﺨﺼﯿﺺ Router>enable Router#configure terminal Enter configuration commands, one per line. End with CNTL/Z Router(config)#hostname Access_Server Access_Server(config)# از ﺳﻤﺖ آن ﺑﻪ ﺳﺎﯾﺮ ادواتTelnet اﯾﺠﺎد ﯾﮏ ﻟﻮپ ﺑﮏ اﯾﻨﺘﺮﻓﯿﺲ ﺟﻬﺖ ﺑﺮﻗﺮاري Access_Server(config)#interface loopback 0 Access_Server(config-if)#ip address 10.10.10.10 255.255.255.255 Access_Server(config-if)#exit Access_Server(config)# Async ﻣﻌﮑﻮس روي ﺧﻄﻮطTelnet ﺟﻬﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻫﺎيIP Host ﺗﻨﻈﯿﻢ ﺟﺪول Access_Server(config)#ip Access_Server(config)#ip Access_Server(config)#ip Access_Server(config)#ip Access_Server(config)#ip Access_Server(config)#ip Access_Server(config)#ip Access_Server(config)#ip Access_Server(config)#ip host host host host host host host host host r1 2001 10.10.10.10 r2 2002 10.10.10.10 r3 2003 10.10.10.10 r4 2004 10.10.10.10 r5 2005 10.10.10.10 r6 2006 10.10.10.10 sw1 2007 10.10.10.10 sw2 2008 10.10.10.10 sw3 2009 10.10.10.10 ﺑﺎ اﮐﺴﺲ ﺳﺮورExec session ﺑﻬﻢ ﻣﻨﻈﻮر ﺟﻠﻮﮔﯿﺮي از اﯾﺠﺎدAsync ﺗﻨﻈﯿﻢ ﺧﻄﻮط Access_Server(config)#line 1 16 Access_Server(config-line)#no exec async روي ﺧﻄﻮطTelnet ﻓﻌﺎل ﮐﺮدن ﻗﺎﺑﻠﯿﺖ Access_Server(config-line)#transport input telnet ﭘﺲ از ﮐﺎﻧﻔﯿﮓ دﺳﺘﮕﺎه ﺗﮏ ﺗﮏ ﺧﻄﻮط اﻧﺮا ﺟﻬﺖ ﺣﺼﻮل اﻃﻤﯿﻨﺎن از ﺻﺤﺖ اﻣﮑﺎن ﺑﺮﻗﺮاري ﺗﻤﺎس آن ﺑﺎ ادوات ﻣﺘﻨﺎﻇﺮ .ﺗﺴﺖ ﻣﯿﮑﻨﯿﻢ Access_Server#r1 Trying r1 (10.10.10.10, 2037)… Open % Please answer ‘yes’ or ‘no’. Would you like to enter the initial configuration dialog? [yes/no]: Page 32 of 290
- 34. ﺟﻬﺖ ﺑﺮرﺳﯽ ﻣﺸﮑﻼتاﺣﺘﻤﺎﻟﯽ در ﮐﺎﻧﻔﯿﮓ دﺳﺘﮕﺎه ، دﺳﺘﻮرات ﻣﺘﻌﺪدي ﺟﻬﺖ ﯾﺎﻓﺘﻦ و رﻓﻊ اﻧﻬﺎ وﺟﻮد دارد ﻣﺎﻧﻨﺪ دﺳﺘﻮر زﯾﺮ Access_Server#show host Default domain is not set Name/address lookup uses domain service Codes: UN - unknown, EX - expired, OK - OK, ?? - revalidate temp - temporary, perm - permanent NA - Not Applicable None - Not defined Host Port r1 r2 r3 r4 r5 r6 sw1 sw2 sw3 2001 2002 2003 2004 2005 2006 2007 2008 2009 Flags (perm, (perm, (perm, (perm, (perm, (perm, (perm, (perm, (perm, OK) OK) OK) OK) OK) OK) OK) OK) OK) Age 0 0 0 0 0 0 0 0 0 Type IP IP IP IP IP IP IP IP IP Address(es) 10.10.10.10 10.10.10.10 10.10.10.10 10.10.10.10 10.10.10.10 10.10.10.10 10.10.10.10 10.10.10.10 10.10.10.10 Access_Server # ﮐﻪ اﻃﻼﻋﺎت ارﺗﺒﺎﻃﻬﺎي ﻓﻌﺎل ﺑﺎ ادوات ﺗﺤﺖ ﻣﺪﯾﺮﯾﺖ را ﻧﺸﺎن ﻣﯿﺪﻫﺪShow sessions و ﯾﺎ دﺳﺘﻮر Access_Server#show host Default domain is not set Name/address lookup uses domain service Codes: UN - unknown, EX - expired, OK - OK, ?? - revalidate temp - temporary, perm - permanent Access_Server#show session Conn Host Address Byte Idle Conn Name * 1 r1 10.10.10.10 0 3 r1 Access_Server# Page 33 of 290
- 35. آزﻣﺎﯾﺶ 5.1-ﻧﺼﺐ ﺷﺒﯿﻪﺳﺎز ﮔﺮاﻓﯿﮑﯽ 3Gns در اﯾﻦ آزﻣﺎﯾﺶ ﺑﻪ ﻧﺼﺐ ﻧﺮم اﻓﺰار 3 Gnsﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ و ﺗﺎ ﭘﺎﯾﺎن ﻣﺒﺎﺣﺚ از اﯾﻦ اﺑﺰار ﺟﻬﺖ ﺗﺮﺳﯿﻢ و ﺷﺒﯿﻪ ﺳﺎزي ﺗﻮﭘﻮﻟﻮژﯾﻬﺎ اﺳﺘﻔﺎده ﺧﻮاﻫﯿﻢ ﮐﺮد.3 Gnsﺷﺒﯿﻪ ﺳﺎز روﺗﺮﻫﺎي ﺳﺨﺖ اﻓﺰاري ﺳﯿﺴﮑﻮ اﺳﺖ و ﻗﺎدر ﺑﻪ اﺟﺮاي IOSﻫﺎي واﻗﻌﯽ اﯾﻦ ادوات ﻣﯽ ﺑﺎﺷﺪ.3 Gnsﺑﻪ ﻋﻨﻮان اﺑﺰاري ﮐﻤﮏ آﻣﻮزﺷﯽ ﺑﺮاي اﻓﺮادي ﮐﻪ ﻋﻼﻗﻤﻨﺪ ﺑﻪ ﯾﺎدﮔﯿﺮي ﭼﮕﻮﻧﮕﯽ ﭘﯿﮑﺮﺑﻨﺪي ادوات ﻫﻤﯿﻨﻄﻮر اﺧﺬ ﻣﺪارك ﺳﯿﺴﮑﻮ ﻣﯽ ﺑﺎﺷﻨﺪ ﺑﻪ ﮐﺎر ﻣﯽ رود.3 Gnsاﺑﺰاري اﺳﺖ ﮐﻪ ﺗﻮﺳﻂ ﺗﻤﺎم اﻓﺮادي ﮐﻪ ﻋﻼﻗﻤﻨﺪ ﺑﻪ ﯾﺎدﮔﯿﺮي ﻣﻔﺎﻫﯿﻢ ﻋﻤﻠﯿﺎﺗﯽ ﺳﯿﺴﮑﻮ ﻣﯽ ﺑﺎﺷﻨﺪ از ﺳﻄﺢ CCNAﺗﺎ CCIEﺑﻪ ﮐﺎر ﻣﯽ رود.اﯾﻦ اﺑﺰار ﻣﺎﻫﯿﺘﺎ ﺑﺎ ﻫﺪف ﮐﻤﮏ ﺑﻪ ﻓﺮاﯾﻨﺪ آﻣﻮزش ﻣﻔﺎﻫﯿﻢ ﺳﯿﺴﮑﻮﺳﺎﺧﺘﻪ ﺷﺪ اﻣﺎ در دﻧﯿﺎي واﻗﻌﯽ ﮐﺎرﺑﺮدﻫﺎي ﻣﻬﻤﯽ از ﻗﺒﯿﻞ آزﻣﺎﯾﺶ و ﺗﺎﯾﯿﺪ ﺻﺤﺖ ﮐﺎﻧﻔﯿﮓ ﻫﺎي اﻧﺠﺎم ﺷﺪه روي ادوات را ﻧﯿﺰ ﺑﺎ آن ﺑﻪ اﻧﺠﺎم ﻣﯽ رﺳﺎﻧﻨﺪ. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﯾﮏ دﺳﺘﮕﺎه PCﺣﺪاﻗﻞ دوﻫﺴﺘﻪ اي ﺑﺎ 2GB RAMآزاد داﻧﻠﻮد ﻧﺮم اﻓﺰار از آدرس http://www.gns3.net/download اﻫﺪاف آزﻣﺎﯾﺶ داﻧﻠﻮد ﻧﺮم اﻓﺰار 3GNS ﻧﺼﺐ آن روي ﮐﺎﻣﭙﯿﻮﺗﺮ دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ 1. ﭘﺲ از داﻧﻠﻮد ﻧﺮم اﻓﺰار از آدرس ﻓﻮق ﺑﺎ ﺻﻔﺤﻪ Installation Wizardﮐﻪ در ﺷﮑﻞ زﯾﺮ ﻧﻤﺎﯾﺶ داده ﺷﺪه اﺳﺖ روﺑﺮو ﺧﻮاﻫﯿﺪ ﺷﺪ . 092 Page 34 of
- 36. 2. ﺑﺎ ﮐﻠﯿﮏروي دﮐﻤﻪ NEXTوارد ﺻﻔﺤﻪ License Agreementﺧﻮاﻫﯿﻢ ﺷﺪ ﺑﺎ ﺗﺎﯾﯿﺪ آن وارد ﺻﻔﺤﻪ ﺑﻌﺪ ﻣﯿﺸﻮﯾﻢ 3. ﭘﺲ از ﭘﺬﯾﺮش License Agreementﺑﺎ ﭘﻨﺠﺮه ﺗﻌﯿﯿﻦ ﻧﺎم ﺑﺮاي ﭘﻮﺷﻪ ﻧﻤﺎﯾﺶ داده ﺷﺪه در ﻣﻨﻮي اﺳﺘﺎرت روﺑﺮو ﺧﻮاﻫﯿﻢ ﺷﺪ در ﺻﻮرت ﺗﻤﺎﯾﻞ اﯾﻦ ﻧﺎم را ﻋﻮض ﻣﯿﮑﻨﯿﻢ و ﯾﺎ ﺑﺎ ﭘﺬﯾﺮش "3" GNSروي دﮐﻤﻪ NEXT ﮐﻠﯿﮏ ﻣﯿﮑﻨﯿﻢ 092 Page 35 of
- 37. 4. در ﺻﻔﺤﻪﺑﻌﺪي ﺑﺎ ﮔﺰﯾﻨﻪ اﻧﺘﺨﺎب ﺑﺴﺘﻪ ﻫﺎي ﻧﺮم اﻓﺰاري ﻗﺎﺑﻞ ﻧﺼﺐ ﻣﻮﺟﻮد در ﻧﺼﺐ ﮐﻨﻨﺪه 3 GNSروﺑﺮو ﺧﻮاﻫﯿﻢ ﺷﺪ. WinPCAPاﺑﺰار/ﮐﺘﺎﺑﺨﺎﻧﻪ اي اﺳﺖ ﮐﻪ ﺑﺎ ﻫﺪف Packet Captureو packet analysisﺑﻪ ﻫﻤﺮاه 3 GNSﻧﺼﺐ ﻣﯿﺸﻮد. Dynamipsﻗﻠﺐ اﯾﻦ ﻧﺮم اﻓﺰار ﻣﯽ ﺑﺎﺷﺪ و ﺷﺒﯿﻪ ﺳﺎز اﺻﻠﯽ روﺗﺮﻫﺎي ﺳﯿﺴﮑﻮ در واﻗﻊ اﯾﻦ اﺑﺰار اﺳﺖ،3 GNSﺻﺮﻓﺎ ﭘﻮﺳﺘﻪ اي ﮔﺮاﻓﯿﮑﯽ اﺳﺖ ﮐﻪ ﺑﺮ روي اﯾﻦ اﯾﻦ اﺑﺰار ﺳﻮار ﺷﺪه و اﺟﺎزه ﺗﺮﺳﯿﻢ ﺗﻮﭘﻮﻟﻮژي و ﻣﺸﺎﻫﺪه ﻋﻤﮑﻠﺮد آﻧﺮا ﺑﻪ ﺻﻮرت ﻧﻤﺎدﯾﻦ ﻣﯽ دﻫﺪ. PemuWrapperﺷﺒﯿﻪ ﺳﺎز ﺳﺨﺖ اﻓﺰار PIX اﺳﺖ و اﺟﺎزه ﻣﯿﺪﻫﺪ ﺗﺎ ﺷﺒﮑﻪ ﻫﺎي ﺷﺎﻣﻞ PIXاﻣﮑﺎن ﭘﯿﺎده ﺳﺎزي ﺑﺮ روي 3 GNSرا داﺷﺘﻪ ﺑﺎﺷﻨﺪ. 5. در ﺻﻔﺤﻪ ﺑﻌﺪ ﻣﺴﯿﺮ ﻧﺼﺐ 3 GNSﻣﺸﺨﺺ ﺧﻮاﻫﺪ ﺷﺪ . ﺑﻪ ﻃﻮر ﭘﯿﺶ ﻓﺮض اﯾﻦ ﻣﺴﯿﺮ C:Program 3 FilesGNSاﺳﺖ در ﺻﻮرت اﺳﺘﻔﺎده از وﯾﻨﺪوز 46 ﺑﯿﺘﯽ ﺑﻪ 3 C:Program Files (x83)GNSﺗﻐﯿﯿﺮ ﺧﻮاﻫﺪ ﯾﺎﻓﺖ. 6. در ﺻﻔﺤﻪ ﺑﻌﺪ ﻧﺼﺐ ﮐﻨﻨﺪه 3 GNSاﻗﺪام ﺑﻪ داﻧﻠﻮد و ﻧﺼﺐ WinPCAPﻣﻄﺎﺑﻖ ﺷﮑﻞ زﯾﺮ ﺧﻮاﻫﺪ ﮐﺮد 092 Page 36 of
- 38. 7. ﺑﺎ ﮐﻠﯿﮏروي NEXTوارد ﺻﻔﺤﻪ اﺻﻠﯽ ﻧﺼﺐ WinPCAPﺧﻮاﻫﯿﻢ ﺷﺪ. 8. در ﺻﻔﺤﻪ ﺑﻌﺪي License Agreementﻣﻮرد ﭘﺬﯾﺮش ﻗﺮار ﻣﯿﮕﯿﺮد 092 Page 37 of
- 39. 9. ﭘﺲ ازآن ﻧﺼﺐ WinpCapﺑﻪ اﺗﻤﺎم ﺧﻮاﻫﺪ رﺳﯿﺪ 01. و ﭘﺲ از آن ﻧﺼﺐ 3 GNSﺗﮑﻤﯿﻞ ﺧﻮاﻫﺪ ﺷﺪ 092 Page 38 of
- 40. Page 39 of290
- 41. آزﻣﺎﯾﺶ 6.1-ﺗﻨﻈﯿﻤﺎت ﭘﺎﯾﻪدر 3GNS در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﺗﻨﻈﯿﻤﺎت ﭘﺎﯾﻪ ﻧﺮم اﻓﺰار 3 GNSﮐﻪ در آزﻣﺎﯾﺸﺎت ﺑﻌﺪي ﺑﻪ ﻋﻨﻮان اﺑﺰار ﺷﺒﯿﻪ ﺳﺎزي ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﺧﻮاﻫﺪ ﮔﺮﻓﺖ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ 3 GNSﺑﻪ واﺳﻄﻪ ﺗﻮاﻧﻤﻨﺪي آن در ارﺗﺒﺎط ﺑﺎ ادوات واﻗﻌﯽ دﻧﯿﺎي ﺧﺎرج از ﮐﺎﻣﭙﯿﻮﺗﺮ ﺗﻮﺳﻂ ﮐﻤﭙﺎﻧﯽ ﺳﯿﺴﮑﻮ ﻣﻠﺰم ﺑﻪ اراﺋﻪ ﺣﺪاﮐﺜﺮ ﻧﺮخ ﻋﺒﻮر دﯾﺘﺎ 1KB/PSﺷﺪه اﺳﺖ ﺗﺎ ﺑﻪ ﻋﻨﻮان ﺟﺎﯾﮕﺰﯾﻦ روﺗﺮ در ﻣﺤﯿﻄﻬﺎي ﻋﻤﻠﯿﺎﺗﯽ ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻧﮕﯿﺮد! از اﯾﻨﺮو ﺗﺒﺪﯾﻞ ﺑﻪ اﺑﺰار اﯾﺪه آﻟﯽ ﺟﻬﺖ آﻣﻮزش و ﺗﺴﺖ ﮐﺎﻧﻔﯿﮕﻬﺎ و ﺗﻮﭘﻮﻟﻮژﯾﻬﺎي ﺷﺒﮑﻪ ﻫﺎي ﻣﺒﺘﻨﯽ ﺑﺮ ادوات ﺳﯿﺴﮑﻮ ﺷﺪه اﺳﺖ.در ﻃﯽ ﻓﺼﻮل آﺗﯽ از اﯾﻦ اﺑﺰار ﺟﻬﺖ ﭘﯿﺎده ﺳﺎزي ﺗﻨﻈﯿﻤﺎت روﺗﺮﻫﺎ و ﺳﻮﯾﯿﭽﻬﺎي ﻣﻮرد اﺳﺘﻔﺎده در آزﻣﺎﯾﺸﺎت ﺑﻬﺮه ﺧﻮاﻫﯿﻢ ﺑﺮد. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ اﻃﻤﯿﻨﺎن از ﻧﺼﺐ 3 Gnsﻣﻄﺎﺑﻖ ﺑﺎ ﺗﻮﺿﯿﺤﺎت آزﻣﺎﯾﺶ 5.1 اﻫﺪاف آزﻣﺎﯾﺶ ﺑﺮرﺳﯽ ﻣﺴﯿﺮﻫﺎي ﺳﯿﺴﺘﻤﯽ و ﻣﺘﻐﯿﺮﻫﺎي داﺧﻠﯽ 3 gnsﺷﺎﻣﻞ puttyو داﯾﺮﮐﺘﻮري ﭘﺮوژه ﻫﺎ ﭘﯿﮑﺮه ﺑﻨﺪي روﺗﺮﻫﺎي 5273 و 0643 ﺟﻬﺖ ﺑﮑﺎرﮔﯿﺮي 256MB RAMو ﻣﻌﺮﻓﯽ IOSﻣﺮﺗﺒﻂ ﺑﻪ آﻧﻬﺎ ﺑﻪ ﻣﻨﻈﻮر اﺳﺘﻔﺎده در ﻓﺼﻮل آﺗﯽ. c3725-adventerprisek9-mz.124-15.T14.bin c3640-jk9o3s-mz.124-13a.bin دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ 1. ﭘﺲ از اﺟﺮاي 3 GNSﺑﺮاي اوﻟﯿﻦ ﺑﺎر ﭘﻨﺠﺮه Setup wizardﻣﻄﺎﺑﻖ ﺷﮑﻞ زﯾﺮ ﻧﻤﺎﯾﺶ داده ﺧﻮاﻫﺪ ﺷﺪ. 092 Page 40 of
- 42. ﺗﺼﻮﯾﺮ 1.2 –ﭘﻨﺠﺮه Settup wizard 2. در وﺣﻠﻪ اول ﻧﯿﺎز ﺧﻮاﻫﯿﻢ داﺷﺖ ﺗﺎ ﻣﺴﯿﺮ داﯾﺮﮐﺘﻮرﯾﻬﺎي ﻣﻬﻢ ﻧﺮم اﻓﺰار را ﺗﻨﻈﯿﻢ و ﺗﺴﺖ ﮐﻨﯿﻢ.ﺑﺎ ﻓﺸﺮدن دﮐﻤﻪ 1 در ﭘﻨﺠﺮه Setup wizardوارد ﭘﻨﺠﺮه زﯾﺮ ﻣﯽ ﺷﻮﯾﻢ.اﻃﻤﯿﻨﺎن ﺣﺎﺻﻞ ﮐﻨﯿﺪ ﻣﺴﯿﺮﻫﺎي ﻧﺸﺎن داده ﺷﺪه ﺻﺤﯿﺢ ﻫﺴﺘﻨﺪ. puttyﺑﻪ ﻃﻮر ﭘﯿﺶ ﻓﺮض ﺟﻬﺖ اﺗﺼﺎل ﺗﺮﻣﯿﻨﺎﻟﯽ ﺑﻪ ﻫﻤﺮاه 3 GNSﻧﺼﺐ ﻣﯿﺸﻮد اﻣﺎ اﮔﺮ ﺗﻤﺎﯾﻞ ﺑﻪ اﺳﺘﻔﺎده از SecureCrtرا دارﯾﺪ ﺑﺎﯾﺪ ﺗﻨﻈﯿﻤﺎت ﻣﺴﯿﺮ آﻧﺮا در ﺗﺐ ” “Terminal Settingsآﯾﺘﻢ terminal application command stringاﻧﺠﺎم دﻫﯿﺪ. ﺗﺼﻮﯾﺮ 2.2-ﭘﻨﺠﺮه General Setup 3. اﮐﻨﻮن ﺑﺮ روي ﻋﺒﺎرت Dynamipsواﻗﻊ در ﭘﻨﻞ ﺳﻤﺖ راﺳﺖ ﺻﻔﺤﻪ ﺗﻨﻈﯿﻤﺎت ﮐﻠﯿﮏ ﮐﻨﯿﺪ و اﻃﻤﯿﻨﺎن ﺣﺎﺻﻞ ﮐﻨﯿﺪ ﻣﺴﯿﺮﻫﺎي ﻓﺎﯾﻠﻬﺎي اﺟﺮاﯾﯽ و داﯾﺮﮐﺘﻮري ﺟﺎري آن ﺻﺤﯿﺢ ﻫﺴﺘﻨﺪ. ﭘﺲ از آن روي دﮐﻤﻪ Test Settingsﮐﻠﯿﮏ ﮐﻨﯿﺪ و ﭘﺲ از ﭼﻨﺪ ﻟﺤﻈﻪ ﺑﺎ ﭘﯿﺎم ﺳﺒﺰرﻧﮓ Dynamips successfully startedروﺑﺮو ﺧﻮاﻫﯿﺪ ﺷﺪ. 092 Page 41 of
- 43. ﺗﺼﻮﯾﺮ 3.2 –ﺑﺮرﺳﯽ ﺻﺤﺖ ﻣﺴﯿﺮ Dynamips در ﻃﯽ آزﻣﺎﯾﺸﺎت و ﺑﺮرﺳﯽ ﺗﻮﭘﻮﻟﻮژﯾﻬﺎي ﻓﺼﻮل ﺑﻌﺪ ، از IOSﻣﺮﺑﻮط ﺑﻪ روﺗﺮﻫﺎي 5273 و 0463 اﺳﺘﻔﺎده ﺧﻮاﻫﯿﻢ ﮐﺮد.ﻓﺎﯾﻠﻬﺎي ﻣﺬﺑﻮر را از اﯾﻨﺘﺮﻧﺖ داﻧﻠﻮد ﮐﺮده ودر ﻣﺴﯿﺮ gns3imagesﺗﻮﺳﻂ Winrarاز ﺣﺎﻟﺖ ﻓﺸﺮده ﺧﺎرج ﺳﺎزﯾﺪ.ﺗﻮﺿﯿﺢ اﯾﻨﮑﻪ اﯾﻤﯿﺞ ﻫﺎي IOSﻣﺎﻫﯿﺘﺎ ﻓﺸﺮده ﺷﺪه ﻫﺴﺘﻨﺪ ، ﺑﻪ ﻣﻨﻈﻮر ﺳﺮﯾﻌﺘﺮ ﺑﻮت ﺷﺪن روﺗﺮﻫﺎي آزﻣﺎﯾﺶ اﺑﺘﺪا اﻧﻬﺎ در Decompressﻣﯿﮑﻨﯿﻢ و ﻓﺎﯾﻞ ﻧﻬﺎﯾﯽ ﺑﺎ ﭘﺴﻮﻧﺪ binرا ﺑﻪ 3 GNSﻣﻌﺮﻓﯽ ﻣﯿﮑﻨﯿﻢ. ﺗﻮﺿﯿﺢ ﻣﺘﺮﺟﻢ : ﭘﯿﺸﻨﻬﺎد ﻣﯿﺸﻮد ﺑﻪ ﺟﺎي IOSﻫﺎي 0463و5273 از 5473 اﺳﺘﻔﺎده ﺷﻮد . اﯾﻦ IOSاﻣﮑﺎن اﻋﻤﺎل ﮐﺎﻧﻔﯿﮕﻬﺎي Vlanرا در ﻣﺤﯿﻂ ﮔﻠﻮﺑﺎل ﮐﺎﻧﻔﯿﮓ ﻫﻤﺎﻧﻨﺪ ﯾﮏ ﺳﻮﯾﯿﭻ واﻗﻌﯽ ﻓﺮاﻫﻢ ﻣﯽ آورد. 092 Page 42 of
- 44. ﺗﺼﻮﯾﺮ 4.2 –ﺗﻨﻈﯿﻢ ﻣﺴﯿﺮ iosروﺗﺮﻫﺎ 4. ﭘﺲ از راه اﻧﺪازي ﻣﻮﻓﻘﯿﺖ آﻣﯿﺰ Dynamipsاز ﭘﻨﺠﺮه preferencesﺧﺎرج ﺷﻮﯾﺪ و ﻣﺠﺪدا ﺑﻪ Setup wizardﺑﺮﮔﺮدﯾﺪ.و دﮐﻤﻪ 2 را ﺑﻪ ﻣﻨﻈﻮر اﻋﻤﺎل ﺗﻨﻈﯿﻤﺎت روﺗﺮﻫﺎي ﻣﻮرد اﺳﺘﻔﺎده در 3 GNSﮐﻠﯿﮏ ﮐﻨﯿﺪ.در اﯾﻦ ﭘﻨﺠﺮه روﺗﺮﻫﺎي 5273 و 0463 را ﺑﺎ 256MB RAMﺗﻨﻈﯿﻢ ﺧﻮاﻫﯿﻢ ﮐﺮد و ﻣﺴﯿﺮ IOSﻫﺎي Decompressﺷﺪه واﻗﻊ در gns3imagesرا ﺑﻪ آن ﻣﻌﺮﻓﯽ ﺧﻮاﻫﯿﻢ ﮐﺮد. ﻧﮑﺘﻪ:ﻣﯿﺰان ﺣﺪاﮐﺜﺮ RAMﻗﺎﺑﻞ اﺳﺘﻔﺎده Hyper-visorرا از ﻃﺮﯾﻖ Prefrences-> Dynamips->Hyper-visorﺑﻪ 2GBاﻓﺰاﯾﺶ دﻫﯿﺪ. 5. ﭘﺲ از ﺗﮑﻤﯿﻞ ﺗﻨﻈﯿﻤﺎت روﺗﺮﻫﺎي ﻣﻮرد ﻧﯿﺎز ﻣﻄﺎﺑﻖ ﺗﺼﻮﯾﺮ زﯾﺮ ﻣﯽ ﺗﻮاﻧﯿﺪ از ﻣﺤﯿﻂ ﺗﻨﻈﯿﻤﺎت ﺧﺎرج ﺷﻮﯾﺪ و 3 Gnsرا ﻣﺠﺪدا راه اﻧﺪازي ﮐﻨﯿﺪ اﮐﻨﻮن اﯾﻦ ﻣﺤﯿﻂ اﻣﺎده اﺳﺘﻔﺎده ﺟﻬﺖ ﺷﺒﯿﻪ ﺳﺎزي ﻣﯿﺒﺎﺷﺪ. 092 Page 43 of
- 45. آزﻣﺎﯾﺶ 8.1- ﺗﻈﯿﻤﺎت3 GNSﺟﻬﺖ ارﺗﺒﺎط ﺑﺎ ﺗﺠﻬﯿﺰات واﻗﻌﯽ در اﯾﻦ آزﻣﺎﯾﺶ ﺧﻮاﻫﯿﻢ دﯾﺪ ﭼﮕﻮﻧﻪ NIO (Network Input/Output) Cloudرا در3 GNSﺑﻪ ﻣﻨﻈﻮر اﺟﺮاي آزﻣﺎﯾﺸﺎت ﻓﺼﻮل ﺑﻌﺪ ﭘﯿﮑﺮه ﺑﻨﺪي ﮐﻨﯿﻢ ﮐﺎرﺑﺮد ﻋﻤﻠﯽ در 3 GNSاز ﻃﺮﯾﻖ راﺑﻂ Cloudو ﺗﻨﻈﯿﻢ ارﺗﺒﺎط آن ﺑﺎ ﮐﺎرت)ﮐﺎرﺗﻬﺎي( ﺷﺒﮑﻪ ﻣﻮﺟﻮد در pcاﻣﮑﺎن ﺑﺮﻗﺮاري ارﺗﺒﺎط ﺑﺎ ﺗﺠﻬﯿﺰات واﻗﻌﯽ ﺷﺒﮑﻪ وﺟﻮد دارد .ﮐﺎرﺑﺮد ﻫﺎي Cloudﻣﺸﺘﻤﻞ ﺑﺮ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﺑﺎ روﺗﺮ و ﺳﻮﯾﯿﭽﻬﺎي ﻓﯿﺰﯾﮑﯽ ﮔﺮﻓﺘﻪ ﺗﺎ ارﺗﺒﺎط ﻣﺎﺷﯿﻨﻬﺎي ﻣﺠﺎزي ﻧﺼﺐ ﺷﺪه روي pcﺑﺎ 3 Gnsﯾﺎ loopback adapterﻫﺎي اﯾﺠﺎد ﺷﺪه روي ﺳﯿﺴﺘﻢ ﻋﺎﻣﻞ ﺑﻪ ﻣﻨﻈﻮر ﺑﺮﻗﺮاري ارﺗﺒﺎﻃﻬﺎي ﻣﺠﺰا ﺑﺎ اﯾﻨﺘﺮﻓﯿﺲ روﺗﺮﻫﺎي درون 3 GNSﻣﯽ ﺑﺎﺷﺪ.در اﯾﻦ آزﻣﺎﯾﺶ ﺧﻮاﻫﯿﻢ آﻣﻮﺧﺖ ﭼﮕﻮﻧﻪ Loopbackاﯾﻨﺘﺮﻓﯿﺴﻬﺎي ﻧﺼﺐ ﺷﺪه روي local hostرا ﺑﻪ ﻣﻨﻈﻮر اﯾﺠﺎد ارﺗﺒﺎط ﺑﺎ اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ادوات ﺳﯿﺴﮑﻮ درون 3 Gnsﺗﻨﻈﯿﻢ ﮐﻨﯿﻢ.ﻧﺘﯿﺠﻪ اﯾﻦ ﻓﺮاﯾﻨﺪ ﺷﺒﯿﻪ ﺳﺎزي اﺗﺼﺎﻻت ﻓﯿﺰﯾﮑﯽ ﺑﻪ ادوات ﺳﯿﺴﮑﻮ ﻣﯽ ﺑﺎﺷﺪ.در ﻋﯿﻦ ﺣﺎل ﻫﻤﺎﻧﻄﻮر ﮐﻪ اﺷﺎره ﺷﺪ ﻣﯿﺘﻮان Cloudرا ﺑﻪ ﮐﺎرت ﺷﺒﮑﻪ ﻫﺎي ﻓﯿﺰﯾﮑﯽ ﻣﻮﺟﻮد در pcﺑﻪ ﺟﺎي loopback adapter ﻣﺘﺼﻞ ﮐﺮد،ﺑﺎ اﯾﻨﮑﺎر اﻣﮑﺎن اﺗﺼﺎل ﺑﻪ ادوات واﻗﻌﯽ ﻣﻮﺟﻮد در Lanﭘﺪﯾﺪ ﻣﯽ آﯾﺪ .ذﮐﺮ اﯾﻦ ﻧﮑﺘﻪ ﻫﻢ اﻟﺰاﻣﯽ اﺳﺖ ﮐﻪ اﺗﺼﺎل ﺑﻪ ادوات درون 3 Gnsاز ﻃﺮﯾﻖ loopbackاﺣﺘﻤﺎل ﮐﺮش ﮐﺮدن Dynamipsرا ﺑﺎﻻ ﻣﯽ ﺑﺮد. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﺗﻨﻈﯿﻤﺎت 3 Gnsﻣﻄﺎﺑﻖ ﺑﺎ آزﻣﺎﯾﺶ 7.1 اﻫﺪاف آزﻣﺎﯾﺶ ﻧﺼﺐ adapter Loopbackروي وﯾﻨﺪوز ﺗﻨﻈﯿﻢ ipروي Loopback adapterﻧﺼﺐ ﺷﺪه اﯾﺠﺎد Cloudاﯾﻨﺘﺮﻓﯿﺲ در 3 Gnsو ﺑﺮﻗﺮاري ارﺗﺒﺎط آن ﺑﺎ Loopback adapter ﺗﺴﺖ ﺻﺤﺖ ﺑﺮﻗﺮاري اﺗﺼﺎل دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ 1. ﻓﺮاﺧﻮاﻧﯽ ﭘﻨﺠﺮه " "Add Hardwareاز ﻃﺮﯾﻖ hdwwizدر وﯾﻨﺪوز7 ﯾﺎ hdwwzd.cplدر وﯾﻨﺪوزXP 092 Page 44 of
- 46. ﭘﺲ از اﯾﻦﺻﻔﺤﻪ ، ﮔﺰﯾﻨﻪ Advanceﻣﻄﺎﺑﻖ ﺗﺼﻮﯾﺮ اﻧﺘﺨﺎب ﻣﯿﺸﻮد. ﻣﻄﺎﺑﻖ ﺗﺼﻮﯾﺮ زﯾﺮ ﮔﺰﯾﻨﻪ Network adaptersاﻧﺘﺨﺎب ﻣﯿﺸﻮد. 092 Page 45 of
- 47. از ﻟﯿﺴﺖ ﺳﻤﺖﭼﭗ Microsoftو از ﻟﯿﺴﺖ ﺳﻤﺖ راﺳﺖ Loopback adapterرا ﻣﻄﺎﺑﻖ ﺗﺼﻮﯾﺮ زﯾﺮ اﻧﺘﺨﺎب ﻣﯽ ﮐﻨﯿﻢ ﭘﺲ از اﯾﻦ ﻣﺮﺣﻠﻪ و ﻧﺼﺐ adapterﺳﯿﺴﺘﻢ را رﯾﺴﺖ ﻣﯿﮑﻨﯿﻢ 092 Page 46 of
- 48. 2. ﻣﺮﺣﻠﻪ ﺗﻨﻈﯿﻢ ip addressﺑﺮ روي Loopback adapterاﯾﺠﺎد ﺷﺪه . Loopback adapterﺑﻪ ﺻﻮرت ﯾﮏ ﮐﺎرت ﺷﺒﮑﻪ ﻓﯿﺰﯾﮑﯽ در ﻗﺴﻤﺖ ﺗﻨﻈﯿﻤﺎت ﺷﺒﮑﻪ ﺳﯿﺴﺘﻢ ﻋﺎﻣﻞ و در ﮐﻨﺎر ﺳﺎﯾﺮ ﮐﺎرت)ﮐﺎرﺗﻬﺎي( ﺷﺒﮑﻪ ﻧﻤﺎﯾﺶ داده ﻣﯽ ﺷﻮد، ﻧﺘﯿﺠﻪ آﻧﮑﻪ ﺑﻪ ﻫﻤﺎن روش ﻣﺮﺳﻮم ipدﻫﯽ ﺑﻪ ﮐﺎرﺗﻬﺎي ﺷﺒﮑﻪ ﺻﺎﺣﺐ ipﺧﻮاﻫﺪ ﺷﺪ ﻓﻌﻼ 42/01.552.861.291 را ﺑﻪ آن اﺧﺘﺼﺎص ﻣﯽ دﻫﯿﻢ. 3. اﯾﺠﺎد Cloud interfaceدر 3 Gnsو اﺗﺼﺎل آن ﺑﻪ Loopback adapterاﯾﺠﺎد ﺷﺪه در ﺳﯿﺴﺘﻢ ﻋﺎﻣﻞ. در ﭘﻨﻞ Node typeواﻗﻊ در ﺳﻤﺖ راﺳﺖ ﺻﻔﺤﻪ 3 Gnsآﯾﺘﻢ Cloudرا ﺑﻪ ﻗﺴﻤﺖ ﻃﺮاﺣﯽ ﻣﻄﺎﺑﻖ ﺗﺼﻮﯾﺮ زﯾﺮ Dragﻣﯿﮑﻨﯿﻢ. ﺗﺼﻮﯾﺮ 1.8.1 – اﻓﺰودن cloudﺑﻪ ﻣﺤﯿﻂ ﻃﺮاﺣﯽ اﮐﻨﻮن ﭘﺲ از دﺑﻞ ﮐﻠﯿﮏ روي cloudﺳﺎﺧﺘﻪ ﺷﺪه ، ﭘﻨﺠﺮه ﺗﻨﻈﯿﻤﺎت cloudﻫﺎي ﻣﻮﺟﻮد در ﺻﻔﺤﻪ ﻃﺮاﺣﯽ ﻣﻄﺎﺑﻖ ﺗﺼﻮﯾﺮ زﯾﺮ ﻧﻤﺎﯾﺎن ﻣﯽ ﺷﻮد.از ﻟﯿﺴﺖ ﻣﻮﺟﻮد 1 Cرا اﻧﺘﺨﺎب ﮐﻨﯿﺪ 092 Page 47 of
- 49. ﺗﺼﻮﯾﺮ 2.8.1 –ﺻﻔﺤﻪ ﺗﻨﻈﯿﻤﺎت cloud از ﻟﯿﺴﺖ Generic Ethernet Nioﮐﻪ ﺣﺎوي ﻟﯿﺴﺖ ﮐﺎرﺗﻬﺎي ﺷﺒﮑﻪ و Loopback adapterﻫﺎ اﺳﺖ Loopbak 1 adapterرا اﻧﺘﺨﺎب ﻣﯿﮑﻨﯿﻢ و ﺑﺎ ﻓﺸﺮدن دﮐﻤﻪ Addﺑﻪ ﻟﯿﺴﺖ ﻣﯿﺎﻧﯽ ﺻﻔﺤﻪ اﺿﺎﻓﻪ ﻣﯿﮑﻨﯿﻢ. ﺗﺼﻮﯾﺮ 3.8.1 – اﻧﺘﺨﺎب Loopback adapterو اﺗﺼﺎل آن ﺑﻪ Cloud ﭘﺲ از اﻓﺰودن Cloudو اﺗﺼﺎل آن ﺑﻪ ﮐﺎرت ﺷﺒﮑﻪ ﻣﺠﺎزي اﯾﺠﺎد ﺷﺪه در ﺳﯿﺴﺘﻢ ﻋﺎﻣﻞ ﻧﻮﺑﺖ اﺗﺼﺎل آن ﺑﻪ ﯾﮑﯽ از ﭘﻮرﺗﻬﺎي ﺳﻮﯾﯿﭻ واﻗﻊ در 3 Gnsو ﺗﺴﺖ ان اﺳﺖ.ﺑﺎ اﻓﺰودن ﻣﺎژول Nm-16eswﺑﻪ روﺗﺮ 5273 ﺑﻪ ﻧﻮﻋﯽ از آن ﺑﻪ ﻋﻨﻮان ﺳﻮﯾﯿﭻ اﺳﺘﻔﺎده ﺧﻮاﻫﯿﻢ ﮐﺮد. 092 Page 48 of
- 50. ﺗﺼﻮﯾﺮ 5.8.1- اﻓﺰودنﻣﺎژول NM-16ESWﺑﻪ روﺗﺮ ﭘﺲ از اﻧﺘﺨﺎب Cloudو اﺗﺼﺎل آن از ﻃﺮﯾﻖ 54 Rjﺑﻪ 0/1 Fروﺗﺮ و در واﻗﻊ ﺳﻮﯾﯿﭻ ! ، ﺻﺤﺖ اﺗﺼﺎﻻت را ﭼﮏ ﻣﯿﮑﻨﯿﻢ 092 Page 49 of
- 51. NM-16ESW ﺑﻪﭘﻮرت ﺳﻮﯾﯿﭻ از ﻃﺮﯾﻖ ﻣﺎژولcloud ﺗﺼﻮﯾﺮ 6.8.1 – اﺗﺼﺎل وF1/0 اﻣﺘﺤﺎن ﻣﯿﮑﻨﯿﻢ.آدرس 42/1.552.861.291 را ﺑﻪR1 ﺑﻪip 4. اﮐﻨﻮن ﺻﺤﺖ اﺗﺼﺎﻻت را ﺑﺎ ﺗﺨﺼﯿﺺ . ﺗﺨﺼﯿﺺ ﻣﯿﺪﻫﯿﻢLoopback .42/01.552.861.291 را ﺑﻪ Router con0 is now available Press RETURN to get started! Router>enable Router#configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)#hostname SW1 SW1(config)#interface FastEthernet 1/0 SW1(config-if)#ip add 192.168.255.1 255.255.255.0 SW1(config-if)#no shut SW1(config-if)#end SW1#ping 192.168.255.10 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 192.168.255.10, timeout is 2 seconds: ..!!! Success rate is 60 percent (3/5) SW1#ping 192.168.255.10 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 192.168.255.10, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 4/5/8 ms Page 50 of 290
- 52. #1SW ﺧﻮب ! ﻧﺘﯿﺠﻪﻫﻤﺎﻧﻄﻮر ﮐﻪ اﻧﺘﻈﺎر ﻣﯽ رﻓﺖ از آب درآﻣﺪ. 092 Page 51 of
- 53. ﻓﺼﻞ دوم :ﻣﺪﯾﺮﯾﺖ ﭘﺎﯾﻪ روﺗﺮﻫﺎ و ﺳﻮﯾﯿﭽﻬﺎي ﺳﯿﺴﮑﻮ آزﻣﺎﯾﺶ 1.2-ﭘﺴﻮرد رﯾﮑﺎوري روﺗﺮﻫﺎي ﺳﺮي 0052 در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﻣﺮاﺣﻞ Reset/clearﮐﺮدن ﭘﺴﻮرد Consoleو Enableروﺗﺮﻫﺎي ﺳﺮي 0052 آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ ﺳﺮي 0052 از ﻗﺪﯾﻤﯽ ﺗﺮﯾﻦ رده روﺗﺮﻫﺎي ﺳﯿﺴﮑﻮ ﻣﯽ ﺑﺎﺷﺪ و ﺑﻌﻀﺎ ﻣﺸﺎﻫﺪه آﻧﻬﺎ در ﻣﺤﯿﻄﻬﺎي اﺟﺮاﯾﯽ ﺑﺎ Uptimeﻫﺎي ﻧﺰدﯾﮏ 8 ﺳﺎل ﺑﺎﻋﺚ ﺷﮕﻔﺘﯽ ﻣﯽ ﺷﻮﻧﺪ.اﻣﺮوزه ﻋﻤﺪه ﮐﺎرﺑﺮد اﯾﻦ ﺳﺮي ﺟﻬﺖ اﻫﺪاف آﻣﻮزﺷﯽ و در آزﻣﺎﯾﺸﮕﺎﻫﻬﺎي ﺷﺒﮑﻪ ﻣﯽ ﺑﺎﺷﺪ و اﺑﺰارﻫﺎي ﻓﻮق اﻟﻌﺎده اي ﺟﻬﺖ ﻣﻌﺮﻓﯽ و آﺷﻨﺎﯾﯽ ﺑﺎ IOSﺳﯿﺴﮑﻮ ﻣﺤﺴﻮب ﻣﯿﺸﻮﻧﺪ. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﯾﮏ دﺳﺘﮕﺎه روﺗﺮ 0052 ﺑﺎ ﭘﺴﻮرد Consoleﯾﺎ Enableﮔﻢ ﺷﺪه! ﺑﺮﻗﺮاري ارﺗﺒﺎط ﺑﺎ ﭘﻮرت ﮐﻨﺴﻮل دﺳﺘﮕﺎه اﻫﺪاف آزﻣﺎﯾﺶ ﻣﺘﻮﻗﻒ ﮐﺮدن ﻓﺮاﯾﻨﺪ ﺑﻮت دﺳﺘﮕﺎه و ورود ﺑﻪ rom monitor mode ﺗﻐﯿﯿﺮ ﻣﺤﺘﻮاي configuration registerﺑﻪ 2412×0 ﺟﻬﺖ Bypassﮐﺮدن ﻣﺤﺘﻮاي Nvramدر ﻫﻨﮕﺎم ﺑﻮت و ﭘﺲ از آن ﭘﯿﮑﺮﺑﻨﺪي ﻣﺠﺪد روﺗﺮ دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ ﺑﺎ ﯾﮏ روﺗﺮ 1052 روﺑﺮو ﻫﺴﺘﯿﻢ ﮐﻪ داري ﭘﺴﻮرد ﮐﻨﺴﻮل ﻧﺎﻣﻌﯿﻨﯽ اﺳﺖ.ﺑﺎ ﭼﻨﯿﻦ ﭘﺴﻮردي و ﺑﺪون داﻧﺴﺘﻦ آن ﻗﺎدر ﺑﻪ ورود ﺑﻪ ﻣﺤﯿﻂ Exec modeﻧﯿﺴﺘﯿﻢ، ﺑﺎ ﭼﻨﯿﻦ ﺳﻨﺎرﯾﻮﯾﯽ در ﻫﻨﮕﺎم ﺧﺮﯾﺪ ادوات دﺳﺖ دوم زﯾﺎد ﺑﺮﺧﻮرد ﻣﯿﮑﻨﯿﻢ. Router con0 is now available .Press RETURN to get started User Access Verification :Password 092 Page 52 of
- 54. روﺗﺮ را روﺷﻦﻣﯿﮑﻨﯿﻢ ﺗﺎ ﻓﺮاﯾﻨﺪ ﺑﻮت آﻏﺎز ﺷﻮد ، در اﯾﻦ ﺣﯿﻦ ﻧﯿﺎز اﺳﺖ ﺗﺎ ﻓﺮاﯾﻨﺪ ﺑﻮت ﺑﻪ ﺻﻮرت ﻧﺮﻣﺎل ﻣﺘﻮﻗﻒ .1 اﻧﺠﺎم ﻣﯽ دﻫﯿﻢ ﺗﺎ ﺑﻪCtrl+Puse Breake ﺑﺎﻻ ﺑﯿﺎﯾﺪ ، اﯾﻨﮑﺎر را ﻓﺸﺮدن ﻣﮑﺮرbootrom ﺷﻮد و روﺗﺮ ﺑﺎ . وارد ﺷﻮﯾﻢbootrom ﻣﺤﯿﻂ System Bootstrap, Version 11.0(10c), SOFTWARE Copyright (c) 1986-1996 by cisco Systems 2500 processor with 14336 Kbytes of main memory Abort at 0x10B1F3C (PC) > را ﺑﻪ 2412×0 ﺗﻐﯿﯿﺮ ﻣﯽ دﻫﯿﻢ ﺗﺎ در ﺑﻮت ﺑﻌﺪي روﺗﺮ از ﻃﺮﯾﻖconfiguration register 2. اﮐﻨﻮن ﻣﺤﺘﻮاي . ﻣﻮرد ﭘﺮدازش ﻗﺮار ﻧﮕﯿﺮدNvram ﺑﻮت ﺷﻮد و ﻣﺤﺘﻮايIOS >o/r 0x2142 >i privileged 3. راه اول:ﭘﺲ از ﺑﻮت ﺷﺪن روﺗﺮ ﺑﺎ ﺻﻔﺤﻪ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ روﺗﺮ روﺑﺮو ﻣﯿﺸﻮد ، ﺑﺎ ورود ﺑﻪ ﻣﺤﯿﻂ running configuration را ﺑﻪstartup configuration ، ﻣﺤﺘﻮايen از ﻃﺮﯾﻖ ﺗﺎﯾﭗ ﮐﺮدنmode از ﻃﺮﯾﻖNvram ﮐﭙﯽ ﻣﯿﮑﻨﯿﻢ و ﭘﺲ از ان ﭘﺴﻮردﻫﺎ را ﺗﻐﯿﯿﺮ ﻣﯽ دﻫﯿﻢ در ﻧﻬﺎﯾﺖ ﻫﻢ ذﺧﯿﺮه ﺗﻐﯿﯿﺮات در . اﻧﺠﺎم ﻣﯿﮕﯿﺮدcopy run start --- System Configuration Dialog --Would you like to enter the initial configuration dialog? [yes/no]: n Press RETURN to get started! Router>enable Router#copy start run Destination filename [running-config]? 506 bytes copied in 3.868 secs (168 bytes/sec) ARCVRSR01#configure terminal ARCVRSR01(config)#enable secret NEWENABLEPASSWORD ARCVRSR01(config)#line con 0 ARCVRSR01(config-if)#password NEWPASSWORD ARCVRSR01(config-if)#end ARCVRSR01#copy run start Destination filename [startup-config]? Building configuration... [OK] ARCVRSR01# وارد ﻣﯽ ﺷﻮﯾﻢ اﻣﺎprivileged mode ﺑﻪ ﻣﺤﯿﻂIOS 4. راه دوم : ﻫﻤﺎﻧﻨﺪ روش ﻗﺒﻠﯽ ﭘﺲ از ﺑﻮت از ﻃﺮﯾﻖ را ﭘﺎك ﻣﯿﮑﻨﯿﻢNvram اﯾﻨﺒﺎر ﻣﺤﺘﻮاي --- System Configuration Dialog --- Page 53 of 290
- 55. Would you liketo enter the initial configuration dialog? [yes/no]: n Press RETURN to get started! Router>enable Router#write erase Erasing the nvram filesystem will remove all files! Continue? [confirm] [OK] Erase of nvram: complete Router# را ﺑﻪconfiguration register ﻣﺤﺘﻮايNvram 5. در ﻫﺮ دو ﺣﺎﻟﺖ ﭘﺲ از رﯾﺴﺖ ﮐﺮدن ﭘﺴﻮرد ﯾﺎ ﭘﺎك ﮐﺮدن . ﺑﻮت ﺧﻮاﻫﺪ ﺷﺪNvram 2012×0 ﺑﺮ ﻣﯿﮕﺮداﻧﯿﻢ ﺑﺎ رﯾﺒﻮت ﺑﻌﺪي ﺳﯿﺴﺘﻢ از ﻃﺮﯾﻖ ﺧﻮاﻧﺪن ﻣﺤﺘﻮاي Router#configure terminal Router(config)#config-register 0x2102 Router(config)#end Page 54 of 290
- 56. آزﻣﺎﯾﺶ 2.2-ﭘﺴﻮرد رﯾﮑﺎوريروﺗﺮﻫﺎي ﺳﺮي 0062 در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﻓﺮاﯾﻨﺪ ﭘﺴﻮرد رﯾﮑﺎوري روﺗﺮﻫﺎي ﺳﺮي 0062, 0083 ,0082 ,0081 ,0073 ,0063 ,0071و ISR 2Gآﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد در دﻧﯿﺎي واﻗﻌﯽ روﺗﺮﻫﺎي ﺳﺮي 0062 ﭘﺮﮐﺎرﺑﺮد ﺗﺮﯾﻦ ﻧﻤﻮﻧﻪ ﻫﺎ در ﻣﺤﯿﻄﻬﺎ آزﻣﺎﯾﺸﮕﺎﻫﯽ ﻫﺴﺘﻨﺪ و در ﻋﯿﻦ ﺣﺎل ﻣﯽ ﺗﻮان آﻧﻬﺎ را در ﻣﺤﯿﻄﻬﺎي اﺟﺮاﯾﯽ ﻧﯿﺰ ﺑﻪ وﻓﻮر ﻣﺸﺎﻫﺪه ﮐﺮد ، ﻣﺼﺪاق ﺟﻤﻠﻪ اﮔﻪ ﮐﺎر ﻣﯿﮑﻨﻪ ﺑﻬﺶ دﺳﺖ ﻧﺰن! دﺳﺘﻮراﻟﻌﻤﻠﻬﺎي اراﺋﻪ ﺷﺪه در اﯾﻦ آزﻣﺎﯾﺶ ﻗﺎﺑﻞ اﻋﻤﺎل ﺑﺮ روي ﺗﻘﺮﯾﺒﺎ ﻫﻤﻪ روﺗﺮﻫﺎي اﻣﺮوزي ﻣﯽ ﺑﺎﺷﺪ ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﯾﮏ دﺳﺘﮕﺎه روﺗﺮ 0062 ﯾﺎ ﺟﺪﯾﺪﺗﺮ ﺑﺎ ﭘﺴﻮرد ﻧﺎﻣﻌﻠﻮم ارﺗﺒﺎط ﺑﺮﻗﺮار ﺑﺎ ﭘﻮرت ﮐﻨﺴﻮل دﺳﺘﮕﺎه اﻫﺪاف آزﻣﺎﯾﺶ ﻣﺘﻮﻗﻒ ﮐﺮدن ﻓﺮاﯾﻨﺪ ﺑﻮت دﺳﺘﮕﺎه و ورود ﺑﻪ rom monitor mode ﺗﻐﯿﯿﺮ ﻣﺤﺘﻮاي configuration registerﺑﻪ 2412×0 ﺟﻬﺖ Bypassﮐﺮدن ﻣﺤﺘﻮاي Nvramدر ﻫﻨﮕﺎم ﺑﻮت و ﭘﺲ از آن ﭘﯿﮑﺮﺑﻨﺪي ﻣﺠﺪد روﺗﺮ دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ ﺑﺎ ﯾﮏ روﺗﺮ 2651 XMروﺑﺮو ﻫﺴﺘﯿﻢ ﮐﻪ داري ﭘﺴﻮرد ﮐﻨﺴﻮل ﻧﺎﻣﻌﯿﻨﯽ اﺳﺖ.ﺑﺎ ﭼﻨﯿﻦ ﭘﺴﻮردي و ﺑﺪون داﻧﺴﺘﻦ آن ﻗﺎدر ﺑﻪ ورود ﺑﻪ ﻣﺤﯿﻂ Exec modeﻧﯿﺴﺘﯿﻢ، ﺑﺎ ﭼﻨﯿﻦ ﺳﻨﺎرﯾﻮﯾﯽ در ﻫﻨﮕﺎم ﺧﺮﯾﺪ ادوات دﺳﺖ دوم زﯾﺎد ﺑﺮﺧﻮرد ﻣﯿﮑﻨﯿﻢ. Router con0 is now available .Press RETURN to get started User Access Verification :Password 092 Page 55 of
- 57. روﺗﺮ را روﺷﻦﻣﯿﮑﻨﯿﻢ ﺗﺎ ﻓﺮاﯾﻨﺪ ﺑﻮت آﻏﺎز ﺷﻮد ، در اﯾﻦ ﺣﯿﻦ ﻧﯿﺎز اﺳﺖ ﺗﺎ ﻓﺮاﯾﻨﺪ ﺑﻮت ﺑﻪ ﺻﻮرت ﻧﺮﻣﺎل ﻣﺘﻮﻗﻒ .1 اﻧﺠﺎم ﻣﯽ دﻫﯿﻢ ﺗﺎ ﺑﻪCtrl+Puse Breake ﺑﺎﻻ ﺑﯿﺎﯾﺪ ، اﯾﻨﮑﺎر را ﻓﺸﺮدن ﻣﮑﺮرbootrom ﺷﻮد و روﺗﺮ ﺑﺎ . وارد ﺷﻮﯾﻢbootrom ﻣﺤﯿﻂ System Bootstrap, Version 12.2(8r) [cmong 8r], RELEASE SOFTWARE (fc1) Copyright (c) 2003 by cisco Systems, Inc. C2600 platform with 262144 Kbytes of main memory monitor: command "boot" aborted due to user interrupt rommon 1 > را ﺑﻪ 2412×0 ﺗﻐﯿﯿﺮ ﻣﯽ دﻫﯿﻢ ﺗﺎ در ﺑﻮت ﺑﻌﺪي روﺗﺮ از ﻃﺮﯾﻖconfiguration register 2. اﮐﻨﻮن ﻣﺤﺘﻮاي ﻣﻮرد ﭘﺮدازش ﻗﺮار ﻧﮕﯿﺮدNvram ﺑﻮت ﺷﻮد و ﻣﺤﺘﻮايIOS rommon 1 >confreg 0x2142 rommon 2 >reset privileged 3. راه اول:ﭘﺲ از ﺑﻮت ﺷﺪن روﺗﺮ ﺑﺎ ﺻﻔﺤﻪ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ روﺗﺮ روﺑﺮو ﻣﯿﺸﻮد ، ﺑﺎ ورود ﺑﻪ ﻣﺤﯿﻂ ﮐﭙﯽrunning configuration ﺑﻪstartup configuration ، ﻣﺤﺘﻮايen از ﻃﺮﯾﻖ ﺗﺎﯾﭗ ﮐﺮدنmode copy از ﻃﺮﯾﻖNvram ﻣﯿﮑﻨﯿﻢ و ﭘﺲ از ان ﭘﺴﻮردﻫﺎ را ﺗﻐﯿﯿﺮ ﻣﯽ دﻫﯿﻢ در ﻧﻬﺎﯾﺖ ﻫﻢ ذﺧﯿﺮه ﺗﻐﯿﯿﺮات در run start --- System Configuration Dialog --- Would you like to enter the initial configuration dialog? [yes/no]: n Press RETURN to get started! Router>enable Router#copy start run Destination filename [running-config]? 506 bytes copied in 3.868 secs (168 bytes/sec) IMAROUTER#configure terminal IMAROUTER(config)#enable secret NEWENABLEPASSWORD IMAROUTER(config)#line con 0 IMAROUTER(config-if)#password NEWPASSWORD IMAROUTER(config-if)#end IMAROUTER#copy run start Destination filename [startup-config]? Building configuration... [OK] IMAROUTER# Page 56 of 290
- 58. وارد ﻣﯽﺷﻮﯾﻢ اﻣﺎprivileged mode ﺑﻪ ﻣﺤﯿﻂIOS 4. راه دوم : ﻫﻤﺎﻧﻨﺪ روش ﻗﺒﻠﯽ ﭘﺲ از ﺑﻮت از ﻃﺮﯾﻖ را ﭘﺎك ﻣﯿﮑﻨﯿﻢNvram اﯾﻨﺒﺎر ﻣﺤﺘﻮاي --- System Configuration Dialog --Would you like to enter the initial configuration dialog? [yes/no]: n Press RETURN to get started! Router>enable Router#write erase Erasing the nvram filesystem will remove all files! Continue? [confirm] [OK] Erase of nvram: complete Router# را ﺑﻪconfiguration register ﻣﺤﺘﻮايNvram 5. در ﻫﺮ دو ﺣﺎﻟﺖ ﭘﺲ از رﯾﺴﺖ ﮐﺮدن ﭘﺴﻮرد ﯾﺎ ﭘﺎك ﮐﺮدن . ﺑﻮت ﺧﻮاﻫﺪ ﺷﺪNvram 2012×0 ﺑﺮ ﻣﯿﮕﺮداﻧﯿﻢ ﺑﺎ رﯾﺒﻮت ﺑﻌﺪي ﺳﯿﺴﺘﻢ از ﻃﺮﯾﻖ ﺧﻮاﻧﺪن ﻣﺤﺘﻮاي Router#configure terminal Router(config)#config-register 0x2102 Router(config)#end Page 57 of 290
- 59. آزﻣﺎﯾﺶ 3.2 –ﭘﺴﻮد رﯾﮑﺎوري ﺳﻮﯾﯿﭽﻬﺎي ﮐﺎﺗﺎﻟﯿﺴﺖ در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﻧﺤﻮه ﭘﺴﻮرد رﯾﮑﺎوري ﺳﻮﯾﯿﭽﻬﺎ ﺳﺮي 0573 ,0653 ,0553 , 2900XL, 2950, 3500XLو ﺳﺮﯾﻬﺎي ﻣﺸﺎﺑﻪ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ ﮐﺎرﺑﺮد در دﻧﯿﺎي واﻗﻌﯽ در دﻧﯿﺎي واﻗﻊ ﻣﻮاﻗﻊ زﯾﺎدي ﭘﯿﺶ ﻣﯽ آﯾﺪ ﮐﻪ ﭘﺴﻮرد ﺧﺎﺻﯽ ﻓﺮاﻣﻮش ﺷﻮد ، ﻋﻤﻮﻣﺎ ﻫﻢ ﻣﻬﻢ ﻧﯿﺴﺘﻨﺪ ، اﻣﺎ ﻓﺮاﻣﻮش ﮐﺮدن ﭘﺴﻮرد ﺳﻮﯾﯿﭻ ﻣﺮﮐﺰي ﺷﺒﮑﻪ ﻣﯿﺘﻮاﻧﺪ دردﺳﺮ ﺳﺎز ﺑﺎﺷﺪ.ﺑﺮﺧﻼف روﺗﺮﻫﺎ ، ﺑﻪ ﻣﻨﻈﻮر اﻧﺠﺎم ﻓﺮاﯾﻨﺪ ﭘﺴﻮرد رﯾﮑﺎروي ﺷﻤﺎ ﺣﺘﻤﺎ ﺑﺎﯾﺪ ﻧﺰدﯾﮏ ﺳﻮﯾﯿﭻ ﺣﻀﻮر داﺷﺘﻪ ﺑﺎﺷﯿﺪ ﺣﺘﯽ دﺳﺘﺮﺳﯽ از راه دور ﺑﻪ ﮐﺎﻣﭙﯿﻮﺗﺮي ﮐﻪ اﺗﺼﺎل ﮐﻨﺴﻮل ﺳﻮﯾﯿﭻ از ﻃﺮﯾﻖ ان ﺑﺮﻗﺮار ﻣﯽ ﺑﺎﺷﺪ ﻧﯿﺰ ﮐﺎرﺳﺎز ﻧﯿﺴﺖ ﺑﻪ اﯾﻦ ﻋﻠﺖ ﮐﻪ ﻃﯽ اﯾﻦ ﻓﺮاﯾﻨﺪ ﻧﯿﺎز اﺳﺖ ﮐﺎﺑﻞ ﺑﺮق ﺳﻮﯾﯿﭻ از آن ﺟﺪا ﺷﺪه و دﮐﻤﻪ Modeﻧﯿﺰ ﺑﺮاي ﻣﺪﺗﯽ ﭘﺎﯾﯿﻦ ﻧﮕﻪ داﺷﺘﻪ ﺷﻮد. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ اﺗﺼﺎل ﺑﻪ ﭘﻮرت ﮐﻨﺴﻮل ﺳﻮﯾﯿﭻ ﺣﻀﻮر داﺷﺘﻦ در ﻣﺤﻞ ﻗﺮارﮔﯿﺮي ﺳﻮﯾﯿﭻ اﻫﺪاف آزﻣﺎﯾﺶ ورود ﺑﻪ ﻣﺤﯿﻂ SWITCH ROMﺑﺎ از ﺑﺮق ﮐﺸﯿﺪن و ﻣﺠﺪدا وﺻﻞ ﮐﺮدن آن در ﺣﯿﻦ ﻧﮕﻬﺪاﺷﺘﻦ دﮐﻤﻪ Mode ﺗﻐﯿﯿﺮ ﻧﺎم configuration fileﻣﻮﺟﻮد در ﻓﻠﺶ ﺑﻪ ﻧﺎم دﯾﮕﺮي ﻫﻤﭽﻮن config.old ﺑﻮت ﻣﺠﺪد ﺳﻮﯾﯿﭻ و ﮐﭙﯽ flash:config.oldﺑﻪ ﺟﺎي Runing config ﮐﭙﯽ Runing configﺑﻪ Nvram دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ 1. در ﻣﺮﺣﻠﻪ اول ﺑﻪ ﻣﺤﯿﻂ SWITCH ROMاز ﻃﺮﯾﻖ ﻧﮕﻪ داﺷﺘﻦ دﮐﻤﻪ MODEروي ﭘﻨﻞ دﺳﺘﮕﺎه و روﺷﻦ ﮐﺮدن دﺳﺘﮕﺎه از ﻃﺮﯾﻖ اﺗﺼﺎل ﻣﺠﺪد ﮐﺎﺑﻞ ﺑﺮق وارد ﻣﯽ ﺷﻮﯾﻢ ﺑﺴﺘﻪ ﺑﻪ ﻧﻮع ﺳﻮﯾﯿﭻ، دﮐﻤﻪ MODEﻧﯿﺎز ﺑﻪ زﻣﺎﻧﻬﺎي ﻣﺨﺘﻠﻔﯽ ﺑﺮاي ﭘﺎﯾﯿﻦ ﻧﮕﻪ داﺷﺘﻪ ﺷﺪن دارد ﭘﺲ ﻫﻤﯿﻨﻄﻮر اﯾﻦ دﮐﻤﻪ را ﭘﺎﯾﯿﻦ ﻧﮕﻪ دارﯾﺪ ﺗﺎ ﺗﻮﺿﯿﺤﺎت ﺑﻌﺪي! .ﺟﺪول زﯾﺮ ﻣﺪت زﻣﺎن ﻻزم ﺟﻬﺖ ﭘﺎﯾﯿﻦ ﻧﮕﻪ داﺷﺘﻦ دﮐﻤﻪ MODEرا در ﺳﻮﯾﯿﭻ ﻫﺎي ﻣﺨﺘﻠﻒ ﻧﺸﺎن ﻣﯿﺪﻫﺪ 092 Page 58 of
- 60. MODE ﻫﺎو ﻣﺪت زﻣﺎن ﻻزم ﺟﻬﺖ ﭘﺎﯾﯿﻦ ﻧﮕﻪ داﺷﺘﻦ دﮐﻤﻪLed رﻓﺘﺎر ﻧﻮع ﺳﻮﯾﯿﭻ ﺧﺎﻣﻮش ﻧﺸﺪه ﭘﺎﯾﻦ ﻧﮕﻪ داﺷﺘﻪ ﺷﻮدFA0/1 ﭘﻮرتLED ﺗﺎ زﻣﺎﻧﯽ ﮐﻪ 2900XL, 3500XL, 3550 زرد ﭼﺸﻤﮏSyst LED ﺧﺎﻣﻮش ﺷﺪ آﻧﺮا رﻫﺎ ﮐﻨﯿﺪ.ﭘﺲ از رﻫﺎ ﮐﺮدن آنStat LED ﺣﺪودا ﭘﺲ از 5 ﺛﺎﻧﯿﻪ و زﻣﺎﻧﯽ ﮐﻪ زن ﺧﻮاﻫﺪ ﺷﺪ 2940, 2950 Mode زرد ﭼﺸﻤﮏ زن ﺷﺪ و ﺑﻌﺪ از آن ﮐﺎﻣﻼ ﺳﺒﺰ ﺷﺪ دﮐﻤﻪ را رﻫﺎ ﮐﻨﯿﺪ.ﭘﺲ از رﻫﺎ ﮐﺮدنSYST LED ﭘﺲ از اﯾﻨﮑﻪ . ﺳﺒﺰ ﭼﺸﻤﮏ زن ﺧﻮاﻫﺪ ﺷﺪSYST LED ﺣﺎﻟﺖ 2960, 2970 ﺳﺒﺰSYST LED را رﻫﺎ ﮐﻨﯿﺪ.ﭘﺲ از رﻫﺎ ﮐﺮدن آنMode دﮐﻤﻪSYST LED ﺑﻌﺪ از ﺣﺪود 51 ﺛﺎﻧﯿﻪ و ﺳﺒﺰ ﺷﺪن ﭼﺸﻤﮏ زن ﺧﻮاﻫﺪ ﺷﺪ 3560, 3750 ﺑﺎ ﻋﺒﺎرت ﻫﺎي زﯾﺮ ﻣﻮاﺟﻪ ﺧﻮاﻫﯿﻢ ﺷﺪSWITCH ROM 2. ﭘﺲ از ورود ﻣﻮﻓﻘﯿﺖ آﻣﯿﺰ ﺑﻪ ﻣﺤﯿﻂ Boot Sector Filesystem (bs) installed, fsid: 2 Base ethernet MAC Address: 00:14:f2:d2:41:80 Xmodem file system is available. The password-recovery mechanism is enabled. The system has been interrupted prior to initializing the flash filesystem. The following commands will initialize the flash filesystem, and finish loading the operating system software: flash_init boot switch: flash_init ﺷﺪن دارد ﺑﺎ ﺗﺎﯾﭗ دﺳﺘﻮرinitialize ﻧﯿﺎز ﺑﻪflash 3. در اﯾﻦ ﻣﺮﺣﻠﻪ switch:flash_init Initializing Flash... flashfs[0]: 5 files, 1 directories flashfs[0]: 0 orphaned files, 0 orphaned directories flashfs[0]: Total bytes: 15998976 flashfs[0]: Bytes used: 12282368 flashfs[0]: Bytes available: 3716608 flashfs[0]: flashfs fsck took 10 seconds. ...done Initializing Flash. switch: Page 59 of 290
- 61. ﺑﻪ ﻣﻨﻈﻮرﭘﯿﺪا ﮐﺮدن ﻓﺎﯾﻞ ﮐﺎﻧﻔﯿﮓ اﺻﻠﯽ ﻟﯿﺴﺖ ﻣﯽ ﮔﯿﺮﯾﻢ.اﯾﻦ ﻓﺎﯾﻞ ﺑﻪ ﻃﻮر ﭘﯿﺶflash 4. از ﻓﺎﯾﻠﻬﺎي ﻣﻮﺟﻮد در . ﻧﺎم داردconfig.text ﻓﺮض switch:dir flash: Directory of flash:/ 1 -rwx 10573494 2 -rwx 684 3 -rwx 1938 4 -rwx 1654 5 -rwx 3096 c3560-advipservicesk9-mz.122-44.SE6.bin vlan.dat private-config.text config.text multiple-fs 3716608 bytes available (10508886 bytes used) switch: ﺗﻐﯿﯿﺮ ﻧﺎم ﻣﯽ دﻫﯿﻢconfig.old 5. ﻓﺎﯾﻞ ﮐﺎﻧﻔﯿﮓ را ﺑﻪ switch:rename flash:config.text flash:config.old ﭘﺎك ﮐﺮدdelete flash:config.text ﻫﻤﯿﻨﻄﻮر ﻣﯿﺘﻮان آﻧﺮا ﺑﺎ دﺳﺘﻮر 6. ﭘﺲ از ﺣﺼﻮل اﻃﻤﯿﻨﺎن از ﺗﻐﯿﯿﺮ ﻧﺎم ﻓﺎﯾﻞ ﮐﺎﻧﻔﯿﮓ ﺳﻮﯾﯿﭻ را ﻣﺠﺪدا ﺑﻮت ﻣﯿﮑﻨﯿﻢ.و وارد ﻣﺤﯿﻂ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ .ﺳﻮﯾﯿﭻ ﻣﯿﺸﻮﯾﻢ --- System Configuration Dialog --Would you like to enter the initial configuration dialog? [yes/no]: n Switch> . ﮐﭙﯽ ﻣﯿﮑﻨﯿﻢrunnin config ﮐﺎﻧﻔﯿﮓ ﻗﺪﯾﻤﯽ را ﺑﻪstart-up ﻣﺤﺘﻮايprivileged mode 7. ﭘﺲ از ورود ﺑﻪ Switch>enable Switch#copy flash:config.old run Destination filename [running-config]? 1654 bytes copied in 9.647 secs (171 bytes/sec) ARSCORESW1# . اﻣﮑﺎن ﺗﻐﯿﯿﺮ ﭘﺴﻮردﻫﺎ ﺳﻮﯾﯿﭻ را ﺧﻮاﻫﯿﻢ داﺷﺖrunning config 8. ﭘﺲ از ﮐﭙﯽ ﺗﻨﻈﯿﻤﺎت ﻗﺪﯾﻤﯽ ﺳﻮﯾﯿﭻ ﺑﻪ Switch#configure terminal Switch(config)#enable password NEWENABLEPASSWORD Switch(config)#line con0 Switch(config-line)#password NEWCONSOLELINEPASSWORD Switch(config-line)#end Switch#copy run start Destination filename [startup-config]? Building configuration... [OK] 0 bytes copied in 1.309 secs (0 bytes/sec) Switch# Page 60 of 290
- 62. آزﻣﺎﯾﺶ 4.2-آﺷﻨﺎﯾﯽ ﺑﺎﺻﻔﺤﻪ اوﻟﯿﻪ ﺗﻨﻈﯿﻤﺎت ﺳﻮﯾﯿﭻ در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻈﯿﻤﺎت ﭘﺎﯾﻪ ﺳﻮﯾﯿﭻ ﻣﺎﻧﻨﺪ IP address,Hostnameو ﺗﻌﺪادي دﯾﮕﺮ از ﻃﺮﯾﻖ ﺻﻔﺤﻪ اوﻟﯿﻪ ﺗﻨﻈﯿﻤﺎت ﺳﻮﯾﯿﭻ/روﺗﺮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ ﺻﻔﺤﻪ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ ﺳﻮﯾﯿﭻ/روﺗﺮ و ﭘﯿﺎﻣﻬﺎ و ﺳﻮاﻻت آن از ﺟﻤﻠﻪ ﺻﻔﺤﺎت آذار دﻫﻨﺪه ﻣﺘﺨﺼﺼﯿﻦ ﺷﺒﮑﻪ اﺳﺖ ﭼﻮن ﻋﻤﻮم ﻣﺘﺨﺼﺼﯿﻦ ﺗﻤﺎﯾﻠﯽ ﺑﻪ ﮐﺎﻧﻔﯿﮓ ادوات ﺧﻮد ﺑﺎ اﺳﺘﻔﺎده از ﯾﮏ وﯾﺰارد ﻣﺘﻨﯽ ﻣﺤﺪود ﻧﺪارﻧﺪ. اﻣﺎ ﺑﻪ ﻫﺮ ﺣﺎل ﺟﻬﺖ آزﻣﻮن ccnaآﺷﻨﺎﯾﯽ ﺑﺎ آن اﻟﺰاﻣﯽ اﺳﺖ.ﻗﻄﻌﺎ در آﯾﻨﺪه ﻧﺰدﯾﮏ و ﭘﺲ از ﺗﺴﻠﻂ ﺑﻪ دﺳﺘﻮرات ﻣﺮﺑﻮﻃﻪ ﻫﯿﭻ وﻗﺖ از اﯾﻦ ﻣﺤﯿﻂ اﺳﺘﻔﺎده ﻧﺨﻮاﻫﯿﺪ ﮐﺮد. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ راه اﻧﺪازي ﯾﮏ روﺗﺮ در ﻣﺤﯿﻂ 3 Gnsو ﺑﺮﻗﺮاري اﺗﺼﺎل ﮐﻨﺴﻮل ﺑﻪ آن اﻫﺪاف آزﻣﺎﯾﺶ آﺷﻨﺎي ﺑﺎ ﺻﻔﺤﻪ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ روﺗﺮ/ﺳﻮﯾﯿﭻ دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ ﭘﺲ از ﺧﺮﯾﺪاري و روﺷﻦ ﮐﺮدن ﯾﮏ دﺳﺘﮕﺎه ﺳﻮﯾﯿﭻ/روﺗﺮ ﺳﯿﺴﮑﻮ اوﻟﯿﻦ ﺻﻔﺤﻪ اي ﮐﻪ ﻧﻤﺎﯾﺎن ﻣﯽ ﺷﻮد ﺻﻔﺤﻪ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ دﺳﺘﮕﺎه اﺳﺖ.اﯾﻦ ﺻﻔﺤﻪ ﻫﻤﯿﻨﻄﻮر ﻫﻨﮕﺎم ﺑﻮت دﺳﺘﮕﺎه ﭘﺲ از اﺟﺮاي دﺳﺘﻮر eraseﮐﻪ ﺑﺎﻋﺚ ﭘﺎك ﺷﺪن Nvram ﻣﯿﺸﻮد ﻧﻤﺎﯾﺎن ﻣﯽ ﺷﻮد. در ﮐﺪ زﯾﺮ ﻣﺤﺘﻮاي اﯾﻦ ﺻﻔﺤﻪ را در ﺑﻮت اوﻟﯿﻪ دﺳﺘﮕﺎه ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﺪ. -- --- System Configuration DialogWould you like to enter the initial configuration dialog? [yes/no]: yes ﭘﺲ از اﻧﺘﺨﺎب yesوﻧﻤﺎﯾﺶ ﻣﺤﯿﻂ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ ، ﻣﺮاﺣﻞ ﺗﻨﻈﯿﻢ ﺑﻪ ﺻﻮرت ﺳﻮال و ﺟﻮاﺑﻬﺎي ﻣﺘﻮاﻟﯽ ﺑﺎ ﺗﻮﺿﯿﺤﺎت ﻣﺨﺘﺼﺮي ﻧﻤﺎﯾﺎن ﻣﯽ ﺷﻮد. .At any point you may enter a question mark '?' for help .Use ctrl-c to abort configuration dialog at any prompt .'][' Default settings are in square brackets 092 Page 61 of
- 63. Basic management setupconfigures only enough connectivity for management of the system, extended setup will ask you to configure each interface on the system Would you like to enter basic management setup? [yes/no]: yes را از ﻣﺎTerminal password وEnable secret وHostname اﻃﻼﻋﺎت ﻻزم ﺟﻬﺖ ﺗﻨﻈﻤﯿﺎتyes ﭘﺲ از اﻧﺘﺨﺎب اﺧﺬ ﺧﻮاﻫﺪ ﮐﺮد Configuring global parameters: Enter host name [Router]: R1 The enable secret is a password used to protect access to privileged EXEC and configuration modes. This password, after entered, becomes encrypted in the configuration. Enter enable secret: CISCO The enable password is used when you do not specify an enable secret password, with some older software versions, and some boot images. Enter enable password: cisco The virtual terminal password is used to protect access to the router over a network interface. Enter virtual terminal password: cisco ﭘﺮوﺗﮑﻞ اﺳﺘﺎﻧﺪاري اﺳﺖ ﮐﻪ ادوات ﻓﻌﺎل درSNMP . ﻣﻮاﺟﻪ ﺧﻮاﻫﯿﻢ ﺷﺪSNMP ﺑﻌﺪ از ﺗﻈﯿﻤﺎت ﻓﻮق ﺑﺎ ﭘﯿﻐﺎم ﻓﻌﺎل ﺳﺎزي .ﺷﺒﮑﻪ ﺑﻪ واﺳﻄﻪ آن ﻣﺎﻧﯿﺘﻮ و ﯾﺎ ﭘﯿﮑﺮ ﺑﻨﺪي ﻣﯿﺸﻮﻧﺪ Configure SNMP Network Management? [no]: yes Community string [public]: COMMUNITYSTRINGGOESHERE واﻗﻊManagement network دﻫﯽ ﺑﻪ ﯾﮑﯽ از اﯾﻨﺘﺮﻓﯿﺴﻬﺎي دﺳﺘﮕﺎه ﮐﻪ درIP ﻧﻮﺑﺖ ﺑﻪSNMP ﭘﺲ از ﭘﯿﮑﺮﺑﻨﺪي ﺷﺪه)در آن رﻧﺞ ﻗﺮار دارد( ﻣﯿﮑﻨﯿﻢ.در ﻧﻈﺮ داﺷﺘﻪ ﺑﺎﺷﯿﺪ ﮐﻪ ﺑﺎﯾﺪ ﻧﺎم اﯾﻨﺘﺮﻓﯿﺲ ﺑﻪ ﻃﻮر ﮐﺎﻣﻞ ﻧﻮﺷﺘﻪ ﺷﻮد Current interface summary Any interface listed with OK? value "NO" does not have a valid configuration Interface Interface FastEthernet0/0 FastEthernet0/1 Serial1/0 Serial1/1 Serial1/2 Serial1/3 IP-Address IP-Address unassigned unassigned unassigned unassigned unassigned unassigned OK? OK? NO NO NO NO NO NO Method Method unset unset unset unset unset unset Status Status up up up up up up Protocol Protocol up up down down down down Page 62 of 290
- 64. Enter interface nameused to connect to the management network from the above interface summary: FastEthernet0/0 . ﻣﯽ رﺳﺪIP ﺑﻪ ﻣﺤﺾ اﯾﻨﮑﻪ اﯾﻨﺘﺮﻓﯿﺲ ﻣﺮﺑﻮط ﺑﻪ ﻣﺪﯾﺮﯾﺖ دﺳﺘﮕﺎه را اﻧﺘﺨﺎب ﮐﺮدﯾﻢ ﻧﻮﺑﺖ ﺑﻪ ﺗﻨﻈﯿﻢ ﭘﺎراﻣﺘﺮﻫﺎي Configuring interface FastEthernet0/0: Operate in full-duplex mode? [no]: Configure IP on this interface? [yes]: IP address for this interface: 10.1.1.1 Subnet mask for this interface [255.0.0.0] : 255.255.255.0 Class A network is 10.0.0.0, 24 subnet bits; mask is /24 Running ﺧﻮب،ﭘﺲ از اﺗﻤﺎم ﻣﺮاﺣﻞ ﺑﺎﻻ روﺗﺮ/ﺳﻮﯾﯿﭻ ﮐﺪ ﮐﺎﻧﻔﯿﮓ ﻫﺎي اﻧﺠﺎم ﺷﺪه روي دﺳﺘﮕﺎه ﯾﺎ ﺑﻪ ﺑﯿﺎن دﯾﮕﺮ : را ﺑﻪ ﻣﺎ ﻧﻤﺎﯾﺶ ﻣﯽ دﻫﺪ ﺑﻪ ﻗﺮار زﯾﺮconfig The following configuration command script was created: hostname R1 enable secret 5 $1$kGQ2$tr6bd7mW9zjqzfkUHhnCE0 enable password cisco line vty 0 4 password cisco no snmp-server ! no ip routing ! interface FastEthernet0/0 no shutdown half-duplex ip address 10.1.1.1 255.255.255.0 no mop enabled ! interface FastEthernet0/1 shutdown no ip address ! interface Serial1/0 shutdown no ip address ! interface Serial1/1 shutdown no ip address ! interface Serial1/2 shutdown no ip address ! interface Serial1/3 shutdown no ip address ! Page 63 of 290
- 65. end ﭘﺲ از ﻣﺮﺣﻠﻪﺑﺎﻻ ﺳﯿﺴﺘﻢ در ﺧﺼﻮص ذﺧﯿﺮه ﺗﻨﻈﯿﻤﺎت ﺻﻮرت ﮔﺮﻓﺘﻪ ﺳﻮال ﺧﻮاﻫﺪ ﭘﺮﺳﯿﺪ. ﻋﺪد 2 را ﺟﻬﺖ ذﺧﯿﺮه اﻧﺘﺨﺎب ﻣﯿﮑﻨﯿﻢstartup config ﺗﻨﻈﯿﻤﺎت در [0] Go to the IOS command prompt without saving this config. [1] Return back to the setup without saving this config. [2] Save this configuration to nvram and exit. Enter your selection [2]: 2 The enable password you have chosen is the same as your enable secret. This is not recommended. Re-enter the enable password. Building configuration... Use the enabled mode 'configure' command to modify this configuration. % Crashinfo may not be recovered at bootflash:crashinfo % This file system device reports an error Press RETURN to get started! R1> Page 64 of 290
- 66. آزﻣﺎﯾﺶ 5.2 –آﺷﻨﺎﯾﯽ ﺑﺎ CLIﺳﯿﺴﮑﻮ در اﯾﻦ آزﻣﺎﯾﺶ ﺧﻮاﻫﯿﻢ آﻣﻮﺧﺖ ﭼﮕﻮﻧﻪ وارد ﺣﺎﻟﺘﻬﺎي ﻣﺨﺘﻠﻒ ﺧﻂ ﻓﺮﻣﺎن ادوات ﺳﯿﺴﮑﻮ ﺷﻮﯾﻢ ﺣﺎﻟﺘﻬﺎي User mode,Privileged mode,Global configuration modeو ﭼﻨﺪ ﺣﺎﻟﺖ دﯾﮕﺮ ﮐﺎرﺑﺮد ﻋﻤﻠﯽ ﺑﻪ ﻋﻨﻮان ﯾﮏ ﻣﻬﻨﺪس ﺷﺒﮑﻪ ﺳﯿﺴﺴﮑﻮ ﻧﯿﺰا دارﯾﺪ ﺗﺎ ﺑﺎ وﯾﮋﮔﯿﻬﺎي ﻣﺤﯿﻂ CLIادوات ﺳﯿﺴﮑﻮ آﺷﻨﺎ ﺷﻮﯾﺪ زﯾﺮا ﺗﻤﺎﻣﯽ ادوات ﺳﯿﺴﮑﻮ از اﯾﻦ ﻃﺮﯾﻖ ﭘﯿﮑﺮﺑﻨﺪي ﻣﯽ ﺷﻮﻧﺪ،اﮔﺮﭼﻪ ﻋﻨﺎوﯾﻦ ﻣﺨﺘﻠﻔﯽ از راﺑﻂ ﮐﺎرﺑﺮﻫﺎي ﮔﺮاﻓﯿﮑﯽ ﻫﻤﭽﻮن ASDM,PDMﺟﻬﺖ ﮐﺎﻧﻔﯿﮓ ادوات ﻣﺨﺘﻠﻒ وﺟﻮد دارد اﻣﺎ اﺳﺘﻔﺎده اﻧﻬﺎ در ﻣﺤﯿﻄﻬﺎي ﻋﻤﻠﯿﺎﺗﯽ ﺟﺪي ﭼﻨﺪان ﺗﻮﺻﯿﻪ ﻧﻤﯿﺸﻮد و ﻣﻮﺟﺒﺎت در ﻫﻢ ﮐﺸﯿﺪه ﺷﺪن اﺧﻤﻬﺎي ﻣﻬﻨﺪﺳﯿﻦ ﻣﺠﺮب ﺳﯿﺴﮑﻮ ﻫﻨﮕﺎﻣﯽ ﮐﻪ از ﻃﺮﯾﻖ CLIﺑﻪ ﺑﺮرﺳﯽ ﮐﺎﻧﻔﯿﮕﻬﺎ ﻣﯽ ﭘﺮدازﻧﺪ ﻣﯿﺸﻮد. اﻧﺘﻈﺎر ﻣﯽ رود ﺑﻪ ﻋﻨﻮان ﯾﮏ ﻣﺘﺨﺼﺺ ﺳﯿﺴﮑﻮ در آﯾﻨﺪه ﻧﺰدﯾﮏ ﻗﺎدر ﺑﻪ ﮐﺎر ﺑﺎ ﻣﻮدﻫﺎي ﮐﺎﻧﻔﯿﮓ ادوات ﺳﯿﺴﮑﻮ ﻣﺎﻧﻨﺪ : ,User Mode, Privileged Mode, Global Configuration Mode, Interface Configuration Mode Router Configuration Mode, VLAN Database Configuration Mode, Access-List Configuration Mode Mode ,Line Configuration Modeﺑﺎﺷﯿﺪ. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ راه اﻧﺪازي ﯾﮏ ﻋﺪد روﺗﺮ در ﻣﺤﯿﻂ 3Gns اﻫﺪاف آزﻣﺎﯾﺶ آﺷﻨﺎﯾﯽ ﺑﻪ ﻣﻮدﻫﺎي ﻣﺨﺘﻠﻒ CLIدر ادوات ﺳﯿﺴﮑﻮ ﻣﺒﺘﻨﯽ ﺑﺮ IOS آﺷﻨﺎﯾﯽ ﺑﺎ ﮐﻠﯿﺪﻫﺎي ﺗﺮﮐﯿﺒﯽ در ﻣﺤﯿﻂ CLI دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ 1. : User modeاوﻟﯿﻦ ﻣﻮدي اﺳﺖ ﮐﻪ ﭘﺲ از وارد ﮐﺮدن اﻃﻼﻋﺎت اﺣﺮاز ﻫﻮﯾﺖ و ﻓﺸﺮدن ﮐﻠﯿﺪ enterوارد آن ﻣﯿﺸﻮﯾﻢ.دراﯾﻦ ﻣﻮد ﻋﻤﻮم دﺳﺘﻮراﺗﯽ ﮐﻪ ﻗﺎﺑﻞ اﺟﺮا ﻫﺴﺘﻨﺪ ﻣﺎﻫﯿﺖ اﻃﻼع رﺳﺎﻧﯽ دارﻧﺪ ﻣﺎﻧﺪد دﺳﺘﻮرات 092 Page 65 of
- 67. و ازاﯾﻦ دﺳﺖ. ﻫﻤﺎﻧﻄﻮر ﮐﻪ در ﮐﺪ زﯾﺮping,trace route, Show cdp neighbors,show version ﻗﺮار ﻣﯿﮕﯿﺮﯾﻢ ﮐﻪ ﺑﺎ ﻣﺸﺎﻫﺪه ﻋﻼﻣﺖ ">" ﯾﺎ ﻫﻤﺎنCLI در ﻣﺤﯿﻂenter ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﺪ ﭘﺲ از ﻓﺸﺮدن .ﺑﺰرﮔﺘﺮ اﺳﺖ از ﻫﻤﺮاه اﺳﺖ Router con0 is now available Press RETURN to get started. Router> ﻣﯿﺘﻮان ﺑﺎ ﺗﺎﯾﭗ ؟ ﺑﻪ ﻟﯿﺴﺖ دﺳﺘﻮرات ﻗﺎﺑﻞ اﺟﺮا در آن ﻣﻮد دﺳﺘﺮﺳﯽ ﭘﯿﺪا ﮐﺮدCLI در ﻫﺮ ﻟﺤﻈﻪ از ﻣﺤﯿﻂ Router>? Exec commands: access-enable access-profile clear connect crypto disable disconnect emm enable ethernet exit help lat lock login logout mrinfo mstat mtrace name-connection --More-- Create a temporary Access-List entry Apply user-profile to interface Reset functions Open a terminal connection Encryption related commands. Turn off privileged commands Disconnect an existing network connection Run a configured Menu System Turn on privileged commands Ethernet parameters Exit from the EXEC Description of the interactive help system Open a lat connection Lock the terminal Log in as a particular user Exit from the EXEC Request neighbor and version information from a multicast router Show statistics after multiple multicast traceroutes Trace reverse multicast path from destination to source Name an existing network connection ﭘﺎراﮔﺮاف ﺑﻌﺪي ﻧﻤﺎﯾﺎن ﺧﻮاﻫﺪ ﺷﺪ.در ﺻﻮرﺗﯿﮑﻪ ﻣﺎﯾﻞ ﺑﻪspace ﺳﻄﺮ ﺑﻌﺪي و ﺑﺎ ﻓﺸﺮدنenter در اﯾﻦ ﻣﺮﺣﻠﻪ ﺑﺎ ﻓﺸﺮدن . را ﻓﺸﺎر دﻫﯿﻢQ ﺑﺎﺷﯿﻢ ﺑﺎﯾﺪspace ﺧﺮوج ازاﯾﻦ ﻟﯿﺴﺖ ﺑﺪون ﻓﺸﺮدن ﻫﺎي ﻣﺘﻮاﻟﯽ ﻫﺴﺘﯿﻢ ﻣﯿﺘﻮاﻧﯿﻢ ﺳﻄﺢ دﺳﺘﺮﺳﯽ ﺧﻮد را ﺑﺎ ورود ﺑﻪUser mode : ﻫﻨﮕﺎﻣﯽ ﮐﻪ درPriviledge mode .2 در ﺻﻮرت ﺳﺖen اﻓﺰاﯾﺶ دﻫﯿﻢ.ﭘﺲ از ﺗﺎﯾﭗen ﯾﺎEnable از ﻃﺮﯾﻖ ﺗﺎﯾﭗ ﻋﺒﺎرتPriviledge mode ﺑﺎﯾﺪ رﻣﺰ ورود ﺑﻪ اﯾﻦ ﻣﻮد را وارد ﻧﻤﺎﯾﯿﻢ.در ﻫﻨﮕﺎم واردEnable secret ﯾﺎEnable password ﺷﺪه ﺑﻮدن ﮐﺮدن اﯾﻦ رﻣﺰ ﻗﺎدر ﺑﻪ ﻣﺸﺎﻫﺪه ﮐﺎراﮐﺘﺮﻫﺎي وارد ﺷﺪه ﻧﯿﺴﺘﯿﻢ ﺣﺘﯽ ﺑﻪ ﺻﻮرت ﺳﺘﺎره ﻫﺎي ﻣﺘﻮاﻟﯽ Page 66 of 290
- 68. Router>enable Password: Router# در اﯾﻦ ﻣﻮددﺳﺘﻮرات ﻣﺪﯾﺮﯾﺘﯽ ﺟﻬﺖ ﻧﮕﻬﺪاري ﺳﯿﺴﺘﻢ اﺟﺮا ﻣﯿﺸﻮﻧﺪ ﻣﺎﻧﻨﺪ ﻣﻮرد زﯾﺮ Router#copy running-config startup-config Destination filename [startup-config]? Building configuration... [OK] Router# وارد ﻣﺤﯿﻂ ﭘﯿﮑﺮﺑﻨﺪي وconfigure terminal ﻫﺴﺘﯿﻢ ﺑﺎ وادر ﮐﺮدن دﺳﺘﻮرPriviledge mode ﻫﻨﮕﺎﻣﯽ ﮐﻪ در Acess ﻧﺎم دارد.ﻻزم ﺑﻪ ذﮐﺮ اﺳﺖ اﯾﻦ ﻣﻮد درglobal configuration mode ﺗﻨﻈﯿﻤﺎت ﺳﯿﺴﺘﻢ ﻣﯿﺸﻮﯾﻢ ﮐﻪ . ﻫﺎي ﺳﯿﺴﮑﻮ وﺟﻮد ﻧﺪارد و ﺑﻪ ﻣﺤﺾ ورود ﺑﻪ اﯾﻦ دﺳﺘﮕﺎه ﮐﻠﯿﻪ ﻓﺮاﻣﯿﻦ ﺑﻪ ﻃﻮر ﻣﺴﺘﻘﯿﻢ اﺟﺮا ﺧﻮاﻫﻨﺪ ﺷﺪserver Router#configure terminal Enter configuration commands, one per line. Router(config)# End with CNTL/Z. ﺑﻪ ﺳﻄﺢ ﻣﺘﻔﺎوﺗﯽ از دﺳﺘﻮرات ﭘﯿﮑﺮﺑﻨﺪي دﺳﺘﺮﺳﯽ ﺧﻮاﻫﯿﻢ داﺷﺖglobal configuration mode ﭘﺲ از ورود ﺑﻪ و ﻣﻮارد ﺑﺴﯿﺎري دﯾﮕﺮAccess list ، Vlan، ﻫﻤﭽﻮن ﺗﻨﻈﯿﻤﺎت اﯾﻨﺘﺮﻓﯿﺲ ﻫﺎ Router(config)#interface f0/0 Router(config-if)#router eigrp 1 Router(config-router)#ip access-list extended example_acl_name Router(config-ext-nacl)#line con 0 Router(config-line)# اﺳﺘﻔﺎدهExit از دﺳﺘﻮرuser mode ﺑﻪPrivileged ﺑﺮاي ﺧﺮوج از ﻣﻮد ﺟﺎري و ﺑﺎزﮔﺸﺖ ﺑﻪ ﻣﻮد ﻗﺒﻠﯽ ﻓﺮﺿﺎ از .ﻣﯿﮑﻨﯿﻢ ﻋﻼوه ﺑﺮ دﺳﺘﻮرات ﻣﺨﺘﺺ ﻫﺮ ﻣﻮد ، ﺗﻌﺪادي دﺳﺘﻮر ﺗﺮﮐﯿﺒﯽ ﺑﻪ ﻣﻨﻈﻮر اﯾﺠﺎد ﺗﺴﻬﯿﻞ اﻣﻮر در ﻣﺤﯿﻂ ﻣﺘﻨﯽ ﺗﺎﯾﭗ .دﺳﺘﻮرات وﺟﻮد دارﻧﺪ ﮐﻪ ﺟﺪول آﻧﻬﺎ را در زﯾﺮ ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﺪ Key ESC + F ESC + B ESC + DEL ESC + D ESC + C Page 67 of 290 Result Move insertion point to the beginning of the next word. Move insertion point to the beginning of the current word. Erase previous word. Erase word, or section of a word, following the insertion point. Capitalize letter following the insertion point.
- 69. ESC + U Changenext word or word section to all UPPERCASE letters. ESC + L Change next word or word section to all lowercase letters. CTRL + A Move insertion point to the beginning of the line. CTRL + E Move insertion point to the end of the line. CTRL + Erase entire command line you’re working on (to the insertion point’s left). CTRL + T Transpose previous two characters. CTRL + K Erase from the cursor to the start of the command line. CTRL + R Search the list of commands incrementally based on what you type. Tab Complete the path or filename. UP Arrow List previous commands up. DOWN Arrow List previous commands down. Page 68 of 290
- 70. آزﻣﺎﯾﺶ 6.2 -ﺗﻨﻈﯿﻢ IP Adressروي ﯾﮏ اﯾﻨﺘﺮﻓﯿﺲ در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﻧﺤﻮه ﺗﻨﻈﯿﻢ Ip addressاﯾﻨﺘﺮﻓﯿﺴﻬﺎي ادوات ﺳﯿﺴﮑﻮ از ﻃﺮﯾﻖ Cliآﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ ﺑﻪ ﻋﻨﻮان ﯾﮏ ﻣﺘﺨﺼﺺ آﯾﻨﺪه ﺳﯿﺴﮑﻮ! ﻻزم اﺳﺖ ﺑﺎ ﻧﺤﻮه ﺗﻨﻈﯿﻢ ipروي اﻧﻮاع ﻣﺨﺘﻠﻒ اﯾﻨﺘﺮﻓﯿﺲ ﻫﺎي ادوات ﺳﯿﺴﮑﻮ آﺷﻨﺎ ﺑﺎﺷﯿﺪ.ﺗﺨﺼﯿﺺ IPﺑﻪ ﯾﮏ اﯾﻨﺘﺮﻓﯿﺲ ﺟﺰء اوﻟﯿﻦ اﻟﺰاﻣﺎت راه اﻧﺪازي ادوات ﺳﯿﺴﮑﻮ در ﻣﺤﯿﻄﻬﺎي اﺟﺮاﯾﯽ ﻣﯽ ﺑﺎﺷﺪ ،ذﮐﺮ اﯾﻦ ﻧﮑﺘﻪ ﺣﺎﺋﺰ اﻫﻤﯿﺖ اﺳﺖ ﮐﻪ ﺑﻪ ﯾﮏ اﯾﻨﺘﺮﻓﯿﺲ ﺑﯿﺶ از ﯾﮏ IPﻣﯽ ﺗﻮان ﻣﻨﺘﺴﺐ ﻧﻤﻮد ﭘﯿﺶ ﻧﯿﺎز آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﮐﻨﺴﻮل ﺑﺎ ﯾﮏ روﺗﺮ در ﻣﺤﯿﻂ 3Gns اﻫﺪاف آزﻣﺎﯾﺶ ﺗﺨﺼﯿﺺ 42/452.15.432.01 ﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ 0/0 FastEthernetﺑﻪ ﻋﻨﻮان Primary IP Address ﺗﺨﺼﯿﺺ 42/452.84.72.271 ﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ 0/0 FastEthernetﺑﻪ ﻋﻨﻮان Secondary IP Address ﻓﻌﺎل ﺳﺎزي 0/0FastEthernet ﭼﮏ ﮐﺮدن ﺗﻨﻈﯿﻤﺎت ﺻﻮرت ﮔﺮﻓﺘﻪ روي روﺗﺮ از ﻃﺮﯾﻖ ﺑﺮرﺳﯽ running-configuration دﺳﺘﻮر اﻟﻌﻤﻞ ﺑﺮاي ﺷﺮوع ﺑﻪ ﻣﻮد Global configurationﻫﻤﺎﻧﻄﻮر ﮐﻪ در ﮐﺪ زﯾﺮ ﻧﻤﺎﯾﺶ داده ﺷﺪه اﺳﺖ وارد ﻣﯽ ﺷﻮﯾﻢ Router con0 is now available .Press RETURN to get started .End with CNTL/Z Router>enable :Password Router#configure terminal .Enter configuration commands, one per line #)Router(config 1. ﺗﺨﺼﯿﺺ 42/452.15.432.01 ﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ 0/0 FastEthernetﺑﻪ ﻋﻨﻮان ، Primary IP Addressﺑﺮاي اﯾﻨﮑﺎر ﻻزم اﺳﺖ وارد ﻣﺤﯿﻂ ﭘﯿﮑﺮﺑﻨﺪي اﯾﻨﺘﺮﻓﯿﺲ ﻣﻮرد ﻧﻈﺮ ﺑﻪ ﻗﺮار زﯾﺮ ﺷﻮﯾﻢ. 092 Page 69 of
- 71. Router(config)#interface FastEthernet 0/0 Router(config-if)# .ﺑﻪ ﺷﮑﻞ زﯾﺮ اﺳﺘﻔﺎده ﻣﯽ ﮐﻨﯿﻢip address n.n.n.h s.s.s.m از دﺳﺘﻮرIP ﺑﺮاي ﺗﺨﺼﯿﺺ Router(config-if)#ip address 10.234.51.254 255.255.255.0 Router(config-if)# FastEthernet0/0 ﺑﻪSecondary ip 2. ﺗﺨﺼﯿﺺ ﺑﺪون از ﺳﺮوﯾﺲ ﺧﺎرج ﺷﺪن اﯾﻨﺘﺮﻓﯿﺲ ﯾﺎ دﺳﺘﺮﺳﯽ ﻣﺪﯾﺮﯾﺘﯽIP دوم ﺟﻬﺖ ﻓﺮاﯾﻨﺪﻫﺎي ﺗﻌﻮﯾﺾIP ﻋﻤﻮﻣﺎ از . Mnagement vlan ﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ اﺳﺘﻔﺎده ﻣﯽ ﺷﻮد ﻣﺜﻼ ﺗﻌﻮﯾﺾ در اﻧﺘﻬﺎيSecondary ﺑﺮاي ﺗﮑﻤﯿﻞ ﺑﺨﺶ دوم اﯾﻦ آزﻣﺎﯾﺶ ﻧﯿﺎز اﺳﺖ ﻫﻤﺎن دﺳﺘﻮر ﺑﺎﻻ ﺑﻪ ﻫﻤﺮاه ﻋﺒﺎرت .دﺳﺘﻮر اﺳﺘﻔﺎده ﮐﺮد Router(config-if)#ip address 172.27.48.254 255.255.255.0 secondary Router(config-if)# FastEthernet0/0 3. ﻓﻌﺎل ﺳﺎزي up ﻫﺴﺘﻨﺪ ﺑﺮاي ﻓﻌﺎل وAdministratively Down ﺑﻪ ﻃﻮر ﭘﯿﺶ ﻓﺮض ﻫﻤﻪ اﯾﻨﺘﺮﻓﯿﺴﻬﺎي روﺗﺮ در ﺣﺎﻟﺖ اﺳﺘﻔﺎده ﻣﯽ ﺷﻮدno shut ﮐﺮدن اﯾﻨﺘﺮﻓﯿﺲ از دﺳﺘﻮر Router(config-if)#no shutdown Router(config-if)# %LINK-3-UPDOWN: Interface FastEthernet0/0, changed state to up %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, state to up Router(config-if)# changed running-configuration 4. ﺑﺮرﺳﯽ ﺗﻨﻈﯿﻤﺎت اﻧﺠﺎم ﺷﺪه از ﻃﺮﯾﻖ از ﻃﺮﯾﻖprivileged mode ﺑﺮاي ﻣﺸﺎﻫﺪه ﺗﻨﻈﯿﻤﺎت ﺻﻮرت ﮔﺮﻓﺘﻪ ﭘﺲ از ﺧﺮوج از ﻣﻮد ﻓﻌﻠﯽ و ﺑﺎزﮔﺸﺖ ﺑﻪ را ﻣﺸﺎﻫﺪه ﻣﯽ ﮐﻨﯿﻢFa0/0 ، ﺑﺎ اﺟﺮاي دﺳﺘﻮرات زﯾﺮ ﺗﻨﻈﯿﻤﺎت ﻣﺨﺘﺺCtl+Z ﻓﺸﺮدن Router(config-if)#^Z %SYS-5-CONFIG_I: Configured from console by console Router#show run interface FastEthernet 0/0 Building configuration... Current configuration : 148 bytes ! interface FastEthernet0/0 ip address 172.27.48.254 255.255.255.0 secondary Page 70 of 290
- 72. ip address 10.234.51.254255.255.255.0 duplex auto speed auto end Router# Page 71 of 290
- 73. آزﻣﺎﯾﺶ 7.2- ﭘﯿﮑﺮﺑﻨﺪيﻣﺸﺨﺼﻪ ﻫﺎي وﯾﮋه اﯾﻨﺘﺮﻓﯿﺲ ﻫﺎ در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻢ ﭘﺎراﻣﺘﺮﻫﺎي ﻣﺸﺨﺼﻪ اﯾﻨﺘﺮﻓﯿﺴﻬﺎي روﺗﺮ/ﺳﻮﯾﯿﭻ ﻣﺎﻧﻨﺪ Speed,Duplex,MTUو ﭼﻨﺪ ﻣﻮرد دﯾﮕﺮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ ﺗﻨﻈﯿﻢ ﭘﺎراﻣﺘﺮﻫﺎي ارﺗﺒﺎﻃﯽ ادوات ﺳﯿﺴﮑﻮ اﻣﺮ راﯾﺠﯽ در ﺑﺮﺧﯽ از ﺣﻮزه ﻫﺎي ﺷﺒﮑﻪ ﻣﺜﻞ دﯾﺘﺎﺳﻨﺘﺮﻫﺎ و ﺗﺠﻤﯿﻊ و ﺗﻮزﯾﻊ ﭘﻬﻨﺎي ﺑﺎﻧﺪ ﻣﯽ ﺑﺎﺷﺪ.ﺗﻮﺻﯿﻪ ﻣﯽ ﺷﻮد اﯾﻦ ﺗﻨﻈﯿﻤﺎت ﺑﺮاي اﺗﺼﺎﻻت nodeﺑﻪ nodeﺑﻪ ﻃﻮر دﺳﺘﯽ و nodeﺑﻪ Hostﺑﻪ ﻃﻮر ﺧﻮدﮐﺎر اﻧﺠﺎم ﺷﻮد. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﮐﻨﺴﻮل ﺑﺎ ﯾﮏ روﺗﺮ در ﻣﺤﯿﻂ 3Gns اﻫﺪاف آزﻣﺎﯾﺶ ﺗﻨﻈﯿﻢ ﺳﺮﻋﺖ 0/0 FastEthernetﺑﻪ 100Mbps ﺗﻨﻈﯿﻢ دوﭘﻠﮑﺲ 0/0 FastEthernetﺑﻪ Full ﺗﻨﻈﯿﻢ MTUﺑﻪ 1520 bytes ﺗﻨﻈﯿﻢ ﭘﻬﻨﺎي ﺑﺎﻧﺪ 0/0 FastEthernetﺑﻪ 10Mbps ﺗﻨﻈﯿﻢ ﺗﺎﺧﯿﺮ 0/0 FastEthernetﺑﻪ 10ms ﺗﻨﻈﯿﻢ Mac addressﺑﻪ 9ca02.0adc.0ef ﺗﻨﻈﯿﻢ Keepalives ﺗﻨﻈﯿﻢ CDP دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ 1. اوﻟﯿﻦ ﻫﺪف اﯾﻦ آزﻣﺎﯾﺶ ﺗﻨﻈﯿﻢ ﺳﺮﻋﺖ 0/0 FastEthernetروﺗﺮ ﺑﻪ 100Mbpsاﺳﺖ. اﯾﻨﮑﺎر ﺑﺎ اﺳﺘﻔﺎده از دﺳﺘﻮر speedدر ﻣﻮد interface configurationﺑﻪ ﻗﺮار زﯾﺮ اﻧﺠﺎم ﻣﯿﺸﻮد. 092 Page 72 of
- 74. Router con0 isnow available Press RETURN to get started. Router>enable Password: Router#configure terminal Enter configuration commands, one per line. Router(config)#interface FastEthernet 0/0 Router(config-if)#speed 100 End with CNTL/Z. ﻧﯿﺰ اﻧﺠﺎم ﭘﺬﯾﺮد.اﯾﻦ ﻣﻮرد ﺗﻮﺳﻂ دﺳﺘﻮرduplex 2. ﺗﻮﺻﯿﻪ ﻣﯿﺸﻮد ﭘﺲ از ﺗﻨﻈﯿﻢ ﺳﺮﻋﺖ اﯾﻨﺘﺮﻓﯿﺲ ﺗﻨﻈﯿﻤﺎت . ﺑﻪ ﺷﮑﻞ زﯾﺮ اﻧﺠﺎم ﻣﯽ ﺷﻮدduplex Router(config-if)#duplex ? auto Enable AUTO duplex configuration full Force full duplex operation half Force half-duplex operation Router(config-if)#duplex full ﺳﺮوﮐﺎر دارﯾﻢ ﺑﺴﯿﺎر ﻣﻌﻤﻮل اﺳﺖ ﮐﻪ اﻧﺪازه ﻫﺎيIpsec ﯾﺎ ﺗﺎﻧﻞ ﻫﺎيWAN 3. ﻫﻨﮕﺎﻣﯽ ﮐﻪ ﺑﺎ ﻟﯿﻨﮑﻬﺎي ﻫﺴﺖpacket encapsulation را ﮐﻪ ﺑﯿﺎﻧﮕﺮ ﺣﺪاﮐﺜﺮ ﺳﺎﯾﺰMaximum Transmission Unit (MTU) . ﺑﻪ ﺷﮑﻞ زﯾﺮ اﺳﺘﻔﺎده ﻣﯿﮑﻨﯿﻢMTUرا ﺗﻐﯿﯿﺮ دﻫﯿﻢ.ﺑﺮاي اﯾﻦ ﻣﻨﻈﻮر از دﺳﺘﻮر Router(config-if)#mtu ? <1500-1530> MTU size in bytes Router(config-if)#mtu 1520 ،10Mbps ﺑﻪ ﻋﺪدFastEthernet0/0 4. ﺗﻨﻈﯿﻢ ﭘﻬﻨﺎي ﺑﺎﻧﺪ Bandwidth ﻣﻔﻬﻮم ﭘﻬﻨﺎي ﺑﺎﻧﺪ را ﺑﺎ ﺳﺮﻋﺖ ﮐﻪ در ﺑﻨﺪ اول اﯾﻦ آزﻣﺎﯾﺶ ﺗﻨﻈﯿﻢ ﮐﺮدﯾﻢ اﺷﺘﺒﺎه ﻧﮕﯿﺮﯾﺪ. دﺳﺘﻮر ﺗﻮﺳﻂ ﭘﺮوﺗﮑﻠﻬﺎي روﺗﯿﻨﮓ ﺑﻪ ﻣﻨﻈﻮر ﻣﺤﺎﺳﺒﻪ ﻣﺘﺮﯾﮏ ﻫﺎي ﻣﺴﯿﺮ ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻣﯿﮕﯿﺮد.اﯾﻦ ﻣﻔﻬﻮم در ﻓﺼﻮل آﺗﯽ ﻣﻮرد ﺑﺮرﺳﯽ ﻗﺮار ﺧﻮاﻫﺪ ﮔﺮﻓﺖ Router(config-if)#bandwidth ? <1-10000000> Bandwidth in kilobits inherit Specify that bandwidth is inherited receive Specify receive-side bandwidth Router(config-if)#bandwidth 10000 ، 10000ms 5. ﺗﻨﻈﯿﻢ ﺗﺎﺧﯿﺮ ﻟﯿﻨﮏ ﺑﻪ ﻋﺪد Page 73 of 290
- 75. ﭘﺎراﻣﺘﺮ ﺗﺎﺧﯿﺮ ﻧﯿﺰﻣﺎﻧﻨﺪ ﭘﻬﻨﺎي ﺑﺎﻧﺪ از ﺟﻤﻠﻪ ﻓﺎﮐﺘﻮرﻫﺎي ﻣﻬﻢ در ﻣﺤﺎﺳﺒﺎت ﻣﺘﺮﯾﮏ ﻫﺎي روﺗﯿﻨﮓ ﭘﺮوﺗﮑﻠﻬﺎ اﺳﺖ ﺟﺰﺋﯿﺎت اﯾﻦ ﻣﻔﻬﻮم در ﻓﺼﻮل آﺗﯽ ﻣﻮرد ﺑﺮرﺳﯽ ﻗﺮار ﺧﻮاﻫﺪ ﮔﺮﻓﺖ و در اﯾﻨﺠﺎ ﺻﺮﻓﺎ ﺑﻪ ﺗﻨﻈﯿﻢ ﮐﺮدن آن .ﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ Router(config-if)#delay ? <1-16777215> Throughput delay (tens of microseconds) Router(config-if)#delay 10000 Mac address 6. ﺗﻨﻈﯿﻢ ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮارMac در ﺳﻨﺎرﯾﻮﻫﺎﯾﯽ ﻫﻤﭽﻮن اﺣﺮاز ﻫﻮﯾﺖ ﺑﺮ اﺳﺎسMac address ﺗﻐﯿﯿﺮ و ﺗﻨﻈﯿﻢ اﻣﮑﺎن ﭘﺬﯾﺮ اﺳﺖMac ﻣﯿﮕﯿﺮد.اﻧﺠﺎم اﯾﻦ ﺗﻐﯿﯿﺮ ﺑﺎ اﺳﺘﻔﺎده از دﺳﺘﻮر Router(config-if)#mac ? H.H.H MAC address Router(config-if)#mac ca02.0adc.0ef9 interface ﺑﺮاي ﭼﮏ ﮐﺮدن ﺗﻨﻈﯿﻤﺎت ﺻﻮرت ﮔﺮﻓﺘﻪ روي اﯾﻨﺘﺮﻓﯿﺲ ﻣﻮرد آزﻣﺎﯾﺶ ﺗﺎ اﯾﻨﺠﺎ ﺑﺪون ﺧﺎرج ﺷﺪن از ﻣﻮد ﺑﻪ ﺷﮑﻞ زﯾﺮ اﺳﺘﻔﺎده ﻣﯽ ﮐﻨﯿﻢdo show interface fastethernet0/0 از دﺳﺘﻮرconfiguration Router(config-if)#do show interface FastEthernet 0/0 FastEthernet0/0 is up, line protocol is up Hardware is i82543 (Livengood), address is ca02.0adc.0ef9 ca02.0adc.0008) Internet address is 10.234.51.254/24 MTU 1500 bytes, BW 100000 Kbit/sec, DLY 100 usec, reliability 255/255, txload 1/255, rxload 1/255 Encapsulation ARPA, loopback not set Keepalive set (10 sec) Full-duplex, 100Mb/s, 100BaseTX/FX ARP type: ARPA, ARP Timeout 04:00:00 Last input never, output 00:00:01, output hang never Last clearing of "show interface" counters never Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0 Queueing strategy: fifo Output queue: 0/40 (size/max) 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec 0 packets input, 0 bytes Received 0 broadcasts, 0 runts, 0 giants, 0 throttles 0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored 0 watchdog 0 input packets with dribble condition detected 663 packets output, 69307 bytes, 0 underruns 0 output errors, 0 collisions, 2 interface resets 0 unknown protocol drops (bia Page 74 of 290
- 76. 0 babbles, 0late collision, 0 deferred 0 lost carrier, 0 no carrier 0 output buffer failures, 0 output buffers swapped out #)Router(config-if 7. ﻏﯿﺮ ﻓﻌﺎل ﮐﺮدن Keepalives Keepaliveﯾﮏ ﻓﺮﯾﻢ ﻻﯾﻪ دو اﺳﺖ ﮐﻪ از اﯾﻨﺘﺮﻓﯿﺲ دﺳﺘﮕﺎه اول ﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ دﺳﺘﮕﺎه آﻧﺴﻮي ﻟﯿﻨﮏ ارﺳﺎل ﻣﯽ ﺷﻮد ﺗﺎ از ﺑﺮﻗﺮاري ﻟﯿﻨﮏ ﻓﯽ ﻣﺎﺑﯿﻦ اﻃﻤﯿﻨﺎن ﺣﺎﺻﻞ ﺷﻮد.در ﺻﻮرﺗﯿﮑﻪ از آﻧﺴﻮي ﻟﯿﻨﮏ ﻓﺮﯾﻢ ﻣﺸﺎﺑﻪ ارﺳﺎﻟﯽ درﯾﺎﻓﺖ ﻧﺸﻮد ﺑﻪ ﻣﻌﻨﺎي downﺷﺪن اﯾﻨﺘﺮﻓﯿﺲ اﺳﺖ.اﯾﻦ ﻓﺮﯾﻢ ﺑﻪ ﻃﻮر ﭘﯿﺶ ﻓﺮض ﻫﺮ 01 ﺛﺎﻧﯿﻪ ﯾﮑﺒﺎر ارﺳﺎل ﻣﯽ ﺷﻮد.ﺑﺮاي ﻏﯿﺮ ﻓﻌﺎل ﮐﺮدن آن اﯾﻦ ﻋﺪد ﺑﻪ ﺻﻔﺮ ﺗﻐﯿﯿﺮ داده ﻣﯽ ﺷﻮد. ? Router(config-if)#keepalive )<0-32767> Keepalive period (default 10 seconds 0 Router(config-if)#keepalive 8. ﻏﯿﺮ ﻓﻌﺎل ﮐﺮدن CDP CDPﭘﺮوﺗﮑﻞ ﻻﯾﻪ دو اﺳﺖ ﮐﻪ ﺑﻪ ﺟﺎﺑﺠﺎﯾﯽ ﻣﺸﺨﺼﺎت رﯾﺰو درﺷﺖ ادوات ﺳﯿﺴﮑﻮ در ﯾﮏ ﺳﮕﻤﻨﺖ از ﺷﺒﮑﻪ ﻣﯽ ﭘﺮدازد.ﻫﻨﮕﺎﻣﯽ ﮐﻪ دو دﺳﺘﮕﺎه روﺗﺮ را ﺑﻪ ﺻﻮرت ﻣﺴﺘﻘﯿﻢ ﺑﻪ ﻫﻢ ﻣﺘﺼﻞ ﻣﯿﮑﻨﯿﻢ ﺷﺮوع ﺑﻪ ارﺳﺎل و درﯾﺎﻓﺖ ﻓﺮﯾﻤﻬﺎي CDPروي ﮐﻠﯿﻪ ﭘﻮرﺗﻬﺎي ﺧﻮد ﻣﯽ ﮐﻨﻨﺪ )ﺑﻪ ﺟﺰ .(Framerelayﺑﺮاي ﻏﯿﺮ ﻓﻌﺎل ﮐﺮدن آن روي ﯾﮏ اﯾﻨﺘﺮﻓﯿﺲ ﺧﺎص از دﺳﺘﻮر no cdpاﺳﺘﻔﺎده ﻣﯿﺸﻮد Router(config-if)#no cdp enable ﺗﺎ اﯾﻨﺠﺎ ﺗﻨﻈﯿﻤﺎت اﯾﻨﺘﺮﻓﯿﺲ ﺑﻪ اﺗﻤﺎم رﺳﯿﺪ.اﮐﻨﻮن ﺑﺮاي ﭼﮏ ﮐﺮدن و ﻣﺸﺎﻫﺪه ﮐﺎﻧﻔﯿﮕﻬﺎي ﺻﻮرت ﮔﺮﻓﺘﻪ روي 0/0Fa ﺑﺪون ﺧﺎرج ﺷﺪن از ﻣﻮد ﺟﺎري ﺑﻪ ﺷﮑﻞ زﯾﺮ ﻋﻤﻞ ﻣﯿﮑﻨﯿﻢ 0/0Router(config-if)#do show run interface FastEthernet ...Building configuration Current configuration : 245 bytes ! 0/0interface FastEthernet 9mac-address ca02.0adc.0ef 0251 mtu 00001 bandwidth ip address 172.27.48.254 255.255.255.0 secondary 0.552.552.552 452.15.432.01 ip address 00001 delay 092 Page 75 of
- 77. duplex full speed 100 nokeepalive no cdp enable end Router(config-if)# Page 76 of 290
- 78. آزﻣﺎﯾﺶ 8.2 -ﭘﯿﮑﺮﺑﻨﺪي Loopback interface در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻌﺮﯾﻒ و ﺗﻨﻈﯿﻢ loopback interfaceروي روﺗﺮﻫﺎي ﺳﯿﺴﮑﻮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ اﯾﻨﺘﺮﻓﯿﺲ ﻫﺎي ﻟﻮپ ﺑﮏ ﺑﻪ ﻋﻨﻮان اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ﻫﻤﯿﺸﻪ UPدر ﺳﻨﺎرﯾﻮﻫﺎي ﻣﺘﻌﺪدي ﻫﻤﭽﻮن management Dynamic routing ،Process Router id ، tunnel source/destination ،interfaceو ﺑﺮﺧﯽ ﻣﻮارد دﯾﮕﺮ ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻣﯽ ﮔﯿﺮﻧﺪ ﭘﯿﺶ ﻧﯿﺎز ﻫﺎي آزﻣﺎﯾﺶ راه اﻧﺪازي ﯾﮏ روﺗﺮ در ﻣﺤﯿﻂ 3 Gnsو ﺑﺮﻗﺮاري ارﺗﺒﺎط ﮐﻨﺴﻮل ﺑﺎ آن اﻫﺪاف آزﻣﺎﯾﺶ اﯾﺠﺎد اﯾﻨﺘﺮﻓﯿﺲ 1 loopbackو ﺗﺨﺼﯿﺺ آدرس 0.552.552.552 152.12.332.01 ﺑﻪ آن ﺣﺬف اﯾﻨﺘﺮﻓﯿﺲ 1 loopback دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ ﻟﻮپ ﺑﮏ اﯾﻨﺘﺮﻓﯿﺲ، اﯾﻨﺘﺮﻓﯿﺴﯽ ﻧﺮم اﻓﺰاري و ﻫﻤﻮاره upﻣﺤﺴﻮب ﻣﯿﺸﻮد . ﺑﻪ ﻫﯿﭻ ﯾﮏ از اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ﻓﯿﺰﯾﮑﯽ واﺑﺴﺘﻪ ﻧﯿﺴﺘﻨﺪ ﺑﻪ ﻫﻤﯿﻦ ﺟﻬﺖ ﻫﯿﭻ ﮔﺎه downﻧﻤﯿﺸﻮﻧﺪ ﻣﮕﺮ ﺑﻪ ﻃﻮر دﺳﺘﯽ و از ﻃﺮﯾﻖ دﺳﺘﻮر. ﺑﺮاي اﯾﺠﺎد ﻟﻮپ ﺑﮏ ﺟﺪﯾﺪ ﻧﯿﺎز اﺳﺖ ﺗﺎ در ﻣﻮد global configurationاز دﺳﺘﻮر # loopbackاﺳﺘﻔﺎده ﺷﻮد ﻣﺎﻧﻨﺪ ﮐﺪ زﯾﺮ Router con0 is now available .Press RETURN to get started .End with CNTL/Z Router>enable :Password Router#configure terminal .Enter configuration commands, one per line ? Router(config)#interface loopback <0-2147483647> Loopback interface number 1 Router(config)#interface loopback %LINEPROTO-5-UPDOWN: Line protocol on Interface Loopback1, changed state to up #)Router(config-if 092 Page 77 of
- 79. ﻫﻤﺎﻧﻄﻮر ﮐﻪ دﯾﺪمﺑﻪ ﻣﺤﺾ اﯾﺠﺎد اﯾﻨﺘﺮﻓﯿﺲ در ﺣﺎﻟﺖ upﻗﺮار ﮔﺮﻓﺖ.اﮐﻨﻮن ﻧﻮﺑﺖ ﺑﻪ ipدﻫﯽ ﺑﻪ اﯾﻦ ﻧﻮزاد ﺗﺎزه ﻣﺘﻮﻟﺪ ﺷﺪه ﻣﯽ رﺳﺪ. از دﺳﺘﻮر زﯾﺮ ﺑﺮاي اﯾﻨﮑﺎر اﺳﺘﻔﺎده ﻣﯿﮑﻨﯿﻢ 0.552.552.552 152.12.332.01 Router(config-if)#ip address 2. دوﻣﯿﻦ ﺑﺨﺶ اﯾﻦ آزﻣﺎﯾﺶ ﺣﺬف اﯾﻨﺘﺮﻓﯿﺲ اﯾﺠﺎد ﺷﺪه اﺳﺖ. ﺑﺮاي اﻧﺠﺎم اﯾﻨﮑﺎر از ﻋﺒﺎرت noﭘﺸﺖ ﺳﺮ دﺳﺘﻮر اﯾﺠﺎد اﯾﻨﺘﺮﻓﯿﺲ ﻣﻮرد ﻧﻈﺮ اﺳﺘﻔﺎده ﻣﯿﮑﻨﯿﻢ. 1 Router(config-if)#no interface loopback % Not all config may be removed and may reappear after reactivating the logical-interface/sub-interfaces #)Router(config %LINK-5-CHANGED: Interface Loopback1, changed state to administratively down %LINEPROTO-5-UPDOWN: Line protocol on Interface Loopback1, changed state to down ﺑﻪ ﻣﺠﺮد اﯾﻨﮑﻪ اﯾﻨﺘﺮﻓﯿﺲ ﺣﺬف ﻣﯿﺸﻮد ﭘﯿﻐﺎﻣﯽ ﻣﺒﻨﯽ ﺑﺮ اﯾﻨﮑﻪ ﺗﻨﻈﯿﻤﺎت ﻣﺮﺗﺒﻂ ﺑﺎ اﯾﻨﺘﺮﻓﯿﺲ ﺣﺬف ﺷﺪه از ﺳﯿﺴﺘﻢ ﭘﺎك ﻧﻤﯿﺸﻮد و دوﺑﺎره ﺑﺎ ﻓﻌﺎل ﺷﺪن اﯾﻨﺘﺮﻓﯿﺲ ﺑﺎز ﺧﻮاﻫﻨﺪ ﮔﺸﺖ ﻧﻤﺎﯾﺎن ﻣﯽ ﺷﻮد.اﯾﻦ ﺑﺪان ﻣﻌﻨﺎﺳﺖ ﮐﻪ ﻫﻨﮕﺎم اﯾﺠﺎد ﻣﺠﺪد اﯾﻨﺘﺮﻓﯿﺲ ﭘﺎك ﺷﺪه ﻣﻤﮑﻦ اﺳﺖ ﺑﺮﺧﯽ ﺗﻨﻈﯿﻤﺎت ﻗﺪﯾﻤﯽ ﻣﺮﺑﻮط ﺑﻪ آن اﯾﻨﺘﺮﻓﯿﺲ ﻗﺪﯾﻤﯽ ﻣﺠﺪدا ﻇﺎﻫﺮ ﺷﻮد!! در ﺻﻮرت ﻣﺸﺎﻫﺪه ﭼﻨﯿﻦ ﻣﺸﮑﻠﯽ ﺑﺎ رﯾﻠﻮد ﮐﺮدن روﺗﺮ ﺑﺮ ﻃﺮف ﻣﯽ ﺷﻮد. 092 Page 78 of
- 80. آزﻣﺎﯾﺶ 9.2 –ﺑﻪ روز رﺳﺎﻧﯽ IOS در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺑﻪ روز رﺳﺎﻧﯽ IOSروﺗﺮﻫﺎ و ﺳﻮﯾﯿﭽﻬﺎي ﺳﯿﺴﮑﻮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ ﮐﺎرﺑﺮد ﻋﻤﻠﯽ از آﻧﺠﺎﯾﯽ ﮐﻪ ﺗﻘﺮﯾﺒﺎ ﻫﺮ 3 ﻣﺎه ﯾﮑﺒﺎر ﻧﺴﺨﻪ ﺟﺪﯾﺪي از IOSﺗﻮﺳﻂ ﮐﻤﭙﺎﻧﯽ ﺳﯿﺴﮑﻮ اراﺋﻪ ﻣﯿﺸﻮد ﺑﻪ روزرﺳﺎﻧﯽ آن روي ادوات ﺳﯿﺴﮑﻮ اﻣﺮي راﯾﺞ ﺑﯿﻦ ﻣﻬﻨﺪﺳﯿﻦ ﺷﺒﮑﻪ ﻣﺤﺴﻮب ﻣﯿﺸﻮد.ﻧﺴﺨﻪ ﻫﺎي ﺟﺪﯾﺪ ﺷﺎﻣﻞ وﯾﮋﮔﯿﻬﺎي ﺟﺪﯾﺪ ﻣﺨﺘﺺ آن ﭘﻠﺘﻔﺮم ﻫﻤﯿﻨﻄﻮر ﺑﺎﮔﻬﺎي ﺑﺮﻃﺮف ﺷﺪه ﻫﺴﺘﻨﺪ. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري اﺗﺼﺎل ﮐﻨﺴﻮل ﺑﻪ ﯾﮏ روﺗﺮ در ﻣﺤﯿﻂ 3 – GNSﺗﺮﺟﯿﺤﺎ روﺗﺮ واﻗﻌﯽ ﺗﻬﯿﻪ ﻧﺴﺨﻪ ﺟﺪﯾﺪ ﺗﺮي از IOSﻣﺮﺑﻮط ﺑﻪ روﺗﺮ راه اﻧﺪازي TFPFﺳﺮور اﻫﺪاف آزﻣﺎﯾﺶ داﻧﻠﻮد و ﻧﺼﺐ tftpﺳﺮور ﻗﺮار دادن iosدر Tftp server root ﺗﻨﻈﯿﻢ آدرس Tftpو روﺗﺮ ﺑﻪ ﮔﻮﻧﻪ اي ﮐﻪ از ﯾﮏ subnetﺑﺎﺷﻨﺪ ﻣﺜﻼ 42/2.1.1.01 & 42/1.1.1.01 اﻃﻤﯿﻨﺎن از ﺑﺮﻗﺮاري اﺗﺼﺎل اﺗﺮﻧﺖ ﻣﺎﺑﯿﻦ Tftpﺳﺮور و روﺗﺮ ﮐﭙﯽ image fileاز Tftp serverﺑﻪ روﺗﺮ رﯾﺒﻮت ﮐﺮدن دﺳﺘﮕﺎه ﭘﺲ از ﺣﺼﻮل اﻃﻤﯿﻨﺎن از ﮐﭙﯽ ﺷﺪن iosﺟﺪﯾﺪ دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ ﻧﮑﺘﻪ:ﺑﻬﺘﺮ اﺳﺖ اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ادوات واﻗﻌﯽ اﻧﺠﺎم ﺷﻮد ، ﺑﻪ دﻟﯿﻞ اﯾﻨﮑﻪ 3 GNSﻧﻤﯿﺘﻮاﻧﺪ از imageﺟﺪﯾﺪ ﮐﭙﯽ ﺷﺪه ﺑﻪ flashﺑﻮت ﺷﻮد. 1. ﺑﻪ ﻣﻨﻈﻮر ﺑﺮوزرﺳﺎﻧﯽ ﺳﯿﺴﺘﻢ ﻋﺎﻣﻞ روﺗﺮ ﻗﺒﻞ از ﻫﺮﭼﯿﺰ ﺑﻪ ﯾﮏ Tftp serverﺑﻪ ﻫﻤﺮاه اﺗﺼﺎل ﮐﺮاس ﺑﻪ ﺳﻮﯾﯿﭻ ﯾﺎ اﺗﺼﺎل straightﺑﻪ ﺳﻮﯾﯿﭻ ﺳﭙﺲ ﺑﻪ روﺗﺮ ﻧﯿﺎز دارﯾﻢ.ﺑﺮاي ﺗﻨﻈﯿﻢ ipدو ﻃﺮف ارﺗﺒﺎط از ﯾﮏ ﺳﺎﺑﻨﺖ ﻣﺸﺘﺮك اﺳﺘﻔﺎه ﻣﯿﮑﻨﯿﻢ، 42/1.1.1.01 ﺑﻪ PCو 42/2.1.1.01ﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ اﺗﺮﻧﺖ روﺗﺮ ﮐﻪ ﺑﻪ PCﻣﺘﺼﻞ اﺳﺖ ﻣﻨﺘﺴﺐ ﻣﯿﺸﻮﻧﺪ. 092 Page 79 of
- 81. Router con0 isnow available Press RETURN to get started. Router>enable Password: Router#configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)#interface fastethernet 0/0 Router(config-if)#ip address 10.1.1.2 255.255.255.0 Router(config-if)#no shutdown Router(config-if)#end Router# ﺑﻪ ﺷﮑﻞ زﯾﺮ اﺳﺘﻔﺎده ﻣﯿﮑﻨﯿﻢping 2. ﺑﺮاي اﻃﻤﯿﻨﺎن از ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت و ﺑﺮﻗﺮاري اﺗﺼﺎل ﻓﯿﺰﯾﮑﯽ از دﺳﺘﻮر Router#ping 10.1.1.1 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms Router# ﺟﺪﯾﺪ ﺑﻪ ﻓﻠﺶ ﻣﻤﻮري روﺗﺮ ﻣﯿﺮﺳﺪ.ﺑﺎimage و روﺗﺮ ﻧﻮﺑﺖ ﺑﻪ ﮐﭙﯽPC ﭘﺲ از ﺣﺼﻮل اﻃﻤﯿﻨﺎن از ﺑﺮﻗﺮاري اﺗﺼﺎل ﻣﺎﺑﯿﻦ ﻓﺎﯾﻞ روﺑﺮو ﺧﻮاﻫﯿﻢimage ﺳﺮور و ﻧﺎمTftp ﺑﺎ ﭘﯿﺎﻣﯽ ﻣﺒﻨﯽ ﺑﺮ ﻣﺸﺨﺺ ﮐﺮدن آدرسcopy tftp flash اﺟﺮاي دﺳﺘﻮر ﺷﺪ Router#copy tftp flash Address or name of remote host []? 10.1.1.1 Source filename []? c2600-adventerprisek9-mz.124-15.T11.bin Destination filename [c2600-adventerprisek9-mz.124-15.T11.bin]? Accessing tftp://10.1.1.1/c2600-adventerprisek9-mz.124-15.T11.bin... Erase flash: before copying? [confirm] Erasing the flash filesystem will remove all files! Continue? [confirm] Erasing device... eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee ...erased Erase of flash: complete Loading c2600-adventerprisek9-mz.124-15.T11.bin from 10.1.1.1 (via FastEthernet0/0): !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! [OK - 34634180 bytes] Verifying checksum... CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC OK (0x8E89) 34634180 bytes copied in 486.894 secs (71133 bytes/sec) Router# Page 80 of 290
- 82. در ﻓﺮاﯾﻨﺪﺑﻮت دﭼﺎر ﻣﺸﮑﻞ ﺷﺪ وIOS ﻓﺎﯾﻞ ﺟﺪﯾﺪ روﺗﺮ را رﯾﺴﺖ ﻣﯿﮑﻨﯿﻢ ، در ﺻﻮرﺗﯿﮑﻪimage ﭘﺲ از ﮐﭙﯽ ﺷﺪن .ﺳﯿﺴﺘﻢ ﺑﻮت ﻧﺸﺪ از ﻓﺮاﯾﻨﺪ رﯾﮑﺎوري درس ﺑﻌﺪي اﺳﺘﻔﺎده ﺧﻮاﻫﯿﻢ ﮐﺮد Router#reload System configuration has been modified. Save? [yes/no]: no Proceed with reload? [confirm] %SYS-5-RELOAD: Reload requested by console. Reload Reason: Reload Command. System Bootstrap, Version 12.2(8r) [cmong 8r], RELEASE SOFTWARE (fc1) Copyright (c) 2003 by cisco Systems, Inc. C2600 platform with 262144 Kbytes of main memory program load complete, entry point: 0x80008000, size: 0x2107824 Self decompressing the image : ################################################# ############################################################################# ### ############################################################################# ### ############################################################################# ### ################################### [OK] Smart Init is enabled smart init is sizing iomem ID MEMORY_REQ 00036F 0X00103980 000065 0X00031500 0X00098670 0X00211000 TOTAL: 0X003DE4F0 TYPE C2651XM Dual Fast Ethernet Four port Voice PM public buffer pools public particle pools If any of the above Memory Requirements are "UNKNOWN", you may be using an unsupported configuration or there is a software problem and system operation may be compromised. Rounded IOMEM up to: 3Mb. Using 1 percent iomem. [3Mb/256Mb] Increasing IOMEM up to: 8Mb Restricted Rights Legend Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c) of the Commercial Computer Software - Restricted Rights clause at FAR sec. 52.227-19 and subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS sec. 252.227-7013. cisco Systems, Inc. 170 West Tasman Drive San Jose, California 95134-1706 Page 81 of 290
- 83. Cisco IOS Software,C2600 Software (C2600-ADVENTERPRISEK9-M), 12.4(15)T11, RELEASE SOFTWARE (fc2) Technical Support: http://www.cisco.com/techsupport Copyright (c) 1986-2009 by Cisco Systems, Inc. Compiled Wed 28-Oct-09 18:16 by prod_rel_team Image text-base: 0x800080F8, data-base: 0x83594B3C Version This product contains cryptographic features and is subject to United States and local country laws governing import, export, transfer and use. Delivery of Cisco cryptographic products does not imply third-party authority to import, export, distribute or use encryption. Importers, exporters, distributors and users are responsible for compliance with U.S. and local country laws. By using this product you agree to comply with applicable laws and regulations. If you are unable to comply with U.S. and local laws, return this product immediately. A summary of U.S. laws governing Cisco cryptographic products may be found at: http://www.cisco.com/wwl/export/crypto/tool/stqrg.html If you require further assistance please contact us by sending email to export@cisco.com. Cisco 2651XM (MPC860P) processor (revision 2.0) with 253952K/8192K bytes of memory. Processor board ID JAE08030QZL M860 processor: part number 5, mask 2 2 FastEthernet interfaces 2 Serial interfaces 32K bytes of NVRAM. 49152K bytes of processor board System flash (Read/Write) Slot is empty or does not support clock participate WIC slot is empty or does not support clock participate Press RETURN to get started! Page 82 of 290
- 84. آزﻣﺎﯾﺶ 01.2- ﺑﺎزﯾﺎﺑﯽ iosﺗﺨﺮﯾﺐ ﺷﺪه در روﺗﺮﻫﺎي 0052 در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ اﺣﯿﺎء iosﻫﺎي ﺗﺨﺮﯾﺐ ﺷﺪه در روﺗﺮﻫﺎي ﺳﺮي 0052 آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ.ﻧﮑﺎت اﯾﻦ درس در ﻣﻮرد ﺳﺮي ﻫﺎي 0003 و 0015 ASو 009 uBRﻧﯿﺰ ﺻﺎدق اﺳﺖ ﮐﺎرﺑﺮد ﻋﻤﻠﯽ ﺑﺎ اﯾﻨﮑﻪ ﺳﺮي 0052 ﻋﻤﻼ ﺟﺰ ﺳﺮﯾﻬﺎي ﻣﻨﺴﻮخ ﺷﺪه ﺑﻪ ﺣﺴﺎب ﻣﯽ آﯾﺪ اﻣﺎ اﺳﺘﻔﺎه از آن در ﻣﺤﯿﻄﻬﺎي آزﻣﺎﯾﺸﮕﺎﻫﯽ ﮐﻤﺎﮐﺎن راﯾﺞ اﺳﺖ.ﻗﻄﻌﺎ اﻣﺮوزه ﮐﺴﯽ ﺑﻪ ﻓﮑﺮ ﺑﺮوزرﺳﺎﻧﯽ ﺳﺮي 0052 ﮐﻪ آپ ﺗﺎﯾﻢ ﻧﺰدﯾﮏ ﺑﻪ 8 ﺳﺎل دارد ﻧﻤﯽ اﻓﺘﺪ ! ﭼﺮا ﺑﺎﯾﺪ ﺳﯿﺴﺘﻤﯽ را ﮐﻪ ﺑﻪ اﯾﻦ ﺧﻮﺑﯽ در ﺣﺎل اﻧﺠﺎم وﻇﯿﻔﻪ اﺳﺖ را ﺗﻐﯿﺮ داد؟ دﻧﺒﺎل ﭼﻪ ﭼﯿﺰ ﺑﯿﺸﺘﺮي ﻫﺴﺘﯿﻢ ؟ ﺳﻠﺴﻠﻪ ﻧﮑﺎت زﯾﺮ ﻣﻮاﻗﻌﯽ ﮐﺎرﺑﺮد دارﻧﺪ ﮐﻪ روﺗﺮ ﺑﺎزﻧﺸﺴﺘﻪ ﻣﺎ در ﺑﻮت اﺧﯿﺮ ﺧﻮد دﭼﺎر ﻣﺸﮑﻞ ﺷﺪه و ﺑﺎﻻ ﻧﻤﯽ آﯾﺪ ﻫﻤﯿﻨﻄﻮر ﻫﻨﮕﺎﻣﯽ ﮐﻪ روﺗﺮﻫﺎي دﺳﺖ دوم ﺑﺎ ﻓﻠﺶ ﭘﺎك ﺷﺪه از ﺑﺎزار ﺧﺮﯾﺪاري ﻣﯽ ﺷﻮﻧﺪ. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﯾﮏ دﺳﺘﮕﺎه روﺗﺮ 0052 ﺑﺪون IOSﯾﺎ ﺑﺎ IOSﺧﺮاب . ﻣﯿﺘﻮان ﺑﺎ eraseﮐﺮدن ﻓﻠﺶ اﯾﻦ ﺣﺎﻟﺖ را اﯾﺠﺎد ﮐﺮد! اﺗﺼﺎل ﮐﻨﺴﻮل ﺑﻪ روﺗﺮ Tftpﺳﺮور ﻓﻌﺎل اﻫﺪاف آزﻣﺎﯾﺶ ﺑﻮت ﺑﻪ ﻣﺤﯿﻂ ROM modeاز ﻃﺮﯾﻖ ﻧﮕﻬﺪاﺷﺘﻦ ﮐﻠﯿﺪﻫﺎي CTRL+Pauseﻃﯽ ﻓﺮاﯾﻨﺪ ﺑﻮت ﺗﻐﯿﯿﺮ configuration registerﺑﻪ 1412×0 ﺟﻬﺖ ﺑﻮت ﺳﯿﺴﺘﻢ از ﻃﺮﯾﻖ ROM ﭘﯿﮑﺮﺑﻨﺪي اوﻟﯿﻪ روﺗﺮ ﺗﺨﺼﯿﺺ ipﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ روﺗﺮ ﮐﭙﯽ iosاز Tftpﺳﺮور ﺑﻪ ﻓﻠﺶ روﺗﺮ ﺗﻐﯿﯿﺮ configuration registerﺑﻪ ﻣﻘﺪار ﻗﺒﻠﯽ و رﯾﺒﻮت روﺗﺮ . دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ 1. ﺑﺎ ﻓﺸﺮدن CTRL+Pauseﻃﯽ ﻓﺮاﯾﻨﺪ ﺑﻮت وارد ﻣﺤﯿﻂ Rom modeﻣﯿﺸﻮﯾﻢ . ﺧﻂ ﻓﺮﻣﺎن اﮐﻨﻮن ﺑﻪ ﺣﺎﻟﺖ زﯾﺮ اﺳﺖ 092 Page 83 of
- 85. Copyright (c) 1986-1996by cisco Systems 2500 processor with 14336 Kbytes of main memory Abort at 0x10CFA0A (PC) > ﺑﻪRom boot image را ﺑﻪ ﻣﻨﻈﻮر ﺑﻮت ﺷﺪن ﺑﻌﺪي از ﻃﺮﯾﻖconfiguration register 2. ﻣﺤﺘﻮاي 1412×0 ﺗﻐﯿﯿﺮ ﻣﯽ دﻫﯿﻢ >o/r 0x2141 . ﻣﯽ ﺷﻮدInitialize روﺗﺮ وارد ﭘﺮوﺳﻪi 3. ﺑﺎ وارد ﮐﺮدن ﻓﺮﻣﺎن >I System Bootstrap, Version 11.0(10c), SOFTWARE Copyright (c) 1986-1996 by cisco Systems 2500 processor with 14336 Kbytes of main memory [OUTPUT TRUNCATED] Press RETURN to get started! ﺳﺮور ﻧﺴﺒﺖ ﻣﯽ دﻫﯿﻢTftp ﺟﻬﺖ اﺗﺼﺎل ﺑﻪip 4. در اﯾﻦ ﻣﺮﺣﻠﻪ ﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ روﺗﺮ Press RETURN to get started! Router(boot)>enable Router(boot)#config t Router(boot)(config)#interface e0 Router(boot)(config-if)#ip add 10.1.1.20 255.255.255.0 Router(boot)(config-if)#no shut Router(boot)(config-if)#exit ****NOTE: The line below is optional if your TFTP server is not on the same network**** Router(boot)(config)#ip default-gateway 10.1.1.254 Router(boot)(config)#end . ﺑﻪ ﻓﻠﺶ ﻣﻤﻮري روﺗﺮ ﮐﭙﯽ ﻣﯿﮑﻨﯿﻢTftp را ازIOS Image 5. اﮐﻨﻮن Router(boot)#copy tftp flash System flash directory: No files in System flash Page 84 of 290
- 86. [0 bytes used,8388608 available, 8388608 total] Address or name of remote host [255.255.255.255]? 172.16.20.17 Source file name? c2500-i-l.121-27b.bin Destination file name [c2500-i-l.121-27b.bin]? Accessing file 'c2500-i-l.121-27b.bin' on 10.1.1.1... Loading c2500-i-l.121-27b.bin from 172.16.20.17 (via Ethernet0): ! [OK] Erase flash device before writing? [confirm] Copy 'c2500-i-l.121-27b.bin' from server as 'c2500-i-l.121-27b.bin' into Flash WITH erase? [yes/no]y Erasing device... eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee ...erased Loading c2500-i-l.121-27b.bin from 172.16.20.17 (via Ethernet0): !!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!! [OUTPUT TRUNCATED] !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!! [OK - 8040260/8388608 bytes] Verifying checksum... OK (0xCB96) Flash copy took 0:03:58 [hh:mm:ss] Router(boot)# را ﺑﻪ ﻣﻘﺪار اوﻟﯿﻪ ﺑﺮ ﻣﯽ ﮔﺮداﻧﯿﻢ و روﺗﺮConfiguration register ﻣﺤﺘﻮايIOS 6. ﭘﺲ از ﮐﭙﯽ ﻣﻮﻓﻘﯿﺖ آﻣﯿﺰ .را رﯾﺒﻮت ﻣﯽ ﮐﻨﯿﻢ ﺑﻪ اﻣﯿﺪ اﯾﻨﮑﻪ اﯾﻨﺒﺎر ﺑﺎﻻ ﺧﻮاﻫﺪ آﻣﺪ Router(boot)#configure terminal Router(boot)(config)#configuration-register 0x2102 Router(boot)(config)#end Router(boot)#reload System configuration has been modified. Save? [yes/no]: n Proceed with reload? [confirm] 00:06:51: %SYS-5-RELOAD: Reload requested System Bootstrap, Version 11.0(10c), SOFTWARE Copyright (c) 1986-1996 by cisco Systems 2500 processor with 14336 Kbytes of main memory Notice: NVRAM invalid, possibly due to write erase. F3: 7916604+123624+619980 at 0x3000060 Restricted Rights Legend Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c) of the Commercial Computer Software - Restricted Page 85 of 290
- 87. Rights clause atFAR sec. 52.227-19 and subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS sec. 252.227-7013. cisco Systems, Inc. 170 West Tasman Drive San Jose, California 95134-1706 Cisco Internetwork Operating System Software IOS (tm) 2500 Software (C2500-I-L), Version 12.1(27b), RELEASE SOFTWARE (fc1) Copyright (c) 1986-2005 by cisco Systems, Inc. Compiled Tue 16-Aug-05 22:38 by pwade Image text-base: 0x03041FDC, data-base: 0x00001000 cisco 2500 (68030) processor (revision N) with 14336K/2048K bytes of memory. Processor board ID 11848462, with hardware revision 00000000 Bridging software. X.25 software, Version 3.0.0. 1 Ethernet/IEEE 802.3 interface(s) 2 Serial network interface(s) 32K bytes of non-volatile configuration memory. 8192K bytes of processor board System flash (Read ONLY) --- System Configuration Dialog --Would you like to enter the initial configuration dialog? [yes/no]: 7. ﺧﻮب ﺗﺎ اﯾﻨﺠﺎ روﺗﺮ ﺑﺎﻻ اﻣﺪ اﻣﺎ ﺑﺪون ﻫﯿﭻ ﮔﻮﻧﻪ اﺛﺮي از ﺗﻨﻈﯿﻤﺎت ﻗﺒﻠﯽ . اﮔﺮ از ﺗﻨﻈﯿﻤﺎت ﻗﺒﻠﯽ ﭘﺸﺘﯿﺒﺎن ﺗﻬﯿﻪ .ﮐﺮده اﯾﺪ ﮐﻪ ﻫﯿﭻ ، اﮔﺮ ﻧﮑﺮده اﯾﺪ ﺑﻬﺘﺮ اﺳﺖ رزوﻣﻪ ﺧﻮد را ﺑﺮوز ﮐﻨﯿﺪ Page 86 of 290
- 88. آزﻣﺎﯾﺶ 4.2 –اﺣﯿﺎ ﺳﯿﺴﺘﻢ ﻋﺎﻣﻞ ﺳﺮﯾﻬﺎي دﯾﮕﺮ روﺗﺮ در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ اﺣﯿﺎ ﺳﯿﺴﺘﻢ ﻋﺎﻣﻞ ﺗﺨﺮﯾﺐ ﺷﺪه روﺗﺮﻫﺎي ﺳﺮي ,0092 ,0082 ,0091 ,0081 ,0071 0093 ,0083 و .... آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ ﺳﺮي 0062 روﺗﺮﻫﺎي ﺳﯿﺴﮑﻮ ﻋﻤﻼ ﺗﻮﺳﻂ ﺳﺮي 0082 از دور ﺧﺎرج ﺷﺪﻧﺪ اﻣﺎ ﺑﻪ وﻓﻮر در ﻣﺤﯿﻄﻬﺎي آزﻣﺎﯾﺸﮕﺎﻫﯽ ﺑﻪ ﭼﺸﻢ ﻣﯽ ﺧﻮرﻧﺪ.ﻣﺤﯿﻂ ROMMONاﯾﻦ ﺳﺮي ﮐﻪ ﺑﻪ ﻣﻨﻈﻮر ﺗﺮﻣﯿﻢ و اﺣﯿﺎ ﺳﯿﺴﺘﻢ ﻋﺎﻣﻞ ﺗﺨﺮﯾﺐ ﺷﺪه ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻣﯽ ﮔﯿﺮد ﮐﺎﻣﻼ ﻣﺸﺎﺑﻪ ﻣﺤﯿﻂ ﺳﺮﯾﻬﺎي ﺑﺎﻻﺗﺮ ﻣﯽ ﺑﺎﺷﺪ. ﺑﻪ ﻫﻤﯿﻦ ﺟﻬﺖ از اﯾﻦ ﺳﺮي ﺟﻬﺖ ﺗﻤﺮﯾﻦ آزﻣﺎﯾﺶ ﺟﺎري اﺳﺘﻔﺎده ﻣﯽ ﮐﻨﯿﻢ ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﯾﮏ دﺳﺘﮕﺎه روﺗﺮ ﺳﺮي 0062 ﻓﺎﻗﺪ IOSﯾﺎ IOSﺗﺨﺮﯾﺐ ﺷﺪه . ﺑﺮﻗﺮاري ارﺗﺒﺎط ﮐﻨﺴﻮل ﺑﺎ روﺗﺮ Tftpﺳﺮور و اﺗﺼﺎل آن ﺑﻪ روﺗﺮ اﻫﺪاف آزﻣﺎﯾﺶ ﺑﻮت ﺑﻪ ﻣﺤﯿﻂ ROM modeاز ﻃﺮﯾﻖ ﻧﮕﻬﺪاﺷﺘﻦ CTRL + Pauseﻃﯽ ﻓﺮاﯾﻨﺪ ﺑﻮت ﻣﻘﺪار دﻫﯽ ﺑﻪ ﻣﺘﻐﯿﺮ TFTPDNLDﺟﻬﺖ درﯾﺎﻓﺖ imageاز tftp اﺟﺮاي دﺳﺘﻮر TFTPDNLD –rﺑﻪ ﻣﻨﻈﻮر ﻟﻮد ﮐﺮدن imageﺑﻪ درون Ram ﮐﭙﯽ IOSﺑﻪ ﻓﻠﺶ ﻣﻤﻮري ﭘﺲ از ﺑﻮت ﺷﺪن از ﻃﺮﯾﻖ IOS رﯾﺒﻮت ﻧﻬﺎﯾﯽ ﺳﯿﺴﺘﻢ و ﭼﮏ ﮐﺮدن ﺻﺤﺖ ﻣﺮاﺣﻞ ﻓﻮق دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ 1. ﺑﺎ ﻓﺮض اﯾﻨﮑﻪ اﺗﺼﺎل ﮐﻨﺴﻮل ﺑﻪ روﺗﺮ ﻣﻌﯿﻮب ﺑﺮﻗﺮار ﺷﺪه اﺳﺖ ، روﺗﺮ را رﯾﺴﺖ ﻣﯿﮑﻨﯿﻢ و ﺑﺎ ﻓﺸﺮدن ﺗﺮﮐﯿﺐ CTRL + Pauseوارد ﻣﺤﯿﻂ ROMMONﻣﯽ ﺷﻮﯾﻢ.ﺧﺮوﺟﯽ ﺑﻪ ﺷﮑﻞ زﯾﺮ اﺳﺖ 092 Page 87 of
- 89. System Bootstrap, Version12.2(8r) [cmong 8r], RELEASE SOFTWARE (fc1) Copyright (c) 2003 by cisco Systems, Inc. C2600 platform with 262144 Kbytes of main memory device does not contain a valid magic number boot: cannot open "flash:" boot: cannot determine first file name on device "flash:" rommon 1 > 1562 وﺟﻮد دارﻧﺪ راXM روي ﭘﻠﺘﻔﺮمROMMON ﻣﯽ ﺗﻮان ﻟﯿﺴﺖ دﺳﺘﻮراﺗﯽ را ﮐﻪ در ﺣﺎﻟﺖhelp ﺑﺎ اﺟﺮاي دﺳﺘﻮر .ﻣﺸﺎﻫﺪه ﮐﺮد rommon 1 > help alias boot break confreg cont context cookie dev dir dis dnld frame help history meminfo repeat reset set stack sync sysret tftpdnld unalias unset xmodem rommon 2 > set and display aliases command boot up an external process set/show/clear the breakpoint configuration register utility continue executing a downloaded image display the context of a loaded image display contents of cookie PROM in hex list the device table list files in file system display instruction stream serial download a program module print out a selected stack frame monitor builtin command help monitor command history main memory information repeat a monitor command system reset display the monitor variables produce a stack trace write monitor environment to NVRAM print out info from last system return tftp image download unset an alias unset a monitor variable x/ymodem image download را ﺑﻪ درون ﻓﻠﺶ ﻣﻤﻮري روﺗﺮ داﻧﻮدIOS image اﺳﺖ.اﯾﻦ دﺳﺘﻮرtftpdnld 2. اﮐﻨﻮن ﻧﻮﺑﺖ ﮐﺎر ﺑﺎ دﺳﺘﻮر را ﻧﯿﺰ دارا اﺳﺖ.ﺑﺎ ﺗﺎﯾﭗ اﯾﻦ دﺳﺘﻮر ﭘﺎراﻣﺘﺮﻫﺎﯾﯽ ﮐﻪ راRam ﻣﯿﮑﻨﺪ ﻫﻤﯿﻨﻄﻮر ﻗﺎﺑﻠﯿﺖ ﺑﺎرﮔﺬاري ﻣﺴﺘﻘﯿﻢ درون ﮐﻪ ﺑﺮاي اﺟﺮا ﺑﻪ آﻧﻬﺎ ﻧﯿﺎز دارد را ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﻢ rommon 2 > tftpdnld Page 88 of 290
- 90. Missing or illegalip address for variable IP_ADDRESS Illegal IP address. usage: tftpdnld [-r] Use this command for disaster recovery only to recover an image via TFTP. Monitor variables are used to set up parameters for the transfer. (Syntax: "VARIABLE_NAME=value" and use "set" to show current variables.) "ctrl-c" or "break" stops the transfer before flash erase begins. The following variables are REQUIRED to be set for tftpdnld: IP_ADDRESS: The IP address for this unit IP_SUBNET_MASK: The subnet mask for this unit DEFAULT_GATEWAY: The default gateway for this unit TFTP_SERVER: The IP address of the server to fetch from TFTP_FILE: The filename to fetch The following variables are OPTIONAL: TFTP_VERBOSE: Print setting. 0=quiet, 1=progress(default), 2=verbose TFTP_RETRY_COUNT: Retry count for ARP and TFTP (default=12) TFTP_TIMEOUT: Overall timeout of operation in seconds (default=7200) TFTP_CHECKSUM: Perform checksum test on image, 0=no, 1=yes (default=1) FE_SPEED_MODE: 0=10/hdx, 1=10/fdx, 2=100/hdx, 3=100/fdx, 4=Auto(deflt) Command line options: -r: do not write flash, load to DRAM only and launch image rommon 3 > را وارد ﻣﯿﮑﻨﯿﻢset دﺳﺘﻮرimage ﺟﻬﺖ ﻣﻘﺪار دﻫﯽ ﺑﻪ ﭘﺎراﻣﺘﺮﻫﺎي ﻣﻮرد ﻧﯿﺎز ﺟﻬﺖ داﻧﻠﻮد rommon 3 > set PS1=rommon ! > BOOT= RET_2_RUTC=0 BSI=0 RANDOM_NUM=1492875412 ROM_PERSISTENT_UTC=1016225763 RET_2_RTS= RET_2_RCALTS= ?=1 rommon 24 > set PS1=rommon ! > BOOT= RET_2_RUTC=0 BSI=0 RANDOM_NUM=1492875412 ROM_PERSISTENT_UTC=1016225763 RET_2_RTS= RET_2_RCALTS= ?=0 rommon 4 > Page 89 of 290
- 91. در زﯾﺮ ﻟﯿﺴﺖﭘﺎراﻣﺘﺮﻫﺎ و ﻣﻘﺎدﯾﺮ ﻣﻮرد ﻧﯿﺎز آﻧﻬﺎ را ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﺪ rommon rommon rommon rommon rommon 4 5 6 7 8 > > > > > IP_ADDRESS=10.1.1.10 IP_SUBNET_MASK=255.255.255.0 DEFAULT_GATEWAY=10.1.1.254 TFTP_SERVER=172.16.20.17 TFTP_FILE=c2600-i-mz.123-26.bin اﺳﺘﻔﺎدهRam درونimage ﺑﻪ ﻣﻨﻈﻮر ﺑﺎرﮔﺬاري ﻣﺴﺘﻘﯿﻢtftpdnld –r ﭘﺲ از ﻣﻘﺪار دﻫﯽ ﭘﺎراﻣﺘﺮﻫﺎ از دﺳﺘﻮر ﻣﯿﮑﻨﯿﻢ rommon 9 > tftpdnld -r IP_ADDRESS: IP_SUBNET_MASK: DEFAULT_GATEWAY: TFTP_SERVER: TFTP_FILE: 10.1.1.10 255.255.255.0 10.1.1.254 172.16.20.17 c2600-i-mz.123-26.bin ..... Receiving c2600-i-mz.123-26.bin from 172.16.20.17 !!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! File reception completed. program load complete, entry point: 0x80008000, size: 0x765238 Self decompressing the image : ############################################## ####################################################################### [OK] Smart Init is enabled smart init is sizing iomem ID MEMORY_REQ 00036F 0X00103980 000065 0X00031500 0X00098670 0X00211000 TOTAL: 0X003DE4F0 TYPE C2651XM Dual Fast Ethernet Four port Voice PM public buffer pools public particle pools If any of the above Memory Requirements are "UNKNOWN", you may be using an unsupported configuration or there is a software problem and system operation may be compromised. Rounded IOMEM up to: 4Mb. Using 3 percent iomem. [4Mb/128Mb] Page 90 of 290
- 92. Restricted Rights Legend Use,duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c) of the Commercial Computer Software - Restricted Rights clause at FAR sec. 52.227-19 and subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS sec. 252.227-7013. cisco Systems, Inc. 170 West Tasman Drive San Jose, California 95134-1706 Cisco Internetwork Operating System Software IOS (tm) C2600 Software (C2600-I-M), Version 12.3(26), RELEASE SOFTWARE (fc2) Technical Support: http://www.cisco.com/techsupport Copyright (c) 1986-2008 by cisco Systems, Inc. Compiled Mon 17-Mar-08 15:23 by dchih cisco 2651XM (MPC860P) processor (revision 0x200) with 126976K/4096K bytes of memory. Processor board ID JAE08030QZL (457188033) M860 processor: part number 5, mask 2 Bridging software. X.25 software, Version 3.0.0. 2 FastEthernet/IEEE 802.3 interface(s) 2 Serial network interface(s) 32K bytes of non-volatile configuration memory. 49152K bytes of processor board System flash (Read/Write) --- System Configuration Dialog --Would you like to enter the initial configuration dialog? [yes/no]: ﺳﺮور ﺑﻪ ﻓﻠﺶTftp ازISO image ﺷﺮوع ﺑﻪ ﮐﭙﯽcli را ﺗﺎﯾﭗ ﻣﯿﮑﻨﯿﻢ و ﺑﻪ ﻣﺤﺾ وارد ﺷﺪن ﺑﻪ ﻣﺤﯿﻂno ﻋﺒﺎرت ﻣﻤﻮري روﺗﺮ ﻣﯿﮑﻨﯿﻢ. ﻣﻤﮑﻦ اﺳﺖ از ﺧﻮد ﺑﭙﺮﺳﯿﺪ ﭼﺮا از اﺑﺘﺪا اﯾﻨﮑﺎر اﻧﺠﺎم ﻧﺸﺪ و ﻋﻠﺖ اﯾﻦ دوﺑﺎره ﮐﺎري ﭼﯿﺴﺖ ؟ ﻋﻠﺖ image اﺳﺖ ﻧﺴﺒﺖ ﺑﻪ ﺳﺮﻋﺖ ﮐﭙﯽTFTPDNLD ﺑﻪ ﻓﻠﺶ ﺑﺎ اﺳﺘﻔﺎده از دﺳﺘﻮرTftp در ﮐﻨﺪ ﺑﻮدن ﻓﺮاﯾﻨﺪ ﮐﭙﯽ از ﺑﻪTftp ازIOS اﻧﺠﺎم ﻣﯿﺸﻮد و ﺑﻌﺪ از آن ﻣﺎﻧﻨﺪ درس 9.2 اﻗﺪام ﺑﻪ ﮐﭙﯽRam . در ﻧﺘﯿﺠﻪ اﺑﺘﺪا ﺑﻮت ﺑﻪRam ﻓﺎﯾﻞ ﺑﻪ ﻓﻠﺶ ﻣﯿﮑﻨﯿﻢ. اﺑﺘﺪا ﺗﻨﻈﯿﻤﺎت آدرس اﯾﻨﺘﺮﻓﯿﺲ روﺗﺮرا ﺑﻪ ﻗﺮار زﯾﺮ اﻧﺠﺎم ﻣﯽ دﻫﯿﻢ Router>enable Router#configure terminal Router(config)#interface fa0/0 Router(config-if)#ip add 10.1.1.10 255.255.255.0 Router(config-if)#no shut Router(config-if)#exit Router(config)#ip route 0.0.0.0 0.0.0.0 10.1.1.254 Router(config)#end Router# Page 91 of 290
- 93. ﺑﻪ ﻓﻠﺶﻣﻤﻮريIOS وﺑﻌﺪ از آن ﮐﭙﯽ Router#copy tftp flash Address or name of remote host []? 172.16.20.17 Source filename []? c2600-adventerprisek9-mz.124-1.bin Destination filename [c2600-adventerprisek9-mz.124-1.bin]? Accessing tftp://172.16.20.17/c2600-adventerprisek9-mz.124-1.bin... Erase flash: before copying? [confirm] Erasing the flash filesystem will remove all files! Continue? [confirm] Erasing device... eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee e eeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee ...erased Erase of flash: complete Loading c2600-adventerprisek9-mz.124-1.bin from 172.16.20.17 (via FastEthernet0/0): !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!! [OK - 34634180 bytes] Verifying checksum... OK (0x8E89) 34634180 bytes copied in 279.014 secs (124131 bytes/sec) Router# ﺑﻪ ﻓﻠﺶ ﻣﻤﻮري ، روﺗﺮ را رﯾﺴﺖ ﻣﯽ ﮐﻨﯿﻢ و ﺑﺎ ﺳﯿﺴﺘﻢ ﻋﺎﻣﻞ ﺟﺪﯾﺪ ﻣﺴﺘﻘﺮ در ﻓﻠﺶ ﺑﻮتIOS اﮐﻨﻮن ﭘﺲ از اﺗﻤﺎم ﮐﭙﯽ !ﻣﯽ ﺷﻮﯾﻢ Page 92 of 290
- 94. آزﻣﺎﯾﺶ 21.2- اﺣﯿﺎﺳﯿﺴﺘﻢ ﻋﺎﻣﻞ ﺳﻮﯾﯿﭽﻬﺎي ﮐﺎﺗﺎﻟﯿﺴﺖ در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ اﺣﯿﺎ ﺳﯿﺴﺘﻢ ﻋﺎﻣﻞ ﺗﺨﺮﯾﺐ ﺷﺪه ﺳﻮﯾﯿﭽﻬﺎي ﮐﺎﺗﺎﻟﯿﺴﺖ ﺳﺮي 0573 ,0653 ,0553 ,0592 از ﻃﺮﯾﻖ Xmodemآﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ ﮐﺎرﺑﺮد ﻋﻤﻠﯽ اﺣﯿﺎ ﺳﯿﺴﺘﻢ ﻋﺎﻣﻞ ﺳﻮﯾﯿﭽﻬﺎي ﺳﯿﺴﮑﻮ ﺟﺰ ﻣﻬﺎرﺗﻬﺎﯾﯽ اﺳﺖ ﮐﻪ ﻫﺮ ﻣﻬﻨﺪس ﺷﺒﮑﻪ ﻣﻠﺰم ﺑﻪ داﻧﺴﺘﻦ آن اﺳﺖ و ﺧﻮاﻫﯽ ﻧﺨﻮاﻫﯽ ﺣﺪاﻗﻞ ﯾﮏ ﺑﺎر ﻃﯽ دوران ﺣﺮﻓﻪ اي ﺧﻮد ﺑﺎ آن ﻣﻮاﺟﻪ ﻣﯿﺸﻮد.ﺑﻬﺘﺮ اﺳﺖ ﻣﻬﺎرﺗﻬﺎي اﯾﻦ ﭼﻨﯿﻨﯽ ﻗﺒﻞ از وﻗﻮع ﺑﺤﺮان و ﻗﺮار ﮔﺮﻓﺘﻦ در ﺷﺮاﯾﻂ ﭘﺮ اﺳﺘﺮس واﻗﻌﯽ آﻣﻮﺧﺘﻪ ﺷﻮﻧﺪ ﺗﺎ در ﻫﻨﮕﺎم وﻗﻮع اﯾﻦ ﻣﺸﮑﻞ زﻣﺎن ﺑﺮاي ﻣﻄﺎﻟﻌﻪ و ﺗﺤﻘﯿﻖ در ﺧﺼﻮص روش اﺣﯿﺎ ﺳﯿﺴﺘﻢ ﻋﺎﻣﻞ از دﺳﺖ ﻧﺮود. ﭘﯿﺶ ﻧﯿﺎز ﻫﺎي آزﻣﺎﯾﺶ ﯾﮏ دﺳﺘﮕﺎه ﺳﻮﯾﯿﺞ واﻗﻌﯽ ﻓﺎﻗﺪ ﺳﯿﺴﺘﻢ ﻋﺎﻣﻞ ﯾﺎ ﺳﯿﺴﺘﻢ ﻋﺎﻣﻞ ﺗﺨﺮﯾﺐ ﺷﺪه– ﻣﺒﺎﺣﺚ اﯾﻦ ﺟﻠﺴﻪ در 3Gns ﺑﺮﻗﺮاري ارﺗﺒﺎط ﮐﻨﺴﻮل ﺑﺎ ﺳﻮﯾﯿﭻ اﺳﺘﻔﺎده از HyperTerminalﯾﺎ SecureCTRﺑﻪ دﻟﯿﻞ اﯾﻨﮑﻪ Putyاز Xmodemﭘﺸﺘﯿﺒﺎﻧﯽ ﻧﻤﯿﮑﻨﺪ ﻗﺎﺑﻞ اﺟﺮا ﻧﯿﺴﺖ اﻫﺪاف آزﻣﺎﯾﺶ ﺑﻮت ﺑﻪ ﻣﺤﯿﻂ SWITCH ROM Initializeﮐﺮدن ﻓﺎﯾﻞ ﺳﯿﺴﺘﻢ ﻓﻠﺶ اﻓﺰاﯾﺶ Baude rateﺑﻪ 002511ﺟﻬﺖ ارﺗﺒﺎط ﺳﺮﯾﻌﺘﺮ Xmodem ﮐﭙﯽ IOSاز ﻃﺮﯾﻖ Xmodemﺑﻪ ﻓﻠﺶ ﺗﻨﻈﯿﻢ ﭘﺎراﻣﺘﺮﻫﺎي ﺑﻮت ﺟﻬﺖ ﺑﻮت ﺷﺪن ﺑﻌﺪي ﺑﺎ IOSﺟﺪﯾﺪ ﺑﺮﮔﺮداﻧﺪن Baude rateﺑﻪ 0069 رﯾﺒﻮت ﺳﻮﯾﯿﭻ و اﻃﻤﯿﻨﺎن از ﺻﺤﺖ ﻓﻌﺎﻟﯿﺘﻬﺎي ﺻﻮرت ﮔﺮﻓﺘﻪ دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ روش ﺑﺎزﯾﺎﺑﯽ ﺳﯿﺴﺘﻢ ﻋﺎﻣﻞ ﺳﻮﯾﯿﭽﻬﺎي ﮐﺎﺗﺎﻟﯿﺴﺖ ﺗﺎﺣﺪي ﻣﺘﻔﺎوت از روﺷﻬﺎي ﻣﺘﺪاوﻟﯽ اﺳﺖ ﮐﻪ ﺗﺎﮐﻨﻮن آﻣﻮﺧﺘﯿﻢ.ﻣﺘﺎﺳﻔﺎﻧﻪ ﺳﺮي ﻫﺎي ﻏﯿﺮ ﻣﺎژوﻻر ﮐﺎﺗﺎﻟﯿﺴﺖ ﺻﺮﻓﺎ از ﻃﺮﯾﻖ Xmodemاﻣﮑﺎن ﺗﺮﻣﯿﻢ IOSرا دارا ﻫﺴﺘﻨﺪ ﺑﺮ ﺧﻼف ﺳﺮﯾﻬﺎي 0054,0056 ﮐﻪ ﺑﺮاﺣﺘﯽ از ﻃﺮﯾﻖ CFﮐﺎرت اﯾﻦ ﻓﺮاﯾﻨﺪ را اﻧﺠﺎم ﻣﯽ دﻫﻨﺪ. 092 Page 93 of
- 95. ﺑﻮت ﻣﯿﮑﻨﯿﻢ.ﺑﺮايﻣﺸﺎﻫﺪه ﺟﺰﺋﯿﺎتstat از ﻃﺮﯾﻖ ﭘﺎﯾﯿﻦ ﻧﮕﻪ داﺷﺘﻦ دﮐﻤﻪRom mode 1. ﺳﻮﯾﯿﭻ را ﺑﻪ ﻣﺤﯿﻂ /ﺑﺒﯿﺸﺘﺮ ﺑﻪ آزﻣﺎﯾﺶ 3.2 ﻣﺮاﺟﻌﻪ ﮐﻨﯿﺪ .ﺧﺮوﺟﯽ زﯾﺮ ﻣﺤﺘﻮاي ﺗﺮﻣﯿﻨﺎل ﭘﺲ از ورود ﺑﻪ اﯾﻦ ﻣﺤﯿﻂ را ﻧﺸﺎن ﻣﯽ دﻫﺪ Boot Sector Filesystem (bs) installed, fsid: 2 Base ethernet MAC Address: 00:14:f2:d2:41:80 Xmodem file system is available. The password-recovery mechanism is enabled. The system has been interrupted prior to initializing the flash filesystem. The following commands will initialize the flash filesystem, and finish loading the operating system software: flash_init boot switch: ﺧﻮاﻫﺪ ﺷﺪ ﻣﻄﺎﺑﻖ ﺑﺎ روش زﯾﺮinitialize 2. ﭘﺲ از ورود ﺑﻪ اﯾﻦ ﻣﺤﯿﻂ ﻓﺎﯾﻞ ﺳﯿﺴﺘﻢ ﻓﻠﺶ switch: flash_init Initializing Flash... flashfs[0]: 1 files, 1 directories flashfs[0]: 0 orphaned files, 0 orphaned directories flashfs[0]: Total bytes: 15998976 flashfs[0]: Bytes used: 12474880 flashfs[0]: Bytes available: 3524096 flashfs[0]: flashfs fsck took 10 seconds. ...done Initializing Flash. switch: ﻓﺮﻣﺖformat flash: ﺗﺨﺮﯾﺐ ﺷﺪه اﺳﺖ ﻣﯿﺘﻮان ﻓﻠﺶ را ﺑﺎ اﺳﺘﻔﺎده ازios - در ﺻﻮرﺗﯿﮑﻪOpitonal .3 ! را ﻫﻢ ﭘﺎك ﻣﯿﮑﻨﺪstartup config ﮐﺮد.اﯾﻨﮑﺎر Switch: format flash: Are you sure you want to format "flash:" (all data will be lost) (y/n)?y flashfs[0]: 0 files, 1 directories flashfs[0]: 0 orphaned files, 0 orphaned directories flashfs[0]: Total bytes: 7741440 flashfs[0]: Bytes used: 1024 flashfs[0]: Bytes available: 7740416 flashfs[0]: flashfs fsck took 12 seconds. Page 94 of 290
- 96. Filesystem "flash:" formatted Switch: را ﻗﻄﻊ ﻧﻤﻮدxmodem را اﻓﺰاﯾﺶ دﻫﯿﻢ ﺑﺎﯾﺪ اﺗﺼﺎل ﺟﺎريXmodem 4. ﺑﺮاي اﯾﻨﮑﻪ ﺳﺮﻋﺖ اﻧﺘﻘﺎل اﻃﻼﻋﺎت ﺗﺎ ﺻﺒﺢ روز ﺑﻌﺪ ﻃﻮلIOS ﺳﭙﺲ از ﻃﺮﯾﻖ دﺳﺘﻮر زﯾﺮ آﻧﺮا ﺗﺎ 002511 اﻓﺰاﯾﺶ داد در ﻏﯿﺮ اﯾﻨﺼﻮرت ﮐﭙﯽ .ﺧﻮاﻫﺪ ﮐﺸﯿﺪ switch: set BAUD 115200 ﺟﺪﯾﺪ را از ﻃﺮﯾﻖ دﺳﺘﻮرIOS 5. ﭘﺲ از ﺗﻨﻈﯿﻢ ﺳﺮﻋﺖ و ﺑﺮﻗﺮاري ﻣﺠﺪد ارﺗﺒﺎط ﺑﺎ ﺳﻮﯾﯿﭻ ﺑﻪ ﻓﻠﺶ ﻣﻨﺘﻘﻞ ﻣﯿﮑﻨﯿﻢcopy xmodem: flash:filename.bin switch: copy xmodem: flash:c3560-ipservicesk9-mz.122-53.SE.bin Begin the Xmodem or Xmodem-1K transfer now... CCC Starting xmodem transfer. Press Ctrl+C to cancel. Transferring c3560-ipservicesk9-mz.122-53.SE.bin... 100% 12181 KB 6 KB/s 00:31:56 0 Errors ................................................................. ................................................................. ................................................................. ................................................................. ................................................................. ................................................................. ................................................................. ................................................................. ................................................................. ................................................................. ................................................................. ................................................................. ................................................................. ................................................................. ................. File "xmodem:" successfully copied to "flash:c3560-ipservicesk9-mz.12253.SE.bin" switch: Page 95 of 290
- 97. ﺟﺪﯾﺪ راIOS ﭘﺎراﻣﺘﺮ ﺑﻮت ﺳﻮﯾﯿﭻ را ﺑﻪ ﻓﺮم زﯾﺮ ﺑﺎ ﻫﺪف ﺑﻮت ﺑﻌﺪي از ﻃﺮﯾﻖIOS 6. ﭘﺲ از ﮐﭙﯽ ﻣﻮﻓﻘﯿﺖ آﻣﯿﺰ اﻧﺠﺎم ﻣﯽ دﻫﯿﻢ switch: set BOOT flash:c3560-ipservicesk9-mz.122-53.SE.bin را از ﻣﻘﺪار ﺟﺪﯾﺪ ﺑﻪ 0069 ﺑﺮﻣﯿﮕﺮداﻧﯿﻢ.ﭘﺲ از اﯾﻨﮑﺎر ﻻزم اﺳﺖ ارﺗﺒﺎط ﮐﻨﺴﻮلBAUD rate 7. ﭘﺲ از اﯾﻨﮑﺎر .ﻗﻄﻊ ﺷﺪه و ﻣﺠﺪدا ﺑﺮﻗﺮار ﺷﻮد switch: unset BAUD . اﺳﺖXmodem ﺟﺪﯾﺪا ﮐﭙﯽ ﺷﺪه ﺗﻮﺳﻂios 8. آﺧﺮﯾﻦ ﻗﺪم ﺑﻮت ﮐﺮدن ﺳﻮﯾﯿﭻ و ﺣﺼﻮل اﻃﻤﯿﻨﺎن از ﻋﻤﻠﮑﺮد .ﻣﻮﺟﺐ ﺑﻮت ﺷﺪن ﺳﯿﺴﺘﻢ ﺑﺎ ﭘﺎراﻣﺘﺮﻫﺎي ﺗﻨﻈﯿﻢ ﺷﺪه ﺟﺪﯾﺪ اﺳﺖBoot اﺳﺘﻔﺎده از دﺳﺘﻮر switch: boot Loading "flash:/c3560-ipservicesk9-mz.122-53.SE.bin"...@@@@@@@@@@@@@@@@@@ @@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@ @@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@ @@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@ @@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@ @@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@ @@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@ @@@@@@@@@@@@@@@@@@@@@@@@@@@@@@ File "flash:/c3560-ipservicesk9-mz.122-53.SE.bin" uncompressed and installed, entry point: 0x1000000 executing... Restricted Rights Legend Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c) of the Commercial Computer Software - Restricted Rights clause at FAR sec. 52.227-19 and subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS sec. 252.227-7013. cisco Systems, Inc. 170 West Tasman Drive San Jose, California 95134-1706 Cisco IOS Software, C3560 Software (C3560-IPSERVICESK9-M), 12.2(53)SE, RELEASE SOFTWARE (fc2) Technical Support: http://www.cisco.com/techsupport Copyright (c) 1986-2009 by Cisco Systems, Inc. Compiled Sun 13-Dec-09 15:45 by prod_rel_team Image text-base: 0x01000000, data-base: 0x02E00000 Version Page 96 of 290
- 98. Initializing flashfs... flashfs[1]: 1files, 1 directories flashfs[1]: 0 orphaned files, 0 orphaned directories flashfs[1]: Total bytes: 15998976 flashfs[1]: Bytes used: 12474880 flashfs[1]: Bytes available: 3524096 flashfs[1]: flashfs fsck took 1 seconds. flashfs[1]: Initialization complete....done Initializing flashfs. Checking for Bootloader upgrade.. not needed POST: CPU MIC register Tests : Begin POST: CPU MIC register Tests : End, Status Passed POST: PortASIC Memory Tests : Begin POST: PortASIC Memory Tests : End, Status Passed POST: CPU MIC interface Loopback Tests : Begin POST: CPU MIC interface Loopback Tests : End, Status Passed POST: PortASIC RingLoopback Tests : Begin POST: PortASIC RingLoopback Tests : End, Status Passed POST: Inline Power Controller Tests : Begin POST: Inline Power Controller Tests : End, Status Passed POST: PortASIC CAM Subsystem Tests : Begin POST: PortASIC CAM Subsystem Tests : End, Status Passed POST: PortASIC Port Loopback Tests : Begin POST: PortASIC Port Loopback Tests : End, Status Passed Waiting for Port download...Complete This product contains cryptographic features and is subject to United States and local country laws governing import, export, transfer and use. Delivery of Cisco cryptographic products does not imply third-party authority to import, export, distribute or use encryption. Importers, exporters, distributors and users are responsible for compliance with U.S. and local country laws. By using this product you agree to comply with applicable laws and regulations. If you are unable to comply with U.S. and local laws, return this product immediately. A summary of U.S. laws governing Cisco cryptographic products may be found at: http://www.cisco.com/wwl/export/crypto/tool/stqrg.html If you require further assistance please contact us by sending email to export@cisco.com. cisco WS-C3560-24PS (PowerPC405) processor (revision M0) with 131072K bytes of memory. Processor board ID CAT0928Z2EE Page 97 of 290
- 99. Last reset frompower-on 1 Virtual Ethernet interface 24 FastEthernet interfaces 2 Gigabit Ethernet interfaces The password-recovery mechanism is enabled. 512K bytes of flash-simulated non-volatile configuration memory. Base ethernet MAC Address : 00:14:F2:D2:D1:AF Motherboard assembly number : 73-9673-06 Power supply part number : 341-0029-03 Motherboard serial number : CAT09880NNZ Power supply serial number : LIT091091ZV Model revision number : M0 Motherboard revision number : A0 Model number : WS-C3560-24PS-S System serial number : CAT0911FAEE Top Assembly Part Number : 800-25861-03 Top Assembly Revision Number : A0 Version ID : V05 CLEI Code Number : COM1X1FARB Hardware Board Revision Number : 0x01 Switch Ports Model ------ ----- ----* 1 26 WS-C3560-24PS SW Version ---------12.2(53)SE SW Image ---------C3560-IPSERVICESK9-M Press RETURN to get started! Page 98 of 290
- 100. آزﻣﺎﯾﺶ 31.2- ﭼﮕﻮﻧﮕﯽﻧﻤﺎﯾﺶ ﺑﻨﺮ در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ اﯾﺠﺎد ﺑﻨﺮ در ﻫﻨﮕﺎم ﻻﮔﯿﻦ،اﺟﺮاي دﺳﺘﻮرات و ﻧﻤﺎﯾﺶ ﭘﯿﺎم روز آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ اﺳﺘﻔﺎده از ﺑﻨﺮﻫﺎي ﻣﺨﺘﻠﻒ و ﻧﻤﺎﯾﺶ آﻧﻬﺎ در زﻣﺎﻧﻬﺎي ﺧﺎﺻﯽ ﻫﻤﭽﻮن ﺑﺮﻗﺮاري اﺗﺼﺎل ﺗﺮﻣﯿﻨﺎل ﯾﺎ ورود ﺑﻪ ﻣﺤﯿﻂ اﺟﺮاي دﺳﺘﻮرات اﻣﺮي راﯾﺞ اﺳﺖ.ﺑﻨﺮﻫﺎي ﻻﮔﯿﻦ ﭘﺲ از ورود ﻓﺮد ﺑﻪ ﺳﯿﺴﺘﻢ ﻧﻤﺎﯾﺶ داده ﻣﯽ ﺷﻮﻧﺪ.ﺑﻨﺮﻫﺎي MOTDﻫﻢ ﭘﯿﺶ از اﺣﺮاز ﻫﻮﯾﺖ ﮐﺎرﺑﺮ ﻧﻤﺎﯾﺶ داده ﻣﯽ ﺷﻮد.ﺑﻨﺮﻫﺎي Execﻫﻢ ﻫﻨﮕﺎم ورود ﻓﺮد ﺑﻪ ﻣﺤﯿﻂ اﺟﺮاي دﺳﺘﻮرات ﻧﻤﺎﯾﺎن ﻣﯿﺸﻮﻧﺪ. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري اﺗﺼﺎل ﮐﻨﺴﻮل ﺑﻪ ﯾﮏ روﺗﺮ در ﻣﺤﯿﻂ 3GNS اﻫﺪاف آزﻣﺎﯾﺶ اﯾﺠﺎد ﯾﮏ login bannerﺑﺎ ﻫﺪف ﻧﻤﺎﯾﺶ ﭘﯿﺎم در ﻫﻨﮕﺎم ﺑﺮﻗﺮاري ﺗﻤﺎس ﺑﺎ روﺗﺮ اﯾﺠﺎد ﯾﮏ EXEC bannerﺑﺎ ﻫﺪف ﻧﻤﺎﯾﺶ اﻃﻼﻋﺎﺗﯽ ﺧﺎص در ﻫﻨﮕﺎم ورود ﮐﺎرﺑﺮ ﺑﻪ modeاﺟﺮاي دﺳﺘﻮرات اﯾﺠﺎد Message of The Day (MOTD) bannerﺑﺎ ﻫﺪف ﻧﻤﺎﯾﺶ زﻣﺎن رﺳﯿﺪن ﺑﻪ ﺗﺎرﯾﺦ ﺳﺮوﯾﺲ و ﻧﮕﻬﺪاري دﺳﺘﮕﺎه . دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ 1. در ﺑﺨﺶ اول، ﯾﮏ ﻻﮔﯿﻦ ﺑﻨﺮ ﺑﺎ ﻫﺪف ﻧﻤﺎﯾﺶ اﻃﻼﻋﺎت ﻗﺎﻧﻮﻧﯽ و ﻣﺎﻟﮑﯿﺘﯽ ﺳﯿﺴﺘﻢ ﻃﺮاﺣﯽ ﺧﻮاﻫﯿﻢ ﮐﺮد.در ﻫﻨﮕﺎم ﻃﺮاﺣﯽ ﺑﻨﺮ از ﮐﺎراﮐﺘﺮ ﺟﺪا ﮐﻨﻨﺪ ^ در اﺑﺘﺪا و اﻧﺘﻬﺎي ﻃﺮح ﺑﻨﺮ اﺳﺘﻔﺎده ﻣﯽ ﺷﻮد.ﺑﺮاي اﯾﺠﺎد ﺑﻨﺮ از دﺳﺘﻮر bannerﺑﻪ ﻫﻤﺮاه ﻣﺸﺨﺼﻪ ﺗﻌﯿﯿﻢ ﮐﻨﻨﺪه ﻧﻮع ﺑﻨﺮ ﮐﻪ در اﯾﻨﺠﺎ loginاﺳﺖ اﺳﺘﻔﺎده ﻣﯿﺸﻮد. ^ Router(config)#banner login '^' Enter TEXT message. End with the character ########################################## # This is a Login banner used to show # # .legal and privacy information # # # # Unauthorized users prohibited # ########################################## ^ 092 Page 99 of
- 101. Router(config)#end Router#exit ﺻﺤﺖ ﻓﺮاﯾﻨﺪ ﺑﻨﺮاﯾﺠﺎد ﺷﺪه ﺑﺎ ﻫﺪف ﻧﻤﺎﯾﺶ در ﻫﻨﮕﺎم ﻻﮔﯿﻦ ﺑﻪ ﺳﯿﺴﺘﻢ را در زﯾﺮ ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﻢ Router con0 is now available Press RETURN to get started. ########################################## # This is a Login banner used to show # # legal and privacy information. # # # # Unauthorized users prohibited # ########################################## User Access Verification Password: Router> و ﻃﺮﯾﻘﻪ اي ﮐﻪ ﮐﺎرﺑﺮ ﺑﺎ آن اﺗﺼﺎل ﺑﺮﻗﺮار ﮐﺮدهhostname ﺑﺎ ﻫﺪف ﻧﻤﺎﯾﺶexec banner 2. در ﺑﺨﺶ دوم ﯾﮏ ﻫﺎ ﺑﻪToken. آﺷﻨﺎ ﺷﻮﯾﻢBanner Token را اﯾﺠﺎد ﻣﯿﮑﻨﯿﻢ.ﺑﺮاي اﯾﺠﺎد اﯾﻦ ﻧﻮع ﺑﻨﺮ ﻻزم اﺳﺖ ﺑﺎ ﻣﻔﻬﻮم زﺑﺎن ﺳﺎده ﻣﺘﻐﯿﺮﻫﺎﯾﯽ ﻫﺴﺘﻨﺪ ﮐﻪ در دل ﺑﻨﺮ ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻣﯿﮕﯿﺮﻧﺪ و اﻃﻼﻋﺎﺗﯽ را از دل دﺳﺘﮕﺎه Line وHostname ($ اﺳﺘﻔﺎده ﻣﯿﮑﻨﯿﻢ ﮐﻪline) اﺳﺘﺨﺮاج ﮐﺮده و ﻧﻤﺎﯾﺶ ﻣﯽ دﻫﻨﺪ. در اﯾﻦ آزﻣﺎﯾﺶ از ﺑﻪbanner exec ^ ازglobal config mode را ﺑﻪ ﮐﺎرﺑﺮ ﻧﻤﺎﯾﺶ ﻣﯽ دﻫﻨﺪ.ﻣﺎﻧﻨﺪ ﺑﻨﺮ ﻗﺒﻠﯽ درnumber ﺷﮑﻞ زﯾﺮ اﺳﺘﻔﺎده ﻣﯿﮑﻨﯿﻢ Router>enable Password: Router# Router#configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)#banner exec ^ Enter TEXT message. End with the character '^' Session established to $(hostname) on line $(line) ^ Router(config)# Page 100 of 290
- 102. و ﺑﺎزﮔﺸﺖﻣﺠﺪد ﺑﻪ اﯾﻦglobal config ، ﺗﻨﻈﻤﯿﺎت اﻧﺠﺎم ﺷﺪه را ﺑﺎ ﺧﺮوج از ﻣﺤﯿﻂexec banner ﭘﺲ از اﯾﺠﺎد .ﻣﺤﯿﻂ ﭼﮏ ﻣﯿﮑﻨﯿﻢ Router con0 is now available Press RETURN to get started. ########################################## # This is a Login banner used to show # # legal and privacy information. # # # # Unauthorized users prohibited # ########################################## User Access Verification Password: Session established to Router on line 0 Router> اﺳﺖ.اﯾﻦ ﻧﻮع ﺑﻨﺮ ﻋﻤﻮﻣﺎ ﺑﺮاي اﻃﻼعMessage of the Day banner 3. آﺧﺮﯾﻦ ﺑﺨﺶ اﯾﻦ آزﻣﺎﯾﺶ ﺗﻨﻈﯿﻢ رﺳﺎﻧﯽ ﺑﻪ ﻣﺘﺼﺪﯾﺎن ﺗﺠﻬﯿﺰ در ﺧﺼﻮص ﺗﺎرﯾﺦ و ﺳﺎﻋﺖ ﻧﮕﻬﺪاري آﺗﯽ ﺳﯿﺴﺘﻢ ﺑﻪ ﮐﺎر ﻣﯽ رود.اﯾﻦ ﺑﻨﺮ ﻗﺒﻞ از ﻧﻤﺎﯾﺶ ﻻﮔﯿﻦ ﺑﻨﺮ و ﺑﻪ ﻫﻤﺎن ﺷﯿﻮه اﯾﺠﺎد ﺑﻨﺮﻫﺎي ﻗﺒﻠﯽ اﯾﺠﺎد ﻣﯿﺸﻮد Router>enable Password: Router#configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)#banner motd ^ Enter TEXT message. End with the character '^' This router will undergo routine maintenance on 01/01/10 from 12:00AM to 2:00AM ^ Router(config)# ﺑﺮاي ﺣﺼﻮل اﻃﻤﯿﻨﺎن از ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت اﺧﯿﺮ از ﻣﻮد ﺟﺎري ﺧﺎرج ﺷﺪه و ﺧﺮوﺟﯽ را ﺑﻪ ﺻﻮرت زﯾﺮ ﭼﮏ ﻣﯿﮑﻨﯿﻢ Page 101 of 290
- 103. Router(config)#end Router#exit Router con0 isnow available Press RETURN to get started. This router will undergo routine maintenance on 01/01/10 from 12:00AM to 2:00AM ########################################## # This is a Login banner used to show # # legal and privacy information. # # # # Unauthorized users prohibited # ########################################## User Access Verification Password: Session established to Router on line 0 Router> Page 102 of 290
- 104. آزﻣﺎﯾﺶ 41.2- رﯾﺴﺖﮐﺮدن ﺗﻨﻈﯿﻤﺎت ﺳﯿﺴﺘﻢ ﺑﻪ ﺣﺎﻟﺖ ﭘﯿﺶ ﻓﺮض در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ رﯾﺴﺖ ﮐﺮدن ﺗﻨﻈﯿﻤﺎت و ﭘﺎراﻣﺘﺮﻫﺎ ﺑﻪ ﺣﺎﻟﺖ ﭘﯿﺶ ﻓﺮض iosاز ﻃﺮﯾﻖ دﺳﺘﻮر default آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ ﻣﻮاﻗﻊ ﺑﺴﯿﺎري ﭘﯿﺶ ﻣﯽ آﯾﺪ ﮐﻪ ﻧﯿﺎز اﺳﺖ ﺗﻨﻈﻤﯿﺎت ﯾﮏ ﯾﺎ ﭼﻨﺪ اﯾﻨﺘﺮﻓﯿﺲ ﯾﺎ ﻧﻮع دﯾﮕﺮي از ﭘﯿﮑﺮه ﺑﻨﺪي ﺳﯿﺴﺘﻢ را ﺑﻪ ﺣﺎﻟﺖ اوﻟﯿﻪ و ﭘﯿﺶ ﻓﺮض ﺑﺎزﮔﺮداﻧﯿﻢ، ﯾﮏ ﻣﺜﺎل ﺑﺎرز آن ﺑﺎزﮔﺮداﻧﺪن ﺑﻪ ﺣﺎﻟﺖ اول ﺗﻨﻈﯿﻤﺎت اﯾﻨﺘﺮﻓﯿﺴﯽ اﺳﺖ ﮐﻪ ﺑﯿﺶ از 01 ﺧﻂ ﺗﻨﻈﯿﻢ در ﭘﯿﮑﺮﺑﻨﺪي آن وﺟﻮد دارد و ﻗﻄﻌﺎ ﺗﻤﺎﯾﻞ ﻧﺪارﯾﻢ ﮐﻞ ﻣﺴﯿﺮ ﻣﻌﮑﻮس را ﺑﺎ ﺗﮑﺮار دﺳﺘﻮر no Xyzﺑﺮاي ﺗﮏ ﺗﮏ ﺗﻨﻈﯿﻤﺎت ﻃﯽ ﮐﻨﯿﻢ. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري اﺗﺼﺎل ﮐﻨﺴﻮل ﺑﺎ ﯾﮏ روﺗﺮ در ﻣﺤﯿﻂ 3Gns اﻫﺪاف آزﻣﺎﯾﺶ اﻧﺘﺴﺎب ﭘﺎراﻣﺘﺮﻫﺎي ip,speed,duplexﺑﻪ 0/0Fa ﺑﺎزﮔﺮداﻧﺪن ﺣﺎﻟﺖ اﯾﻨﺘﺮﻓﯿﺲ 0/0 Faﺑﻪ ﭘﯿﺶ ﻓﺮض . دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ 1. ﺑﺮاي ﺷﺒﯿﻪ ﺳﺎزي ﯾﮏ اﯾﻨﺘﺮﻓﯿﺲ ﮐﺎﻧﻔﯿﮓ ﺷﺪه ﭘﺎراﻣﺘﺮﻫﺎي ﻓﻮق را ﺑﻪ ﺷﺮح زﯾﺮ ﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ ﻧﺴﺒﺖ ﻣﯽ دﻫﯿﻢ Router con0 is now available .Press RETURN to get started Router>enable Router#configure terminal .Enter configuration commands, one per line. End with CNTL/Z 0/0Router(config)#int fa 0.552.552.552 452.1.1.01 Router(config-if)#ip add Router(config-if)#duplex full 001 Router(config-if)#speed Router(config-if)#no shut %LINK-3-UPDOWN: Interface FastEthernet0/0, changed state to up %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up 092 Page 103 of
- 105. Router(config-if)# Router(config-if)#do show runint fa0/0 Building configuration... Current configuration : 94 bytes interface FastEthernet0/0 ip address 10.1.1.254 255.255.255.0 duplex full speed 100 end Router(config-if)# 2. ﻗﺪم ﺑﻌﺪي ﺑﻪ ﺣﺎﻟﺖ اول ﺑﺮﮔﺮداﻧﺪن ﮐﻠﯿﻪ ﺗﻨﻈﯿﻤﺎت ﺻﻮرت ﮔﺮﻓﺘﻪ روي اﯾﻨﺘﺮﻓﯿﺲ ﻣﻮرد ﻧﻈﺮ اﺳﺖ ﺑﺎ اﺳﺘﻔﺎده از . ﻗﺒﻞ از ﻧﺎم اﯾﻨﺘﺮﻓﯿﺲ اﯾﻨﮑﺎر اﻧﺠﺎم ﻣﯽ ﺷﻮدdefault دﺳﺘﻮر outer(config-if)#exit Router(config)#default interface fa0/0 Building configuration... Interface FastEthernet0/0 set to default configuration Router(config)# %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to down %LINK-3-UPDOWN: Interface FastEthernet0/0, changed state to up %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up Rrouter(config)#do show run interface fastethernet 0/0 Building configuration... Current configuration : 73 bytes ! interface FastEthernet0/0 no ip address duplex auto speed auto end Router(config)# Page 104 of 290
- 106. آزﻣﺎﯾﺶ 1.3 –ﺗﻨﻈﯿﻤﺎت ﭘﺎﯾﻪ ﺗﺼﺪﯾﻖ ﻫﻮﯾﺖ ﮐﺎرﺑﺮ ﺑﺮ ﻣﺒﻨﺎي ﭘﺴﻮرد در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ روش ﭘﺎﯾﻪ اي ﺗﺼﺪﯾﻖ ﻫﻮﯾﺖ ﮐﺎرﺑﺮان ﻣﺒﺘﻨﯽ ﺑﺮ ﭘﺴﻮرد ﻣﺸﺘﻤﻞ ﺑﺮ -Consoel-VTY lines Auxiliaryآﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ اﻣﻨﯿﺖ در ﺷﺒﮑﻪ ﻫﺎي واﻗﻌﯽ از ﻣﻬﻤﺘﺮﯾﻦ ﭼﺎﻟﺸﻬﺎﯾﯽ اﺳﺖ ﮐﻪ ﻣﻬﻨﺪﺳﯿﻦ ﺑﺎ آن دﺳﺖ ﺑﻪ ﮔﺮﯾﺒﺎن ﻫﺴﺘﻨﺪ،ﺑﺎﻻﺧﺺ در ﺷﺒﮑﻪ ﻫﺎﯾﯽ ﮐﻪ ﺑﺎ اﯾﻨﺘﺮﻧﺖ در ﺗﻤﺎس ﻫﺴﺘﻨﺪ.داﺷﺘﻦ روﺗﺮ/ﺳﻮﯾﯿﭽﻬﺎي ﻧﺎ اﻣﻦ ﮐﻞ ﺷﺒﮑﻪ را در ﻣﻘﺎﺑﻞ ﺗﻌﺪاد ﻧﺎﻣﺤﺪودي از رﯾﺴﮑﻬﺎي اﻣﻨﯿﺘﯽ ﻗﺮار ﻣﯽ دﻫﺪ.اﯾﻦ آزﻣﺎﯾﺶ ﺑﻪ ﺑﺮرﺳﯽ ﭘﺎﯾﻪ اي ﺗﺮﯾﻦ روش اﻓﺰاﯾﺶ ﺳﻄﺢ اﻣﻨﯿﺘﯽ ادوات ﻣﺒﺘﻨﯽ ﺑﺮ IOS ﯾﺎ ﻫﻤﺎن ﺗﺼﺪﯾﻖ ﻫﻮﯾﺖ ﺑﺮ اﺳﺎس رﻣﺰ ﻋﺒﻮر اﺳﺖ ﻣﯽ ﭘﺮدازد ﭘﯿﺶ ﻧﯿﺎز ﻫﺎي آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري اﺗﺼﺎل ﮐﻨﺴﻮل ﺑﻪ ﯾﮏ روﺗﺮ در ﻣﺤﯿﻂ 3GNS اﻫﺪاف آزﻣﺎﯾﺶ ﺗﻨﻈﯿﻢ رﻣﺰ ﻋﺒﻮر ﺑﺮاي ﮐﻨﺴﻮل روﺗﺮ ﻫﻨﮕﺎم درﺧﻮاﺳﺖ ﺑﺮﻗﺮاري اﺗﺼﺎل ﺑﻪ ﮐﻨﺴﻮل ﺗﻨﻈﯿﻢ رﻣﺰ ﻋﺒﻮر 4-0 VTY lineﺗﺎ در ﻫﻨﮕﺎم ﺑﺮﻗﺮاري اﺗﺼﺎﻟﻬﺎي ﻣﺒﺘﻨﯽ ﺑﺮ Telnet-SSHﺑﻪ ﮐﺎرﺑﺮ ﻧﻤﺎﯾﺶ داده ﺗﻨﻈﯿﻢ Enable secretو Enable password ﺷﻮد ﺗﻨﻈﯿﻢ رﻣﺰ ﻋﺒﻮر ﺑﺮاي Auxiliary line دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ 1. ﺑﺮاي اﻋﻤﺎل ﺗﻨﻈﯿﻤﺎت ﻣﺮﺑﻮط ﺑﻪ ﺣﻔﺎﻇﺖ ﮐﻨﺴﻮل روﺗﺮ ﺑﺎ رﻣﺰ ﻋﺒﻮر ﻧﯿﺎز اﺳﺖ وارد ﻣﺤﯿﻂ ﺗﻨﻈﯿﻤﺎت Console lineﺷﻮﯾﻢ -- --- System Configuration DialogWould you like to enter the initial configuration dialog? [yes/no]: no !Press RETURN to get started 092 Page 105 of
- 107. Router>enable Router#configure terminal 0 Router(config)#lineconsole #)Router(config-line در اﯾﻦ ﻣﻮد ﻣﯿﺘﻮاﻧﯿﻢ رﻣﺰ ﻋﺒﻮر اﺗﺼﺎل ﺑﻪ ﮐﻨﺴﻮل را ﺑﺎ اﺳﺘﻔﺎده از دﺳﺘﻮر passwordﺗﻨﻈﯿﻢ ﮐﻨﯿﻢ 321Router(config-line)#password Cisco ﺳﺖ ﮐﺮدن رﻣﺰ ﻋﺒﻮر ﺑﻪ ﺗﻨﻬﺎﯾﯽ ﺻﻔﺤﻪ اﻋﻼن ورود رﻣﺰ ﻋﺒﻮر را ﺑﻪ ﮐﺎرﺑﺮ روﺗﺮ ﻧﺸﺎن ﻧﺨﻮاﻫﺪ داد، ﺑﺮاي ﻓﻌﺎل ﮐﺮدن اﯾﻦ اﻋﻼن از دﺳﺘﻮر loginاﺳﺘﻔﺎده ﻣﯽ ﺷﻮد Router(config-line)#login ﺣﺎﻻ ﻧﻮﺑﺖ ﻣﯽ رﺳﺪ ﺑﻪ ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت ﺻﻮرت ﮔﺮﻓﺘﻪ ، ﺑﺮاي اﯾﻨﮑﺎر ﺑﺎﯾﺪ از ﻣﺤﯿﻂ اﺟﺮاي ﻓﺮاﻣﯿﻦ ﺑﺎ دﺳﺘﻮر End ﺧﺎرج ﺷﺪ و دوﺑﺎره ﺑﻪ ﻣﺤﯿﻂ اوﻟﯿﻪ ﮐﻨﺴﻮل از ﻃﺮﯾﻖ دﺳﺘﻮر Exitﺑﻪ ﺷﮑﻞ زﯾﺮ وارد ﺷﺪ Router(config-line)#end Router#exit Router con0 is now available .Press RETURN to get started User Access Verification :Password >Router 2. اﮐﻨﻮن ﻧﻮﺑﺖ ﺗﻨﻈﯿﻢ رﻣﺰ ﻋﺒﻮر ﺑﺮاي ﺧﻄﻮط ) VTY (Virtual TeleTypeاﺳﺖ.ﺧﻄﻮط VTYﺧﻄﻮط ارﺗﺒﺎﻃﯽ ﻣﺠﺎزي ﻫﺴﺘﻨﺪ ﮐﻪ ﺑﺮاي ﺑﺮﻗﺮاري ارﺗﺒﺎط از راه دور Telnetﯾﺎ SShﺑﻪ ادوات ﻣﺒﺘﻨﯽ IOSﺑﻪ ﮐﺎر ﻣﯽ روﻧﺪ.ﺗﺨﺼﯿﺺ رﻣﺰ ﻋﺒﻮر ﺑﻪ اﯾﻦ ﺧﻄﻮط ﻫﻢ ﻣﺎﻧﻨﺪ روش ﻗﺒﻞ ﺻﻮرت ﻣﯽ ﮔﯿﺮد Router>enable Router#config terminal 4 0 Router(config)#line vty 123Router(config-line)#password Cisco Router(config-line)#login ﺑﺮاي ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت ﻓﻮق ﻧﯿﺎز اﺳﺖ ﺑﻪ ﯾﮑﯽ از اﯾﻨﺘﺮﻓﯿﺴﻬﺎي روﺗﺮ Ipﺗﺨﺼﯿﺺ دﻫﯿﻢ ﺑﻪ ﻋﻨﻮان ﻣﺜﺎل ﺑﻪ Loopbackآداﭘﺘﺮ ﺻﻔﺮ ﺑﻪ ﺷﮑﻞ زﯾﺮ . 092 Page 106 of
- 108. Router(config-line)#interface lo0 Router(config-if)#ip add10.1.1.1 255.255.255.255 Router(config-if)#end Router# از ﻃﺮﯾﻖ اﯾﻨﺘﺮﻓﯿﺲ اﯾﺠﺎد ﺷﺪه، از درون روﺗﺮي ﮐﻪ ﺑﺎ ﮐﻨﺴﻮل ﺑﻪ آن ﻣﺘﺼﻞ ﻫﺴﺘﯿﻢ ﺑﻪVty اﮐﻨﻮن ﺑﺮاي ﺗﺴﺖ رﻣﺰ ﻋﺒﻮر . ﻣﯽ ﮐﻨﯿﻢTelnet اﯾﻨﺘﺮﻓﯿﺲ ﻣﺬﮐﻮرIp Router#telnet 10.1.1.1 Trying 10.1.1.1 ... Open User Access Verification Password: Password: Router> Priviliged ﺧﻮاﻫﯿﻢ ﺷﺪ و در ﺻﻮرت ﻧﯿﺎز ﺑﻪ ورود ﺑﻪuser mode ﭘﺲ از ورود رﻣﺰ ﻋﺒﻮر ﺗﻌﯿﯿﻦ ﺷﺪه وارد ﻣﺤﯿﻂ . ﻣﻮاﺟﻪ ﺧﻮاﻫﯿﻢ ﺷﺪEnable ﺑﺎ ﺻﻔﺤﻪ ورود رﻣﺰ ﻋﺒﻮرmode Router>enable Password: Password: Password: % Bad passwords Router> را ﺟﻬﺖ ﭘﺮﺳﯿﺪن رﻣﺰﻋﺒﻮر از ﮐﺎرﺑﺮ ﻫﻨﮕﺎم ورود ﺑﻪEnable Secret وEnable password 3. در اﯾﻦ ﻗﺴﻤﺖ اﻧﺠﺎم ﺧﻮاﻫﺪGlobal configuration mode ﺗﻨﻈﯿﻢ ﺧﻮاﻫﯿﻢ ﮐﺮد.اﯾﻦ ﺗﻨﻈﯿﻢ در ﻣﺤﯿﻂPrivilege mode وارد اﯾﻦ ﻣﺤﯿﻂ ﺷﻮﯾﺪConfig terminal ﻫﺴﺘﯿﺪ ﺑﺎ دﺳﺘﻮرTelnet ﺷﺪ ﭘﺲ اﮔﺮ ﻫﻨﻮز در ﻣﺤﯿﻂ Router>exit [Connection to 10.1.1.1 closed by foreign host] Router#configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router(config)#enable password Cisco1 Router(config)#enable secret Cisco2 Router(config)#end Router# :ﻧﮑﺘﻪ Page 107 of 290
- 109. از ﻫﺮدوي Enable passwordو Enable secretﺑﺮاي ﯾﮏ ﻣﻨﻈﻮر اﺳﺘﻔﺎده ﻣﯽ ﺷﻮد ﯾﻌﻨﯽ ورود ﺑﻪ Privilege modeاﻣﺎ اﮔﺮ ﻫﺮدوي آﻧﻬﺎ ﺳﺖ ﺷﻮﻧﺪ Enable secretﻧﺴﺒﺖ ﺑﻪ Enable passwordاﻟﻮﯾﺖ ﺧﻮاﻫﺪ داﺷﺖ ﺑﻪ ﺑﯿﺎن ﺑﻬﺘﺮ ﻗﺒﻠﯽ را ﺑﺎﻃﻞ ﻣﯿﮑﻨﺪ ﻣﺠﺪدا ﺑﺮاي ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت ﺑﻪ روﺗﺮ Telnetﻣﯿﮑﻨﯿﻢ. 1.1.1.01 Router#telnet Trying 10.1.1.1 ... Open User Access Verification :Password Router>enable :Password :Password #Router در ﺻﻮرﺗﯿﮑﻪ از Enable passwordاﺳﺘﻔﺎده ﮐﻨﯿﻢ رﻣﺰ ﻣﺮﺑﻮﻃﻪ ﻣﻮرد ﻗﺒﻮل ﻗﺮار ﻧﺨﻮاﻫﺪ ﮔﺮﻓﺖ ﭼﻮن Enable secret ﻫﻢ ﺳﺖ ﺷﺪه اﺳﺖ. 4. آﺧﺮﯾﻦ ﺑﺨﺶ اﯾﻦ آزﻣﺎﯾﺶ ﺗﻨﻈﯿﻢ رﻣﺰ ﻋﺒﻮر ﺑﺮاي Aux portاﺳﺖ. Auxiliary portﺑﺴﯿﺎر ﺷﺒﯿﻪ ﭘﻮرت ﮐﻨﺴﻮل اﺳﺖ و ﻫﻤﺎن ﻣﻔﻬﻮم ﮐﺎرﺑﺮدي را دارا اﺳﺖ ﺑﺎ اﯾﻦ ﺗﻔﺎوت ﮐﻪ داراي ﻗﺎﺑﻠﯿﺖ اﺗﺼﺎل ﺑﻪ ﻣﻮدم اﮐﺴﺘﺮﻧﺎل اﺳﺖ و ﺑﻪ راﻫﺒﺮ ﺳﯿﺴﺘﻢ اﯾﻦ اﺟﺎزه را ﻣﯽ دﻫﺪ ﮐﻪ از راه درو و ﺑﻪ ﺻﻮرت Dial upﺑﻪ ﺳﯿﺴﺘﻢ ﻣﻮرد ﻧﻈﺮ ﻣﺘﺼﻞ ﺷﻮد. در ﺻﻮرﺗﯿﮑﻪ ﻧﯿﺎز ﺑﻪ ﭘﯿﮑﺮﺑﻨﺪي ﺗﻌﺪاد زﯾﺎدي از ادوات ﺳﯿﺴﮑﻮ ﺑﺎ اﯾﻦ روش ﺑﺎﺷﺪ ﻣﻌﻤﻮل اﺳﺖ ﮐﻪ ﺑﺎ ﺑﻬﺮه ﮔﯿﺮي از Access serverو اﺗﺼﺎل آن ﺑﻪ ﺳﺎﯾﺮ ادوات و ﺗﻨﻬﺎ ﺑﺎ ﯾﮏ ﺧﻂ Dial-inاﯾﻦ اﻣﺮ ﻣﺤﻘﻖ ﺷﻮد. .End with CNTL/Z 092 Page 108 of Router#configure terminal .Enter configuration commands, one per line 0 Router(config)#line aux 321Router(config-line)#password AuxPassword Router(config-line)#login Router(config-line)#end #Router
- 110. آزﻣﺎﯾﺶ 2.3 –ﭘﯿﮑﺮﺑﻨﺪي اﺣﺮاز ﻫﻮﯾﺖ ﺑﺮ اﺳﺎس ﭘﺎﯾﮕﺎه داده داﺧﻠﯽ روﺗﺮ/ﺳﻮﯾﯿﭻ در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت اﺣﺮاز ﻫﻮﯾﺖ ﺑﺮ اﺳﺎس ﺣﺴﺎﺑﻬﺎي ﮐﺎرﺑﺮي ذﺧﯿﺮه ﺷﺪه در ﭘﺎﯾﮕﺎه داده داﺧﻠﯽ روﺗﺮ/ﺳﻮﯾﯿﭻ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ ﻋﻤﻮﻣﺎ در ﺷﺒﮑﻪ ﻫﺎي ﺑﺰرگ ﻧﻔﺮات زﯾﺎدي دﺳﺘﺮﺳﯽ ﺑﻪ ادوات ﺷﺒﮑﻪ ﺳﯿﺴﮑﻮ دارﻧﺪ و ﻻزم اﺳﺖ ﻣﮑﺎﻧﯿﺰﻣﯽ ﺑﺮاي ﺗﻌﺮﯾﻒ ﮐﺎرﺑﺮان و ﺳﻄﻮح دﺳﺘﺮﺳﯽ آﻧﻬﺎ ﺑﻪ ﻣﻨﻈﻮر اﻧﺠﺎم اﻣﻮر ﻣﺨﺘﻠﻒ ﻣﺪﯾﺮﯾﺘﯽ روي ادوات ﻣﺬﮐﻮر وﺟﻮد داﺷﺘﻪ ﺑﺎﺷﺪ. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري اﺗﺼﺎل ﮐﻨﺴﻮل ﺑﻪ ﯾﮏ روﺗﺮ در ﻣﺤﯿﻂ 3GNS ﺗﺨﺼﯿﺺ 1.1.1.01 Ipﺑﻪ loopback adapter اﻫﺪاف آزﻣﺎﯾﺶ اﯾﺠﺎد ﮐﺎرﺑﺮ ﺑﻪ ﻧﺎم Tomﺑﺎ ﭘﺴﻮرد 321$ Ciscoو اﻋﻄﺎي ﺳﻄﺢ دﺳﺘﺮﺳﯽ 51 levelﺑﻪ ﮐﺎرﺑﺮ اﯾﺠﺎد ﮐﺎرﺑﺮ Jerryﺑﺎ ﭘﺴﻮرد ! Letmeseeو اﻋﻄﺎي ﺳﻄﺢ دﺳﺘﺮﺳﯽ 1 Levelﺑﻪ ﮐﺎرﺑﺮ ﺗﻨﻈﯿﻢ 4-0 VTYﺟﻬﺖ اﺣﺮاز ﻫﻮﯾﺖ ﮐﺎرﺑﺮان از ﻃﺮﯾﻖ دﯾﺘﺎﺑﯿﺲ ﻣﺤﻠﯽ ﺑﺮرﺳﯽ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت از ﻃﺮﯾﻖ ﻃﺮﯾﻖ Telnetﺑﻪ 0Loopback دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ 1. ﺑﺮاي اﯾﺠﺎد ﯾﻮزر Tomﺑﺎ ﻣﺸﺨﺼﻪ ﻫﺎي ﻓﻮق ﺑﻪ ﺷﮑﻞ زﯾﺮ ﻋﻤﻞ ﻣﯿﮑﻨﯿﻢ Router con0 is now available .Press RETURN to get started Router>enable Router#configure terminal .Enter configuration commands, one per line. End with CNTL/Z 321$Router(config)#username tom privilege 15 secret Cisco 2. ﺑﺮاي اﯾﺠﺎد ﯾﻮزر Jerryﺑﺎ ﻣﺸﺨﺼﺎت ﻓﻮق ﺑﻪ ﺷﮑﻞ زﯾﺮ ﻋﻤﻞ ﻣﯿﮑﻨﯿﻢ !Router(config)#username jerry privilege 1 secret LetMeSee 092 Page 109 of
- 111. ﻧﮑﺘﻪ:اﯾﺠﺎد ﯾﻮزر ﺑﺎﺳﻄﺢ دﺳﺘﺮﺳﯽ 51 ﯾﻮزر را ﭘﺲ از ﻻﮔﯿﻦ ﺑﻪ Priviledge modeﻫﺪاﯾﺖ ﻣﯽ ﮐﻨﺪ ﯾﻌﻨﯽ ﻧﯿﺎزي ﺑﻪ وارد ﮐﺮدن رﻣﺰ ﻋﺒﻮر Enableﻧﺨﻮاﻫﺪ داﺷﺖ ﭘﺲ ﻧﺴﺒﺖ ﺑﻪ اﻋﻄﺎي آن دﻗﺖ ﮐﻨﯿﺪ. 3. ﺗﻨﻈﯿﻢ 4-0 VTYﺟﻬﺖ اﯾﻨﮑﻪ درﺧﻮاﺳﺘﻬﺎي اﺣﺮاز ﻫﻮﯾﺖ را ﺑﻪ دﯾﺘﺎﺑﯿﺲ ﻣﺤﻠﯽ ﺣﺴﺎﺑﻬﺎي ﮐﺎرﺑﺮي ارﺳﺎل ﮐﻨﺪ. اﯾﻨﮑﺎر ﺑﺎ ﺳﺘﻔﺎده از دﺳﺘﻮر login localﺑﻪ ﺷﮑﻞ زﯾﺮ اﻧﺠﺎم ﻣﯽ ﺷﻮد 4 0 Router(config)#line vty Router(config-line)#login local 4. ﺣﺎﻻ ﺑﺎ ﺑﺮﻗﺮاري Telenetﺑﻪ 0 Loopbackﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت را ﺑﻪ ﻗﺮار زﯾﺮ ﺗﺴﺖ ﻣﯿﮑﻨﯿﻢ. ﺑﺎ ورود اﻃﻼﻋﺎت ﻫﻮﯾﺘﯽ Tomﺑﻪ ﻃﻮر ﻣﺴﺘﻘﯿﻢ ﺑﻪ priviledge modeﻫﺪاﯾﺖ ﻣﯿﺸﻮﯾﻢ ﺑﺎ ﮐﺎرﺑﺮ jerryﺑﻪ user mode Routerconfig-line)#end 1.1.1.01 Router#telnet Trying 10.1.1.1 ... Open User Access Verification Username: tom :Password #Router 092 Page 110 of
- 112. آزﻣﺎﯾﺶ 3.3 –ﭘﯿﮑﺮه ﺑﻨﺪي اﺣﺮاز ﻫﻮﯾﺖ ﺑﺮ ﻣﺒﻨﺎي AAA در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ اﺻﻮل ﺗﻨﻈﯿﻤﺎت اﺣﺮاز ﻫﻮﯾﺖ ﺑﺮ ﻣﺒﻨﺎي , AAA (Authentication, Authorization ) Accountingﺑﻪ ﻣﻨﻈﻮر اﻋﻤﺎل ﮐﻨﺘﺮل ﻫﺮﭼﻪ ﺑﯿﺸﺘﺮ ﺑﺮ ﺗﻤﺎﺳﻬﺎي ﻣﺒﺘﻨﯽ ﺑﺮ ﮐﻨﺴﻮل ﯾﺎ Vtyﺧﻮاﻫﯿﻢ ﺷﺪ . ﻣﺒﺎﺣﺚ اﯾﻦ آزﻣﺎﯾﺶ ﺟﺰ ﻣﺒﺎﺣﺚ اﺳﺘﺎﻧﺪارد CCNAﻣﺤﺴﻮب ﻧﻤﯽ ﺷﻮد و ﺟﺰ ﺻﺮﻓﺼﻠﻬﺎي 335-048 CCNA Securityﻫﺴﺘﻨﺪ اﻣﺎ ﺑﻪ ﺟﻬﺖ اﻫﻤﯿﺖ و ﮐﺎرﺑﺮدﺷﺎن در ﻣﺤﯿﻂ ﻫﺎي اﺟﺮاﯾﯽ در اﯾﻦ ﺳﻄﺢ ﺑﻪ آﻧﻬﺎ ﭘﺮداﺧﺘﻪ ﻣﯽ ﺷﻮد. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ ﻗﻀﯿﻪ ﺑﺴﯿﺎر ﺳﺎده اﺳﺖ ، ﺷﺮﮐﺘﻬﺎﯾﯽ ﮐﻪ داراي ﺗﻌﺪاد زﯾﺎدي ادوات ﺳﯿﺴﮑﻮ ﻫﺴﺘﻨﺪ ﺑﻪ ﻣﻨﻈﻮر ﻣﺮﮐﺰﯾﺖ ﺑﺨﺸﯿﺪن ﺑﻪ ﻓﺮاﯾﻨﺪﻫﺎي اﺣﺮاز ﻫﻮﯾﺖ و ﺻﺪور ﻣﺠﻮز ﻫﺎي ﮐﺎرﺑﺮي و ﺳﻄﻮح دﺳﺘﺮﺳﯽ ﺑﻪ اﯾﻦ ادوات از Radiusﯾﺎ +TACACA اﺳﺘﻔﺎده ﻣﯿﮑﻨﻨﺪ.ﺗﻌﺮﯾﻒ ﮐﺎرﺑﺮان ادوات ﺑﻪ ﺻﻮرت ﻟﻮﮐﺎل ﻧﯿﺰ ﺻﺮﻓﺎ ﺑﻪ ﻋﻨﻮان ﭘﺸﺘﯿﺒﺎن روش ﻓﻮق در ﻣﻮاﻗﻌﯽ ﮐﻪ ﺳﺮوﯾﺴﻬﺎي ﺑﺎﻻ در دﺳﺘﺮس ﻧﯿﺴﺘﻨﺪ ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻣﯿﮕﯿﺮﻧﺪ.ﺳﺮورﻫﺎي AAAﻓﺎرق از اﯾﻨﮑﻪ +)TACACSﺑﺨﻮاﻧﯿﺪ ﺗﮏ اﮐﺲ ﭘﻼس( ﺑﺎﺷﻨﺪ ﯾﺎ Radiusﻫﻤﮕﯽ ﻧﺘﻨﻬﺎ ﺑﻪ ﻣﻨﻈﻮر اﯾﺠﺎد ﯾﮑﭙﺎرﭼﮕﯽ ﻣﺪﯾﺮﯾﺖ ﺳﻄﻮح دﺳﺘﺮﺳﯽ و اﺣﺮاز ﻫﻮﯾﺖ ادوات ﺳﯿﺴﮑﻮ و ﺣﺘﯽ ﺳﺎﯾﺮ ﺑﺮﻧﺪﻫﺎ ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻣﯽ ﮔﯿﺮﻧﺪ ﺑﻠﮑﻪ ﮐﺎرﺑﺮدﻫﺎي اﺟﺮاﯾﯽ دﯾﮕﺮي ﻫﻤﭽﻮن ﮐﻤﮏ ﺑﻪ اﺣﺮاز ﻫﻮﯾﺖ اﺗﺼﺎﻻت ﻣﺒﺘﻨﯽ ﺑﺮ Remote Vpn , SSL Vpn , 802.1xو Proxyرا ﻧﯿﺰ دارا ﻫﺴﺘﻨﺪ ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري اﺗﺼﺎل ﮐﻨﺴﻮل ﺑﻪ ﯾﮏ روﺗﺮ در 3GNS اﯾﺠﺎد ﮐﺎرﺑﺮ ﻟﻮﮐﺎل در روﺗﺮ ﺑﺎ ﺳﻄﺢ دﺳﺘﺮﺳﯽ 51 – ر.ك آز 2.3 اﻫﺪاف آزﻣﺎﯾﺶ ﻓﻌﺎل ﺳﺎزي AAAدر ﻣﺤﯿﻂ Global config ﺗﻨﻈﯿﻢ ﯾﮑﯽ از ﻟﯿﺴﺘﻬﺎي AAAﺑﻪ ﻧﺎم CONSOLE_AUTHو ارﺗﺒﺎط آن ﺑﻪ دﯾﺘﺎﺑﯿﺲ ﮐﺎرﺑﺮان ﻟﻮﮐﺎل ﺗﻨﻈﯿﻢ ﮐﻨﺴﻮل ﺑﻪ ﻣﻨﻈﻮر اﺳﺘﻔﺎده از ﻟﯿﺴﺖ CONSOLE_AUTHاﯾﺠﺎد ﺷﺪه در ﺑﻨﺪ ﻗﺒﻠﯽ ﺟﻬﺖ اﺣﺮاز ﭼﮏ ﮐﺮدن ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت ﻫﻮﯾﺖ 092 Page 111 of
- 113. دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ ﻣﻬﻢ« ﺑﺮﻣﺒﻨﺎي درﺧﻮاﺳﺖ ﭘﯿﺶ ﻧﯿﺎز آزﻣﺎﯾﺶ ﯾﮏ ﯾﻮزر ﻟﻮﮐﺎل ﺑﺎ ﺳﻄﺢ دﺳﺘﺮﺳﯽ 51 اﯾﺠﺎد ﻣﯽ ﮐﻨﯿﻢ در ﻏﯿﺮ اﯾﻨﺼﻮرت ﺑﺎ اﺟﺮاي دﺳﺘﻮر aaa new-modelﻗﻔﻞ ﺧﻮاﻫﯿﻢ ﺷﺪ! ﺑﺪون اﻣﮑﺎن ﻻﮔﯿﻦ ﻣﺠﺪد ﺑﻪ روﺗﺮ 1. در ﻗﺪم اول AAAرا ﺑﺎ دﺳﺘﻮر aaa new-modelﻓﻌﺎل ﻣﯿﮑﻨﯿﻢ . اﯾﻦ دﺳﺘﻮر ﻧﻮع ﺟﺪﯾﺪ ﻣﮑﺎﻧﯿﺰم اﺣﺮاز ﻫﻮﯾﺖ را ﻓﻌﺎل ﺧﻮاﻫﺪ ﮐﺮد و ﻣﺘﺪﻫﺎي ﻗﺪﯾﻤﯽ را ﻏﯿﺮ ﻓﻌﺎل ﻣﯿﮑﻨﺪ. Router con0 is now available .Press RETURN to get started .End with CNTL/Z Router>enable Router#configure terminal .Enter configuration commands, one per line Router(config)#aaa new-model ﻟﯿﺴﺖ CONSOLE_AUTHرا ﺟﻬﺖ اﺧﺬ اﻃﻼﻋﺎت ﻫﻮﯾﺘﯽ از دﯾﺘﺎﺑﯿﺲ ﻟﻮﮐﺎل ﺑﻪ ﺷﮑﻞ زﯾﺮ ﺗﻨﻈﯿﻢ ﻣﯿﮑﻨﯿﻢ. ﺗﻮﺿﯿﺢ اﯾﻨﮑﻪ ﻧﺤﻮه ﻧﮕﺎرش دﺳﺘﻮر ﺑﻪ اﯾﻦ ﺷﮑﻞ اﺳﺖ : . aaa authentication login LISTNAME AUTHTYPEدر اﯾﻨﺠﺎ ﻧﺎم ﻟﯿﺴﺖ CONSOLE_AUTHو authentication typeﻧﯿﺰ Localاﺳﺖ Router(config)#aaa authentication login CONSOLE_AUTH local 2. اﮐﻨﻮن ﻧﻮﺑﺖ ﻣﯽ ﺳﺮد ﺑﻪ ﺗﻨﻈﯿﻤﺎت ﮐﻨﺴﻮل ﺟﻬﺖ ﻫﺪاﯾﺖ ﻣﮑﺎﻧﯿﺰم اﺣﺮاز ﻫﻮﯾﺖ ﮐﺎرﺑﺮان ﺑﻪ AAAﻟﯿﺴﺘﯽ ﮐﻪ در ﻗﺴﻤﺖ ﻗﺒﻞ اﯾﺠﺎد ﮐﺮدﯾﻢ. از دﺳﺘﻮر ﯾﮏ ﺧﻄﯽ login authentication listnameﺷﮑﻞ زﯾﺮ اﺳﺘﻔﺎده ﻣﯽ ﮐﻨﯿﻢ 0 Router(config)#line con Router(config-line)#login authentication CONSOLE_AUTH ﺗﻮﺿﯿﺤﺎت ﺗﮑﻤﯿﻠﯽ ﺑﺎ ﻓﻌﺎل ﺷﺪن AAAﺗﻮﺳﻂ دﺳﺘﻮر AAA New-modelﺗﺨﺼﯿﺺ ﺳﻄﺢ دﺳﺘﺮﺳﯽ ﺑﻪ ﻃﻮر ﺧﻮدﮐﺎر ﻣﺎﻧﻨﺪ ﻗﺪﯾﻢ ﺻﻮرت ﻧﻤﯽ ﮔﯿﺮﯾﺪ.ﺑﻪ ﻋﻨﻮان ﻣﺜﺎل اﮔﺮ ﺑﺎ ﯾﮏ ﺣﺴﺎب ﮐﺎرﺑﺮي 51 Levelﺑﻪ ﺳﯿﺴﺘﻢ ﻻﮔﯿﻦ ﮐﻨﯿﺪ ﺑﻪ ﻃﻮر ﺧﻮدﮐﺎر ﺑﻪ Privileged modeوارد ﻧﺨﻮاﻫﯿﺪ ﺷﺪ ﺑﺮاي اﯾﻦ ﻣﻨﻈﻮر ﻧﯿﺎز اﺳﺖ ﺗﺎ از دﺳﺘﻮرات ﺗﮑﻤﯿﻠﯽ AAAﻣﺎﻧﻨﺪ aaa authorization consoleاﺳﺘﻔﺎده ﺷﻮد ، ﻫﻤﯿﻦ ﻣﻔﻬﻮم ﺑﺮاي اﺗﺼﺎﻻت ﻣﺒﺘﻨﯽ ﺑﺮ VTYﻫﻢ ﺑﺮﻗﺮار اﺳﺖ ﺑﻪ اﯾﻦ ﻣﻌﻨﺎ ﮐﻪ ﻧﯿﺎز اﺳﺖ ﺗﺎ 092 Page 112 of
- 114. ﭘﯿﺶ ﻓﺮضرا ﺑﻪ ﮔﻮﻧﻪ اي ﺗﻨﻈﯿﻢ ﮐﻨﯿﻢ ﮐﻪ ﺑﺮاي ﺗﺸﺨﯿﺺ ﺳﻄﻮح دﺳﺘﺮﺳﯽ از دﯾﺘﺎﺑﯿﺲ ﻟﻮﮐﺎلauthorization list .ﺳﯿﺴﺘﻢ اﺳﺘﻔﺎده ﮐﻨﺪ . ﺑﺮاي اﯾﻦ ﻣﻨﻈﻮر اﺳﺘﻔﺎده ﻣﯿﮑﻨﯿﻢaaa authorization exec default local از دﺳﺘﻮر 3. ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت را ﺑﺎ ﻗﻄﻊ ارﺗﺒﺎط ﺑﺎ ﮐﻨﺴﻮل و ارﺗﺒﺎط ﻣﺠﺪد ﺑﺎ آن ﺷﺮوع ﻣﯿﮑﻨﯿﻢ Router(config-line)#end Router#exit Router con0 is now available Press RETURN to get started. User Access Verification Username: john Password: Router> Page 113 of 290
- 115. آزﻣﺎﯾﺶ 4.3 -ﺗﻨﻈﯿﻤﺎت AAAﻣﺒﺘﻨﯽ ﺑﺮ +TACACS در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت AAAﺑﻪ ﻣﻨﻈﻮر اﺣﺮاز ﻫﻮﯾﺖ از ﻃﺮﯾﻖ Cisco Secure Access Contro ) (TACACS+ Serverآﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ ﻫﯿﭻ ﻣﻬﻨﺪس ﺷﺒﮑﻪ اي وﺟﻮد ﻧﺪارد ﮐﻪ ﻣﺎﯾﻞ ﺑﻪ ﺻﺮف ﺳﺎﻋﺘﻬﺎ وﻗﺖ ﺑﺮاي ﺗﻌﺮﯾﻒ ﯾﻮزرﻫﺎي ﻟﻮﮐﺎل روي ﺻﺪﻫﺎ دﺳﺘﮕﺎه از ادوات ﺳﯿﺴﮑﻮ ﺑﺎﺷﺪ.اﯾﻦ ﻣﻌﻀﻞ ﺳﺎﻟﻬﺎ ﻗﺒﻞ ﭘﯿﺶ ﺑﯿﻨﯽ ﺷﺪه ﺑﻮد و ﺑﺮاي رﻓﻊ آن ﻗﺎﺑﻠﯿﺖ AAAﺑﻪ ادوات ﺳﯿﺴﮑﻮ اﺿﺎﻓﻪ ﺷﺪ.ﺑﺎ اﺳﺘﻔﺎده از AAAﻣﯿﺘﻮان ادوات ﻣﺒﺘﻨﯽ ﺑﺮ iosرا ﺑﻪ ﮔﻮ ﻧﻪ اي ﮐﺎﻧﻔﯿﮓ ﮐﺮد ﮐﻪ ﮐﻠﯿﻪ درﺧﻮاﺳﺘﻬﺎي ﺗﻤﺎس ﺑﻪ ﺳﻤﺖ آﻧﻬﺎ از ﻃﺮﯾﻖ ﯾﮏ ﭘﺎﯾﮕﺎه داده ﻣﺮﮐﺰي ﻣﻮرد اﺣﺮاز ﻫﻮﯾﺖ ﻗﺮار ﮔﯿﺮﻧﺪ .ﮐﻤﭙﺎﻧﯽ ﺳﯿﺴﮑﻮ ﺑﺮاي اﯾﻦ ﻣﻨﻈﻮر راه ﺣﻠﯽ ﺑﻪ ﻧﺎم Cisco Secure Access serverرا ﺗﻮﻟﯿﺪ ﮐﺮد و ﻋﻤﻮﻣﺎ در ﺷﺒﮑﻪ ﻫﺎﯾﯽ ﮐﻪ ﺑﯿﺶ از 05 دﺳﺘﮕﺎه از ادوات ﺳﯿﺴﮑﻮ را دارا ﻫﺴﺘﻨﺪ ﺟﻬﺖ ﻣﺮﮐﺰﯾﺖ ﺑﺨﺸﯿﺪن ﺑﻪ 3 ﻫﺪف authenticationو authorizationو accountingﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻣﯿﮕﯿﺮد. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﺑﺮﻗﺮاي ارﺗﺒﺎط ﮐﻨﺴﻮل ﺑﺎ ﯾﮏ دﺳﺘﮕﺎه روﺗﺮ در ﻣﺤﯿﻂ 3GNS ﺗﻨﻈﯿﻢ روﺗﺮ ﻓﻮق ﺑﺎ دﺳﺘﻮر اﻟﻌﻤﻞ ﻫﺎي آزﻣﺎﯾﺶ 3.3 اﻫﺪاف آزﻣﺎﯾﺶ ﮐﺎﻧﻔﯿﮓ +TACACSﺳﺮور واﻗﻊ در آدرس 02.1.1.01 ﺑﺎ ﮐﻠﯿﺪ !P@s$W0rD ﮐﺎﻧﻔﯿﮓ ﻟﯿﺴﺖ CONSOLE_AUTHﺟﻬﺖ ارﺳﺎل درﺧﻮاﺳﺘﻬﺎي اﻫﺮاز ﻫﻮﯾﺖ ﺑﻪ Tacacsﺳﺮور و اﻧﺠﺎم آن ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت ﺑﻪ ﺻﻮرت ﻟﻮﮐﺎل در ﺻﻮرت در دﺳﺘﺮس ﻧﺒﻮدن Tacacssﺳﺮور دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ 1. در اوﻟﯿﻦ ﻗﺪم ﻧﯿﺎز اﺳﺖ ﺗﺎ ﻣﺸﺨﺼﻪ ﻫﺎي آدرس و ﮐﻠﯿﺪ ﻣﺮﺑﻮط ﺑﻪ Tacacsﺳﺮور ﺑﻪ روﺗﺮ ﻣﻌﺮﻓﯽ ﺷﻮﻧﺪ. اﯾﻨﮑﺎر ﺑﺎ اﺳﺘﻔﺎده از دﺳﺘﻮر tacacs-server host x.x.x.x key keygoeshereﺑﻪ ﺷﮑﻞ زﯾﺮ اﻧﺠﺎم ﻣﯽ ﺷﻮد Router con0 is now available .Press RETURN to get started 092 Page 114 of
- 116. Router>enable Router#configure terminal !Router(config)#tacacs-server host10.1.1.20 key P@s$W0rD 2. در ﻗﺪﯾﻢ ﺑﻌﺪي ﻟﯿﺴﺖ اﺣﺮاز ﻫﻮﯾﺖ CONSOLE_AUTHرا ﺑﻪ ﮔﻮﻧﻪ اي ﮐﺎﻧﻔﯿﮓ ﻣﯿﮑﻨﯿﻢ ﮐﻪ در وﺣﻠﻪ اول درﺧﻮاﺳﺘﻬﺎي ﺗﻤﺎس ﺑﻪ روﺗﺮ را ﺟﻬﺖ اﺣﺮاز ﻫﻮﯾﺖ ﺑﻪ Tacacsﺳﺮور ارﺳﺎل ﮐﻨﺪ و در ﺻﻮرت در دﺳﺘﺮس ﻧﯿﻮدن ﺳﺮور ﺑﻪ ﺻﻮرت ﻟﻮﮐﺎل اﺣﺮاز ﻫﻮﯾﺖ ﺷﻮﻧﺪ. در آزﻣﺎﯾﺶ 2.3 ﭘﺎراﻣﺘﺮ authtypeﻓﻘﻂ ﺑﻪ ﺻﻮرت local ﺗﻨﻈﯿﻢ ﺷﺪه ﺑﻮد. ﭘﺎراﻣﺘﺮﻫﺎي ﭘﺲ از authtypeﺑﻪ ﺗﺮﺗﯿﺐ اوﻟﻮﯾﺖ از ﭼﭗ ﺑﻪ راﺳﺖ ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻣﯿﮕﯿﺮﻧﺪ، ﭘﺲ ﺑﺮاي ﺑﻬﺮه ﮔﯿﺮي از Tacacsﺳﺮور ﻋﺒﺎرت + Tacacsرا ﻗﺒﻞ از localدرج ﻣﯿﮑﻨﯿﻢ. Router(config)#aaa authentication login CONSOLE_AUTH group tacacs+ local 3. در اﻧﺘﻬﺎ ﻟﯿﺴﺖ ﺗﻨﻈﯿﻢ ﺷﺪه را ﺑﻪ ﮐﻨﺴﻮل ﻣﻨﺘﺴﺐ ﻣﯿﮑﻨﯿﻢ،ﺑﺮاي اﯾﻨﮑﺎر از ﻫﻤﺎن ﻣﺘﺪ آزﻣﺎﯾﺶ 2.3 اﺳﺘﻔﺎده ﻣﯿﮑﻨﯿﻢ. 0 Router(config)#line con Router(config-line)#login authentication CONSOLE_AUTH 092 Page 115 of
- 117. آزﻣﺎﯾﺶ 5.3-ﺗﻨﻈﯿﻤﺎت SSH دراﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻢ ) Secure Shell (SSHدر روﺗﺮﻫﺎ و ﺳﻮﯾﯿﭽﻬﺎي ﺳﯿﺴﮑﻮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ در ﺑﺨﺶ ﻫﺎي ﻗﺒﻠﯽ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت Vtyو Telnetﺟﻬﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط از راه دور ﺑﺎ ادوات ﺳﯿﺴﮑﻮ آﺷﻨﺎ ﺷﺪﯾﻢ . ارﺗﺒﺎﻃﺎت ﻣﺒﺘﻨﯽ ﺑﺮ Telnetداراي ﻧﻘﯿﺼﻪ اﻣﻨﯿﺘﯽ ﺑﺰرﮔﯽ ﻫﺴﺘﻨﺪ ﮐﻪ ﺑﺎﻋﺚ ﻣﯽ ﺷﻮد ﮐﻠﯿﻪ اﻃﻼﻋﺎت رد و ﺑﺪل ﺷﺪه در ﮐﺎﻧﺎل ارﺗﺒﺎﻃﯽ ﭘﺪﯾﺪ آﻣﺪه ﺑﻪ ﺻﻮرت Clear textﻣﻨﺘﻘﻞ ﺷﻮد و در ﺻﻮرت ﻗﺮار ﮔﺮﻓﺘﻦ ﻓﺮدي ) (Snifferﻣﺎﺑﯿﻦ ﻣﺎ و ﺗﺠﻬﯿﺰ ﺳﯿﺴﮑﻮ ﻗﺎدر ﺑﻪ ﺷﻨﻮد و درﯾﺎﻓﺖ ﮐﻠﯿﻪ اﻃﻼﻋﺎت ﺧﻮاﻫﺪ ﺑﻮد از اﯾﻦ رو ﺑﺎ ﻫﺪف رﻣﺰ ﻧﮕﺎري ﮐﺎﻧﺎل ارﺗﺒﺎﻃﯽ از ﺟﺎﯾﮕﺰﯾﻦ Telnetﯾﺎ ﻫﻤﺎن SSHاﺳﺘﻔﺎده ﻣﯿﮑﻨﯿﻢ. SSHدر واﻗﻊ ﯾﮏ Shellﻣﺤﺴﻮب ﻧﻤﯿﺸﻮد ﺑﻠﮑﻪ در واﻗﻊ ﻫﻤﺎن Telnetاﺳﺖ ﺑﺎ ﻣﻼﺣﻀﺎت رﻣﺰ ﻧﮕﺎري. SSHاز اﻟﮕﻮرﯾﺘﻢ ﻫﺎي رﻣﺰ ﻧﮕﺎري ﻣﺘﻔﺎوﺗﯽ ﻫﻤﭽﻮن Data Encryption ) Standard (DESو AES 256Bitاﺳﺘﻔﺎده ﻣﯿﮑﻨﺪ. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري اﺗﺼﺎل ﮐﻨﺴﻮل ﺑﻪ ﯾﮏ دﺳﺘﮕﺎه روﺗﺮ در 3GNS اﯾﺠﺎد ﯾﮏ Loopbaclاﯾﻨﺘﺮﻓﯿﺲ و ﺗﺨﺼﯿﺺ 42/1.1.1.01 ﺑﻪ آن اﯾﺠﺎد ﯾﮏ ﻧﺎم ﮐﺎرﺑﺮي و رﻣﺰ ﻋﺒﻮر در دﯾﺘﺎﺑﯿﺲ ﻟﻮﮐﺎل ﺗﺎ ﭘﺲ از ﻓﻌﺎل ﺷﺪن SSHﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﮔﯿﺮد ﺗﻨﻈﯿﻢ VTY lineﺟﻬﺖ ﺑﻬﺮه ﮔﯿﺮي از دﯾﺘﺎﺑﯿﺲ ﻟﻮﮐﺎل ﺣﺴﺎﺑﻬﺎي ﮐﺎرﺑﺮي در ﺣﯿﻦ اﺣﺮاز ﻫﻮﯾﺖ The VTY Line(s) authentication should be configured to authenticate to the local اﻫﺪاف آزﻣﺎﯾﺶ ﺗﻐﯿﯿﺮ ﻧﺎم روﺗﺮ از ﻧﺎم ﭘﯿﺶ ﻓﺮض ﺑﻪ 1R ﺗﺨﺼﯿﺺ Domain nameﺑﻪ روﺗﺮ ﺟﻬﺖ ﺗﻮﻟﯿﺪ Rsa key ﺗﻮﻟﯿﺪ Certificateﻋﻤﻮﻣﯽ Self-signedﺗﻮﺳﻂ روﺗﺮ ﻏﯿﺮ ﻓﻌﺎل ﮐﺮدن Telnetدر روﺗﺮ و ﺗﻨﻬﺎ اﺳﺘﻔﺎده از SSH دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ 1. ﺑﺮاي اﯾﺠﺎد ﮐﻠﯿﺪ ﻋﻤﻮﻣﯽ RSAﻧﯿﺎز اﺳﺖ ﺗﺎ در وﺣﻠﻪ اول ﻧﺎم روﺗﺮ از ﺣﺎﻟﺖ ﭘﯿﺶ ﻓﺮض ﺑﻪ ﻧﺎم ﺟﺪﯾﺪي ﺗﻐﯿﯿﺮ ﮐﻨﺪ Router con0 is now available .Press RETURN to get started 092 Page 116 of
- 118. Router>enable Password: Router#configure terminal Enter configurationcommands, one per line. Router(config)#hostname R1 R1(config)# End with CNTL/Z. . اﺳﺖRsa certificate ﺑﻪ روﺗﺮ ﺟﻬﺖ ﺗﻮﻟﯿﺪdomain name 2. ﻗﺪم ﺑﻌﺪي ﺗﺨﺼﯿﺺ R1(config)#ip domain-name freeccnaworkbook.com crypto key generate rsa ﻫﺴﺘﯿﻢ. ﺑﺮاي ﺗﻮﻟﯿﺪ آن از دﺳﺘﻮرRsa certificate 3. اﻻن آﻣﺎده ﺗﻮﻟﯿﺪ ﺑﻪ ﻫﻤﺮاه ﺳﺎﯾﺰ ﺑﺮ ﺣﺴﺐ ﺑﯿﺖ ﮐﻠﯿﺪ ﻣﺪ ﻧﻈﺮ.در زﯾﺮ روﻧﺪ ﺗﻮﻟﯿﺪ ﮐﻠﯿﺪ 8402 ﺑﯿﺘﯽ را ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﺪmodulus R1(config)#crypto key generate rsa modulus 2048 The name for the keys will be: R1.freeccnaworkbook.com % The key modulus size is 2048 bits % Generating 2048 bit RSA keys, keys will be non-exportable...[OK] R1(config)# %SSH-5-ENABLED: SSH 1.99 has been enabled در روﺗﺮ ﻓﻌﺎل ﻣﯽ ﺷﻮد و ﻣﯿﺘﻮان ﺑﺎSSH v1.99 ﻗﺎﺑﻠﯿﺖRsa ﻫﻤﺎﻧﻄﻮر ﮐﻪ ﻣﺸﺎﻫﺪه ﻣﯽ ﮐﻨﯿﺪ ﺑﻪ ﻣﺤﺾ اﯾﺠﺎد ﮐﻠﯿﺪ . ﺑﻪ روﺗﺮ ﻣﺘﺼﻞ ﺷﺪSSH وﺑﺎ ﺑﻬﺮه ﮔﯿﺮي ازSecurecrt ﯾﺎputty اﺳﺘﻔﺎده از را ﺑﻪ ﮔﻮﻧﻪ اي ﮐﺎﻧﻔﯿﮓ ﻣﯽ ﮐﻨﯿﻢ ﮐﻪ ﺗﻨﻬﺎ ﭘﺬﯾﺮاي ارﺗﺒﺎﻃﺎت ﻣﺒﺘﻨﯽ ﺑﺮVTY ، ﺧﻄﻮطSSH 4. ﭘﺲ از ﻓﻌﺎل ﺷﺪن . ﻏﯿﺮ ﻓﻌﺎل ﻣﯽ ﺷﻮدTelnet ﺑﺎﺷﻨﺪ ﺑﻪ ﺑﯿﺎن دﯾﮕﺮSSH R1(config)#line vty 0 4 R1(config-line)#transport input ssh آداﭘﺘﺮ ﺳﺎﺧﺘﻪ ﺷﺪه اﻧﺠﺎم ﻣﯽ دﻫﯿﻢLoopback ﮐﺮدن ﺑﻪssh 5. ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﻤﯿﺎت را ﺑﺎ R1(config-line)#end R1#ssh -l john 10.1.1.1 Password: Page 117 of 290
- 119. R1#show ssh Connection VersionMode Encryption Hmac 0 1.99 IN aes128-cbc hmac-sha1 0 1.99 OUT aes128-cbc hmac-sha1 %No SSHv1 server connections running. R1# State Session started Session started Username john john Page 118 of 290
- 120. آزﻣﺎﯾﺶ 6.3 -ﺗﻨﻈﯿﻤﺎت اﮐﺴﺲ ﻟﯿﺴﺘﻬﺎي ﺷﻤﺎره دار در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت اﮐﺴﺲ ﻟﯿﺴﺘﻬﺎي ﺷﻤﺎره دار اﺳﺘﺎﻧﺪارد و Extendedآﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ اﮐﺴﺲ ﻟﯿﺴﺘﻬﺎ ﭘﺎﯾﻪ ﭘﯿﺎده ﺳﺎزي اﻣﯿﻨﯿﺖ در ﺷﺒﮑﻪ ﻫﺎي ﻣﺒﺘﻨﯽ ﺑﺮ ﺳﯿﺴﮑﻮ ﻣﺤﺴﻮب ﻣﯽ ﺷﻮﻧﺪ.اﮐﺴﺲ ﻟﯿﺴﺘﻬﺎ ﺟﺮﯾﺎن دﯾﺘﺎ را در ﯾﮏ ﺗﺠﻬﯿﺰ ﺗﺤﺖ ﮐﻨﺘﺮل ﻣﯽ ﮔﯿﺮﻧﺪ و ﻣﺎﻧﻊ از ارﺳﺎل و درﯾﺎﻓﺖ ﺗﺮاﻓﯿﮏ ﻫﺎي ﻧﺎﺧﻮاﺳﺘﻪ از ﻣﺒﺪا ﺑﻪ ﻣﻘﺼﺪ ﻣﯽ ﺷﻮﻧﺪ.در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ اﮐﺴﺲ ﻟﯿﺴﺘﻬﺎي ﺷﻤﺎره دار آﺷﻨﺎ ﻣﯽ ﺷﻮﯾﻢ ﮐﻪ اﻣﺮوزه ﻋﻤﻮﻣﺎ ﺑﻪ دﻟﯿﻞ اﺳﺘﻔﺎده از اﮐﺴﺲ ﻟﯿﺴﺘﻬﺎي ﺑﺎ ﻧﺎم ، ﮐﻤﺘﺮ ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻣﯽ ﮔﯿﺮﻧﺪ. ﺷﺎﯾﺪ در ﺑﺮﺧﯽ ادوات و ﮐﺎﻧﻔﯿﮕﻬﺎي ﻗﺪﯾﻤﯽ ﺑﺎ آﻧﻬﺎ ﺑﺮﺧﻮرد ﮐﻨﯿﺪ ﯾﺎ ﺷﺎﯾﺪ ﺗﻮﺳﻂ ﻣﻬﻨﺪﺳﯿﻦ ﺗﺎزه ﮐﺎري ﮐﻪ ﻫﻨﻮز ﺑﺎ اﮐﺴﺲ ﻟﯿﺴﺘﻬﺎي ﺑﺎ ﻧﺎم آﺷﻨﺎ ﻧﺸﺪه اﻧﺪ ﻧﻮﺷﺘﻪ ﺷﺪه ﺑﺎﺷﻨﺪ .ﺑﺰرﮔﺘﺮﯾﻦ ﻧﻘﻄﻪ ﺿﻌﻒ اﮐﺴﺲ ﻟﯿﺴﺘﻬﺎي ﺷﻤﺎره دار زﻣﺎن ﺑﺮ ﺑﻮدن ﻣﮑﺎﻧﯿﺰم وﯾﺮاﯾﺶ آﻧﻬﺎﺳﺖ.ﻣﺘﺎﺳﻔﺎﻧﻪ اﻣﮑﺎن ﻗﺮار دادن ACE (Access ) Control List Entriesدرﺳﻄﺮ ﺧﺎﺻﯽ از ACLاﻣﮑﺎن ﭘﺬﯾﺮ ﻧﯿﺴﺖ و ﻧﯿﺎز ﺑﻪ ﺻﺮف و در واﻗﻊ اﺗﻼف زﻣﺎن ﺑﺮاي ﯾﺎﻓﺘﻦ ﺳﻄﺮ ﻣﻮرد ﻧﻈﺮ و ادﯾﺖ ﻣﺤﻠﯽ آن ﺳﻄﺮ وﺟﻮد دارد. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﻗﺮار دادن دو دﺳﺘﮕﺎه روﺗﺮ و ﯾﮏ ﺳﻮﯾﯿﭻ در ﻣﺤﯿﻂ 3GNS ﺑﺮﻗﺮاري ارﺗﺒﺎط ﮐﻨﺴﻮل ﺑﺎ روﺗﺮﻫﺎ ﺗﺨﺼﯿﺺ آدرس 42/1.1.1.01ﺑﻪ 0/0 Faروﺗﺮ 1R ﺗﺨﺼﯿﺺ آدرس 42/2.1.1.01ﺑﻪ 0/0 Faروﺗﺮ 2R اﺗﺼﺎل دو روﺗﺮ ﺑﻪ ﯾﮑﺪﯾﮕﺮ از ﻃﺮﯾﻖ 0/0Fa اﻫﺪاف آزﻣﺎﯾﺶ اﯾﺠﺎد ﯾﮏ اﮐﺴﺲ ﻟﯿﺴﺖ ﺷﻤﺎره دار ﺑﻪ ﻣﻨﻈﻮر ﺟﻠﻮ ﮔﯿﺮي از درﯾﺎﻓﺖ اﻃﻼﻋﺎت در 1 Rﺑﺎ ﻣﻨﺒﻊ 2R اﯾﺠﺎد ﯾﮏ Extendedاﮐﺴﺲ ﻟﯿﺴﺖ ﺑﺎ ﻫﺪف ﺟﻠﻮﮔﯿﺮي از ﺑﺮﻗﺮاري ارﺗﺒﺎﻃﺎت Telnetاز 1 Rﺑﻪ آدرس 3.1.1.01 دﺳﺘﻮر اﻟﻌﻤﻞ رﻧﺠﻬﺎي ﻣﺘﻌﺪدي از اﮐﺴﺲ ﻟﯿﺴﺘﻬﺎي ﺷﻤﺎره دار ﺑﺮاي اﻋﻤﺎل ﮐﻨﺘﺮل ﺑﺮ ﻃﯿﻒ وﺳﯿﻌﯽ از دﺳﺘﺮﺳﯿﻬﺎ وﺟﻮد دارﻧﺪ . در زﯾﺮ ﻟﯿﺴﺖ ﮐﻠﯽ آﻧﻬﺎ را ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﻢ. 092 Page 119 of
- 121. R1(config)#access-list ? <1-99> IP standardaccess list <100-199> IP extended access list <1000-1099> IPX SAP access list <1100-1199> Extended 48-bit MAC address access list <1200-1299> IPX summary address access list <1300-1999> IP standard access list (expanded range) <200-299> Protocol type-code access list <2000-2699> IP extended access list (expanded range) <2700-2799> MPLS access list <300-399> DECnet access list <600-699> Appletalk access list <700-799> 48-bit MAC address access list <800-899> IPX standard access list <900-999> IPX extended access list compiled Enable IP access-list compilation dynamic-extended Extend the dynamic ACL absolute timer rate-limit Simple rate-limit specific access list 1. ﺑﺮاي اﻧﺠﺎم اوﻟﯿﻦ ﻫﺪف اﯾﻦ آزﻣﺎﯾﺶ ﻻزم اﺳﺖ ﯾﮏ اﮐﺴﺲ ﻟﯿﺴﺖ اﺳﺘﺎﻧﺪارد اﯾﺠﺎد ﮐﻨﯿﻢ. ﺑﺎ ﻣﺮاﺟﻌﻪ ﺑﻪ ﺷﻤﺎره ﻫﺎي ﺑﺎﻻ درﺧﻮاﻫﯿﻢ ﯾﺎﻓﺖ ﮐﻪ ﺷﻤﺎره ﻫﺎي ﻣﺮﺗﺒﻂ ﺑﺎ اﮐﺴﺲ ﻟﯿﺴﺘﻬﺎي اﺳﺘﺎﻧﺪارد از 1 ﺗﺎ 99 ﻫﺴﺘﻨﺪ . ﯾﮏ ﺷﻤﺎره را ﺑﻼك ﮐﻨﯿﻢ اﻣﺎR2 از ﺳﻤﺖR1 ﺑﻪ دﻟﺨﻮاه اﻧﺘﺨﺎب ﻣﯿﮑﻨﯿﻢ ﻣﺜﻼ 05 ﺗﺎ ﺑﺎ اﺳﺘﻔﺎده از آن ﺗﺮاﻓﯿﮏ ورودي ﺑﻪ .ﻣﺎﺑﻘﯽ ﺗﺮاﻓﯿﮏ ﻣﺠﺎز ﺑﻪ ﻋﺒﻮر ﺧﻮاﻫﺪ ﺑﻮد R1 con0 is now available Press RETURN to get started. R1>enable R1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R1(config)#access-list 50 deny host 10.1.1.2 R1(config)#access-list 50 permit any اﻋﻤﺎل ﮐﻨﯿﻢR1 ﺣﺎﻻ ﮐﻪ اﮐﺴﺲ ﻟﯿﺴﺖ ﺳﺎﺧﺘﻪ ﺷﺪ ﺑﺎﯾﺪ آﻧﺮا ﺑﻪ ﺗﺮاﻓﯿﮏ ورودي R1(config)#interface fa0/0 R1(config-if)#ip access-group 50 in اﻧﺠﺎم ﻣﯿﺪﻫﯿﻢ . ﻣﻨﻄﻘﺎ اﻧﺘﻈﺎر دارﯾﻢ ﭘﺎﺳﺨﯽR2 از ﺳﻤﺖR1 روﺗﺮFa0/0 اﯾﻨﺘﺮﻓﯿﺲping ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت را ﺑﺎ . ﺑﺴﺘﻪ ﺷﺪه اﺳﺖR2 درﯾﺎﻓﺖ ﻧﮑﻨﯿﻢ ﭼﻮن ﺗﺮاﻓﯿﮏ ورودي آن ﺑﺎ ﻣﺒﺪاR1 از ﺳﻤﺖ R2>ping 10.1.1.1 Page 120 of 290
- 122. .Type escape sequenceto abort :Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds U.U.U )5/0( Success rate is 0 percent >2R ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت را از ﻃﺮﯾﻖ اﺟﺮاي دﺳﺘﻮر show access-listدر روﺗﺮ 1 Rﻫﻢ ﻣﯽ ﺗﻮان اﻧﺠﺎم داد. R1(config-if)#end R1#show access-list 05 Standard IP access list 10 deny )10.1.1.2 (8 matches 20 permit any #1R اﮐﻨﻮن ﺑﺮاي اﯾﻨﮑﻪ اﻃﻤﯿﻨﺎن ﺣﺎﺻﻞ ﮐﻨﯿﻢ اﮐﺴﺲ ﻟﯿﺴﺖ ﺗﻨﻬﺎ ﺗﺮاﻓﯿﮏ IPﻗﯿﺪ ﺷﺪه را ﺑﻼك ﻣﯿﮑﻨﯿﺪ IPرا ﺑﻪ 42/3.1.1.01 ﺗﻐﯿﯿﺮ ﻣﯽ دﻫﯿﻢ و ﻣﺠﺪدا ﺗﺴﺖ را اﻧﺠﺎم ﻣﯽ دﻫﯿﻢ. R2>enable R2#configure terminal 0/0R2(config)#interface fa 0.552.552.552 3.1.1.01 R2(config-if)#ip add R2(config-if)#end #2R ﺳﭙﺲ از 1 Rاﯾﻨﺘﺮﻓﯿﺲ 2 Rرا pingﻣﯿﮑﻨﯿﻢ ، اﻧﺘﻈﺎر دارﯾﻢ ﺑﺎ ﻣﻮﻓﻘﯿﺖ ﻫﻤﺮا ﺑﺎﺷﺪ 3.1.1.01 R1#ping .Type escape sequence to abort :Sending 5, 100-byte ICMP Echos to 10.1.1.3, timeout is 2 seconds !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 24/43/76 ms #1R 1. در اﯾﻦ ﻗﺴﻤﺖ ﯾﮏ Extendedاﮐﺴﺲ ﻟﯿﺴﺖ ﺑﺎ ﻫﺪف ﺑﻼك ﮐﺮدن ﺗﺮاﻓﯿﮏ Telnetاز 0/0 Faروﺗﺮ 1 Rﺑﻪ ﻣﻘﺼﺪ 3.1.1.01 اﯾﺠﺎد ﺧﻮاﻫﯿﻢ ﮐﺮد .ﻫﻤﺎﻧﻄﻮر ﮐﻪ در ﻟﯿﺴﺖ ﺷﻤﺎر ه ﻫﺎي اﺑﺘﺪاي آزﻣﺎﯾﺶ ﻣﺸﺎﻫﺪه ﮐﺮدﯾﻢ رﻧﺞ اﯾﻦ رده اﮐﺴﺲ ﻟﯿﺴﺘﻬﺎ از 001 ﺗﺎ 991 اﺳﺖ. از آﻧﺠﺎﯾﯽ ﺗﺮاﻓﯿﮏ Telnetاز ﻧﻮع Tcpاﺳﺖ ﻻزم اﺳﺖ ﻧﻮع ﺗﺮاﻓﯿﮏ و ﭘﺮوﺗﮑﻞ ﺧﺮوﺟﯽ را ﺑﻪ ﻋﻨﻮان ﭘﺎراﻣﺘﺮﻫﺎي دﺳﺘﻮر access-listﻣﺸﺨﺺ ﮐﻨﯿﻢ ﮐﻪ در اﯾﻨﺠﺎ ﭘﻮرت 22 ﺧﻮاﻫﺪ ﺑﻮد 092 Page 121 of
- 123. R1#configure terminal R1(config)#access-list 150deny tcp any host 10.1.1.3 eq telnet R1(config)#access-list 150 permit ip any any ﭘﺲ از اﯾﺠﺎد اﮐﺴﺲ ﻟﯿﺴﺖ ﻻزم اﺳﺖ ﺗﺎ روي ﺗﺮاﻓﯿﮏ ﺧﺮوﺟﯽ 1 Rﺑﻪ ﺷﮑﻞ زﯾﺮ اﻋﻤﺎل ﺷﻮد. 0/0R1(config)#interface fa R1(config-if)#ip access-group 150 out ﯾﮏ ﻗﺎﻧﻮن اﺳﺎﺳﯽ و ﻣﻬﻢ در ﺧﺼﻮص اﮐﺴﺲ ﻟﯿﺴﺘﻬﺎ وﺟﻮد دارد و آن اﯾﻨﺴﺖ ﮐﻪ ﺑﺮاي ﻋﻤﻠﮑﺮد ﻣﻮﺛﺮﺗﺮ اﮐﺴﺲ ﻟﯿﺴﺖ ﺑﺎﯾﺪ ﯾﮏ اﮐﺴﺲ ﻟﯿﺴﺖ Extendedدر ﺳﻤﺖ ﺗﺮاﻓﯿﮏ ﻣﺒﺪا و ﯾﮏ اﮐﺴﺲ ﻟﯿﺴﺖ اﺳﺘﺎﻧﺪارد در ﺳﻤﺖ ﻣﻘﺼﺪ ﻗﺮار داده ﺷﻮد.ﻧﮑﺘﻪ دﯾﮕﺮ وﺟﻮد ﯾﮏ Denyﻣﻄﻠﻖ در اﻧﺘﻬﺎي ﻫﺮ اﮐﺴﺲ ﻟﯿﺴﺖ اﺳﺖ ﮐﻪ داراي ﻣﻔﻬﻮﻣﯽ ﻣﺎﻧﻨﺪ Deny any any در اﻧﺘﻬﺎي اﮐﺴﺲ ﻟﯿﺴﺖ اﺳﺖ.ﭘﺲ ﺑﻪ ﻃﻮر ﭘﯿﺶ ﻓﺮض ﺗﺮاﻓﯿﮏ اﺟﺎزه ﻋﺒﻮر ﻧﺨﻮاﻫﺪ داﺷﺖ ﻣﮕﺮ ﺑﻪ آن اﺟﺎزه ﻋﺒﻮر داده ﺷﻮد.ﻋﻤﻮﻣﺎ ﺟﻬﺖ ﺳﻨﺎرﯾﻮﻫﺎي Tshootاز ﯾﮏ ﻋﺒﺎرت Denyﺻﺮﯾﺢ در اﻧﺘﻬﺎي اﮐﺴﺲ ﻟﯿﺴﺖ ﺑﺎ ﻫﺪف ﻻگ ﮐﺮدن ﺗﺮاﻓﯿﮏ denyﺷﺪه اﺳﺘﻔﺎده ﻣﯽ ﺷﻮد. 092 Page 122 of
- 124. آزﻣﺎﯾﺶ 7.3 –اﮐﺴﺲ ﻟﯿﺴﺘﻬﺎي اﺳﻢ دار– Named Access lists در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت اﮐﺴﺲ ﻟﯿﺴﺘﻬﺎي اﺳﻢ دار در ادوات ﺳﯿﺴﮑﻮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ اﮐﺴﺲ ﻟﯿﺴﺘﻬﺎي ﺷﻤﺎره دار ﯾﮏ ﻋﯿﺐ ﻋﻤﺪه دارﻧﺪ و آن ﻋﺪم اﻣﮑﺎن وﯾﺮاﯾﺶ ﺳﻄﺮﻫﺎي آﻧﻬﺎ در ﻣﺤﻞ ﻗﺮارﮔﯿﺮي ﺳﻄﻮر اﺳﺖ.ﻣﺘﺎﺳﻔﺎﻧﻪ ﺗﻨﻬﺎ راه ﺣﺬف ﯾﺎ وﯾﺮاﯾﺶ آﻧﻬﺎ ﮐﭙﯽ Aclﻣﻮﺟﻮد ﺑﻪ ﯾﮏ وﯾﺮاﯾﺸﮕﺮ ﻣﺘﻨﯽ و وﯾﺮاﯾﺶ آن اﺳﺖ و ﭘﺲ از آن ﺑﺎز ﮔﺮداﻧﺪن ﺗﻐﯿﯿﺮات ﺑﻪ ﻃﻮر ﯾﮑﺠﺎ از ﻃﺮﯾﻖ . Cliاﻣﺮوزه ﻋﻤﻮﻣﺎ از ﻧﻮع اﺳﻢ دار Aclدر ﻣﺤﯿﻄﻬﺎي ﻋﻤﻠﯿﺎﺗﯽ اﺳﺘﻔﺎده ﻣﯽ ﺷﻮد.اﯾﻦ ﻧﻮع Aclﯾﮏ ﻧﻘﻄﻪ ﻗﻮت ﻗﺎﺑﻞ ﺗﻮﺟﻪ ﻧﺴﺒﺖ ﺑﻪ ﻧﻮع ﺷﻤﺎره دار دارد و آن ﺷﺮح ﺗﻮﺻﯿﻔﯽ ﮐﻮﺗﺎه ﻫﺮﯾﮏ از Acl ﻫﺎﺳﺖ ﻣﺜﻼ ،VTY_ACCESSﮐﻪ ﺑﻪ ﻃﻮر ﻣﺸﻬﻮد ﺑﻪ ﻣﺮﺑﻮط ﺑﻪ ﮐﻨﺘﺮل ﺧﻄﻮط Vtyاﺳﺖ. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﮐﻨﺴﻮل ﺑﺎ ﯾﮏ دﺳﺘﮕﺎه روﺗﺮ در ﻣﺤﯿﻂ 3Gns ﺗﺨﺼﯿﺺ ipﻫﺎي 92/3.02.452.961 ﺑﻪ 0/0 Faو 42/452.1.1.01 ﺑﻪ 1/0Fa اﻫﺪاف آزﻣﺎﯾﺶ ﺗﻨﻈﯿﻢ ﯾﮏ Aclاﺳﺘﺎﻧﺪارد ﺑﻪ ﻧﺎم INSIDE_INﮐﻪ ﺗﻨﻬﺎ ﺑﻪ 42/0.1.1.01 اﺟﺎزه ورود ﻣﯽ دﻫﺪ، ﻗﺮار دادن Explicit denyدر ﺧﻂ 005 و ﺛﺒﺖ ﻻگ ﺗﺮاﻓﯿﮑﻬﺎي ﺑﻼك ﺷﺪه اﻋﻤﺎل Aclﻓﻮق ﺑﻪ 1/0Fa ﺗﻨﻈﯿﻢ ﯾﮏ Extended Aclﺑﺎ ﻧﺎم OUTSIDE_INو ﺑﻼك ﮐﺮدن ﺗﺮاﻓﯿﮏ آدرﺳﻬﺎي 05.44.32.17 و 5.091.122.402 و اﺟﺎزه ﻋﺒﻮر ﻫﻤﻪ ﺗﺮاﻓﯿﮑﻬﺎي دﯾﮕﺮ. اﻋﻤﺎل Aclﻓﻮق ﺑﻪ 1/0Fa دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ Aclﻫﺎي اﺳﻢ دار ﺑﺴﯿﺎر ﺷﺒﯿﻪ Aclﻫﺎي ﺷﻤﺎره دار ﻫﺴﺘﻨﺪ ﻣﻨﺘﻬﺎ ﺑﺎ ﯾﮏ ﻧﺎم و ﺷﻤﺎره ﺳﻄﺮ ﻣﺸﺨﺺ ﻣﯽ ﺷﻮﻧﺪ.ﺑﺎ اﯾﻦ ﻗﺎﺑﻠﯿﺖ ﻣﯽ ﺗﻮان ﺗﻌﯿﯿﻦ ﮐﺮد ) Ace(Acl entryدر ﮐﺪام ﺳﻄﺮ ACLﺑﻨﺸﯿﻨﺪ.ﺑﻪ ﻋﻨﻮان ﻣﺜﺎل ﯾﮏ Aclدارﯾﻢ و ﻣﺎﯾﻠﯿﻢ 092 Page 123 of
- 125. ﺑﯿﻦ ﺳﻄﺮﻫﺎي 51و 02 آن ﯾﮏ Aceﺟﺪﯾﺪ ﻗﺮار دﻫﯿﻢ.ﮐﺎﻓﯽ اﺳﺖ ﻫﻨﮕﺎم اﯾﺠﺎد آن ﺷﻤﺎره ﺳﻄﺮ ﻣﺮﺑﻮﻃﻪ را ﻫﻢ ﻗﯿﺪ ﮐﻨﯿﻢ ﭘﺲ از آن ﺑﺮاﺣﺘﯽ در ﻣﺤﻞ ﻣﻮرد ﻧﻈﺮ ﻗﺮار ﻣﯿﮕﯿﺮد. 1. اوﻟﯿﻦ ﻫﺪف اﯾﺠﺎد ﯾﮏ Aclاﺳﻢ دار ﻋﺒﻮر ﺗﺮاﻓﯿﮏ ﺷﺒﮑﻪ 42/0.1.1.01و اﯾﺠﺎد ﯾﮏ Aceدﯾﮕﺮ در ﺳﻄﺮ ﺷﻤﺎره 005 ﺑﺎ ﻫﺪف ﺑﻼك ﺗﺮاﻓﯿﮑﻬﺎي ﺑﺎﻗﯽ ﻣﺎﻧﺪه و ﺛﺒﺖ ﻻگ آﻧﻬﺎﺳﺖ. ﻋﻤﻮﻣﺎ Aceﻫﺎي اﺳﻢ دار ﺑﺎ ﯾﮏ ﺷﻤﺎره ﮐﻪ ﺑﯿﺎﻧﮕﺮ ﺷﻤﺎره ﺳﻄﺮ آﻧﻬﺎ در Aclﻫﺴﺖ ﺗﻌﺮﯾﻒ ﻣﯽ ﺷﻮﻧﺪ.در ﺻﻮرﺗﯿﮑﻪ از ﻫﯿﭻ ﺷﻤﺎره اي اﺳﺘﻔﺎده ﻧﺸﻮد Ace ﻣﺬﺑﻮر در اﻧﺘﻬﺎي ﻟﯿﺴﺖ ﻗﺮار ﺧﻮاﻫﺪ ﮔﺮﻓﺖ.ﻋﻤﻮﻣﺎ ﻫﻢ ﺷﻤﺎره ﻫﺎي Aceﻫﺎ را ﺑﻪ ﺻﻮرت ﻣﻀﺮﺑﯽ از 5 ﯾﺎ 01 در ﻣﯿﮕﯿﺮﻧﺪ ﺗﺎ اﻣﮑﺎن ﺟﺎي ﮔﯿﺮي Aceﻫﺎي ﺑﻌﺪي ﺑﺪون ﺑﻬﻢ رﯾﺨﺘﻦ ﻧﻈﻢ ﺷﻤﺎره ﻫﺎ ﻓﺮاﻫﻢ ﺷﻮد. .End with CNTL/Z R1#configure terminal .Enter configuration commands, one per line R1(config)#ip access-list standard INSIDE_IN #)R1(config-std-nacl 552.0.0.0 0.1.1.01 R1(config-std-nacl)#10 permit R1(config-std-nacl)#500 deny any log ﻧﮑﺘﻪ: Extended Aclﻫﺎ از Subnet maskﺑﺮاي ﻣﺸﺨﺺ ﮐﺮدن ﺷﺒﮑﻪ ﻣﻮرد ﻧﻈﺮﺷﺎن اﺳﺘﻔﺎده ﻧﻤﯿﮑﻨﻨﺪ ﺑﻠﮑﻪ ﺑﻪ ﺟﺎي آن از Wildcard maskﮐﻪ ﺑﻪ ﻧﻮﻋﯽ ﺑﺮﻋﮑﺲ ﻣﻔﻬﻮم Subnet maskاﺳﺖ اﺳﺘﻔﺎده ﻣﯽ ﺷﻮد. ﺧﻮب ﺣﺎﻻ ﮐﻪ Aclاﯾﺠﺎد ﺷﺪ ﻧﻮﺑﺖ ﺑﻪ ﺗﺨﺼﯿﺺ آن ﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ ﻣﻮرد ﻧﻈﺮ اﺳﺖ ﺑﺮاي اﯾﻨﮑﺎر در ﻣﻮد ﺗﻨﻈﯿﻢ اﯾﻨﺘﺮﻓﯿﺲ از دﺳﺘﻮر ip access-groupﺑﻪ ﻫﻤﺮاه ﻧﺎم Aclﻣﺮﺑﻮﻃﻪ و ﻧﻮع ﺗﺮاﻓﯿﮏ اﺳﺘﻔﺎده ﻣﯿﮑﻨﯿﻢ ﺑﻪ ﺷﺮح زﯾﺮ R1(config-std-nacl)#exit 1/0R1(config)#int f R1(config-if)#ip access-group INSIDE_IN in اﮐﻨﻮن ﺗﻨﻈﻤﯿﺎت اﻧﺠﺎم ﺷﺪه را ﺑﺎ دﺳﺘﻮر show access-listﻣﺮور ﻣﯿﮑﻨﯿﻢ R1(config-if)#do show access-list Standard IP access list INSIDE_IN 552.0.0.0 10 permit 10.1.1.0, wildcard bits 500 deny any log #)R1(config-if 2. در ﻗﺴﻤﺖ دوم آزﻣﺎﯾﺶ ﯾﮏ Extended Aclﺑﻪ ﻧﺎم OUTSIDE_INﺑﺎ ﻫﺪف ﺑﻼك ﮐﺮدن ﺗﺮاﻓﯿﮏ ﻫﺎﺳﺘﻬﺎي 05.44.32.17 و 5.091.122.402 ﻫﻤﯿﻨﻄﻮر اﺟﺎزه ﻋﺒﻮر ﺳﺎﯾﺮ ﺗﺮاﻓﯿﮑﻬﺎ اﯾﺠﺎد ﻣﯿﮑﻨﯿﻢ و آﻧﺮا ﺑﻪ 0/0Faﻣﻨﺘﺴﺐ ﻣﯿﮑﻨﯿﻢ. R1(config-if)#exit R1(config)#ip access-list extended OUTSIDE_IN R1(config-ext-nacl)#10 deny ip host 71.23.44.50 any R1(config-ext-nacl)#20 deny tcp host 204.221.190.5 any eq www R1(config-ext-nacl)#500 permit ip any any R1(config-ext-nacl)#exit 092 Page 124 of
- 126. R1(config)#int f0/0 R1(config-if)#ip access-groupOUTSIDE_IN in از دﺳﺘﻮر زﯾﺮ اﺳﺘﻔﺎده ﻣﯿﮑﻨﯿﻢAcl OUTSIDE_IN ﺑﺮاي ﺑﺮرﺳﯽ و ﻣﺸﺎﻫﺪه ﺗﻨﻈﯿﻤﺎت ﺻﻮرت ﮔﺮﻓﺘﻪ روي R1(config-ext-nacl)#do sh access-list OUTSIDE_IN Extended IP access list OUTSIDE_IN 10 deny ip host 71.23.44.50 any 20 deny tcp host 204.221.190.5 any eq www 500 permit ip any any R1(config-ext-nacl)# Page 125 of 290
- 127. آزﻣﺎﯾﺶ 8.3 –اﮐﺴﺲ ﻟﯿﺴﺘﻬﺎي VTY در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻢ Aclﻫﺎي وﯾﮋه ﮐﻨﺘﺮل دﺳﺘﺮﺳﯽ ﺑﻪ ﺧﻄﻮط Vtyﺟﻬﺖ ﻣﺪﯾﺮﯾﺖ از راه دور ادوات آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ ﮐﺎرﺑﺮد ﻋﻤﻠﯽ در ﻣﺤﯿﻄﻬﺎي اﺟﺮاﯾﯽ ﺑﺴﯿﺎر راﯾﺞ اﺳﺖ ﮐﻪ دﺳﺘﺮﺳﯽ از راه دور ﺑﻪ ادوات را ﻣﺤﺪود ﺑﻪ Subnetﻫﺎي ﻣﺪﯾﺮﯾﺘﯽ و ﺑﺮﺧﯽ Ipﻫﺎي ﺧﺎص ﻧﻤﻮد و ﺗﻨﻬﺎ اﯾﻦ رده ﺳﯿﺴﺘﻤﻬﺎ ﻣﺠﺎز ﺑﻪ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻫﺎي Telnetﯾﺎ SSHﺑﻪ ادوات ﺑﺎﺷﻨﺪ. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﻗﺮار دادن ﺳﻮﯾﯿﭽﻬﺎي 3 R1,R2,Rو ﺳﻮﯾﯿﭻ 1 Swدر ﻣﺤﯿﻂ 3Gns ﺗﺨﺼﯿﺺ آدرس 42/1.1.1.01 ﺑﻪ 0/0 Faدر 1R ﺗﺨﺼﯿﺺ آدرس 42/2.1.1.01 ﺑﻪ 0/0 Faدر 1R ﺗﺨﺼﯿﺺ آدرس 42/3.1.1.01 ﺑﻪ 0/0 Faدر 1R ﺗﻨﻈﯿﻢ ﻧﺎم ﮐﺎرﺑﺮي و رﻣﺰ ﻋﺒﻮر ﻣﺤﻠﯽ در 1 Rﺑﺎ ﺳﻄﺢ دﺳﺘﺮﺳﯽ 51 Level ﺗﻨﻈﯿﻢ 1 Rﺑﺮاي ﭘﺬﯾﺮش ﻫﺮدوي ﺗﻤﺎﺳﻬﺎي ﻣﺒﺘﻨﯽ ﺑﺮ Telnetو SSH اﻫﺪاف آزﻣﺎﯾﺶ اﯾﺠﺎد ﯾﮏ ACLاﺳﻢ دار Extendedﺑﻪ ﻧﺎم VTY_ACCESS ﺟﻠﻮﮔﯿﺮي از دﺳﺘﺮﺳﯽ آدرس 3.1.1.01 ﺑﻪ Telnet اﺟﺎزه دادن ﺑﻪ ﺷﺒﮑﻪ 42/0.1.1.01 ﺟﻬﺖ اﺳﺘﻔﺎده از Telnetﯾﺎ SSH ﺟﻠﻮﮔﯿﺮي از ﻋﺒﻮر ﺳﺎﯾﺮ ﺗﺮاﻓﯿﮑﻬﺎ و ﺛﺒﺖ ﻻگ آﻧﻬﺎ اﺳﺘﻔﺎده access-classﺟﻬﺖ ﺗﻨﻈﯿﻢ Aclﺧﻄﻮط VTY ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ ﯾﮑﯽ از ﻗﺎﺑﻠﯿﺘﻬﺎي ﻣﻬﻢ ﻣﺪﯾﺮﯾﺘﯽ اراﺋﻪ ﺷﺪه در IOSﻫﺎي ﺳﺮي 12.3Tو4.21 اﻣﮑﺎن اﺳﺘﻔﺎده از Extended Aclﻫﺎ ﺟﻬﺖ ﻣﺪﯾﺮﯾﺖ دﺳﺘﺮﺳﯽ ﻫﺎي از راه دور ﺑﻪ ادوات از ﻃﺮﯾﻖ Telnetﯾﺎ SSHاﺳﺖ. 092 Page 126 of
- 128. VTY_ACCESS اﺳﺖﺑﻪ ﻧﺎمR1 1. ﻗﺪم اﯾﺠﺎد ﯾﮏ اﮐﺴﺲ ﻟﯿﺴﺖ اﺳﻢ دار در R1 con0 is now available Press RETURN to get started. R1>enable R1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R1(config)#ip access-list extended VTY_ACCESS R1(config-ext-nacl)# host ﺑﻪ آن، ﺑﺮاي اﯾﻦ ﻣﻨﻈﻮر ﻣﻨﺒﻊ راTelnet ﺟﻬﺖ ﺟﻠﻮﮔﯿﺮي از دﺳﺘﺮﺳﯽ 3.1.1.01 از ﻃﺮﯾﻖR1 2. ﺗﻨﻈﯿﻢ ﺗﻌﯿﯿﻦ ﻣﯿﮑﻨﯿﻢany eq telnet 3.1.1.01 وﻣﻘﺼﺪ را R1(config-ext-nacl)#10 deny tcp host 10.1.1.3 any eq telnet ﻧﯿﺎز ﺑﻪ ﺗﻌﺮﯾﻒR1 ﺑﻪSSH وTelnet 3. ﺑﺮاي اﺟﺎزه ﺑﻪ ﺷﺒﮑﻪ 42/0.1.1.01ﺟﻬﺖ ﺑﺮﻗﺮاري ﺗﻤﺎﺳﻬﺎي ﻣﺒﺘﻨﯽ ﺑﺮ 22 رويSSH ﮐﻪ روي ﭘﻮرت 32 ودﯾﮕﺮي ﺑﺮايTelnet ﻣﺠﺰا دارﯾﻢ ﯾﮑﯽ ﺑﺮايACE دو R1(config-ext-nacl)#20 permit tcp 10.1.1.0 0.0.0.255 any eq 22 R1(config-ext-nacl)#30 permit tcp 10.1.1.0 0.0.0.255 any eq 23 4. در اﻧﺘﻬﺎ ﻫﻢ ﺗﻤﺎﻣﯽ ﺗﺮاﻓﯿﮑﻬﺎي ﺑﺎﻗﯽ ﻣﺎﻧﺪه را ﺑﻼك ﮐﺮده و ﻧﺘﯿﺠﻪ اﻧﻬﺎ را ﻻگ ﻣﯽ ﮐﻨﯿﻢ R1(config-ext-nacl)#500 deny ip any any log اﺳﺖaccess-class ﺳﺎﺧﺘﻪ ﺷﺪه ﺑﻪ ﻣﻨﻈﻮر اﺳﺘﻔﺎده ازAcl 5. ﻗﺪم آﺧﺮ ﺗﻨﻈﯿﻢ R1(config-ext-nacl)#line vty 0 4 R1(config-line)#access-class VTY_ACCESS in R1(config-line)#end R1# ﺗﺴﺖ ﻣﯿﮑﻨﯿﻢ در اﺑﺘﺪاR3 وR2 6. در ﻣﺮﺣﻠﻪ ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت ﻣﻮارد اﻧﺠﺎم ﺷﺪه را از ﻃﺮﯾﻖ روﺗﺮﻫﺎي R1#show access-list Extended IP access list VTY_ACCESS 10 deny tcp host 10.1.1.3 any eq telnet 20 permit tcp 10.1.1.0 0.0.0.255 any eq 22 30 permit tcp 10.1.1.0 0.0.0.255 any eq telnet 500 deny ip any any log R2#telnet 10.1.1.1 Trying 10.1.1.1 ... Open Page 127 of 290
- 129. User Access Verification Username:tom Password: R1#show users Line 0 con 0 * 2 vty 0 Interface User tom User Host(s) idle idle Idle Location 00:14:12 00:00:00 10.1.1.2 Mode Idle Peer Address R1#exit [Connection to 10.1.1.1 closed by foreign host] R2#ssh -l tom 10.1.1.1 Password: R1#sh ssh Connection Version Mode Encryption Hmac Username 0 1.99 IN aes128-cbc hmac-sha1 Session started 0 1.99 OUT aes128-cbc hmac-sha1 Session started %No SSHv1 server connections running. R1# State tom tom ازTelnet اﻧﺠﺎم ﻣﯽ دﻫﯿﻢ. ﻫﻤﺎﻧﻄﻮر ﮐﻪ در ﻗﺴﻤﺘﻬﺎي ﻗﺒﻞ دﯾﺪﯾﻢ ﺗﻨﻈﺎر ﻣﯽ رود ﺗﺮاﻓﯿﮏR3 ﺗﺴﺖ ﺑﻌﺪي را از ﺳﻤﺖ . ﻣﺠﺎز ﺑﻪ ﻋﺒﻮر ﺑﺎﺷﺪSSH ﺳﻤﺖ آن ﺑﻼك ﺷﻮد و R3#telnet 10.1.1.1 Trying 10.1.1.1 ... % Connection refused by remote host R3#ssh -l tom 10.1.1.1 Password: R1#show ssh Connection Version Mode Encryption Hmac Username 0 1.99 IN aes128-cbc hmac-sha1 Session started 0 1.99 OUT aes128-cbc hmac-sha1 Session started %No SSHv1 server connections running. R1#show users Line User Host(s) Idle Location 0 con 0 idle 00:13:53 * 2 vty 0 tom idle 00:00:00 10.1.1.3 Interface User Mode Idle State tom tom Peer Address R1# Page 128 of 290
- 130. آزﻣﺎﯾﺶ 9.3 –ﺳﺮوﯾﺲ Password Encryption در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت ﺳﺮوﯾﺲ رﻣﺰﻧﮕﺎري ﮐﻠﻤﺎت ﻋﺒﻮر ادوات ﺳﯿﺴﮑﻮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ ادوات ﺳﯿﺴﮑﻮ ﺑﻪ ﻃﻮر ﭘﯿﺶ ﻓﺮض ﺑﺮاي رﻣﺰ ﻧﮕﺎري ﮐﻠﻤﺎت ﻋﺒﻮر از اﻟﮕﻮرﯾﺘﻤﻬﺎي 7 Levelاﺳﺘﻔﺎده ﻣﯿﮑﻨﻨﺪ ﮐﻪ ﺑﺴﯿﺎر ﺷﮑﻨﻨﺪه ﺑﻮده و از درﺟﻪ اﻣﻨﯿﺘﯽ ﭘﺎﯾﯿﻨﯽ ﺑﺮﺧﻮردار اﺳﺖ.ﺗﻌﺪاد زﯾﺎدي وب ﺳﺎﯾﺖ در اﯾﻦ ﺧﺼﻮص وﺟﻮد دارﻧﺪﮐﻪ ﺑﻪ ﺷﻤﺎ اﺟﺎزه Pasteﮐﺮدن ﮐﻠﻤﻪ ﻋﺒﻮر Hashﺷﺪه از ﯾﮏ ﺳﻮ و درﯾﺎﻓﺖ ﮐﻠﻤﻪ ﻋﺒﻮر Decryptﺷﺪه را ﻣﯽ دﻫﻨﺪ، ﺷﺎﯾﺪ ﺑﺘﻮان ﮔﻔﺖ ﺗﻨﻬﺎ ﺣﺴﻦ آن ﻋﺪم ﻧﻤﺎﯾﺶ ﮐﻠﻤﻪ ﻋﺒﻮر ﺑﻪ ﺻﻮرت Clear textدر ﻫﻨﮕﺎﻣﯽ اﺳﺖ ﮐﻪ ﻣﺸﻐﻮل ﻣﺸﺎﻫﺪه ﮐﺎﻧﻔﯿﮕﻬﺎ ﻫﺴﺘﯿﺪ و ﺷﺨﺼﯽ ﮐﻨﺎر دﺳﺖ ﺷﻤﺎ ﻧﺸﺴﺘﻪ ﺗﻤﺎﯾﻞ ﻧﺪارﯾﺪ ﮐﻠﻤﻪ ﻋﺒﻮر را ﻣﺸﺎﻫﺪه ﮐﻨﺪ! ﻫﻨﮕﺎﻣﯽ ﮐﻪ ﮐﺎﻧﻔﯿﮓ ادوات ﺧﻮد را ﺟﻬﺖ ﺑﺮرﺳﯽ ﺑﻪ ﺷﺨﺺ دﯾﮕﺮي ﻣﯽ دﻫﯿﺪ ﯾﺎ در ﻣﺤﯿﻄﻬﺎي ﻋﻤﻮﻣﯽ ﺑﻪ اﺷﺘﺮاك ﻣﯽ ﮔﺬارﯾﺪ دﻗﯿﺖ ﮐﻨﯿﺪ ﮐﻠﻤﺎت ﻋﺒﻮر 7 Levelرا از ﮐﺎﻧﻔﯿﮓ ﺣﺬف ﮐﻨﯿﺪ ﭼﻮن ﺑﻪ آﺳﺎﻧﯽ ﻗﺎﺑﻞ ﺑﺎزﯾﺎﺑﯽ ﻫﺴﺘﻨﺪ. ﮐﻠﻤﺎت ﻋﺒﻮر 5Typeﮐﻪ از MD5 Hashing اﺳﺘﻔﺎده ﻣﯿﮑﻨﻨﺪ اﯾﻦ ﻣﺸﮑﻞ را ﻧﺪارﻧﺪ زﯾﺮا اﯾﻦ اﻟﮕﻮرﯾﺘﻢ 821 ﺑﯿﺘﯽ ﻣﺎﻫﯿﺖ ﻣﻌﮑﻮس ﻧﺎﭘﺬﯾﺮ دارد و ﮐﻠﻤﺎت ﻋﺒﻮر رﻣﺰ ﺷﺪه ﺑﺎ آن ﻗﺎﺑﻞ رﻣﺰﮔﺸﺎﯾﯽ ﻧﯿﺴﺘﻨﺪ ﻫﻨﮕﺎﻣﯽ ﮐﻪ ﺑﻪ ادواﺗﯽ ﮐﻪ از 5 MDاﺳﺘﻔﺎده ﻣﯿﮑﻨﻨﺪ ﻻﮔﯿﻦ ﻣﯿﮑﻨﯿﻢ اﺑﺘﺪا ﮐﻠﻤﻪ ﻋﺒﻮر درﯾﺎﻓﺘﯽ از ﻣﺎ ﺗﺤﺖ اﻟﮕﻮرﯾﺘﻢ ﻣﺬﺑﻮر ﺑﻪ ﺻﻮرت رﻣﺰ درآﻣﺪه و ﺑﺎ رﺷﺘﻪ رﻣﺰ ﺷﺪه و ذﺧﯿﺮه ﺷﺪه ﻣﻮﺟﻮد در دﯾﻮاﯾﺲ ﻣﻘﺎﯾﺴﻪ ﻣﯽ ﺷﻮد و در ﺻﻮرت ﯾﮑﺴﺎن ﺑﻮدن اﺟﺎزه ﻋﺒﻮر ﺻﺎدر ﺧﻮاد ﺷﺪ. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري اﺗﺼﺎل ﮐﻨﺴﻮل ﺑﻪ ﯾﮏ دﺳﺘﮕﺎه روﺗﺮ در ﻣﺤﯿﻂ 3Gns اﻫﺪاف آزﻣﺎﯾﺶ اﯾﺠﺎد 2 ﮐﻠﻤﻪ ﻋﺒﻮر ورﻣﺰ ﻋﺒﻮر ﻣﺤﻠﯽ ﻓﻌﺎل ﮐﺮدن ﺳﺮوﯾﺲ رﻣﺰ ﻧﮕﺎري ﮐﻠﻤﺎت ﻋﺒﻮر ﺑﺎ service password-encryption ﭼﮏ ﮐﺮدن اﯾﻨﮑﻪ آﯾﺎ واﻗﻌﺎ ﮐﻠﻤﺎت ﻋﺒﻮر رﻣﺰ ﺷﺪه اﻧﺪ؟! ﻏﯿﺮ ﻓﻌﺎل ﮐﺮدن ﺳﺮوﯾﺲ و ﺑﺮرﺳﯽ ﻣﺠﺪد وﺿﻌﯿﺖ ﮐﻠﻤﺎت ﻋﺒﻮر دﺳﺘﻮر اﻟﻌﻤﻞ ﺳﺮوﯾﺲ 1. در اوﻟﯿﻦ ﻗﺪم دو ﮐﺎرﺑﺮ ﺑﺎ ﻣﺸﺨﺼﺎت زﯾﺮ ﺑﻪ ﺻﻮرت ﻣﺤﻠﯽ در دﯾﻮاﯾﺲ اﯾﺠﺎد ﻣﯿﮑﻨﯿﻢ R1 con0 is now available .Press RETURN to get started 092 Page 129 of
- 131. R1>enable R1#configure terminal Enter configurationcommands, one per line. R1(config)#username tom secret Cisco R1(config)#username jerry password Cisco End with CNTL/Z. ﻧﺎﻣﻬﺎي ﮐﺎرﺑﺮي و ﮐﻠﻤﺎت ﻋﺒﻮر اﻧﻬﺎ راdo show run | inc username 2. ﺑﺎ اﺳﺘﻔﺎده از دﺳﺘﻮر ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﻢ R1(config)#do show run | inc username username tom privilege 15 secret 5 $1$ID2R$2AKUK4US6yUQVkggSMkLV0 username john privilege 15 password 0 Cisco R1(config)# ﻓﻌﺎل ﻣﯿﮑﻨﯿﻢservice password-encryption 3. ﺳﺮوﯾﺲ رﻣﺰﻧﮕﺎري ﭘﺴﻮردﻫﺎ را از ﻃﺮﯾﻖ R1(config)#service password-encryption 4. ﭘﺲ از ﻓﻌﺎل ﮐﺮدن ﺳﺮوﯾﺲ ﯾﮑﺒﺎر دﯾﮕﺮ ﮐﻠﻤﺎت ﻋﺒﻮر ذﺧﯿﺮه ﺷﺪه را ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﻢ ﺗﺎ ﻣﻄﻤﺌﻦ ﺷﻮﯾﻢ اﻟﮕﻮرﯾﺘﻢ .ﺑﻪ درﺳﺘﯽ اﻋﻤﺎل ﺷﺪه اﺳﺖ R1(config)#do show run | inc username username tom privilege 15 secret 5 $1$ID2R$2AKUK4US6yUQVkggSMkLV0 username john privilege 15 password 7 106D000A0618 R1(config)# 5. در اﻧﺘﻬﺎ ﺳﺮوﯾﺲ را ﻏﯿﺮ ﻓﻌﺎل ﻣﯿﮑﻨﯿﻢ ﻫﻤﺎﻧﻮﻃﺮ ﮐﻪ ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﺪ ﮐﻠﻤﺎت ﻋﺒﻮر ﺑﻪ ﺣﺎﻟﺖ اول ﺑﺮ ﻧﻤﯿﮕﯿﺮدﻧﺪ R1(config)#no service password-encryption R1(config)#do show run | inc username username tom privilege 15 secret 5 $1$ID2R$2AKUK4US6yUQVkggSMkLV0 username john privilege 15 password 7 106D000A0618 R1(config)# Page 130 of 290
- 132. آزﻣﺎﯾﺶ 01.3 –Exec Timeoutو Absolute timeout در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت Timeoutدر ﻣﺤﯿﻄﻬﺎي Consoleو Vtyﺑﻪ ﻣﻨﻈﻮر ﻗﻄﻊ ﮐﺮدن ﺧﻮدﮐﺎر اﯾﻦ ارﺗﺒﺎﻃﺎت ﭘﺲ از ﮔﺬﺷﺖ ﻣﺪت زﻣﺎﻧﯽ ﻣﻌﯿﻦ ﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ ﮐﺎرﺑﺮد ﻋﻤﻠﯽ ﺑﻪ ﻋﻨﻮان ﯾﮏ ﻧﮑﺘﻪ اﻣﻨﯿﺘﯽ ﻣﻬﻢ در ﻣﺤﯿﻄﻬﺎي اﺟﺮاﯾﯽ ﻻزم اﺳﺖ ﺗﺎ ﺗﻤﺎﺳﻬﺎي ﺑﺪون ﻓﻌﺎﻟﯿﺖ ﺗﺮﻣﯿﻨﺎﻟﯽ و ﮐﻨﺴﻮﻟﯽ ﺑﻪ ادوات ﭘﺲ از ﮔﺬﺷﺖ ﻣﺪت زﻣﺎن ﻣﻌﯿﻨﯽ ﺑﻪ ﻃﻮر ﺧﻮدﮐﺎر ﻗﻄﻊ ﺷﻮﻧﺪ ﺗﺎ ﻣﻮرد ﺳﻮ اﺳﺘﻔﺎده ﺳﺎﯾﺮﯾﻦ ﻗﺮار ﻧﮕﯿﺮﻧﺪ از اﯾﻨﺮو ﺗﻨﻈﯿﻢ ﻣﻮارد ﻓﻮق ﻋﻠﯽ اﻟﺨﺼﻮص exec timeoutﺑﻪ ﺷﺪت ﺗﻮﺻﯿﻪ ﻣﯽ ﺷﻮد. Absolute timeoutﺑﺮﺧﯽ اوﻗﺎت در Access serverﻫﺎ ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻣﯿﮕﯿﺮد ﺗﺎ ﺗﻤﺎﺳﻬﺎي ﺑﺮﻗﺮار ﺷﺪه ﺑﻪ ادوات را ﭼﻪ در ﺣﺎﻟﺖ Idleﺑﺎﺷﻨﺪ و ﭼﻪ در ﺣﺎﻟﺖ ﻓﻌﺎل ﻗﻄﻊ ﮐﻨﻨﺪ. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري اﺗﺼﺎل ﮐﻨﺴﻮل ﺑﻪ ﯾﮏ روﺗﺮ در ﻣﺤﯿﻂ 3Gns اﯾﺠﺎد اﯾﻨﺘﺮﻓﯿﺲ ﻟﻮپ ﺑﮏ در در 1 Rو ﺗﺨﺼﯿﺺ آدرس 23/1.1.1.01 ﺑﻪ آن اﯾﺠﺎد ﻧﺎم ﮐﺎرﺑﺮي ورﻣﺰ ﻋﺒﻮر ﺑﺎ ﺳﻄﺢ دﺳﺘﺮﺳﯽ 51 ﺑﻪ آن ﺗﻨﻈﯿﻢ Vtyﺟﻬﺖ اﺣﺮاز ﻫﻮﯾﺖ ﺗﻤﺎﺳﻬﺎ ﺑﺮ اﺳﺎس ﭘﺎﯾﮕﺎه داده داﺧﻠﯽ اﻫﺪاف آزﻣﺎﯾﺶ اﯾﺠﺎد ﯾﮏ Exec time outﯾﮏ دﻗﯿﻘﻪ اي روي 4-0 Vty ﭼﮏ ﮐﺮدن ﺻﺤﺖ ﺗﻨﻈﯿﻢ ﺑﺎ Telnetﺑﻪ Loopbackو ﭘﺲ از آن ﯾﮏ دﻗﯿﻘﻪ ﺳﮑﻮت ﺣﺬف Exec timeoutو اﯾﺠﺎد Absolute Timeoutدو دﻗﯿﻘﻪ اي ﺑﺮرﺳﯽ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت ﺑﺎ Telnetﻣﺠﺪد ﺑﻪ Loopbackو ﻣﺸﺎﻫﺪه ﻗﻄﻊ ﺷﺪن ارﺗﺒﺎط ﭘﺲ از دو دﻗﯿﻘﻪ دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ 1. اﯾﺠﺎد Exec timeoutﯾﮏ دﻗﯿﻘﻪ اي و ﭼﮏ ﮐﺮدن آن از ﻃﺮﯾﻖ Loopback R1 con0 is now available .Press RETURN to get started 092 Page 131 of
- 133. R1>enable R1#configure terminal Enter configurationcommands, one per line. R1(config)#line vty 0 4 R1(config-line)#exec-timeout 2 R1(config-line)#end R1#telnet 10.1.1.1 Trying 10.1.1.1 ... Open End with CNTL/Z. User Access Verification Username: tom Password: R1# [Connection to 10.1.1.1 closed by foreign host] R1# دودﻗﯿﻘﻪ اي ﺑﻪ ﺟﺎي آن اﯾﺠﺎدAbsolute timeout 2. در ﻗﺪم ﺑﻌﺪي ﺗﻨﻈﯿﻤﺎت ﻗﺒﻠﯽ را ﭘﺎك ﻣﯿﮑﻨﯿﻢ و ﯾﮏ . ﺗﺴﺖ ﻣﯿﮑﻨﯿﻢLoopback ﻣﺠﺪد ﺑﻪTelnet ﻣﯿﮑﻨﯿﻢ . ﻧﺘﯿﺠﻪ را ﺑﺎ ﯾﮏ R1#configure terminal Enter configuration commands, one per line. R1(config)#line vty 0 4 R1(config-line)#no exec-timeout R1(config-line)#absolute-timeout 2 R1(config-line)#end R1#telnet 10.1.1.1 Trying 10.1.1.1 ... Open End with CNTL/Z. User Access Verification Username: tom Password: R1# * * * Line timeout expired * [Connection to 10.1.1.1 closed by foreign host] R1# . Page 132 of 290
- 134. آزﻣﺎﯾﺶ 11.3 –وبﺳﺮور داﺧﻠﯽ ادوات ﺳﯿﺴﮑﻮ در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت ادوات ﺳﯿﺴﮑﻮ ﺟﻬﺖ اﺣﺮاز ﻫﻮﯾﺖ ارﺗﺒﺎﻃﻬﺎي ﺑﺮﻗﺮار ﺷﺪه ﺑﺎ وب ﮐﻨﺴﻮل اﯾﻦ ادوات آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ ﺗﻨﻈﯿﻤﺎت ﻣﺮﺗﺒﻂ ﺑﺎ اﺣﺮاز ﻫﻮﯾﺖ از ﻃﺮﯾﻖ Cisco IOS web serverﺟﻬﺖ اﯾﺠﺎد و ﮐﻨﺘﺮل دﺳﺘﺮﺳﯽ ﺑﺮﺧﯽ ﮐﺎرﺑﺮان ﺑﻪ وب ﮐﻨﺴﻮل ادوات ﯾﺎ SDMدر ﻣﺤﯿﻄﻬﺎي ﻋﻤﻠﯿﺎﺗﯽ اﻣﺮي راﯾﺞ ﻣﯽ ﺑﺎﺷﺪ. در اﯾﻦ ﻧﻮﺷﺘﻪ ﺑﻪ ﭼﮕﻮﻧﮕﯽ اﯾﻦ ﺗﻨﻈﯿﻤﺎت ﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﮐﻨﺴﻮل ﺑﺎ ﯾﮏ روﺗﺮ در ﻣﺤﯿﻂ 3Gns اﯾﺠﺎد ارﺗﺒﺎط Cloudاﯾﻨﺘﺮﻓﯿﺲ 0/1 Faﺑﺎ ﮐﺎرت ﺷﺒﮑﻪ ﮐﺎﻣﭙﯿﻮﺗﺮ اﯾﺠﺎد ﮐﺎرﺑﺮ ﺑﺎ ﺳﻄﺢ دﺳﺘﺮﺳﯽ 51 ﺟﻬﺖ اﺣﺮاز ﻫﻮﯾﺖ از ﻃﺮﯾﻖ وب ﺗﺨﺼﯿﺺ آدرس ﺑﻪ 0/0 Faﺟﻬﺖ دﺳﺘﺮﺳﯽ ﺗﺤﺖ وب ﺑﻪ ﮐﻨﺴﻮل روﺗﺮ از ﻃﺮﯾﻖ IE اﻫﺪاف آزﻣﺎﯾﺶ ﺗﺨﺼﯿﺺ ﻧﺎم داﻣﻨﻪ stubarea.netﺑﻪ روﺗﺮ ﻓﻌﺎل ﺳﺎزي وب ﺳﺮور داﺧﻠﯽ روﺗﺮ ﺑﺎ دﺳﺘﻮر the ip http secure-server ﺗﻨﻈﯿﻢ وب ﺳﺮور داﺧﻠﯽ ﺑﻪ ﻣﻨﻈﻮر اﺧﺬ اﻃﻼﻋﺎت ﻫﻮﯾﺘﯽ از ﭘﺎﯾﮕﺎه داده داﺧﻠﯽ ﺣﺴﺎﺑﻬﺎي ﮐﺎرﺑﺮي ﻻﮔﯿﻦ ﺗﺤﺖ وب از ﻃﺮﯾﻖ IEﺑﻪ روﺗﺮ و وارد ﮐﺮدن اﻃﻼﻋﺎت ﻫﻮﯾﺘﯽ دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ 1. ﺗﺨﺼﯿﺺ ﻧﺎم داﻣﻨﻪ stubarea.netﺑﻪ روﺗﺮ و ﻓﻌﺎل ﺳﺎزي وب ﺳﺮور داﺧﻠﯽ آن R1 con0 is now available .Press RETURN to get started R1>enable R1#configure terminal .Enter configuration commands, one per line. End with CNTL/Z R1(config)#ip domain-name stubarea.net R11(config)#ip http secure-server ]% Generating 1024 bit RSA keys, keys will be non-exportable...[OK %SSH-5-ENABLED: SSH 1.99 has been enabled 092 Page 133 of
- 135. #)R1(config 2. ﺗﻨﻈﯿﻢ وبﺳﺮور داﺧﻠﯽ ﺟﻬﺖ اﺣﺮاز ﻫﻮﯾﺖ ﮐﺎرﺑﺮان از ﻃﺮﯾﻖ ﭘﺎﯾﮕﺎه داده داﺧﻠﯽ ﺣﺴﺎﺑﻬﺎي ﮐﺎرﺑﺮان R1(config)#ip http authentication local 3. ﭘﺲ از ﺗﻤﯿﻞ ﺗﻨﻈﯿﻤﺎت از ﻃﺮﯾﻖ Ieﺑﻪ آدرس0/0 Faروﺗﺮ ﻣﺘﺼﻞ ﻣﯿﺸﻮﯾﻢ ، ﭘﺲ ورود اﻃﻼﻋﺎت ﻫﻮﯾﺘﯽ وارد وب ﭘﻨﻞ روﺗﺮ ﺧﻮاﻫﯿﻢ ﺷﺪ. 092 Page 134 of
- 136. آزﻣﺎﯾﺶ 21.3 –ﺛﺒﺖ ﻻﮔﻬﺎ در syslog server در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت ادوت ﺳﯿﺴﮑﻮ ﺟﻬﺖ ارﺳﺎل ﮐﻠﯿﻪ ﭘﯿﺎﻣﻬﺎي ﺳﯿﺴﺘﻤﯽ ﺑﻪ Syslogﺳﺮور آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ در ﻣﺤﯿﻄﻬﺎي اﺟﺮاﯾﯽ و واﻗﻌﯽ روﺗﺮﻫﺎ در ﻫﺮ ﻟﺤﻈﻪ ﻣﺸﻐﻮل ﮔﺮﯾﻪ و زاري ﻫﺴﺘﻨﺪ! ﻓﻼن اﯾﻨﺘﺮﻓﯿﺲ ﻣﻦ آپ ﺷﺪ اوﻧﯿﮑﯽ داون ﺷﺪ ، ﺷﻤﺎرﻧﺪه Aclﺗﻐﯿﯿﺮ ﮐﺮد ، ﮐﺎﻧﻔﯿﮓ ﺗﻐﯿﯿﺮ ﮐﺮد و از اﯾﻦ دﺳﺖ. از ﻧﻘﻄﻪ ﻧﻈﺮ ﯾﮏ ﻣﺪﯾﺮ ﺷﺒﮑﻪ ﻻزم اﺳﺖ ﺗﺎ ﺗﻤﺎم اﯾﻦ ﭘﯿﺎﻣﻬﺎي ﺳﯿﺴﺘﻤﯽ در ﻣﺤﻠﯽ ذﺧﯿﺮه ﺷﻮﻧﺪ ﺗﺎ در ﻓﺮﺻﺖ ﻣﻘﺘﻀﯽ و در ﺻﻮرت ﻧﯿﺎز ﻣﻮرد ﺑﺮرﺳﯽ ﻗﺮار ﮔﯿﺮﻧﺪ.در ﻋﻤﻞ اﻣﮑﺎن ذﺧﯿﺮه ﺳﺎزي ﻻﮔﻬﺎ روي ﺧﻮد ادوات ﻫﻢ وﺟﻮ دارد اﻣﺎ اﺧﺬ اﯾﻦ ﻫﻤﻪ ﻻگ ﺑﻪ ﻃﻮر ﺟﺪاﮔﺎﻧﻪ از ادوات ﻣﺠﺰا از ﻫﻢ ﻓﺮاﯾﻨﺪي وﻗﺖ ﮔﯿﺮ و ﻏﯿﺮ اﺻﻮﻟﯽ اﺳﺖ از اﯾﻨﺮو ﮐﻠﯿﻪ ادوات را ﺑﻪ ﮔﻮﻧﻪ اي ﺗﻨﻈﯿﻢ ﻣﯽ ﮐﻨﻨﺪ ﮐﻪ ﭘﯿﺎﻣﻬﺎي ﺳﯿﺴﺘﻤﯽ ﺧﻮد را ﺑﻪ ﯾﮏ ﻻگ ﺳﺮور ﻣﺸﺘﺮك در ﺷﺒﮑﻪ ارﺳﺎل ﮐﻨﻨﺪ. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﮐﻨﺴﻮل ﺑﺎ ﯾﮏ دﺳﺘﮕﺎه روﺗﺮ در ﻣﺤﯿﻂ 3Gns ﺑﺮﻗﺮاري ارﺗﺒﺎط cloudﻣﺎﺑﯿﻦ 0/0 Faو ﮐﺎرت ﺷﺒﮑﻪ ﮐﺎﻣﭙﯿﻮﺗﺮ ر.ك آز 8.1 داﻧﻠﻮد و ﻧﺼﺐ ﺑﺮﻧﺎﻣﻪ Solarwinds kiwi syslog اﻫﺪاف آزﻣﺎﯾﺶ ﺗﻨﻈﯿﻢ 1 Rﺟﻬﺖ ارﺳﺎل ﻻﮔﻬﺎ ﺑﻪ آدرس ﻻگ ﺳﺮور ﻣﻮﺟﻮد در ﺷﺒﮑﻪ ﺗﻨﻈﯿﻢ logging optionدر 1 Rﺟﻬﺖ ﻻگ ﮐﺮدن ﭘﯿﻐﺎﻣﻬﺎي 7 levelو ﭘﺎﯾﯿﻨﺘﺮ )(Debug messages اﯾﺠﺎد ﭘﯿﻐﺎﻣﻬﺎي ﺳﯿﺴﺘﻤﯽ Debugﺟﻬﺖ ﺛﺒﺖ در syslogﺳﺮور ﺑﺮرﺳﯽ ﻻﮔﻬﺎي ﺛﺒﺖ ﺷﺪه در syslogﺳﺮور دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ 1. ﺗﻨﻈﯿﻢ 1 Rﺟﻬﺖ ﻓﻌﺎل ﺳﺎزي loggingو ارﺳﺎل ﻻﮔﻬﺎ ﺑﻪ ﻫﺎﺳﺖ ﻣﯿﺰﺑﺎن ﺑﺮﻧﺎﻣﻪ syslog R1 con0 is now available .Press RETURN to get started .End with CNTL/Z R1>enable R1#configure terminal .Enter configuration commands, one per line 3.2.861.291 R1(config)#logging host 092 Page 135 of
- 137. و ﭘﺎﯾﯿﻨﺘﺮﺑﻪ ﺳﺮورlevel 7 ﺑﻪ ﻣﻨﻈﻮر ارﺳﺎل ﻻﮔﻬﺎيlogging 2. ﺗﻈﯿﻢ ﭘﺎراﻣﺘﺮ R1(config)#logging trap 7 R1(config)#end R1# %SYS-6-LOGGINGHOST_STARTSTOP: Logging to host 192.168.2.3 port 514 started - CLI initiated R1# icmp رويDebug 3. اﯾﺠﺎد دﺳﺘﯽ ﭼﻨﺪ ﭘﯿﻐﺎم ﺳﯿﺴﺘﻤﯽ ﺑﺎ اﻧﺠﺎم R1#debug ip icmp ICMP packet debugging is on R1#ping 192.168.255.10 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 192.168.255.10, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 4/24/100 ms R1# ICMP: echo reply rcvd, src 192.168.255.10, dst 192.168.255.1 ICMP: echo reply rcvd, src 192.168.255.10, dst 192.168.255.1 ICMP: echo reply rcvd, src 192.168.255.10, dst 192.168.255.1 ICMP: echo reply rcvd, src 192.168.255.10, dst 192.168.255.1 ICMP: echo reply rcvd, src 192.168.255.10, dst 192.168.255.1 R1# ﺳﺮورsyslog 4. ﺑﺮرﺳﯽ ﺻﺤﺖ اﻃﻼﻋﺎت درﯾﺎﻓﺘﯽ در Page 136 of 290
- 138. آزﻣﺎﯾﺶ 1.4 –CDP در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت CDPو ﺗﺎﯾﻤﺮ آن آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮورﻣﻔﺎﻫﯿﻢ ﻣﻬﺪﺳﯿﻦ ﺷﺒﮑﻪ ﻋﻤﻮﻣﺎ از CDPﺑﺮاي ﻣﺴﺘﻨﺪ ﺳﺎزي و درك ﺗﻮﭘﻮﻟﻮژي ﺷﺒﮑﻪ ﻫﺎي ﻓﺎﻗﺪ ﻣﺴﺘﻨﺪات اﺳﺘﻔﺎده ﻣﯽ ﮐﻨﻨﺪ. Cdpﭘﺮوﺗﮑﻠﯽ ﻻﯾﻪ 2 اﺳﺖ ﮐﻪ وﻇﯿﻔﻪ آن ﻧﻘﻞ و اﻧﺘﻘﺎل اﻃﻼﻋﺎت ﻋﻤﻮﻣﯽ ادوات ﺳﯿﺴﮑﻮ )ﻋﻤﻮم ادوات ﻣﺒﺘﻨﯽ ﺑﺮ (IOSﻣﺸﺘﻤﻞ ﺑﺮ IPآدرس – وﺿﻌﯿﺖ اﺗﺼﺎل ﻓﯿﺰﯾﮑﯽ ﻟﯿﻨﮑﻬﺎ- ﻣﺸﺨﺼﻪ ﭘﻮرﺗﻬﺎ و ﻧﺴﺨﻪ IOSو ﺑﺴﯿﺎري دﯾﮕﺮ ﻣﺎﺑﯿﻦ ادوات ﻫﻤﺴﺎﯾﻪ ﻣﯽ ﺑﺎﺷﺪ. در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ دﺳﺘﻮرات زﯾﺮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ: Show Cdp ﺟﻬﺖ ﻧﻤﺎﯾﺶ holdtime ،CDP Hello Timerو ﻧﮕﺎرش ﻧﺴﺨﻪ CDP show cdp neighbors ﻧﻤﺎﯾﺶ اﻃﻼﻋﺎت ادوات ﺑﻪ ﻃﻮر ﻓﯿﺰﯾﮑﯽ ﻣﺘﺼﻞ ﺷﺎﻣﻞ Local&Remote ،HostName show cdp detail ﻧﻤﺎﯾﺶ اﻃﻼﻋﺎت ﺟﺰﺋﯽ ﺗﺮ در ﻣﻮرد ادوات ﺑﻪ ﻃﻮر ﻓﯿﺰﯾﮑﯽ ﻣﺘﺼﻞ ﺷﺎﻣﻞ Vtp ،Ios version clear cdp table ﭘﺎك ﮐﺮدن اﻃﻼﻋﺎت Cdpذﺧﯿﺮه ﺷﺪه در CDP tableو اﺧﺬ ﻣﺠﺪد آﻧﻬﺎ ﺑﺮ ﻣﺒﻨﺎي CDP >54-01< cdp timer ﺟﻬﺖ ﺗﻨﻈﯿﻢ دﺳﺘﯽ زﻣﺎن ارﺳﺎل ﭘﯿﺎم Helloﺑﻪ ﻫﻤﺴﺎﯾﻪ ﻫﺎ >54-01< cdp holdtime ﺗﻨﻈﯿﻢ دﺳﺘﯽ dead timerﺟﻬﺖ ﻣﺸﺨﺺ ﮐﺮدن ﻣﺪت زﻣﺎن ﻻزم ﺑﺮاي ﻗﻄﻊ ﻧﺸﺎن دادن ،portsﻇﺮﻓﯿﺘﻬﺎي ﭘﻠﺘﻔﺮﻣﻬﺎي ﻫﻤﺴﺎﯾﻪ و ﻧﺎم آﻧﻬﺎ Native vlan ،domainو Duplex ﻓﺮﯾﻤﻬﺎي درﯾﺎﻓﺖ ﺷﺪه از اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ﭘﻠﺘﻔﺮم ﺟﺎري ارﺗﺒﺎط ﺑﺎ ﻫﻤﺴﺎﯾﻪ ﻫﺎ در ﺻﻮرت درﯾﺎﻓﺖ ﻧﮑﺮدن Helloاز ﺳﻤﺖ اﻧﻬﺎ ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﮐﻨﺴﻮل ﺑﺎ ﯾﮏ دﺳﺘﮕﺎه روﺗﺮ و ﯾﮏ دﺳﺘﮕﺎه ﺳﻮﯾﯿﭻ در ﻣﺤﯿﻂ 3Gns ﺗﺨﺼﯿﺺ آدرس 42/1.552.861.291 ﺑﻪ 0/0 Faدر روﺗﺮ 1R ﺗﺨﺼﯿﺺ آدرس 42/452.552.861.291 ﺑﻪ 1 Vlanدر ﺳﻮﯾﯿﭻ 1SW اﻫﺪاف آزﻣﺎﯾﺶ 092 Page 137 of
- 139. R1 ازﻃﺮﯾﻖ روﺗﺮSW1 ﻣﻮﺟﻮد درFeature set وIOS ﯾﺎﻓﺘﻦ ﻧﺴﺨﻪ SW1 از ﻃﺮﯾﻖR1 اﯾﻨﺘﺮﻓﯿﺲ روﺗﺮIp ﯾﺎﻓﺘﻦ R1 ﻣﺘﺼﻞ اﺳﺖ ﯾﺎ ﺧﯿﺮ از ﻃﺮﯾﻖSW1 ﺑﻪR1 ﺣﺼﻮل اﻃﻤﯿﻨﺎن از اﯾﻨﮑﻪ اﯾﻨﺘﺮﻓﯿﺲ R1 اﯾﻨﺘﺮﻓﯿﺲ ﺳﻮﯾﯿﭽﯽ ﮐﻪ روﺗﺮ ﻣﺴﺘﻘﯿﻤﺎ ﺑﻪ آن ﻣﺘﺼﻞ اﺳﺖ از ﻃﺮﯾﻖVtp doamain وNative Vlan ﯾﺎﻓﺘﻦ . ﭘﺲ از اﻧﺠﺎم اﯾﻦ ﮐﺎرSW1 در ﻣﻮردR1 و ﭼﮏ ﮐﺮدن اﻃﻼﻋﺎتR1 درCDP table ﭘﺎك ﮐﺮدن ﺗﻐﯿﯿﺮ ﻣﻘﺎدﯾﺮ ﭘﯿﺶ ﻓﺮض ﺗﺎﯾﻤﺮﻫﺎي ادوات از 081/06ﺑﻪ 54/51 وﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ cdp ، ﺑﺮاي درﯾﺎﻓﺖ اﯾﻦ اﻃﻼﻋﺎت دﺳﺘﻮرR1 از ﻃﺮﯾﻖSW1 ﺳﻮﯾﯿﭻIos 1. ﻣﺸﺨﺺ ﮐﺮدن ﻧﺴﺨﻪ و وﯾﮋﮔﯿﻬﺎي اﺟﺮا ﻣﯿﮑﻨﯿﻢR1 را درneighbor detail R1>show cdp neighbors detail ------------------------Device ID: Router Entry address(es): Platform: Cisco 3640, Capabilities: Router Switch IGMP Interface: FastEthernet0/0, Port ID (outgoing port): FastEthernet0/1 Holdtime : 134 sec Version : Cisco IOS Software, 3600 Software (C3640-JK9O3S-M), Version 12.4(13a), RELEASE SOFTWARE (fc1) Technical Support: http://www.cisco.com/techsupport Copyright (c) 1986-2007 by Cisco Systems, Inc. Compiled Tue 06-Mar-07 20:25 by prod_rel_team advertisement version: 2 VTP Management Domain: '' Duplex: full R1> ENTERPRISE/FW/IDS PLUS ﺑﺎ وﯾﮋﮔﯽIOS دارايSW1 ﻫﻤﺎﻧﻄﻮر ﮐﻪ از ﻗﺴﻤﺖ زﯾﺮﺧﻂ دار ﭘﯿﺪاﺳﺖ . اﺳﺖIPSEC 3DES Version 12.4(13a). SW1 از ﻃﺮﯾﻖR1 اﯾﻨﺘﺮﻓﯿﺲ روﺗﺮIP 2. ﭘﯿﺪا ﮐﺮدن SW1#show cdp neighbors detail ------------------------Device ID: R1 Entry address(es): IP address: 192.168.255.1 Platform: Cisco 3725, Capabilities: Router Switch IGMP Interface: FastEthernet0/1, Port ID (outgoing port): FastEthernet0/0 Holdtime : 168 sec Version : Cisco IOS Software, 3700 Software (C3725-ADVENTERPRISEK9-M), Version Page 138 of 290
- 140. 12.4(15)T14, RELEASE SOFTWARE(fc2) Technical Support: http://www.cisco.com/techsupport Copyright (c) 1986-2010 by Cisco Systems, Inc. Compiled Tue 17-Aug-10 12:08 by prod_rel_team advertisement version: 2 VTP Management Domain: '' Duplex: full SW1# آﻧﺮا ازSW1 ﻣﻮرد ﻧﻈﺮ 1.552.861.291 اﺳﺖ و ﺳﻮﯾﯿﭻIp ﻫﻤﺎﻧﻄﻮر ﮐﻪ در ﻗﺴﻤﺖ زﯾﺮ ﺧﻂ دار ﺑﺎﻻ ﻣﺸﺨﺺ ﺷﺪه . ﺑﻪ دﺳﺖ آورده اﺳﺖCDP ﻃﺮﯾﻖ درﯾﺎﻓﺖ ﻓﺮﯾﻤﻬﺎي ﻣﺘﺼﻞ ﺷﺪه اﺳﺖSW1 ﮐﻪ ﺑﻪR1 3. ﭘﯿﺪا ﮐﺮدن ﻣﺸﺨﺼﺎت اﯾﻨﺘﺮﻓﯿﺴﯽ از R1#show cdp neighbors Capability Codes: R - Router, T - Trans Bridge, B - Source Route Bridge S - Switch, H - Host, I - IGMP, r - Repeater Device ID SW1 Local Intrfce Fas 0/0 Holdtme 125 Capability R S I Platform Port ID 3640 Fas 0/1 R1# . ﺑﻪ آن ﻣﺘﺼﻞ ﺷﺪه اﺳﺖR1 ﭘﻮرﺗﯽ از ﺳﻮﯾﯿﭻ ﮐﻪ اﯾﻨﺘﺮﻓﯿﺲVtp domain وNative vlan 4. ﭘﯿﺪا ﮐﺮدن R1>show cdp neighbors detail ------------------------Device ID: SW1 Entry address(es): IP address: 192.168.255.254 Platform: Cisco 3640, Capabilities: Router Switch IGMP Interface: FastEthernet0/0, Port ID (outgoing port): FastEthernet0/1 Holdtime : 157 sec Version : Cisco IOS Software, 3600 Software (C3640-JK9O3S-M), Version 12.4(13a), RELEASE SOFTWARE (fc1) Technical Support: http://www.cisco.com/techsupport Copyright (c) 1986-2007 by Cisco Systems, Inc. Compiled Tue 06-Mar-07 20:25 by prod_rel_team advertisement version: 2 VTP Management Domain: '' Duplex: full R1> Page 139 of 290
- 141. ﺧﺎﻟﯽ اﺳﺖVtpdomain ﻫﻤﺎﻧﻄﻮر ﮐﻪ در ﻗﺴﻤﺖ زﯾﺮﺧﻂ دار ﻣﺸﺨﺺ ﺷﺪه اﺳﺖ R1>show cdp neighbors detail ------------------------Device ID: SW1 Entry address(es): IP address: 192.168.255.254 Platform: Cisco 3640, Capabilities: Router Switch IGMP Interface: FastEthernet0/0, Port ID (outgoing port): FastEthernet0/1 Holdtime : 157 sec Version : Cisco IOS Software, 3600 Software (C3640-JK9O3S-M), Version 12.4(13a), RELEASE SOFTWARE (fc1) Technical Support: http://www.cisco.com/techsupport Copyright (c) 1986-2007 by Cisco Systems, Inc. Compiled Tue 06-Mar-07 20:25 by prod_rel_team advertisement version: 2 VTP Management Domain: '' Duplex: full R1> ﭘﺲ از اﯾﻨﮑﺎر ﻣﺠﺪدا اﻗﺪام ﺑﻪ ﭘﺮR1 و اﻃﻤﯿﻨﺎن از ﭘﺎك ﺷﺪن آن و ﻣﺸﺎﻫﺪه اﯾﻨﮑﻪCDP 5. ﭘﺎك ﮐﺮدن ﺟﺪول . ﮐﺮدن ﺟﺪول ﻣﺬﺑﻮر ﻣﯽ ﻧﻤﺎﯾﺪ R1#show cdp neighbors Capability Codes: R - Router, T - Trans Bridge, B - Source Route Bridge S - Switch, H - Host, I - IGMP, r - Repeater Device ID Local Intrfce Holdtme Capability Platform Port ID SW1 Fas 0/0 173 R S I 2650XM Fas 1/0 R1#clear cdp table R1#show cdp neighbors Capability Codes: R - Router, T - Trans Bridge, B - Source Route Bridge S - Switch, H - Host, I - IGMP, r - Repeater Device ID R1# Local Intrfce Holdtme Capability Platform Port ID 6. ﺗﻐﯿﯿﺮ ﻣﻘﺎدﯾﺮ ﭘﯿﺶ ﻓﺮض ﺗﺎﯾﻤﺮ در ﻫﺮ دو ﭘﻠﺘﻔﺮم از 081/06 ﺑﻪ 54/51و ﺑﺮرﺳﯽ ﺻﺤﺖ اﻋﻤﺎل ﺗﻐﯿﯿﺮات Page 140 of 290
- 142. R1>enable R1#configure terminal Enter configurationcommands, one per line. End with CNTL/Z. R1(config)#cdp timer 15 R1(config)#cdp holdtime 45 R1(config)#end %SYS-5-CONFIG_I: Configured from console by console R1#show cdp Global CDP information: Sending CDP packets every 15 seconds Sending a holdtime value of 45 seconds Sending CDPv2 advertisements is enabled R1# Page 141 of 290
- 143. آزﻣﺎﯾﺶ 2.4 –اﯾﺠﺎد Vlan در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ اﯾﺠﺎد ، ﻧﺎم ﮔﺬاري و ﺗﺨﺼﯿﺺ ﭘﻮرﺗﻬﺎي ﺳﻮﯾﯿﭻ ﺑﻪ Vlanآﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ ﻗﺒﻞ از ورود ﺑﺤﺚ vlanﻧﮕﺎﻫﯽ داﺷﺘﻪ ﺑﺎﺷﯿﻢ ﺑﻪ ﺷﺒﮑﻪ ﻫﺎي Flatﯾﺎ ﻣﺴﻄﺢ . در اﯾﻦ ﺷﺒﮑﻪ ﻫﺎ ﻣﺘﺼﺪي ﻣﺮﺑﻮﻃﻪ ﺗﻌﺪاد زﯾﺎدي ﻫﺎب ﯾﺎ ﺳﻮﯾﯿﭻ را ﻣﺎﻧﻨﺪ داﻧﻪ ﻫﺎي ﮔﺮدن ﺑﻨﺪ ﺑﻪ ﻫﻢ ﻣﺘﺼﻞ ﻣﯿﮑﻨﺪ ﺗﺎ ﯾﮏ ﺷﺒﮑﻪ ﺑﺰرگ دﻫﺎ و ﺷﺎﯾﺪ ﺻﺪﻫﺎ ﮐﺎرﺑﺮه را ﺑﺎ ﺗﻨﻬﺎ ﯾﮏ ﺳﺎﺑﻨﺖ اﯾﺠﺎد ﮐﻨﺪ.از ﻣﻨﻈﺮ اﺻﻮل ﻃﺮاﺣﯽ ﺷﺒﮑﻪ اﯾﻦ ﻧﻮع ﻃﺮاﺣﯽ در ﻣﺤﯿﻄﻬﺎي اﺟﺮاﯾﯽ ﺑﻪ ﻃﺮز ﺗﺮﺳﻨﺎﮐﯽ اﺷﺘﺒﺎه اﺳﺖ زﯾﺮا Broadcastﻫﺎي ﻧﺎﺧﻮاﺳﺘﻪ ﺑﻪ آﺳﺎﻧﯽ ﻣﯿﺘﻮاﻧﻨﺪ ﮐﻞ ﺗﺮاﻓﯿﮏ ﺷﺒﮑﻪ را ﺗﺤﺖ اﻟﺸﻌﺎع ﻗﺮار داده و ﺷﺒﮑﻪ را از دﺳﺘﺮس ﺧﺎرج ﮐﻨﻨﺪ.در ﺷﺒﮑﻪ ﻫﺎي ﺑﺎ دﺳﺘﺮﺳﯽ ﭼﻨﺪﮔﺎﻧﻪ ) (multi-access networkﺑﺎزدﻫﯽ ﮐﻠﯽ ﺷﺒﮑﻪ ﻫﻨﮕﺎﻣﯽ ﮐﻪ ﺗﻌﺪاد ادوات ﻓﻌﺎل از 004 ﻋﺪد ﺑﯿﺸﺘﺮ ﻣﯽ ﺷﻮﻧﺪ ﺑﻪ ﻃﺮز ﭼﺸﻢ ﮔﯿﺮي ﮐﺎﻫﺶ ﻣﯿﺎﺑﺪ . راﯾﺞ ﺗﺮﯾﻦ ﺳﺎﯾﺰ ﻣﺎﺳﮏ 42/ ﮐﻪ ﺗﻨﻬﺎ 452 ﮔﺮه ﻓﻌﺎل در ﺳﺎﺑﻨﺖ را آدرس دﻫﯽ ﻣﯿﮑﻨﺪ، ﺑﺎ اﯾﻦ اوﺻﺎف ﭼﮕﻮﻧﻪ ﺑﺎﯾﺪ ﺷﺒﮑﻪ اي ﺑﺎ ﺑﯿﺶ از 004 ﮔﺮه ﻓﻌﺎل داﺷﺘﻪ ﺑﺎﺷﯿﻢ ؟ ﭘﺎﺳﺦ اﺳﺘﻔﺎده از Vlanاﺳﺖ. ﺗﻌﺮﯾﻒ Vlanدر ﺳﺎده ﺗﺮﯾﻦ ﺷﮑﻞ ﺧﻮد ﺑﻪ ﺻﻮرت ﭘﺎرﺗﯿﺸﻦ ﺑﻨﺪي ﮐﺮدن ﯾﮏ ﺳﻮﯾﯿﭻ ﻓﯿﺰﯾﮑﯽ ﺑﻪ ﺗﻌﺪادي ﺷﺒﮑﻪ ﻣﺠﺎزي و اﯾﺰوﻟﻪ از ﯾﮑﺪﯾﮕﺮ اﺳﺖ ﺑﻪ ﮔﻮﻧﻪ اي ﮐﻪ ﮔﺮه ﻫﺎي ﻣﺘﺼﻞ ﺑﻪ اﯾﻦ ﺷﺒﮑﻪ ﻫﺎي ﺟﺪا از ﻫﻢ ﻫﯿﭻ ﮔﻮﻧﻪ ارﺳﺎل و درﯾﺎﻓﺖ داده اي ﺑﺎ ﻫﻢ ﻧﺪارﻧﺪ ﻣﮕﺮاز ﻃﺮﯾﻖ ﯾﮏ روﺗﺮ واﺳﻂ ﻣﺎﺑﯿﻨﺸﺎن. در ﺗﻌﺮﯾﻒ دﯾﮕﺮي vlanرا ﻣﯽ ﺗﻮان ﺗﻔﮑﯿﮏ ﻻﯾﻪ دوﯾﯽ ﻗﺴﻤﺘﻬﺎي ﻣﻨﻄﻘﯽ ﺷﺒﮑﻪ از ﻫﻢ ﻧﺎﻣﯿﺪ ﺗﻔﮑﯿﮏ ﻻﯾﻪ ﺳﻪ اي ﻫﻢ ﺗﺤﺖ ﻋﻨﻮان subnetingوﺟﻮد دارد ﮐﻪ در ﻓﺼﻞ 6 ﻣﻮرد ﺑﺮرﺳﯽ ﻗﺮار ﺧﻮاﻫﺪ ﮔﺮﻓﺖ. ﺑﻪ ﻃﻮر ﺧﻼﺻﻪ دﻟﯿﻞ ﻋﻤﺪه اﯾﺠﺎد Vlanدر ﺷﺒﮑﻪ ﻫﺎي ﮐﺎﻣﭙﯿﻮﺗﺮي ﮐﻨﺘﺮل اﻧﺪازه ﺳﮕﻤﻨﺖ ﺷﺒﮑﻪ ﻻﯾﻪ دوﯾﯽ ﻣﻮﺟﻮد اﺳﺖ ﺗﺎ ﺑﺮادﮐﺴﺘﻬﺎ و ﺗﺮاﻓﯿﮑﻬﺎي ﮐﻨﺘﺮﻟﯽ ﺳﮕﻤﻨﺖ ﺟﺎري را در ﺧﻮد ﻏﺮق ﻧﮑﻨﻨﺪ. ذﮐﺮ اﯾﻦ ﻧﮑﺘﻪ ﺣﺎﺋﺰ اﻫﻤﯿﺖ اﺳﺖ ﮐﻪ در اﯾﻦ ﻧﻮﺷﺘﺎر ﺳﻮﯾﯿﭽﻬﺎي 1 SWو2 SWو3 SWﻫﻤﮕﯽ در واﻗﻊ روﺗﺮ ﻫﺎي 5473 ﺑﻪ ﻫﻤﺮاه ﻣﺎژول NM-16ESWﻫﺴﺘﻨﺪ ﮐﻪ اﺟﺎزه اﻧﺠﺎم اﺗﻈﯿﻤﺎت Vlanرا در global config modeﻣﯿﺪﻫﺪ در ﺻﻮرت اﺳﺘﻔﺎده از Iosﻫﺎي ﭘﺎﯾﯿﻨﺘﺮ اﻧﺠﺎم اﯾﻦ ﺗﻨﻈﯿﻤﺎت ﻣﯿﺒﺎﯾﺴﺖ از ﻃﺮﯾﻖ Vlan databseاﻧﺠﺎم ﺷﻮد ﮐﻪ روﺷﯽ ﻧﺴﺒﺘﺎ ﻣﻨﺴﻮخ ﺷﺪه اﺳﺖ . :Show vlanاﯾﻦ دﺳﺘﻮر در ﺳﻮﯾﯿﭽﻬﺎي ﮐﺎﺗﺎﻟﯿﺴﺖ ﺟﻬﺖ ﻧﻤﺎﯾﺶ ﻣﺸﺨﺼﻪ Vlanﻫﺎي ﺗﻌﺮﯾﻒ ﺷﺪه ﺑﻪ ﮐﺎر ﻣﯽ رود. :Show vlan-switchاﯾﻦ دﺳﺘﻮر در روﺗﺮﻫﺎي داراي ﻣﺎزوﻟﻬﺎي WIC, HWIC, NM-16ESWﺟﻬﺖ ﻧﻤﺎﯾﺶ Vlanﻫﺎي ﺗﻌﺮﯾﻒ ﺷﺪه ﺑﻪ ﮐﺎر ﻣﯽ رود. ﭘﯿﺶ ﻧﯿﺎز ﻫﺎي آزﻣﺎﯾﺶ ﺳﺎﺧﺖ ﺳﻮﯾﯿﭻ 1 SWاز ﻃﺮﯾﻖ روﺗﺮ ﺑﺎ 5473 IOSو ﻣﺎژول Nm-16esw 092 Page 142 of
- 144. اﻫﺪاف آزﻣﺎﯾﺶ Development,Sales,Marketing ﺑﻪ ﺷﻤﺎره ﻫﺎي 03,02,01 ﻧﺎﻣﻬﺎيVlan اﯾﺠﺎد ﺳﻪ Vlan30 ﺑﻪFa0/3 وVlan20 ﺑﻪFa0/2 وVlan10 ﺑﻪFa0/1 ﺗﺨﺼﯿﺺ ﭘﻮرﺗﻬﺎي دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ ﺑﺎ ﻣﺸﺨﺼﺎت ﻓﻮقvlan 1. اﯾﺠﺎد ﺳﻪ SW1 con0 is now available Press RETURN to get started. SW1>enable SW1#config terminal Enter configuration commands, one per line. SW1(config)#vlan 10 SW1(config-vlan)#name Sales SW1(config-vlan)#vlan 20 SW1(config-vlan)#name Development SW1(config-vlan)#vlan 30 SW1(config-vlan)#name Marketing SW1(config-vlan)#end SW1# End with CNTL/Z. . ﻫﺎي ﺗﻌﺮﯾﻒ ﺷﺪهVlan 2. ﺗﺨﺼﯿﺺ ﭘﻮرﺗﻬﺎي ﺳﻮﯾﯿﭻ ﺑﻪ SW1#configure terminal SW1(config)#interface Fa0/1 SW1(config-if)#switchport access vlan 10 SW1(config-if)#interface Fa0/2 SW1(config-if)#switchport access vlan 20 SW1(config-if)#interface Fa0/3 SW1(config-if)#switchport access vlan 30 SW1(config-if)#end SW#show vlan VLAN Name Status Ports ---- ---------------------------- --------- ------------------------------1 default active Fa0/4, Fa0/5, Fa0/6, Fa0/7 Fa0/8, Fa0/9, Fa0/10, Fa0/11 Fa0/12, Fa0/16, Fa0/17, Fa0/18 Fa0/19, Fa0/20, Fa0/21, Fa0/22 Fa0/23, Fa0/24, Gi0/1, Gi0/2 10 Sales active Fa0/1 20 Development active Fa0/2 30 Marketing active Fa0/3 1002 fddi-default act/unsup 1003 token-ring-default act/unsup Page 143 of 290
- 145.
- 146. آزﻣﺎﯾﺶ 3.4 –Management Vlan در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت Management vlanﺟﻬﺖ ﻣﺪﯾﺮﯾﺖ و ﭘﯿﮑﺮﺑﻨﺪي ادوات آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ در دﻧﯿﺎي ﺳﻮﯾﯿﭽﯿﻨﮓ ﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ ﻣﻨﻄﻘﯽ ﮐﻪ از ﻃﺮﯾﻖ ﯾﮏ Vlanاﯾﺠﺎد ﺷﺪه اﺳﺖ Switched Virtual Interface ﯾﺎ Sviﻣﯿﮕﻮﯾﻨﺪ.ﻣﯽ ﺗﻮان در ﻫﻨﮕﺎم ﮐﺎﻧﻔﯿﮓ اﯾﻦ اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ﻣﺠﺎزي از ﮐﻠﯿﻪ ﻗﻮاﻋﺪ و دﺳﺘﻮر اﻟﻌﻤﻠﻬﺎي ﮐﺎﻧﻔﯿﮓ Fastethernetاﯾﻨﺘﺮﻓﯿﺴﻬﺎي واﻗﻌﯽ اﺳﺘﻔﺎده ﮐﺮد ﻣﺎﻧﻨﺪ ﺗﺨﺼﯿﺺ Qos،Bridge group،Ipو ﺑﺴﯿﺎري دﯾﮕﺮ وﺟﻮد Vlanدر ادوات ﻻﯾﻪ دو اﯾﻦ اﻣﮑﺎن را ﺑﻪ آﻧﻬﺎ ﻣﯽ دﻫﺪ ﮐﻪ ﺑﺎ ﺳﺎﯾﺮ ادوات ﻻﯾﻪ 3 ارﺗﺒﻂ ﺑﺮﻗﺮار ﮐﻨﻨﺪ. ﺳﻮﯾﯿﭽﻬﺎي ﭼﻨﺪ ﻻﯾﻪ از Vlanﺑﻪ ﻣﻨﻈﻮر ﻓﻌﺎل ﺳﺎزي ﻗﺎﺑﻠﯿﺖ روﺗﯿﻨﮓ ﭼﻨﺪ ﻻﯾﻪ روي ﺧﻮد اﺳﺘﻔﺎده ﻣﯿﮑﻨﻨﺪ ﺑﻪ ﺑﯿﺎن دﯾﮕﺮ ﺳﻮﯾﯿﭻ ﭼﻨﺪ ﻻﯾﻪ ﺑﻪ ﻋﻨﻮان ﻣﻔﻬﻮم ﺟﺪﯾﺪي ﮐﻪ در آزﻣﺎﯾﺶ 02.4 ﺑﻪ آن ﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ ﯾﻌﻨﯽ Router-on-a- stickاﯾﻔﺎي ﻧﻘﺶ ﻣﯿﮑﻨﺪ. در ﺳﻮﯾﯿﭽﻬﺎي ﭼﻨﺪ ﻻﯾﻪ ﻣﺎﻧﻨﺪ 0653 ﯾﺎ 0573 از vlanاﯾﻨﺘﺮﻓﯿﺲ ﺑﻪ ﻋﻨﻮان default gatewayﺑﺮاي ﮐﺎﻣﭙﯿﻮﺗﺮﻫﺎ و ﺳﺎﯾﺮ ادواﺗﯽ ﮐﻪ ﻧﯿﺎز ﺑﻪ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﺑﺎ ﺳﺎﯾﺮ ﺷﺒﮑﻪ ﻫﺎي داﺧﻠﯽ ﯾﺎ ﺧﺎرﺟﯽ را دارﻧﺪ اﺳﺘﻔﺎده ﻣﯽ ﺷﻮد. ﺑﻪ ﻋﻨﻮان ﻣﺜﺎل در ﺳﻮﯾﯿﭻ 0573 ﮐﻪ داراي Vlanﺑﻪ ﻧﺎﻣﻬﺎي 01 Vlanو 02 Vlanﺑﻪ آدرﺳﻬﺎي , 42/0.01.861.291 42/0.02.861.291 ﻣﯽ ﺑﺎﺷﺪ ﻫﻨﮕﺎﻣﯽ ﮐﻪ ﯾﮏ PCدر 01 Vlanﻧﯿﺎز ﺑﻪ ارﺳﺎل درﯾﺎﻓﺖ اﻃﻼﻋﺎت ﺑﻪ 02 Vlanداﺷﺘﻪ ﺑﺎﺷﺪ اﯾﻦ ﮐﺎﻣﭙﯿﻮﺗﺮ از آدرس 01 Vlanﺑﻪ ﻋﻨﻮان Default gatewayاﺳﺘﻔﺎده ﺧﻮاﻫﺪ ﮐﺮد و ﺳﻮﯾﯿﭻ ﭘﮑﺘﻬﺎ را ﻣﺒﺘﻨﯽ ﺑﺮ ﻗﻮاﻋﺪ ﻻﯾﻪ 3 ﺑﻪ ﺳﻤﺖ 02 Vlanروت ﺧﻮاﻫﺪ ﮐﺮد . در ﺳﻮﯾﯿﭻ ﻫﺎي ﻻﯾﻪ دو ﺗﻨﻬﺎ ﯾﮏ Vlan interfaceﻓﻌﺎل ﻗﺎﺑﻞ ﺗﻌﺮﯾﻒ اﺳﺖ و از آن ﺑﻪ ﻋﻨﻮان Management vlan اﯾﻨﺘﺮﻓﯿﺲ ﯾﺎد ﻣﯿﺸﻮد . ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﮐﻨﺴﻮل ﺑﺎ ﯾﮏ دﺳﺘﮕﺎه روﺗﺮ و ﺳﻮﯾﯿﭻ در ﻣﺤﯿﻂ 3Gns اﺗﺼﺎل 1/0 Faﺳﻮﯾﯿﭻ 1 SWﺑﻪ 0/0 Faروﺗﺮ 1R ﺗﺨﺼﯿﺺ آدرس 42/1.1.1.01 ﺑﻪ 0/0 Faروﺗﺮ و ﻓﻌﺎل ﺳﺎزي ﮐﻠﻤﻪ ﻋﺒﻮر ﺟﻬﺖ Telnet اﻫﺪاف آزﻣﺎﯾﺶ اﯾﺠﺎد 01 Vlanوﺗﻐﯿﯿﺮ ﻧﺎم آن ﺑﻪ management ﺗﺨﺼﯿﺺ آدرس 42/01.1.1.01 ﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ اﯾﺠﺎد ﺷﺪه 092 Page 145 of
- 147. Vlan10 ﺑﻪFa0/1اﻧﺘﺴﺎب اﯾﻨﺘﺮﻓﯿﺲ SW1 درVlan 10 ﺑﻪR1 از ﻃﺮﯾﻖTelnet ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت ﺑﺎ دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ Management ﺑﺎ ﻧﺎمVlan 10 1. اﯾﺠﺎد SW1 con0 is now available Press RETURN to get started. SW1>enable SW1>configure terminal Enter configuration commands, one per line. SW1(config)#vlan 10 SW1(config-vlan)#name Management SW1(config-vlan)#end SW1# End with CNTL/Z. و ﺗﺨﺼﯿﺺ آدرس 42/01.1.1.01 ﺑﻪ آنVlan 10 2. اﯾﺠﺎد اﯾﻨﺘﺮﻓﯿﺲ در ﻣﻮد ﮔﻠﻮﺑﺎل ﮐﺎﻧﻔﯿﮓ ﺳﺎﺧﺘﻪ ﺷﻮد.دﻗﺖ ﮐﻨﯿﺪ ﮐﻪVlan interface ﺑﺮاي اﯾﻦ ﻣﻨﻈﻮر اﺑﺘﺪا ﻻزم اﺳﺖ ﯾﮏ ﺑﻪ ﮐﺎر ﻣﯽ رودInterface vlan#x در دﺳﺘﻮرVlan ﺑﻪ ﺻﻮرت ﭼﺴﭙﯿﺪه ﺑﻪ ﻋﺒﺎرتVlan ﺷﻤﺎره اﯾﻨﺘﺮﻓﯿﺲ SW1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW1(config)#interface vlan10 SW1(config-if)#ip address 10.1.1.10 255.255.255.0 SW1(config-if)#no shut SW1(config-if)# Vlan 10 ﺑﻪSW1 درFa0/1 3. اﻧﺘﺴﺎب SW1(config-if)#interface FastEthernet0/1 SW1(config-if)#switchport access vlan 10 SW1(config-if)#no shut SW1(config-if)#end SW1# Page 146 of 290
- 148. دﺳﺘﺮﺳﯽ ﭘﯿﺪاﮐﻨﯿﻢR1 را از ﻃﺮﯾﻖSW1 واﻗﻊ درValn 10 ﭘﺲ از اﻧﺠﺎم ﻣﺮاﺣﻞ ﺑﺎﻻ ﺑﺎﯾﺪ ﺑﺘﻮاﻧﯿﻢ ﺑﻪ R1#ping 10.1.1.10 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.1.1.10, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 4/39/100 ms R1# R1#telnet 10.1.1.10 Trying 10.1.1.10 ... Open User Access Verification Password: SW1> Page 147 of 290
- 149. آزﻣﺎﯾﺶ 4.4 –ﺗﻨﻈﯿﻤﺎت Trunkingﻣﺒﺘﻨﯽ ﺑﺮ ISLو Dot1Q در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت اﯾﺠﺎد ﺗﺮاﻧﮏ ﻣﺒﺘﻨﯽ ﺑﺮ ) Inter-Switch Link (ISLو ) 802.1q (dotqﻣﺎﺑﯿﻦ ﭼﻨﺪ ﺳﻮﯾﯿﭻ ﺑﻪ ﻣﻨﻈﻮر ﻋﺒﻮردﻫﯽ ﺗﺮاﻓﯿﮏ Vlanﻫﺎ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ ﺗﺎ اﯾﻨﺠﺎ ﺑﺎ ﻧﺤﻮه اﯾﺠﺎد و ﻣﺪﯾﺮﯾﺖ Vlanﻫﺎ آﺷﻨﺎ ﺷﺪﯾﻢ ﺣﺎﻻ ﺳﻮال اﯾﻨﺠﺎﺳﺖ در ﺷﺒﮑﻪ اي ﮐﻪ ﺗﻌﺪاد زﯾﺎدي ﺳﻮﯾﯿﭻ ﻫﺮ ﯾﮏ ﺑﺎ ﺗﻌﺪادي Vlanوﺟﻮد دارد ﭼﮕﻮﻧﻪ ﻣﯽ ﺗﻮان ﺗﺮاﻓﯿﮏ ﻣﺎﺑﯿﻦ اﯾﻦ ﺳﻮﯾﯿﭽﻬﺎ را ﺑﺪون ﺑﺮﻗﺮاري اﺗﺼﺎل ﻓﯿﺰﯾﮑﯽ ﻧﻈﯿﺮ ﺑﻪ ﻧﻈﯿﺮ ﻣﺎﺑﯿﻦ ﭘﻮرﺗﻬﺎي ﻣﺘﻌﻠﻖ ﺑﻪ ﻫﺮ Vlanﺑﺎ ﺳﻮﯾﯿﭻ ﻫﺎي دﯾﮕﺮ اﻧﺘﻘﺎل داد ؟ راه ﺣﻞ در اﺳﺘﻔﺎده از ﻣﻔﻬﻤﻮم ﺗﺮاﻧﮏ اﺳﺖ .ﺗﺮاﻧﮏ ﺑﺎ ﺳﺎده ﺗﺮﯾﻦ ﺗﻌﺮﯾﻒ ﻋﺒﺎرت اﺳﺖ از ﻣﺴﯿﺮ ارﺗﺒﺎﻃﯽ ﮐﻪ ﻗﺎدر ﻋﺒﻮر ﺗﺮاﻓﯿﮏ ﭼﻨﺪﯾﻦ Vlanﺑﻪ ﻃﻮر ﻫﻤﺰﻣﺎن ﻣﺎﺑﯿﻦ دو ﯾﺎ ﭼﻨﺪ ﺳﻮﯾﯿﭻ اﺳﺖ. اﯾﻦ اﻣﮑﺎن ﺑﺎ ﺑﻬﺮه ﮔﯿﺮي از دو ﭘﺮوﺗﮑﻞ ISLﻣﺘﻌﻠﻖ ﺑﻪ ﮐﻤﭙﺎﻧﯽ ﺳﯿﺴﮑﻮ و 802.1qﯾﺎ Dot1q ﻣﺘﻌﻠﻖ ﺑﻪ اﻧﺠﻤﻦ IEEEﻗﺎﺑﻞ ﭘﯿﺎده ﺳﺎزي ﻣﯽ ﺑﺎﺷﺪ. در اﯾﻦ آزﻣﺎﯾﺶ از دﺳﺘﻮرات زﯾﺮ اﺳﺘﻔﺎده ﺧﻮاﻫﯿﻢ ﮐﺮد switchport mode trunk ﭘﻮرت ﻣﻮرد ﻧﻈﺮ را ﺗﺒﺪﯾﻞ ﺑﻪ ﺗﺮاﻧﮏ ﭘﻮرت ﺧﻮاﻫﺪ ﮐﺮد ﺑﺎ ﻗﺎﺑﻠﯿﺖ ﻋﺒﻮر دﻫﯽ ﺗﺮاﻓﯿﮏ ﺗﻤﺎﻣﯽ Vlanﻫﺎ switchport trunk encapsulation isl ﺗﻌﯿﯿﻦ ﮐﻨﻨﺪه ﻧﻮع encapsulationﻣﻮرد اﺳﺘﻔﺎده در ﺗﺮاﻧﮏ اﺳﺖ .ﮐﻪ در اﯾﻨﺠﺎ ISLاﺳﺖ switchport trunk encapsulation dot1q ﺗﻌﯿﯿﻦ ﮐﻨﻨﺪه ﻧﻮع encapsulationﻣﻮرد اﺳﺘﻔﺎده در ﺗﺮاﻧﮏ اﺳﺖ .ﮐﻪ در اﯾﻨﺠﺎ Dot1qاﺳﺖ show interface trunk ﻧﻤﺎﯾﺶ اﯾﻨﺘﺮﻓﯿﺴﻬﺎﯾﯽ ﮐﻪ در ﺣﺎﻟﺖ ﺗﺮاﻧﮏ ﻗﺮار دارﻧﺪ ﺑﻪ ﻫﻤﺮاه ﭘﺮوﺗﮑﻞ ﺗﺮاﻧﮑﯿﻨﮓ ﻣﻮرد اﺳﺘﻔﺎده show interface interfacename#/# switchport ﻧﻤﺎﯾﺶ اﻃﻼﻋﺎت ﻣﺮﺗﺒﻂ ﺑﺎ اﯾﻨﺘﺮﻓﯿﺲ ﻣﻮرد ﻧﻈﺮ ﻣﺸﺘﻤﻞ ﺑﺮ ﺣﺎﻟﺖ ﺗﺮاﻧﮏ ﯾﺎ اﮐﺴﺲ ﺑﻮدن اﯾﻨﺘﺮﻓﯿﺲ، Native Vlan،vlanﻫﺎي ﻣﺠﺎز ﺑﻪ ﻋﺒﻮر از اﯾﻨﺘﺮﻓﯿﺲ )در ﺻﻮرت ﺗﺮاﻧﮏ ﺑﻮدن اﯾﻨﺘﺮﻓﯿﺲ( ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ اﯾﺠﺎد ﺗﻮﭘﻮﻟﻮژي ﻣﻄﺎﺑﻖ ﺑﺎ ﺗﺼﻮﯾﺮ ﺗﺨﺼﯿﺺ آدرس 42/1.1.1.01 ﺑﻪ 0/0 Faروﺗﺮ 1R ﺗﺨﺼﯿﺺ آدرس 42/2.1.1.01 ﺑﻪ 1/0 Faروﺗﺮ 2R اﯾﺠﺎد 01 Vlanو 02 Vlanدر ﺳﻮﯾﯿﭽﻬﺎي 1 SWو 2SW اﻧﺘﺴﺎب 1/0 Faدر 1 SWﺑﻪ 01 Vlan 092 Page 148 of
- 150. اﻧﺘﺴﺎب 2/0 Faدر2 SWﺑﻪ 01 Vlan ﺗﺼﻮﯾﺮ 1.4.4-ﺗﺮاﻧﮑﯿﻨﮓ ﻣﺒﺘﻨﯽ ﺑﺮ ISLﻣﺎﺑﯿﻦ ﺳﻮﯾﯿﭻ ﻫﺎ اﻫﺪاف آزﻣﺎﯾﺶ ﺧﺎﻣﻮش ﮐﺮدن 21/0 Faو 11/0 Faدر 2SW1,SW ﺑﺮﻗﺮاري Dot1qﺗﺮاﻧﮏ ﻣﺎﺑﯿﻦ 1 SWو 2 SWاز ﻃﺮﯾﻖ 21/0Fa ﺗﺴﺖ ﺻﺤﺖ ﺑﺮﻗﺮاري ﺗﺮاﻧﮏ از ﻃﺮﯾﻖ دﺳﺘﻮر #/#interfacename ﺗﺴﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻣﺎﺑﯿﻦ 1Rو2 Rاز ﻃﺮﯾﻖ Ping اﻧﺘﺴﺎب 2/0 Faدر 1 SWﺑﻪ 5 Vlanو ﺗﺴﺖ ﻣﺠﺪد ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻣﺎﺑﯿﻦ 2R1,R دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ ﻓﺮض اوﻟﯿﻪ اﻧﺠﺎم اﯾﻦ آزﻣﺎﯾﺶ ﺑﻬﺮه ﮔﯿﺮي از دو ﺳﻮﯾﯿﭻ واﻗﻌﯽ 0653اﺳﺖ زﯾﺮا ﻣﺎژول Nm-16eswاز ISL encapsulationﭘﺸﺘﯿﺒﺎﻧﯽ ﻧﻤﯿﮑﻨﺪ 1. ﺧﺎﻣﻮش ﮐﺮدن 11/0 Fa0/12,Faو ﺑﺮﻗﺮاري ﺗﺮاﻧﮑﯿﻨﮓ ﻣﺎﺑﯿﻦ دو ﺳﻮﯾﯿﭻ از ﻃﺮﯾﻖ 01/0Fa 092 Page 149 of
- 151. SW1 con0 isnow available Press RETURN to get started. SW1>enable SW1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW1(config-if)#interface range Fa0/11 - 12 SW1(config-if-range)#shutdown SW1(config-if-range)#interface fa0/10 SW1(config-if)#switchport trunk encapsulation dot1q SW1(config-if)#switchport mode trunk SW1(config-if)#no shut SW1(config-if)#end SW1# SW2 con0 is now available Press RETURN to get started. SW2>enable SW2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW2(config-if)#interface range Fa0/11 - 02 SW2(config-if-range)#shutdown SW2(config-if-range)#interface fa0/10 SW2(config-if)#switchport trunk encapsulation dot1q SW2(config-if)#switchport mode trunk SW2(config-if)#no shut SW2(config-if)#end SW2# show interface trunk 2. ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت ﺗﺮاﻧﮏ از ﻃﺮﯾﻖ SW1#show interface FastEthernet0/10 trunk Port Fa0/10 Mode on Encapsulation 802.1q Status trunking Native vlan 1 Port Fa0/10 Vlans allowed on trunk 1-4094 Port Fa0/10 Vlans allowed and active in management domain 1,10 Port Vlans in spanning tree forwarding state and not pruned Fa0/10 1 SW1# SW2#show interface FastEthernet0/10 trunk Port Fa0/10 Mode on Encapsulation 802.1q Status trunking Native vlan 1 Page 150 of 290
- 152. Port Fa0/10 Vlans allowed ontrunk 1-4094 Port Fa0/10 Vlans allowed and active in management domain 1,10 Port Fa0/10 Vlans in spanning tree forwarding state and not pruned 1 SW2# R1,R2 3. ﺗﺴﺖ اﻣﮑﺎن ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻣﺎﺑﯿﻦ ﻣﺎﺑﯿﻦ دو ﺳﻮﯾﯿﭻ ﺑﻪ وﺟﻮدVlan 10 اﮐﻨﻮن ﮐﻪ ﺗﺮاﻧﮏ ﺑﯿﻦ دو ﺳﻮﯾﯿﭻ ﺑﺮﻗﺮار ﺷﺪه اﺳﺖ اﻣﮑﺎن اﻧﺘﻘﺎل ﺗﺮاﻓﯿﮏ ﺻﺤﺖ آﻧﺮا ﺗﺴﺖ ﻣﯿﮑﻨﯿﻢPing آﻣﺪه اﺳﺖ.ﺑﺎ R1#ping 10.1.1.2 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.1.1.2, timeout is 2 seconds: .!!!! Success rate is 80 percent (4/5), round-trip min/avg/max = 4/29/60 ms R1# R1,R2 و ﺑﺮرﺳﯽ اﻣﮑﺎن ارﺗﺒﺎط ﺑﯿﻦVlan 5 ﺑﻪFa0/2 4. اﻧﺘﺴﺎب SW2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW2(config)#interface FastEthernet0/2 SW2(config-if)#switchport access vlan 5 % Access VLAN does not exist. Creating vlan 5 SW2(config-if)#end SW2# R1#ping 10.1.1.2 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.1.1.2, timeout is 2 seconds: ..... Success rate is 0 percent (0/5) R1# ﻣﻨﺘﻘﻞSW2 درVlan 5 ﻫﻤﺎﻧﻄﻮر ﮐﻪ اﻧﺘﻈﺎر ﻣﯽ رﻓﺖ ﺗﺮاﻓﯿﮏ ﻣﺎﺑﯿﻦ دو روﺗﺮ ﺑﻪ دﻟﯿﻞ ﻋﺪم وﺟﻮد اﯾﻨﺘﺮﻓﯿﺲ ﻣﺘﻌﻠﻖ ﺑﻪ ﻧﺸﺪ switchport trunk . اﺳﺘﻔﺎده ﻣﯿﺸﻮدISL ازdot1q ﻫﻢ دﻗﯿﻘﺎ ﺑﻪ ﻫﻤﯿﻦ ﻣﻨﻮال اﺳﺖ ﺻﺮﻓﺎ ﺑﻪ ﺟﺎيISL ﺗﻨﻈﯿﻤﺎت encapsulation isl | dot1q Page 151 of 290
- 153. آزﻣﺎﯾﺶ 5.4 –ﺗﻨﻈﯿﻤﺎت Etherchannel در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت Etherchannelﺑﻪ ﺻﻮرت Staticﺟﻬﺖ ﺗﺠﻤﯿﻊ ﭼﻨﺪ ﻟﯿﻨﮏ ﻓﯿﺰﯾﮑﯽ و ﺗﺒﺪﯾﻞ آن ﺑﻪ ﯾﮏ ﻟﯿﻨﮏ ﻣﻨﻄﻘﯽ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ Etherchannelﺗﮑﻨﻮﻟﻮژي ﭘﺮ اﺳﺘﻔﺎده اي اﺳﺖ ﮐﻪ اﻣﺮوزه ﺗﻘﺮﯾﺒﺎ در ﺗﻤﺎم ﭘﯿﺎده ﺳﺎزﯾﻬﺎي ﻣﺒﺘﻨﯽ ﺑﺮ ﻣﻌﻤﺎرﯾﻬﺎي ﻣﻌﻤﻮل ﺷﺒﮑﻪ ﺑﻪ ﻣﻨﻈﻮر اﯾﺠﺎد اﻓﺰوﻧﮕﯽ و ﺗﺠﻤﯿﻊ ﭘﻬﻨﺎي ﺑﺎﻧﺪ ﻟﯿﻨﮑﻬﺎي ﻣﺘﻌﺪد ﻓﯿﺰﯾﮑﯽ ﺑﻪ ﯾﮏ ﻟﯿﻨﮏ واﺣﺪ ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻣﯿﮕﯿﺮد . ﺑﻪ ﻋﻨﻮان ﻣﺜﺎل ﺳﺮوري ﺑﺎ 4 ﮐﺎرت ﺷﺒﮑﻪ دارﯾﺪ و ﻣﺎﯾﻞ ﻫﺴﺘﯿﺪ ﺗﻤﺎم آﻧﻬﺎ ﺑﺎ ﻫﻢ و در ﺷﺮاﯾﻂ ﺧﺎص ﻣﺜﻞ ﺳﻮﺧﺘﻦ ﯾﮑﯽ از آﻧﻬﺎ ﺑﻪ ﻋﻨﻮان ﺟﺎﯾﮕﺰﯾﻦ ﻫﻢ ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﮔﯿﺮﻧﺪ در اﯾﻨﺠﺎ ﺑﺎ ﺑﻬﺮه ﮔﯿﺮي از etherchannelﻣﯽ ﺗﻮان اﯾﻦ 4 ﭘﻮرت را ﺑﻪ ﺻﻮرت ﯾﮏ ﻟﯿﻨﮏ ﻣﻨﻄﻘﯽ ﺑﺎ ﻣﺠﻤﻮع ﻇﺮﻓﯿﺖ ﻫﻤﻪ ﻟﯿﻨﮑﻬﺎي ﻣﺠﺰا ﺑﻪ ﻫﻤﺮاه ﻗﺎﺑﻠﯿﺖ اﻓﺰوﻧﮕﯽ )(redundancy و ﺗﻘﺴﯿﻢ ﺑﺎر) (load balancingﭘﯿﮑﺮﺑﻨﺪي ﮐﺮد. ﺳﻪ ﻧﻮع ﭘﯿﺎده ﺳﺎزي etherchannelوﺟﻮد دارد ، اوﻟﯿﻦ ﻣﻮرد ﮐﻪ راﯾﺞ ﺗﺮﯾﻦ ﺷﯿﻮه ﺗﺠﻤﯿﻊ ﻟﯿﻨﮑﻬﺎي ﻓﯿﺰﯾﮑﯽ ﺑﻪ ﯾﮏ ﻟﯿﻨﮏ ﻣﻨﻄﻘﯽ اﺳﺖ etherchannelاﺳﺘﺎﺗﯿﮏ ﯾﺎ ﺑﺪون ﺷﺮط ﻧﺎم دارد . در آزﻣﺎﯾﺶ ﺟﺎري اﯾﻦ ﻧﻮع ﻣﻮرد ﺑﺮرﺳﯽ ﻗﺮار ﻣﯿﮕﯿﺮد 2 ﻧﻮع دﯾﮕﺮ ﺑﻪ ﻧﺎﻣﻬﺎي ) Link Aggregation Control Protocol (LACPو )Port Aggregation Protocol (PAgP وﺟﻮد دارﻧﺪ ﮐﻪ در دو آزﻣﺎﯾﺶ ﺑﻌﺪ ﺑﻪ آﻧﻬﺎ ﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ. LACPﺟﺰ اﺳﺘﺎﻧﺪارد IEEEاﺳﺖ و راﯾﺞ ﺗﺮﯾﻦ ﺷﯿﻮه ﭘﯿﺎده ﺳﺎزي etherchannelﺑﻪ ﺻﻮرت داﯾﻨﺎﻣﯿﮏ اﺳﺖ اﻣﺎ PAgPاﺳﺘﺎﻧﺪارد ﻣﺨﺘﺺ ﺳﯿﺴﮑﻮ اﺳﺖ و ﺗﻨﻬﺎ ﻣﺎﺑﯿﻦ ادوات ﺳﯿﺴﮑﻮ و ﻣﻌﺪود ﮐﻤﭙﺎﻧﯿﻬﺎي دﯾﮕﺮ ﻗﺎﺑﻞ ﭘﯿﺎده ﺳﺎزي اﺳﺖ. ﺗﻮﺟﻪ داﺷﺘﻪ ﺑﺎﺷﯿﻢ ﻫﻨﮕﺎﻣﯽ ﮐﻪ در ﭘﯿﺎده ﺳﺎزﯾﻬﺎ از LACPﯾﺎ PAgPاﺳﺘﻔﺎده ﻣﯿﮑﻨﯿﻢ ادوات دو ﺳﺮ ﻟﯿﻨﮏ از ﻣﻨﺎﺑﻊ ﺳﯿﺴﺘﻤﯽ ﻧﺴﺒﺘﺎ زﯾﺎدي ﺑﺮاي ﭘﺮدازش ﻓﺮﯾﻤﻬﺎي ﭘﺮوﺗﮑﻞ ﻣﻮرد اﺳﺘﻔﺎده در ﻓﺮاﯾﻨﺪ ﺗﺠﻤﯿﻊ و اﯾﺠﺎد ﮐﺎﻧﺎل اﺳﺘﻔﺎده ﻣﯿﮑﻨﻨﺪ اﻣﺎ در ﺻﻮرت اﺳﺘﻔﺎده از ﻣﺘﺪ اﺳﺘﺎﺗﯿﮏ ﺑﺎ ﭼﻨﯿﻦ ﺗﻨﮕﻨﺎﯾﯽ روﺑﺮو ﻧﯿﺴﺘﯿﻢ و ﭘﺮدازﺷﻬﺎي ﻻزم در ﺳﻄﺢ Asicاﻧﺠﺎم ﺧﻮاﻫﺪ ﺷﺪ. ﻣﺜﺎل و ﮐﺎرﺑﺮد راﯾﺞ دﯾﮕﺮ etherchannelﺑﺮﻗﺮاري ارﺗﺒﺎط ﻣﺎﺑﯿﻦ دو ﺳﻮﯾﯿﭻ از ﻃﺮﯾﻖ دو ﯾﺎ ﭼﻨﺪ ﻟﯿﻨﮏ ﻓﯿﺰﯾﮑﯽ اﺳﺖ. ﺑﺮ ﻣﺒﻨﺎي ﻗﻮاﻋﺪ spanning-treeﮐﻪ در آرﻣﺎﯾﺸﺎت ﺑﻌﺪ ﻣﻮرد ﺑﺮرﺳﯽ ﻗﺮار ﺧﻮاﻫﺪ ﮔﺮﻓﺖ ﺗﻨﻬﺎ ﯾﮑﯽ از ﭼﻨﺪ ﻟﯿﻨﮏ ﻣﺎﺑﯿﻦ دو ﺳﻮﯾﯿﭻ ﻓﻌﺎل ﺧﻮاﻫﻨﺪ ﻣﺎﻧﺪ و ﻣﺎﺑﻘﯽ ﺟﻬﺖ ﺟﻠﻮﮔﯿﺮي از ﻟﻮپ ﻫﺎي ﻻﯾﻪ دوﯾﯽ ﮐﻪ از آﻧﻬﺎ ﺑﻪ ﻋﻨﻮان broadcast storm ﯾﺎد ﻣﯽ ﺷﻮد ﻏﯿﺮ ﻓﻌﺎل ﺧﻮاﻫﻨﺪ ﺷﺪ.ﺑﺎ ﻓﻌﺎل ﮐﺮدن etherchannelدر ادوات دو ﺳﺮ ﻟﯿﻨﮑﻬﺎ، اﯾﻦ ﭼﻨﺪ ﻣﺴﯿﺮ ﻓﯿﺰﯾﮑﯽ ﻣﺎﺑﯿﻦ دو ﺳﻮﯾﯿﭻ ﺑﻪ ﺻﻮرت ﯾﮏ ﻟﯿﻨﮏ ﻣﻨﻄﻘﯽ در ﺧﻮاﻫﻨﺪ آﻣﺪ و از ﺳﺪ spanning-treeﺧﻮاﻫﻨﺪ ﮔﺬﺷﺖ . ﺑﻪ ﺧﺎﻃﺮ داﺷﺘﻪ ﺑﺎﺷﯿﻢ در ﺻﻮرت اﯾﺠﺎد دو ﯾﺎ ﭼﻨﺪ etherchannelﻣﺎﺑﯿﻦ دو ﺳﻮﯾﯿﭻ ﺗﻨﻬﺎ ﯾﮑﯽ از اﻧﻬﺎ ﻓﻌﺎل ﺧﻮاﻫﺪ ﻣﺎﻧﺪ و ﻣﺎﺑﻘﯽ ﺑﺮ اﺳﺎس ﺗﻌﺎرﯾﻒ ﺑﺎﻻ ﻏﯿﺮ ﻓﻌﺎل ﺧﻮاﻫﻨﺪ ﺷﺪ 092 Page 152 of
- 154. ﻣﮑﺎﻧﯿﺰم ﺗﻘﺴﯿﻢ ﺑﺎر) (load balancingدر etherchannelداراي ﻓﺮﻣﻬﺎ و اﻧﺘﺨﺎﺑﻬﺎي زﯾﺎدي ﺑﻪ ﻗﺮار زﯾﺮ اﺳﺖ. destination ip destination mac address source XOR destination IP address source XOR destination mac address source ip addres source mac address در اﯾﻦ آزﻣﺎﯾﺶ از دﺳﺘﻮرات زﯾﺮ اﺳﺘﻔﺎده ﺧﻮاﻫﯿﻢ ﮐﺮد channel-group # mode on ﻗﺮار دادن رﻧﺠﯽ از ﭘﻮرﺗﻬﺎي اﻧﺘﺨﺎب ﺷﺪه در channel groupﻣﺸﺨﺺ ﺷﺪه ﺑﺎ ﺷﻤﺎره # و ﻗﺮاردادن show etherchannel summary ﻧﻤﺎﯾﺶ ﺧﻼﺻﻪ ﻣﺸﺨﺼﺎت EtherChannelﻣﺎﻧﻨﺪ ﺷﻤﺎره ، channel-groupﭘﻮرﺗﻬﺎي ﻓﻌﺎل در ﮔﺮوه show etherchannel detail ﻧﻤﺎﯾﺶ اﻃﻼﻋﺎت ﺟﺰﺋﯽ ﺗﺮ در ﺧﺼﻮص EtherChannelﺑﺮﻗﺮار ﺷﺪه show etherchannel port-channel ﻧﻤﺎﯾﺶ ﻣﺸﺨﺼﻪ ﻫﺎي اﯾﻨﺘﺮﻓﯿﺲ ﻣﻨﻄﻘﯽ اﯾﺠﺎد ﺷﺪه از ﻃﺮﯾﻖ EtherChannel EtherChannelدر وﺿﻌﯿﺖ ﺑﺪون ﻗﯿﺪ و ﺷﺮط ON ﭘﯿﺶ ﻧﯿﺎز ﻫﺎي آزﻣﺎﯾﺶ اﯾﺠﺎد ﺗﻮﭘﻮﻟﻮژي ﺳﻨﺎرﯾﻮ ﻣﻄﺎﺑﻖ ﺑﺎ ﺗﺼﻮﯾﺮ زﯾﺮ ﺗﺨﺼﯿﺺ آدرس 42/1.1.1.01 ﺑﻪ 0/0 Faروﺗﺮ 1R ﺗﺨﺼﯿﺺ آدرس 42/2.1.1.01 ﺑﻪ 1/0 Faروﺗﺮ 2R اﯾﺠﺎد 01 Vlanو 02 Vlanدر ﺳﻮﯾﯿﭽﻬﺎي 1 SWو 2SW اﻧﺘﺴﺎب 1/0 Faدر 1 SWﺑﻪ 01 Vlan اﻧﺘﺴﺎب 2/0 Faدر 2 SWﺑﻪ 01 Vlan ﻗﺮار دان 21/0 Fa0/10, Fa0/11 and Faدر ﺳﻮﯾﯿﭽﻬﺎي 2 SW1,SWدر ﺣﺎﻟﺖ ﺗﺮاﻧﮏ. ر.ك.آز-4.4 092 Page 153 of
- 155. SW1,SW2 ﺑﺪونﺷﺮط ﻣﺎﺑﯿﻦEtherchannel ﺗﺼﻮﯾﺮ 15.4.-اﯾﺠﺎد اﻫﺪاف آزﻣﺎﯾﺶ ﺑﺪون ﺷﺮطEtherChannel در ﺣﺎﻟﺖFa0/12وFa0/10, Fa0/11 ﻗﺮار دادن show etherchannel summary ﺗﺴﺖ ﺻﺤﺖ ﻗﺮارﮔﯿﺮي ﭘﻮرﺗﻬﺎ در ﮔﺮوه از ﻃﺮﯾﻖ دﺳﺘﻮر show etherchannel load-balance ﻣﻮرد اﺳﺘﻔﺎده در ﮔﺮوه از ﻃﺮﯾﻖload balancing ﻣﺸﺎﻫﺪه ﻧﻮع R1,R2 ﺑﯿﻦ دو روﺗﺮPing ﺗﺴﺖ ﺻﺤﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط در ﻟﯿﻨﮏ ﺗﺮاﻧﮏ ﻣﻨﻄﻘﯽ اﯾﺠﺎد ﺷﺪه از ﻃﺮﯾﻖ دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ Fa0/12وFa0/10, Fa0/11 ﻣﺎﺑﯿﻦEtherChannel 1. اﯾﺠﺎد SW1 con0 is now available Press RETURN to get started. SW1>enable SW1#configure terminal Enter configuration commands, one per line. SW1(config)#interface range fa0/10 - 12 End with CNTL/Z. Page 154 of 290
- 156. SW1(config-if-range)#no shut SW1(config-if-range)#channel-group 1mode on Creating a port-channel interface Port-channel1 SW1(config-if-range)# %EC-5-BUNDLE: Interface Fa0/10 joined port-channel Po1 %EC-5-BUNDLE: Interface Fa0/11 joined port-channel Po1 %EC-5-BUNDLE: Interface Fa0/12 joined port-channel Po1 %LINEPROTO-5-UPDOWN: Line protocol on Interface Port-channel1, changed state to up SW1(config-if-range)#end SW1# SW2 con0 is now available Press RETURN to get started. SW2>enable SW2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW2(config)#interface range fa0/10 - 12 SW2(config-if-range)#no shut SW2(config-if-range)#channel-group 1 mode on Creating a port-channel interface Port-channel1 SW2(config-if-range)# %EC-5-BUNDLE: Interface Fa0/10 joined port-channel Po1 %EC-5-BUNDLE: Interface Fa0/11 joined port-channel Po1 %EC-5-BUNDLE: Interface Fa0/12 joined port-channel Po1 %LINEPROTO-5-UPDOWN: Line protocol on Interface Port-channel1, changed state to up SW2(config-if-range)#end SW2# 2. ﺑﺮرﺳﯽ ﺻﺤﺖ ﻗﺮار ﮔﯿﺮي ﭘﻮرﺗﻬﺎ در ﮔﺮوه SW1#show etherchannel summary Flags: D - down P - in port-channel I - stand-alone s - suspended R - Layer3 S - Layer2 U - in use Group Port-channel Ports -----+------------+--------------------------------------------1 Po1(SU) Fa0/10(P) Fa0/11(P) Fa0/12(P) SW1# SW2#show etherchannel summary Flags: D - down P - in port-channel I - stand-alone s - suspended R - Layer3 S - Layer2 U - in use Group Port-channel Ports Page 155 of 290
- 157. -----+------------+--------------------------------------------1 Po1(SU) Fa0/10(P) Fa0/11(P) Fa0/12(P) SW2# ﻣﻮرد اﺳﺘﻔﺎده در ﮔﺮوهload balancing 3. ﺗﺸﺨﯿﺺ ﻧﻮع SW1#show etherchannel load-balance EtherChannel Load-Balancing Configuration: src-mac EtherChannel Load-Balancing Addresses Used Per-Protocol: Non-IP: Source MAC address IPv4: Source MAC address IPv6: Source MAC address SW1# R1,R2 ﺑﯿﻦping از ﻃﺮﯾﻖEtherChannel 4. ﺗﺴﺖ ﺻﺤﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﺗﺮاﻧﮏ و R1#ping 10.1.1.2 R1#ping 10.1.1.2 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.1.1.2, timeout is 2 seconds: .!!!! Success rate is 80 percent (4/5), round-trip min/avg/max = 4/23/52 ms R1# در ﺻﻮرﺗﯿﮑﻪ ﻣﺎﯾﻞ ﺑﻪ اﻧﺠﺎم ﺗﺴﺖ ﺑﯿﺸﺘﺮي رو ﻟﯿﻨﮏ ﺑﺮﻗﺮار ﺷﺪه ﺑﺎﺷﯿﻢ ﻣﯿﺘﻮاﻧﯿﻢ دوﺗﺎ از ﻟﯿﻨﮑﻬﺎي ﻓﯿﺰﯾﮑﯽ ﻣﺎﺑﯿﻦ را ﻗﻄﻊ ﻟﯿﻨﮏ ﻣﻨﻄﻘﯽRedundancy ﮐﻨﯿﻢ و ﺑﺒﯿﻨﯿﻢ آﯾﺎ ﻣﺠﺪدا ارﺗﺒﺎط ﻣﺎﺑﯿﻦ روﺗﺮﻫﺎ ﺑﺮﻗﺮار ﺧﻮاﻫﺪ ﻣﺎﻧﺪ ﯾﺎ ﺧﯿﺮ در واﻗﻊ ﻗﺎﺑﻠﯿﺖ را ﮐﻪ اﯾﺠﺎد ﮐﺮده اﯾﻢ را ﺗﺴﺖ ﻣﯿﮑﻨﯿﻢ SW1#config terminal SW1#interface range f0/11 - 12 SW1#shutdown SW1#end SW1# Configured from console by console SW1# %LINK-5-CHANGED: Interface FastEthernet0/11, changed state to administratively down %LINK-5-CHANGED: Interface FastEthernet0/12, changed state to administratively down %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/11, changed state to down SW1# Page 156 of 290
- 158. %LINEPROTO-5-UPDOWN: Line protocolon Interface FastEthernet0/12, changed state to down SW1# ﺻﺪا ﻣﯿﺰﻧﯿﻢR1 را از ﻃﺮﯾﻖR2 ﻣﺠﺪداetherchannel ﭘﺲ از ﺧﺎﻣﻮش ﮐﺮدن دو اﯾﻨﺘﺮﻓﯿﺲ از ﺳﻪ اﯾﻨﺘﺮﻓﯿﺲ ﻓﻌﺎل در R1#ping 10.1.1.2 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.1.1.2, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 1/2/4 ms R1# Page 157 of 290
- 159. آزﻣﺎﯾﺶ 6.4 –ﺗﻨﻈﻤﯿﺎت Etherchannel PAgP در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت EtherChannelداﯾﻨﺎﻣﯿﮏ از ﻃﺮﯾﻖ ﭘﺮوﺗﮑﻞ اﺧﺘﺼﺎﺻﯽ PAgPﺳﯿﺴﮑﻮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ PAgPاز دو ﺣﺎﻟﺖ ﺑﺮاي ﺑﺮﻗﺮاري ﮐﺎﻧﺎل ﺑﺎ ﻃﺮف ﻣﻘﺎﺑﻞ ﺧﻮد اﺳﺘﻔﺎده ﻣﯿﮑﻨﺪ. Autoو Desirableﺣﺎﻟﺖ Desirable ﻫﻤﻮاره اﻣﺎده ﺑﺮﻗﺮاري ﮐﺎﻧﺎل ﺑﺎ ﻃﺮف دوم ﺧﻮد اﺳﺖ در ﺣﺎﻟﯽ ﮐﻪ Autoاﯾﻨﻄﻮر ﻧﯿﺴﺖ ﺑﻪ ﺑﯿﺎن ﺑﻬﺘﺮ ﺣﺎﻟﺖ Autoﺗﻨﻬﺎ در ﺻﻮرﺗﯽ ﮐﺎﻧﺎل را ﺑﺮﻗﺮار ﻣﯿﮑﻨﺪ ﮐﻪ ﻃﺮف دوم در ﺣﺎﻟﺖ Desirableﺑﺎﺷﺪ. در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ دﺳﺘﻮرات زﯾﺮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. channel-group # mode desirable ﺗﺨﺼﯿﺺ ﺷﻤﺎره channel-groupو ﺣﺎﻟﺖ PAgPو اﻗﺪام ﺑﻪ ﺑﺮﻗﺮاري ﮐﺎﻧﺎل ﺑﺎ ﻃﺮف دوﻣﯽ ﮐﻪ Autoﯾﺎ channel-group # mode auto ﺗﺨﺼﯿﺺ ﺷﻤﺎره channel-groupو ﺣﺎﻟﺖ PAgPو ﻣﺎﻧﺪن در ﺣﺎﻟﺖ اﻧﺘﻈﺎر ﺟﻬﺖ اﯾﺠﺎد ﮐﺎﻧﺎل ﺑﺎ ﻃﺮف دوﻣﯽ Desirableاﺳﺖ ﮐﻪ در ﺣﺎﻟﺖ Desirableاﺳﺖ. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ اﯾﺠﺎد ﺗﻮﭘﻮﻟﻮژي ﻣﻄﺎﺑﻖ ﺑﺎ ﺗﺼﻮﯾﺮ ﺗﺨﺼﯿﺺ آدرس 42/1.1.1.01 ﺑﻪ 0/0 Faروﺗﺮ 1R ﺗﺨﺼﯿﺺ آدرس 42/2.1.1.01 ﺑﻪ 1/0 Faروﺗﺮ 2R اﯾﺠﺎد 01 Vlanو 02 Vlanدر ﺳﻮﯾﯿﭽﻬﺎي 1 SWو 2SW اﻧﺘﺴﺎب 1/0 Faدر 1 SWﺑﻪ 01 Vlan اﻧﺘﺴﺎب 2/0 Faدر 2 SWﺑﻪ 01 Vlan 092 Page 158 of
- 160. SW1,SW2 ﻣﺎﺑﯿﻦPAgPEtherchannel ﺗﺼﻮﯾﺮ 1.6.4.-اﯾﺠﺎد اﻫﺪاف آزﻣﺎﯾﺶ PAgP Desirable در ﺣﺎﻟﺖSW1 درFa0/12,Fa0/11,Fa0/10 ﻗﺮار دادن PAgP Auto در ﺣﺎﻟﺖSW2 درFa0/12,Fa0/11,Fa0/10 ﻗﺮار دادن ping از ﻃﺮﯾﻖR2 وR1 ﺗﺴﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﺑﯿﻦ دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ ﭘﺸﺘﯿﺒﺎﻧﯽ ﻧﻤﯿﮑﻨﺪ ، اداﻣﻪ آزﻣﺎش را ﺑﺮ ﻣﺒﻨﺎي وﺟﻮد دو دﺳﺘﮕﺎهPAgP از ﻗﺎﺑﻠﯿﺖNM-16ESW از آﻧﺠﺎﯾﯽ ﮐﻪ ﻣﺎژول ﺳﻮﯾﯿﭻ واﻗﻌﯽ اﻧﺠﺎم ﻣﯽ دﻫﯿﻢ Desirable ﺟﻬﺖ ﻗﺮار ﮔﺮﻓﺘﻦ در ﺣﺎﻟﺖSW1 درFa0/12,Fa0/11,Fa0/10 1. ﺗﻨﻈﯿﻢ ﺳﻪ اﯾﻨﺘﺮﻓﯿﺲ SW1 con0 is now available Press RETURN to get started. SW1>enable SW1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW1(config)#interface range f0/10 - 12 SW1(config-if-range)#channel-group 1 mode desirable Page 159 of 290
- 161. Creating a port-channelinterface Port-channel 1 SW1(config-if-range)#no shut SW1(config-if-range)#end SW1# . در اﯾﻦ ﺣﺎﻟﺖAuto ﺟﻬﺖ ﻗﺮار ﮔﺮﻓﺘﻦ در ﺣﺎﻟﺖSW1 درFa0/12,Fa0/11,Fa0/10 1. ﺗﻨﻈﯿﻢ ﺳﻪ اﯾﻨﺘﺮﻓﯿﺲ ﺑﺎﺷﺪDesirable ﺗﻨﻬﺎ زﻣﺎﻧﯽ ﮐﺎﻧﺎل ﺑﺮﻗﺮار ﺧﻮاﻫﺪ ﺷﺪ ﮐﻪ ﻃﺮف دوم در ﺣﺎﻟﺖ configuration mode as shown below; SW2 con0 is now available Press RETURN to get started. SW2>enable SW2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW2(config)#interface range f0/10 - 12 SW2(config-if-range)#channel-group 1 mode auto Creating a port-channel interface Port-channel 1 SW2(config-if-range)#no shut SW2(config-if-range)#end SW2# EtherChannel 2. ﺗﺴﺖ ﺻﺤﺖ ﺑﺮﻗﺮاري ﮐﺎﻧﺎل ﻣﺎﺑﯿﻦ اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ﺷﺮﮐﺖ ﮐﻨﻨﺪه در SW1#show etherchannel summary Flags: D - down P - bundled in port-channel I - stand-alone s - suspended H - Hot-standby (LACP only) R - Layer3 S - Layer2 U - in use f - failed to allocate aggregator M u w d - not in use, minimum links not met unsuitable for bundling waiting to be aggregated default port Number of channel-groups in use: 1 Number of aggregators: 1 Group Port-channel Protocol Ports ------+-------------+-----------+---------------------------------------------1 Po1(SU) PAgP Fa0/10(P) Fa0/11(P) Fa0/12(P) SW1# R1,R2 3. ﺗﺴﺖ ﻓﻌﺎل ﺑﻮدن ﺗﺮاﻧﮏ ﻣﺎﺑﯿﻦ دو ﺳﻮﯾﯿﭻ از ﻃﺮﯾﻖ Page 160 of 290
- 162. R1#ping 10.1.1.2 Type escapesequence to abort. Sending 5, 100-byte ICMP Echos to 10.1.1.2, timeout is 2 seconds: .!!!! Success rate is 80 percent (4/5), round-trip min/avg/max = 1/2/4 ms R1# Page 161 of 290
- 163. آزﻣﺎﯾﺶ 6.4 –ﺗﻨﻈﻤﯿﺎت Etherchannel LACP در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت EtherChannelداﯾﻨﺎﻣﯿﮏ از ﻃﺮﯾﻖ ﭘﺮوﺗﮑﻞ ﻋﻤﻮﻣﯽ IEEEﺑﻪ ﻧﺎم LACP آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ LACPداراي دو ﺣﺎﻟﺖ راه اﻧﺪازي اﺳﺖ ، Activeو .Passiveﺣﺎﻟﺖ LACP activeﺑﻪ ﺻﻮرت ﯾﮑﻄﺮﻓﻪ و ﺑﺪون ﻗﯿﺪ وﺷﺮط EtherChannelداﯾﻨﺎﻣﯿﮏ را ﺑﺮﻗﺮار ﻣﯿﮑﻨﺪ در ﺣﺎﻟﯽ ﮐﻪ ﺣﺎﻟﺖ passiveﻫﻨﮕﺎﻣﯽ ﮐﺎﻧﺎل را ﺑﺮﻗﺮار ﻣﯿﮑﻨﺪ ﮐﻪ ﻃﺮف دوم ﮐﺎﻧﺎل در ﺣﺎﻟﺖ اﮐﺘﯿﻮ و در ﺣﺎل ﺗﻼش ﺑﺮاي ﺑﺮﻗﺮاري ﮐﺎﻧﺎل ﺑﺎﺷﺪ در اﯾﻦ آزﻣﺎﯾﺶ از دﺳﺘﻮرات زﯾﺮ اﺳﺘﻔﺎده ﺧﻮاﻫﯿﻢ ﮐﺮد channel-group # mode active ﺗﺨﺼﯿﺺ channel-groupو ﺣﺎﻟﺖ LACP Activeﺑﻪ ﮔﺮوه اﯾﻨﺘﺮﻓﯿﺲ اﻧﺘﺨﺎب ﺷﺪه و اﻗﺪام ﺑﻪ ﺑﺮﻗﺮاري ﮐﺎﻧﺎل ،LACPدر ﺻﻮرﺗﯿﮑﻪ ﻃﺮف ﻣﻘﺎﺑﻞ در ﺣﺎﻟﺖ Activeﯾﺎ Passiveﻧﺒﺎﺷﺪ ﮐﺎﻧﺎل ﺑﺮﻗﺮار ﻧﻤﯿﺸﻮد channel-group # mode passive ﺗﺨﺼﯿﺺ channel-groupو ﺣﺎﻟﺖ ، LACP Passiveاﯾﻦ ﺣﺎﻟﺖ ﮔﻮش ﺑﻪ زﻧﮓ درﯾﺎﻓﺖ LACP packeاز ﻃﺮف دوم ﮐﺎﻧﺎل ﻣﯽ ﺑﺎﺷﺪ و در ﺻﻮرت Activeﺳﺖ ﻧﺸﺪن ﻃﺮف دوم ، ﮐﺎﻧﺎل ﺑﺮﻗﺮار ﻧﻤﯿﺸﻮد ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ اﯾﺠﺎد ﺗﻮﭘﻮﻟﻮژي ﻣﻄﺎﺑﻖ ﺑﺎ ﺗﺼﻮﯾﺮ ﺗﺨﺼﯿﺺ آدرس 42/1.1.1.01 ﺑﻪ 0/0 Faروﺗﺮ 1R ﺗﺨﺼﯿﺺ آدرس 42/2.1.1.01 ﺑﻪ 1/0 Faروﺗﺮ 2R اﯾﺠﺎد 01 Vlanو 02 Vlanدر ﺳﻮﯾﯿﭽﻬﺎي 1 SWو 2SW اﻧﺘﺴﺎب 1/0 Faدر 1 SWﺑﻪ 01 Vlan اﻧﺘﺴﺎب 2/0 Faدر 2 SWﺑﻪ 01 Vlan 092 Page 162 of
- 164. ﺗﺼﻮﯾﺮ 1.7.4.-اﯾﺠﺎد LACP Etherchannelﻣﺎﺑﯿﻦ 2SW1,SW اﻫﺪاف آزﻣﺎﯾﺶ ﻗﺮار دادن 01/0 Fa0/12,Fa0/11,Faدر 1 SWدر ﺣﺎﻟﺖ LACP Active ﮐﺎﻧﻔﯿﮓ 01/0 Fa0/12,Fa0/11,Faﺟﻬﺖ ﺗﺸﮑﯿﻞ ﮐﺎﻧﺎل LACPدر ﺻﻮرﺗﯿﮑﻪ ﻃﺮف دوم اﻣﺎده اﯾﺠﺎد ﮐﺎﻧﻞ ﺗﺴﺖ ﺻﺤﺖ ﺑﺮﻗﺮاري ﮐﺎﻧﺎل LACP ﺑﺎﺷﺪ ﺗﺴﺖ اﻣﮑﺎن ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻣﺎﺑﯿﻦ 2 R1,Rاز ﻃﺮﯾﻖ ﮐﺎﻧﺎل ﭘﺪﯾﺪ آﻣﺪه دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ از آﻧﺠﺎﯾﯽ ﮐﻪ ﻣﺎژول NM-16ESWاز ﻗﺎﺑﻠﯿﺖ PAgPﭘﺸﺘﯿﺒﺎﻧﯽ ﻧﻤﯿﮑﻨﺪ ، اداﻣﻪ آزﻣﺎش را ﺑﺮ ﻣﺒﻨﺎي وﺟﻮد دو دﺳﺘﮕﺎه ﺳﻮﯾﯿﭻ واﻗﻌﯽ اﻧﺠﺎم ﻣﯽ دﻫﯿﻢ 1. ﻗﺮار دادن 01/0 Fa0/12,Fa0/11,Faدر 1 SWدر ﺣﺎﻟﺖ LACP Active SW1 con0 is now available .Press RETURN to get started 092 Page 163 of
- 165. SW1>enable SW1#configure terminal Enter configurationcommands, one per line. End with CNTL/Z. SW1(config)#interface range f0/10 - 12 SW1(config-if-range)#no shut SW1(config-if-range)#channel-group 1 mode active Creating a port-channel interface Port-channel 1 SW1(config-if-range)#end SW1# در ﺻﻮرﺗﯿﮑﻪ ﻃﺮف دوم اﻣﺎده اﯾﺠﺎد ﮐﺎﻧﻞLACP ﺟﻬﺖ ﺗﺸﮑﯿﻞ ﮐﺎﻧﺎلFa0/12,Fa0/11,Fa0/10 2. ﮐﺎﻧﻔﯿﮓ ﺑﺎﺷﺪ SW2 con0 is now available Press RETURN to get started. SW2>enable SW2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW2(config)#interface range f0/10 - 12 SW2(config-if-range)#no shut SW2(config-if-range)#channel-group 1 mode passive Creating a port-channel interface Port-channel 1 SW2(config-if-range)#end SW2# LACP 3. ﺗﺴﺖ ﺻﺤﺖ ﺑﺮﻗﺮاري ﮐﺎﻧﺎل SW1#show etherchannel summary Flags: D - down P - bundled in port-channel I - stand-alone s - suspended H - Hot-standby (LACP only) R - Layer3 S - Layer2 U - in use f - failed to allocate aggregator M u w d - not in use, minimum links not met unsuitable for bundling waiting to be aggregated default port Number of channel-groups in use: 1 Number of aggregators: 1 Group Port-channel Protocol Ports ------+-------------+-----------+----------------------------- Page 164 of 290
- 166. 1 Po1(SU) LACP Fa0/10(P) Fa0/11(P) Fa0/12(P) SW1# از ﻃﺮﯾﻖﮐﺎﻧﺎل ﭘﺪﯾﺪ آﻣﺪهR1,R2 4. ﺗﺴﺖ اﻣﮑﺎن ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻣﺎﺑﯿﻦ R1#ping 10.1.1.2 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.1.1.2, timeout is 2 seconds: .!!!! Success rate is 80 percent (4/5), round-trip min/avg/max = 1/2/4 ms R1# Page 165 of 290
- 167. آزﻣﺎﯾﺶ 8.4 –ﺗﻨﻈﯿﻤﺎت اﯾﻨﺘﺮﻓﯿﺲ Portchannel در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت port-channelﮐﻪ ﻣﺴﺘﻘﯿﻤﺎ واﺑﺴﺘﻪ ﺑﻪ ﺷﻤﺎره Channel groupاﺳﺖ ﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ ﻫﻤﺎﻧﻄﻮر ﮐﻪ در آزﻣﺎﯾﺸﺎت ﮔﺬﺷﺘﻪ ﺑﺎ ﻣﻔﻬﻮم Etherchannelآﺷﻨﺎ ﺷﺪﯾﻢ دﯾﺪﯾﻢ ﮐﻪ ﮔﺮوﻫﯽ از اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ﻓﯿﺰﯾﮑﯽ ﺑﺎ ﻫﻢ ﺗﺮﮐﯿﺐ ﻣﯽ ﺷﻮﻧﺪ و اﯾﻨﺘﺮﻓﯿﺴﯽ ﻣﺠﺎزي ﺑﻪ ﻧﺎم اﯾﻨﺘﺮﻓﯿﺲ port-channelرا ﭘﺪﯾﺪ ﻣﯽ آورﻧﺪ ﮐﻪ ﺑﺎ ﯾﮏ ﺷﻤﺎره ﻣﺸﺨﺺ ﻣﯿﺸﻮد. Port-Channelدر رده اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ﻣﺠﺎزي ﻗﺮار ﻣﯿﮕﯿﺮد و ﺑﯿﺎﻧﮕﺮ ﻣﺴﯿﺮي اﺳﺖ ﮐﻪ ﺗﺮاﻓﯿﮏ ﻋﺒﻮري از ﮔﺮوه ﭘﻮرﺗﻬﺎي etherchannelاز آن ﻋﺒﻮر ﻣﯿﮑﻨﺪ.ﻫﺮ دﺳﺘﻮري ﮐﻪ ﺟﻬﺖ ﭘﯿﮑﺮﺑﻨﺪي Port-Channelﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﮔﯿﺮد ﻋﻤﻼ روي ﻫﻤﻪ ﭘﻮرﺗﻬﺎﯾﯽ ﮐﻪ ﭘﺪﯾﺪ آورﻧﺪه channel-groupﻫﺴﺘﻨﺪ اﻋﻤﺎل ﻣﯿﺸﻮد. در اﯾﻦ آزﻣﺎﯾﺶ از دﺳﺘﻮر زﯾﺮ اﺳﺘﻔﺎده ﺧﻮاﻫﯿﻢ ﮐﺮد # interface port-channel ﭘﺲ از اﺟﺮاي آن در ﻣﺤﯿﻂ ﮐﺎﻧﻔﯿﮓ اﯾﻨﺘﺮﻓﯿﺲ # Port-Channelﻗﺮار ﺧﻮاﻫﯿﻢ ﮔﺮﻓﺖ و از ﻃﺮﯾﻖ ان ﮐﻠﯿﻪ اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ﺷﺮﮐﺖ ﮐﻨﻨﺪه در ﮐﺎﻧﺎل ﺑﻪ ﻃﻮر ﻫﻤﺰﻣﺎن اﻋﻤﺎل ﮐﺎﻧﻔﯿﮓ ﺧﻮاﻫﻨﺪ ﺷﺪ ! ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﻗﺮار دادن 01/0 Fa0/12,Fa0/11,Faدر ﻫﺮدو ﺳﻮﯾﯿﭻ در ﺣﺎﻟﺖ EtherChannelﺑﺪون ﺷﺮط و ﻣﺴﺘﻘﯿﻢ ﺗﺨﺼﯿﺺ ﺷﻤﺎره 1 ﺑﻪ channel-group 092 Page 166 of
- 168. اﻫﺪاف آزﻣﺎﯾﺶ درﻫﺮدو ﺳﻮﯾﯿﭻ در ﻣﺪ ﺗﺮاﻧﮏPort-Channel1 ﻗﺮار دادن ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت ﻓﻮق روي ﺗﮏ ﺗﮏ اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ﻓﻌﺎل در ﮐﺎﻧﺎل Port-Channel1 ﺧﺎﻣﻮش ﮐﺮدن ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت ﻓﻮق روي ﺗﮏ ﺗﮏ اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ﻓﻌﺎل در ﮐﺎﻧﺎل دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ در ﻫﺮدو ﺳﻮﯾﯿﭻ در ﻣﺪ ﺗﺮاﻧﮏ و ﺗﺴﺖ ﺻﺤﺖ اﻋﻤﺎل ﺗﺮاﻧﮏ روي ﻫﺮ ﺳﻪPort-Channel1 ﻗﺮار دادن اﯾﻨﺘﺮﻓﯿﺲ ﺳﻮﯾﯿﭻ SW1 con0 is now available Press RETURN to get started. SW1>enable SW1#configure terminal Enter configuration commands, one per SW1(config)#interface port-channel 1 SW1(config-if)#switchport mode trunk %EC-5-UNBUNDLE: Interface Fa0/10 left %EC-5-UNBUNDLE: Interface Fa0/11 left %EC-5-UNBUNDLE: Interface Fa0/12 left %EC-5-BUNDLE: Interface Fa0/12 joined %EC-5-BUNDLE: Interface Fa0/11 joined %EC-5-BUNDLE: Interface Fa0/10 joined Page 167 of 290 line. End with CNTL/Z. the port-channel Po1 the port-channel Po1 the port-channel Po1 port-channel Po1 port-channel Po1 port-channel Po1
- 169. %DTP-5-TRUNKPORTON: Port Fa0/10-12has become dot1q trunk %LINK-3-UPDOWN: Interface Port-channel1, changed state to up SW1(config-if)#end SW1#show run ! interface FastEthernet0/10 switchport mode trunk channel-group 1 mode on ! interface FastEthernet0/11 switchport mode trunk channel-group 1 mode on ! interface FastEthernet0/12 switchport mode trunk channel-group 1 mode on ! SW1# ،اﺑﺘﺪا اﻋﻀﺎي ﺗﺸﮑﯿﻞ دﻫﻨﺪه آﻧﺮاPort-Channel 1 رويTrunk ﻫﻤﺎﻧﻄﻮر ﮐﻪ ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﺪ ﭘﺲ از اﺟﺮاي دﺳﺘﻮر ﺑﺮ ﻣﯿﮕﺮدﻧﺪchannel-group ﺗﺮك ﻣﯿﮑﻨﻨﺪ و ﭘﺲ از درﯾﺎﻓﺖ ﺗﻨﻈﯿﻤﺎت ﻣﺠﺪدا ﺑﻪ و ﺑﺮرﺳﯽ وﺿﻌﯿﺖ ﭘﻮرﺗﻬﺎي ﺗﺸﮑﯿﻞ دﻫﻨﺪه ﮔﺮوه ﭘﺲ از آنPort-Channel1 2. ﺧﺎﻣﻮش ﮐﺮدن SW1 con0 is now available Press RETURN to get started. SW1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW1(config)#interface port-channel 1 SW1(config-if)#shutdown %EC-5-UNBUNDLE: Interface Fa0/10 left the port-channel Po1 %EC-5-UNBUNDLE: Interface Fa0/11 left the port-channel Po1 %EC-5-UNBUNDLE: Interface Fa0/12 left the port-channel Po1 %DTP-5-NONTRUNKPORTON: Port Fa0/10-12 has become non-trunk SW1(config-if)# %LINEPROTO-5-UPDOWN: Line protocol on Interface Port-channel1, changed state to down %LINK-5-CHANGED: Interface FastEthernet0/10, changed state to administratively down %LINK-5-CHANGED: Interface FastEthernet0/11, changed state to administratively down %LINK-5-CHANGED: Interface FastEthernet0/12, changed state to administratively down SW1(config-if)# %LINK-5-CHANGED: Interface Port-channel1, changed state to administratively down SW1(config-if)#do show run ! interface FastEthernet0/10 switchport mode trunk shutdown Page 168 of 290
- 170. channel-group 1 modeon ! interface FastEthernet0/11 switchport mode trunk shutdown channel-group 1 mode on ! interface FastEthernet0/12 switchport mode trunk shutdown channel-group 1 mode on ! SW1# Page 169 of 290
- 171. آزﻣﺎﯾﺶ 9.4 –ﺗﻨﻈﯿﻤﺎت دﺳﺘﻨﯽ ARP در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﻤﯿﺎت دﺳﺘﯽ رﮐﻮردﻫﺎي ARPدر ﺳﻮﯾﯿﭻ ﻫﺎ و روﺗﺮﻫﺎ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ ﺑﻪ ﻣﻨﻈﻮر ﺑﺮﻗﺮاري ﯾﮏ ارﺗﺒﺎط ﻻﯾﻪ دو ﯾﺎ ﻻﯾﻪ ﺳﻪ اي ، ﺳﻮﯾﯿﭽﻬﺎ و روﺗﺮﻫﺎ ﻧﯿﺎزﻣﻨﺪ ﯾﮏ ﺟﺪول اﻃﻼﻋﺎﺗﯽ ﺣﺎوي ﻧﮕﺎﺷﺖ ﯾﮏ ﺑﻪ ﯾﮏ Ipﻫﺎ و Mac Addressﻫﺎ ﺑﺎ ﯾﮑﺪﯾﮕﺮ ﻫﺴﺘﻨﺪ. ﺑﻪ ﻋﻨﻮان ﻣﺜﺎل 1 Rﻣﯿﺨﻮاﻫﺪ ﮐﻪ ﺑﺎ 2 Rارﺗﺒﺎط ﺑﺮﻗﺮار ﮐﻨﺪ،ﺑﻪ ﻫﻤﯿﻦ ﺧﺎﻃﺮ در وﺣﻠﻪ اول ﯾﮏ درﺧﻮاﺳﺖ ARPارﺳﺎل ﻣﯿﮑﻨﺪ ﺗﺎ Macآدرس 42/2.1.1.01 را از ﺷﺒﮑﻪ اﺧﺬ ﮐﻨﺪ و ﭘﺲ از درﯾﺎﻓﺖ اﯾﻦ اﻃﻼﻋﺎت از ﺷﺒﮑﻪ آﻧﻬﺎ را در ARP Tableﺧﻮد ذﺧﯿﺮه ﻣﯿﮑﻨﺪ. ﭘﺲ از اﯾﻦ ﻣﺮﺣﻠﻪ 1 Rاز Macآدرس ﻣﻘﺼﺪ آﮔﺎه ﺧﻮاﻫﺪ ﺷﺪ و از آن در ﻓﺮم دﻫﯽ ﻓﺮﯾﻤﻬﺎي ارﺳﺎﻟﯽ ﺑﻪ ﻣﻘﺼﺪ اﺳﺘﻔﺎده ﺧﻮاﻫﺪ ﮐﺮد ﺑﻪ اﯾﻦ ﺷﮑﻞ ﮐﻪ 1 Rﭘﮑﺘﯽ را ﺑﺎ آدرس و ﻣﮏ آدرس 2 Rارﺳﺎل ﻣﯿﮑﻨﺪ، ﻫﻨﮕﺎﻣﯽ ﺳﻮﯾﯿﭻ ﻣﺤﻠﯽ ﻓﺮﯾﻢ را درﯾﺎﻓﺖ ﻣﯿﮑﻨﺪ ﻣﮏ آدرس ﻣﻘﺼﺪ را اﺳﺘﺨﺮاج ﻧﻤﻮده و ﺑﻪ دﻧﺒﺎل آن در ﺟﺪول ﻣﮏ ﺧﻮد ﻣﯽ ﮔﺮدد .ﭘﺲ از ﯾﺎﻓﺘﻦ ﻣﮏ آدرس و ﺳﻮﯾﯿﭻ ﭘﻮرت ﻣﺘﻨﺎﻇﺮ ﺑﺎ آن، ﻓﺮﯾﻢ درﯾﺎﻓﺘﯽ را ﺑﻪ اﯾﺘﺮﻓﯿﺲ ﻣﺘﻨﺎﻇﺮ ﻓﻮروارد ﻣﯿﮑﻨﺪ. اﻣﺎ ﺑﺮﺧﯽ اوﻗﺎت ARPﭘﺎﺳﺨﮕﻮي رﻓﻊ اﯾﻦ ﻧﯿﺎز ﻧﯿﺴﺖ و ﺑﺎﯾﺪ از راه ﺣﻞ دﯾﮕﺮي ﺑﻬﺮه ﺟﺴﺖ . ﻣﻮاردي وﺟﻮد دارﻧﺪ ﮐﻪ ﺑﻨﺎ ﺑﻪ دﻻﯾﻠﯽ روﺗﺮ/ﺳﻮﯾﯿﭻ ﻧﻤﯿﺘﻮاﻧﺪ ﻣﮏ آدرس ﻫﺎ را از ادوات ﻣﺘﺼﻞ ﺑﻪ ﺻﻮرت ﻣﺴﺘﻘﯿﻢ ﯾﺎ ﻏﯿﺮ ﻣﺴﺘﻘﯿﻢ درﯾﺎﻓﺖ ﮐﻨﺪ ﻣﺎﻧﻨﺪ ﻣﺎﺷﯿﻨﻬﺎي ﻣﺠﺎزي ﯾﺎ دﺳﺘﮕﺎﻫﯽ ﮐﻪ ﺑﻨﺎ ﺑﻪ ﺗﻨﻈﯿﻤﺎﺗﺸﺎن ﺑﻪ درﺧﻮاﺳﺘﻬﺎي ARPﭘﺎﺳﺦ ﻧﻤﯿﺪﻫﺪ در ﭼﻨﯿﻦ ﻣﻮاردي ﺑﻪ ﻃﻮر دﺳﺘﯽ رﮐﻮرد ﻣﺮﺑﻮط ﺑﻪ Static arp entryرا در ﺳﻮﯾﯿﭻ/روﺗﺮ وارد ﻣﯿﮑﻨﯿﻢ ﺗﺎ اﻟﺰاﻣﺎت اوﻟﯿﻪ ﺟﻬﺖ ارﺗﺒﺎط ﻻﯾﻪ دوﯾﯽ ﺑﺎ دﺳﺘﮕﺎه ﻣﻘﺼﺪ ﻓﺮاﻫﻢ ﺷﻮد. در ﺻﻮرﺗﯿﮑﻪ ﻓﺮﯾﻤﯽ ﺑﺎ ﺳﻤﺖ ﻣﮏ آدرﺳﯽ ﻧﺎﻣﻌﺘﺒﺮ)ﻏﯿﺮ ﻣﻮﺟﻮد در ﺟﺪول ﻣﮏ آدرس ﺳﻮﯾﯿﭻ( ارﺳﺎل ﺷﻮد ﺳﻮﯾﯿﭻ ﻓﺮﯾﻢ را ﺑﻪ ﻫﻤﻪ ﭘﻮرﺗﻬﺎي ﻻﯾﻪ دو ﺧﻮد ارﺳﺎل ﻣﯿﮑﻨﺪ و ﺑﻪ ﺟﺰ ﭘﻮرﺗﯽ ﮐﻪ ﻓﺮﯾﻢ را از آن درﯾﺎﻓﺖ ﮐﺮده اﺳﺖ اﯾﻦ ﭘﺪﯾﺪه ﺑﺎﻋﺚ اﺗﻼف ﭼﺸﻢ ﮔﯿﺮ ﻣﻨﺎﺑﻊ در ﺷﺒﮑﻪ ﻫﺎي ﺑﺎ ﻃﺮاﺣﯽ ﻏﯿﺮ ﺑﻬﯿﻨﻪ و ﻧﺎردﺳﺖ ﺧﻮاﻫﺪ ﺷﺪ. در اﯾﻦ آزﻣﺎﯾﺶ از دﺳﺘﻮر ﺟﺪﯾﺪ زﯾﺮ اﺳﺘﻔﺎده ﺧﻮاﻫﯿﻢ ﮐﺮد. arp ip.ip.ip.ip 0123.4567.89ab arpa ﺑﺎ اﺟﺮاي اﯾﻦ دﺳﺘﻮر ﯾﮏ static arp entryدر ﺟﺪول ﻣﮏ آدرس ﺗﺰرﯾﻖ ﺧﻮاﻫﺪ ﺷﺪ show arp ﺟﻬﺖ ﻧﻤﺎﯾﺶ ﻣﺤﺘﻮاي ﺟﺪول ARPﺑﻪ ﮐﺎر ﻣﯽ رود 092 Page 170 of
- 172. ﭘﯿﺶ ﻧﯿﺎز آزﻣﺎﯾﺶ GNS3اﺗﺼﺎل ﮐﻨﺴﻮل ﺑﻪ ﯾﮏ دﺳﺘﮕﺎه روﺗﺮ در ﻣﺤﯿﻂ اﻫﺪاف آزﻣﺎﯾﺶ 00ac.a1f3.01ab ﺑﺎ آدرس 52.1.1.01و ﻣﮏstatic arp entry ﺛﺒﺖ ﯾﮏ show arp ﺣﺼﻮل اﻃﻤﯿﻨﺎن از ﺛﺒﺖ آن ﺑﺎ اﺳﺘﻔﺎده از دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ 00ac.a1f3.01ab ﺑﺎ آدرس 52.1.1.01و ﻣﮏstatic arp entry 1. ﺛﺒﺖ ﯾﮏ R1 con0 is now available Press RETURN to get started. R1>enable R1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R1(config)#arp 10.1.1.25 00ac.a1f3.01ab arpa R1(config)#end R1# show arp 2. ﺣﺼﻮل اﻃﻤﯿﻨﺎن از ﺛﺒﺖ آن ﺑﺎ اﺳﺘﻔﺎده از R1#show arp Protocol Address Internet 10.1.1.1 Internet 10.1.1.25 R1# Age (min) - Hardware Addr ca00.0d78.0008 00ac.a1f3.01ab Type ARPA ARPA Interface FastEthernet0/0 00 اﺳﺘﻔﺎده ﺧﻮاﻫﺪac.a1f3.01ab ارﺳﺎل ﻣﯿﮑﻨﺪ ازﻣﮏ آدرسR2 ﺗﺮاﻓﯿﮑﯽ را ﺑﻪ ﺳﻤﺖR1 ﭘﺲ از اﯾﻦ ﻫﻨﮕﺎﻣﯽ ﮐﻪ ﺛﺒﺖ ﺷﺪهStatic ARP entry ﻣﻨﺎﺳﺐ ﻫﻢ درﯾﺎﻓﺖ ﮐﻨﺪ ﺑﺎزARP ﭘﺎﺳﺦR2 ﮐﺮد .در اﯾﻦ ﺣﺎﻟﺖ ﺣﺘﯽ اﮔﺮ از ﺳﻤﺖ ﺗﻮﺳﻂ ادﻣﯿﻦ ﺣﺎﺋﺰ اوﻟﻮﯾﺖ ﺧﻮاﻫﺪ ﺑﻮد Page 171 of 290
- 173. آزﻣﺎﯾﺶ 01.4 –ﺗﻨﻈﯿﻤﺎت VTP در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﻤﯿﺎت ﭘﺎﯾﻪ و ﻧﮑﺎت اﻣﻨﯿﺘﯽ VTPﺟﻬﺖ اﻧﺘﺸﺎر ﺗﻌﺮﯾﻒ VLANﻫﺎ از ﯾﮏ ﺳﻮﯾﯿﭻ ﻣﺮﮐﺰي ﺑﻪ ﮐﻠﯿﻪ ﺳﻮﯾﯿﭽﻬﺎي ﻣﻮﺟﻮد در آن ﺷﺒﮑﻪ ﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ ﯾﮑﯽ از ﻓﻌﺎﻟﯿﺘﻬﺎي وﻗﺖ ﮔﯿﺮ وﺳﺨﺖ در ﺷﺒﮑﻪ ﻫﺎي ﺑﺰرﮔﯽ ﮐﻪ از ﺗﻌﺪاد زﯾﺎدي ﺳﻮﯾﯿﭻ ﺗﺸﮑﯿﻞ ﯾﺎﻓﺘﻪ اﻧﺪ ﺗﻌﺮﯾﻒ و ﻣﺪﯾﺮﯾﺖ Vlanﻫﺎ ﺑﻪ ﻃﻮر ﻣﺠﺰا در ﺗﮏ ﺗﮏ اﯾﻦ ادوات ﻣﯽ ﺑﺎﺷﺪ. از اﯾﻨﺮو و ﺑﻪ ﻣﻨﻈﻮر ﺣﻞ اﯾﻦ ﻣﺸﮑﻞ VLAN Trunking Protocolﯾﺎ ﺑﻪ ﻃﻮر اﺧﺘﺼﺎر VTPﺟﻬﺖ اﻧﺘﺸﺎر ﺗﻌﺮﯾﻒ Vlanﻫﺎ از ﻃﺮﯾﻖ ﯾﮏ ﺳﻮﯾﯿﭻ ﻣﺮﮐﺰي ﺑﻪ ﺳﺎﯾﺮ ﺳﻮﯾﯿﭽﻬﺎ ﻣﺸﺎﺑﻪ ﺣﺎﻟﺖ ﮐﻼﯾﻨﺖ ﺳﺮوري ﻣﻌﺮﻓﯽ ﺷﺪ . VTP Serverدر ﻋﻤﻞ ﯾﮏ ﻧﻘﻄﻪ ﻣﺪﯾﺮﯾﺖ ﻣﺮﮐﺰي در ﺷﺒﮑﻪ ﺟﻬﺖ ﺗﻮزﯾﻊ Vlanﻫﺎ ﻣﺤﺴﻮب ﻣﯽ ﺷﻮد ﺑﻪ اﯾﻦ ﻣﻌﻨﺎ ﮐﻪ Vlanﻫﺎي ﺳﺎﺧﺘﻪ ﺷﺪه در اﯾﻦ ﺳﻮﯾﯿﭻ ﺑﻪ ﻃﻮر ﻫﻤﺰﻣﺎن در ﺳﺎﯾﺮ ﺳﻮﯾﯿﭽﻬﺎي ﻋﻀﻮ Vtp domainﺗﻮزﯾﻊ ﻣﯿﺸﻮﻧﺪ.ﺗﻌﺮﯾﻒ Vtp domainرا ﻫﻢ ﺑﻪ ﺻﻮرت ﻣﺠﻤﻮﻋﻪ اي از ﺳﻮﯾﯿﭽﻬﺎ ﺑﺎ ﺗﻌﺮﯾﻒ ﯾﮑﺴﺎن Vlanﻫﺎ در ﻧﻈﺮ ﺑﮕﯿﺮﯾﺪ.ﺑﻪ ﻋﻨﻮان ﻣﺜﺎل ﯾﮏ ﻣﺠﺘﻤﻊ ﺑﺰرگ داﻧﺸﮕﺎﻫﯽ را در ﻧﻈﺮ ﺑﮕﯿﺮﯾﺪ ﮐﻪ در آن ﻣﻌﻤﺎري 3ﻻﯾﻪ ﺷﺒﮑﻪ ﺑﻪ ﻃﻮر ﮐﺎﻣﻞ ﭘﯿﺎده ﺳﺎزي ﺷﺪه اﺳﺖ،در اﯾﻦ ﻃﺮاﺣﯽ Vtpﺳﺮور ﺳﻮﯾﯿﭻ ﻻﯾﻪ ﺗﻮزﯾﻊ ﺧﻮاﻫﺪ ﺑﻮد. در اﻏﻠﺐ ﻣﻮارد ﻧﻘﺶ VTPﺳﺮور را ﺳﻮﯾﯿﭽﯽ ﺑﻪ ﻋﻬﺪه ﻣﯿﯿﮕﯿﺮد ﮐﻪ ﻗﺎﺑﻠﯿﺖ اﻓﺰوﻧﮕﯽ ﯾﺎ redundancyرا ﺑﺮاي ﺳﻮﯾﯿﭽﻬﺎ ﻻﯾﻪ اﮐﺴﺲ ﻓﺮاﻫﻢ ﻣﯿﮑﻨﺪ در ﺷﺒﮑﻪ ﻫﺎي ﮐﻮﭼﮑﺘﺮ ﮐﻪ ﻻﯾﻪ ﺗﻮزﯾﻊ وﺟﻮد ﻧﺪارد اﯾﻦ ﻣﺴﺌﻮﻟﯿﺖ ﺑﻪ ﻋﻬﺪه ﺳﻮﯾﯿﭻ ﻣﺮﮐﺰي آن ﺷﺒﮑﻪ ﺧﻮاﻫﺪ ﺑﻮد. در ﺣﺎل ﺣﺎﺿﺮ ﺳﻪ ﻧﮕﺎرش از Vtpاراﺋﻪ ﺷﺪه اﺳﺖ ﮐﻪ در اداﻣﻪ ﺑﻪ آﻧﻬﺎ ﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ 1 :Vtp versionﻧﺴﺨﻪ اوﻟﯿﻪ و ﻗﺪﯾﻤﯽ ﺑﺎ وﯾﮋﮔﯿﻬﺎ ﺳﺎده اي ﻫﻤﭽﻮن ﺗﻨﻈﯿﻢ ﺳﻮﯾﯿﭻ ﺑﻪ ﻋﻨﻮان Vtpﺳﺮور 2 :Vtp versionﻗﺎﺑﻠﯿﺘﻬﺎي 1 Vtpﺑﻪ اﺿﺎﻓﻪ ﭘﺸﺘﯿﺒﺎﻧﯽ از ﺗﻮﮐﻦ رﯾﻨﮓ Vlanو Vtp pruningاﮔﺮ ﻫﯿﭻ ﯾﮏ 3 :Vtp versionاﯾﻦ ﻧﺴﺨﻪ داراي ﻣﺸﺨﺼﻪ ﻫﺎي ﭘﺮ رﻧﮓ ﺗﺮي ﻧﺴﺒﺖ ﺑﻪ ﻧﺴﺨﻪ ﻫﺎي ﻗﺒﻠﯽ اﺳﺖ و آﻧﺮا ﺑﻪ ، Vtpﮐﻼﯾﻨﺖ، VTP Mode OFF ، Vtp transparentﮐﻪ ﺑﻪ ﻃﻮر ﮐﺎﻣﻞ Vtpرا ﻏﯿﺮ ﻓﻌﺎل ﻣﯿﮑﻨﺪ. از اﯾﻦ ﻣﺸﺨﺼﻪ ﻫﺎ در ﺷﺒﮑﻪ اي ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻧﻤﯿﮕﯿﺮد ﻟﺰوﻣﯽ ﺑﻪ ارﺗﻘﺎ از ﻧﺴﺨﻪ ﯾﮏ ﺑﻪ دو وﺟﻮد ﻧﺪارد ﻋﻨﻮان اوﻟﯿﻦ اﻧﺘﺨﺎب در ﺷﺒﮑﻪ ﻫﺎي ﺑﺰرگ ﺗﺒﺪﯾﻞ ﻣﯿﮑﻨﺪ.اﯾﻦ ﻧﮕﺎرش از ﺗﻤﺎم رﻧﺞ IEEE VLANﯾﻌﻨﯽ 1 ﺗﺎ 5904 ﻫﻤﯿﻨﻄﻮر اﻧﺘﺸﺎر اﻃﻼﻋﺎت Private Vlanﻫﺎ را ﭘﺸﺘﯿﺒﺎﻧﯽ ﻣﯿﮑﻨﺪ.ﻋﻼوه ﺑﺮ اﯾﻨﻬﺎ در ﻧﮕﺎرش ﺟﺪﯾﺪ ﺑﺎ اﻓﺰودن ﻗﺎﺑﻠﯿﺘﻬﺎﯾﯽ ﻫﻤﭽﻮن اﻧﺘﺨﺎب اﯾﻨﮑﻪ ﮐﺪام ﺳﻮﯾﯿﭽﻬﺎ ﺑﺘﻮاﻧﻨﺪ اﻃﻼﻋﺎت Vlanﺳﺎﯾﺮﯾﻦ را ﺑﺮوز ﮐﻨﻨﺪ ﻫﻤﯿﻨﻄﻮر ﻗﺎﺑﻠﯿﺖ ﻓﻌﺎل/ﻏﯿﺮﻓﻌﺎل ﮐﺮدن Vtpﺑﺮ ﻣﺒﻨﺎي ﯾﮏ ﺗﺮاﻧﮏ ﺧﺎص و ﯾﺎ ﺗﺨﺼﯿﺺ primary , backup ﺳﺮور ﺑﻪ Vtpﺳﺮور اﻣﮑﺎﻧﺎت ﺑﯿﺸﺘﺮي را ﺟﻬﺖ ﻣﺪﯾﺮﯾﺖ Vtp domainﺑﻪ راﻫﺒﺮ ﺷﺒﮑﻪ اراﺋﻪ ﻣﯿﺪﻫﺪ. 092 Page 172 of
- 174. اﮐﻨﻮن ﯾﮏ ﭘﻠﻪﺑﻪ ﻋﻘﺐ ﺑﺮﮔﺮدﯾﻢ . ﺣﺎﻟﺘﯽ را در ﻧﻈﺮ ﺑﮕﯿﺮﯾﺪ ﮐﻪ ﻓﺮدي ﺳﻮﯾﯿﭽﯽ را ﺑﻪ ﺷﺒﮑﻪ ﻣﺎ ﻣﺘﺼﻞ ﻣﯿﮑﻨﺪ ﮐﻪ داراي ﻫﻤﺎن Vtp domainو ﻧﮕﺎرش ﺑﺎﻻﺗﺮي از ﭘﺎﯾﮕﺎه داده Vtpﺳﺮور ﺷﺒﮑﻪ ﻣﺎ اﺳﺖ ﭼﻪ اﺗﻔﺎﻗﯽ ﺧﻮاﻫﺪ اﻓﺘﺎد ؟ ﮐﻠﯿﻪ ﺗﻨﻈﯿﻤﺎت Vlanﺷﺒﮑﻪ ﻣﺎ ﺑﺎ ﻧﺴﺨﻪ ﻣﻮﺟﻮد در اﯾﻦ ﭘﺎﯾﮕﺎه داده اﯾﻦ Vtpﺳﺮور ﺟﺪﯾﺪ ﺟﺎﯾﮕﺰﯾﻦ ﺧﻮاﻫﺪ ﺷﺪ . ﺗﻌﺪادي از Vlanﻫﺎ ﺣﺬف ﺧﻮاﻫﻨﺪ ﺷﺪ ﺗﻌﺪاي ﺟﺪﯾﺪ اﺿﺎﻓﻪ ﺧﻮاﻫﻨﺪ ﺷﺪ و از اﯾﻦ دﺳﺖ ﻧﺘﯿﺠﻪ اﯾﻨﮑﻪ ﭘﻮرﺗﻬﺎي ﺑﯿﺮون اﻓﺘﺎده از Vlanﺑﻪ ﺻﻮرت ﺧﺎﻣﻮش ﺧﻮدﻧﻤﺎﯾﯽ ﺧﻮاﻫﻨﺪ ﮐﺮد. در ﻣﻮاﺟﻬﻪ ﺑﺎ ﭼﻨﯿﻦ اﺗﻔﺎﻗﯽ راﻫﺒﺮ ﺷﺒﮑﻪ دو ﮐﺎر ﺑﺴﯿﺎر ﻣﻬﻢ را ﻣﯿﺒﺎﯾﺴﺖ ﭘﺸﺖ ﺳﺮ ﻫﻢ اﻧﺠﺎم دﻫﺪ اﺑﺘﺪا ﺑﺮوزرﺳﺎﻧﯽ رزوﻣﻪ ﺧﻮد ﺳﭙﺲ اﺳﺘﻔﺎده از Vtp passwordﺟﻬﺖ ﺟﻠﻮﮔﯿﺮي از وﻗﻮع ﻣﺠﺪد اﯾﻦ ﺑﺤﺮان.ﺑﺎ ﺗﻨﻄﯿﻢ Vtp passwordﺗﻨﻬﺎ ﮐﻼﯾﻨﺘﻬﺎﯾﯽ اﻗﺪام ﺑﻪ اﺧﺬ ﺗﻨﻈﯿﻤﺎت از ﺳﺮور ﻣﯿﮑﻨﻨﺪ ﮐﻪ ﻫﻢ ﻧﺎم داﻣﻨﻪ و ﻫﻢ رﻣﺰ ﻋﺒﻮر ﯾﮑﺴﺎﻧﯽ ﺑﺎ ﻫﻢ داﺷﺘﻪ ﺑﺎﺷﻨﺪ ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ اﯾﺠﺎد ﺗﻮﭘﻮﻟﻮژي ﻣﻄﺎﺑﻖ ﺗﺼﻮﯾﺮ زﯾﺮ ﺧﺎﻣﻮش ﮐﺮدن اﯾﻨﺘﺮﻓﯿﺴﻬﺎي 51/0 Fa0/13,Fa0/14,Faدر ﺳﻮﯾﯿﭽﻬﺎي 3SW2,SW ﺗﻨﻈﯿﻢ 21/0 Fa0/10,Fa0/11,Faدر ﺳﻮﯾﯿﭽﻬﺎي 2 SW1,SWﺟﻬﺖ اﯾﺠﺎد Etherchannelو ﺗﺮاﻧﮏ ﺗﻨﻈﯿﻢ 51/0 Fa0/13,Fa0/14,Faدر 1 SWو 21/0Fa0/10,Fa0/11,Faدر 3 SWﺟﻬﺖ ﺑﺮﻗﺮاي Etherchannelﺑﺎ 2 channel-groupو ﻗﺮار دادن آن در ﺣﺎﻟﺖ ﺗﺮاﻧﮏ 092 Page 173 of
- 175. ﺗﺼﻮﯾﺮ 1.01.4-ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪVTP اﻫﺪاف آزﻣﺎﯾﺶ ﺗﻨﻈﯿﻢ 1 SWﺑﻪ ﻋﻨﻮان Vtpﺳﺮور و ﺳﺎﯾﺮ ﺳﻮﯾﯿﭽﻬﺎ ﺑﻪ ﻋﻨﻮان Vtp clientو ﺗﻨﻈﯿﻢ Vtp domainﺑﻪ cisco اﯾﺠﺎد 01 vlanﺑﻪ ﻧﺎم Developmentدر Vtpﺳﺮور و ﺑﺮرﺳﯽ اﻧﺸﺘﺎر آن ﺳﻮﯾﯿﺠﻬﺎي دﯾﮕﺮ ﺗﻈﻨﯿﻢ Vtpﺑﻪ ﻧﮕﺎرش 2 و اﻓﺰاﯾﺶ اﻣﻨﯿﺖ Vtp domainاز ﻃﺮﯾﻖ ﺗﺨﺼﯿﺺ رﻣﺰ ﻋﺒﻮر 321$ Ciscoﺑﻪ آن ﺑﺮرﺳﯽ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ ﺑﻪ دﻟﯿﻞ ﻣﺤﺪودﯾﺖ ﻫﺎي ﻣﺎژول Nm-16eswدر 3 Gnsدﺳﺘﻮرات اﯾﻦ آزﻣﺎﯾﺶ از ﻃﺮﯾﻖ 3 دﺳﺘﮕﺎه ﺳﻮﯾﯿﭻ واﻗﻌﯽ ﭘﯿﺎده ﺳﺎزي ﺷﺪه اﻧﺪ. 092 Page 174 of
- 176. Vtp ﮐﻼﯾﻨﺖو ﺗﻨﻈﯿﻢ ﻧﺎمVtp ﺑﻪ ﻋﻨﻮانSW2,SW3 ﺳﺮور و ﭘﯿﮑﺮﺑﻨﺪيVtp ﺑﻪ ﻋﻨﻮانSW1 ١. ﭘﯿﮑﺮﺑﻨﺪي CISCO ﺑﻪdomain ﺑﺎﺷﺪVtp mode ﻣﯿﺒﺎﯾﺴﺖ ﻫﻤﺮاه ﺑﺎ ﺗﻨﻈﯿﻢVtp domain ﺑﻪ ﺧﺎﻃﺮ داﺷﺘﻪ ﺑﺎﺷﯿﺪ در ﺳﻮﯾﯿﭻ ﮐﻼﯾﻨﺖ ﺗﻨﻈﯿﻢ Vtp domain ﺑﺮد و ﭘﺲ از ﺗﻨﻈﯿﻢTransparent در ﻏﯿﺮ اﯾﻨﺼﻮرت اول ﺑﺎﯾﺪ ﺳﻮﯾﯿﭻ ﻣﻮرد ﻧﻈﺮ را ﺑﻪ ﺣﺎﻟﺖ ﻣﺠﺪدا آﻧﺮا ﺑﻪ ﺣﺎﻟﺖ ﮐﻼﯾﻨﺖ ﺑﺮﮔﺮداﻧﺪ SW1 con0 is now available Press RETURN to get started. SW1>enable SW1#configure terminal Enter configuration commands, one per line. SW1(config)#vtp mode server Device mode already VTP SERVER. SW1(config)#vtp domain CISCO Changing VTP domain name from NULL to CISCO SW1(config)# SW2 con0 is now available End with CNTL/Z. Press RETURN to get started. SW2>enable SW2#configure terminal Enter configuration commands, one per line. SW2(config)#vtp domain CISCO Domain name already set to CISCO. SW2(config)#vtp mode client Setting device to VTP CLIENT mode. SW2(config)# SW3 con0 is now available End with CNTL/Z. Press RETURN to get started. SW3>enable SW3#configure terminal Enter configuration commands, one per line. SW3(config)#vtp domain CISCO Domain name already set to CISCO. SW3(config)#vtp mode client Setting device to VTP CLIENT mode. SW3(config)# End with CNTL/Z. و ﺑﺮرﺳﯽ ﺻﺤﺖ اﻧﺘﺸﺎر آن در ﺳﻮﯾﯿﭽﻬﺎي دﯾﮕﺮSW1 درdevelopment ﺑﺎ ﻧﺎمVlan 10 ٢. اﯾﺠﺎد SW1(config)#vlan 10 SW1(config-vlan)#name Development SW1(config-vlan)#end SW1# Page 175 of 290
- 177. ﻓﻮق درﺳﺎﯾﺮ ﺳﻮﯾﯿﭽﻬﺎ ﻫﻢ ﻣﺸﺎﻫﺪه ﻣﯽ ﺷﻮد ﯾﺎ ﺧﯿﺮVlan اﮐﻨﻮن ﺑﺮرﺳﯽ ﻣﯿﮑﻨﯿﻢ ﮐﻪ آﯾﺎ SW2(config)#end SW2#show vlan %SYS-5-CONFIG_I: Configured from console by console SW2#show vlan VLAN Name Status Ports ---- -------------------------------- --------- -----------------------------1 default active Fa0/1, Fa0/2, Fa0/3, Fa0/4 Fa0/5, Fa0/6, Fa0/7, Fa0/8 Fa0/9, Fa0/13, Fa0/14, Fa0/15 Fa0/16, Fa0/17, Fa0/18, Fa0/19 Fa0/20, Fa0/21, Fa0/22, Fa0/23 Fa0/24, Gi0/1, Gi0/2 10 Development active 1002 fddi-default act/unsup 1003 token-ring-default act/unsup 1004 fddinet-default act/unsup 1005 trnet-default act/unsup VLAN Type Trans2 ---- ----1 enet 10 enet 1002 fddi 1003 tr 1004 fdnet 1005 trnet SAID MTU Parent RingNo BridgeNo Stp BrdgMode Trans1 ---------- ----- ------ ------ -------- ---- -------- ------ ----100001 100010 101002 101003 101004 101005 1500 1500 1500 1500 1500 1500 - - - ieee ibm srb - 0 0 0 0 0 0 0 0 0 0 0 0 Remote SPAN VLANs ----------------------------------------------------------------------------Primary Secondary Type Ports ------- --------- ----------------- ----------------------------------------SW2# SW3(config)#end SW3#show vlan VLAN Name Status Ports ---- -------------------------------- --------- -----------------------------1 default active Fa0/1, Fa0/2, Fa0/3, Fa0/4 Fa0/5, Fa0/6, Fa0/7, Fa0/8 Fa0/9, Fa0/13, Fa0/14, Fa0/15 Fa0/16, Fa0/17, Fa0/18, Page 176 of 290
- 178. Fa0/19 Fa0/20, Fa0/21, Fa0/22, Fa0/23 Fa0/24, Gi0/1, Gi0/2 10 1002 1003 1004 1005 Development fddi-default token-ring-default fddinet-default trnet-default VLANType Trans2 ---- ----1 enet 10 enet 1002 fddi 1003 tr 1004 fdnet 1005 trnet SAID active act/unsup act/unsup act/unsup act/unsup MTU Parent RingNo BridgeNo Stp BrdgMode Trans1 ---------- ----- ------ ------ -------- ---- -------- ------ ----100001 100010 101002 101003 101004 101005 1500 1500 1500 1500 1500 1500 - - - ieee ibm srb - 0 0 0 0 0 0 0 0 0 0 0 0 Remote SPAN VLANs ----------------------------------------------------------------------------Primary Secondary Type Ports ------- --------- ----------------- ----------------------------------------SW3# ﺑﻪ آنCisco$123 از ﻃﺮﯾﻖ ﺗﺨﺼﯿﺺ رﻣﺰ ﻋﺒﻮرVtp domain ﺑﻪ ﻧﮕﺎرش 2 و اﻓﺰاﯾﺶ اﻣﻨﯿﺖVtp ٣. ﺗﻈﻨﯿﻢ SW1#configure terminal Enter configuration commands, one per SW1(config)#vtp version 2 SW1(config)#vtp password Cisco$123 Setting device VLAN database password SW1(config)#end SW1# SW2#configure terminal Enter configuration commands, one per SW2(config)#vtp password Cisco$123 Setting device VLAN database password SW2(config)#end SW2# SW3#configure terminal Enter configuration commands, one per SW3(config)#vtp password Cisco$123 Setting device VLAN database password SW3(config)#end SW3# Page 177 of 290 line. End with CNTL/Z. to Cisco$123 line. End with CNTL/Z. to Cisco$123 line. End with CNTL/Z. to Cisco$123
- 179. اﺳﺘﻔﺎده ﻣﯿﮑﻨﯿﻢshowvtp و ﺳﺎﯾﺮ ﻣﺸﺨﺼﻪ ﻫﺎي آن از دﺳﺘﻮرVtpﺑﺮاي ﺑﺮرﺳﯽ ﺷﻤﺎره ﻧﮕﺎرش SW2#show vtp status VTP Version : running VTP2 Configuration Revision : 3 Maximum VLANs supported locally : 1005 Number of existing VLANs : 6 VTP Operating Mode : Client VTP Domain Name : CISCO VTP Pruning Mode : Disabled VTP V2 Mode : Enabled VTP Traps Generation : Disabled MD5 digest : 0x96 0xF1 0x2F 0xDD 0x5F 0x1F 0x37 0x53 Configuration last modified by 192.168.255.1 at 3-2-93 15:11:27 SW2# اﺳﺘﻔﺎده ﻣﯿﮑﻨﯿﻢshow vtp password ﻫﻢ از دﺳﺘﻮرVtp domain ﺑﺮاي ﻣﺸﺎﻫﺪه رﻣﺰ ﻋﺒﻮر ﺗﻨﻈﯿﻢ ﺷﺪه ﺑﺮاي SW2#show vtp password VTP Password: Cisco$123 SW2# Page 178 of 290
- 180. آزﻣﺎﯾﺶ 11.4 –ﺗﻨﻈﯿﻤﺎت Vtp transparentو Vtp pruning در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻢ VTP Transparentﺑﻪ ﻋﻨﻮان ﯾﮏ ﻋﻀﻮ ﭘﺴﯿﻮ Vtpﻫﻤﯿﻨﻄﻮر ﺗﻨﻈﯿﻤﺎت Vtp pruningﺑﺎ ﻫﺪف ﺟﻠﻮﮔﯿﺮي از اﻧﺘﺸﺎر ﺗﺮاﻓﯿﮏ ﻫﺎي ﻧﺎﺧﻮاﺳﺘﻪ vlanﻫﺎ ﺑﻪ ﺳﻮﯾﯿﭽﻬﺎﯾﯽ ﮐﻪ ﻓﺎﻗﺪ آن vlanﻫﺎ ﻣﯿﺒﺎﺷﻨﺪ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ ﺑﺮﺧﻼف دو ﺣﺎﻟﺖ ﻗﺒﻠﯽ Vtpﯾﻌﻨﯽ ﺣﺎﻟﺘﻬﺎي ﺳﺮور و ﮐﻼﯾﻨﺖ ﺣﺎﻟﺖ ﺗﺮﻧﺴﭙﺮﻧﺖ در ﻫﯿﭻ ﯾﮏ از Vtpداﻣﯿﻦ ﻫﺎ ﻧﻘﺸﯽ را اﯾﻔﺎ ﻧﻤﯿﮑﻨﺪ و ﺻﺮﻓﺎ ﺑﻪ ﻋﺒﻮر دادن ﻓﺮﯾﻤﻬﺎي Vtpاز ﺳﻮﯾﯿﭽﯽ ﺑﻪ ﺳﻮﯾﯿﭻ دﯾﮕﺮ ﻗﻨﺎﻋﺖ ﻣﯽ ﮐﻨﻨﺪ در واﻗﻊ از ﺳﻮﯾﯿﭻ ﺗﺮﻧﺴﭙﺮﻧﺖ ﺻﺮﻓﺎ ﺑﻪ ﻋﻨﻮان ﯾﮏ ﺳﻮﯾﯿﭻ ﻣﺪﯾﺮﯾﺖ ﭘﺬﯾﺮ ﻣﺎﺑﯿﻦ ﻣﺴﯿﺮ اﻧﺘﻘﺎل دو ﺳﻮﯾﯿﭻ ﻓﻌﺎل در Vtpاﺳﺘﻔﺎده ﻣﯽ ﺷﻮد. ﯾﮏ ﻧﮑﺘﻪ ﻣﻨﻔﯽ در ﺧﺼﻮص ﺳﻮﯾﯿﭽﻬﺎي ﺗﺮﻧﺴﭙﺮﻧﺖ ﮐﻪ ﺑﻪ ﻋﻨﻮان ﻣﺴﯿﺮ ﺗﺮاﻧﺰﯾﺖ در Vtp domainﻓﻌﺎﻟﯿﺖ ﻣﯿﮑﻨﻨﺪ اﯾﻨﺴﺖ ﮐﻪ ﻫﻤﮕﯽ ﺑﺎﯾﺪ داراي ﺳﺎﺧﺘﺎر Vlanﯾﮑﺴﺎﻧﯽ داﺷﺘﻪ ﺑﺎﺷﻨﺪ . راﯾﺞ ﺗﺮﯾﻦ دﻟﯿﻞ اﺳﺘﻔﺎده از ﺳﻮﯾﯿﭽﻬﺎي ﺗﺮﻧﺴﭙﺮﻧﺖ ﻣﺎﺑﯿﻦ دو ﺳﻮﯾﯿﭻ ﻓﻌﺎل در Vtpﻣﻼﺣﻀﺎت اﻣﻨﯿﺘﯽ اﺳﺖ .ﯾﮏ ﺳﻮﯾﯿﭻ ﺗﺮﻧﺴﭙﺮﻧﺖ ﻧﯿﺎز ﺑﻪ ﺗﻌﺮﯾﻒ vlanﻫﺎﯾﯽ دارد ﮐﻪ در ﻫﯿﭻ ﻗﺴﻤﺖ دﯾﮕﺮي از ﺷﺒﮑﻪ ﺗﻌﺮﯾﻒ ﻧﺸﺪه اﻧﺪ اﻣﺎ در ﻋﯿﻦ ﺣﺎل ﺑﻪ ﺳﺎﯾﺮ vlanﻫﺎ ﻧﯿﺰ دﺳﺘﺮﺳﯽ دارد. در اداﻣﻪ ﺑﻪ اراﺋﻪ ﻣﺜﺎﻟﯽ از ﻟﺰوم ﻓﻌﺎل ﺳﺎزي Vtp pruningﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ ﻓﺮض ﮐﻨﯿﺪ ﯾﮏ ﺷﺒﮑﻪ ﺳﻪ ﻻﯾﻪ در ﺳﺎﺧﺘﻤﺎﻧﯽ 21 ﻃﺒﻘﻪ ﭘﯿﺎده ﺳﺎزي ﮐﺮده اﯾﻢ و ﺳﻮﯾﯿﭽﻬﺎي ﻻﯾﻪ ﺗﻮزﯾﻊ را ﺑﻪ ﻋﻨﻮان Vtp ﺳﺮور ﺗﻨﻈﯿﻢ ﺷﺪه اﻧﺪ و اﻃﻼﻋﺎت ﺗﻌﺮﯾﻒ vlanﻫﺎ از ﻃﺮﯾﻖ آﻧﻬﺎ ﺑﻪ ﺳﺎﯾﺮ 42 ﺳﻮﯾﯿﭻ ﻻﯾﻪ اﮐﺴﺲ واﻗﻊ در ﻃﺒﻘﺎت ﻣﻨﺘﺸﺮ ﻣﯽ ﺷﻮﻧﺪ.ﺣﺎﻻ ﻓﺮض ﮐﻨﯿﺪ 211 Vlanدر ﺳﻮﯾﯿﭻ ﻃﺒﻘﻪ 21 ﺗﻌﺮﯾﻒ ﻣﯽ ﺷﻮد ﺑﻨﺎ ﺑﻪ ﻣﺎﻫﯿﺖ Vtpاﯾﻦ ﺗﻌﺮﯾﻒ ﺑﻪ ﻫﻤﻪ ﺳﻮﯾﯿﭽﻬﺎي اﮐﺴﺲ دﯾﮕﺮ ﻫﻢ ﻣﻨﺘﺸﺮ ﻣﯽ ﺷﻮد و اﻧﻬﺎ ﻧﯿﺰ ﺻﺎﺣﺐ اﯾﻦ Vlanﺧﻮاﻫﻨﺪ ﺷﺪ.اﯾﻨﺠﺎ ﯾﮏ ﺳﻮال ﻣﻬﻢ ﻣﻄﺮح ﻣﯿﺸﻮد و آن اﯾﻨﮑﻪ اﮔﺮ ﺑﺮادﮐﺴﺘﯽ در 211 Vlanﺗﻮﻟﯿﺪ ﺷﻮد آﯾﺎ ﻫﻤﻪ ﺳﻮﯾﯿﭽﻬﺎي دﯾﮕﺮ ﻫﻢ آﻧﺮا درﯾﺎﻓﺖ ﺧﻮاﻫﻨﺪ ﮐﺮد؟ ﭘﺎﺳﺦ ﺑﻠﻪ اﺳﺖ.از آﻧﺠﺎﯾﯽ ﮐﻪ ﺳﻮﯾﯿﭽﻬﺎي ﺗﻮزﯾﻊ ﺑﺮادﮐﺴﺘﻬﺎ را ﺑﻪ ﺗﻤﺎم ﺗﺮاﻧﮏ ﭘﻮرﺗﻬﺎي ﺧﻮد)ﺑﻪ ﺟﺰ ﭘﻮرت درﯾﺎﻓﺖ ﮐﻨﻨﺪه ﺑﺮادﮐﺴﺖ( ارﺳﺎل ﻣﯿﮑﻨﺪ ﻟﺬا ﺗﻤﺎﻣﯽ ﺳﻮﯾﯿﭽﻬﺎي اﮐﺴﺲ ﺑﻪ ﺟﺰ ﺳﻮﯾﯿﭻ ارﺳﺎل ﮐﻨﻨﺪه، ﺑﺮادﮐﺴﺖ را درﯾﺎﻓﺖ ﺧﻮاﻫﻨﺪ ﮐﺮد و اﯾﻦ ﺑﻪ ﻣﻌﻨﺎي اﺗﻼف ﻣﻨﺎﺑﻊ ﺷﺒﮑﻪ اﺳﺖ ﻟﺬا ﺑﺮاي ﺣﻞ اﯾﻦ ﻣﻌﻀﻞ از Vtp pruningاﺳﺘﻔﺎده ﻣﯽ ﮐﻨﯿﻢ. Vtp pruningﺑﻪ زﺑﺎن ﺳﺎده از ارﺳﺎل ﺗﺮاﻓﯿﮏ ﺳﺎﯾﺮ vlanﻫﺎ روي ﺗﺮاﻧﮏ ﻟﯿﻨﮏ ﺳﻮﯾﯿﭽﻬﺎﯾﯽ ﮐﻪ ﻋﻀﻮي در آن vlan ﻧﺪارﻧﺪ ﺟﻠﻮﮔﯿﺮي ﻣﯿﮑﻨﺪ.در ﻣﺜﺎل ﺑﺎﻻ اﮔﺮ ﺳﻮﯾﯿﭽﯽ ﻫﯿﭻ ﭘﻮرت ﻣﺘﻌﻠﻖ ﺑﻪ 211 Vlanرا درﺧﻮد ﻧﺪارد ﭼﺮا ﺑﺎﯾﺪ ﺗﺮاﻓﯿﮏ ﻣﺮﺗﺒﻂ ﺑﺎ اﯾﻦ vlanرا در ﺗﺮاﻧﮏ ﺧﻮد ﻣﺸﺎﻫﺪه ﮐﻨﺪ؟ ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ 092 Page 179 of
- 181. اﯾﺠﺎد ﺗﻮﭘﻮﻟﻮژي ﻣﻄﺎﺑﻖﺗﺼﻮﯾﺮ زﯾﺮ ﺗﻨﻈﯿﻢ 1 SWﺑﻪ ﻋﻨﻮان Vtpﺳﺮور و 3 SWﺑﻪ ﻋﻨﻮان Vtpﮐﻼﯾﻨﺖ ﺑﺎ ﻧﺎم داﻣﻨﻪ ﺳﯿﺴﮑﻮ ﺧﺎﻣﻮش ﮐﺮدن 21/0 Fa0/11,Faو ﺗﻨﻈﯿﻢ 01/0 Faﺑﻪ ﺻﻮرت dot1q trunkدر 1SW ﺧﺎﻣﻮش ﮐﺮدن 51/0 Fa0/11, Fa0/12, Fa0/14, Faو ﺗﻨﻈﯿﻢ 31/0Faو01/0 Faﺑﻪ ﺻﻮرت dot1q trunk ﺧﺎﻣﻮش ﮐﺮدن51/0 Fa0/11, Fa0/12, Fa0/14, Faو ﺗﻨﻈﯿﻢ 31/0Faﺑﻪ ﻋﻨﻮان dot1q trunkدر 3SW در 2SW اﯾﺠﺎد vlanﻫﺎي 03,02,01 در Vtpﺳﺮور اﯾﺠﺎد اﯾﻨﺘﺮﻓﯿﺲ ﻻﯾﻪ 3 اي ﺑﺮاي 01 vlanدر 3 SW1,SWﺑﺎ آدرس ﻫﺎي 42/1.31.01.01و42/3.31.01.01 ﺗﺼﻮﯾﺮ 2.01.4-ﺗﻨﻈﯿﻤﺎت VTP Pruning 092 Page 180 of
- 182. اﻫﺪاف آزﻣﺎﯾﺶ ﺗﺮﻧﺴﭙﺮﻧﺖ وﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎتVtp ﺑﻪ ﻋﻨﻮانSW2 ﺗﻨﻈﯿﻢ ﮐﻼﯾﻨﺖVtp ﺳﺮور و ﺣﺼﻮل اﻃﻤﯿﻨﺎن از اﻧﺘﺸﺎر ﺗﻨﻈﯿﻤﺎت ﺑﻪVtp درVtp pruning ﻓﻌﺎل ﺳﺎزي SW1 درpruning list از ﻃﺮﯾﻖ ﻣﺸﺎﻫﺪهpruning ﺑﺮرﺳﯽ ﺻﺤﺖ اﻋﻤﺎل دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ ﺗﺮﻧﺴﭙﺮﻧﺖ و ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎتVtp ﺑﻪ ﻋﻨﻮانSW2 1. ﺗﻨﻈﯿﻢ >SW2 con0 is now available Press RETURN to get started. SW2>enable SW2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW2(config)#vtp mode transparent SW2(config)#vtp version 2 Setting device to VTP TRANSPARENT mode. SW2(config)#end SW2#show vtp status SW2#show vtp status VTP Version : running VTP2 Configuration Revision : 0 Maximum VLANs supported locally : 1005 Number of existing VLANs : 8 VTP Operating Mode : Transparent VTP Domain Name : VTP Pruning Mode : Disabled VTP V2 Mode : Enabled VTP Traps Generation : Disabled MD5 digest : 0x06 0x97 0x82 0xDA 0x39 0x52 0x1E 0xF2 Configuration last modified by 192.168.255.252 at 0-0-00 00:00:00 SW2# ﮐﻼﯾﻨﺖVtp ﺳﺮور و ﺣﺼﻮل اﻃﻤﯿﻨﺎن از اﻧﺘﺸﺎر ﺗﻨﻈﯿﻤﺎت ﺑﻪVtp درVtp pruning 2. ﻓﻌﺎل ﺳﺎزي ﺳﺮور اﺟﺮا ﺷﻮد ﭘﺲ از آن ﺗﻨﻈﯿﻢ ﺑﻪVtp ﺻﺮﻓﺎ در ﻣﺤﯿﻂVtp pruning ﺑﺮاي اﯾﻦ ﻣﻨﻈﻮر ﮐﺎﻓﯽ اﺳﺖ دﺳﺘﻮر ﮐﻼﯾﻨﺘﻬﺎي ﻣﺠﻤﻮد در داﻣﻨﻪ اﻧﺘﺸﺎر ﺧﻮاﻫﺪ ﯾﺎﻓﺖVtp ﻃﻮر ﺧﻮدﮐﺎر ﺑﻪ ﺗﻤﺎم SW1 con0 is now available Press RETURN to get started. Page 181 of 290
- 183. SW1>enable SW1#configure terminal Enter configurationcommands, one per line. End with CNTL/Z. SW1(config)#vtp pruning Pruning switched on SW1(config)#end SW1#show vtp status VTP Version : 2 Configuration Revision : 2 Maximum VLANs supported locally : 36 Number of existing VLANs : 8 VTP Operating Mode : Server VTP Domain Name : CISCO VTP Pruning Mode : Enabled VTP V2 Mode : Enabled VTP Traps Generation : Disabled MD5 digest : 0x2E 0x9F 0x5E 0x57 0xE3 0x87 0x46 0xFA Configuration last modified by 10.1.5.1 at 3-1-02 00:10:56 Local updater ID is 10.1.5.1 on interface Vl5 (lowest numbered VLAN interface found) SW1# اﺳﺖSW3 درVTP Pruning 3. ﮐﺪﻫﺎي زﯾﺮ ﻧﺸﺎن دﻫﻨﺪه ﺻﺤﺖ اﻧﺘﺸﺎر ﺗﻨﻈﯿﻤﺎت SW3#show vtp status VTP Version : 2 Configuration Revision : 3 Maximum VLANs supported locally : 36 Number of existing VLANs : 8 VTP Operating Mode : Client VTP Domain Name : CISCO VTP Pruning Mode : Enabled VTP V2 Mode : Enabled VTP Traps Generation : Disabled MD5 digest : 0x77 0xF2 0x86 0xA4 0x3C 0x21 0x09 0xC0 Configuration last modified by 10.1.5.1 at 3-1-02 00:17:21 SW3# Sw3 ﻟﯿﺴﺖ درpruning و ﻣﺸﺎﻫﺪهSW3 درpruning 4. ﺑﺮرﺳﯽ وﺿﻌﯿﺖ SW3#show interface trunk Port Fa0/13 Mode on Encapsulation 802.1q Port Fa0/13 Status trunking Native vlan 1 Vlans allowed on trunk 1-4094 Page 182 of 290
- 184. Port Fa0/13 Vlans allowed andactive in management domain 1,10,20,30 Port Fa0/13 SW3# Vlans in spanning tree forwarding state and not pruned 1,10 pruning ﺗﺮاﻓﯿﮑﺸﺎن ﻋﺒﻮر داده ﻣﯿﺸﻮد و ﺗﺤﺖSW3 ﻫﺎﯾﯽ ﮐﻪ درVlan ﻫﻤﺎﻧﻄﻮر ﮐﻪ از ﺧﺮوﺟﯽ دﺳﺘﻮرات ﺑﺮ ﻣﯽ آﯾﺪ ﻫﺴﺘﻨﺪ.در ﻧﻈﺮ داﺷﺘﻪ ﺑﺎﺷﯿﻢ ﺳﻮﯾﯿﭻ ﺗﺮﻧﺴﭙﺮﻧﺖ در ﺻﻮرﺗﯽ ﻣﯿﺘﻮاﻧﺪ ﺗﺮاﻓﯿﮏ را از ﺧﻮد ﻋﺒﻮرVlan 1,10 ﻗﺮار ﻧﻤﯿﮕﯿﺮﻧﺪ ﻋﺒﻮر ﻣﯿﮑﻨﺪSW2 درVlan 10 ازSW1 درVlan 10 ﻣﺘﻨﺎﻇﺮ ﺑﺎ آن را داﺷﺘﻪ ﺑﺎﺷﺪ ﺑﺮاي ﻣﺜﺎل ﺗﺮاﻓﯿﮏvlan دﻫﺪ ﮐﻪ ﺑﺎﺷﺪ در ﻏﯿﺮ اﯾﻨﺼﻮرت ﺗﺮاﻓﯿﮏ ﻋﺒﻮر داده ﻧﺨﻮاﻫﺪ ﺷﺪ.اﯾﻦ ﻣﻬﻢ راVlan 10 ﻫﻢ ﻣﯿﺒﺎﯾﺴﺖ دارايSW3 در اﯾﻦ ﺑﯿﻦ ﺑﺮﺳﯽ ﮐﺮدSW3 درVlan 10 اﯾﻨﺘﺮﻓﯿﺲping ﻣﯿﺘﻮاﻧﯿﻢ ﺑﺎ SW1#ping 10.10.13.3 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.10.13.3, timeout is 2 seconds: .!!!! Success rate is 80 percent (4/5), round-trip min/avg/max = 1/1/1 ms SW1# ﺣﺬف ﮐﻨﯿﻢ اﻣﮑﺎنSW2 را ازVlan 10 وﺟﻮد دارد اﻣﺎ اﮔﺮSW3 درVlan 10 ﭘﯿﻨﮓ ﻣﻮﻓﻘﯿﺖ آﻣﯿﺰ ﺑﻮد ﺑﻪ دﻟﯿﻞ اﯾﻨﮑﻪ را ازدﺳﺖ ﺧﻮاﻫﯿﻢ دادSW3 درVlan 10 دﺳﺘﺮﺳﯽ ﺑﻪ SW2#configure terminal SW2(config)#no vlan 10 SW2(config)#end SW2# SW1#ping 10.10.13.3 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.10.13.3, timeout is 2 seconds: ..... Success rate is 0 percent (0/5) SW1# Page 183 of 290
- 185. آزﻣﺎﯾﺶ 21.4-ﺗﻨﻈﯿﻤﺎت intervlan routing-Router on stick در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت Inter-VLAN routingﺑﺎ اﺳﺘﻔﺎده از روﺗﺮ ﮐﻪ ﺑﺎ ﻧﺎم دﯾﮕﺮ router on stick ﻫﻢ ﺷﻨﺎﺧﺘﻪ ﻣﯿﺸﻮد ﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ .در اﯾﻦ ﺷﯿﻮه ﺳﻮﯾﯿﭻ و روﺗﺮ از ﻃﺮﯾﻖ ﺗﺮاﻧﮏ اﯾﻨﺘﺮﻓﯿﺲ و ﺗﻌﺮﯾﻒ ﺳﺎب اﯾﻨﺘﺮﻓﯿﺲ ﺑﻪ ﺗﻌﺪاد Vlanﻫﺎ در ارﺗﺒﺎط ﺧﻮاﻫﻨﺪ ﺑﻮد ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ ﯾﮏ ﺳﮕﻤﻨﺖ ﻻﯾﻪ دوﯾﯽ ﺗﻨﻬﺎ در ﺻﻮرﺗﯽ ﻣﯿﺘﻮاﻧﺪ ﺑﺎ ﺳﺎﯾﺮ ﺷﺒﮑﻪ ارﺳﺎل و درﯾﺎﻓﺖ داده داﺷﺘﻪ ﺑﺎﺷﺪ ﮐﻪ ﺑﺎ ادوات ﻻﯾﻪ 3 ﻣﺜﻞ روﺗﺮ ﯾﺎ ﺳﻮﯾﯿﭻ ﻻﯾﻪ 3 در ارﺗﺒﺎط ﺑﺎﺷﺪ ﮐﻪ ﺑﻪ ﻃﻮر ﻋﺎم Default gatewayﻧﺎم دارد.ﺣﺎﻟﺘﯽ را در ﻧﻈﺮ ﺑﮕﯿﺮﯾﺪ ﮐﻪ در ﯾﮏ ﺳﻮﯾﯿﭻ ﻻﯾﻪ دوﯾﯽ ﭘﻨﺞ vlanﺗﻌﺮﯾﻒ ﮐﺮده اﯾﻢ و ﺑﻪ ﻫﺮﯾﮏ ﻣﺎﺷﯿﻦ اﺧﺘﺼﺎص داده اﯾﻢ.ﺑﺎ ﺗﻮﺟﻪ ﺑﻪ ﻧﮑﺘﻪ ﺑﺎﻻ در وﺣﻠﻪ اول ﺑﻪ ﺗﻌﺪاد Vlanﻫﺎ ﮐﻪ ﻫﺮﯾﮏ ﻣﻌﺎدل ﯾﮏ ﺷﺒﮑﻪ ﻻﯾﻪ دوﯾﯽ ﻫﺴﺘﻨﺪ ﻧﯿﺎز ﺑﻪ روﺗﺮ ﺧﻮاﻫﯿﻢ داﺷﺖ ﯾﺎ اﯾﻨﮑﻪ از روﺗﺮي اﺳﺘﻔﺎده ﮐﻨﯿﻢ ﮐﻪ ﺑﻪ ﺗﻌﺪاد Vlanﻫﺎ اﯾﻨﺘﺮﻓﯿﺲ داﺷﺘﻪ ﺑﺎﺷﺪ. راه ﺣﻞ ﺗﻨﻬﺎ اﺳﺘﻔﺎده از ﯾﮏ روﺗﺮ اﺳﺖ. دروس ﮔﺬﺷﺘﻪ و ﻣﺒﺎﺣﺚ Dot1qﺗﺮاﻧﮑﯿﻨﮓ را ﺑﻪ ﺧﺎﻃﺮ ﺑﯿﺎورﯾﺪ ﺗﺮاﻧﮏ را ﺑﻪ ﺻﻮرت اﯾﻨﺘﺮﻓﯿﺴﯽ ﺗﻌﺮﯾﻒ ﮐﺮدﯾﻢ ﮐﻪ ﻗﺎﺑﻠﯿﺖ ﻋﺒﻮر دﻫﯽ ﺗﺮاﻓﯿﮏ ﻫﻤﻪ Vlanﻫﺎ را دارا اﺳﺖ. ﯾﮏ روﺗﺮ ﻣﯿﺘﻮاﻧﺪ ﺑﺎ ﺑﻬﺮه ﮔﯿﺮي از ﺗﻨﻬﺎ ﯾﮏ dot1qﺗﺮاﻧﮏ ﻓﯿﺰﯾﮑﯽ و اﯾﺠﺎد ﺳﺎب اﯾﻨﺘﺮﻓﯿﺲ ﺑﻪ ازاي ﻫﺮ Vlanروي آن،ﻣﻨﻄﻘﺎ در ﻫﻤﻪ Vlanﻫﺎي ﻣﻮﺟﻮد در ﺷﺒﮑﻪ داراي اﯾﻨﺘﺮﻓﯿﺲ ﺑﺎﺷﺪ. ﯾﮏ ﺳﺎب اﯾﻨﺘﺮﻓﯿﺲ در واﻗﻊ اﯾﻨﺘﺮﻓﯿﺴﯽ ﻣﺠﺎزي و ﻣﻨﻄﻘﯽ اﺳﺖ ﮐﻪ از اﯾﻨﺘﺮﻓﯿﺲ ﺣﻘﯿﻘﯽ روﺗﺮ ﻣﺸﺘﻖ ﺷﺪه اﺳﺖ.اﺳﺘﻔﺎده از ﺳﺎب اﯾﻨﺘﺮﻓﯿﺲ اﯾﻦ اﻣﮑﺎن را ﻓﺮاﻫﻢ ﻣﯿﮑﻨﺪ ﮐﻪ ﭼﻨﺪﯾﻦ ﮐﺎﻧﻔﯿﮓ ﻣﺮﺗﺒﻂ ﺑﺎ اﯾﻨﺘﺮﻓﯿﺲ ﻫﺎي ﻣﺨﺘﻠﻒ را روي ﺗﻨﻬﺎ ﯾﮏ اﯾﻨﺘﺮﻓﯿﺲ ﻓﯿﺰﯾﮑﯽ داﺷﺘﻪ ﺑﺎﺷﯿﻢ. . ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﺧﺎﻣﻮش ﮐﺮدن 3SW2,SW اﯾﺠﺎد 03,02 Vlanدر 1SW ﺗﻨﻈﯿﻢ 1/0 Faدر 1 SWﺑﻪ ﻋﻨﻮان Dot1qﺗﺮاﻧﮏ ﻟﯿﻨﮏ ﺗﺨﺼﯿﺺ 2/0 Faﺑﻪ 02 Vlanو 3/0 Faﺑﻪ 03 Vlanدر 1SW ﺗﺨﺼﯿﺺ آدرس 42/2.02.1.01 ﺑﻪ 0/0 Faدر 2R ﺗﺨﺼﯿﺺ آدرس 42/3.02.1.01 ﺑﻪ 0/0 Faدر 3R 092 Page 184 of
- 186. ﺗﺼﻮﯾﺮ 1.21.4- Intervlanrounting – Router on stick اﻫﺪاف آزﻣﺎﯾﺶ اﯾﺠﺎد ﺳﺎب اﯾﻨﺘﺮﻓﯿﺲ 02.0/0 Faدر 1 Rﺑﻪ ﻫﻤﺮاه Dot1q encapsulationو 02 Dot1q tag of ﺗﺨﺼﯿﺺ آدرس 42/1.02.1.01 ﺑﻪ 02.0/0Fa اﯾﺠﺎد ﺳﺎب اﯾﻨﺘﺮﻓﯿﺲ 03.0/0 Faدر 1 Rﺑﻪ ﻫﻤﺮاه Dot1q encapsulationو 03 Dot1q tag of ﺗﺨﺼﯿﺺ آدرس 42/1.03.1.01 ﺑﻪ 02.0/0Fa ﻏﯿﺮ ﻓﻌﺎل ﮐﺮدن ip routingدر 3 R2,Rو ﺗﻨﻈﯿﻢ آدرس ﺳﺎب اﯾﻨﺘﺮﻓﯿﺲ ﻣﺘﻨﺎﻇﺮ در 1 Rﺑﻪ ﻋﻨﻮان Default gatewayدر 3R2,R 092 Page 185 of
- 187. R2 ازﻃﺮﯾﻖR3 درFa0/0 ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت از ﻃﺮﯾﻖ ﭘﯿﻨﮓ دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ ﺑﻪDot1q tag of 20 وDot1q encapsulation ﺑﻪ ﻫﻤﺮاهR1 درFa0/0.20 اﯾﺠﺎد ﺳﺎب اﯾﻨﺘﺮﻓﯿﺲ Fa0/0.20 ﻫﻤﺮاه ﺗﺨﺼﯿﺺ آدرس 42/1.02.1.01 ﺑﻪ R1 con0 is now available Press RETURN to get started. R1>enable R1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R1(config)#interface fa0/0 R1(config-if)#no shut R1(config-if)#interface fa0/0.20 R1(config-subif)#encapsulation dot1q 20 R1(config-subif)#ip add 10.1.20.1 255.255.255.0 R1(config-subif)#exit R1(config)# ﺑﻪDot1q tag of 30 وDot1q encapsulation ﺑﻪ ﻫﻤﺮاهR1 درFa0/0.30 1. اﯾﺠﺎد ﺳﺎب اﯾﻨﺘﺮﻓﯿﺲ Fa0/0.30 ﻫﻤﺮاه ﺗﺨﺼﯿﺺ آدرس 42/1.03.1.01 ﺑﻪ R1(config)#interface fa0/0.30 R1(config-subif)#encapsulation dot1q 30 R1(config-subif)#ip add 10.1.30.1 255.255.255.0 R1(config-subif)#end R1#sh run interface fa0/0.20 Building configuration... Current configuration : 96 bytes ! interface FastEthernet0/0.20 encapsulation dot1Q 20 ip address 10.1.20.1 255.255.255.0 end R1#sh run interface fa0/0.30 Building configuration... Current configuration : 96 bytes ! Page 186 of 290
- 188. interface FastEthernet0/0.30 encapsulation dot1Q30 ip address 10.1.30.1 255.255.255.0 end R1#show ip interface brief | inc FastEthernet0/0 Interface IP-Address OK? Method FastEthernet0/0 unassigned YES unset FastEthernet0/0.20 10.1.20.1 YES manual FastEthernet0/0.30 10.1.30.1 YES manual R1# Status up up up Protocol up up up Default ﺑﻪ ﻋﻨﻮانR1 و ﺗﻨﻈﯿﻢ آدرس ﺳﺎب اﯾﻨﺘﺮﻓﯿﺲ ﻣﺘﻨﺎﻇﺮ درR2,R3 درip routing 2. ﻏﯿﺮ ﻓﻌﺎل ﮐﺮدن R2,R3 درgateway R2 con0 is now available Press RETURN to get started. R2>enable R2#configure terminal Enter configuration commands, one per line. R2(config)#no ip routing R2(config)#ip default-gateway 10.1.20.1 R2(config)#end R2# R3 con0 is now available End with CNTL/Z. Press RETURN to get started. R3>enable R3#configure terminal Enter configuration commands, one per line. R3(config)#no ip routing R3(config)#ip default-gateway 10.1.30.1 R3(config)#end R3# End with CNTL/Z. R2 از ﻃﺮﯾﻖR3 درFa0/0 3. ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت از ﻃﺮﯾﻖ ﭘﯿﻨﮓ R2#ping 10.1.30.3 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.1.30.3, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 8/23/52 ms Page 187 of 290
- 189.
- 190. آزﻣﺎﯾﺶ 31.4-ﺗﻨﻈﯿﻤﺎت PVST دراﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت PerVLAN STPﺑﻪ ﻋﻨﻮان ﯾﮏ ﻣﮑﺎﻧﯿﺰم ﻻﯾﻪ دوﯾﯽ ﺷﻨﺎﺳﺎﯾﯽ ﻟﻮﭘﻬﺎ و ﺟﻠﻮﮔﯿﺮي از ﭘﺪﯾﺪ آﻣﺪن ﻃﻮﻓﺎﻧﻬﺎي ﺑﺮادﮐﺴﺘﯽ در ﺷﺒﮑﻪ ﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ ﺑﻪ دﻟﯿﻞ ﻣﺤﺪودﯾﺘﻬﺎي 3 Gnsاﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ادوات واﻗﻌﯽ اﻧﺠﺎم ﺧﻮاﻫﺪ ﺷﺪ ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ ﺣﺎﻟﺘﯽ را در ﻧﻈﺮ ﺑﮕﯿﺮﯾﺪ ﮐﻪ دوﺳﻮﯾﯿﭻ ﻣﻌﻤﻮﻟﯽ) (non manageرا از ﻃﺮﯾﻖ دو رﺷﺘﻪ ﮐﺎﺑﻞ ﺷﺒﮑﻪ ﺑﻪ ﻫﻢ ﻣﺘﺼﻞ ﮐﺮده اﯾﻢ و ﺑﻪ ﻫﺮﯾﮏ ﻫﻢ ﯾﮏ دﺳﺘﮕﺎه PCﻣﺘﺼﻞ ﮐﺮده اﯾﻢ. ﭘﺲ از ﮔﺬﺷﺖ ﻟﺤﻈﺎت ﮐﻮﺗﺎﻫﯽ ﺧﻮاﻫﯿﻢ دﯾﺪ ﮐﻪ Ledﻫﺎي ﻫﺮ دو ﺳﻮﯾﯿﭻ ﺑﻪ ﺷﺪت در ﺣﺎل ﭼﺸﻤﮏ زدن ﺧﻮاﻫﻨﺪ ﺷﺪ و ﭘﺲ از اﻧﺪﮐﯽ ارﺗﺒﺎط دو PCﻣﺎ ﻗﻄﻊ ﺧﻮاﻫﺪ ﺷﺪ. ﻋﻠﺖ اﯾﻦ ﭘﺪﯾﺪه broadcast stromﻧﺎم دارد و ﻫﻨﮕﺎﻣﯽ ﭘﺪﯾﺪ ﻣﯽ آﯾﺪ ﮐﻪ ﺳﻮﯾﯿﭻ ﺑﺮادﮐﺴﺖ را ﻃﺒﻖ ﻗﻮاﻋﺪ اﯾﻨﮑﺎر ﺑﻪ ﻫﻤﻪ ﭘﻮرﺗﻬﺎي ﺧﻮد ﺑﻪ ﺟﺰ ﭘﻮرﺗﯽ ﮐﻪ ﺑﺮادﮐﺴﺖ را از آن درﯾﺎﻓﺖ ﮐﺮده اﺳﺖ ارﺳﺎل ﻣﯿﮑﻨﺪ و ﻫﻨﮕﺎﻣﯽ ﮐﻪ دو ﻟﯿﻨﮏ ارﺗﺒﺎﻃﯽ ﻣﺎﺑﯿﻦ ﺳﻮﯾﯿﭽﻬﺎ ﺑﺮﻗﺮار ﺷﻮد اﯾﻦ ﺟﺮﯾﺎن داده در ﯾﮏ ﺣﻠﻘﻪ ﺗﮑﺮار ﺑﯽ ﻧﻬﺎﯾﺖ ﻗﺮار ﻣﯿﮕﯿﺮد و آﻧﻘﺪر ﺑﺰرگ و ﺑﺰرﮔﺘﺮ ﻣﯿﺸﻮد ﮐﻪ ﺗﻤﺎم ﻇﺮﻓﯿﺖ ﺗﻤﺎﻣﯽ ﭘﻮرﺗﻬﺎ را ﭘﺮﺧﻮاﻫﺪ ﮐﺮد. ﺑﺮاي ﺣﻞ اﯾﻦ ﻣﺸﮑﻞ در ﺳﻮﯾﯿﭽﻬﺎي ﻣﺪﯾﺮﯾﺖ ﭘﺬﯾﺮ از ﭘﺮوﺗﮑﻞ Spaning treeﮐﻪ ﻣﺴﺌﻮل ﺷﻨﺎﺳﺎﯾﯽ و ﺑﺮﻃﺮف ﮐﺮدن ﻟﻮﭘﻬﺎي ﻻﯾﻪ دو ﺑﺎ ﻫﺪف ﺟﻠﻮﮔﯿﺮي از ﺑﺮوز ﻃﻮﻓﺎﻧﻬﺎي ﺑﺮادﮐﺴﺘﯽ اﺳﺖ اﺳﺘﻔﺎده ﻣﯽ ﺷﻮد.در اﯾﻦ ﺣﺎﻟﺖ ﻟﯿﻨﮑﻬﺎي دوم ﺑﻪ ﺑﻌﺪ ﻣﺎﺑﯿﻦ ﺳﻮﯾﯿﭽﻬﺎ در ﺣﺎﻟﺖ ﻏﯿﺮ ﻓﻌﺎل ﻗﺮار ﻣﯿﮕﯿﺮﻧﺪ و اﺣﺘﻤﺎل ﺑﺮوز ﻃﻮﻓﺎﻧﻬﺎي ﺑﺮادﮐﺴﺘﯽ ﻣﺎﺑﯿﻦ ﺳﻮﯾﯿﭽﻬﺎ ﺑﻪ ﺻﻔﺮ ﻣﯽ رﺳﺪ . ﺧﻮب ﭘﺲ اﺻﻼ ﻓﻠﺴﻔﻪ اﺳﺘﻔﺎده از ﭼﻨﺪ ﻟﯿﻨﮏ ﻓﯿﺰﯾﮑﯽ ﻣﺎﺑﯿﻦ دو ﺳﻮﯾﯿﭻ ﭼﯿﺴﺖ اﮔﺮ ﮐﻪ ﺗﻨﻬﺎ ﻣﺤﺪود ﺑﻪ اﺳﺘﻔﺎده ﯾﮏ ﻟﯿﻨﮏ ﻫﺴﺘﯿﻢ ؟ﭘﺎﺳﺦ در ﺑﻪ ﮐﺎر ﮔﯿﺮي Etherchannelاﺳﺖ ﮐﻪ ﺗﻌﺪادي ﻟﯿﻨﮏ ﻓﯿﺰﯾﮑﯽ را ﺑﻪ ﺻﻮرت ﯾﮏ ﻟﯿﻨﮏ ﻣﻨﻄﻘﯽ ﺑﻪ ادوات دو ﺳﺮ ﻟﯿﻨﮏ ﻧﺸﺎن ﻣﯽ دﻫﺪ و در اﯾﻦ ﻫﻨﮕﺎم Spaningtreeﻫﻨﮕﺎﻣﯽ ﮐﻪ ﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ Port-Channelﻣﯽ رﺳﯿﺪ آﻧﺮا ﺑﻪ ﺻﻮرت ﯾﮏ ﺗﮏ اﯾﻨﺘﺮﻓﯿﺲ ﻣﯿﺒﯿﻨﺪ و ﻧﻪ ﺗﻌﺪادي اﯾﻨﺘﺮﻓﯿﺲ ﻣﺠﺰا از ﻫﻢ. اﻟﺒﺘﻪ اﺳﺘﻔﺎده از ﭼﻨﺪﯾﻦ ﻟﯿﻨﮏ ﮐﺎرﺑﺮد دﯾﮕﺮي ﺑﻪ ﺟﺰ Etherchannelﻫﻢ دارد ﻣﺜﻞ ﻟﻮد ﺑﺎﻻﻧﺲ ﻣﺎﺑﯿﻦ دو ﺳﻮﯾﯿﭻ از ﻃﺮﯾﻖ Vlanﻫﺎي ﻣﺠﺰا،ﻓﺮﺿﺎ ﻟﯿﻨﮏ اول ﺗﺮاﻓﯿﮏ Vlanﻫﺎي ﻓﺮد را ﻋﺒﻮر ﻣﯿﺪﻫﺪ و ﻟﯿﻨﮏ دوم ﺗﺮاﻓﯿﮏ Vlanﻫﺎي زوج را.اﯾﻦ ﻣﻄﻠﺐ در ﻣﺒﺤﺚ Multiple Spaning treeﻣﻮرد ﺑﺤﺚ ﻗﺮار ﻣﯿﮕﯿﺮد. ﭘﺮوﺗﮑﻞ ﻗﺪﯾﻤﯽ spanning treeﯾﺎ ﻫﻤﺎن 802.1dﺑﻪ ﻃﻮر ﮐﺎﻣﻞ از رده ﺧﺎرج ﺷﺪه و ﺻﺮﻓﺎ در ﺳﻮﯾﯿﭽﻬﺎﯾﯽ ﻗﺪﯾﻤﯽ ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻣﯿﮕﯿﺮد ﮐﻪ ﻗﺎﺑﻠﯿﺖ ﭘﺸﺘﯿﺒﺎﻧﯽ از ﺗﻨﻬﺎ ﯾﮏ Vlanرا دارا ﻫﺴﺘﻨﺪ.ﺳﯿﺴﮑﻮ در ﻣﻘﻄﻌﯽ ﻣﺸﺎﻫﺪه ﮐﺮد ﮐﻪ ﭘﺮوﺗﮑﻞ ﻣﺬﺑﻮر ﻧﯿﺎز ﺑﻪ ﺟﺎري ﺷﺪن در ﻫﻤﻪ Vlanﻫﺎ را دارد از اﯾﻨﺮو ﭘﺮوﺗﮑﻞ ﺟﺪﯾﺪﺗﺮ PVSTو + PVSTرا ﻣﻌﺮﻓﯽ ﮐﺮد.از اﯾﻨﺮو اﻣﺮوزه ﻫﺮ Vlanﻣﮑﺎﻧﯿﺰم STPﺧﻮد را ﺑﻪ ﻣﻨﻈﻮر ﺷﻨﺎﺳﺎﯾﯽ و رﻓﻊ ﻟﻮپ ﻫﺎي ﻻﯾﻪ دوﯾﯽ دارا ﻣﯿﺒﺎﺷﺪ. 092 Page 189 of
- 191. STPاز ﭘﺮوﺗﮑﻠﯽﺑﻪ ﻧﺎم ) BPDU (Bridge protocol data unitsﺟﻬﺖ اﻧﺘﻘﺎل اﻃﻼﻋﺎت ﺧﻮد ﻣﺎﺑﯿﻦ ﺳﻮﯾﯿﭽﻬﺎ اﺳﺘﻔﺎده ﻣﯿﮑﻨﺪ ﻓﺎرق از اﯾﻨﮑﻪ ﺳﻮﯾﯿﭻ ﺑﻪ ﻋﻨﻮان rootاﻧﺘﺨﺎب ﺷﺪه ﺑﺎﺷﺪ ﯾﺎ در ﻣﺮﺣﻠﻪ اﻧﺘﺨﺎب ﺑﺎﺷﺪ. STPاز ﺣﺎﻟﺘﻬﺎي ﻣﺨﺘﻠﻔﯽ از ﭘﻮرﺗﻬﺎ ﺑﻪ ﻣﻨﻈﻮر اﯾﺠﺎد ﯾﮏ ﺗﻮﭘﻮﻟﻮژي ﺻﺤﯿﺢ ﻻﯾﻪ دوﯾﯽ ﻓﺎﻗﺪ ﻟﻮپ اﯾﺘﻔﺎده ﻣﯿﮑﻨﺪ از اﯾﻨﺮو ﻣﯿﺒﺎﯾﺴﺖ ﺑﺎ اﯾﻦ ﺣﺎﻟﺘﻬﺎ در PVSTآﺷﻨﺎ ﺑﺎﺷﯿﻢ ﻣﺎﻧﻨﺪ root port-designated portو ﺳﺎﯾﺮ . ﺣﺎﻟﺖ ﭘﯿﺸﻔﺮض STPدر ﺳﻮﯾﯿﭽﻬﺎي ﮐﺎﺗﺎﻟﯿﺴﺖ ﺳﯿﺴﮑﻮ PVSTاﺳﺖ. در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ دﺳﺘﻮرات زﯾﺮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ : spanning-tree vlan # root primaryﺳﻮﯾﯿﭻ را در ﺣﺎﻟﺖ root bridgeﺑﺮاي Vlanﻣﺸﺨﺺ ﺷﺪه ﻗﺮار ﻣﯽ دﻫﺪ :spanning-tree vlan # root secondaryﺳﻮﯾﯿﭻ را در ﺣﺎﻟﺖ Backup root bridgeﺑﺮاي Vlanﻣﺸﺨﺺ ﺷﺪه ﻗﺮار ﻣﯽ دﻫﺪ # :spanning-tree vlan # priorityﺗﺨﺼﯿﺺ Bridge priorityﺑﻪ ﻫﺮ Vlanدر ﺳﻮﯾﯿﭻ # :show spanning-tree vlanﻧﻤﺎﯾﺶ اﻃﻼﻋﺎت STPﻣﺮﺗﺒﻂ ﺑﺎ Vlanﺧﺎص :show spanning-tree summaryﻧﻤﺎﯾﺶ ﻫﻤﻪ اﻃﻼﻋﺎت و ﺗﻌﺪاد ﭘﻮرﺗﻬﺎي ﻣﺮﺗﺒﻂ ﺑﺎ STP :show spanning-tree detailﻧﻤﺎﯾﺶ اﻃﻼﻋﺎت ﺟﺰﺋﯽ ﺗﺮ ﻣﺮﺑﻮط ﺑﻪ ﻫﺮ ﭘﻮرت ﻓﻌﺎل در STP :show spanning-tree bridgeﻧﻤﺎﯾﺶ اﻃﻼﻋﺎت STPﻣﺮﺑﻮط ﺑﻪ ﻫﻤﻪ Vlanﻫﺎ ﺑﻪ ﻫﻤﺮاه اﻟﻮﯾﺖ ﻫﺮ ، Vlanﻣﺠﻮع Mac،vlan priority + sys-id-extآردس Bridgeو ﺗﺎﯾﻤﺮﻫﺎ ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ اﯾﺠﺎد ﺗﻮﭘﻮﻟﻮژي ﻣﺘﻨﺎﻇﺮ ﺑﺎ ﺷﮑﻞ زﯾﺮ ﺑﺮﻗﺮاري Etherchannelو ﺗﺮاﻧﮏ ﻣﺎﺑﯿﻦ 21-01/0 Faدر ﺳﻮﯾﯿﭽﻬﺎي 2SW1,SW ﺑﺮﻗﺮاري Etherchannelو ﺗﺮاﻧﮏ ﻣﺎﺑﯿﻦ 51-31/0 Faدر 1 SWو 21-01/0 Faدر 3SW ﺑﺮﻗﺮاري Etherchannelو ﺗﺮاﻧﮏ ﻣﺎﺑﯿﻦ 51-31/0 Faدر 2 SWو 51-31/0 Faدر 3SW ﺗﻌﯿﯿﻦ 1 SWﺑﻪ ﻋﻨﻮان Vtpﺳﺮور و ﺳﺎﯾﺮﯾﻦ ﺑﻪ ﻋﻨﻮان ﮐﻼﯾﻨﺖ ﺗﺤﺖ داﻣﯿﻦ ciscoو اﯾﺠﺎد vlanﻫﺎي 01و02و03 در ﺳﺮور و ﺣﺼﻮل اﻃﻤﯿﻨﺎن از ﺗﻮزﯾﻊ آﻧﻬﺎ ﻣﺎﺑﯿﻦ ﮐﻼﯾﻨﺘﻬﺎ 092 Page 190 of
- 192. ﺗﺼﻮﯾﺮ 1.31.4- PVST اﻫﺪافآزﻣﺎﯾﺶ ﺗﻨﻈﯿﻢ 1 SWﺑﻪ ﻋﻨﻮان Root Bridgeﺑﺮاي Vlanﻫﺎي 01,1 و ﺗﺴﺖ ﺻﺤﺖ آن از ﻃﺮﯾﻖ 2SW ﺗﻨﻈﯿﻢ 2 SWﺑﻪ ﻋﻨﻮان Root Bridgeﺑﺮاي 20 Vlanو ﺗﺴﺖ ﺻﺤﺖ آن از ﻃﺮﯾﻖ 1SW ﺗﻨﻈﯿﻢ 2 SWﺑﻪ ﻋﻨﻮان Root Bridgeﺑﺮاي 30 Vlanو ﺗﺴﺖ ﺻﺤﺖ آن از ﻃﺮﯾﻖ 1SW دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ 1. ﺗﻨﻈﯿﻢ 1 SWﺑﻪ ﻋﻨﻮان Root Bridgeﺑﺮاي Vlanﻫﺎي 01,1 و ﺗﺴﺖ ﺻﺤﺖ آن از ﻃﺮﯾﻖ 2SW ﺑﺮاي ﮐﺎﻧﻔﯿﮓ 1 SWﺑﻪ ﻋﻨﻮان root bridgeﺑﺮاي Vlanﻫﺎي 1,01 دو راه ﭘﯿﺶ رو دارﯾﻢ : :spanning-tree vlan # root primaryﮐﻪ ﺑﻬﺘﺮﯾﻦ اﻟﻮﯾﺖ را اﻧﺘﺨﺎب ﻣﯿﮑﻨﺪ و آﻧﺮا ﺑﻪ ﻋﻨﻮان root # :spanning-tree vlan # priorityﮐﻪ ﺑﺎﯾﺪ ﺑﻪ ﻃﻮر دﺳﺘﯽ اوﻟﻮﯾﺖ ﺑﺮ ﺣﺴﺐ ﻫﺮ Vlanدر ان ﻣﺸﺨﺺ ﺷﻮد bridgeﻗﺮار ﻣﯽ دﻫﺪ 092 Page 191 of
- 193. ﺷﺪن ﺑﯿﺸﺘﺮﺧﻮاﻫﺪ ﺷﺪ.ﺑﺮايroot bridge ﺑﻪ ﺧﺎﻃﺮ داﺷﺘﻪ ﺑﺎﺷﯿﻢ ﻫﺮﻗﺪر اﯾﻦ ﻋﺪد ﮐﻮﭼﮑﺘﺮ ﺑﺎﺷﺪ ﺷﺎﻧﺲ ﺳﻮﯾﯿﭻ ﺑﺮاي ﺑﺎﺷﺪvlan ﮐﻪ ﻋﺪد ﻣﻌﺮفsys-id-ext را ﮐﻪ ﻣﺎﺑﯿﻦ 53556-0 اﺳﺖ را ﺑﺎpriority ﻋﺪدbridge priority ﻣﺤﺎﺳﺒﻪ ﺟﻤﻊ ﻣﯿﮑﻨﯿﻢ SW1 con0 is now available Press RETURN to get started. SW1>enable SW1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW1(config)#spanning-tree vlan 1 root primary SW1(config)#spanning-tree vlan 10 root primary SW1(config)#end SW1# show spanning-tree vlan root ﯾﺎshow spanning-tree vlan # ﺑﺮاي ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت از دﺳﺘﻮرات اﺳﺘﻔﺎده ﻣﯽ ﺷﻮد SW2#show spanning-tree vlan 1 VLAN0001 Spanning tree enabled protocol ieee Root ID Priority 24577 Address 0014.f2d2.4180 Cost 9 Port 216 (Port-channel21) Hello Time 2 sec Max Age 20 sec Bridge ID Priority Address Hello Time Aging Time Interface ------------------Po21 Po23 Role ---Root Altn Forward Delay 15 sec 32769 (priority 32768 sys-id-ext 1) 001c.57d8.9000 2 sec Max Age 20 sec Forward Delay 15 sec 300 sec Sts --FWD BLK Cost --------9 9 Prio.Nbr -------128.216 128.232 Type --------------------------P2p P2p SW2#show spanning-tree vlan 10 VLAN0010 Spanning tree enabled protocol ieee Root ID Priority 24586 Address 0014.f2d2.4180 Cost 9 Port 216 (Port-channel21) Hello Time 2 sec Max Age 20 sec Bridge ID Priority 32778 Forward Delay 15 sec (priority 32768 sys-id-ext 10) Page 192 of 290
- 194. Address Hello Time Aging Time Interface ------------------Po21 Po23 Role ---Root Altn 001c.57d8.9000 2sec Max Age 20 sec 300 sec Sts --FWD BLK Cost --------9 9 Prio.Nbr -------128.216 128.232 Forward Delay 15 sec Type --------------------------P2p P2p SW2#show span root Vlan ---------------VLAN0001 VLAN0010 VLAN0020 VLAN0030 SW2# Root Hello Max Fwd Root ID Cost Time Age Dly -------------------- --------- ----- --- --24577 0014.f2d2.4180 9 2 20 15 24586 0014.f2d2.4180 9 2 20 15 32788 0014.a964.2e00 9 2 20 15 32798 0014.a964.2e00 9 2 20 15 Root Port -----------Po21 Po21 Po23 Po23 ﻓﺎرق از اﯾﻨﮑﻪ ﺳﻮﯾﯿﭻ ﺟﺎري ﮐﻪ در آن ﻫﺴﺘﯿﻢ روت ﻫﺴﺖshow spanning-tree root ﻫﻨﮕﺎم اﺳﺘﻔﺎده از دﺳﺘﻮر ﭘﻮرﺗﯽ در ﺧﺮوﺟﯽ ﻣﺸﺨﺺroot ﺻﻔﺮ ﺑﺎﺷﺪ وroot cost را ﻣﺸﺎﻫﺪه ﺧﻮاﻫﯿﻢ ﮐﺮد.اﮔﺮroot port وroot cost ﯾﺎ ﺧﯿﺮ را داﺷﺘﻪroot port وroot cost اﺳﺖ.اﻣﺎ اﮔﺮ در ﺧﺮوﺟﯽroot bridge ﻧﺸﺪه ﺑﺎﺷﺪ ﺳﻮﯾﯿﭽﯽ ﮐﻪ در آن ﻫﺴﺘﯿﻢ . ﻫﺎ اﯾﻔﺎ ﺧﻮاﻫﻨﺪ ﮐﺮدvlan ﺑﺎﺷﯿﻢ ﻣﺎﻧﻨﺪ ﺧﺮوﺟﯽ ﺑﺎﻻ ، ﻣﺸﺨﺺ ﺧﻮاﻫﺪ ﺷﺪ ﮐﻪ ﮐﺪام ﭘﻮرﺗﻬﺎ ﻧﻘﺶ روت را ﺑﺮاي ﮐﺪام SW1 02 و ﺗﺴﺖ ﺻﺤﺖ آن از ﻃﺮﯾﻖVlan ﺑﺮايRoot Bridge ﺑﻪ ﻋﻨﻮانSW2 2. ﺗﻨﻈﯿﻢ SW2 con0 is now available Press RETURN to get started. SW2>enable SW2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW2(config)#spanning-tree vlan 20 root primary SW2(config)#end SW2# .100اﺳﺖc.57d8.9000 داراي اوﻟﯿﺖ 65942 و ﻣﮏ آدرسroot bridge ﻫﻤﺎﻧﻄﻮر ﮐﻪ ﺑﺮرﺳﯽ زﯾﺮ ﻧﺸﺎن ﻣﯽ دﻫﺪ SW2 ﻣﺘﺼﻞ ﺷﺪه اﺳﺖ. ﻋﻼوه ﺑﺮ اﯾﻦSW2 اﺳﺖ ﮐﻪ ﻣﺴﺘﻘﯿﻤﺎ ﺑﻪPort-channel12 ﺑﻬﺘﺮﯾﻦ ﻣﺴﯿﺮ ﺑﻪ ﺳﻤﺖ آن ﻧﯿﺰ . در ﺣﮑﻢ روت اﺳﺖVlan 20 ﻧﯿﺰ ﺑﺮاي SW1#show spanning-tree vlan 20 VLAN0020 Spanning tree enabled protocol ieee Root ID Priority 24596 Address 001c.57d8.9000 Page 193 of 290
- 195. Cost Port Hello Time Bridge ID 9 144(Port-channel12) 2 sec Max Age 20 sec Priority Address Hello Time Aging Time 32788 (priority 32768 sys-id-ext 20) 0014.f2d2.4180 2 sec Max Age 20 sec Forward Delay 15 sec 300 sec Interface ------------------Po12 Po13 Role ---Root Altn Sts --FWD BLK Cost --------9 9 Prio.Nbr -------128.144 128.152 Forward Delay 15 sec Type --------------------------P2p P2p SW1# SW1 03 و ﺗﺴﺖ ﺻﺤﺖ آن از ﻃﺮﯾﻖVlan ﺑﺮايRoot Bridge ﺑﻪ ﻋﻨﻮانSW2 3. ﺗﻨﻈﯿﻢ SW3 con0 is now available Press RETURN to get started. SW3>enable SW3#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW3(config)#spanning-tree vlan 30 root primary SW3(config)#end SW3# SW1#show spanning-tree vlan 30 VLAN0030 Spanning tree enabled protocol ieee Root ID Priority 24606 Address 0014.a964.2e00 Cost 9 Port 152 (Port-channel13) Hello Time 2 sec Max Age 20 sec Bridge ID Priority Address Hello Time Aging Time Interface ------------------Po12 Po13 Role ---Desg Root Forward Delay 15 sec 32798 (priority 32768 sys-id-ext 30) 0014.f2d2.4180 2 sec Max Age 20 sec Forward Delay 15 sec 300 sec Sts --FWD FWD Cost --------9 9 Prio.Nbr -------128.144 128.152 Type --------------------------P2p P2p SW1# Page 194 of 290
- 196. Page 195 of290
- 197. آزﻣﺎﯾﺶ 41.4 –ﺗﻨﻈﯿﻤﺎت Rapid RPVST در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت ﭘﺮوﺗﮑﻞ IEEE 802.1w Standard (Cisco) Rapid Per-VLAN Spanning Tree Protocolدر ﺳﻮﯾﯿﭽﻬﺎي ﮐﺎﺗﺎﻟﯿﺴﺖ ﺳﯿﺴﮑﻮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ ﺗﻮﺿﯿﺢ:ﺑﻪ دﻟﯿﻞ ﻣﺤﺪودﯾﺘﻬﺎي ﻣﺎژول NM-16ESWدر 3 GNاﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ اﺳﺘﻔﺎده از ادوات واﻗﻌﯽ اﻧﺠﺎم ﺧﻮاﻫﺪ ﺷﺪ ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ در آزﻣﺎﯾﺶ ﻗﺒﻠﯽ ﺑﺎ ﺗﻨﻈﯿﻤﺎت PVSTﮐﻪ STPرا ﺑﺮاي ﻫﺮ Vlanﺑﻪ ﻃﻮر ﻣﺠﺰا ﺑﺮﻗﺮار ﻣﯿﮑﺮد آﺷﻨﺎ ﺷﺪﯾﻢ.در اﯾﻦ آزﻣﺎﯾﺶ ﭘﺮوﺗﮑﻞ ﺟﺪﯾﺪﺗﺮ 802.1wرا ﮐﻪ ﺗﮑﻤﯿﻞ ﺷﺪه ﭘﺮوﺗﮑﻞ ﻗﺒﻠﯽ ﻣﯽ ﺑﺎﺷﺪ را ﺑﺮرﺳﯽ ﺧﻮاﻫﯿﻢ ﮐﺮد.اﯾﻦ ﭘﺮوﺗﮑﻞ از آن ﺟﻬﺖ Rapidﻧﺎم ﮔﺮﻓﺘﻪ اﺳﺖ ﮐﻪ زﻣﺎن ﭘﺎﺳﺨﮕﻮﯾﯽ آن ﻧﺴﺒﺖ ﺑﻪ ﻧﺴﺨﻪ ﻗﺒﻠﯽ ﺳﺮﯾﻌﺘﺮ ﻣﯽ ﺑﺎﺷﺪ رﻗﻤﯽ ﻧﺰدﯾﮏ ﺑﻪ 6 ﺛﺎﻧﯿﻪ )ﭘﺲ از ﺳﻪ (Helloدر ﺣﺎﻟﯽ ﮐﻪ در اﺳﺘﺎﻧﺪارد ﻗﺒﻠﯽ IEEE 802.1Dاﯾﻦ ﻋﺪد 54 ﺛﺎﻧﯿﻪ ﺑﻮد.اﯾﻦ ﭘﺮوﺗﮑﻞ در ﻋﯿﻦ ﺣﺎل داراي ﺳﺎزﮔﺎري ﮐﺎﻣﻞ ﺑﺎ ﻧﺴﺨﻪ ﻗﺒﻠﯽ STPﻣﻮﺟﻮد در ﺳﻮﯾﯿﭽﻬﺎي ﻗﺪﯾﻤﯽ ﺗﺮ ﻧﯿﺰ ﻣﯽ ﺑﺎﺷﺪ. وﯾﮋﮔﯽ ﺟﺪﯾﺪ دﯾﮕﺮي ﺑﻪ ﭘﺮوﺗﮑﻞ اﺿﺎﻓﻪ ﺷﺪه اﺳﺖ ﮐﻪ ﺗﻘﺮﯾﺒﺎ ﺷﺒﯿﻪ UplinkFastﻣﯽ ﺑﺎﺷﺪ ﺑﻪ اﯾﻦ ﻣﻌﻨﯽ ﮐﻪ در ﺻﻮرت failﺷﺪن روت ﭘﻮرت ﺑﻪ ﺳﺮﻋﺖ alternateﭘﻮرت را ﺟﺎﯾﮕﺰﯾﻦ آن ﻣﯽ ﮐﻨﺪ . ﻫﻤﯿﻨﻄﻮر در ﭘﺮوﺗﮑﻞ ﺟﺪﯾﺪ روت ﺑﺮﯾﺞ ﻗﺎدر اﺳﺖ ﺗﺎ از ﻃﺮﯾﻖ ﺳﺖ ﮐﺮدن ﺑﯿﺖ TCدر ﻓﺮﯾﻢ ، BPDUﺳﺎﯾﺮ ﺳﻮﯾﯿﭽﻬﺎي ﻣﻮﺟﻮد در ﺷﺒﮑﻪ را از ﺗﻐﯿﯿﺮات آﮔﺎه ﮐﻨﺪ. . ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ اﯾﺠﺎد ﺗﻮﭘﻮﻟﻮژي و ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ ﻣﺘﻨﺎﻇﺮ ﺑﺎ آزﻣﺎﯾﺶ ﻗﺒﻠﯽ اﻫﺪاف آزﻣﺎﯾﺶ ﮐﺎﻧﻔﯿﮓ ﺳﻮﯾﯿﭽﻬﺎ ﺟﻬﺖ ﺑﻬﺮه ﮔﯿﺮي از RPVST ﮐﺎﻧﻔﯿﮓ 1 SWﺑﻪ ﻋﻨﻮان روت ﺑﺮﯾﺞ ﺑﺮاي Vlanﻫﺎي 01,1 و ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت از ﻃﺮﯾﻖ 2SW ﮐﺎﻧﻔﯿﮓ 2 SWﺑﻪ ﻋﻨﻮان روت ﺑﺮﯾﺞ ﺑﺮاي 20 Vlanو ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت از ﻃﺮﯾﻖ 1SW ﮐﺎﻧﻔﯿﮓ 3 SWﺑﻪ ﻋﻨﻮان روت ﺑﺮﯾﺞ ﺑﺮاي 30 Vlanو ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت از ﻃﺮﯾﻖ 1SW دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ 092 Page 196 of
- 198. SW2 ﻫﺎي 01,1و ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت از ﻃﺮﯾﻖVlan ﺑﻪ ﻋﻨﻮان روت ﺑﺮﯾﺞ ﺑﺮايSW1 1. ﮐﺎﻧﻔﯿﮓ SW1 con0 is now available Press RETURN to get started. SW1>enable SW1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW1(config)#spanning-tree mode rapid-pvst SW1(config)#end %SYS-5-CONFIG_I: Configured from console by console SW1#show spanning-tree bridge Hello Vlan Bridge ID Time ---------------- --------------------------------- ----VLAN0001 32769 (32768, 1) 0014.f2d2.4180 2 VLAN0010 32778 (32768, 10) 0014.f2d2.4180 2 VLAN0020 32788 (32768, 20) 0014.f2d2.4180 2 VLAN0030 32798 (32768, 30) 0014.f2d2.4180 2 SW1# SW2 con0 is now available Max Age --20 20 20 20 Fwd Dly --15 15 15 15 Protocol -------rstp rstp rstp rstp Fwd Dly --15 15 15 15 Protocol -------rstp rstp rstp rstp Press RETURN to get started. SW2>enable SW2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW2(config)#spanning-tree mode rapid-pvst SW2(config)#end %SYS-5-CONFIG_I: Configured from console by console SW2#show spanning-tree bridge Hello Vlan Bridge ID Time ---------------- --------------------------------- ----VLAN0001 32769 (32768, 1) 001c.57d8.9000 2 VLAN0010 32778 (32768, 10) 001c.57d8.9000 2 VLAN0020 32788 (32768, 20) 001c.57d8.9000 2 VLAN0030 32798 (32768, 30) 001c.57d8.9000 2 SW2# SW3 con0 is now available Max Age --20 20 20 20 Press RETURN to get started. SW3>enable SW3#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW3(config)#spanning-tree mode rapid-pvst SW3(config)#end %SYS-5-CONFIG_I: Configured from console by console SW3#show spanning-tree bridge Page 197 of 290
- 199. Vlan ---------------VLAN0001 VLAN0010 VLAN0020 VLAN0030 SW3# Hello Bridge ID Time --------------------------------- ----32769(32768, 1) 0014.a964.2e00 2 32778 (32768, 10) 0014.a964.2e00 2 32788 (32768, 20) 0014.a964.2e00 2 32798 (32768, 30) 0014.a964.2e00 2 Max Age --20 20 20 20 Fwd Dly --15 15 15 15 Protocol -------rstp rstp rstp rstp SW1 02 و ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت از ﻃﺮﯾﻖVlan ﺑﻪ ﻋﻨﻮان روت ﺑﺮﯾﺞ ﺑﺮايSW2 2. ﮐﺎﻧﻔﯿﮓ SW1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW1(config)#spanning-tree vlan 1 root primary SW1(config)#spanning-tree vlan 10 root primary SW1(config)#end %SYS-5-CONFIG_I: Configured from console by console SW1# SW2#show spanning-tree vlan 1 VLAN0001 Spanning tree enabled protocol rstp Root ID Priority 24577 Address 0014.f2d2.4180 Cost 9 Port 216 (Port-channel21) Hello Time 2 sec Max Age 20 sec Bridge ID Priority Address Hello Time Aging Time Interface ------------------Po21 Po23 Role ---Root Altn Forward Delay 15 sec 32769 (priority 32768 sys-id-ext 1) 001c.57d8.9000 2 sec Max Age 20 sec Forward Delay 15 sec 300 sec Sts --FWD BLK Cost --------9 9 Prio.Nbr -------128.216 128.232 Type --------------------------P2p P2p SW2#show spanning-tree vlan 10 VLAN0010 Spanning tree enabled protocol rstp Root ID Priority 24586 Address 0014.f2d2.4180 Cost 9 Port 216 (Port-channel21) Hello Time 2 sec Max Age 20 sec Bridge ID Priority Address Hello Time Aging Time Forward Delay 15 sec 32778 (priority 32768 sys-id-ext 10) 001c.57d8.9000 2 sec Max Age 20 sec Forward Delay 15 sec 300 sec Page 198 of 290
- 200. Interface ------------------Po21 Po23 Role ---Root Altn Sts --FWD BLK Cost --------9 9 Prio.Nbr -------128.216 128.232 Type --------------------------P2p P2p SW2# SW1 03و ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت از ﻃﺮﯾﻖVlan ﺑﻪ ﻋﻨﻮان روت ﺑﺮﯾﺞ ﺑﺮايSW3 3. ﮐﺎﻧﻔﯿﮓ SW2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW2(config)#spanning-tree vlan 20 root primary SW2(config)#end %SYS-5-CONFIG_I: Configured from console by console SW2# SW1#show spanning-tree vlan 20 VLAN0020 Spanning tree enabled protocol rstp Root ID Priority 24596 Address 001c.57d8.9000 Cost 9 Port 144 (Port-channel12) Hello Time 2 sec Max Age 20 sec Bridge ID Priority Address Hello Time Aging Time Interface ------------------Po12 Po13 Role ---Root Altn Forward Delay 15 sec 32788 (priority 32768 sys-id-ext 20) 0014.f2d2.4180 2 sec Max Age 20 sec Forward Delay 15 sec 300 sec Sts --FWD BLK Cost --------9 9 Prio.Nbr -------128.144 128.152 Type --------------------------P2p P2p SW1# SW1 03 و ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت از ﻃﺮﯾﻖVlan ﺑﻪ ﻋﻨﻮان روت ﺑﺮﯾﺞ ﺑﺮايSW3 4. ﮐﺎﻧﻔﯿﮓ SW3#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW3(config)#spanning-tree vlan 30 root primary SW3(config)#end %SYS-5-CONFIG_I: Configured from console by console SW3# SW1#show spanning-tree vlan 30 VLAN0030 Spanning tree enabled protocol rstp Root ID Priority 24606 Page 199 of 290
- 201. Address Cost Port Hello Time Bridge ID 0014.a964.2e00 9 152(Port-channel13) 2 sec Max Age 20 sec Priority Address Hello Time Aging Time 32798 (priority 32768 sys-id-ext 30) 0014.f2d2.4180 2 sec Max Age 20 sec Forward Delay 15 sec 300 sec Interface ------------------Po12 Po13 Role ---Desg Root Sts --FWD FWD Cost --------9 9 Prio.Nbr -------128.144 128.152 Forward Delay 15 sec Type --------------------------P2p P2p SW1# Page 200 of 290
- 202. آزﻣﺎﯾﺶ 61.4-ﺗﻨﻈﯿﻤﺎت SwitchportSpanning Tree Portfast در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت Spanning-Tree Switchport Portfastﺑﺎ ﻫﺪف ورود ﻫﺮ ﭼﻪ ﺳﺮﯾﻌﺘﺮ ﭘﻮرﺗﻬﺎي اﮐﺴﺲ ﺑﻪ ﻣﺪار آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ ﻓﺮض ﮐﻨﯿﺪ ﺻﺎﺣﺐ ﯾﮏ ﮐﺎﻣﭙﯿﻮﺗﺮ ﺑﺴﯿﺎر ﺳﺮﯾﻊ ﺳﺮﯾﻊ ﻫﺴﺘﯿﺪ ﯾﺎ ﻓﺮﺿﺎ ﯾﮏ ﺗﯿﻦ ﮐﻼﯾﻨﺖ دارﯾﺪ ﮐﻪ ﻃﯽ 5 ﺛﺎﻧﺒﻪ ﺑﻮت و ﻗﺎﺑﻞ اﺳﺘﻔﺎده ﻣﯿﺸﻮد.ﭼﻪ اﺗﻔﺎﻗﯽ ﻣﯿﺎﻓﺘﯿﺪ ﻫﻨﮕﺎﻣﯽ ﮐﻪ ﺗﺮاﻓﯿﮏ ﺳﯿﺴﺘﻢ ﺑﺮاي اوﻟﯿﻦ ﺑﻪ ﺳﻤﺖ ﭘﻮرت ﺳﻮﯾﯿﭻ روان ﻣﯿﺸﻮد؟ﭘﺎﺳﺦ اﯾﻨﺴﺖ ﮐﻪ ﺗﺮاﻓﯿﮏ ﺣﺬف ﻣﯿﺸﻮد! ﺑﺨﺎﻃﺮ اﯾﻨﮑﻪ ﭘﻮرت ﺣﺪود 51 ﺛﺎﻧﺒﻪ زﻣﺎن ﻧﯿﺎز دارد ﺗﺎ از ﺣﺎﻟﺖ blockingﺑﻪ forwardingﺗﻐﯿﯿﺮ وﺿﻌﯿﺖ دﻫﺪ و در اﯾﻦ ﺣﯿﻦ ﺑﻪ دﻧﺒﺎل اﯾﻦ اﺳﺖ ﮐﻪ ﻣﺘﻮﺟﻪ ﺷﻮد ﮐﻪ آﯾﺎ ﻟﻮﭘﯽ در ﺷﺒﮑﻪ وﺟﻮد دارد ﯾﺎ ﺧﯿﺮ.ﭘﺲ از ﺣﺼﻮل اﻃﻤﯿﻨﺎن از اﯾﻨﮑﻪ ﻟﻮپ ﭘﺪﯾﺪ ﻧﺨﻮاﻫﺪ آﻣﺪ ﭘﻮرت اﮐﺴﺲ ﻣﺎ اﺑﺘﺪا در ﺣﺎل learningﺳﭙﺲ forwardingﻗﺮار ﺧﻮاﻫﺪ ﮔﺮﻓﺖ. ﺣﺎﻻ اﮔﺮ ﺗﻨﻈﯿﻤﺎت ﺷﺒﮑﻪ دﺳﺘﮕﺎه ﻣﺎ ﺑﻪ ﮔﻮﻧﻪ اي ﺑﺎﺷﺪ ﮐﻪ اﮔﺮ ﻇﺮف 8 ﺛﺎﻧﯿﻪ ﻣﻮﻓﻖ ﺑﻪ درﯾﺎﻓﺖ IPاز ﺷﺒﮑﻪ ﻧﺸﻮد ﭘﯿﻐﺎم failureﻧﻤﺎﯾﺶ دﻫﺪ ﺳﯿﺴﺘﻢ ﻣﺎ ﻫﺮﮔﺰ ﺑﻪ آن ﺷﺒﮑﻪ ﻣﺘﺼﻞ ﻧﺨﻮاﻫﺪ ﺷﺪ. ﺳﺎده ﺗﺮﯾﻦ ﺗﻮﺿﯿﺢ اﯾﻨﺴﺖ ﮐﻪ portfastﭘﻮرت ﻣﻮرد ﻧﻈﺮ را ﺳﺮﯾﻌﺎ ﺑﻪ ﺣﺎﻟﺖ forwardingﺗﻐﯿﯿﺮ وﺿﻌﯿﺖ ﻣﯿﺪﻫﺪ و در اﯾﻦ ﺣﺎﻟﺖ ﺗﻼﺷﯽ ﺑﺮا ﺷﻨﺎﺳﺎﯾﯽ ﻟﻮپ در ﺷﺒﮑﻪ اﻧﺠﺎم ﻧﻤﯿﺪﻫﺪ ﻣﮕﺮ اﯾﻨﮑﻪ روي آن ﭘﻮرت BPDUدﯾﺎﻓﺖ ﮐﻨﺪ ﻧﺘﯿﺠﻪ اﯾﻨﮑﻪ اﮔﺮ اﯾﻦ ﻣﺸﺨﺼﻪ روي ﺗﻌﺪادي از ﭘﻮرﺗﻬﺎي ﻣﺘﺼﻞ ﺑﻪ ﺷﺒﮑﻪ ﺳﻮﯾﯿﭻ ﻓﻌﺎل ﺑﺎﺷﺪ ﺑﺮاي ﻟﺤﻈﺎﺗﯽ ﺷﺎﻫﺪ ﺑﺮوز ﻟﻮپ در ﺷﺒﮑﻪ ﺧﻮاﻫﯿﻢ ﺷﺪ اﻣﺎ ﺑﻪ ﺳﺮﻋﺖ ﺑﺮﻃﺮف ﺧﻮاﻫﺪ ﺷﺪ. ﻣﺰﯾﺖ دﯾﮕﺮ portfastﻋﺪم اﯾﺠﺎد TCN (Topology Change ) Notificationﺗﻮﺳﻂ STPﺑﺎ ﻫﺮ ﺑﺎر آپ و داون ﺷﺪن ﭘﻮرت اﺳﺖ اﯾﻦ ﻣﻮﺿﻮع ﺑﺎﻋﺚ ﺻﺮﻓﻪ ﺟﻮﯾﯽ در ﻣﻨﺎﺑﻊ ﺳﯿﺴﺘﻤﯽ ﺳﻮﯾﯿﭻ ﻣﯿﺸﻮد زﯾﺮا ﻣﺠﺒﻮر ﻧﯿﺴﺖ ﺑﺎ ﻫﺮ ﺑﺎر ﺗﻐﯿﯿﺮ وﺿﻌﯿﺖ ﯾﮏ ﭘﻮرت اﮐﺴﺲ ﮐﻞ ﻣﺤﺎﺳﺒﺎت ﺧﻮد را از اول اﻧﺠﺎم دﻫﺪ. دو راه ﺑﺮاي ﻓﻌﺎل ﺳﺎزي portfastدر ﺳﻮﯾﯿﭽﻬﺎي ﮐﺎﺗﺎﻟﯿﺴﺖ وﺟﻮد دارد ﯾﮏ راه ﻓﻌﺎل ﺳﺎزي آن در ﺳﻄﺢ اﯾﻨﺘﺮﻓﯿﺲ و دﯾﮕﺮي در ﺳﻄﺢ ﮐﻞ ﺳﻮﯾﯿﭻ اﺳﺖ. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ اﯾﺠﺎد ﺗﻮﭘﻮﻟﻮژي زﯾﺮ ﻓﻌﺎل ﺳﺎزي RPVSTدر 1SW اﻫﺪاف آزﻣﺎﯾﺶ ﻓﻌﺎل ﮐﺮدن 0/0 Faدر 1 Rو ﻣﺸﺎﻫﺪه وﺿﻌﯿﺖ آن از ﻃﺮﯾﻖ show spanning-tree 092 Page 201 of
- 203. وR1 ﺳﭙﺲ ﻓﻌﺎل ﮐﺮدن ﻣﺠﺪد اﯾﻨﺘﺮﻓﯿﺲSW1 درportfast ﻏﯿﺮﻓﻌﺎل ﮐﺮدن اﯾﻨﺘﺮﻓﯿﺲ روﺗﺮ و ﻓﻌﺎل ﮐﺮدن در ﻫﻤﻪ ﭘﻮرﺗﻬﺎي ﺳﻮﯾﯿﭻ و ﺑﺮرﺳﯽ ﺻﺤﺖ ﻋﻤﻠﮑﺮد آنportfast ﻓﻌﺎل ﮐﺮدن SW1 درFa0/1 ﺣﺼﻮل اﻃﻤﯿﻨﺎن از ﻓﻌﺎل ﺷﺪن ﺳﺮﯾﻊ دﺳﺘﻮراﻟﻌﻤﻞ show spanning-tree و ﻣﺸﺎﻫﺪه وﺿﻌﯿﺖ آن از ﻃﺮﯾﻖR1 درFa0/0 1. ﻓﻌﺎل ﮐﺮدن R1 con0 is now available Press RETURN to get started. *Mar 15 23:38:09.097: %SYS-5-CONFIG_I: Configured from console by console R1#enable R1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R1(config)#interface fa0/0 R1(config-if)#no shut R1(config-if)# %LINK-3-UPDOWN: Interface FastEthernet0/0, changed state to up R1(config-if)# %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up R1(config-if)#end R1# %SYS-5-CONFIG_I: Configured from console by console R1# SW1 از ﻃﺮﯾﻖRSTP ﻧﺘﯿﺠﻪ ﺑﺮرﺳﯽ SW1#show spanning-tree VLAN0001 Spanning tree enabled protocol rstp Root ID Priority 24577 Address 0014.f2d2.4180 This bridge is the root Hello Time 2 sec Max Age 20 sec Bridge ID Priority Address Hello Time Aging Time Forward Delay 15 sec 24577 (priority 24576 sys-id-ext 1) 0014.f2d2.4180 2 sec Max Age 20 sec Forward Delay 15 sec 300 sec Interface Role Sts Cost Prio.Nbr Type ------------------- ---- --- --------- -------- --------------------------- Page 202 of 290
- 204. Fa0/1 Desg BLK 19 128.3 P2p SW1#showspanning-tree VLAN0001 Spanning tree enabled protocol rstp Root ID Priority 24577 Address 0014.f2d2.4180 This bridge is the root Hello Time 2 sec Max Age 20 sec Bridge ID Priority Address Hello Time Aging Time Forward Delay 15 sec 24577 (priority 24576 sys-id-ext 1) 0014.f2d2.4180 2 sec Max Age 20 sec Forward Delay 15 sec 300 sec Interface Role Sts Cost Prio.Nbr Type ------------------- ---- --- --------- -------- --------------------------Fa0/1 Desg LRN 19 128.3 P2p SW1#show spanning-tree VLAN0001 Spanning tree enabled protocol rstp Root ID Priority 24577 Address 0014.f2d2.4180 This bridge is the root Hello Time 2 sec Max Age 20 sec Bridge ID Priority Address Hello Time Aging Time Forward Delay 15 sec 24577 (priority 24576 sys-id-ext 1) 0014.f2d2.4180 2 sec Max Age 20 sec Forward Delay 15 sec 300 sec Interface Role Sts Cost Prio.Nbr Type ------------------- ---- --- --------- -------- --------------------------Fa0/1 Desg FWD 19 128.3 P2p SW1# ﻣﮏ آدرس را از ﻓﺮﯾﻤﻬﺎيlearning ﻫﻤﺎﻧﻄﻮر ﮐﻪ ﻣﺸﺎﻫﺪه ﻣﯿﺸﻮد ﭘﻮرت اﺑﺘﺪا ﺗﺮاﻓﯿﮏ را ﺑﻼك ﻣﯿﮑﻨﺪ ﺳﭙﺲ در ﺣﺎﻟﺖ ارﺳﺎﻟﯽ از ﺳﺎﯾﺮ ﻧﻘﺎط ﺷﺒﮑﻪ را ﺟﻬﺖ ﯾﺎﻓﺘﻦ ﻟﻮﭘﻬﺎي اﺣﺘﻤﺎﻟﯽBPDU درﯾﺎﻓﺘﯽ اﺳﺘﺨﺮاج ﻣﯿﮑﻨﺪ در ﻫﻤﯿﻦ ﺣﯿﻦ ﻓﺮﯾﻤﻬﺎي . ﺗﻐﯿﯿﺮ ﺣﺎﻟﺖ ﻣﯿﺪﻫﺪforwarding ﭘﺮدازش ﻣﯿﮑﻨﺪ ﺑﻌﺪ از آن ﺑﻪ ﺣﺎﻟﺖ وR1 ﺳﭙﺲ ﻓﻌﺎل ﮐﺮدن ﻣﺠﺪد اﯾﻨﺘﺮﻓﯿﺲSW1 درportfast 1. ﻏﯿﺮﻓﻌﺎل ﮐﺮدن اﯾﻨﺘﺮﻓﯿﺲ روﺗﺮ و ﻓﻌﺎل ﮐﺮدن SW1 درFa0/1 ﺣﺼﻮل اﻃﻤﯿﻨﺎن از ﻓﻌﺎل ﺷﺪن ﺳﺮﯾﻊ R1#configure terminal Enter configuration commands, one per line. R1(config)#interface fa0/0 R1(config-if)#shutdown Page 203 of 290 End with CNTL/Z.
- 205. R1(config-if)# SW1 درportfastو ﺗﻨﻈﻤﯿﺎت SW1 con0 is now available Press RETURN to get started. SW1>enable SW1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW1(config)#interface fa0/1 SW1(config-if)#spanning-tree portfast %Warning: portfast should only be enabled on ports connected to a single host. Connecting hubs, concentrators, switches, bridges, etc... to this interface when portfast is enabled, can cause temporary bridging loops. Use with CAUTION %Portfast has been configured on FastEthernet0/1 but will only have effect when the interface is in a non-trunking mode. SW1(config-if)#end SW1# و ﻓﻌﺎل ﺳﺎزي ﻣﺠﺪد اﯾﻨﺘﺮﻓﯿﺲ روﺗﺮ R1(config-if)#no shut R1(config-if)# %LINK-3-UPDOWN: Interface FastEthernet0/0, changed state to up R1(config-if)# %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up R1(config-if)# ﺗﻐﯿﯿﺮ ﺣﺎﻟﺖ داده اﺳﺖforwarding ﺑﻼﻓﺎﺻﻠﻪ ﺑﻪ ﺣﺎﻟﺖFa0/1 ﻧﺸﺎن ﻣﯿﺪﻫﺪ ﮐﻪSW1 درSPT اﮐﻨﻮن ﺑﺮرﺳﯽ SW1#show span VLAN0001 Spanning tree enabled protocol rstp Root ID Priority 24577 Address 0014.f2d2.4180 This bridge is the root Hello Time 2 sec Max Age 20 sec Bridge ID Priority 24577 Forward Delay 15 sec (priority 24576 sys-id-ext 1) Page 204 of 290
- 206. Address Hello Time Aging Time 0014.f2d2.4180 2sec Max Age 20 sec 300 sec Forward Delay 15 sec Interface Role Sts Cost Prio.Nbr Type ------------------- ---- --- --------- -------- --------------------------Fa0/1 Desg FWD 19 128.3 P2p Edge SW1# در ﻫﻤﻪ ﭘﻮرﺗﻬﺎي ﺳﻮﯾﯿﭻ و ﺑﺮرﺳﯽ ﺻﺤﺖ ﻋﻤﻠﮑﺮد آنportfast 2. ﻓﻌﺎل ﮐﺮدن SW1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW1(config)#spanning-tree portfast default %Warning: this command enables portfast by default on all interfaces. You should now disable portfast explicitly on switched ports leading to hubs, switches and bridges as they may create temporary bridging loops. SW1(config)#end SW1# SW1#show spanning-tree summary Switch is in rapid-pvst mode Root bridge for: VLAN0001 Extended system ID is Portfast Default is PortFast BPDU Guard Default is Portfast BPDU Filter Default is Loopguard Default is EtherChannel misconfig guard is UplinkFast is BackboneFast is Configured Pathcost method used enabled enabled disabled disabled disabled enabled disabled disabled is short Name Blocking Listening Learning Forwarding STP Active ---------------------- -------- --------- -------- ---------- ---------VLAN0001 0 0 0 1 1 ---------------------- -------- --------- -------- ---------- ---------1 vlan 0 0 0 1 1 SW1# Page 205 of 290
- 207. آزﻣﺎﯾﺶ 71.4:ﺗﻨﻈﯿﻤﺎت BPDUﮔﺎرد در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت BPDUﮔﺎرد ﺑﻪ ﻣﻨﻈﻮر ﺟﻠﻮﮔﯿﺮي از ﻓﻌﺎﻟﯿﺖ ﺳﻮﯾﯿﭽﻬﺎي ﻣﺘﻔﺮﻗﻪ از ﻃﺮﯾﻖ ﺧﺎﻣﻮش ﮐﺮدن ﭘﻮرﺗﻬﺎي درﯾﺎﻓﺖ ﮐﻨﻨﺪه BPDUﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ وﻣﺮور ﻣﻔﺎﻫﯿﻢ ﭼﻪ اﺗﻔﺎﻗﯽ ﺧﻮاﻫﺪ اﻓﺘﺎد اﮔﺮ ﯾﮏ ﮐﺎرﺑﺮ ﻣﻄﻠﻊ ﯾﺎ ﺣﺘﯽ ﻧﺎ ﻣﻄﻠﻊ ﻫﺎب/ﺳﻮﯾﯿﭽﯽ ﻣﺘﻔﺮﻗﻪ را ﺑﻪ ﭘﻮرﺗﻬﺎي ﺷﺒﮑﻪ )روي دﯾﻮار( ﻣﺘﺼﻞ ﮐﻨﺪ ؟ﭘﺎﺳﺦ ﮐﺎﻣﻼ روﺷﻦ اﺳﺖ و ﻧﺘﯿﺠﻪ اﯾﻨﮑﺎر اﯾﺠﺎد ﯾﮏ ﻟﻮپ ﻻﯾﻪ دوﯾﯽ ﺧﻮاﻫﺪ ﺑﻮد و ﻃﻮﻓﺎن ﺑﺮادﮐﺴﺖ ﺣﺎﺻﻞ از آن ﺳﺮﻋﺖ ﺷﺒﮑﻪ را در ﺣﺪ ارﺗﺒﺎﻃﺎت dial upﭘﺎﯾﯿﻦ ﺧﻮاﻫﺪ آورد. ﺑﻪ ﻋﻨﻮان ﯾﮏ ﻣﻬﻨﺪس ﺷﺒﮑﻪ اﯾﻦ وﻇﯿﻔﻪ ﻣﺎ اﺳﺖ ﮐﻪ از ﻓﺮاﻫﻢ آوردن اﻣﮑﺎن اﺗﺼﺎل ﺳﻮﯾﯿﭻ ﻫﺎي ﻣﺘﻔﺮﻗﻪ ﺗﻮﺳﻂ ﮐﺎرﺑﺮان ﯾﺎ ﺳﺎﯾﺮ اﺷﺨﺎص ﺑﻪ ﺷﺒﮑﻪ ﻣﻮﺟﻮد ﺑﻪ دﻻﯾﻠﯽ ﻫﻤﭽﻮن ﮐﻤﺒﻮد ﭘﻮرت در ﺳﻤﺖ ﮐﺎرﺑﺮ و ﻧﯿﺎز ﺑﻪ اﻓﺰاﯾﺶ آﻧﻬﺎ ﺟﻠﻮﮔﯿﺮي ﮐﻨﯿﻢ. PDUﮔﺎرد ﻣﮑﺎﻧﯿﺰﯾﻤﯽ اﺳﺖ ﮐﻪ از ﻃﺮﯾﻖ آن ﭘﻮرﺗﻬﺎﯾﯽ از ﺳﻮﯾﯿﭻ ﮐﻪ روي آﻧﻬﺎ ﻓﺮﯾﻤﻬﺎي BPDUدرﯾﺎﻓﺖ ﻣﯿﺸﻮﻧﺪ ﺧﺎﻣﻮش ﻣﯿﺸﻮﻧﺪ ﻟﺬا اﻣﺮوزه ﺗﻨﻈﯿﻢ Portfastو BPDUﮔﺎرد در ﭘﻮرﺗﻬﺎي اﮐﺴﺲ ﺳﻤﺖ ﮐﺎرﺑﺮي از ﻧﮑﺎت ﻣﻬﻢ و ﻣﺮﺳﻮم ﺑﻪ ﺣﺴﺎب ﻣﯽ آﯾﻨﺪ ﻫﻨﮕﺎﻣﯽ ﮐﻪ ﭘﻮرﺗﯽ ﺗﻮﺳﻂ ﮔﺎرد ﺑﻪ ﺟﻬﺖ درﯾﺎﻓﺖ BPDUﻏﯿﺮﻓﻌﺎل ﻣﯿﺸﻮد در ﺣﺎﻟﺖ ERR-Disabledﻗﺮار ﻣﯿﮕﯿﺮد ﺑﺮاي اﺣﯿﺎ ﭘﻮرت ﻣﺬﺑﻮر ﺑﻪ ﺣﺎﻟﺖ اول ﯾﮑﺒﺎر آﻧﺮا ﺧﺎﻣﻮش ﻣﺠﺪدا روﺷﻦ ﻣﯿﮑﻨﯿﻢ.ﻫﻤﯿﻨﻄﻮر ﻣﯿﺘﻮاﻧﯿﻢ اﯾﻦ ﻣﺸﺨﺼﻪ را ﻣﺎﻧﻨﺪ Portfastﺑﻪ ﻃﻮر ﯾﮑﺠﺎ ﺑﺮاي ﻫﻤﻪ ﭘﻮرﺗﻬﺎي ﺳﻮﯾﯿﭻ ﻓﻌﺎل ﮐﻨﯿﻢ . ﻧﮑﺘﻪ: ﻣﺎژول NM-16ESWدر 3 GNSﺗﻨﻬﺎ از ﺗﻨﻈﯿﻤﺎت BPDUﮔﺎرد در ﺳﻄﺢ ﻫﻤﻪ ﭘﻮرﺗﻬﺎي ﺳﻮﯾﯿﭻ ﭘﺸﺘﯿﺒﺎﻧﯽ ﻣﯿﮑﻨﺪ و ﻧﻪ ﺗﮏ ﭘﻮرت از اﯾﻨﺮو ﺗﻤﺮﯾﻨﺎت اﯾﻦ آزﻣﺎﯾﺶ را ﺑﺎ ادوات واﻗﻌﯽ اﻧﺠﺎم ﻣﯽ دﻫﯿﻢ ﭘﯿﺶ ﻧﯿﺎز ﻫﺎي آزﻣﺎﯾﺶ اﯾﺠﺎد ﺗﻮﭘﻮﻟﻮژي ﻣﺸﺎﺑﻪ آزﻣﺎﯾﺸﺎت ﻗﺒﻠﯽ ﺗﻨﻈﯿﻢ 1/0 Faدر ﻫﺮ دو ﺳﻮﯾﯿﭻ ﺑﻪ ﻋﻨﻮان اﮐﺴﺲ ﭘﻮرت واﻗﻊ در 01 Vlan اﻫﺪاف آزﻣﺎﯾﺶ 092 Page 206 of
- 208. در ﻫﺮدو ﺳﻮﯾﯿﭻFa0/1 ﺑﻮدنUp ﺣﺼﻮل اﻃﻤﯿﻨﺎن از و ﺑﺮرﺳﯽ وﺿﻌﯿﺖ ﭘﻮرت در اﻧﺘﻬﺎSW1 درFa0/1 ﮔﺎردBPDU ﻓﻌﺎل ﺳﺎزي ﺣﺬف ﮔﺎرد و ﺑﺮرﺳﯽ وﺿﻌﯿﺖ ﭘﻮرﺗﻬﺎ در اﻧﺘﻬﺎ دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ در ﻫﺮ دو ﺳﻮﯾﯿﭻFa0/1 ﺑﻮدنUp 1. ﺣﺼﻮل اﻃﻤﯿﻨﺎن از show ip interface brief FastEthernet 0/10 Interface IP-Address OK? Method Status FastEthernet0/10 unassigned YES unset up SW1# Protocol up SW2#show interface fa0/10 FastEthernet0/10 is up, line protocol is up (connected) Hardware is Fast Ethernet, address is 001c.57d8.900c (bia 001c.57d8.900c) MTU 1500 bytes, BW 100000 Kbit, DLY 100 usec, reliability 255/255, txload 1/255, rxload 1/255 Encapsulation ARPA, loopback not set Keepalive set (10 sec) Full-duplex, 100Mb/s, media type is 10/100BaseTX input flow-control is off, output flow-control is unsupported ARP type: ARPA, ARP Timeout 04:00:00 Last input 00:00:01, output 00:00:00, output hang never Last clearing of "show interface" counters never Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0 Queueing strategy: fifo Output queue: 0/40 (size/max) 5 minute input rate 2000 bits/sec, 4 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec 49720 packets input, 3684013 bytes, 0 no buffer Received 48602 broadcasts (48602 multicasts) 0 runts, 0 giants, 0 throttles 0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored 0 watchdog, 48602 multicast, 0 pause input 0 input packets with dribble condition detected 3118 packets output, 381783 bytes, 0 underruns 0 output errors, 0 collisions, 2 interface resets 0 babbles, 0 late collision, 0 deferred 0 lost carrier, 0 no carrier, 0 PAUSE output 0 output buffer failures, 0 output buffers swapped out SW2# ﺳﭙﺲ ﻓﻌﺎل ﮐﺮدنSW1 ﮔﺎرد درBPDU و ﻓﻌﺎل ﮐﺮدنSW2 درFa0/10 2. ﺧﺎﻣﻮش ﮐﺮدن اﯾﻨﺘﺮﻓﯿﺲ SW1 وﺑﺮرﺳﯽ وﺿﻌﯿﺖSW2 درFa0/10 SW2#configure terminal Enter configuration commands, one per line. SW2(config)#interface fa0/10 Page 207 of 290 End with CNTL/Z.
- 209. SW2(config-if)#shutdown %LINK-5-CHANGED: Interface FastEthernet0/10,changed state to administratively down SW2(config-if)# SW1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW1(config)#interface fa0/10 SW1(config-if)#spanning-tree bpduguard enable SW1(config-if)#end SW1# SW2(config-if)#no shutdown SW2(config-if)# %LINK-3-UPDOWN: Interface FastEthernet0/10, changed state to down SW2(config-if)# رويSW2 از ﺳﻤﺖBPDU ﺑﺎ ﻣﻀﻤﻮن درﯾﺎﻓﺖSyslog message ﻣﺮاﺟﻌﻪ ﮐﻨﯿﻢ ﺑﺎ ﯾﮏSW1 در اﯾﻦ ﻟﺤﻈﻪ اﮔﺮ ﺑﻪ ﻣﻮاﺟﻪ ﺧﻮاﻫﯿﻢ ﺷﺪFa0/1 SW1# %SPANTREE-2-BLOCK_BPDUGUARD: Received BPDU on port Fa0/10 with BPDU Guard enabled. Disabling port. SW1# %PM-4-ERR_DISABLE: bpduguard error detected on Fa0/10, putting Fa0/10 in err-disable state SW1# SW1#show interfaces fa0/10 FastEthernet0/10 is down, line protocol is down (err-disabled) Hardware is Fast Ethernet, address is 0014.f2d2.418c (bia 0014.f2d2.418c) MTU 1500 bytes, BW 10000 Kbit, DLY 1000 usec, reliability 255/255, txload 1/255, rxload 1/255 Encapsulation ARPA, loopback not set Keepalive set (10 sec) Auto-duplex, Auto-speed, media type is 10/100BaseTX input flow-control is off, output flow-control is unsupported ARP type: ARPA, ARP Timeout 04:00:00 Last input 00:02:43, output 00:08:44, output hang never Last clearing of "show interface" counters never Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0 Queueing strategy: fifo Output queue: 0/40 (size/max) 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec 3303 packets input, 403853 bytes, 0 no buffer Received 2097 broadcasts (2097 multicasts) 0 runts, 0 giants, 0 throttles Page 208 of 290
- 210. 0 input errors,0 CRC, 0 frame, 0 overrun, 0 ignored 0 watchdog, 2097 multicast, 0 pause input 0 input packets with dribble condition detected 55416 packets output, 4095765 bytes, 0 underruns 0 output errors, 0 collisions, 3 interface resets 0 babbles, 0 late collision, 0 deferred 0 lost carrier, 0 no carrier, 0 PAUSE output 0 output buffer failures, 0 output buffers swapped out SW1# ﺑﻪBPDU ﺑﻪ ﺟﻬﺖ ﻓﻌﺎل ﺑﻮدن ﮔﺎرد ﺑﻪ ﻣﺤﺾ درﯾﺎﻓﺖSW1 در ﺳﻮﯾﯿﭻFa0/1 ﻫﻤﺎﻧﻄﻮر ﮐﻪ اﻧﺘﻈﺎر ﻣﯿﺮﻓﺖ وﺿﻌﯿﺖ دراﻣﺪه اﺳﺖErr-Disabled ﺣﺎﻟﺖ 3. ﺣﺬف ﮔﺎرد و ﺑﺮرﺳﯽ وﺿﻌﯿﺖ ﭘﻮرﺗﻬﺎ در اﻧﺘﻬﺎ SW1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW1(config)#interface fa0/10 SW1(config-if)#no spanning-tree bpduguard enable SW1(config-if)#exit SW1(config)#spanning-tree portfast bpduguard default SW1(config)#end SW1# %SYS-5-CONFIG_I: Configured from console by console SW1# SW1(config)#do show spanning-tree summary Switch is in rapid-pvst mode Root bridge for: none Extended system ID is enabled Portfast Default is enabled PortFast BPDU Guard Default is enabled Portfast BPDU Filter Default is disabled Loopguard Default is disabled EtherChannel misconfig guard is enabled UplinkFast is disabled BackboneFast is disabled Configured Pathcost method used is short Name Blocking Listening Learning Forwarding STP Active ---------------------- -------- --------- -------- ---------- ---------Total 0 0 0 0 0 SW1(config)# Page 209 of 290
- 211. آزﻣﺎﯾﺶ 12.4-ﺗﻨﻈﯿﻤﺎت Switchport analyzer session در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﺗﻨﻈﯿﻤﺎت SPANﺑﺎ ﻫﺪف ﮐﭙﯽ ﺗﺮاﻓﯿﮏ ﯾﮏ ﭘﻮرت ﺳﻮﯾﯿﭻ ﺑﻪ ﭘﻮرﺗﯽ دﯾﮕﺮ ﺑﻪ ﻣﻨﻈﻮر آﻧﺎﻟﯿﺰ ﺗﺮاﻓﯿﮏ ﺷﺒﮑﻪ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ. آﯾﺎ ﺗﺎ ﮐﻨﻮن ﺑﻪ اﯾﻦ ﻣﻮﺿﻮع اﻧﺪﯾﺸﯿﺪه اﯾﺪ ﮐﻪ ﭼﻄﻮر ﺗﺮاﻓﯿﮏ ﻋﺒﻮري از ﯾﮏ ﭘﻮرت ﺳﻮﯾﯿﭻ را ﺟﻬﺖ اﻧﺎﻟﯿﺰ – sniffﺑﻪ ﯾﮏ اﺑﺰار ﺗﺮاﻓﯿﮏ آﻧﺎﻻﯾﺰر ﻣﺎﻧﻨﺪ Wiresharkﻣﻨﺘﻘﻞ ﮐﻨﯿﺪ ؟راه ﺣﻞ در ﺑﻬﺮه ﮔﯿﺮي از SPANاﺳﺖ. در ﻣﺤﯿﻄﻬﺎي اﺟﺮاﯾﯽ اﺳﺘﻔﺎده از SPANﺟﻬﺖ رﻓﻊ اﺷﮑﺎل ﻣﺴﺎﺋﻞ ﭘﺪﯾﺪ آﻣﺪه ﻣﺎﺑﯿﻦ اﯾﻨﺘﺮﻓﯿﺴﻬﺎي روﺗﺮﻫﺎ و ﺳﻮﯾﯿﭽﻬﺎ وﺳﺮورﻫﺎ اﻣﺮي راﯾﺞ اﺳﺖ.ﺳﻮﯾﯿﭽﻬﺎي ﮐﺎﺗﺎﻟﯿﺴﺖ ﺳﯿﺴﮑﻮ داراي ﻣﺤﺪودﯾﺖ در ﺗﻌﺪاد SPANﻫﺎي ﻓﻌﺎل ﻫﺴﺘﻨﺪ اﯾﻦ ﻣﺤﺪودﯾﺖ در 3 GNSو ﻣﺎژول NM-16ESWﮐﻪ ﻧﻘﺶ ﺳﻮﯾﯿﭻ را در آن اﯾﻔﺎ ﻣﯿﮑﻨﺪ ﺑﻪ ﻋﺪد دو ﻣﯿﺮﺳﺪ. در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ دﺳﺘﻮرات زﯾﺮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. #/# :monitor session 1 source interface interfacenameﯾﮏ ﺳﺸﻦ SPANﺟﺪﯾﺪ ﺑﺎ اﯾﻨﺘﺮﻓﯿﺲ ﻣﺒﺪا ﻣﺸﺨﺺ ﺷﺪه اﯾﺠﺎد ﻣﯿﮑﻨﺪ #/# : monitor session 1 destination interface interfacenameﺗﻌﯿﯿﻦ اﯾﻨﺘﺮﻓﯿﺲ ﻣﻘﺼﺪي ﮐﻪ ﯾﮏ ﮐﭙﯽ از ﺟﺮﯾﺎن اﻃﻼﻋﺎﺗﯽ اﯾﻨﺘﺮﻓﯿﺲ ﻣﺸﺨﺺ ﺷﺪه در دﺳﺘﻮر ﻗﺒﻞ را درﯾﺎﻓﺖ ﻣﯿﮑﻨﺪ. # :show monitor sessionﻧﻤﺎﯾﺶ وﺿﻌﯿﺖ # SPANﻣﺸﺨﺺ ﺷﺪه ﭘﯿﺶ ﻧﯿﺎز آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﮐﻨﺴﻮل ﺑﺎ 1R1,R2,SW ﺗﺨﺼﯿﺺ آدرس 42/1.1.1.01 ﺑﻪ 0/0 Faروﺗﺮ 1 Rو اﯾﺠﺎد 1 Vlanﺑﺎ آدرس 42/01.1.1.01 در 1Sw اﻫﺪاف آزﻣﺎﯾﺶ اﯾﺠﺎد ﯾﮏ ﺳﺸﻦ SPANﺑﺎ ﻣﺒﺪا 1/1 Faو ﻣﻘﺼﺪ 2/1 Faدر 1SW . 092 Page 210 of
- 212. دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ SW1con0 is now available Press RETURN to get started. SW1>enable SW1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW1(config)#monitor session 1 source interface fa1/1 SW1(config)#monitor session 1 destination interface fa1/2 SW1(config)#end SW1#show monitor session 1 Session 1 --------Source Ports: RX Only: None TX Only: None Both: Fa1/1 Source VLANs: RX Only: None TX Only: None Both: None Destination Ports: Fa1/2 Filter VLANs: None SW1# packet capturing ﯾﺎ ﺳﺎﯾﺮ ﻧﺮم اﻓﺰارﻫﺎيWireshark و اﺟﺮايFa1/2 ﮐﺎﻣﭙﯿﻮﺗﺮ ﺑﻪNIC اﮐﻨﻮن ﻣﯿﺘﻮان ﺑﺎ اﺗﺼﺎل ﭘﺮداﺧﺖFa1/1 ﺑﻪ آﻧﺎﻟﯿﺰ ﺗﺮاﻓﯿﮏ ﭘﻮرت Page 211 of 290
- 213. آزﻣﺎﯾﺶ 1.5-ﺗﻨﻈﯿﻤﺎت ﻟﯿﻨﮑﻬﺎي1 PtP Tاز ﻃﺮﯾﻖ PPPﯾﺎ HDLC در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﻤﯿﺎت ﻟﯿﻨﮑﻬﺎي ﺳﺮﯾﺎل 1 Point-to-Point Tدر روﺗﺮﻫﺎي ﺳﯿﺴﮑﻮ از ﻃﺮﯾﻖ ) PPP (Point to Point Protocolﯾﺎ ) HDPC (High-Level Data Link Control Protocolآﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ ﺑﻪ ﻋﻨﻮان ﯾﮏ ﻣﻬﻨﺪس ﺷﺒﮑﻪ ﻧﯿﺎز اﺳﺖ ﺗﺎ ﺑﺎ ﺧﻄﻮط 1 Tﮐﻪ ﺳﺎﻟﻬﺎﺳﺖ ﺑﻪ ﻋﻨﻮان اﺳﺘﺎﻧﺪاردي ﺑﺎﻟﻔﻌﻞ ﺟﻬﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻣﺤﺪود ﺑﻪ ﺳﺮﻋﺖ 1.544Mbpsﺑﺎ ﺷﻌﺐ ﮐﻮﭼﮏ ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻣﯿﮕﯿﺮد آﺷﻨﺎ ﺑﺎﺷﯿﺪ.اﺳﺘﺎﻧﺪارد 1 Tدر ﻋﻤﻞ ﺑﻪ ﻣﺸﺘﻘﺎﺗﯽ ﺑﺎ ﭘﻬﻨﺎي ﺑﺎﻧﺪﻫﺎي ﮐﻤﺘﺮ ﻣﺎﻧﻨﺪ ﻣﺎﻧﻨﺪ 786Kbps،512Kbpsﯾﺎ ﺣﺘﯽ 1Mbpsﺗﻘﺴﯿﻢ ﻣﯿﺸﻮد. ﺧﻄﻮط 1 Tاز ﺑﻌﺪ ﻓﯿﺰﯾﮑﯽ زوج ﺳﯿﻤﻬﺎي ﻣﺴﯽ ﺑﻪ ﻫﻢ ﺗﺎﺑﯿﺪه ﺷﺪه اي ﻫﺴﺘﻨﺪ ﮐﻪ از ﻃﺮﯾﻖ ﮐﺎرﺗﻬﺎي اﻣﺮوزي ﺗﺮ ,1WIC-1DSU-T 2 WIC-1DSU-T1-Vﯾﺎ 1 CSU/DSU Tﮐﻨﺘﺮﻟﺮﻫﺎي دروﻧﯽ ﺧﻮد روﺗﺮ ﺑﻪ آن ﻣﺘﺼﻞ ﻣﯿﺸﻮﻧﺪ.در ﻧﻤﻮﻧﻪ ﻫﺎي ﻗﺪﯾﻤﯽ ﺗﺮ ﻧﯿﺰ ﻣﯿﺘﻮان اﯾﻦ اﺗﺼﺎﻻت را از ﻃﺮﯾﻖ ﮐﺎﺑﻠﻬﺎي 53. Vو ﮐﺎرﺗﻬﺎي WIC-1Tﯾﺎ WIC-2Tﻣﺸﺎﻫﺪه ﮐﺮد. WIC-1Tراﯾﺞ ﺗﺮﯾﻦ راﺑﻂ ﺳﺮﯾﺎل در ﻣﺤﯿﻄﻬﺎي آزﻣﺎﯾﺸﮕﺎﻫﯽ ﻣﯿﺒﺎﺷﺪ و در ﻫﻨﮕﺎم ﮐﺎﻧﻔﯿﮓ آن ﻧﯿﺎز ﺑﻪ ﺗﻨﻈﯿﻢ ﻧﺰخ Clockدر ﺳﻤﺖ DCEﮐﻪ ﺗﻮﺳﻂ ﺳﺮوﯾﺲ ﭘﺮواﯾﺪر ﺻﻮرت ﻣﯿﮕﯿﺮد و ﻫﻤﯿﻨﻄﻮر DTEﮐﻪ ﺗﻮﺳﻂ ﺷﻤﺎ ﺻﻮرت ﻣﯿﮕﯿﺮد ﻣﯿﺒﺎﺷﺪ. در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ دﺳﺘﻮرات زﯾﺮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. #/# :show controller serialﺟﻬﺖ ﻧﻤﺎﯾﺶ اﻃﻼﻋﺎت ﻣﺨﺘﺺ ﺑﻪ ﮐﻨﺘﺮﻟﺮ ﯾﮏ ﺳﺮﯾﺎل اﯾﻨﺘﺮﻓﯿﺲ ﺧﺎص ﺷﺎﻣﻞ ﻧﺮخ Clockو ﻧﻮع ﺗﺮﻣﯿﻨﯿﺸﻦ ﮐﺎﺑﻞ )(DTE or DCE # :clock rateﺟﻬﺖ ﺗﻨﻈﯿﻢ ﻧﺮخ Clockدر ﺳﻤﺖ DCE ] :encapsulation [ HDLC | PPPﺟﻬﺖ اﻧﺘﺨﺎب ﻧﻮع Encapsulation #/# :show interface serialﺟﻬﺖ ﻧﻤﺎﯾﺶ اﯾﻨﺘﺮﻓﯿﺲ ﺳﺮﯾﺎل ﻣﺸﺨﺺ ﺷﺪه ﻣﺎﻧﻨﺪ ﻧﻮع Utilization،Uptime،MTU،Encapsulationو ﻣﻮاردي از اﯾﻦ دﺳﺖ. ﭘﯿﺶ ﻧﯿﺎز ﻫﺎي آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري اﺗﺼﺎل ﮐﻨﺴﻮل ﺑﻪ 2R1,R ﺗﺨﺼﯿﺺ آدرﺳﻬﺎي 03/1.12.81.271 ﺑﻪ 1/0 Sدر 1 Rو 03/2.12.81.271 ﺑﻪ 1/0 Sدر 2R 092 Page 212 of
- 214. اﻫﺪاف آزﻣﺎﯾﺶ وﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﻤﯿﺎت از ﻃﺮﯾﻖHDLC ﮐﺎﻧﻔﯿﮓ اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ﺳﺮﯾﺎل روﺗﺮﻫﺎ ﺑﻪ ﻣﻨﻈﻮر ﺑﻬﺮه ﮔﯿﺮي از ﻣﺘﻨﺎﻇﺮ و ﭘﯿﻨﮓ دو ﻃﺮﻓﻪ ﻟﯿﻨﮏshow دﺳﺘﻮرات و ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﻤﯿﺎت از ﻃﺮﯾﻖPPP ﮐﺎﻧﻔﯿﮓ اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ﺳﺮﯾﺎل روﺗﺮﻫﺎ ﺑﻪ ﻣﻨﻈﻮر ﺑﻬﺮه ﮔﯿﺮي از ﻣﺘﻨﺎﻇﺮ و ﭘﯿﻨﮓ دو ﻃﺮﻓﻪ ﻟﯿﻨﮏshow دﺳﺘﻮرات دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ R1 con0 is now available Press RETURN to get started. R1>enable R1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R1(config)#interface Serial0/1 R1(config-if)#encapsulation hdlc R1(config-if)#no shutdown R1(config-if)#end R1# %SYS-5-CONFIG_I: Configured from console by console R1# %LINK-3-UPDOWN: Interface Serial0/1, changed state to up R1# %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/1, changed state to up R1# R2 con0 is now available Press RETURN to get started. R2>enable R2#configure terminal Enter configuration commands, one per line. R2(config)#interface Serial0/1 R2(config-if)#encapsulation hdlc R2(config-if)#no shutdown R2(config-if)#end R2# Page 213 of 290 End with CNTL/Z.
- 215. %SYS-5-CONFIG_I: Configured fromconsole by console R2# %LINK-3-UPDOWN: Interface Serial0/1, changed state to up R2# %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/1, changed state to up R2# ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت R1#show interface Serial0/1 Serial0/1 is up, line protocol is down Hardware is M4T MTU 1500 bytes, BW 1544 Kbit/sec, DLY 20000 usec, reliability 255/255, txload 1/255, rxload 1/255 Encapsulation HDLC, crc 16, loopback not set Keepalive set (10 sec) Restart-Delay is 0 secs Last input never, output 00:00:07, output hang never Last clearing of "show interface" counters never Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0 Queueing strategy: weighted fair Output queue: 0/1000/64/0 (size/max total/threshold/drops) Conversations 0/1/256 (active/max active/max total) Reserved Conversations 0/0 (allocated/max allocated) Available Bandwidth 1158 kilobits/sec 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec 0 packets input, 0 bytes, 0 no buffer Received 0 broadcasts, 0 runts, 0 giants, 0 throttles 0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort 38 packets output, 2332 bytes, 0 underruns 0 output errors, 0 collisions, 4 interface resets 0 unknown protocol drops 0 output buffer failures, 0 output buffers swapped out 5 carrier transitions DCD=up DSR=up DTR=up RTS=up CTS=up R1# ﭘﯿﻨﮓ دو ﻃﺮف ﻟﯿﻨﮏ ﺟﻬﺖ اﻃﻤﯿﻨﺎن از ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت R1#ping 172.18.21.2 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 172.18.21.2, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 24/42/88 ms R1# Page 214 of 290
- 216. و ﺗﺴﺖﺻﺤﺖ ﺗﻨﻈﻤﯿﺎت از ﻃﺮﯾﻖPPP ﮐﺎﻧﻔﯿﮓ اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ﺳﺮﯾﺎل روﺗﺮﻫﺎ ﺑﻪ ﻣﻨﻈﻮر ﺑﻬﺮه ﮔﯿﺮي از ﻣﺘﻨﺎﻇﺮ و ﭘﯿﻨﮓ دو ﻃﺮﻓﻪ ﻟﯿﻨﮏshow دﺳﺘﻮرات R1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R1(config)#interface Serial0/1 R1(config-if)#encapsulation ppp R1(config-if)#end R1# %SYS-5-CONFIG_I: Configured from console by console R1# %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/1, changed state to down R1# R2# %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/1, changed state to down R2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R2(config)#interface Serial0/1 R2(config-if)#encapsulation ppp R2(config-if)#end R2# %SYS-5-CONFIG_I: Configured from console by console %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/1, changed state to up R2# ﺑﻪline protocol وﺿﻌﯿﺖPPP ﺑﻪHDLC ازR1 درEncapsulation ﻫﻤﺎﻧﻄﻮر ﮐﻪ ﻣﺸﺎﻫﺪه ﻣﯿﺸﻮد ﭘﺲ از ﺗﻐﯿﯿﺮ . دو ﻃﺮف اﺳﺖEncapsulation در ﻣﯽ آﯾﺪ ﮐﻪ ﺑﻪ دﻟﯿﻞ ﯾﮑﺴﺎن ﻧﺒﻮدن وﺿﻌﯿﺖdown ﺣﺎﻟﺖ R1# %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/1, changed state to up R1# R1#show interface Serial0/1 Serial0/1 is up, line protocol is up Hardware is M4T Internet address is 172.18.21.1/30 MTU 1500 bytes, BW 1544 Kbit/sec, DLY 20000 usec, reliability 255/255, txload 1/255, rxload 1/255 Encapsulation PPP, LCP Open Open: IPCP, CDPCP, crc 16, loopback not set Keepalive set (10 sec) Restart-Delay is 0 secs Page 215 of 290
- 217. Last input 00:00:40,output 00:00:07, output hang never Last clearing of "show interface" counters 00:04:34 Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0 Queueing strategy: weighted fair Output queue: 0/1000/64/0 (size/max total/threshold/drops) Conversations 0/1/256 (active/max active/max total) Reserved Conversations 0/0 (allocated/max allocated) Available Bandwidth 1158 kilobits/sec 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec 54 packets input, 2146 bytes, 0 no buffer Received 0 broadcasts, 0 runts, 0 giants, 0 throttles 0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort 69 packets output, 2553 bytes, 0 underruns 0 output errors, 0 collisions, 2 interface resets 12 unknown protocol drops 0 output buffer failures, 0 output buffers swapped out 2 carrier transitions DCD=up DSR=up DTR=up RTS=up CTS=up R1#ping 172.18.21.2 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 172.18.21.2, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 16/49/88 ms R1# Page 216 of 290
- 218. آزﻣﺎﯾﺶ 2.5 –ﺗﻨﻈﯿﻤﺎت ﻟﯿﻨﮑﻬﺎي Framerelayﻧﻘﻄﻪ ﺑﻪ ﻧﻘﻄﻪ در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت و رﻓﻊ اﺷﮑﺎل ﻟﯿﻨﮑﻬﺎي ﻓﯿﺰﯾﮑﯽ Framerelayﻧﻘﻄﻪ ﺑﻪ ﻧﻘﻄﻪ در ﯾﮏ روﺗﺮ ﺳﯿﺴﮑﻮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﻣﺮور ﻣﻔﺎﻫﯿﻢ و ﮐﺎرﺑﺮد ﻋﻤﻠﯽ اﻣﺮوزه FRﺟﺰ ﺗﮑﻨﻮﻟﻮژﯾﻬﺎي رو ﺑﻪ زواﻟﯽ اﺳﺖ ﮐﻪ اﮐﺜﺮ ﮐﻤﭙﺎﻧﯿﻬﺎي ﺑﻪ ﻧﻔﻊ MPLSاز آن ﻣﻬﺎﺟﺮت ﻣﯿﮑﻨﻨﺪ اﻣﺎ ﮐﻨﺎر ﮔﺬاﺷﺘﻦ ﺟﻨﺒﻪ ﻫﺎي ﻣﻄﺎﻟﻌﺎﺗﯽ آن ﺑﺎ اﯾﻦ ﻫﺪف ﮐﻪ ﺑﻪ ﻃﻮر ﻋﺎم ﻗﺎﺑﻠﯿﺖ اﺟﺮا ﻧﺪارد ﮐﺎر درﺳﺘﯽ ﻧﯿﺴﺖ زﯾﺮا ﺑﺎ ﺣﺬف آن ﻋﻤﻼ راﻫﮑﺎر ﻣﻄﺎﻟﻌﺎﺗﯽ دﯾﮕﺮي ﺑﺮاي درك ﻣﻔﺎﻫﯿﻢ Packet switchingﺑﺎﻗﯽ ﻧﻤﯿﻤﺎﻧﺪ ﻣﻀﺎف ﺑﺮ اﯾﻨﮑﻪ ﺑﻪ ﻫﺮ ﺣﺎل ﺟﻬﺖ ﮔﺬراﻧﺪن اﻣﺘﺤﺎﻧﺎت رﺳﻤﯽ CCNAو ﺑﺎﻻﺗﺮ ﺑﻪ آن اﺣﺘﯿﺎج دارﯾﻢ. FRﯾﮏ ﺗﮑﻨﻮﻟﻮژي ﺳﻮﯾﯿﭽﯿﻨﮓ ﻻﯾﻪ 2 اﺳﺖ ﮐﻪ ﻓﺮاﯾﻨﺪ ﺳﻮﯾﯿﭽﯿﻨﮓ ﻓﺮﯾﻤﻬﺎ را از ﻃﺮﯾﻖ ﭘﺮواﯾﺪر ﻣﺮﺑﻮﻃﻪ اﻧﺠﺎم ﻣﯿﺪﻫﺪ.ﺑﻪ ﻫﺮﯾﮏ از اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ادوات در ﺗﻤﺎس ﺑﺎ ﭘﺮواﯾﺪر ) (Edge levelﯾﮏ DLCI (Data Link Connection ) Identifierﻣﻨﺘﺘﺴﺐ ﻣﯿﺸﻮد ﮐﻪ ﻣﻔﻬﻮﻣﯽ ﺷﺒﯿﻪ ﺷﻤﺎره ﺗﻠﻔﻨﻬﺎي داﺧﻠﯽ دارد ﻣﺜﻼ ﺷﻤﺎ ﺗﻠﻔﻦ ﺑﺎ ﺷﻤﺎره داﺧﻠﯽ 321 را ﺑﺮﻣﯿﺪارﯾﺪ و ﺑﺎ ﺷﻤﺎره 543 ﺗﻤﺎس ﻣﯿﮕﯿﺮﯾﺪ و ارﺗﺒﺎط دوﻃﺮف ﺑﺮﻗﺮار ﻣﯿﺸﻮد. FRﺑﻪ ﻫﺮ ﯾﮏ از ﻓﺮﯾﻤﻬﺎي ﺧﺮوﺟﯽ از اﯾﻨﺘﺮﻓﯿﺲ ادوات ﻟﺒﻪ اي ﯾﮏ DLCIﻣﻨﺘﺴﺐ ﻣﯿﮑﻨﺪ و ﻣﺒﯿﻦ ﻣﺴﯿﺮي اﺳﺖ ﮐﻪ ﭘﺲ از رﺳﯿﺪن ﺑﻪ روﺗﺮ ﻟﺒﻪ اي ﭘﺮواﯾﺪر ﻣﯽ ﺑﺎﯾﺴﺖ ﻃﯽ ﮐﻨﺪ. ﻟﯿﻨﮑﻬﺎي ﻧﻘﻄﻪ ﺑﻪ ﻧﻘﻄﻪ FRﺑﻪ دوﺷﮑﻞ ﮐﺎﻧﻔﯿﮓ ﻣﯿﺸﻮﻧﺪ.روش اول ﺗﺨﺼﯿﺺ DLCIﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ ﻣﺘﻨﺎﻇﺮ اﺳﺖ در اﯾﻦ ﺣﺎﻟﺖ ﻫﺮ ﻓﺮﯾﻤﯽ ﮐﻪ ﺑﻪ ﺳﻤﺖ اﯾﻦ اﯾﻨﺘﺮﻓﯿﺲ ﻣﯽ رود ﺑﺎ ﺷﻤﺎره DLCIﻣﻌﯿﻨﯽ ﺑﺮﭼﺴﭗ ﺧﻮرده و ﺧﺎرج ﻣﯿﺸﻮد.راه ﺣﻞ دوم اﯾﺠﺎد sub interfaceﻧﻘﻄﻪ ﺑﻪ ﻧﻘﻄﻪ اﺳﺖ ﮐﻪ در آزﻣﺎﯾﺶ ﺑﻌﺪي ﺑﻪ آن ﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ دﺳﺘﻮرات زﯾﺮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. :encapsulation frame-relayدر ﻣﻮد ﺗﻨﻈﯿﻢ اﯾﻨﺘﺮﻓﯿﺲ ﺳﺮﯾﺎل ﺑﺎ ﻫﺪف ﺗﻈﻨﯿﻢ encapsulationﺑﻪ FRاﺳﺘﻔﺎده ﻣﯿﺸﻮد # :frame-relay interface-dlciﺟﻬﺖ ﺗﺨﺼﯿﺺ DLCIﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ # :show frame-relay pvcﺟﻬﺖ ﻧﻤﺎﯾﺶ ﻫﻤﻪ DLCIﻫﺎي ﯾﺎد ﮔﺮﻓﺘﻪ ﺷﺪه ﺗﻮﺳﻂ روﺗﺮ از ﻃﺮﯾﻖ ﺳﻮﯾﯿﭻ FR ﻫﻤﯿﻨﻄﻮر اﻃﻼﻋﺎت ﻣﺮﺑﻮط ﺑﻪ وﺿﻌﯿﺖ PVCو ﻓﺮﯾﻤﻬﺎ ﭘﯿﺶ ﻧﯿﺎز آزﻣﺎﯾﺶ 092 Page 217 of
- 219. R1,R2 ﺑﺮﻗﺮاري ارﺗﺒﺎطﮐﻨﺴﻮل ﺑﺎ روﺗﺮﻫﺎي R2 درS0/0 و آدرس 03/2.12.01.01 ﺑﻪR1 درS0/0 ﺗﺨﺼﯿﺺ آدرس 03/1.12.01.01 ﺑﻪ اﻫﺪاف آزﻣﺎﯾﺶ آن و ﺗﺴﺖ ﺻﺤﺖDLCI و ﺗﺨﺼﯿﺺ 221 ﺑﻪFR ﺟﻬﺖ ﮐﭙﺴﻮﻟﻪ ﮐﺮدن ﺗﺮاﻓﯿﮏ از ﻃﺮﯾﻖR1 درs0/0 ﺗﻨﻈﯿﻢ ﺗﻨﻈﯿﻤﺎت آن و ﺗﺴﺖDLCI و ﺗﺨﺼﯿﺺ 122 ﺑﻪFR ﺟﻬﺖ ﮐﭙﺴﻮﻟﻪ ﮐﺮدن ﺗﺮاﻓﯿﮏ از ﻃﺮﯾﻖR2 درs0/0 ﺗﻨﻈﯿﻢ از ﻃﺮﯾﻖ ﻟﯿﻨﮏ اﯾﺠﺎد ﺷﺪهR1 ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت و ﭘﯿﻨﮓ دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ آن و ﺗﺴﺖ ﺻﺤﺖDLCI و ﺗﺨﺼﯿﺺ 221 ﺑﻪFR ﺟﻬﺖ ﮐﭙﺴﻮﻟﻪ ﮐﺮدن ﺗﺮاﻓﯿﮏ از ﻃﺮﯾﻖR1 درs0/0 ﺗﻨﻈﯿﻢ ﺗﻨﻈﯿﻤﺎت R1 con0 is now available Press RETURN to get started. R1>enable R1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R1(config)#interface Serial0/0 R1(config-if)#no shutdown R1(config-if)# %LINK-3-UPDOWN: Interface Serial0/0, changed state to up R1(config-if)# %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0, changed state to up R1(config-if)#encapsulation frame-relay R1(config-if)#frame-relay interface-dlci 122 R1(config-fr-dlci)#end R1# %SYS-5-CONFIG_I: Configured from console by console R1# show pvc ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت از ﻃﺮﯾﻖ دﺳﺘﻮر R1#show interface serial0/0 Page 218 of 290
- 220. Serial0/0 is up,line protocol is up Hardware is PowerQUICC Serial Internet address is 10.10.12.1/30 MTU 1500 bytes, BW 1544 Kbit/sec, DLY 20000 usec, reliability 255/255, txload 1/255, rxload 1/255 Encapsulation FRAME-RELAY, loopback not set Keepalive set (10 sec) CRC checking enabled LMI enq sent 18, LMI stat recvd 18, LMI upd recvd 0, DTE LMI up LMI enq recvd 0, LMI stat sent 0, LMI upd sent 0 LMI DLCI 1023 LMI type is CISCO frame relay DTE FR SVC disabled, LAPF state down Broadcast queue 0/64, broadcasts sent/dropped 0/0, interface broadcasts 0 Last input 00:00:00, output 00:00:06, output hang never Last clearing of "show interface" counters 00:04:50 Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0 Queueing strategy: weighted fair Output queue: 0/1000/64/0 (size/max total/threshold/drops) Conversations 0/1/256 (active/max active/max total) Reserved Conversations 0/0 (allocated/max allocated) Available Bandwidth 1158 kilobits/sec 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec 36 packets input, 1604 bytes, 0 no buffer Received 0 broadcasts, 0 runts, 0 giants, 0 throttles 1 input errors, 0 CRC, 1 frame, 0 overrun, 0 ignored, 0 abort 23 packets output, 684 bytes, 0 underruns 0 output errors, 0 collisions, 1 interface resets 0 unknown protocol drops 0 output buffer failures, 0 output buffers swapped out 0 carrier transitions DCD=up DSR=up DTR=up RTS=up CTS=up R1#show frame-relay pvc 122 PVC Statistics for interface Serial0/0 (Frame Relay DTE) DLCI = 122, DLCI USAGE = LOCAL, PVC STATUS = ACTIVE, INTERFACE = Serial0/0 input pkts 26 output pkts 4 in bytes 1554 out bytes 416 dropped pkts 0 in pkts dropped 0 out pkts dropped 0 out bytes dropped 0 in FECN pkts 0 in BECN pkts 0 out FECN pkts 0 out BECN pkts 0 in DE pkts 0 out DE pkts 0 out bcast pkts 0 out bcast bytes 0 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec pvc create time 00:03:46, last time pvc status changed 00:02:04 R1# ﻏﯿﺮ ﻓﻌﺎل اﺳﺖ.اﯾﻦ ﺑﺪﯾﻦ ﺧﺎﻃﺮ اﺳﺖ ﮐﻪ ﺳﻤﺖ دوم ﻟﯿﻨﮏDLCI 122 ﻣﺘﻌﻠﻖ ﺑﻪPVC ﻫﻤﺎﻧﻄﻮر ﮐﻪ ﻣﺸﺎﻫﺪه ﻣﯿﺸﻮد ﻓﻌﺎل ﺧﻮاﻫﺪ ﺷﺪ و ﺗﺮاﻓﯿﮏ دو ﻃﺮﻓﻪ ﻋﺒﻮرPVC ﮐﺎﻧﻔﯿﮓ ﺷﻮدR2 ﻏﯿﺮ ﻓﻌﺎل اﺳﺖ.ﺑﻪ ﻣﺤﺾ اﯾﻨﮑﻪ اﯾﻨﺘﺮﻓﯿﺲ ﻣﺘﻨﺎﻇﺮ در .ﺧﻮاﻫﺪ ﮐﺮد Page 219 of 290
- 221. آن وﺗﺴﺖDLCI و ﺗﺨﺼﯿﺺ 122 ﺑﻪFR ﺟﻬﺖ ﮐﭙﺴﻮﻟﻪ ﮐﺮدن ﺗﺮاﻓﯿﮏ از ﻃﺮﯾﻖR2 درs0/0 ﺗﻨﻈﯿﻢ از ﻃﺮﯾﻖ ﻟﯿﻨﮏ اﯾﺠﺎد ﺷﺪهR1 ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت و ﭘﯿﻨﮓ R2 con0 is now available Press RETURN to get started. R2>enable R2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R2(config)#interface Serial0/0 R2(config-if)#no shutdown R2(config-if)# %LINK-3-UPDOWN: Interface Serial0/0, changed state to up R2(config-if)# %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0, changed state to up R2(config-if)#encapsulation frame-relay R2(config-if)#frame-relay interface-dlci 221 R2(config-fr-dlci)#end R2# %SYS-5-CONFIG_I: Configured from console by console R2# ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت R2#show frame-relay pvc 221 PVC Statistics for interface Serial0/0 (Frame Relay DTE) DLCI = 221, DLCI USAGE = LOCAL, PVC STATUS = ACTIVE, INTERFACE = Serial0/0 input pkts 9 output pkts 40 in bytes 796 out bytes 2390 dropped pkts 0 in pkts dropped 0 out pkts dropped 0 out bytes dropped 0 in FECN pkts 0 in BECN pkts 0 out FECN pkts 0 out BECN pkts 0 in DE pkts 0 out DE pkts 0 out bcast pkts 33 out bcast bytes 1662 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec pvc create time 00:04:40, last time pvc status changed 00:00:04 R2#ping 10.10.12.1 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.10.12.1, timeout is 2 seconds: ..!!! Success rate is 60 percent (3/5), round-trip min/avg/max = 28/29/32 ms R2# Page 220 of 290
- 222. آزﻣﺎﯾﺶ 3.5 –ﺗﻨﻈﯿﻤﺎت Sub interfaceدر ارﺗﺒﺎﻃﺎت Ppoint to point Frame relay در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت اﯾﺠﺎد ﺗﻌﺪاد زﯾﺎدي ارﺗﺒﺎط ﻧﻘﻄﻪ ﺑﻪ ﻧﻘﻄﻪ ﻣﺒﺘﻨﯽ ﺑﺮ FRاز ﻃﺮﯾﻖ ﯾﮏ اﯾﻨﺘﺮﻓﯿﺲ ﻓﯿﺰﯾﮑﯽ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ در دو درس ﮔﺬﺷﺘﻪ ﺑﺎ ﮐﻠﯿﺎت FRو ﻟﯿﻨﮑﻬﺎي PTPآﺷﻨﺎ ﺷﺪﯾﻢ در اﯾﻦ درس ﻗﺼﺪ دارﯾﻢ ﭘﺎ را ﻓﺮاﺗﺮ ﮔﺬاﺷﺘﻪ و ﺗﻌﺪاد زﯾﺎدي ارﺗﺒﺎط ﻧﻘﻄﻪ ﺑﻪ ﻧﻘﻄﻪ را از ﻃﺮﯾﻖ ﯾﮏ روﺗﺮ و ﯾﮏ اﯾﻨﺘﺮﻓﯿﺲ ﻓﯿﺰﯾﮑﯽ اﻣﺎ ﺑﺎ ﺑﻬﺮه ﮔﯿﺮي از ﺗﻌﺪادي -Sub interfaceﺑﻪ ﻣﻨﻈﻮر اﯾﺠﺎد PVCﻫﺎي ﻣﺘﻌﺪد ﻣﺘﻨﺎﻇﺮ ﺑﺎ ﻫﺮ ﻣﺴﯿﺮ ارﺗﺒﺎﻃﯽ اﯾﺠﺎد ﮐﻨﯿﻢ. در آزﻣﺎﯾﺶ ﻗﺒﻞ 1 Rاز ﻃﺮﯾﻖ اﯾﻨﺘﺮﻓﯿﺲ ﻓﯿﺰﯾﮑﯽ ﺧﻮد ﺑﻪ 2 Rﻣﺘﺼﻞ ﺷﺪ . ﺑﺎ اﯾﺠﺎد ﯾﮏ Sub-interfaceﻣﺒﺘﻨﯽ ﺑﺮ FR ﮐﻪ ﺑﻪ آن ﯾﮏ Dlciﺗﺨﺼﯿﺺ داده ﺷﺪه اﺳﺖ ﻣﯿﺘﻮان ارﺗﺒﺎط FRدوم را ﺑﺎ 3 Rﺑﺮﻗﺮار ﮐﺮد.ﺗﻮﺻﯿﻪ ﻣﯿﺸﻮد در ﻫﻨﮕﺎم ﺗﺨﺼﯿﺺ DLciﺑﻪ Sub-interfaceﻫﺎ از ﻫﻤﺎن ﺷﻤﺎره Sub-interfaceﺟﻬﺖ اﯾﺠﺎد ﺳﻬﻮﻟﺖ ﺑﯿﺸﺘﺮ در ﻣﺴﺘﻨﺪ ﺳﺎزي ﺷﺒﮑﻪ اﺳﺘﻔﺎده ﺷﻮد. در اﯾﻦ آزﻣﺎﯾﺶ از دﺳﺘﻮر زﯾﺮ اﺳﺘﻔﺎده ﺧﻮاﻫﯿﻢ ﮐﺮد. :interface Serial#/#.### point-to-poinاﯾﻦ دﺳﺘﻮر ﯾﮏ sub-interfaceﻧﻘﻄﻪ ﺑﻪ ﻧﻘﻄﻪ ﺟﻬﺖ ﺗﺨﺼﯿﺺ Dlci ﺑﻪ آن اﯾﺠﺎد ﻣﯿﮑﻨﺪ. ﭘﯿﺶ ﻧﯿﺎز ﻫﺎي آزﻣﺎﯾﺶ اﯾﺠﺎد ارﺗﺒﺎط ﮐﻨﺴﻮل ﺑﺎ روﺗﺮﻫﺎي 3R1,R2,R ﺗﻨﻈﯿﻢ encapsulationاﯾﻨﺘﺮﻓﯿﺴﻬﺎي ﺳﺮﯾﺎل 3 R1,R2,Rﺑﻪ FR اﻫﺪاف آزﻣﺎﯾﺶ اﯾﺠﺎد دو ﺳﺎب اﯾﻨﺘﺮﻓﯿﺲ 221.0/0 Serialو 321.0/0 Serialدر 1 Rو ﺗﺨﺼﯿﺺ 122,123 Dlci اﯾﺠﺎد 122.0/0 Serialدر 2 Rو ﺗﺨﺼﯿﺺ 122 Dlciو آدرس 03/2.21.81.271 ﺑﻪ آن وآدرﺳﻬﺎي 03/1.21.81.271 و 03/1.31.81.271 ﺑﻪ آﻧﻬﺎ اﯾﺠﺎد 123.0/0 Serialدر 2 Rو ﺗﺨﺼﯿﺺ 123 Dlciو آدرس 03/2.31.81.271 ﺑﻪ آن ﺑﺮرﺳﯽ ﺻﺤﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط FRاز ﻃﺮﯾﻖ دﺳﺘﻮر show frame-relay pvcو ﭘﯿﻨﮓ از ﺳﻤﺖ 1R 092 Page 221 of
- 223. دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ 321,221 وآدرﺳﻬﺎيDlci و ﺗﺨﺼﯿﺺR1 درSerial0/0.123 وSerial0/0.122 اﯾﺠﺎد دو ﺳﺎب اﯾﻨﺘﺮﻓﯿﺲ 03/1.21.81.271 و 03/1.31.81.271 ﺑﻪ آﻧﻬﺎ R1 con0 is now available Press RETURN to get started. R1>enable R1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R1(config)#interface Serial0/0.122 point-to-point R1(config-subif)#ip address 172.18.12.1 255.255.255.252 R1(config-subif)#frame-relay interface-dlci 122 R1(config-fr-dlci)#exit R1(config-subif)#interface Serial0/0.123 point-to-point R1(config-subif)#ip address 172.18.13.1 255.255.255.252 R1(config-subif)#frame-relay interface-dlci 123 R1(config-subif)#end R1# %SYS-5-CONFIG_I: Configured from console by console R1# و آدرس 03/2.21.81.271 ﺑﻪ آنDlci 221 و ﺗﺨﺼﯿﺺR2 درSerial0/0.221 اﯾﺠﺎد R2 con0 is now available Press RETURN to get started. R2>enable R2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R2(config)#interface Serial0/0.221 point-to-point R2(config-subif)#ip add 172.18.12.2 255.255.255.252 R2(config-subif)#frame-relay interface-dlci 221 R2(config-fr-dlci)#end R2# %SYS-5-CONFIG_I: Configured from console by console R2# و آدرس 03/2.31.81.271 ﺑﻪ آنDlci 321 و ﺗﺨﺼﯿﺺR2 درSerial0/0.321 اﯾﺠﺎد R3 con0 is now available Press RETURN to get started. Page 222 of 290
- 224. R3>enable R3#configure terminal Enter configurationcommands, one per line. End with CNTL/Z. R3(config)#interface Serial0/0.321 point-to-point R3(config-subif)#ip add 172.18.13.2 255.255.255.252 R3(config-subif)#frame-relay interface-dlci 321 R3(config-fr-dlci)#end R3# %SYS-5-CONFIG_I: Configured from console by console R3# R1 و ﭘﯿﻨﮓ از ﺳﻤﺖshow frame-relay pvc از ﻃﺮﯾﻖ دﺳﺘﻮرFR ﺑﺮرﺳﯽ ﺻﺤﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط R1#show frame-relay pvc PVC Statistics for interface Serial0/0 (Frame Relay DTE) Local Switched Unused Active 2 0 2 Inactive 0 0 0 Deleted 0 0 0 Static 0 0 0 DLCI = 122, DLCI USAGE = LOCAL, PVC STATUS = ACTIVE, INTERFACE = Serial0/0.122 input pkts 20 output pkts 19 in bytes 5395 out bytes 5187 dropped pkts 0 in pkts dropped 0 out pkts dropped 0 out bytes dropped 0 in FECN pkts 0 in BECN pkts 0 out FECN pkts 0 out BECN pkts 0 in DE pkts 0 out DE pkts 0 out bcast pkts 14 out bcast bytes 4667 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec pvc create time 00:14:33, last time pvc status changed 00:14:33 DLCI = 123, DLCI USAGE = LOCAL, PVC STATUS = ACTIVE, INTERFACE = Serial0/0.123 input pkts 22 output pkts 20 in bytes 6045 out bytes 4380 dropped pkts 0 in pkts dropped 0 out pkts dropped 0 out bytes dropped 0 in FECN pkts 0 in BECN pkts 0 out FECN pkts 0 out BECN pkts 0 in DE pkts 0 out DE pkts 0 out bcast pkts 10 out bcast bytes 3340 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec pvc create time 00:17:27, last time pvc status changed 00:17:27 R1#ping 172.18.12.2 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 172.18.12.2, timeout is 2 seconds: Page 223 of 290
- 225. !!!!! Success rate is100 percent (5/5), round-trip min/avg/max = 8/82/188 ms R1#ping 172.18.13.2 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 172.18.13.2, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 28/96/168 ms R1# Page 224 of 290
- 226. آزﻣﺎﯾﺶ 4.5-ﺗﻨﻈﯿﻤﺎت ﯾﮏﻧﻘﻄﻪ ﺑﻪ ﭼﻨﺪ ﻧﻘﻄﻪ در FrameRealy در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺑﺮﻗﺮاري ارﺗﺒﺎط FRﻣﺎﺑﯿﻦ ﺗﻌﺪادي ﻧﻘﻄﻪ ﭘﺮاﮐﻨﺪه ﺑﺎ ﯾﮏ ﻧﻘﻄﻪ ﻣﺮﮐﺰي آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﻣﺮور ﻣﻔﺎﻫﯿﻢ و ﮐﺎرﺑﺮد ﻋﻤﻠﯽ ﺗﺼﻮر ﮐﻨﯿﺪ ﺷﺮﮐﺖ ﺷﻤﺎ داراي ﯾﮏ دﻓﺘﺮ ﻣﺮﮐﺰي ﺑﺎ ﯾﮑﯽ از روﺗﺮﻫﺎي ﭘﺮﻗﺪرت ﺳﯿﺴﮑﻮ ﻣﺎﻧﻨﺪ ﺳﺮي 0027 اﺳﺖ و ﻣﯿﺨﻮاﻫﯿﺪ ﺷﻌﺐ ﭘﺮاﮐﻨﺪه ﺧﻮد را ﻣﺒﺘﻨﯽ ﺑﺮ ﯾﮏ ارﺗﺒﺎط FRﺑﻪ اﯾﻦ ﻧﻘﻄﻪ وﺻﻞ ﮐﻨﯿﺪ در ﻋﯿﻦ ﺣﺎل ﻣﺎﯾﻞ ﻫﺴﺘﯿﺪ اﯾﻦ ﺷﻌﺐ ﻧﯿﺰ از ﻃﺮﯾﻖ ﻣﺴﯿﺮ ﻋﺒﻮري از دﻓﺘﺮ ﻣﺮﮐﺰي ﺑﺎ ﯾﮑﺪﯾﮕﺮ در ارﺗﺒﺎط ﺑﺎﺷﻨﺪ. ﭘﺎﺳﺦ اﯾﻦ ﻣﺴﺌﻠﻪ در ﺑﻬﺮه ﮔﯿﺮي از ﻣﻔﻬﻮم Hub-and-Spokeﻧﻬﻔﺘﻪ اﺳﺖ.اﯾﻦ ﻣﺪل ﺷﺒﮑﻪ اي اﺟﺎزه ﻣﯿﺪﻫﺪ ﺗﺎ ﺑﺎ داﺷﺘﻦ ﯾﮏ ﻧﻘﻄﻪ ﻣﺮﮐﺰي ﺑﺘﻮان ﺑﺎ ﺳﺎﯾﺮ ﻧﻘﺎط ارﺗﺒﺎط ﺑﺮﻗﺮار ﮐﺮد ﻣﻀﺎف ﺑﺮ اﯾﻨﮑﻪ ﺳﺎﯾﺮ ﻧﻘﺎط ﻧﯿﺰ از ﻃﺮﯾﻖ ﻫﻤﯿﻦ ﻧﻄﻘﻪ ﺑﻪ ﯾﮑﺪﯾﮕﺮ دﺳﺘﺮﺳﯽ ﺧﻮاﻫﻨﺪ داﺷﺖ. در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﻣﻔﻬﻮم ﺟﺪﯾﺪ Frame relay mapﻧﯿﺰ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ.ﻧﻘﺸﻪ ﻣﺬﺑﻮر اﺟﺎزه ﻣﯿﺪﻫﺪ ﺗﺎ ﻧﮕﺎﺷﺘﯽ ﻣﺎﺑﯿﻦ IPآدرس و DLCIاﯾﺠﺎد ﺷﻮد.اﯾﻦ ﻗﺎﺑﻠﯿﺖ ﺑﻪ روﺗﺮ اﺟﺎزه ﻣﯿﺪﻫﺪ ﺗﺎ ﻣﺘﻨﺎﻇﺮ ﺑﻪ ﻫﺮ آدرﺳﯽ ﮐﻪ ﺑﺴﺘﻪ ﻫﺎي اﻃﻼﻋﺎﺗﯽ را ارﺳﺎل ﻣﯿﮑﻨﺪ ﯾﮏ DLCIﻣﺠﺰا ﺑﻪ آﻧﻬﺎ ﻣﻨﺘﺴﺐ ﮐﻨﺪ. در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ دﺳﺘﻮر زﯾﺮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. # . frame-relay map ip x.x.x.x dlciاﯾﻦ دﺳﺘﻮر در ﻫﻨﮕﺎم اﻋﻤﺎل ﺑﻪ ﯾﮏ اﯾﻨﺘﺮﻓﯿﺲ ﺳﺮﯾﺎل ﻓﯿﺰﯾﮑﯽ ﯾﺎ -sub interfaceﻧﻘﻄﻪ ﺑﻪ ﭼﻨﺪ ﻧﻘﻄﻪ FRﯾﮏ آدرس را ﺑﻪ ﯾﮏ DLCIﻣﺘﻨﺎﻇﺮ mapﻣﯿﮑﻨﺪ. ﻫﻨﮕﺎﻣﯽ ﻫﻢ ﮐﻪ ﻋﺒﺎرت broadcastرا در اﻧﺘﻬﺎي دﺳﺘﻮر ﻓﻮق ﺑﻪ ﮐﺎر ﻣﯿﺒﺮﯾﻢ ﻋﺒﻮر ﺗﺮاﻓﯿﮏ ﺑﺮادﮐﺴﺖ را روي اﯾﻦ ﻟﯿﻨﮏ ﻣﺠﺎز ﺧﻮاﻫﺪ ﺷﺪ. . Interface Serial#/#.### multipointاﺟﺮاي اﯾﻦ دﺳﺘﻮر ﺑﺎﻋﺚ اﯾﺠﺎد ﯾﮏ ﺳﺎب اﯾﻨﺘﺮﻓﯿﺲ ﻧﻘﻄﻪ ﺑﻪ ﭼﻨﺪ ﻧﻘﻄﻪ FRﺧﻮاﻫﺪ ﺷﺪ و ﻫﻤﺎﻧﻨﺪ ﯾﮏ اﯾﻨﺘﺮﻓﯿﺲ ﻓﯿﺰﯾﮑﯽ ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﺧﻮاﻫﺪ ﮔﺮﻓﺖ ﺑﺎ اﯾﻦ ﺗﻔﺎوت ﮐﻪ ﺗﻨﻬﺎ ﺗﺮاﻓﯿﮏ ﻧﻘﺎط ﭼﻨﺪﮔﺎﻧﻪ راه دور از آن ﻋﺒﻮر ﺧﻮاﻫﺪ ﮐﺮد. show frame-relay mapﺑﺎﻋﺚ ﻧﻤﺎﯾﺶ ﺟﺪول ﻧﮕﺎﺷﺖ آدرس ﺑﻪ DLCIﻣﯿﺸﻮد ﻓﺎرق از اﯾﻨﮑﻪ اﺳﺘﺎﺗﯿﮏ ﯾﺎ داﯾﻨﺎﻣﯿﮏ ﺑﺎﺷﻨﺪ ﻣﯿﺸﻮد. ﻓﺮاﯾﻨﺪ ﻧﮕﺎﺷﺖ داﯾﻨﺎﻣﯿﮏ را درس آزﻣﺎﯾﺶ ﺑﻌﺪي ﮐﻪ ﺑﻪ ARPﻣﻌﮑﻮس ﻣﯽ ﭘﺮدازد ﺧﻮاﻫﯿﻢ دﯾﺪ. ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﮐﻨﺴﻮل ﺑﺎ روﺗﺮﻫﺎي 3R1,R2,R 092 Page 225 of
- 227. ﺗﺨﺼﯿﺺ آدرس 92/1.321.45.01ﺑﻪ 0/0 Sدر 1 Rﺑﻪ ﻫﻤﺮاه FR Encapsulation ﺗﺨﺼﯿﺺ آدرس 92/2.321.45.01 ﺑﻪ 122.0/0 Sدر 2 Rﺑﻪ ﻋﻨﻮان اﯾﻨﺘﺮﻓﯿﺲ ﻧﻘﻄﻪ ﺑﻪ ﻧﻘﻄﻪ و ﺑﺎ 122 DLCI ﺗﺨﺼﯿﺺ آدرس 92/2.321.45.01 ﺑﻪ 123.0/0 Sدر 2 Rﺑﻪ ﻋﻨﻮان اﯾﻨﺘﺮﻓﯿﺲ ﻧﻘﻄﻪ ﺑﻪ ﻧﻘﻄﻪ و ﺑﺎ 123 DLCI اﻫﺪاف ﺗﻨﻈﯿﻢ 0/0 Sدر 1 Rﺑﺎ دو Map . Mapاول ﺟﻬﺖ ﻧﮕﺎﺷﺖ آدرس 0/0 Sدر 2 Rﺑﻪ 221 DLCIو Mapدوم ﺟﻬﺖ ﻧﮕﺎﺷﺖ آدرس 0/0 Sدر 3R ﺗﺴﺖ ﺻﺤﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻣﺎﺑﯿﻦ 1 Rو ﺳﺎﯾﺮﯾﻦ ﻫﻤﯿﻨﻄﻮر ﻣﺎﺑﯿﻦ 3R2,R ﺣﺬف ﺗﻨﻈﯿﻤﺎت ﻗﺒﻠﯽ از 1 Rو اﯾﺠﺎد ﺳﺎب اﯾﻨﺘﺮﻓﯿﺲ ﻧﻘﻄﻪ ﺑﻪ ﭼﻨﺪ ﻧﻘﻄﻪ ﻫﻤﯿﻨﻄﻮر اﯾﺠﺎد ﺟﺪول ﻧﮕﺎﺷﺖ آدرس ﺑﻪ Dlci ﻣﺘﻨﺎﻇﺮ ﺗﺴﺖ ﺻﺤﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻣﺎﺑﯿﻦ ) R1(hubو ﺳﺎﯾﺮﯾﻦ ) (spokesﻫﻤﯿﻨﻄﻮر ﻣﺎﺑﯿﻦ 2R1,R دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ ﺗﻨﻈﯿﻢ 0/0 Sدر 1 Rﺑﺎ دو Map . Mapاول ﺟﻬﺖ ﻧﮕﺎﺷﺖ آدرس 0/0 Sدر 2 Rﺑﻪ 221 DLCIو Mapدوم ﺟﻬﺖ ﻧﮕﺎﺷﺖ آدرس 0/0 Sدر 3R R1 con0 is now available .Press RETURN to get started R1>enable R1#configure terminal .Enter configuration commands, one per line. End with CNTL/Z 0/0R1(config)#interface Serial R1(config-if)#frame-relay map ip 10.54.123.2 122 broadcast R1(config-if)#frame-relay map ip 10.54.123.3 123 broadcast R1(config-if)#end #1R %SYS-5-CONFIG_I: Configured from console by console #1R ﺗﺴﺖ ﺻﺤﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻣﺎﺑﯿﻦ 1 Rو ﺳﺎﯾﺮﯾﻦ ﻫﻤﯿﻨﻄﻮر ﻣﺎﺑﯿﻦ 3R2,R 1.321.45.01 R2#ping .Type escape sequence to abort 092 Page 226 of
- 228. Sending 5, 100-byteICMP Echos to 10.54.123.1, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 28/75/172 ms R2##ping 10.54.123.3 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.54.123.3, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 28/136/300 ms R2# ﻣﺘﻨﺎﻇﺮDlci و اﯾﺠﺎد ﺳﺎب اﯾﻨﺘﺮﻓﯿﺲ ﻧﻘﻄﻪ ﺑﻪ ﭼﻨﺪ ﻧﻘﻄﻪ ﻫﻤﯿﻨﻄﻮر اﯾﺠﺎد ﺟﺪول ﻧﮕﺎﺷﺖ آدرس ﺑﻪR1 ﺣﺬف ﺗﻨﻈﯿﻤﺎت ﻗﺒﻠﯽ از R1#configure terminal Enter configuration commands, one per line. R1(config)#default interface Serial0/0 Building configuration... End with CNTL/Z. Interface Serial0/0 set to default configuration R1(config)# %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0, changed state to down R1(config)#interface Serial0/0 R1(config-if)#encapsulation frame-relay R1(config-if)#interface serial0/0.123 multipoint R1(config-if)#ip address 10.54.123.1 255.255.255.248 R1(config-if)#frame map ip 10.54.123.2 122 broadcast R1(config-if)#frame map ip 10.54.123.3 123 broadcast R1(config-subif)#end R1# %SYS-5-CONFIG_I: Configured from console by console R1#show frame-relay map Serial0/0.123 (up): ip 10.54.123.2 dlci 122(0x7A,0x1CA0), static, broadcast, CISCO, status defined, active Serial0/0.123 (up): ip 10.54.123.3 dlci 123(0x7B,0x1CB0), static, broadcast, CISCO, status defined, active R1# R1,R2 ( ﻫﻤﯿﻨﻄﻮر ﻣﺎﺑﯿﻦspokes) و ﺳﺎﯾﺮﯾﻦR1(hub) ﺗﺴﺖ ﺻﺤﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻣﺎﺑﯿﻦ R2#ping 10.54.123.1 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.54.123.1, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 28/75/124 ms R2#ping 10.54.123.3 Type escape sequence to abort. Page 227 of 290
- 229. Sending 5, 100-byteICMP Echos to 10.54.123.3, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 52/121/264 ms R2# R3#ping 10.54.123.1 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.54.123.1, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 24/83/156 ms R3# Page 228 of 290
- 230. آزﻣﺎﯾﺶ 5.5 –ﺗﻨﻈﯿﻤﺎت Arpﻣﻌﮑﻮس در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت ARPﻣﻌﮑﻮس در ﻟﯿﻨﮑﻬﺎي FRﺑﺎ ﻫﺪف ﺗﺸﮑﯿﻞ ﺧﻮدﮐﺎر ﺟﺪول ﻧﮕﺎﺷﺖ آدرس ﺑﻪ DLCIآﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ در آزﻣﺎﯾﺶ ﭘﯿﺸﯿﻦ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت اﺳﺘﺎﺗﯿﮏ ﺟﺪول ﻧﮕﺎﺷﺖ آدرس ﺑﻪ DLCIآﺷﻨﺎ ﺷﺪﯾﻢ . ﻓﺮاﯾﻨﺪ ARP ﻣﻌﮑﻮس اﯾﻦ ﻧﮕﺎﺷﺖ را از ﻃﺮﯾﻖ ﯾﺎدﮔﯿﺮي آدرس ﻟﯿﻨﮑﻬﺎي ﻫﻤﺴﺎﯾﻪ و ﺗﺸﮑﯿﻞ ﺧﻮدﮐﺎر ﺟﺪول ﻣﺬﺑﻮر ﺑﻪ اﻧﺠﺎم ﻣﯿﺮﺳﺎﻧﺪ. اﯾﻦ وﯾﮋﮔﯽ در ﻋﯿﻦ ﻣﻔﯿﺪ ﺑﻮدن داراي اﺛﺮات ﺟﺎﻧﺒﯽ ﺧﺎص ﺧﻮد ﻧﯿﺰ ﻫﺴﺖ و ﺑﻌﻀﺎ وﻗﺖ زﯾﺎدي را از ﻣﻬﻨﺪﺳﯿﻦ ﺷﺒﮑﻪ ﺑﺮاي رﻓﻊ ﻋﯿﻮب آن ﺗﻠﻒ ﻣﯿﮑﻨﺪ. ﻓﺮض ﮐﻨﯿﺪ ﮐﻪ ﭘﺮواﯾﺪر ﯾﮏ DLCIﺟﺪﯾﺪ ﺑﺮاي ﺷﻤﺎ ﻓﻌﺎل ﮐﺮده و ﻗﺮار اﺳﺖ روي ﯾﮏ ﻟﯿﻨﮏ ﻧﻘﻄﻪ ﺑﻪ ﻧﻘﻄﻪ ﺑﺎ ﻣﻼﺣﻀﺎت security policyوﯾﮋه اي اﻋﻤﺎل ﺷﻮد.ﻫﻨﮕﺎﻣﯽ ﮐﻪ DLCIﻓﻌﺎل ﻣﯿﺸﻮد و روﺗﺮ ﻫﺎ ﻧﯿﺰ داراي ﺗﻨﻈﯿﻤﺎت آدرس ﺻﺤﯿﺢ ﺑﺎﺷﻨﺪ ﻓﺮاﯾﻨﺪ ARPﻣﻌﮑﻮس ﺑﻪ ﻃﻮر ﺧﻮدﮐﺎر ﻧﮕﺎﺷﺖ ﻣﺎﺑﯿﻦ اﯾﻦ دو را اﻧﺠﺎم ﻣﯿﺪﻫﺪ و ﻣﻮﺟﺒﺎت ﯾﮏ رﯾﺴﮏ اﻣﻨﯿﺘﯽ را ﻓﺮاﻫﻢ ﻣﯿﮑﻨﺪ. ﻧﮑﺘﻪ ﻣﻨﻔﯽ دﯾﮕﺮ اﯾﻦ ﺧﺎﺻﯿﺖ اﯾﺠﺎد ﺣﻠﻘﻪ ﻫﺎي ﻧﺎﺧﻮاﺳﺘﻪ در ﻣﺴﯿﺮ ﯾﺎﺑﯽ اﺳﺖ. اﻧﺠﺎم ﺗﻨﻈﯿﻤﺎت ARPﻣﻌﮑﻮس ﺑﺴﯿﺎر ﺳﺎده اﺳﺖ و ﺑﻪ ﻃﻮر ﭘﯿﺶ ﻓﺮض روي ﻫﻤﻪ اﯾﻨﺘﺮﻓﺴﻬﺎي ﭼﻨﺪ ﻧﻘﻄﻬﺎي FRﻓﻌﺎل اﺳﺖ.در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ دﺳﺘﻮرات زﯾﺮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. : no frame-relay inverse-arpﻣﻮﺟﺒﺎت ﻏﯿﺮ ﻓﻌﺎل ﺷﺪن ﻗﺎﺑﻠﯿﺖ ARPﻣﻌﮑﻮس را ﻓﺮاﻫﻢ ﻣﯿﮑﻨﺪ و ﭘﺲ از آن ﻣﯿﺒﺎﯾﺴﺖ از ﻧﮕﺎﺷﺖ اﺳﺘﺎﺗﯿﮏ آدرس ﺑﻪ DLCIاﺳﺘﻔﺎده ﺷﻮد :clear frame-relay inarpﺑﺎﻋﺚ ﭘﺎك ﺷﺪن ﺟﺪول داﯾﻨﺎﻣﯿﮏ ﻧﮕﺎﺷﺖ آدرس ﺑﻪ DLCIﻣﯿﺸﻮد. ﭘﯿﺶ ﻧﯿﺎز آزﻣﺎﯾﺶ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﮐﻨﺴﻮل ﺑﺎ روﺗﺮﻫﺎي 3R1,R2,R ﺗﻨﻈﯿﻢ 0/0 Sدر 1 Rﺑﺎ آدرس 92/1.321.55.01 و FR encapsulation ﺗﻨﻈﯿﻢ 122.0/0 Sدر 2 Rﺑﻪ ﻋﻨﻮان sub-interfaceﻧﻘﻄﻪ ﺑﻪ ﻧﻘﻄﻪ ﺑﺎ آدرس 92/2.321.55.01 و DLCI 122 ﺗﻨﻈﯿﻢ 123.0/0 Sدر 3 Rﺑﻪ ﻋﻨﻮان sub-interfaceﻧﻘﻄﻪ ﺑﻪ ﻧﻘﻄﻪ ﺑﺎ آدرس 92/3.321.55.01 و DLCI 123 اﻫﺪاف آزﻣﺎﯾﺶ 092 Page 229 of
- 231. ﻣﺸﺎﻫﺪه وﺿﻌﯿﺖ ﺟﺎريﺟﺪول ﻧﮕﺎﺷﺖ ﺗﺸﮑﯿﻞ ﺷﺪه ﺧﻮدﮐﺎر در روﺗﺮﻫﺎ DLCI-IP ﺟﻬﺖ ﺣﺼﻮل اﻃﻤﯿﻨﺎن از ﺗﺸﮑﯿﻞ ﺧﻮدﮐﺎر ﺻﺤﯿﺢ ﺟﺪول ﻧﮕﺎﺷﺖR1 از ﻃﺮﯾﻖR2,R3 ﭘﯿﻨﮓ و ﺗﺴﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻣﺎﺑﯿﻦ روﺗﺮﻫﺎARP و ﭘﺎك ﮐﺮدن ﺟﺪولR1 ﻣﻌﮑﻮس درARP ﻏﯿﺮ ﻓﻌﺎل ﮐﺮدن وﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎتR2,R3 ﺟﻬﺖ ارﺗﺒﺎط ﺑﺎR1 درDLCI اﯾﺠﺎد ﺟﺪول اﺳﺘﺎﺗﯿﮏ ﻧﮕﺎﺷﺖ دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ ﻣﺸﺎﻫﺪه وﺿﻌﯿﺖ ﺟﺎري ﺟﺪول ﻧﮕﺎﺷﺖ ﺗﺸﮑﯿﻞ ﺷﺪه ﺧﻮدﮐﺎر در روﺗﺮﻫﺎ R1#show frame-relay map Serial0/0 (up): ip 10.55.123.2 dlci 122(0x7A,0x1CA0), dynamic, broadcast,, status defined, active Serial0/0 (up): ip 10.55.123.3 dlci 123(0x7B,0x1CB0), dynamic, broadcast,, status defined, active R1# DLCI-IP ﺟﻬﺖ ﺣﺼﻮل اﻃﻤﯿﻨﺎن از ﺗﺸﮑﯿﻞ ﺧﻮدﮐﺎر ﺻﺤﯿﺢ ﺟﺪول ﻧﮕﺎﺷﺖR1 از ﻃﺮﯾﻖR2,R3 ﭘﯿﻨﮓ R1#ping 10.55.123.2 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.55.123.2, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 72/95/124 ms R1#ping 10.55.123.3 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.55.123.3, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 76/105/172 ms R1# R2#ping 10.55.123.3 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.55.123.3, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 156/215/340 ms R2# Page 230 of 290
- 232. و ﺗﺴﺖﺑﺮﻗﺮاري ارﺗﺒﺎط ﻣﺎﺑﯿﻦ روﺗﺮﻫﺎARP و ﭘﺎك ﮐﺮدن ﺟﺪولR1 ﻣﻌﮑﻮس درARP ﻏﯿﺮ ﻓﻌﺎل ﮐﺮدن R1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R1(config)#interface Serial0/0 R1(config-if)#no frame-relay inverse-arp R1(config-if)#end R1# %SYS-5-CONFIG_I: Configured from console by console R1#clear frame-relay inarp R1#ping 10.55.123.2 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.55.123.2, timeout is 2 seconds: ..... Success rate is 0 percent (0/5) R1#ping 10.55.123.3 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.55.123.3, timeout is 2 seconds: ..... Success rate is 0 percent (0/5) R1# وﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎتR2,R3 ﺟﻬﺖ ارﺗﺒﺎط ﺑﺎR1 درDLCI اﯾﺠﺎد ﺟﺪول اﺳﺘﺎﺗﯿﮏ ﻧﮕﺎﺷﺖ R1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R1(config)#interface Serial0/0 R1(config-if)#frame-relay map ip 10.55.123.2 122 broadcast R1(config-if)#frame-relay map ip 10.55.123.3 123 broadcast R1(config-if)#end R1# %SYS-5-CONFIG_I: Configured from console by console R1#ping 10.55.123.2 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.55.123.2, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 36/106/200 ms R1#ping 10.55.123.3 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.55.123.3, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 76/120/256 ms Page 231 of 290
- 233.
- 234. آزﻣﺎﯾﺶ 1.6 –ﺗﻨﻈﯿﻤﺎت Static route در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت static routingﺟﻬﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻣﺎﺑﯿﻦ ﺳﻪ ﺷﺒﮑﻪ ﻣﺠﺰا از ﻫﻢ ﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ ﻣﺒﺤﺚ Static routingﺟﺰ ﻣﺒﺎﺣﺚ ﭘﺎﯾﻪ اي ﻣﻬﻨﺪﺳﯽ ﺷﺒﮑﻪ اﺳﺖ و درك ﻣﻔﻮﻣﯽ آن ﺟﺰ اﻟﺰاﻣﺎﺗﯽ اﺳﺖ ﮐﻪ ﺑﺎﯾﺪ ﺗﻮﺳﻂ ﻫﺮ ﻣﻬﻨﺪس ﺷﺒﮑﻪ اي ﻟﺤﺎظ ﺷﻮد. ﺑﻪ ﻋﻨﻮان ﻣﺜﺎل اﮔﺮ 1 Rﺑﻪ ﺷﺒﮑﻪ اي ﺑﺎ آدرس 42/0.01.16.01ﻣﺘﺼﻞ اﺳﺖ و ﯾﮏ PCدر اﯾﻦ ﺷﺒﮑﻪ ﻧﯿﺎز ﺑﻪ ارﺳﺎل و درﯾﺎﻓﺖ دﯾﺘﺎ ﺑﻪ ﺷﺒﮑﻪ 42/0.03.16.01 را داﺷﺘﻪ ﺑﺎﺷﺪ ،1 Rاﻟﺰاﻣﺎ ﻣﯿﺒﺎﯾﺴﺖ از اﯾﻨﮑﻪ اﻃﻼﻋﺎت درﯾﺎﻓﺘﯽ ﺧﻮد را ﮐﺠﺎ و ﺑﻪ ﭼﻪ ﻣﻘﺼﺪ دﯾﮕﺮي ﻣﺘﻨﻘﻞ ﮐﻨﺪ آﮔﺎه ﺑﺎﺷﺪ. ﻣﺴﺌﻠﻪ را ﺑﻪ ﺷﮑﻞ ﺑﻬﺘﺮي ﺑﺮرﺳﯽ ﻣﯿﮑﻨﯿﻢ . ﻓﺮض ﮐﻨﯿﺪ 1 Rاﯾﻦ ﺗﺮاﻓﯿﮏ را ﺑﻪ 2 Rﻣﻨﺘﻘﻞ ﻣﯿﮑﻨﺪ و 2 Rﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﺪ ﮐﻪ ﺑﺎ ﺷﺒﮑﻪ ﺑﻪ ﺻﻮرت ﻣﺴﺘﻘﯿﻢ) (directly connectedدر ارﺗﺒﺎط ﻧﯿﺴﺖ.ﭘﺲ 2 Rﻣﯿﺒﺎﯾﺴﺖ ﺗﺮاﻓﯿﮏ را ﺑﻪ hopﺑﻌﺪي در ﻣﺴﯿﺮ اﻧﺘﻘﺎل ارﺳﺎل ﮐﻨﺪ ﺗﺎ ﺑﻪ روﺗﺮي ﮐﻪ ﺷﺒﮑﻪ ﻣﻘﺼﺪ ﺑﻪ آن ﺑﻪ ﻃﻮر ﻣﺴﺘﻘﯿﻢ ﻣﺘﺼﻞ اﺳﺖ ﺑﺮﺳﺪ. ﭘﺲ در ﻗﺪم ﺑﻌﺪي ﺗﺮاﻓﯿﮏ ﺑﻪ 2 Rﻣﻨﺘﻘﻞ ﻣﯿﺸﻮد روﺗﺮي ﮐﻪ ﺷﺒﮑﻪ 42/0.03.16.01ﺑﻪ ﻃﻮر ﻣﺴﺘﻘﯿﻢ ﺑﻪ 01/3 Giآن ﻣﺘﺼﻞ اﺳﺖ. ﺧﻮب ﺗﺎ اﯾﻨﺠﺎ ﻣﻮﻓﻖ ﺷﺪﯾﻢ ﺗﺮاﻓﯿﮏ را ﺑﻪ ﺷﺒﮑﻪ ﻣﻘﺼﺪ ﻣﻨﺘﻘﻞ ﮐﻨﯿﻢ اﻣﺎ آﯾﺎ اﯾﻦ ﺗﻤﺎم ﮐﺎر اﺳﺖ ؟ اﮔﺮ static routeدر ﯾﮏ ﺟﻬﺖ داﺷﺘﻪ ﺑﺎﺷﯿﻢ ﺑﻪ ﻣﻌﻨﯽ رد وﺑﺪل ﺷﺪن دوﻃﺮﻓﻪ اﻃﻼﻋﺎت ﻫﻢ ﻫﺴﺖ ﺑﻪ اﯾﻦ ﻣﻌﻨﯽ ﮐﻪ 3 Rﻫﻢ ﻗﺎدر ﺑﻪ ارﺳﺎل اﻃﻼﻋﺎت ﺑﻪ ﺳﻤﺖ ﺷﺒﮑﻪ ﻣﺒﺪا ﻣﯿﺒﺎﺷﺪ ؟ ﭘﺎﺳﺦ ﻣﻨﻔﯽ اﺳﺖ و ﺑﻨﺎ ﺑﻪ اﯾﻦ اﻟﺰام ﻣﻨﻄﻘﯽ ﮐﻞ ﻓﺮاﯾﻨﺪ ﺑﻪ ﻃﻮر ﺑﺮﻋﮑﺲ ﻧﯿﺰ ﺑﺎﯾﺴﺖ اﻧﺠﺎم ﺷﻮد. در ﺷﺒﮑﻪ ﻫﺎي ﺳﺎﺧﺖ ﯾﺎﻓﺘﻪ و ﻧﺴﺒﺘﺎ ﺑﺰرگ ﻋﻤﻮﻣﺎ از اﺳﺘﺎﺗﯿﮏ روت ﺟﻬﺖ اﯾﺠﺎد روﺗﻬﺎي ﺷﻨﺎور )آزﻣﺎﯾﺶ 2.6( و ) default routerآزﻣﺎﯾﺶ 3.6( اﺳﺘﻔﺎده ﻣﯽ ﺷﻮد. اﻣﺎ ﺑﺴﯿﺎرﻧﺪ ﻣﻬﻨﺪﺳﯿﻦ ﺷﺒﮑﻪ اي ﮐﻪ از اﯾﻦ ﻗﺎﺑﻠﯿﺖ ﺟﻬﺖ ﻋﻤﺪه ﻣﺴﺎﺋﻞ ﻣﺴﯿﺮ دﻫﯽ ﺷﺒﮑﻪ ﺧﻮد اﺳﺘﻔﺎده ﻣﯿﮑﻨﻨﺪ ﮐﻪ دﻟﯿﻞ ﻋﻤﺪه آن ﺿﻌﻒ در درك ﻣﻔﺎﻫﯿﻢ ﭘﺮوﺗﮑﻞ ﻫﺎي ﻣﺴﯿﺮﯾﺎﺑﯽ داﯾﻨﺎﻣﯿﮏ اﺳﺖ.ﺑﻪ ﻋﻨﻮان ﻗﺎﻋﺪه ﮐﻠﯽ ﻃﺮاﺣﯽ ، ﯾﮏ ﺷﺒﮑﻪ ﺑﺎﯾﺴﺖ ﺣﺎوي ﺣﺪاﻗﻞ ﺗﻌﺪاد ﻣﺴﯿﺮدﻫﯽ اﺳﺘﺎﯾﮏ ﺑﺎﺷﺪ ﻣﻬﻤﺘﺮﯾﻦ دﻟﯿﻞ اﯾﻨﮑﺎر ﻫﻢ ﭘﯿﺸﮕﯿﺮي از ﻧﯿﺎز ﺑﻪ ﺗﻨﻈﯿﻢ ﻣﺠﺪد آﻧﻬﺎ در ﺻﻮرت ﺑﺮوز ﺗﻐﯿﯿﺮات در ﺳﺎﺧﺘﺎر ﺷﺒﮑﻪ اﺳﺖ. در اﯾﻦ آزﻣﺎﯾﺶ اﺳﺘﺎﯾﮏ روت را ﻣﺎﺑﯿﻦ ﺳﻪ روﺗﺮ ﺑﺎ ﺷﺒﮑﻪ ﻫﺎي ﻣﺠﺰا از ﻫﻢ ﺑﻪ ﻣﻨﻈﻮر ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻣﺎﺑﯿﻦ ﮐﺎﻣﭙﯿﻮﺗﺮﻫﺎي ﻣﺘﺼﻞ ﺑﻪ 1 Rو 3 Rاﻧﺠﺎم ﻣﯿﺪﻫﯿﻢ و از ﻣﻬﺎرﺗﻬﺎﯾﯽ ﮐﻪ در آزﻣﺎﯾﺶ 5 ﮐﺴﺐ ﮐﺮدﯾﻢ ﺟﻬﺖ اﯾﺠﺎد ﯾﮏ ﺷﺒﮑﻪ زﻧﺠﯿﺮه اي ) (Daisy chainedﺑﺎ ﭼﺎﺷﻨﯽ frame relayﻣﺎﺑﯿﻦ روﺗﺮﻫﺎي 3 R1,R2,Rاﺳﺘﻔﺎده ﺧﻮاﻫﯿﻢ ﮐﺮد. 092 Page 233 of
- 235. اﺳﺘﻔﺎده ﮐﺮد.در اﯾﻦ آزﻣﺎﯾﺶLoopBack Interfaceﻧﮑﺘﻪ: ﻣﯿﺘﻮان ﺟﻬﺖ ﺷﺒﯿﻪ ﺳﺎزي ﯾﮏ ﺷﺒﮑﻪ ﻣﺘﺼﻞ ﺑﻪ روﺗﺮ از . ﻧﻘﺶ ﺷﺒﮑﻪ ﻫﺎي ﺳﻤﺖ ﮐﺎرﺑﺮ ﻣﺘﺼﻞ ﺑﻪ روﺗﺮﻫﺎي ﻣﺬﺑﻮر را اﯾﻔﺎ ﺧﻮاﻫﻨﺪ ﮐﺮدR1,R2,R3 در روﺗﺮﻫﺎيLO0 .در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ دﺳﺘﻮر زﯾﺮ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ ip route network subnet nexthop : اﻟﮕﻮي ﮐﻠﯽ ﻧﮕﺎرش اﯾﻦ دﺳﺘﻮر ﺑﻪ ﺻﻮرتIp route n.n.n.h s.s.s.s nh.nh.nh.nh ﭘﯿﺶ ﻧﯿﺎز آزﻣﺎﯾﺶ اﯾﺠﺎد ﺗﻮﭘﻮﻟﻮژي ﻣﻄﺎﺑﻖ ﺗﺼﻮﯾﺮ ﻓﻮق ﮐﺮدن ﺗﻨﻈﻤﯿﺎت زﯾﺮ در روﺗﺮﻫﺎcopy/pasteاﻧﺠﺎم ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ از ﻃﺮﯾﻖ R1 ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ !################################################## !# R1 Initial Config # !################################################## ! enable ! configure terminal ! hostname R1 ! interface Loopback0 description ### SIMULATED NETWORK ### ip address 10.61.10.1 255.255.255.0 ! interface Serial0/0 description ### PHYSICAL FRAME RELAY INTERFACE ### no ip address encapsulation frame-relay serial restart-delay 0 no frame-relay inverse-arp ! interface Serial0/0.122 point-to-point Page 234 of 290
- 236. description ### FRAMERELAY LINK TO R2 ### ip address 10.61.12.1 255.255.255.252 frame-relay interface-dlci 122 ! interface Serial0/0 no shut ! End R2 ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ !################################################## !# R2 Initial Config # !################################################## ! enable ! configure terminal ! hostname R2 ! interface Loopback0 description ### SIMULATED NETWORK ### ip address 10.61.20.1 255.255.255.0 ! interface Serial0/0 description ### PHYSICAL FRAME RELAY INTERFACE ### no ip address encapsulation frame-relay serial restart-delay 0 no frame-relay inverse-arp ! interface Serial0/0.221 point-to-point description ### FRAME RELAY LINK TO R1 ### ip address 10.61.12.2 255.255.255.252 frame-relay interface-dlci 221 ! interface Serial0/0.223 point-to-point description ### FRAME RELAY LINK TO R3 ### ip address 10.61.23.1 255.255.255.252 frame-relay interface-dlci 223 ! interface Serial0/0 no shut ! End R3 ﺗﻨﻈﻤﯿﺎت اوﻟﯿﻪ !################################################## !# R3 Initial Config # !################################################## Page 235 of 290
- 237. ! enable ! configure terminal ! hostname R3 ! interfaceLoopback0 description ### SIMULATED NETWORK ### ip address 10.61.30.1 255.255.255.0 ! interface Serial0/0 description ### PHYSICAL FRAME RELAY INTERFACE ### no ip address encapsulation frame-relay serial restart-delay 0 no frame-relay inverse-arp ! interface Serial0/0.322 point-to-point description ### FRAME RELAY LINK TO R2 ### ip address 10.61.23.2 255.255.255.252 frame-relay interface-dlci 322 ! interface Serial0/0 no shut ! end Static route-6.1.1 ﺗﺼﻮﯾﺮ اﻫﺪاف آزﻣﺎﯾﺶ ﺟﻬﺖ دﺳﺘﺮﺳﯽ ﺑﻪ ﺷﺒﮑﻪ 42/0.02.16.01 از ﻃﺮﯾﻖ ﻫﺎپ 2.21.16.01 و ﺑﻌﺪ ازR1 اﯾﺠﺎد اﺳﺘﺎﺗﯿﮏ روت در 10.61.12.1 ﺟﻬﺖ دﺳﺘﺮﺳﯽ ﺑﻪ ﺷﺒﮑﻪ 42/0.01.16.01 از ﻃﺮﯾﻖ ﻫﺎپR2 آن اﯾﺠﺎد روت ﺑﺮﮔﺸﺖ در ﺟﻬﺖ دﺳﺘﺮﺳﯽ ﺑﻪ ﺷﺒﮑﻪ 42/0.03.16.01 از ﻃﺮﯾﻖ ﻫﺎپ 2.32.16.01 و ﺑﻌﺪ ازR2 اﯾﺠﺎد اﺳﺘﺎﺗﯿﮏ روت در ﺟﻬﺖ دﺳﺘﺮﺳﯽ ﺑﻪ ﺷﺒﮑﻪ 42/0.02.16.01 از ﻃﺮﯾﻖ ﻫﺎپ 1.32.16.01 وR3 آن اﯾﺠﺎد روت ﺑﺮﮔﺸﺖ در R2,R3 ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﻤﯿﺎت از ﻃﺮﯾﻖ ﭘﯿﻨﮓ ﻟﻮپ ﺑﮏ اﯾﻨﺘﺮﻓﯿﺴﻬﺎ در Page 236 of 290
- 238. اﯾﺠﺎد اﺳﺘﺎﺗﯿﮏ روتدر 1 Rﺟﻬﺖ دﺳﺘﺮﺳﯽ ﺑﻪ ﺷﺒﮑﻪ 42/0.03.16.01 از ﻃﺮﯾﻖ ﻫﺎپ 2.21.16.01 و ﺑﻌﺪ از ﺗﺴﺖ اﻣﮑﺎن ﺑﺮﻗﺮاري ارﺗﺒﺎط ﺑﯿﻦ ﺷﺒﮑﻪ ﻫﺎي 42/03.16.01 , 42/0.01.16.01 آن اﯾﺠﺎد روت ﺑﺮﮔﺸﺖ در 3 Rﺟﻬﺖ دﺳﺘﺮﺳﯽ ﺑﻪ ﺷﺒﮑﻪ 42/0.01.16.01 از ﻃﺮﯾﻖ ﻫﺎپ 1.32.16.01 دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ اﯾﺠﺎد اﺳﺘﺎﺗﯿﮏ روت در 1 Rﺟﻬﺖ دﺳﺘﺮﺳﯽ ﺑﻪ ﺷﺒﮑﻪ 42/0.02.16.01 از ﻃﺮﯾﻖ ﻫﺎپ 2.21.16.01 و ﯾﻌﺪ از آن اﯾﺠﺎد روت ﺑﺮﮔﺸﺖ در 2 Rﺟﻬﺖ دﺳﺘﺮﺳﯽ ﺑﻪ ﺷﺒﮑﻪ 42/0.01.16.01 از ﻃﺮﯾﻖ ﻫﺎپ 1.21.16.01 .End with CNTL/Z 2.21.16.01 .End with CNTL/Z 1.21.16.01 R1#configure terminal .Enter configuration commands, one per line 0.552.552.552 0.02.16.01 R1(config)#ip route R1(config)#end #1R R2#configure terminal .Enter configuration commands, one per line 0.552.552.552 0.01.16.01 R2(config)#ip route R2(config)#end #2R ﺑﺮاي ﺗﺴﺖ ﺻﺤﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻟﻮپ ﺑﮏ ﻫﺎي دو ﻃﺮف را ﭘﯿﻨﮓ ﻣﯿﮑﻨﯿﻢ ﺑﺎ ﻋﻠﻢ ﺑﻪ اﯾﻨﮑﻪ ﻫﺮ ﯾﮏ از آﻧﻬﺎ ﺑﯿﺎﻧﮕﺮ ﯾﮏ PCﻫﻤﯿﺸﻪ ﻣﺘﺼﻞ در ﺷﺒﮑﻪ ﻣﺒﺪا ﯾﺎ ﻣﻘﺼﺪ ﻫﺴﺘﻨﺪ 0R1#ping 10.61.20.1 source lo .Type escape sequence to abort :Sending 5, 100-byte ICMP Echos to 10.61.20.1, timeout is 2 seconds 1.01.16.01 Packet sent with a source address of !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 8/50/104 ms #1R ﻫﻤﺎﻧﻄﻮر ﮐﻪ اﻧﺘﻈﺎر ﻣﯿﺮﻓﺖ اﻣﮑﺎن ﭘﯿﻨﮓ ﻟﻮپ ﺑﮏ روﺗﺮ 2 Rاز ﺳﻤﺖ ﻟﻮپ ﺑﮏ 1 Rوﺟﻮد دارد ﭘﺲ ارﺗﺒﺎط دوﻃﺮﻓﻪ ﻣﺎﺑﯿﻦ ﺑﺮﻗﺮار ﺷﺪه اﺳﺖ. 2. اﯾﺠﺎد اﺳﺘﺎﺗﯿﮏ روت در 2 Rﺟﻬﺖ دﺳﺘﺮﺳﯽ ﺑﻪ ﺷﺒﮑﻪ 42/0.03.16.01 از ﻃﺮﯾﻖ ﻫﺎپ 2.32.16.01 و ﯾﻌﺪ از آن اﯾﺠﺎد روت ﺑﺮﮔﺸﺖ در 3 Rﺟﻬﺖ دﺳﺘﺮﺳﯽ ﺑﻪ ﺷﺒﮑﻪ 42/0.02.16.01 از ﻃﺮﯾﻖ ﻫﺎپ 1.32.16.01 و ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﻤﯿﺎت از ﻃﺮﯾﻖ ﭘﯿﻨﮓ ﻟﻮپ ﺑﮏ اﯾﻨﺘﺮﻓﯿﺴﻬﺎ در 3R2,R R2#configure terminal .Enter configuration commands, one per line. End with CNTL/Z 2.32.16.01 0.552.552.552 0.03.16.01 R2(config)#ip route R2(config)#end #2R 092 Page 237 of
- 239. R3#configure terminal Enter configurationcommands, one per line. End with CNTL/Z. R3(config)#ip route 10.61.20.0 255.255.255.0 10.61.23.1 R3(config)#end R3# . ﭘﯿﻨﮓ ﻣﯿﮑﻨﯿﻢR3 ، اﯾﻨﺘﺮﻓﯿﺲ ﻣﺘﻨﺎﻇﺮ را درR2 ﻣﺠﺪدا ﺑﺮاي ﺗﺴﺖ ﺑﺮﻗﺮاري ﺻﺤﺖ ارﺗﺒﺎط از ﻃﺮﯾﻖ ﻟﻮپ ﺑﮏ اﯾﻨﺘﺮﻓﯿﺲ R2#ping 10.61.30.1 source lo0 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.61.30.1, timeout is 2 seconds: Packet sent with a source address of 10.61.20.1 !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 28/74/164 ms R2# ﺟﻬﺖ دﺳﺘﺮﺳﯽ ﺑﻪ ﺷﺒﮑﻪ 42/0.03.16.01 از ﻃﺮﯾﻖ ﻫﺎپ 2.21.16.01 و ﺑﻌﺪ ازR1 3. اﯾﺠﺎد اﺳﺘﺎﺗﯿﮏ روت در 10.61.23.1 ﺟﻬﺖ دﺳﺘﺮﺳﯽ ﺑﻪ ﺷﺒﮑﻪ 42/0.01.16.01 از ﻃﺮﯾﻖ ﻫﺎپR3 آن اﯾﺠﺎد روت ﺑﺮﮔﺸﺖ در >R1#configure terminal Enter configuration commands, one per line. R1(config)#ip route 10.61.30.0 255.255.255.0 R1(config)#end R1# R3#configure terminal Enter configuration commands, one per line. R3(config)#ip route 10.61.10.0 255.255.255.0 R3(config)#end R3# End with CNTL/Z. 10.61.12.2 End with CNTL/Z. 10.61.23.1 R1#ping 10.61.30.1 source lo0 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.61.30.1, timeout is 2 seconds: Packet sent with a source address of 10.61.10.1 !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 24/64/124 ms R1# Page 238 of 290
- 240. آزﻣﺎﯾﺶ 2.6 –ﺗﻨﻈﯿﻤﺎت Floating static route در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﺗﻨﻈﯿﻤﺎت روﺗﻬﺎي اﺳﺘﺎﺗﯿﮏ ﺷﻨﺎور ﺑﺎ ﻫﺪف اﯾﺠﺎد اﻓﺰوﻧﮕﯽ ﻣﺎﺑﯿﻦ ﻣﺴﯿﺮﻫﺎ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ روت ﺷﻨﺎور روﺗﯽ اﺳﺖ ﮐﻪ داراي ADﺑﺰرﮔﺘﺮ از روت ﺟﺎري)اﺳﺘﺎﺗﯿﮏ( در ﺟﺪول ﻣﺴﯿﺮﯾﺎﺑﯽ اﺳﺖ از ﻃﺮﻓﯽ ﺑﻪ ﺧﺎﻃﺮ دارﯾﻢ ﮐﻪ روﺗﯽ ﮐﻪ داراي ADﮐﻮﭼﮑﺘﺮ اﺳﺖ اﻟﻮﯾﺖ اﺟﺮاﯾﯽ ﺑﺎﻻﺗﺮي دارد.ﺑﺎ ﺑﺎزﮔﺸﺖ ﺑﻪ آزﻣﺎﯾﺶ 1.6 ﻣﺸﺎﻫﺪه ﻣﯿﮑﻨﯿﻢ ﮐﻪ 1 Rداراي ﯾﮏ ﻟﯿﻨﮏ ارﺗﺒﺎﻃﯽ Frame relayﺑﺎ 2 Rاﺳﺖ. اﮐﻨﻮن ﯾﮏ ﻟﯿﻨﮏ 1 Tﻧﻘﻄﻪ ﺑﻪ ﻧﻘﻄﻪ ﻫﻢ ﺑﻪ اﯾﻦ ﺳﻨﺎرﯾﻮ اﺿﺎﻓﻪ ﻣﯿﮑﻨﯿﻢ ﮐﻪ ﻧﺘﯿﺠﻪ آن ﺑﻪ دﺳﺖ آوردن ﻗﺎﺑﻠﯿﺖ اﻓﺰوﻧﮕﯽ و ﺗﻘﺴﯿﻢ ﺑﺎر ﺧﻮاﻫﺪ ﺑﻮد ﺣﺘﯽ ﻣﯿﺘﻮان ﺑﻪ ﻟﯿﻨﮏ ﺟﺪﯾﺪ اﯾﻨﮕﻮﻧﻪ ﻧﮕﺎه ﮐﺮد ﮐﻪ ﺻﺮﻓﺎ ﺑﻪ ﻋﻨﻮان ﭘﺸﺘﯿﺒﺎن ﻟﯿﻨﮏ اﺻﻠﯽ ﮐﺎر ﮐﻨﺪ . ﻫﻤﻪ اﯾﻦ اﯾﺪه ﻫﺎ از ﻃﺮﯾﻖ ﭘﯿﺎده ﺳﺎزي روﺗﯿﻨﮓ ﺷﻨﺎور ﻗﺎﺑﻞ اﺟﺮا ﺧﻮاﻫﻨﺪ ﺑﻮد. ﺑﺮاي اﯾﺠﺎد روت اﺳﺘﺎﺗﯿﮏ ﺷﻨﺎور از ﻫﻤﺎن روش اﯾﺠﺎد اﺳﺘﺎﺗﯿﮏ روت در آزﻣﺎﯾﺶ ﻗﺒﻠﯽ ﻣﻨﺘﻬﺎ ﺑﺎ ADﺑﺰرﮔﺘﺮ اﺳﺘﻔﺎده ﺧﻮاﻫﯿﻢ ﮐﺮد ﺑﻨﺎﺑﺮاﯾﻦ ﺗﺎ زﻣﺎﻧﯽ ﮐﻪ 0/0 Sﺑﺮﻗﺮار اﺳﺖ ﺗﺮاﻓﯿﮏ از آن ﻣﺴﯿﺮ ﻋﺒﻮر ﻣﯿﮑﻨﺪ و ﭘﺲ از failﺷﺪه آن ﺗﺮاﻓﯿﮏ از 1/0 Sﺑﻪ 2 Rﻣﺘﻘﻞ ﺧﻮاﻫﺪ ﺷﺪ. در دﻧﯿﺎي واﻗﻌﯽ از روﺗﻬﺎي اﺳﺘﺎﺗﯿﮏ ﺷﻨﺎور ﺑﻪ emergency default routeﻫﻢ ﺗﻌﺒﯿﺮ ﻣﯿﺸﻮد ﮐﻪ در اداﻣﻪ ﺑﻪ آن ﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ . اﻧﺠﺎم ﺗﻨﻈﯿﻤﺎت روﺗﻬﺎي ﺷﻨﺎور ﺑﺴﯿﺎر ﺷﺒﯿﻪ روﺗﻬﺎي اﺳﺘﺎﺗﯿﮏ ﻣﻌﻤﻮﻟﯽ ﻣﯿﺒﺎﺷﺪ ﺑﺎ اﯾﻦ ﺗﻔﺎوت ﮐﻪ ﯾﮏ ﻋﺪد ﻣﺎﺑﯿﻦ 1-552 ﺑﻪ اﻧﺘﻬﺎي آن اﺿﺎﻓﻪ ﻣﯿﺸﻮد ﮐﻪ ﺑﯿﺎﻧﮕﺮ ﺗﻨﻈﯿﻢ دﺳﺘﯽ ADروت ﻣﻮرد ﻧﻈﺮ ﺧﻮاﻫﺪ ﺑﻮد.552 ﺑﻪ ﻣﻌﻨﺎي Unrechableاﺳﺖ و روﺗﯽ ﮐﻪ داراي اﯾﻦ ADﺑﺎﺷﺪ ﻫﯿﭻ وﻗﺖ در ﺟﺪول ﻣﺴﯿﺮﯾﺎﺑﯽ ﻗﺮار ﻧﺨﻮاﻫﺪ ﮔﺮﻓﺖ . در اﯾﻦ آزﻣﺎﯾﺶ از ﺗﻮﭘﻮﻟﻮژي آزﻣﺎﯾﺶ 1.6 اﺳﺘﻔﺎده ﺧﻮاﻫﯿﻢ ﮐﺮد ﺑﻪ ﻋﻼوه اﻓﺰودن ﯾﮏ ﻟﯿﻨﮏ دﯾﮕﺮ ﺑﯿﻦ 2 R1,Rﺟﻬﺖ اﯾﺠﺎد ﻣﺴﯿﺮ ﭘﺸﺘﯿﺒﺎن ﺟﻬﺖ اﺗﺼﺎل ﺑﯿﻦ 2 R1,Rﻣﻄﺎﺑﻖ ﺗﺼﻮﯾﺮ زﯾﺮ 092 Page 239 of
- 241. Floating static route– 6.2.1 ﺗﺼﻮﯾﺮ . ﭘﯿﺶ ﻧﯿﺎز آزﻣﺎﯾﺶ اﯾﺠﺎد ﺗﻮﭘﻮﻟﻮژي ﻣﺘﻨﺎﻇﺮ ﺑﺎ ﺗﺼﻮﯾﺮ ﺑﺎﻻ 6.1 ﺑﺮﮔﺮﻓﺘﻪ از آزﻣﺎﯾﺶR1,R2,R3 اﻋﻤﺎل ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ ﻓﺮﯾﻢ رﯾﻠﯽ در اﻫﺪاف آزﻣﺎﯾﺶ . PPP Encapsulation ﺑﺎ ﺳﺎﺑﻨﺖ 03/0.12.26.01 وR1,R2 ﮐﺎﻧﻔﯿﮓ ﻟﯿﻨﮏ ﺟﺪﯾﺪ ﻧﻘﻄﻪ ﺑﻪ ﻧﻘﻄﻪ ﻣﺎﺑﯿﻦ ﺑﺮاي 42/0.02.55.01و42/0.03.55.01 ﻣﺮﺗﺒﻂ ﺑﺎ ﻟﯿﻨﮏ ﭘﺸﺘﯿﺒﺎنAD 200 اﯾﺠﺎد دو روت اﺳﺘﺎﺗﯿﮏ ﺷﻨﺎور ﺑﺎ R2 R1 ﺑﺮاي 42/0.01.55.01 در ارﺗﺒﺎط ﺑﺎ ﻟﯿﻨﮏ ﭘﺸﺘﯿﺒﺎنAD 200 اﯾﺠﺎد روت اﺳﺘﺎﺗﯿﮏ ﺷﻨﺎور ﺑﺎ ﺷﺪن ﻟﯿﻨﮑﻬﺎي ارﺗﺒﺎﻃﯽfail ﺟﻬﺖ ﺷﺒﯿﻪ ﺳﺎزيR2 درSerial0/0.221 وR1 درSerial0/0 ﺧﺎﻣﻮش ﮐﺮدن ﺑﻪ ﺳﻤﺖ 42/0.03.55.01 ازtrace اﺻﻠﯽ و ﺑﺮرﺳﯽ ﺻﺤﺖ ﻋﻤﻠﮑﺮد ﻟﯿﻨﮑﻬﺎي ﭘﺸﺘﯿﺒﺎن ﺑﺎ 10.55.10.0/24ﻃﺮﯾﻖ دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ . PPP Encapsulation ﺑﺎ ﺳﺎﺑﻨﺖ 03/0.12.26.01 وR1,R2 ﮐﺎﻧﻔﯿﮓ ﻟﯿﻨﮏ ﺟﺪﯾﺪ ﻧﻘﻄﻪ ﺑﻪ ﻧﻘﻄﻪ ﻣﺎﺑﯿﻦ .1 R1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R1(config)#interface Serial0/1 R1(config-if)#ip address 10.62.21.1 255.255.255.252 R1(config-if)#encapsulation ppp R1(config-if)#no shut R1(config-if)#end R1# R2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R2(config)#interface serial0/1 R2(config-if)#ip add 10.62.21.2 255.255.255.252 R2(config-if)#encapsulation ppp R2(config-if)#no shut R2(config-if)#end R2#ping 10.62.21.1 Type escape sequence to abort. Page 240 of 290
- 242. Sending 5, 100-byteICMP Echos to 10.62.21.1, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 20/42/60 ms R2# ﺑﺮاي 42/0.02.55.01و42/0.03.55.01 ﻣﺮﺗﺒﻂ ﺑﺎ ﻟﯿﻨﮏ ﭘﺸﺘﯿﺒﺎنAD 200 2. اﯾﺠﺎد دو روت اﺳﺘﺎﺗﯿﮏ ﺷﻨﺎور ﺑﺎ R1 ﺑﺮاي 42/0.01.55.01 در ارﺗﺒﺎط ﺑﺎ ﻟﯿﻨﮏ ﭘﺸﺘﯿﺒﺎنAD 200 اﯾﺠﺎد روت اﺳﺘﺎﺗﯿﮏ ﺷﻨﺎور ﺑﺎR2 R1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R1(config)#ip route 10.55.20.0 255.255.255.0 10.62.21.2 200 R1(config)#ip route 10.55.30.0 255.255.255.0 10.62.21.2 200 R1(config)#end R1# R2(config)#ip route 10.55.10.0 255.255.255.0 10.62.21.1 200 R2(config)#end R2# R1 ﺑﺮاي 42/0.01.55.01 در ارﺗﺒﺎط ﺑﺎ ﻟﯿﻨﮏ ﭘﺸﺘﯿﺒﺎنAD 200 4. اﯾﺠﺎد روت اﺳﺘﺎﺗﯿﮏ ﺷﻨﺎور ﺑﺎ R2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R2(config)#interface Serial0/0.221 R2(config-subif)#shutdown R2(config-subif)#end R2# R1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R1(config)#interface serial0/0 R1(config-if)#shutdown R1(config-if)#end R1# %SYS-5-CONFIG_I: Configured from console by console %LINK-5-CHANGED: Interface Serial0/0, changed state to administratively down %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/0, changed state to down R1#traceroute 10.55.30.1 source Lo0 Type escape sequence to abort. Tracing the route to 10.55.30.1 1 10.62.21.2 152 msec 52 msec 44 msec 2 10.62.23.2 188 msec 240 msec 217 msec R1# ﻫﻤﺎﻧﻄﻮر ﮐﻪ ﻣﺸﺎﻫﺪه ﻣﯿﺸﻮد ﺗﺮاﻓﯿﮏ ﺑﺎ ﻣﺒﺪا 42/0.01.55.01 و ﻣﻘﺼﺪ 1.03.55.01 از ﻣﺴﯿﺮ ﭘﺸﺘﯿﺒﺎن ﻋﺒﻮر ﮐﺮد ﮐﻪ در ﺑﺎ آدرس 2.12.26.01 اﺳﺖR2 درSerial0/1 اﯾﻨﺠﺎ Page 241 of 290
- 243. آزﻣﺎﯾﺶ 3.6 –ﺗﻨﻈﯿﻤﺎت Default route در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت روت ﭘﯿﺸﻔﺮض ﺑﻪ ﻣﻨﻈﻮر ارﺳﺎل ﺗﺮاﻓﯿﮏ ﻓﺎﻗﺪ ﻣﺴﯿﺮ ﻣﺸﺨﺺ در ﺟﺪول ﻣﺴﯿﺮﯾﺎﺑﯽ ﺷﺒﮑﻪ ﻣﻮﺟﻮد ﺑﻪ ﺷﺒﮑﻪ اي دﯾﮕﺮ)ﭘﯿﺸﻔﺮض( آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ ﻫﻤﺎﻧﻄﻮر ﮐﻪ ﻣﯿﺪاﻧﯿﺪ روﺗﺮﻫﺎ ﺗﺮاﻓﯿﮏ را ﺑﺮ ﺣﺴﺐ ﻧﺰدﯾﮑﺘﺮﯾﻦ ﻣﺴﯿﺮي ﮐﻪ در ﺟﺪول ﻣﺴﯿﺮﯾﺎﺑﯽ ﺧﻮد دارﻧﺪ ﺑﻪ ﺳﻤﺖ ﻣﻘﺼﺪ ارﺳﺎل ﻣﯿﮑﻨﻨﺪ. ﺑﻪ ﻋﻨﻮان ﻣﺜﺎل اﮔﺮ روﺗﺮي ﻣﺴﯿﺮي در ﺟﺪول ﻣﺴﯿﺮﯾﺎﺑﯽ ﺧﻮد داﺷﺘﻪ ﺑﺎﺷﺪ ﻓﺮﺿﺎ ﯾﮏ ﻣﻮرد ﺑﻪ 82/0.12.88.01 و ﯾﮏ ﻣﻮرد ﺑﻪ 42/0.12.88.01 و ﺑﺴﺘﻪ اي را ﺟﻬﺖ ارﺳﺎل ﺑﻪ آدرس 6.12.88.01درﯾﺎﻓﺖ ﮐﻨﺪ آﻧﺮا ﺑﻪ 82/0.12.88.01 ﮐﻪ ﻧﺰدﯾﮑﺘﺮﯾﻦ روت ﺑﻪ ﻣﻘﺼﺪ اﺳﺖ اﻧﺘﺨﺎب ﻣﯿﮑﻨﺪ. ﺑﻪ ﻋﻨﻮان ﯾﮏ ﻣﻬﻨﺪس ﺷﺒﮑﻪ اﻟﺰاﻣﺎ ﻣﯿﺒﺎﯾﺴﺖ ﺑﺎ ﻣﻔﻬﻮم اﯾﻦ درس ﯾﻌﻨﯽ روت ﭘﯿﺸﻔﺮض آﺷﻨﺎ ﺑﺎﺷﯿﻢ. داﺷﺘﻦ روت ﭘﯿﺸﻔﺮض ﺷﻨﺎور در ﺳﻨﺎرﯾﻮﻫﺎي واﻗﻌﯽ داﯾﻨﺎﻣﯿﮏ روﺗﯿﻨﮓ ﺑﻪ ﻣﻨﻈﻮر اﯾﺠﺎد ﻗﺎﺑﻠﯿﺖ اﻓﺰوﻧﮕﯽ اﻣﺮي راﯾﺞ اﺳﺖ در اﯾﻦ ﺣﺎﻟﺖ ﺑﻪ ﻣﺤﺾ اﯾﻨﮑﻪ ﻣﺴﯿﺮﯾﺎﺑﯽ داﯾﻨﺎﻣﯿﮏ ﺑﻪ ﻫﺮ ﻋﻠﺘﯽ از دور ﺧﺎرج ﻣﯿﺸﻮد روت ﭘﯿﺸﻔﺮض ﺑﻪ ﺟﺪول ﻣﺴﯿﺮﯾﺎﺑﯽ ﺗﺰرﯾﻖ ﺷﺪه ﻣﺴﺌﻮﻟﯿﺖ ﺑﺮﻗﺮار ﻣﺎﻧﺪن ارﺗﺒﺎط را ﺑﻪ ﻋﻬﺪه ﻣﯿﮕﯿﺮد. در ﯾﮏ ﺷﺒﮑﻪ ﻋﻤﻮﻣﺎ دو راه ﺑﺮاي ﻣﺘﺼﻞ ﺷﺪن ﺑﻪ اﯾﻨﺘﺮﻧﺖ از ﺷﺒﮑﻪ داﺧﻠﯽ وﺟﻮد دارد . راه اول اﺳﺘﻔﺎده از Default routeدر روﺗﺮ ﻟﺒﻪ اي ﺷﺒﮑﻪ اﺳﺖ ﮐﻪ ﺑﻪ ISPﻣﻨﺘﻬﯽ ﻣﯿﺸﻮد در اﯾﻦ ﺣﺎﻟﺖ ﻫﺮ آدرﺳﯽ ﮐﻪ در ﺟﺪول ﻣﺴﯿﺮﯾﺎﺑﯽ اﯾﻦ روﺗﺮ وﺟﻮد ﻧﺪاﺷﺘﻪ ﺑﺎﺷﺪ ﻣﺴﺘﻘﯿﻤﺎ ﺑﻪ ﺳﻤﺖ ISPارﺳﺎل ﻣﯿﺸﻮد. راه دوم اﺳﺘﻔﺎده از ﯾﮏ روﺗﺮ ﻓﻌﺎل در ﻣﮑﺎﻧﯿﺰم BGP اﺳﺖ . اﯾﻦ ﻣﮑﺎﻧﯿﺰم ﻗﺎﺑﻠﯿﺘﯽ را ﺑﻪ روﺗﺮ ﻣﺤﻠﯽ ﻣﺎ ﻣﯿﺪﻫﺪ ﮐﻪ ﺗﻤﺎﻣﯽ روﺗﻬﺎي ﻣﻮرد اﺳﺘﻔﺎده در اﯾﻨﺘﺮﻧﺖ را در ﺧﻮد داﺷﺘﻪ ﺑﺎﺷﺪ و راﺳﺎ ﺟﻬﺖ ارﺳﺎل ﺑﺴﺘﻪ ﻫﺎ ﺑﻪ ﻣﻘﺼﺪ ﻫﺎي ﻣﺘﻔﺎوت ﺗﺼﻤﯿﻢ ﮔﯿﺮي ﮐﻨﺪ.ﻣﺒﺤﺚ BGPدر دوره CCNPﺑﻪ ﺗﻔﺼﯿﻞ ﻣﻮرد ﺑﺮرﺳﯽ ﻗﺮار ﻣﯿﮕﯿﺮد ﺗﻨﻈﯿﻢ روت ﭘﯿﺸﻔﺮض ﺑﻪ ﺳﺎدﮔﯽ ﺗﻨﻈﯿﻢ روت اﺳﺘﺎﺗﯿﮏ اﺳﺖ . روت ﭘﯿﺸﻔﺮض ﺗﻮﺳﻂ 0/0.0.0.0 ﻣﺸﺨﺺ ﻣﯿﺸﻮد ﮐﻪ ﺑﯿﺎﻧﮕﺮ رﻧﺞ ﮐﺎﻣﻞ آدرس از 0.0.0.0 ﺗﺎ 552.552.552.552 اﺳﺖ. در اﯾﻦ آز ﻣﺎﯾﺶ از ﻫﻤﺎن ﺗﻮﭘﻮﻟﻮژي آزﻣﺎﯾﺶ 2.6 ﻣﻨﺘﻬﺎ ﺑﺎ ﺗﻐﯿﯿﺮاﺗﯽ در آدرﺳﻬﺎ اﺳﺘﻔﺎده ﺧﻮاﻫﯿﻢ ﮐﺮد.اﺑﺘﺪا اﺳﺘﺎﺗﯿﮏ روﺗﻬﺎي ﻣﻮﺟﻮد در 3 Rرا ﺣﺬف ﺧﻮاﻫﯿﻢ ﮐﺮد و ﭘﺲ از آن روت ﭘﯿﺸﻔﺮض از 3 Rﺑﻪ ﺳﻤﺖ 2 Rاﯾﺠﺎد ﺧﻮاﻫﯿﻢ ﮐﺮد 092 Page 242 of
- 244. Default route-6.3.1 آزﻣﺎﯾﺶ ﭘﯿﺶﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ 6.1 در روﺗﺮﻫﺎ ﻣﺒﺘﻨﯽ ﺑﺮ آزﻣﺎﯾﺶFrame realy اﻋﻤﺎل ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ R1 ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ !################################################## !# Lab 6-3 R1 Initial Config # !################################################## ! enable configure terminal ! hostname R1 ! interface Loopback0 description ### SIMULATED NETWORK ### ip address 10.63.10.1 255.255.255.0 ! interface Serial0/0 description ### PHYSICAL FRAME RELAY INTERFACE ### no ip address encapsulation frame-relay serial restart-delay 0 no frame-relay inverse-arp ! interface Serial0/0.122 point-to-point description ### FRAME RELAY LINK TO R2 ### ip address 10.63.12.1 255.255.255.252 frame-relay interface-dlci 122 ! interface Serial0/0 no shut ! interface Serial0/1 description ### PPP Link TO R2 ### ip address 10.63.21.1 255.255.255.252 encapsulation ppp serial restart-delay 0 Page 243 of 290
- 245. no shut ! exit ! ip route iproute ip route ip route ! 10.63.20.0 10.63.30.0 10.63.20.0 10.63.30.0 255.255.255.0 255.255.255.0 255.255.255.0 255.255.255.0 10.63.12.2 10.63.12.2 10.63.21.2 200 10.63.21.2 200 end R2 ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ !################################################## !# Lab 6-3 R2 Initial Config # !################################################## ! enable configure terminal ! hostname R2 ! interface Loopback0 description ### SIMULATED NETWORK ### ip address 10.63.20.1 255.255.255.0 ! interface Serial0/0 description ### PHYSICAL FRAME RELAY INTERFACE ### no ip address encapsulation frame-relay serial restart-delay 0 no frame-relay inverse-arp ! interface Serial0/0.221 point-to-point description ### FRAME RELAY LINK TO R1 ### ip address 10.63.12.2 255.255.255.252 frame-relay interface-dlci 221 ! interface Serial0/0.223 point-to-point description ### FRAME RELAY LINK TO R3 ### ip address 10.63.23.1 255.255.255.252 frame-relay interface-dlci 223 ! interface Serial0/0 no shut exit ! interface Serial0/1 description ### PPP LINK TO R1 ### ip address 10.63.21.2 255.255.255.252 encapsulation ppp serial restart-delay 0 no shut ! ip route 10.63.10.0 255.255.255.0 10.63.12.1 ip route 10.63.30.0 255.255.255.0 10.63.23.2 Page 244 of 290
- 246. ip route 10.63.10.0255.255.255.0 10.63.21.1 200 ! end R3 ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ !################################################## !# Lab 6-3 R3 Initial Config # !################################################## ! enable configure terminal ! hostname R3 ! interface Loopback0 description ### SIMULATED NETWORK ### ip address 10.63.30.1 255.255.255.0 ! interface Serial0/0 description ### PHYSICAL FRAME RELAY INTERFACE ### no ip address encapsulation frame-relay serial restart-delay 0 no frame-relay inverse-arp ! interface Serial0/0.322 point-to-point description ### FRAME RELAY LINK TO R2 ### ip address 10.63.23.2 255.255.255.252 frame-relay interface-dlci 322 ! interface Serial0/0 no shut exit ! ip route 10.63.10.0 255.255.255.0 10.63.23.1 ip route 10.63.20.0 255.255.255.0 10.63.23.1 ! end اﻫﺪاف آزﻣﺎﯾﺶ R2 S0/0.223 و اﯾﺠﺎد روت ﭘﯿﺸﻔﺮض ﺑﻪ ﺳﻤﺖR3 ﺣﺬف روﺗﻬﺎي اﺳﺘﺎﺗﯿﮏ در 10.63.10.0/24 وR1 و 42/0.03.36.01 ﺑﻪR3 ﺑﺮرﺳﯽ ﺻﺤﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط از R1 ﭘﯿﺸﺘﯿﺒﺎن درPPP ﺑﺮرﺳﯽ اﻣﮑﺎن ﭘﯿﻨﮓ ﻟﯿﻨﮏ دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ Page 245 of 290
- 247. R2 S0/0.223 و اﯾﺠﺎد روت ﭘﯿﺸﻔﺮض ﺑﻪ ﺳﻤﺖR3 3. ﺣﺬف روﺗﻬﺎي اﺳﺘﺎﺗﯿﮏ در R1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R1(config)#interface Serial0/1 R1(config-if)#ip address 10.62.21.1 255.255.255.252 R1(config-if)#encapsulation ppp R1(config-if)#no shut R1(config-if)#end R1# R2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R2(config)#interface serial0/1 R2(config-if)#ip add 10.62.21.2 255.255.255.252 R2(config-if)#encapsulation ppp R2(config-if)#no shut R2(config-if)#end R2#ping 10.62.21.1 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.62.21.1, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 20/42/60 ms R2# R2 S0/0.223 و اﯾﺠﺎد روت ﭘﯿﺸﻔﺮض ﺑﻪ ﺳﻤﺖR3 1. ﺣﺬف روﺗﻬﺎي اﺳﺘﺎﺗﯿﮏ در R3#show run | include ip route ip route 10.63.10.0 255.255.255.0 10.63.23.1 ip route 10.63.20.0 255.255.255.0 10.63.23.1 R3#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R3(config)#no ip route 10.63.10.0 255.255.255.0 10.63.23.1 R3(config)#no ip route 10.63.20.0 255.255.255.0 10.63.23.1 R3(config)#ip route 0.0.0.0 0.0.0.0 10.63.23.1 R3(config)#end R3# 10.63.10.0/24 وR1 و 42/0.03.36.01 ﺑﻪR3 2. ﺑﺮرﺳﯽ ﺻﺤﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط از ﻣﺠﺪدا ارﺗﺒﺎطR2 را ﺣﺬف ﮐﺮدﯾﻢ اﻣﺎ ﺑﺎ اﯾﺠﺎد روت ﭘﯿﺸﻔﺮض ﺑﻪ ﺳﻤﺖR2 ﻗﺒﻼ ﻫﻤﻪ اﺳﺘﺎﺗﯿﮏ روﺗﻬﺎ ﺑﻪ ﺳﻤﺖ ﺑﺮﻗﺮار ﻣﯿﺸﻮد R3#ping 10.63.10.1 source lo0 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.63.10.1, timeout is 2 seconds: Page 246 of 290
- 248. Packet sent witha source address of 10.63.30.1 !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 4/82/168 ms R3# 10.63.30.0/24 از ﻃﺮﯾﻖR1 ﭘﯿﺸﺘﯿﺒﺎن درPPP 3. ﺑﺮرﺳﯽ اﻣﮑﺎن ﭘﯿﻨﮓ ﻟﯿﻨﮏ ﮐﻪ در آنR2 ﻫﯿﭻ روﺗﯽ ﺑﻪ ﺳﻤﺖ 03/0.12.36.01 ﻧﺪاﺷﺖ اﻣﺎ اﻻن ﯾﮏ روت ﭘﯿﺸﻔﺮض ﺑﻪ ﺳﻤﺖR3 ﻗﺒﻞ از اﯾﻦ . ﻣﺴﺘﻘﯿﻤﺎ ﺑﻪ 03/0.12.36.01 ﻣﺘﺼﻞ اﺳﺖ و روت ﺑﺮﮔﺸﺖ ﺑﻪ ﺳﻤﺖ 42/0.03.36.01 دارد را ﺷﺎﻫﺪ ﻫﺴﺘﯿﻢ R3#ping 10.63.21.1 source lo0 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.63.21.1, timeout is 2 seconds: Packet sent with a source address of 10.63.30.1 !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 40/81/116 ms R3# Page 247 of 290
- 249. آزﻣﺎﯾﺶ 1.7 –ﺗﻨﻈﯿﻤﺎت – NATﯾﮏ ﺑﻪ ﯾﮏ در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﺎت NATﯾﮏ ﺑﻪ ﯾﮏ ﺑﺮاي ﺗﺮﺟﻤﻪ ﯾﮏ آدرس در ﺷﺒﮑﻪ داﺧﻠﯽ ﺑﻪ آدرﺳﯽ ﻣﺸﺨﺺ و ﺛﺎﺑﺖ در ﺷﺒﮑﻪ ﺧﺎرﺟﯽ ﺧﻮاﻫﯿﻢ ﭘﺮداﺧﺖ . ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ اﻣﺮوزه ﻋﻤﻼ در ﺗﻤﺎﻣﯽ ﺷﺒﮑﻪ ﻫﺎي راﯾﺎﻧﻪ اي دﻧﯿﺎ از NATﺑﺎ اﺳﺎﻣﯽ ﻣﺨﺘﻠﻔﯽ ﻫﻤﭽﻮن ﯾﮏ ﺑﻪ ﯾﮏ اﯾﺴﺘﺎ، داﯾﻨﺎﻣﯿﮏ و از ﻫﻤﻪ ﻣﻌﺮوﻓﺘﺮ ﯾﮏ ﺑﻪ ﭼﻨﺪ ﯾﺎ PATﮐﻪ آﻧﻬﻢ ﺑﻪ اﺷﺘﺒﺎه راﯾﺞ NATﺧﻮاﻧﺪه ﻣﯿﺸﻮد اﺳﺘﻔﺎده ﻣﯿﺸﻮد.ﻣﺒﺤﺚ داﯾﻨﺎﻣﯿﮏ NATو NAT Poolﻫﻤﯿﻨﻄﻮر PATدر دو آزﻣﺎﯾﺶ آﯾﻨﺪه ﻣﻮرد ﺑﺮرﺳﯽ ﻗﺮار ﺧﻮاﻫﻨﺪ ﮔﺮﻓﺖ . NATﯾﮏ ﺑﻪ ﯾﮏ ﯾﺎ اﺳﺘﺎﺗﯿﮏ ﻫﻨﮕﺎﻣﯽ ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻣﯿﮕﯿﺮد ﮐﻪ ﻧﯿﺎز داﺷﺘﻪ ﺑﺎﺷﯿﻢ ﯾﮏ ﮐﻼﯾﻨﺖ ﻣﺸﺨﺺ ﺑﺎ آدرﺳﯽ ﻣﺸﺨﺺ در ﺷﺒﮑﻪ داﺧﻠﯽ ﺻﺮﻓﺎ از ﻃﺮﯾﻖ ﻓﻘﻂ ﯾﮏ آدرس ﺧﺎرﺟﯽ ﺑﺎ ﺷﺒﮑﻪ ﻣﻘﺼﺪ در ارﺗﺒﺎط ﺑﺎﺷﺪ . :Inside Localآدرس ﻣﻨﺘﺴﺐ ﺷﺪه ﺑﻪ ﯾﮏ ﻫﺎﺳﺖ در ﺷﺒﮑﻪ داﺧﻠﯽ ﭼﻪ از ﻃﺮﯾﻖ Dhcpو ﭼﻪ ﺛﺎﺑﺖ :Inside Globalآدرس ﻣﻌﺘﺒﺮ ﻣﻨﺘﺴﺐ ﺷﺪه ﺗﻮﺳﻂ ﭘﺮواﯾﺪر ﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ دوم روﺗﺮ ﻣﻮﺟﻮد در ﺷﺒﮑﻪ داﺧﻠﯽ :Outside localآدرس ﻣﻨﺘﺴﺐ ﺷﺪه ﺑﻪ ﯾﮏ ﻫﺎﺳﺖ در ﺷﺒﮑﻪ ﻣﻘﺼﺪ ﭼﻪ از ﻃﺮﯾﻖ Dhcpو ﭼﻪ ﺛﺎﺑﺖ :Outside Globalآدرس ﻣﻨﺘﺴﺐ ﺷﺪه ﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ ﺧﺎرﺟﯽ روﺗﺮ ﺷﺒﮑﻪ ﻣﻘﺼﺪ در ﻓﺮاﯾﻨﺪ ﭘﯿﮑﺮﺑﻨﺪي NATﻣﯿﺒﺎﯾﺴﺖ اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ورودي و ﺧﺮوﺟﯽ از ﻃﺮﯾﻖ ip nat inside | outsideﻣﺸﺨﺺ ﺷﻮﻧﺪ ﺑﺮاي ﻫﻤﯿﻦ ﻣﻨﻈﻮر در ﺗﻨﻈﻤﯿﺎت NATﯾﮏ ﺑﻪ ﯾﮏ ﺑﻪ دو آﯾﺘﻢ ﮐﻠﯿﺪي ﻧﯿﺎز دارﯾﻢ ، آدرس ﻫﺎﺳﺖ داﺧﻠﯽ (inside ) localو آدرﺳﯽ ﮐﻪ آدرس داﺧﻠﯽ ﻣﺎ ﺑﺎﯾﺪ ﺑﻪ آن ﺗﺮﺟﻤﻪ ﺷﻮد). (inside global ﭘﺲ از ﻣﺸﺨﺺ ﺷﺪن اﯾﻨﺪو، از ﻃﺮﯾﻖ ip nat inside source static inside_local_ip outside_global_ip ﻣﮑﺎﻧﯿﺰم NATﯾﮏ ﺑﻪ ﯾﮏ در روﺗﺮ ﻣﻮرد ﻧﻈﺮ ﻓﻌﺎل ﻣﯿﺸﻮد. در ﻫﻨﮕﺎم ﮐﺎﻧﻔﯿﮓ NATﭼﻪ از ﻧﻮع ﯾﮏ ﺑﻪ ﯾﮏ ﯾﺎ ﯾﮏ ﺑﻪ ﭼﻨﺪ ﻣﯿﺘﻮان از ﻗﺎﺑﻠﯿﺖ Extendabilityدر اﻧﺘﻬﺎي دﺳﺘﻮر Ip natاﺳﺘﻔﺎده ﮐﺮد. ﺑﻪ ﻃﻮر ﮐﻠﯽ دو ﻧﻮع NATاﺳﺘﺎﺗﯿﮏ ﯾﺎ ﯾﮏ ﺑﻪ ﯾﮏ وﺟﻮد دارد . در ﻧﻮع اول ﯾﺎ اﺳﺘﺎﻧﺪارد ﻧﮕﺎﺷﺘﯽ ﯾﮏ ﺑﻪ ﯾﮏ ﻣﺎﺑﯿﻦ آدرﺳﻬﺎي ﻣﺒﺪا و ﻣﻘﺼﺪ اﯾﺠﺎد ﻣﯿﺸﻮد و ﻫﺮ آدرس در ﺗﻨﻬﺎ ﯾﮏ ﻣﮑﺎﻧﯿﺰم NATﺷﺮﮐﺖ ﻣﯿﮑﻨﺪ.اﻣﺎ در ﻧﻮع extendedاﯾﻦ ﻗﺎﺑﻠﯿﺖ وﺟﻮد دارد ﮐﻪ ﻧﮕﺎﺷﺘﯽ ﯾﮏ ﺑﻪ ﭼﻨﺪ ﻣﺎﺑﯿﻦ ﺗﻌﺪاد زﯾﺎدي آدرس inside localﯾﺎ inside globalﺑﺮﻗﺮار ﺷﻮد. 092 Page 248 of
- 250. ﻋﺒﺎرت Extendableدراﻧﺘﻬﺎي دﺳﺘﻮر IP natاﯾﻦ اﻣﮑﺎن را ﻓﺮاﻫﻢ ﻣﯽ آورد ﮐﻪ ﺗﻌﺪادي زﯾﺎدي دﺳﺘﻮر NATﺑﺎ آدرﺳﻬﺎي ﯾﮑﺴﺎن inside localﯾﺎ inside globalﺑﺪون ﺗﺪاﺧﻞ و ﺗﻔﮑﯿﮏ ﺷﺪه در ﺳﻄﺢ ﭘﻮرت ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﮔﯿﺮﻧﺪ. ﺑﻪ ﻋﻨﻮان ﻣﺜﺎل extendable extendable 08 344 5.81.92.271 5.81.92.271 0808 08 1.1.11.01 ip nat source static tcp 41.1.11.01 ip nat source static tcp ﺑﺎ اﺳﺘﻔﺎده از دﺳﺘﻮر the show ip nat translationsﻣﯿﺘﻮان ﻣﺤﺘﻮاي ﺟﺪول NATروﺗﺮ را ﻣﺸﺎﻫﺪه ﮐﺮد ﻫﻤﯿﻨﻄﻮر ﺑﺎ دﺳﺘﻮر * clear ip nat translationﺗﻤﺎم آﻧﺮا ﺧﺎﻟﯽ ﮐﺮد. در اﯾﻦ آزﻣﺎﯾﺶ NATاﺳﺘﺎﺗﯿﮏ ﯾﮏ ﺑﻪ ﯾﮏ ﻣﺎﺑﯿﻦ دو ﮐﻤﭙﺎﻧﯽ ABCو XYZﮐﻪ ﻫﺮ دو داراي رﻧﺞ آدرس ﺳﻤﺖ ﮐﺎرﺑﺮ ﯾﮑﺴﺎن ﻫﺴﺘﻨﺪ اﯾﺠﺎد ﻣﯿﮑﻨﯿﻢ . ﻫﻤﺎﻧﻄﻮر ﮐﻪ از ﺗﺼﻮﯾﺮ زﯾﺮ ﭘﯿﺪاﺳﺖ ﻫﺮ دوي اﯾﻦ ﺷﺮﮐﺘﻬﺎ داراي ﻫﺎﺳﺘﯽ ﺑﺎ آدرس ﯾﮑﺴﺎن 41.41.111.01 ﮐﻪ در اﯾﻨﺠﺎ ﺑﺎ ﯾﮏ ﻟﻮپ ﺑﮏ اﯾﻨﺘﺮﻓﯿﺲ ﻣﺸﺨﺺ ﻫﺴﺘﻨﺪ . ﺗﺼﻮﯾﺮ 1.1.11- NATﯾﮏ ﺑﻪ ﯾﮏ ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ اﯾﺠﺎد ﺗﻮﭘﻮﻟﻮژي ﻣﻄﺎﺑﻖ ﺑﺎ ﺗﺼﻮﯾﺮ ﻓﻮق و اﻋﻤﺎل ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ زﯾﺮ در روﺗﺮﻫﺎ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ روﺗﺮ 1R 092 Page 249 of
- 251. !################################################### !# R1 InitialConfig !################################################### ! enable configure terminal ! hostname R1 no ip domain-lookup ! interface loopback0 description ### SIMULATED SERVER ### ip address 10.111.14.14 255.255.255.255 ! interface Serial0/0 description ### PHYSICAL FRAME RELAY INTERFACE ### no ip address encapsulation frame-relay serial restart-delay 0 no frame-relay inverse-arp exit ! interface Serial0/0.122 point-to-point description ### FRAME RELAY LINK TO R2 ### ip address 10.111.12.1 255.255.255.0 frame-relay interface-dlci 122 exit ! interface Serial0/0 no shut exit ! router eigrp 10 no auto-summary network 10.111.12.1 0.0.0.0 network 10.111.14.14 0.0.0.0 exit ! line con 0 logging sync no exec-timeout ! end R2 ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ روﺗﺮ !################################################### !# R2 Initial Config !################################################### ! enable configure terminal ! Page 250 of 290
- 252. hostname R2 no ipdomain-lookup ! interface Serial0/0 description ### PHYSICAL FRAME RELAY INTERFACE ### encapsulation frame-relay no frame-relay inverse-arp exit ! interface Serial0/0.221 point-to-point description ### FRAME RELAY LINK TO R1 ### ip address 10.111.12.2 255.255.255.0 frame-relay interface-dlci 221 exit ! interface Serial0/0.223 point-to-point description ### FRAME RELAY LINK TO R3 ### ip address 172.20.23.2 255.255.255.0 frame-relay interface-dlci 223 exit ! interface Serial0/0 no shut exit ! router eigrp 10 no auto-summary network 10.111.12.2 0.0.0.0 network 172.20.23.2 0.0.0.0 passive-interface Serial0/0.223 exit ! line con 0 logging sync no exec-timeout ! end10 R3 ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ روﺗﺮ !################################################### !# R3 Initial Config !################################################### ! enable configure terminal ! hostname R3 no ip domain-lookup ! interface Serial0/0 description ### PHYSICAL FRAME RELAY INTERFACE ### encapsulation frame-relay Page 251 of 290
- 253. no frame-relay inverse-arp exit ! interfaceSerial0/0.322 point-to-point description ### FRAME RELAY LINK TO R2 ### ip address 172.20.23.3 255.255.255.0 frame-relay interface-dlci 322 exit ! interface Serial0/0.324 point-to-point description ### PHYSICAL FRAME RELAY INTERFACE ### ip address 10.111.34.3 255.255.255.0 frame-relay interface-dlci 324 no shut ! interface Serial0/0 no shut exit ! router eigrp 10 no auto-summary network 172.20.23.3 0.0.0.0 network 10.111.34.3 0.0.0.0 passive-interface Serial0/0.322 exit ! line con 0 logging sync no exec-timeout ! end R4 ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ روﺗﺮ !################################################### !# R4 Initial Config !################################################### ! enable configure terminal ! hostname R4 no ip domain-lookup ! interface loopback0 description ### SIMULATED SERVER ### ip address 10.111.14.14 255.255.255.255 ! interface Serial0/0 description ### PHYSICAL FRAME RELAY INTERFACE ### encapsulation frame-relay no frame-relay inverse-arp exit Page 252 of 290
- 254. ! interface Serial0/0.423 point-to-point description### FRAME RELAY LINK TO R3 ### ip address 10.111.34.4 255.255.255.0 frame-relay interface-dlci 423 exit ! interface Serial0/0 no shut exit ! router eigrp 10 no auto-summary network 10.111.14.14 0.0.0.0 network 10.111.34.4 0.0.0.0 ! line con 0 logging sync no exec-timeout ! end اﻫﺪاف آزﻣﺎﯾﺶ NAT Inside , NAT Outside ﺑﻪ ﻋﻨﻮانR2,R3 ﺗﻨﻈﯿﻢ اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ﻣﺘﻨﺎﻇﺮ در outside global ﺑﺎ ﻫﺪف ﺗﺮﺟﻤﻪ آدرس داﺧﻠﯽ 41.41.111.01 ﺑﻪR2 درNAT اﯾﺠﺎد اﺳﺘﺎﺗﯿﮏ 172.20.23.2 outside global ﺑﺎ ﻫﺪف ﺗﺮﺟﻤﻪ آدرس داﺧﻠﯽ 41.41.111.01 ﺑﻪR3 درNAT اﯾﺠﺎد اﺳﺘﺎﺗﯿﮏ 172.20.23.3 R1 درLo0 ﺗﺴﺖ ﺻﺤﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻣﺎﺑﯿﻦ ﻫﺎﺳﺘﻬﺎي دوﻃﺮف از ﻃﺮﯾﻖ ﭘﯿﻨﮓ ﺑﺎ ﻣﺒﺪا Page 253 of 290
- 255. دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ NATInside , NAT Outside ﺑﻪ ﻋﻨﻮانR2,R3 1. ﺗﻨﻈﯿﻢ اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ﻣﺘﻨﺎﻇﺮ در R2#configure terminal Enter configuration commands, one per line. End with R2(config)#interface Serial0/0.221 R2(config-subif)#ip nat inside %LINEPROTO-5-UPDOWN: Line protocol on Interface NVI0, R2(config-subif)#interface Serial0/0.223 R2(config-subif)#ip nat outside R2(config-subif)#end R2# R3#configure terminal Enter configuration commands, one per line. End with R3(config)#interface Serial0/0.322 R3(config-subif)#ip nat outside %LINEPROTO-5-UPDOWN: Line protocol on Interface NVI0, R3(config-subif)#interface Serial0/0.324 R3(config-subif)#ip nat inside R3(config-subif)#end R3# CNTL/Z. changed state to up CNTL/Z. changed state to up outside global ﺑﺎ ﻫﺪف ﺗﺮﺟﻤﻪ آدرس داﺧﻠﯽ 41.41.111.01 ﺑﻪR2 درNAT 1. اﯾﺠﺎد اﺳﺘﺎﺗﯿﮏ 172.20.23.2 R2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R2(config)#ip nat inside source static 10.111.14.14 172.20.23.2 R2(config)#end R2# outside global ﺑﺎ ﻫﺪف ﺗﺮﺟﻤﻪ آدرس داﺧﻠﯽ 41.41.111.01 ﺑﻪR3 درNAT 3. اﯾﺠﺎد اﺳﺘﺎﺗﯿﮏ 172.20.23.3 R3#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R3(config)#ip nat inside source static 10.111.14.14 172.20.23.3 R3(config)#end R3# R1 درLo0 4. ﺗﺴﺖ ﺻﺤﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﻣﺎﺑﯿﻦ ﻫﺎﺳﺘﻬﺎي دوﻃﺮف از ﻃﺮﯾﻖ ﭘﯿﻨﮓ ﺑﺎ ﻣﺒﺪا Page 254 of 290
- 256. R1#ping 172.20.23.3 sourceloopback 0 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 172.20.23.3, timeout is 2 seconds: Packet sent with a source address of 10.111.1.14 !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 88/90/93 ms R1# Page 255 of 290
- 257. Page 256 of290
- 258. آزﻣﺎﯾﺶ 2.7 –ﺗﻨﻈﯿﻤﺎت Dynamc NAT-NAT Pool در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت NAT Poolﺑﻪ ﻣﻨﻈﻮر ﺗﺨﺼﯿﺺ آدرس از ﻣﺠﻤﻮﻋﻪ اي از آدرﺳﻬﺎي ﺧﺎرﺟﯽ ﺑﻪ ﻫﺎﺳﺘﻬﺎي داﺧﻠﯽ ﺑﺮ اﺳﺎس اﻟﻮﯾﺖ درﺧﻮاﺳﺖ از ﺳﻤﺖ ﺷﺒﮑﻪ داﺧﻠﯽ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ NAT Poolﻣﺠﻤﻮﻋﻪ اي از آدرﺳﻬﺎﺳﺖ ﮐﻪ ﺑﻪ ﻃﻮر ﻣﻨﻈﻢ و ﺑﺮ ﺣﺴﺐ ﺗﺮﺗﯿﺐ درﺧﻮاﺳﺖ ﯾﮏ آدرس واﻗﻊ در Inside localو ﻫﻤﺎﻫﻨﮓ ﺑﺎ ﺑﺎ اﮐﺴﺲ ﻟﯿﺴﺖ ﻣﺘﻨﺎﻇﺮ ﺑﻪ ﻣﺘﻘﺎﺿﯽ آن ﻣﻨﺘﺴﺐ ﻣﯿﺸﻮد.ﻣﺰﯾﺖ اﯾﻦ ﻧﻮع ﮐﺎﻧﻔﯿﮓ در اﻣﮑﺎن ﺑﻬﺮه ﮔﯿﺮي ﺷﺒﮑﻪ داﺧﻠﯽ از رﻧﺞ آدرس ﺧﺼﻮﺻﯽ ﻣﺒﺘﻨﯽ ﺑﺮ 8191 RFCﻣﺎﻧﻨﺪ 8/0.0.0.01 و اﻣﮑﺎن ﺑﺮﻗﺮاري ارﺗﺒﺎط ﺑﺎ دﻧﯿﺎي ﺧﺎرج اﯾﻦ ﻓﻀﺎي آدرﺳﯽ از ﻃﺮﯾﻖ ﻧﮕﺎﺷﺖ ﯾﮏ ﺑﻪ ﯾﮏ ﻣﺎﺑﯿﻦ آدرﺳﻬﺎي داﺧﻠﯽ و آدرﺳﻬﺎ ﻣﻌﺘﺒﺮ ﺧﺎرﺟﯽ واﻗﻊ در NAT Poolاﺳﺖ. اﻣﺮوزه ﻋﻤﺪه اﺳﺘﻔﺎده NAT poolدر اﯾﺠﺎد DMZاﺳﺖ وﯾﺎ ﺷﺮﮐﺘﻬﺎﯾﯽ ﮐﻪ ﻣﺎﯾﻠﻨﺪ ﻫﺮﯾﮏ از آدرﺳﻬﺎي ﻣﻮﺟﻮد در ﺷﺒﮑﻪ داﺧﻠﯿﺸﺎن از ﻃﺮﯾﻖ ﯾﮏ آدرس ﻣﻌﺘﺒﺮ ﻣﻨﺤﺼﺮ ﺑﻪ ﻓﺮد ﺑﻪ دﻧﯿﺎي ﺧﺎرج ﻣﺮﺗﺒﻂ ﺷﻮد. ﺟﻬﺖ ﮐﺎﻧﻔﯿﮓ NAT Poolدر وﺣﻠﻪ اول ﻧﯿﺎز اﺳﺖ Poolﻣﻮرد ﻧﻈﺮ از ﻃﺮﯾﻖ ﻣﺸﺨﺺ ﮐﺮدن ﻣﺤﺪوده اﺑﺘﺪا و اﻧﺘﻬﺎي آدرﺳﻬﺎ ﻣﺸﺨﺺ ﺷﻮد.ﭘﺲ از آن ﻣﯿﺒﺎﯾﺴﺖ ﺑﺎ ﺑﻬﺮه ﮔﯿﺮي از دﺳﺘﻮر NATﮐﻪ از ﯾﮏ اﮐﺴﺲ ﻟﯿﺴﺖ وﯾﮋه ﺑﻪ ﻣﻨﻈﻮر اﻋﻤﺎل ﺳﯿﺎﺳﺖ ﻧﮕﺎﺷﺖ آدرﺳﻬﺎي داﺧﻠﯽ ﺑﻪ آدرﺳﻬﺎي ﻋﻤﻮﻣﯽ ﺧﺎرﺟﯽ اﺳﺘﻔﺎده ﻣﯿﮑﻨﺪ ﻣﮑﺎﻧﯿﺰم ﺗﺮﺟﻤﻪ آدرس را ﺗﮑﻤﯿﻞ ﮐﻨﯿﻢ. ﺑﺮاي اﯾﺠﺎد NAT Poolاز دﺳﺘﻮر # ip nat pool poolname sip.sip.sip.sip eip.eip.eip.eip prefixو در اداﻣﻪ از دﺳﺘﻮر ip nat inside source list ACL#_OR_NAME pool POOLNAME در اﯾﻦ آزﻣﺎﯾﺶ از ﺳﻪ روﺗﺮ 3 R1,R2,Rﺟﻬﺖ ﺷﺒﯿﻪ ﺳﺎزي ﻣﮑﺎﻧﯿﺰم ﺗﺮﺟﻤﻪ آدرس ﯾﮏ ﺷﺒﮑﻪ ﻣﺘﺼﻞ ﺑﻪ ISPاﺳﺘﻔﺎده ﺧﻮاﻫﯿﻢ ﮐﺮد و 2 Rوﻇﯿﻔﻪ ﺗﺮﺟﻤﻪ آدرﺳﻬﺎي ﺷﺒﮑﻪ داﺧﻠﯽ ﺑﻪ آدرﺳﻬﺎي ﻣﻌﺘﺒﺮ ﺧﺎرﺟﯽ ﻣﺒﺘﻨﯽ ﺑﺮ NAT Poolاﺧﺬ ﺷﺪه از ISPرا ﺑﻪ ﻋﻬﺪه ﺧﻮاﻫﺪ داﺷﺖ. . ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ اﯾﺠﺎد ﺗﻮﭘﻮﻟﻮژي ﻣﺘﻨﺎﻇﺮ ﺑﺎ ﺗﺼﻮﯾﺮ زﯾﺮ اﻋﻤﺎل ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ ﺑﻪ روﺗﺮﻫﺎ 092 Page 257 of
- 259. NAT Pool –11.2.1 ﺗﺼﻮﯾﺮ R1 ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ روﺗﺮ !################################################### !# Lab 7-2 R1 Initial Config # !################################################### ! enable configure terminal ! hostname R1 no ip domain-lookup ! interface Serial0/0 description ### PHYSICAL FRAME RELAY INTERFACE ### no ip address encapsulation frame-relay serial restart-delay 0 no frame-relay inverse-arp exit ! interface Serial0/0.122 point-to-point description ### FRAME RELAY LINK TO R2 ### ip address 10.112.12.1 255.255.255.252 frame-relay interface-dlci 122 exit ! interface Serial0/0 no shut exit ! router eigrp 10 no auto-summary network 10.112.12.1 0.0.0.0 exit ! line con 0 logging sync Page 258 of 290
- 260. no exec-timeout ! end R2 ﺗﻨﻈﯿﻤﺎتاوﻟﯿﻪ روﺗﺮ !################################################### !# Lab 7-2 R2 Initial Config # !################################################### ! enable configure terminal ! hostname R2 no ip domain-lookup ! interface Serial0/0 description ### PHYSICAL FRAME RELAY INTERFACE ### encapsulation frame-relay no frame-relay inverse-arp exit ! interface Serial0/0.221 point-to-point description ### FRAME RELAY LINK TO R1 ### ip address 10.112.12.2 255.255.255.252 frame-relay interface-dlci 221 exit ! interface Serial0/0.223 point-to-point description ### FRAME RELAY LINK TO R3 ### ip address 171.18.24.1 255.255.255.224 frame-relay interface-dlci 223 exit ! interface Serial0/0 no shut exit ! router eigrp 10 no auto-summary network 10.112.12.2 0.0.0.0 network 171.18.24.1 0.0.0.0 redistribute static passive-interface Serial0/0.223 exit ! ip route 0.0.0.0 0.0.0.0 171.18.24.2 ! line con 0 logging sync no exec-timeout ! end Page 259 of 290
- 261. R3 ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪروﺗﺮ !################################################### !# Lab 11-2 R3 Initial Config # !################################################### ! enable configure terminal ! hostname R3 no ip domain-lookup ! interface Loopback0 description ### SIMULATED INTERNET HOST ### ip address 4.2.2.2 255.255.255.255 ! interface Serial0/0 description ### PHYSICAL FRAME RELAY INTERFACE ### encapsulation frame-relay no frame-relay inverse-arp exit ! interface Serial0/0.322 point-to-point description ### FRAME RELAY LINK TO R2 ### ip address 171.18.24.2 255.255.255.224 frame-relay interface-dlci 322 exit ! interface Serial0/0 no shut exit ! line con 0 logging sync no exec-timeout ! End اﻫﺪاف آزﻣﺎﯾﺶ EIGRP AS 10 آﻧﻬﺎ درadvertise از رﻧﺞ 22/0.0.55.01 وR1 اﯾﺠﺎد 4 اﯾﻨﺘﺮﻓﯿﺲ ﻟﻮپ ﺑﮏ در 171.18.24.5-25/27 ﺑﺎ رﻧﺞNAT Pool و اﯾﺠﺎدR2 درNAT ﺗﻨﻈﯿﻢ ﭘﺎرﻣﺘﺮﻫﺎي اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ﻓﻌﺎل ﺟﻬﺖ اﻋﻤﺎل ﺳﯿﺎﺳﺖ اﻧﺘﺴﺎب آدرﺳﻬﺎي داﺧﻠﯽ ﺑﻪ ﺧﺎرﺟﯽR2 ﺷﺪه درextend اﯾﺠﺎد اﮐﺴﺲ ﻟﯿﺴﺖ dynamic NAT اﯾﺠﺎد NAT از ﻃﺮﯾﻖR3 ﺑﺎ آدرس 2.2.2.4 درR1 ﺗﺴﺖ ﺻﺤﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط R1 ﺑﻪ ﻫﺎﺳﺘﻬﺎي ﻣﺘﺼﻞ ﺑﻪ ﺷﺒﮑﻪ داﺧﻠﯽPool ﺗﺴﺖ ﺻﺤﺖ اﻧﺘﺴﺎب آدرﺳﻬﺎي Page 260 of 290
- 262. دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ EIGRP AS10 آﻧﻬﺎ درadvertise از رﻧﺞ 22/0.0.55.01 وR1 1. اﯾﺠﺎد 4 اﯾﻨﺘﺮﻓﯿﺲ ﻟﻮپ ﺑﮏ در R1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R1(config)#interface loopback0 %LINEPROTO-5-UPDOWN: Line protocol on Interface Loopback0, changed state to up R1(config-if)#ip add 10.55.0.1 255.255.255.0 R1(config-if)#interface loopback1 %LINEPROTO-5-UPDOWN: Line protocol on Interface Loopback1, changed state to up R1(config-if)#ip add 10.55.1.1 255.255.255.0 R1(config-if)#interface loopback2 %LINEPROTO-5-UPDOWN: Line protocol on Interface Loopback2, changed state to up R1(config-if)#ip add 10.55.2.1 255.255.255.0 R1(config-if)#interface loopback3 %LINEPROTO-5-UPDOWN: Line protocol on Interface Loopback3, changed state to up R1(config-if)#ip add 10.55.3.1 255.255.255.0 R1(config-if)#exit R1(config)#router eigrp 10 R1(config-router)#network 10.55.0.0 0.0.3.255 R1(config-router)#end R1# 171.18.24.5-25/27 ﺑﺎ رﻧﺞNAT Pool و اﯾﺠﺎدR2 درNAT 2. ﺗﻨﻈﯿﻢ ﭘﺎرﻣﺘﺮﻫﺎي اﯾﻨﺘﺮﻓﯿﺴﻬﺎي ﻓﻌﺎل R2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R2(config)#interface Serial0/0.221 R2(config-subif)#ip nat inside %LINEPROTO-5-UPDOWN: Line protocol on Interface NVI0, changed state to up R2(config-subif)#interface Serial0/0.223 R2(config-subif)#ip nat outside R2(config-subif)#exit R2(config)#ip nat pool natpool1 171.18.24.5 171.18.24.25 prefix-length 27 R2(config)# ﺟﻬﺖ اﻋﻤﺎل ﺳﯿﺎﺳﺖ اﻧﺘﺴﺎب آدرﺳﻬﺎي داﺧﻠﯽ ﺑﻪ ﺧﺎرﺟﯽR2 ﺷﺪه درextend 3. اﯾﺠﺎد اﮐﺴﺲ ﻟﯿﺴﺖ R2(config)#ip access-list extended NATPOOL_ACL R2(config-ext-nacl)#10 permit ip 10.55.0.0 0.0.3.255 any R2(config-ext-nacl)#exit R2(config)# Page 261 of 290
- 263. dynamic NAT 4.اﯾﺠﺎد R2(config)#ip nat inside source list NATPOOL_ACL pool natpool1 R2(config)#end R2# NAT از ﻃﺮﯾﻖR3 ﺑﺎ آدرس 2.2.2.4 درR1 5. ﺗﺴﺖ ﺻﺤﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط R1#ping 4.2.2.2 source lo0 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 4.2.2.2, timeout is 2 seconds: Packet sent with a source address of 10.55.0.1 !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 16/104/196 ms R1#ping 4.2.2.2 source lo1 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 4.2.2.2, timeout is 2 seconds: Packet sent with a source address of 10.55.1.1 !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 32/108/184 ms R1#ping 4.2.2.2 source lo2 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 4.2.2.2, timeout is 2 seconds: Packet sent with a source address of 10.55.2.1 !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 36/136/252 ms R1#ping 4.2.2.2 source lo3 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 4.2.2.2, timeout is 2 seconds: Packet sent with a source address of 10.55.3.1 !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 36/83/224 ms R1# R1 ﺑﻪ ﻫﺎﺳﺘﻬﺎي ﻣﺘﺼﻞ ﺑﻪ ﺷﺒﮑﻪ داﺧﻠﯽPool 6. ﺗﺴﺖ ﺻﺤﺖ اﻧﺘﺴﺎب آدرﺳﻬﺎي R2#show ip nat translations Pro Inside global Inside local icmp 171.18.24.5:2 10.55.0.1:2 --- 171.18.24.5 10.55.0.1 icmp 171.18.24.6:3 10.55.1.1:3 --- 171.18.24.6 10.55.1.1 icmp 171.18.24.7:4 10.55.2.1:4 Outside local 4.2.2.2:2 --4.2.2.2:3 --4.2.2.2:4 Outside global 4.2.2.2:2 --4.2.2.2:3 --4.2.2.2:4 Page 262 of 290
- 264. --- 171.18.24.7 icmp 171.18.24.8:5 ---171.18.24.8 R2# Page 263 of 290 10.55.2.1 10.55.3.1:5 10.55.3.1 --4.2.2.2:5 --- --4.2.2.2:5 ---
- 265. آزﻣﺎﯾﺶ 3.7 –ﺗﻨﻈﯿﻤﺎت PAT در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت PATﺑﻪ ﻣﻨﻈﻮر ﺗﺮﺟﻤﻪ ﺗﻌﺪاد زﯾﺎدي آدرس داﺧﻠﯽ ﺑﻪ ﯾﮏ آدرس ﻋﻤﻮﻣﯽ ﺧﺎرﺟﯽ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ ﻫﻨﮕﺎﻣﯽ ﮐﻪ ﺳﺨﻦ از NATﺑﻪ ﻣﯿﺎن ﻣﯽ آﯾﺪ ﻋﻤﻮﻣﺎ ذﻫﻨﻬﺎ ﺑﻪ ﺳﻤﺖ ﻓﺮاﯾﻨﺪ ﺗﺮﺟﻤﻪ آدرس ﺗﻌﺪاد زﯾﺎدي آدرس ﺧﺼﻮﺻﯽ داﺧﻠﯽ ﺑﻪ ﯾﮏ آدرس ﻋﻤﻮﻣﯽ ﻣﺘﻮﺟﻪ ﻣﯿﺸﻮﻧﺪ ﮐﻪ ﺑﻪ ﻏﻠﻂ NATﺧﻮاﻧﺪه ﻣﯿﺸﻮد.ﻋﻨﻮان ﺻﺤﯿﺢ اﯾﻦ ﻓﺮاﯾﻨﺪ PATﯾﺎ port address translationاﺳﺖ. PATﻧﻮﻋﯽ از NATﻣﺤﺴﻮب ﻣﯿﺸﻮد ﮐﻪ ﺗﻌﺪاد زﯾﺎدي آدرس داﺧﻠﯽ Inside localرا ﺑﻪ ﯾﮏ آدرس ﻋﻤﻮﻣﯽ Inside globalﮐﻪ ﻋﻤﺪﺗﺎ ﺗﻮﺳﻂ ISPدر اﺧﺘﯿﺎر ﮔﺬاﺷﺘﻪ ﻣﯿﺸﻮد ﺗﺮﺟﻤﻪ ﻣﯿﮑﻨﺪ. PATرا در ﻋﯿﻦ ﺣﺎل ﻣﯿﺘﻮان ﺑﻪ ﺻﻮرت ﻓﺮم داﯾﻨﺎﻣﯿﮏ Extended NATﻫﻢ در ﻧﻈﺮ ﮔﺮﻓﺖ.ﻋﻤﻠﮑﺮد ﻋﻤﻮﻣﯽ PATﺑﺴﯿﺎر ﺳﺎده اﺳﺖ ﺑﻪ ﻋﻨﻮان ﻣﺜﺎل ﯾﮏ PCدر ﺷﺒﮑﻪ داﺧﻠﯽ ﺑﺎ آدرس 22.1.55.01 ﻗﺼﺪ دارد ﮐﻪ ﺑﻪ اﯾﻨﺘﺮﻧﺖ ﻣﺘﺼﻞ ﺷﻮد اﻣﺎ اﯾﻦ رﻧﺞ IPﻗﺎﺑﻠﯿﺖ روﺗﯿﻨﮓ در اﯾﻨﺘﺮﻧﺖ را ﻧﺪارد ﭘﺲ ﺑﻪ IPﻧﯿﺎز اﺳﺖ ﮐﻪ اﯾﻦ ﻗﺎﺑﻠﯿﺖ را داﺷﺘﻪ ﺑﺎﺷﺪ.ﻫﻨﮕﺎﻣﯽ ﮐﻪ PCدرﺧﻮاﺳﺖ ارﺗﺒﺎط ﺑﺎ اﯾﻨﺘﺮﻧﺖ را ﺑﻪ ﺳﻤﺖ روﺗﺮ ﻣﺤﻠﯽ ارﺳﺎل ﻣﯿﮑﻨﺪ روﺗﺮ ﭘﮑﺖ درﯾﺎﻓﺘﯽ را ﺑﻪ آدرس ﻋﻤﻮﻣﯽ ﺧﻮد و ﯾﮏ ﺷﻤﺎره ﭘﻮرت ﺗﺼﺎدﻓﯽ PATﻣﯿﮑﻨﺪ و اﯾﻦ ﺟﺮﯾﺎن ﮐﺎري را در ﺟﺪول NATﺧﻮد ﺟﻬﺖ اﻧﺠﺎم ﻣﻌﮑﻮس اﯾﻦ ﻓﺮاﯾﻨﺪ روي ﭘﮑﺘﻬﺎي ﺑﺎزﮔﺸﺘﯽ ذﺧﯿﺮه ﻣﯿﮑﻨﺪ. در ﻣﺜﺎل ﺑﺎﻻ PCﺑﺎ آدرس 22.1.55.01 ﺗﻼش ﻣﯿﮑﻨﺪ ﺗﺎ ﺑﺎ آدرس 4.2.2.4 ﺗﻤﺎس ﺑﺮﻗﺮار ﮐﻨﺪ ﭘﺲ در ﻣﺮﺣﻠﻪ اول ﺗﺮاﻓﯿﮏ را ﺑﻪ ﺳﻤﺖ default gatewayﺷﺒﮑﻪ ارﺳﺎل ﻣﯿﮑﻨﺪ و اﯾﻦ روﺗﺮ ﻫﻢ از ﻃﺮﯾﻖ ﯾﮏ اﺗﺼﺎل 1 Tﺑﻪ اﯾﻨﺘﺮﻧﺖ ﻣﺘﺼﻞ اﺳﺖ.روﺗﺮ ﭘﺲ از درﯾﺎﻓﺖ ﭘﮑﺖ ورودي ﺑﺎ آدرس 22.1.55.01 و ﺷﻤﺎره ﭘﻮرﺗﯽ ﺧﺎص آﻧﺮا ﺑﻪ آدرس اﯾﻨﺘﺮﻓﯿﺲ 1 Tﺧﻮد و ﺷﻤﺎره ﭘﻮرت ﺗﺼﺎدﻓﯽ ﺑﺎ ﻫﻤﺎن ﻣﻘﺼﺪ اوﻟﯿﻪ ﺗﺮﺟﻤﻪ ﻣﯿﮑﻨﺪ و اﯾﻦ ﻓﺮاﯾﻨﺪ را در ﺟﺪول NATﺧﻮد ذﺧﯿﺮه ﻣﯿﮑﻨﺪ.ﭘﺲ از آن ﭘﮑﺖ را ﺑﻪ دﻧﯿﺎي ﺧﺎرج ارﺳﺎل ﻣﯿﮑﻨﺪ. ﻫﻨﮕﺎﻣﯽ ﮐﻪ ﺗﺮاﻓﯿﮏ ﻣﺠﺪدا ﺑﻪ روﺗﺮ ﺑﺎز ﻣﯿﮕﺮدد از ﻫﻤﺎن ﻓﺮاﯾﻨﺪ ﯾﺎدداﺷﺖ ﺷﺪه در ﺟﺪول NATﺧﻮد ﺟﻬﺖ ﺗﺮﺟﻤﻪ ﻣﻌﮑﻮس آدرس و رﺳﺎﻧﺪن ﺗﺮاﻓﯿﮏ ﺑﻪ آدرس ﺷﺒﮑﻪ داﺧﻠﯽ اﺳﺘﻔﺎده ﻣﯿﮑﻨﺪ. ﺟﻬﺖ ﺗﻨﻈﯿﻢ PATﻣﺎﻧﻨﺪ ﻫﻤﻪ NATﻫﺎﯾﯽ ﮐﻪ ﺗﺎ ﮐﻨﻮن دﯾﺪﯾﻢ ﻧﯿﺎز اﺳﺖ ﺗﺎ اﯾﻨﺘﺮﻓﯿﺴﻬﺎي داﺧﻠﯽ و ﺧﺎرﺟﯽ ﻣﺸﺨﺺ ﺷﻮﻧﺪ.ﭘﺲ از آن ﻫﻢ ﻧﯿﺎز ﺑﻪ Aclﺟﻬﺖ ارﺟﺎ دﺳﺘﻮر NATﺑﻪ آن ﺑﻪ ﻣﻨﻈﻮر اﻋﻤﺎل ﺳﯿﺎﺳﺖ ﻫﺎي دﺳﺘﺮﺳﯽ اﺳﺖ.در ﺻﻮرﺗﯿﮑﻪ داراي رﻧﺠﯽ از آدرﺳﻬﺎي ﻋﻤﻮﻣﯽ ﻫﺴﺘﯿﺪ و ﻣﺎﯾﻠﯿﺪ ﮐﻪ ﺑﻪ ﺟﺎي اﺳﺘﻔﺎده از ﯾﮏ ﺗﮏ آدرس ﻣﻨﺘﺴﺐ ﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ WANروﺗﺮ از ﯾﮑﯽ از آﻧﻬﺎ اﺳﺘﻔﺎده ﮐﻨﯿﺪ ﻧﯿﺎز اﺳﺖ ﺗﺎ در اﺑﺘﺪا ﯾﮏ NAT Poolﺑﺎ رﻧﺠﯽ از آدرﺳﻬﺎي ﻣﻮرد ﻧﻈﺮ اﯾﺠﺎد ﺷﻮد اﻣﺎ ﻋﻤﻮﻣﺎ ﻓﺮاﯾﻨﺪ PATاز ﻃﺮﯾﻖ ﺗﺮﺟﻤﻪ آدرس داﺧﻠﯽ ﺑﻪ آدرس ﻋﻤﻮﻣﯽ ﻣﻨﺘﺴﺐ ﺑﻪ اﯾﻨﺘﺮﻓﯿﺲ WAN ﺻﻮرت ﻣﯿﭙﺬﯾﺮد . در اﯾﻦ ﺣﺎﻟﺖ ﻧﯿﺎزي ﺑﻪ ﻣﺸﺨﺺ ﮐﺮدن poolﻧﯿﺴﺖ و ﺻﺮﻓﺎ ﻣﺸﺨﺼﺎ ﮐﺮدن اﯾﻨﺘﺮﻓﯿﺲ ﺑﻪ ﻫﻤﺮاه ﻋﺒﺎرت overloadﮐﺎﻓﯽ اﺳﺖ ﻣﺜﻞ : ip nat inside source list PAT_TRAFFIC interface Serial0/0.223 overload 092 Page 264 of
- 266. اﺳﺘﻔﺎدهR3 درISP ﺟﻬﺖ ﺷﺒﯿﻪ ﺳﺎزي ﺷﺒﮑﻪ ﯾﮏ ﮐﻤﭙﺎﻧﯽ ﮐﻮﭼﮏ ﻣﺘﺼﻞ ﺑﻪR1,R2,R3 در اﯾﻦ آزﻣﺎﯾﺶ از روﺗﺮﻫﺎي ﺑﻪ ﻋﻬﺪهR3 را ﺟﻬﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﺑﺎR1 آدرﺳﻬﺎي داﺧﻠﯽ ﻣﺘﺼﻞ ﺑﻪPAT وﻇﯿﻔﻪR2 ﺧﻮاﻫﯿﻢ ﮐﺮد.در اﯾﻦ ﺑﯿﻦ .ﺧﻮاﻫﺪ داﺷﺖ :در اﯾﻦ آزﻣﺎﯾﺶ از دﺳﺘﻮرات زﯾﺮ اﺳﺘﻔﺎده ﺧﻮاﻫﯿﻢ ﮐﺮد ip nat inside source list aclnameor# ip.ip.ip.ip overload ip nat inside source list aclnameor# interface interface#/# overload show ip nat translations – clear ip nat translation * The following logical topology shown below is used in this lab; Port Address Translation -11.3.1 ﺗﺼﻮﯾﺮ ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ اﻋﻤﺎل ﺗﻨﻈﻤﯿﺎت اوﻟﯿﻪ روﺗﺮﻫﺎ ﻣﻄﺎﺑﻖ زﯾﺮ R1 ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ !################################################### !# Lab 7-3 R1 Initial Config # !################################################### ! enable configure terminal ! hostname R1 no ip domain-lookup ! interface Serial0/0 description ### PHYSICAL FRAME RELAY INTERFACE ### no ip address Page 265 of 290
- 267. encapsulation frame-relay serial restart-delay0 no frame-relay inverse-arp exit ! interface Serial0/0.122 point-to-point description ### FRAME RELAY LINK TO R2 ### ip address 10.113.12.1 255.255.255.252 frame-relay interface-dlci 122 exit ! interface Serial0/0 no shut exit ! router eigrp 10 no auto-summary network 10.113.12.1 0.0.0.0 exit ! line con 0 logging sync no exec-timeout ! end R2 ﺗﻨﻈﻤﯿﺎت اوﻟﯿﻪ !################################################### !# 7-3 R2 Initial Config # !################################################### ! enable configure terminal ! hostname R2 no ip domain-lookup ! interface Serial0/0 description ### PHYSICAL FRAME RELAY INTERFACE ### encapsulation frame-relay no frame-relay inverse-arp exit ! interface Serial0/0.221 point-to-point description ### FRAME RELAY LINK TO R1 ### ip address 10.113.12.2 255.255.255.252 frame-relay interface-dlci 221 exit ! interface Serial0/0.223 point-to-point description ### FRAME RELAY LINK TO R3 ### ip address 172.29.81.1 255.255.255.252 Page 266 of 290
- 268. frame-relay interface-dlci 223 exit ! interfaceSerial0/0 no shut exit ! router eigrp 10 no auto-summary network 10.113.12.2 0.0.0.0 network 172.29.81.1 0.0.0.0 redistribute static passive-interface Serial0/0.223 exit ! ip route 0.0.0.0 0.0.0.0 172.29.81.2 ! line con 0 logging sync no exec-timeout ! end R3 ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ !################################################### !# Lab 7-3 R3 Initial Config # !################################################### ! enable configure terminal ! hostname R3 no ip domain-lookup ! interface Loopback0 description ### SIMULATED INTERNET HOST ### ip address 4.2.2.2 255.255.255.255 ! interface Serial0/0 description ### PHYSICAL FRAME RELAY INTERFACE ### encapsulation frame-relay no frame-relay inverse-arp exit ! interface Serial0/0.322 point-to-point description ### FRAME RELAY LINK TO R2 ### ip address 172.29.81.2 255.255.255.224 frame-relay interface-dlci 322 exit ! interface Serial0/0 no shut exit ! Page 267 of 290
- 269. line con 0 loggingsync no exec-timeout ! End اﻫﺪاف آزﻣﺎﯾﺶ EIGRP AS 10 اﯾﺠﺎد 4 اﯾﻨﺘﺮﻓﯿﺲ ﻟﻮپ ﺑﮏ 22/0.0.55.01 و ﻣﻌﺮﻓﯽ آﻧﻬﺎ ﺑﻪ R2 درNAT ﻣﺮﺗﺒﻂ ﺑﺎinside/outside ﺗﻨﻈﯿﻢ اﯾﻨﺘﺮﻓﯿﺴﻬﺎي R2 ﺑﺎ ﻧﺎم درACL اﯾﺠﺎد ﯾﮏ Serial0/0.223 از ﻃﺮﯾﻖ اﯾﻨﺘﺮﻓﯿﺲR2 درPAT ﺗﻨﻈﯿﻢ R1 ﺗﺴﺖ ﺻﺤﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﺑﺎ 4.2.2.4 از ﺳﻤﺖ ﻟﻮپ ﺑﮏ اﯾﻨﺘﺮﻓﯿﺲ واﻗﻊ در R2 درNAT Table ﺑﺮرﺳﯽ ﻣﺤﺘﻮاي دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ EIGRP AS 10 1. اﯾﺠﺎد 4 اﯾﻨﺘﺮﻓﯿﺲ ﻟﻮپ ﺑﮏ 22/0.0.55.01 و ﻣﻌﺮﻓﯽ آﻧﻬﺎ ﺑﻪ R1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R1(config)#interface loopback0 %LINEPROTO-5-UPDOWN: Line protocol on Interface Loopback0, changed R1(config-if)#ip add 10.55.0.1 255.255.255.0 R1(config-if)#interface loopback1 %LINEPROTO-5-UPDOWN: Line protocol on Interface Loopback1, changed R1(config-if)#ip add 10.55.1.1 255.255.255.0 R1(config-if)#interface loopback2 %LINEPROTO-5-UPDOWN: Line protocol on Interface Loopback2, changed R1(config-if)#ip add 10.55.2.1 255.255.255.0 R1(config-if)#interface loopback3 %LINEPROTO-5-UPDOWN: Line protocol on Interface Loopback3, changed R1(config-if)#ip add 10.55.3.1 255.255.255.0 R1(config-if)#exit R1(config)#router eigrp 10 R1(config-router)#network 10.55.0.0 0.0.3.255 R1(config-router)#end R1# state to up state to up state to up state to up R2 درNAT ﻣﺮﺗﺒﻂ ﺑﺎinside/outside 2. ﺗﻨﻈﯿﻢ اﯾﻨﺘﺮﻓﯿﺴﻬﺎي Page 268 of 290
- 270. R2#configure terminal Enter configurationcommands, one per line. End with CNTL/Z. R2(config)#interface Serial0/0.221 R2(config-subif)#ip nat inside %LINEPROTO-5-UPDOWN: Line protocol on Interface NVI0, changed state to up R2(config-subif)#interface Serial0/0.223 R2(config-subif)#ip nat outside R2(config-subif)#exit R2(config)# . ﺟﻬﺖ ﺻﺪور ﻣﺠﻮز ﺗﺮدد آدرﺳﻬﺎي ﺷﺒﮑﻪ داﺧﻠﯽ ﺑﻪ اﯾﻨﺘﺮﻧﺖR2 ﺑﺎ ﻧﺎم درACL 3. اﯾﺠﺎد ﯾﮏ R2(config)#ip access-list extended PAT_TRAFFIC_ACL R2(config-ext-nacl)#10 permit ip 10.55.0.0 0.0.3.255 any R2(config-ext-nacl)#exit R2(config)# Serial0/0.223 از ﻃﺮﯾﻖ اﯾﻨﺘﺮﻓﯿﺲR2 درPAT 4. ﺗﻨﻈﯿﻢ R2(config)#ip nat inside source list PAT_TRAFFIC_ACL interface Serial0/0.223 overload R2(config)#end R2# R1 5. ﺗﺴﺖ ﺻﺤﺖ ﺑﺮﻗﺮاري ارﺗﺒﺎط ﺑﺎ 4.2.2.4 از ﺳﻤﺖ ﻟﻮپ ﺑﮏ اﯾﻨﺘﺮﻓﯿﺲ واﻗﻊ در R1#ping 4.2.2.2 source lo0 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 4.2.2.2, timeout is 2 seconds: Packet sent with a source address of 10.55.0.1 !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 52/94/168 ms R1#ping 4.2.2.2 source lo1 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 4.2.2.2, timeout is 2 seconds: Packet sent with a source address of 10.55.1.1 !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 36/108/200 ms R1#ping 4.2.2.2 source lo2 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 4.2.2.2, timeout is 2 seconds: Packet sent with a source address of 10.55.2.1 !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 72/133/196 ms R1#ping 4.2.2.2 source lo3 Page 269 of 290
- 271. Type escape sequenceto abort. Sending 5, 100-byte ICMP Echos to 4.2.2.2, timeout is 2 seconds: Packet sent with a source address of 10.55.3.1 !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 44/114/240 ms R1# R2 درNAT Table 6. ﺑﺮرﺳﯽ ﻣﺤﺘﻮاي R2#show ip nat translations Pro Inside global Inside local icmp 172.29.81.1:2 10.55.0.1:2 icmp 172.29.81.1:3 10.55.1.1:3 icmp 172.29.81.1:4 10.55.2.1:4 icmp 172.29.81.1:5 10.55.3.1:5 R2# Outside local 4.2.2.2:2 4.2.2.2:3 4.2.2.2:4 4.2.2.2:5 Outside global 4.2.2.2:2 4.2.2.2:3 4.2.2.2:4 4.2.2.2:5 Page 270 of 290
- 272. آزﻣﺎﯾﺶ 4.7- ﺗﻨﻈﻤﯿﺎتDHCP در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت DHCPﺟﻬﺖ ﺗﺨﺼﯿﺺ ﺧﻮدﮐﺎر IPﺑﻪ ﻫﺎﺳﺖ ﻫﺎي درون ﺷﺒﮑﻪ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ ﺗﺨﺼﯿﺺ اﺳﺘﺎﺗﯿﮏ IPﺑﻪ ﺗﻌﺪاد زﯾﺎدي از ادوات ﻧﯿﺎزﻣﻨﺪ ﺑﻪ آدرس در ﺷﺒﮑﻪ ﻓﺮاﯾﻨﺪي وﻗﺖ ﮔﯿﺮ و ﺧﺴﺘﻪ ﮐﻨﻨﺪه ﺧﻮاﻫﺪ ﺑﻮد.ﺑﺮاي ﺣﻞ اﯾﻦ ﻣﻌﻀﻞ در ﺷﺒﮑﻪ ﻫﺎي اﻣﺮوزي از DHCPﺑﺎ ﻫﺪف ﺗﺨﺼﯿﺺ ﺧﻮدﮐﺎر IPآدرس ﺑﻪ ادوات ﻓﺎﻗﺪ آدرس در ﺷﺒﮑﻪ اﺳﺘﻔﺎده ﻣﯿﺸﻮد. DHCPﺑﻪ ﻃﻮر ﻋﺎم داراي ﺗﻌﺮﯾﻒ ﻋﻤﻠﯿﺎﺗﯽ ﺑﺴﯿﺎر ﺳﺎده اﺳﺖ. ﺳﺮوﯾﺴﯽ اﺳﺖ ﮐﻪ ﺑﻪ درﺧﻮاﺳﺘﻬﺎي DHCPادوات ﻓﺎﻗﺪ آدرس ﭘﺎﺳﺦ ﻣﯿﺪﻫﺪ.اﯾﻦ ﭘﺎﺳﺦ ﻣﯿﺘﻮاﻧﺪ ﺷﺎﻣﻞ ﻣﺸﺨﺼﻪ ﻫﺎي ﺗﮑﻤﯿﻠﯽ دﯾﮕﺮي ﻧﯿﺰ ﻫﻤﭽﻮن ﻧﺎم داﻣﻨﻪ و Wins,Dns,default gateway,Ntp serverوﺑﺴﯿﺎري دﯾﮕﺮ ﻫﻢ ﺑﺎﺷﺪ ﮐﻪ ﻫﻤﺮاه ﺑﺎ آدرس ﺑﻪ ﻫﺎﺳﺖ ﻣﻮرد ﻧﻈﺮ ﻣﻨﺘﺴﺐ ﻣﯿﺸﻮد. ﻫﻤﺎﻧﻄﻮر ﮐﻪ ﺷﺎره ﺷﺪ DHCPاﻣﺮوز در ﻫﺮ ﺷﺒﮑﻪ اي ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻣﯿﮕﯿﺮد اﻣﺎ در ﻣﻮاردي ﻫﻤﭽﻮن آدرس دﻫﯽ ﺑﻪ ادوت ﻣﻮﺟﻮد در ﻧﺎﺣﯿﻪ , DMZﺳﺮورﻫﺎ , ادوات زﯾﺮﺳﺎﺧﺘﯽ ﺷﺒﮑﻪ ﻣﺜﻞ روﺗﺮﻫﺎ و ﺳﻮﯾﯿﺠﻬﺎ ﻣﯿﺒﺎﯾﺴﺖ از آدرس دﻫﯽ اﯾﺴﺘﺎ اﺳﺘﻔﺎده ﺷﻮد. ﯾﮑﯽ از اوﻟﯿﻦ ﻣﻌﻤﺎﻫﺎﯾﯽ ﮐﻪ در ﺧﺼﻮص DHCPﻣﻤﮑﻦ اﺳﺖ ﺑﻪ ذﻫﻦ ﺑﺮﺳﺪ اﯾﻨﺴﺖ ﮐﻪ ﭼﮕﻮﻧﻪ DHCP serverﻣﺘﻮﺟﻪ ﻣﯿﺸﻮد ﮐﻪ ﺑﺎﯾﺴﺖ ﺑﻪ ﻫﺎﺳﺘﯽ در ﺷﺒﮑﻪ ﻓﺮﺿﺎ 42/0.21.411.01 ﻗﺮار دارد آدرس ﺗﺨﺼﯿﺼﺺ دﻫﺪ اﯾﻦ در ﺣﺎﻟﯿﺴﺖ ﮐﻪ ﺧﻮد ﺳﺮور در 42/0.49.411.01 ﻗﺮار دارد.اﯾﻦ ﻣﺴﺌﻠﻪ از ﻃﺮﯾﻖ Ip helperﺣﻞ ﻣﯿﺸﻮد ﮐﻪ در آزﻣﺎﯾﺶ 6.11 ﺑﻪ آن ﻣﯿﭙﺮدازﯾﻢ. ﺑﺮاي ﮐﺎﻧﻔﯿﮓ DHCPﺗﻌﺪادي ﭘﯿﺶ ﻧﯿﺎز وﺟﻮد دارد ﮐﻪ اوﻟﯿﻦ آﻧﻬﺎ اﯾﺠﺎد poolاﺳﺖ.ﻫﺮ poolدراراي ﻧﺎﻣﯽ ﻣﺠﺰاﺳﺖ و از ﻃﺮﯾﻖ دﺳﺘﻮر ip dhcp pool POOL_NAMEاﯾﺠﺎد ﻣﯿﺸﻮد.ﭘﺲ از اﯾﺠﺎد poolوارد ﻣﺤﯿﻂ DHCP config modeاز ﻃﺮﯾﻖ اﻋﻼن #) hostname(dhcp-configﻣﯿﺸﻮﯾﻢ.ﭘﺲ از اﯾﺠﺎد poolﻧﻮﺑﺖ ﺑﻪ ﻣﺸﺨﺺ ﮐﺮدن ﻓﻀﺎي آدرﺳﯽ ﻣﻮﺟﻮد در آن ﻣﯿﺮﺳﺪ ﮐﻪ از ﻃﺮﯾﻖ دﺳﺘﻮر network A.B.C.D /xﺻﻮرت ﻣﯿﮕﯿﺮد. ﭘﺲ از ﺗﻨﻈﯿﻢ ﻣﺮاﺗﺐ ﻓﻮق ﻧﻮﺑﺖ ﺑﻪ ﻣﺸﺨﺺ ﮐﺮدن leased timeﯾﺎ ﻣﺪت زﻣﺎن در اﺧﺘﯿﺎر ﮔﺬاﺷﺘﻦ آدرس ﺑﻪ ﻣﺘﻘﺎﺿﯽ ﻣﯿﺮﺳﺪ.اﯾﻦ ﮐﺎر از ﻃﺮﯾﻖ دﺳﺘﻮر the lease days hours minutes secondsاﻧﺠﺎم ﻣﯿﺸﻮد 092 Page 271 of
- 273. ﻫﻤﺎﻧﻄﻮر ﮐﻪ اﺷﺎرهﺷﺪ ﻣﺸﺨﺼﻪ ﻫﺎي زﯾﺎدي ﻧﯿﺰ وﺟﻮ دارﻧﺪ ﮐﻪ از ﻃﺮﯾﻖ DHCPﻣﯿﺘﻮان آﻧﻬﺎ را ﺑﻪ ﻣﺘﻘﺎﺿﯽ آدرس ﻣﻨﺘﺴﺐ ﮐﺮد ﻣﺎﻧﻨﺪ ﻧﺎم داﻣﻨﻪ. اﯾﻦ ﻣﻮرد از ﻃﺮﯾﻖ دﺳﺘﻮر domain-name NAMEﺻﻮرت ﻣﯿﮕﯿﺮد. ﺑﺮاي ﻣﺸﺨﺺ ﮐﺮدن DNS serverﻫﻢ از دﺳﺘﻮر . dns-server A.B.C.Dاﺳﺘﻔﺎده ﻣﯿﺸﻮد. آﺧﺮﯾﻦ و ﻣﻬﻤﺘﺮﯾﻦ ﻣﺸﺨﺼﻪ اي ﮐﻪ ﺑﻪ ﻃﻮر ﻣﻌﻤﻮل از ﻃﺮﯾﻖ DHCPدر اﺧﺘﯿﺎر ﻫﺎﺳﺘﻬﺎي ﻣﺘﻘﺎﺿﯽ ﻗﺮار ﻣﯿﮕﯿﺮد defaul_gatewayاﺳﺖ اﯾﻦ ﻋﻤﻞ ﻧﯿﺰ از ﻃﺮﯾﻖ دﺳﺘﻮر default-router A.B.C.Dاﻧﺠﺎم ﻣﯿﺸﻮد در اﯾﻦ آزﻣﺎﯾﺶ 1 Rرا ﺑﻪ ﻋﻨﻮان DHCP serverو 2 Rرا ﺑﻪ ﻋﻨﻮان DHCP Clientﺟﻬﺖ ﺷﺒﯿﻪ ﺳﺎزي ﯾﮏ PCدر ﻣﺤﯿﻂ ﺷﺒﮑﻪ ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﺧﻮاﻫﻨﺪ ﮔﺮﻓﺖ ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ اﻋﻤﺎل ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ 2 SW1,R1,Rﻣﻄﺎﺑﻖ دﺳﺘﻮرات زﯾﺮ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ 1R ###################################################! # !# Lab 7-4 R1 Initial Config ###################################################! ! enable configure terminal ! 1hostname R no ip domain-lookup ! 0/0interface FastEthernet ### description ### LAN INTERFACE 0.552.552.552 1.21.411.01 ip address no shut ! 0 line con logging sync no exec-timeout ! end 092 Page 272 of
- 274. R2 ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ !################################################### !#Free CCNA Workbook Lab 7-4 R2 Initial Config # !################################################### ! enable configure terminal ! hostname R2 no ip domain-lookup ! interface FastEthernet0/0 description ### LAN INTERFACE ### no shut ! line con 0 logging sync no exec-timeout ! end R2 ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ !################################################### !# Free CCNA Workbook Lab 7-4 SW1 Initial Config # !################################################### ! enable configure terminal ! hostname SW1 no ip domain-lookup ! ! line con 0 logging sync no exec-timeout ! end اﻫﺪاف آزﻣﺎﯾﺶ LAB_POOL1 ﺑﺎ ﻧﺎمR1 درDHCP pool اﯾﺠﺎد LAB_POOL1 ﺑﻪTetlab.local ﺗﺨﺼﯿﺺ ﻧﺎم داﻣﻨﻪ Page 273 of 290
- 275. LAB_POOL1 ﺗﺨﺼﯿﺺ ﻓﻀﺎيآدرس 42/0.21.411.01 ﺑﻪ ﺗﺨﺼﯿﺺ ﻣﺪت زﻣﺎن اﺟﺎره 7 روز ﺑﻪ آدرﺳﻬﺎي LAB_POOL1 ﺑﺎ آدرﺳﻬﺎي 7.81.411.01 ,6.81.411.01 ﺑﻪDNS server ﺗﺨﺼﯿﺺ دو LAB_POOL1 ﺑﺎ آدرس 1.21.411.01 ﺑﻪDefault gateway ﺗﺨﺼﯿﺺ اﯾﻨﺘﺮﻓﯿﺲping و ﺑﺮرﺳﯽ ﺻﺤﺖ اﻋﻤﺎل آدرس ﺑﻪ آن از ﻃﺮﯾﻖDHCP ازIP ﺑﻪ ﻣﻨﻈﻮر درﯾﺎﻓﺖR2 درFa0/0 ﮐﺎﻧﻔﯿﮓ R2 از ﺳﻤﺖR1 روﺗﺮfa0/0 دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ R1>enable R1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R1(config)#ip dhcp pool LAB_POOL1 R1(dhcp-config)#domain-name TESTLAB.LOACL R1(dhcp-config)#network 10.114.12.0 /24 R1(dhcp-config)#lease 7 R1(dhcp-config)#dns-server 10.114.18.6 10.114.18.7 R1(dhcp-config)#netbios-name-server 10.114.18.4 10.114.18.5 R2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R2(config)#interface Fastethernet0/0 R2(config-if)#ip address dhcp R2(config-if)#end R2# %SYS-5-CONFIG_I: Configured from console by console R2# %DHCP-6-ADDRESS_ASSIGN: Interface FastEthernet0/0 assigned 10.114.12.2, mask 255.255.255.0, hostname R2 R2#show ip interface brief FastEthernet0/0 Interface IP-Address OK? Method Status FastEthernet0/0 10.114.12.2 YES DHCP up R2#ping 10.114.12.1 DHCP address Protocol up Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.114.12.1, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 20/59/152 ms R2# Page 274 of 290
- 276. آزﻣﺎﯾﺶ 6.7- ﺗﻨﻈﯿﻤﺎتDhcp Helper Address در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﻤﯿﺎت DHCP helper IP addressﺑﻪ ﻣﻨﻈﻮر ﮐﻤﮏ ﺑﻪ ﻓﺮاﯾﻨﺪ ﺗﺨﺼﯿﺺ آدرس ﺑﻪ ﮐﻼﯾﺘﻨﻬﺎي واﻗﻊ در ﺷﺒﮑﻪ ﻫﺎي ﻣﺨﺘﻠﻒ از ﻃﺮﯾﻖ ﯾﮏ Dhcp serverواﺣﺪ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ آﯾﺎ ﺑﻪ اﯾﻦ ﻣﻮﺿﻮع ﻓﮑﺮ ﮐﺮده اﯾﺪ ﮐﻪ ﯾﮏ Dhcpﺳﺮور ﭼﮕﻮﻧﻪ ﺑﻪ ﻫﻤﻪ ﮐﻼﯾﻨﺘﻬﺎي ﺷﺒﮑﻪ ﮐﻪ ﺑﻌﻀﺎ در ﯾﮏ Broadcast domainﻫﻢ ﻧﯿﺴﺘﻨﺪ IPﺗﺨﺼﯿﺺ ﻣﯿﺪﻫﺪ؟از درﺳﻬﺎي ﮔﺬﺷﺘﻪ ﻫﻢ ﺑﻪ ﺧﺎﻃﺮ دارﯾﻢ ﮐﻪ درﺧﻮاﺳﺖ Dhcpاز ﺳﺮور ﻣﺎﻫﯿﺖ Broadcastدارد. ﺟﻮاب اﯾﻦ ﻣﻌﻤﺎ در Dhpc IP helperﻧﻬﻔﺘﻪ اﺳﺖ. IP helperآدرﺳﯽ اﺳﺖ ﮐﻪ ﺑﺮ روي ﯾﮏ اﯾﻨﺘﺮﻓﯿﺲ routeﭘﺬﯾﺮ ﻣﺎﻧﻨﺪ Vlan interfaceﯾﺎ Eth interfaceﯾﮏ روﺗﺮ ﺗﻨﻈﯿﻢ ﻣﯿﺸﻮد ﺗﺎ ﺑﻪ دﯾﻮاﯾﺲ ﻣﺬﺑﻮر اﺟﺎزه ﻓﻌﺎﻟﯿﺖ ﺑﻪ ﻋﻨﻮان ﯾﮏ واﺳﻂ ﺑﺎ ﻫﺪف درﯾﺎﻓﺖ و ارﺳﺎل درﺧﻮاﺳﺘﻬﺎي BOOTP (Broadcast) Dhcpﺑﻪ ﺳﻤﺖ ﺳﺮور Dhcpﻣﺸﺨﺺ ﺷﺪه ﺑﺎ IP Helperاز ﻃﺮﯾﻖ unicastرا ﺑﺪﻫﺪ.ﺑﺮاي ﮐﺎﻧﻔﯿﮓ IP helperﻧﯿﺎز اﺳﺖ دﺳﺘﻮر ip helper-address a.b.c.dﺑﺮ روي اﯾﻨﺘﺮﻓﯿﺲ ﻣﺘﺼﻞ ﺑﻪ Broadcast domainﮐﻪ ﻣﺘﻘﺎﺿﯽ درﯾﺎﻓﺖ آدرس از Dhcpﺳﺮور اﺳﺖ اﻋﻤﺎل ﺷﻮد. در اﯾﻦ آزﻣﺎﯾﺶ 2 R1,Rدر Vlanﻫﺎي ﻣﺠﺰاﯾﯽ واﻗﻊ ﺷﺪه اﻧﺪ و در 1 Rﮐﻪ ﻧﻘﺶ Dhcpﺳﺮور را ﺑﻪ ﻋﻬﺪه دارد IP poolﻫﺎي ﻣﺘﻨﺎﻇﺮ ﺑﺎ ﻫﺮ Vlanرا اﯾﺠﺎد ﻣﯿﮑﻨﯿﻢ . ﭘﺲ از آن IP helperرا روي اﯾﻨﺘﺮﻓﯿﺲ ﻣﺘﻨﺎﻇﺮ ﺑﺎ 02 Vlanﺳﻮﯾﯿﭻ 1 SWﺑﺎ ﻫﺪف اﻣﮑﺎن ارﺳﺎل درﺧﻮاﺳﺘﻬﺎي Dhcpاز ﺳﻤﺖ 2 Rﺑﻪ 1 Rاﻋﻤﺎل ﻣﯿﮑﻨﯿﻢ. در ﻧﻬﺎﯾﺖ ﻫﻢ ﺑﺮاي ﺗﺴﺖ ﺻﺤﺖ ﮐﺎﻧﻔﯿﮕﻬﺎ از ﺳﻤﺖ 2 Rروﺗﺮ 1 Rرا ﭘﯿﻨﮓ ﻣﯿﮑﻨﯿﻢ. ﺗﺼﻮﯾﺮ 1.7.11-DHCP Helper Lab Prerequisites اﻋﻤﺎل ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ زﯾﺮ ﺑﻪ روﺗﺮﻫﺎ و ﺳﻮﯾﯿﭻ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ روﺗﺮ 1R ###################################################! # !# Lab 7-6 R1 Initial Config ###################################################! 092 Page 275 of
- 277. ! enable configure terminal ! hostname R1 noip domain-lookup ! ip dhcp pool LAB_POOL1 network 10.116.10.0 255.255.255.0 domain-name TESTLAB.LOCAL dns-server 10.116.18.6 10.116.18.7 netbios-name-server 10.116.18.6 10.116.18.7 default-router 10.116.10.1 lease 7 ! interface FastEthernet0/0 description ### LAN INTERFACE ### ip address 10.116.10.1 255.255.255.0 no shut exit ! line con 0 logging sync no exec-timeout ! endend R2 ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ روﺗﺮ !################################################### !# Lab 7-6 R2 Initial Config # !################################################### ! enable configure terminal ! hostname R2 no ip domain-lookup ! interface FastEthernet0/0 description ### LAN INTERFACE ### ip address dhcp no shut exit ! line con 0 logging sync no exec-timeout ! end Page 276 of 290
- 278. Sw1 ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪﺳﻮﯾﯿﭻ !################################################### !# Lab 7-6 SW1 Initial Config # !################################################### ! enable ! vlan database vlan 10 vlan 20 exit ! configure terminal ! vlan 10 name 10.116.10.0/24 ! vlan 20 name 10.116.20.0/24 ! hostname SW1 no ip domain-lookup ! ip routing ! interface FastEthernet0/1 switchport mode access switchport access vlan 10 spanning-tree portfast ! interface FastEthernet0/2 switchport mode access switchport access vlan 20 spanning-tree portfast ! interface Vlan10 ip address 10.116.10.2 255.255.255.0 ! interface Vlan20 ip address 10.116.20.2 255.255.255.0 exit ! line con 0 logging sync no exec-timeout ! end اﻫﺪاف آزﻣﺎﯾﺶ Page 277 of 290
- 279. network 10.116.20.0/24, ﺑﺎ ﻣﺸﺨﺼﻪ ﻫﺎيLAB_POOL2 ﺑﻪ ﻧﺎمR1 ﺟﺪﯾﺪ درDHCP pool اﯾﺠﺎد default-router of 10.116.20.2, domain name TESTLAB.LOCAL, DNS servers 10.116.18.6 & 10.116.18.7 10.116.10.1 ﺑﻪ ﺳﻤﺖIP helper ﻫﻤﯿﻨﻄﻮر ﺗﻌﺮﯾﻒSW1 درVlan 20 اﯾﺠﺎد ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﻤﯿﺎت دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ network 10.116.20.0/24, ﺑﺎ ﻣﺸﺨﺼﻪ ﻫﺎيLAB_POOL2 ﺑﻪ ﻧﺎمR1 ﺟﺪﯾﺪ درDHCP pool اﯾﺠﺎد default-router of 10.116.20.2, domain name TESTLAB.LOCAL, DNS servers 10.116.18.6 & 10.116.18.7 R1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R1(config)#ip dhcp pool LAB_POOL2 R1(dhcp-config)#network 10.116.20.0 255.255.255.0 R1(dhcp-config)#default-router 10.116.20.2 R1(dhcp-config)#domain-name TESTLAB.LOCAL R1(dhcp-config)#dns-server 10.116.18.6 10.116.18.7 R1(dhcp-config)#end R1# 10.116.10.1 ﺑﻪ ﺳﻤﺖIP helper ﻫﻤﯿﻨﻄﻮر ﺗﻌﺮﯾﻒSW1 درVlan 20 اﯾﺠﺎد SW1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. SW1(config)#interface vlan 20 SW1(config-if)#ip helper-address 10.116.10.1 SW1(config-if)#end SW1# %SYS-5-CONFIG_I: Configured from console by console SW1# ﺗﺴﺖ ﺻﺤﺖ ﺗﻨﻈﻤﯿﺎت R2#configure terminal Enter configuration commands, one per line. End with CNTL/Z. R2(config)#interface FastEthernet0/0 R2(config-if)#shut R2(config-if)# %LINK-5-CHANGED: Interface FastEthernet0/0, changed state to administratively down %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed Page 278 of 290
- 280. state to down R2(config-if)#noshut R2(config-if)#end R2# %SYS-5-CONFIG_I: Configured from console by console R2# %LINK-3-UPDOWN: Interface FastEthernet0/0, changed state to up %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up R2# %DHCP-6-ADDRESS_ASSIGN: Interface FastEthernet0/0 assigned DHCP address 10.116.20.3, mask 255.255.255.0, hostname R2 R2#ping 10.116.10.1 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.116.10.1, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 48/108/164 ms R2# Page 279 of 290
- 281. آزﻣﺎﯾﺶ 7.7 –ﺗﻨﻈﯿﻤﺎت NTP Client در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت Network Time Protocol (NTP) Clientدر روﺗﺮﻫﺎ و ﺳﻮﯾﯿﭽﻬﺎ ﺳﯿﺴﮑﻮ ﺑﺎ ﻫﺪف ﯾﮑﺴﺎن ﺳﺎزي ﺗﺎرﯾﺦ و ﺳﺎﻋﺖ اﯾﻦ ادوات ﺑﺎ ﯾﮏ ﻣﺮﺟﻊ ﻣﺮﮐﺰي آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ ﺗﻮﺿﯿﺢ : ﺗﻮﺻﯿﻪ ﻣﯿﺸﻮد اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ادوات واﻗﻌﯽ اﻧﺠﺎم ﺷﻮد . در ﺣﯿﻦ اﻧﺠﺎم اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ 3 GNSﻣﻤﮑﻦ اﺳﺖ Cpu usageﺳﯿﺴﺘﻢ ﺑﻪ 001 درﺻﺪ ﺑﺮﺳﺪ و اﻣﮑﺎن ﺗﻐﯿﯿﺮ IDLEPCﻧﯿﺰ وﺟﻮد ﻧﺪاﺷﺘﻪ ﺑﺎﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ ﻫﻤﻪ ﻣﺎ ﺟﻬﺖ اﻧﺠﺎم اﻣﻮر روزﻣﺮه ﺣﺪاﻗﻞ ﯾﮑﺒﺎر ﻃﯽ روز ﻧﯿﺎز ﺑﻪ داﻧﺴﺘﻦ ﺗﺎرﯾﺦ و ﺳﺎﻋﺖ دﻗﯿﻖ دارﯾﻢ . ادوات ﺳﯿﺴﮑﻮ ﻧﯿﺰ ﺑﻪ ﻫﻤﯿﻦ ﻣﻨﻮال داراي ﭼﻨﯿﻦ ﻧﯿﺎزي ﻫﺴﺘﻨﺪ ﺑﻪ ﻋﻨﻮان ﻣﺜﺎل ﻫﻨﮕﺎﻣﯽ ﮐﻪ ﺑﻪ ﻻﮔﻬﺎي SYSLogﻧﮕﺎﻫﯽ ﻣﯿﺎﻧﺪازﯾﻢ ﻫﺮ ﺳﻄﺮ آن ﺑﺎ ﺗﺎرﯾﺦ و ﺳﺎﻋﺖ ﻣﺸﺨﺺ ﺷﺪه و ﺑﯿﺎﻧﮕﺮ زﻣﺎن دﻗﯿﻖ وﻗﻮع آن رﺧﺪاد اﺳﺖ ﻓﺮﺿﺎ ﻓﻼن ﻟﯿﻨﮏ 1 Tدر ﺗﺎرﯾﺦ 14th 2010 @ 5:32:53AMﻏﯿﺮ ﻓﻌﺎل ﺷﺪه اﺳﺖ و از اﯾﻦ ﻗﺒﯿﻞ. دﻟﯿﻞ ﻣﻬﻢ دﯾﮕﺮ ﻧﯿﺎز ﺑﻪ داﻧﺴﺘﻦ ﺗﺎرﯾﺦ و ﺳﺎﻋﺖ دﻗﯿﻖ ﺗﻮﺳﻂ اﯾﻦ ادوات ﺑﺎﻻ ﺑﺮدن اﻣﻨﯿﺖ ﻫﻤﺴﺎﯾﮕﯽ در ﻓﺮاﯾﻨﺪ EIGRP اﺳﺖ در اﯾﻦ ﺷﯿﻮه ﺳﻠﺴﻠﻪ ﮐﻠﯿﺪﻫﺎﯾﯽ ﺑﺎ ﻋﻤﺮ و اﻋﺘﺒﺎر زﻣﺎﻧﯽ ﻣﺤﺪود ﻓﺮﺿﺎ از Jan 1st 2011 at 12:00amﺗﺎ Jan 1st 2012 12:00amﻣﺎﺑﯿﻦ روﺗﺮﻫﺎي ﻓﻌﺎل در EIGRPﺑﻪ ﮔﺮدش در ﻣﯿﺎﯾﺪ و اﮔﺮ در اﯾﻦ ﺑﯿﻦ روﺗﺮي ﺗﻤﺎﯾﻞ ﺑﻪ اﯾﺠﺎد ﻫﻤﺴﺎﯾﮕﯽ داﺷﺘﻪ ﺑﺎﺷﺪ اﻣﺎ از ﻟﺤﺎظ زﻣﺎﻧﯽ ﺑﺎ ﺳﺎﯾﺮﯾﻦ ﻫﻤﺎﻫﻨﮓ ﻧﺒﺎﺷﺪ درﺧﻮاﺳﺖ ﻫﻤﺴﺎﯾﮕﯽ وي ﻣﺮدود ﻣﯿﺸﻮد. اﻣﺮوزه ﺷﺒﮑﻪ ﻫﺎ از اﺳﺘﺎﻧﺪارد ﻧﮕﺎرش3 ﭘﺮوﺗﮑﻞ NTPﺑﻬﺮه ﻣﯿﺒﺮﻧﺪ . اﯾﻦ ﭘﺮوﺗﮑﻞ ﺟﺰ ﻗﺪﯾﻤﯽ ﺗﺮﯾﻦ ﭘﺮوﺗﮑﻠﻬﺎي ﻣﻮﺟﻮ در اﯾﻨﺘﺮﻧﺖ اﺳﺖ و از ﭘﻮرت 321 updاﺳﺘﻔﺎده ﻣﯿﮑﻨﺪ. ﺑﺮاي ﮐﺎﻧﻔﯿﮓ NTP Clientﮐﺎﻓﯿﺴﺖ ﺗﺎ از دﺳﺘﻮر ntp server x.x.x.xاﺳﺘﻔﺎده ﺷﻮد . در ﺻﻮرﺗﯿﮑﻪ ﻧﯿﺎز ﺑﻪ Redundancyﻣﺎﺑﯿﻦ Time serverﻫﺎ داﺷﺘﻪ ﺑﺎﺷﯿﻢ ﺗﺎ در ﺻﻮرت از دور ﺧﺎرج ﺷﺪن ﯾﮑﯽ ﺳﺮور دﯾﮕﺮي ﺟﺎي آﻧﺮا ﺑﮕﯿﺮد ﻣﯿﺘﻮاﻧﯿﻢ از ﻫﺮ ﺗﻌﺪاد دﺳﺘﻮر ntp server x.x.x.xﯾﮑﯽ ﭘﺲ از دﯾﮕﺮي اﺳﺘﻔﺎده ﮐﻨﯿﻢ در ﻋﯿﻦ ﺣﺎل ﺑﺎ ﺑﻬﺮه ﮔﯿﺮي از دﺳﺘﻮر ntp server x.x.x.x preferﻣﯿﺘﻮاﻧﯿﻢ اﻟﻮﯾﺖ و ﺗﻘﺪم اﺳﺘﻔﺎده از ﻫﺮ ﯾﮏ از اﻧﻬﺎ را ﺗﺎﯾﯿﻦ ﮐﻨﯿﻢ راه دﯾﮕﺮ ﺗﻨﻈﯿﻢ NTP Clientاﺳﺘﻔﺎده از دﺳﺘﻮر ntp peer x.x.x.xاﺳﺖ . در اﯾﻦ ﺣﺎﻟﺖ ﺗﻌﺪادي NTP server ﺗﺤﺖ ﻋﻨﻮان ﯾﮏ Peer groupﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻣﯿﮕﯿﺮﻧﺪ و ﺳﺮوري ﮐﻪ داراي دﻗﺖ ﺑﯿﺸﺘﺮي ﺑﺎﺷﺪ ﺑﻪ ﻃﻮر ﺧﻮدﮐﺎر ﺑﻪ 092 Page 280 of
- 282. ﻋﻨﻮان ﺳﺮور اﺻﻠﯽﮔﺮوه اﻧﺘﺨﺎب و ﻣﻮرد اﺳﺘﻔﺎده ﻗﺮار ﻣﯿﮕﯿﺮد . )ﻣﺒﺤﺚ stratum numberﮐﻪ ﭘﺎﯾﻪ دﻗﺖ و ﻋﻤﻠﮑﺮد NTPﺳﺮورﻫﺎ اﺳﺖ در اﯾﻦ ﻧﻮﺷﺘﻪ ﻣﻮرد ﺑﺮرﺳﯽ ﻗﺮار ﻧﻤﯿﮕﯿﺮد( در اﯾﻦ آزﻣﺎﯾﺶ 1 Rﺑﻪ ﻋﻨﻮان NTPﺳﺮور ﺑﻪ درﺧﻮاﺳﺘﻬﺎي ﻣﺘﻨﺎﻇﺮ 2 Rﭘﺎﺳﺦ ﺧﻮاﻫﺪ داد. آزﻣﺎﯾﺶ 1.7.11 – NTP Client ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ اﯾﺠﺎد ﺗﻮﭘﻮﻟﻮژي ﻣﻄﺎﺑﻖ ﺗﺼﻮﯾﺮ ﺑﺎﻻ و اﻋﻤﺎل ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ ﻣﻄﺎﺑﻖ دﺳﺘﻮرات زﯾﺮ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ 1R ###################################################! # !# Lab 11-7 R1 Initial Config ###################################################! ! enable configure terminal ! 1hostname R no ip domain-lookup ! 1/0interface Serial ### 2description ### PPP LINK TO R encapsulation ppp 252.552.552.552 1.21.711.01 ip address no shut exit ! 3 ntp master ! 0 line con logging sync no exec-timeout ! end 092 Page 281 of
- 283. R2 ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ !################################################### !#Lab 11-7 R2 Initial Config # !################################################### ! enable configure terminal ! hostname R2 no ip domain-lookup ! interface Serial0/1 description ### PPP LINK TO R1 ### encapsulation ppp ip address 10.117.12.2 255.255.255.252 no shut exit ! line con 0 logging sync no exec-timeout ! end اﻫﺪاف آزﻣﺎﯾﺶ ﺑﺎ ﻫﺪف ﺑﺮرﺳﯽ ﻣﻘﺎﯾﺴﻪ ﻫﺎي ﺑﻌﺪيR1 ﺗﻨﻈﯿﻢ ﻧﺎدرﺳﺖ ﺗﺎرﯾﺦ و ﺳﺎﻋﺖ در 10.117.12.1 ﺟﻬﺖ درﯾﺎﻓﺖ ﺗﺎرﯾﺦ و ﺳﺎﻋﺖ ازR2 ﺗﻨﻈﯿﻢ R2 ﺗﻮﺳﻂR1 ﺗﺴﺖ ﺻﺤﺖ اﺧﺬ ﺗﺎرﯾﺦ و ﺳﺎﻋﺖ ﺻﺤﯿﺢ از دﺳﺘﻮر اﻟﻌﻤﻞ آزﻣﺎﯾﺶ R1#clock set 00:00:00 1 jan 2010 R1# R2#configure terminal Enter configuration commands, one per line. R2(config)#ntp server 10.117.12.1 R2(config)#end R2# End with CNTL/Z. R2#show ntp associations address disp *~10.117.12.1 ref clock 127.127.7.1 st 3 when 58 poll reach 64 7 delay 5.1 offset -0.93 Page 282 of 290
- 284. 3875.2 * master (synced),# master (unsynced), + selected, - candidate, ~ configured R2#show clock 00:05:18.467 UTC Fri Jan 1 2010 R2# Page 283 of 290
- 285. آزﻣﺎﯾﺶ 8.7 -ﺗﻨﻈﯿﻤﺎت NTP server در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﻤﯿﺎت NTP serverﺑﺎ ﻫﺪف اراﺋﻪ ﺳﺮوﯾﺲ ﺗﺎرﯾﺦ و ﺳﺎﻋﺖ ﺑﻪ NTP Clientﻫﺎي ﻣﻮﺟﻮد در ﺷﺒﮑﻪ آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ اﻣﺮوزه ﺑﺴﯿﺎر ﻣﺮﺳﻮم اﺳﺖ ﮐﻪ در ﺷﺒﮑﻪ ﻫﺎي ﻣﺘﻮﺳﻂ و ﺑﺰرگ از روﺗﺮﻫﺎي High endﺑﻪ ﻋﻨﻮان NTP serverﺟﻬﺖ اراﺋﻪ ﺳﺮوﯾﺴﻬﺎي ﺗﺎرﯾﺦ و زﻣﺎن ﺑﻪ ﮐﻠﯿﻪ ﻣﺘﻘﺎﺿﯿﺎن اﯾﻦ ﺳﺮوﯾﺲ اﻋﻢ از ﺳﺎﯾﺮ ادوات ﺳﯿﺴﮑﻮ ﯾﺎ ﺳﯿﺴﺘﻢ ﻋﺎﻣﻠﻬﺎي دﯾﮕﺮ اﺳﺘﻔﺎده ﺷﻮد. روﻧﺪ ﮐﺎر ﺑﺴﯿﺎر ﺳﺎده و ﺗﻨﻬﺎ ﻧﯿﺎزﻣﻨﺪ ﯾﮏ دﺳﺘﻮر اﺳﺖ.ﺑﺮاي ﮐﺎﻧﻔﯿﮓ ادواﺗﯽ ﮐﻪ از ﻗﺎﺑﻠﯿﺖ NTP Server ﭘﺸﺘﯿﺒﺎﻧﯽ ﻣﯿﮑﻨﻨﺪ از دﺳﺘﻮر # ntp masterﮐﻪ # ﺑﯿﺎﻧﮕﺮ ﻻﯾﻪ stratumدﺳﺘﮕﺎه اﺳﺖ اﺳﺘﻔﺎده ﻣﯿﺸﻮد. در اﯾﻦ آزﻣﺎﯾﺶ 1 Rرا ﺑﻪ ﻋﻨﻮان NTPﺳﺮور و 2 Rرا ﺑﻪ ﻋﻨﻮان NTPﮐﻼﯾﻨﺖ ﺗﻨﻈﯿﻢ ﺧﻮاﻫﯿﻢ ﮐﺮد ﺗﺎ در ﺧﻮاﺳﺘﻬﺎي ﺗﺎرﯾﺦ و زﻣﺎن ﺧﻮد را ﺑﻪ 1 Rارﺳﺎل ﮐﻨﺪ ﺗﺼﻮﯾﺮ 1.8.11 – NTP Server ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ اﯾﺠﺎد ﺗﻮﭘﻮﻟﻮژي ﻣﻄﺎﺑﻖ ﺗﺼﻮﯾﺮ ﺑﺎﻻ و اﻋﻤﺎل ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ ﻣﻄﺎﺑﻖ دﺳﺘﻮرات زﯾﺮ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ 1R ###################################################! # !# Lab 11-8 R1 Initial Config ###################################################! ! enable 092 Page 284 of
- 286. configure terminal ! hostname R1 noip domain-lookup ! interface Serial1/1 description ### PPP LINK TO R2 ### encapsulation ppp ip address 10.118.12.1 255.255.255.252 no shut exit ! line con 0 logging sync no exec-timeout ! end R2 ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ !################################################### !# Lab 11-8 R2 Initial Config # !################################################### ! enable configure terminal ! hostname R2 no ip domain-lookup ! interface Serial1/1 description ### PPP LINK TO R1 ### encapsulation ppp ip address 10.118.12.2 255.255.255.252 no shut exit ! line con 0 logging sync no exec-timeout ! End اﻫﺪاف آزﻣﺎﯾﺶ ﺟﻬﺖ اﺷﺎره ﺑﻪ زﻣﺎن ﺣﺎﺿﺮR1 ﺗﻨﻈﯿﻢ دﺳﺘﯽ ﺗﺎرﯾﺦ و ﺳﺎﻋﺖ در 3 ﻻﯾﻪstratum ﺑﺎNTP Server ﺑﻪ ﻋﻨﻮانR1 ﺗﻨﻈﯿﻢ R2 ﺗﺴﺖ ﺻﺤﺖ درﯾﺎﻓﺖ ﺗﺎرﯾﺦ وﺳﺎﻋﺖ ﺻﺤﯿﺢ از ﻃﺮﯾﻖ Page 285 of 290
- 287. دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ ﺟﻬﺖاﺷﺎره ﺑﻪ زﻣﺎن ﺣﺎﺿﺮR1 ﺗﻨﻈﯿﻢ دﺳﺘﯽ ﺗﺎرﯾﺦ و ﺳﺎﻋﺖ در R1#clock set 20:00:00 aug 26 2010 3 ﻻﯾﻪstratum ﺑﺎNTP Server ﺑﻪ ﻋﻨﻮانR1 ﺗﻨﻈﯿﻢ R1#configure terminal Enter configuration commands, one per line. R1(config)#ntp master 3 R1(config)#end R1# End with CNTL/Z. R2 ﺗﺴﺖ ﺻﺤﺖ درﯾﺎﻓﺖ ﺗﺎرﯾﺦ وﺳﺎﻋﺖ ﺻﺤﯿﺢ از ﻃﺮﯾﻖ R2#configure terminal Enter configuration commands, one per line. R2(config)#ntp server 10.118.12.1 R2(config)#end R2# End with CNTL/Z. R2#show ntp associations address ref clock st when disp *~10.118.12.1 127.127.7.1 3 52 0.9 * master (synced), # master (unsynced), + configured R2# R2# R2#show clock 20:05:05.581 UTC Thu Aug 26 2010 R2# poll reach 64 selected, - offset 3.2 377 delay -1.38 candidate, ~ Page 286 of 290
- 288. آزﻣﺎﯾﺶ 9.7: ﺗﻨﻈﯿﻤﺎتDNS server در اﯾﻦ آزﻣﺎﯾﺶ ﺑﺎ ﭼﮕﻮﻧﮕﯽ ﺗﻨﻈﯿﻤﺎت DNSﺳﺮور در ادوات ﺳﯿﺴﮑﻮ ﺑﺎ ﻫﺪف اﻧﺠﺎم ﻓﺮاﯾﻨﺪ ﺗﺒﺪﯾﻞ ﻧﺎم ﺑﻪ آدرس آﺷﻨﺎ ﺧﻮاﻫﯿﻢ ﺷﺪ. ﮐﺎرﺑﺮد ﻋﻤﻠﯽ و ﻣﺮور ﻣﻔﺎﻫﯿﻢ ) Domain Name System (DNSﺳﺮوﯾﺴﯽ اﺳﺖ ﮐﻪ وﻇﯿﻔﻪ ﺗﺒﺪﯾﻞ ﻧﺎم ﺑﻪ آدرس را ﺑﻪ ﻋﻬﺪه دارد.ﻫﻨﮕﺎﻣﯽ ﮐﻪ از ﻃﺮﯾﻖ ﻣﺮورﮔﺮ اﯾﻨﺘﺮﻧﺘﯽ ﺧﻮد ﺑﻪ ﺳﺎﯾﺘﯽ وارد ﻣﯿﺸﻮﯾﺪ در ﭘﺲ اﯾﻦ ﻣﺎﺟﺮا ﯾﮏ ﻣﮑﺎﻧﯿﺰم ﺗﺒﺪﯾﻞ ﻧﺎم ﺑﻪ آدرس وﺟﻮد دارد ﮐﻪ ﻣﺮورﮔﺮ ﺷﻤﺎ را ﺑﻪ وب ﺳﺮور ﻣﻮرد ﻧﻈﺮ ﻫﺪاﯾﺖ ﻣﯿﮑﻨﺪ. اﯾﻦ ﻓﺮاﯾﻨﺪ ﺑﺎﻋﺚ رﻫﺎﯾﯽ ﯾﺎﻓﺘﻦ ﻣﺎ از ﺣﻔﻆ ﮐﺮدن آدرس وب ﺳﺎﯾﺘﻬﺎي ﻣﻮرد ﻧﻈﺮﻣﺎن ﻣﯿﺸﻮد ﻓﺮﺿﺎ 07.221.191.902 ﺑﻪ ﻋﻨﻮان yahoo.com در دﻧﯿﺎي ﺳﯿﺴﮑﻮ ﻗﺎدر ﻫﺴﺘﯿﻢ ﺗﻌﺪاد زﯾﺎدي DNSﺳﺮور را ﺑﻪ ﻃﻮر ﻫﻤﺰﻣﺎن در ادواﺗﯽ ﮐﻪ از IOSﺑﻪ ﻋﻨﻮان ﺳﯿﺴﺘﻢ ﻋﺎﻣﻞ اﺟﺮاﯾﯽ ﺧﻮد اﺳﺘﻔﺎده ﻣﯿﮑﻨﻨﺪ ﻣﻌﺮﻓﯽ ﮐﻨﯿﻢ.ﺑﺮاي اﯾﻦ ﻣﻨﻈﻮر از دﺳﺘﻮر ip name-server a.b.c.dاﺳﺘﻔﺎده ﻣﯿﮑﻨﯿﻢ. در اﯾﻦ آزﻣﺎﯾﺶ 1 Rرا ﺑﻪ ﮔﻮﻧﻪ اي ﺗﻨﻈﯿﻢ ﺧﻮاﻫﯿﻢ ﮐﺮد ﮐﻪ از DNSﺳﺮور 4.2.2.4 ﮐﻪ ﯾﮏ ﺳﺮوﯾﺲ دﻫﻨﺪه ﻧﺎم ﻋﻤﻮﻣﯽ ﻣﺘﻌﻠﻖ ﺑﻪ Verizon/GTEاﺳﺖ اﺳﺘﻔﺎده ﮐﻨﺪ.ﭘﺲ از آن google.comرا از ﻃﺮﯾﻖ 1 Rﭘﯿﻨﮓ ﺧﻮاﻫﯿﻢ ﮐﺮد ﺗﺎ ﺻﺤﺖ ﻋﻤﻠﮑﺮد آن ﻣﻮرد ﺑﺎزﺑﯿﻨﯽ ﻗﺮار ﮔﯿﺮد. ; ﭘﯿﺶ ﻧﯿﺎزﻫﺎي آزﻣﺎﯾﺶ اﯾﺠﺎد ﯾﮏ NIO Cloudدر ﻣﺤﯿﻂ 3 GNSو اﺗﺼﺎل آن ﺑﻪ NICﻣﻮﺟﻮد در ﮐﺎﻣﭙﯿﻮﺗﺮ اﻋﻤﺎل ﺗﻨﻈﯿﻤﺎت ﭘﯿﺶ ﻓﺮض 1 Rﺑﻪ ﺷﺮح زﯾﺮ ﺗﻨﻈﯿﻤﺎت اوﻟﯿﻪ 1R ###################################################! # !# Lab 11-9 R1 Initial Config ###################################################! 092 Page 287 of
- 289. ! enable configure terminal ! hostname R1 ! interfaceFastEthernet0/0 description ### LINK TO NIO CLOUD-INTERNET ### ip address dhcp duplex auto speed auto exit ! line con 0 logging sync no exec-timeout ! end اﻫﺪاف آزﻣﺎﯾﺶ ﺷﺒﮑﻪ داﺧﻠﯽDHCP ﺗﻮﺳﻂR1 روﺗﺮEth0 ﺑﻪIP ﺣﺼﻮل اﻃﻤﯿﻨﺎن از ﺗﺨﺼﯿﺺ ﺟﻬﺖ ﺑﻬﺮه ﮔﯿﺮي از 2.2.2.4 , 4.2.2.4 ﺑﻪ ﻋﻨﻮان ﺳﺮوﯾﺲ دﻫﻨﺪه ﻧﺎمR1 ﮐﺎﻧﻔﯿﮓ ﺟﻬﺖ ﺑﺮرﺳﯽ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت اﻧﺠﺎم ﺷﺪهgoogle.com ﭘﯿﻨﮓ ﺳﺎﯾﺖ دﺳﺘﻮراﻟﻌﻤﻞ آزﻣﺎﯾﺶ ﺷﺒﮑﻪ داﺧﻠﯽDHCP ﺗﻮﺳﻂR1 روﺗﺮEth0 ﺑﻪIP ﺣﺼﻮل اﻃﻤﯿﻨﺎن از ﺗﺨﺼﯿﺺ R1#show ip interface brief FastEthernet0/0 Interface IP-Address OK? Method Status FastEthernet0/0 192.168.2.8 YES DHCP up R1#ping 4.2.2.2 Protocol up Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 4.2.2.2, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 16/38/112 ms R1# ﺟﻬﺖ ﺑﻬﺮه ﮔﯿﺮي از 2.2.2.4 , 4.2.2.4 ﺑﻪ ﻋﻨﻮان ﺳﺮوﯾﺲ دﻫﻨﺪه ﻧﺎمR1 ﮐﺎﻧﻔﯿﮓ Page 288 of 290
- 290. R1#configure terminal Enter configurationcommands, one per line. R1(config)#ip name-server 4.2.2.2 4.2.2.4 R1(config)#end R1# End with CNTL/Z. ﺟﻬﺖ ﺑﺮرﺳﯽ ﺻﺤﺖ ﺗﻨﻈﯿﻤﺎت اﻧﺠﺎم ﺷﺪهgoogle.com ﭘﯿﻨﮓ ﺳﺎﯾﺖ R1#ping google.com Translating "google.com"...domain server (192.168.2.1) [OK] Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 72.14.204.104, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 24/35/56 ms R1# Page 289 of 290
