1. Categories of
Networking
PROF. SHABBIR

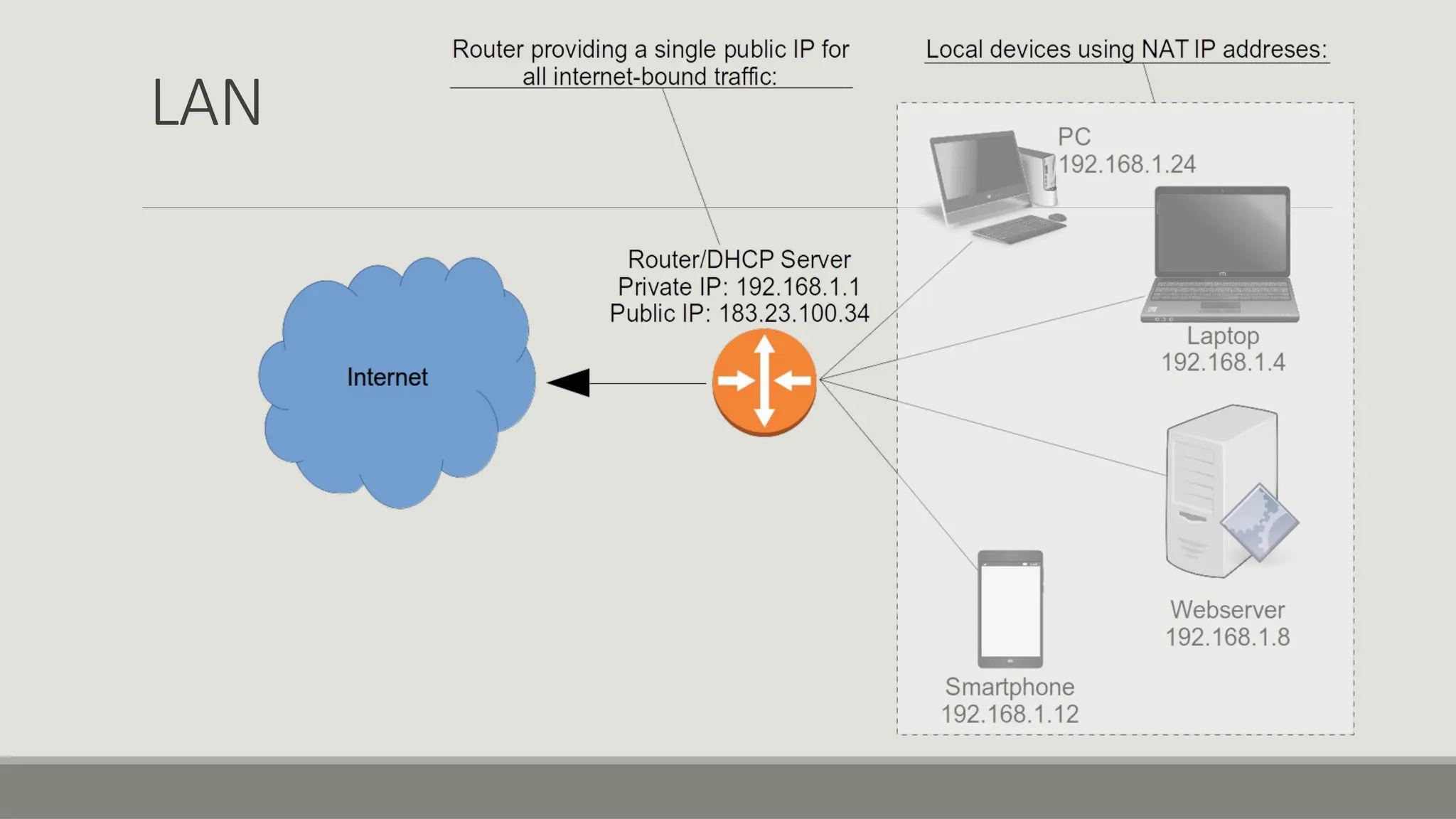

2. LAN

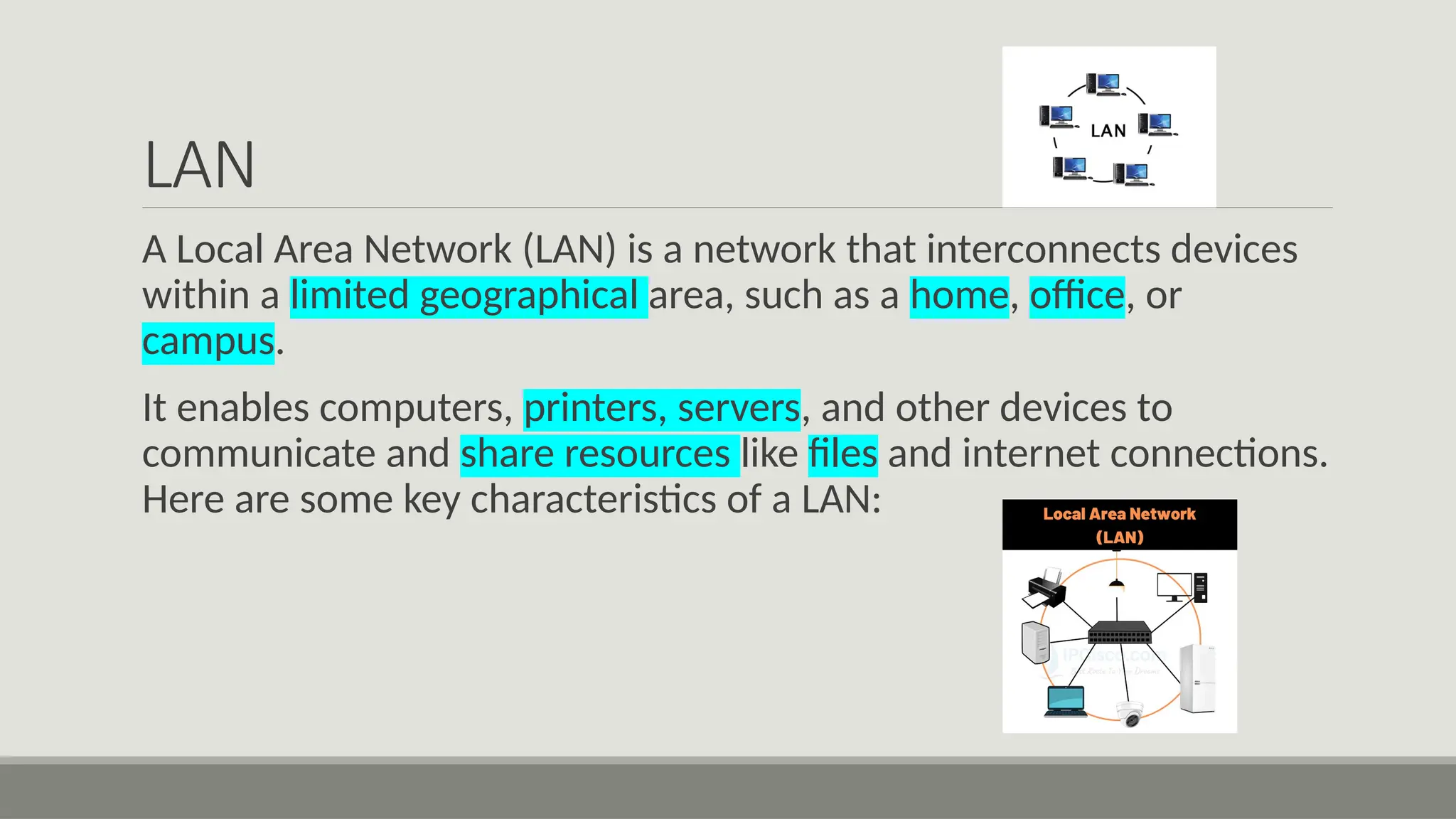

4. LAN
A Local Area Network (LAN) is a network that interconnects devices
within a limited geographical area, such as a home, office, or
campus.
It enables computers, printers, servers, and other devices to
communicate and share resources like files and internet connections.
Here are some key characteristics of a LAN:

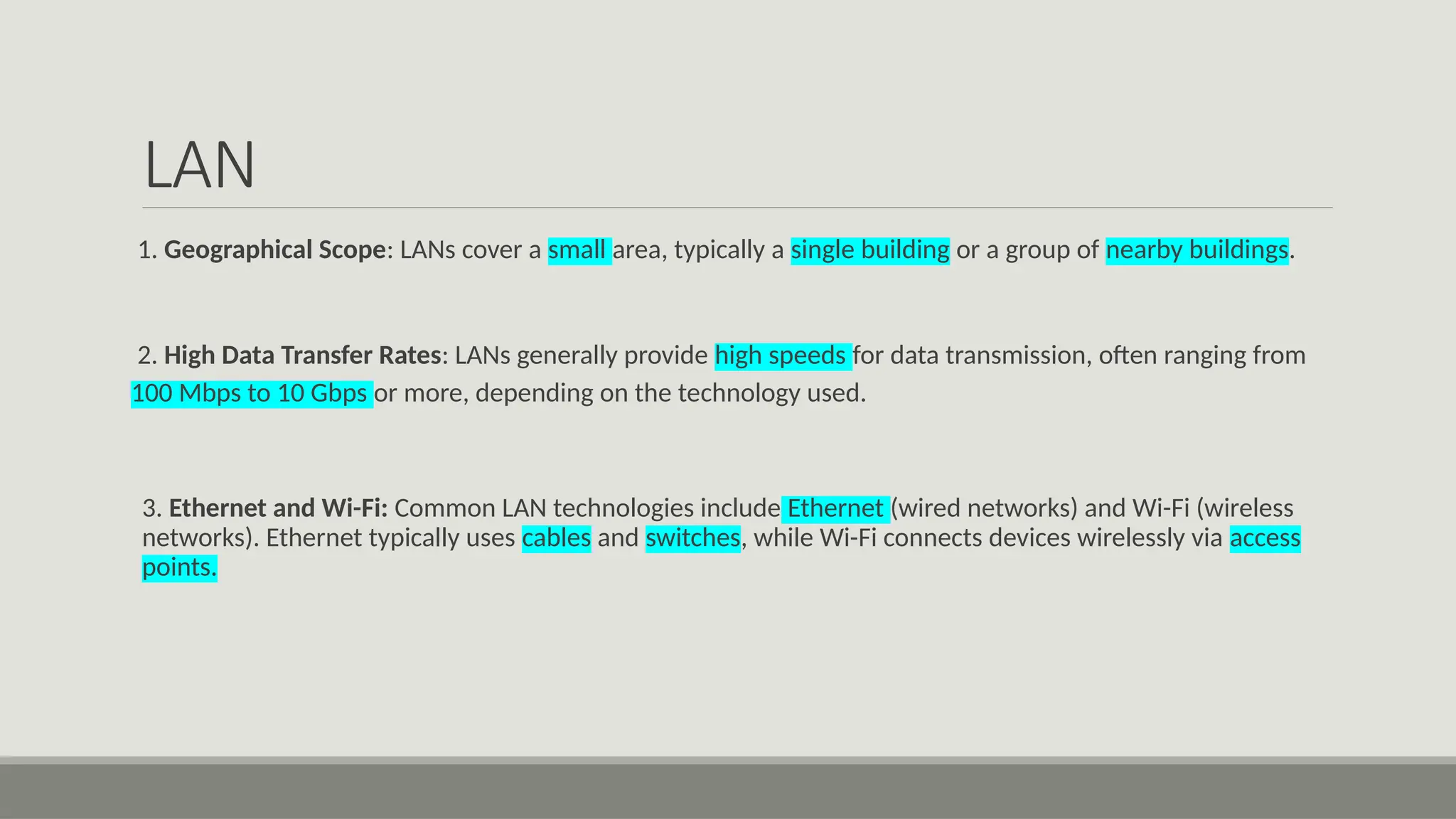

5. LAN
1. Geographical Scope: LANs cover a small area, typically a single building or a group of nearby buildings.
2. High Data Transfer Rates: LANs generally provide high speeds for data transmission, often ranging from
100 Mbps to 10 Gbps or more, depending on the technology used.
3. Ethernet and Wi-Fi: Common LAN technologies include Ethernet (wired networks) and Wi-Fi (wireless
networks). Ethernet typically uses cables and switches, while Wi-Fi connects devices wirelessly via access
points.

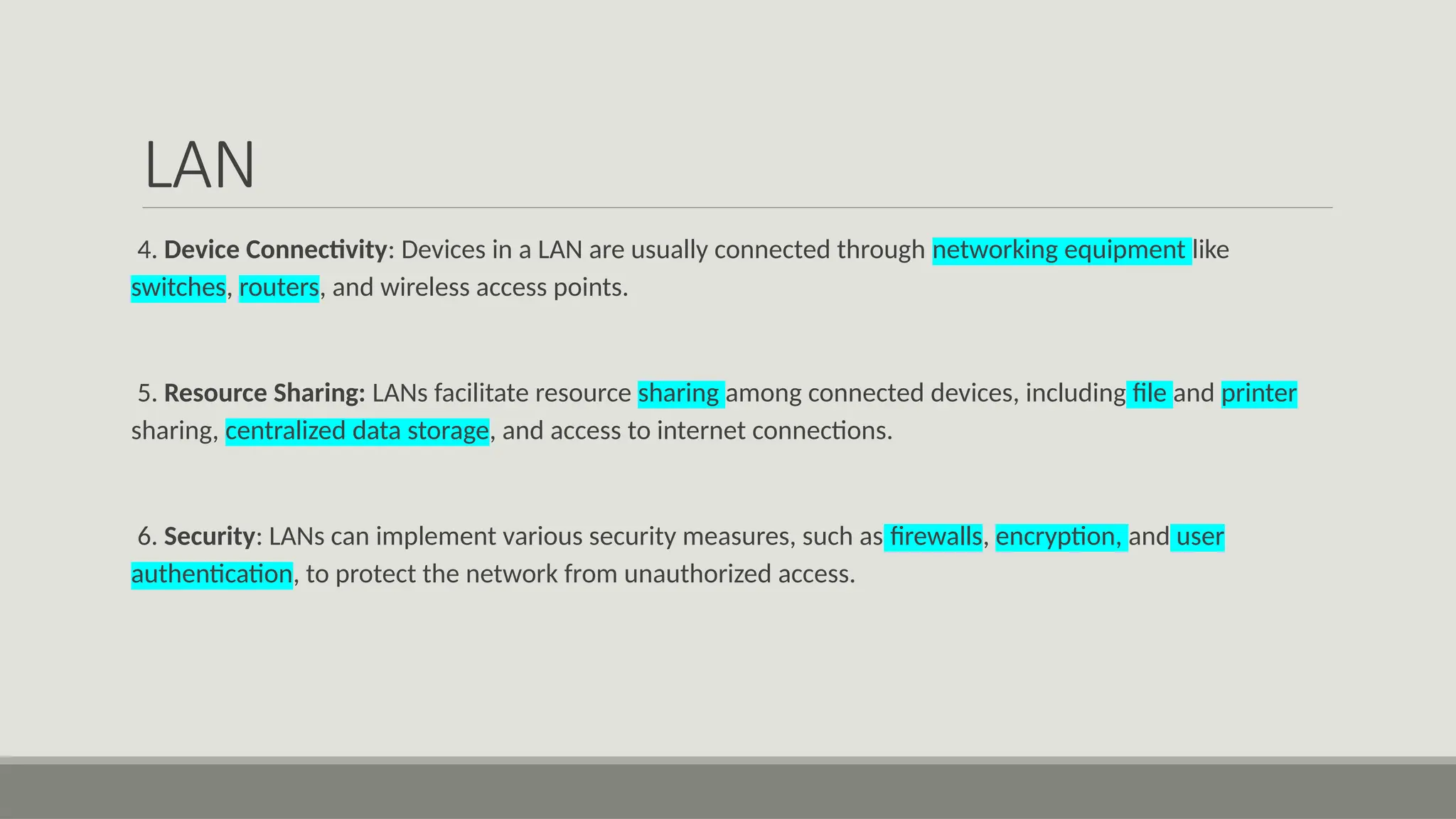

6. LAN
4. Device Connectivity: Devices in a LAN are usually connected through networking equipment like
switches, routers, and wireless access points.
5. Resource Sharing: LANs facilitate resource sharing among connected devices, including file and printer
sharing, centralized data storage, and access to internet connections.
6. Security: LANs can implement various security measures, such as firewalls, encryption, and user
authentication, to protect the network from unauthorized access.

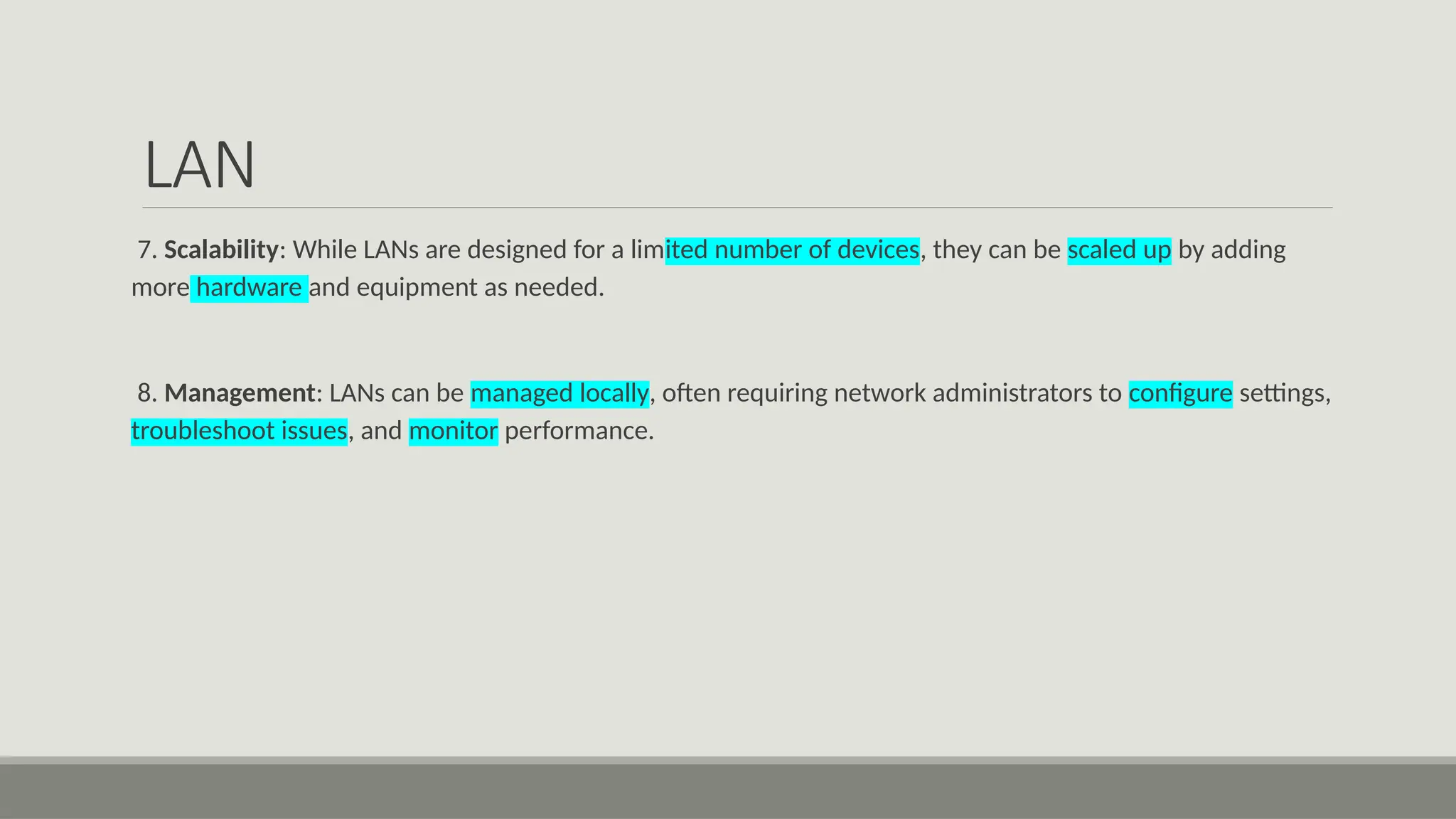

7. LAN
7. Scalability: While LANs are designed for a limited number of devices, they can be scaled up by adding
more hardware and equipment as needed.
8. Management: LANs can be managed locally, often requiring network administrators to configure settings,
troubleshoot issues, and monitor performance.

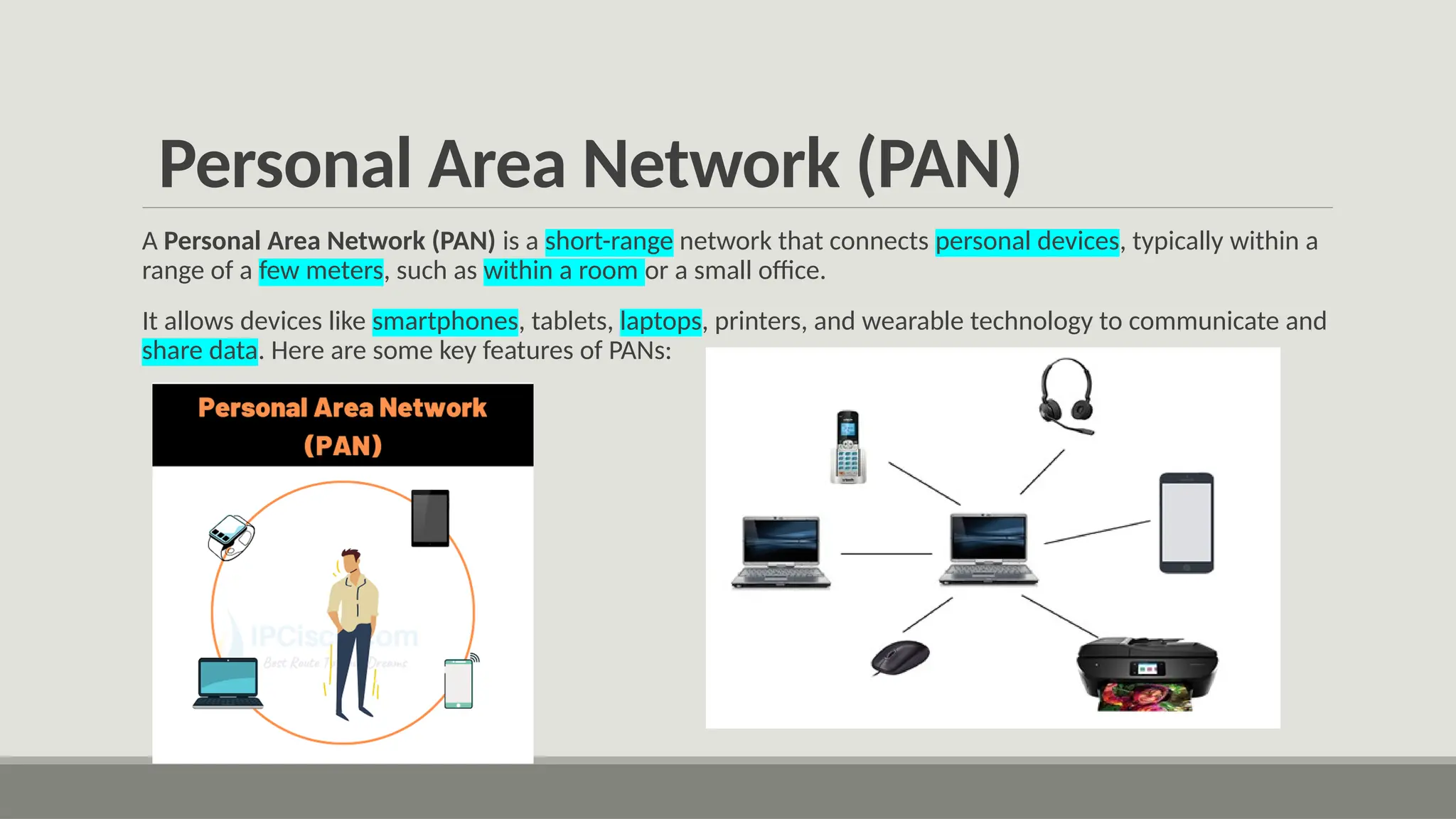

8. Personal Area Network (PAN)
A Personal Area Network (PAN) is a short-range network that connects personal devices, typically within a
range of a few meters, such as within a room or a small office.
It allows devices like smartphones, tablets, laptops, printers, and wearable technology to communicate and
share data. Here are some key features of PANs:

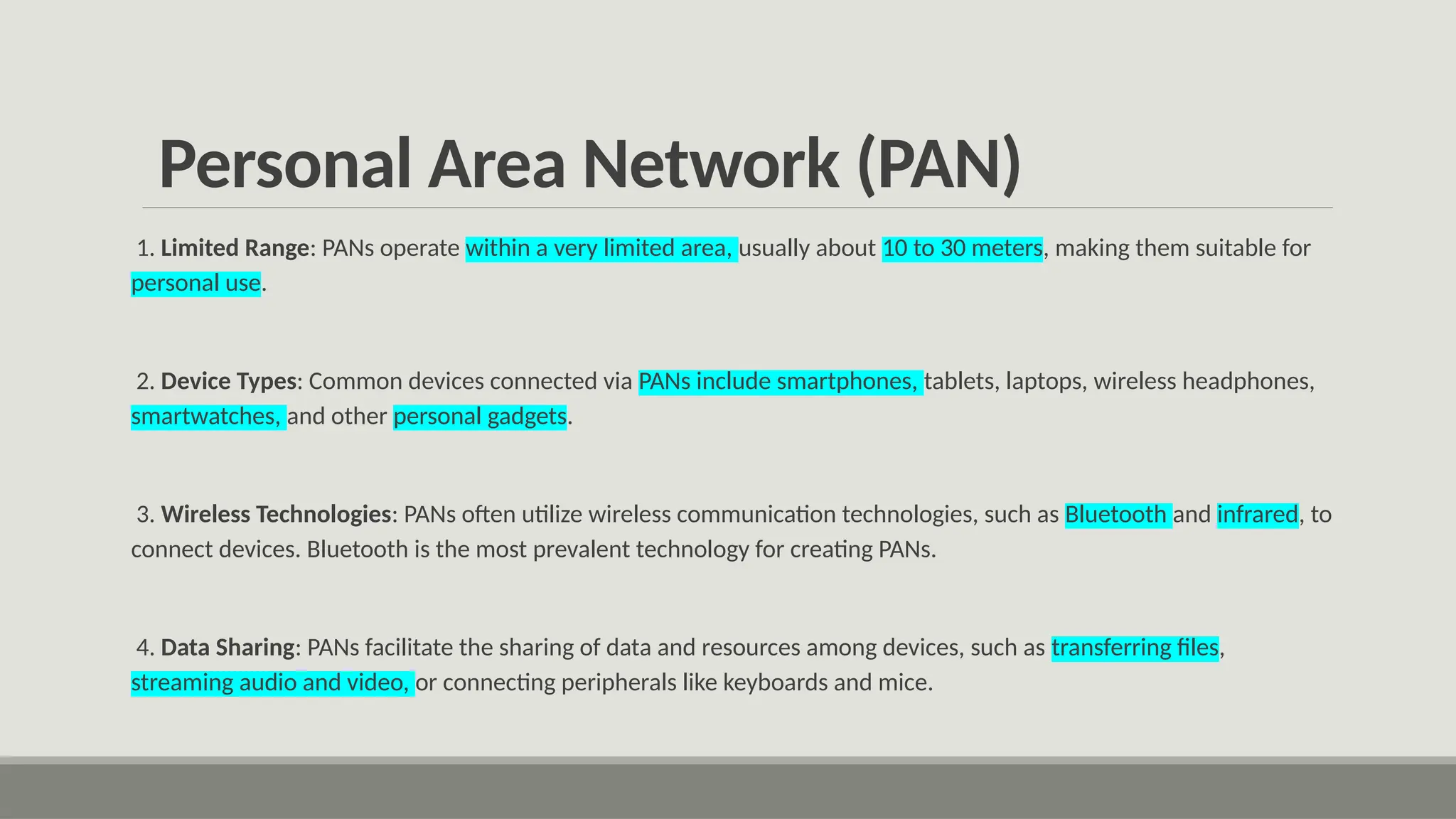

9. Personal Area Network (PAN)
1. Limited Range: PANs operate within a very limited area, usually about 10 to 30 meters, making them suitable for
personal use.
2. Device Types: Common devices connected via PANs include smartphones, tablets, laptops, wireless headphones,
smartwatches, and other personal gadgets.
3. Wireless Technologies: PANs often utilize wireless communication technologies, such as Bluetooth and infrared, to
connect devices. Bluetooth is the most prevalent technology for creating PANs.
4. Data Sharing: PANs facilitate the sharing of data and resources among devices, such as transferring files,
streaming audio and video, or connecting peripherals like keyboards and mice.

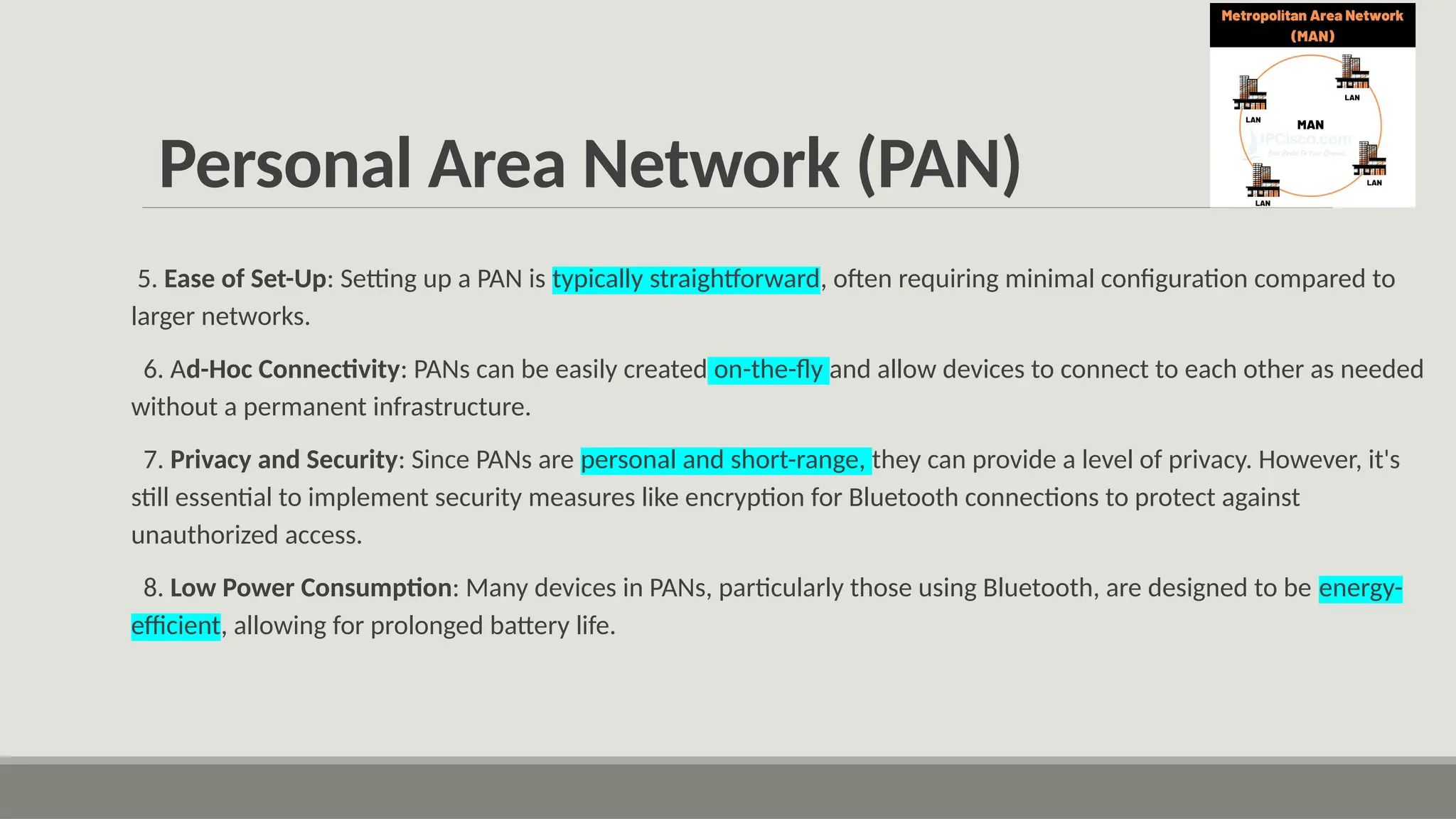

10. Personal Area Network (PAN)
5. Ease of Set-Up: Setting up a PAN is typically straightforward, often requiring minimal configuration compared to
larger networks.
6. Ad-Hoc Connectivity: PANs can be easily created on-the-fly and allow devices to connect to each other as needed
without a permanent infrastructure.
7. Privacy and Security: Since PANs are personal and short-range, they can provide a level of privacy. However, it's
still essential to implement security measures like encryption for Bluetooth connections to protect against
unauthorized access.
8. Low Power Consumption: Many devices in PANs, particularly those using Bluetooth, are designed to be energy-
efficient, allowing for prolonged battery life.

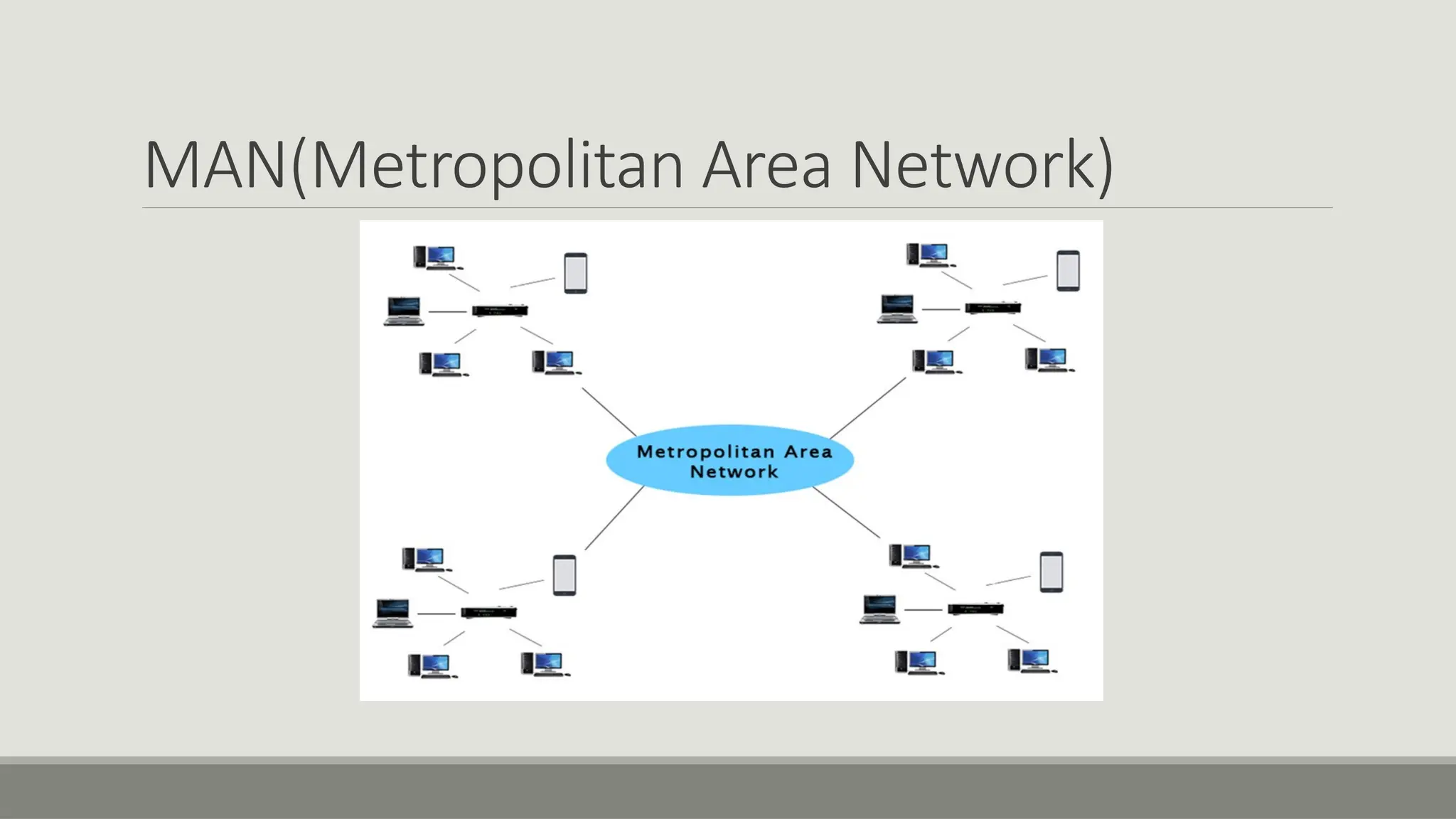

11. MAN(Metropolitan Area Network)

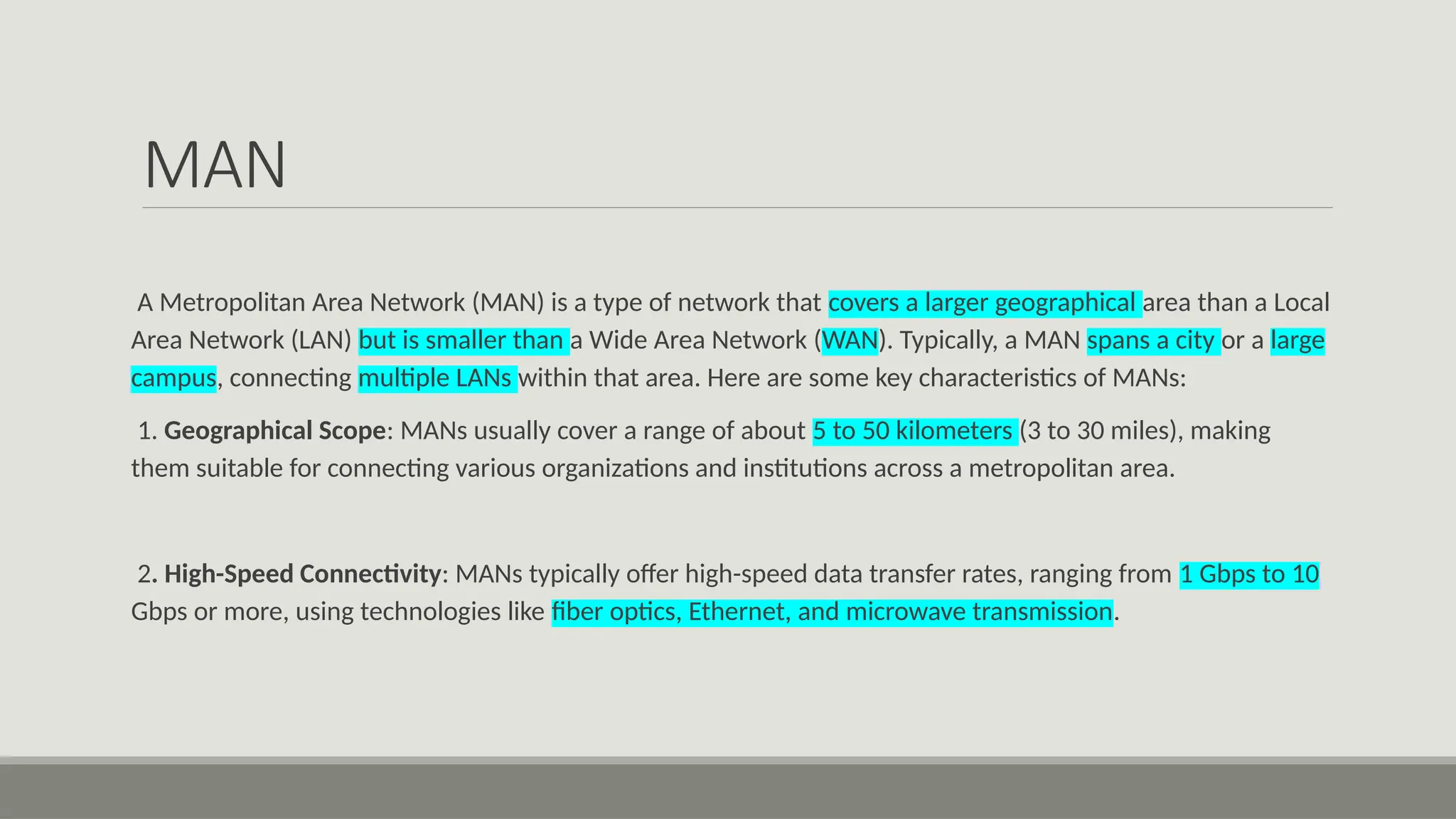

12. MAN
A Metropolitan Area Network (MAN) is a type of network that covers a larger geographical area than a Local
Area Network (LAN) but is smaller than a Wide Area Network (WAN). Typically, a MAN spans a city or a large
campus, connecting multiple LANs within that area. Here are some key characteristics of MANs:
1. Geographical Scope: MANs usually cover a range of about 5 to 50 kilometers (3 to 30 miles), making
them suitable for connecting various organizations and institutions across a metropolitan area.
2. High-Speed Connectivity: MANs typically offer high-speed data transfer rates, ranging from 1 Gbps to 10
Gbps or more, using technologies like fiber optics, Ethernet, and microwave transmission.

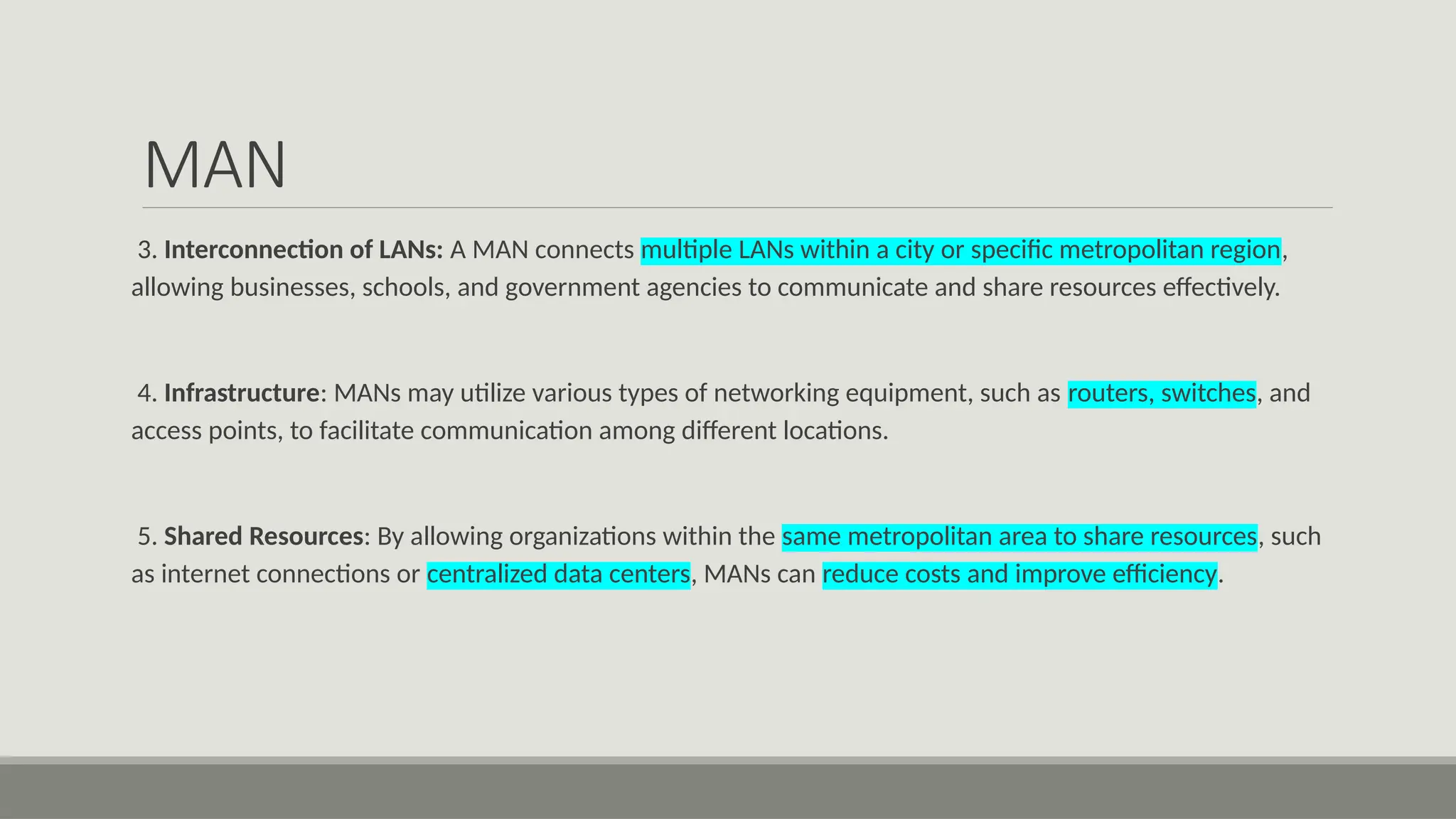

13. MAN
3. Interconnection of LANs: A MAN connects multiple LANs within a city or specific metropolitan region,
allowing businesses, schools, and government agencies to communicate and share resources effectively.
4. Infrastructure: MANs may utilize various types of networking equipment, such as routers, switches, and
access points, to facilitate communication among different locations.
5. Shared Resources: By allowing organizations within the same metropolitan area to share resources, such
as internet connections or centralized data centers, MANs can reduce costs and improve efficiency.

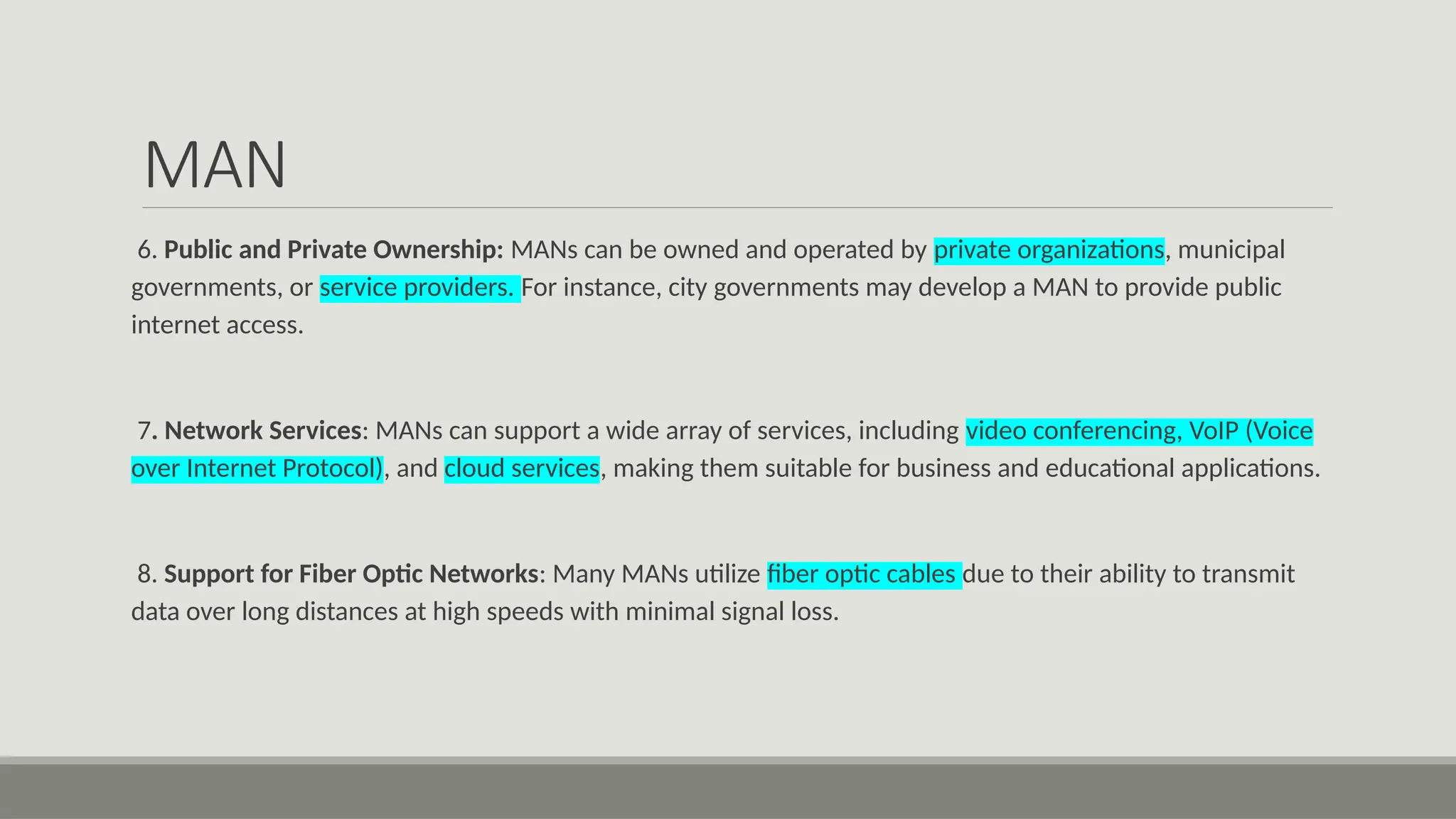

14. MAN
6. Public and Private Ownership: MANs can be owned and operated by private organizations, municipal
governments, or service providers. For instance, city governments may develop a MAN to provide public
internet access.
7. Network Services: MANs can support a wide array of services, including video conferencing, VoIP (Voice
over Internet Protocol), and cloud services, making them suitable for business and educational applications.
8. Support for Fiber Optic Networks: Many MANs utilize fiber optic cables due to their ability to transmit
data over long distances at high speeds with minimal signal loss.

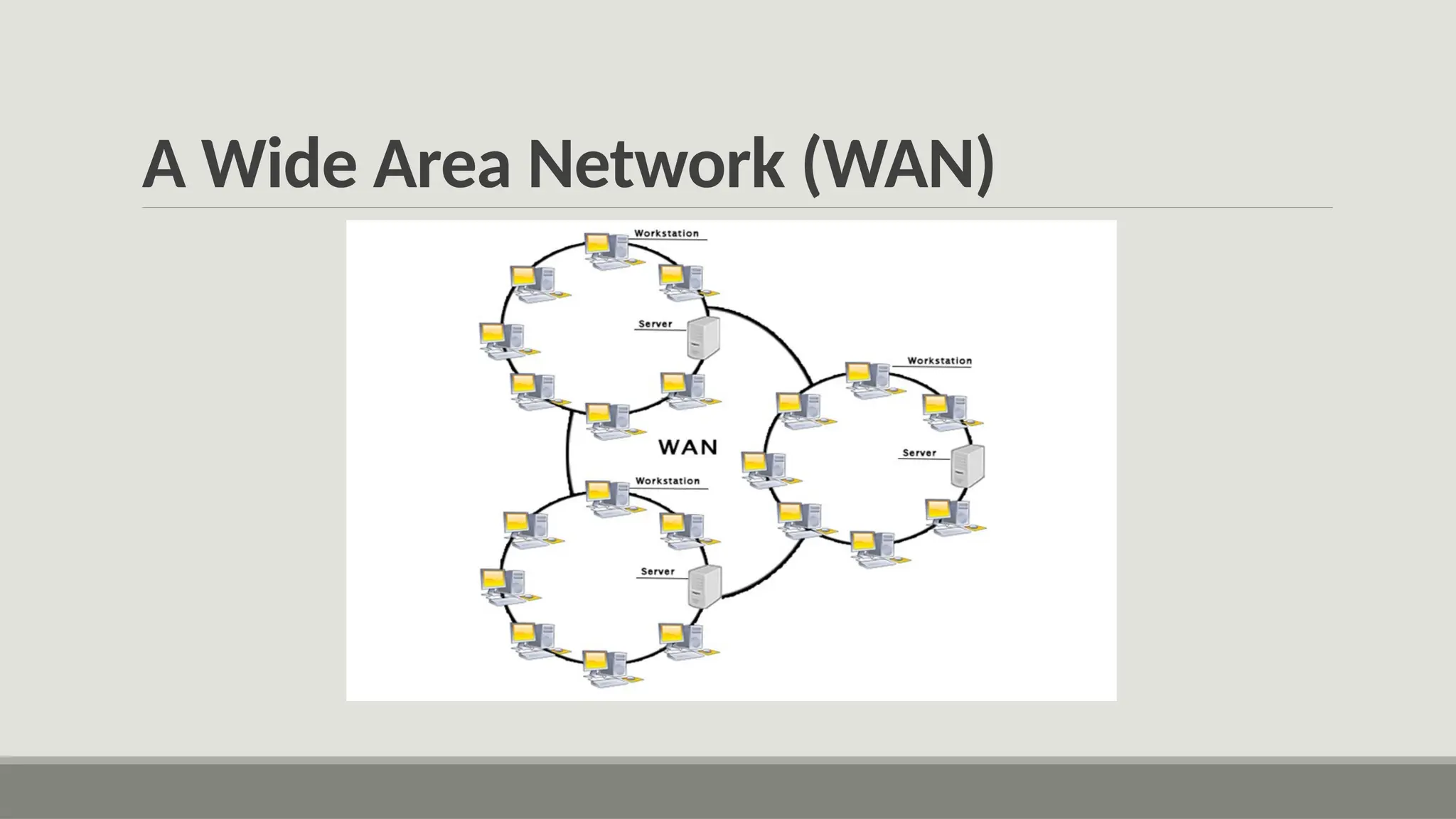

15. A Wide Area Network (WAN)

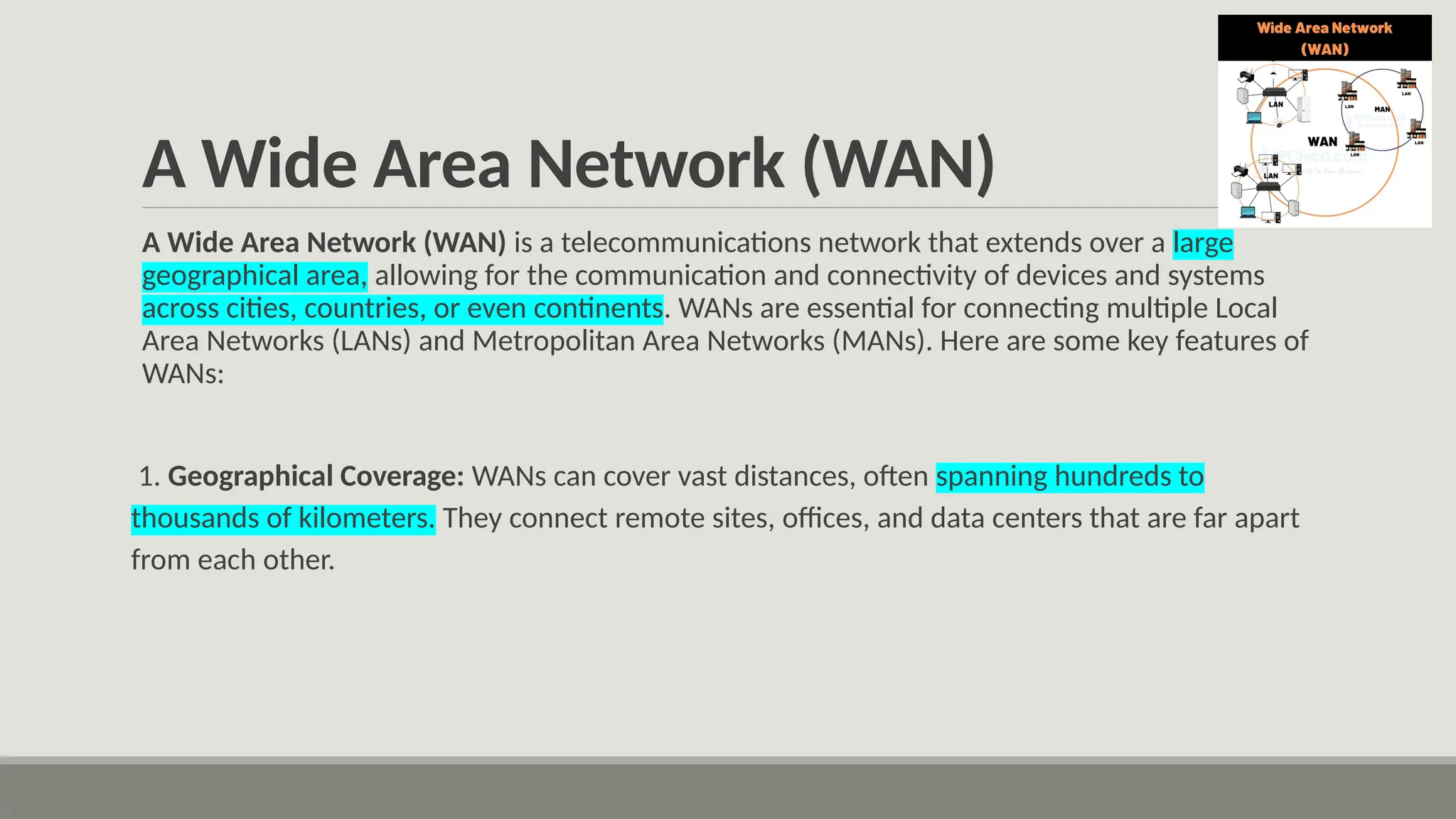

16. A Wide Area Network (WAN)
A Wide Area Network (WAN) is a telecommunications network that extends over a large
geographical area, allowing for the communication and connectivity of devices and systems
across cities, countries, or even continents. WANs are essential for connecting multiple Local
Area Networks (LANs) and Metropolitan Area Networks (MANs). Here are some key features of
WANs:
1. Geographical Coverage: WANs can cover vast distances, often spanning hundreds to
thousands of kilometers. They connect remote sites, offices, and data centers that are far apart
from each other.

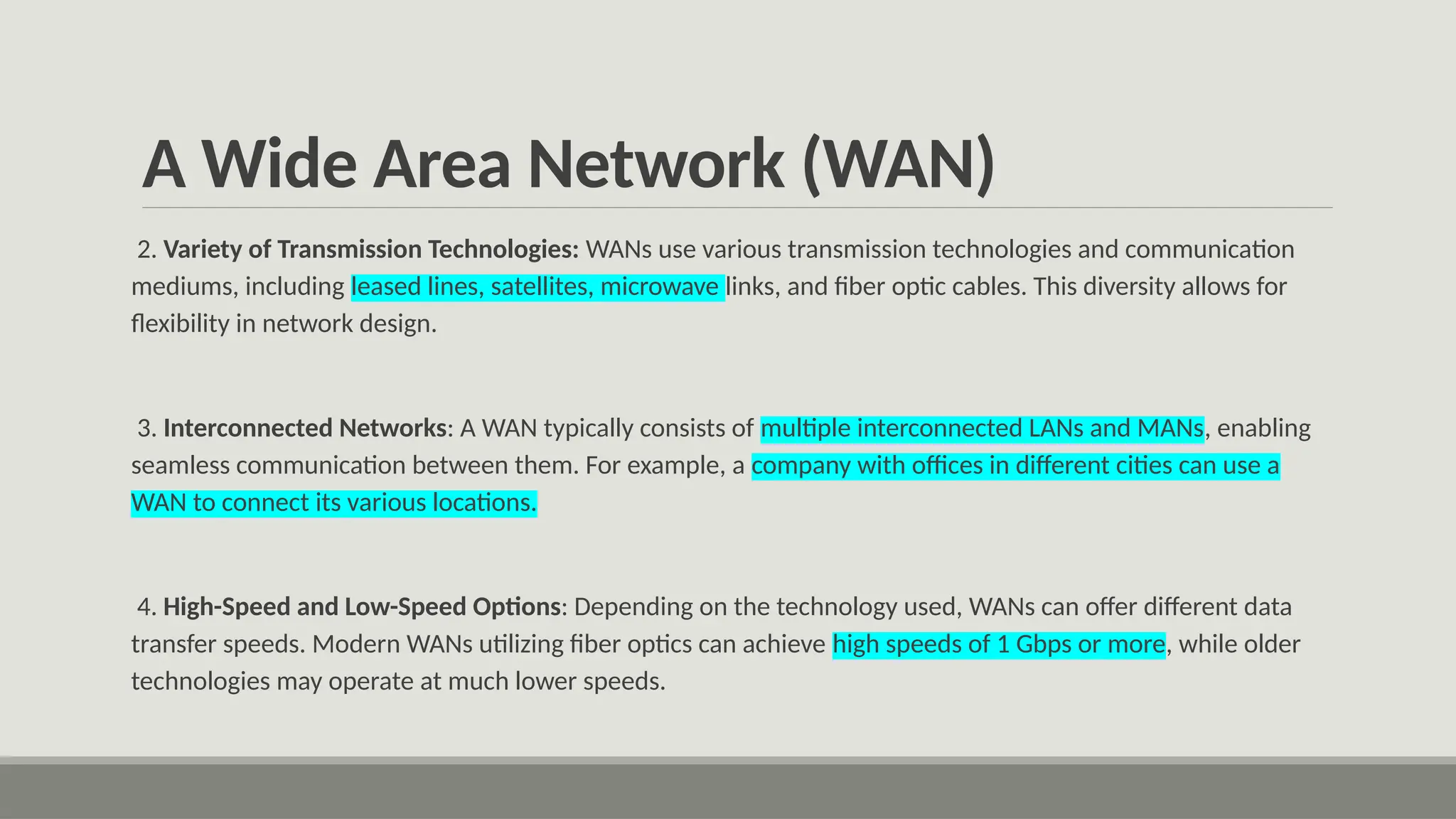

17. A Wide Area Network (WAN)
2. Variety of Transmission Technologies: WANs use various transmission technologies and communication
mediums, including leased lines, satellites, microwave links, and fiber optic cables. This diversity allows for
flexibility in network design.
3. Interconnected Networks: A WAN typically consists of multiple interconnected LANs and MANs, enabling
seamless communication between them. For example, a company with offices in different cities can use a
WAN to connect its various locations.
4. High-Speed and Low-Speed Options: Depending on the technology used, WANs can offer different data
transfer speeds. Modern WANs utilizing fiber optics can achieve high speeds of 1 Gbps or more, while older
technologies may operate at much lower speeds.

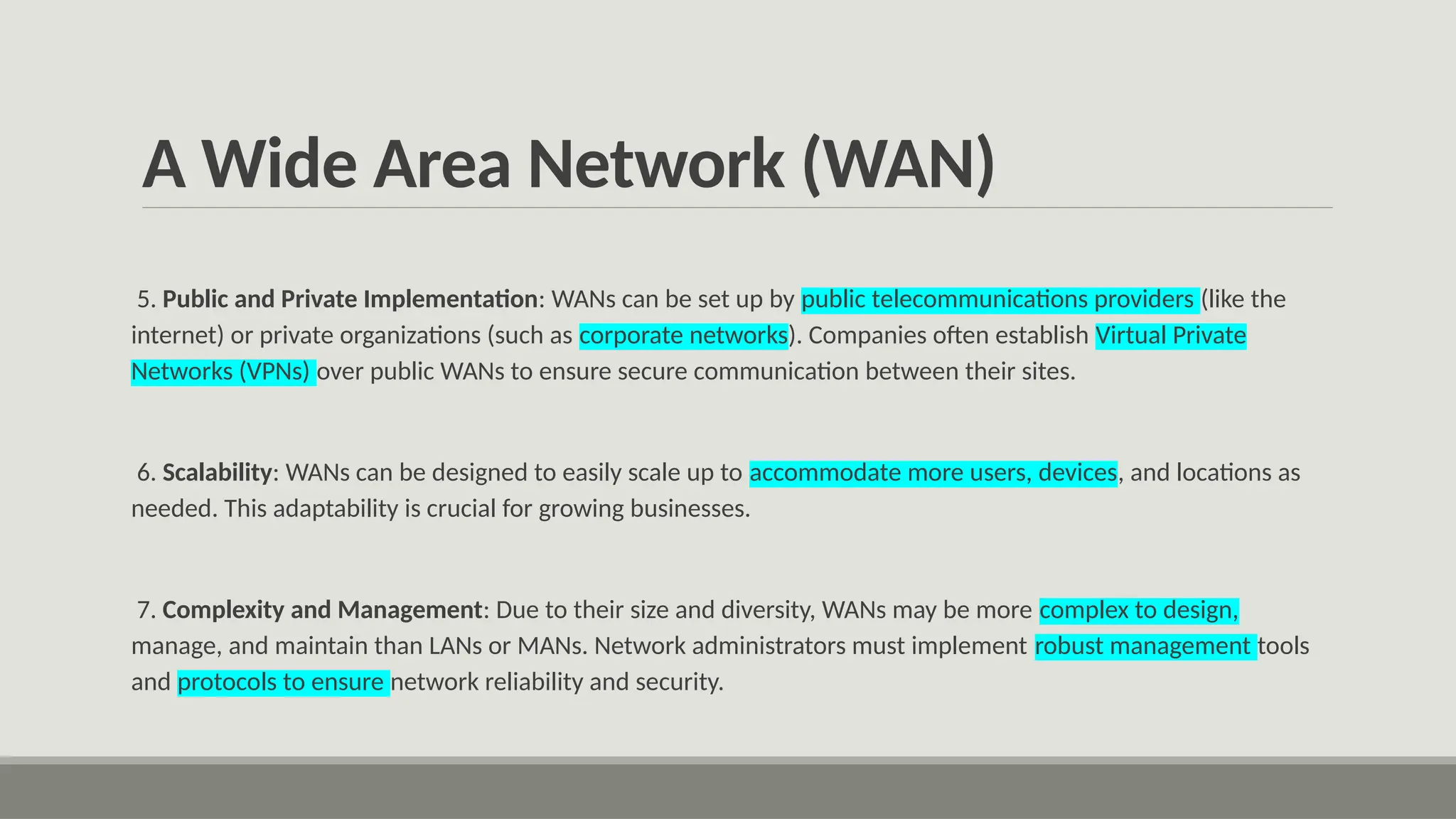

18. A Wide Area Network (WAN)
5. Public and Private Implementation: WANs can be set up by public telecommunications providers (like the
internet) or private organizations (such as corporate networks). Companies often establish Virtual Private
Networks (VPNs) over public WANs to ensure secure communication between their sites.
6. Scalability: WANs can be designed to easily scale up to accommodate more users, devices, and locations as
needed. This adaptability is crucial for growing businesses.
7. Complexity and Management: Due to their size and diversity, WANs may be more complex to design,
manage, and maintain than LANs or MANs. Network administrators must implement robust management tools
and protocols to ensure network reliability and security.

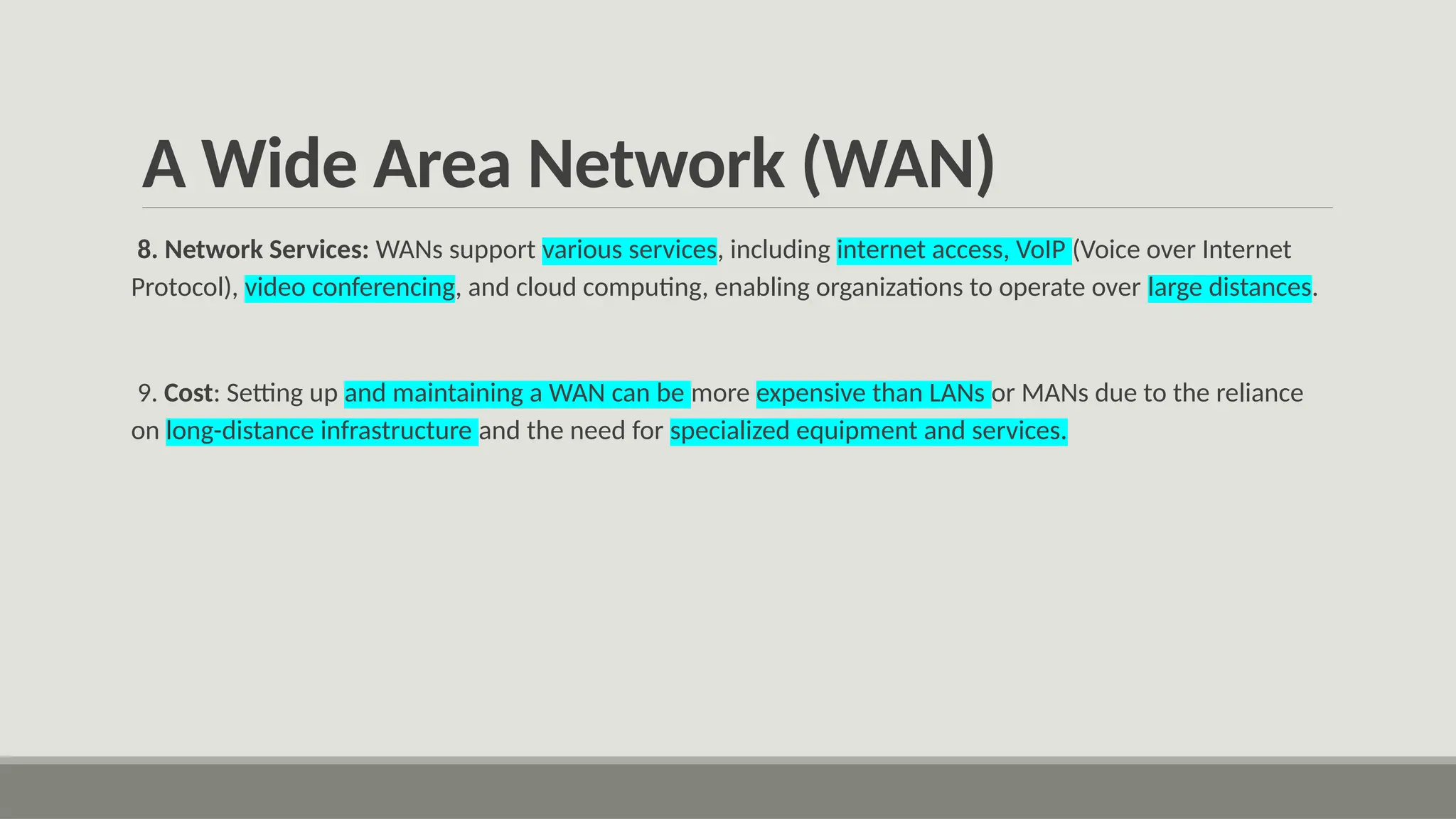

19. A Wide Area Network (WAN)
8. Network Services: WANs support various services, including internet access, VoIP (Voice over Internet
Protocol), video conferencing, and cloud computing, enabling organizations to operate over large distances.
9. Cost: Setting up and maintaining a WAN can be more expensive than LANs or MANs due to the reliance
on long-distance infrastructure and the need for specialized equipment and services.

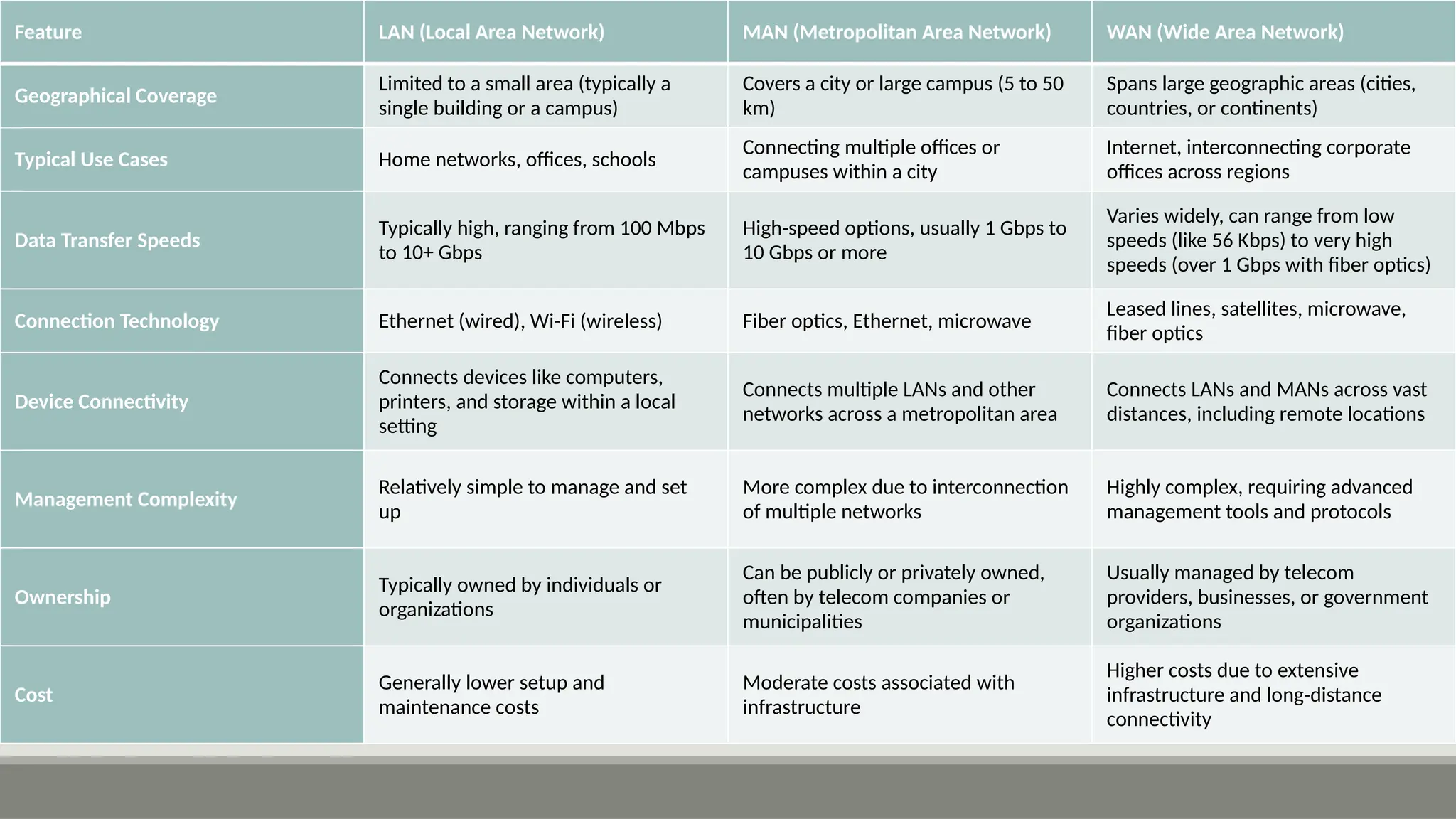

20. Feature LAN (Local Area Network) MAN (Metropolitan Area Network) WAN (Wide Area Network)
Geographical Coverage
Limited to a small area (typically a
single building or a campus)
Covers a city or large campus (5 to 50
km)
Spans large geographic areas (cities,
countries, or continents)
Typical Use Cases Home networks, offices, schools
Connecting multiple offices or
campuses within a city
Internet, interconnecting corporate
offices across regions
Data Transfer Speeds
Typically high, ranging from 100 Mbps
to 10+ Gbps
High-speed options, usually 1 Gbps to
10 Gbps or more
Varies widely, can range from low
speeds (like 56 Kbps) to very high
speeds (over 1 Gbps with fiber optics)
Connection Technology Ethernet (wired), Wi-Fi (wireless) Fiber optics, Ethernet, microwave
Leased lines, satellites, microwave,
fiber optics
Device Connectivity
Connects devices like computers,
printers, and storage within a local
setting
Connects multiple LANs and other
networks across a metropolitan area
Connects LANs and MANs across vast
distances, including remote locations
Management Complexity
Relatively simple to manage and set
up
More complex due to interconnection
of multiple networks
Highly complex, requiring advanced
management tools and protocols
Ownership
Typically owned by individuals or
organizations
Can be publicly or privately owned,
often by telecom companies or
municipalities
Usually managed by telecom
providers, businesses, or government
organizations
Cost
Generally lower setup and
maintenance costs
Moderate costs associated with
infrastructure
Higher costs due to extensive
infrastructure and long-distance
connectivity
