N.D. AUTOMATION is a leading manufacturer of automation projects and control panels. They produce a wide range of sensors, indicators, controllers, timers, counters, meters, safety equipment and more for industrial automation applications. Their products are available in standard and custom configurations to meet customer needs. They specialize in working with various automation brands and technologies.

1. N.D.AUTOMATION
We N.D.AUTOMATION is a leading manufacturer of ALL TYPES OF
• AUTOMATION PROJECTS * CUSTOM BUILT POKE - YOKES

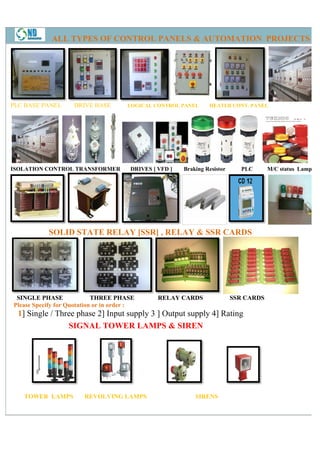

• CONTROL PANELS : 1] PLC & DRIVES BASE CONTROL PANELS
2] CUSTOM BUILT & LOGICAL CONTROL PANELS 3] DISTRIBUTION BOARDS
4] AUTOMATIC POWER FACTOR CONTROL PANELS 5] DG SYNCRONISATION CONTROL PANELS
6] ALL ELECTRICAL & ELECTRONICS PROJECT WORKS
• ALL TYPES OF STD & NON STD CUSTOM BUILTS SENSORS TO ALL APPLICATIONS
1] PROXIMITY 2] TEMPERATURE 3]PRESSURE 4] LEVEL 5] LOAD CELL 6 ]CURRENT 7] SPEED
• ALL TYPES OF STD & NON STD CUSTOM BUILTS ALL PROCESS INDICATORS & CONTROLLERS
1] TEMPERATURE INDICATORS & CONTROLLERS IN ALL SIZES WITH 1 T0 4 SET POINTS , RS 232 ,
RS485 & RETRANSMISSION / ANALOUGE OUTPUT WITH ALL TYPES CUSTOM BULIT LOGICS, RS485
DISPLAY SIZES : 0.5 ,1,2,4,6,8,12 INCHES
2] TEMPERATURE SCANNERS , DATA LOGGERS & PID CONTROLLERS
,RS
2] LOAD CELL INDICATORS & CONTROLLERS – 1 TO 4 SET POINTS ,RS 232 ,RS 485 & RETRANSMISSION
LOGICS.
/ ANALOUGE OUTPUT WITH ALL TYPES OF CUSTOM BULIT LOGICS
3] PRESSURE / LEVEL / CURRENT INDICATORS & CONTROLLERS – 1 TO 4 SET POINTS , RS 232
RS485 & RETRANSMISSION / ANALOUGE OUTPUT WITH ALL TYPES OF CUSTOM BULIT LOGICS.
4] FLOW INDICATOR TOTALIZERS WITH CONTROLLERS 1 TO 4 SET POINTS , RS 232
RS485 & RETRANSMISSION / ANALOUGE OUTPUT WITH ALL TYPES OF CUSTOM BULIT LOGICS.
5] VOLTAGE / CURRENT INDICATORS & CONTROLLERS & CUSTOM BUILT LOGIC CONTROLLERS
6] HEATER FAIL INDICATORS & CONTROLLERS WITH ALL TYPES OF CUSTOM BULIT LOGICS.

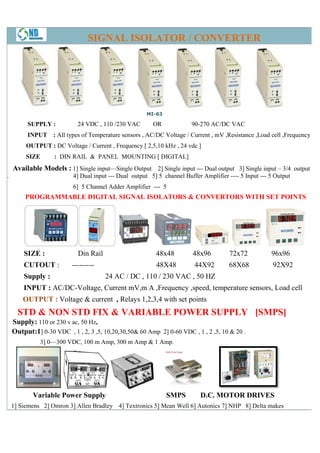

7] ALL TYPES OF SIGNAL ISOLATORS & CONVERTORS FOR TO ALL APPLICATIONS
8] THREE PHASE MOTOR PROTECTION CONTROLLER WITH UNDER & OVER VOLTAGE , CURRENT
SET POINTS & PHASE UNBALANCE , SINGLE PHASING , PHASE REVERSE PROTECTIONS
9] FLAME PROOF I NDICATORS , CONTROLLERS & CONTROL PANELS

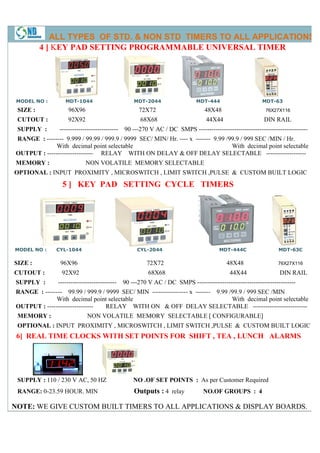

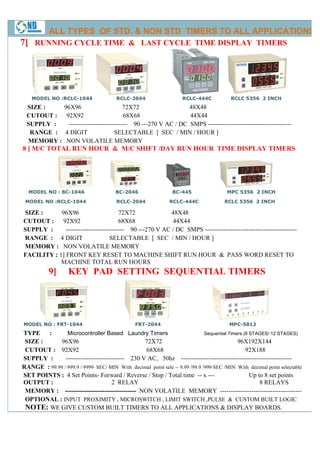

TIMERS : 1] ON DELAY , 2] OFF DELAY , 3] CYCLIC , 4] SEQUENTIONAL , 5] LOGICAL
6] RUNNING CYCLE & LAST CYCLE TIME DISPLAY TIMERS WITH SEPARATE DISPLAY

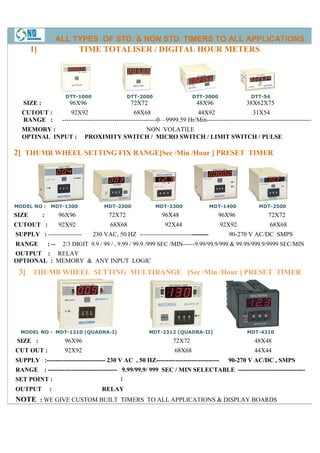

7] MACHINE TOTAL RUN HOUR & SHIFT / DAY RUN HOUR DISPLAY TIMERS WITH SEPARATE DISPLAY
8] REAL TIME CLOCKS WITH 4 SET POINTS FOR SHIFT , TEA , LUNCH ALARMS

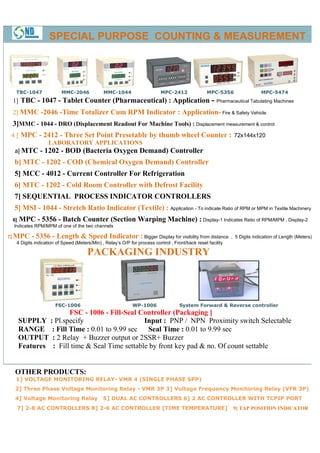

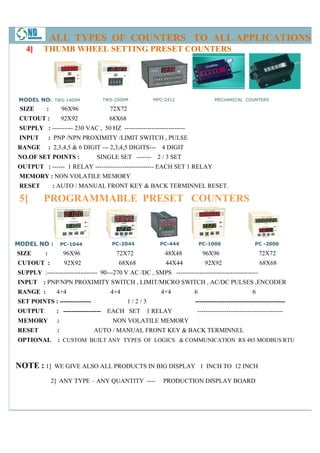

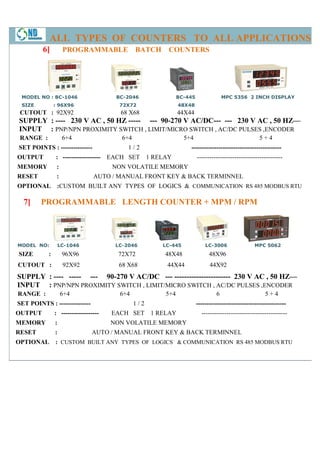

COUNTERS : 1] EVENT [ PLANE] COUNTERS , 2] PRESET COUNTERS , 3] BATCH COUNTERS

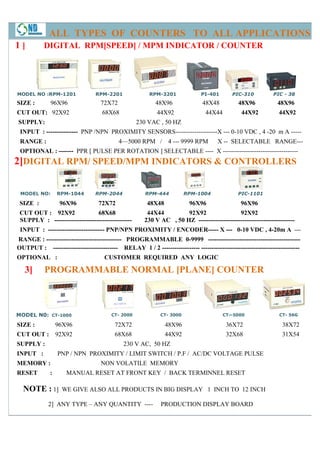

4] SPEED /RPM COUNTERS , 5] LENGTH & MPM COUNTERS , 6] SHIFT & LOGICAL COUNTERS

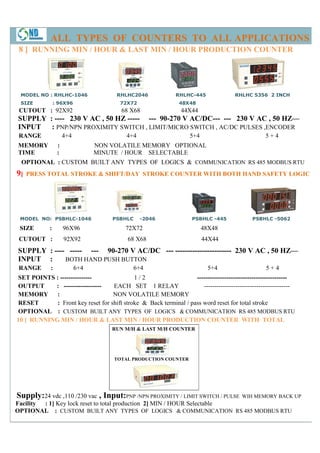

7] RUNNING HOUR & LAST HOUR PRODUCTION COUNTERS WITH SEPARATE DISPLAY
8] RUNNING HOUR & LAST HOUR WITH TOTAL PRODUCTION COUNTERS WITH SEPARATE DISPLAY
9] PRESS TOTAL STROKE & SHIFT / DAY STROKE COUNTERS WITH BOTH HAND SAFETY LOGICS & SEPARATE DISPLAYS.

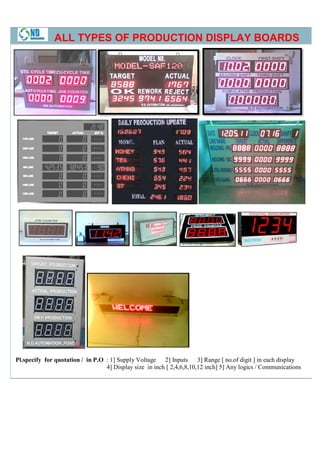

10] ALL TYPES OF PRODUCTION DISPLAY BOARDS & ROLLING DISPLAY BOARDS IN 1 INCH TO 12 INCH WITH
OPTIONAL ALL CUSTOM BUILT LOGICS , RS 232 & RS 485 COMMUNICATION PORTS
** ELECTRONIC SAFETY CURTAINS / ELECTRONIC PRESS GUARDS ND MAKE & IMPORTED

2. N.D.AUTOMATION

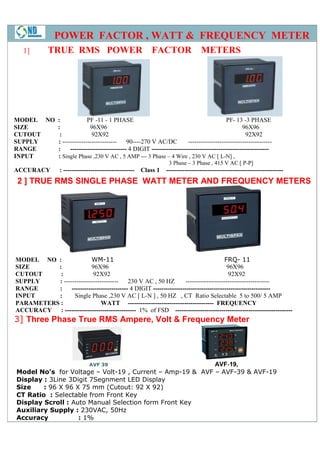

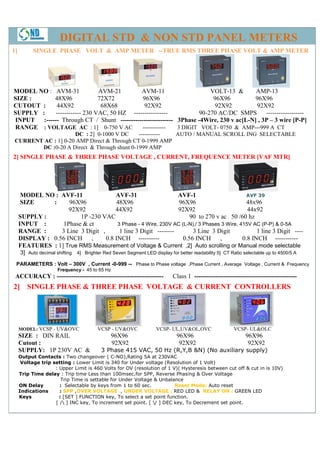

9] TRUE RMS THREE PHASE VOLT , AMP , AVF METERS & SINGLE PHASE AVF METERS

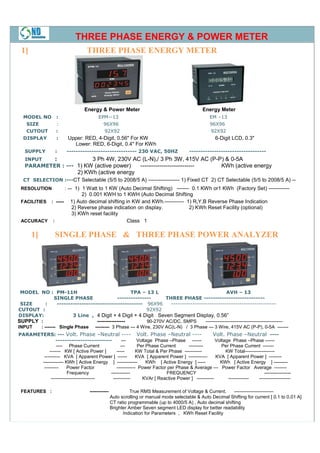

10] THREE PHASE ENERGY METERS & THREE PHASE POWER ANALYSER OPTIONAL RS 485
11] TRUE RMS SINGLE PHASE & THREE PHASEPOWER FACTOR MTR & SINGLE PHASE WATT
METER , FREQUENCY METERS
12] SINGLE PHASE AC/DC ALL RANGES VOLT METERS & AMP METERS

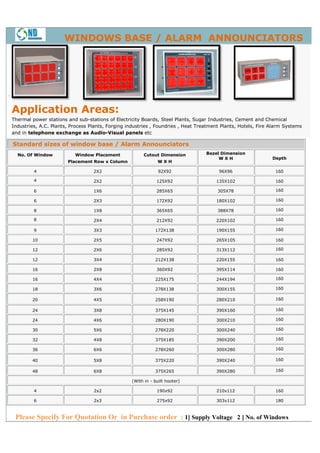

13] WINDOW BASE ANNOUNCIATORS , SMPS , VARIABLE POWER SUPPLIES , HOOTERS,
]
TOWER LAMPS , REVOLVING LAMPS , RELAY & RELAY CARDS , SSR & SSR CARDS
14] ALL TYPES CONTROL TRANSFORMERS & ISOLATION TRANSFORMERS
15] Single phase Preventer with under & over voltage controllers with display in din rail mounting
rai
15] Three phase under , over voltage & current with single phasing controller with display&
separate Relay to voltage & current in panel mounting 96x96
16] We Major dealing & Supplying of Sick ,Omron , Banner , Data sensors , Autonics
Textronics, Fuji , Delta , Siemens , L&T , Mitsubishi ,ABB , Allen Bradley & other
make Customer required
Office: Pune--
--19
Bldg. No.14 flat no.4 Purnanagar, Shahunagar behind RTO office, Chinchwad Pune--19
T / F : 020-27491210 Mb. 9850025591 Email : ndautomation2004@gmail.com , ndautomation@rediffmail.com .
020-

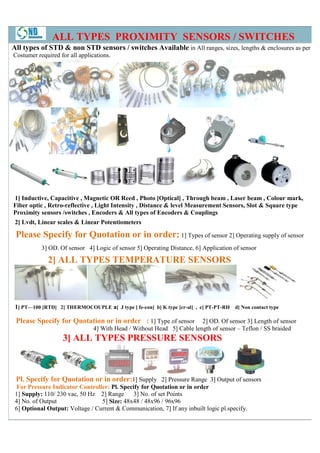

3. ALL TYPES PROXIMITY SENSORS / SWITCHES
All types of STD & non STD sensors / switches Available in All ranges, sizes, lengths & enclosures as per
Costumer required for all applications.
1] Inductive, Capacitive , Magnetic OR Reed , Photo [Optical] , Through beam , Laser beam , Colour mark,
Fiber optic , Retro-reflective , Light Intensity , Distance & level Measurement Sensors, Slot & Square type
Proximity sensors /switches , Encoders & All types of Encoders & Couplings
2] Lvdt, Linear scales & Linear Potentiometers
Please Specify for Quotation or in order: 1] Types of sensor 2] Operating supply of sensor
3] OD. Of sensor 4] Logic of sensor 5] Operating Distance, 6] Application of sensor
2] ALL TYPES TEMPERATURE SENSORS
1] PT—100 [RTD] 2] THERMOCOUPLE a] J type [ fe-con] b] K type [cr-al] , c] PT-PT-RH d] Non contact type
RH
Please Specify for Quotation or in order : 1] Type of sensor 2] OD. Of sensor 3] Length of sensor
]
4] With Head / Without Head 5] Cable length of sensor – Teflon / SS braided
3] ALL TYPES PRESSURE SENSORS
Pl. Specify for Quotation or in order:1] Supply 2] Pressure Range 3] Output of sensors
For Pressure Indicator Controller: Pl. Specify for Quotation or in order
1] Supply: 110/ 230 vac, 50 Hz 2] Range 3] No. of set Points
4] No. of Output 5] Size: 48x48 / 48x96 / 96x96
6] Optional Output: Voltage / Current & Communication 7] If any inbuilt logic pl.specify.
Communication,

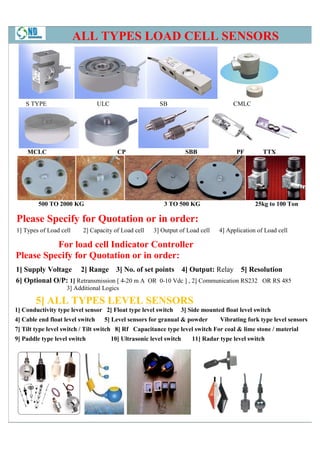

4. ALL TYPES LOAD CELL SENSORS
S TYPE ULC SB CMLC
MCLC CP SBB PF TTX
500 TO 2000 KG 3 TO 500 KG 25kg to 100 Ton
Please Specify for Quotation or in order:
1] Types of Load cell 2] Capacity of Load cell 3] Output of Load cell 4] Application of Load cell
For load cell Indicator Controller
Please Specify for Quotation or in order:
1] Supply Voltage 2] Range 3] No. of set points 4] Output: Relay 5] Resolution
6] Optional O/P: 1] Retransmission [ 4 m A OR 0-10 Vdc ] , 2] Communication RS232 OR RS 485
4-20
3] Additional Logics
5] ALL TYPES LEVEL SENSORS
1] Conductivity type level sensor 2] Float type level switch 3] Side mounted float level switch
4] Cable end float level switch 5] Level sensors for granual & powder Vibrating fork type level sensors
7] Tilt type level switch / Tilt switch 8] Rf Capacitance type level switch For coal & lime stone / material
witch
9] Paddle type level switch 10] Ultrasonic level switch 11] Radar type level switch

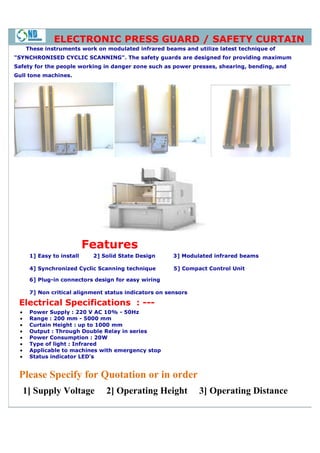

5. ELECTRONIC PRESS GUARD / SAFETY CURTAIN
These instruments work on modulated infrared beams and utilize latest technique of
"SYNCHRONISED CYCLIC SCANNING". The safety guards are designed for providing maximum
Safety for the people working in danger zone such as power presses, shearing, bending, and
Gull tone machines.
Features
1] Easy to install 2] Solid State Design 3] Modulated infrared beams
]
4] Synchronized Cyclic Scanning technique 5] Compact Control Unit
6] Plug-in connectors design for easy wiring
in
7] Non critical alignment status indicators on sensors
Electrical Specifications : ---
• Power Supply : 220 V AC 10% - 50Hz
• Range : 200 mm - 5000 mm
• Curtain Height : up to 1000 mm
• Output : Through Double Relay in series
• Power Consumption : 20W
• Type of light : Infrared
• Applicable to machines with emergency stop
• Status indicator LED's
Please Specify for Quotation or in order
1] Supply Voltage 2] Operating Height 3] Operating Distance

6. ALL TYPES STANDARD & NON-STANDARD PROCESS INDICATORS
NON-
Temperature,Pressure,Load cell, Level,Voltage,Current,Speed, Rpm,Mpm,Length, Flow, Distance & no. of count
Model No : PI-401 MDI-3101H MDI-3101V MDI-2101P MDI-1101 SPI-421 PIC-3102H PIC – 38 PIC-1101
size : 48X48 48x96 96X48 72X72 96X96 48X48 48X96 48X96 96X96
Cut out : 44x44 44x92 92X44 68X68 92X92 44X44 44X92 44X92 92X92
Supply : 24 VDC , 110 VAC , 230 V AC , 50 HZ
Input : J/K/RTD/R/S/CURRENT/VOLTAGE AC/DC/LOAD CELL / PRESSURE/ m V / m A /Proximity
Range : -------------------------- 4 digit fix-------------------------- x------ 4 digit programmable -----
Optional Output: Analogue output [ 0-10 vdc , 4-20 m A] , RS 232 & 485
DISPLAY SIZE : 0.56 INCH & 0.8 INCH
NON- IND.CONTROLLER
ALL TYPES STANDARD & NON-STANDARD PROCESS IND.CONTROLLER
A] PUSH TO SET FIX INPUT TEMPERATURE CONTROLLER
Model No : DTC-49 MDC-3901H MDC-3901V MDC-2901 MDC-1901
size : 48X48 48x96 96X48 72X72 96X96
Cut out : 44x44 44x92 92X44 68X68 92X92
Supply : 24 VDC , 110 VAC , 230 V AC , 50 HZ
Input : J/K/RTD/R/S/CURRENT/VOLTAGE AC/DC/LOAD CELL / PRESSURE/ m V / m A .
Range : -------------------------- 4 digit fix -------------------------------------------------------
Set point : 1/2
OUTPUT : Relays 1/ 2
B] DIAL & THUMBWHEEL SETTING FIX INPUT TEMPERATURE CONTROLLER
Model No: MDC-1911 MDC-2911 MDC-1931 MDC-2931 MDC-3931
size : 96X96 72X72 96X96 72X72 96X48
Cut out : 92X92 68X68 92X92 68X68 92X44
Supply : 24 VDC , 110 VAC , 230 V AC , 50 HZ
Input : J/K/RTD/R/S/CURRENT/VOLTAGE AC/DC/LOAD CELL / PRESSURE/ m V / m A .
Range : -------------------------- 4 digit fix -------------------------------------------------------
Set point : 1 /2
OUTPUT : Relays 1 /2

7. NON-

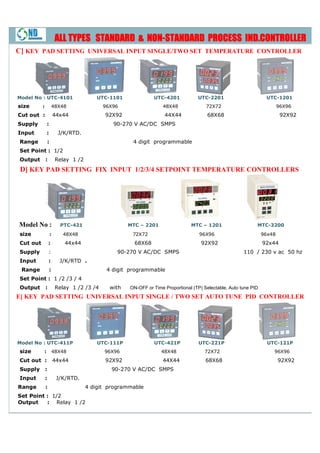

ALL TYPES STANDARD & NON-STANDARD PROCESS IND.CONTROLLER
C] KEY PAD SETTING UNIVERSAL INPUT SINGLE/TWO SET TEMPERATURE CONTROLLER
Model No : UTC-4101 UTC-1101
1101 UTC-4201 UTC-2201
2201 UTC-1201
size : 48X48 96X96 48X48 72X72 96X96
Cut out : 44x44 92X92 44X44 68X68 92X92
Supply : 90-270 V AC/DC SMPS
Input : J/K/RTD.
Range : 4 digit programmable
Set Point : 1/2
Output : Relay 1 /2
D] KEY PAD SETTING FIX INPUT 1/2/3/4 SETPOINT TEMPERATURE CONTROLLERS
Model No : PTC-421 MTC – 2201 MTC – 1201 MTC-3200
size : 48X48 72X72 96X96 96x48
Cut out : 44x44 68X68 92X92 92x44
Supply : 90 270 V AC/DC SMPS
90-270 110 / 230 v ac 50 hz
Input : J/K/RTD .
Range : 4 digit programmable
Set Point : 1 /2 /3 / 4
Output : Relay 1 /2 /3 /4 with ON-OFF or Time Proportional (TP) Selectable, Auto tune PID
OFF
E] KEY PAD SETTING UNIVERSAL INPUT SINGLE / TWO SET AUTO TUNE PID CONTROLLER
]
Model No : UTC-411P UTC-111P
111P UTC-421P UTC-221P
221P UTC-121P
size : 48X48 96X96 48X48 72X72 96X96
Cut out : 44x44 92X92 44X44 68X68 92X92
Supply : 90-270 V AC/DC SMPS
90
Input : J/K/RTD.
Range : 4 digit programmable
Set Point : 1/2
Output : Relay 1 /2

8. ALL TYPES STANDARD & NON-STANDARD PROCESS IND.CONTROLLER
NON-

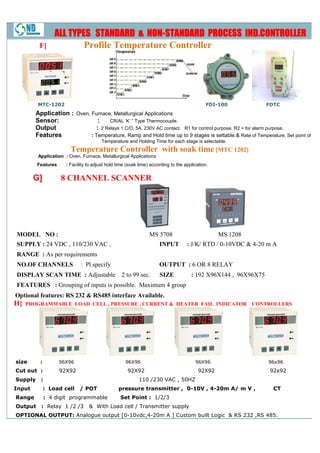

F] Profile Temperature Controller
MTC-1202 FDI-100
100 FDTC
Application : Oven, Furnace, Metallurgical Applications
Sensor: : CR/AL ‘K’ ” Type Thermocouple.
Output : 2 Relays 1 C/O, 5A, 230V AC contact. R1 for control purpose. R2 = for alarm purpose.
Features : Temperature, Ramp and Hold time up to 9 stages is settable.& Rate of Temperature, Set point of
settable.
Temperature and Holding Time for each stage is selectable.
Temperature Controller with soak time [MTC 1202]
Application : Oven, Furnace, Metallurgical Applications
Features : Facility to adjust hold time (soak time) according to the application.
G] 8 CHANNEL SCANNER
MODEL NO : MS 5708 MS 1208
SUPPLY : 24 VDC , 110/230 VAC ,
DC INPUT : J/K/ RTD / 0-10VDC & 4-20 m A
10VDC 4
RANGE : As per requirements
NO.OF CHANNELS : Pl.specify OUTPUT : 6 OR 8 RELAY
DISPLAY SCAN TIME : Adjustable 2 to 99 sec. SIZE : 192 X96X144 , 96X96X75
FEATURES : Grouping of inputs is possible. Maximum 4 group
Optional features: RS 232 & RS485 interface Available.
H] PROGRAMMABLE LOAD CELL , PRESSURE , CURRENT & HEATER FAIL INDICATOR CONTROLLERS
size : 96X96 96X96 96X96 96x96
Cut out : 92X92 92X92 92X92
2 92x92
Supply : 110 /230 VAC , 50HZ
Input : Load cell / POT pressure transmitter , 0-10V , 4-20m A/ m V ,
20m CT
Range : 4 digit programmable Set Point : 1/2/3
Output : Relay 1 /2 /3 & With Load cell / Transmitter supply
OPTIONAL OUTPUT: Analogue output [0-10vdc,4-20m A ] Custom built Logic & RS 232 ,RS 485.
[

9. NON-
ALL TYPES STANDARD & NON-STANDARD PROCESS IND.CONTROLLER

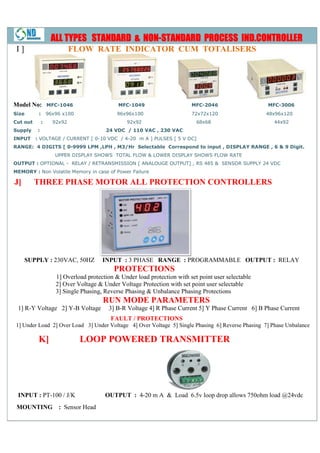

I] FLOW RATE INDICATOR CUM TOTALISERS
Model No: MFC-1046 MFC-1049 MFC-2046 MFC-3006
Size : 96x96 x100 96x96x100 72x72x120 48x96x120
Cut out : 92x92 92x92 68x68 44x92
Supply : 24 VDC / 110 VAC , 230 VAC
INPUT : VOLTAGE / CURRENT [ 0-10 VDC / 4-20 m A ] PULSES [ 5 V DC]
RANGE: 4 DIGITS [ 0-9999 LPM ,LPH , M3/Hr Selectable Correspond to input , DISPLAY RANGE , 6 & 9 Digit.
UPPER DISPLAY SHOWS TOTAL FLOW & LOWER DISPLAY SHOWS FLOW RATE
OUTPUT : OPTIONAL - RELAY / RETRANSMISSION [ ANALOUGE OUTPUT] , RS 485 & SENSOR SUPPLY 24 VDC
MEMORY : Non Volatile Memory in case of Power Failure
J] THREE PHASE MOTOR ALL PROTECTION CONTROLLERS
SUPPLY : 230VAC, 50HZ INPUT : 3 PHASE RANGE : PROGRAMMABLE OUTPUT : RELAY
PROTECTIONS
1] Overload protection & Under load protection with set point user selectable
2] Over Voltage & Under Voltage Protection with set point user selectable
3] Single Phasing, Reverse Phasing & Unbalance Phasing Protections
RUN MODE PARAMETERS
1] R-Y Voltage 2] Y-B Voltage 3] B-R Voltage 4] R Phase Current 5] Y Phase Current 6] B Phase Current
FAULT / PROTECTIONS
1] Under Load 2] Over Load 3] Under Voltage 4] Over Voltage 5] Single Phasing 6] Reverse Phasing 7] Phase Unbalance
K] LOOP POWERED TRANSMITTER
INPUT : PT-100 / J/K OUTPUT : 4-20 m A & Load 6.5v loop drop allows 750ohm load @24vdc
MOUNTING : Sensor Head

10. ALL TYPES OF STD. & NON STD TIMERS TO ALL APPLICATIONS
1] TIME TOTALISER / DIGITAL HOUR METERS
DTT-1000 DTT-2000 DTT-3000 DTT-56
SIZE : 96X96 72X72 48X96 38X62X75
CUTOUT : 92X92
X92 68X68 44X92 31X54
RANGE : ---------------------------------------------0—9999.59 Hr/Min--------------------------------------------------
--------------------------------------------- --------------------------------------------------
MEMORY : NON VOLATILE
OPTINAL INPUT : PROXIMITY SWITCH / MICRO SWITCH / LIMIT SWITCH / PULSE
2] THUMB WHEEL SETTING FIX RANGE[Sec /Min /Hour ] PRESET TIMER
MODEL NO : MDT-1300 MDT-2300
MDT MDT-3300 MDT-1400
1400 MDT-2500
SIZE : 96X96 72X72 96X48 96X96 72X72
CUTOUT : 92X92 68X68 92X44
92 92X92 68X68
SUPPLY : ---------------- 230 VAC, 50 HZ --------------------------------- 90-270 V AC/DC SMPS
RANGE : -- 2/3 DIGIT 9.9 / 99 / , 9.99 / 99.9 /999 SEC /MIN------9.99/99.9/999 & 99.99/999.9/9999 SEC/MIN
9.99/99.9/999
OUTPUT : RELAY
OPTIONAL : MEMORY & ANY INPUT LOGIC
3] THUMB WHEEL SETTING MULTIRANGE [Sec /Min /Hour ] PRESET TIMER
MODEL NO : MDT-1310 (QUADRA-I)
I) MDT-2312 (QUADRA-II) MDT-4310
SIZE : 96X96 72X72 48X48
CUT OUT : 92X92 68X68 44X44
SUPPLY :---------------------------- 230 V AC , 50 HZ------------------------------
HZ 90-270 V AC/DC , SMPS
RANGE : --------------------------------- 9.99/99.9/ 999 SEC / MIN SELECTABLE --------------------------------
SET POINT : 1
OUTPUT : RELAY
NOTE : WE GIVE CUSTOM BUILT TIMERS TO ALL APPLICATIONS & DISPLAY BOARD
BOARDS

11. ALL TYPES OF STD. & NON STD TIMERS TO ALL APPLICATIONS
4 ] KEY PAD SETTING PROGRAMMABLE UNIVERSAL TIMER
EY
MODEL NO : MDT-1044 MDT-2044 MDT-444 MDT-63
SIZE : 96X96 72X72 48X48 76X27X116
CUTOUT : 92X92 68X68 44X44 DIN RAIL
SUPPLY : ---------------------------- 90 ---270 V AC / DC SMPS ---------------------------------------------
----------------------------------------------------
RANGE : -------- 9.999 / 99.99 / 999.9 / 9999 SEC/ MIN/ Hr. ---- x ------- 9.99 /99.9 / 999 SEC /MIN / Hr.
With decimal point selectable With decimal point selectable
OUTPUT : ---------------------- RELAY WITH ON DELAY & OFF DELAY SELECTABLE -------------------
MEMORY : NON VOLATILE MEMORY SELECTABLE
OPTIONAL : INPUT PROXIMITY , MICROSWITCH , LIMIT SWITCH ,PULSE & CUSTOM BUILT LOGIC
5 ] KEY PAD SETTING CYCLE TIMERS
MODEL NO : CYL-1044 CYL-2044 MDT-444C
MDT MDT-63C
SIZE : 96X96 72X72 48X48 76X27X116
CUTOUT : 92X92 68X68 44X44 DIN RAIL
SUPPLY : ---------------------------- 90 ---270 V AC / DC SMPS -----------------------------------------------
RANGE : -------- 99.99 / 999.9 / 9999 SEC/ MIN ----------------- x ------- 9.99 /99.9 / 999 SEC /MIN
/9
With decimal point selectable With decimal point selectable
OUTPUT : ---------------------- RELAY WITH ON & OFF DELAY SELECTABLE --------------------------
SELECTABLE
MEMORY : NON VOLATILE MEMORY SELECTABLE [ CONFIGURABLE]
OPTIONAL : INPUT PROXIMITY , MICROSWITCH , LIMIT SWITCH ,PULSE & CUSTOM BUILT LOGIC
6] REAL TIME CLOCKS WITH SET POINTS FOR SHIFT , TEA , LUNCH ALARMS
SUPPLY : 110 / 230 V AC, 50 HZ NO .OF SET POINTS : As per Customer Required
RANGE: 0-23.59 HOUR. MIN
23.59 Outputs : 4 relay NO.OF GROUPS : 4
NOTE: WE GIVE CUSTOM BUILT TIMERS TO ALL APPLICATIONS & DISPLAY BOARDS.

12. ALL TYPES OF STD. & NON STD TIMERS TO ALL APPLICATIONS
7] RUNNING CYCLE TIME & LAST CYCLE TIME DISPLAY TIMERS
MODEL NO :RCLC-1044 RCLC-2044 RCLC-444C RCLC 5356 2 INCH
SIZE : 96X96 72X72 48X48
CUTOUT : 92X92 68X68 44X44
SUPPLY : ---------------------------- 90 ---270 V AC / DC SMPS ----------------------------------------
-----------------------
RANGE : 4 DIGIT SELECTABLE [ SEC / MIN / HOUR ]
MEMORY : NON VOLATILE MEMORY
8 ] M/C TOTAL RUN HOUR & M/C SHIFT /DAY RUN HOUR TIME DISPLAY TIMERS
MODEL NO : BC-1046 BC-2046 BC-445 MPC 5356 2 INCH
MODEL NO :RCLC-1044 RCLC-2044 RCLC-444C RCLC 5356 2 INCH
SIZE : 96X96 72X72 48X48
CUTOUT : 92X92 68X68 44X44
SUPPLY : ---------------------------- 90 ---270 V AC / DC SMPS ---------------------------
--------------------------------------------
RANGE : 4 DIGIT SELECTABLE [ SEC / MIN / HOUR ]
MEMORY : NON VOLATILE MEMORY
FACILITY : 1] FRONT KEY RESET TO MACHINE SHIFT RUN HOUR & PASS WORD RESET TO
MACHINE TOTAL RUN HOURS
9] KEY PAD SETTING SEQUENTIAL TIMERS
MODEL NO : FRT-1044 FRT-2044 MPC-5812
TYPE : Microcontroller Based Laundry Timers Sequential Timers (8 STAGES/ 12 STAGES)
SIZE : 96X96 72X72 96X192X144
CUTOUT : 92X92 68X68 92X188
SUPPLY : ---------------------------- 230 V AC, 50hz ---------------------------
-----------------------------------------------------
RANGE : 99.99 / 999.9 / 9999 SEC/ MIN With decimal point sele -- 9.99 /99.9 /999 SEC /MIN With decimal point selectable
999
SET POINTS : 4 Set Points- Forward / Reverse / Stop / Total time -- x --- Up to 8 set points
OUTPUT : 2 RELAY 8 RELAYS
MEMORY : ---------------------------------- NON VOLATILE MEMORY --------------- ---------------------------------------
OPTIONAL : INPUT PROXIMITY , MICROSWITCH , LIMIT SWITCH ,PULSE & CUSTOM BUILT LOGIC
NOTE: WE GIVE CUSTOM BUILT TIMERS TO ALL APPLICATIONS & DISPLAY BOARDS.

13. ALL TYPES OF COUNTERS TO ALL APPLICATIONS
1] DIGITAL RPM[SPEED] / MPM INDICATOR / COUNTER
MODEL NO :RPM-1201 RPM-2201
2201 RPM-3201 PI-401 PIC-310 PIC - 38
SIZE : 96X96 72X72 48X96 48X48 48X96 48X96
CUT OUT: 92X92 68X68 44X92 44X44 44X92 44X92
SUPPLY: 230 VAC , 50 HZ
INPUT : --------------- PNP /NPN PROXIMITY SENSORS
SENSORS--------------------X --- 0-10 VDC , 4 -20 m A -----
RANGE : 4—5000 RPM / 4 --- 9999 RPM X -- SELECTABLE RANGE---
OPTIONAL : ------- PPR [ PULSE PER ROTATION ] SELECTABLE ---- X ------------------------------------
2]DIGITAL RPM/ SPEED
SPEED/MPM INDICATORS & CONTROLLERS
S
MODEL NO: RPM-1044 RPM-2044
2044 RPM-444 RPM-1004 PIC-1101
SIZE : 96X96 72X72 48X48 96X96 96X96
CUT OUT : 92X92 68X68 44X44 92X92 92X92
SUPPLY : -------------------------------------
----------------------------------- 230 V AC , 50 HZ ----------------------------------------------
INPUT : --------------------------- PNP/NPN PROXIMITY / ENCODER
ENCODER----- X --- 0-10 VDC , 4-20m A —
RANGE : ------------------------------------ PROGRAMMABLE 0-9999 --------------------------------------------
---------------
OUTPUT : ------------------------------- RELAY 1 / 2 ------------------ -----------------------------------------------
OPTIONAL : CUSTOMER REQUIRED ANY LOGIC
3] PROGRAMMABLE NORMAL [PLANE] COUNTER
MODEL N0: CT-1000 CT-
CT 2000 CT- 3000 CT—5000
CT CT- 56G
SIZE : 96X96 72X72 48X96
X96 36X72 38X72
CUT OUT : 92X92 68X68 44X92
92 32X68 31X54
SUPPLY : 230 V AC, 50 HZ
INPUT : PNP / NPN PROXIMITY / LIMIT SWITCH / P.F / AC/DC VOLTAGE PULSE
MEMORY : NON VOLATILE MEMORY
RESET : MANUAL RESET AT FRONT KEY / BACK TERMINNEL RESET
NOTE : 1] WE GIVE ALSO ALL PRODUCTS IN BIG DISPLAY 1 INCH TO 12 INCH
2] ANY TYPE – ANY QUANTITY ---- PRODUCTION DISPLAY BOARD

14. ALL TYPES OF COUNTERS TO ALL APPLICATIONS
4] THUMB WHEEL SETTING PRESET COUNTERS
MODEL NO: TWS-1400M TWS-
-2500M MPC-2412 MECHANICAL COUNTERS
SIZE : 96X96 72X72
CUTOUT : 92X92 68X68
SUPPLY : ---------- 230 VAC , 50 HZ -----------------------------
INPUT : PNP /NPN PROXIMITY /LIMIT SWITCH , PULSE
RANGE : 2,3,4,5 & 6 DIGIT --- 2,3,4,5 DIGITS
DIGITS--- 4 DIGIT
NO.OF SET POINTS : SINGLE SET ------- 2 / 3 SET
OUTPUT : ------ 1 RELAY ---------------------------- EACH SET 1 RELAY
MEMORY : NON VOLATILE MEMORY
RESET : AUTO / MANUAL FRONT KEY & BACK TERMINNEL RESET.
5] PROGRAMMABLE PRESET COUNTERS
MODEL NO : PC-1044 PC-2044
PC PC-444 PC-1006
1006 PC -2006
SIZE : 96X96 72X72 48X48 96X96 72X72
CUTOUT : 92X92 68X68 44X44 92X92 68X68
SUPPLY :------------------------ 90---
---270 V AC /DC , SMPS ---------------------------------------
INPUT : PNP/NPN PROXIMITY SWITCH , LIMIT/MICRO SWITCH , AC/DC PULSES ,ENCODER
RANGE : 4+4 4+4 4+4 6 6
SET POINTS : --------------- 1/2/3 -------------------------------------------
OUTPUT : ------------------ EACH SET 1 RELAY -----------------------------------------
MEMORY : NON VOLATILE MEMORY
RESET : AUTO / MANUAL FRONT KEY & BACK TERMINNEL
OPTIONAL : CUSTOM BUILT ANY TYPES OF LOGICS & COMMUNICATION RS 485 MODBUS RTU
NOTE : 1] WE GIVE ALSO ALL PRODUCTS IN BIG DISPLAY 1 INCH TO 12 INCH
2] ANY TYPE – ANY QUANTITY ---- PRODUCTION DISPLAY BOARD

15. ALL TYPES OF COUNTERS TO ALL APPLICATIONS
6] PROGRAMMABLE BATCH COUNTERS
MODEL NO : BC-1046 BC-2046 BC-445
445 MPC 5356 2 INCH DISPLAY
SIZE : 96X96 72X72 48X48
CUTOUT : 92X92 68 X68 44X44
SUPPLY : ---- 230 V AC , 50 HZ ----- --- 90-270 V AC/DC--- --- 230 V AC , 50 HZ—
INPUT : PNP/NPN PROXIMITY SWITCH , LIMIT/MICRO SWITCH , AC/DC PULSES ,ENCODER
RANGE : 6+4 6+4 5+4 5+4
SET POINTS : --------------- 1/2 -------------------------------------------
OUTPUT : ------------------ EACH SET 1 RELAY -----------------------------------------
MEMORY : NON VOLATILE MEMORY
RESET : AUTO / MANUAL FRONT KEY & BACK TERMINNEL
OPTIONAL :CUSTOM BUILT ANY TYPES OF LOGICS & COMMUNICATION RS 485 MODBUS RTU
7] PROGRAMMABLE LENGTH COUNTER + MPM / RPM
MODEL NO: LC-1046 LC-2046 LC-445 LC-3006
3006 MPC 5062
SIZE : 96X96 72X72 48X48 48X96
CUTOUT : 92X92 68 X68 44X44 44X92
SUPPLY : ---- ----- --- 90
90-270 V AC/DC --- ----------------------- 230 V AC , 50 HZ—
INPUT : PNP/NPN PROXIMITY SWITCH , LIMIT/MICRO SWITCH , AC/DC PULSES ,ENCODER
RANGE : 6+4 6+4 5+4 6 5+4
SET POINTS : --------------- 1/2 -------------------------------------------
OUTPUT : ------------------ EACH SET 1 RELAY -----------------------------------------
MEMORY : NON VOLATILE MEMORY
RESET : AUTO / MANUAL FRONT KEY & BACK TERMINNEL
OPTIONAL : CUSTOM BUILT ANY TYPES OF LOGICS & COMMUNICATION RS 485 MODBUS RTU

16. ALL TYPES OF COUNTERS TO ALL APPLICATIONS
8 ] RUNNING MIN / HOUR & LAST MIN / HOUR PRODUCTION COUNTER
MODEL NO : RHLHC-1046 RHLHC2046 RHLHC-445 RHLHC 5356 2 INCH
SIZE : 96X96 72X72 48X48
CUTOUT : 92X92 68 X68 44X44
SUPPLY : ---- 230 V AC , 50 HZ ----- --- 90-270 V AC/DC--- --- 230 V AC , 50 HZ—
INPUT : PNP/NPN PROXIMITY SWITCH , LIMIT/MICRO SWITCH , AC/DC PULSES ,ENCODER
RANGE 4+4 4+4 5+4 5+4
MEMORY : NON VOLATILE MEMORY OPTIONAL
TIME : MINUTE / HOUR SELECTABLE
OPTIONAL : CUSTOM BUILT ANY TYPES OF LOGICS & COMMUNICATION RS 485 MODBUS RTU
9] PRESS TOTAL STROKE & SHIFT
SHIFT/DAY STROKE COUNTER WITH BOTH HAND SAFETY LOGIC
MODEL NO: PSBHLC-1046 PSBHLC -2046 PSBHLC -445
445 PSBHLC -5062
SIZE : 96X96 72X72 48X48
CUTOUT : 92X92 68 X68 44X44
SUPPLY : ---- ----- --- 90
90-270 V AC/DC --- ----------------------- 230 V AC , 50 HZ—
INPUT : BOTH HAND PUSH BUTTON
RANGE : 6+4
+4 6+4 5+4
+4 5+4
SET POINTS : --------------- 1/2 -------------------------------------------
OUTPUT : ------------------ EACH SET 1 RELAY -----------------------------------------
MEMORY : NON VOLATILE MEMORY
RESET : Front key reset for shift stroke & Back terminal / pass word reset for total stroke
OPTIONAL : CUSTOM BUILT ANY TYPES OF LOGICS & COMMUNICATION RS 485 MODBUS RTU
10 ] RUNNING MIN / HOUR & LAST MIN / HOUR PRODUCTION COUNTER WITH TOTAL
RUN M/H & LAST M/H COUNTER
TOTAL PRODUCTION COUNTER
Supply:24 vdc ,110 /230 vac , Input:PNP /NPN PROXIMITY / LIMIT SWITCH / PULSE WIH MEMORY BACK UP
Facility : 1] Key lock reset to total production 2] MIN / HOUR Selectable
OPTIONAL : CUSTOM BUILT ANY TYPES OF LOGICS & COMMUNICATION RS 485 MODBUS RTU

17. ALL TYPES OF PRODUCTION DISPLAY BOARDS
Pl.specify for quotation / in P.O : 1] Supply Voltage 2] Inputs 3] Range [ no.of digit ] in each display
4] Display size in inch [ 2,4,6,8,10,12 inch] 5] Any logics / Communications

18. SIGNAL ISOLATOR / CONVERTER
MI-63
SUPPLY : 24 VDC , 110 /230 VAC OR 90-270 AC/DC VAC
INPUT : All types of Temperature sensors , AC/DC Voltage / Current , mV ,Resistance ,Load cell ,Frequency
OUTPUT : DC Voltage / Current , Frequency [ 2,5,10 kHz , 24 vdc ]
SIZE : DIN RAIL & PANEL MOUNTING [ DIGITAL]
Available Models : 1] Single input—
—Single Output 2] Single input --- Dual output 3] Single input – 3/4 output
. 4] Dual input --- Dual output 5] 5 channel Buffer Amplifier ---- 5 Input --- 5 Output
6] 5 Channel Adder Amplifier --- 5
hannel
PROGRAMMABLE DIGITAL SIGNAL ISOLATORS & CONVERTORS WITH SET POINTS
SIZE : Din Rail 48x48 48x96 72x72 96x96
CUTOUT : --------- 48X48 44X92 68X68 92X92
Supply : 24 AC / DC , 110 / 230 VAC , 50 HZ
INPUT : AC/DC-Voltage, Current mV,m A ,Frequency ,speed, temperature sensors, Load cell
Voltage, temp
OUTPUT : Voltage & current , Relays 1,2,3,4 with set points
STD & NON STD FIX & VARIABLE POWER SUPPLY [SMPS]
Supply: 110 or 230 v ac, 50 Hz,
Output:1] 0-30 VDC , 1 , 2, 3 ,5, 10,20,30,50& 60 Amp 2] 0-60 VDC , 1 , 2 ,5, 10 & 20 .
30 60
3] 0—300 VDC, 100 m Amp, 300 m Amp & 1 Amp.
300
Variable Power Supply SMPS D.C. MOTOR DRIVES
1] Siemens 2] Omron 3] Allen Bradley 4] Textronics 5] Mean Well 6] Autonics 7] NHP 8] Delta makes

19. DIGITAL STD & NON STD PANEL METERS
1] SINGLE PHASE VOLT & AMP METER --TRUE RMS THREE PHASE VOLT & AMP METER
MODEL NO : AVM-31 AVM-21 AVM-11 VOLT-13 & AMP-13
SIZE : 48X96 72X72 96X96 96X96 96X96
CUTOUT : 44X92 68X68 92X92 92X92 92X92
SUPPLY : ------------ 230 VAC, 50 HZ ---------------- 90-270 AC/DC SMPS ------------------
INPUT :------ Through CT / Shunt ------------------------- 3Phase -4Wire, 230 v ac[L-N] , 3P – 3 wire [P-P]
RANGE : VOLTAGE AC : 1] 0-750 V AC ------------ 3 DIGIT VOLT- 0750 & AMP---999 A CT
DC : 2] 0-1000 V DC ----------- AUTO / MANUAL SCROLL ING SELECTABLE
CURRENT AC : 1] 0-20 AMP Direct & Through CT 0-1999 AMP
DC :0-20 A Direct & Through shunt 0-1999 AMP
2] SINGLE PHASE & THREE PHASE VOLTAGE , CURRENT, FREQUENCE METER [VAF MTR]
MODEL NO : AVF-11 AVF-31 AVF-1 AVF 39
SIZE : 96X96 48X96 96X96 48x96
92X92 44X92 92X92 44x92
SUPPLY : 1P -230 VAC 90 to 270 v ac 50 /60 hz
INPUT : 1Phase & ct 3 Phase - 4 Wire, 230V AC (L-N),/ 3 Phases 3 Wire, 415V AC (P-P) & 0-5A
RANGE : 3 Line 3 Digit , 1 line 3 Digit -------- 3 Line 3 Digit 1 line 3 Digit ----
DISPLAY : 0.56 INCH , 0.8 INCH ---------- 0.56 INCH , 0.8 INCH -----------
FEATURES : 1] True RMS Measurement of Voltage & Current ,2] Auto scrolling or Manual mode selectable
3] Auto decimal shifting 4] Brighter Red Seven Segment LED display for better readability 5] CT Ratio selectable up to 4500/5 A
PARAMETERS : Volt – 300V , Current -0-999 -- Phase to Phase voltage ,Phase Current , Average Voltage , Current & Frequency
Frequency - 45 to 65 Hz
ACCURACY : --------------------------------------------------- Class 1 -------------------------------------------------
2] SINGLE PHASE & THREE PHASE VOLTAGE & CURRENT CONTROLLERS
MODEL: VCSP - UV&OVC VCSP - UV&OVC VCSP- UL,UV&OL,OVC VCSP- UL&OLC
SIZE : DIN RAIL 96X96 96X96 96X96
Cutout : 92X92 92X92 92X92
SUPPLY: 1P 230V AC & 3 Phase 415 VAC, 50 Hz (R,Y,B &N) (No auxiliary supply)
Output Contacts : Two changeover ( C-NO),Rating 5A at 230VAC
Voltage trip setting : Lower Limit is 340 for Under voltage (Resolution of 1 Volt)
: Upper Limit is 460 Volts for OV (resolution of 1 V)( Hysteresis between cut off & cut in is 10V)
Trip Time delay : Trip time Less than 100msec.for SPP, Reverse Phasing & Over Voltage
Trip Time is settable for Under Voltage & Unbalance
ON Delay : Selectable by keys from 1 to 60 sec. Reset Mode: Auto reset
Indications : SPP ,OVER VOLTAGE , UNDER VOLTAGE : RED LED & RELAY ON : GREEN LED
Keys : [SET ] FUNCTION key, To select a set point function.
[ / ] INC key, To increment set point. [ / ] DEC key, To Decrement set point.

20. THREE PHASE ENERGY & POWER METER
1] THREE PHASE ENERGY METER
Energy & Power Meter Energy Meter
MODEL NO : EPM--13 EM –13
SIZE : 96X96 96X96
CUTOUT : 92X92 92X92
DISPLAY : Upper: RED, 4-Digit, 0.56" For KW 6-Digit LCD, 0.3"
Lower: RED, 6-Digit, 0.4" For KWh
SUPPLY : ------------------------------- 230 VAC, 50HZ ----------------------------------
INPUT : 3 Ph 4W, 230V AC (L-N),/ 3 Ph 3W, 415V AC (P-P) & 0-5A
PARAMETER : --- 1) KW (active power) ---------------------------- KWh (active energy
2) KWh (active energy
CT SELECTION :---CT Selectable (5/5 to 2008/5 A) ------------------ 1) Fixed CT 2) CT Selectable (5/5 to 2008/5 A) --
RESOLUTION : --- 1) 1 Watt to 1 KW (Auto Decimal Shifting) ------- 0.1 KWh or1 KWh (Factory Set) ------------
2) 0.001 KWH to 1 KWH (Auto Decimal Shifting
FACILITIES : ----- 1) Auto decimal shifting in KW and KWh.----------- 1) R,Y,B Reverse Phase Indication
2) Reverse phase indication on display. 2) KWh Reset Facility (optional)
3) KWh reset facility
ACCURACY : Class 1
1] SINGLE PHASE & THREE PHASE POWER ANALYZER
MODEL NO : PM-11H TPA – 13 L AVH – 13
SINGLE PHASE --------------- THREE PHASE ---------------------------
SIZE : -------------------------------------- 96X96 -------------------------------------------------
CUTOUT : 92X92
DISPLAY: 3 Line , 4 Digit + 4 Digit + 4 Digit Seven Segment Display, 0.56”
SUPPLY : ---------------- 90-270V AC/DC, SMPS -------------------------------------------------
INPUT : ------- Single Phase --------- 3 Phase --- 4 Wire, 230V AC(L-N) / 3 Phase --- 3 Wire, 415V AC (P-P), 0-5A -------
PARAMETERS: --- Volt. Phase –Neutral ---- Volt. Phase –Neutral ---- Volt. Phase –Neutral ----
------------------------- --- Voltage Phase –Phase ------ Voltage Phase –Phase ------
---- Phase Current --- Per Phase Current --------- Per Phase Current -------
------- KW [ Active Power ] ----- KW Total & Per Phase ----------- KW Total-------------------
---------- KVA [ Apparent Power ] ------ KVA [ Apparent Power ] ------------ KVA [ Apparent Power ] --------
------------- KWh [ Active Energy ] ------------- KWh [ Active Energy ] ----- KWh [ Active Energy ] ---------
--------- Power Factor ------------ Power Factor per Phase & Average --- Power Factor Average --------
Frequency ------------ FREQUENCY -----------------
---------------------------- ----------- KVAr [ Reactive Power ] ----------- ------------- --------------------
FEATURES : ------------ True RMS Measurement of Voltage & Current. -------------------------
Auto scrolling or manual mode selectable & Auto Decimal Shifting for current [ 0.1 to 0.01 A]
CT ratio programmable (up to 4000/5 A) , Auto decimal shifting
Brighter Amber Seven segment LED display for better readability
Indication for Parameters , KWh Reset Facility

21. POWER FACTOR , WATT & FREQUENCY METER
1] TRUE RMS POWER FACTOR METERS
MODEL NO : PF -11 - 1 PHASE PF- 13 -3 PHASE
SIZE : 96X96 96X96
CUTOUT : 92X92 92X92
SUPPLY : -------------------------- 90----270 V AC/DC ----------------------------------------
RANGE : --------------------------- 4 DIGIT --------------------------------------------------------
INPUT : Single Phase ,230 V AC , 5 AMP --- 3 Phase – 4 Wire , 230 V AC [ L-N] ,
3 Phase – 3 Phase , 415 V AC [ P-P]
ACCURACY : ---------------------------------- Class 1 --------------------------------------------------------
2 ] TRUE RMS SINGLE PHASE WATT METER AND FREQUENCY METERS
MODEL NO : WM-11 FRQ- 11
SIZE : 96X96 96X96
CUTOUT : 92X92 92X92
SUPPLY : -------------------------- 230 V AC , 50 HZ ----------------------------------------
RANGE : --------------------------- 4 DIGIT --------------------------------------------------------
INPUT : Single Phase ,230 V AC [ L-N ] , 50 HZ , CT Ratio Selectable 5 to 500/ 5 AMP
PARAMETERS : WATT ----------------------------------------- FREQUENCY
ACCURACY : ---------------------------------- 1% of FSD --------------------------------------------------------
3] Three Phase True RMS Ampere, Volt & Frequency Meter
AVF 39 AVF‐19,
‐
Model No’s for Voltage – Volt-19 , Current – Amp-19 & AVF – AVF-39 & AVF-19
Display : 3Line 3Digit 7Segnment LED Display
Size : 96 X 96 X 75 mm (Cutout: 92 X 92)
CT Ratio : Selectable from Front Key
Display Scroll : Auto Manual Selection form Front Key
Auxiliary Supply : 230VAC, 50Hz
Accuracy : 1%

22. THREE PHASE POWER ANALYSER WITH MODBUS
AVH - 13 With Mod Bus
MODEL NO : AVH – 13
SIZE : 96X96
CUTOUT : 92X92
SUPPLY : 90-270V AC/DC, SMPS
INPUT : 3 Phase 4 Wire , 230V AC(L-N) / 3 Phase 3 Wire , 415V AC(P-P) & 0-5A CT Selectable
DISPLAY : 4 Digit + 4 Digit + 4 Digit Seven segment display, 0.56
DISPLAY PARAMETERS : 1] KW TOTAL , 2] KWh , 3] P.F. Average , 4] Voltage Phase- Neutral ,
5] Voltage Phase- Phase 6] Current Per Phase , 7] Frequency , 8] KVA (Apparent Power) Total
FEATURES : 1] True RMS , 2] CT Ratio Programmable (up to 4000/5 Amp)
3] Brighter Amber Seven Segment LED Display for better readability
4] LED indication for Parameters , 5] Auto Scrolling or Manual Mode selectable
Communication : RS-485,Modbus (RTU) Protocol Support
Accuracy : Class 1

23. WINDOWS BASE / ALARM ANNOUNCIATORS
Application Areas:
Thermal power stations and sub-stations of Electricity Boards, Steel Plants, Sugar Industries, Cement and Chemical
stations
Industries, A.C. Plants, Process Plants, Forging industries , Foundries , Heat Treatment Plants, Hotels, Fire Alarm Systems
and in telephone exchange as Audio-Visual panels etc
Visual
Standard sizes of window base / Alarm Announciators
No. Of Window Window Placement Cutout Dimension Bezel Dimension
WXH Depth
Placement Row x Column WXH
4 2X2 92X92 96X96 160
4 2X2 125X92 135X102 160
6 1X6 285X65 305X78 160
6 2X3 172X92 180X102 160
8 1X8 365X65 388X78 160
8 2X4 212X92 220X102 160
9 3X3 172X138 190X155 160
10 2X5 247X92 265X105 160
12 2X6 285X92 313X112 160
12 3X4 212X138 220X155 160
16 2X8 360X92 395X114 160
16 4X4 225X175 244X194 160
18 3X6 278X138 300X155 160
20 4X5 258X190 280X210 160
24 3X8 375X145 390X160 160
24 4X6 280X190 300X210 160
30 5X6 278X220 300X240 160
32 4X8 375X185 390X200 160
36 6X6 278X260 300X280 160
40 5X8 375X220 390X240 160
48 6X8 375X265 390X280 160
(With in - built hooter)
4 2x2 190x92 210x112 160
6 2x3 275x92 303x112 180
Please Specify For Quotation Or in Purchase order : 1] Supply Voltage 2 ] No. of Windows

24. ALL TYPES OF CONTROL PANELS & AUTOMATION PROJECTS
PLC BASE PANEL DRIVE BASE LOGICAL CONTROL PANEL HEATER CONT. PANEL
CONT
ISOLATION CONTROL TRANSFORMER DRIVES [ VFD ] Braking Resistor PLC M/C status Lamps
SOLID STATE RELAY [SSR] , RELAY & SSR CARDS
SINGLE PHASE THREE PHASE RELAY CARDS SSR CARDS
Please Specify for Quotation or in order :
1] Single / Three phase 2] Input supply 3 ] Output supply 4] Rating
]
SIGNAL TOWER LAMPS & SIREN
TOWER LAMPS REVOLVING LAMPS SIRENS

25. SPECIAL PURPOSE COUNTING & MEASUREMENT
TBC-1047 MMC-2046 MMC-1044
MMC MPC-2412 MPC-5356
5356 MPC
MPC-5474
1] TBC - 1047 - Tablet Counter (Pharmaceutical) : Application - Pharmaceutical Tabulating Machines
2] MMC -2046 -Time Totalizer Cum RPM Indicator : Application- Fire & Safety Vehicle
Application
3]MMC - 1044 - DRO (Displacement Readout For Machine Tools) : Displacement measurement & control
4 ] MPC - 2412 - Three Set Point Presetable by thumb wheel Counter : 72x144x120
Presetable
LABORATORY APPLICATIONS
a] MTC - 1202 - BOD (Bacteria Oxygen Demand) Controller
b] MTC - 1202 - COD (Chemical Oxygen Demand) Controller
5] MCC - 4012 - Current Controller For Refrigeration
6] MTC - 1202 - Cold Room Controller with Defrost Facility
7] SEQUENTIAL PROCESS INDICATOR CONTROLLERS
5] MSI - 1044 - Stretch Ratio Indicator (Textile) : Application - To indicate Ratio of RPM or MPM in Textile Machinery
6] MPC - 5356 - Batch Counter (Section Warping Machine) : Display-1 Indicates Ratio of RPM/MPM , Display-2
1 Display
Indicates RPM/MPM of one of the two channels
7] MPC - 5356 - Length & Speed Indicator : Bigger Display for visibility from distance , 5 Digits indication of Length (Meters)
4 Digits indication of Speed (Meters/Min) , Relay’s O/P for process control , Front/back reset facility
PACKAGING IND
INDUSTRY
FSC-1006 WP-1006
1006 System Forward & Reverse controller
FSC - 1006 - Fill
Fill-Seal Controller (Packaging ]
SUPPLY : Pl.specify Input : PNP / NPN Proximity switch Selectable
RANGE : Fill Time : 0.01 to 9.99 sec Seal Time : 0.01 to 9.99 sec
OUTPUT : 2 Relay + Buzzer output or 2SSR+ Buzzer
Features : Fill time & Seal Time settable by front key pad & no. Of count settable
OTHER PRODUCTS:
1] VOLTAGE MONITORING RELAY VMR 4 (SINGLE PHASE SPP)
RELAY-
2] Three Phase Voltage Monitoring Relay - VMR 3P 3] Voltage Frequency Monitoring Relay (VFR 3P)
4] Voltage Monitoring Relay 5] DUAL AC CONTROLLERS 6] 2 AC CONTROLLER WITH TCPIP PORT
7] 2-8 AC CONTROLLERS 8] 2-6 AC CONTROLLER [TIME TEMPERATURE]
6 9] TAP POSITION INDICATOR
