Kraiburg Relastec produces protective mats made from recycled rubber for structural protection of buildings, including KRAITEC top mats for flat roofs, KRAITEC protect heavy-duty mats, and KRAITEC step slabs for terraces; the mats and slabs provide insulation, drainage, load distribution, and protection against physical damage for waterproofing systems and pavements.

1. STRUCTURAL PROTECTION
protective mats
made from recycled rubber
for field-proven protection
against physical damage

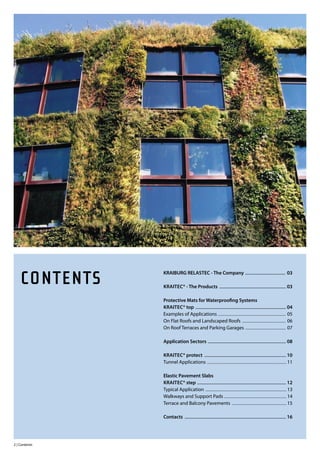

2. CONTENTS
KRAIBURG RELASTEC - The Company ............................................. 03
KRAITEC® - The Products ........................................................................... 03
Protective Mats for Waterproofing Systems
KRAITEC® top ...................................................................................................... 04
Examples of Applications ....................................................................................... 05
On Flat Roofs and Landscaped Roofs ........................................................ 06
On Roof Terraces and Parking Garages .................................................... 07
Application Sectors ........................................................................................ 08
KRAITEC® protect ............................................................................................ 10
Tunnel Applications ...................................................................................................... 11
Elastic Pavement Slabs
KRAITEC® step .................................................................................................... 12
Typical Application ........................................................................................................ 13
Walkways and Support Pads ................................................................................ 14
Terrace and Balcony Pavements ...................................................................... 15
Contacts .................................................................................................................. 16
2 | Contents

3. Gummiwerk KRAIBURG RELASTEC GmbH is a medium-sized company with production works in Salzwedel, a historic Hanseatic
city in the Altmark region of Saxony-Anhalt/Germany. We are a member of the KRAIBURG Group, an organization rich in
tradition with over 1700 employees worldwide and an annual sales volume of approx. € 330 million.
We are an internationally recognized manufacturer of ready-to-install products for structural protection (KRAITEC®), impact
protection (EUROFLEX®), sports floors (SPORTEC®) and impact sound reduction (DAMTEC®) and are acknowledged as a market
leader in these sectors.
Refined continuously by further development, our field-proven products and expertise benefit a wide range of users including
system providers, specialist distributors, building supply distributors and retailers, municipalities, playground equipment
manufacturers and suppliers, planning engineers and architects.
Our products are manufactured by proprietary environment-friendly processes utilizing upwards of 90% recycled raw materials.
STRUCTURAL PROTECTION
Protective Mats made from Recycled Rubber
KRAITEC top, protect and step are elastic products with outstanding resiliency for reliable service under heavy loads. They are made
from high-quality recycled rubber granulate complying with exacting specifications.
and
KRAITEC top and protect are used in buildings and structural systems (flat and green roofs, roof terraces, balconies, tunnel systems,
parking garages, etc.) wherever high-quality insulation or waterproofing requires secure physical protection, i.e. in areas subjected
to physical stressing.
KRAITEC step slabs are an ideal elastic pavement for terraces and balconies as well as access and maintenance walkways on flat
roofs of all types. Their convenient connector pin system makes installation fast and easy. They are available in a wide variety of
colours which can be mixed and matched for eye-pleasing aesthetic design.
Structural Protection | 3

4. VERSATILE AND EFFECTIVE
KRAITEC top is the versatile and effective protection mat for
classical applications on flat roofs and building structures.
Leading waterproofing manufacturers and installers worldwide
work with this field-proven product. Its outstanding technical
properties, high compressive strength and remarkable
application versatility make it the preferred protection mat
for all classical flat roof systems. KRAITEC top is easy to install,
highly cost-effective, durable, extremely rugged and can be
walked on immediately after installation. Whether used as
temporary protection for work over easily damaged membranes
or as a permanent component in flat roof systems, this classic
product is at home over waterproofing systems worldwide.
Due to these and other benefits, KRAITEC top is the
largest-selling structural protection mat in the KRAIBURG
RELASTEC portfolio.
Technical Data
Material: Technical-grade recycled rubber granulate,
polyurethane-bonded
Colour: black with multicoloured speckles
Surface: grain-textured
Density: approx. 900 kg/m³
Dimensions:
Mats: 1,000 x 2,000 mm und 1,150 x 2,300 mm
Roll-form: width 1,250 mm
(Roll-form length dependent on material thickness)
Tolerances:
Length and width: ± 1.5 %
Thickness: 6, 8, 10 ± 0.6 mm · 12, 15, 18, 20 ± 1 mm
Additional thicknesses and sizes available on request.
Test Data:
Tensile strength: approx. 0.3 N/mm² (DIN 53571)
Elongation at break: approx. 40 % (DIN 53571)
Puncture resistance: SIA 280 tested
Deformation under 10 % at approx. 40 t/m²
traffic load: 20 % at approx. 90 t/m²
(test method based on DIN EN
ISO 3386-2)
Coefficient of thermal approx. 10 x 10-5 / °C
expansion: (test method based on DIN EN 13471)
Fire resistance: B2 (DIN 4102 Part1)
Thermal resistance: stable from -30° C to +80° C
Chemical resistance: conditionally resistant to acids
and bases
Environmental resistance: Environment-friendly, rot-resistant,
must be protected from constant
exposure to UV radiation
4|

5. Applications | 5

6. – on Flat Roofs:
KRAITEC top is the optimum protection mat for flat roofs
supporting foot traffic or heavy objects.
It is often used under gravel-topped roofs to prevent damage
to the waterproofing by sharp or abrasive aggregates or by
subsequent maintenance work.
Gravel covering layer
structural protection mat
Waterproofing
Thermal insulation
Vapour control layer
Substructure
– on Landscaped Roofs:
KRAITEC top is used as a highly rugged and durable separator
layer on landscaped roofs supporting foot traffic and auxiliary
structures (e.g. over parking garages or green roofs). It protects
the waterproofing system below against damage due to
compressive loading.
Vegetation
Topsoil
Soil
Geotextile mat
Drainage layer
Root-proof membrane
structural protection mat
Slip sheet, 2-layer composite
Waterproofing
Substructure
6 | Examples of Applications

7. – on Roof Terraces:
KRAITEC top plays an important part in construction of above-roof
systems such as roof terraces. Installed directly below the terrace
surfacing (e.g. concrete slabs or wood planking), it protects the
waterproofing and roof below against puncture and other damage
under high loads. In addition it serves as an equalizing and sound
insulating layer.
Pavement slabs
Support layer, e.g. gravel
structural protection mat
Slip sheet, 2-layer composite
Waterproofing
Thermal insulation
Vapour control layer
Substructure
– in Parking Garages:
KRAITEC top enhances design safety when used as a
component in waterproofed surfaces in urban parking facilities.
Installed under the pavement, the protective mats increase
the permissible load rating for vehicle traffic and improve the
overall safety of the structural system.
Concrete pavement
2-layer PE composite sheet
structural protection mat
Waterproofing, 2-layer composite
Substructure
Examples of Applications |7

8. APPLICATION
SECTORS
Protection
Insulation
Drainage
Load Distribution
8 | Structural Protection

9. Application Sectors | 9

10. KRAITEC protect is the heavy-duty protective sheet for
extreme applications and structural loads. It is a premium
product made from selected materials complying with strict
specifications. Due to its high volume weight, KRAITEC
protect does not require weighing down prior to installation
as do geotextiles. Made to exacting quality standards,
KRAITEC protect is extremely rugged and is the optimum
solution wherever highest physical demands must be met.
HEAVY-DUTY
PROTECTION
Technical Data
Material:
polyurethane-bonded recycled premium-grade rubber granulate.
Colour: multicoloured
Surface: grain-textured
Density: approx. 1,050 kg/m³
Dimensions:
Mats: 1,000 x 2,000 mm und 1,150 x 2,300 mm
Roll-form: width 1,250 mm
(Roll-form length dependent on material thickness)
Tolerances:
Length and width: ± 1.5 %
Thickness: 3, 4, 5, 6, 8, 10 ± 0.6 mm
Additional thicknesses and sizes available on request.
Test Data:
Tensile strength: approx. 0.8 N/mm² (DIN 53571)
Elongation at break: approx. 125 % (DIN 53571)
Tear resistance: approx. 3.4 N/mm (DIN 53507)
Puncture resistance: SIA 280 tested
Deformation under 10 % at approx. 38 t/m²
traffic load: 50 % at approx. 460 t/m²
(test method based on DIN EN
ISO 3386-2)
Coefficient of thermal approx. 10 x 10-⁵ / °C
expansion: (test method based on DIN EN 13471)
Fire resistance: B2 (DIN 4102 Part1)
Thermal resistance: stable from -30° C bis +80° C
Chemical resistance: conditionally resistant to acids
and bases
Environmental resistance: Environment-friendly, rot-resistant,
must be protected from constant
exposure to UV radiation
10 |

11. – in Tunnel Systems:
KRAITEC protect has outstanding physical properties
which make it ideal for use over waterproofing subjected
to extreme compressive loads or dumping of gravel or soil.
It has excellent puncture resistance and can take rough
treatment of all kinds without damage. KRAITEC protect
provides outstanding protection over waterproofed surfaces
in tunnels whether horizontal or vertical.
Vegetation
Soil
structural protection mat
Tunnel waterproofing
Concrete shell
Applications | 11

12. VERSATILE
PROTECTION
KRAITEC step slabs are available in a variety of colours bitumenous liners. Installation on plastic liners is done using
originating from the binding agent colour used in the KRAITEC step plus which includes a geotextile laminate on its
manufacturing process. lower surface.
This colour assortment opens up a broad range of aesthetic KRAITEC step safe incorporates upper-surface safety texturing
design possibilities. But even when installed in single-colour for applications requiring improved footing. KRAITEC step safe
surfaces, KRAITEC step slabs provide visually appealing and plus, with both upper-surface safety texturing and a lower-
stylish pavements for terraces and balconies. The slabs are surface geotextile laminate, rounds out the KRAITEC step
installed directly over flat compacted subsurfaces. programme.
Easy-to-use connector pins join the slabs together when Both safety-textured versions are approved for use in areas with
installed. increased slipping hazards (anti-slip rating R 10).
Drainage channels on the lower slab surface permit secure Whether grey, black, green or red in colour, these rugged slabs
water drainage below the slabs whether they are glued in place can be used as support pads under solar power units or other
or only interconnected. heavy objects on roofs and are also used as walkway slabs on
KRAITEC step can be conveniently installed directly over flat and green roofs.
Standard colours
12 |

13. Technical Data
Material: Test Data:
polyurethane-bonded recycled tire granulate Fire resistance: B2 (DIN 4102)
Colour: red, green, grey, black Cold fracture resistance: 24 h/- 40° C, no fracture
(minor colour variations possible) Cold crack resistance: 5 h/- 30° C, no cracks
Surface: grain-textured Deformation under 10 % at approx. 20 t/m²
Lower side: smooth with drainage channels traffic load: 20 % at approx. 40 t/m²
Geotextile mat: Polyester geotextile mat, 300 g/m² (test method based on DIN EN
Other data: plastic connector pins included, premounted, ISO 3386-2)
4 per slab Chemical resistance: conditionally resistant to acids
and bases
Tolerances: Length and width ± 1.5 %, Environmental resistance: Environment-friendly,
Thickness ± 1mm rot-resistant
Dimensions: 500 x 500 x 30 mm
Additional thicknesses available on request.
Weight: approx. 20,8 kg/m², approx. 5,2 kg/slab
Applications, Technical Data | 13

14. – Walkway Slabs:
Flat roofs are often subjected to foot traffic, e.g. for
maintenance or other work procedures. Installed directly
over the waterproofing, KRAITEC step and step plus
walkways ideally protect the roof against physical damage.
The slabs are easy to install due to their integrated connector
pins and can be walked on immediately after installation.
plus walkway slabs
Connector pin
Waterproofing
Thermal insulation
Vapour control layer
Substructure
– Support Pads:
These dense and sturdy slabs provide an ideal solution for
support pads under heavy structures located on roofs such
as solar power units, air conditioning units, satellite antenna
dishes, etc.
Solar power unit
support pad
Connector pin
Waterproofing
Thermal insulation
Vapour control layer
Substructure
14 | Examples of Applications

15. – Terrace Pavements:
Installation of KRAITEC step is done by hand without need
for tools, covering large areas quickly and easily.
The connector pin system and installation in a masonry-style
configuration ensure stable and secure placement. KRAITEC
step provides an optimum terrace pavement over level,
paved subsurfaces.
The available palette of colours permits personalized design
and diverse solutions providing attractive, eye-pleasing
surfaces.
terrace paving slabs
Connector pin
Waterproofing
Thermal insulation
Vapour control layer
Substructure
– Balcony Pavements:
When installed on small areas such as balconies, KRAITEC step
can be installed in a checkerboard-style configuration if desired.
Here as well, the selection of colours permits eye-pleasing design
combinations. Along with the cushioning effect inherent to
elastic surfacing, KRAITEC step offers additional benefits: it can
be installed quickly even in tight spaces, is easy to trim to
required sizes and can be walked on immediately after
installation.
balcony paving slabs
Connector pin
Waterproofing
Thermal insulation
Vapour control layer
Substructure
Examples of Applications | 15

16. Gummiwerk KRAIBURG RELASTEC GmbH
Fuchsberger Straße 4 · D - 29 410 Salzwedel
Internet www.kraiburg-relastec.com
Sales
Germany:
Telephone +49-(0) 8683 -701-167
Fax +49-(0) 8683 -701- 4167
E-Mail kraitec@kraiburg-relastec.com
International:
Telephone +49-(0) 8683 -701-285
Fax +49-(0) 8683 -701- 4 285
E-Mail kraitec@kraiburg-relastec.com
© Gummiwerk KRAIBURG RELASTEC GmbH 2006
Layout makrohaus, Bad Reichenhall
www.photocase.com: page 2, 4, 5 (2x), 8
Print Lippl, Tittmoning
