RDS and Terraform allow managing relational databases on AWS. While RDS defaults and parameter changes can be difficult to manage with Terraform alone, it is highly recommended because Terraform brings abstraction and infrastructure as code benefits. Modules can help organize RDS configuration but may introduce complexity. Overall, Terraform is effective for managing RDS instances and parameters despite some challenges with defaults and replacements.

1. Terraforming RDS

2. ● What are RDS and Terraform?
● Why does managing RDS with
Terraform suck?
● Why do I highly recommend
managing RDS with
Terraform?

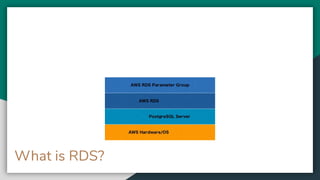

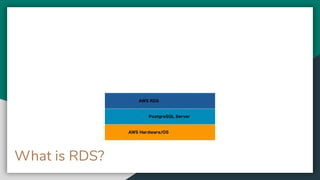

3. What is RDS?

4. What is RDS?

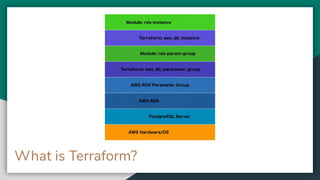

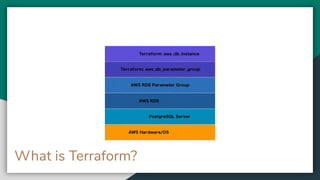

5. What is Terraform?

6. What is Terraform?

7. Abstraction

8. Abstraction

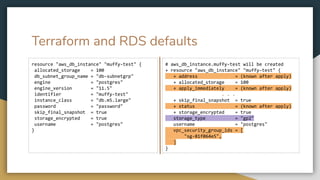

9. Terraform and RDS defaults
resource "aws_db_instance" "muffy-test" {
allocated_storage = 100
db_subnet_group_name = "db-subnetgrp"
engine = "postgres"
engine_version = "11.5"
identifier = "muffy-test"
instance_class = "db.m5.large"
password = "password"
skip_final_snapshot = true
storage_encrypted = true
username = "postgres"
}
# aws_db_instance.muffy-test will be created
+ resource "aws_db_instance" "muffy-test" {
+ address = (known after apply)
+ allocated_storage = 100
+ apply_immediately = (known after apply)
. . .
+ skip_final_snapshot = true
+ status = (known after apply)
+ storage_encrypted = true
storage_type = "gp2"
username = "postgres"
vpc_security_group_ids = [
"sg-81f064e5",
]
}

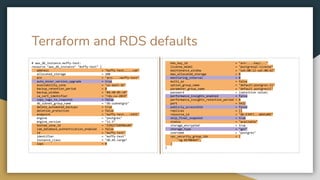

10. Terraform and RDS defaults
# aws_db_instance.muffy-test:
resource "aws_db_instance" "muffy-test" {
address = "muffy-test.....com"
allocated_storage = 100
arn = "arn:...:muffy-test"
auto_minor_version_upgrade = true
availability_zone = "us-east-1b"
backup_retention_period = 0
backup_window = "04:40-05:10"
ca_cert_identifier = "rds-ca-2019"
copy_tags_to_snapshot = false
db_subnet_group_name = "db-subnetgrp"
delete_automated_backups = true
deletion_protection = false
endpoint = "muffy-test...:5432"
engine = "postgres"
engine_version = "11.5"
hosted_zone_id = "Z2R2ITUGPM61AM"
iam_database_authentication_enabled = false
id = "muffy-test"
identifier = "muffy-test"
instance_class = "db.m5.large"
iops = 0
kms_key_id = "arn:...:key/..."
license_model = "postgresql-license"
maintenance_window = "sat:08:12-sat:08:42"
max_allocated_storage = 0
monitoring_interval = 0
multi_az = false
option_group_name = "default:postgres-11"
parameter_group_name = "default.postgres11"
password = (sensitive value)
performance_insights_enabled = false
performance_insights_retention_period = 0
port = 5432
publicly_accessible = false
replicas = []
resource_id = "db-EJHF7...W6VLWRE"
skip_final_snapshot = true
status = "available"
storage_encrypted = true
storage_type = "gp2"
username = "postgres"
vpc_security_group_ids = [
"sg-81f064e5",
]
}

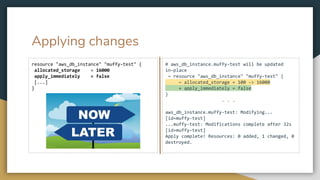

11. Applying changes
resource "aws_db_instance" "muffy-test" {
allocated_storage = 16000
apply_immediately = false
[...]
}
# aws_db_instance.muffy-test will be updated
in-place
~ resource "aws_db_instance" "muffy-test" {
~ allocated_storage = 100 -> 16000
+ apply_immediately = false
}
. . .
aws_db_instance.muffy-test: Modifying...
[id=muffy-test]
...muffy-test: Modifications complete after 32s
[id=muffy-test]
Apply complete! Resources: 0 added, 1 changed, 0
destroyed.

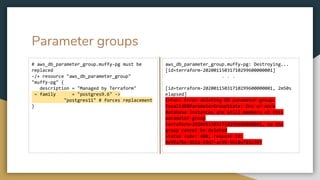

12. Parameter groups
# aws_db_parameter_group.muffy-pg must be
replaced
-/+ resource "aws_db_parameter_group"
"muffy-pg" {
description = "Managed by Terraform"
~ family = "postgres9.6" ->
"postgres11" # forces replacement
}
aws_db_parameter_group.muffy-pg: Destroying...
[id=terraform-20200115031710299600000001]
. . .
[id=terraform-20200115031710299600000001, 2m50s
elapsed]
Error: Error deleting DB parameter group:
InvalidDBParameterGroupState: One or more
database instances are still members of this
parameter group
terraform-20200115031710299600000001, so the
group cannot be deleted
status code: 400, request id:
0e99a7be-4b2d-43d7-ac96-5b18af81c307

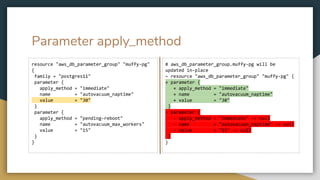

13. Parameter apply_method
resource "aws_db_parameter_group" "muffy-pg"
{
family = "postgres11"
parameter {
apply_method = "immediate"
name = "autovacuum_naptime"
value = "30"
}
parameter {
apply_method = "pending-reboot"
name = "autovacuum_max_workers"
value = "15"
}
}
# aws_db_parameter_group.muffy-pg will be
updated in-place
~ resource "aws_db_parameter_group" "muffy-pg" {
+ parameter {
+ apply_method = "immediate"
+ name = "autovacuum_naptime"
+ value = "30"
}
- parameter {
- apply_method = "immediate" -> null
- name = "autovacuum_naptime" -> null
- value = "15" -> null
}
}

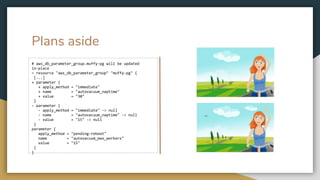

14. Plans aside
# aws_db_parameter_group.muffy-pg will be updated
in-place
~ resource "aws_db_parameter_group" "muffy-pg" {
[...]
+ parameter {
+ apply_method = "immediate"
+ name = "autovacuum_naptime"
+ value = "30"
}
- parameter {
- apply_method = "immediate" -> null
- name = "autovacuum_naptime" -> null
- value = "15" -> null
}
parameter {
apply_method = "pending-reboot"
name = "autovacuum_max_workers"
value = "15"
}
}

15. A real pain

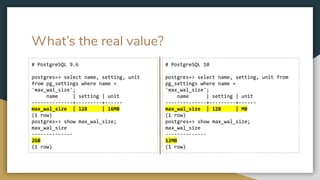

16. What’s the real value?
# PostgreSQL 9.6
postgres=> select name, setting, unit
from pg_settings where name =
'max_wal_size';
name | setting | unit
--------------+---------+------
max_wal_size | 128 | 16MB
(1 row)
postgres=> show max_wal_size;
max_wal_size
--------------
2GB
(1 row)
# PostgreSQL 10
postgres=> select name, setting, unit from
pg_settings where name =
'max_wal_size';
name | setting | unit
--------------+---------+------
max_wal_size | 128 | MB
(1 row)
postgres=> show max_wal_size;
max_wal_size
--------------
12MB
(1 row)

17. Modules: Good or evil?

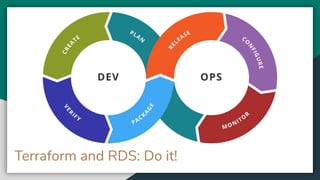

18. Terraform and RDS: Do it!

19. Muffy Barkocy
muffybarkocy@gmail.com
twitter.com/muffyb
